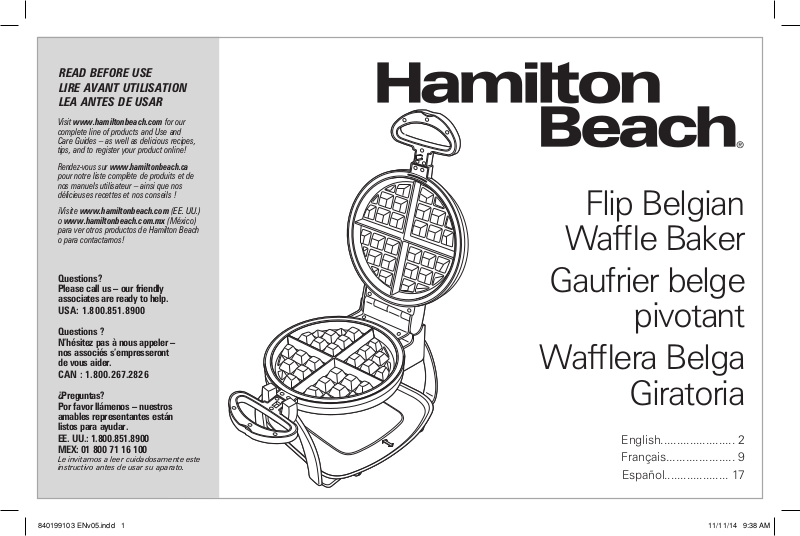

READ BEFORE USE
LIRE AVANT UTILISATION
LEA ANTES DE USAR
Visit www.hamiltonbeach.com for our
complete line of products and Use and
Care Guides – as well as delicious recipes,
tips, and to register your product online!
Rendez-vous sur www.hamiltonbeach.ca
pour notre liste complète de produits et de
nos manuels utilisateur – ainsi que nos
délicieuses recettes et nos conseils !
¡Visite www.hamiltonbeach.com (
o
www.hamiltonbeach.com.mx (México)
para ver otros productos de Hamilton Beach
o para contactarnos!
Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900
Questions ?
N’hésitez pas à nous appeler –
nos associés s’empresseront
de vous aider.
CAN : 1.800.267.2826
EE. UU.)
Flip Belgian
Waffle Baker
Gaufrier belge
pivotant
Wafflera Belga
¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
EE. UU.: 1.800.851.8900
MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.
840199103 ENv05.indd 1 11/11/14 9:38 AM
Giratoria
English
Français
Español.................... 17
.......................
.....................
2
9
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to
persons, including the following:
1. Read all instructions.
2. This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental capabilities,
or lack of experience and knowledge, unless they are closely
supervised and instructed concerning use of the appliance by a
person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or
near children. Children should be supervised to ensure that they
do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs.
5. To protect against risk of electrical shock, do not immerse cord,
plug, or any part of the appliance in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow
to cool before putting on or taking off parts and before cleaning.
7. Do not operate any appliance with a damaged cord or plug,
or after the appliance malfunctions or has been dropped or
damaged in any manner. Call our toll-free customer service
number for information on examination, repair, or adjustment.
8. The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch
hot surfaces, including the stove.
11. Do not place on or near a hot gas or electric burner, or in a
heated oven.
12. Extreme caution must be used when moving an appliance
containing hot oil or other hot liquids.
13. Do not use appliance for other than intended use.
14. Do not use appliance unattended.
15. During use, provide 4 to 6 inches air space above, behind, and
on both sides for air circulation.
16. Never remove the waffle with any kind of cutting device or other
metallic kitchen utensil.
17. Always allow the appliance to cool before putting it away, and
never wrap the cord around the appliance while it is still hot.
SAVE THESE INSTRUCTIONS!
Other Consumer Safety Information
This product is intended for household use only.
w WARNING
with either a polarized (one wide blade) or grounded (3-prong) plug
to reduce the risk of electric shock. The plug fits only one way into a
polarized or grounded outlet. Do not defeat the safety purpose of the
plug by modifying the plug in any way or by using an adapter. If the
plug does not fit fully into the outlet, reverse the plug. If it still does
not fit, have an electrician replace the outlet.
2
Electrical Shock Hazard: This product is provided
The length of the cord used on this appliance was selected to reduce
the hazards of becoming tangled in or tripping over a longer cord.
If a longer cord is necessary, an approved extension cord may be
used. The electrical rating of the extension cord must be equal to
or greater than the rating of the appliance. If the appliance is of the
grounding type, the extension cord should be a grounding-type,
3-wire cord. Care must be taken to arrange the extension cord so
that it will not drape over the countertop or tabletop where it can be
pulled on by children or accidentally tripped over.
To avoid an electrical circuit overload, do not use another highwattage appliance on the same circuit with this appliance.
840199103 ENv05.indd 2 11/11/14 9:38 AM
Parts and Features
Cool-Touch
Easy-Flip Handle
Cover
Waffle Grids
Browning Control Dial/
Red Power ON Light/
Green READY Light
(located on top of cover)
Red
Power ON
Light
Green
READY
Light
Browning Control Dial
Green READY Light
(located underneath
waffle baker)
Green READY Light
(located underneath
waffle baker)
Drip Tray
840199103 ENv05.indd 3 11/11/14 9:38 AM
The red Power ON light comes on when the appliance is first
plugged in. This light will stay on until the unit is unplugged.
The green READY lights come on when the appliance has
reached the desired temperature. For best results, wait until
green READY lights come on before adding waffle batter.
These lights will cycle on and off during baking and are not
an indication that the waffle is ready.
3
How to Use
BEFORE FIRST USE: Wipe the bottom and top cooking grids with a soapy, damp cloth.
Rinse cloth; then wipe grids again. Wipe or brush waffle grids with vegetable oil. This is only
recommended before first use. Waffle browning will improve with each subsequent batch.
1 2 3
Plug cord into electrical outlet.
The red POWER ON light will
glow.
TIP: A small amount of nonstick
cooking spray can be used on the
grids before preheating.
5 6
4
840199103 ENv05.indd 4 11/11/14 9:39 AM
Choose desired browning control
setting (MIN–3) and preheat with
cover closed until the green
READY lights come on.
Using an oven mitt, turn handle
counterclockwise and open
cover. Remove waffle with plastic
or wooden utensil. Never use
metal. This will damage the
nonstick coating of the appliance.
Unplug unit when through
cooking. Let cool.
w WARNING
Always use an oven mitt to
protect hand when opening a hot
waffle baker. Escaping steam can
burn.
Burn Hazard.
Raise cover and pour about 1/2
cup (118 ml) of batter into center
of the grids, allowing batter to
spread for even filling; then
lower lid. Be careful not to pour
too much batter onto grids, as
they may overflow.
4
Turn handle clockwise to flip
waffle baker and lock into place
within 10 seconds of closing
cover.
Waffles are done in about 3–6
minutes, depending on the
setting, recipe, when the green
READY lights come on, or when
steaming begins to stop. Cook
time may be less as multiple
batches are made.
Care and Cleaning
1
Unplug unit and allow to cool.
2
Wipe cooking grids and outside
of unit with a damp, soapy cloth.
Rinse cloth and wipe grids again.
Do not use steel wool, scouring
pads, or abrasive cleansers on
any part of the unit. Never use
sharp or pointed objects for
cleaning purposes.
w WARNING
Disconnect power before cleaning. Do not immerse
cord, plug, or base in any liquid.
Electrical Shock Hazard.
DISHWASHER-SAFE
TOP RACK ONLY
DO NOT use the “SANI” setting
when washing in the dishwasher.
“SANI” cycle temperatures could
damage your product. Parts may
also be washed with hot, soapy
water. Rinse and dry thoroughly.
Do not soak.
3
For storing: Allow the appliance
to cool down completely. Lock
the lid by rotating the handle.
5
840199103 ENv05.indd 5 11/11/14 9:39 AM
Waffle-Making Tips
• To make your family a quick, hot breakfast, use any of the waffle
mixes currently available on the market.
• Save additional time in the morning by preparing waffle batter the
night before and refrigerating it. Make sure waffle batter reaches
room temperature before use. Using fresh batter results in fluffier
waffles.
• Use a cooking spray before pouring batter into the grids, especially
for dessert waffles or recipes with a lot of sugar.
• If your waffles start to stick, the grids may need to be scrubbed with
a nylon brush to remove any cooked-on food particles.
• If using nuts in waffle batter, use chopped nuts and/or evenly
spread batter to allow lid to fully close.
• Waffles can be made ahead of time and kept warm in a 200ºF
(93ºC) oven.
• Most waffles are done in about 5 minutes, depending on the setting
selected. Some of the recipes which are made from scratch may
take a little longer. Check for doneness at about 5 minutes. If the
cover of the waffle baker doesn’t lift up easily, then let the waffle
cook a minute more before checking again. Another indicator that
the waffle is done is when the steaming stops.
• To store, let waffles cool and pack in an airtight container; store in
refrigerator or freezer for reheating later.
• Reheat in a microwave oven, a toaster oven, or a regular oven.
6
840199103 ENv05.indd 6 11/11/14 9:39 AM
Notes
7
840199103 ENv05.indd 7 11/11/14 9:39 AM
Limited Warranty
This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and
is in lieu of any other warranty or condition.
This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original
purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair
or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs
associated with returning the product to us and our returning a product or component under this warranty to you. If the product or
component is no longer available, we will replace with a similar one of equal or greater value.
This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to
the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or
gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the
product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the
rating label (e.g., 120V ~ 60 Hz).
We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All
liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition
of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such
warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have
other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or
special, incidental, or consequential damages, so the foregoing limitations may not apply to you.
To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada
or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers
on your appliance.
