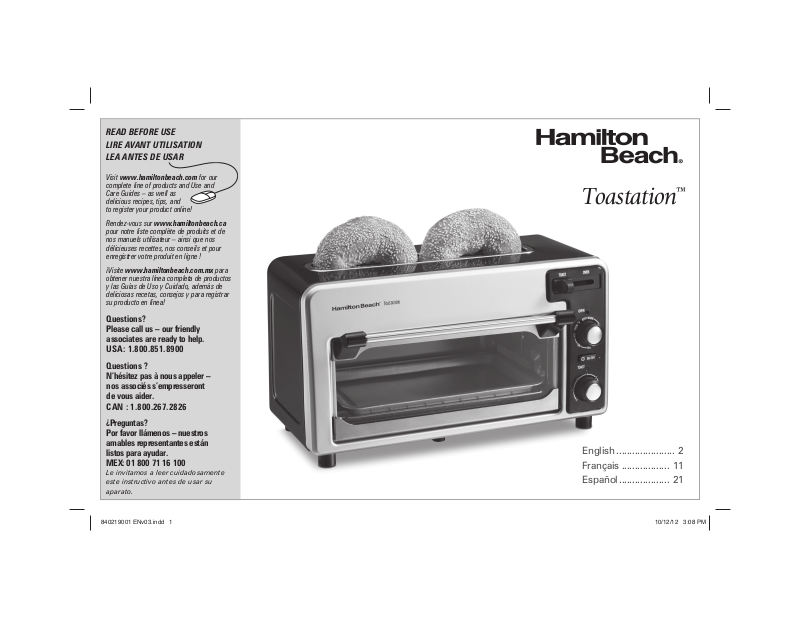

Hamilton Beach 22720 User Manual
READ BEFORE USE
LIRE AVANT UTILISATION
LEA ANTES DE USAR
Visit www.hamiltonbeach.com for our
complete line of products and Use and
Care Guides – as well as
delicious recipes, tips, and
to register your product online!
Rendez-vous sur www.hamiltonbeach.ca
pour notre liste complète de produits et de
nos manuels utilisateur – ainsi que nos
délicieuses recettes, nos conseils et pour
enregistrer votre produit en ligne !
¡Visite www.hamiltonbeach.com.mx para
obtener nuestra línea completa de productos
y las Guías de Uso y Cuidado, además de
deliciosas recetas, consejos y para registrar
su producto en línea!
Questions?
Please call us – our friendly
associates are ready to help.
USA: 1.800.851.8900
Questions ?
N’hésitez pas à nous appeler –
nos associés s’empresseront
de vous aider.
CAN : 1.800.267.2826
¿Preguntas?
Por favor llámenos – nuestros
amables representantes están
listos para ayudar.
MEX: 01 800 71 16 100
Le invitamos a leer cuidadosamente
este instructivo antes de usar su
aparato.
Toastation
English ...................... 2
Français .................. 11
Español ................... 21
™
840219001 ENv03.indd 1840219001 ENv03.indd 1 10/12/12 3:08 PM10/12/12 3:08 PM
wWARNING
Fire Hazard.
• Do not operate while unattended.
• Do not use in toaster mode with food that has been spread with butter, jelly, frosting, etc.
• Do not use in toaster mode with rice cakes, fried foods, frozen prepared foods, or nonbread items.
• Do not use in toaster mode with toaster pastries. Always cook toaster pastries in a toaster oven broiler.
• Do not cover or use near curtains, walls, cabinets, paper or plastic products, cloth towels, etc.
• Closely supervise when used by or near children.
• Always unplug Toastation
Failure to follow these instructions can result in death or fire.
™
when not in use.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to
persons, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plug,
or toaster oven in water or other liquid.
4. Close supervision is necessary when any appliance is used by
or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to
cool before cleaning appliance and putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or
after the appliance malfunctions or is dropped or damaged in
any manner. Call our toll-free customer service number for
information on examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the
appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot
surfaces, including the stove.
10. Do not place on or near a hot gas or electric burner, or in a
heated oven.
11. To disconnect, turn all controls to OFF; then remove plug from
wall outlet.
12. Use extreme caution when removing tray or disposing of hot
grease.
13. Do not clean with metal scouring pads. Pieces can break off the
pad and touch electrical parts, creating a risk of electrical shock.
14. Oversize foods or metal utensils must not be inserted in a toaster
oven as they may create a fire or risk of electric shock.
2
840219001 ENv03.indd 2840219001 ENv03.indd 2 10/12/12 3:08 PM10/12/12 3:08 PM
15. A fire may occur if the toaster oven is covered, touching or near
flammable material, including curtains, draperies, walls, and the
like, when in operation. Do not store any item on top of the
appliance when in operation.
16. Extreme caution should be exercised when using containers
constructed of other than metal or glass.
17. Do not store any materials, other than appliance manufacturer
recommended accessories, in this oven when not in use.
18. Do not place any of the following materials in the oven: paper,
cardboard, plastic, and the like.
19. Do not cover crumb tray or any part of the oven with metal foil.
This will cause overheating of the oven.
20. To turn the oven off, press the ON/OFF button. To stop a toast cycle,
press the ON/OFF button or lift up on the bread lifter.
SAVE THESE INSTRUCTIONS!
Other Consumer Safety Information
This appliance is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug
(one wide blade) that reduces the risk of electric shock. The plug
fits only one way into a polarized outlet. Do not defeat the safety
purpose of the plug by modifying the plug in any way or by using
an adapter. If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit, have an electrician replace the outlet.
The length of the cord used on this appliance was selected to
reduce the hazards of becoming tangled in or tripping over a longer
cord. If a longer cord is necessary, an approved extension cord may
be used. The electrical rating of the extension cord must be equal
to or greater than the rating of the appliance. Care must be taken to
arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally
tripped over.
21. Do not place eyes or face in close proximity with tempered safety
glass door in the event that the safety glass breaks.
22. Do not use appliance for other than intended use.
23 . Before using this appliance, move it 2 to 4 inches away from wall
or any object on the countertop. Remove any object that may
have been placed on top of the appliance. Do not use on surfaces
where heat may cause a problem.
24. If plug gets hot, please call a qualified electrician.
25. The oven door is not a shelf. Do not place anything on the door.
26. Use extreme caution when extending loaded rack or adding food
to extended rack.
This appliance is equipped with a fully tempered safety glass door.
The tempered glass is four times stronger than ordinary glass and
more resistant to breakage. Tempered glass can break, however it
breaks into pieces with no sharp edges. Care must be taken to avoid
scratching door surface or nicking edges. If the door has a scratch or
nick, call our toll-free customer service number.
When heavy foods are on the oven rack, do not pull the oven rack
out more than halfway. To baste or check for doneness, remove food
from the oven and place on heat-resistant countertop surface or trivet.
Do not place bake pan directly on heat shields that protect lower
heating elements.
To avoid an electrical circuit overload, do not operate another
high-wattage appliance on the same circuit with the appliance.
3
840219001 ENv03.indd 3840219001 ENv03.indd 3 10/12/12 3:08 PM10/12/12 3:08 PM
Parts and Features
BEFORE FIRST USE: Select Oven Mode; set on 450°F (230°C). Heat for
15 minutes without food. Most heating appliances produce an odor and/or
smoke when used the first time. This is normal for this type of appliance and
should not be present after this initial preheating.
Bread Slot
Oven Rack
Drop-Down
Crumb Tray
Baking Pan
4
Toast Shade Selector
Mode Selector
Oven Light (green)
(Illuminates when oven
is on.)
Bread Lifter
Oven Temperature Knob
Power Light (red)
(Flashes when oven mode is initially
selected. Illuminates when ON/OFF
button is pressed to start oven.
Illuminates when bread lifter is pushed
down to start toaster.)
Toast Light (green)
(Illuminates when toaster is on.)
840219001 ENv03.indd 4840219001 ENv03.indd 4 10/12/12 3:08 PM10/12/12 3:08 PM
w WARNING
Toast Mode
NOTE: The bread lifter will not latch down unless the toaster is plugged in.
Fire Hazard.
• If contents ignite, do not open oven door.
Unplug oven and allow contents to stop
burning and cool before opening door.
• Do not leave appliance unattended when
in operation.
• Always unplug toaster oven when not
in use.
1
5
Red power light and green toast
indicator light will illuminate.
840219001 ENv03.indd 5840219001 ENv03.indd 5 10/12/12 3:08 PM10/12/12 3:08 PM
2
6
3
7
Press ON/OFF button to stop
toasting at any time.
Lighter Darker
4
8
5
Toast Mode (cont.)
FOOD
Regular bread
2–5 Toaster
English muffins 4 Toaster
Bagels 3–6 Toaster
Frozen bread or buns 4 Toaster
Frozen waffles 4 Toaster
Toaster pastries* N/A Oven/350ºF (180ºC)
(such as Pop Tarts®) for 2 minutes
Frozen prepared foods* N/A Oven/350ºF (180ºC)
(such as Toaster Strudel™ follow manufacturers’
or Hot Pockets
®
Pop Tarts is a registered trademark of the Kellogg Co.
™Toaster Strudel is a trademark of the Pillsbury Co.
®
Hot Pockets is a registered trademark of Nestlé
* Do not heat in toaster—use toaster oven portion of Toastation with Mode Selector set to oven
position. NEVER heat cracked, broken or warped pastries, and NEVER leave unattended.
®
) instructions
MODE/TEMP.SHADE SETTING
To remove food that becomes
lodged in food slots, disconnect
from outlet and allow toaster to
cool. Turn toaster upside down
and shake. Do not use fork or
other utensil that could damage
heating element or result in risk of
fire or electrical shock.
6
840219001 ENv03.indd 6840219001 ENv03.indd 6 10/12/12 3:08 PM10/12/12 3:08 PM
Oven Mode
NOTE: Wash baking pan before using.
w WARNING
Fire Hazard.
• Do not leave oven unattended during
operation.
• Keep one inch between food and
heating element.
• Do not use oven cooking bags.
• Do not heat foods in plastic containers.
• Follow food manufacturers’ instructions.
1
Make sure Mode Selector is in
“OVEN” position (slot closed).
Red power light will flash 6 times.
Toastation™ is intended to prepare foods most commonly cooked
in a toaster oven: appetizers, pizza, bagels, chicken nuggets, fries,
and toaster pastries. It was designed with these foods in mind.
• Most foods should be baked according to package or recipe
directions. Watch carefully and adjust time or temperature if needed.
• To reheat pizza, never place box in oven. Cook at 450ºF (230ºC)
for 3 minutes or until ready.
• For crisp crust pizza, cook frozen pizza directly on oven rack.
• For soft crust pizza, cook on baking pan.
• For baked potato, bake directly on oven rack at 400ºF (204ºC)
for 1 hour.
840219001 ENv03.indd 7840219001 ENv03.indd 7 10/12/12 3:08 PM10/12/12 3:08 PM
2 3 4
Select temperature.
Press ON/OFF button and let
preheat for 5 minutes. Red power
light and green oven light will
illuminate.
• For a homemade crust pizza (or any soft dough), cook pizza
on baking pan.
• To toast regular toaster pastry or frozen pastry, toast directly
on oven rack. If pastry has a glaze or frosting, use baking pan.
• When toasting, condensation may form on oven door. A toaster
oven is enclosed so moisture is slow to escape. After use,
wipe door to dry and make clean-up easier.
• Remove food immediately or heat remaining in toaster oven
will continue to bake and dry out your food.
When finished, press ON/OFF
button. Red power light will turn
off. Unplug unit after use. NOTE:
Oven turns off automatically after
2 hours.
7
w WARNING
Care and Cleaning
Your Toastation™ should be cleaned regularly for best performance and long life.
Regular cleaning will also reduce the risk of fire hazard.
Oven Rack
Electrical Shock Hazard.
Do not clean with metal scouring pads.
Pieces can break off pad and touch electrical
parts.
1 2
Unplug Toastation™ and allow to
cool.
Baking Pan
3
Pull tray down and out. Gently
shake crumbs out of tray and
wipe with a damp, clean cloth.
Push tray back and lock into
place.
NOTE: Crumb tray is not
removable.
4
To clean inside of oven, wipe oven
walls, bottom of oven, and glass
door with a damp, soapy cloth.
Repeat with a damp, clean cloth.
5
8
840219001 ENv03.indd 8840219001 ENv03.indd 8 10/12/12 3:08 PM10/12/12 3:08 PM
Troubleshooting
PROBLEM
Oven will not heat.
Moisture forms on inside of
oven door when toasting.
An odor and smoke comes
from oven.
Indicator light stays on.
Some foods burn and
some are not done.
PROBABLE CAUSE
• Check to make sure electrical outlet is working and the oven is plugged in. Ensure that ON/OFF
button has been pressed after setting desired temperature.
• Make sure Mode Selector is set to OVEN.
• Oven turns off automatically after 2 hours.
• This is normal when toasting in a toaster oven. Moisture is slower to escape from toaster oven
than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen
pastries.
• Smoke and odor are normal during the first use of most heating appliances. This will not be
present after the initial heating period.
• It is normal for the green indicator light to be illuminated when the unit is plugged in. If the red
indicator light stays on after the ON/OFF button is pressed to cancel toasting or baking, unplug
unit and call our toll-free customer service number for information on examination, repair, or
electrical or mechanical adjustment. Do not continue to use your toaster oven.
• Adjust oven temperature or cooking time for best results with your recipes.
9
840219001 ENv03.indd 9840219001 ENv03.indd 9 10/12/12 3:08 PM10/12/12 3:08 PM
Limited Warranty
This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this
product and is in lieu of any other warranty or condition.
This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of
original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found
to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our
returning a product or component under this warranty to you. If the product or component is no longer available, we will
replace with a similar one of equal or greater value.
This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage
to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer
purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This
warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform
other than as specified on the rating label (e.g., 120V ~ 60 Hz).
We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All
liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition
of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case
such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights.
You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on
implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.
To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in
Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and
series numbers on your appliance.
10
840219001 ENv03.indd 10840219001 ENv03.indd 10 10/12/12 3:08 PM10/12/12 3:08 PM
Loading...
