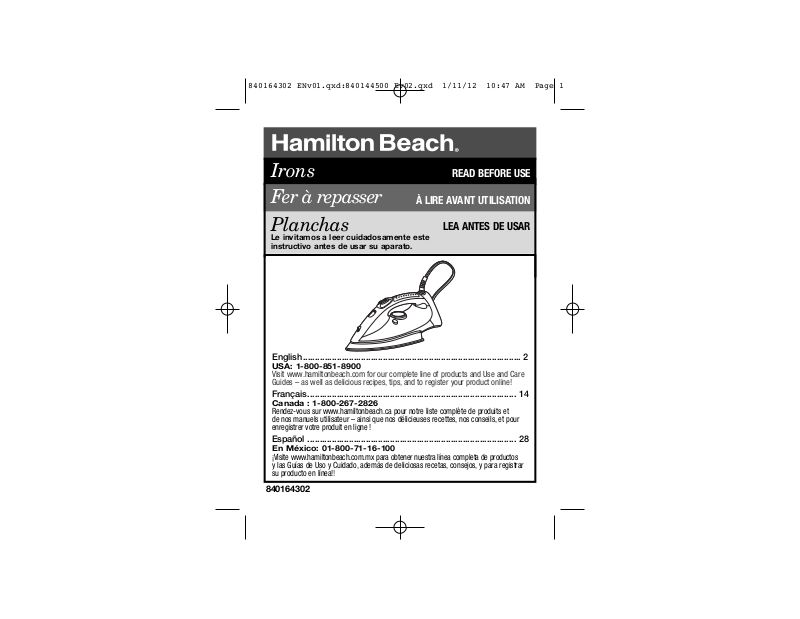

Hamilton Beach 22464 User Manual

English.......................................................................................... 2

USA: 1-800-851-8900

Visit www.hamiltonbeach.com for our complete line of products and Use and Care
Guides – as well as delicious recipes, tips, and to register your product online!

Français ...................................................................................... 14

Canada : 1-800-267-2826

Rendez-vous sur www.hamiltonbeach.ca pour notre liste complète de produits et
de nos manuels utilisateur – ainsi que nos délicieuses recettes, nos conseils, et pour
enregistrer votre produit en ligne !

Español ...................................................................................... 28

En México: 01-800-71-16-100

¡Visite www.hamiltonbeach.com.mx para obtener nuestra línea completa de productos
y las Guías de Uso y Cuidado, además de deliciosas recetas, consejos, y para registrar
su producto en línea!

!

Irons
Fer à repasser

Planchas

840164302

Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.

READ BEFORE USE

À LIRE AVANT UTILISATION

LEA ANTES DE USAR

840164302 ENv01.qxd:840144500 Ev02.qxd 1/11/12 10:47 AM Page 1

3

When using your flat iron, basic safety precautions should always be
followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Only use an iron for its intended use.

2. To avoid the risk of electric shock, do not immerse the iron in

water or other liquids.

3. Always turn the iron to OFF before plugging or unplugging

the iron from the electrical outlet. Never pull on the cord to
disconnect the iron from the electrical outlet; instead, grasp
the plug and pull on the plug to disconnect the iron.

4. Do not let the cord touch hot surfaces. Let the iron cool

completely before putting the iron away. Coil the cord loosely
around the iron when storing.

5. Always disconnect the iron from the electrical outlet before

filling the iron with water, emptying the water from the iron,
and when the iron is not in use.

6. Do not operate the iron with a damaged cord or in the event

the iron has been dropped or damaged or there are visible signs
of damage or it is leaking. To avoid the risk of electric shock, do
not disassemble the iron. Take it to a qualified serviceman for
examination and repair. Incorrect assembly might result in a
risk of electric shock when the iron is used after reassembly.

7. The iron must be used and rested on a stable surface.

8. When placing the iron on its stand, ensure that the surface

on which the stand is placed is stable.

9. Close supervision is required for any appliance used by or near

children. Do not leave the iron unattended while the iron is
connected or on an ironing board.

10. Burns can occur from touching hot metal parts, hot water, or

steam. Use caution when you turn a steam iron upside down—
there might be hot water in the reservoir.

IMPORTANT SAFEGUARDS

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.
WARNING! Shock Hazard: This appliance has a polarized plug (one

wide blade) that reduces the risk of electric shock. The plug fits only
one way into a polarized outlet. Do not defeat the safety purpose of
the plug by modifying the plug in any way or by using an adapter. If
the plug does not fit fully into the outlet, reverse the plug. If it still
does not fit, have an electrician replace the outlet.

• Use the iron on an ironing board. Ironing on any other surface may
damage that surface.

• Do not iron or vertical-steam clothes that are being worn.

• Do not use vertical steam in the direction of people or pets.

Please Read Before First Use:

• During first use of the iron, it may appear to smoke. This will stop
and does not indicate a defect or hazard.

• Many irons spit or sputter during the first few uses with tap water.
This happens as the steam chamber becomes conditioned. This
will stop after a few uses.

• To clean steam vents before first use, prepare iron for steam ironing
and then iron over an old cloth for a few minutes while letting the
iron steam. Press the Blast button several times to clean the
vents. Then follow the Self-Cleaning instructions on page 10.

2

11. To avoid a circuit overload, do not operate an iron on the same

circuit with another high-wattage appliance.

12. If an extension cord is absolutely necessary, a cord with an

ampere rating equal to or greater than the maximum rating of
the iron shall be used. A cord rated for less amperage can result
in a risk of fire or electric shock due to overheating. Care shall
be taken to arrange the cord so that it cannot be pulled or be
tripped over.

SAVE THESE INSTRUCTIONS

840164302 ENv01.qxd:840144500 Ev02.qxd 1/11/12 10:47 AM Page 2

5

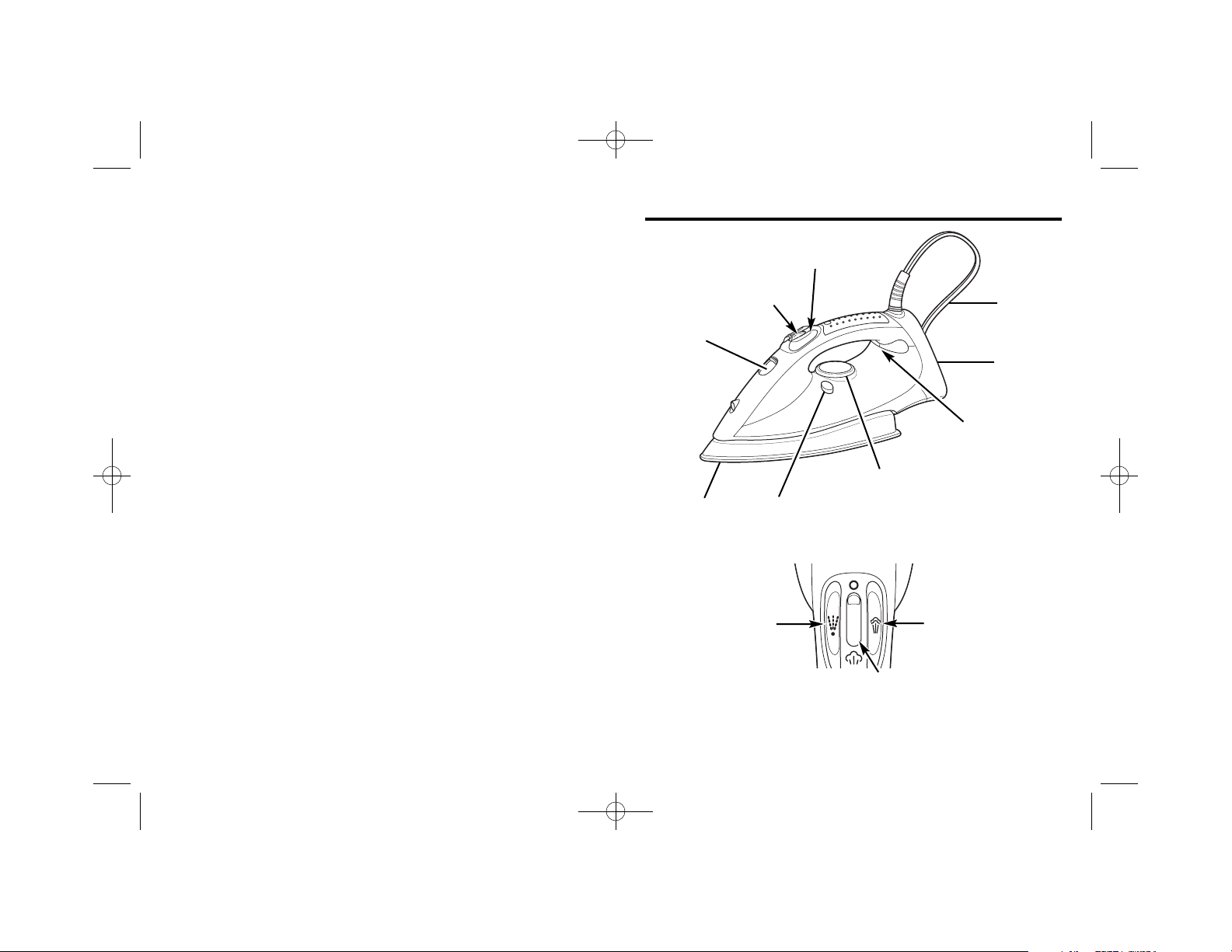

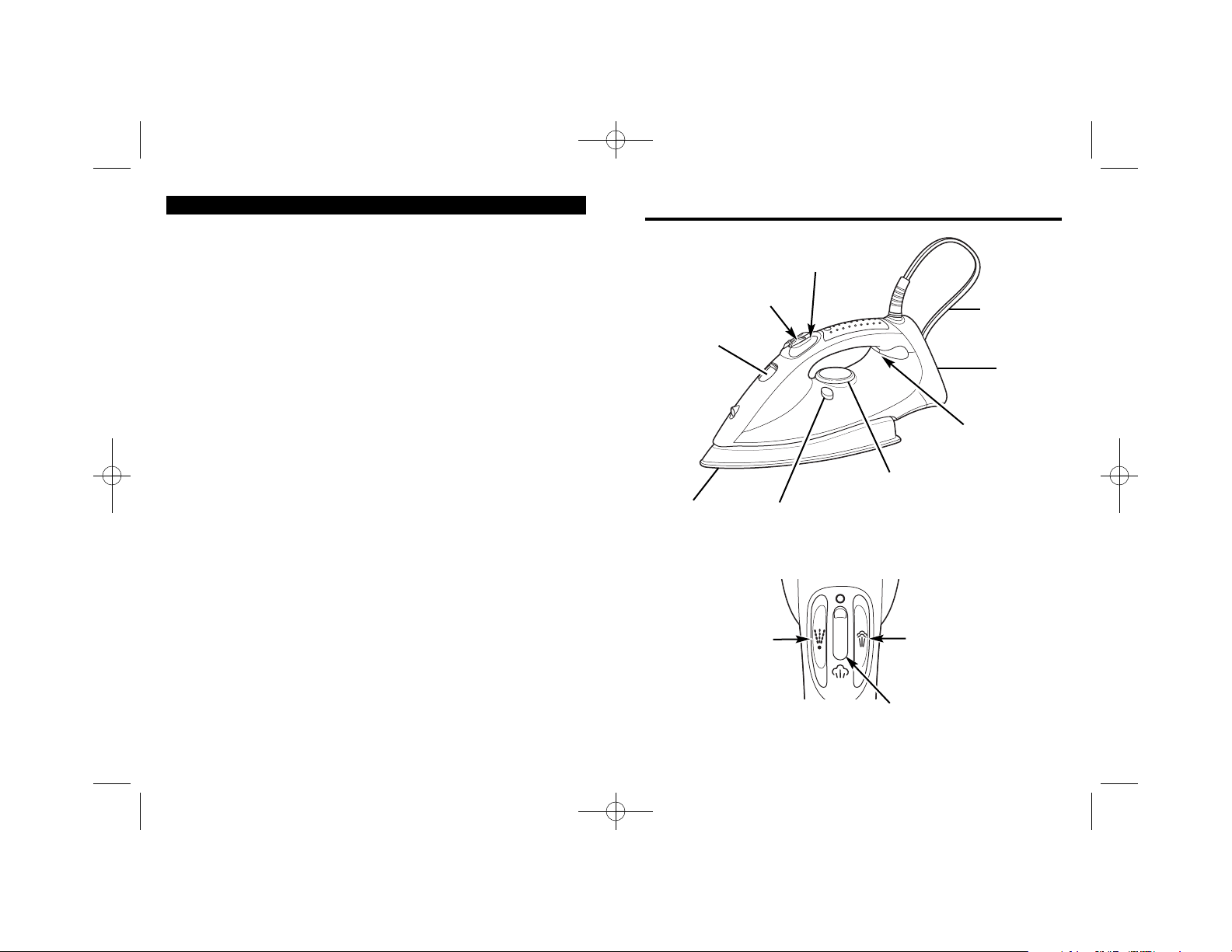

Parts and Features

Spray

Steam

4

Steam ON/OFF

Control

This iron is equipped with a position/motion sensor. This means
that if the iron is left motionless it will turn off automatically and
cool to room temperature.

To restart iron, simply move the iron and allow it to reheat on
the heel rest position.

The iron will reheat to the previously selected setting.

Sensor Control

Auto Shutoff Reset Light

After 30 seconds of no movement in the horizontal position,
the iron will automatically shut off and the green light will
blink. Move iron upright to vertical position to turn back on.

Water Fill
Cover

Steam
ON/OFF Control

Spray and Blast
Buttons

Self-Clean
Button

Swivel
Power
Cord

Heel
Rest

Temperature
Control Dial

Auto Shutoff
Reset Light
(GREEN)
and Power
ON Light
(RED)

Soleplate

IRON POSITION

Resting on soleplate

Resting on either side

Resting on heel

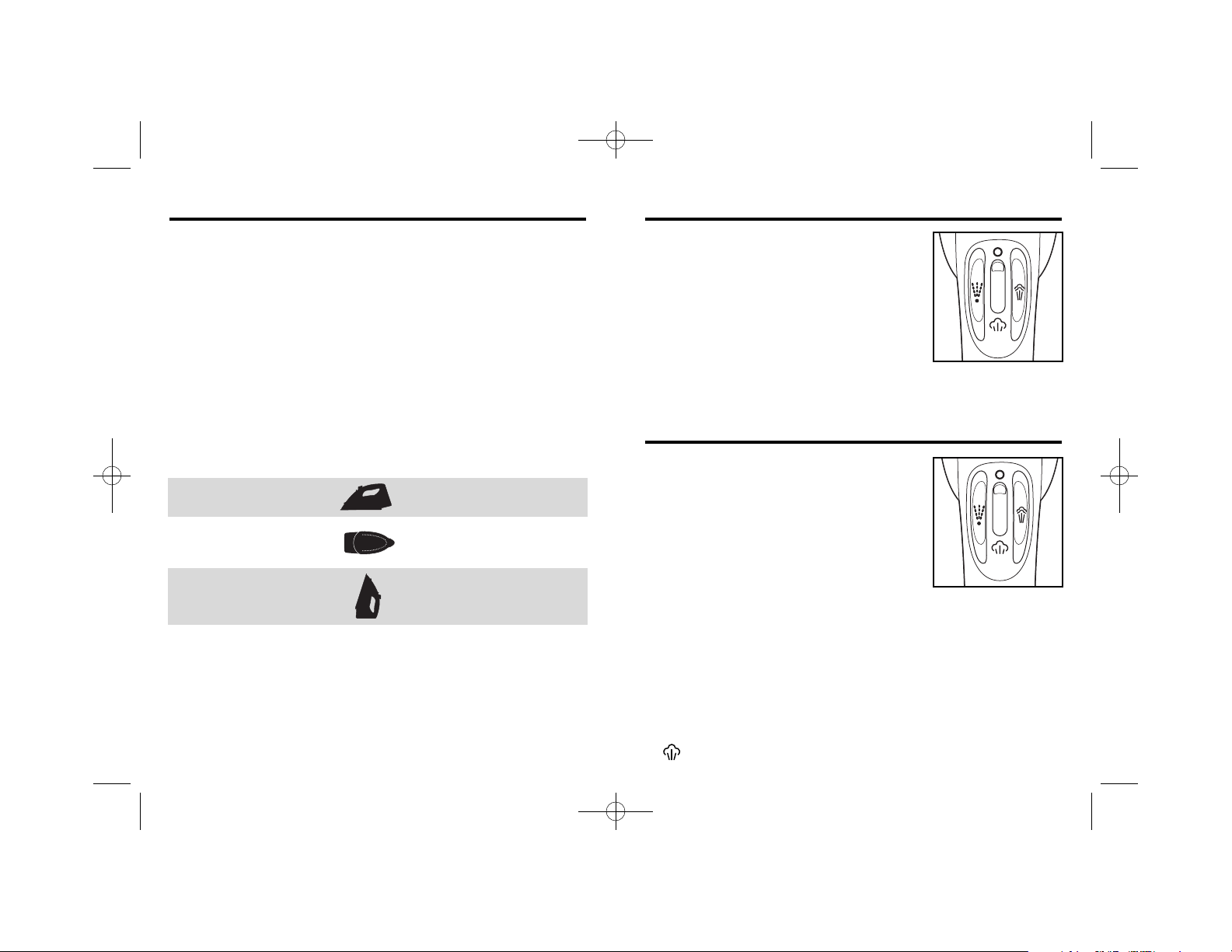

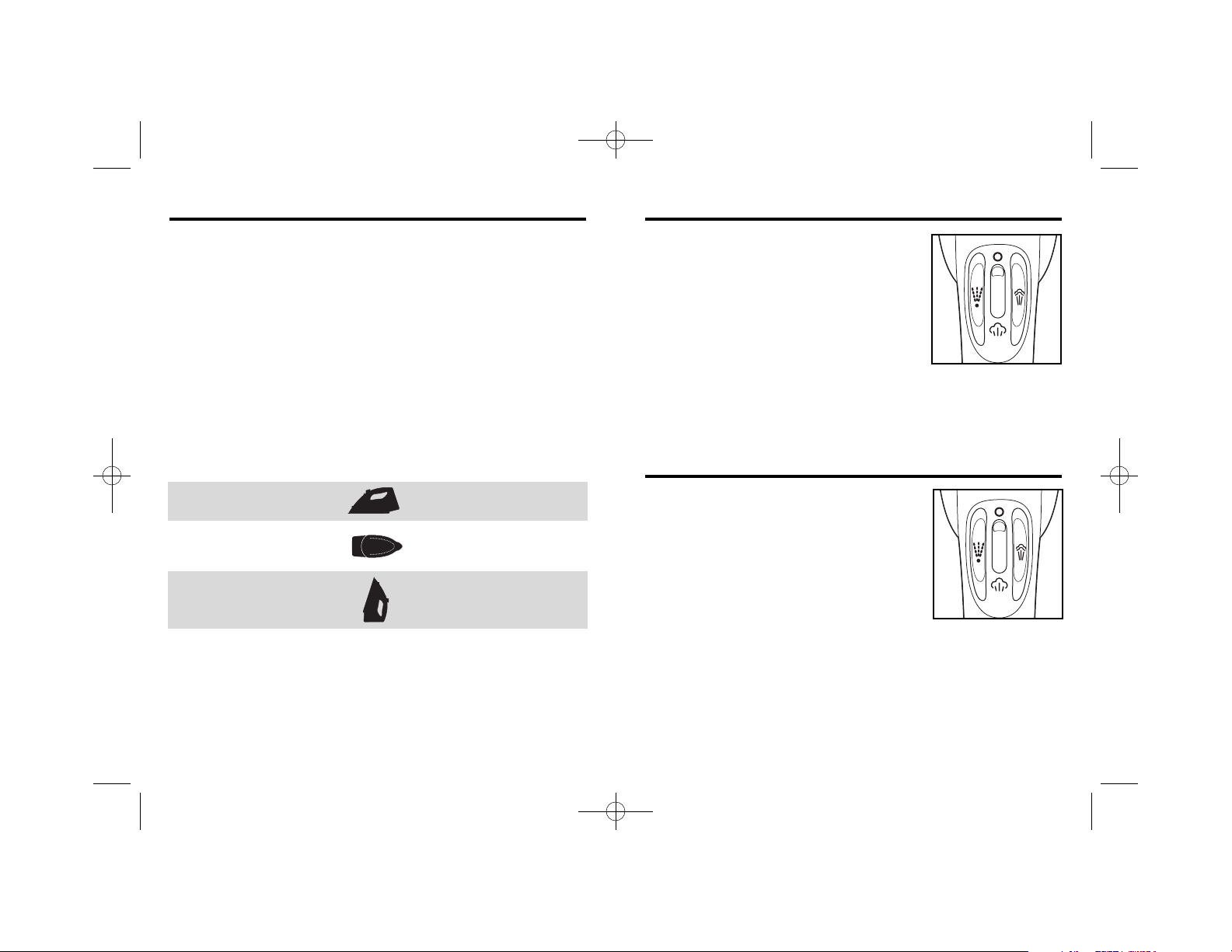

POSITION SENSING

The iron will turn off automatically when left in the following
positions. The auto off time varies based on the iron’s
position.

MOTIONLESS TIME

30 seconds

30 seconds or 15 minutes
depending on exact
orientation

15 minutes

840164302 ENv01.qxd:840144500 Ev02.qxd 1/11/12 10:47 AM Page 4

7

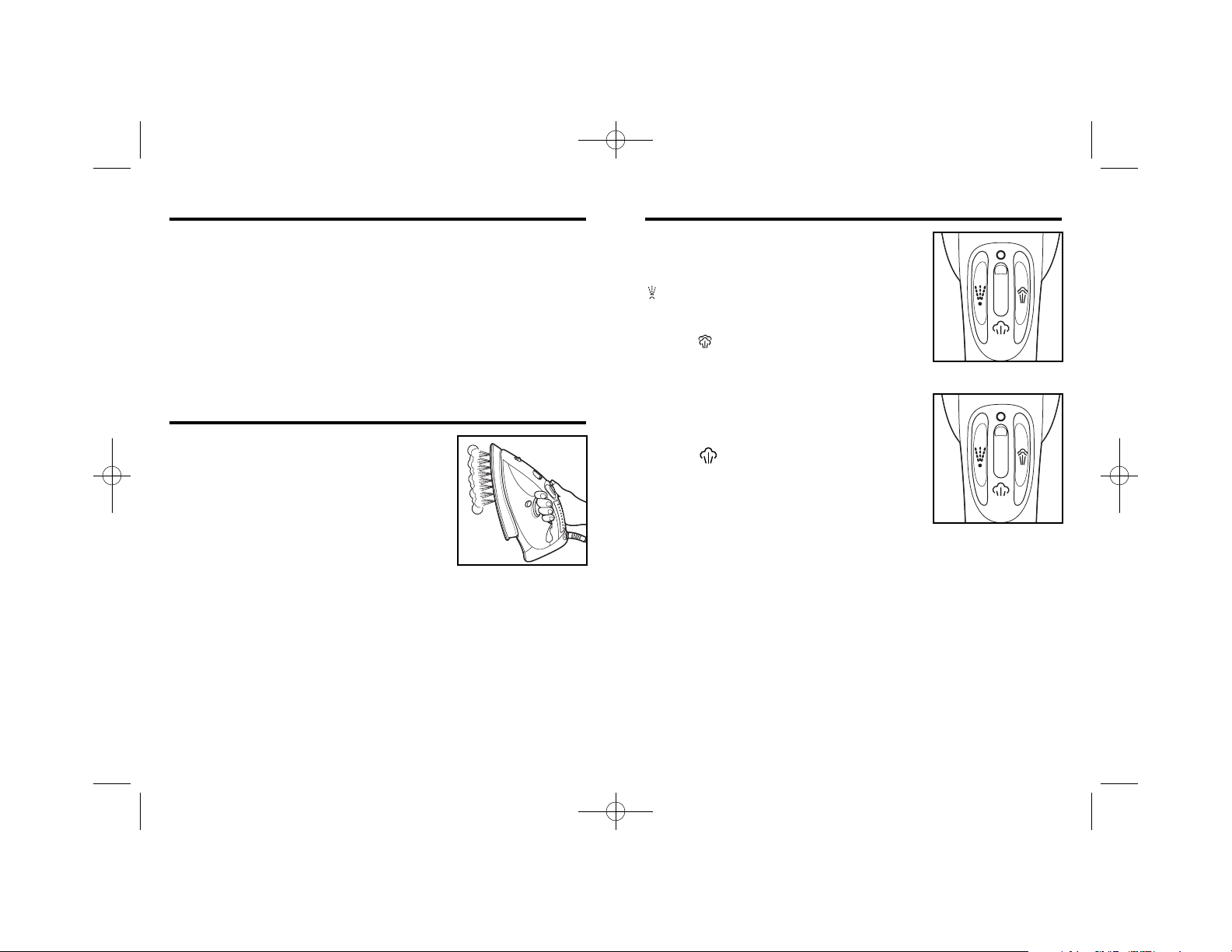

Water: Please use ordinary tap water. If you have extremely

hard water, alternate between tap water and distilled water
for use in the iron.

1. Follow Steps 1 through 5 in

“To Steam Iron.”

2. Hang garment in a location that is

not susceptible to damage from heat
or moisture. Do not hang in front of
wallpaper, window, or mirror.

3. Hold iron about 6 inches (15 cm) away

from garment and press and release
the Blast Button to steam out wrinkles. Do not press
Blast Button more than once every 5 seconds.

4. To turn iron off, set Set Steam ON/OFF Control to O

(Dry Iron). Turn the Temperature Control Dial to OFF.
Unplug iron.

5. Empty water from the iron following directions in “Caring

and Cleaning.”

NOTICE: Do not allow hot soleplate to touch delicate
garments.

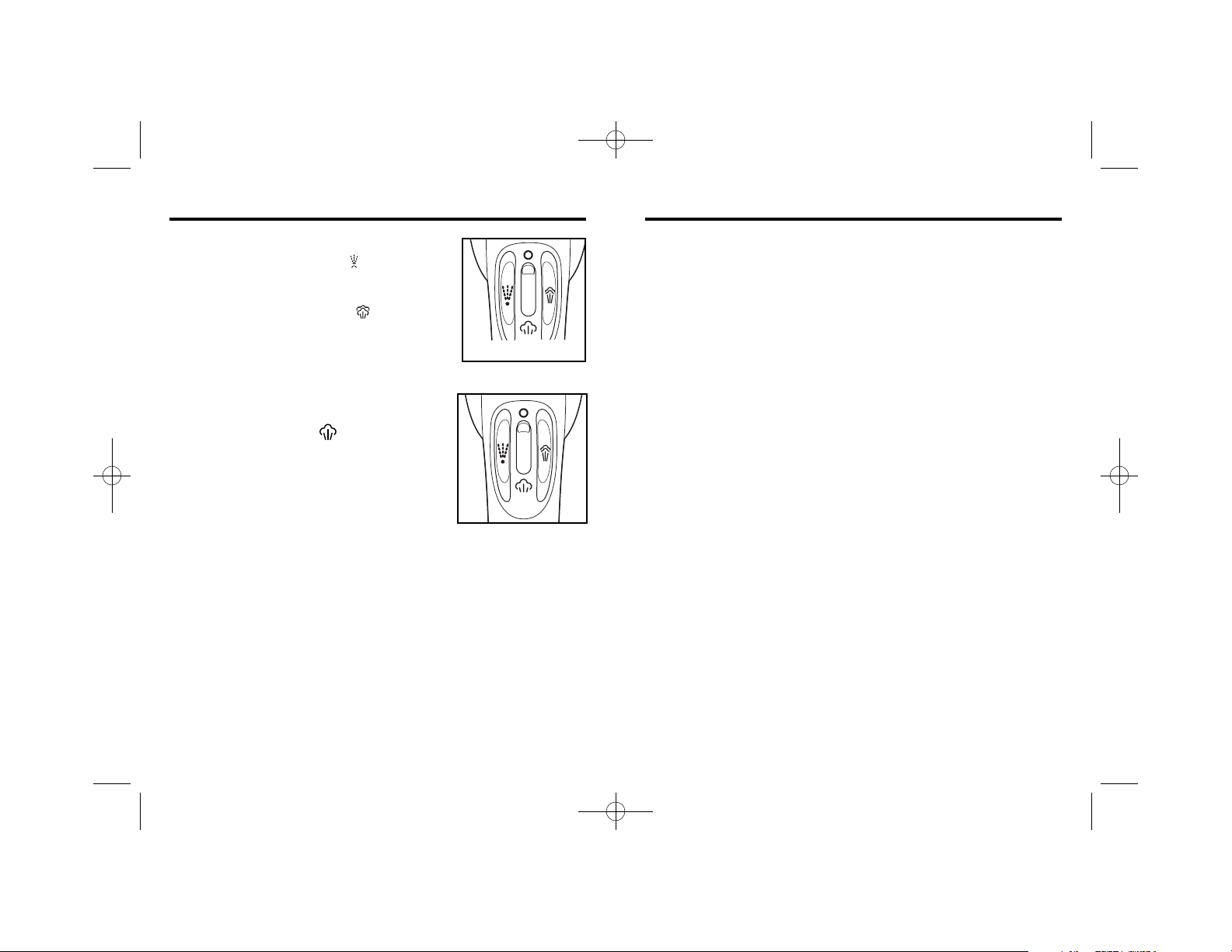

1. Plug the iron into outlet.

2. Set Steam ON/OFF Control to
O (Dry Iron).

3. Turn Temperature Control Dial to

desired temperature. Allow 2 minutes
for iron to reach desired temperature.

4. To turn iron OFF, turn Temperature

Control Dial to OFF and unplug iron.

6

1. Unplug iron. Set Steam ON/OFF Control to O (Dry Iron)

Hold iron with soleplate parallel to the ground. Open water
fill cover.

2. Using a cup, slowly pour tap water into water tank opening

until MAX fill line is reached. Close water fill cover. Do not
fill iron directly from the faucet.

3. Plug iron into outlet.

4. Turn Temperature Control Dial to desired fabric setting in

the steam range.

5. Allow 2 minutes for the iron to reach desired temperature.

6. Set Steam ON/OFF Control to .

7. To turn iron off, set Set Steam ON/OFF

Control to O (Dry Iron). Turn the
Temperature Control Dial to OFF.
Unplug iron.

8. Empty water from the iron following

directions in “Caring and Cleaning.”

To Dry Iron

To Steam Iron

To Steam Iron (cont.)

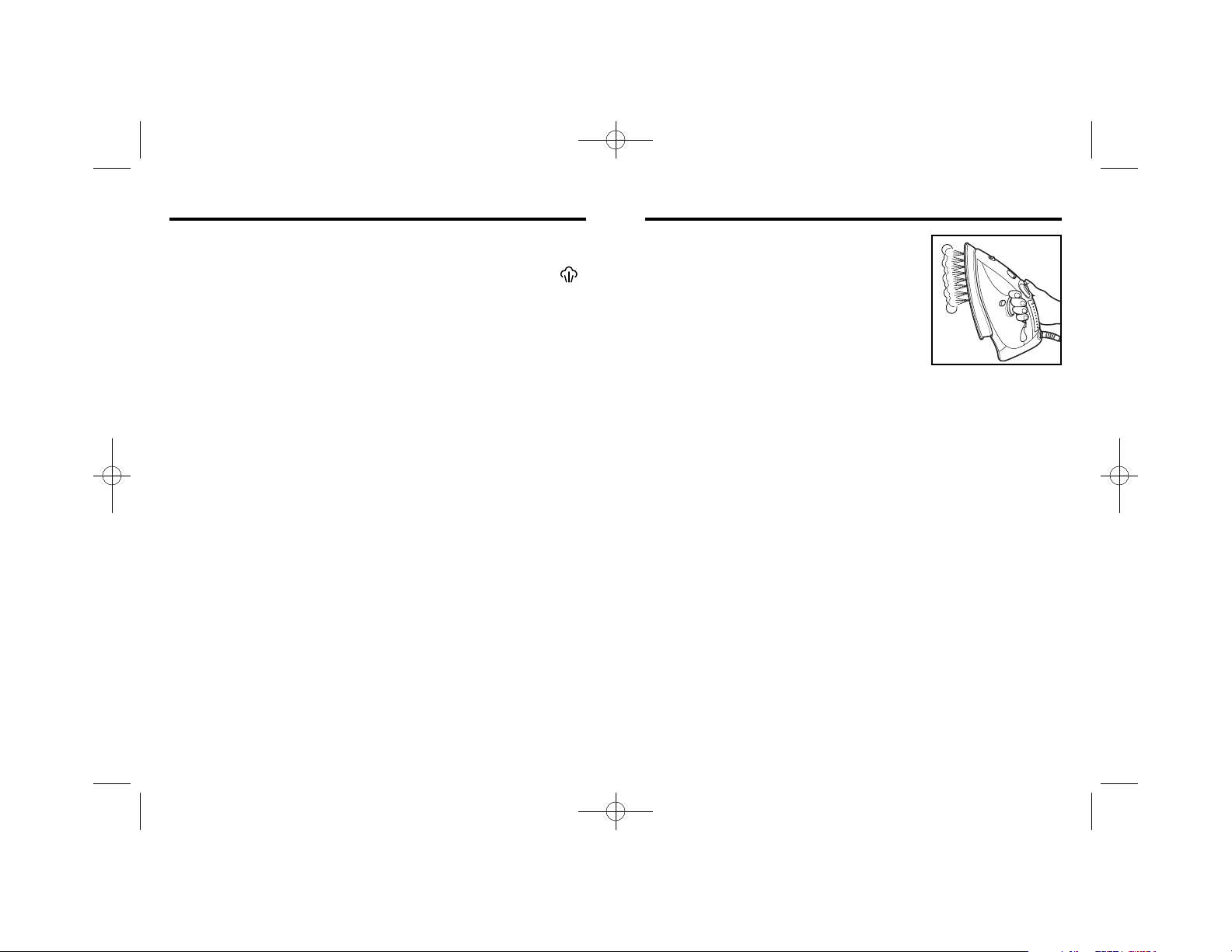

To Vertical Steam

840164302 ENv01.qxd:840144500 Ev02.qxd 1/11/12 10:47 AM Page 6

9

Caring and Cleaning

Iron Storage

1. The water tank of your iron should be emptied after each

use. Turn Temperature Control Dial to OFF. Unplug the iron
and hold over a sink. Slowly tilt pointed end of iron down
over sink. Water will run out of water tank opening.

2. After iron has completely cooled, wrap cord loosely around

iron and store in an upright position. Do not store iron laying
flat on soleplate.

Soleplate

1. Never iron over zippers, pins, metal rivets, or snaps, since

these may scratch the soleplate.

2. To clean occasional buildup on the soleplate, wipe with

a sudsy cloth. Do not use abrasive cleansers or metal
scouring pads.

3. Always store iron upright in the heel rest position.

8

Features

Steam ON/OFF Control

This control turns steam ON or
OFF (O).

Power ON Light

The red light stays on even if Temperature Control Dial is
turned to OFF.

Spray and Steam Buttons

Push Spray Button to release a fine
spray of water for difficult wrinkles in
cotton or linen. Push Steam Button
for an extra blast of steam.

Spray

Steam

840164302 ENv01.qxd:840144500 Ev02.qxd 1/11/12 10:47 AM Page 8

PROBLEM

PROBABLE CAUSE

Water is
leaking

Iron
won’t
steam

Leaves
spots

• Do not overfill the water tank.

• If steam ironing, is Steam ON/OFF Control in a
steam position, the Temperature Control Dial in
the steam range, and did the iron have enough
time to preheat?

• If dry ironing, make sure the Steam ON/OFF
Control is in the DRY IRON position (O).

• If using the Blast Button, push button less
frequently.

• Follow the self-cleaning instructions one or
two times with tap water (not distilled) to
“condition” the iron.

• Check the water level.

• Is Steam ON/OFF Control in Steam position?

• Has the iron had enough time to preheat?

• Anti-drip feature will not allow steam when
temperature setting is in the dry range.

• ALWAYS empty the water tank of the iron
after using. Water left in the tank may discolor
clothing and soleplate.

• If the iron cord should become twisted, unplug
iron and let cool. Hold iron cord in the middle
of entire length. Let plug and iron dangle freely
until cord uncoils. This will extend the life of
your iron cord.

• Check Temperature Control Dial is set to
correct fabric.

Twisted
cord

Troubleshooting (cont.)

Wrinkles
are not
removed

1110

Caring and Cleaning (cont.)

Self-Clean

To keep the steam vents clear of any buildup, follow these
instructions each time you iron using steam.

1. Set Temperature Control Dial to OFF. Fill iron with water to

1/2 of its maximum capacity.

2. Set Steam ON/OFF Control to O (Dry Iron). Set Temperature

Control Dial to Linen setting and let iron heat for 2 minutes.

3. Set Temperature Control Dial to OFF. Unplug iron and hold

over a sink with soleplate facing down.

4. Press and hold the Self-Clean Button. Boiling water and

steam will flow out of steam vents. Allow all water to drain
from iron.

5. Gently move iron front to back to allow water to clean

entire soleplate area.

6. If water still remains inside of soleplate, reheat iron as

indicated in Step 2. Boiling water and steam could still
flow out of steam vents.

Troubleshooting

Iron won’t
heat

PROBLEM

PROBABLE CAUSE

• Is the iron plugged in and the outlet working?
Check the outlet by plugging in a lamp.

• Is the Temperature Control Dial turned to a
fabric setting?

• If automatic shutoff model, is the Reset Light
flashing? Move the iron to reset.

840164302 ENv01.qxd:840144500 Ev02.qxd 1/11/12 10:47 AM Page 10

1312

Troubleshooting (cont.)

PROBLEM

PROBABLE CAUSE

Iron is too
hot/not hot
enough

• Check Temperature Control Dial and adjust
to desired setting level. Let iron cool down
5 minutes before continuing.

Fabric Setting Chart

To Iron

Off
Nylon
Acrylic
Silk
Polyester
Rayon
Wool
Cotton

Linen

Ironing Instructions

Steam

Setting

Dry iron on the wrong side of the fabric.
Dry iron on the wrong side of the fabric.
Dry iron on the wrong side of the fabric.
Iron with fabric still damp.
Iron on the wrong side of fabric.
Steam iron on the wrong side of fabric.
Iron while still damp using steam

and/or spray.
Iron on wrong side of fabric while still

damp.

O

LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and
Canada. This is the only express warranty for this product and is in lieu
of any other warranty or condition.

This product is warranted to be free from defects in material and
workmanship for a period of one (1) year from the date of original
purchase. During this period, your exclusive remedy is repair or
replacement of this product or any component found to be defective,
at our option; however, you are responsible for all costs associated with
returning the product to us and our returning a product or component
under this warranty to you. If the product or component is no longer
available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use
not in conformity with the printed directions, or damage to the product
resulting from accident, alteration, abuse, or misuse. This warranty extends
only to the original consumer purchaser or gift recipient. Keep the original
sales receipt, as proof of purchase is required to make a warranty claim.
This warranty is void if the product is used for other than single-family
household use or subjected to any voltage and waveform other than as
specified on the rating label (e.g., 120V ~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages
caused by breach of express or implied warranty. All liability is limited to
the amount of the purchase price. Every implied warranty, including any

statutory warranty or condition of merchantability or fitness for a
particular purpose, is disclaimed except to the extent prohibited by
law, in which case such warranty or condition is limited to the
duration of this written warranty. This warranty gives you specific legal

rights. You may have other legal rights that vary depending on where you
live. Some states or provinces do not allow limitations on implied
warranties or special, incidental, or consequential damages, so the
foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store.
Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or
visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada.
For faster service, locate the model, type, and series numbers on your
appliance.

840164302 ENv01.qxd:840144500 Ev02.qxd 1/11/12 10:47 AM Page 12
