SAVE THESE INSTRUCTIONS!
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING
1. Use iron only for its intended use.
2. Verify that the voltage in your home corresponds to that of your
appliance.
3. To protect against risk of electric shock, do not immerse the iron in
water or other liquids.
4. The iron should always be turned to OFF before plugging into
or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
5. Do not allow cord to touch hot surfaces. Let iron cool completely
before putting away. Loop cord loosely around iron when storing.
6. Always disconnect iron from electrical outlet when filling with
water or emptying and when not in use.
7. Do not operate iron with a damaged cord or if the iron has been
dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Call our toll-free customer service number for information on examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
8. Close supervision is necessary for any appliance being used by or
near children. Do not leave iron unattended while connected or on an ironing board.
9. Burns can occur from touching hot metal parts, hot water, or
steam. Use caution when you turn a steam iron upside down— there may be hot water in the reservoir.
SPECIAL INSTRUCTIONS
1. To avoid a circuit overload, do not operate another high-wattage
appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 15-ampere cord
should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
When using your flatiron, basic safety precautions should always be followed, including the following:
OTHER CONSUMER SAFETY INFORMATION
This product is intended for household use only. WARNING! Shock Hazard: This appliance has a polarized plug (one
wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.
• Use the iron on an ironing board. Ironing on any other surface may damage that surface.
• Do not iron or vertical-steam clothes that are being worn.
• Do not use vertical steam in the direction of people or pets.
• During first use of the iron, it may appear to smoke. This will stop and does not indicate a defect or hazard.
• Many irons spit or sputter during the first few uses with tap water. This happens as the steam chamber becomes conditioned. This will stop after a few uses.
• Steam vents should be cleaned before first use. Prepare iron for steam ironing; then iron over an old cloth for a few minutes while letting the iron steam.
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 2
3
Parts and Features
Heel Rest
Water Tank Fill Area
Water Tank
Cord
Self-Clean Button
Soleplate
Spray Nozzle
Steam Blast Button
Spray Trigger
Variable Steam Lever
Control Panel
Power ON Light
(will remain on until iron is unplugged)
Water Fill-Gauge
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 3
4

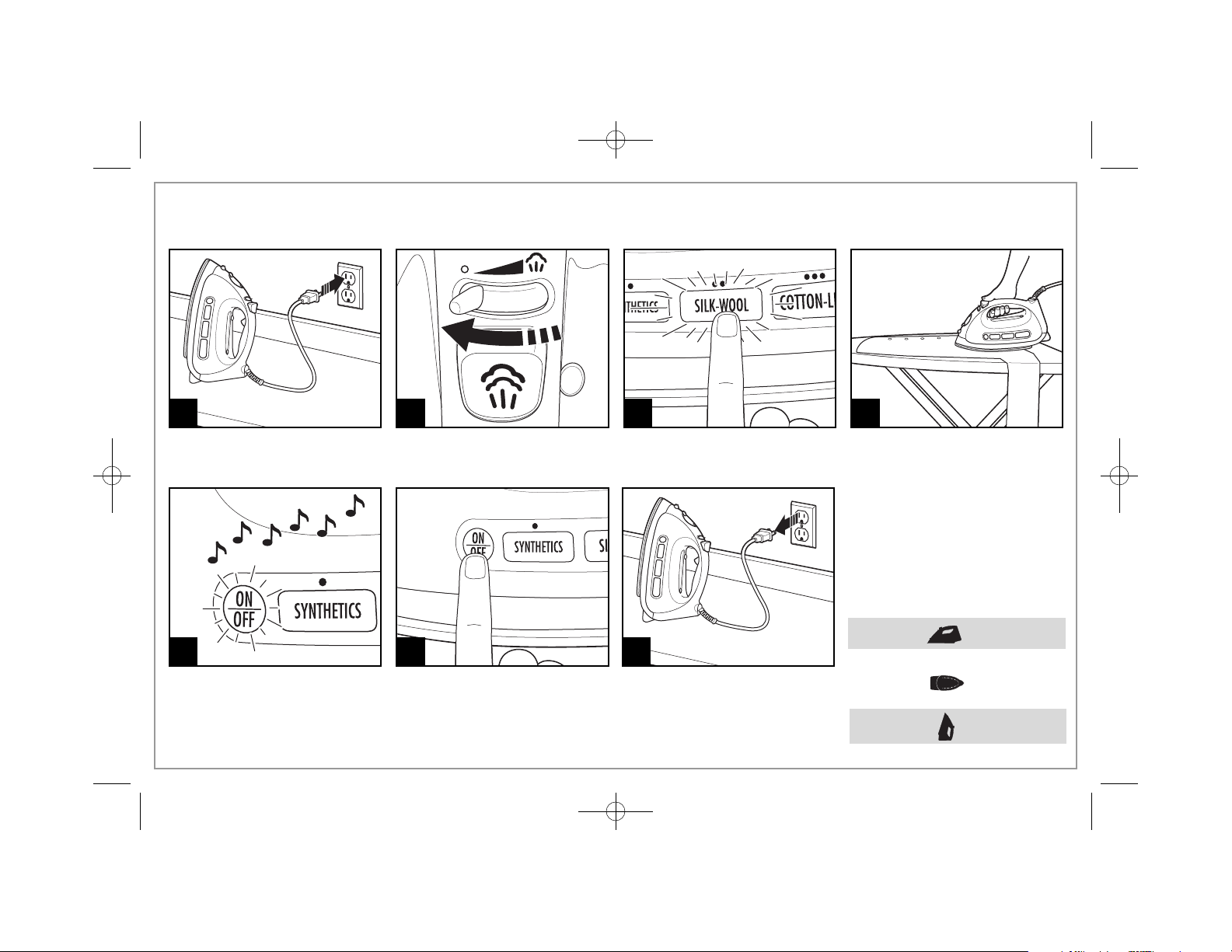

How to Dry Iron
1 2 3 4
Plug iron into outlet. ON/OFF Button will illuminate.
Set Variable Steam Lever to the DRY/OFF (O) position.
Press desired Fabric Button. Selected button will flash. A tone will sound and button will remain illuminated once iron is ready.
When motionless, the Auto Shutoff feature will engage. The ON/OFF Button will flash and a tone will sound.
5
7
When finished, press ON/OFF Button.
6
Position Sensing/Auto Shutoff
The iron will turn off automatically when left in the following positions.
The Auto Shutoff time varies based on the iron’s position.
IRON
POSITION
Resting on
soleplate
Resting on either side
Resting on
heel
MOTIONLESS
TIME
30 seconds
30 seconds or 15 minutes depending on
exact orientation
15 minutes
Remove plug from outlet.
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 4
5

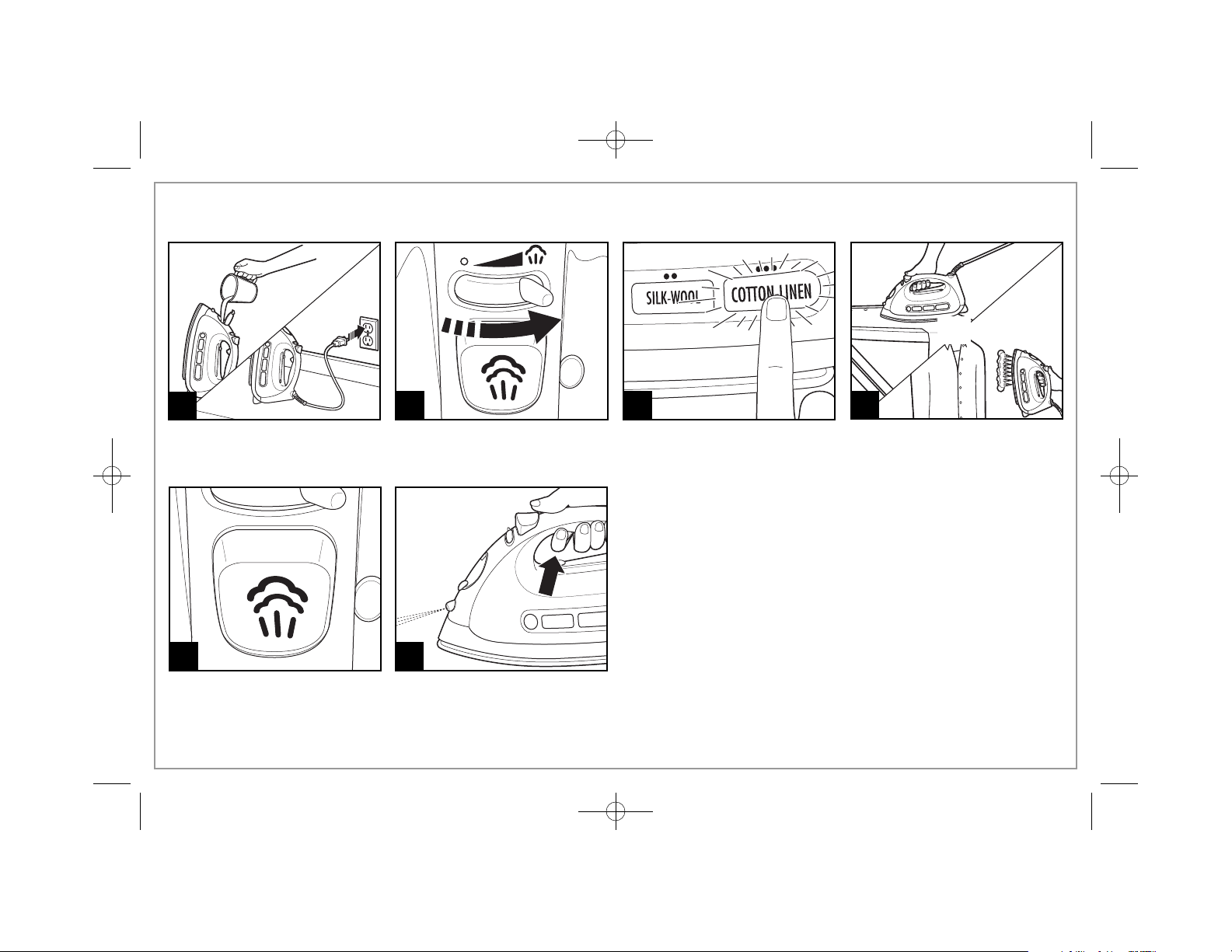

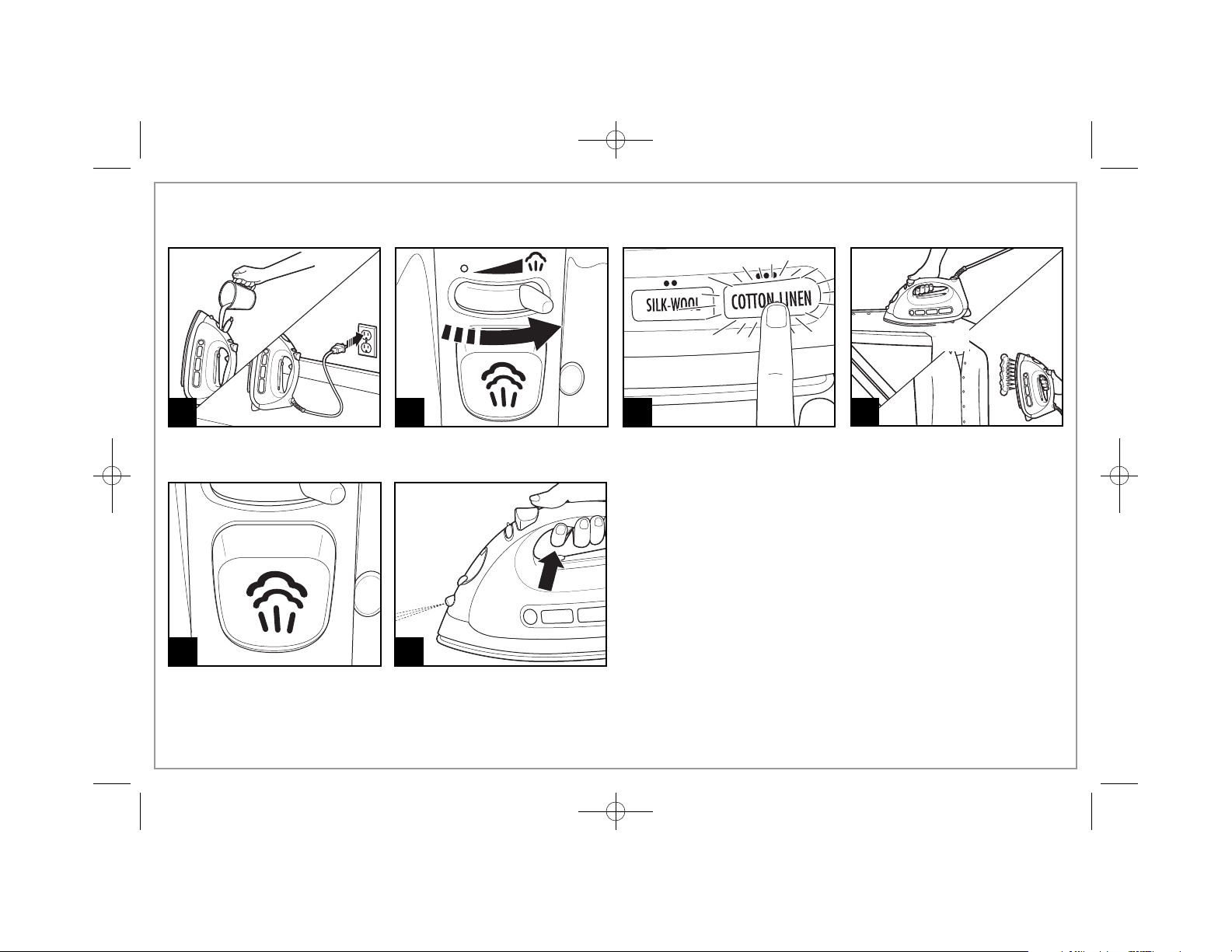

How to Steam Iron
1
2 3
4
Adjust Variable Steam Lever to desired steam level.
Select COTTON-LINEN. Button will flash.
A tone will sound and button will remain illuminated once iron is ready.
WARNING! Burn Hazard: Attempting to steam iron on a lower temperature setting, or before iron has reached tempera­ture, can result in hot water drip­ping from the soleplate.
For vertical steaming, hold iron 2–4 inches away from garment. Do not allow soleplate to touch delicate garments.
OR
Fill to MAX fill line. Plug iron into outlet.
5
Push Steam Blast Button for an extra blast of steam. Do not press Steam Blast Button more than every 5 seconds.
6
Squeeze Spray Trigger to release a fine spray of water for difficult wrinkles.
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 5
6
How to Steam Iron (cont.)
7
When motionless, the Auto Shutoff feature will engage. The ON/OFF Button will flash and a tone will sound.
8
When finished, press ON/OFF Button.
9
Remove plug from outlet.
Position Sensing/Auto Shutoff
The iron will turn off automatically when left in the following positions.
The Auto Shutoff time varies based on the iron’s position.
IRON
POSITION
Resting on
soleplate
Resting on either side
Resting on
heel
MOTIONLESS
TIME
30 seconds
30 seconds or 15 minutes depending on
exact orientation
15 minutes
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 6
7
Fabric Setting Chart
NOTICE: To avoid garment damage, check garment label for fabric composition and ironing instructions.
Garment Label Symbols
Fabric care labels on garments have symbols that show ironing instructions and recommended temperature settings. These symbols are shown below along with an explanation of their meaning.
Temperature
Setting
O
Synthetics
Silk, Wool
Cotton, Linen
Steam
Setting
Dry
Iron
Steam Range
Ironing
Instructions
Off Dry iron using spray
if necessary. Iron silk on wrong
side.
For cotton, iron while still damp or use spray. For linen, iron fabric on wrong side.
•
Low
••
Medium
•••
High
Iron
High Temp
Setting
Medium
Te m p
Setting
Low Temp
Setting
Do not iron
Do not use
steam
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 7
8
Care and Cleaning
1 2
Allow iron to cool. Set Variable Steam Lever to the
DRY/OFF (O) position.
3
Do not store iron laying flat on soleplate.
4
NOTICE: To avoid damage to the iron soleplate:
• Never iron over zippers, pins, metal rivets, or snaps.
• Wipe with a soapy cloth to clean occasional buildup on the soleplate. Never use abrasive cleansers or metal scouring pads, since they may scratch the surface.
• Always store iron upright on the heel rest (see Step 4).
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 8
9
5 6
7
8
Self-Clean Feature

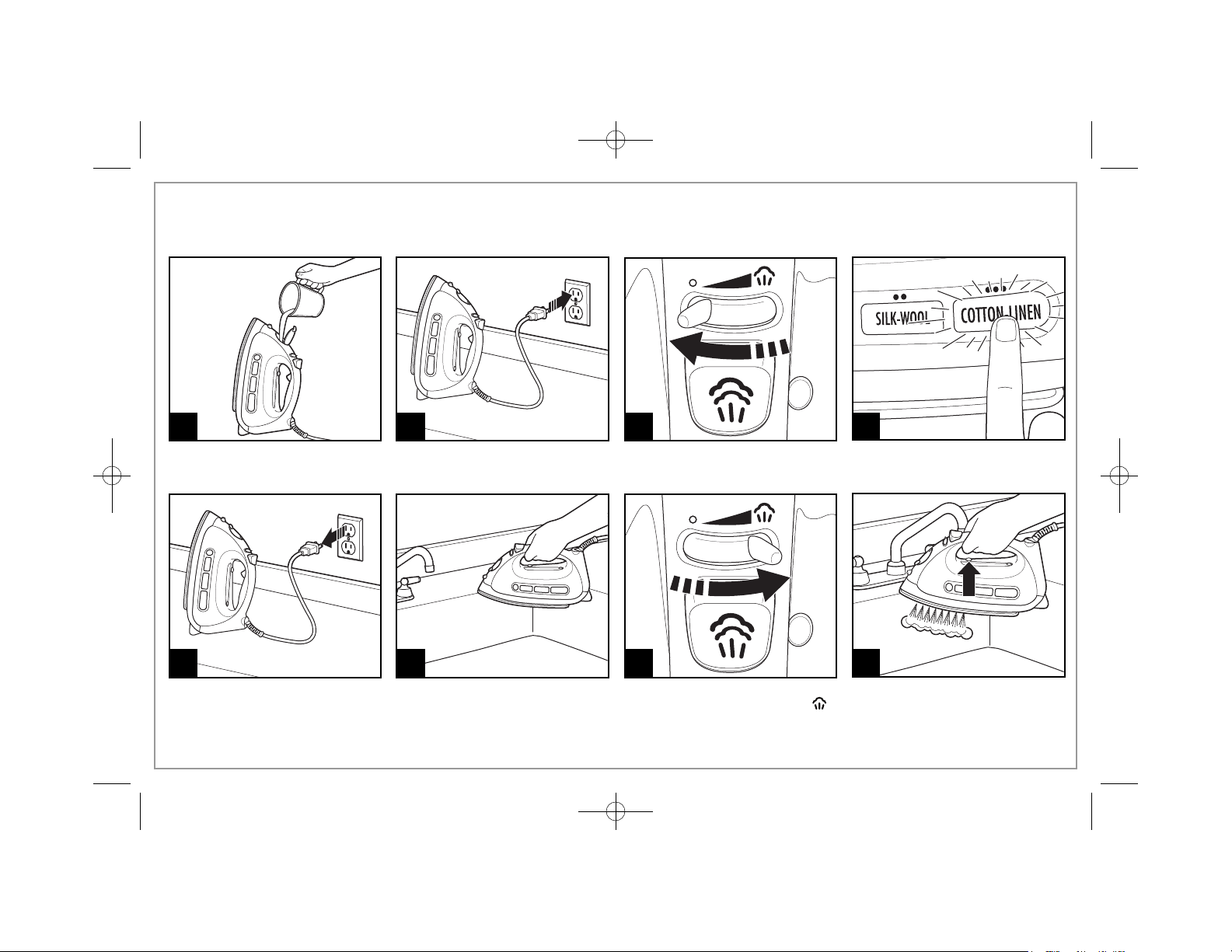

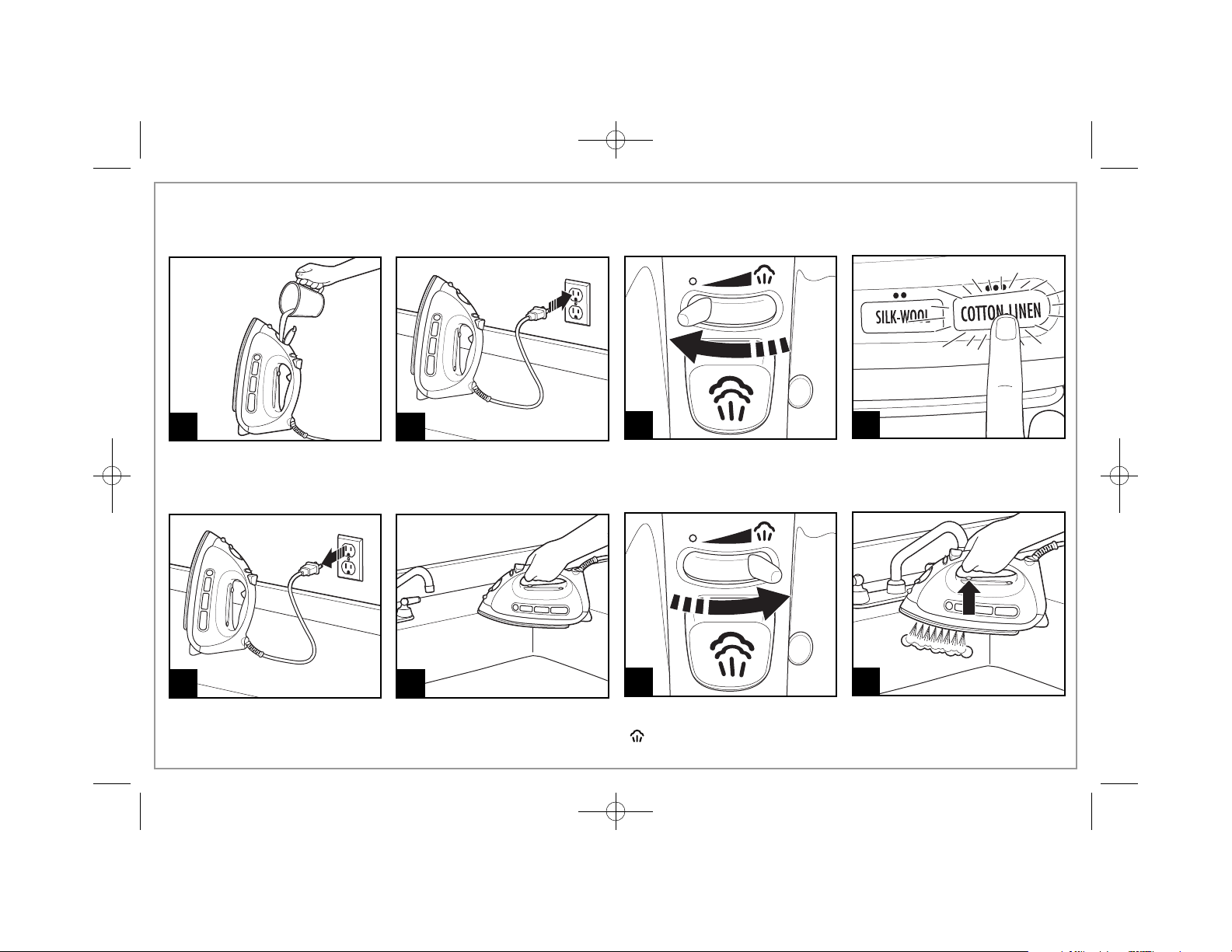

To keep the steam vents clear of any buildup, follow these instructions each time you iron using steam.
1 2
3
4
Press and hold the Self-Clean Button until tank is empty.
Set Variable Steam Lever to the DRY/OFF (O) position.
Allow iron to heat on COTTON­LINEN for 2 minutes.
Turn iron OFF and unplug. Set Variable Steam Lever to
maximum steam ( ).
Hold iron over sink.
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 9
10
Troubleshooting
PROBLEM
Iron won’t heat.
Water is leaking out of the iron.
Iron won’t steam.
Iron leaves spots on clothing.
Wrinkles not removed. Fabric/clothing scorched. Twisted cord.
All temperature selection buttons and ON/OFF button blinking.
PROBABLE CAUSE
• Is iron plugged in and the outlet working? Check outlet by plugging in a lamp.
• Has a temperature been selected? Select SYNTHETICS, SILK-WOOL, or COTTON-LINEN button.
• Has Auto Shutoff feature activated (ON/OFF Button blinking)? Select a temperature setting to turn iron back on.
• Do not overfill the water tank.
• If steam ironing, is Variable Steam Lever in the maximum steam ( ) position, has a temperature been selected, and did the iron have enough time to preheat?
• If dry ironing, make sure Variable Steam Lever is in the DRY/OFF (O) position.
• Is iron at low setting? Cool iron will not produce steam.
• Check water level.
• Has iron had enough time to preheat?
• Is Variable Steam Lever in the maximum steam ( ) position?
• Allow iron to preheat. Cool iron will not produce steam.
• ALWAYS empty water tank after using. Water left in tank may discolor clothing and soleplate.
• Choose correct temperature setting for your fabric.
• Select a lower temperature setting. Allow iron to cool for 5 minutes before continuing.
• If cord becomes twisted, turn iron OFF and unplug. Let cool. Empty any water from iron. Hold cord in the middle of entire length. Let plug and iron dangle freely until cord uncoils. This will extend the life of your iron cord.
• If all temperature selection buttons are blinking, unplug iron and then plug it back in. This should reset the display. If not, call Customer Service (numbers on cover).
840198300 ENv03.qxd:Layout 1 10/18/10 3:59 PM Page 10
