Iron
840141100
READ BEFORE USE
LIRE AVANT L’UTILISATION
LEA ANTES DE USAR
English ................................................ 2
USA: 1-800-851-8900
Français .............................................. 9
Canada : 1-800-267-2826
Español .............................................. 17
México: 01 800 71 16 100
Le invitamos a leer cuidadosamente este
instructivo antes de usar su aparato.
Fer à repasser
Plancha
840141100 ENv02.qxd 9/22/05 1:38 PM Page 1
2
Other Consumer Safety Information
IMPORTANT SAFEGUARDS
When using your flatiron, basic safety precautions should always be followed, including
the following:
READ ALL INSTR
UCTIONS BEFORE USING
1. Use iron only for its intended use.
2. To protect against risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to OFF ( O ) before plugging or unplugging from outlet.
Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away.
Loop cord loosely around iron when storing.
5. Always disconnect iron from electrical outlet when filling with water or emptying and
when not in use.
6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged.
To avoid the risk of electric shock, do not disassemble the iron. Call our toll-free customer assistance number for information on examination and repair. Incorrect reassembly
can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not
leave iron unattended while connected or on an ironing board.
8. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when
you turn a steam iron upside down – there may be hot water in the reservoir.
SPECIAL INSTRUCTIONS
1.
To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
2. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords
rated for less amperage may overheat. Care should be taken to arrange the cord so that
it cannot be pulled or tripped over.
SAVE THESE INSTRUCTIONS
This product is intended for household
use only.
Use the iron on an ironing board. Ironing on
any other surface may damage that surface.
Do not iron or vertical steam clothes that are
being worn.
Do not use vertical steam in the direction of
people or pets.
Shock Hazard
• Do not immerse this appliance in water or other liquid.
• This appliance has a polarized plug (one wide blade) that reduces the risk of electrical
shock. The plug fits only one way into a polarized outlet. Do not defeat the safety
purpose of the plug by modifying the plug in any way or using an adaptor. If the plug
does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.
WARNING
840141100 ENv02.qxd 9/22/05 1:38 PM Page 2
3

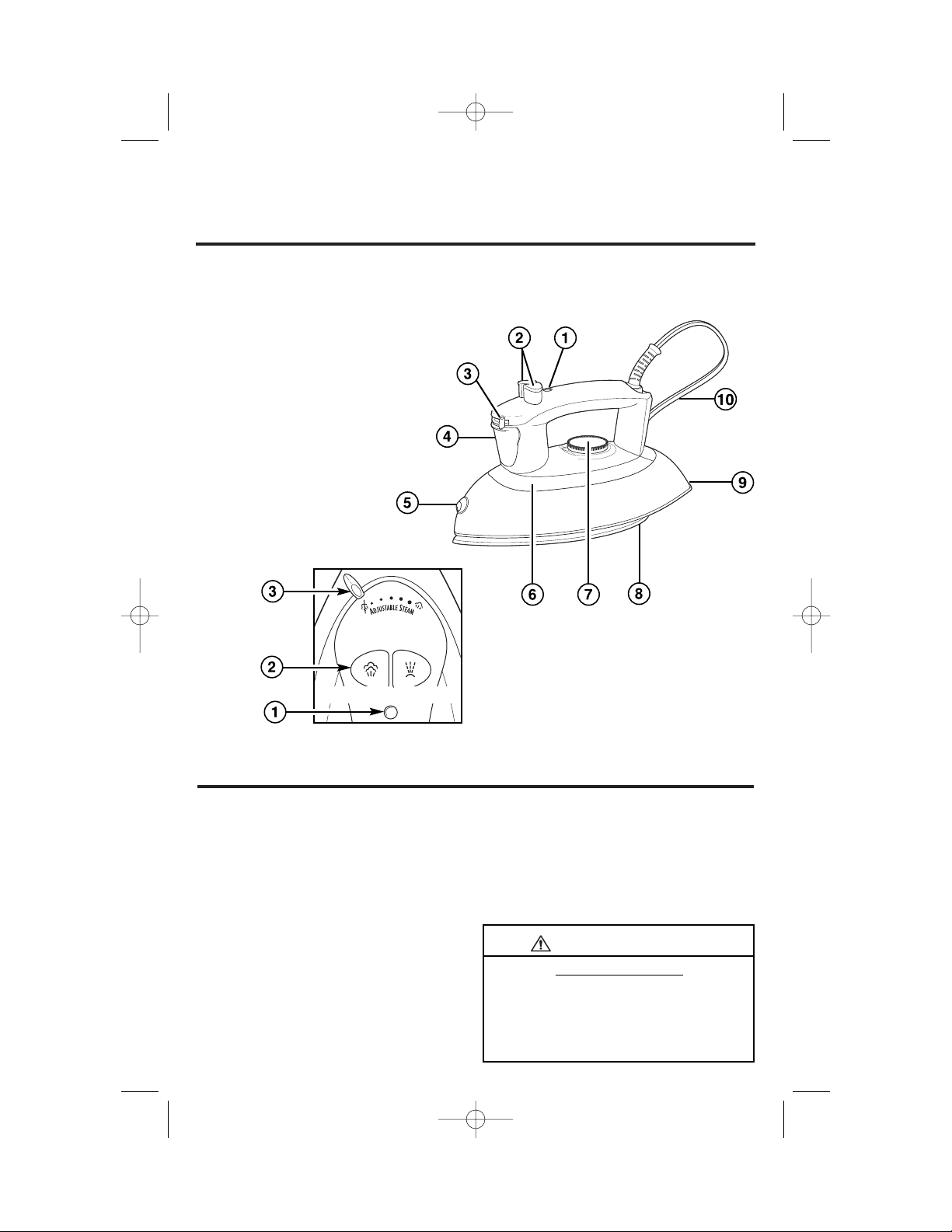

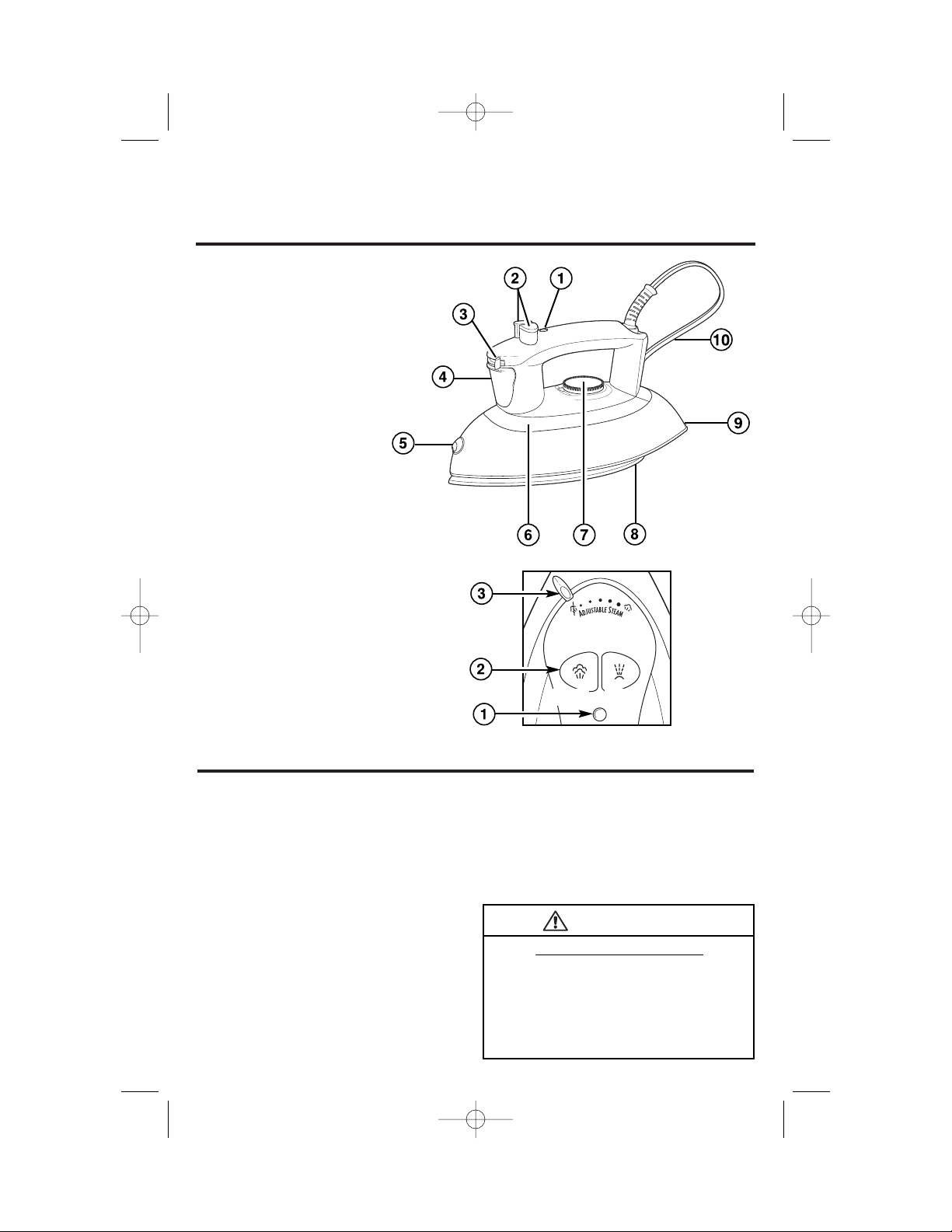

Know Your Iron
1. Power On Light or
Automatic Shutoff Reset
Button/Light
2. Spray/Blast Buttons (see inset)
3. Adjustable Steam Switch
(see inset)
4. Water Tank Opening
5. Spray Nozzle
6. Water Window
7. Temperature Control Dial
8. Soleplate
9. Heel Rest
10. Cord
Parts and Features
Before First Use
• Steam vents should be cleaned
before first use.
• To clean steam vents before first use,
prepare iron for steam ironing, then
iron over an old cloth for a few minutes while letting the iron steam.
Press the Blast button several times
to clean the vents. Then follow the
Self-Cleaning instructions.
• During the first use of the iron, it may
appear to smoke. This will stop and
does not indicate a defect or hazard.
• Many irons spit or sputter during
the
first few uses with tap water.
This happens
as the steam chamber
becomes conditioned. This will
stop after a few uses.
Blast Spray
Burn Hazard
• Metal surfaces on this iron are hot.
• Keep hands clear of metal surfaces
while operating.
CAUTION
840141100 ENv02.qxd 9/22/05 1:47 PM Page 3
4
1. Unplug iron. Turn Adjustable Steam
Switch to Dry Iron . Set iron
upright on heel rest.
2. Using a cup, slowly pour tap water
into water tank opening until MAX fill
line has been reached. Do not fill iron
directly from the faucet.
3. Plug iron into outlet.
4. Tu rn
the Temperature
Control Dial
to desired fabric setting in the steam
range.
5. Allow two minutes for the iron to
reach desired temperature.
To Steam Iron
6. Set Adjustable Steam Switch to the
recommended steam level. See the
“Fabric Setting Chart.”
7. To turn iron off, set Adjustable
Steam Switch to Dry Iron . Turn
the Temperature Control Dial to OFF
( O ). Unplug iron.
8. Empty water from the iron following
directions in “Caring for Your Iron.”
Water
Please use ordinary tap water. If you
have extremely hard water, alternate
between tap water and distilled water
for use in the iron.
To Dry Iron
3. Turn Temperature Control Dial
to desired temperature. Allow two
minutes for iron to reach desired
temperature.
4. To turn iron OFF ( O ), turn
Temperature Control Dial to OFF ( O )
and unplug iron.
1. Plug iron into outlet.
2. Turn Adjustable Steam Switch to Dry
Iron .
Using Your Iron
840141100 ENv02.qxd 9/22/05 1:39 PM Page 4
5
Fabric Setting Chart
Ironing Instructions
Dry iron using spray if necessary.
Dry iron on the wrong side of the fabric.
Iron while fabric is still damp.
Use a press cloth and steam iron on the
wrong side of fabric.
Iron using spray if necessary.
For cotton, iron while still damp or use
spray. For linen, iron fabric on wrong side.
Temperature Setting
Off ( O )
Nylon,
Acrylic
Silk
Polyester
Wool
Rayon
Cotton,
Linen
Dry Iron
Steam Range
Steam
Setting
Caring for Your Iron
Self-Clean
To keep the steam vents clear of any
build-up, follow these instructions each
time you iron using steam.
1. Turn Temperature Control Dial to OFF
( O ) and set Adjustable Steam
Switch to Dry Iron . Fill iron with
water to 1⁄2 of its maximum capacity.
2. Turn Temperature Control Dial to
Linen setting and let iron heat for 2
minutes. Keep Adjustable Steam
Switch on Dry Iron .
3. Turn Temperature Control Dial to
OFF ( O ). Unplug iron and hold over
a sink with soleplate facing down.
4. Turn Adjustable Steam Switch to
MAX, while pressing Blast of Steam
button often. Boiling water and
steam will flow out of steam vents.
Allow all water to drain from iron.
5. Gently move iron front to back to allow
water to clean entire soleplate area.
6. If water still remains inside of soleplate, reheat iron as indicated in
Step 2. Boiling water and steam
could still flow out of steam vents.
Iron
1. The water tank of your iron should
be emptied after each use. Turn
Temperature Control Dial to OFF
( O ). Unplug the iron and hold over a
sink. Slowly tilt pointed end of iron
down over sink. Water will run out
of water tank opening.
2. After iron has completely cooled,
wrap cord loosely around the iron
and store in an upright position. Do
not store iron laying flat on soleplate.
Soleplate
1. Never iron over zippers, pins, metal
rivets, or snaps, as these may
scratch the soleplate.
2. To clean occasional build-up on the
soleplate, wipe with a sudsy cloth.
Do not use abrasive cleansers or
metal scouring pads.
3. Always store iron upright in the heel
rest position.
•
•
••
••
•••
•••
840141100 ENv02.qxd 9/22/05 1:39 PM Page 5
6

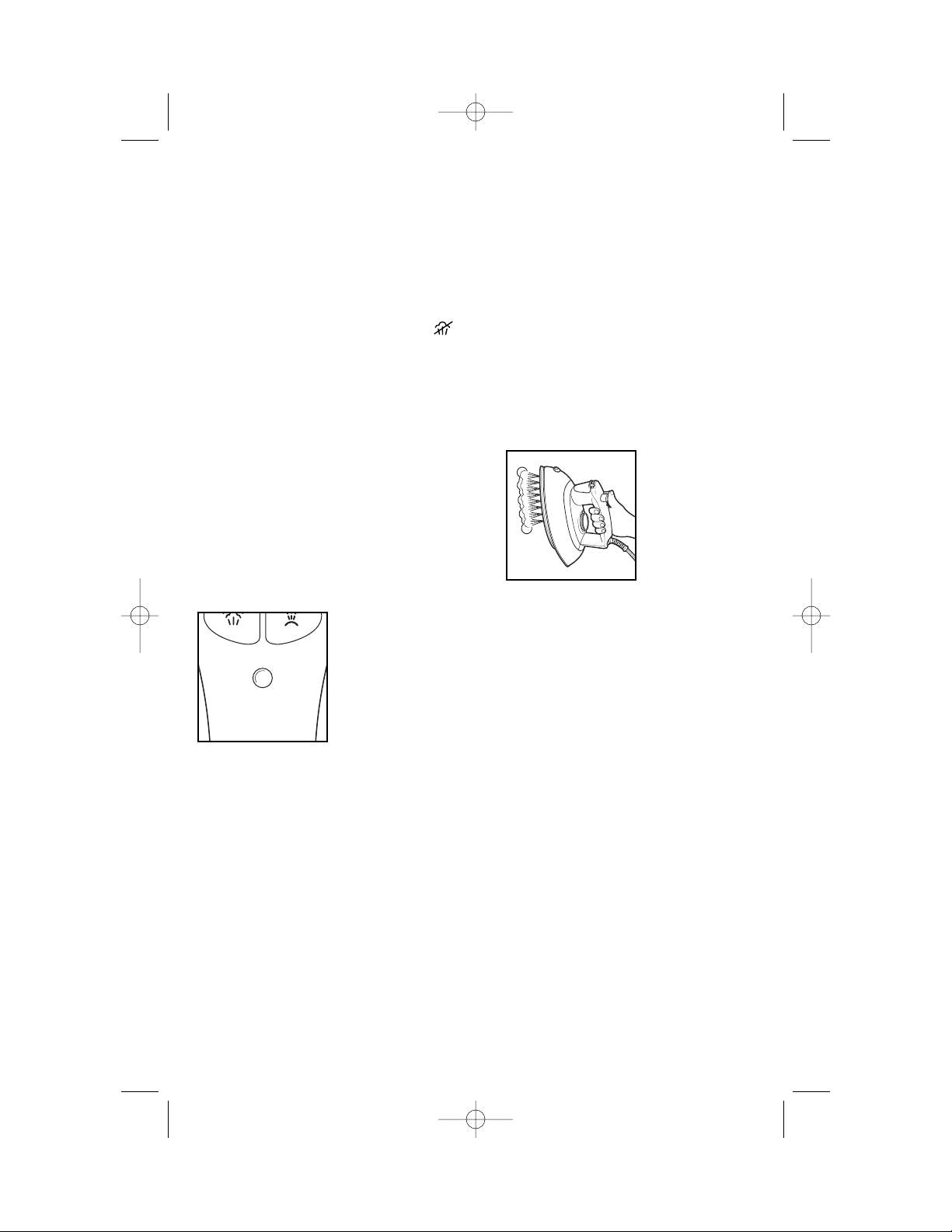

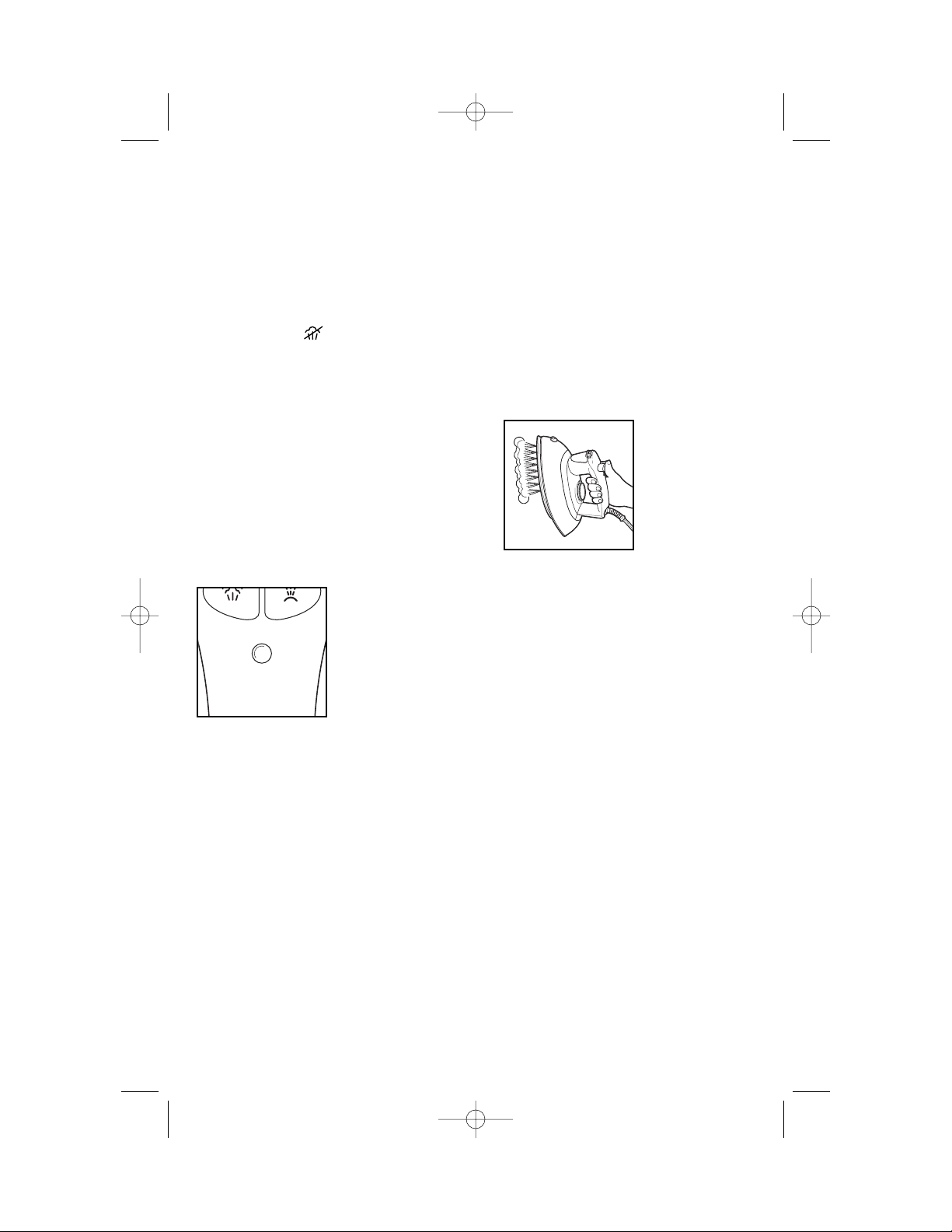

Features
(on selected models)
Adjustable Steam Switch
This knob provides steam for fabrics
such as wool and linen. See the
“Fabric Setting Chart” for details. Set
the switch to Dry Iron to iron without steam.
Spray and Blast of Steam
Buttons
Push Blast Button for an extra blast of
steam. Do not press Blast Button more
than every 2 seconds. Push Spray
Button to release a fine spray
of water
for difficult
wrinkles in cotton or linen.
Auto Shutoff Reset Button/Light
This light comes on when the iron is
first plugged in.
After one hour, the
iron will shut off
and the light will
go out. Push the
Reset Button/
Light to turn the
iron back on.
Vertical Steam
1. Follow Steps 1 through 3 in
“To Steam Iron.”
2. Turn Temperature Control Dial to
highest setting.
3. Hang garment in a location that is
not susceptible to damage from
heat or moisture. Do not hang in
front of wallpaper, window, or mirror.
4. Hold iron about 6 inches away from
garment and
press and
release Blast
Button to steam
out wrinkles. Do
not press Blast
Button more
than once every
2 seconds.
5. To turn iron off, turn Temperature
Control Dial to OFF ( O ). Unplug
iron.
6. Empty water from the iron following
directions in “Caring for Your Iron.”
NOTE: Do not allow hot soleplate to
touch delicate garments.
840141100 ENv02.qxd 9/22/05 1:39 PM Page 6
7
Troubleshooting
PROBLEM
Iron won’t heat.
Water is leaking
out of the iron.
Iron won’t steam.
Iron leaves spots
on clothing.
Wrinkles not
removed.
Fabric/clothing
scorched.
Twisted cord.
Things TO CHECK
• Is the iron plugged in and the outlet working?
Check the outlet by plugging in a lamp.
• Is the Temperature Control Dial turned to
a fabric setting?
• If auto shutoff model, is the Reset Light
illuminated? If not, push to reset.
• Do not overfill the water tank.
• If steam ironing, is Adjustable Steam Switch in a
steam position and the Temperature Control Dial in the
steam range? Did the iron have enough time
to preheat?
• If dry ironing, make sure the Adjustable Steam Switch
is in the DRY IRON position.
• If using Blast, press button less frequently (not more
than once every two seconds).
• Follow the Self-Cleaning instructions one or two times
with tap water (not distilled) to “condition” the iron.
• Check the water level.
• Is the Adjustable Steam Switch in the STEAM
position?
• Has the iron had enough time to preheat?
• ALWAYS empty the water tank of the iron after
using. Water left in the tank may discolor clothing
and soleplate.
• Check Temperature Control Dial is set to
correct fabric.
• Check Temperature Control Dial and set to lower setting.
Allow iron to cool down 5 minutes before continuing.
• If the iron cord should become twisted, turn iron OFF
(O), turn Control Dial to OFF (O) and unplug iron. Let
cool. Empty water from iron.Hold iron cord in the middle
of entire length. Let plug and iron dangle freely until cord
uncoils. This will extend the life of your iron cord.
840141100 ENv02.qxd 9/22/05 1:39 PM Page 7
8
Customer Service
If you have a question about your appliance, call our toll-free customer service
number. Before calling, please note the model, type, and series numbers and fill in
that information below. These numbers can be found on the bottom of your appliance. This information will help us answer your question much more quickly.
MODEL:___________________ TYPE :___________________ SERIES: __________________
This warranty applies to products purchased in the U.S. or Canada.
LIMITED WARRANTY
This product is warranted to be free from defects in material and workmanship for a period
of one (1) year for Hamilton Beach products or one hundred eighty (180) days for ProctorSilex and Traditions products from the date of original purchase, except as noted below.
During this period, we will repair or replace this product, at our option, at no cost. THE
FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY OR CONDITION,
WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING, WITHOUT
LIMITATION, ANY STATUTORY WARRANTY OR CONDITION OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO
AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR
SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED.
There is no warranty with respect to the following, which may be supplied with this
product, including without limitation: glass parts, glass containers, cutter/strainers, blades,
seals, gaskets, clutches, motor brushes, and/or agitators, etc. This warranty extends only
to the original consumer purchaser and does not cover a defect resulting from abuse,
misuse, neglect including failure to clean product regularly in accordance with
manufacturer’s instructions, use for commercial purposes, or any use not in conformity
with the printed directions. This warranty gives you specific legal rights, and you may also
have other legal rights which vary from state to state, or province to province. Some states
or provinces do not allow limitations on implied warranties or special, incidental or
consequential damages, so the foregoing limitations may not apply to you.
If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE
STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have
model, series, and type numbers ready for operator to assist you.)
CUSTOMER SERVICE NUMBERS
In the U.S. 1-800-851-8900
In Canada 1-800-267-2826
hamiltonbeach.com or proctorsilex.com
KEEP THESE NUMBERS FOR FUTURE REFERENCE!
840141100 ENv02.qxd 9/22/05 1:39 PM Page 8
Loading...
