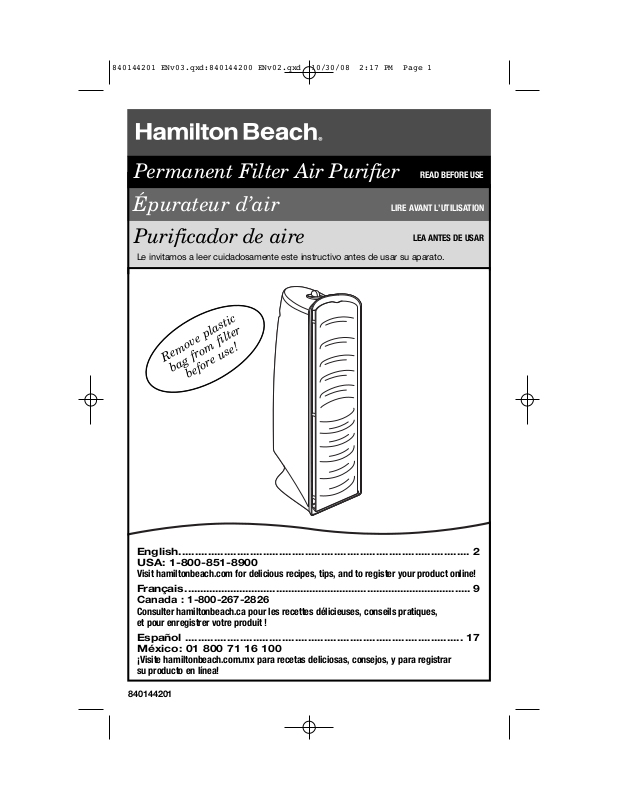

Hamilton Beach 04992F, 840144201 User Manual

840144201

Permanent Filter Air Purifier

Épurateur d’air

Purificador de aire

READ BEFORE USE

LIRE AVANT L’UTILISATION

LEA ANTES DE USAR

Le invitamos a leer cuidadosamente este instructivo antes de usar su aparato.

English.......................................................................................... 2

USA: 1-800-851-8900

Visit hamiltonbeach.com for delicious recipes, tips, and to register your product online!

Français .............................................................................................. 9

Canada : 1-800-267-2826

Consulter hamiltonbeach.ca pour les recettes délicieuses, conseils pratiques,
et pour enregistrer votre produit !

Español ...................................................................................... 17

México: 01 800 71 16 100

¡Visite hamiltonbeach.com.mx para recetas deliciosas, consejos, y para registrar
su producto en línea!

Remove plastic

bag from filter

before use!

840144201 ENv03.qxd:840144200 ENv02.qxd 10/30/08 2:17 PM Page 1

2

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS!

1. Read all instructions before using this
air purifier. Save these instructions for
reference.

2. Do not immerse this product in water or
splash water on it. An electrical short
may result in shock or fire.

3. Do not handle the plug with wet hands;
electrical shock may occur, resulting in
injury or death.

4. Never attempt to disassemble or alter
the product in any way not instructed by
this manual. Shock, fire, or bodily injury
may occur. Call 1-800-851-8900 (U.S.) or
1-800-267-2826 (Canada) for assistance.

5. Do not operate this product in any greasy
environment such as in the kitchen. This
product is not intended to filter oil or
grease from the air.

6. Do not operate this product near an open
fire. It may ignite and cause fire, resulting
in bodily injury or property damage.

7. Do not operate this product in a garage
or other area with oil or chemicals such
as solvents or insecticides.

8. Always unplug the power cord from the
receptacle when the air purifier is not in
use, before cleaning, replacing parts, or
before moving to another location.

9. Do not insert foreign objects into the
product for any reason. Bodily injury
or property damage may occur.

10. Do not use this product outdoors. It is
intended for indoor use only.

11. Do not use air purifier in unheated areas
such as a garage or porch.

12. Do not operate this appliance without
the outlet grill in place or if the outlet
grill is broken or damaged.

13. WARNING: To reduce the risk of fire or
electric shock, do not use this purifier
with any solid-state speed control
device.

Other Consumer Safety Information

This appliance is intended for
household use only.

WARNING! Shock Hazard: This appliance

has a polarized plug (one wide blade) that
reduces the risk of electric shock. The plug
fits only one way into a polarized outlet. Do
not defeat the safety purpose of the plug by
modifying the plug in any way or using an
adaptor. If the plug does not fit, reverse the
plug. If it still does not fit, have an electri­cian replace the outlet.

The length of the cord used on this appli­ance was selected to reduce the hazards
of becoming tangled in, or tripping over a
longer cord. If a longer cord is necessary
an approved extension cord may be used.
The electrical rating of the extension cord
must be equal to or greater than the rating
of the appliance. Care must be taken to
arrange the extension cord so that it will
not drape over the countertop or tabletop
where it can be pulled on by children or
accidentally tripped over. Route the electri­cal or extension cord clear of furniture to
prevent damage from pinching.

READ AND SAVE THESE INSTRUCTIONS.

In order to prevent the risk of fire, electric shock, personal injury or damage to property,
follow these instructions carefully. When using electric appliances, basic safety precautions
should be followed, including the following:

840144201 ENv03.qxd:840144200 ENv02.qxd 10/30/08 2:17 PM Page 2

3

Parts and Features

About Your Air Purifier

The air purifier and built-in ionizer
work by attracting unwanted particu­lates (such as pet dander, dust,
pollen, mold and mildew spores,
and smoke) and then removing
them from the air.

The air is cleaned in three stages:

1. A fan draws air through the sides of

the front panel of the air purifier.

2. The permanent filter then removes
particles as small as 5 microns from
the air at 99% effectiveness.

3. The purified air is then released
through the back of the unit.

This product earned the ENERGY STAR by
meeting strict energy efficiency guidelines set
by the US EPA. US EPA does not endorse
any manufacturer claims of healthier indoor
air from the use of this product.

The energy efficiency of this ENERGY
STAR-qualified model is measured based
on a ratio between the model’s CADR for
dust and the electrical energy it consumes—
or CADR/Watt.

Air
Quality
Sensor

Filter Check Gauge

(located on inside

front panel)

Front Panel

Permanent Filter

Control Panel

Magnetic Front
Panel Closer

Back View

Outlet Grill

840144201 ENv03.qxd:840144200 ENv02.qxd 10/30/08 2:17 PM Page 3

4

How to Assemble and Use

IMPORTANT:

• Your air purifier is designed for easy use and maintenance. Make sure that you
remove all packing materials and that the permanent filter is properly installed
before use.

• Remember to remove the plastic bag around filter before using.

Selecting the Proper Location

To prevent the risk of personal injury or damage to the air purifier and provide
the best possible performance of your air purifier, follow the placement
guidelines below:

DO NOT:

• Do not stand, sit, or place any
objects
on the air
purifier. It is
not designed
to support
additional
weight.

• Do not block the air intake and

outlet grills with drapes, curtains,
or blinds. This may cause reduced
performance.

• Do not use in a kitchen, garage, or

area with grease, oil or chemicals
such as solvents or insecticides.

• Do not place on or near heat

sources such as stoves, radiators,
or heaters, or in direct sunlight.

• To reduce electrical noise and

interference, do not place on or near,
or plug into the same outlet as TVs,
baby monitors, or cordless phones.

DO:

• Place the air purifier on a flat, stable
surface.

• Place the air purifier near an electrical

outlet. Make sure that the air purifier
and the cord do not present tripping
hazards.

• Select a central location with

adequate air circulation.

• Turn off and unplug the air purifier

before moving or servicing it, or if it
will not be used for several days.

• Route the electrical cord clear of

furniture to prevent damage from
pinching.

840144201 ENv03.qxd:840144200 ENv02.qxd 10/30/08 2:17 PM Page 4

5

Setting the Controls

1. Air Quality Sensor Display (on

select models only) – When the air

purifier is first turned on, the air qual­ity sensor will analyze the air to
determine the current air quality. It
may take up to one minute to acti­vate the sensor. The sensor will then
continue to monitor and show the air
quality (poor, fair, or good) in a bar
graph in the display.

Auto – Sensor automatically adjusts
the fan speed for the most effective
air purification.

2. Power On Indicator – Lights when

unit is on.

3. Fan Speed Knob – Turn the fan
speed knob to the desired setting.

• Off

• WhisperClean™– Use for quiet

operation or for constant low­speed filtration.

• Med (medium) – Provides a higher

fan speed; use to quickly filter
dust, pollen, smoke, etc., from a
room.

• QuickClean

™

– Provides high­speed filtration when more
immediate cleaning is desired.

• Auto – Functions with the air quali­ty sensor and automatically selects
the fan speed depending on the air
quality detected. This is the normal
setting for continuous use.

AIR

QUALITY

Poor

Fair

Good

AUTO SELECTED

FAN SPEED

QuickClean

™

Med (medium)

WhisperClean

™

840144201 ENv03.qxd:840144200 ENv02.qxd 10/30/08 2:17 PM Page 5

6

Cleaning the Air Purifier

Your air purifier is designed to provide years of trouble-free service with
minimal maintenance. The following instructions will help you maximize the
life and efficiency of your air purifier.

wWARNING

To reduce risk of electric shock:

• Always unplug before cleaning.

• Do not immerse in water or other liquid.

Cleaning the Permanent Filter and Front Cover

NOTE: It is important to regularly clean

the permanent filter and front panel.
There is no need to touch the dirty
filter–simply remove front panel to
vacuum the permanent filter clean.

Use of an ionizer when filter and grills
are dirty may result in dirt particles
exiting the air purifier and being
attracted to walls and other household
objects.

The air purifier releases negative ions
into the filtered air. The ions are
colorless, odorless, and harmless.
The negative ions attach to small
particles in the air causing the particles
to take on a negative charge. The
negatively charged particles join
positively charged particles like dust,
smoke, pollen and pet dander to form
larger particles that are more effectively
captured by the filter system.

• Wipe enclosure, control panel, and
cord with a damp cloth or sponge.

• The front panel can be removed
and washed in warm, soapy water.
Do not place in dishwasher. Make
sure the panel is completely dry
before reinstalling.

• The outlet grill on the back of the unit
should simply be dusted.

• No part of the air purifier should be
placed in a dishwasher.

To clean the permanent filter:

1. Turn off and unplug air purifier.

2. Remove magnetic front panel to

access permanent filter.

3. Use the crevice tool or brush attach­ment of your
vacuum cleaner
to clean perma­nent filter. Run
attachment
between pleated
filter layers to
clean.

4. Replace magnetic front panel.

NOTES:

• There is no need to remove filter from

unit.

• Clean the filter once every three to six

months depending on usage rate and
soil level.

• Even after vacuuming clean, some

permanent discoloration of the filter
should be expected.

Ready to use = white

Halfway full = light gray

Time to vacuum = darker gray

840144201 ENv03.qxd:840144200 ENv02.qxd 10/30/08 2:17 PM Page 6

7

The Air Quality Sensor (select models only)

The air quality sensor is a rectangular
compartment located on the side of
the air purifier. It contains both the
sensor/sensor lens and the sensor
cleaner (see Fig. 1). The sensor cleaner
is soft and specially shaped to fit inside
the sensor/sensor lens area. Monthly
cleaning of the sensor/sensor lens is
recommended.

Cleaning the Sensor/
Sensor Lens:

1. Open the compartment door and

remove the sensor cleaner. If sensor
cleaner is difficult to grasp, pull on
the black ribbon underneath to help
release it.

2. Holding one end of the sensor clean-

er, push the piece in and out of the
sensor/sensor lens opening several
times. This will clean the area.

3. Slide the sensor cleaner back into its

storage compartment and close the
air quality sensor door. Make sure
the compartment door is fully closed
or the air purifier may not operate
properly.

Sensor/Sensor Lens

Cleaning the Air Purifier (cont.)

Fig. 1

Sensor Cleaner

Reduced Air Flow or Poor Filtering

• The intake or outlet grill may be
blocked. Make sure nothing is in
front of or directly behind the unit.

• The filter may be clogged. Refer to
the “Cleaning the Air Purifier” section
and vacuum if necessary.

Troubleshooting Guide

The following section provides the solutions to many common problems and
questions. If your air purifier is not working correctly, review these solutions
first. If your problem is still not solved after reviewing this guide, call our toll-free
customer service number, listed on the front cover of this manual, for assistance.

The Air Purifier Will Not Turn On

• Is the air purifier plugged into a
powered outlet?

• Is the fan speed knob turned on?

The Air Purifier Changes Speed

• Air quality sensor models are designed to sense the level of contaminants in the
air and adjust the fan speed to provide the most effective air purification possi­ble. If the air quality sensor control is set to Auto, it will automatically change
fan speeds to adjust for changing air quality.

840144201 ENv03.qxd:840144200 ENv02.qxd 10/30/08 2:46 PM Page 7

This warranty applies to products purchased in the U.S. and Canada. This is the only
express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a
period of one (1) year from the date of original purchase. During this period, your
exclusive remedy is repair or replacement of this product or any component found to
be defective, at our option; however, you are responsible for all costs associated with
returning the product to us and our returning a product or component under this
warranty to you. If the product or component is no longer available, we will replace
with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in
conformity with the printed directions, or damage to the product resulting from
accident, alteration, abuse or misuse. This warranty extends only to the original
consumer purchaser or gift recipient. Keep the original sales receipt, as proof of
purchase is required to make a warranty claim. This warranty is void if the product is
used for other than single-family household use.

We exclude all claims for special, incidental and consequential damages caused by
breach of express or implied warranty. All liability is limited to the amount of the
purchase price. Every implied warranty, including any statutory warranty or

condition of merchantability or fitness for a particular purpose, is disclaimed
except to the extent prohibited by law, in which case such warranty or condition
is limited to the duration of this written warranty. This warranty gives you specific

legal rights. You may have other legal rights that vary depending on where you live.
Some states or provinces do not allow limitations on implied warranties or special,
incidental or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call

1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com
in the US or hamiltonbeach.ca in Canada. For faster service, locate the model, type,
and series numbers on your appliance.

Limited Warranty

8

840144201 ENv03.qxd:840144200 ENv02.qxd 10/30/08 2:17 PM Page 8

9

1. Lire toutes les instructions avant d’utiliser
cet épurateur d’air. Conserver ces
instructions pour référence ultérieure.

2. Ne pas immerger ce produit dans l’eau ni
l’asperger d’eau. Un court-circuit risque
de causer un choc ou un incendie.

3. Ne pas toucher à la fiche de branchement
avec des mains mouillées; un choc
électrique risque de se produire et peut
causer une blessure ou la mort.

4. Ne jamais tenter de démonter ou de
modifier le produit d’une manière qui ne
soit pas mentionnée dans ce manuel. Un
choc, un incendie ou une blessure peut
en résulter. Communiquer avec Hamilton
Beach au 1-800-267-2826 pour de l’aide.

5. Ne pas faire fonctionner ce produit dans
un environnement graisseux tel que la
cuisine. Ce produit n’est pas conçu pour
filtrer l’huile ou la graisse de l’air.

6. Ne pas faire fonctionner ce produit près
d’une flamme nue. Il peut s’enflammer et
causer un incendie, des blessures ou des
dommages matériels.

7. Ne pas faire fonctionner ce produit dans
un garage ou un autre endroit en
présence d’huile, de produits chimiques
tels que les solvants ou les insecticides.

8. Débrancher toujours le cordon
d’alimentation de la prise lorsque
l’épurateur d’air n’est pas utilisé, avant
le nettoyage, le remplacement de
pièces ou avant de le déménager à
un autre endroit.

9. N’introduire aucun corps étranger dans
le produit pour quelque raison que ce
soit. Des blessures ou dommages
matériels peuvent se produire.

10. Ne pas utiliser ce produit à l’extérieur.
Il est conçu pour utilisation à l’intérieur
seulement.

11. N’utilisez jamais votre purificateur d’air
dans un espace non chauffé, comme
un garage ou un porche.

12. Ne pas faire fonctionner cet appareil
sans que la grille de sortie ne soit en
place ou si la grille de sortie est brisée
ou endommagée.

13. AVERTISSEMENT : Pour réduire le
risque d’incendie ou de choc électrique,
ne pas utiliser cet épurateur d’air avec
un dispositif de contrôle de vitesse
transistorisé.

LIRE ET CONSERVER CES INSTRUCTIONS.

Pour réduire le risque d’incendie, de choc électrique, de blessure ou de dommage matériel,
suivre les instructions suivantes attentivement. Lors de l’utilisation d’appareils électroménagers,
des précautions préliminaires de sécurité doivent être observées, y compris ce qui suit :

Autres renseignements de
sécurité aux consommateurs

Cet appareil est destiné à un usage
domestique uniquement.

ATTENTION ! Danger d'électrocution : Cet
appareil électoménager possède une fiche
polarisée (une broche large) qui réduit le
danger d'électrocution. Cette fiche n'entre
que dans un seul sens dans une prise
polarisée. Ne contrecarrez pas l'objectif
sécuritaire de cette fiche en la modifiant de
quelque manière que ce soit ou en utilisant
un adaptateur. Si la fiche n'entre pas bien,
retournez-la. Si elle continue à ne pas bien
entrer, demandez à un électricien de
remplacer la prise. La longueur du cordon
de cet appareil a été choisie de façon à ce

que l’on ne risque pas de trébucher dessus.
Si un cordon plus long est nécessaire, utiliser
une rallonge appropriée. Le calibre de la
rallonge doit être le même que celui de
l’appareil ou supérieur. Lorsqu’on utilise une
rallonge, s’assurer qu’elle ne traverse pas la
zone de travail, que des enfants ne puissent
pas tirer dessus par inadvertance et qu’on ne
puisse pas trébucher dessus.

Vous devez veiller à disposer la rallonge de
manière à ce qu’elle ne pende pas du
comptoir ou de la table, où elle pourrait être
tirée par des enfants ou faire trébucher.

IMPORTANTES INSTRUCTIONS

CONSERVER CES INSTRUCTIONS !

840144201 FRv02.qxd:840144200 FRv02.qxd 10/30/08 2:37 PM Page 9
