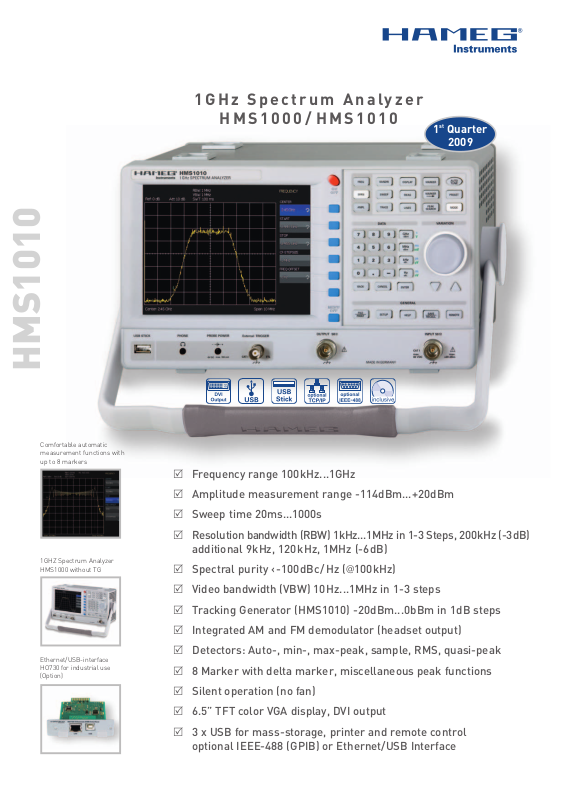

HAMEG HMS1000, HMS1010 User Guide

1GHz Spectrum Analyzer

HMS1000/HMS1010

1stQuarter

2009

HMS1010

 Frequency range 100kHz...1GHz

 Amplitude measurement range -114dBm...+20dBm

 Sweep time 20ms...1000s

 Resolution bandwidth (RBW) 1kHz...1MHz in 1-3 Steps, 200kHz (-3dB)

additional 9kHz, 120 kHz, 1MHz (-6dB)

 Spectral purity ‹-100dBc/ Hz (@100kHz)

 Video bandwidth (VBW) 10Hz...1MHz in 1-3 steps

 Tracking Generator (HMS1010) -20dBm...0bBm in 1dB steps

 Integrated AM and FM demodulator (headset output)

 Detectors: Auto-, min-, max-peak, sample, RMS, quasi-peak

 8 Marker with delta marker, miscellaneous peak functions

 Silent operation (no fan)

 6.5” TFT color VGA display, DVI output

 3 x USB for mass-storage, printer and remote control

optional IEEE-488 (GPIB) or Ethernet/USB Interface

Ethernet/USB-interface
HO730 for industrial use
(Option)

1GHZ Spectrum Analyzer
HMS1000 without TG

Comfortable automatic
measurement functions with
up to 8 markers

1GHz Spectrum Analyzer HMS1000, HMS1010 (with TG)
3GHz Spectrum Analyzer HMS3000, HMS3010 (with TG)

All data valid at 23 °C after 30 minute warm-up

Frequency

Frequency range:

HMS1000, HMS1010 100kHz...1GHz

HMS3000, HMS3010 100kHz…3GHz
Temperature stability: ± 2ppm (0...30 °C)
Aging: ± 1ppm/year
Frequency counter:

Resolution 1Hz

Accuracy ± (Frequency x failure of reference)
Span setting range:

HMS1000, HMS1010 0Hz (zero span) and 1kHz…1GHz

HMS3000, HMS3010 0Hz (zero span) and 100Hz…3GHz
Spectral purity, SSB phase noise:

30kHz from carrier

(500MHz, +20°C...30°C) ‹-85dBc/Hz

100kHz from carrier

(500MHz, +20°C...30°C) ‹-100dBc/Hz

1MHz from carrier

(500MHz, +20°C...30°C) ‹-120dBc/Hz

Sweep time:

Span = 0Hz 20ms...100s

Span › 0Hz 20ms...1000s, min. 20ms /600MHz
Resolution bandwidths (-3 dB):

HMS1000, HMS1010 1kHz...1MHz in 1–3 steps, 200kHz

HMS3000, HMS3010 100Hz...1MHz in 1–3 steps, 200kHz

Tolerance:

≤ 300kHz ±5% typ.
1MHz ± 10% typ.

Resolution bandwidths (-6 dB):

HMS1000, HMS1010 9kHz, 120kHz,1MHz

HMS3000, HMS3010 200Hz, 9kHz, 120kHz, 1MHz
Video bandwidths: 10Hz...1MHz in 1–3 steps

Amplitude

Display range: Average noise trace up to +20dBm
Amplitude measurement range: Typ. -114dBm...+20dBm
Max. permissible DC at HF input: 80V
Max. power at HF input: 20dBm, 30dBm für max. 3 Min.
Intermodulation free range:

IM3 products, 2 x –20dBm

(-10dBm ref. level) 66dB typ. (typ. +13dBm third-order intercept)

(at distance between

signals ≤ 2MHz) 60dB typ. (+10dBm TOI)

(at distance between

signals › 2MHz) 66dB typ. (typ. +13dBm TOI)
DANL (Displayed average noise level):

(RBW 1kHz, VBW 10Hz,

ref. level ≤ –30dBm

10MHz...1GHz resp. 3GHz) -105dBm, typ. -114dBm

With Preamp. -135dBm typ. (100Hz RBW)

Inherent spurious:

(ref. level≤ -20dBm,

f ‹ 30MHz, RBW ≤ 100kHz) ‹ -80dBm

Input related spurious:

(Mixer level ≤ -40dBm,

carrier offset ›1MHz) -70dBc typ., -55dBc (2…3GHz)

2nd harmonic receive frequency

(mixer level -40dBm): -60dBc typ.

Level display:

Reference level -80dBm...+20dBm in 1dB steps

Display range 80dB, 40dB, 20dB, 10dB, linear

Logarithmic display scaling dBm, dBμV, dBmV

Linear display scaling μV, mV, V, nW, μW, mW, W
Measured curves: 1 curve and 1 memory curve
Trace Mathematics: A-B (curve-stored curve), B-A
Detectors: Auto-, Min-, Max-Peak, Sample, RMS,

Average, Quasi-Peak

Failure of level display: ‹ 1,5dB, typ. 0,5 dB

(ref. level to ref. level-50dB, 20°C…30°C)

Marker / Deltamarker

Number of marker: 8
Marker functions: Peak, next peak, minimum, center = marker

frequency, reference level = marker level,
all marker on peak

Marker displays: Normal (level), noise marker,

(frequency) counter

Inputs / Outputs

HF Input N socket

Input Impedance: 50Ω
VSWR (10MHz…1GHz/3GHz): ‹ 1,5 typ.

Output tracking generator:

(HMS1010/HMS3010) N socket
Output Impedance: 50Ω
Frequency range: 5MHz…1GHz / 3GHz

Output level: -20dBm...0dBm in 1dB steps
Trigger and external
reference input: BNC socket, switchable

Trigger voltage TTL

Reference frequency 10MHz

Essential level (50Ω) 10dBm
Supply output for field probes: 6VDC, max. 100mA (2,5mm DIN jack)
Audio output (Phone): 3,5mm DIN jack

Demodulation AM and FM

Miscellaneous

Display: 6,5" TFT Color VGA Display

Save / Recall memory: 10 complete device settings

Trigger: Free run, Video Trigger, external Trigger
Interfaces: Dual-Interface USB/RS-232 (HO720),

USB-Stick (frontside),
USB-Printer (rear side) from SW 2.0,
DVI for ext. monitor

Power supply: 105/253 V, 50/60 Hz, CAT II
Power consumption: Max. 40Watt at 230V, 50 Hz
Protection class: Safety class I (EN61010-1)
Operating temperature: +5°C...+40°C
Storage temperature: -20°C...+70°C
Max. rel. humidity: 5%...80% (non condensing)
Dimensions (W x H x D): 285 x175x 220 mm
Weight: 3.6 kg

Accessories supplied:

Line cord, Operating manual, Dual-Interface
USB/RS-232 (HO720), CD, HZ21 Adapter plug (N plug to BNC socket)

Optional accessories:

HO3011 Preamplifier -135dBm DANL (100Hz RBW)
HO730 Dual-Interface Ethernet/USB
HO740 Interface IEEE-488 (GPIB), galvanically isolated
HZ547 3GHz VSWR Test Unit for HMS1010, HMS3010
HZ520 Plug-in Antenna with BNC connection
HZ530 Near-Field Probe Set 1GHz for EMV diagnostics
HZ540 Near-Field Probe Set 3GHz for EMV diagnostics
HZ560 Transient limiter
HZ575 75/50Ω Converter
HZ46 4RU 19'' Rackmount Kit
