MA
SPECIFICATIONS

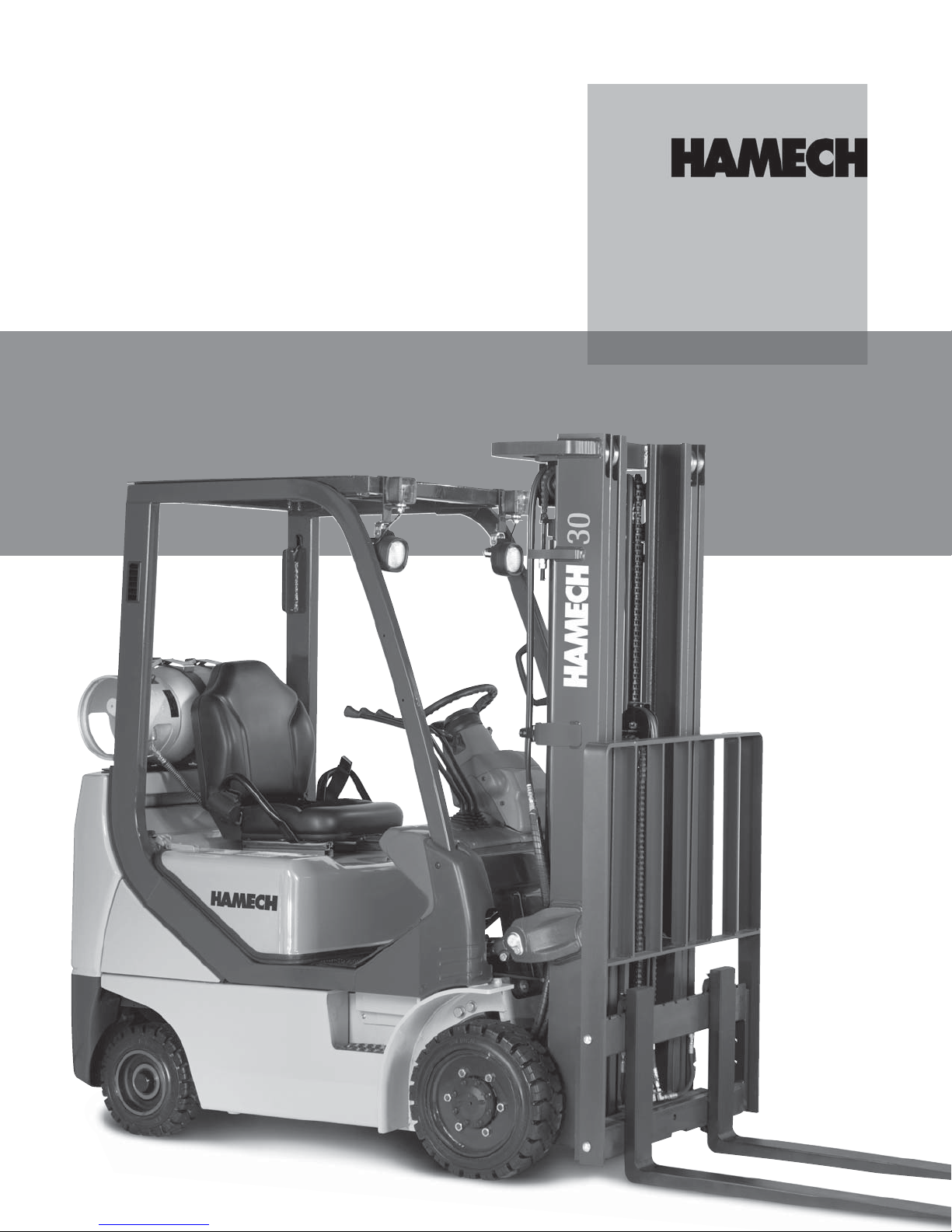

Cushion Tire Lift Trucks
LPG and GAS
3,000 – 3,500 LB CAPACITIES
X
50
12
28
14
23
17
15
18
4
5
26
22
19
20

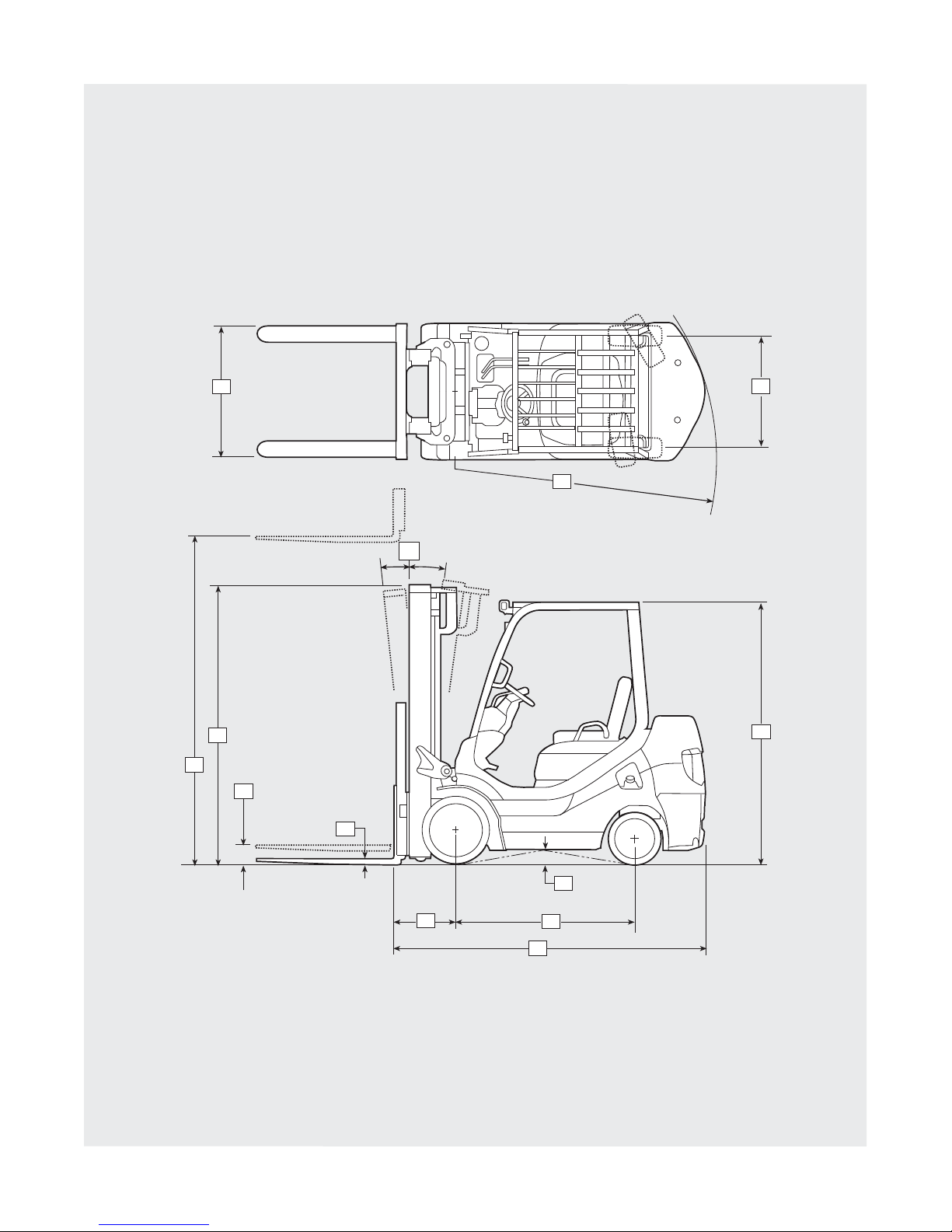

MAX50 CUSHION TIRE LIFT TRUCKS
MAX50 CUSHION TIRE LIFT TRUCK SPECIFICATIONS
GENERAL G15SHT-20 G18SHT-20
1 Power Type
2 Operation Type Sit-Down Sit-Down
3 Capacity @ 24 in. (600 mm) load center* lbs. (kg) 3,000 (1,360) 3,500 (1,580)
4 Load distance from center axle in. (mm) 15 (382) 15 (382)
5 Wheelbase in. (mm) 48 (1,220) 48 (1,220)
WEIGHT
60 Service weight (includes 2-stage std. mast & forks)
70 Axle Loading
Loaded
Unloaded Front lbs. (kg) 2,500 (1,135) 2,360 (1,070)
Front lbs. (kg) 7,910 (3,590) 8,640 (3,920)
Rear lbs. (kg) 1,311 (595) 1,543 (700)
Rear lbs. (kg)
lbs. (kg)
TIRE
8 Tire type
9 Tire size, front 18 x 6 x 12-1/8 18 x 6 x 12-1/8
10 Tire size, rear 14 x 4-1/2 x 8 14 x 4-1/2 x 8
11 Number of wheels, front / rear x=driven 2x / 2 2x / 2
12 Tread (center of tires)
Front in. (mm) 32.1 (815) 32.1 (815)
Rear in. (mm)
DIMENSIONS
13 Tilting angle, 2-stage (FV) masts, forward / backward
14 Tilting angle, 3-stage (TFV) masts, forward / backward deg. 6 / 5 6 / 5
15 Mast height, lowered (2-stage std. mast) in. (mm) 83.5 (2,120) 83.5 (2,120)
16 Mast height, extended (2-stage std. mast)† in. (mm) 176 (4,470) 176 (4,470)
17 Maximum fork height (2-stage std. mast)** in. (mm) 128 (3,250) 128 (3,250)
18 Free lift height (2-stage std. mast) in. (mm) 5.5 (140) 5.5 (140)
19 Height overhead guard in. (mm) 80.3 (2,040) 80.3 (2,040)
20 Length, with standard forks in. (mm) 121.9 (3,095) 123.2 (3,130)
21 Length to fork face (2-stage mast) in. (mm) 79.7 (2,025) 81.1 (2,060)
22 Overall width, at drive tires (single) in. (mm) 38.2 (970) 38.2 (970)
23 Forks, thickness x width x length in. (mm) 1.6 x 4 x 42.1 (40 x 100 x 1,070) 1.6 x 4 x 42.1 (40 x 100 x 1,070)
24 Carriage width / ITA Class in. (mm) 37 (940) / II 37 (940) / II
25 Ground clearance, under mast in. (mm) 3.5 (89) 3.5 (89)
26 Ground clearance, center of wheelbase in. (mm) 4 (102) 4 (102)
27 Right angle stacking aisle (2-stage mast without load length & clearance)†† in. (mm) 84.7 (2,152) 85.9 (2,642)
28 Turning radius, outside in. (mm)
deg.
PERFORMANCE
29 Travel speed, forward, loaded / unloaded
30 Lifting speed, loaded / unloaded (2-stage mast) fpm (mm/s) 135 (685) / 138 (700) 135 (685) / 138 (700)
31 Lowering speed, loaded / unloaded (2-stage mast) fpm (mm/s) 98 (500) / 98 (500) 98 (500) / 98 (500)
32 Maximum drawbar pull, loaded lbs. (kN) 4,300 (19.1) 4,300 (19.1)
33 Maximum gradability % 41 37
34 Service brake, operation / control Foot / Hydraulic Foot / Hydraulic
35 Parking brake, operation / control Hand / Mechanic Hand / Mechanic
36 Steering, type
mph (km/h)
DRIVE
37 Engine Manufacturer / Engine model
38 Rated output (SAE Net) HP (kW) @ rpm 56 (41) @ 2,700 56 (41) @ 2,700
39 Maximum torque (SAE Net) lb. − ft. (Nm) @ rpm 116 (158) @ 1,600 116 (158) @ 1,600
40 No. of cylinders / displacement cu. in. (cm3) 4 / 126 (2,065) 4 / 126 (2,065)
41 Fuel tank capacity U.S. gallons (liters)
OTHER
42 Relief pressure, maximum psi (bar)
43 Transmission Powershift Powershift
44 Sound level, at operator ears dB 84 84
NOTE: Most values shown in this publication are rounded. Therefore, direct conversion between metric and English or Imperial may be slightly different from those
shown. The performance of machines is affected by the condition of the truck and how it is equipped, as well as the nature and condition of the operating area. If
these specifi cations are critical or if your needs exceed the specifi cations shown here, discuss the proposed application with your authorized dealer.
*Optional masts, attachments, longer load dimensions, and higher lifting heights may result in downrating of the capacity. Contact your authorized dealer.
**Other mast heights available. See MAST DATA chart for other standard mast heights. Contact your authorized dealer.
†Includes 48-inch (1,220 mm) high load backrest. Contact your authorized dealer.
††Add load distance and clearance. Contact your authorized dealer.
Gasoline Gasoline
6,230 (2,825) 6,700 (3,040)
3,730 (1,690) 4,340 (1,970)
Cushion Cushion
32.1 (815) 32.1 (815)
6 / 8 6 / 8
69.7 (1,770) 70.9 (1,800)
10.6 (17) / 10.6 (17) 10.6 (17) / 10.6 (17)
FHPS FHPS
Nissan / K21 Nissan / K21
6.6 (25) 6.6 (25)
2,650 (181) 2,650 (181)
MAX50 TRUCK DATA AND FEATURES
Maximum Fork Mast Height Mast Height Free Lift
Height in. (mm) Lowered in. (mm) Extended in. (mm) in. (mm)
2-STAGE FREE VIEW (FV)
82 (2,080) 60.5 (1,535) 130 (3,300) 5.5 (140)
106 (2,690) 72.5 (1,840) 154 (3,910) 5.5 (140)
116 (2,945) 77.5 (1,970) 164 (4,165) 5.5 (140)
128 (3,250) 83.5 (2,120) 176 (4,470) 5.5 (140)
146 (3,705) 92.5 (2,350) 194 (4,925) 5.5 (140)
3-STAGE FULL FREE VIEW (TFV)
158.5 (4,025) 73.5 (1,865) 206.5 (5,245) 25.5 (645)
170.5 (4,330) 77.5 (1,965) 218.5 (5,550) 29.5 (750)
188.5 (4,785) 83.5 (2,120) 236.5 (6,010) 35.5 (900)
198.5 (5,040) 87.5 (2,225) 246.5 (6,260) 39.5 (1,000)
216.5 (5,500) 95.5 (2,425) 264.5 (6,720) 47.5 (1,205)
235.5 (5,980) 104.5 (2,655) 283.5 (7,200) 56.5 (1,4355)
NOTE: Custom masts available. Please consult your authorized dealer for information.
SPECIAL FEATURES
• EPA Tier II compliant K21 industrial engine
with high torque at low RPMs for power
and fuel effi ciency
• Dual fl oating structure uses drive-train
cushion mounts and suspension compartment mounts to isolate the operator from
engine and fl oor vibration
• New full fl oating transmission with highcapacity oil cooler for the torque converter,
aluminum alloy transmission case for better
heat dissipation, and highly reliable, dustresistant, double-sealed universal
joint design
• Self-adjusting brakes with thicker drums
improves heat resistance in severe duty
applications
• Steer axle with integral double-acting,
double-ended cylinder, high-capacity kingpin needle bearings, and heavy-duty seals
• Mast with large visibility window, combined
with low profi le dash display, offers the
operator an unrestricted view to the fork
tips and surrounding area
• Operator presence system locks out lift,
lower, tilt and travel functions when the
operator leaves the seat for longer than
three seconds
STANDARD EQUIPMENT
• New low profi le dash display –
Fuel Gauge,Water Temperature Gauge
and Hour Meter
• Indicator lights – Neutral/Return to
Neutral, Low Oil Pressure, Low Battery/
Alternator, Hydraulic Lock (Operator
Presence), Check
Engine Warning, Maintenance Error Code
• Drawbar Pin in Counterweight
• Electronic Ignition, Anti-Restart
Ignition Switch
• Fully Hydrostatic Power Steering
• Long-Life Headlights (OHG Mounted)
• LED Tail/Stop/Rear Turn Lights
• High-Mount Air Intake
• Horn with Actuator on Center of
Steering Wheel
• Three-Piece Overhead Guard
• Comfortable Seat and Operator Restraint
System with Lap Belt
• Three-Function Hydraulic Control Valve
• Parking Brake with Double-Action Release
• Tilting Steering Column
• Large, Open Floor Space with Operator
Compartment Suspended-Mount Pedals
• Transmission Torque Converter Oil Cooler
• Load Backrest
• Spacious Step Area, Large Entry Handgrip
and Wide-Open Floor Space allows easy
entry/exit
• Engine Protection System
• ITA Class II Fork Carriage
• ITA Class II Forks
• Critical Wiring Harness Connectors are
Waterproof
• Contoured, Easy-to-Grip, Hydraulic Control
Lever Knobs
OPTIONAL EQUIPMENT
• Warning Lights & Audible Travel Alarms
• Economy Mode Package
• Tilt Cylinder Boots
• Cotton-Core Radiator
• Spinner Knob Steering Wheel
• Dual-Fuel System
• Optional Fork Lengths
• Sideshifter – Hang-On or Integral
• 4-W
ay Valve and Internal Hosing
• Special Tires
• Full Suspension Seat
• Fire Extinguisher
• Attachments
• Rear-view mirrors
TECHNICAL DATA
ENGINE
K21 (2.1 liter) gasoline/LPG, 4-cylinder,
in-line engines with Engine Concentrated
Control Systems (ECCS) exceed EPA emissions
standards. These low-RPM, high-torque industrial engines offer reduced maintenance
requirements, exceptional emissions controls,
fast acceleration, high performance, reliable
durability and enhanced serviceability.
• There are three engine fuel choices:
gasoline multi-port fuel injection, LPG
single-port (throttle body) fuel injection,
or a dual-fuel system with easy switching
at the fl ip of a switch. All engines are
equipped with 3-way catalytic converters
and closed-loop exhaust systems.
• All engines utilize an ECCS that continu-
• Crankshaft and camshaft position sensors
• An engine coolant temperature sensor
ously monitors data from the fuel pressure,
accelerator throttle position, mass air-fl ow
sensor, and heated oxygen sensor – for
improved fuel economy, smooth operation,
reliable starting in cold weather, and high
performance throughout the operating
range. An electronic throttle governor protects the engine against over-rev damage.
provide information to the ECCS for optimum
ignition and fuel injection timing. Each cylinder
has an individual ignition coil for precise
control and reliability.
and controller protects the engine against
damage due to high engine temperature
by automatically limiting engine speed
during high-temperature operation. If the
engine coolant temperature exceeds safe
operation temperature, the engine will be
shut down. An illuminated indicator on the
instrument console indicates high-temperature operation, and gives the operator
warning of engine shutdown.
• The aluminum alloy cylinder head has large
intake and exhaust valves and a semi-hemispherical combustion chamber for effi cient
fuel consumption.
• The engine block is designed with fi ve main
bearings. All main and rod bearings are
micro-grooved to improve lubrication and
reduce wear.
TECHNICAL DATA
FUEL SYSTEM
Gasoline, LPG, or Dual-Fuel systems are
available. The gasoline fuel tank is integral to
the truck frame.
• In-tank mounted gasoline fuel delivery
pump, fuel-level sensing unit, pressure
regulator and fi lter are standard.
• LPG fuel system uses single-point, throttle
body fuel injection. A removable 33 lb.
fuel tank is available with a fold back tankmounting bracket.
COOLING SYSTEM
The high-capacity aluminum radiator is
designed with an effi cient thermal transfer
fi n and integral oil cooler for the transmission torque converter.
• High-volume cooling fan uses fl exible plastic
blades and shroud for maximum air volume
and noise abatement.
ELECTRICAL SYSTEM
Standard instrument package and operator
conveniences:
• 12-volt electrical system
• 50A alternator with built-in IC regulator
• Key-lock, anti-restart ignition switch
• High-torque, low-amp starter motor with
planetary gear reduction
• Waterproof electrical connectors
• Electric fuel gauge, water temperature
gauge, LCD hour meter
• Indicator lights for Neutral/Return to
Neutral, Low Oil Pressure, Low Battery/
Alternator Output, Check Engine Warning,
Hydraulic Lock (Operator Presence), and
ECCS Status Code
• ECCS Service Support Tool connector for
rapid system diagnostics
HYDRAULIC SYSTEM
The Hydraulic System features an integral
reservoir, direct drive gear pump and fully
fi ltered system.
• Large hydraulic fl uid reservoir integral to
the truck frame reduces heat buildup in
the system.
• Load sensing valve in the hydraulic circuit
reduces the fl ow of oil to the power steering system when steering wheel is idle.
FRAME
An all-welded assembly with heavy-gauge
steel and integral hydraulic and fuel tanks
provide exceptional durability.
• Welded front cross-member and bolted
drive axle increase frame rigidity.
• Loads are transferred directly from the mast
to the drive axle and onto the fl oor without
being transmitted through the frame,
reducing frame stress.
• Wide, open step is designed into the
frame assembly without compromising the
structure.
DRIVE AXLE
A heavy-duty, cast steel drive axle housing
supports the load and chassis without placing
a load on the free-fl oating axle shafts.
A fl ange is mounted to the truck frame to
improve load distribution and reduce
frame fl exing.
TRANSMISSION
Hamech single-speed, powershift transmission is specifi cally designed for industrial
applications.
• Column-mounted electrical shift lever gives
the operator easy directional control without
removing a hand from the steering wheel.
• Optimized stall ratio for torque converter
provides high torque without sacrifi cing
travel speed.
• A modulating control valve absorbs initial
pressure spikes during initial engagement
and directional change. This improves shifting capabilities and prolongs the life of the
entire drive train.
• Transmission oil is double-fi ltered by a 125micron mesh on pickup, and a 35-micron
cartridge on the return line.
• Transmission oil cooler is integral with
the radiator.
• Inching control and auxiliary brake pedal
combination allows the operator precise
truck positioning with positive control.
BRAKES
Hydraulic brakes are self-energizing and
self-adjusting.
• Brake fl uid r
console cover for fast, easy inspection and
maintenance.
• Heavy-duty brake backing plate and thick
brake drum provide reliable braking action
and reduced heat.
• Mechanical parking brake has two-stage
latching mechanism for positive engagement.
STEER AXLE
Fully Hydrostatic Power Steering is standard.
• Heavy-duty fabricated steer axle has double-acting, double-ended power steering
cylinder and no drag links or tie rods.
• Steering stops are machined into the
steering cylinder to reduce stress impact
on steering linkages.
• Grease fi ttings on all linkages are accessible without lifting the truck.
MAST, CARRIAGE, LBR AND FORKS
High-visibility mast assembly has a 4-roller
carriage that is available in two-, three-, and
four-stage Free Lift, Free View designs.
• Sealed bearings require no maintenance.
• Angle-mounted bearings and a shaped rail
fl ange prevent excessive wear and friction,
while maintaining correct side thrust
clearance.
• ITA Class II carriages accept a variety of fork
sizes and common load-handling attachments.
• 48-inch-high load backrest is standard for increased load control and operator protection.
• Single or double auxiliary hydraulic-function
internal hose routing is available.
OPERATOR COMPARTMENT
A unique suspension compartment isolates
the operator from the fl oor surface and from
engine vibration, for greater operator
comfort and productivity.
eservoir is located under the
• Comfort seat has built-in lumbar support,
retractable seat belt, lateral restraint system, and fore and aft adjustment.
• Hydraulic control levers are positioned for
optimum access and ease of use. International symbols on the contoured grips
indicate the function.
• Tilting steering console has small-diameter
steering wheel and electronic instrumentation. Tilt is infi nitely adjustable, with
extended room between the engine cover
and console.
• Wide-open fl oorboard has suspended
brake and inching pedals with ribbed rubber pads for comfort and safety. Integral
accelerator mechanism has a transfer roller
for smooth operation.
• Full-width rubber fl oor mat provides a
large, non-slip surface and reduces noise,
vibration and heat.
• Open step in the frame with a traction
surface and a large handgrip provide easy
entry and exit for the operator.
• Standard headlight/turn indicator control
lever is mounted on the steering column
for easy use.
• Full-width overhead guard provides excellent visibility for high stacking and meets or
exceeds ITSDF requirements.
SERVICEABILITY
The engine and transmission can be easily
accessed for daily inspection without the use
of any tools.
• Single-piece, all-steel engine cover and
seat support is fully insulated to reduce
noise and heat transfer.
• Engine cover has gas-fi lled cylinder with
an automatic locking device to assist in
opening and to prevent the cover from
unexpectedly closing.
• Engine cover is shaped for easy access
into the engine area for maintenance
and service.
COMPLIANCE, APPROVALS AND
ENVIRONMENTAL CONCERNS
Designed for maximum recycling at end
of life, with special attention to materials
and construction. Counterweight designed
for breakup during recycling process.
Transmission case is recyclable aluminum.
Hamech lift trucks meet or exceed
American National Standard Institute,
ITSDF B56.1-Part III Safety Standards for
Powered Industrial Trucks.
Compliant with UL 558 for the appropriate
truck type. Contact your dealer for application-specifi c requirements. Meets or exceeds
current EPA emissions standards.
Expect solid
support nationwide
Hamech, a brand of Crown
Equipment Corporation,
offers a comprehensive
service support network for
Hamech LPG, gas or diesel
lift trucks.
You can expect ongoing
value with the comprehensive
services available from your
Hamech dealer. See it for
yourself in state-of-the-art
facilities stocked with
products and parts
inventories, advanced
processes, equipment and
tools. It’s also apparent in
the professionally trained
service technicians and
well-stocked service vans.
In addition, you can count
on Hamech for operator and
service technician training,
fl exible maintenance programs,
fl eet management and
fi nancial services. Hamech’s
association with Crown also
assures you of access to
industry-leading electric lift
trucks for complete
application fl exibility.
Visit hamech.com for more
information on the full line of
Hamech IC lift trucks.
Hamech Lift Trucks
New Bremen, Ohio 45869 USA
Te l 419-629-2311
Fax 419-629-3796
Hamech is a brand of Crown Equipment Corporation.
Because Hamech is continually improving its
products, specifi cations are subject to change
without notice.
Hamech and the Hamech logo are trademarks
of Crown Equipment Corporation.
Copyright 2008 Crown Equipment Corporation
SF14896 03/08
Printed in U.S.A.
Loading...
