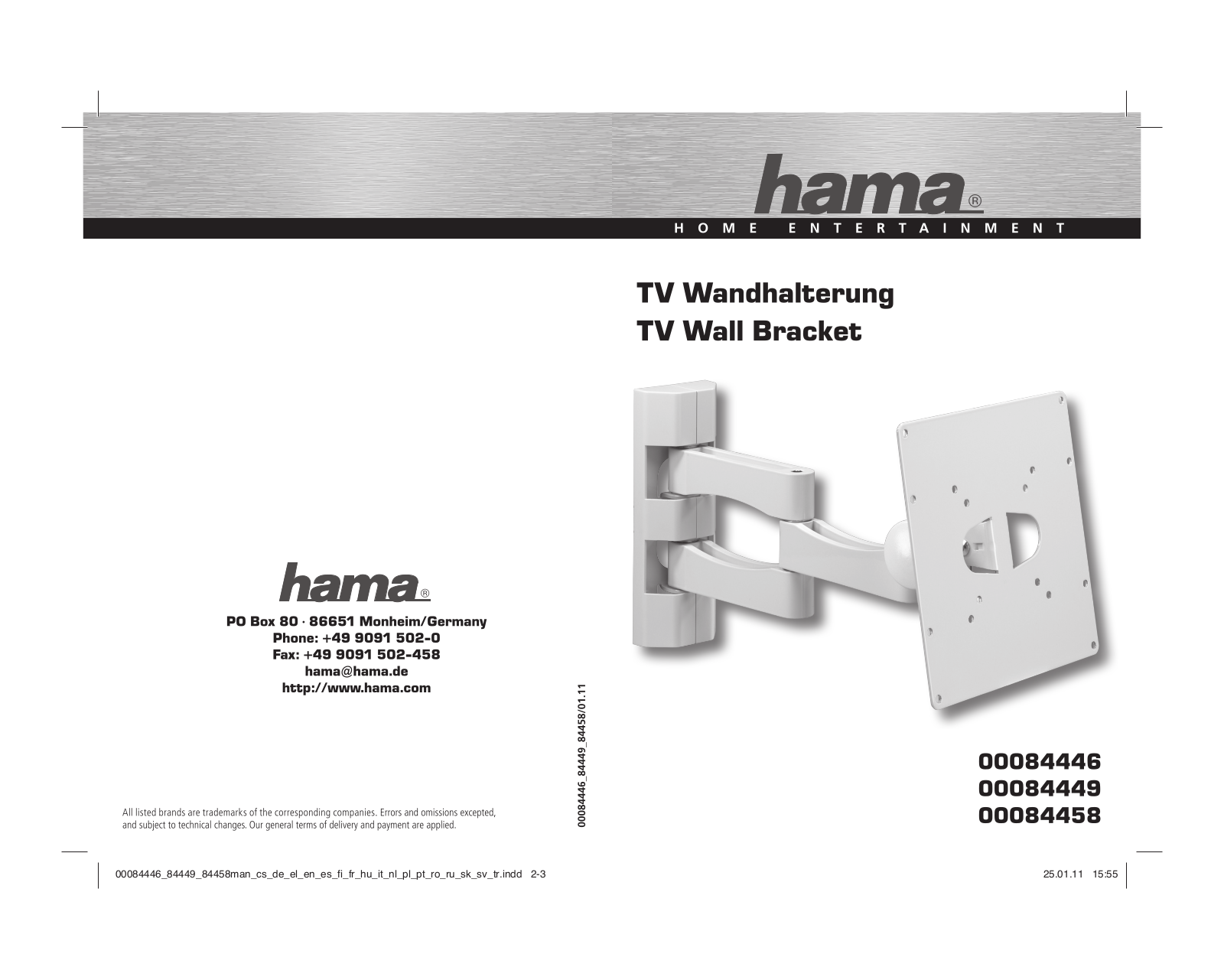

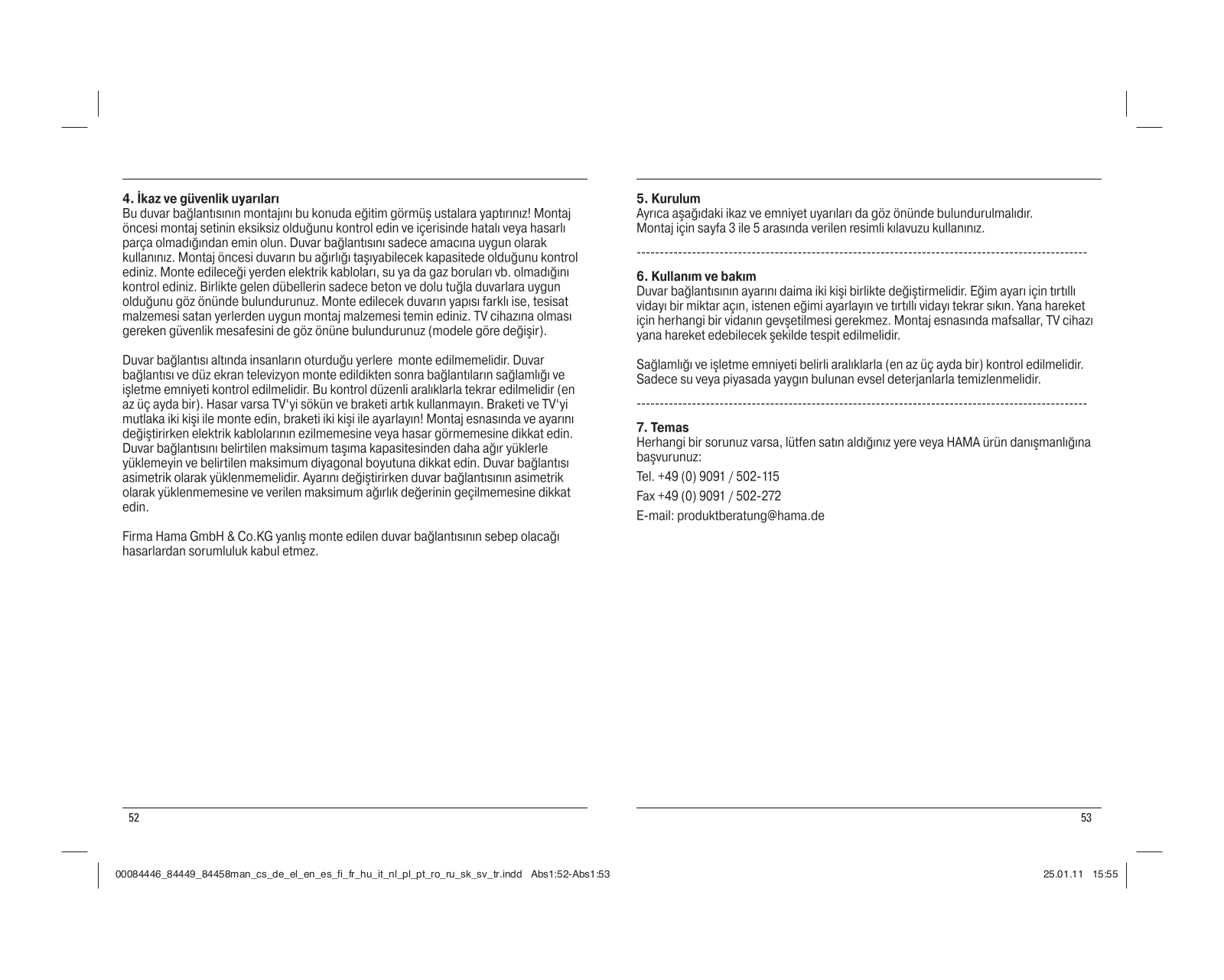

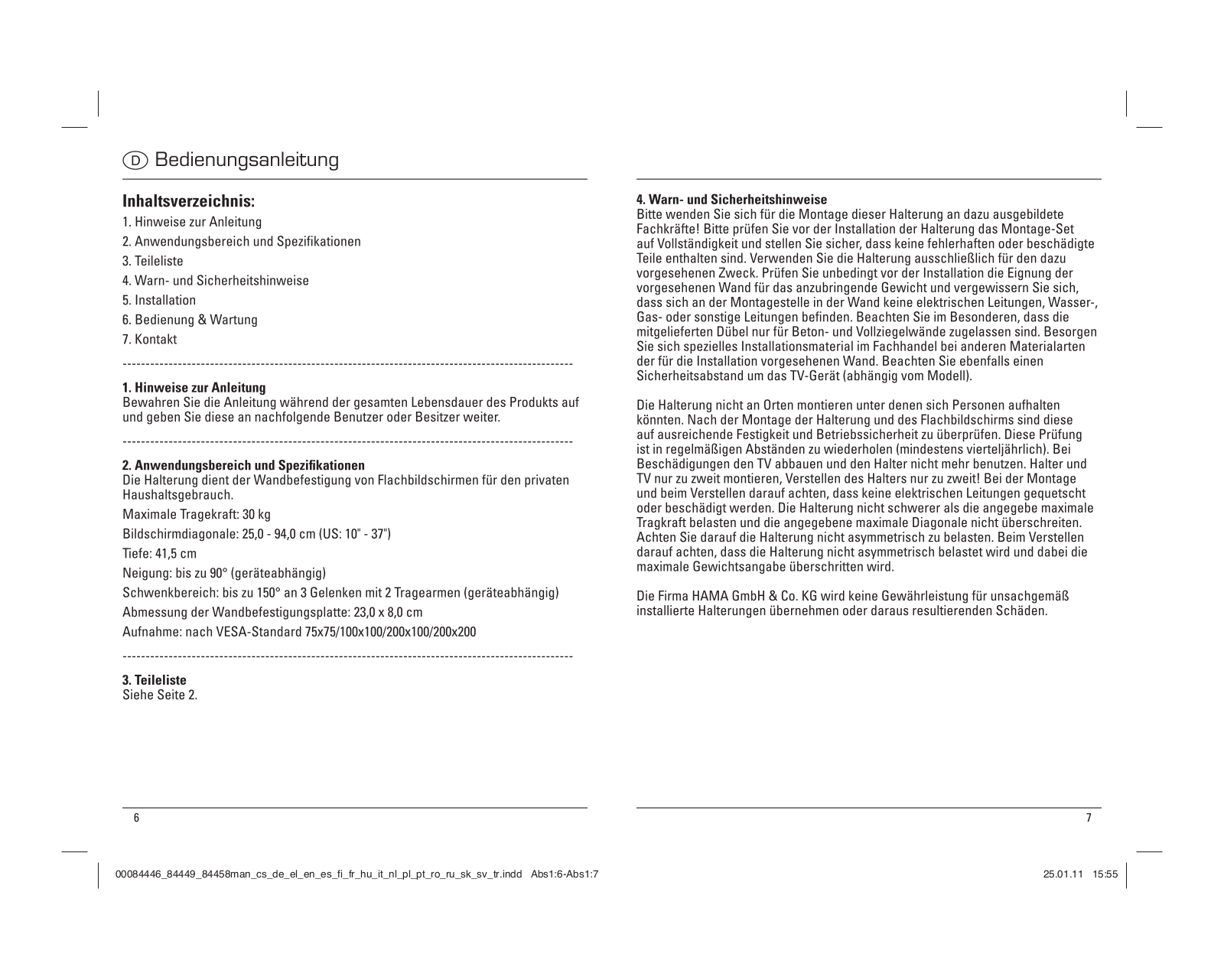

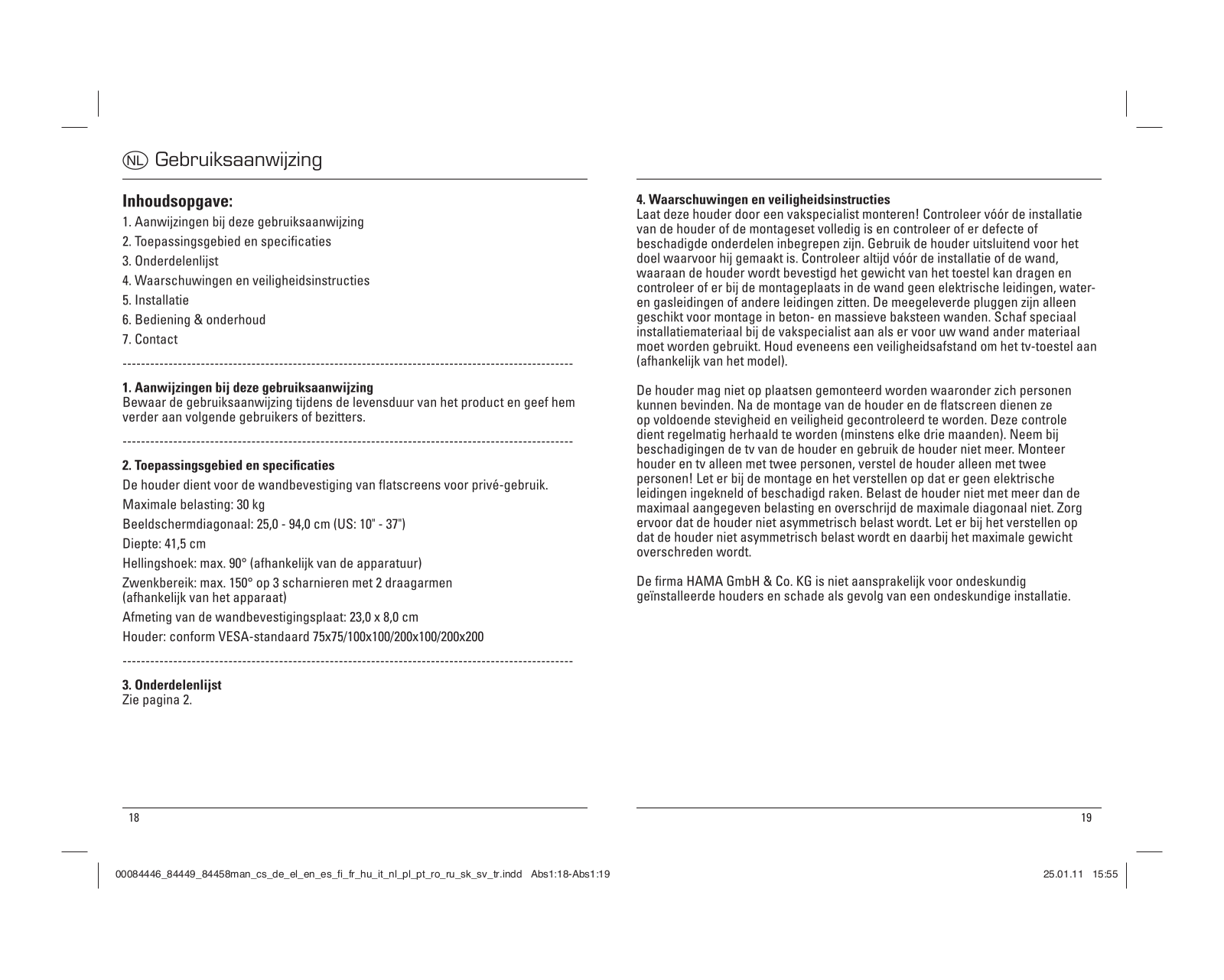

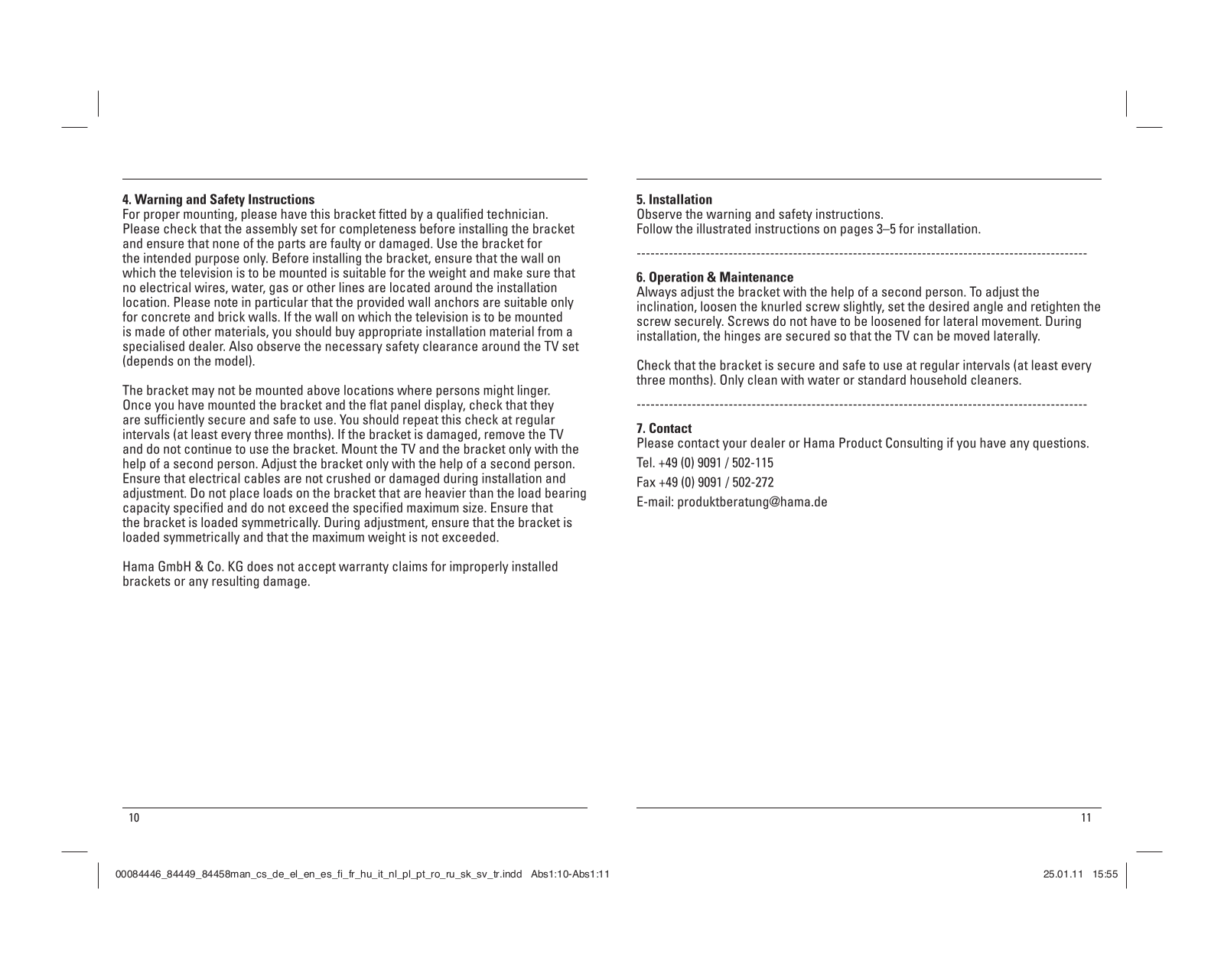

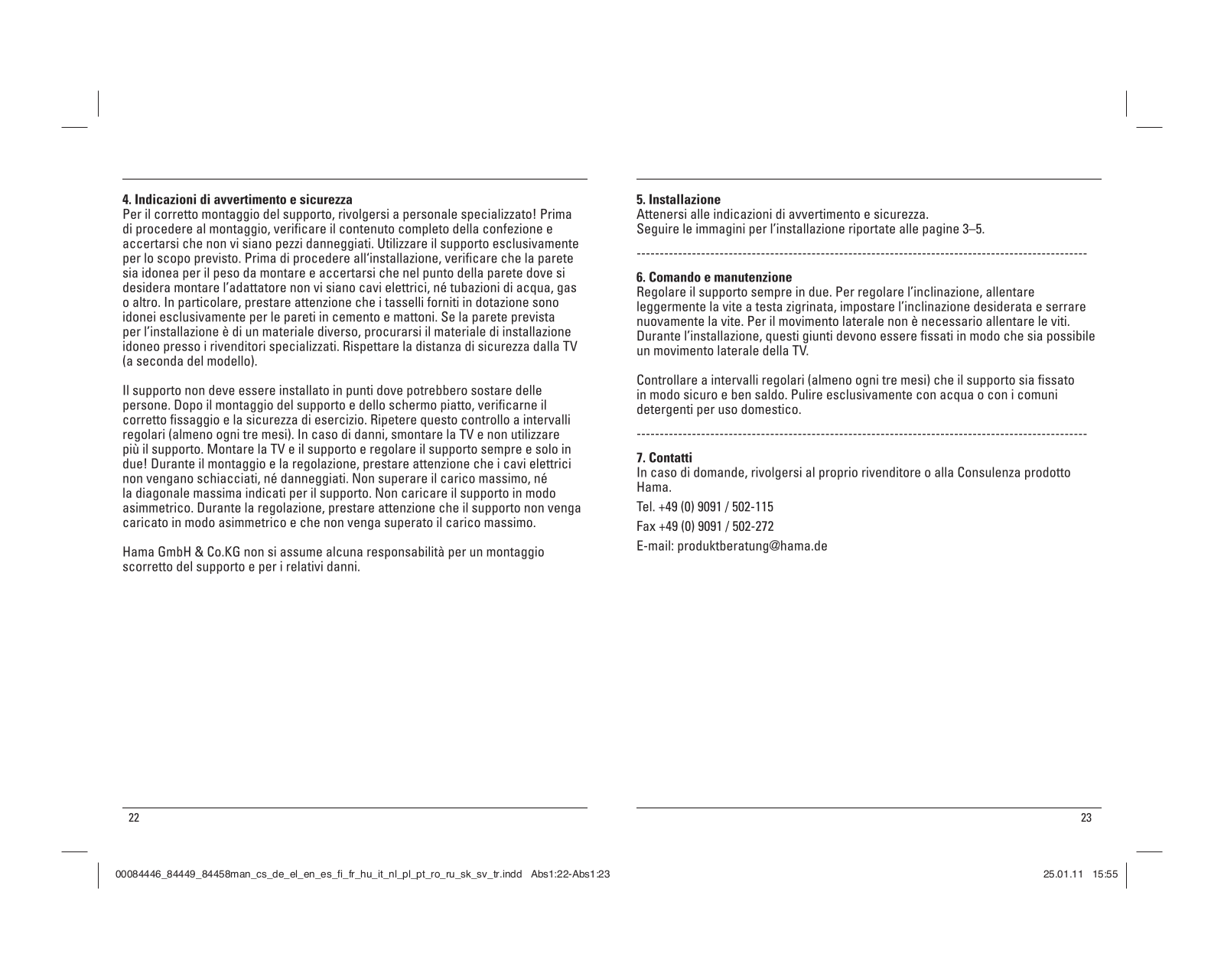

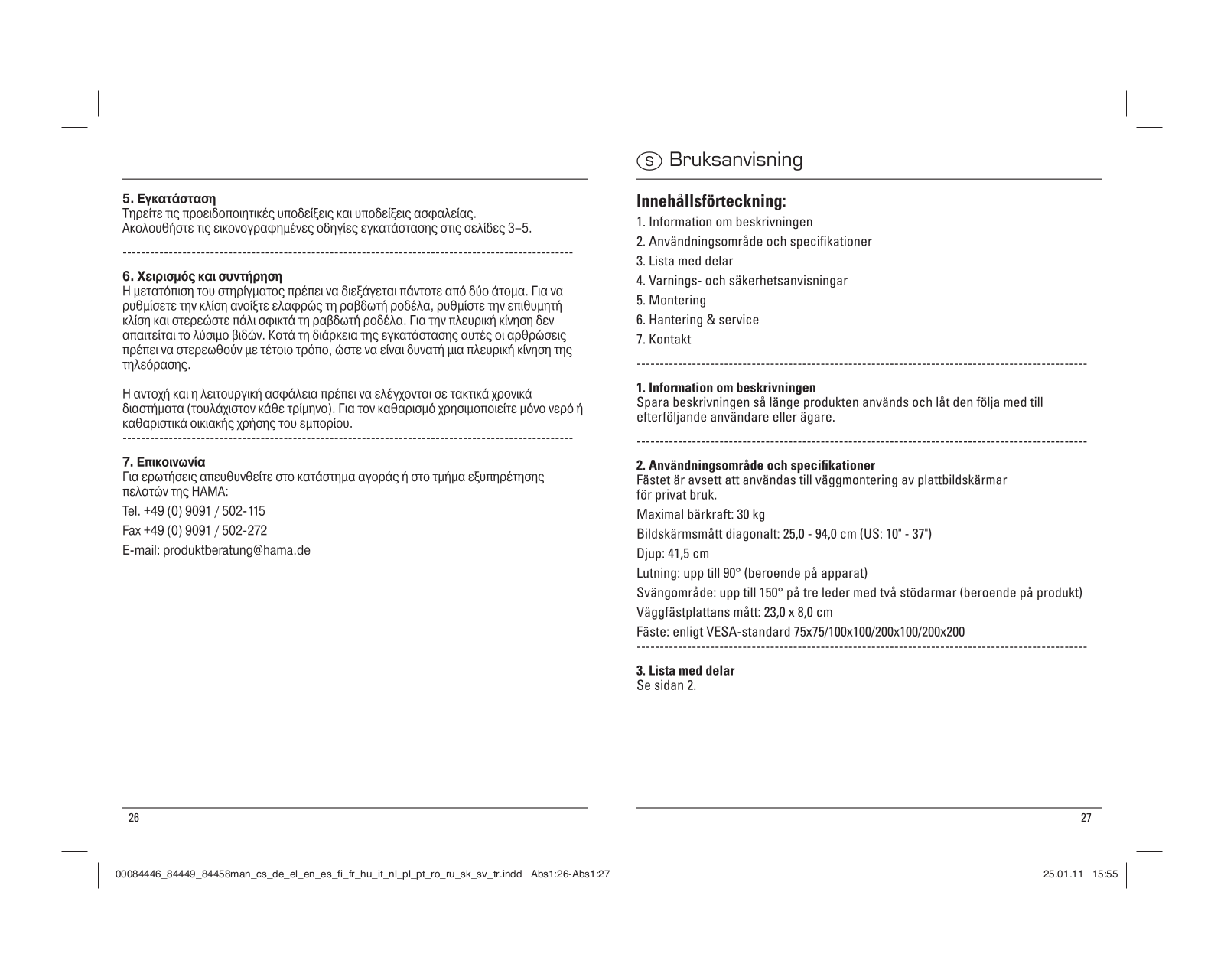

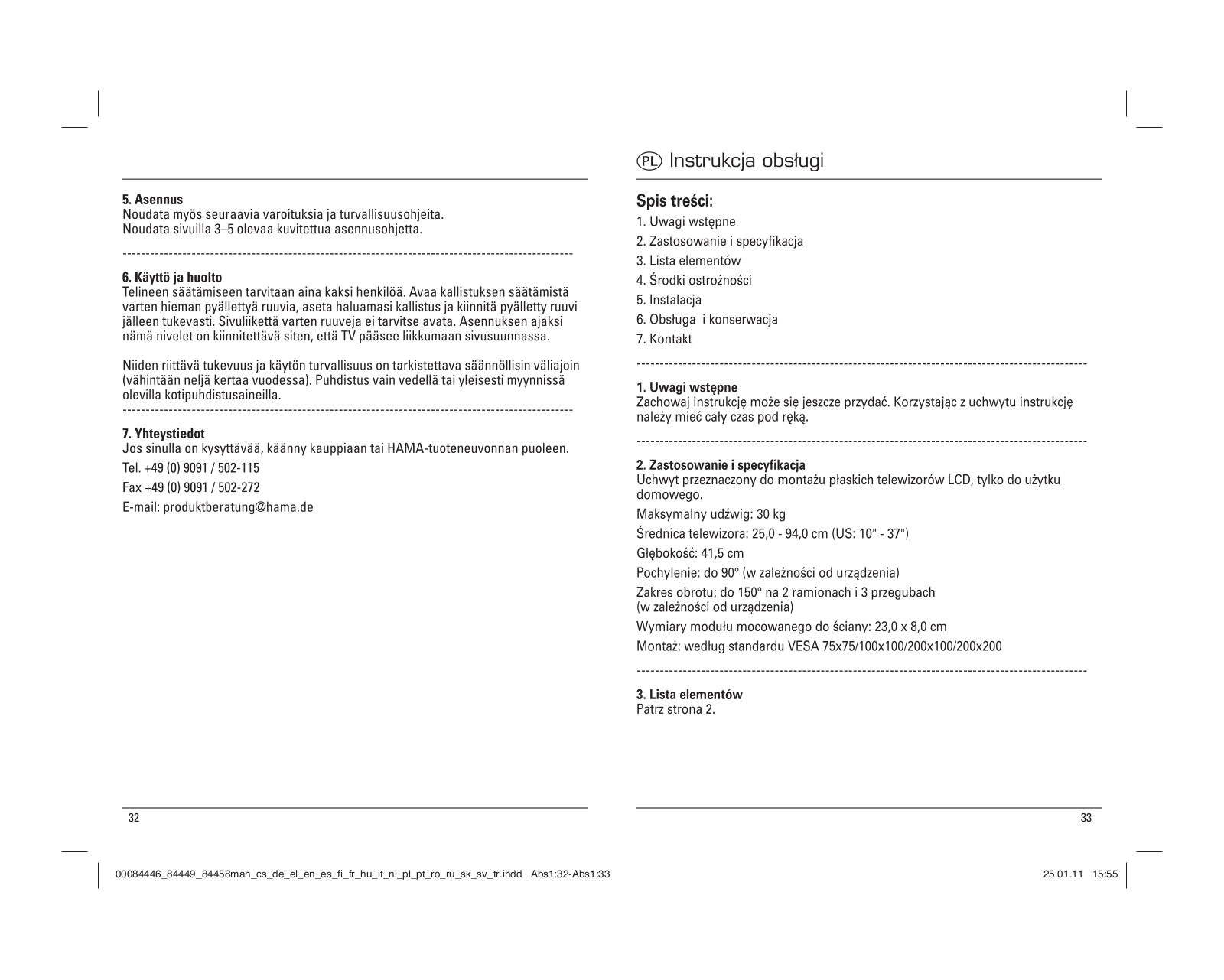

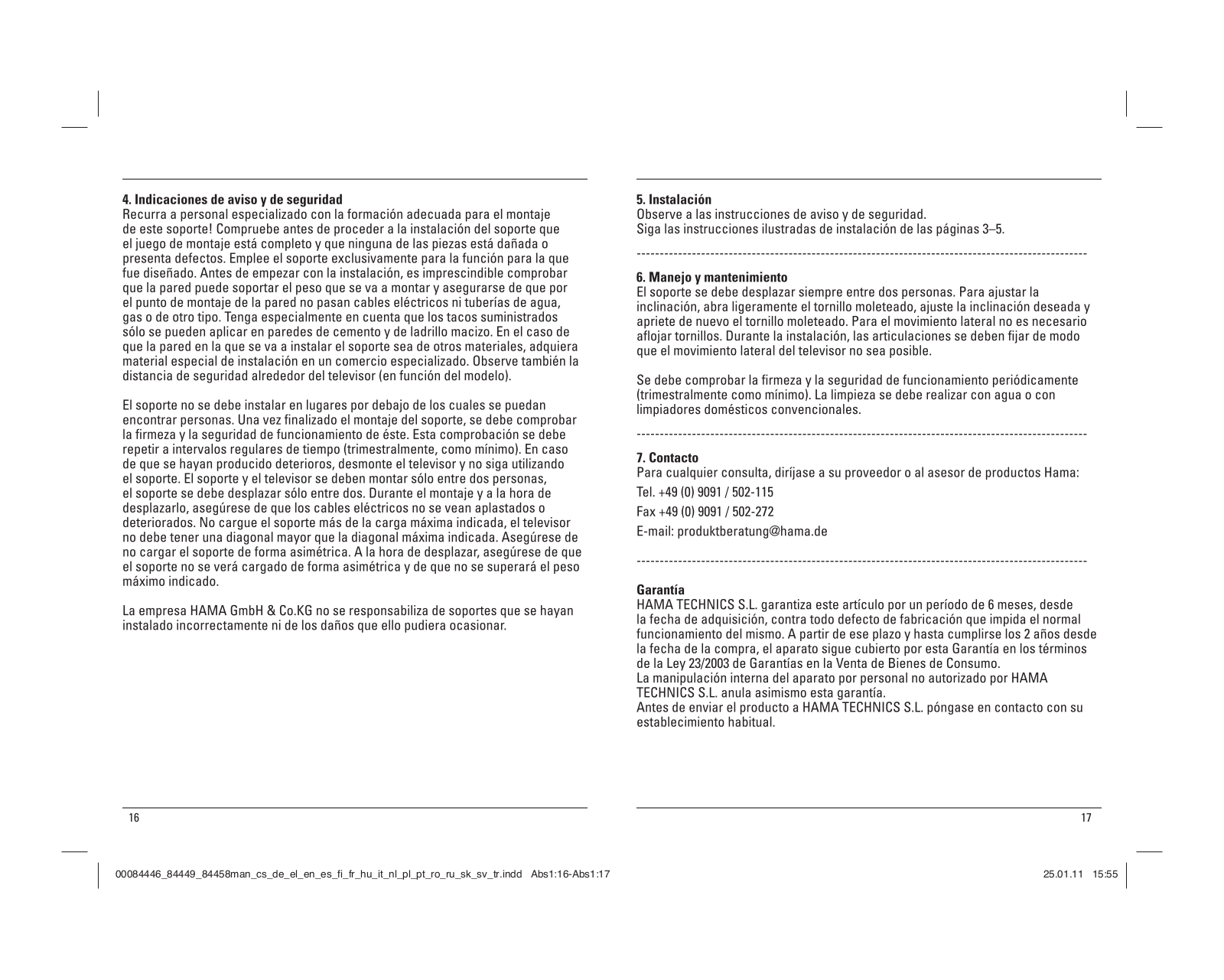

Hama 84446 User Manual

00084446_84449_84458man_cs_de_el_en_es_fi_fr_hu_it_nl_pl_pt_ro_ru_sk_sv_tr.indd 2-300084446_84449_84458man_cs_de_el_en_es_fi_fr_hu_it_nl_pl_pt_ro_ru_sk_sv_tr.indd 2-3 25.01.11 15:5525.01.11 15:55

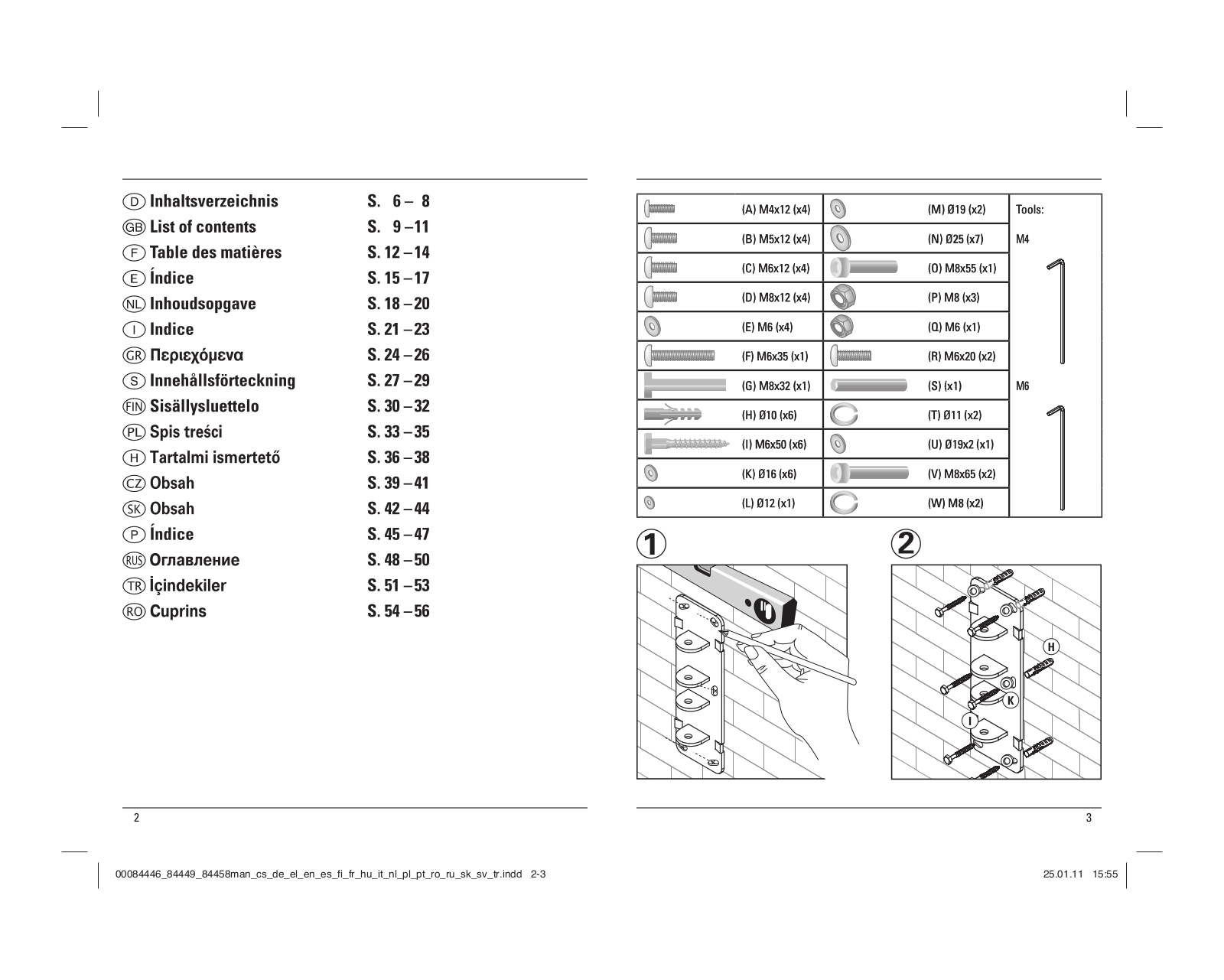

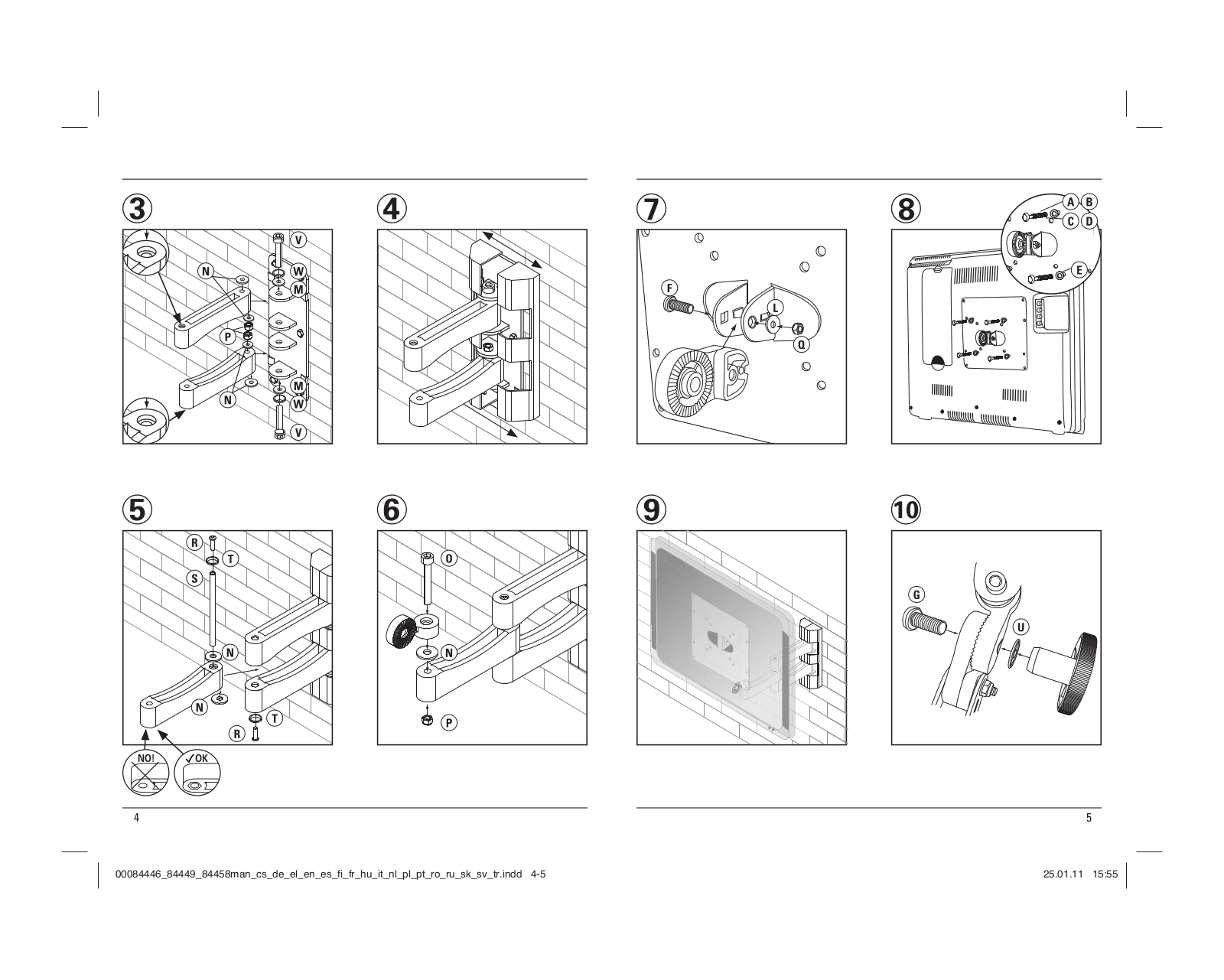

(A) M4x12 (x4) (M) Ø19 (x2) Tools:

(B) M5x12 (x4) (N) Ø25 (x7)

(C) M6x12 (x4) (O) M8x55 (x1)

(D) M8x12 (x4) (P) M8 (x3)

(E) M6 (x4) (Q) M6 (x1)

(F) M6x35 (x1) (R) M6x20 (x2)

(G) M8x32 (x1) (S) (x1)

(H) Ø10 (x6) (T) Ø11 (x2)

(I) M6x50 (x6) (U) Ø19x2 (x1)

(K) Ø16 (x6) (V) M8x65 (x2)

(L) Ø12 (x1) (W) M8 (x2)

M4

M6
