Halton KVE-WW, KVC-WW Operator's Manual

Operators Manual

Operation, Maintenance and Service

Capture Jet

Model:
KVE-WW, KVC-WW

®

Hoods with Water Wash

GENERAL DESCRIPTION

All Halton Capture Jet® hood systems provide solutions for a variety of commercial foodservice ventilation applications
over virtually any cooking process. Halton’s Capture Jet® technology gives the most efcient system on the market. To
achieve the optimum performance from your hood system (s) please use the following guidelines provided within the
pages of this Installation, Operation, and Maintenance Manual.

In addition to this information our ofces or local representatives are available at any time to provide additional technical
support for products, applications, installation, commissioning or in any aspect that you may have.

RECOMMENDATION

Upon receipt of the Halton hood (s), inspect unit (s) immediately for any shipping damage and notify carrier immediately
if damage is found. Halton will not accept responsibility for any shipping damage. All systems are thoroughly inspected
before leaving our factories, however Halton will assist in ling a claim if needed.

GENERAL INSTALLATION

It is the responsibility of the installing contractor to see that the system installation is completed in accordance with the
project plans and specications and that it meets all specic requirements of local code ofcials. The local authority
having jurisdiction could over rule some of the installation details written in this manual. The installation shall be in
accordance with NFPA-96. All electrical systems shall be installed following local and national codes.

The owner and/or operator should be instructed in the proper operation, care and maintenance of the system.

If questions or complications should arise during the installation of the Halton hood (s) that cannot be solved using the
instructions provided please contact the Halton ofce. Halton Company, USA 1-800-442-5866, or Halton Indoor Climate
Systems, Canada 1-800-565-2981.

Note: There are no instructions contained within this manual for installation or maintenance of fan packages.
**See appropriate manufacturers manual for detailed instructions.

EXHAUST AIRFLOWS

Because the listed exhaust airows rates were established under controlled laboratory conditions, please see submittal
drawings or contact the manufacturer for exhaust air ow rates.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

2

CJOWWM/012009/rev1/EN

INSTALLATION INSTRUCTIONS

1. Inspect the crating carefully. If there are signs of damage, call the freight carrier before uncrating the units.
Carefully uncrate the units. Check all local codes prior to installation, special requirements may be necessary

depending on local building material construction.

** Important note ** Do not leave unit (s) exposed to extreme temperatures for an extended period
of time, this may cause the protective PVC coating around the unit (s) to become very difcult to
remove.

2. Position the hood near the actual installation site. In case of multiple hoods, check the engineered set of
drawings for locations. Pay close attention to collar sizes and re protection layouts, matching the hood
systems to the correct location shown on the drawings provided.
**Check item numbers on crates / hoods vs. drawing item numbers.

3.

Once the hood is carefully removed from the shipping crate and set in position, the unit is now ready for

installation. If Halton Company has supplied a backsplash assembly, then the splash assembly should
be installed rst, for installation procedures. (See pg. 5)

4. Hang the hood using ½” threaded rods by attaching the rods to the hood through the hanger brackets that are
welded to the top of the hood. Use of turnbuckles will make nal adjustment easier. Standard hanging height
for canopy hoods ranges from 78” min. to 84” max. above the nished oor (per local codes having
jurisdiction). **Noted in installation instructions - (see pg. 6).

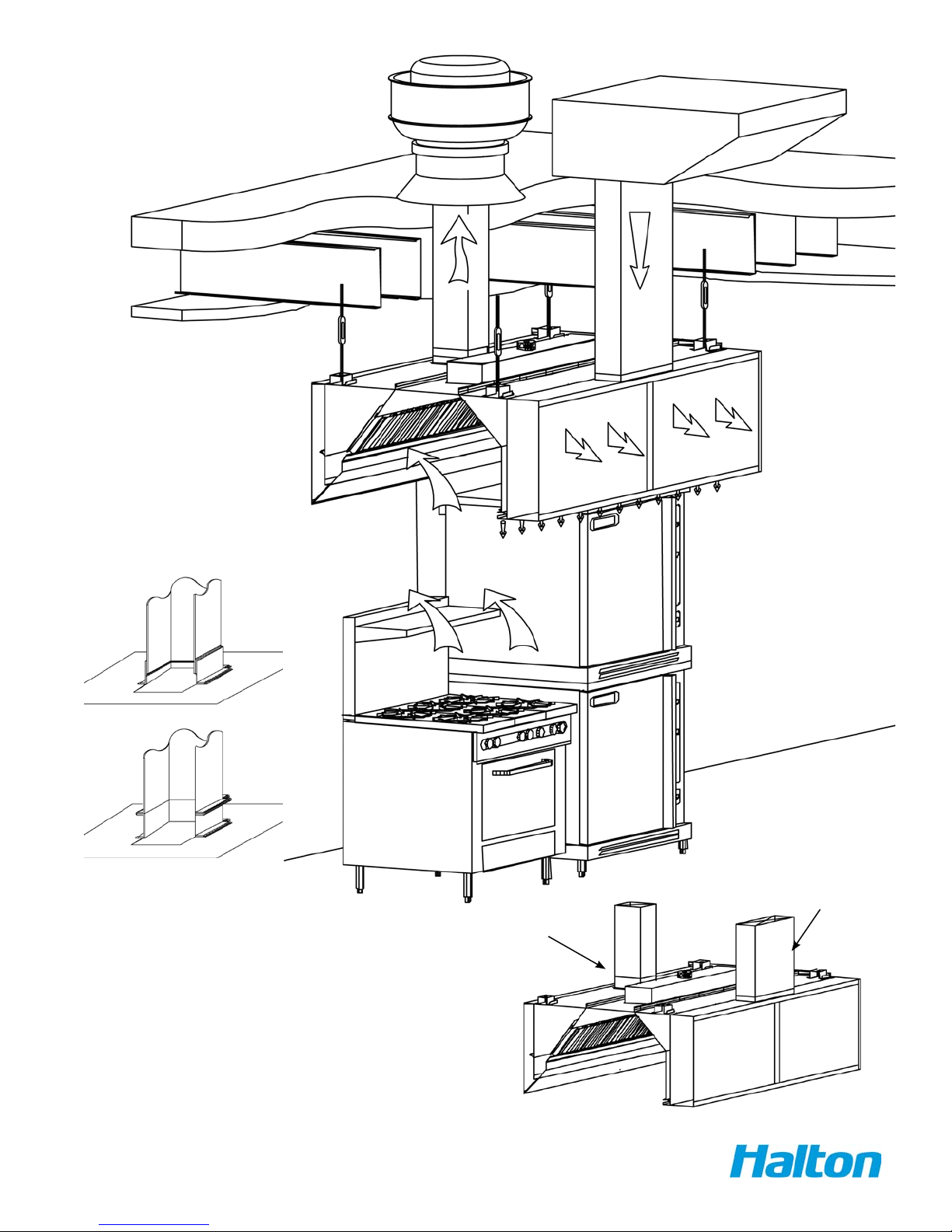

**All typical installations for Capture Jet

®

series hoods shown on pages 15 and 16.

5. If Closure Panels are supplied by Halton (see pg. 9) for details on the installation.

6. For multiple hoods end to end, or back to back (see pg. 8) for Installation of Splice Strips and U-Channels.

7. For hoods equipped with a supply re damper, it is very important to make sure that the re damper is set in an open
position before connecting the supply duct.

For units with exhaust re dampers, (see pg. 10), or supply re dampers, (see pg. 10) for installation details.

8. Electrical circuits should be connected according to standard switch panel wiring diagram, shown on (pg. 11).
For Halton Capture Jet® series hoods, a typical wiring diagram is shown on (pg. 12).

9. Grease lters and grease cups must be installed in place before start-up.

10. Install 100 watt maximum light bulbs in standard incandescent lights or uorescent bulbs (36” L or 48”L) in
uorescent lights. **Note: Halton does not provide bulbs.

11. Protect the hood from damage under normal job site conditions, until all work is complete and system is ready
to be put into operation.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

3

CJOWWM/012009/rev1/EN

OPERATION OF SYSTEM

1. After installation is complete, it will be necessary to check and balance the airows. On the Capture Jet®
line of hoods, Halton supplies T.A.B. (testing and balancing) ports for measuring the pressure drop. These
ports are located on the inside of the canopy on each plenum. (Exhaust and Capture Jet®).

For details on their use (see pg. 13). For hoods without ports, use of standard practices (duct traverse /
average velocity / etc) for measuring airows will be required.

**It is very important that the fan for the Capture Jet® air be balanced according to specications.

See the job specic information for required airows. Adjustments to the Capture Jet® fan can be made
with the speed controller supplied with the fan. This speed controller will be mounted inside or on top of the
hood, or mounted in an electrical enclosure.

Information regarding the fan and speed controller (see pg. 12).

2. Each Halton Capture Jet® hood system will have a “KSA” lter remover (model KFR). The “KFR” will be
packaged separately, inside the hood, the box will be labeled “Attn: Kitchen Mgr. “ Model KFR instructions on
(pg. 14). The KFR will assist in removal of the lters for assembly and cleaning.

3. After the exhaust and supply airows have been properly balanced, a nal inspection should be made to
ensure proper system operation.

HOOD MAINTENANCE

1. Clean the hood canopy inside and out as needed with mild soap and water. Never use harsh or abrasive
cleaners on Stainless Steel or Painted surfaces, making sure to wipe clean all interior and exterior
surfaces of the hood including the light xtures.

** Never clean the hood canopy when any of the surfaces are hot.

2. Clean the lters and grease cup(s) daily, rst washing by hand, and then placing them into a dishwasher or
by steam cleaning.

** Handle the Grease lters carefully **

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

4

CJOWWM/012009/rev1/EN

Screw through top
of ange to wall.
*( screw head will not
interfere with hood)

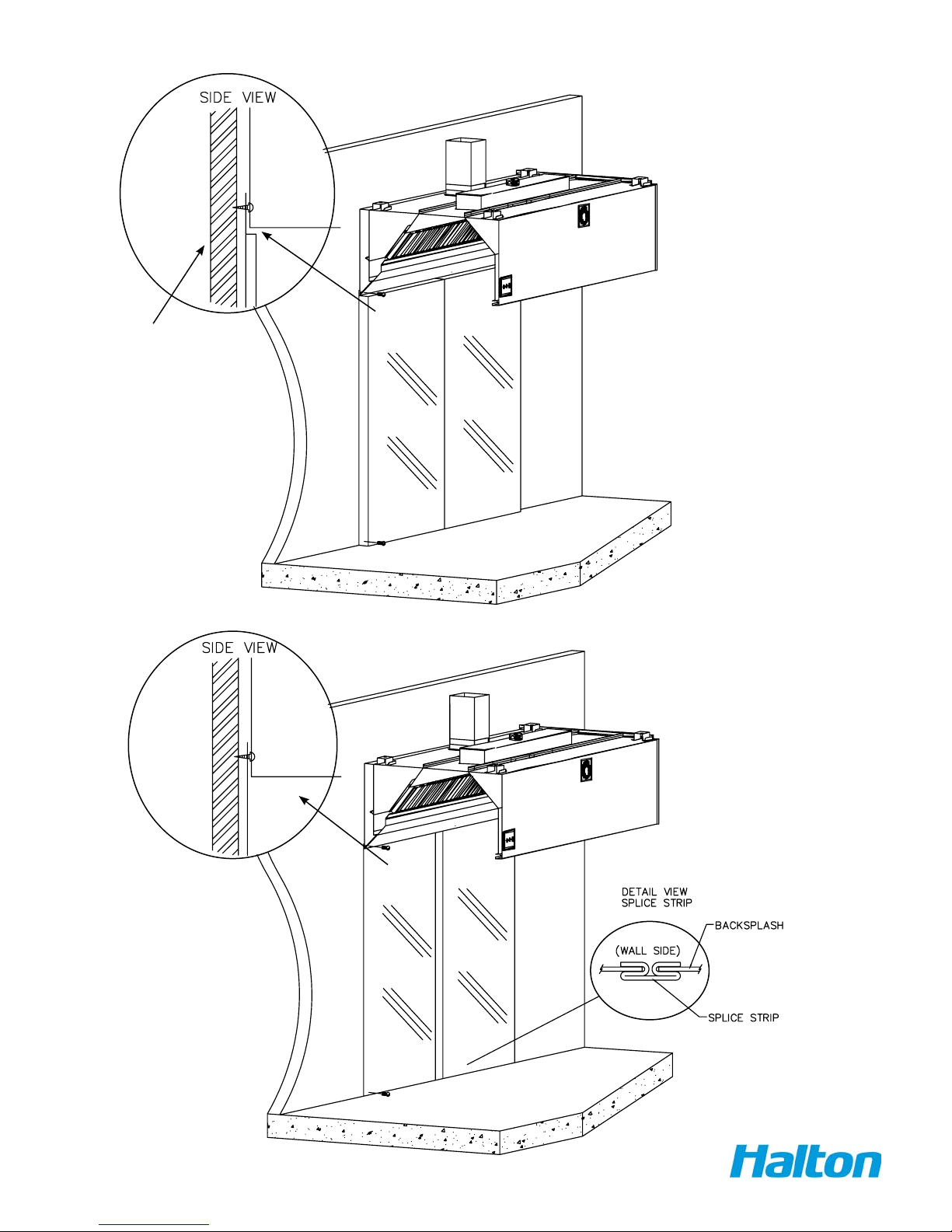

Screw backsplash
to wall or attach with
adhesive.

1” Insulated Backsplash Assembly

Halton canopy
hoods should be
installed from 78”
min.- 84” max.
above the
nished oor.

Flat Sheet Backsplash Assembly

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

5

CJOWWM/012009/rev1/EN

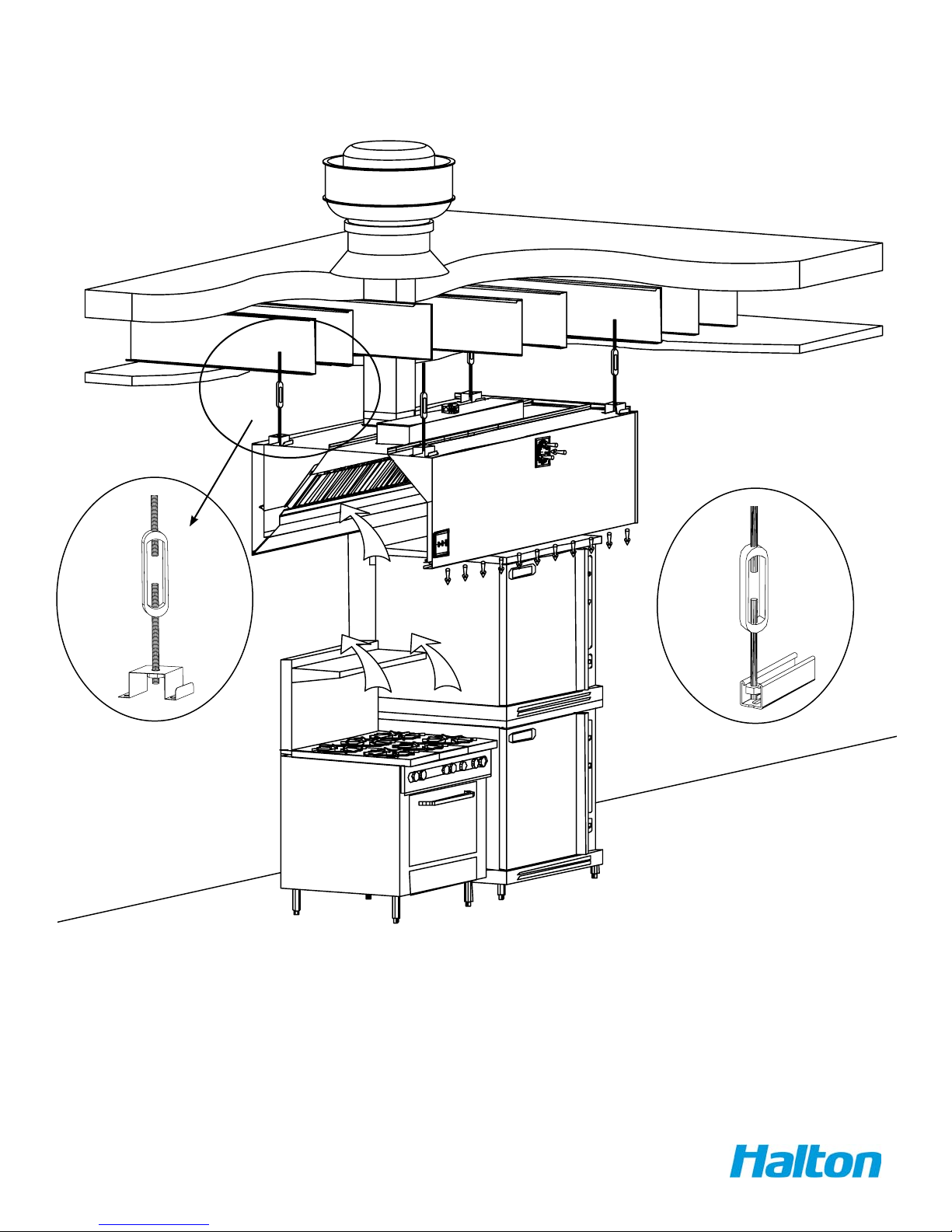

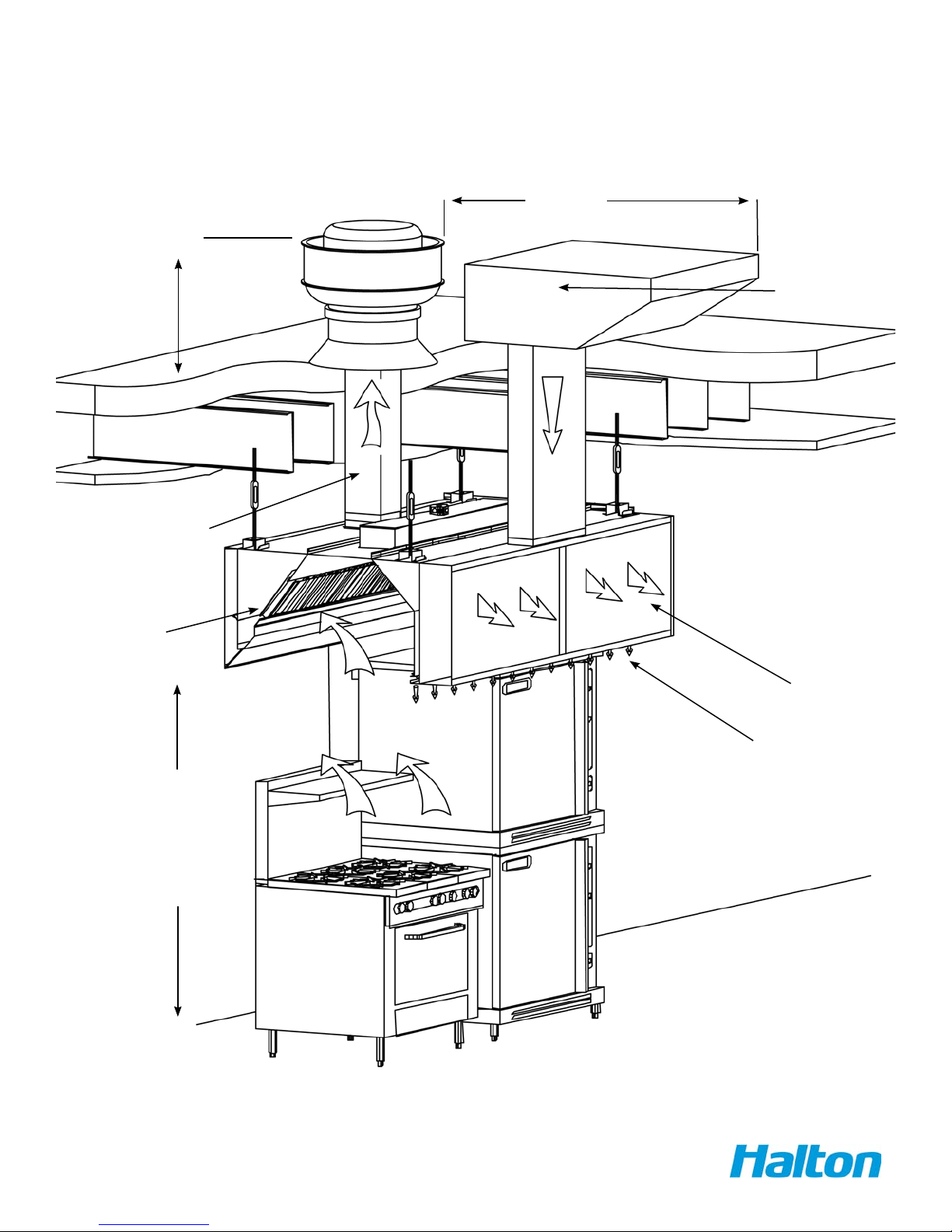

Typical Hood Installation Details

*Optional Unistrut / Turn

Buckle Detail

Hanger Bracket / Turn

Buckle Detail -

Welded to top of hood.

18 ga. material All

Thread (By Others)

Hang the hood using 1/2” threaded rods by attaching the rods to the hood through the hanger brackets (as shown)
which are welded to the top of the hood, using the turnbuckles will make nal adjustments easier. Hanging height of
Canopy hoods should be per local building codes, verify with “Authority Having Jurisdiction” for hanging height
in your project location.

Standard hanging height is 78” minimum to 84” maximum above the nished oor.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

6

CJOWWM/012009/rev1/EN

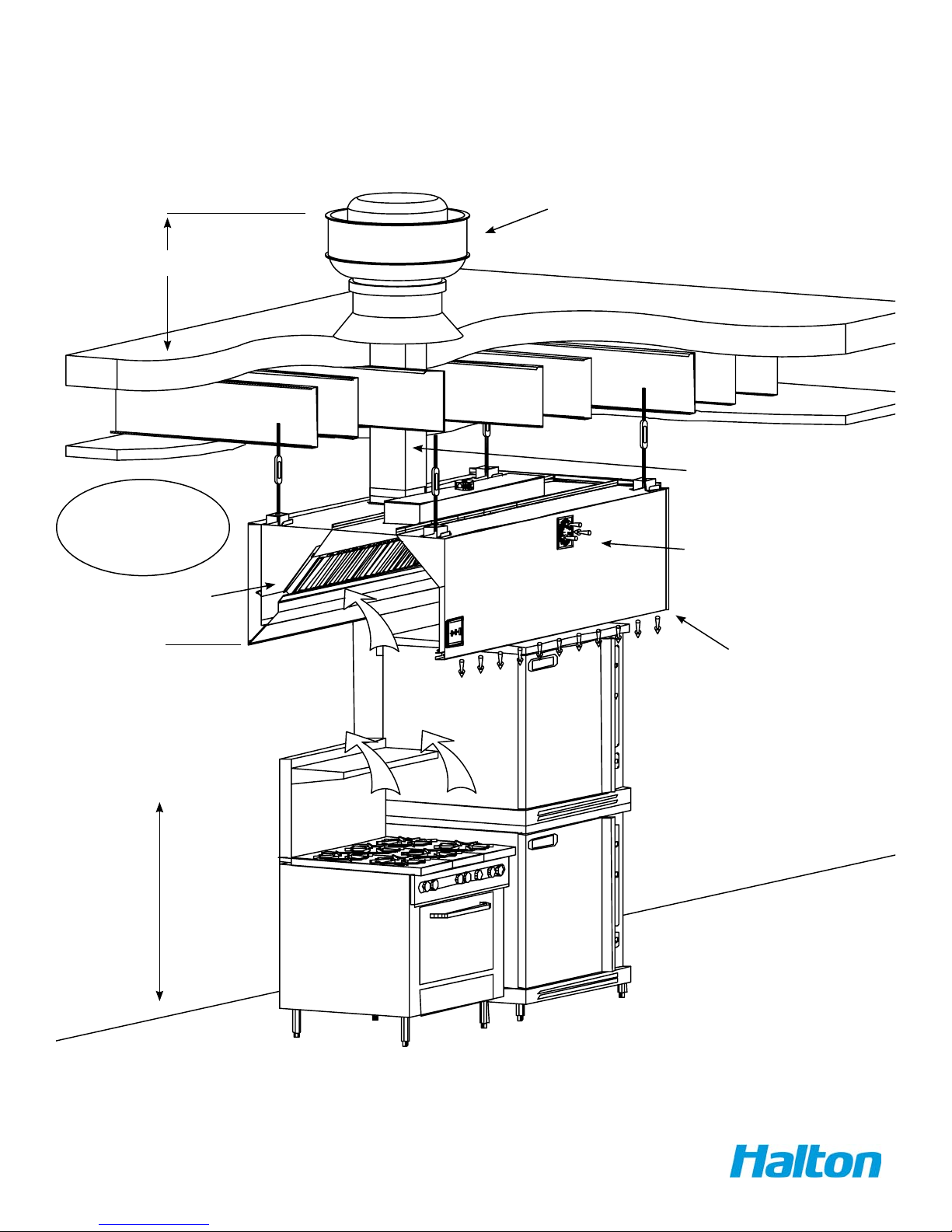

Recommended

Exhaust Duct

Installation Details

Exhaust

Duct Options Available

Exhaust Duct
per code

Supply
Duct

Supply Duct

Supply Duct may be attached to supply collar with sheet
metal screws or pop rivets and sealed with duct tape.

Screws or Rivets are not to interfere with the operation of the
re damper (if equipped).

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

7

CJOWWM/012009/rev1/EN

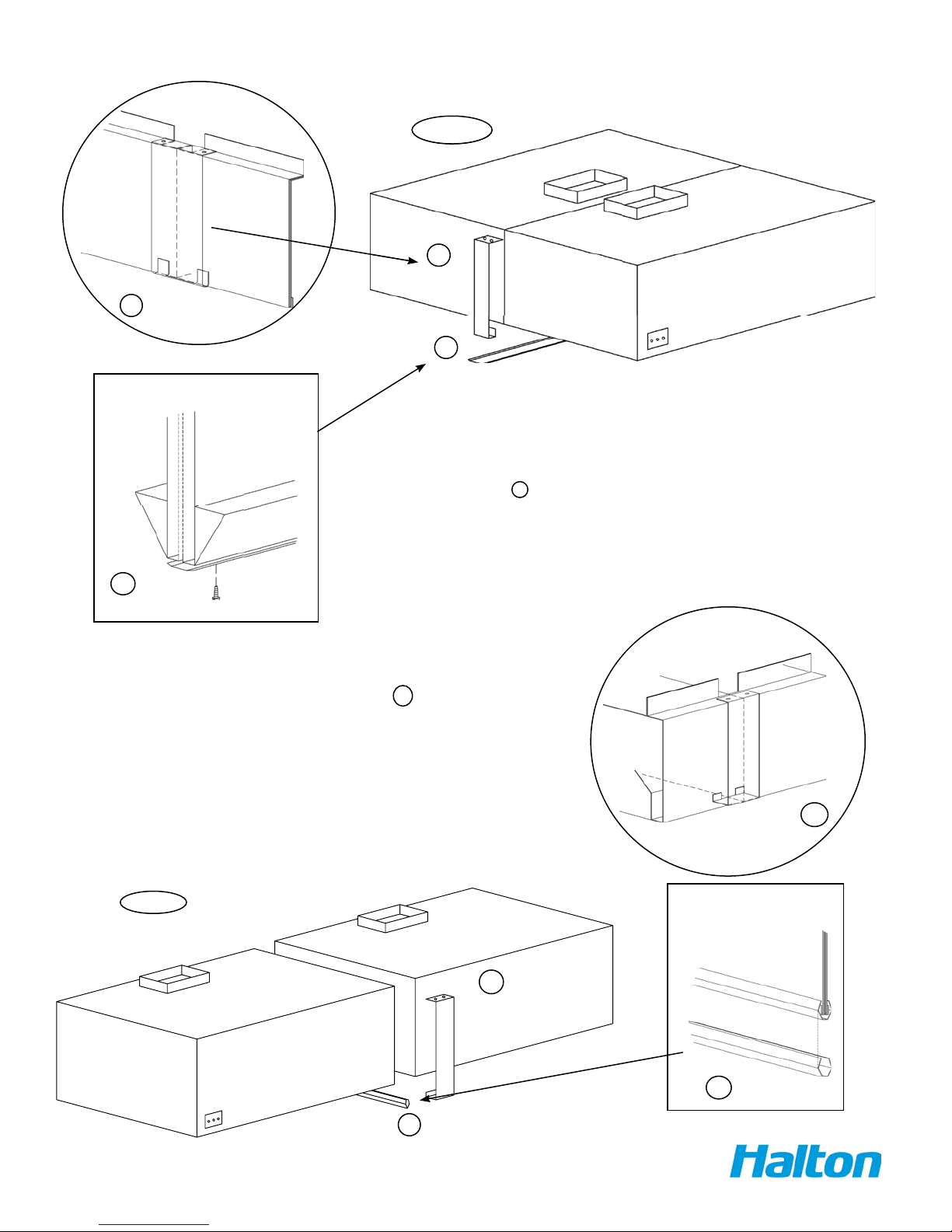

Splice Strip / U-Channel Assemblies

B

Splice Strip

A

Fig. 1

Hoods shown back to back

B

A

U-Channel

Installation Notes:

U-Channel:

For hood models that are placed back to back (as shown in Fig. 1):
Slide the U-Channel A up over the back of the hood systems, and secure
with sheet metal screws.

For hood models that are placed end to end (as shown in Fig. 2):
Pry apart the U-Channel at one end and slide over the end panels, fastening
in place,  tting around the perimeter of the hood systems.

Splice Strip:

For hoods placed back to back: Slide Splice Strip B over bottom of hoods
 rst, then over top, secure by welding together.

For hoods placed end to end: Slide over bottom front edge  rst then over
top, secure by welding together, or as an option using screws for models with
supply plenum.

Hoods shown end to end

Fig. 2

B

B

Splice Strip

U-Channel

A

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

A

8

CJOWWM/012009/rev1/EN

Closure Panel Assembly

D

C

C

B

B

A

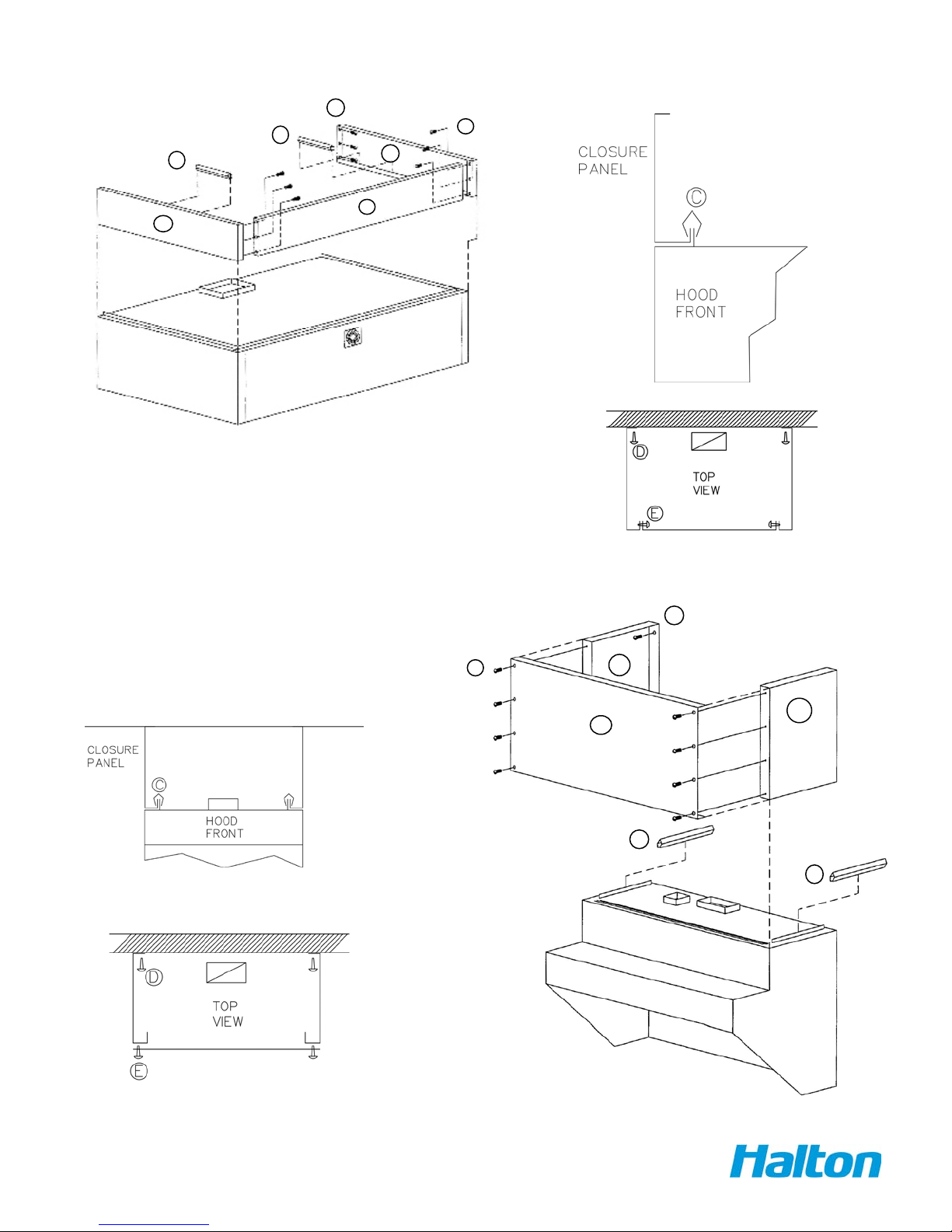

Installation Notes:

1) Panels “A” and “B” are to set on top of the hood perimeter.

*Vertical ange at the bottom of closure panel and vertical

ange on top of hood should line up.

E

2) Hammer clips “C” over the two vertical anges.

3) Attach panels “B” to wall using appropriate hardware “D”.

4) Slide front panel “A” into place.

5) Attach panels “A” and “B” together using hardware “E”
*(Hardware not provided by Halton)

D

E

B

B

A

C

C

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

9

CJOWWM/012009/rev1/EN

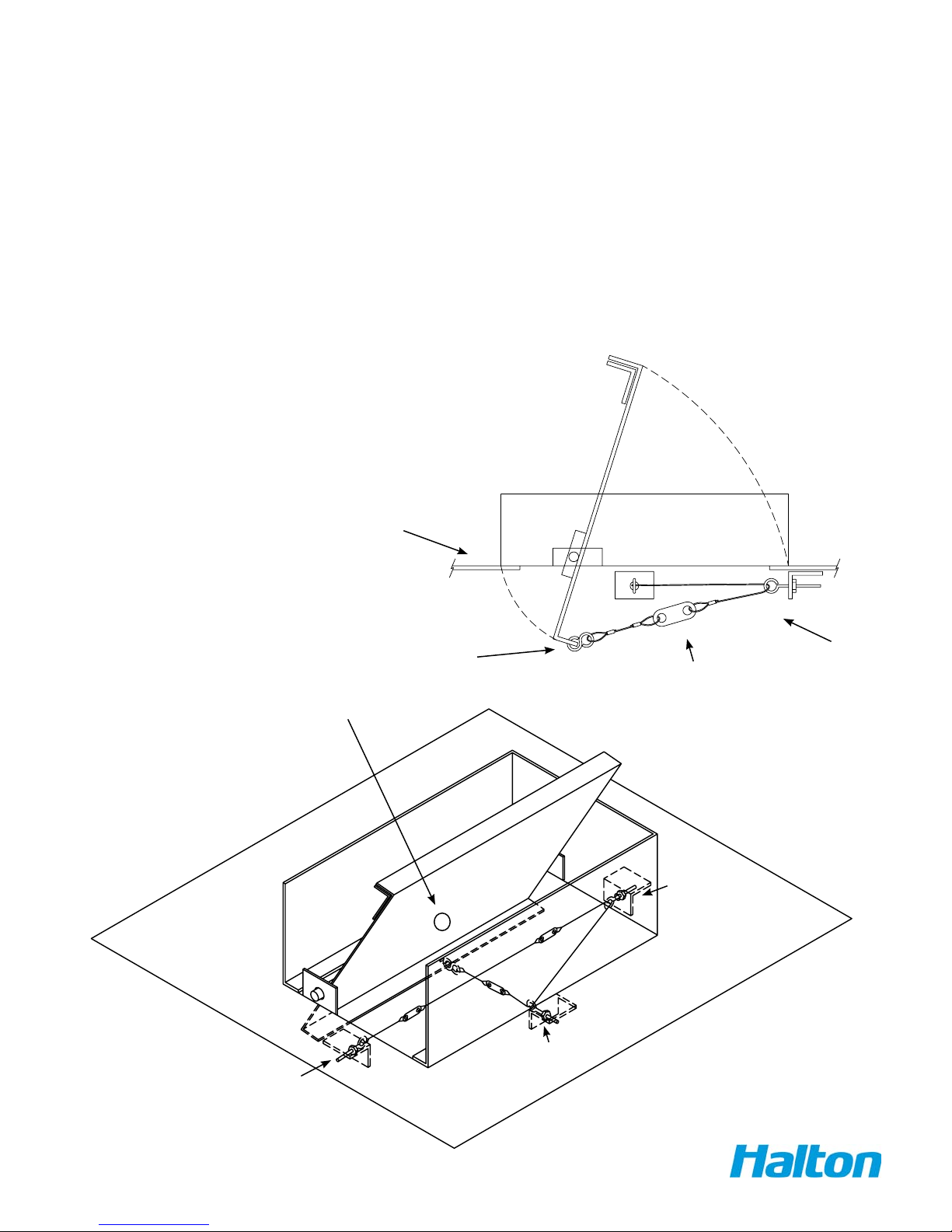

Exhaust Fire Damper Assembly

Optional in Models : KVE / KVC

1. Remove grease lters.

2. Uncoil Stainless Steel cable attached at clip (A)

3. Thread end of cable from eyebolt at clip (A) going through eyebolt at clip (B), then thread through eyebolt
at clip (C).

4. Hold re damper in maximum open position to attach “S” hooks at point (D), close “S” hooks to secure.

5. For nal adjustment of re damper, tighten eye bolts at clips (A), (B) and (C) so that cable has no slack,
and assure maximum open position is obtained.

** (Access to re protection exhaust duct nozzle to be provided by others)

The collar is supported
by a 1/2” ange located
on the inside perimeter
of the damper.

Secure “S” hook to damper
as shown.

**Located in below detail
as (D).

Clip (A)

Eye bolt

Fusable Link

Clip (B)

D

Clip (C)

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

10

CJOWWM/012009/rev1/EN

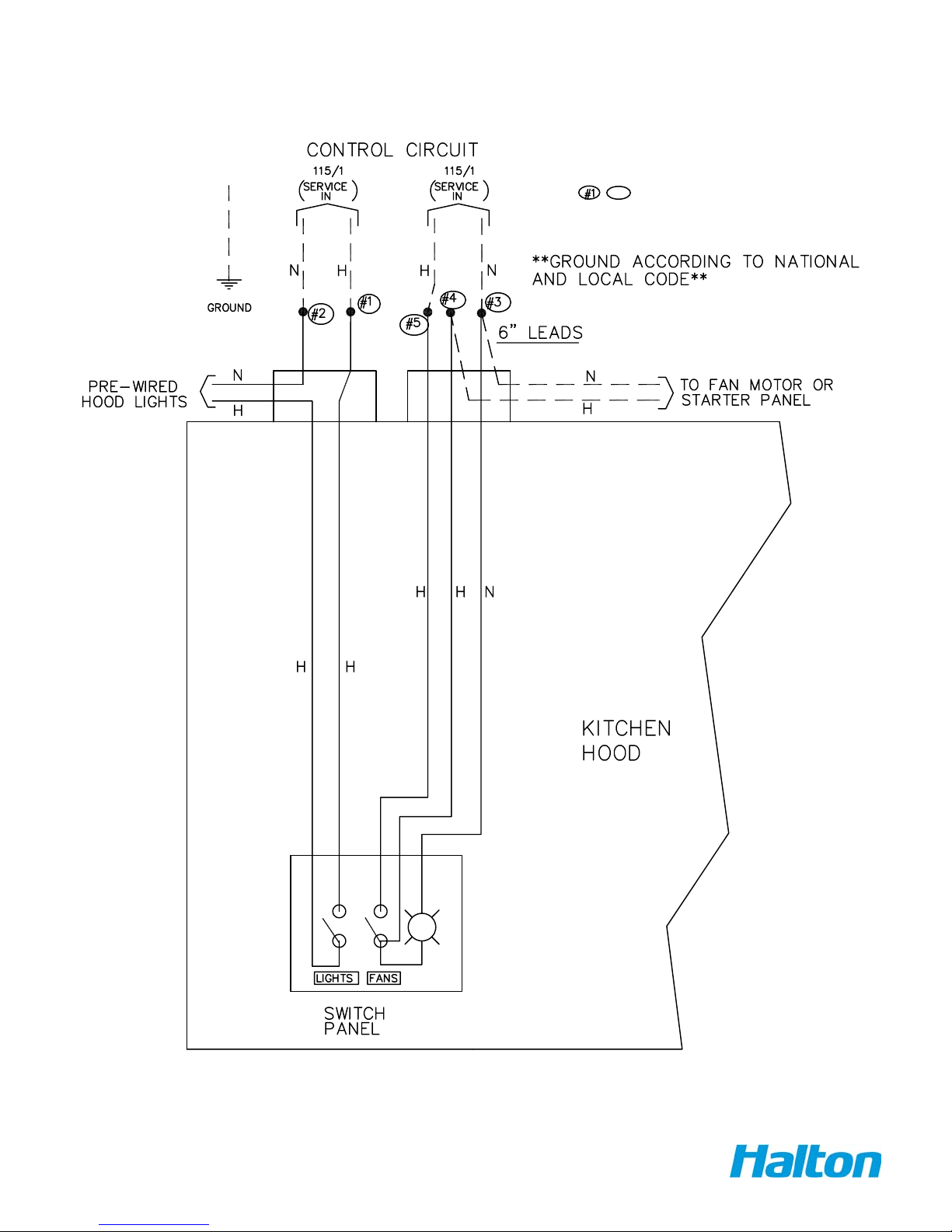

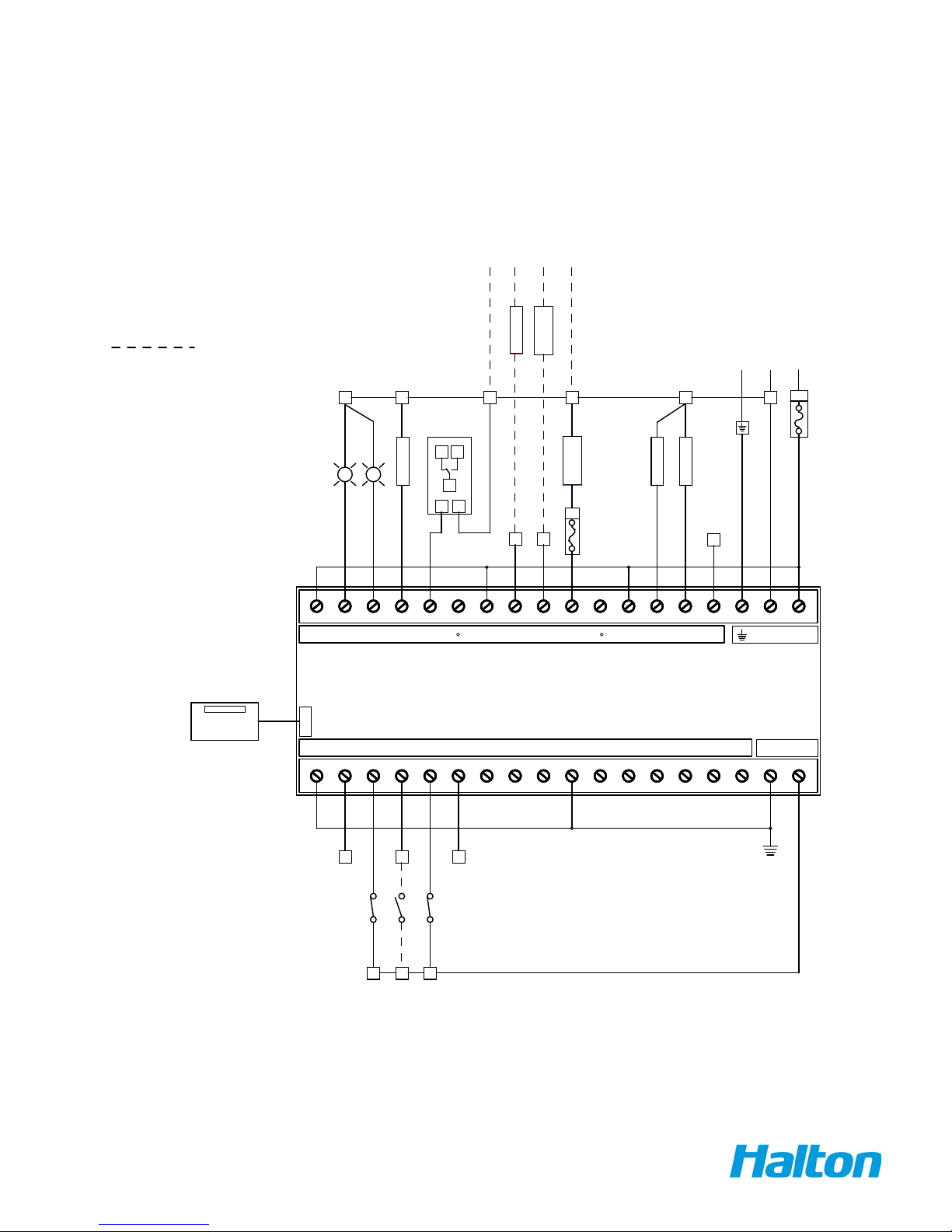

Standard Switch Panel Wiring

*(For Hoods not equipped with Capture Jet)

---- ---- ---- ---- ----- By Electrician

- #5

------------------------------ By Halton

Wires Numbered as shown in junction box.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

11

CJOWWM/012009/rev1/EN

Capture Jet® Fan Installation

Integrated Capture Jet® fan

(Optional)

This style is standard for Model KVL

KSA Filter

T.A.B. Ports

Speed
Controller

Models KVE, KVC are equipped with an
Integrated Capture Jet fan package, as
shown above.

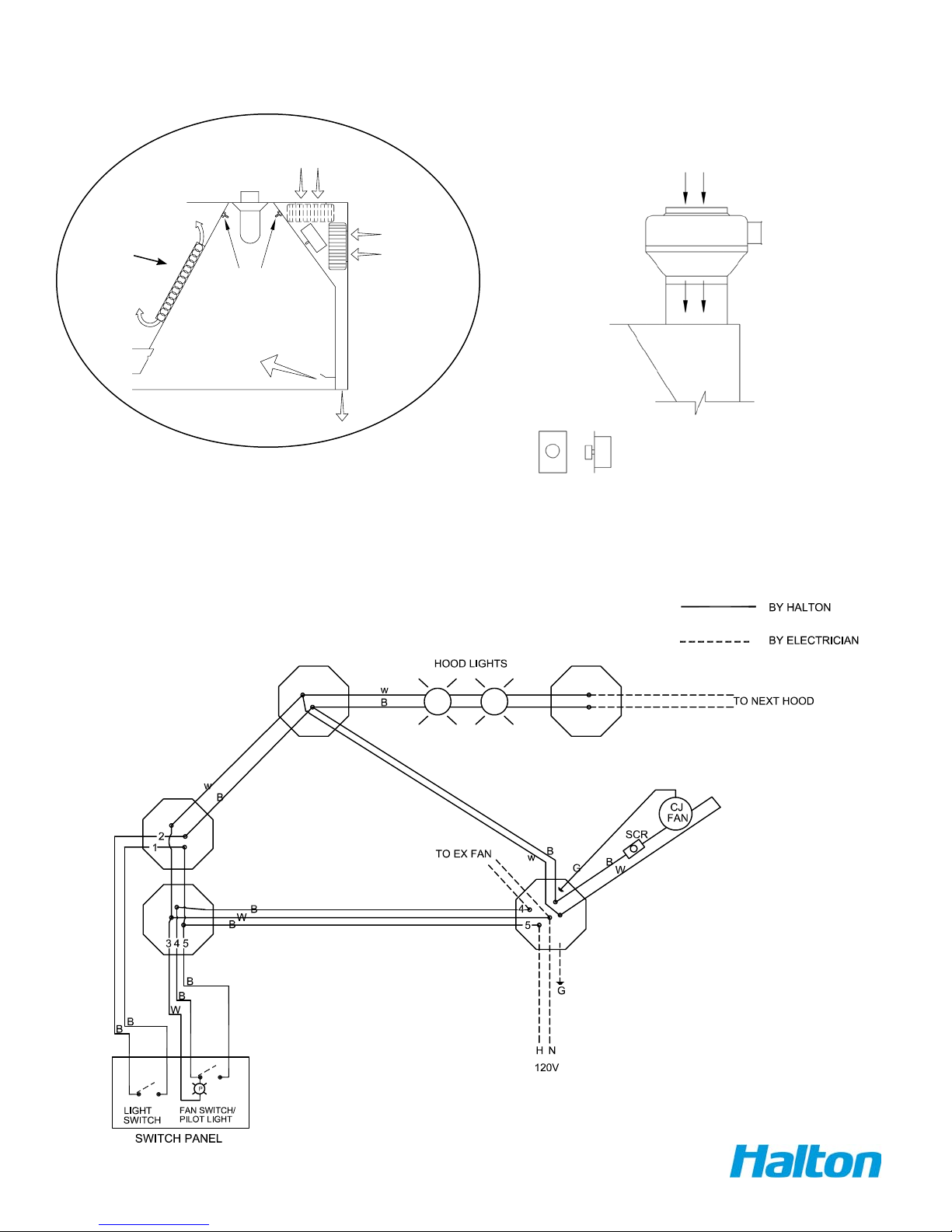

Typical Wiring of Capture Jet® Fan

w/ Halton supplied Switch Panel

(Standard)

Capture Jet
Fan

Top of Hood

®

Front of
Hood

Capture Jet
Plenum

5 AMP Speed Controller wired on
top of hood or located in the Control
Panel

®

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

12

CJOWWM/012009/rev1/EN

T.A.B.™ - Testing and Balancing Ports

Exhaust T.A.B. Readings vs. Airflow

Capture Jet

Hood Model Design T.A.B.

®

T.A.B. Port Readings

(inches WC)

KVE/KVC 0.20

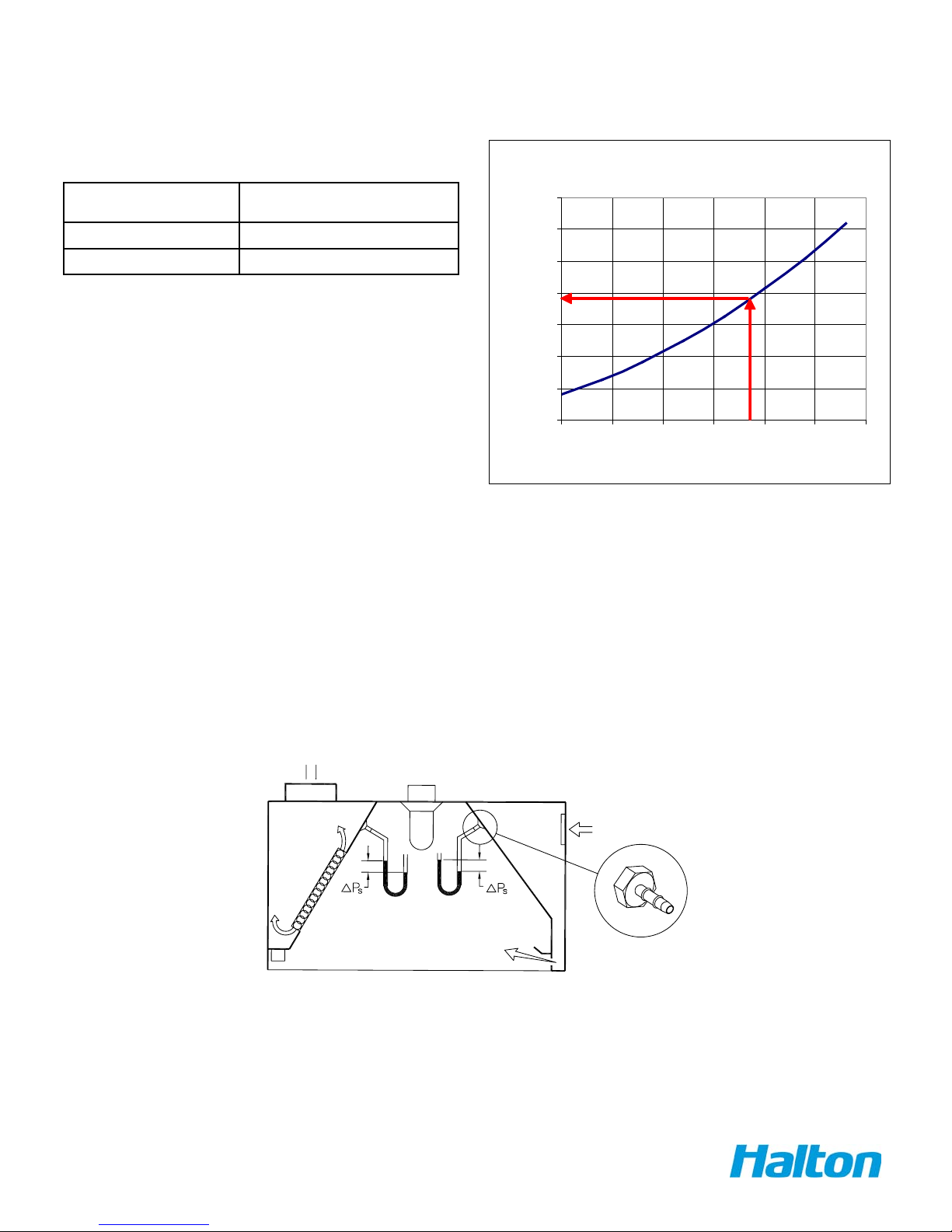

This example shows how to determine the correct T.A.B.
port reading for the exhaust hoods.

In this example, a design airow of 1700 cfm is selected
from the Airow axis, and a vertical line is drawn up to
the T.A.B. pressure curve for this hood.

A horizontal line is then drawn for the T.A.B. pressure
curve to the T.A.B. reading axis on the left-hand side of
the chart and the corresponding pressure is read off the
chart as 0.19 inches of Water Column.

0.35

0.30

0.25

0.20

0.15

0.10

0.05

T.A.B. Reading (In. WC)

0.00
800 1050 1300 1550 1800 2050 2300

Airflow (cfm)

Measured Pressure

Th e Ca pture Jet® and exhau st a ir f lows are easily and
ac curately de termined by me asuring the pressure
di fference from the T.A.B. (Tes ting and Balancing)
po rts mounte d in each ple n um. The cor r esponding
ai r flows c an be read from the diagram p rovided.

Closeup view
of T.A.B. Port

**** It is very important the cooking equipment is in operation to create a thermal plume, prior to the air balancer, to be able
to use the T.A.B. ports.

****For accurate results, the balance contractor should receive a copy of the job specic hood plans with the design T.A.B.
readings from the hood supplier prior to balancing.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

13

CJOWWM/012009/rev1/EN

Halton AccuFlow

Overview

The AccuFlow by Halton is a Bluetooth equipped device intended to monitor the exhaust airflow rate
of Halton Capture Jet hoods and alarm kitchen staff if the hood is above or below design. The device
(shown below in Photo 1) has two taps (Photo 2) that are connected to the exhaust hood to monitor
the differential pressure between ambient air and the exhaust plenum; the T.A.B Port reading.
AccuFlow installs in Capture Jet plenum for easy viewing and access. The device shares an electrical
circuit with the Capture Jet fan.

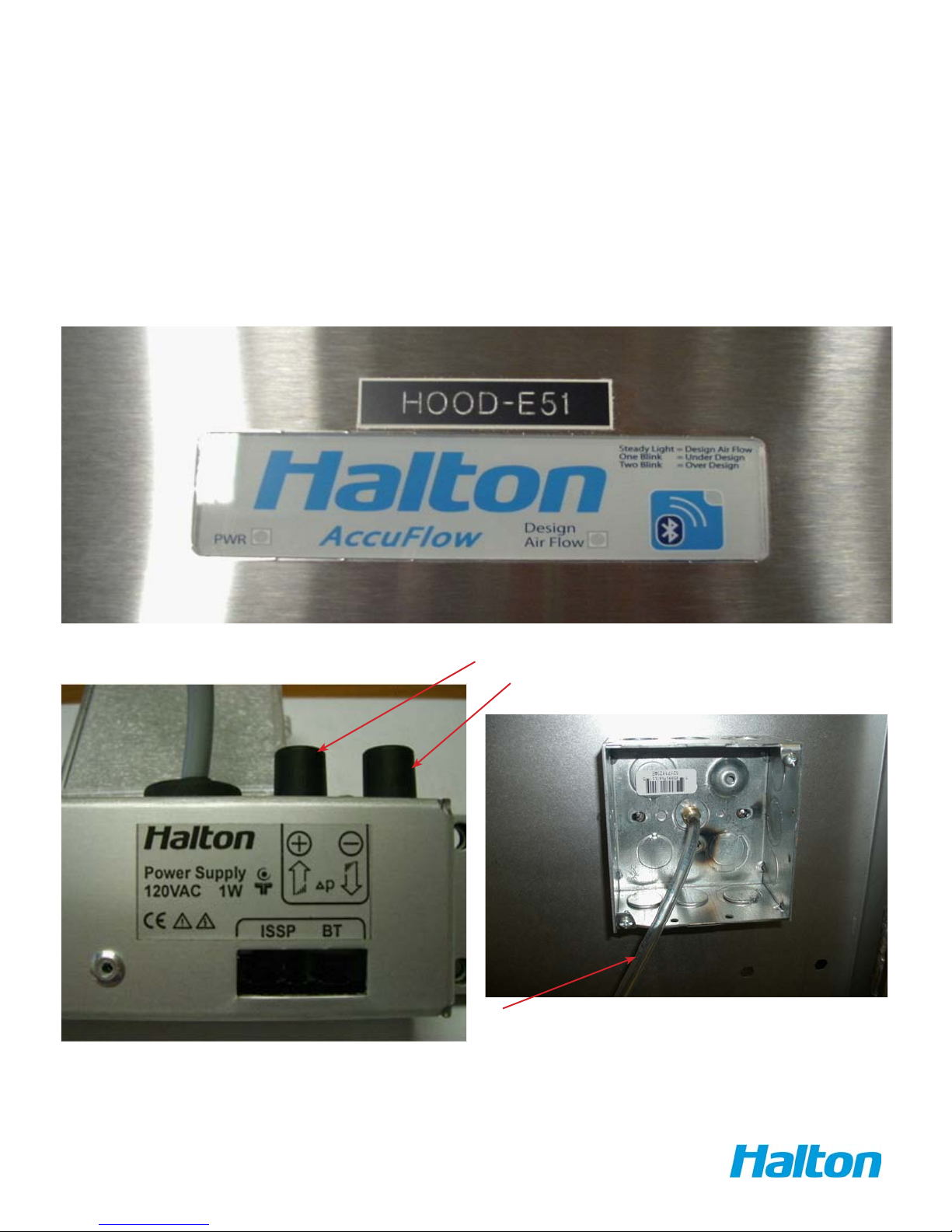

Photo 1 – Halton AccuFlow

Photo 2 – AccuFlow Pressure Taps

Connects to ambient (room) air

Connects to T.A.B. port

Plastic tubing connected to (-) port of
Accuflow device

Exhaust airflow rate is determined in the same fashion as other Halton Capture Jet hoods; each
hood has a unique K-Factor dependent upon model. The actual airflow is compared to the design
value and an alarm is enabled if airflow is above or below the specified range.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

14

CJOWWM/012009/rev1/EN

Operation

Each AccuFlow is programmed at a Halton Company manufacturing facility. To program the device,
the Bluetooth feature is enabled and personnel input necessary parameters. Programming can be
completed with a Windows Mobile enable smart-phone (PDA) or PC with the required software installed.
Programmed values include: Design Airflow, High Airflow Delta, Low Airflow Delta and K-Factor.

Design Airflow is determined using the Halton HELP software and the Low and High Airflow Delta are
defined as +/- ten percent of design airflow. K-Factors have been determined by Halton Research and
Development personnel.

Bluetooth capability also allows an Authorized Service Agent to determine the airflow of an exhaust
hood on site if an alarm is present. This information can be conveyed to Halton personnel for
troubleshooting.

Alarms

Alarms are enabled when design airflow is above or below ten percent of design airflow. An alarm is
visible on the front of the Accuflow, see Photo 3 below.

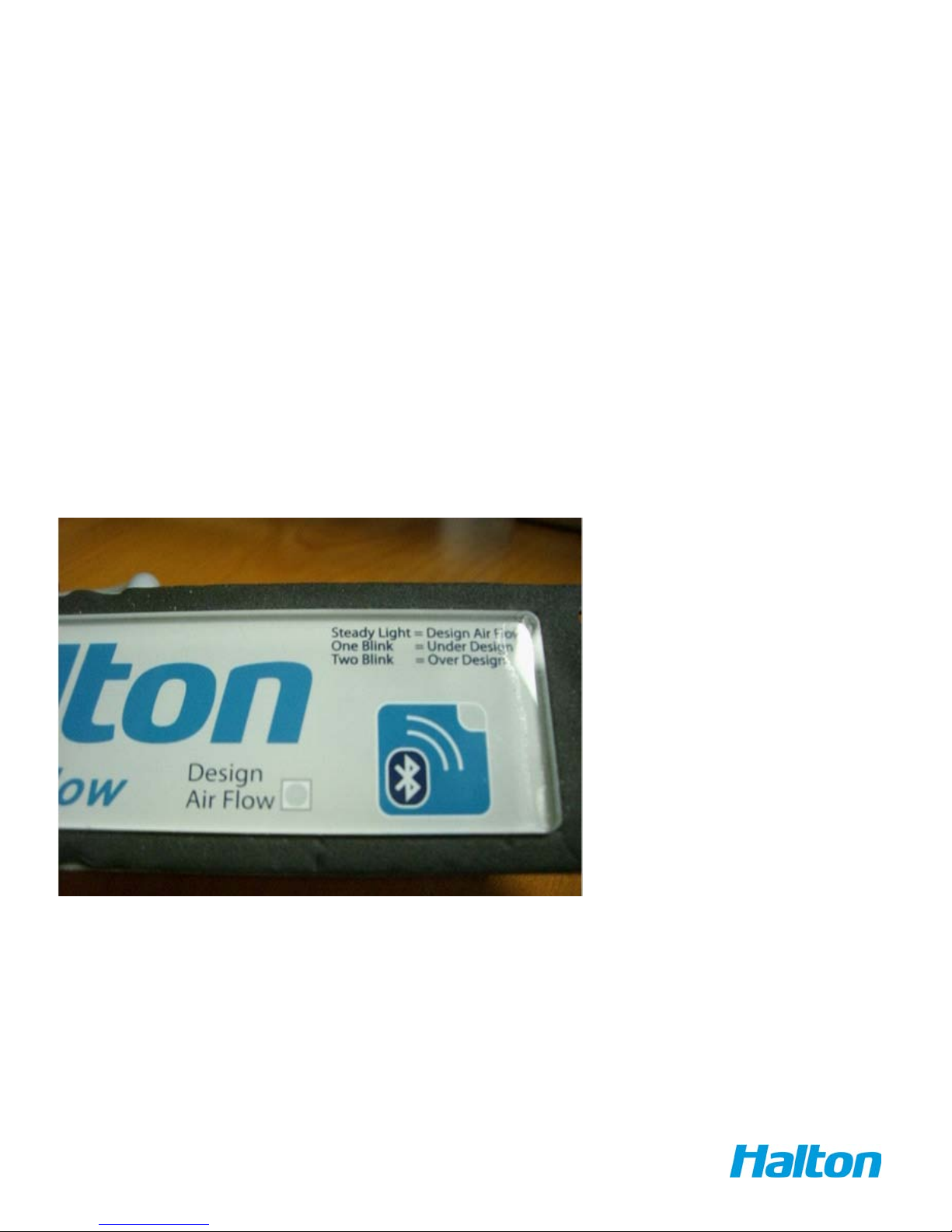

Photo 3 – AccuFlow Alarm Location

Indications of alarm status (under or over design) are printed on the device. If the LED indicator is
steady, the hood is at design airflow. Alarms are differentiated by the number of blinks per second;
1 blink per second indicates the hood is under design, 2 blinks per second indicates the hood is over
design.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

15

CJOWWM/012009/rev1/EN

Troubleshooting AccuFlow

Problem Probable Cause Solution

No lights Illuminated on
AccuFlow device

Low airflow alarm

Loose or improper electrical
connections

-Not reaching design airflow

-Plastic tubing disconnected

- Verify or reconnect electrical
connections

-Increase fan speed

-Reconnect

from Accuflow device or TAB
port

-Broken plastic tubing

-Replace tubing

-Clean TAB port

-Dirty or plugged TAB port in
exhaust plenum

Failure Bad Device - Replace

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

16

CJOWWM/012009/rev1/EN

KSA Filter Removal

with Model KFR

S.S. Coupling

S.S. Pipe

16 ga. S.S. Bracket

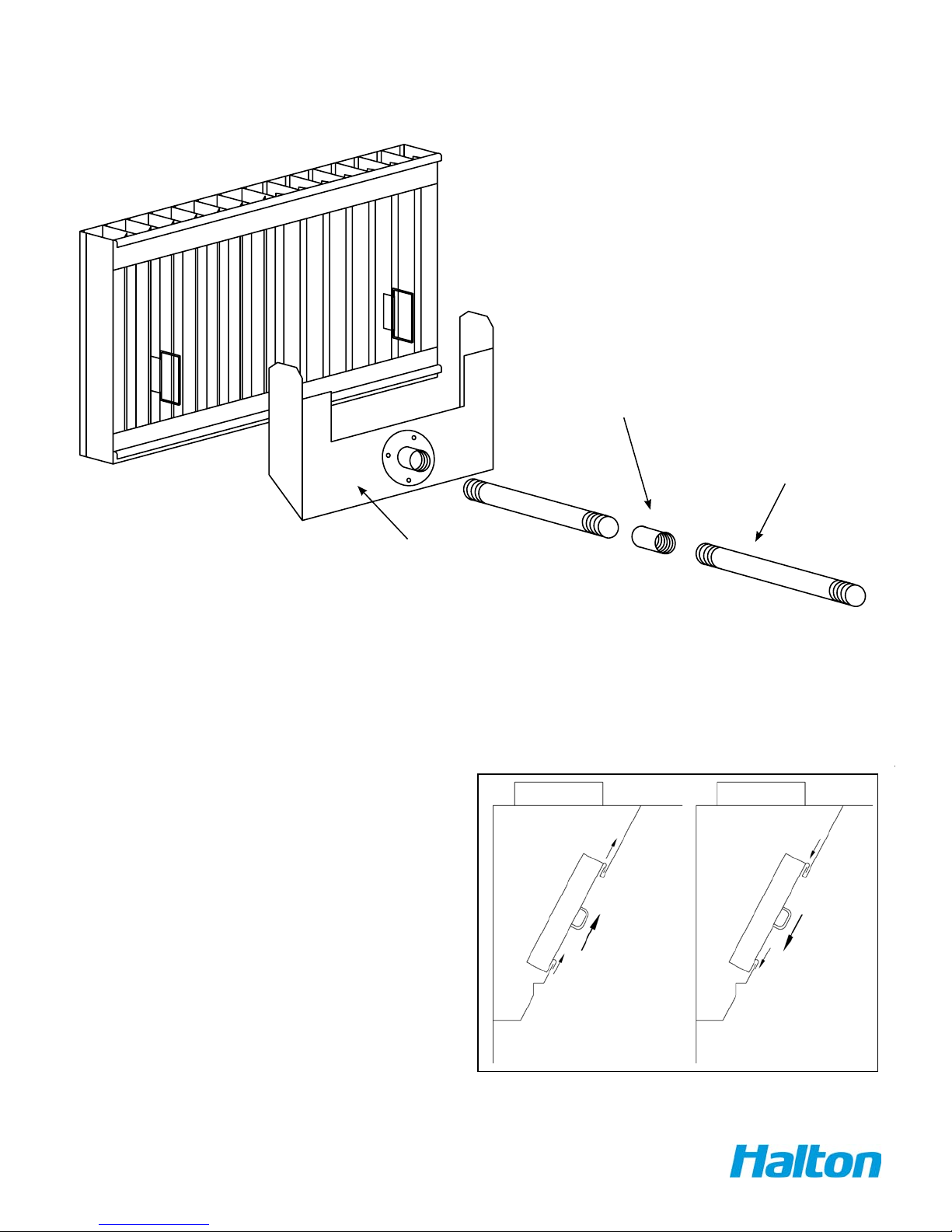

To assemble the KFR lter remover:

Screw together stainless steel pipe, coupling, and bracket and tighten all joints. (as shown in above picture)

Filter Installation and Removal

To remove lter:

Insert bracket into the inside KSA lter slots, and lift
upward until lter slides out of plenum.

To install lter:

Place lter on KFR (lter removal tool) bracket, raise lter
into place inside exhaust plenum. Slide upward until
top lip of lter is locked into place and bottom lip of lter
slides in place inside the exhaust plenum.

*** It is very Important to lock top lip of lter in place
in installation as shown in reference drawing.

To remove
lter

To install
lter

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

17

CJOWWM/012009/rev1/EN

40 “ min.

**Incandescent or
Fluorescent lighting
available.

KSA Filters

Model KVE-WW

Typical Installation

UL listed upblast fan for restaurant
cooking appliances

16 ga. duct work all
welded per code

Standard Capture Jet
intake location
**(optional top mounted
Capture Jet intake also
available)

®

78”-84” A.F.F.
Standard

**(Verify with Authority
in project location for
min. hanging height)

Capture Jet®
Airow

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

18

CJOWWM/012009/rev1/EN

40” min.

Model KVC-WW

Typical Installation

120” min.

Filtered MUA
unit on the
roof

16 ga. duct work all
welded per code

Stainless
Steel KSA
lters

78” - 84” A.F.F.
78” Std.

**(Verify with Authority
in project location for
min. hanging height)

Make-up airow

Capture Jet

®

air

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

19

CJOWWM/012009/rev1/EN

Features

• 120V, single phase, 60 Hz.

• Microprocessor based, versatile, user friendly and easy in the eld programmable.

• One control panel required per exhaust fan regardless on number of Water Wash hoods, but it can

drive multiple fans if required.

• Controls exhaust fan and make-up air fan.

• Controls cold water/hot water.

• Either local or remote AUTO/WASH/RUN operation, mater - slave conguration for multiple panels

when required.

• Remote system status monitoring, customizes error signal to meet requirements.

• Digital text display and light indicator to monitor system status.

• Adjustable washing cycle by simple procedure at the panel.

• Fire alarm.

• Low detergent level.

• Size 28” x 34” x 7”.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

20

CJOWWM/012009/rev1/EN

CONTROL PANEL COMPONENT FUNCTIONS

Water Shut Off Valves: There are two water shut off valves on both the hot and cold water lines, so that the components

in both hot and cold water lines can be isolated for easy removal.

Pressure Reducing Valves: These valves are located in the hot and cold water lines to reduce the operating pressure to

25 PSI (172 kPa).

Solenoid Valves: There is a solenoid valve in both the hot and cold water lines to automatically control the water ow.

Detergent Pump: This pump is used to inject a controlled amount of the detergent into the hot water line when in wash

mode.

Fuse Block & Terminal Strip: To provide a 5 amp fuse to to protect the electrical components in the control panel.

Cold Water Pressure Gauge: This gauge is used to check the cold water pressure on the outlet side of the pressure

reducing valve. Should read 25 PSI (138 kPa) while in operation.

Plug Hot Water Line: This plug can be removed and a pressure gauge or thermometer screwed inot the hole for eld

termperature and pressure reading.

Cold Water and Hot Water Strainers: The strainers located in the PRV valve are used to strain out dirt from the water

ow and to protect the solenoid valves and water nozzles from plugging up.

Detergent PUmp Check Valves: This valve stops the detergent in the pump and tube from draining back down into the

detergent tank when the pump is not in operation, eliminating the need to continually prime the pump.

PLC Siemens: Controls all functions of the panel. The PLC takes care of alarms as well.

Display - TD200: Displays all messages, for system operation and alarms in the system.

METHODS OF MOUNTING CONTROL PANEL

Location of control panel is determined by the kitchen equipment contractor. The recommended mounting height above

the nished oor and type (recessed or surface) is indicated on the show drawing.

RECESSED CONTROL PANEL

Recessed mounted models. The panel can be shipped early to allow cabinet to be built into wall. Fastening as per surface

mount units.

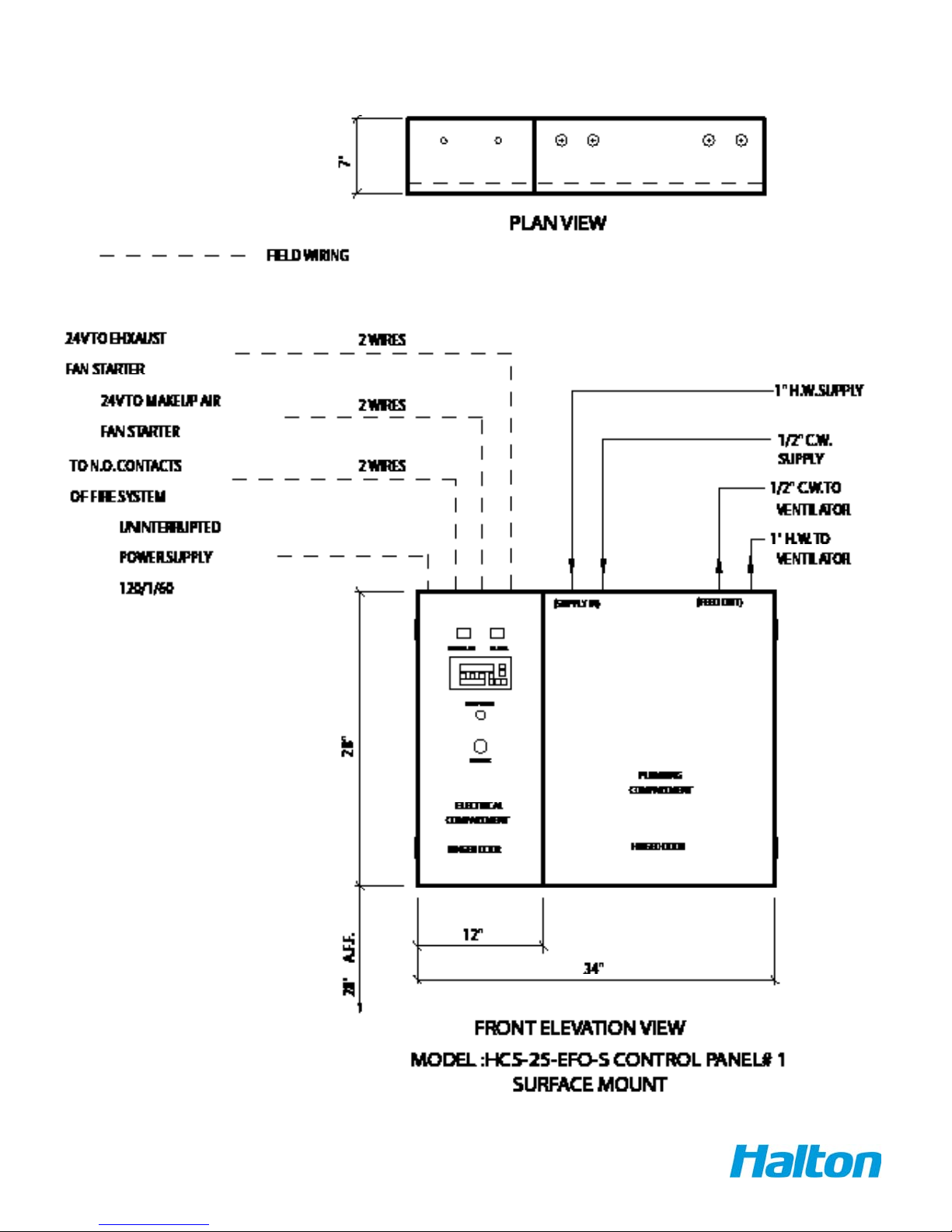

SURFACE MOUNT CONTROL PANEL

Surface mounted models are shipped as complete units. The installer must drill holes in the back of the cabinet and com-

ponents plate to suire wall structure and securely fasten pabel to wall with lag or buttery bolts.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

21

CJOWWM/012009/rev1/EN

CONTROL PANEL OPERATION

The Water Wash control panel is designed to operate Halton Water Wash hoods.

If an alarm goes off on the panel it indicates then there is a problem. To silence the alarm, press the “MUTE” button;
however, the indicator lamps will remain lit.

DISPLAY CAUSE SOLUTION

Low Level Detergent Low level of detergent in the tank. - Rell detergent

Fire The re system has been activated.

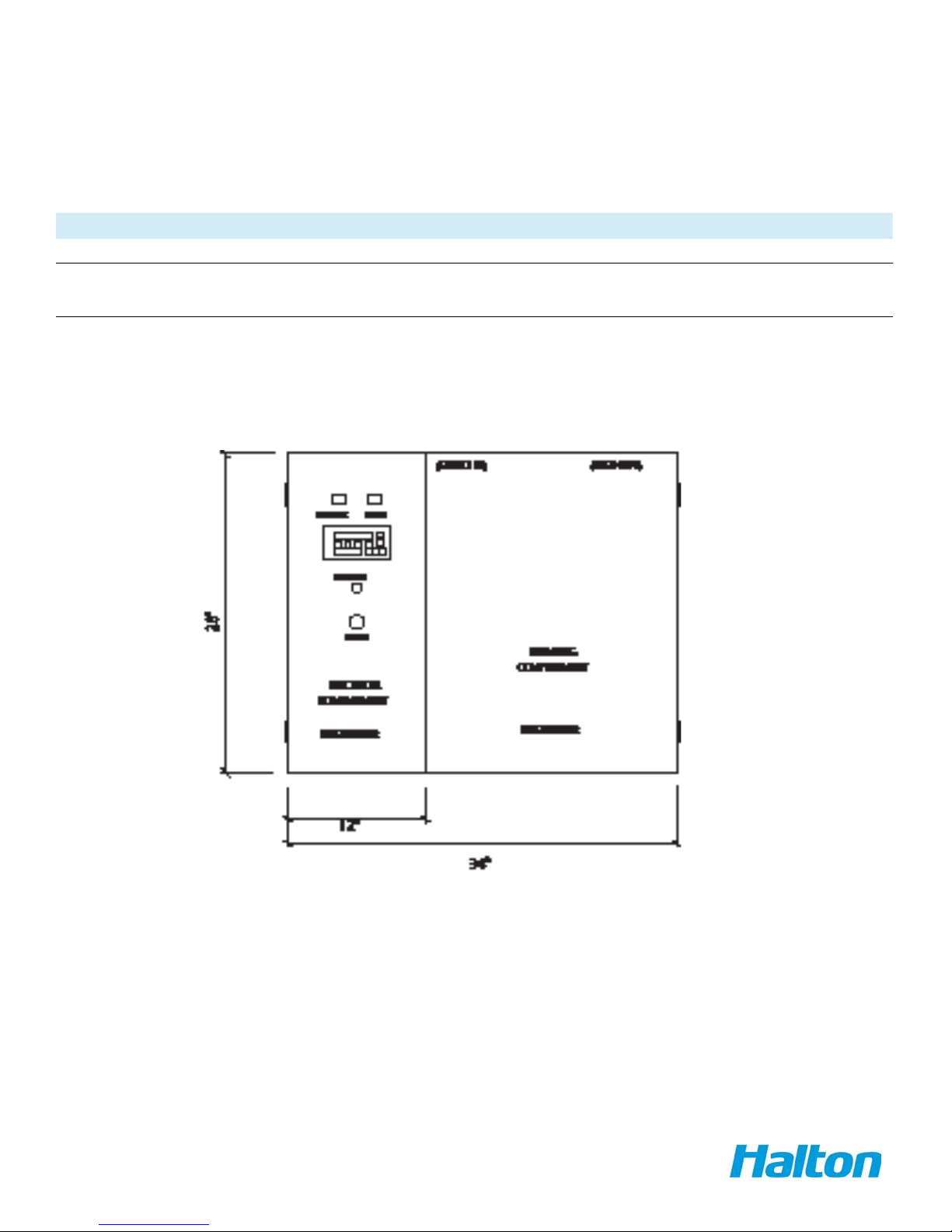

STANDARD CONTROL PANEL

Notes:

- For more sequences dimensions of control panel will change.

- If 5 gallon option used length will change from 28” to 40”

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

22

CJOWWM/012009/rev1/EN

CONTROL PANEL - INPUT - OUTPUT DESCRIPTION

Fire Switch – Normally Open contract of re relay in any re suppression system (for example Ansul) switch connected to

terminals 8 and 10

• When switch is closed, gives signal to control panel and noties that system is on re.

• Alarm lamp(red color)lit and display shows FIRE

• Exhaust and Makeup fans may be shut off (depending on internal programming)

• This particular alarm remains active even when unit is in Off position

Remote AUTO/WASH/RUN switch -

Used to remotely turn the system in RUN and WASH

• If remote control for the panel is needed, this switch is on AUTO position

• This enables panel to be controlled from external or internal time clock, BMS or similar

systems.

OUTPUTS

Exhaust Fan – terminals 1 and N.

AC voltage to energize exhaust fan starter,120 VAC.

Makeup Fan – terminals 2 and N.
AC voltage to energize makeup fan starter,120 VAC.

Cold Water Solenoid - terminal Q0.7 and N

Hot Water Solenoid - terminal Q1.0 and N

Alarm signal output – Terminal numbers to be assigned.

Dry contacts which close/open on certain alarms can be provided to send signal to remote
monitoring system.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

23

CJOWWM/012009/rev1/EN

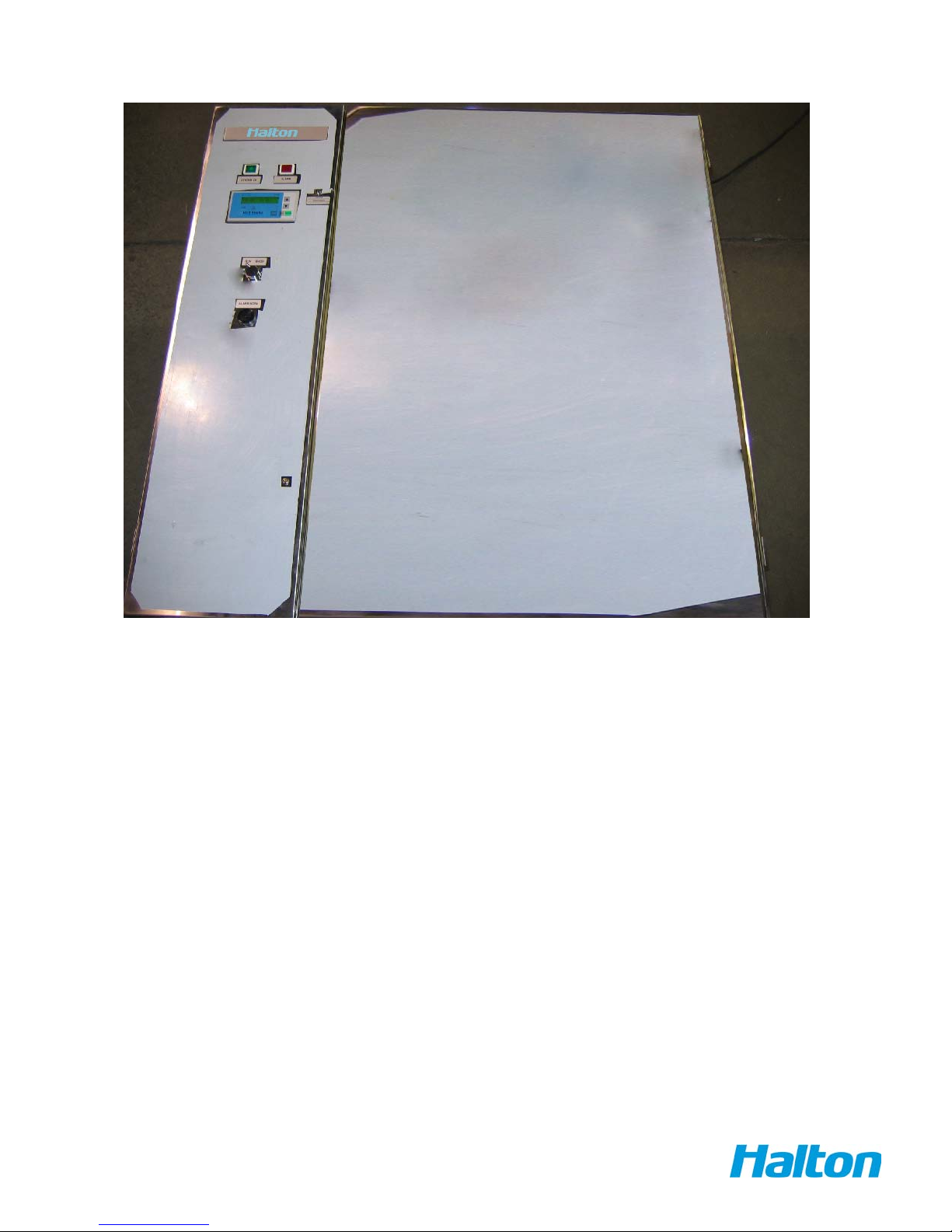

FRONT PANEL APPEARANCE

There are two indicator lights located at the top of the panel:

• Green light –“System OK” indicates when system is in normal operating mode and no alarms are occurring.

• Red light –“Alarm” indicates when there is a failure appearing in the system

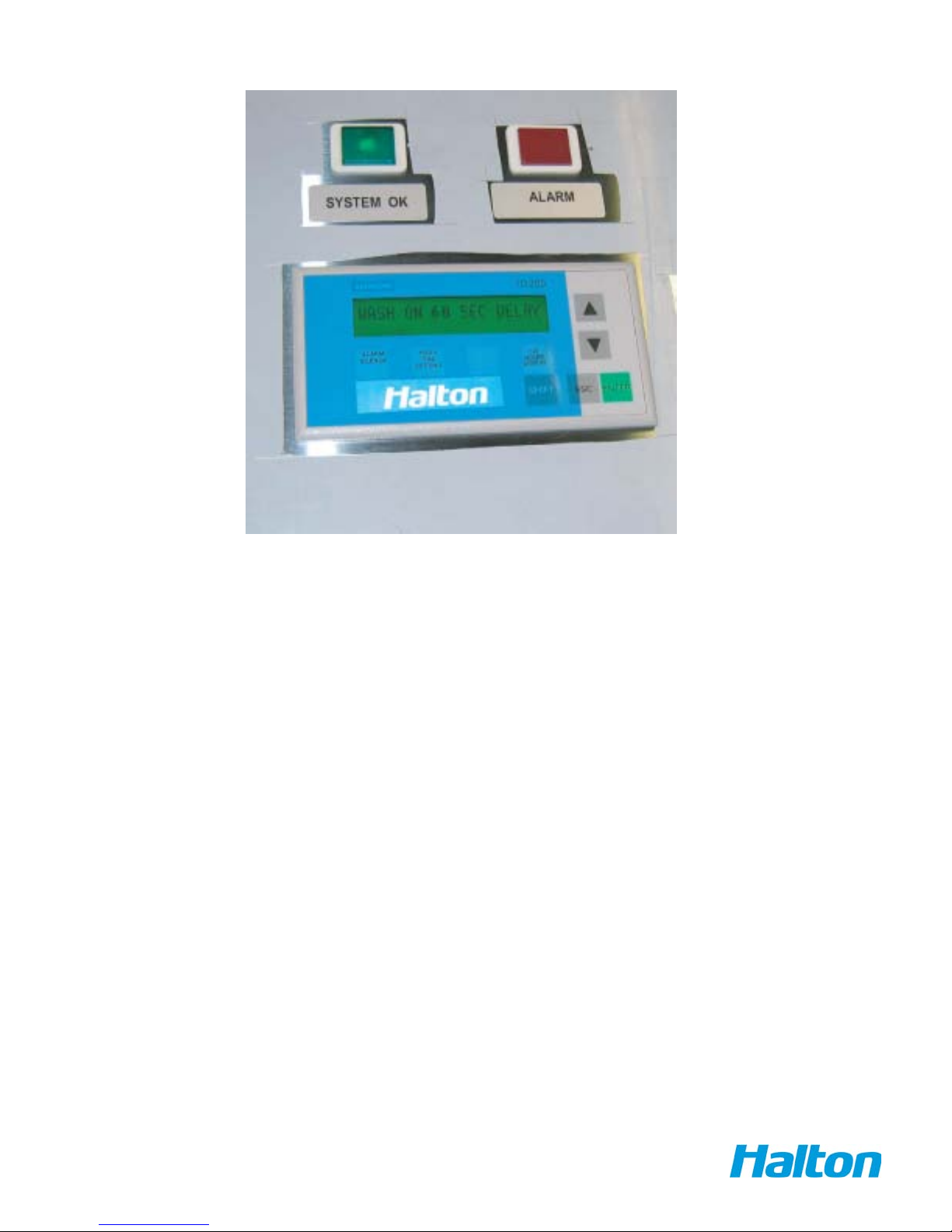

• TD 200 Siemens display ( text display )- shows text messages (displayed in two rows) system status

• Soft touch buttons on the display( square shape –located bellow messaging display):

• Wash time button to set the time for washing cycle (second button from left) - For 1 SQ.

• Wash time button to set the time for washing cycle (third button from left) - For 2 SQ.

• Wash time button to set the time for washing cycle (shift & second button from left) - For 3 SQ.

• Wash time button to set the time for washing cycle (shift & third button from left) - For 4 SQ.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

24

CJOWWM/012009/rev1/EN

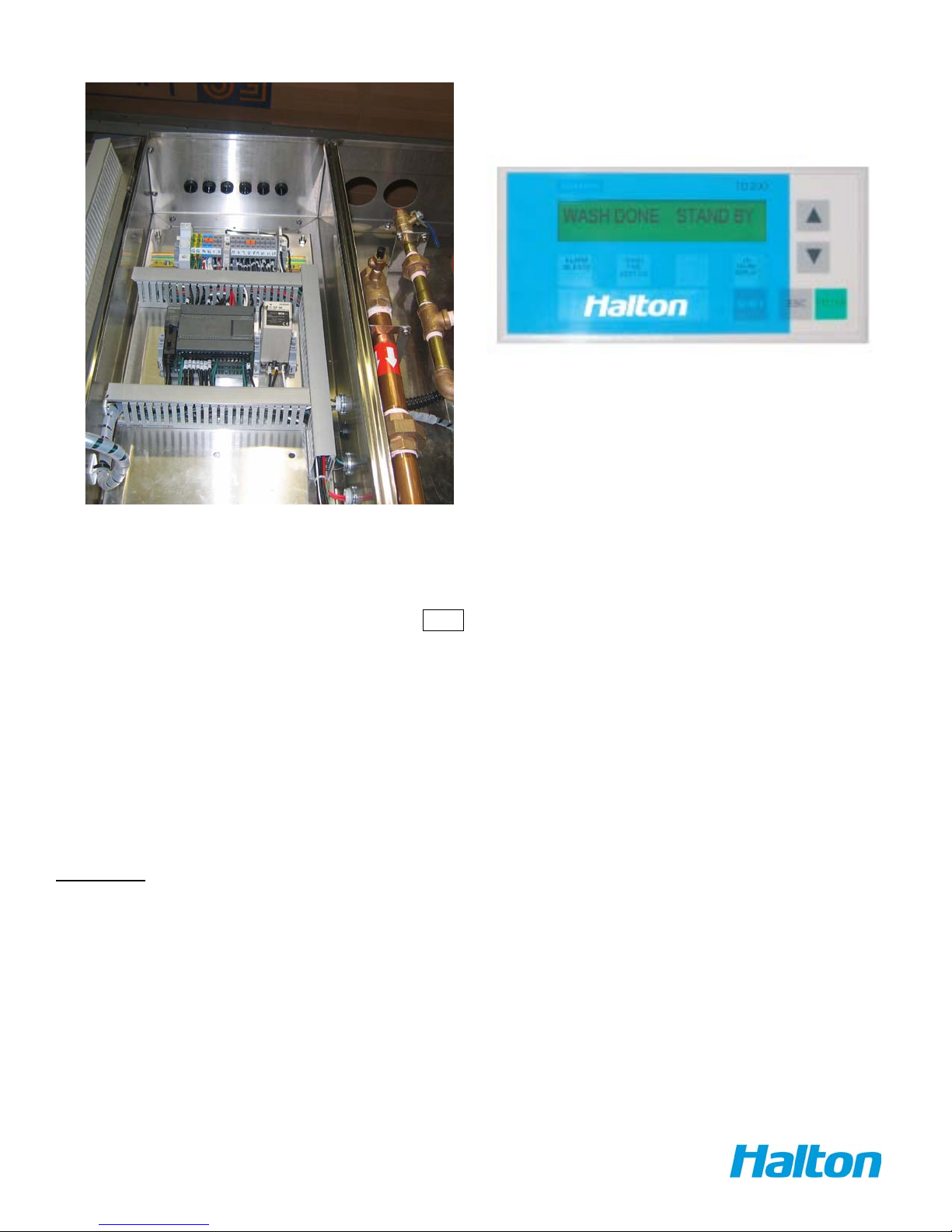

OPERATING MODES - SEQUENCE OF OPERATION

OFF MODE

• The unit displays WASH DONE STAND BY

• All outputs are off

• Indicator light “System OK” is lit. System is ready to be started again.

• Statistics can be consulted/cleared using appropriate keys

RUN MODE

• Put selector switch ”RUN/WASH” in RUN position

• The unit displays SYSTEM ON FAN ON rst row

• The unit displays COLD WATER MIST ON second row (if applicable, for HC5-25)

• Exhaust fan is on

• Make up air fan is on

• Cold water solenoid on

• Statistics can be consulted/cleared using appropriate keys

WASH MODE

• Select RUN/WASH switch in WASH position-turn off sequence is as follows:

• The unit displays WASH ON 60 SEC DELAY

• Exhaust fan is off

• Make up air fan is off

• Washing cycle is delayed for 60 seconds allowance for fan to stop.

Automatically after 60 seconds of delay panel is going to washing cycle :

• The unit displays WASH ON_____MIN

• The display is showing the current time on washing hoods.

• The hot water solenoid is on

• Detergent pump is on

• Washing cycle nishes after preset time ( by default 3 min)-this is adjustable by wash

time setting button

After the rst wash cycle nishes by program the system automatically shuts down in stand by. If the panel has

more than 1 sequence 2,3 and 4 will start automatically once the previous sequence is completed.

• The hot water solenoid is on

• The unit displays WASH DONE STAND BY

This message will persist until operator put the selector switch in RUN.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

25

CJOWWM/012009/rev1/EN

VIEWING/CLEARING STATISTICS

• Statistic can be cleared by pressing the Mute key while pressing the statistic key.

• Wash time can be changed easily by a simple procedure

1. Press “WASH TIME SETTING” button on the electronic text display. Currently

set value in minutes is displayed.

2. Press the “ENTER” button, a blinking cursor appears

3. Use the “” up and down arrows to set desired wash time.

4. Press “ENTER” again to nish.

FACTORY DEFAULT VALUES:

The unit has pre programmed default values

FAN OPERATION DURING FIRE

When the unit detects the Fire input, it will shut off the make air and exhaust fan by default according to this parameter. By

program fans can be on, by default exhaust fan is off in the re mode.

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

26

CJOWWM/012009/rev1/EN

FIELD WIRING DIAGRAM

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

27

CJOWWM/012009/rev1/EN

ELECTRICAL WIRING/CONNECTIONS

Two electrical wiring diagrams are shown below:

1) Control Panel electrical wiring diagram

2) Field wiring diagram

FIELD WIRING BY OTHERS

TD-200

4

120 VAC, 60 Hz

UNINTERRUPTED
POWER SUPPLY

G N L

N

N

G R

0.0

1L 0.1 2L0.3

CPU 224

N NN N N

BUZZER

0.2

R1

FIRE RELAY

12 14

11

A1 A2

120V

FAN

AIR MAKE-UP

EXHAUST FAN

PUMP

DETERGENT

3

1

0.4 0.5 3L 0.7 1.0 1.1

1A

2

0.6

H.W. SOL.

C.W. SOL.

SIEMENS S7-200

1M 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 2M 1.0 1.1 1.2 1.3 1.4 1.5 M L+

L

5A

L1AC

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

5 6 7

RUN / WASH

C NC

C NO

C NC

N.O. FIRE SWITCH

DETERGENT SWITCH

8

8

8

HC5-25-EFO-S WIRING DIAGRAM

28

CJOWWM/012009/rev1/EN

TROUBLE SHOOTING GUIDE

INOPERATIVE PROBLEM CAUSE SOLUTION

- Verify eld wiring for proper

Exhaust fan will not function Field Wiring Breaker or

Burned Contactor

connections

- Check fuse at control panel

- Change Contactor

Solenoid will not function

- Plunger Stuck

- Coil Burned

- Change Solenoid

Capture Jet® Water Wash
Operation & Maintenance & Service Manual

29

CJOWWM/012009/rev1/EN

HALTON LIMITED WARRANTY

Halton (“Manufacturer”). Warrants only to its direct purchasers and to no others, that all products
manufactured by the Manufacturer shall be free from defect in materials and workmanship for a period
of twelve (12) months from the date of the original installation and start-up or eighteen (18) months
from date of shipment, whichever occurs first. All products sold but not manufactured by Manufacturer
will be warranted for a period of twelve (12) months from date of shipment.

For products manufactured by the Manufacturer we agree to pay any reasonable labor costs necessary
to repair or replace, at Manufacturers option, defective parts or materials for a period of twelve (12)
months from date of original installation and start-up or eighteen (18) months from date of shipment,
whichever occurs first. All labor costs subject hereto shall be performed during standard work hours at
straight-time rates.

For products sold but not manufactured by the Manufacturer we agree to pay any reasonable labor costs
necessary to repair or replace, at Manufacturers option, defective parts or materials for a period of (90)
days from date of original installation and start-up or (12) months from date of shipment, whichever
occurs first. All labor costs subject hereto shall be performed during standard work hours at straight­time rates.

Purchaser shall pay incurred premium labor charge, including overtime, weekends and holidays.
Travel time, service charges, miscellaneous tools, material charges, and labor charges resulting from
inaccessibility of equipment will not be paid by Manufacturer.

This LIMITED WARRANTY SHALL APPLY ONLY to products that have been installed and maintained
in accordance with the installation and Care Instruction Manuals. Purchaser shall be solely responsible
for adhering to the instructions and procedures set forth in the said instruction manuals.

This LIMITED WARRANTY SHALL NOT BE APPLICABLE to any damage or defect resulting from fire,
flood, freezing or any Act of God, abuse, misuse, accident, neglect or failure to adhere to all instructions
set forth in the installation and Care Instruction Manuals. Furthermore, this limited warranty shall not
apply to any product that has been altered, unless such alteration has been approved in writing by a
duly authorized representative of the manufacturer. In no event shall the manufacturer be liable for any
loss, expense, personal injury or consequential damage, of any kind or character, as may result from a
defect in material, and/or workmanship, however caused.

EXCEPT AS IS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY, MANUFACTURER MAKES
NO WARRANTY OF MARKETABILITY FOR FITNESS OR ANY PARTICULAR PURPOSE. NEITHER
DOES MANUFACTURER MAKE ANY WARRANTY, EXPRESSED OR IMPLIED, WITH RESPECT TO
PRODUCTS SOLD BY MANUFACTURER OR AS TO THE USE THEREOF.

Halton Company

101 Industrial Drive, Scottsville, 42164 USA
Tel: [phone] Fax: [phone]
Website address www.haltoncompany.com

Halton Indoor Climate Systems, Ltd.

1021 Brevik Place • Mississauga, ON L4W 3R7 CANADA
Tel: [phone] Fax: [phone]
Website address www.haltoncanada.com
