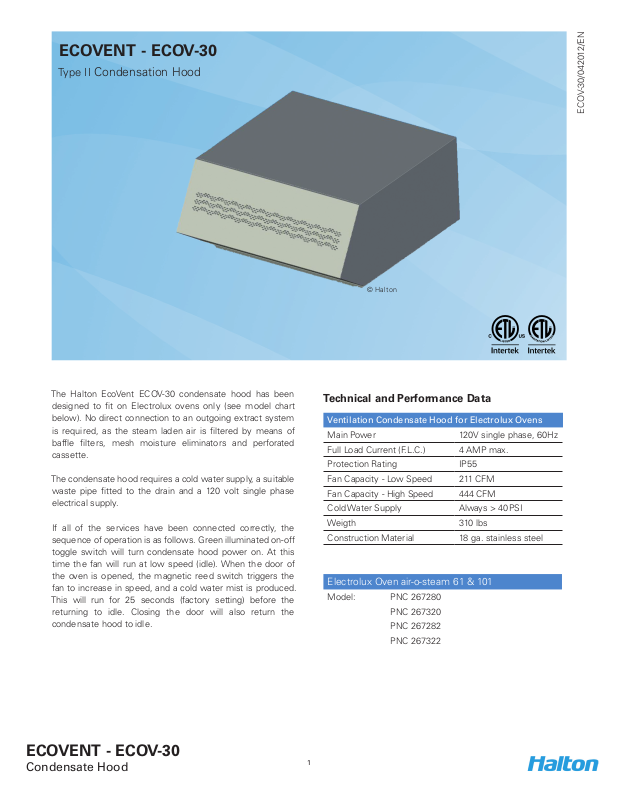

Halton ECOV-30 User Manual

ECOVENT - ECOV-30

Type II Condensation Hood

ECOV-30/042012/EN

© Halt on

The Halton EcoVent ECOV-30 condensate hood has been

designed to fit on Electrolux ovens only (see model chart
below). No direct connection to an outgoing extract system
is required, as the steam laden air is filtered by means of
baffle filters, mesh moisture eliminators and perforated
cassette.

The condensate hood requires a cold water supply, a suitable

waste pipe fitted to the drain and a 120 volt single phase
electrical supply.

If all of the services have been connected correctly, the
sequence of operation is as follows. Green illuminated on-off
toggle switch will turn condensate hood power on. At this
time the fan will run at low speed (idle). When the door of
the oven is opened, the magnetic reed switch triggers the
fan to increase in speed, and a cold water mist is produced.

This will run for 25 seconds (factory setting) before the

returning to idle. Closing the door will also return the
condensate hood to idle.

Technical and Performance Data

Ventilation Condensate Hood for Electrolux Ovens

Main Power 120V single phase, 60Hz

Full Load Current (F.L.C.) 4 AMP max.

Protection Rating IP55

Fan Capacity - Low Speed 211 CFM

Fan Capacity - High Speed 444 CFM

Cold Water Supply Always > 40PSI

Weigth 310 lbs

Construction Material 18 ga. stainless steel

Electrolux Oven air-o-steam 61 & 101

Model: PNC 267280

PNC 267320

PNC 267282

PNC 267322

ECOVENT - ECOV-30

Condensate Hood

1

ECOVENT
ECOV-30

OVEN
VENT

OVEN
STEAM

POWER
INLET

BOTTOM

OVEN DESCALING
PORT*

WATER INLET

OVERFLOW

PIPE

ECOV-30/042012/EN

DRAIN

ECOFIT FAN
4GDF65

43.670

SIDE

13.276

33.951

7.037

ELECTRICAL BOX

14X10X7

18.048

FRONT

STAINLESS STEEL
BAFFLE FILTERS

TOP

A

A

SIDE

33.951

43.922 23.976

The company has a policy of cont inuous product development ,

therefore we reserve the right to modify desi gn an d

spe cifications wit hout notice.

ECOVENT - ECOV-30

Condensate Hood

35.354

For more informa tio n, please contact your nearest Halt on

age ncy. To find it : www.haltoncompany.c om
