Manual Summary

This manual makes the assumption that you have installed the most current version of the DataLink PC software and IQ3 firmware. IQ3 firmware and DataLink updates can be found at http://www.racepak.com/IQ3Dash/downloads.htm. As of this writing, the most current DataLink version is 3.1.0. To compliment the overall simplicity of the IQ3 Da ta Logger Dash, we have created a User Manual that is equally simple in usage. The following provides a quick view of the manual layout:

1. IQ3 Features a. Dash b. Data Logger

2. Installation a. Dash b. Software

3. Programming The Display

4. Adding Sensors

5. Initial Run Data and Software Usage

Given the variety of motorsports in which the IQ3 Logger Dash is utilized, we have also noted features specific to a given motorsport within the above sections. This will allow our customers to quickly reference features that are most releva nt to their type of racing.

Items Included With the IQ3 Data Logger Dash PN 250- DS-IQ3LD

Item Part Number

IQ3 Data Logger Dash UNIT-DS-IQ3LD 512MB microSD Flash Card CARD-MEM-M512 SD Flash Card Reader 890-SD-RDR 8-1 Serial Communication Cable 280-CA-ST140SR 8 Position Wire Harness 280-CA-HARNIQ3L GPS Antenna and Cable ANTG-ANN-05 DataLink Software N/A Installation Manual MANL-IQ3LD

IQ3 Data Logger Dash Installation Manual

IQ3 Features

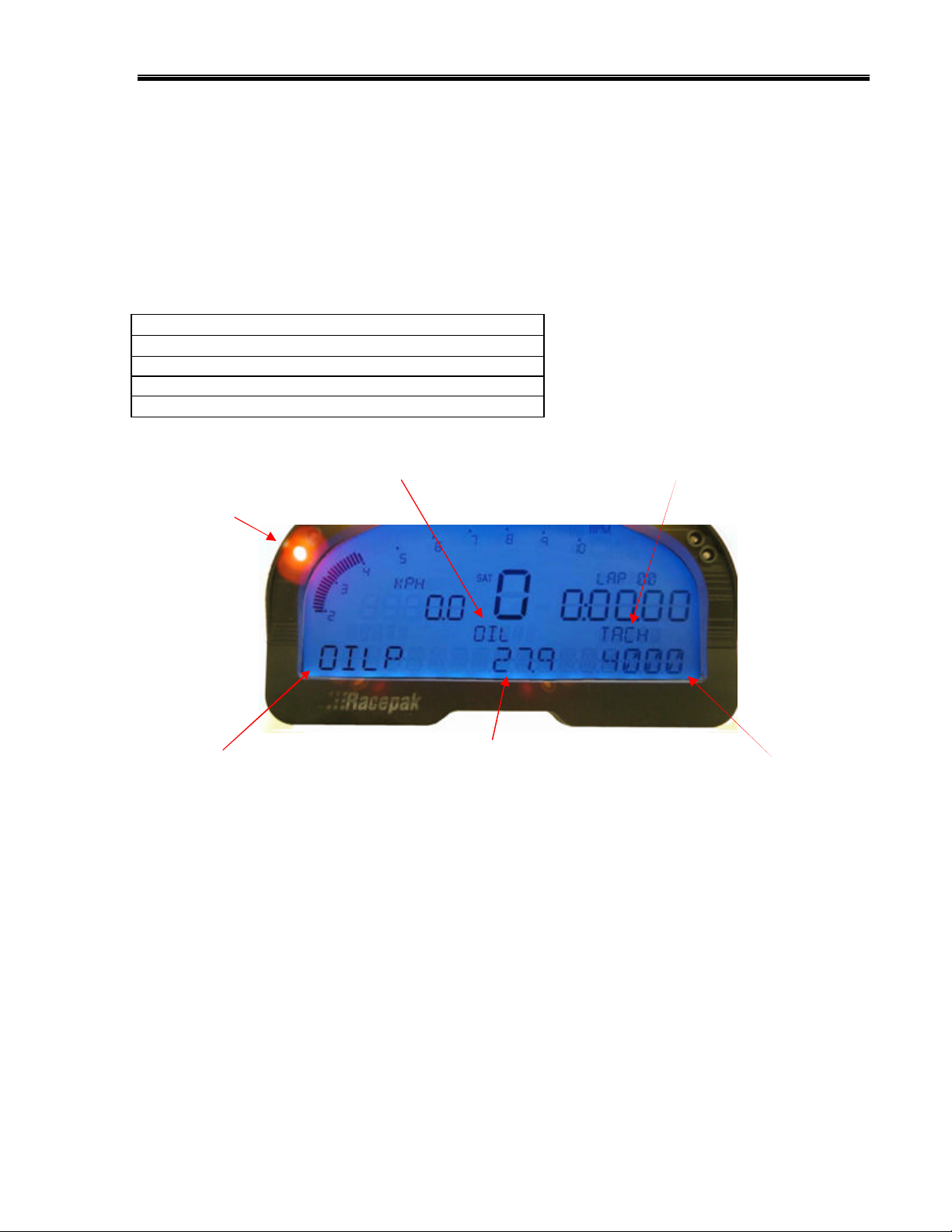

The IQ3 Logger Dash is a full programmable LCD digital display dash that is equipped with a 32 channel data logger, 3 axis G meter, 512MB microSD card and GPS board all contained inside the dash housing. This design eliminates the necessity of an external data logger, G meters or external GPS module.

The IQ3 is a multi -purpose product designed for use in road racing, circle track, driving schools, pulling, boating, off road, hill climb or any other type of motorsports that can benefit from the use of GPS data to obtain speed, timing and mapping functions, without the necessity of wheel speed sensors, beacon receivers or transmitters.

Display Dash

28 programmable items on 4 pages Programmable sequential shift lights 4 programmable warning lights with on-screen text warning 5 character programmable alpha/numeric text per display channel Rear mounted Power/Ground/Engine RPM/Programming Button input Rear mounted GPS antenna connector Rear mounted Vnet sensor connector Shielded, anti-glare coated display for sunlight viewing Metric and English capable Blue backlight Gear indicator

Data Logger

512MB microSD memory card 32 Vnet (canbus) sensor inputs 3 axis G meter – Inline / Lateral / Vertical 4 HZ GPS Board

Base IQ3 Downloaded Data

Battery Voltage / Accel G / Lateral G / Vertical G / Engine RPM Track Mapping / Speed / Lap Time / Lap Number Full data analysis capabilities

IQ3 Data Logger Dash Installation Manual

External Sensors

The IQ3 Logger Dash utilizes Racepak’s Vnet (canbus) sensor input. This design provides the ability to transmit all sensor data through a single cable. This cable is connected to the 5 pin Vnet port on the rear of the dash. No sensor wiring harness is required.

To add sensors, the customer simply measures from the IQ3 dash to the mounting location of the sensor or sensors, and orders the appropriate length pre -terminated Vnet extension cable. Vnet cables are available in 12” increments and are equipped with a male connector on one end and a female connector on the opposite end. In the event sensors are mounted in multiple location throughout the vehicle, simple measure between each sensor location and order the necessary Vnet extension cables to connect all items to the main Vnet cable routed to the rear of the dash.

Vnet Cable

Any Vnet sensor currently offered by Racepak may be utilized by the IQ3 Logger Dash. For a complete listing of available sensors, visit our website located at www.racepak.com or contact the Racepak customer service department at 949-709-5555 for a catalog. Customer supplied sensors may also be utilized. Racepak’s USM module (PN: 230-VM-USM) is a four sensor input module, providing the ability to define each sensor input dependant sensor type.

Sensor

IQ3 Data Logger Dash Installation Manual

Multiple Motorsports Usage

Road Racing / Circle Track Features

Track Mapping with Segments Lap Time and Lap Number Predictive Lap Time Accel G Lateral G Battery Voltage Engine RPM GPS Speed

When utilized in closed course racing (circle track, road racing, boating ) the data logger obtains GPS data to provide speed and lap time information to the driver. Track mapping with segment (split) times are derived from GPS and accelerometer data and is available upon downloading to the user’s PC, in addition to data provided by external sensors connected to the data logger.

Boat Racing Features (requiring lap time and mapping data)

While boat racing utilizes the same above features, Racepak has added additional features specifically for the boat competitor :

1. Prop Slip: Allows display of Prop Slip on dash. Requires input of prop diameter, prop

pitch and final gear ration, along with a ta chometer signal input.

2. User Defined Start / Finish Distance: Dash lap time data is available to the driver upon

marking of the start / finish location while on the course. By providing the ability to define the distance this GPS point “looks” across the course, lap time data will be available regardless of the varying width the boat takes as it passes the start finish location.

Pulling Features

When utilized for motorsports that do not require timing and track mapping information ( such as pulling) the IQ3 functions as a standard 32 channel data logger, but with the unique ability to provide an accurate method of obtaining ground speed without the use of vehicle mounted sensors.

IQ3 Data Logger Dash Installation Manual

Technical Specifications

Total Sensor Channels - Defined Below 38

Vnet Data Channels 32 Internal Channels as defined below 7 IQ3 Internal Temperature/IQ3 Logger Voltage / Engine RPM / Accel G /

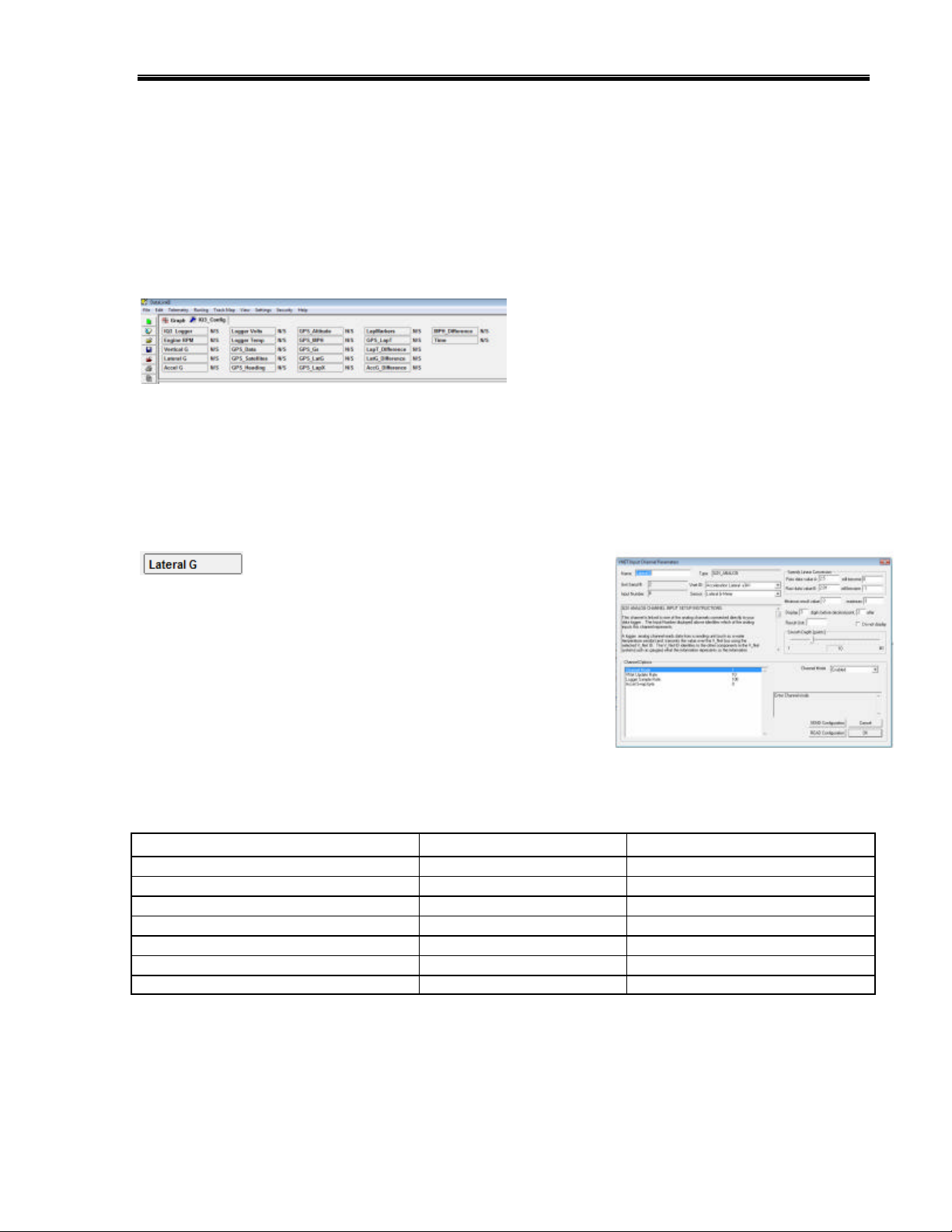

Lateral G / Vertical G / GPS

Accelerometer Specifications

Sample Rate 100HZ - 3 Axis Accuracy 1% (excluding vibration affect) Minimum / Maximum Values +5 / -5

GPS Information

GPS logging rate 4 Hz with 100HZ inertial assistance Channels 16 Antenna High Gain / Active Accuracy 2.5 Meters Cold start / Hot start satellite sync time 34 seconds cold / less than 3.5 seconds hot

Memory

Maximum microSD Card Size

Data Writing Rate

Resolution (ADC)

Data Logger 10 bit

Processor Speed

Sample (Logging) Rates of Data Channels

IQ3 Internal Channels 100 Hz Maximum, user adjustable to 1 Hz Vnet Channels 100 Hz Maximum , user adjustable to 1 Hz

Power & Current

Input Voltage 10-16V Current Draw 350mA - Without warning and shift LED’s active Reverse Voltage Protection Yes

Operating Temperature

Mounting Orientation

Engine RPM Input

Start Logging Channel (factory default)

512MB microSD Flash - Included 2GB Maximum

17Kb / sec

20MHz

32 - 140F / 0-60C

Level left & right / Level top & bottom Rear of dash facing direction of travel

50% duty cycle, 5-18V square wave signal

GPS Speed (25 MPH)

IQ3 Data Logger Dash Installation Manual

IQ3 Logger Dash Functions

The IQ3 Logger Dash is the main component of the data system, as it contains the data logger, 512MB memory card, GPS board and G meters.

IQ3 Logger Dash Configuration File

The Configuration File contains the programming settings for both the dash and any internal and external sensors utilized by the IQ3 Logger Dash. Any additional sensors that were not shipped with the IQ3 Logger Dash will require updating the Configuration file.

Logging Start and Stop

Any active cha nnel may be used to start logging. From the factory, the IQ3 is programmed to start logging at 25 GPS MPH (40 KPH) and stops logging when no speed is detected for at least 30 seconds. A data file is written each time the vehicle exceeds the start logging speed following at least 30 seconds of no speed, and is numbered in subsequent order (1,2,3,etc). The start logging channel may be changed to any valid sensor channel, by the user.

Download Data

Data is stored on a 5128MB microSD flash card supplied with the IQ3, and is downloaded via a customer supplied microSD flash card reader to the user’s PC utilizing the DataLink software.

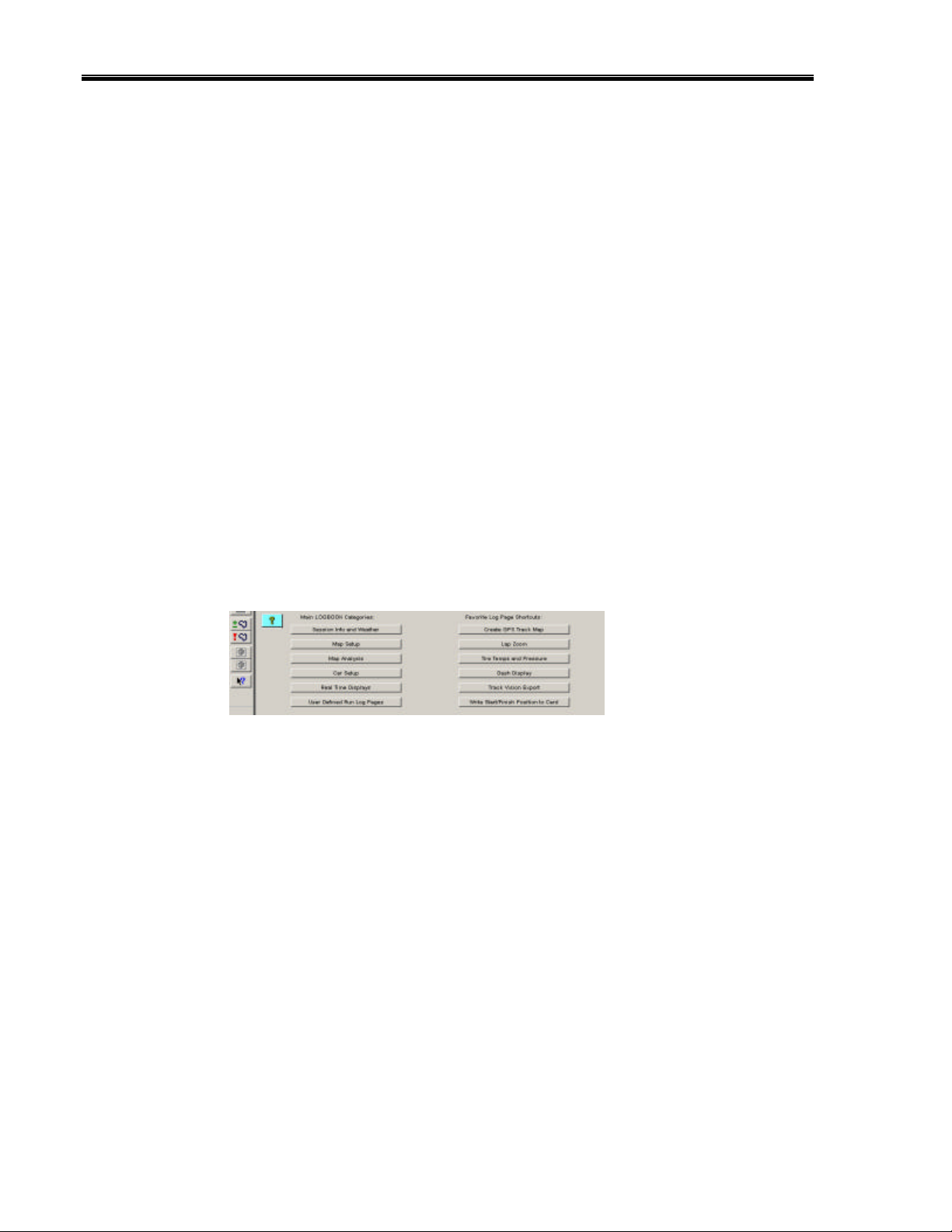

DataLink Software

The DataLink software is used to both set up (configure) the IQ3 data logger and provide the ability to downloa d and analyze data. Data stored on the microSD flash card is downloaded and converted into a format (.rpk) that is recognized by the DataLink software. This .rpk file is then saved to the user’s PC, for analysis.

PC Minimum Requirements

Windows® 98 / ME / 2000 / XP or Vista operating system / 200MHZ (Pentium II) processor 200MB of available hard drive / 16MB of RAM CD ROM drive Serial port or USB to serial adapter / 1024 x 768 or higher monitor resolution

IQ3 Data Logger Dash Installation Manual

Terminology

In order to assist in the installation and usage of the IQ3, the following provides an outline of the most commonly used words that will be encountered in this manual.

Analog: Data created by the reading of a voltage change sent from a sensor Calibrate: The process of assigning valu es to sensor voltage output, in order to graph and

analyze the sensor data.

Canbus: The specific name of the technology utilized to create the Vnet sensor system Channel: The input from one sensor, as defined by the data logger. Data Logger: See Data Recorder Data Recorder: The vehicle mounted hardware device that collects and stores data transmitted

from the sensors Digital: A sensor or signal that has only two values, off or on such as the measuring of ignition pulses to calculate Engine RPM Download: The process of transferring data saved on the data logger memory card to the user’s

PC using the DataLink software, in order to graph and analyze data. Memory card data must be downloaded through the DataLink software and cannot be open directly from the memory card.

Filter: The process of smoothing the visual appearance of a graphed data channel. Graph: A visual representation of sensor data, compared to time or distance HZ: Number of times per second. Used to define logging or sample rate. Example: 4Hz

represents data that is saved 4 times (every .250) per second.

KB: Abbreviation for kilobyte, which represents one thousand bytes of information. Logger: See Data Recorder Logging Rate: The number of times per second, which the data logger record s incoming data

from a sensor and is defined as Hertz, or Hz. Each sensors logging rate may be define by the user.

Math Channel: A data channel created from the input of an actual sensor which is then used in a mathematical formula to create a channel ava ilable for graphical analysis

MB: Abbreviation for megabyte, which represents one million bytes of information. Overlay: The ability to graph multiple data channels, all at the same time. Runfile: The file created when a run is transferred from the data logger memory card to the

user’s PC. Configuration File

Sample Rate: See Logging Rate microSD Memory Card: Micro Secure Digital compact flash memory card Sensor: A device that converts a physical property, such as pressure into a voltage signal Smooth: See Filter Start Logging Channel: The channel that is used to start the logging process Trace: This term is another method used to describe Graph Transducer: See Sensor Vnet Channel: Any sensor that is connected to the Vnet port of the data logger Vnet: Racepak exclusive that allows multiple sensors (analog or digital) to transmit their data

over a single cable, back to the data logger.

IQ3 Data Logger Dash Installation Manual

Hardware Features

External Dimensions

4.1” (10.5cm)

7.3” (18.6cm)

2.1” (5.3cm)

1” (2.54cm)

External Features – Front

Warning 2

Warning 1

Shift Lights

microSD Memory Card Slot Insertion location for microSD memory card Shift Lights Fully programmable sequential shift lights Warning Lights 1 &2 Fully programmable warning lights for Inputs 1 & 2 Warning Lights 3 & 4 Fully programmable warni ng lights for Inputs 3 & 4

microSD Memory Card Slot

Shift Lights

Warning 3

Warning 4

Exter

IQ3 Data Logger Dash Installation Manual

External Features – Rear

GPS Antenna Connector

Deutsch 8 Pin Connector

Serial Cable Connector

Mounting Studs / Nuts (3 total)

Vnet Connector

GPS Antenna Connector Provides connection for external GPS antenna Vnet Connector Provides input for external sensor(s) Vnet cable Deustch 8 Pin Connector Provides input for powe r / ground/ engine rpm /

programming buttons Serial Cable Connector Provides input for serial cable supplied with package Mounting Studs & Nuts Three #10 studs and 10-32 nuts facilitate mounting

IQ3 Data Logger Dash Installation Manual

Mounting Template – Full Size

IQ3 Data Logger Dash Installation Manual

Install ation

The design of the IQ3 greatly simplifies the installation process, as there is no external data logger or related components necessary. However, there are basic guidelines that must be followed, in order to insure correct operation of the product.

Mounting Location

The IQ3 is designed to be utilized in a race vehicle environment and as designed as such. However, there are external conditions that can influence the operation and longevity of the product.

Heat

Avoid excessive heat, such as generated from exhaust systems, transmissions, etc.

Electrical Interference

Avoid electrical interference. Race vehicles generate electrical interference from a variety of locations such as ignitions, alternators, ECU, spark plugs, coils and radio/telemetry antennas. This interference can affect the data generated by any or all of the sensors.

Moisture

Avoid excessive moisture. The logger is designed to be water resistant but not waterproof. If washing the vehicle, cover before washing. Wipe any remaining moisture off of the IQ3, when finished. Protect the microSD card slot from moisture.

Easy Access

Do not mount the IQ3 in a location that makes it difficult to access the memory card or any connectors.

Movement

It is important to insure the IQ3 cannot become dislodged during use. Three #10 studs are provided in order to provide secure mounting.

IQ3 Data Logger Dash Installation Manual

Mounting Orientation of IQ3 – When Used For Track Mapping Purposes

The IQ3 contains inline, lateral and vertical accelerometers that perform two functions. First is for graphical analysis of G data. The second is to work in conjunction with the GPS data to provide track mapping information. The logger must be mounted in the direction shown below as the orientation of the G meters cannot be re -defined in the software, if mounting in any other direction.

Perpendicular to travel

The IQ3 should be mounted as level as possible left

and right, top to bottom and perpendicular to travel. The dash can be tilted top to bottom up to 45 degrees, as the G meters can compensated and reset to zero.

Direction of travel

No greater than 45°

Accelerometer Calibration

Upon mounting of the dash, it will be necessary to compensate and “zero” the G meters, to correct for vertical dash tilt. Please refer to the section Setup Mode 2 of this

manual, for complete details. NOTE: Accelerometers cannot be re -oriented in the software, only compensated to correct for top / bottom tilt. Do not mount the dash rotated in relation to the travel of the vehicle.

Mounting Orientation of IQ3 – For GPS Speed with No Track Mapping

In certain mo torsports, such as pulling, the IQ3 mounting orientation may vary as needed per the vehicle. Be aware this will skew G meter data.

Mounting Method

Three #10 studs, washers and nuts are supplied with the IQ3, to be utilized for mounting. If desired, the studs can be unscrewed from the threaded inserts located in the dash housing.

IQ3 Data Logger Dash Installation Manual

Power Supply and Grounding

The IQ3 should be connected to a battery source that can supply a constant 10-16 volts. In vehicles that utilize a master power switch, it recommended to connect to the master power switch. This not only insures the IQ3 will be powered when the vehicle is in use, it also insures power will be disconnected in the event of an emergency.

A good ground is very important to the function of the IQ3. Insure there is no type of paint, rust or any other type of material that could prevent proper grounding. Boats often present unique grounding problems. If necessary, provide an isolated power and ground as faulty grounds will create corrupt data.

Warning: Do not attempt to connect or disconnect any IQ3 item, with the power switched on. This action could result in damage to the IQ3.

Engine RPM Signal

Requirements: 5-18V, 50% duty cycle, square wave output. This signal is typically obtained from the tach signal output of an aftermarket ignition box. Racepak also offers a GMR Inductive RPM Pickup (Racepak PN: 680-SN-GMR) which is attached to the +12V coil power on coilpak or coil on plug ignition systems. For early model points/distributor ignition systems, MSD offers a tach signal generator, PN 8913 that can be spliced into the 12V power to the coil.

Warning: Do not connect the tach input wire directly to any part of the ignition coil. Doing so will result in damage to the logger.

MicroSD Memory Card

The IQ3 is equipped with a 512MB microSD memory card. This card is located in the face of the IQ3, between the shift lights. The card may be removed by simply pressing on the card, which will slightly eject the card from the dash face. When inserting the card, insure it firmly “clicks” into place. The edge of the card should slightly protrude from the dash face, when seated. A larger memory card, up to 2GB, may be utilized.

IQ3 Data Logger Dash Installation Manual

Power/RPM/Programming Button Connector and Wiring

The rear of the IQ3 contains an 8 positi on Deutsch connector. This connector provides the power and ground inputs, in addition to engine RPM, optional external program button inputs and external warning light output. The IQ3 is provided with the appropriate 8 position mating connector and wiring .

Pin Number Function Wire Color 1 Button 1 BLUE 2 IQ3 Power RED 3 Button 2 WHITE 4 Button Ground BLACK 5 Do Not Use NOT USED 6 Tach YELLOW 7 IQ3 Ground BLACK 8 External Warning ORANGE

External Programming Button and Warning Light Wiring Diagram

BUTTON WIRING DIAGRAM

to IQ3 connector

PUSH BUTTON SWITCH

chassis ground or IQ3 pin 4

EXTERNAL WARNING WIRING DIAGRAM

WARNING LIGHT

to 12v vehicle power to IQ3 connector pin 8

IQ3 Data Logger Dash Installation Manual

GPS Antenna Mounting

The GPS antenna is a moisture resistant, magnetic based type, designed to be mounted on the exterior roof of the vehicle. If no roof exists or the vehicle is of a composite type, insure the antenna is mounted in clear view of the sky, with no obstructions. The antenna must be mounted at the highest point of the vehicle and level front / rear and left / right. Insure the GPS antenna cable will reach the data logger, before final mounting of the antenna.

GPS antenna mounting for stock bodied vehicles

The GPS antenna is provided with a magnetic mounting base and should always be mounted on the roof of the vehicle, centered within the roof area. Insure the antenna is as level as possible, left to right and front to rear. In the event of a vehicle with a composite roof, Velcro can be utilized. Place a strip of masking tape on the roof of the vehicle. A small piece of Velcro on the antenna and the tape will be sufficient to hold the antenna in place. We understand the value of high performance vehicles and the fact some users will be hesitant to place any type of tape on the surface of their vehicle. In that is the situation, determine the mounting method you are most comfortable with, but will locate the antenna on the roof are a.

GPS antenna mounting for open wheel vehicles

By following the above instructions, simply insure the antenna is mounted as high as possible on the vehicle. Various body panels can possible block satellite signals. Insure telemetry or two way radio antennas will not provide interference to the antenna.

Again, the GPS antenna will function well, in a variety of roof mounted locations. The above guidelines will insure the most efficient reception of signals. The antenna has been roof mounted and tested at speeds over 190 mph, so feel free to go at least that fast.

Connection of the GPS antenna to the IQ3

Upon completion of mounting of the antenna, simply route the cable to the rear of the IQ3 and connect to the GPS antenna port of the data logger. Insure the cable end is screwed tightly to the GPS connector. A small wrench can be used to slightly SNUG the connector. Excessive force can damage the connector, resulting in failure of GPS signal reception.

IQ3 Data Logger Dash Installation Manual

Programming the Display by External Buttons

External Programming Buttons

A variety of IQ3 display functions can be controlled, displayed or programmed through use of two external programming buttons known as Button 1 and Button 2. This enables the driver to make immediate changes, without the necessity of connecting a PC to the dash. Instead of mounting the programming buttons in the dash, Racepak provided the ability to remote mount the two programming buttons, for better driver access.

Racepak offers a Programming Button Package PN: 280-SW-IQ3 or the customer may provide their own momentary contact button. If buttons other than Racepak are utilized, insure they are normal open momentary switches and they are capable of withstanding the environment in which they will be utilized. The buttons are connected to the 8 pin Deutsch connector located on the rear of the IQ3. Refer to the Power/RPM Connector and Wiring section of this manual for pin out instructions.

Many of the programming functions found in the following section may also be performed through us of the DataLink software and users PC. Those instructions can be found in the section Programming Utilizing the DataLink Software .

Factory Default Display Settings

From the factory, Page 1 of the IQ3 is programmed to display the following items. The remaining three display pages are not programmed from the factory, which allows for customized programming by the customer.

Note: The center position will display the number of satellites locked in when the vehicle speed is below 5 MPH/KPH.

Programming Utilizing the DataLink Software

Many of the programming functions found in the following section may also be performed through us of the DataLink software and users PC. Those instructions are explained in this manual.

IQ3 Data Logger Dash Installation Manual

Programming Modes

Programming functions of the IQ3 are accessed by using Button 1 and Button 2. Button 1 is considered Left Button and Button 2 is considered Right Button. It is recommended the two programming buttons be mounted as Left and Right, in relation to the driver’s position viewing the dash. There are two programming modes available.

Setup Mode 1 (Stationary): Utilized to program items such as screen brightness or pulses

per revolution (tach programming).

Setup Mode 2 (Moving): Utilized to program the system while the vehicle is moving and or

the engine is running. This is necessary as several settings utilize actual data taken from speed or rpm, in order to program.

Button Functions

Button Type Setup Mode 1 Setup Mode 2

Button 1 (left button) Enters Programming

Adjusts Settings

Button 2 (right button) Advances To Next Page

Saves Changes and Exits

As can be seen above, the buttons perform the opposite functions depending on the mode. Since the IQ3 only utilizes two buttons, it was necessary to allow multiple uses for each button. The length of time the button is held down determines the programming action taken. The shift lights are used to indicate the action taken with each button.

The following instructions will refer to short, medi um and long button press lengths. This is the length of time the button is held down and the corresponding shift light blink.

Type of Button Press Length of Time Shift Light Flash

Short Press .2 Second One Flash Of Shift Lights Medium Press .5 Second Two Flash Of Shift Lights Long Press 2 Seconds Three Flash Of Shift Lights Auto Repeating Long Press 3 Seconds Repeats Every .2 Seconds

The point at which the button is released determines the type pre ss that is accepted. Releasing after the second shift light flash is detected as a medium length press.

The programming functions are arranged in a pre -defined order. This allows the customer to enter the programming mode, and then toggle through to the desired feature, by using the left or right button, depending on the mode.

Advances To Next Page Saves Changes and Exits Enters Programming Adjusts Settings

IQ3 Data Logger Dash Installation Manual

Setup Mode 1 (stationary programming )

Setup Mode 1 is used to program the unit without the need to operate the vehicle.

Entering Setup 1

1. Press and hold Button 1 (left button) for TWO shift light blinks – MEDIUM press

2. The Dash will display SETUP 1?

3. Confirm by pressing Button 1 for ONE shift light blink – SHORT press

The following are in the order in which the individual programming features will appear.

Setting as Displayed on Dash

BACKLIGHT

TACH PULSES

SHIFT STEP

SHIFT GEAR X X=Gear number

Program Setting Description

0 = Off 9 = Max Brightness

Number of pulses ignition fires per revolution V8=4 4 Cyl=2 0=Min 20=Max

Programs RPM between each shift light. Example: If shift point is 5000 rpm with a 100 step, first shift light illuminates at 4600 RPM. Multiply your Step setting by 4 and subtract from Shift Point to determine start of shift light

Program shift point for each gear.

Programming Command

Short Press Button 2 to increase value

Short Press Button 2 Advances by 10

Medium Press Button 2 Decreases by 10

Long Press Button 2 Quickly advances

Short Press Button 2 Advances by 10

Medium Press Button 2 Decreases by 50

Long Press Button 2 Quickly advances

Accept and Advance

Short Press Button 1

Accept and Exit

Long Press Button 1

IQ3 Data Logger Dash Installation Manual

Setting as Displayed on Dash

GEAR RATIO X X=Gear Number

TIME ZONE GMT

SPEED UNITS

S/F DETECT 10/20/40/80/160/320

Program Setting Description

Ratio between engine RPM and GPS speed (not final drive ratio)

Requires tach signal

Recommend programming in Setup Mode 2

Sets data and time stamp on run file, based on customer location time zone in relation to GMT. East coast standard time USA = -5 GMT

Defines Speed in MPH or KMH for dash display purposes

Distance in meters, in which the start/finish point is projected perpendicular to vehicle. Typical utilized by boat racers.

Programming Command

Short Press Button 2 Advances by .1

Medium Press Button 2 Decreases by 5

Long Press Button 2 Quickly advances Short Press Button 2 Increases by 1

Medium Press Button 2 Decreases by 1 Short Press Button 2 Toggles MPH and KPH

Short Press Button 2 Advances

Accept and Advance

Short Press Button 1

Accept and Exit

Long Press Button 1

Default page on power up. If all positions are

DEFAULT DISPLAY

ODOMETER Odometer value

disabled, that page will not be displayed. 1 = Min 4 = Max

Short Press Button 2 Advances

Short Press Button 2 Advances by 10

Medium Press Button 2 Decreases by 1000

Long Press Button 2

Short Press Button 1

Short Press Button 1 Save and exit Setup Mode 1

Long Press Button 1

Long Press Button 2 Save and exit Setup Mode 1

IQ3 Data Logger Dash Installation Manual

Setup Mode 2 (moving programming)

Setup Mode 2 allows the user to utilize inputs from the moving vehicle, in order to automate the programming process.

The following are in the order in which the individual programming features will appear.

Entering Setup 2

1. Press and hold Button 2 (right button) for TWO shift light blinks – MEDIUM press

2. The Dash will display SETUP 2?

3. Confirm by pressing Button 2 for ONE shift light blink – SHORT press

Setting as Displayed on Dash

TACH CAL

GEAR RATIO X

X=Gear Number

ACCEL CAL

Vehicle must park on a flat and level surface.

NOTE: With the exception of the accelerometer calibration, SETUP Mode 2 programming

requires the vehicle to be running and/or in motion. Care should be taken when driving

the vehicle to insure safe operation. If possible, take a passenger along to operate the IQ3 and perform the calibration procedures.

Program Setting Description

Calibrate tach input with engine running.

1. With vehicle in parked position, start engine and bring to 2000 RPM and hold

2. Long Press Button 2

Calibrates gear ratio for Gear Indictor.

1. Insure tach input is functioning. The value -0.1 will display if no tach or speed.

2. Drive car in first gear

3. When speed and RPM are constant Long press Button 2

4. Dash gear indicator will advance to next gear

5. Repeat process for remaining gears. Program any unused gears the same as your highest gear.

Provides ability to compensate the forward and vertical accelerometers for top to bottom tilt.

Calibrate Setting

Long Press Button 2

Accept and Advance

Short Press Button 1

Accept and Exit

Long Press Button 1

IQ3 Data Logger Dash Installation Manual

Setting the Start/Finish Location

There are two methods you can use to set the start/finish location. The first method is to use the external programming buttons. The second method is to use the DataLink software to write the start/finish loc ation to the microSD card. The second method is explained later in the manual. To set the set start/finish position using the external programming buttons perform the following:

1) Press and hold Button 1 for 3 LED flashes or until the text SET START/FINISH appears on the bottom of the display.

2) Drive the vehicle at a speed no less than 10 MPH towards the start/finish location.

3) Press and release Button 1 (1 LED flash) at the point you wish to set the start/finish.

4) The dash will respond YES if successful and NO if unsuccessful.

Reviewing Lap Times (Lap Time Replay Mode)

You can review your lap times from the previous session by entering in to Lap Time Replay Mode. To enter Lap Time Replay Mode enter a long button press (3 flashes) on button 2. The text “Lap Replay Mode” will display across the bottom of the display. While in Lap Time Replay Mode buttons 1 and 2 will perform the following functions.

Type of Button Press Button 1 Button 2

Short Press – 1 flash Decrement Lap Number Increment Lap Number Medium Press – 2 flashes Jump to Best Lap Exit Lap Time Replay Mode Long Press – 3 flashes Jump to First Lap Jump to Last Lap

DataLink II Software Installation

Data Download Path

The key to understanding the DataLink software utilized by the IQ3 is to understand the relationship between the downloaded data, the IQ3 Configuration file and the DataLink software.

Raw Data from IQ3 MicroSD memory card

Configuration File in DataLink Software

Datalink II Software

+ 61 hidden pages
