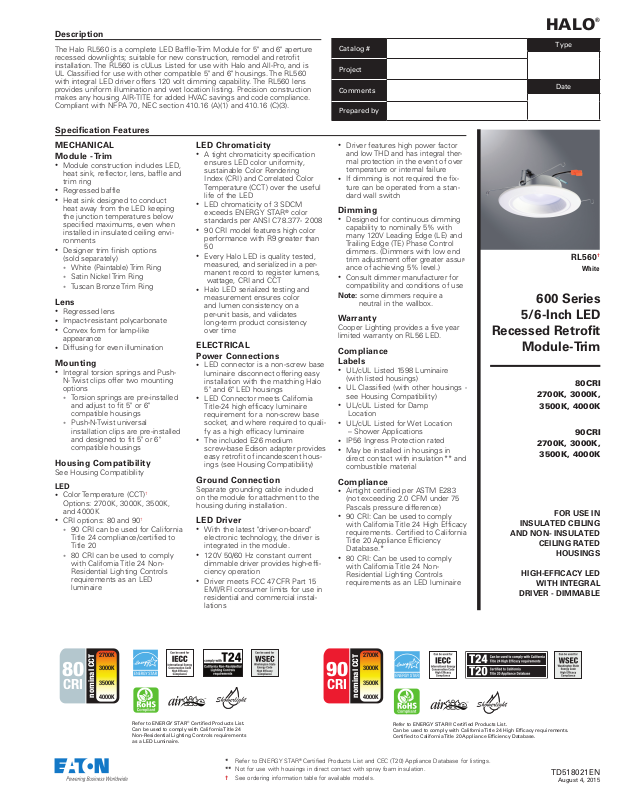

Description

The Halo RL560 is a complete LED Baffle-Trim Module for 5" and 6" aperture
recessed downlights; suitable for new construction, remodel and retrofit
installation. The RL560 is cULus Listed for use with Halo and All-Pro, and is
UL Classified for use with other compatible 5" and 6" housings. The RL560
with integral LED driver offers 120 volt dimming capability. The RL560 lens
provides uniform illumination and wet location listing. Precision construction
makes any housing AIR-TITE for added HVAC savings and code compliance.
Compliant with NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(3).

Specification Features

MECHANICAL
Module - Trim

•

Module construction includes LED,
heat sink, reflector, lens, baffle and
trim ring

•

Regressed baffle

•

Heat sink designed to conduct
heat away from the LED keeping
the junction temperatures below
specified maximums, even when
installed in insulated ceiling envi­ronments

•

Designer trim finish options
(sold separately)

• White (Paintable) Trim Ring

• Satin Nickel Trim Ring

• Tuscan Bronze Trim Ring

Lens

•

Regressed lens

•

Impact-resistant polycarbonate

•

Convex form for lamp-like
appearance

•

Diffusing for even illumination

Mounting

•

Integral torsion springs and Push­N-Twist clips offer two mounting
options

• Torsion springs are pre-installed

and adjust to fit 5" or 6"
compatible housings

• Push-N-Twist universal

installation clips are pre-installed
and designed to fit 5" or 6"
compatible housings

Housing Compatibility

See Housing Compatibility

LED

•

Color Temperature (CCT)†
Options: 2700K, 3000K, 3500K,
and 4000K

•

CRI options: 80 and 90

• 90 CRI can be used for California

Title 24 compliance/certified to
Title 20

• 80 CRI can be used to comply

with California Title 24 Non­Residential Lighting Controls
requirements as an LED
luminaire

†

LED Chromaticity

•

A tight chromaticity specification
ensures LED color uniformity,
sustainable Color Rendering
Index (CRI) and Correlated Color
Temperature (CCT) over the useful
life of the LED

•

LED chromaticity of 3 SDCM
exceeds ENERGY STAR
standards per ANSI C78.377- 2008

•

90 CRI model features high color
performance with R9 greater than
50

•

Every Halo LED is quality tested,
measured, and serialized in a per­manent record to register lumens,
wattage, CRI and CCT

•

Halo LED serialized testing and
measurement ensures color
and lumen consistency on a
per-unit basis, and validates
long-term product consistency
over time

ELECTRICAL
Power Connections

•

LED connector is a non-screw base
luminaire disconnect offering easy
installation with the matching Halo
5" and 6" LED housings

•

LED Connector meets California
Title-24 high efficacy luminaire
requirement for a non-screw base
socket, and where required to quali­fy as a high efficacy luminaire

•

The included E26 medium
screw-base Edison adapter provides
easy retrofit of incandescent hous­ings (see Housing Compatibility)

Ground Connection

Separate grounding cable included
on the module for attachment to the
housing during installation.

LED Driver

•

With the latest "driver-on-board"
electronic technology, the driver is
integrated in the module.

•

120V 50/60 Hz constant current
dimmable driver provides high-effi­ciency operation

•

Driver meets FCC 47CFR Part 15
EMI/RFI consumer limits for use in
residential and commercial instal­lations

®

color

Catalog #

Project

Comments

Prepared by

•

Driver features high power factor
and low THD and has integral ther­mal protection in the event of over
temperature or internal failure

•

If dimming is not required the fix­ture can be operated from a stan­dard wall switch

Dimming

•

Designed for continuous dimming
capability to nominally 5% with
many 120V Leading Edge (LE) and
Trailing Edge (TE) Phase Control
dimmers. (Dimmers with low end
trim adjustment offer greater assur­ance of achieving 5% level.)

•

Consult dimmer manufacturer for
compatibility and conditions of use

Note: some dimmers require a
neutral in the wallbox.

Warranty

Cooper Lighting provides a five year
limited warranty on RL56 LED.

Compliance
Labels

•

UL/cUL Listed 1598 Luminaire
(with listed housings)

•

UL Classified (with other housings ­see Housing Compatibility)

•

UL/cUL Listed for Damp
Location

•

UL/cUL Listed for Wet Location
– Shower Applications

•

IP56 Ingress Protection rated

•

May be installed in housings in
direct contact with insulation** and
combustible material

Compliance

•

Airtight certified per ASTM E283
(not exceeding 2.0 CFM under 75
Pascals pressure difference)

•

90 CRI: Can be used to comply
with California Title 24 High Efficacy
requirements. Certified to California
Title 20 Appliance Efficiency
Database.*

•

80 CRI: Can be used to comply
with California Title 24 Non­Residential Lighting Controls
requirements as an LED luminaire

HALO

Type

Date

®

RL560

White

600 Series

5/6-Inch LED

Recessed Retrofit

Module-Trim

80CRI

2700K, 3000K,

3500K, 4000K

90CRI

2700K, 3000K,

3500K, 4000K

FOR USE IN

INSULATED CEILING

AND NON- INSULATED

CEILING RATED

HOUSINGS

HIGH-EFFICACY LED

WITH INTEGRAL

DRIVER - DIMMABLE

†

80

CRI

2700K

3000K

3500K

4000K

* Refer to ENERGY STAR® Certified Products List and CEC (T20) Appliance Database for listings.
** Not for use with housings in direct contact with spray foam insulation.

† See ordering information table for available models.

Refer to ENERGY STAR® Certified Products List.
Can be used to comply with California T itle 24
Non-Residential Lighting Controls requirements
as a LED Luminaire.

90

CRI

2700K

3000K

3500K

4000K

Refer to ENERGY STAR® Certified Products List.
Can be used to comply with California T itle 24 High Efficacy requirements.
Certified to California Title 20 Appliance Efficiency Database.

TD518021EN

August 4, 2015

RL56 LED System

600 Series

Specification Features Continued

•

Can be used for International Energy
Conservation Code (IECC) high efficiency
luminaire compliance.

•

Suitable for use in closets. Compliant with NFPA
70, NEC Sec. 410.16 (A)(1) and 410.16 (C)(3).

•

Can be used for Washington State Energy Code
compliance

RL56 Dimensions

2.33”

[59.22mm]

Designer Trim Dimensions

7.35"

[186.7mm]

0.86"

[21.8mm]

RL56TRMWH

White (Paintable)

RL56TRMTBZ

Tuscan Bronze

•

ENERGY STAR® Certified luminaire - consult
ENERGY STAR

•

EMI/RFI per FCC 47CFR Part 15 Class B

®

Certified Product List*

Consumer limits, suitable for use in residential
and commercial installations

•

Contains no mercury or lead and RoHS
compliant.

7.25”

[184.15mm]

Energy Data

RL56 Series (Values at non-dimming line voltage)

Minimum Starting Temp: -30°C (-22°F)

EMI/RFI: FCC Title 47 CFR, Part 15, Class B (Consumer)

Sound Rating: Class A

Input Voltage: 120V

Power Factor: >0.90

Input Frequency: 60Hz

THD: <20%

Input Power: 7.6W - RL560WH6827

7.3W - RL560WH6830, RL560WH6835, RL560WH6840

9.7W - RL560WH6927

8.7W - RL560WH6930, RL560WH6940

9.0W - RL560WH6935

RL56TRMSN

Satin Nickel

Input Current: 0.15A

Maximum IC (Insulated Ceiling) Ambient Continuous Operating Temperature: 25°C
(77°F)

Maximum Non-IC Ambient Continuous Operating Temperature 40°C (104°F)

•

Photometric testing in accordance with IES
LM-79

•

Lumen maintenance projections in accordance
with IES LM-80 and TM-21

Ordering Information

Sample Number: RL560WH6827-RL56TRMWH
Complete unit includes a RL56 Baffle-Trim LED Module and a 5" or 6" compatible housing, ordered separately. Optional accessory designer trim ring ordered separately.

RL56 600 Series Accessory (Order Separately)

80 CRI
RL560WH6827= 5"/6" Retrofit Baffle - Trim LED Module, 80CRI, 2700K, Matte White
RL560WH6830= 5"/6" Retrofit Baffle - Trim LED Module, 80CRI, 3000K, Matte White
RL560WH6835= 5"/6" Retrofit Baffle - Trim LED Module, 80CRI, 3500K, Matte White
RL560WH6840= 5"/6" Retrofit Baffle - Trim LED Module, 80CRI, 4000K, Matte White

90 CRI
RL560WH6927= 5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 2700K, Matte White
RL560WH6930= 5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 3000K, Matte White
RL560WH6935= 5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 3500K, Matte White
RL560WH6940= 5"/6" Retrofit Baffle - Trim LED Module, 90CRI, 4000K, Matte White

2

TD518021EN – Specifications and compliances subject to change without notice

RL56TRMSN=5/6" Satin Nickel Trim Ring
RL56TRMTBZ=5/6" Tuscan Bronze Trim Ring
RL56TRMWH=5/6" White Paintable Trim Ring
OT400P=Oversize Flat White Metal Trim Ring 6" I.D. x 9-1/4" O.D. (ring slips behind RL56 ring, in stepped configura-

tion)

OT403P=Oversize White Plastic Trim Ring 6" I.D. x 8" O.D. (ring slips behind RL56 ring, in stepped configuration)
TRM690WH=Oversize Matte White Metal Trim Ring. Designed for RL560 ring to inset into oversize ring for an even

(non-stepped) trim surface
HE26LED=Replacement screw base adapter (one included with unit)

E26 Screw base adapter for retrofit (included)

Housing Compatibility

Compatible Halo LED Housings with LED luminaire connector (high-efficacy compliant)

Recessed Can Size Catalog Number

RL56 LED System

600 Series

HALO LED

5"
6"

Halo LED Retrofit Enclosures

HALO

Compatible Halo Incandescent E26 Screwbase Housings

6"

5"

HALO

6"

Compatible All-Pro Incandescent E26 Screwbase Housings

5"

ALL-PRO

6"

RL56 Series LED Retrofit is UL Classified for retrofit in the follow 5/6" recessed housings:

The RL Series LED light module - trim combination is cULus Listed or UL Classified for use with any 5"/6" diameter recessed housing constructed of steel or aluminum with an
internal volume that exceeds 107.9 in

Lighting Facts

3

in addition to those noted above.

H550ICAT, H550RICAT

H750ICAT, H750RICAT, H750T, H750RINTD010, H750TCP, H2750ICAT

ML7BXRFK, ML7E26RFK

H5ICAT, H5RICAT, H5T, H5RT, H5TM, H25ICAT

H7ICAT, H7RICAT, H7ICT, H7RICT, H7ICATNB, H7ICTNB, H7T, H7RT, H7TNB, H7TCP, H7UICT, H7UICAT, H27ICAT, H27RICAT, H27ICT,
H27RICT, H27T, H27RT

EI500AT, EI500RAT, ET500, ET500R

EI700AT, EI700RAT, EI700, EI700R, EI700ATNB, EI700NB, EI700U, EI700UAT, ET700, ET700R, EI2700AT, EI2700, EI2700R, ET2700, ET2700R

RL560WH6827

2700K Source

RL560WH6927

2700K Source

RL560WH6830

3000K Source

RL560WH6930

3000K Source

RL560WH6835

3500K Source

RL560WH6935

3500K Source

RL560WH6840

4000K Source

RL560WH6940

4000K Source

RL56 LED System

600 Series

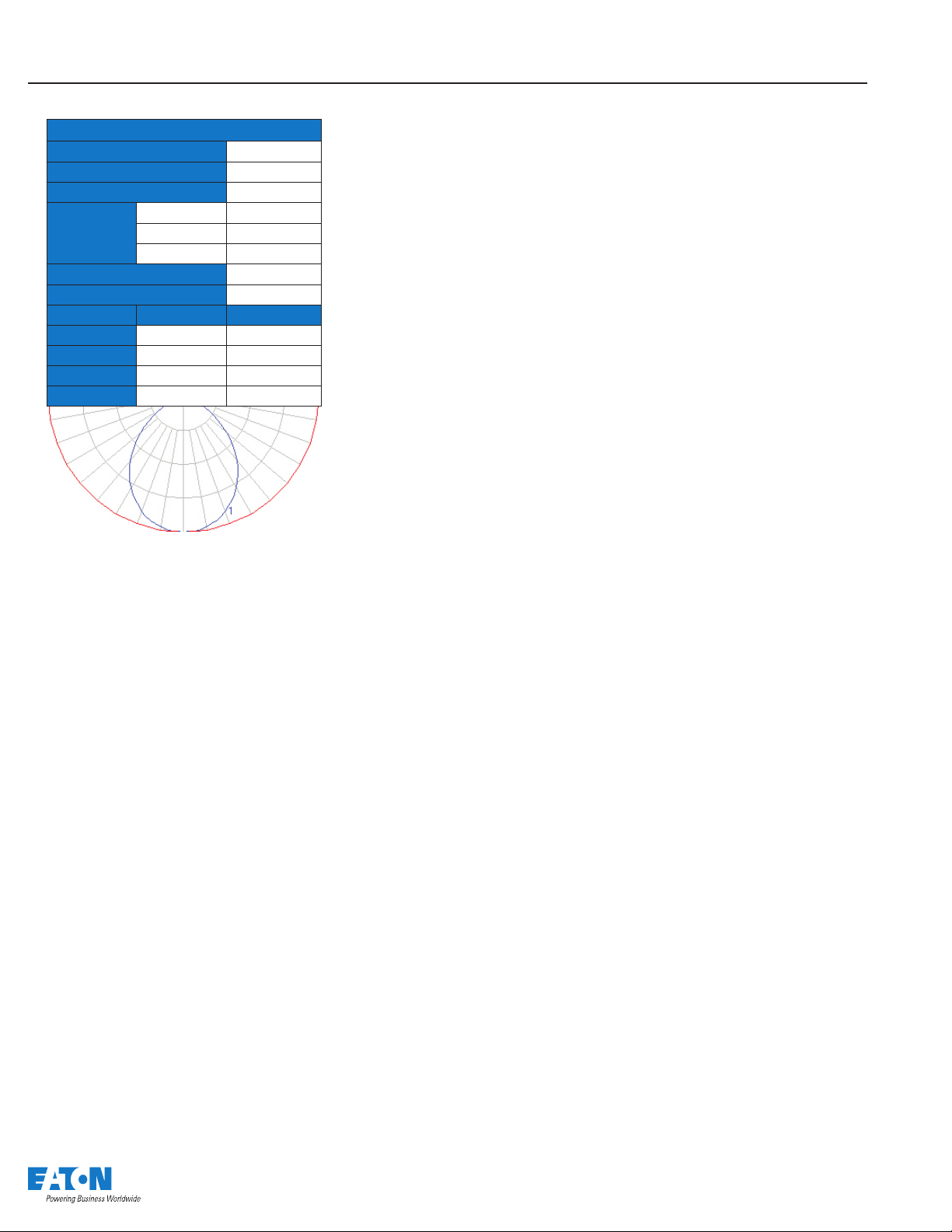

Photometric Data

RL56-600 Series Photometric*

RL560WH6830

Luminaire lumens 671

Input watts 7.23

LER (LPW) 93

Spacing

Criteria

Beam angle (degrees) 101

Field angle (degrees) 148

Zonal lumen Lumens % Lumens

0-30 212 32%

0-40 343 51%

0-60 574 86%

0-90 671 100%

0-180 1.22

90-270 1.22

Diagonal 1.32

* Tested in accordance with IES LM63. Field results may vary.

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.
