User’s Manual
SP-HD-8A
HDMI Video splitter
1 input × 8 outputs
Allows display of HDMI A/V signals on up to 8 HDTV Displays
HDMI Video Splitter, 8-Channel
1
TRADEMARKS USED IN THIS MANUAL
Hall Research and its logo
are trademarks of Hall Research.
Any other trademarks mentioned in this manual are acknowledged as the property of
the trademark owners.
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been designed to
comply with the limits for a Class A computing device in accordance with the
specifications in Subpart B of Part 15 of FCC rules, which are intended to provide
reasonable protection against such interference when the equipment is operated in a
commercial environment. Operation of this equipment in a residential area is likely to
cause interference, in which case the user at their own expense will be required to take
whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
User’s Manual
2
Contents
1. Introduction ............................................................................................................ 3
1.1 General .................................................................................................................. 3
1.2 Features ................................................................................................................ 3
2. Package Contents ................................................................................................. 4
3. Controls, Functions and Indicators ..................................................................... 5
4. Connection Block Diagram ................................................................................... 6
5. EDID Handling ........................................................................................................ 6
6. Cascading (daisy-chaining) to expand # of outputs .......................................... 6
7. Contacting Hall Research and Shipping/Packaging .......................................... 6
7.1 Contacting Hall Research ...................................................................................... 6
7.2 Shipping and Packaging ........................................................................................ 6
8. Specifications ........................................................................................................ 7
HDMI Video Splitter, 8-Channel
3
1. Introduction
1.1 General
Thank you for purchasing the SP-HD-8A, 8-channel HDMI Video Splitter from Hall
Research.
This device splits DVI or HDMI audio/video source for display on eight identical
outputs. It supports HDTV resolutions to 1080p, is HDCP compliant, and is fully
compatible with HDMI 1.4 deep color and 3-D formats.
It can drive each buffered output more than 12 meters (40 feet) on quality HDMI
cables.
The device is a high-performance unit that digitally splits and buffers the input signal for
a 100% perfect image and sound reproduction on all outputs.
1.2 Features
• Splits an HDMI source to 8 outputs without loss
• HDMI1.3, HDCP 1.1, and DVI1.0 Compliant.
• Supports HDMI 1.4 deep-color (upto 12 bits per color) and 3D formats
• Supports PC & HDTV resolutions, VGA to UXGA and HD from 480p to 1080p
• LED indicators for power, source signal, and 8 output connections
• 1 RU compact size, includes rack mount ears
• High bit-rate digital audio - Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio
• Can be cascaded up to 3 levels
• Each of the buffered outputs can run up to 12 meters (40 feet) at 1080i/1080p
• Plug and play installation – takes minutes to setup
• Bandwidth of 6.75 Gbps (Giga bits / second) for sharp digital image
• Supports xvYCC Color Space (IEEC 61966-2-4)
• Supports CEC Bypass
• Intelligent EDID Pass-through
User’s Manual
4

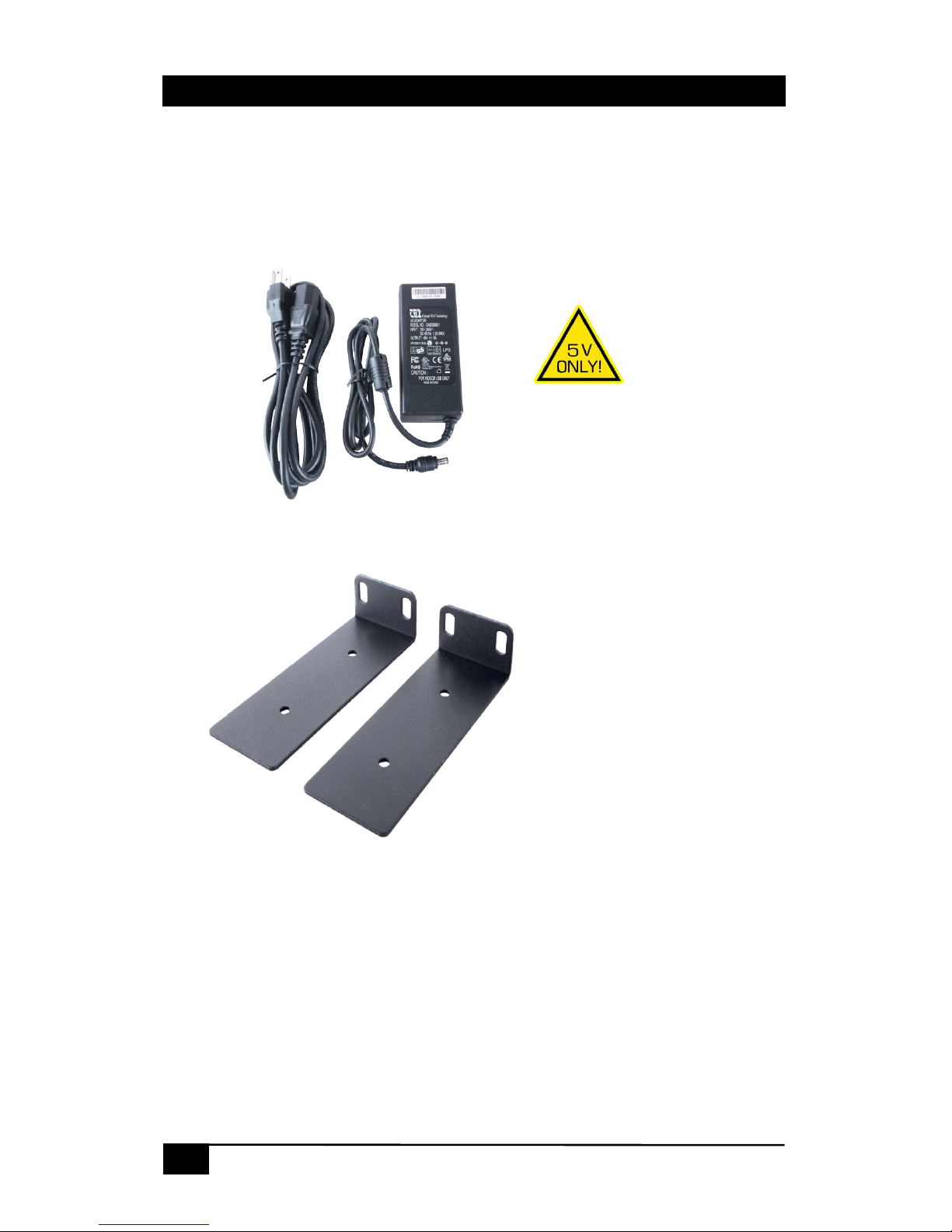

2. Package Contents
• One SP-HD-8A HDMI Splitter unit
• One Power Supply
Input: 100 – 240V AC @ 50/60Hz,
Output: +5V DC, 6A. (current used by unit is approx 3A max)
• One pair of Mounting Brackets
• One User Manual
Note: HDMI Cables are not supplied with this unit. Please order those separately
HDMI Video Splitter, 8-Channel
5
3. Controls, Functions and Indicators
Figure – 1 Front Panel
The unit does not have an on-off button. The power indicator is illuminated when power
is applied to the unit.
Input Power Indicator
Source LED will illuminate when HDMI source signal is connected to the HDMI input
port.
HDMI Source Indicator
When the HDMI display is connected to the output ports, the corresponding LED will
illuminate.
HDMI Output Indicator 1- 8
Rear Panel
All video connectors are located on the rear panel. You must have at least one display
connected to one of the outputs.
HDMI Video Input and Outputs #1 and #8
Plug the included power supply to this jack. The LED on the front panel will illuminate
indicating power has been applied.
DC Input Power Jack
NEVER SUBSTITUTE ANY OTHER POWER SUPPLY AS THIS CAN DESTROY THE
UNIT.
Use only regulated 5v DC supply (center
positive) as supplied with the unit.
User’s Manual
6
4. Connection Block Diagram
Connection Block Diagram
5. EDID Handling
After power-up, the unit scans the outputs and looks for connected display (sink) in
ascending order (1 through 8). The EDID from the first discovered sink is recorded in
internal memory and is passed on to the input source.
6. Cascading (daisy-chaining) to expand # of outputs
You can use any output to connect the splitter to another SP-HD-8A to expand the # of
outputs. This can be done to a maximum of three (3) levels deep.
7. Contacting Hall Research and Shipping/Packaging
7.1 Contacting Hall Research
If you determine that your HDMI video splitter is malfunctioning, do not attempt to repair
the unit; instead, contact Hall Research Technical Support at 714-641-6607.
Before you do, make a record of the history of the problem. We will be able to provide
more efficient and accurate assistance if you have a complete description.
7.2 Shipping and Packaging
If you need to transport or ship your unit:
• Package it carefully. We recommend that you use the original container.
• Before you ship the units back to Hall Research for repair or return, contact us to
get a Return Authorization (RMA) number.
HDMI Video Splitter, 8-Channel
7
8. Specifications
Video
Standards
HDMI 1.3, HDCP1.1 and DVI1.0 (HDMI 1.4 for 3D and Deep-Color)
Input Port
1x HDMI Female Locking Connector (Type A)
Output Port
8x HDMI Female Locking Connector (Type A)
Connectors
Locking HDMI
Video Resolutions
Output resolution is same as input resolution.
PC Resolutions : VGA - SVGA – XGA – SXGA – UXGA (1600x1200)
Component Resolutions : 480i - 480p - 720p - 1080i - 1080p
Bandwidth
6.75 Gbps total (or 2.25Gbps per color, or 225 MHz TMDS clock)
Audio
Supported Formats All HDMI Embedded Audio including LPCM 7.1CH, Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio (32-192kHz sample rate)
General
Power Supply 100 VAC to 240 VAC, 50-60 Hz, external; +5 V DC, Center-Positive
Max Power Consumption = 15 watts with all outputs plugged in
Temperature/humidity
Storage: -40 to +185 °F (-40 to +85°C) / 10% to 90%, non-condensing
Operating: +32 to +122 °F (0 to +40 °C) / 10% to 90%, non-condensing
Mounting
End plates have L bracket with hole for surface mounting
Enclosure type Metal (Steel ends and Aluminum extrusion)
Dimensions 1.7" H x 17.125" W x 4.75" D
(43.18mm H x 434.97mm W x 120.65mm D)
Product weight Product - 1.1 lb (0.49kg)
Shipping - 2.2 lbs (0.99 kg)
Safety
CE
EMI/EMC
CE, FCC Class A
MTBF
90,000 hours (Calculated Estimate)
Warranty
2 years parts and labor
Specifications are subject to change without notice
