1. Introduction
1.1 General
This User Manual applies to model number UVA-4 and UVA-8 series of high
resolution PC or HDTV component audio and video systems.
These devices are four (4) or eight (8) Channel Splitters for PC Video & audio over
Twisted-Pair senders

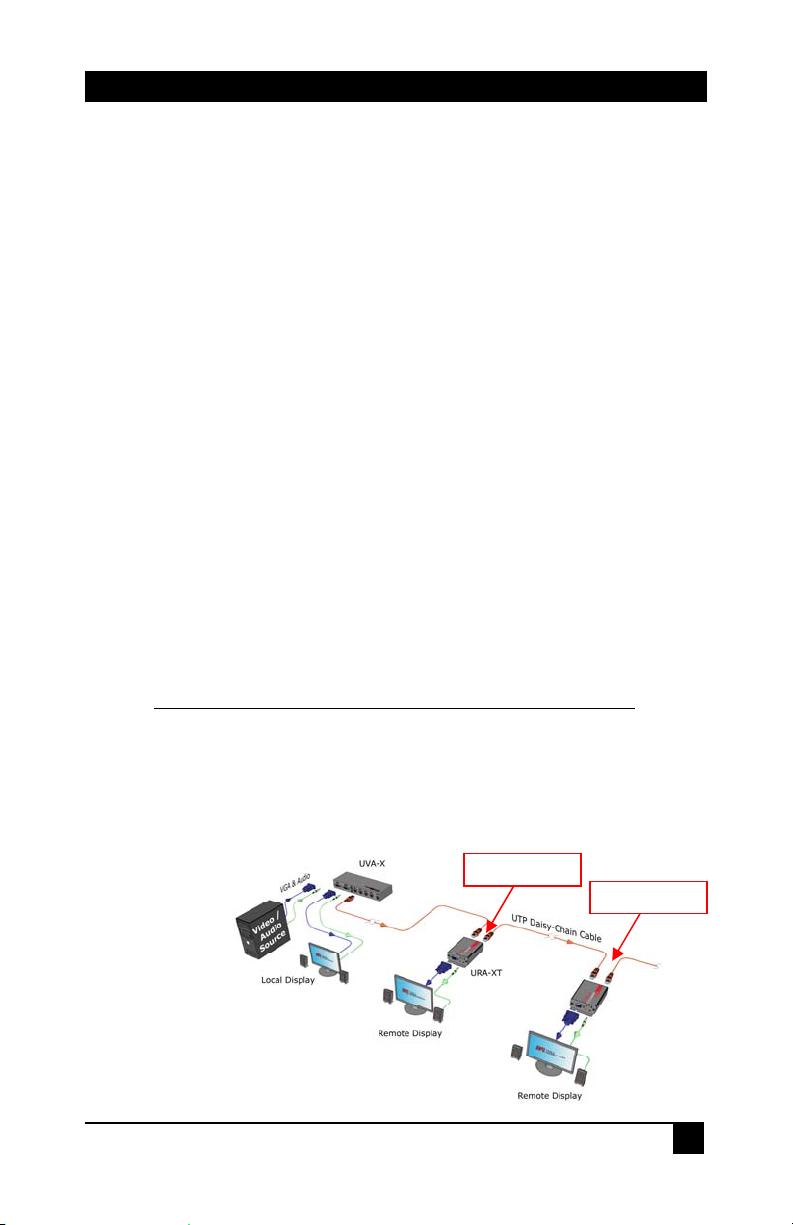

In a typical application, they are located at the video & audio source and connected
to one or more compatible receiver units.
Low-skew UTP cable (such as Hall Research’s Zero-skew™ CAT5 cable) is
recommended for the URA particularly if cable lengths are 200 feet or longer.
1.2 Features
• 4 channel (UVA-4) or 8 channel (UVA-8) splitter versions
• Support for local monitor and audio at transmitter
• Transmits video and audio on a single CATx cable
• Supports resolutions up to 1920x1440 at any refresh rate
• Compact & rugged metal enclosure
• Eliminates the need for bulky, expensive and hard to build multi-coaxial
cables for High-Resolution A/V extension
• Amplifies the signal for clean and crisp transmission
• Differential signaling eliminates ground loops and noise
• Rugged, Reliable, Compact size
• Drive standard Cat5 cables to 1,000 feet depending on resolution
2. Installation
2.1 Package Contents
Your package should contain the following items:
(1) UVA – 4 or UVA-8
(1) Universal power supply (6 VDC @ 1.5A) with IEC320 Power Cord
(1) 6 ft HD15-M-M VGA cable
(1) 6 ft 3.5mm – MM Audio cable
(1) User manual.
