Hall Research TVB-200PLUS User Manual
H
R
aallll
H
eesseeaarrcchh
R
T
eecchhnnoollooggiieess,, IInncc..
T
TV-to-VGA Converter & Switcher
With Audio Switching, Volume Control, and Serial Input
CUSTOMER
INFORMATION
SUPPORT
Model TVB200-Plus
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Mail order: Hall Research Technologies, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com • E-mail: info@ hallresearch.com
UMA1068, Rev. A
TV-to-VGA Converter
TRADEMARKS USED IN THIS MANUAL
Hall Research, HRT, and (logo) are trademarks of Hall
Research Technologies, Inc.
Apple and Macintosh are registered trademarks of Apple Computer, Inc.
IBM is a registered trademark of International Business Machines
Corporation.
SGI is a registered trademark of Silicon Graphics, Inc.
Sun and Sun Microsystems are registered trademarks of Sun Microsystems,
Inc. in the United States and other countries.
Any other trademarks mentioned in this manual are acknowledged to be the
property of the trademark owners.
1
Model TVB200-Plus
FEDERAL COMMUNICATIONS COMMISSION
AND CANADIAN DEPARTMENT OF COMMUNICATIONS
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used properly, that is, in strict accordance with
the manufacturer’s instructions, may cause interference to radio
communication. It has been designed to comply with the limits for a
Class A computing device in accordance with the specifications in
Subpart B of Part 15 of FCC rules, which are intended to provide
reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in
a residential area is likely to cause interference, in which case the user
at his their expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
This digital apparatus does not exceed the Class A limits for radio
noise emission from digital apparatus set out in the Radio Interference
Regulation of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe
A prescrites dans le Règlement sur le brouillage radioélectrique publié
par le ministère des Communications du Canada
EUROPEAN UNION DECLARATION OF CONFORMITY
This product has been tested and shown to comply with the
requirements of the European EMC directive 89/336/EEC
2
TV-to-VGA Converter
Contents
1. Introduction .......................................................................................4
1.1 General......................................................................................... 4
1.2 Features........................................................................................ 6
2. Installation ......................................................................................... 7
3. Operation ......................................................................................... 10
4. Configuration................................................................................... 12
4.1 RS-232 Control and configuration............................................. 12

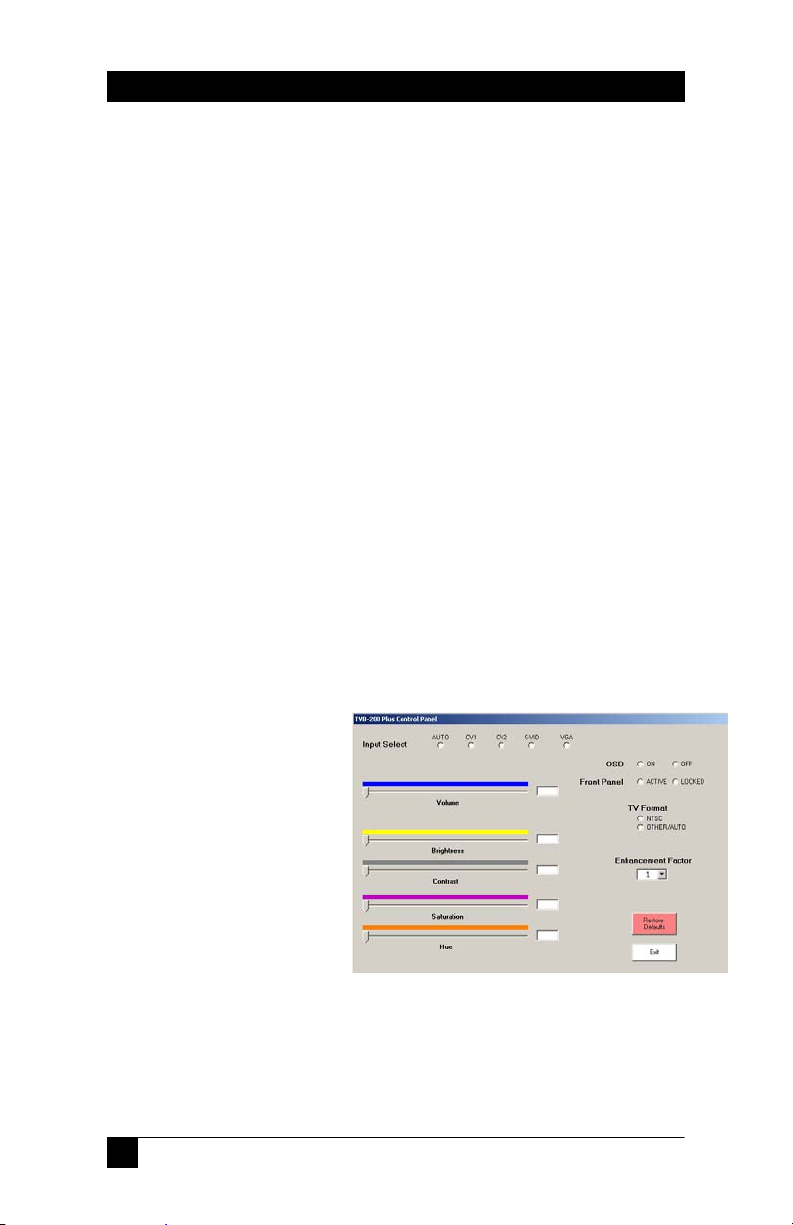

4.2 Control Panel Software for Windows........................................ 12
4.3 Serial Command Set .................................................................. 13
5. Troubleshooting............................................................................... 14
If your monitor goes blank periodically ..........................................14
If you want to substitute power supplies .........................................14
Calling Hall Research ...................................................................... 14
Shipping and Packaging ..................................................................14
6. Specifications................................................................................... 15
3
Model TVB200-Plus
1. Introduction
1.1 General

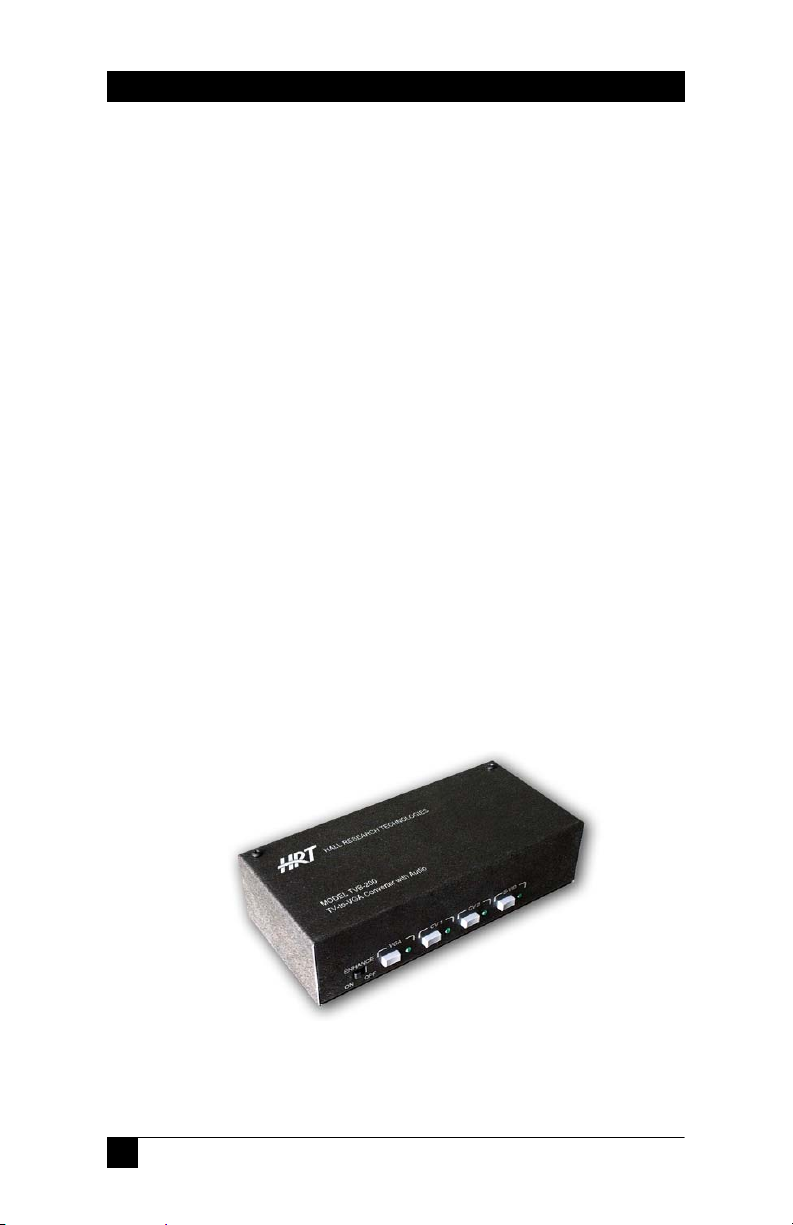

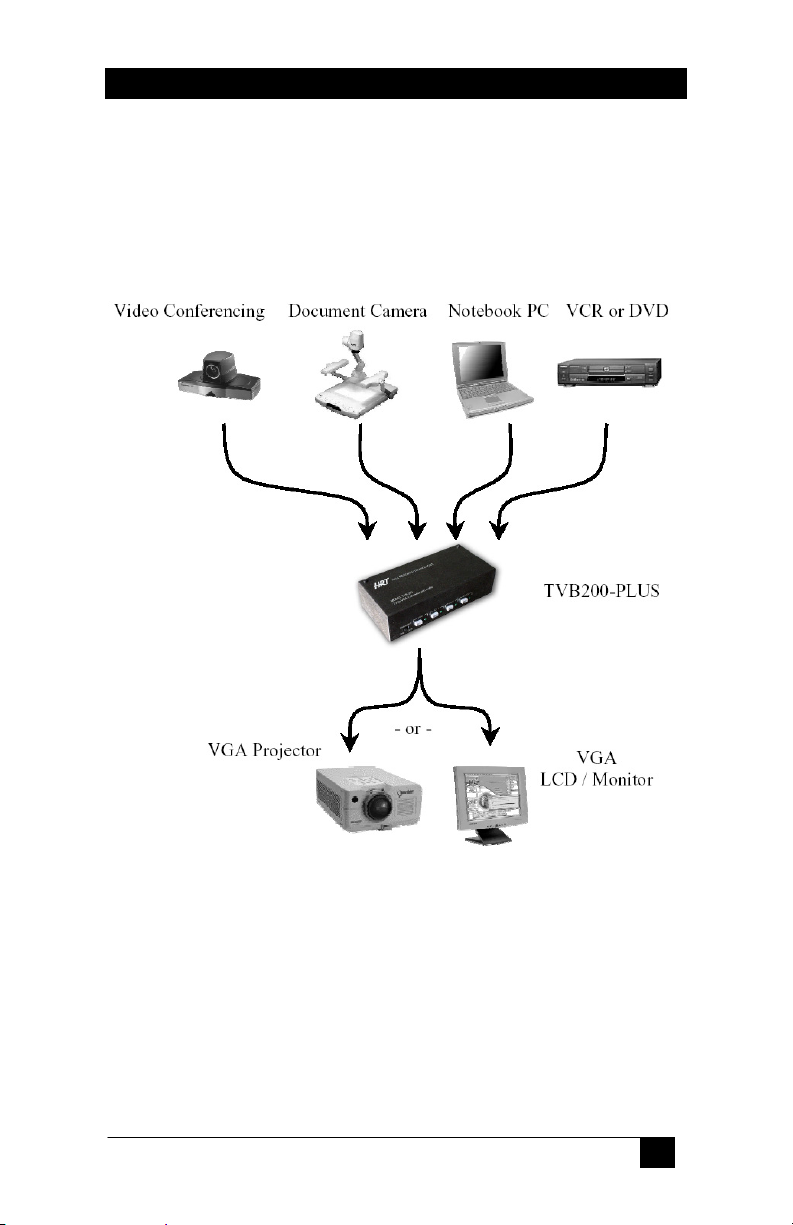

The Model TVB200-Plus converts an NTSC or PAL video signal to
VGA for display on PC monitors, projectors, or HDTV (in 480p or
600p modes). The converter de-interlaces and doubles the frame rate
by turning the interlaced TV signal into a "progressive scan" signal
suitable for high resolution display devices.

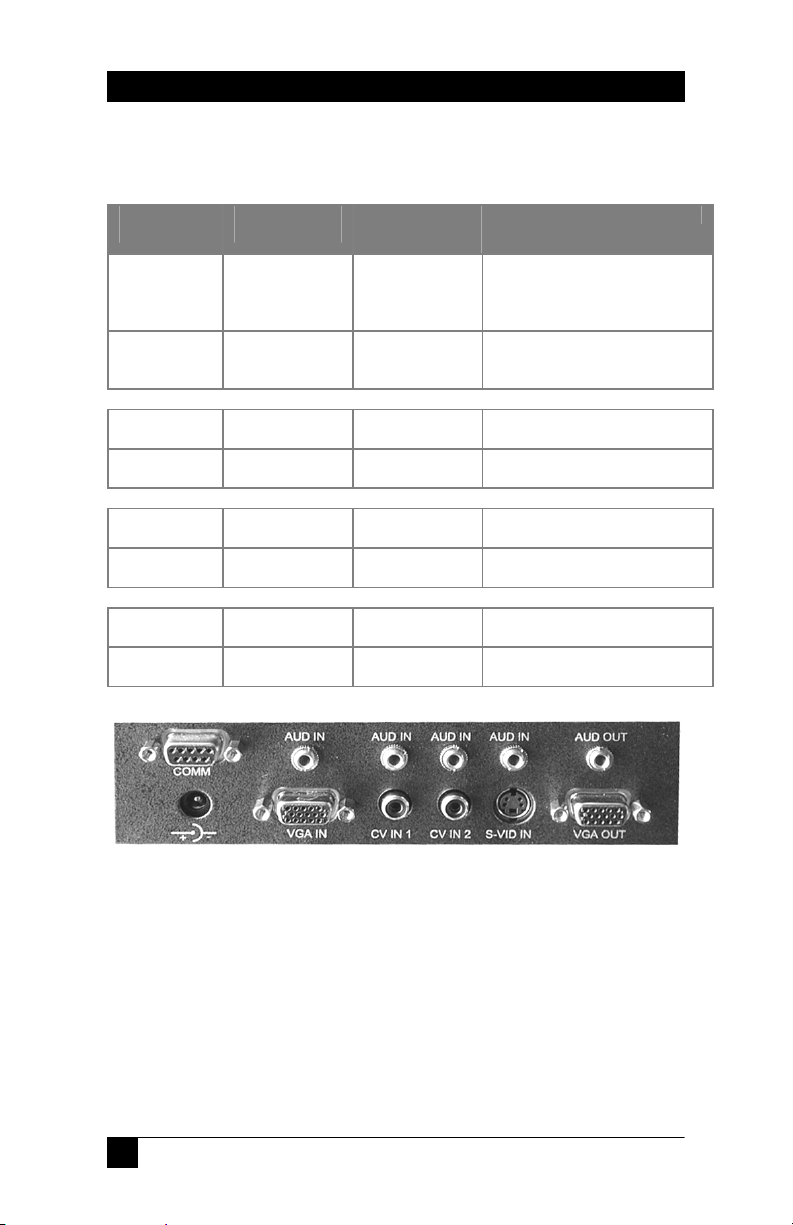

The TVB200-Plus provides multiple TV video inputs: two (2) RCA
composite video and one (1) S-Video - all with their own
corresponding stereo audio inputs.
Additionally, the TVB200-Plus provides a separate VGA and audio
input from a PC that can be switched to the output. This makes the
TVB200-Plus a 4 multi-standard input to 1 VGA output device.

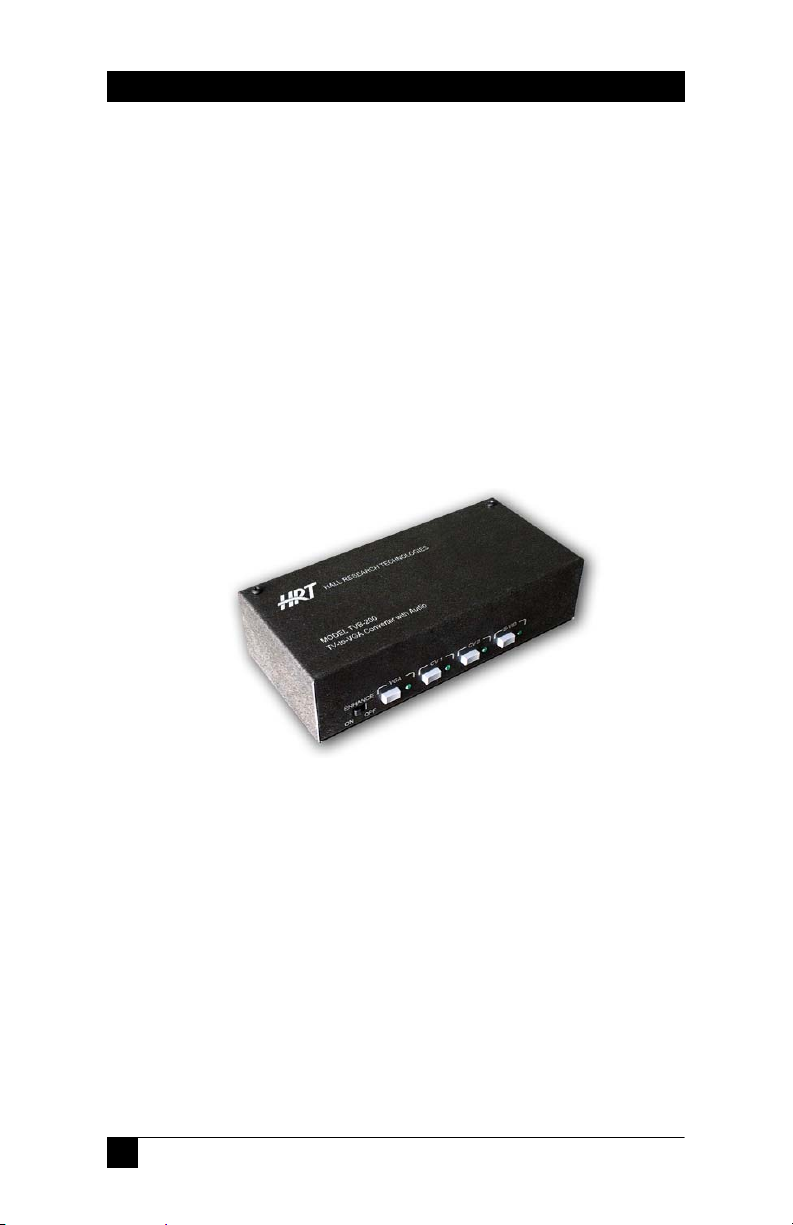

The user can select any of the inputs using individual push-button
switches on the front panel. An RS232 serial port is available for
external control and/or changing the internal configuration of the unit.
The unit can also switch between the PC and TV inputs automatically.
When the device is in “Auto” mode, if no TV video signal is present, it
selects the PC input and as soon as a TV input is detected, it switches
to the TV input by itself. This feature makes the unit perfect for
educational facilities where the presenter does not even have to worry
about making selections on the TVB200-Plus.
The TVB200-Plus also provides 4 Stereo audio inputs, one for each
corresponding video input. The audio switching follows the selected
video input channel. In addition, each audio input has its own
adjustable volume setting making it perfect for balancing the output
volume level regardless of the input selection.
The TVB200-Plus's VGA output can drive VGA extension cables to
200 feet. It is recommended that when video extension cables are used,
only high quality multi-coaxial VGA or RGBHV (such as Hall
Research Standard or Ultra-Thin VGA cables) be used.
4
