Also Converts Composite Video to S-Video and Vice-Versa
TBC-100 User’s Manual
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Mail order: Hall Research Technologies, 1163 Warner Ave, Tustin, CA 92780
Web site: www.hallresearch.com • E-mail: info@ hallresearch.com
Model TBC-100 User’s Manual
Trademarks Used In this Manual
Hall Research, HRT, and (logo) are trademarks of Hall Research
Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
1.0 General
Thank you for purchasing Hall Research Technologies’ Model TBC-100 TimeBase Corrector (TBC). The TBC is used to create a clean video signal with
perfect synchronization, video timing, and color encoding from an input that
may be distorted or out of spec.
Connected between any playback source (VCR, camcorder or DVD player) and
a DVD recorder or other device, the TBC restores and transfers old videos to the
recording medium with ideal timing and color information. It is perfect for
making backup copies of DVD’s or VHS or 8mm tapes.
For example the TBC-100 eliminates picture jitter and time base errors from
mechanically based videotape playback and insures a stable screen image. It
digitizes the input video into dual-field full-frame memory and recreates an
output with a crystal based timing circuit.
The unit also restores distorted or missing vertical and horizontal sync and color
burst signals. The TBC-100 features adjustments of Brightness, Contrast, Color
Saturation, Hue and Sharpness. A Digital Comb Filter provides excellent video
decoding and the AGC (Automatic Gain Control) insures a proper output signal
level from a substandard input.
Furthermore, it can be used to convert a composite video to S-Video or viceversa.
The TBC includes a built-in Color Bar Generator that is activated to the output
when there is no video input, has Composite Video (CVBS) and S-Video (Y/C)
inputs and outputs and includes a DC Power Adapter. The unit measures 1.3"H
x 3.5"W x 5.7"D. 7 ounces.
2.0 Features
• Video Inputs & Outputs: Composite Video and S-Video
• Video Standards: NTSC, PAL, and SECAM
• Adjustments: Brightness, Contrast, Color, Tint, and Sharpness
• Built-in Color Bar Generator
• Automatic Gain Control
2
Video Time-base Corrector

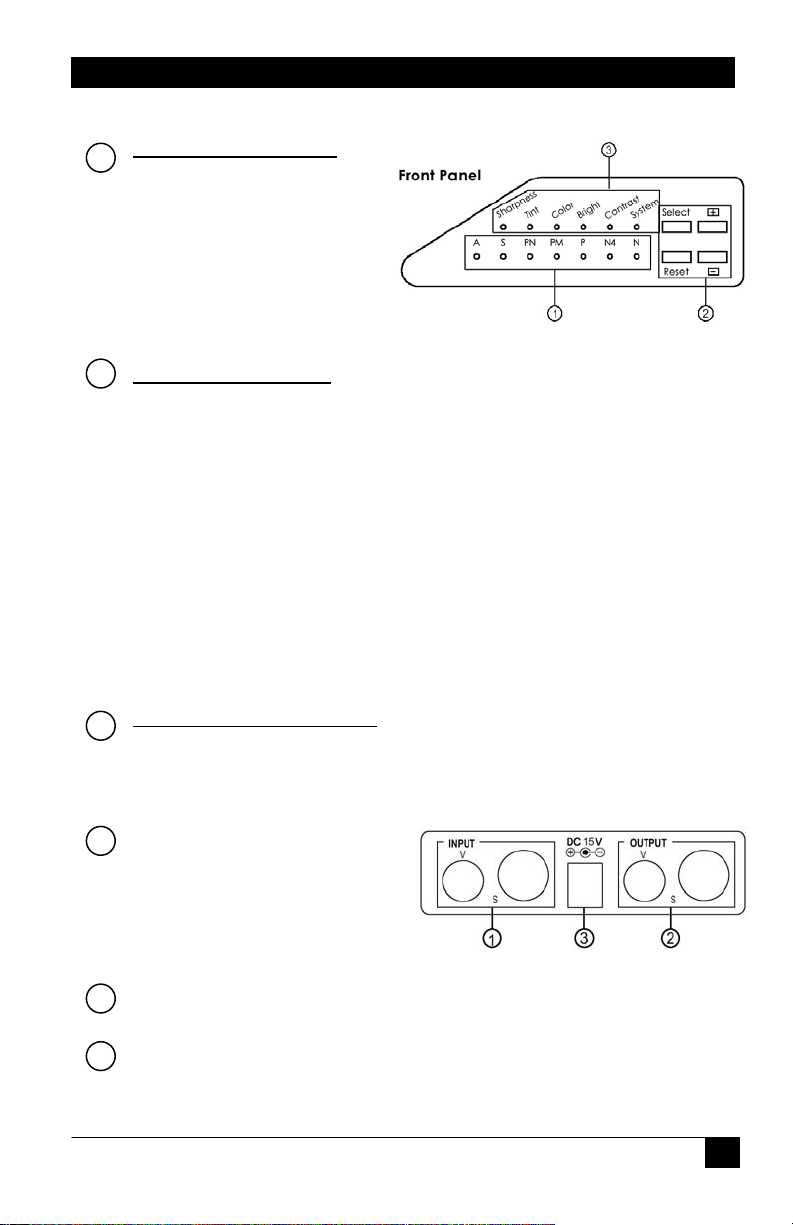

3.0 Control and Functions
Input Video System Indicator
1
A. Auto input mode detection
S. SECAM
PN. PAL N
PM. PAL M
P. PAL (B,D,G,I,K)
N4. NTSC 4.43
N. NTSC 3.58 (e.g. USA)
2
Picture Adjustment Controls
Select:Press this button repeatedly to choose the adjustment you wish to do.
Each depression of the button will toggle through adjustment controls as
follows:
→
System
+ : Press the button for adding picture effect selected
- : Press the button for reducing picture effect selected
Reset: When pressing reset button, the setting of the selected control will be
reset to its default value. If you press reset for over 3 seconds, all controls will
be reset to their factory default values.
Auto/Manual detection mode: Press the " Select " button to choose " System"
function on the top row LEDs. And then press Reset button to switch between
Auto and Manual detection mode for the input.
Picture Adjustment Indicator LEDs
3
Contrast→ Brightness→ Color→ Tint→ Sharpness
4.0 Video and Power Connections
Use only one of the input
1
connectors, either S-Video or
Composite Video. The TBC-100 will
automatically detect the active one. If
both inputs are connected and active,
the S-Video has priority.
Both video outputs are active and available for use; use either one or both
2
if you wish.
Use only supplied or approved power adapters. The input power can range
3
anywhere from 7.5VDC to 15 VDC (Center Negative). Nominal power
usage is 7.5 Watts.
3
Model TBC-100 User’s Manual
5.0 Contacting Hall Research and Shipping/Packaging
Contact HRT Support at 714-641-6607 or via email or web. Before you do,
make a record of the history of the problem. We will be able to provide more
efficient and accurate assistance if you have a complete description. If you need
to ship your converter for repair, make sure to get a Return Material
Authorization (RMA) number first.
6.0 Specifications
TV Standards NTSC 3.58, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Video Formats S-Video (Y/C), and Composite Video (CVBS)
Inputs: Auto detect with priority on S-Video
Outputs: Both active
TemperatureOperating: 32 to 122°F (0 to 50°C); Storage: –40 to +185°F (–40 to +85°C)
MTBF 95,000 hours (calculated estimate)
Power From utility-power (mains) outlet, through included external
power supply. Voltage: 7.5 to 15v DC Center-Negative 1000
ma
Size 1.3" High x 3.5" Wide x 5.7" Deep
Weight 7 Ounces
4
