Hall Research SC-DV-2 User Manual

H
R
aallll
H
eesseeaarrcchh
R
T
eecchhnnoollooggiieess,, IInncc..
T
DVI-to-VGA Video Scaler
Converts Digital DVI to Analog VGA or HDTV Component Output
With Programmable Output Resolution!
INFORMATION
CUSTOMER
SUPPORT
Order toll-free in the U.S. 800-959-6439 FREE technical support, Call 714-641-6607 or fax 714-641-6698 Mail order: Hall Research Technologies, 1163 Warner Ave., Tustin, CA 92780 Web site: www.hallresearch.com • E-mail: info@ hallresearch.com
UMA1061 Rev. D
DVI - to - VGA Video Scaler
TRADEMARKS USED IN THIS MANUAL
Hall Research, HRT, and (logo) are trademarks of Hall Research Technologies, Inc. IBM are a registered trademark of International Business Machines Corporation.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been designed to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are intended to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at their own expense will be required to take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
1
Model SC-DV-2
Table of Contents
1. Introduction .............................................................................................. 3
1.1 General................................................................................................ 3
1.2 Features............................................................................................... 4
2. Installation ................................................................................................ 4
2.1 Input connection ................................................................................. 4
2.2 Output connection............................................................................... 4
2.3 Connection Block Diagrams............................................................... 5
3. Configuration & Operation....................................................................... 6
3.1 Front and Rear Panels.........................................................................6
3.2 Menus and Adjustments ..................................................................... 6
4. Troubleshooting........................................................................................ 8
Contacting Hall Research Technologies...................................................8
Shipping and Packaging ........................................................................... 8
5. Specifications............................................................................................ 9
Reference Information............................................................................ 10
Hall Research Technologies, Inc.
Home of the Mini-Cat®
2
DVI - to - VGA Video Scaler
1. Introduction
1.1 General
The SC-DV-2 is a high performance PC/HDTV scaler that accepts Digital DVI input and converts it to analog RGB output (PC VGA or HDTV Component).
The input resolution is automatically detected while the output resolution and refresh rate can be selected through OSD menu and front panel push buttons.
The SC-DV-2 Video Processor combines the functions of a video scaler, scan-converter, and format transformer and is packed into a compact and durable metal housing with easy-to-use touch buttons.
The controls include input/output setup picture adjustment, H/V phase adjustment, System information and many other advanced options.
The SC-DV-2 allows you to specify a resolution and refresh rate for its output. Then it will output a steady (uninterrupted) VGA signal to your display device at the specified rate regardless of the input. This effectively allows any DVI switch, such as HRT's SW-DVI-2A or SW-DVI-4A, to become a seamless switch. The output timing is constant regardless of what is happening at the input. So when you switch from one input to another, the display device does not see any interruption in the signal coming to it.
3
Model SC-DV-2
1.2 Features
Converts Digital DVI from any PC (or digital output from a DVD
player) to analog VGA or component output.
Ideal for use with high-resolution displays such as LCD, plasma, or
DLP projectors.
The resolution of any PC or HDTV video signal can be scaled up or
scaled down to any other PC or HDTV resolution. It can also change the frame rate of the output.
50 MB Video memory for real-time frame rate conversion.
Signal format conversion between RGBHV and YPbPr.
Input: PC(VGA/SVGA/XGA/SXGA) + HDTV(480i 576i 480p 567p
720p 1080i), @ 60 to 85 Hz
Output: PC
Automatically detects input mode and timing parameters
Easy- to- use push buttons and OSD menu control.
(VGA/SVGA/XGA/SXGA) + HDTV(480p/576p/720p/1080i)
2. Installation
2.1 Input connection
The SC-DV-2 can accept both PC and HDTV input in digital DVI format.
Use the DVI-to-DVI cable to connect the DVI output of a PC or HDTV device to the DVI input connector of the SC-DV-2.
The SC-DV-2 can automatically detect the mode and resolution of the DVI input.
2.2 Output connection
The SC-DV-2 can output a variety of PC and HDTV resolutions in analog RGBHV (or YPbPr) formats.
When one of the PC resolutions is selected as the output, use a 15-pin D­Sub VGA cable to connect the PC/HDTV output of the SC-DV-2 to the VGA input of a display monitor.
4
DVI - to - VGA Video Scaler
When one of the HDTV resolutions is selected as output, use a 15-pin D­Sub to YPbPr/3 RCA adaptor cable to connect the PC/HDTV output of the SC-DV-2 to the YPbPr input of a HDTV device.
2.3 Connection Block Diagrams
In the above diagrams the output of the SC-DV-2 connects to the VGA monitor via a HD15 Cable and to the HDTV via a HD15 to 3 RCA cable.
Note that the SC-DV-2 is not HDCP compliant. HDCP refers to digital content protection of some high-resolution DVD players or Satellite receivers. Depending on the brand of the equipment, if you are playing a high-resolution HDCP encoded video through the SC-DV-2, you may not get a picture, or the output of the DVD player may emerge at a lower resolution!
5
Model SC-DV-2
3. Configuration & Operation
3.1 Front and Rear Panels
3.2 Menus and Adjustments
Pressing the Menu button will bring up the OSD menu controls on the screen as follows:
¾ Input set up ¾ Output set up ¾ Picture Adjust ¾ HV Adjust ¾ OSD Adjust ¾ System Information ¾ Auto Adjust ¾ Exit
Use +, or - to move the arrow cursor to your desired selection, then press MENU to confirm your selection and enter into sub menu.
When selected, a sub menu for selecting YPbPr/RGB
IInnppuutt sseett uupp -
will appear:
YPBPR …
The SC-DV-2 automatically detects and shows the input format as YPbPr or RGB. However, you can manually select the YPbPr or RGB to match the format of your input. Selecting a format that doesn't coincide with your input will result in an abnormal picture.
OOuuttppuutt sseett uupp -
to set the Output Mode (refresh-rate and resolution).
6
-
9 RGB
When selected, a sub-menu appears that allows you
-
DVI - to - VGA Video Scaler
Output Modes
PC Resolutions HDTV Resolutions
VGA 640 X 480@60/72/75/85Hz 1080i-RGB 1920 X1080@60Hz
VGA 70 720 X 400@70Hz 720p-RGB 1280X 720@60Hz
VESA 85 640 X 400@85Hz 576p-RGB 720X 576@60Hz
SVGA 800 X 600@60/72/75/85Hz 480p-RGB 720 X 480@60Hz
XGA 1024 X 768@60/70/75/85Hz 1080i-YPbPr 1920 X1080@60Hz
Mac 1152 X 864@ 70/75Hz 720p-YPbPr 1280 X 720@60Hz
WXGA 1280 X 768@60Hz 576p-YPbPr 720 X 576@60Hz
1280A 1280 X 960@60Hz 480p-YPbPr 720 X 480@60Hz
SXGA 1280 X 1024@60/75Hz
When selected, the following adjust parameters will
PPiiccttuurree AAddjjuusstt -
appear:
-
The factory preset values are shown above
Select reset to reset all adjustment back to the factory preset values.
When selected, the following sub-menu appears.
HHVV aaddjjuusstt -
Use + - to adjust the best horizontal and vertical position of the picture.
OOSSDD aaddjjuusstt -
Vertical position of the OSD menu.
-
When selected, you can adjust the Horizontal and
-
SSyysstteemm iinnffoorrmmaattiioonn -
resolutions and their vertical refresh rates on the screen.
When selected, the SC-DV-2 will automatically adjust
AAuuttoo aaddjjuusstt -
all the parameter to the factory preset value.
Select to exit from the current menu page.
-
EExxiitt -
-
When selected, it shows the input/output
-
7
Model SC-DV-2
Notes
The default output resolution is XGA @ 60Hz.
The unit has non-volatile memory. It saves all your settings before
power off, and recalls those settings on next power on.
Quickly Jumping to XGA or 480p Output
At any time, pressing + and - buttons simultaneously for a few seconds will reset the output resolution to XGA@60Hz, and other settings back to factory default values. Pressing the Menu and – together for a few seconds will choose 480P output mode.
4. Troubleshooting
There are no field serviceable parts or circuits in the device. If you think that the device is malfunctioning (or you have no picture output), please first try to reset to factory default settings by pressing the “+” and “-” buttons (or “menu” and “-” buttons) simultaneously for 2 seconds (See above).
Contacting Hall Research Technologies
If you determine that your scaler is malfunctioning, do not attempt to repair the unit. Contact HRT’s Tech. Support at 714-641-6607.
Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description.
Shipping and Packaging
If you need to transport or ship your Video Processor:
• Package it carefully. We recommend that you use the original container.
• Before you ship the units back to Hall Research Technologies for repair or return, contact us to get a Return Authorization (RMA) number.
8
DVI - to - VGA Video Scaler
5. Specifications
General
Input Format: Digital RGBHV, YPbPr, YCbCr Input Connector: 29-pin DVI-I Output Signal: RGB: 0.7Vp-p, 75 ohm, HV: 3 to 5 Vp-p TTL Y: 1 Vp-p 75 ohm; PbPr: 0.7 Vp-p 75 ohm Output Connector: HD-15 Female VGA Power: 5V DC at 2 A max (Universal power supply included)
Input Resolutions
PC Resolutions HDTV Resolutions
VGA 640 X 480@60/72/75/85Hz 1080i 1920 X1080@60Hz
VGA 70 720 X 400@70Hz 720p 1280X 720@60Hz
VESA 85 640 X 400@85Hz 576p 720X 576@50Hz
SVGA 800 X 600@60/72/75/85Hz 576i 720X 576@50Hz
XGA 1024 X 768@60/70/75/85Hz 480p 720 X 480@60Hz
Mac 1152 X 864@ 70/75Hz 480i 720 X 480@60Hz
WXGA 1280 X 768@60Hz
1280A 1280 X 960@60Hz
SXGA 1280 X 1024@60/75Hz
Output Resolutions
PC Resolutions HDTV Resolutions
VGA 640 X 480@60/72/75/85Hz 1080i-RGB 1920 X1080@60Hz
VGA 70 720 X 400@70Hz 720p-RGB 1280X 720@60Hz
VESA 85 640 X 400@85Hz 576p-RGB 720X 576@60Hz
SVGA 800 X 600@60/72/75/85Hz 480p-RGB 720 X 480@60Hz
XGA 1024 X 768@60/70/75/85Hz 1080i-YPbPr 1920 X1080@60Hz
Mac 1152 X 864@ 70/75Hz 720p-YPbPr 1280 X 720@60Hz
WXGA 1280 X 768@60Hz 576p-YPbPr 720 X 576@60Hz
1280A 1280 X 960@60Hz 480p-YPbPr 720 X 480@60Hz
SXGA 1280 X 1024@60/75Hz
9
Model SC-DV-2
Reference Information

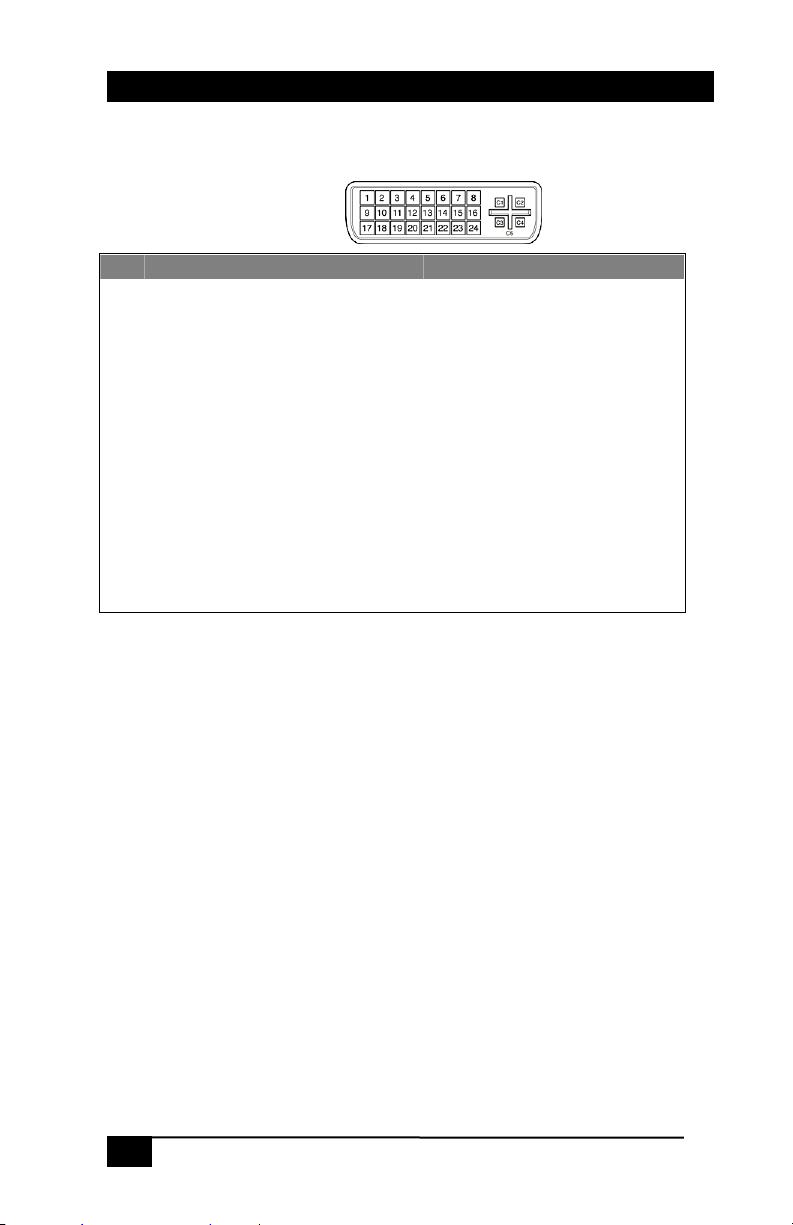

DVI Connector pinout N/U = Not Used
Pin Signal name Pin Signal name
1 TMDS Data2– 13 TMDS Data3+ (N/U) 2 TMDS Data2+ 14 +5V Power 3 TMDS Data2/4 Shield 15 Ground for +5V Power 4 TMDS Data4– (N/U) 16 Hot Plug Detect 5 TMDS Data4+ (N/U) 17 TMDS Data0– 6 DDC Clock 18 TMDS Data0+ 7 DDC Data 19 TMDS Data0/5 Shield 8 Analog vertical sync 20 TMDS Data5– (N/U)
9 TMDS Data1– 21 TMDS Data5+ (N/U) 10 TMDS Data1+ 22 TMDS Clock Shield 11 TMDS Data1/3 Shield 23 TMDS Clock+ 12 TMDS Data3– (N/U) 24 TMDS Clock– C1 Analog red C4 Analog horizontal sync C2 Analog green C5 Analog ground C3 Analog blue
