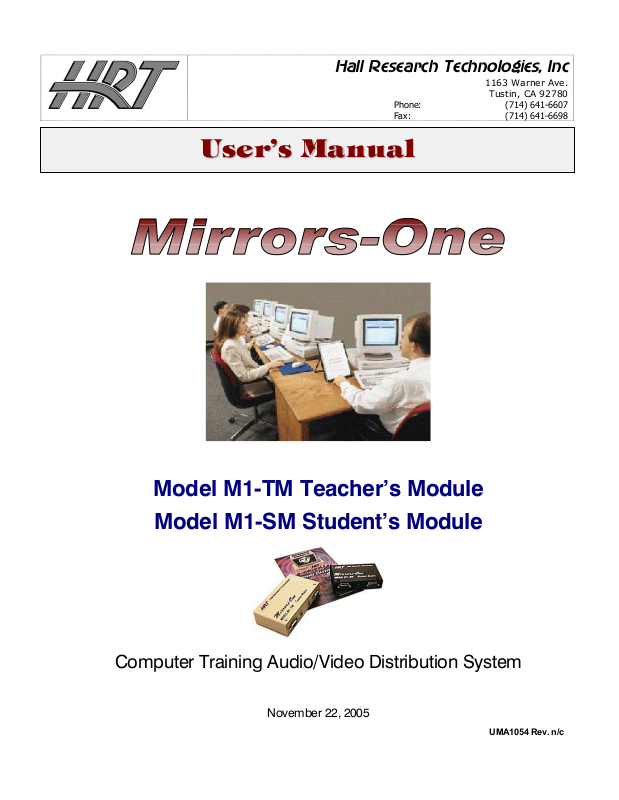

Hall Research M1-TM User Manual

Hall Research Technologies, Inc

1163 Warner Ave.

Tustin, CA 92780

Phone: [phone]
Fax: [phone]

Usseerr’’ss

U

Maann

M

uaall

u

Model M1-TM Teacher’s Module

Model M1-SM Student’s Module

Computer Training Audio/Video Distribution System

November 22, 2005

UMA1054 Rev. n/c

Description

Thank you for purchasing the Mirrors-One System. Your system includes a Teacher's Module (Model M1-TM)
equipped with a push-button switch cord, a number of Student Modules (Model M1-SM), and interconnecting
cables.

In addition, 2 terminators (Model TM-75) are also provided, which are used at the end of each daisy-chain.

Please take inventory of all items received and inform the factory if anything is missing.

Installation

(A) Teacher's Station

The Teacher's Module (Model M1-TM), comes with a short video cable (HD15 male-to-male), a short mini-stereo
audio cable, a 12 vdc power adapter, and a push-button control cord.

• Plug the video cable supplied in the box from the PC's video output port to M1-TM's VIDEO INPUT.

• Connect the PC's sound output (LINE OUT) to the unit's AUDIO INPUT (normally the Line Out from the

PC would go to a pair of powered speakers)

• Plug the instructor's Monitor to the VIDEO OUTPUT connector on the unit.

• Plug the instructor's powered speakers into the AUDIO OUTPUT connector of the unit.

Page 2 of 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .
