Hall Research HSM-I-08-08 User Manual

UMA1199 Rev 1.0

CUSTOMER

Genesis™ Digital Matrix Series

User’s Manual

8x8 HDMI or DVI Matrix Switcher

Audio De-embedding & Independent Routing

Built-in Server for Configuration & Control

RS-232, IP, and Front panel Controls

HDMI 1.4 Deep-color & 3D Support

Model HSM-I-08-08

With

HDCP compliant with EDID Management

Fast-Switch™ Technology

SUPPORT
INFORMATION

Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax [phone]
Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Website: www.hallresearch.com E-mail: [e-mail]

Genesis Digital™ HDMI Matrix Switches

TRADEMARKS USED IN THIS MANUAL

Hall Research and its logo

Any other trademarks mentioned in this manual are acknowledged as the property of
the trademark owners.

are trademarks of Hall Research.

FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been designed to
comply with the limits for a Class A computing device in accordance with the
specifications in Subpart B of Part 15 of FCC rules, which are intended to provide
reasonable protection against such interference when the equipment is operated in a
commercial environment. Operation of this equipment in a residential area is likely to
cause interference, in which case the user at their own expense will be required to take
whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

1

HSM-I-08-08

Contents

1. Introduction............................................................................................................ 4

1.1 General .................................................................................................................. 4

1.2 Features ................................................................................................................ 5

2. Installation.............................................................................................................. 6

2.1 Package Contents ................................................................................................. 6

2.2 Input and Output Connections ............................................................................... 6

2.2 Connection Block Diagram .................................................................................... 8

3. Configuration & Operation ................................................................................... 9

3.1 Front-Panel Buttons and Indicators ....................................................................... 9

3.2 Turning the unit on and off ..................................................................................... 9

3.3 Making AV Routings or “Ties” from Front Panel .................................................. 10

3.4 Saving Presets (routing patterns) ........................................................................ 11

3.5 Recalling Presets (routing patterns) .................................................................... 11

4. Control Commands (RS-232 and IP) .................................................................. 12

4.1 Routing Functions ................................................................................................ 12

4.2 Preset Save and Recall Functions....................................................................... 14

4.3 Power Functions .................................................................................................. 15

4.4 Factory Defaults .................................................................................................. 15

4.5 Firmware Version ................................................................................................ 16

4.6 HDMI Output (Blank Video & Mute Audio) ........................................................... 16

4.7 HDMI Audio ......................................................................................................... 16

4.8 Menu Contrast ..................................................................................................... 16

4.9 Naming Input ....................................................................................................... 17

4.10 On Screen Display ............................................................................................. 17

4.11 On Screen Display Timer .................................................................................. 17

4.12 On Screen Display Box...................................................................................... 17

4.13 HDCP ................................................................................................................ 17

4.14 Current Status ................................................................................................... 18

4.15 Error Commands ............................................................................................... 18

5. IP Control Basics ................................................................................................. 19

5.1 Getting Device IP Address................................................................................... 20

5.2 Controlling the Matrix via Web Interface .............................................................. 20

5.3 IP Specific Serial Commands .............................................................................. 30

6. Telnet Interface .................................................................................................... 31

6.1 Telnet Interface Commands ................................................................................ 32

2

Genesis Digital™ HDMI Matrix Switches

7. Troubleshooting .................................................................................................. 32

7.1 Contacting Hall Research .................................................................................... 32

7.2 Shipping and Packaging ...................................................................................... 33

8. Specifications ...................................................................................................... 34

Appendix 1 – Front Panel Quick Reference Guide ............................................... 35

Appendix 2 – Command Summary ........................................................................ 35

3

HSM-I-08-08

1. Introduction

1.1 General

Thank you for purchasing this professional quality and compact digital matrix switch
from Hall Research.

As a member of Hall’s renowned Genesis™ Series, this matrix is synonymous with
high performance, intuitive and powerful user interface, easy to use control command
set, and unsurpassed reliability.

The matrix is an 8x8 cross-point switch in a compact 1-RU enclosure. It supports HDMI

1.4a for 3D format and supports deep-color to 12 bits per component (36-bit color
routing), supports HDCP, PCM, Dolby, DTS, and HD audio standards. It may be used
with any combination of DVI (PC) or HDMI (HDTV) sources and displays.

The matrix switch automatically performs intelligent EDID capability mapping between
sinks and sources. The EDID’s audio and video capabilities are computed from a
combination of downstream capabilities being ANDed together to form an EDID table
for reporting to video sources in order to guarantee all displays will be able to show the
image from any source.

The Model HSM-I-08-08 also features “Fast Switching” technology whereby all sources
are kept active even if they are not routed to any sinks. The matrix inputs perform all
the EDID and HDCP handshakes with all connected sources continuously. Compared
with low-cost switchers, this method reduces switching time by several seconds.

Proprietary handling of downstream HDCP device keys, assures compliance with
HDCP without limiting the number of outputs that can be routed to the same input.
Furthermore, each output of the matrix can handle over 20 downstream keys
simultaneously.

OSD display of user defined input names with user definable OSD position and
duration, brings a new degree of sophistication and user friendliness to the Genesis™
Series.

The matrix features embedded HTML5 server to allow configuration and real-time
control from any browser, tablet or smart-phone. No app or software is needed as all
software resides in the matrix itself. The smart server renders pages specifically
configured for the device it is being displayed on, producing a perfect GUI on a small
phone or on a big tablet automatically. We call this a “pseudo app”, since it works like
an app, but with nothing to install other than a shortcut to the ip address. The web
interface allows the user to assign custom names for each input, output, and preset
pattern, making control over IP a snap.

Other features include: PRESET save and recall functions (with user definable
PRESET names), HDMI output blanking, HDMI audio extraction and independent
routing to SPDIF outputs, ability to remove audio from HDMI outputs, comprehensive
front panel controls, RS-232 and Telnet control.

The HSM-I-08-08 Genesis™ Digital matrix is ideal for home theater, conference room,
multimedia presentation, digital signage in retail space, and other similar settings.

4

Genesis Digital™ HDMI Matrix Switches

1.2 Features

• Compatible with HDMI version 1.4a (for color-depth and 3D), and DVI

• HDMI Audio De-embedding & Independent Routing to SPDIF outputs

• Supports a wide range of HDTV (HDMI) and PC (DVI) resolutions from 480i

to 1080p and VGA to WUXGA

• Supports digital video formats in Deep Color to 12bit per color

• Supports lossless digital audio: both 5.1 and 7.1 Dolby TrueHD, Dolby Digital

Plus and DTS-HD Master Audio

• Front panel LCD readout for easy setup and control

• Preset Save and Recall of commonly used routing patterns

• Intelligent EDID capability mapping

• Audio and video compatibility among multiple sink devices

• All HDMI inputs on the unit include cable equalization to support up 20

meters of input cable with 1080p sources

• OSD video overlay to show user defined channel name on each output after
it is switched to a new input

• HDMI video output can be blanked or un-blanked

• HDMI embedded audio output can be active or muted

• Includes RS-232 port with Hall Research’s Genesis Control Command Set

(GCCS)

• IP (LAN) port includes web-server with easy to use controls (customizable
with user definable names for each input and output)

• Telnet interface using the same RS-232 commands (GCCS)

• 1RU high compact & rugged rack mountable metal enclosure

• Full ESD protection is implemented on all HDMI connectors

• Incorporates “Fast Switching” technology to reduce blanking time

• Designed and made in USA

5

HSM-I-08-08

2. Installation

Notice

2.1 Package Contents

Your package should contain the 1RU Matrix Switcher, a Universal power supply (12v
DC @ 6A), an IEC320 Power Cord, and a User’s Manual.

Figure 1 – Power Supply

Use only regulated 12v DC supply (center positive)
as supplied with the unit. Use of any other voltage will
cause damage to the unit and void the warranty.

2.2 Input and Output Connections

The matrix is housed in a 1RU 19” wide rack mountable enclosure. All of I/O, control,
and the power connections are on the rear of the unit.

Figure 2 – Rear Panel Connections (for HSM-I-08-08)

6

Genesis Digital™ HDMI Matrix Switches

 Using quality HDMI cables connect the inputs to video sources.

 If the sources are DVI (PC) then you will need either a DVI to HDMI adapter,

or preferably, a DVI to HDMI Cable

Figure 3 –

Model C-HDMI-DVI-xM

 For a professional installation, we recommend using locking HDMI cables.

The Matrix Switch has a tapped hole above each HDMI connector and the
locking cables available from Hall Research come with screws and stand­offs for securing the cables in place so they don’t accidentally get unplugged

 Next, connect the HDMI outputs to the displays.

 Plug the power supply to the unit. Use only the supply that came with the

unit

(x = 2, 3 or 5 meters)

Figure 4 –

Model C-HDMI-L-x

(x = 1.5, 3, 6, 10, 15, 25, 35 or 50 ft)

 If the matrix needs to be controlled via RS-232, plug the controller (or PC) to

the DB9 Female port on the rear of the matrix. Connection to PC’s DB9 Male
is made using a straight through DB9 Male-to-Female cable (as shown
below). This port operates at a baud rate of 115,200.

Table 1 – RS-232 Control Port Pinout

 To control the matrix via the IP port, just connect an RJ45 cable to your

Local Area Network (LAN). This unit features a user friendly and powerful

7

HSM-I-08-08

built-in web-server that allows control of the matrix via any browser using
web enabled controllers.

2.2 Connection Block Diagram

Figure 5 – Connection Block Diagram

Figure 6 – On Screen Display of user defined input names after switching (position and duration is configurable)

8

Genesis Digital™ HDMI Matrix Switches

1v 2v 3v 4v 5v 6v 7v 8v

1A 2A 3A 4A 5A 6A 7A 8A

SPDIF audio output routing pattern

3. Configuration & Operation

3.1 Front-Panel Buttons and Indicators

An image of the front panel for the 8x8 matrix is shown below.

Figure 7 – HSM-I-08-08 front panel controls & indicators

The front panel can be used for the following purposes:

• Monitor & Control Power On/Off status

• View current Input/output routings (ties) on LCD

• Make new ties either starting from input or from output

• Recall preset patterns

• Save preset patterns

All of the front panel switches have built-in LEDs that help in the operation. Front panel
functions are designed for maximum intuitiveness. With just a little practice, one can
easily learn to monitor and control the matrix.

3.2 Turning the unit on and off

To turn the unit on, press the power button. Then, the matrix will recall the last routing
pattern prior to being shut-down along with the last state of VID & AUD buttons. If the
VID button is on, the current HDMI input and output routing pattern will be shown on
the LCD. If the AUD button is on, the current SPDIF audio output routing pattern will
be shown on the LCD. The SPDIF audio output is extracted from the HDMI input port.

When both the VID & AUD buttons are on, the LCD will alternate between the display
of the HDMI I/O routing pattern and SPDIF audio output routing pattern. The HDMI I/O
routing pattern will have a small letter v next to its input number, and the SPDIF audio
output routing pattern will have a small letter
below.

A next to its input number as shown

HDMI I/O routing pattern

9

HSM-I-08-08

If neither the VID nor the AUD button is on, the following screens will be displayed and

Standing By …

Press PWR to turn on

To View/Route AV

alternated every 3 seconds.

Use VID/AUD Btns

To turn the Matrix off, press and hold the power button for 3 seconds. This is done as a
precaution, so that if the power button is accidentally touched, it will not turn off the
matrix! W hen the Matrix is off, the following screens will be shown on the LCD.

3.3 Making AV Routings or “Ties” from Front Panel

To make the unit as convenient and intuitive as possible the HSM matrix allows you to
make ties starting from the input channel’s point of view or from the output.

3.3.1 Making a tie starting from the output

This is the most natural way of making connections since each output gets is signal
from only one input.

 Press one of the output channel buttons. That output button will light up

 If you do not want to make any changes, just hit SET. If you want to change

 To route the output to a different input than the one currently connected to,

 The output can’t be disconnected from the input. It is always being routed

 Note that once you enter the channel routing mode from the front panel, if

10

along with an input button it is being routed from.

to another output channel, use either the up and down (▲▼) buttons to walk
through other outputs; or just select another output channel. The up and
down (▲▼) buttons can also be pressed and held to quickly view all output
channels one by one.

hit the “candidate” input channel number. This does not actually make the
connection; the new input channel will be blinking. Again if you change your
mind, either hit the same blinking button (it will stop blinking), or hit another
input channel. When you are sure you have selected the input channel you
desire, hit SET.

from one of the inputs.

you do not hit any buttons for approximately 8 seconds, the system will exit
this mode without any user interaction.

Genesis Digital™ HDMI Matrix Switches

HDMI video output blank/un-blank and embedded audio output active/un-active
can ONLY be performed through RS-232 commands or web browser interface.
When the HDMI video of a selected output is blanked, the embedded audio
associated with that output will be muted.

NOTE

3.3.2 Making a tie starting from the input

The procedure is similar to the above but a particular input can be routed to more than
one output or none at all!

 Press one of the input channel buttons. That button will light up along with

ALL the outputs routed from that input.

 If you want to change to another input channel, use either the up and down

(▲▼) buttons to walk through other inputs; or just select another input
channel. The up and down (▲▼) buttons can also be pressed and held to
quickly view all input channels one by one.

 To route the selected input to multiple outputs, press the desired output

buttons. Again, these new outputs are only “candidates” (will be blinking)
and will not be routed until you hit SET.

 Any outputs tied to this selected input can’t be disconnected from it.

3.4 Saving Presets (routing patterns)

The number of presets accessible from the front panel is the same as the total # of
input buttons. Each front panel input button can memorize a pattern. Therefore, you
can recall 8 presets.

Current tie configurations can be saved as presets (1 through 8) for later recall.

To save the current AV routing pattern, press and hold the PRE button for 3 sec, the
backlit LED will start flashing (this means that save function is activated). Press the
desired input button to save the preset then press the SET button to complete the
operation.

3.5 Recalling Presets (routing patterns)

Press and release the PRE (preset) button. The button will light up solid. Then press
and release one of the input channel buttons and hit SET.

11

HSM-I-08-08

4. Control Commands (RS-232 and IP)

The Genesis™ Matrix can be controlled via an external control system by using either
the standard RS-232 or the optional IP port. Any program capable of standard serial
communication in ASCII format is capable of working with the matrix. Most PCs with
Windows™ OS have HyperTerminal™ or equivalent. There are also many free
Terminal Emulator software programs available for download on the internet.

Note on RS-232 port availability on PC

Most PCs and notebooks do not come equipped with a
serial RS-232 port. Therefore, for serial control from a PC
you may need a USB to RS-232 converter. These are
available from Hall Research (Model USB-RS232-1)

Use a DB9 Male-to-Female cable per Table 1 to connect the unit to the PC’s serial
port.

Use 115,200 Baud, 8 bits, No Parity, 1 Stop bit, No flow control.

Upon power up, the Matrix will output a screen similar to the figure below through its
serial port if the unit was previously on.

CV2,m <cr> HDMI audio & video output 2 routed to input m
CV3,m <cr> HDMI audio & video output 3 routed to input m
CV4,m <cr> HDMI audio & video output 4 routed to input m

CV6,m <cr> HDMI audio & video output 6 routed to input m
CV7,m <cr> HDMI audio & video output 7 routed to input m
CV8,m <cr> HDMI audio & video output 8 routed to input m

CA2,m <cr> SPDIF audio output 2 routed to input m
CA3,m <cr> SPDIF audio output 3 routed to input m
CA4,m <cr> SPDIF audio output 4 routed to input m

CA6,m <cr> SPDIF audio output 6 routed to input m
CA7,m <cr> SPDIF audio output 7 routed to input m
CA8,m <cr> SPDIF audio output 8 routed to input m

If the unit was previously off, it would not output anything through its RS232 port.

4.1 Routing Functions

Video routing commands specified are from the point of view of the output. The
wildcard character (*) is acceptable for output (but not input). In addition, these
commands can be used to monitor or query the status of system ties. Omitting the
input channel will result in a response of the current routing for that output.

PW1 <cr> Power is on
CV1,m <cr> HDMI audio & video output 1 routed to input m

CV5,m <cr> HDMI audio & video output 5 routed to input m

CA1,m <cr> SPDIF audio output 1 routed to input m

CA5,m <cr> SPDIF audio output 5 routed to input m

(Where input m = 1-8)

12

Genesis Digital™ HDMI Matrix Switches

Important Note on Control Commands

Almost all commands issued to the Matrix will elicit a response from the Matrix once
the command is accepted and execution completed.

4.1.1 Make HDMI Audio & Video ties:

Command: CVn,m<cr> stands for Connect HDMI Audio & Video Output n to
Response: CVn,m<cr> input m (where n = output [1-8], m = input [1-8])

Query:

Command: CVn<cr> stands for Connect HDMI Audio & Video Output n
Response: CVn,m<cr> Query (where m = input [1-8])

Command: CV*,m<cr> stands for Connect All HDMI Audio & Video Outputs
Response: CV1,m<cr> to input m (where * = all outputs)

CV2,m<cr>
CV3,m<cr>
CV4,m<cr>
CV5,m<cr>
CV6,m<cr>
CV7,m<cr>
CV8,m<cr>

Command: CV*<cr> stands for Connect All HDMI Audio & Video Output
Response: CV1,m<cr> Query (where * = all outputs , m = input [1-8])

CV2,m<cr>
CV3,m<cr>
CV4,m<cr>
CV5,m<cr>
CV6,m<cr>
CV7,m<cr>
CV8,m<cr>

4.1.2 Make SPDIF Audio ties:

Command: CAn,m<cr> stands for Connect SPDIF Audio Output n to input m
Response: CAn,m<cr> (where n = output [1-8], m = input [1-8])

Query:

Command: CAn<cr> stands for Connect SPDIF Audio Output n Query
Response: CAn,m<cr> (where n = output [1-8], m = input [1-8])

Command: CA*,m<cr> stands for Connect All SPDIF Audio Outputs to input
Response: CA1,m<cr> m (where * = all outputs , m = input [1-8])

CA2,m<cr>
CA3,m<cr>
CA4,m<cr>
CA5,m<cr>
CA6,m<cr>
CA7,m<cr>
CA8,m<cr>

Command: CA*<cr> stands for Connect All SPDIF Audio Query Output
Response: CA1,m<cr> (where * = all outputs , m = input [1-8])

CA2,m<cr>

13

HSM-I-08-08

CA3,m<cr>
CA4,m<cr>
CA5,m<cr>
CA6,m<cr>
CA7,m<cr>
CA8,m<cr>

4.1.3 Make HDMI Audio & Video ties plus SPDIF Audio ties:

Command: COn,m<cr> stands for Connect Output n to input m
Response: COn,m<cr> (where n = output [1-8], m = input [1-8])

Query:

Command: COn <cr> stands for Connect Output n Query
Response: COn,m<cr> (where n = output [1-8], m = input [1-8])

Command: CO*,m<cr> stands for Connect All Outputs to input m
Response: CO1,m<cr> (where * = all outputs , m = input [1-8])

CO2,m<cr>
CO3,m<cr>
CO4,m<cr>

CO5,m<cr>
CO6,m<cr>
CO7,m<cr>
CO8,m<cr>

Command: CO*<cr> stands for Connect All Outputs Query
Response: CV1,m<cr> (where * = all outputs , m = input [1-8])

CV2,m<cr>
CV3,m<cr>
CV4,m<cr>

CV5,m<cr>
CV6,m<cr>
CV7,m<cr>
CV8,m<cr>
CA1,m<cr>
CA2,m<cr>
CA3,m<cr>
CA4,m<cr>

CA5,m<cr>
CA6,m<cr>
CA7,m<cr>
CA8,m<cr>

4.2 Preset Save and Recall Functions

Command: PRx<cr> stands for Preset Recall (where x = preset 1~ 8,
Response: CV1,m<cr> m = input [1-8])

CV2,m<cr>
CV3,m<cr>
CV4,m<cr>

CV5,m<cr>

14

Genesis Digital™ HDMI Matrix Switches

CV6,m<cr>
CV7,m<cr>
CV8,m<cr>
CA1,m<cr>
CA2,m<cr>
CA3,m<cr>
CA4,m<cr>

CA5,m<cr>
CA6,m<cr>
CA7,m<cr>
CA8,m<cr>

Command: PSx<cr> stands for Preset Save (where x = preset 1~ 8)
Response: PSx<cr>

4.3 Power Functions

Command: PW1<cr> stands for Power On (where m = input [1-8])
Response: PW1<cr>

CV2,m<cr>
CV3,m<cr>
CV4,m<cr>

CV6,m<cr>
CV7,m<cr>
CV8,m<cr>
CA1,m<cr>
CA2,m<cr>
CA3,m<cr>
CA4,m<cr>

CA6,m<cr>
CA7,m<cr>
CA8,m<cr>

CV1,m<cr>

CV5,m<cr>

CA5,m<cr>

Important Note on Power ON Command

This command can take up to 6 seconds to complete. Upon powering up the unit will recall the
previous state of each output prior to powering off and restore each connection.

Command: PW0<cr> stands for Power Off
Response: PW0<cr>

Query:

Command: PW<cr> stands for Power Query
Response: PWx<cr> x=0 (off), or 1 (on)

4.4 Factory Defaults

Command: FD<cr> stands for Factory Defaults
Response: FD<cr>

15

HSM-I-08-08

Issuing a factory Defaults command will set all current and preset HDMI Audio/Video ties
plus SPDIF Audio ties 1 to 1 as if issuing a command COn,m where n = m = 1-8. Holding
the PWR button down for 1 second while powering up the HSM Matrix will also perform a
Factory Defaults.

4.5 Firmware Version

Command: FW<cr> stands for Firmware Version
Response: FP Version:x.x<cr> Front Panel Firmware Version

Main Version:x SW:x.xx<cr> Main Firmware Version
Input Version:x SW:x.xx<cr> Input Firmware Version
Output Version:x SW:x.xx<cr> Output Firmware Version

4.6 HDMI Output (Blank Video & Mute Audio)

Command: HOn,x<cr> stands for HDMI Video & Audio output (where
Response: HOn,x<cr> n = output [1-8], x=[0-1] = [disconnect-connect])

Query:

Command: HO*,x<cr> stands for HDMI Video & Audio output (where
Response: HO1,x<cr> * = all outputs, x=[0-1] = [disconnect-connect])
HO2,x<cr>

HO3,x<cr>
HO4,x<cr>
HO5,x<cr>
HO6,x<cr>
HO7,x<cr>
HO8,x<cr>

4.7 HDMI Audio

Command: HAn,x<cr> stands for HDMI Audio activation (where
Response HAn,x<cr> n = output [1-8], x=[0-1] = [not active-active])

Query:

Command: HA*,x<cr> stands for HDMI Audio activation (where
Response: HA1,x<cr> n = output [1-8], x=[0-1] = [not active-active])

HA2,x<cr>
HA3,x<cr>
HA4,x<cr>
HA5,x<cr>
HA6,x<cr>
HA7,x<cr>
HA8,x<cr>

4.8 Menu Contrast

Command: MCx<cr> stands for LCD menu contrast (where x = 1-100)
Response MCx<cr>

Query:

Command: MC <cr> stands for LCD menu contrast Query
Response: MCx<cr> (where x = 1-100)

16

Genesis Digital™ HDMI Matrix Switches

4.9 Naming Input

Command: NIx,[yyy]<cr> stands for naming input (where x = 1-8
Response NIx,[yyy]<cr> [yyy] = 16 characters long)

Query:

Command: NIx<cr> stands for naming input Query (where x = 1-8
Response: NIx,[yyy]<cr> [yyy] = 16 characters long)

4.10 On Screen Display

Command: OSx<cr> stands for OSD (where x = 0-1 = Off-On)
Response OSx<cr>

Query:

Command: OS<cr> stands for OSD Query (where x = 0-1 = Off-On)
Response: OSx<cr>

4.11 On Screen Display Timer

Command: OTx<cr> stands for OSD (where x = OSD Timer [1-100],
Response OTx<cr> x = Always On [101])

Query:

Command: OT<cr> stands for OSD Query (where x = OSD Timer
Response: OTx<cr> [1-100], x = Always On [101])

4.12 On Screen Display Box

Command: OBx<cr> stands for OSD Box position
Response OBx<cr> on screen (where x = 0 – 8)

Query:

Command: OB<cr> stands for OSD Box position Query
Response: OBx<cr> (where x = 0 – 8)

4.13 HDCP

Command: HDm<cr> stands for HDCP Status Query on input m
Response: HDm,x<cr> x = 0 (no video detected on input)

Query:

Command: HD*<cr> stands for HDCP Status Query on all inputs
Response: HD1,x<cr> (where * = all inputs , x = 0-2)

HD2,x<cr>
HD3,x<cr>
HD4,x<cr>
HD5,x<cr>
HD6,x<cr>
HD7,x<cr>
HD8,x<cr>

x = 1 (video detected on input without HDCP)
x = 2 (video detected on input with HDCP)

17

HSM-I-08-08

This command is useful for several purposes. For example, if you do not have HDCP
compliant displays on all outputs and you try to send an input with HDCP to an output
display that is not HDCP compliant, you will not get an image. This command enables
you to check the status of each input and only route content that can be displayed to
those outputs. In addition, since this command detects presence of video on inputs,
you can use it to check status of inputs and reroute outputs if there is no video on the
input currently routed.

4.14 Current Status

Command: ST<cr> stands for Status Query
Response: PW1<cr>

CV1,m<cr> DH1,x<cr> MCx<cr>
CV2,m<cr> DH2,x<cr> OSx<cr>
CV3,m<cr> DH3,x<cr> OTx<cr>
CV4,m<cr> DH4,x<cr> OBx<cr>

CV5,m<cr> DH5,x<cr> NI1,[yyy]<cr>
CV6,m<cr> DH6,x<cr> NI2,[yyy]<cr>
CV7,m<cr> DH7,x<cr> NI3,[yyy]<cr>
CV8,m<cr> DH8,x<cr> NI4,[yyy]<cr>
CA1,m<cr> AH1,x<cr> NI5,[yyy]<cr>
CA2,m<cr> AH2,x<cr> NI6,[yyy]<cr>
CA3,m<cr> AH3,x<cr> NI7,[yyy]<cr>
CA4,m<cr> AH4,x<cr> NI8,[yyy]<cr>

CA5,m<cr> AH5,x<cr>
CA6,m<cr> AH6,x<cr>
CA7,m<cr> AH7,x<cr>
CA8,m<cr> AH8,x<cr>

4.15 Error Commands

ERR1 – Invalid command sent by the user (Any commands other than the above list)
ERR2 – The user sends a command to the HSM matrix while the power is off
ERR3 – The front panel is in use. The front panel times out after 8 seconds if no

activity is detected from the user.

HSM matrices equipped with IP Port have special Serial
Commands to change IP address parameters. Please refer section

5.3 IP Specific Serial Commands for further info.

Notice about Additional Commands

18

Genesis Digital™ HDMI Matrix Switches

Serial

Control

Control

Telnet

Control

Control

5. IP Control Basics

IP

As shown in the figure above, the matrix can be controlled via RS232 Serial port or
through an IP (Ethernet) port if equipped.

The IP interface features a built-in web server allowing web browsers running on
different devices (computer, smart-phone, tablet) on the network to control and
monitor matrix through HTTP protocol on port 80. (Section 5 will walk you through this
HTTP based Web Interface).

The IP interface also supports telnet connection over port number 6324 to control and
monitor matrix. (Section 6 will walk you through this telnet-based interface)

The IP interface on every m atrix shipped has a unique MAC-address, and must have a
valid IP-address to function properly on the network.

HTTP

Figure 8 – IP Control Block Diagram

RS-232

Port

Port 80

Web Server

Port 6324

Telnet Server

Matrix
Command
Processing

Notice

As shipped from factory DHCP is enabled. This means that the network
automatically assigns an IP address to your Matrix.

To find the IP address assigned to the matrix, please use Device Finder Software
to get current IP address of Matrix.

Device Finder is available on the Product’s webpage.

19

HSM-I-08-08

5.1 Getting Device IP Address

Your.device.ip.address

The HSM matrix comes preconfigured for DHCP, which means it will automatically
obtain an IP address when it is connected to the LAN. It is recommended that you set
a static IP on each system in order to guarantee it maintains the same address. In
order to set a static IP you must first discover what DHCP address was issued and
then login to reconfigure the settings.

Download and install the Hall Research Device Finder utility. Once installed, run the
program. It will scan your LAN and locate any devices that are connected.

Figure 9- Device Finder

5.2 Controlling the Matrix via Web Interface

The Genesis Matrices with IP option have a powerful, yet easy to use IP based web
interface to control and monitor matrix. Web browser application running on any device
(Computer, Smartphone, iPad™) on the same network can use this interface.

Once you have the correct IP address of your device, open web browser of your choice
and type http://your.device.ip.address in address bar and hit Enter.

The webserver will automatically format the display for the browser it is running on.
This means that on a Smart Phone the width and character sizes will be optimized so
you don’t have to deal with zooming and scrolling the screen to use the unit.

Furthermore, all elements on the screen are automatically updated from server side.
This means that if the video routing is altered by the front panel of the matrix or
another simultaneous LAN connection, your screen will automatically reflect the
change.

20

Genesis Digital™ HDMI Matrix Switches

Figure 10 – Control via web Interface

Web interface allows the user to change/monitor matrix I/O ties, assign names to
Inputs, outputs and presets as well as change IP address, assign static IP address,
enable/disable password protected login etc…

Preset, Input and Output names are saved permanently in matrix unless user changes
it. Matrix also remembers Presets even when not powered.

The web interface is very user friendly and easy to access. It consists of three tabs
named Routing, Labels and Settings. Each tab, its sub tabs and its features are
explained in next sections.

5.2.1 Routing Tab

Routing tab allows user to control matrix I/O ties, save current configuration as preset,
load existing presets and turn the matrix On/Off. Routing tab consists of two sub tabs
named Video and Audio. Video routing sub tab is used to control HDMI I/O ties where
as audio routing sub tab is used to control SPDIF audio I/O ties.

5.2.1.1 Video routing sub tab

Please refer to Figure 11 for a typical screen of Video routing sub tab as it would
appear on a Smart-Phone.

21

HSM-I-08-08

Blank

When checked it will stop outputting HDMI signal from respective output port.

HDMI Outputs Column

Displays HDMI output names. You cannot change the output names (labels) here.
Labels can be changed using the HDMI Outputs labels tab under labels tab.

HDMI Inputs Column

Eight dropdown buttons allow user to select Input to tie to respective Output. It also
shows current ties status and updates in real time.

Sync A/V

When checked from this tab, it will sync SPDIF audio output with respective HDMI
output and vice versa when checked from Audio tab.

Recall

First select preset you want to load from dropdown menu and then click Recall button
to load existing configuration from memory.

22

Figure 11 – Video routing sub tab

Genesis Digital™ HDMI Matrix Switches

Save Preset

Select preset name from dropdown menu and Click Save Preset to save current tie
pattern as a preset.

ON/OFF

These buttons show the current status of Matrix’s power and can be used to turn it on
and off. The button with red boarder is the current state and cannot be clicked. The
other one is available. So for example in the above picture, the matrix is ON and you
can turn it off if you click on OFF button.

5.2.1.2 Audio routing sub tab

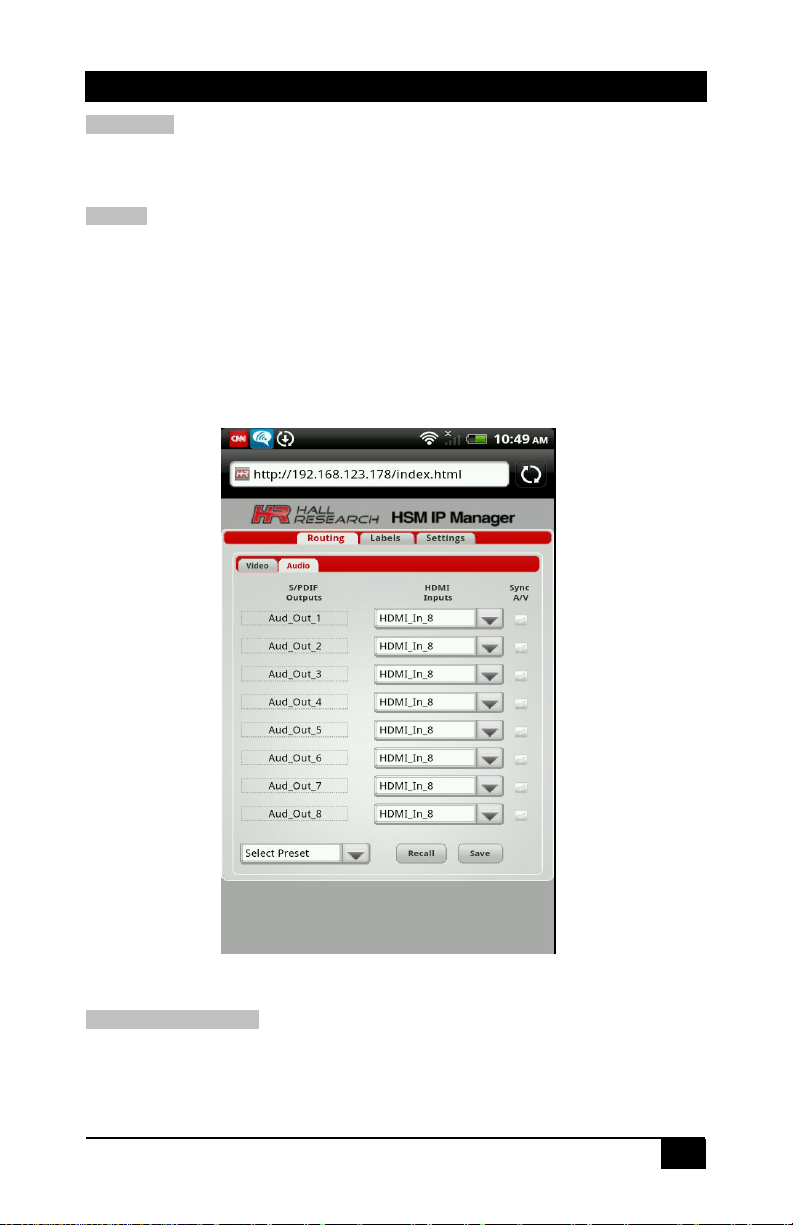

Please refer to Figure 12 for a typical screen of Audio routing sub tab, as it would
appear on a Smart-Phone.

Figure 12 – Audio routing sub tab

S/PDIF Outputs Column

Displays S/PDIF audio output names. You cannot change the output names (labels)
here. Labels can be changed using the S/PDIF Outputs labels tab under labels tab.

23

HSM-I-08-08

HDMI Inputs Column

Eight dropdown buttons allow user to select Input to tie to respective Output. It also
shows current ties status and updates in real time.

Sync A/V

When checked from this tab, it will sync HDMI output with respective S/PDIF output
and vice versa when checked from video tab.

Recall

See section 5.2.1.1.

Save Preset

See section 5.2.1.1.

5.2.2 Labels Tab

Figure 13 – HDMI Input sub tab

Labels tab has four sub tabs named HDMI Inputs, HDMI outputs, S/PDIF outputs and
Presets. Each sub tab has several text fields for entering label names and an ‘Apply’
button to save changes. Figure 13 above, shows contents of HDMI Inputs tab under
labels tab.

24

Genesis Digital™ HDMI Matrix Switches

User can assign names of his/her choice to Inputs, Outputs and Presets in this tab.

Label names are limited to sixteen characters long including white spaces, and can
have special symbols.

Apply

Each sub tab of labels tab has one Apply button to save labels on that sub tab. Click
this button to save your changes after changing names.

5.2.3 Settings Tab

Settings tab has three sub tabs named, Network, OSD and Device. Network sub tab
allows user to change matrix name, location, IP address, DHCP settings, telnet
settings etc… OSD sub tab consist of settings pertaining to OSD. Device sub tab lets
user to change LCD contrast, login password and load factory defaults.

5.2.3.1 Network sub tab

Please refer to Figure 14 below, for a typical screen of Network settings sub tab, as it
would appear on a Smart-

Phone.

Figure 14 – Network sub tab

25

HSM-I-08-08

NAME

User defined name for matrix. Name can be sixteen (16) characters including spaces
and special characters.

LOCATION

User defined location of matrix. Location can be twenty (20) characters long including
white spaces and special characters.

IP

Displays current IP address of Matrix and if DHCP is disabled, it allows user to enter
new IP address.

SUBNET

Displays current SUBNET address and allows user change it If DHCP is disabled.

GATEWAY

Displays current GATEW AY address and allows user change it if DHCP is disabled.

DHCP

Enables/ Disables DHCP.

LOGIN

Enable /Disable login password.

TELNET

Enable /Disable telnet interface. See Section 6 for more detail

Apply

Must click this button to apply and save any changes made to this tab.

26

Genesis Digital™ HDMI Matrix Switches

5.2.3.2 OSD sub tab

Please refer to Figure 15 below, for a typical screen of OSD settings sub tab, as it
would appear on a Smart-Phone.

Figure 15 – OSD sub tab

OSD

Show /Hide OSD.

OSD Type

Keep OSD on for specified time in OSD Time (Timed) OR keep it on forever (Always
On).

OSD Time

Holds OSD time out value in seconds when selected OSD Type is Timed.

OSD Position

Select position of the OSD.

Apply

Must click to apply and save any changes made to this tab.

27

HSM-I-08-08

5.2.3.3 Device sub tab

Please refer to Figure 16 below, for a typical screen of Device settings sub tab, as it
would appear on a Smart-Phone.

LCD Contrast

Change contrast of LCD on Matrix’s front panel.

Figure 16 – Device sub tab

Active

Enable/Disable embed audio in HDMI signal. When checked, audio in HDMI output is
active (enabled). When unchecked, audio in HDMI output will be inactive (mute).

Factory Reset

This button loads factory defaults to Matrix. It will reset unit to factory default values.
Factory default will also wipe out saved presets.

Change Password?

Allow user to change existing password. When clicked, a new window will pop up for
entering the new password. Password length is limited to eight (8) characters long.

28

Genesis Digital™ HDMI Matrix Switches

Field

Value

Tab in GUI

Power

Off

Video Routing

HDMI Input 1

HDMI_In_1

HDMI Inputs

HDMI Input 2

HDMI_In_2

HDMI Inputs

HDMI Input 3

HDMI_In_3

HDMI Inputs

HDMI Input 4

HDMI_In_4

HDMI Inputs

HDMI Input 5

HDMI_In_5

HDMI Inputs

HDMI Input 6

HDMI_In_6

HDMI Inputs

HDMI Output 3

HDMI_Out_3

HDMI Outputs

HDMI Output 4

HDMI_Out_4

HDMI Outputs

HDMI Output 5

HDMI_Out_5

HDMI Outputs

HDMI Output 6

HDMI_Out_6

HDMI Outputs

HDMI Output 7

HDMI_Out_7

HDMI Outputs

HDMI Output 8

HDMI_Out_8

HDMI Outputs

S/PDIF Output 1

Aud_Out_1

S/PDIF Outputs

S/PDIF Output 2

Aud_Out_2

S/PDIF Outputs

S/PDIF Output 7

Aud_Out_7

S/PDIF Outputs

S/PDIF Output 8

Aud_Out_8

S/PDIF Outputs

Preset 1

PRESET_1

Presets

Preset 2

PRESET_2

Presets

Preset 3

PRESET_3

Presets

Preset 4

PRESET_4

Presets

Preset 5

PRESET_5

Presets

Preset 6

PRESET_6

Presets

Subnet

Based on IP

Network

Gateway

Assigned by DHCP

Network

DHCP

Enabled

Network

Login

Disabled

Network

Telnet

Disabled

Network

Default Password

pass

5.2.4 Factory Default Settings

HDMI Input 7 HDMI_In_7 HDMI Inputs

HDMI Input 8 HDMI_In_8 HDMI Inputs
HDMI Output 1 HDMI_Out_1 HDMI Outputs
HDMI Output 2 HDMI_Out_2 HDMI Outputs

S/PDIF Output 3 Aud_Out_3 S/PDIF Outputs
S/PDIF Output 4 Aud_Out_4 S/PDIF Outputs
S/PDIF Output 5 Aud_Out_5 S/PDIF Outputs
S/PDIF Output 6 Aud_Out_6 S/PDIF Outputs

Preset 7 PRESET_7 Presets
Preset 8 PRESET_8 Presets

Name HSM Matrix Network

Location Hall Research Network

IP Assigned by DHCP Network

29

HSM-I-08-08

5.3 IP Specific Serial Commands

HSM matrix equipped with IP interface allows user to assign Static IP address using
Serial Interface with standard RS-232. Please refer section 4 to connect PC to Matrix
over serial interface. Once you are connected use following Commands to assign IP
address or load factory defaults. As with all other commands, baud rate is 115kbps

5.3.1 Change network settings of unit

Note: All commands are case sensitive

Command: IP<space><ip_address_value><cr> stands for new IP address value

Error Response: ERR! IP address is either Invalid Or not changed
Success Response: IP=<ip_address_value>

Command: SB<space><subnet_address_value><cr> stands for new Subnet address

value

Error Response: ERR! SUBNET address is not valid.
Success Response: SUBNET=<subnet_address_value>

Command: GW<space><gateway_address_value><cr> stands for new gateway

address value

Error Response: ERR! GATEWAY Address is not valid.
Success Response: GATEWAY=<subnet_address_value>

WAIT until you see following Welcome message on Screen. It confirms that device
has done with applying settings and serial interface is ready for other commands.

Notice

User MUST enter ALL THREE Commands mentioned above with correct values
and must get ‘success response’ for each to change IP address.

Following message confirms that user has got ‘success response’ for all above
commands and device is now applying user settings:

“Applying settings to Matrix please wait”

“Welcome to Hall Research HSM matrix serial interface.

Please refer to user manual for matrix serial commands.”

30

Genesis Digital™ HDMI Matrix Switches

5.3.2 Load factory defaults

To load factory defaults from serial interface use following commands.

Command: FD<cr>

Response: Applying settings to Matrix please wait.

Wait until you see following welcome message on terminal screen.

“Welcome to Hall Research HSM matrix.”

(Note: After loading factory defaults Matrix will reset to default values as mentioned in
section 5.2.4 Factory Default Settings)

.”

6. Telnet Interface

HSM Telnet interface is IP based command line interface to control and monitor
matrix. Only one (1) client is allowed to connect at a time through this interface and on
every new connection, old connection will be closed. Telnet connection timeout is set
to infinity or until user closes connection. Telnet authentication depends on
authentication status of web interface. If authentication is enabled, password will be
same as what used for web interface. User can also disable telnet interface from web
interface.

31

HSM-I-08-08

Figure-17 Putty client configuration

To use this interface, user must open TCP socket connection on port 6324. If PC is
used as client, please use Putty telnet client to communicate with matrix. Use figure-17
for configuring putty client on windows machine. Mac and Linux users can use default
telnet client.

6.1 Telnet Interface Commands

Telnet interface uses same commands as HSM serial (RS232) interface. Moreover, it
allows user to use all serial commands that are explained above in section 4. Expected
response is also same as serial interface command response.

7. Troubleshooting

There are no field serviceable parts or circuits in the device. Opening the device will
void the warranty. If you think the device is malfunctioning, please contact Hall
Research.

7.1 Contacting Hall Research

There are no user serviceable parts in the device. Opening the device will void the
warranty.

32

Genesis Digital™ HDMI Matrix Switches

If you determine that your Genesis™ Matrix is malfunctioning, do not attempt to repair
the unit; instead, contact Hall Research Technical Support at 714-641-6607.

Before you do, make a record of the history of the problem. We will be able to provide
more efficient and accurate assistance if you have a complete description.

7.2 Shipping and Packaging

If you need to transport or ship your unit:

• Package it carefully. We recommend that you use the original container.

• Before you ship the units back to Hall Research for repair or return, contact us to

get a Return Authorization (RMA) number.

33

HSM-I-08-08

8. Specifications

Standards

HDMI 1.3 (1.4 compliant for video color depth and 3D), DVI (single link)

Connectors

HDMI Type A (Female) with Locking

Video Data Rate

2.25 Gbps

Supported Colors

RGB, YCbCr 4:4:4, YCbCr 4:2:2, xvYCC

1080p, or 7.5 m (25 ft) at deep color

PC Resolutions

VGA through UXGA

Audio

Supported Formats

PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD

General

Power Supply

12VDC@5A, 2.5mm plug 9.5mm barrel length

Nominal Power

Fully loaded, 17 watts max (3.4 amps @ 5v)

Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, non-condensing

Cooling

Convection

Mounting

Front panel 1RU 19” Rack mountable

Enclosure type

Metal

Product weight

9 lb (4 kg)

Recommended cable

Locking High-Performance HDMI cables

Vibration

ISTA 1A in carton (International Safe Transit Association)

Safety

CE

EMI/EMC

CE, FCC Class A

MTBF

90,000 hours

Warranty

2 years parts and labor

Video

Signal type TMDS video, DDC EDID (0 to 5 v TTL)

HDMI Cable Length From source 15 m (50 ft) at any resolution or color depth, to display 15 m (50 ft)

HD Resolutions 480i , 480p, 576i, 576p,720p, 1080i, 1080p

Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, non-condensing

8 or 12 bits per channel (24 or 36 bits aggregate)

Dimensions 1.69" H x 17.3" W x 7.68" D - F/P Width is 19"

Shipping weight 10 lb (4.5 kg)

(43 mm H x 440 mm W x 195 mm D)

Specifications are subject to change without notice

34

Genesis Digital™ HDMI Matrix Switches

Save Presets

Hit any INPUT or OUTPUT button

To turn off Press and hold power button

Appendix 1 – Front Panel Quick Reference Guide

Figure 18 – Control buttons on the front panel

Function Procedure

View ties or Make ties

Recall Presets



Hit any of the INPUT or OUTPUT Buttons



To change ties, hit any INPUT or OUTPUT then hit SET



Hit PRE (button lights up)

 Hit any INPUT or OUTPUT button


Hold PRE until it starts blinking



Power ON/OFF



To turn on hit power button



Appendix 2 – Command Summary

Command Function

PWx Power on/off x=0 power off, 1 power on

CVn,m Connect HDMI Audio & Video n = output, m= input

CAn,m Connect SPDIF Audio n = output, m= input

COn,m Connect HDMI Audio & Video plus SPDIF Audio n = output, m= input

PRx Preset Recall ... x = preset # can be 1 to 8

Omitting x will show current power status

 Omitting ,m will show current connections

 Omitting ,m will show current connections

 Omitting ,m will show current connections

PSx Preset Save ... x = preset # can be 1 to 8

FD Factory Defaults (Sets current ties and presets 1 to 1)

FW Firmware Version

HOn,x HDMI Video & Audio Output n = output,

HAn,x HDMI Audio activation n = output,

MCx

x = 0 - 1 = Disconnect - Connect

x = 0 - 1 = Not Active - Active

Menu Contrast x = 1 – 100

35

HSM-I-08-08

NIx,[yyy] Naming Input x = input [1 - 8], [yyy] = 16 characters long

OSx On Screen Display x = 0 - 1 = Off - On

OTx

OBx

HDm

ST Status Report

On Screen Display x = OSD Timer [1 – 100], Always On [101]

On Screen Display Box position x = 0 – 8

Read Input Status, m = Input [1 – 8]
Returns: 0 = No Video , 1 = Video, 2 = Video with HDCP

36

Order toll-free in the U.S. 800-959-6439

CUSTOMER

SUPPORT
INFORMATION

© Copyright 2013. Hall Research, Inc.

FREE technical support, Call 714-641-6607 or fax [phone]
Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: [e-mail]

All rights reserved.
