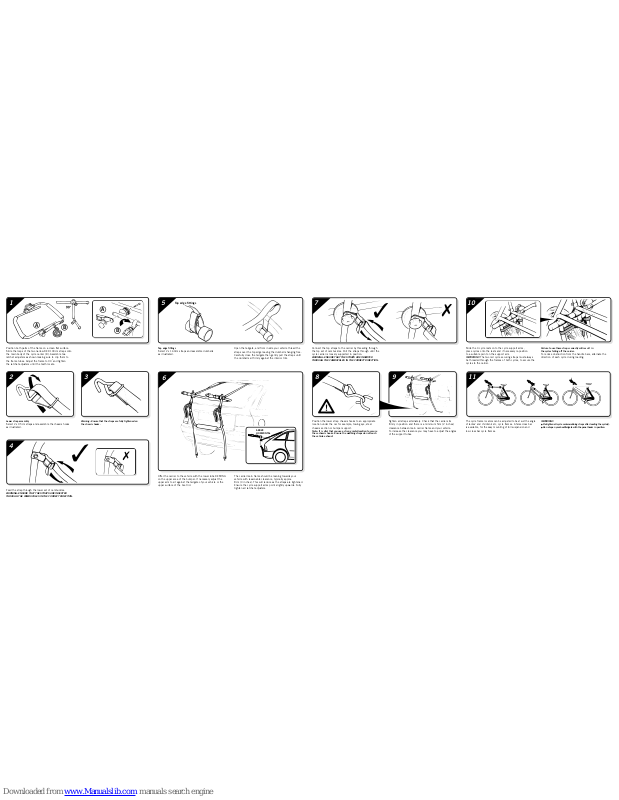

Halfords Low 2 Fitting Instructions Manual
Lower strap assembly
Select 2 x 95cm straps and assemble the chassis hooks
as illustrated.
Feed the strap through the lower set of cambuckles.
WARNING: ENSURE THAT THE STRAPS ARE INSERTED
THROUGH THE CAMBUCKLES IN THE CORRECT DIRECTION.
Warning: Ensure that the straps are fully tightened on
the chassis hooks.
2 3
Position both parts of the frame on a clean flat surface.
Slide the loops of the two narrow RED 100cm straps onto
the main body of the cycle carrier (B). Assemble two
ratchet adjusters as shown making sure to clip them to
the frame tubes. Adjust the frame to 90 and tighten
the ratchet adjusters until the teeth locate.
1
4
5
Top edge fittings
Select 2 x 160cm straps and assemble dumbells
as illustrated.
Open the tailgate, and from inside your vehicle thread the
straps over the top edge leaving the dumbells hanging free.
Carefully close the tailgate then gently pull the straps until
the dumbells sit firmly against the interior trim.
Top edge fittings
7
Connect the top straps to the carrier by threading through
the top set of cambuckles. Pull the straps through until the
cycle carrier is loosely supported in position.
WARNING: ENSURE THAT THE STRAPS ARE INSERTED
THROUGH THE CAMBUCKLES IN THE CORRECT DIRECTION.
IMPORTANT:
●
Re-tighten all cycle carrier-webbing straps after loading the cycle(s).
●
Do not open your boot/tailgate with the panel hooks in position.
The cycle frame locators can be adjusted to best suit the angle
of ladies’ and children's etc, cycle frames. A false cross bar
is available, for the easy mounting of full suspension and
low cross bar cycle frames.
11
Failure to use these straps correctly will result in
the cycles falling off the carrier.
To reduce obstruction from the handle bars, alternate the
direction of each cycle during loading.
10
Slide the 4 cycle rests onto the cycle support arms,
place cycles onto the rests and if necessary re-position
to a suitable point on the support arm.
IMPORTANT:The two red cycle securing straps must always
be threaded through the frames of both cycles, to secure the
cycles to the carrier.
Position the lower strap chassis hooks to an appropriate
location under the car for example; towing eye, steel
chassis section or bumper support.
Note: It is vital that you use a strong metal location to secure
these chassis hooks. Ensure the webbing straps do not touch
the vehicle exhaust.
Tighten all straps alternately. Check that the carrier sits
firmly in position and there is a minimum 5cm (2 inches)
clearance between main carrier frame and your vehicle.
To increase the clearance you may have to adjust the angles
of the support tubes.
8
9
A
A
B
B
o
6
Offer the carrier to the vehicle with the lower tube
RESTING
on the upper area of the bumper. If necessary adjust the
upper arm to sit against the tailgate of your vehicle or the
upper surface of the boot lid.
The carrier main frame should be leaning towards your
vehicle with reasonable clearance, typically approx.
8cm (3 inches). This will reduce as the straps are tightened.
Ensure the cycle support arms point slightly upwards. Fully
tighten all ratchet adjusters.
ABOVE
HORIZONTAL
Low 2 Bike Carrier
Fitting Instructions
Please follow instructions carefully to ensure the safety of yourself and other road users.
The initial assembly and fitting of this carrier will take approximately 20 minutes.
Before you begin:
● Make sure all parts are included in the package.
● Ensure that the vehicle boot lid/rear bumper are free from dirt and grime.
Kit Contents
Special Fitting Instructions
For use when fitting rear cycle carriers
to the Renault Laguna 5dr. Hatch
Due to the rubber moulding running around
the edge of the rear window, mounting of the
top straps along the top edge of the rear
window can cause deformation and eventually
damage to the moulding.
To eliminate this we advise mounting the
carrier top straps as detailed in this
special instruction.
Feed the top straps through the tailgate
hinges as shown (one strap each side),
leaving the glass anchor tube hanging freely
inside (Fig 15). Carefully close hatch and then
pull free ends of straps trapping anchor tubes
against the interior trim. (Fig 16).
Attach both straps to cycle carrier and refer to
the cycle carrier instructions for all
remaining fitting instructions.
Note: The manufacturer operates a policy of continuous
development, and reserves the right to alter specifications
without notice
.
In the event of fitting difficulties, telephone our
helpline on 01525 850800.
12
13
Halfords Ltd. Washford Redditch B98 ODE
Made in the UK
● Avoid any vehicle bodywork of insufficient
strength, trim and items such as aerofoils or
spoilers.
● IMPORTANT! Carrier straps must always be
re-tightened after cycles have been mounted to
the carrier. Straps should be checked routinely
for signs of wear and abrasion, and any worn
straps must be replaced immediately.
● After driving for a few miles STOP and check
that all straps are secure and tight. If
necessary, tighten the straps and tidy away any
loose ends. This must be repeated at suitable
intervals depending on the nature of the road.
● Do not exceed 30kg maximum load
(2 adult cycles).
● To ensure full compliance with the road
traffic regulations, the use of lighting board/
number plate is required if your vehicle’s
existing lighting/number plates are obscured
by the use of the carrier.
● Drive with care, the handling characteristics
of your vehicle will be affected when carrying
cycles, (e.g. cornering, braking, side winds etc).
● Retain these instructions for future
reference, ensure that any other users of the
cycle carrier are familiar with their contents.
● The carrier may obstruct the rear window
wiper of your vehicle. DO NOT operate the
wiper with the carrier fitted.
● When positioning cycles on the carrier
ensure that they do not project beyond the
profile of the vehicle and that no part of any
cycle can touch the paintwork.
● The use of rear mounted cycle carriers may
be restricted in certain countries outside the
UK. Always check with the relevant national
tourist authorities prior to commencing
your journey.
● Use cloth or foam padding to prevent
abrasion damage occurring between the frames
of your cycles, or from contact between the
cycles and the cycle carrier. Halfords foam pad
cycle protectors are available.
● Care must be taken when positioning and
loading the cycle carrier to avoid placing cycle
tyres near the exhaust, and to ensure that a
satisfactory ground clearance is maintained
between the cycles and the road. Extra care
should be taken when negotiating rough road
surfaces, humps and ferry ramps.
● All lengths are approximate.
Special Recommendations
See rear of these instructions for non suitable vehicle fitments
It is recommended that conventional rear mount carriers are not fitted to the following vehicles.
Sports cars Due to insufficient strength of lightweight or composite panels,
and unsuitable body curvature.
Cabriolets Due to fixing points being impeded by hood mechanisms,
and reduced space on rear of vehicle.
Split tailgate Due to insufficient strength of hinges, and difficulty to fit carriers correctly.
S
ide opening
Due to insufficient strength of hinges, and difficulty to fit carriers correctly.
tailgate
In most cases an alternative carrying solution can be recommended, such as a roof or tow ball
mounted carriers. The table below lists some examples of non-recommended fits with some
alternative solutions for carrying cycles (correct at time of printing).
Audi A2
Audi A4
Audi TT
BMW 3 Series (E36)
Citroen AX
Fiat Coupe
Ford Probe
Ford Puma
Jaguar XK8/XKR
Mazda MX-3
Mazda MX-6
Mercedes C-class (W202)
Austin/Rover Mini
Land Rover Discovery
Land Rover Freelander
Range Rover
Rover 400
Vauxhall Tigra
VW Beetle T1 (Old)
VW Beetle (New)
Volvo 480
00019991-98
9295949796919293-01
62-00
8998709594529992-
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount
Roof mount
Roof mount
Roof mount or tow ball mount
Roof mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Roof mount
Roof mount or tow ball mount
Roof mount or tow ball mount
Fitment guide
NON-RECOMMENDED FITS
NON-RECOMMENDED FITS
VEHICLE YEAR SOLUTION
x2
Chassis hook
Main frame
160cm
95cm
Dumbells
100cm
Cambuckle
Ratchet
adjuster
x4
x2
x2
x2x2
x2
Cycle Rests
x2
x4
