HAKO Scrubmaster B260 R, 7182 Operating Manual

Download

Cleaning technology · Municipal technology

Scrubmaster B260 R (7182)

Operating manual

Part number 88-10-3142 - 4070-43 Valid as from: 08.2019

Introduction

Foreword

Dear Customer, We are certain that the excellent qualities of the machine will justify the faith you have shown in us by your purchase. To guarantee safe working with the machine, please read the Safety Notes chapter before putting it into service. Your own safety, as well as the safety of others, depends essentially on your ability to control the vehicle. Please read this original operating manual before you use the vehicle for the first time, act accordingly and keep these instructions for future reference or subsequent users. The operating manual contains all important information for operation, maintenance and care. We have provided the places in this operating manual concerning your safety with a danger pictogram. Your authorised Hako dealer is available at all times to answer further questions about the vehicle or the operating manual.

We would expressly advise you that no legal claims may be asserted based on the contents of this operating manual. In the case of necessary repair work, please make sure that only original spare parts are used. Spare parts must be original spare parts to guarantee safety. We reserve the right to make changes in the interests of further technical development.

Hako GmbH 23843 Bad Oldesloe, Germany Hamburger Str. 209-239 Phone +49 4531 806-0

Issue:

Index Book number Change no. Valid as from:

0 88-10-3142 4070-43 08.2019

2 00-7182-01.fm

Introduction

Intended use

Scrubmaster B260 R is a scrubber-drier for the wet cleaning of hard indoor floor surfaces. This machine is intended for commercial use, e.g. in shopping centres, swimming pools, shops, airports, schools and hotels. The Scrubmaster B260 R with X-AC drive is additionally intended for use in multi-storey car parks. Any use extending beyond this is not intended use. The manufacturer is not liable for any damage resulting from this and the user alone bears the risk. Intended use also includes compliance with the operating, maintenance and servicing conditions specified by the manufacturer. The Scrubmaster B260 R may be used, maintained and repaired only by persons who are familiar with this work and instructed about the dangers. The relevant accident prevention regulations as well as the other generally recognised safety engineering and occupational medical rules must be complied with. The machine corresponds by virtue of its design and construction as well as in the version distributed by us to the usual health and safety requirements of the EC Directives (see Declaration of Conformity). This declaration loses its validity in the event of a modification to the machine not authorised by us. The manufacturer is not deemed liable for any damage resulting from unauthorised modifications to the machine.

Notes on warranty

The terms defined in the purchase agreement apply. Claims for compensation in relation to damage are excluded from the terms of the warranty when the damage is the result of the failure to observe rules concerning servicing and maintenance. Maintenance work must be carried out by an authorised Hako service workshop and confirmed in the “Maintenance Report”, which serves as a warranty logbook. The following are excluded from the terms of warranty: wear and tear through overuse, defective fuses, improper handling and use and unauthorised modifications. Claims under the terms of the warranty are also annulled when damage occurs to the machine resulting from the use of parts or accessories not explicitly approved of by us or from failure to observe maintenance rules.

00-7182-01.fm 3

Introduction

Acceptance of the machine

Inspect the machine immediately on delivery for signs of transport damage. You will be compensated for transport damage provided you immediately have the damage confirmed by the transport company and send in the damage report together with the consignment note to us.

Machine data

Your machine is described clearly by the following data. Please always quote these data in correspondence or when making a telephone query to your authorised Hako dealer or our company.

• Machine type

• Manufacturing no.

• Start-up on:

Your nearest authorised Hako dealer:

• Address

• Telephone

4 00-7182-01.fm

Table of contents

Introduction..................................................................... 2

Foreword ......................................................................... 2

Intended use.................................................................... 3

Notes on warranty ........................................................... 3

Acceptance of the machine ............................................. 4

Machine data ................................................................... 4

1 Safety instructions ......................................................... 8

1.1 Warning and danger symbols ......................................... 8

1.2 General safety instructions ............................................. 9

1.3 Operating safety instructions ........................................ 10

1.3.1 Before putting into service ............................................ 10

1.3.2 During operation ........................................................... 10

1.3.3 After operation .............................................................. 11

1.4 Maintenance instructions .............................................. 12

1.5 Information about special risks ..................................... 13

1.5.1 Electrical system ........................................................... 13

1.5.2 Batteries ....................................................................... 13

1.6 Environmental protection instructions and disposal ..... 15

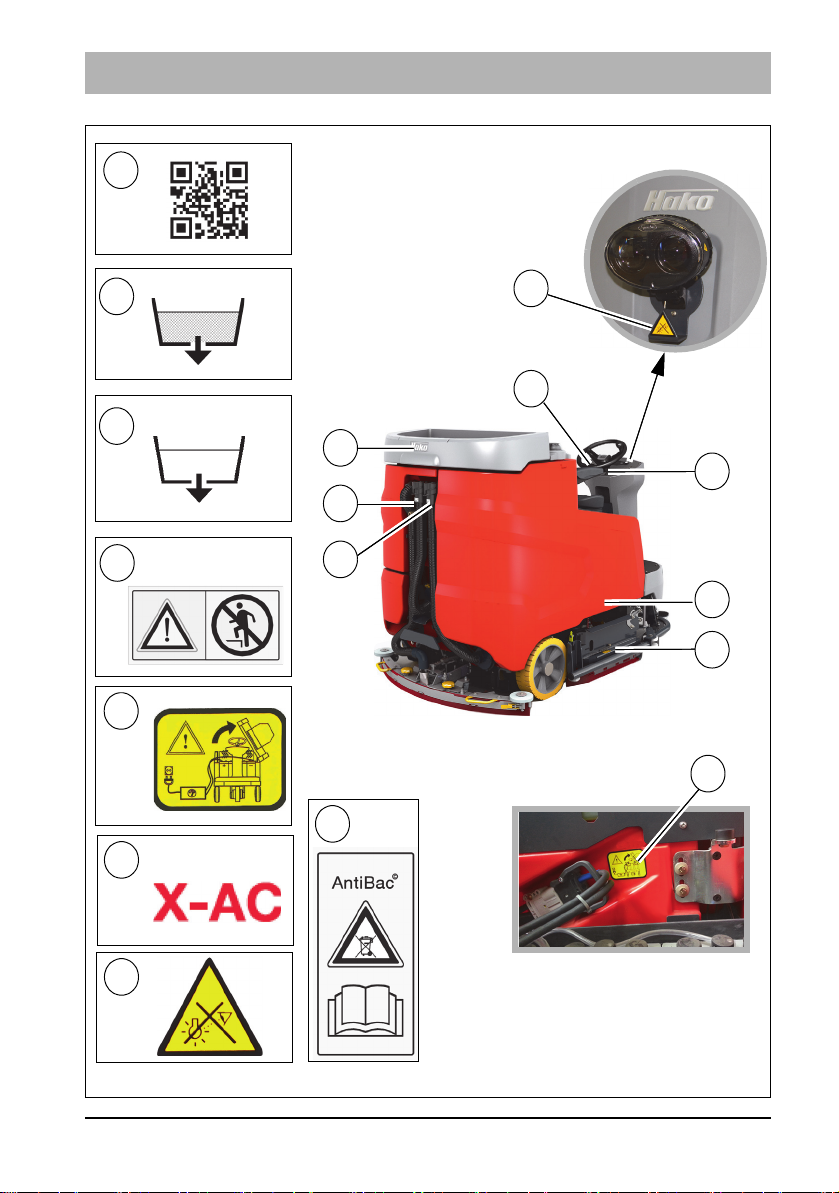

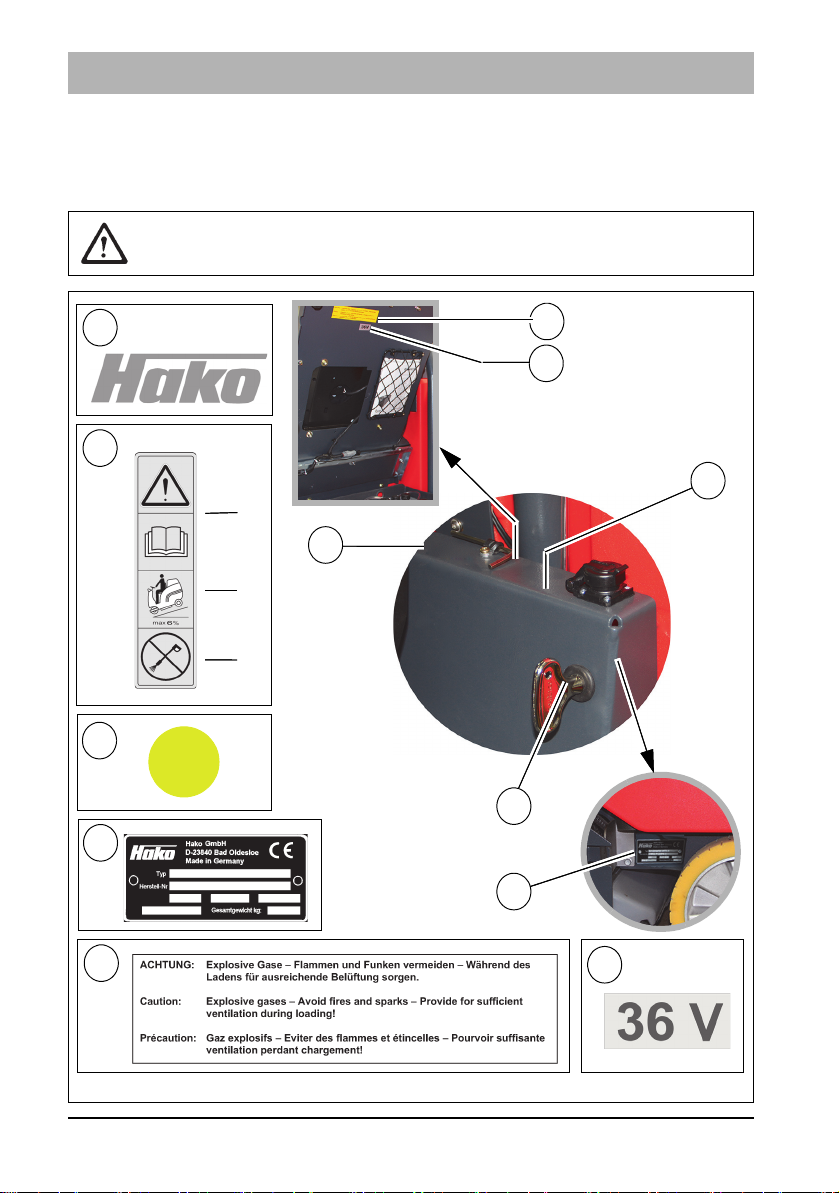

1.7 Labels on the machine ................................................. 16

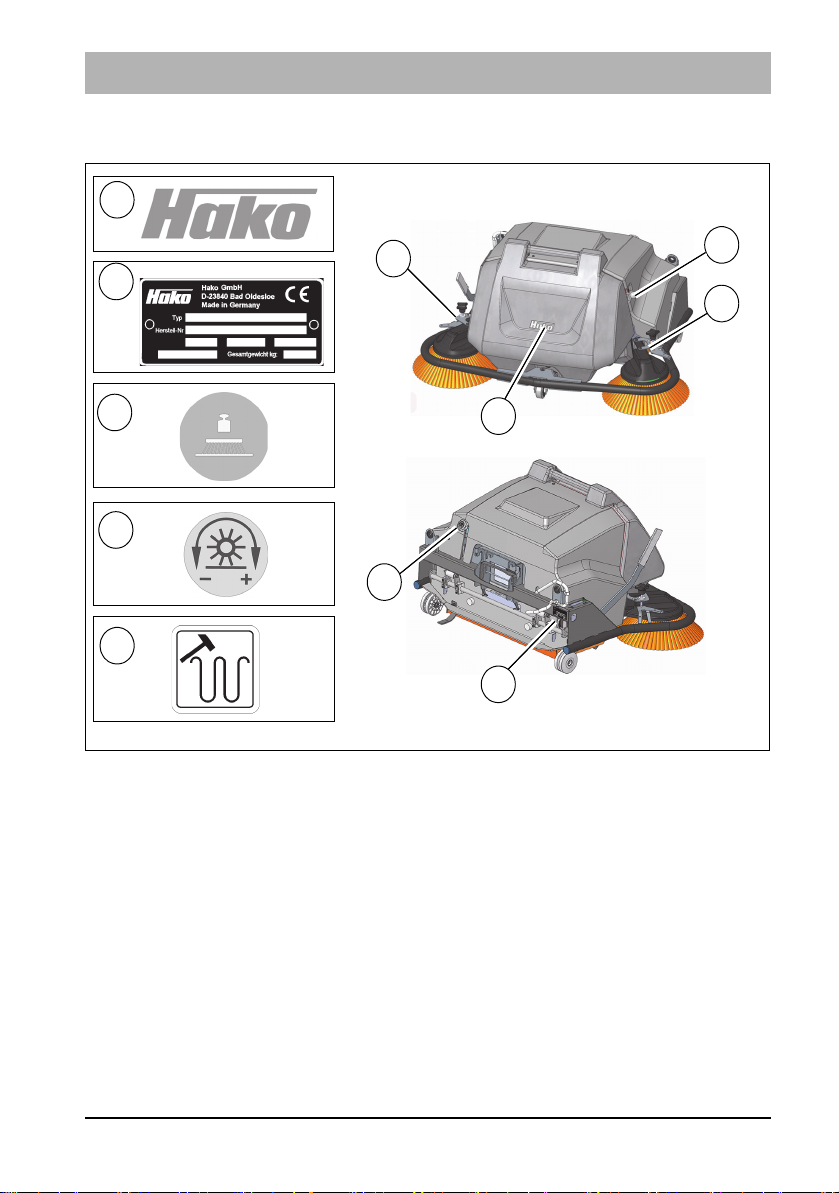

1.8 Labels on the pre-sweep suction unit ........................... 19

2 Operation....................................................................... 20

2.1 Overviews ..................................................................... 20

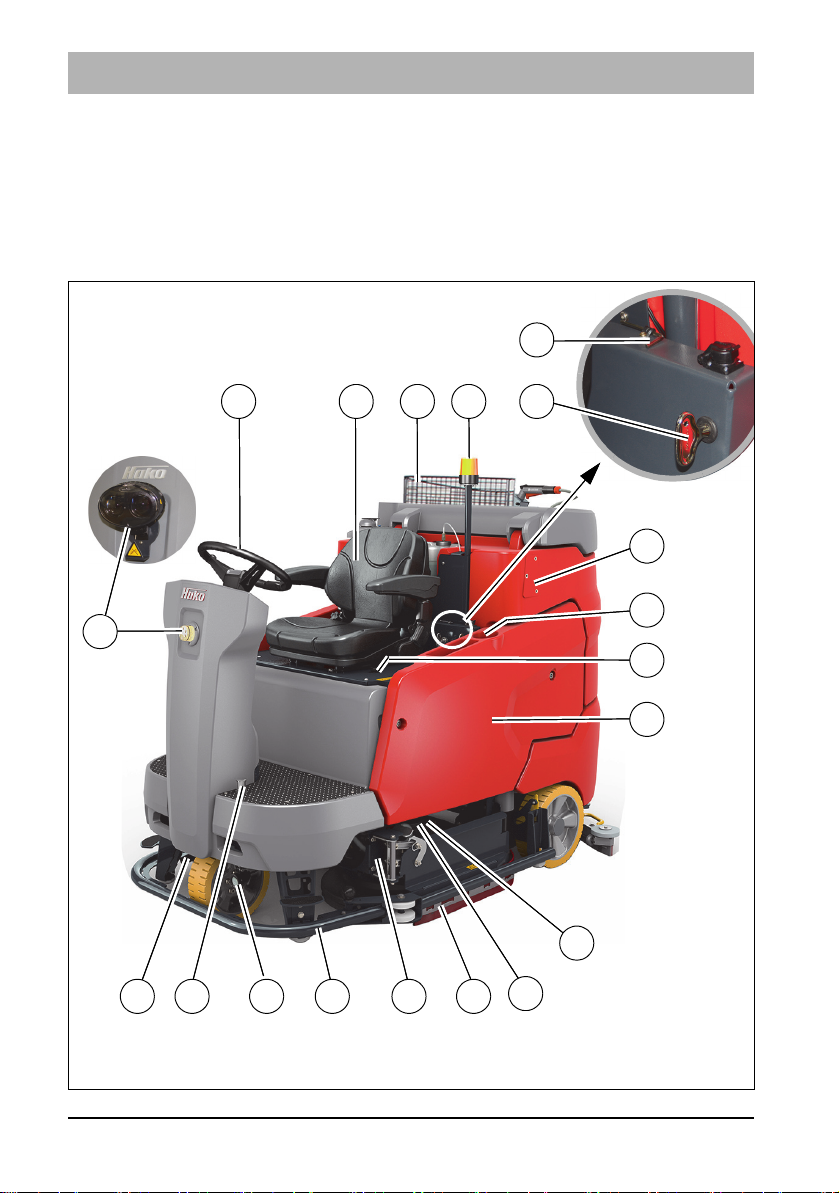

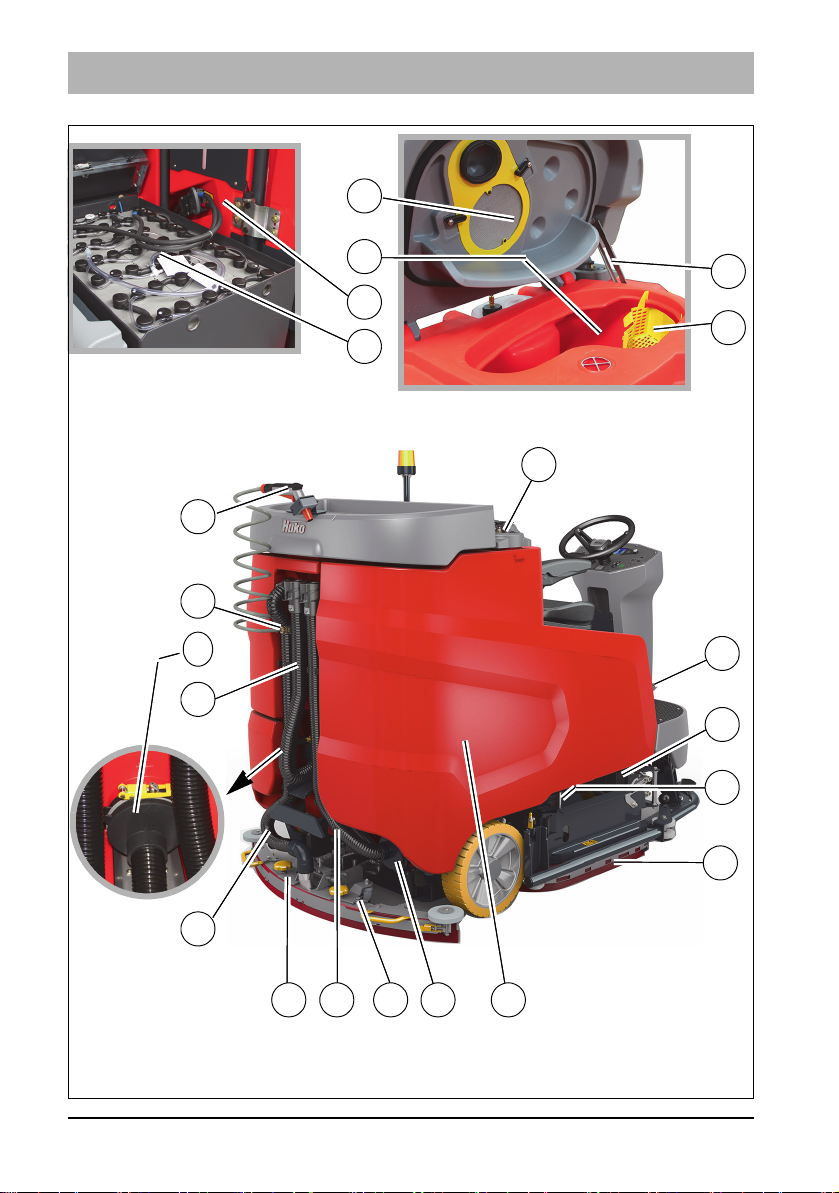

2.1.1 Front view ..................................................................... 21

2.1.2 Rear view ...................................................................... 23

2.1.3 Control panel ................................................................ 24

2.2 Controls and display elements ..................................... 26

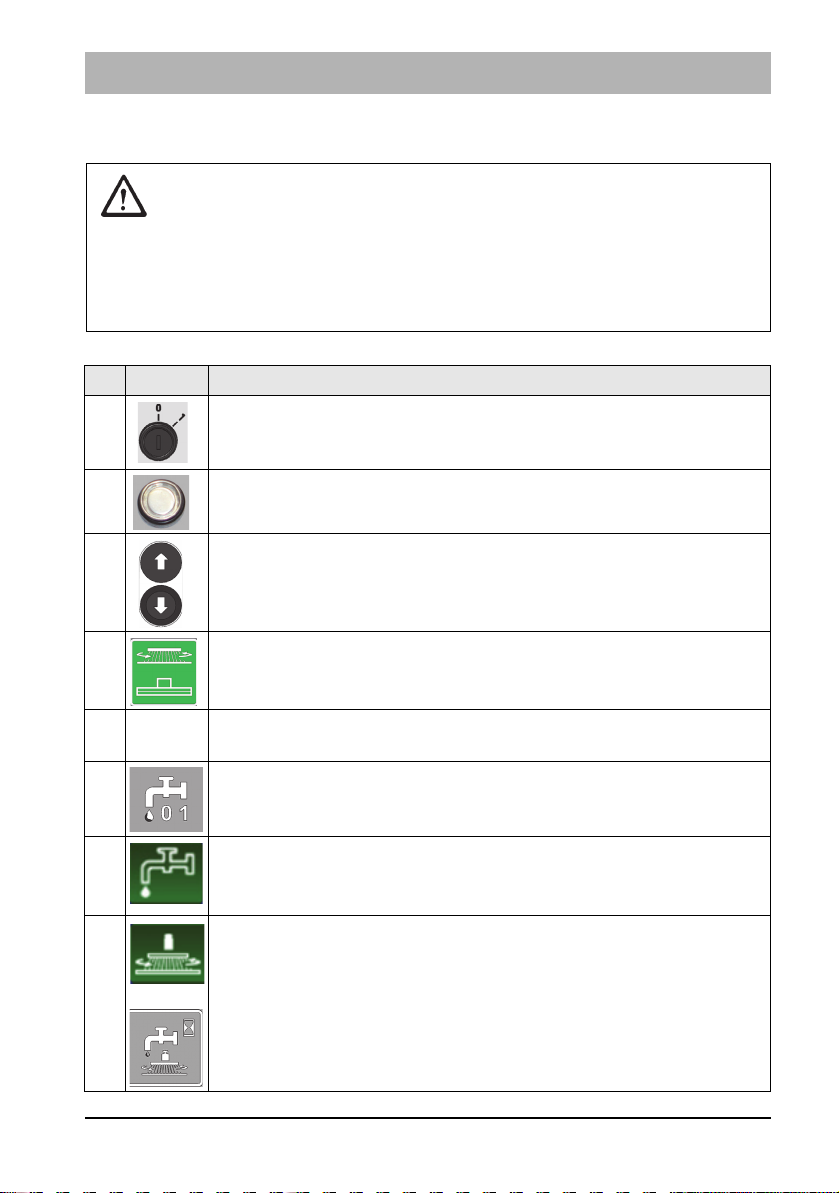

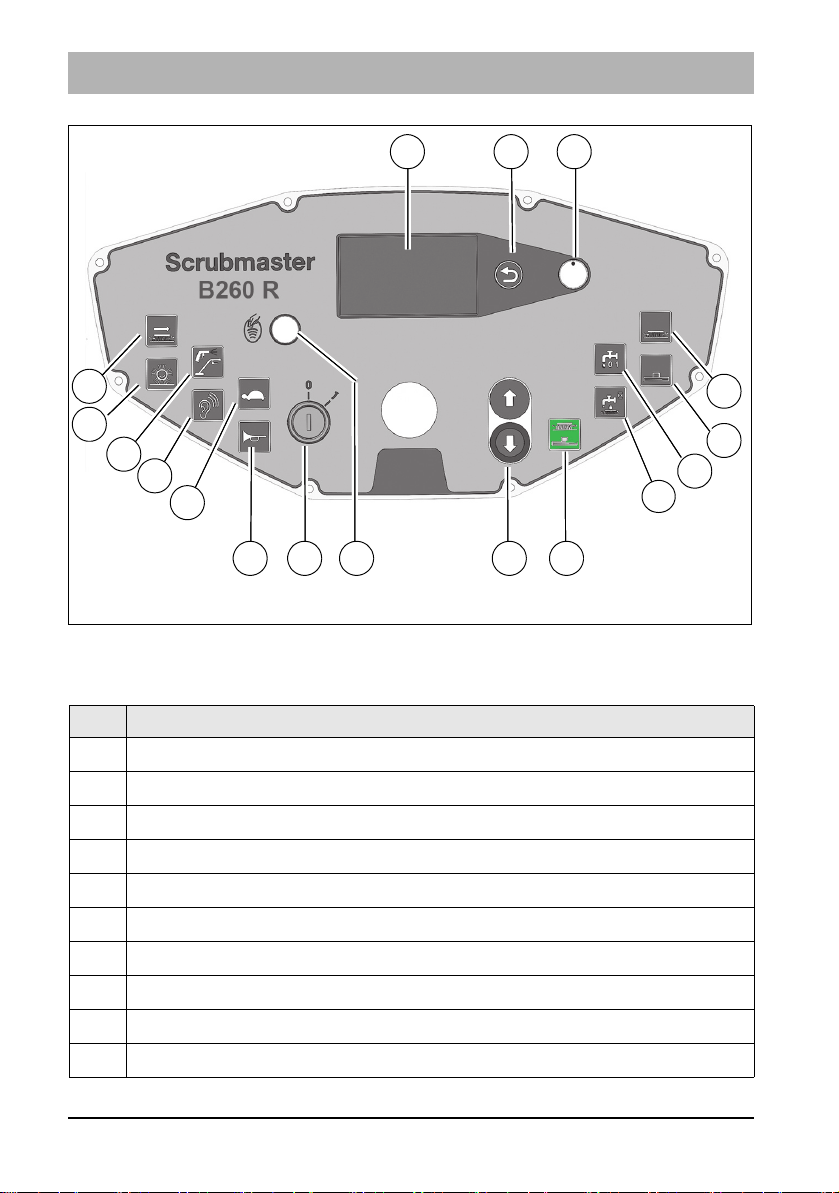

2.2.1 Control panel ................................................................ 26

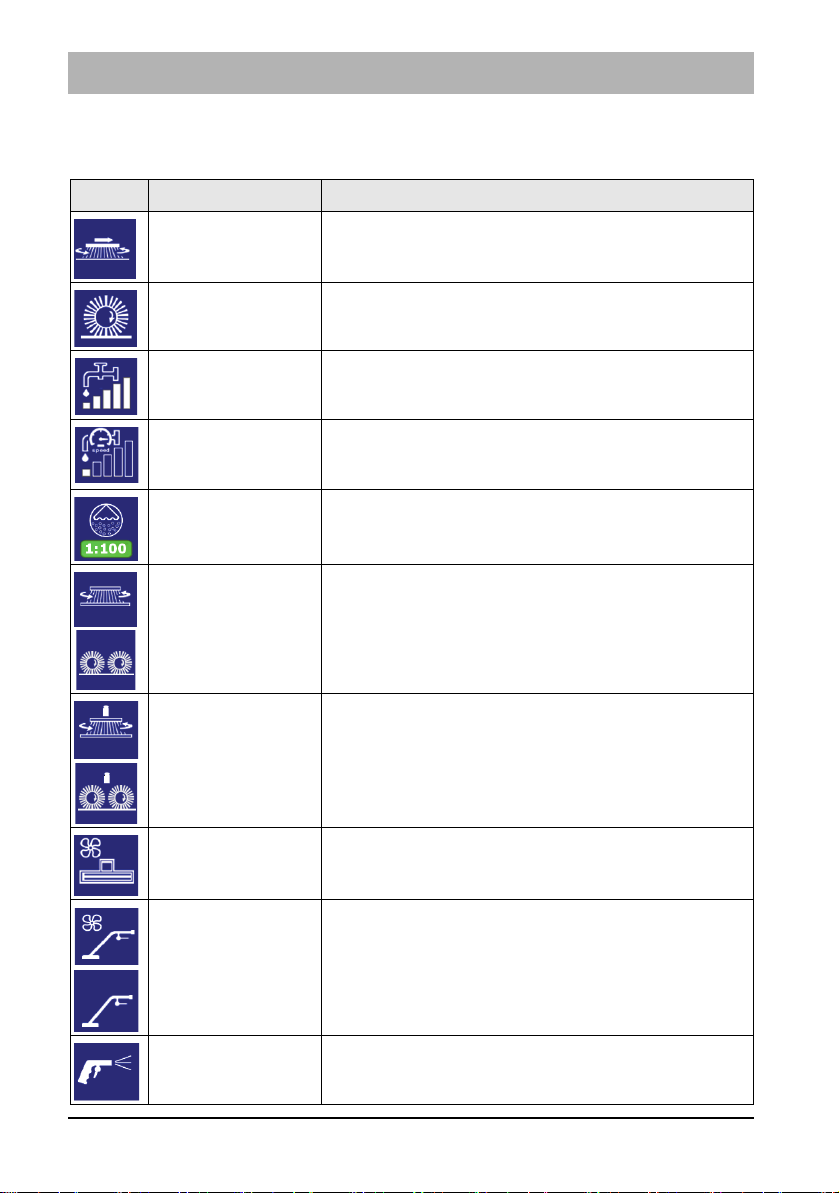

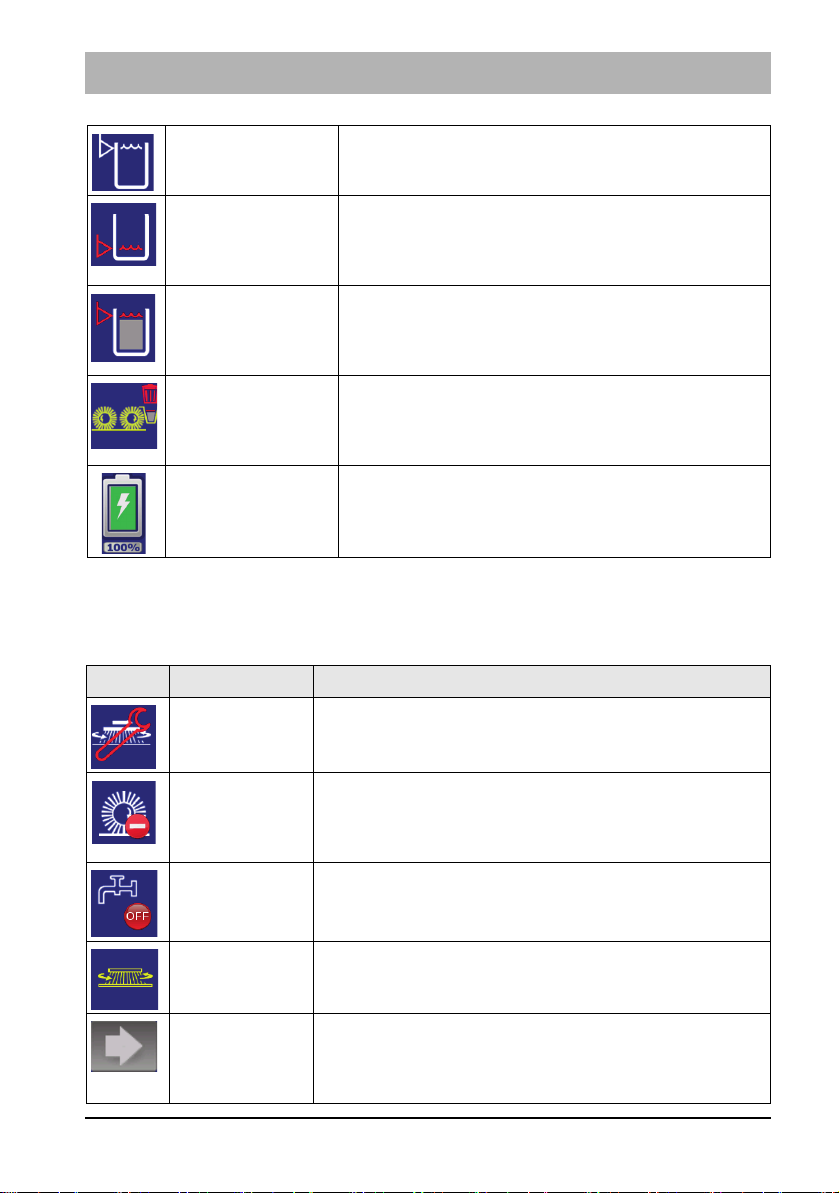

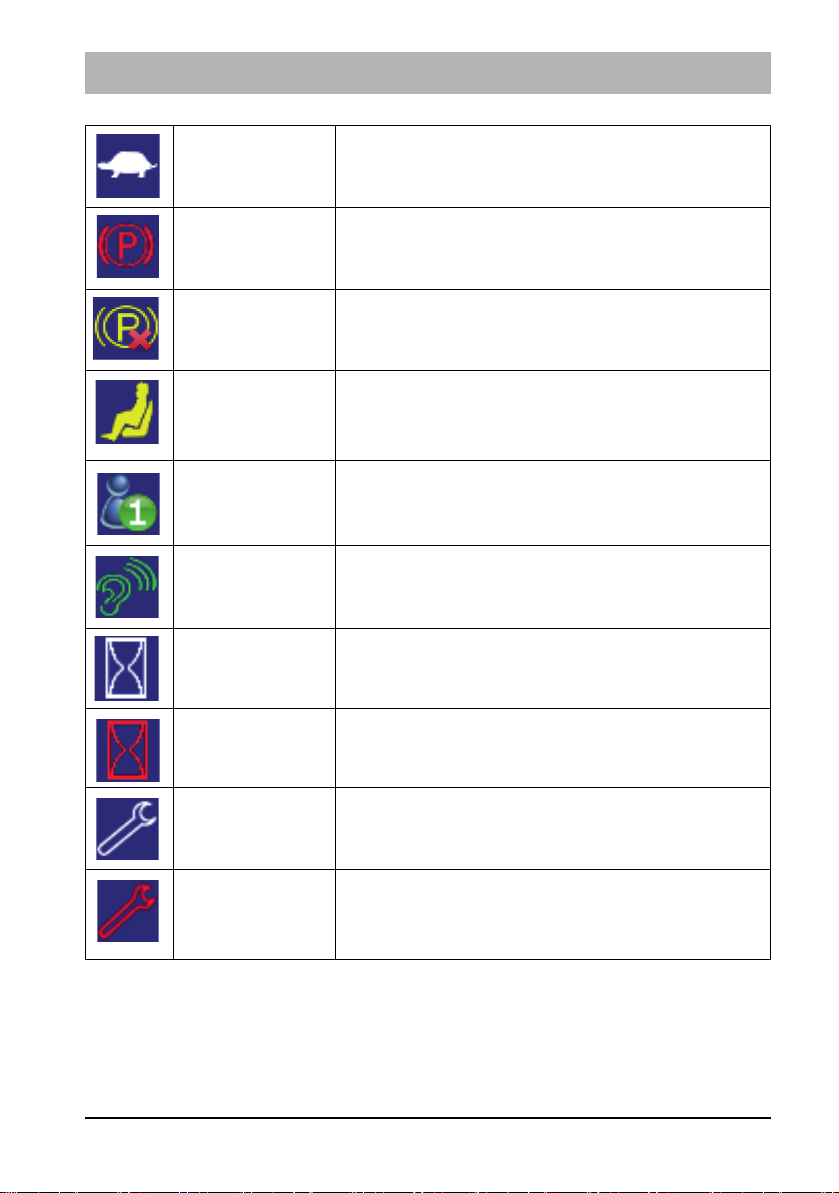

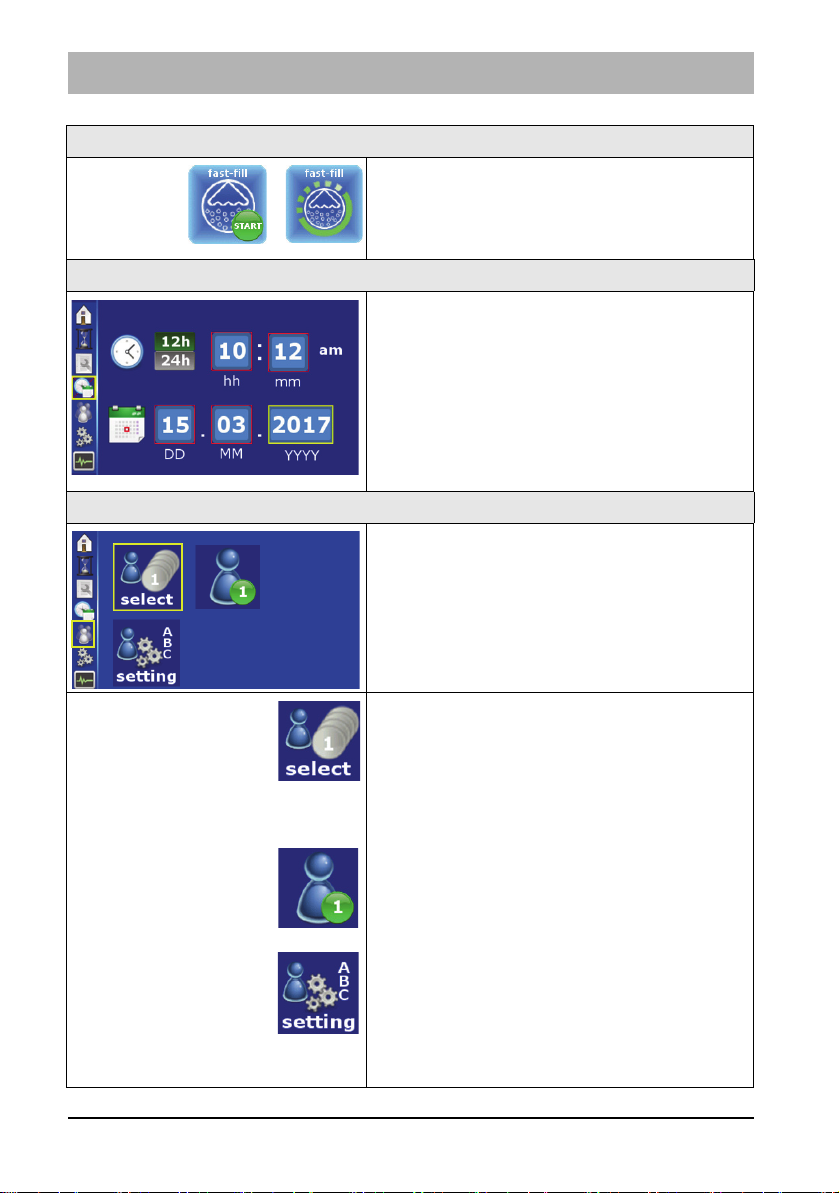

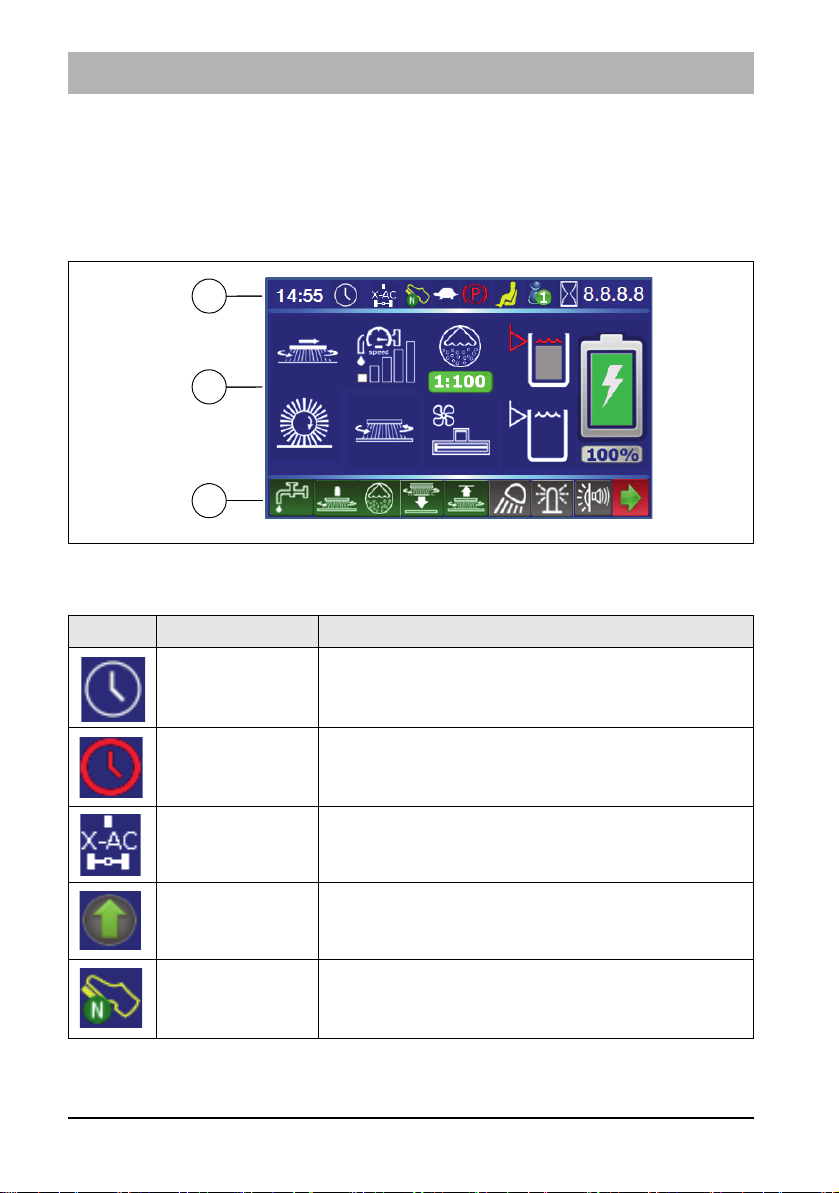

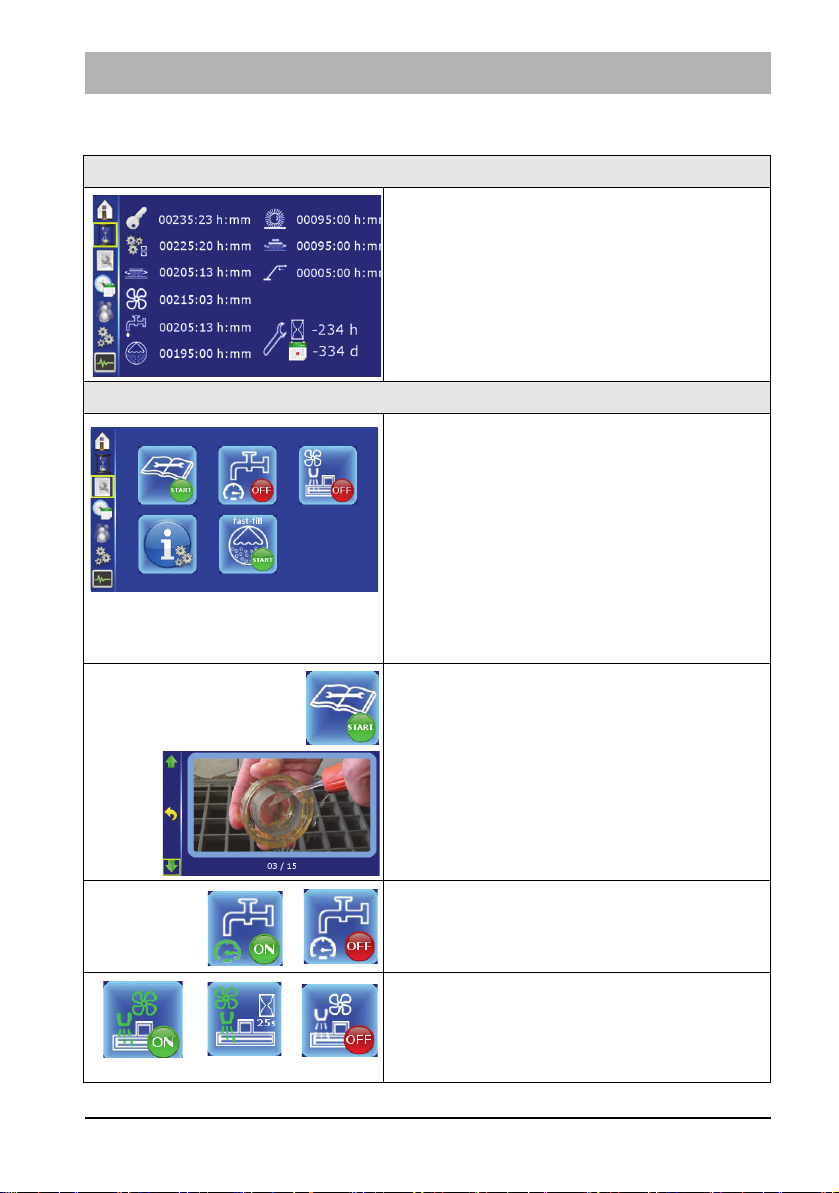

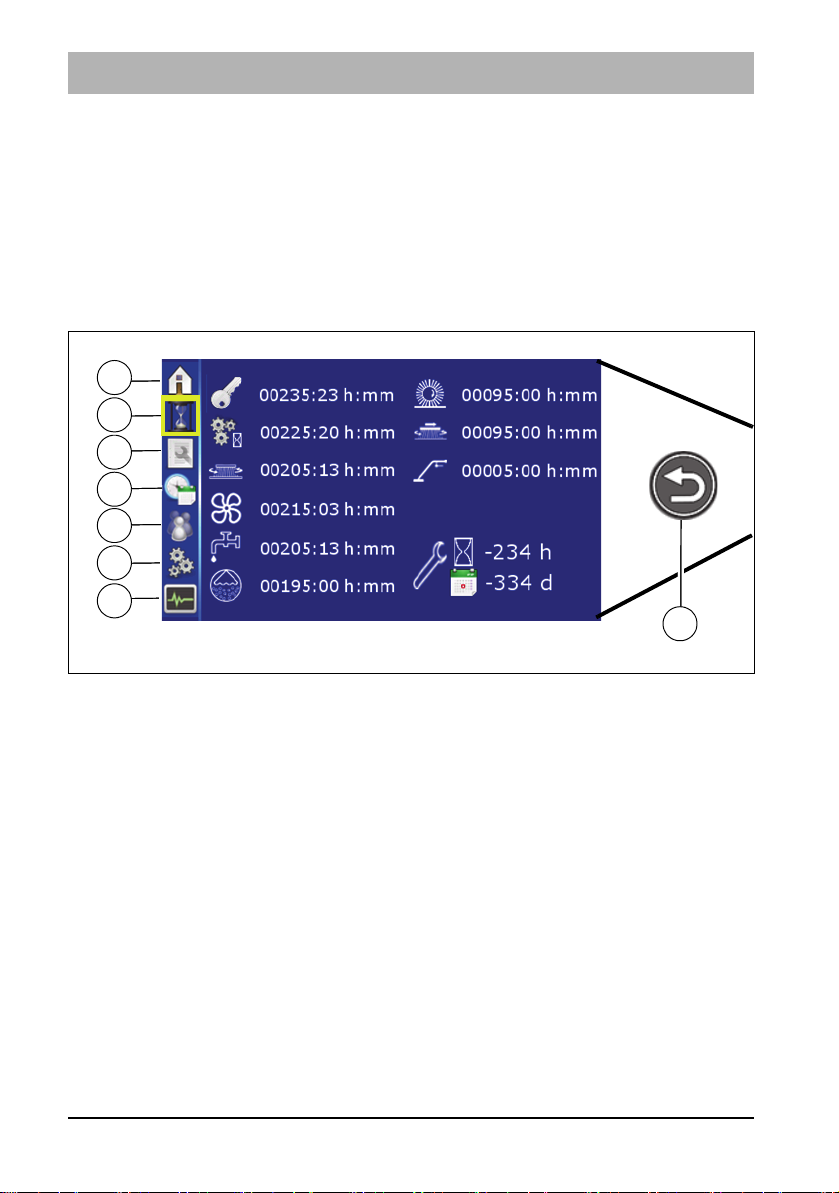

2.3 Multifunction display ..................................................... 31

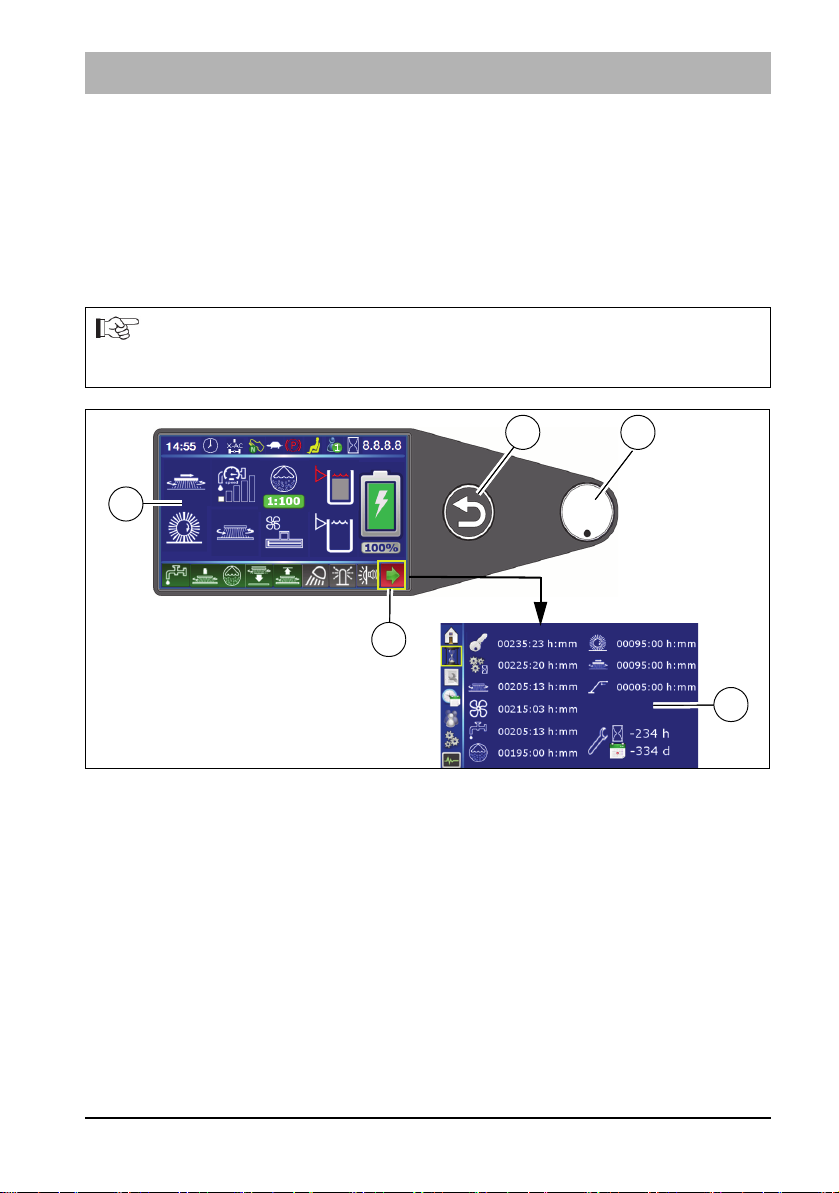

2.3.1 Menu guidance ............................................................. 31

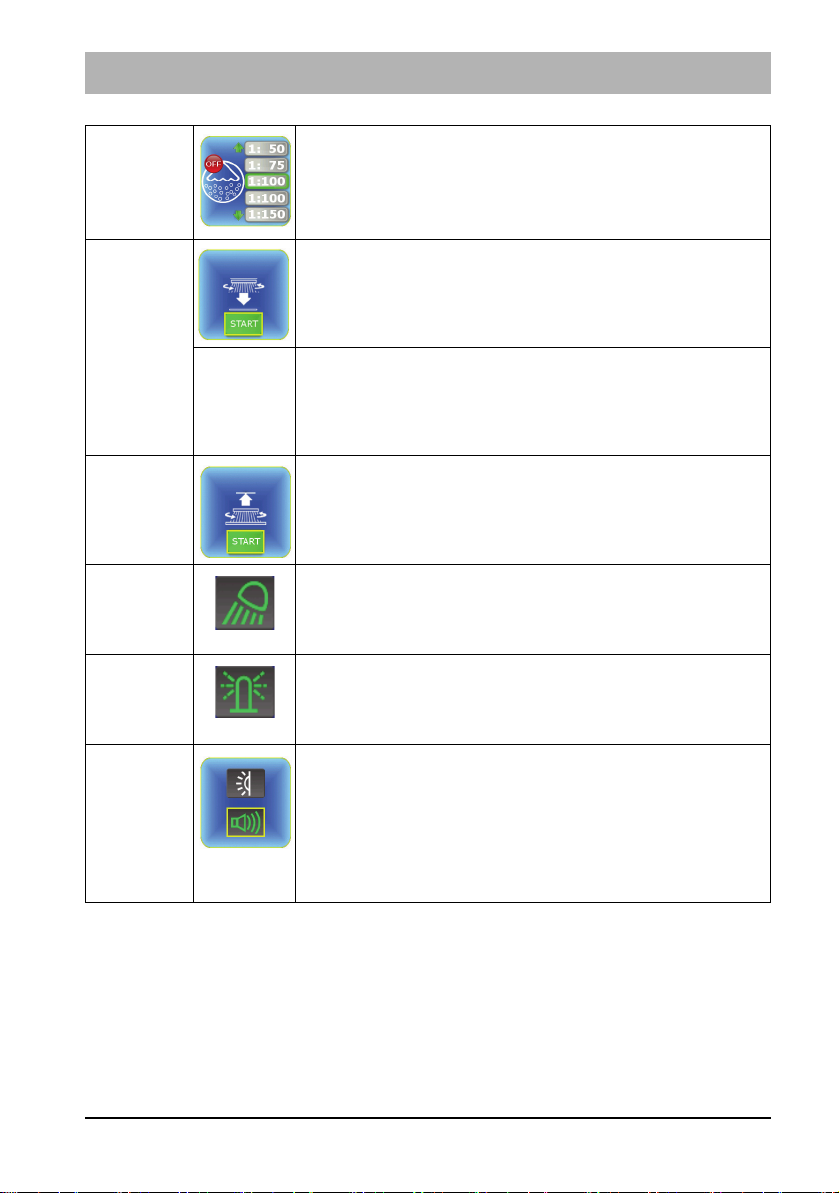

2.3.2 Main menu .................................................................... 32

2.3.3 Sub-menu ..................................................................... 38

2.3.4 Controls at the machine ................................................ 42

2.4 Functional description ................................................... 44

2.4.1 Solution tank ................................................................. 44

2.4.2 Rotating brush and roller brush unit ............................. 45

2.4.3 Side brush unit .............................................................. 45

2.4.4 Wiper ............................................................................ 45

2.4.5 Squeegee ..................................................................... 46

2.4.6 Waste water tank .......................................................... 46

2.4.7 Suction turbines ............................................................ 46

2.4.8 Travel drive ................................................................... 47

2.4.9 Brakes .......................................................................... 47

2.4.10 Batteries ....................................................................... 47

88-00-3182-01IVZ.fm 5

Table of contents

3 Operation....................................................................... 48

3.1 Instruction ..................................................................... 48

3.2 Before putting into service ............................................ 48

3.3 Check list: Before machine start-up .............................. 48

3.3.1 Driver's seat .................................................................. 49

3.3.2 Side mirror (optional) adjustment ................................. 50

3.4 Cleaning ....................................................................... 51

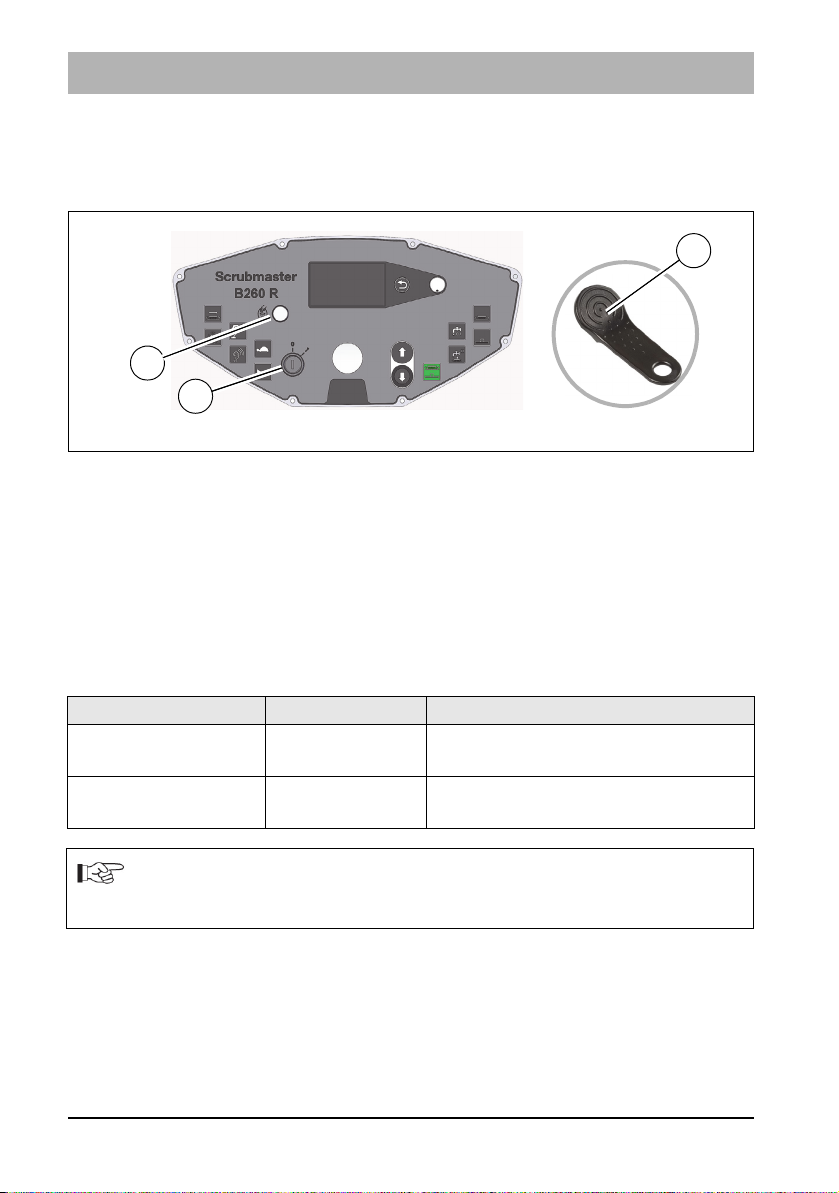

3.4.1 Entry.X (optional) .......................................................... 52

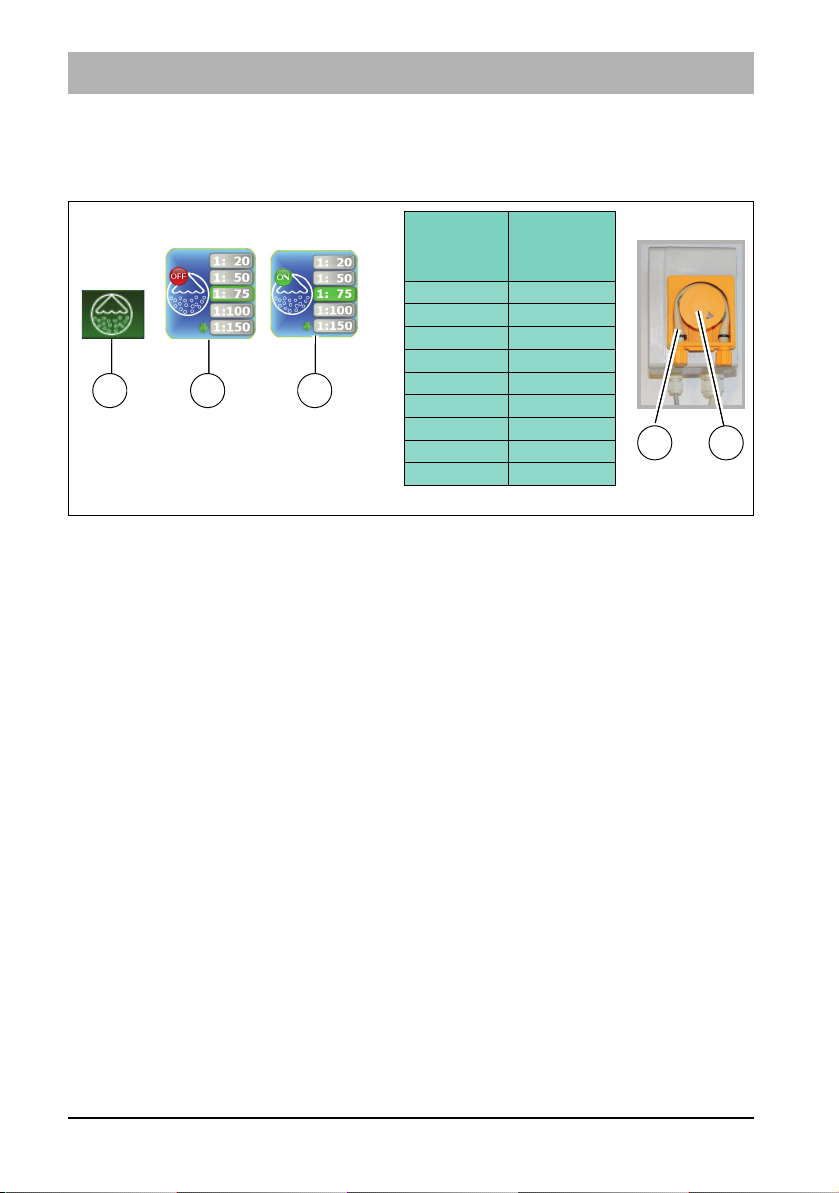

3.4.2 On-board dosing system (option) ................................. 53

3.4.3 Useful cleaning tips ...................................................... 55

3.4.4 Handling and braking the vehicle ................................. 56

3.4.5 Pushing the machine .................................................... 57

3.4.6 Turning off the machine ................................................ 58

3.4.7 Check list: After cleaning .............................................. 58

3.5 Loading and transporting .............................................. 59

3.6 Service information ....................................................... 60

4 Technical data............................................................... 62

5 Maintenance and Servicing ......................................... 66

5.1 Maintenance plan ......................................................... 67

5.2 Battery .......................................................................... 68

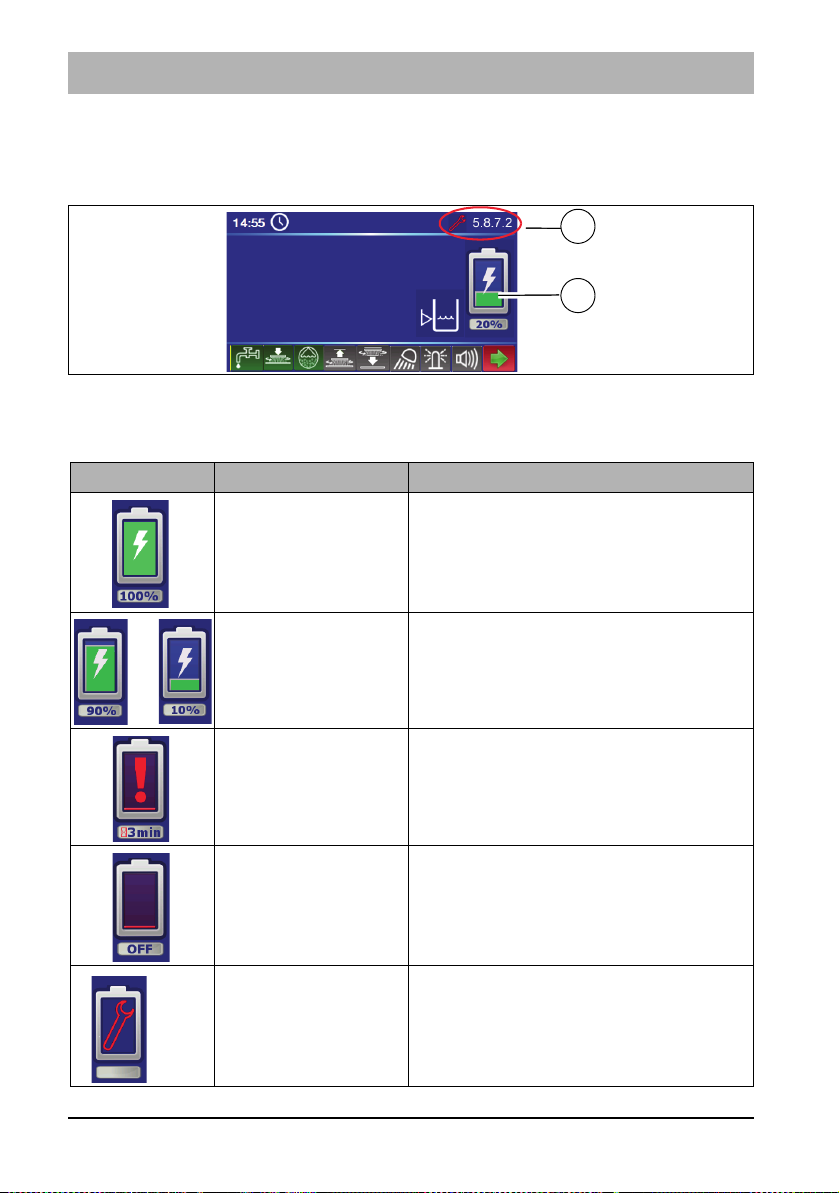

5.2.1 Checking the charging state ......................................... 68

5.2.2 Charge the battery ........................................................ 69

5.2.3 Checking the acid level ................................................. 71

5.2.4 Replacing the battery .................................................... 72

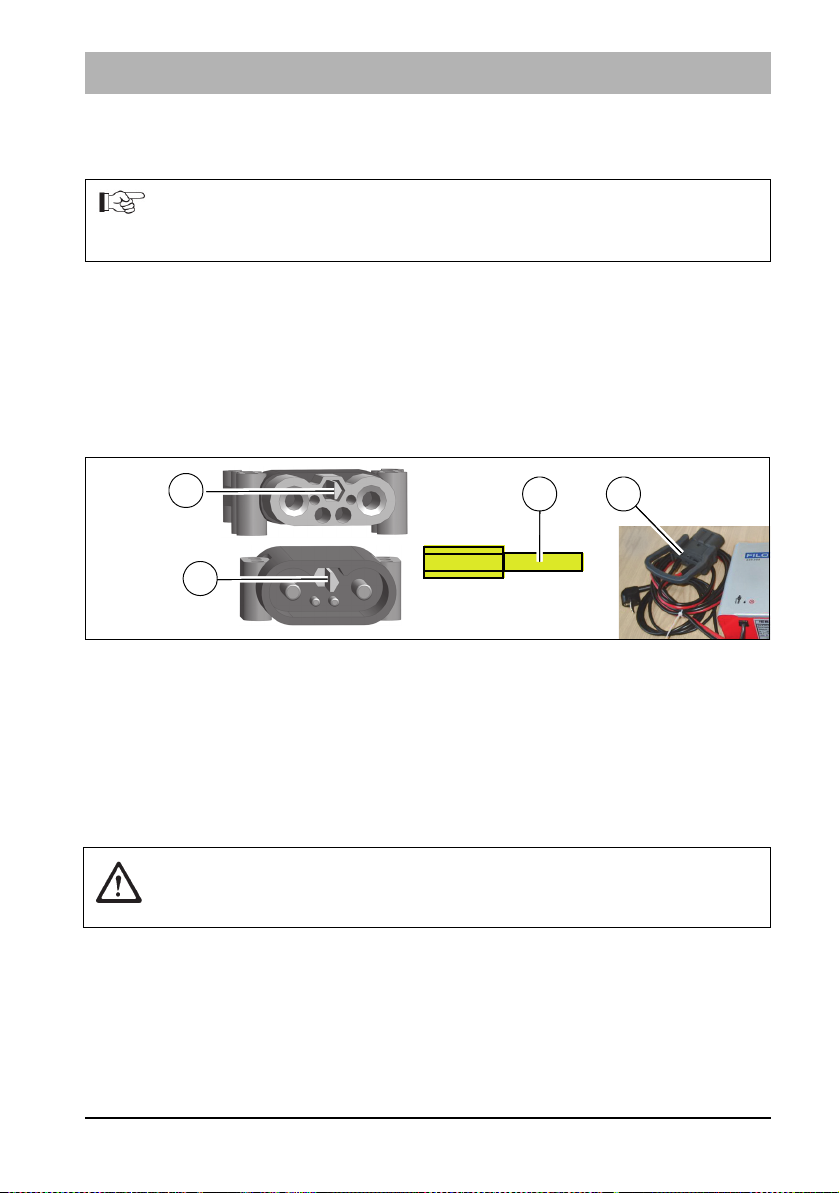

5.2.5 Battery plug coding ....................................................... 73

5.2.6 Maintaining drive batteries ............................................ 74

5.2.7 Taking the machine out of service for a long period ..... 74

5.2.8 Disposing of batteries ................................................... 74

5.3 Solution tank ................................................................. 75

5.3.1 Filling the solution tank ................................................. 75

5.3.2 Emptying the solution tank ........................................... 77

5.3.3 Cleaning the solution tank ............................................ 77

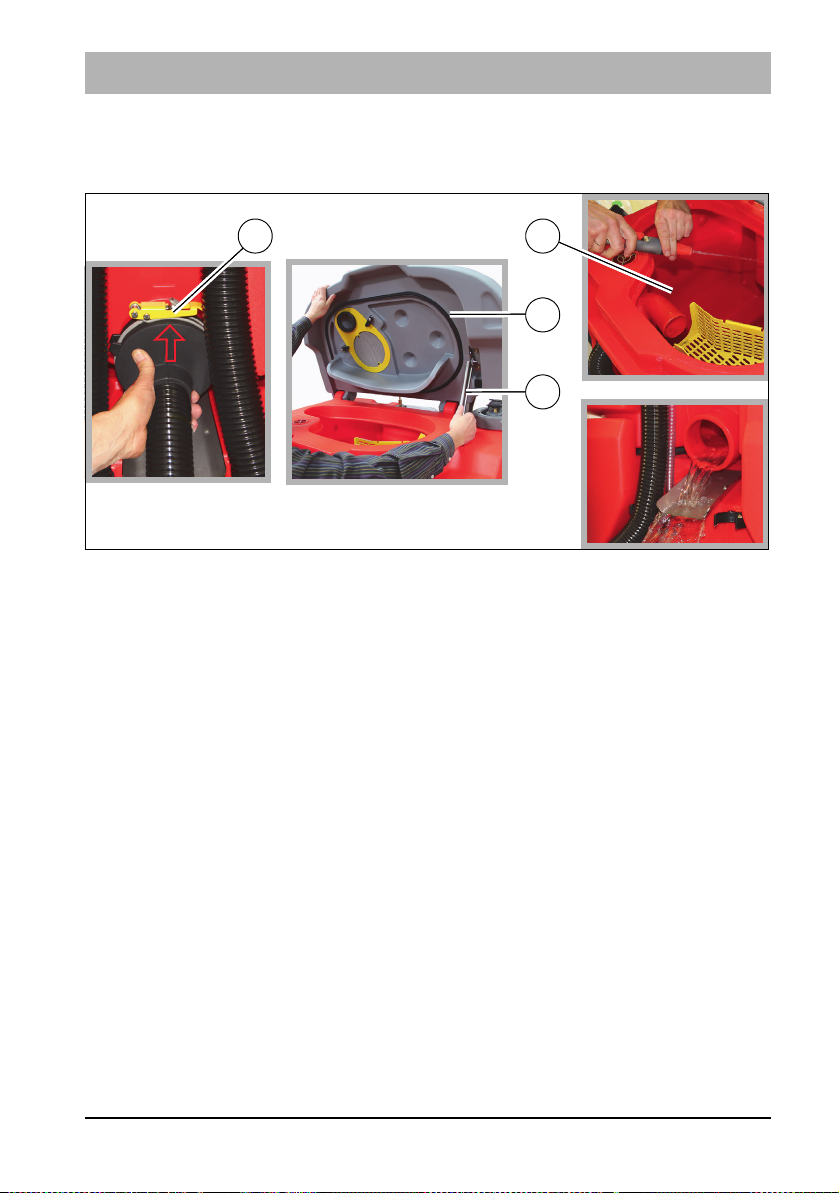

5.4 Waste water tank .......................................................... 78

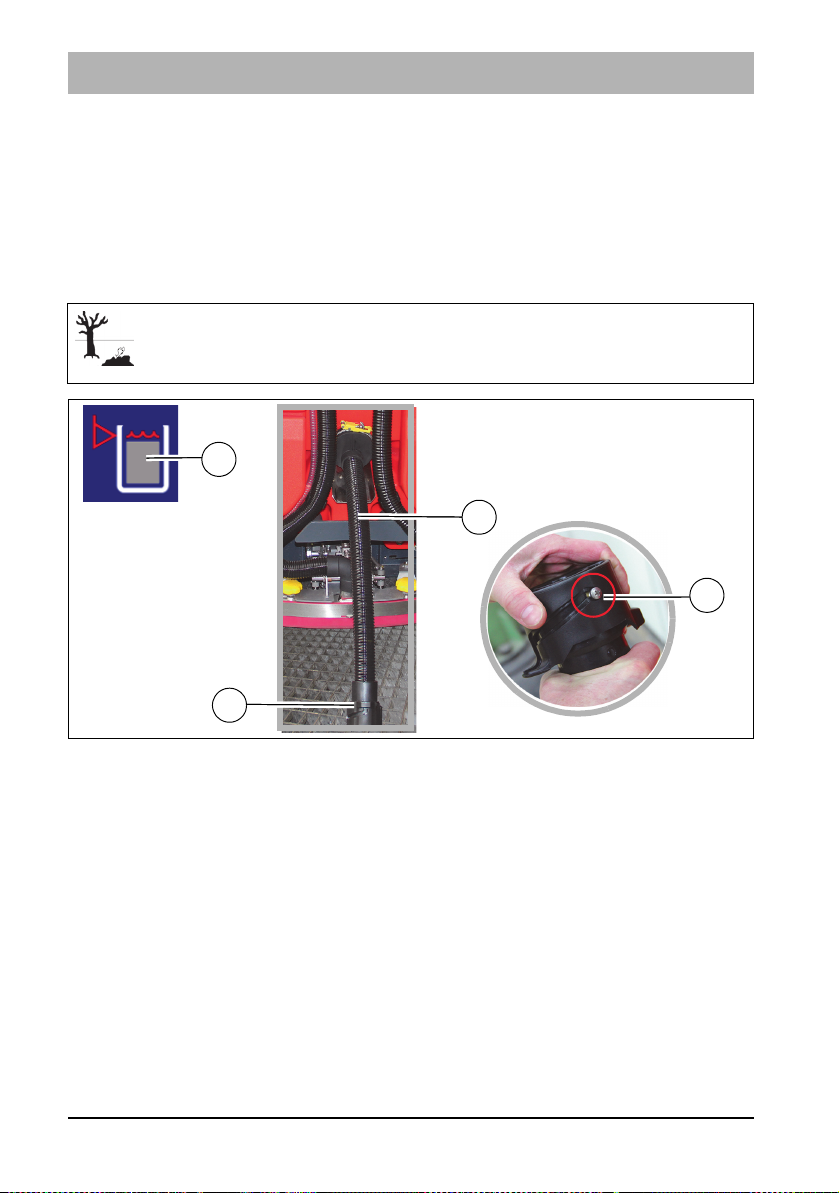

5.4.1 Emptying the waste water tank ..................................... 78

5.4.2 Cleaning the waste water tank ..................................... 79

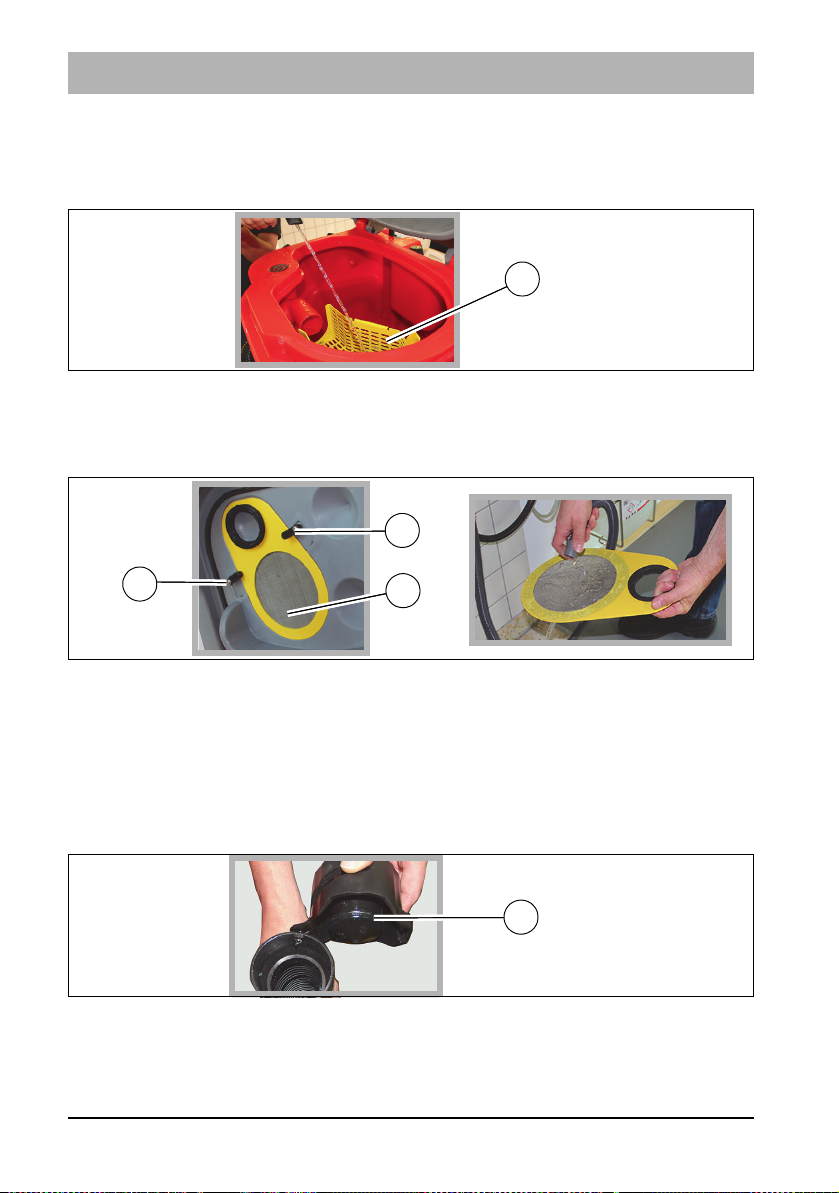

5.4.3 Cleaning the coarse dirt sieve ...................................... 80

5.4.4 Cleaning the intake sieve ............................................. 80

5.4.5 Checking the seal at the drain valve ............................. 80

5.4.6 Cleaning the fresh water filter ....................................... 81

5.4.7 Checking the seal in the tank cap ................................. 81

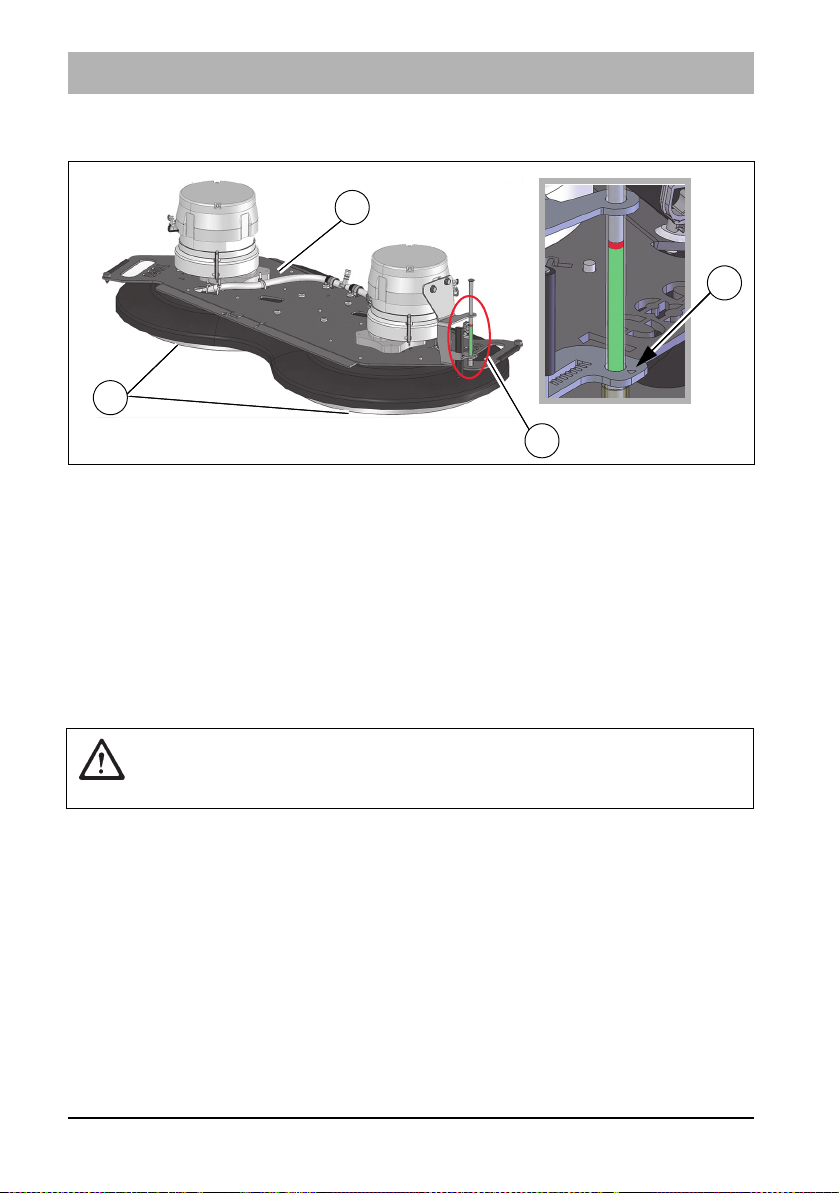

5.5 Rotating brush unit ....................................................... 82

5.5.1 Replacing the brushes/pads ......................................... 82

5.5.2 Cleaning the brushes .................................................... 82

6 88-00-3182-01IVZ.fm

Table of contents

5.5.3 Ejecting the brushes/pads ............................................ 83

5.5.4 Coupling the brushes/pads ........................................... 83

5.6 Side brush unit (optional) .............................................. 84

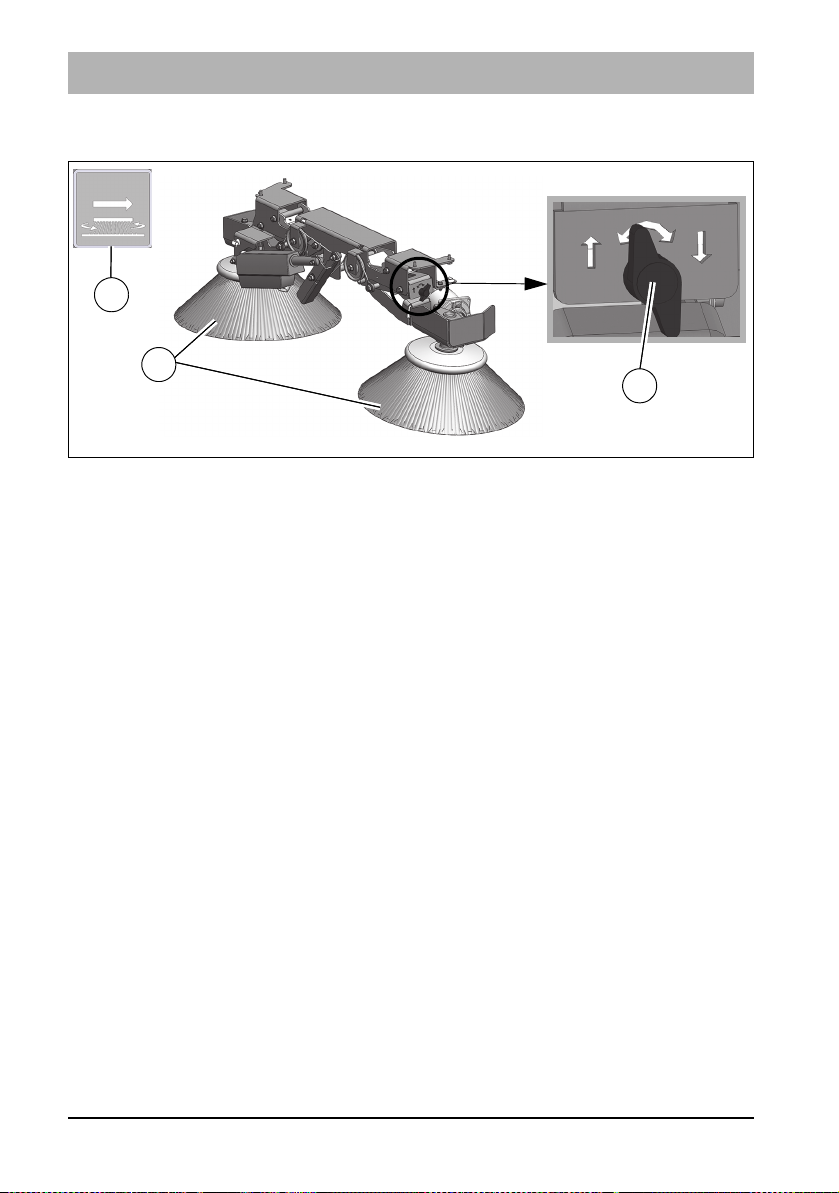

5.6.1 Adjusting the side brush ............................................... 84

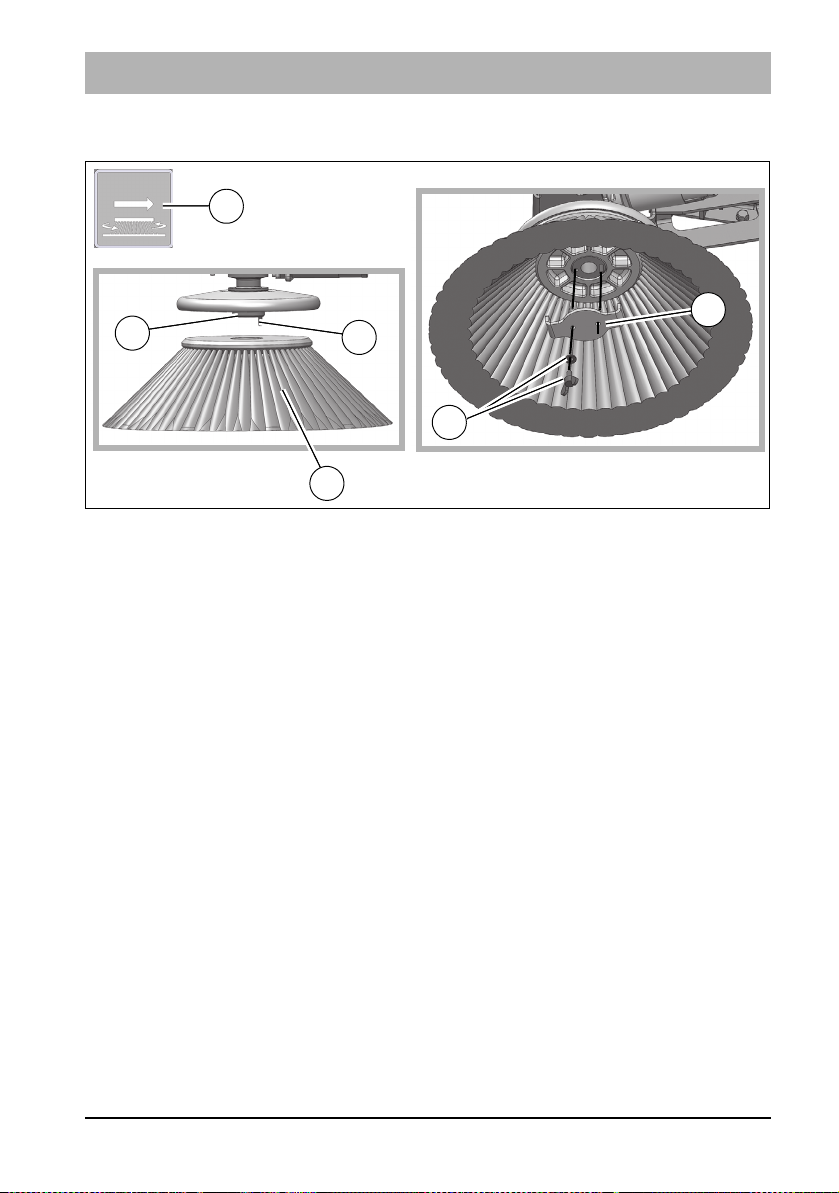

5.6.2 Changing the side brush ............................................... 85

5.7 Squeegee ..................................................................... 86

5.7.1 Cleaning the squeegee ................................................. 86

5.7.2 Changing the sealing/slot strip ..................................... 88

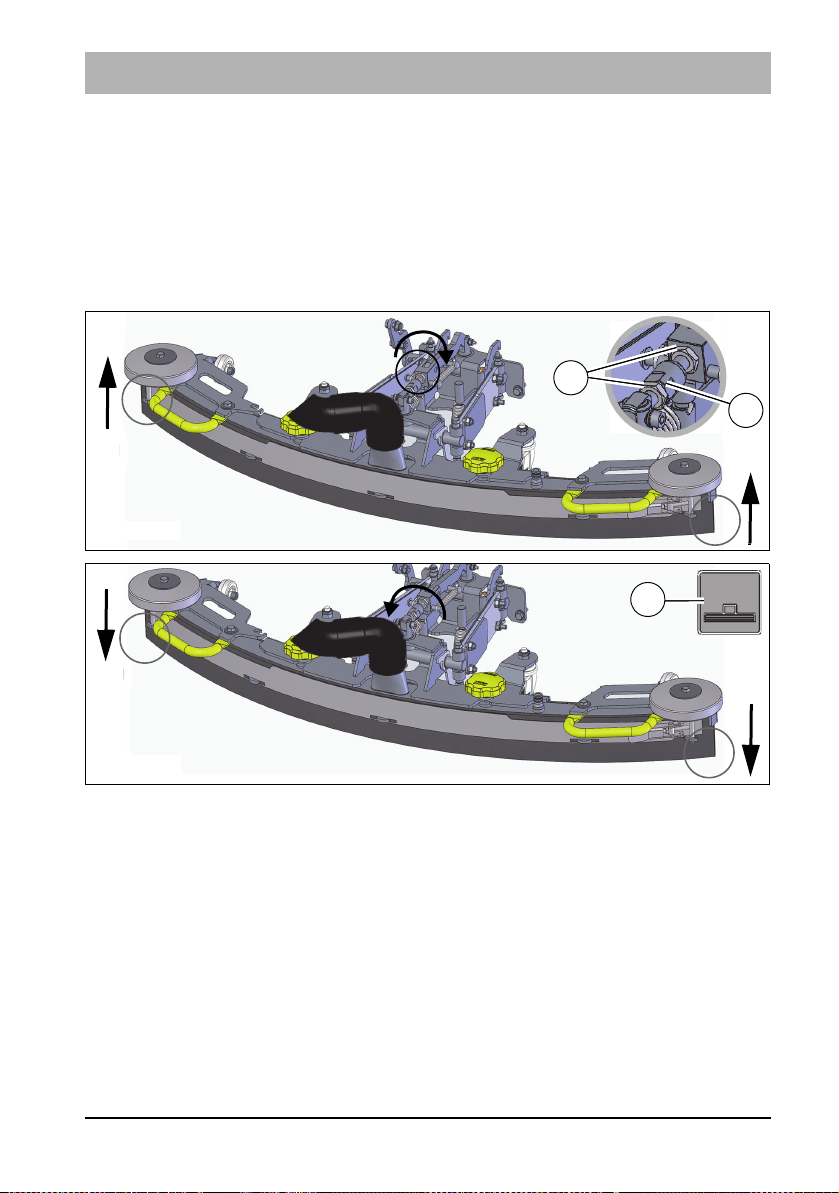

5.7.3 Adjusting the sealing strips ........................................... 89

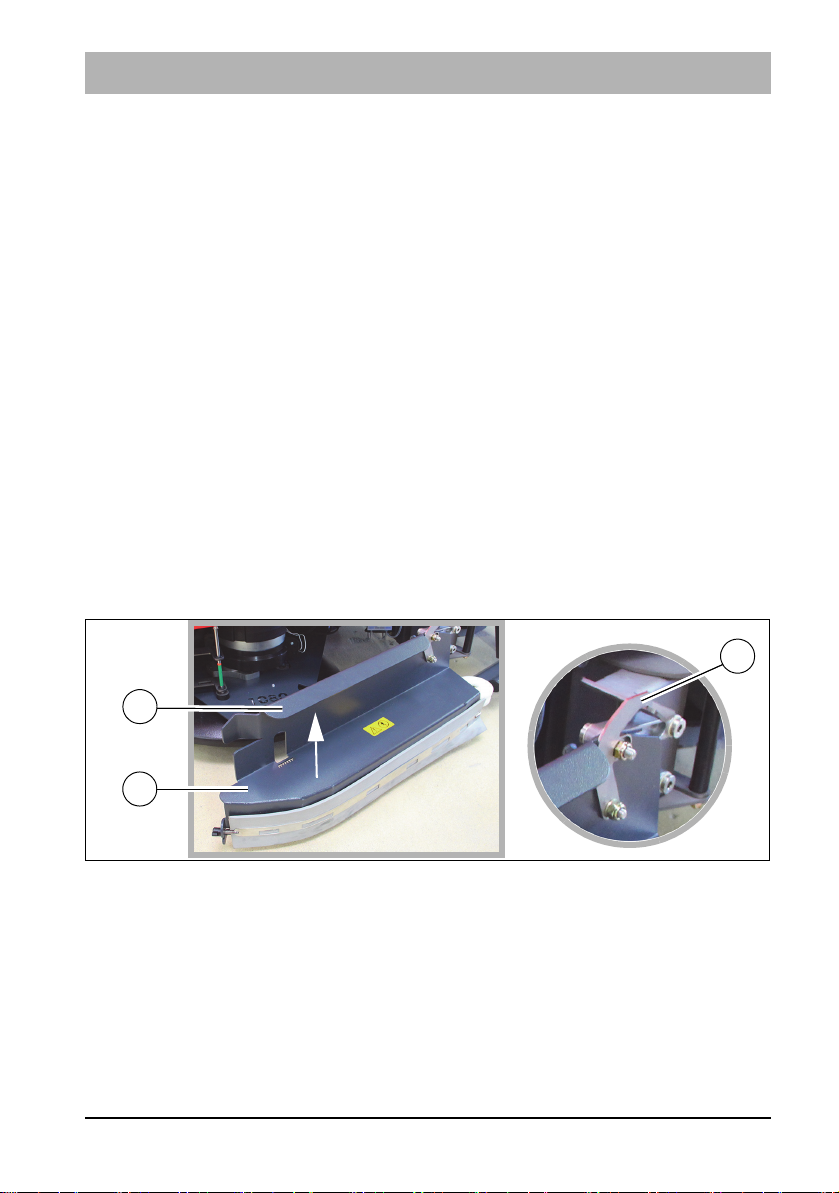

5.8 Wiper ............................................................................ 91

5.8.1 Changing the wiper rubber ........................................... 91

5.9 Pre-sweep suction unit (optional) ................................. 92

5.9.1 Emptying the dirt hopper .............................................. 92

5.9.2 Dirt hopper seal ............................................................ 92

5.9.3 Shaking the filter ........................................................... 93

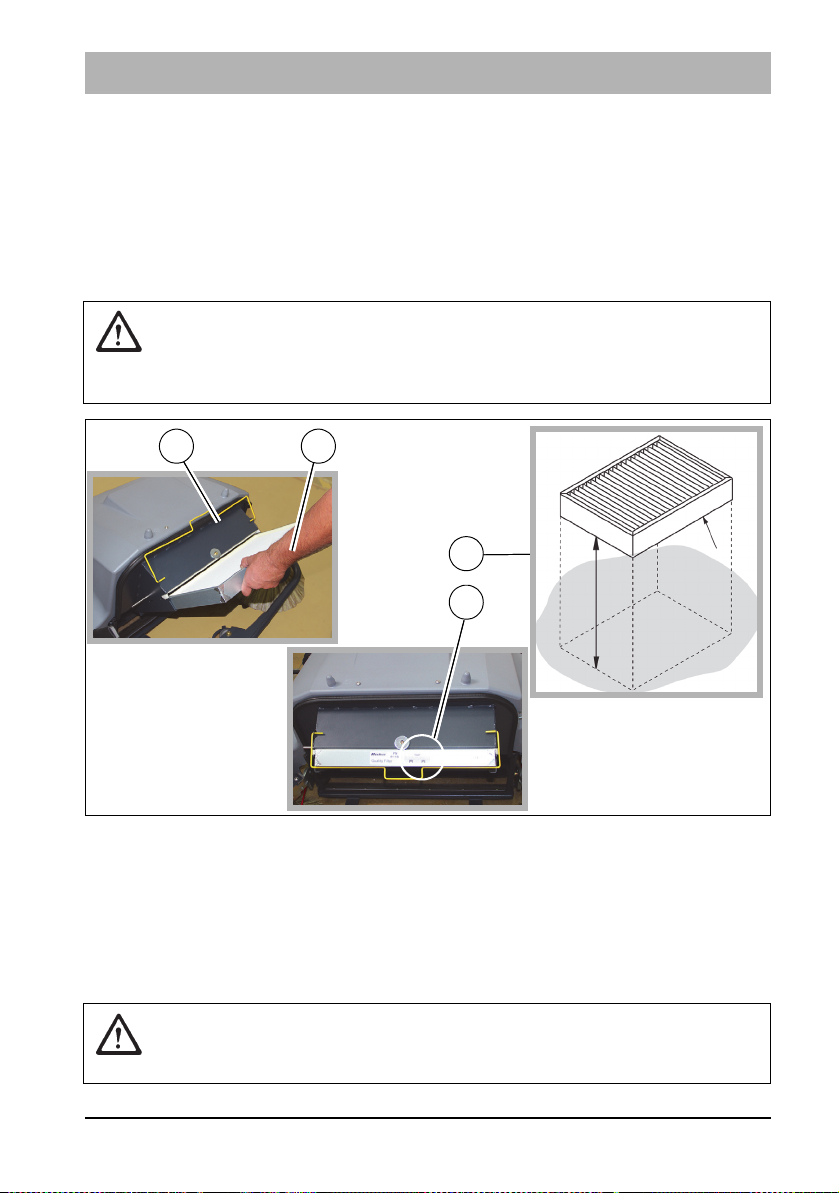

5.9.4 Cleaning the filter .......................................................... 93

5.9.5 Cleaning the cylindrical brush

and the cylindrical brush compartment ......................... 94

5.9.6 Changing the cylindrical brush ..................................... 94

5.9.7 Adjusting the sweeping level ........................................ 95

5.9.8 Replacing the sealing strips of

the cylindrical brush compartment ................................ 95

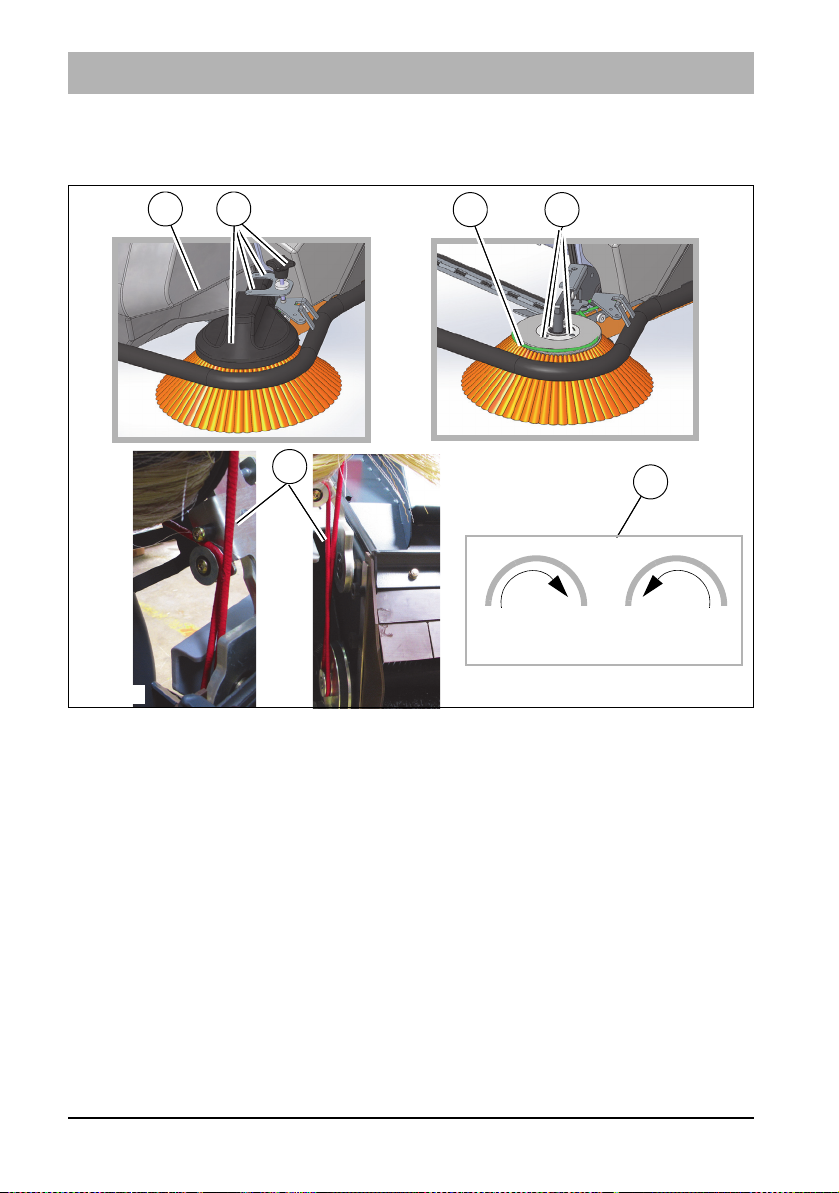

5.9.9 Changing the side brush ............................................... 96

5.9.10 Adjusting the sweeping level ........................................ 96

6 Attachments/options.................................................... 97

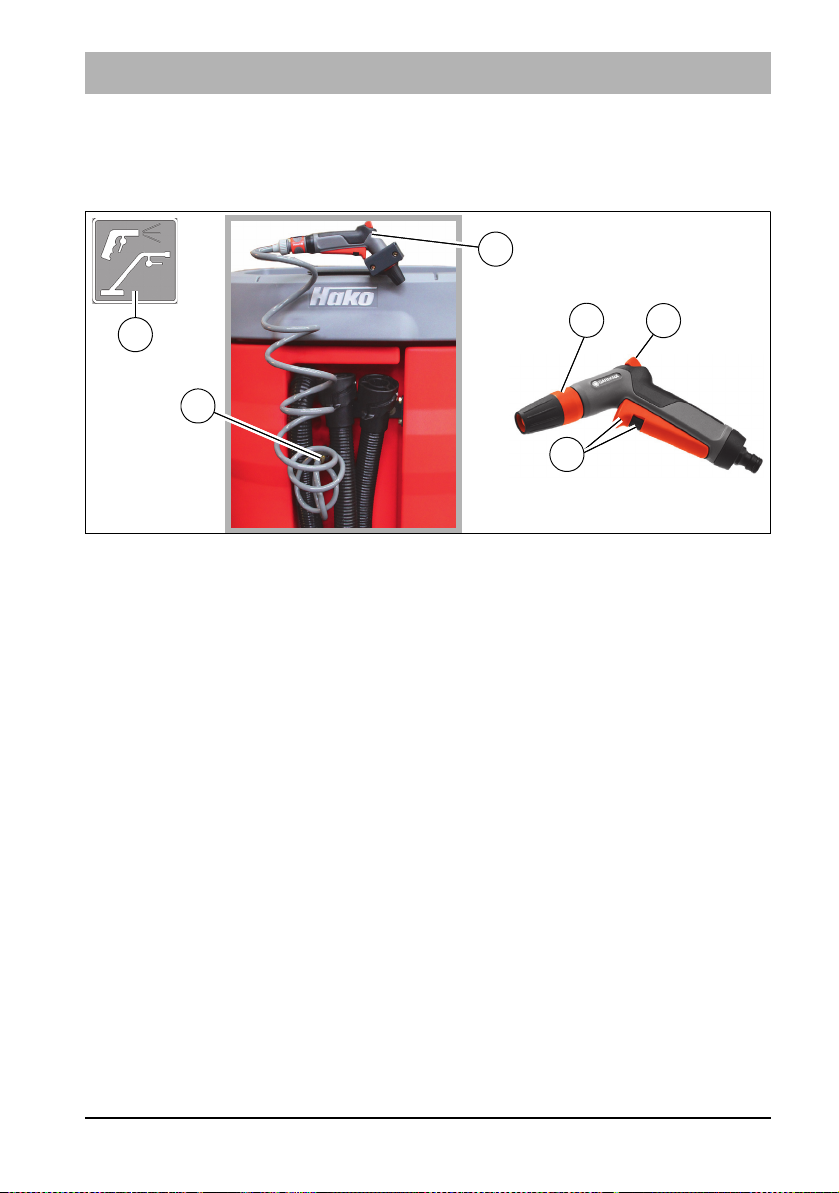

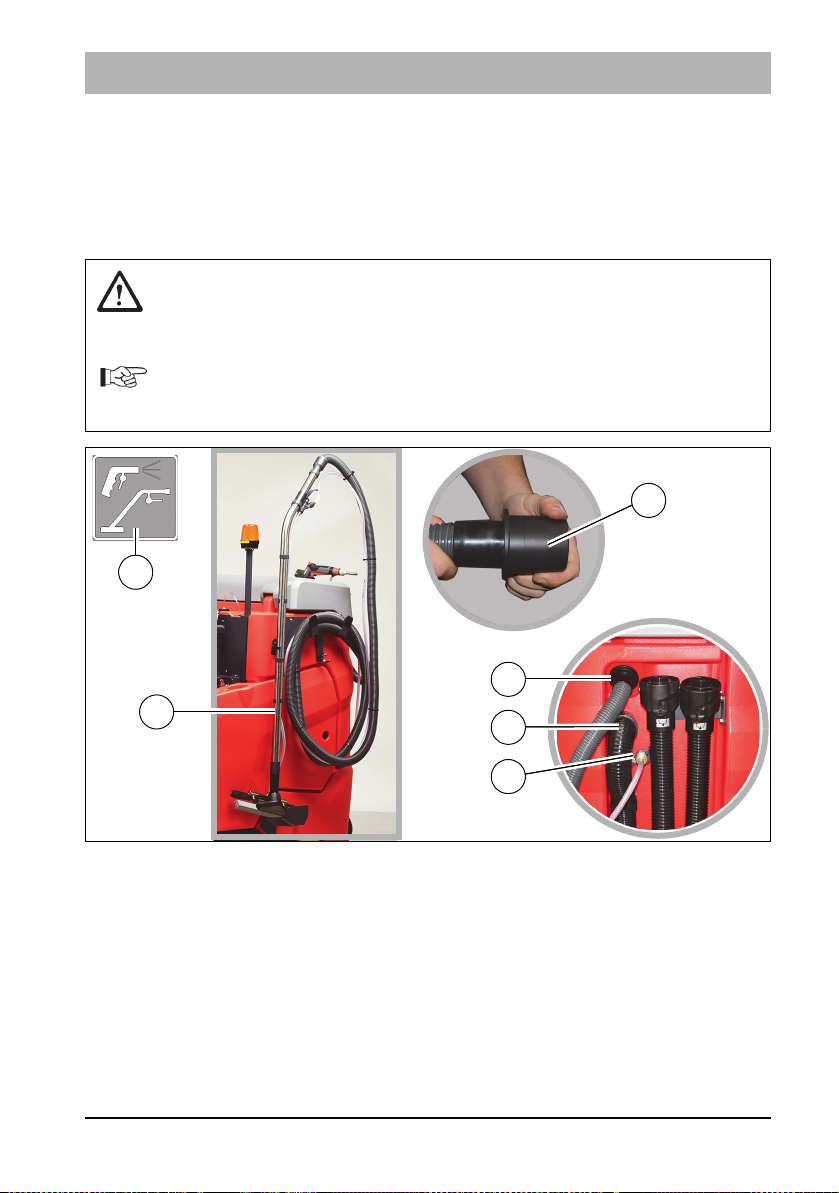

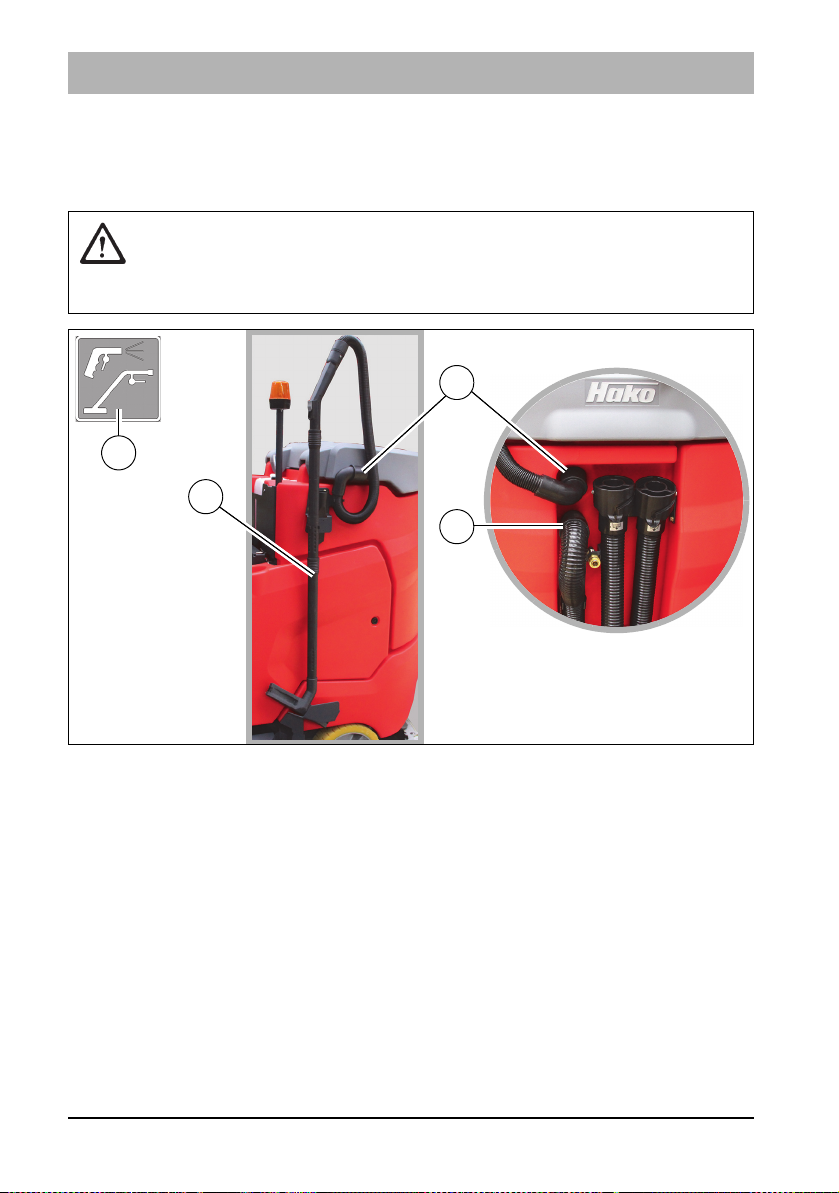

6.1 Spray suction tool ......................................................... 97

6.2 Manual suction tool ....................................................... 98

6.3 Spray nozzle ................................................................. 99

6.4 Pre-sweep suction unit ............................................... 100

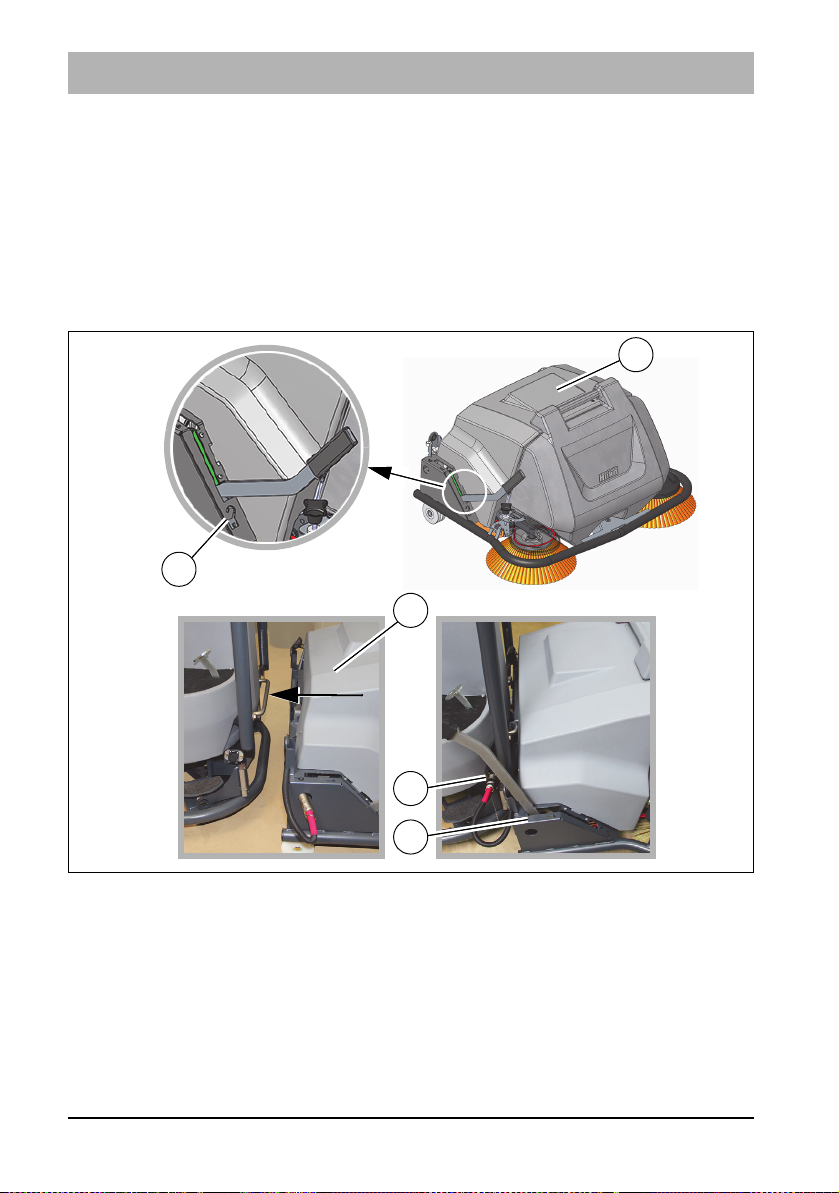

6.4.1 Pre-sweep suction unit installation ............................. 100

6.4.2 Check and correct settings ......................................... 101

6.4.3 Sweeping operation .................................................... 102

6.4.4 Stop sweeping operation ............................................ 102

6.4.5 After sweeping ............................................................ 102

6.4.6 Parking the pre-sweep suction unit ............................ 103

6.5 Overhead guard .......................................................... 103

6.6 Blue Spot .................................................................... 104

EC Declaration of Conformity ................................. 105

88-00-3182-01IVZ.fm 7

Safety instructions

1 Safety instructions

1.1 Warning and danger symbols

Important tasks concerning the safety of the operator and machine are named as follows in this operating manual and emphasised by symbols.

Danger

Indication of a direct danger with high risk, in which death or severe physical injury can occur if it is not avoided.

Warning

Indication of a possible danger with average risk, in which death or severe physical injury can occur if it is not avoided.

Caution

Indication of a danger with low risk, in which light to medium severe physical injury or material damage can occur if it is not avoided.

Attention

Attention indicates a hazard that can lead to technical damage when not observed.

Environmental danger

Environmental danger due to the use of substances from which a health and environmental risk proceeds.

Note

Indication of information that facilitates more effective and economical use of the machine.

8 01-7182-01.fm

Safety instructions

Note

Before starting up the machine, read the following safety instructions and act accordingly. Machine operating errors can be avoided and trouble-free operation can be guaranteed only with precise factual knowledge.

1.2 General safety instructions

• Apart from the instructions in this operating manual, the general safety and accident prevention regulations of the legislation must be taken into account.

• Before the machine is put into service, please carefully read the operating manual you receive as well as further separate instructions for additional implements or attachments and observe them in all aspects of your work.

• The machine may be used, maintained and repaired only by persons who have been instructed by Hako experts.

• The machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or by persons lacking the required experience and knowledge.

• Children should be supervised to ensure they do not play with the machine.

• The operating manual should always be available at the machine's place of use and should therefore be stored with the machine.

• Please hand over these documents to the new owner/operator on sale or rental of the device. Have the hand-over confirmed!

• The labels attached to the machine provide important information for safe operation. Renew labels that are no longer legible or present.

• Only wheels (wheel tyres) approved by Hako may be used.

• With Hako-AntiBac® machine variants, the plastic inner surface of the fresh water and waste water tanks contains silver ions in nanoparticle form.

• Spare parts must be original spare parts to guarantee safety.

01-7182-01.fm 9

Safety instructions

1.3 Operating safety instructions

1.3.1 Before putting into service

• Before initially starting up the machine, charge the used battery fully and appropriately with commissioning charge. Please observe the operating manual of the charger and the operating manual of the battery manufacturer. Hako assumes no liability for battery damage resulting from insufficient commissioning charge.

• Check the machine for operating safety before every start-up! Eliminate faults immediately.

• Before starting work, the operator must familiarize himself with all equipment, operating and actuating elements as well as with their function. It is too late to do this during operation!

1.3.2 During operation

• Sturdy and slip-proof shoes must be worn when working with the machine.

• Only those surfaces approved by the contractor or its authorised representative for use of the machine may be driven on.

• If the machine is used in areas in which objects may fall down, this is only permitted if it has an overhead guard which protects the driver.

• When working with the machine, pay special attention to third persons, especially children.

• When driving over thresholds, raise the brush head.

• Only use detergents suitable for automatic machines (foam retarded) and observe the application, disposal and warning instructions provided by the detergent manufacturer.

• The machine and the pre-sweep suction unit are not suitable for removing combustible or explosive liquids, dust or materials that are hazardous to health. It is also prohibited to collect burning objects, e.g. glowing cigarettes. The collection of wood dust, e.g. beech and oak dust, is also prohibited – health hazard!

• Excessive quantities of dust must be avoided when working with the side brush unit or the pre-sweep suction unit!

• The machine is not suitable for collecting large quantities of water, e.g. in the event of flooding.

10 01-7182-01.fm

Safety instructions

• For reasons of safety, the driver's seat is equipped with a seat contact switch. The machine can only be started when the driver is sitting on the driver's seat. The function of the seat contact switch must not be bypassed.

• The machine must not be used in potentially explosive atmospheres.

• It is not permitted to transport other people or heavy objects.

• When transporting the machine, raise the squeegee and the brush head. Adjust your way of driving to local conditions.

• Drive slowly on wet surfaces, particularly in bends, due to the risk of skidding.

• Drive slowly into the bend when driving downhill.

• Manipulating the switches and protective devices is forbidden.

Machine with standard drive:

• For cleaning purposes, the machine may only be used on a surface with a maximum slope of 6 % for two minutes.

• Transport journeys on slopes of up to 10 % may only take place for one minute and with special caution.

Machine with X-AC drive:

• Cleaning may only be carried out on slopes of up to 15 % for a duration of up to 5 minutes.

• Transport journeys on slopes of up to 18 % may only take place for a maximum duration of 3 minutes. The machine must not be parked on an uphill or downhill gradient greater than 15 %!

Dirt hopper:

• Ensure there is sufficient ventilation when carrying out sweeping work in enclosed rooms.

• The permissible total weight of the dirt hopper must not be exceeded. Monitor the filling level of the dirt hopper at regular intervals.

1.3.3 After operation

• Remove the key when leaving the machine to prevent unauthorised use.

• After use, park the machine in a dry, indoor location with the brush head and squeegee raised.

01-7182-01.fm 11

Safety instructions

1.4 Maintenance instructions

• Daily and weekly maintenance work must be done in accordance with the maintenance plan by the operating staff. In all other maintenance work, please contact your nearest Hako service centre.

• The maintenance work and maintenance intervals specified in the operating manual must be complied with.

• Suitable tools and protective clothing such as gloves and safety goggles must be used during cleaning and maintenance work.

• Have the machine checked for safe condition by an expert in accordance with the accident prevention regulations at appropriate intervals (we recommend at least once yearly).

• Spare parts must at least comply with the technical requirements specified by the manufacturer. This is guaranteed by original spare parts.

• Turn the machine off and disconnect the battery plug when maintaining the machine and before replacing parts.

• To prevent unauthorised use of the machine, remove the ignition key.

• Cleaning the machine with a high-pressure cleaner or steam jet is not allowed.

• Application of aggressive and corrosive detergents is not allowed.

• After cleaning, let the machine air dry, e.g. over the weekend.

• Only put the machine into service when all the protective devices are attached and in protection position.

Pre-sweep suction unit

• Shaking the filter is only permitted with the dirt hopper inserted.

• Only tip out the contents of the dirt hopper from a low height in order to prevent the formation of dust.

• The dirt hopper must be cleaned at regular intervals to prevent the accumulation of bacteria.

12 01-7182-01.fm

Safety instructions

1.5 Information about special risks

1.5.1 Electrical system

• If the electrical system is faulty, always turn off the machine, disconnect the battery and eliminate the fault.

• Work on the electrical system may be done only in accordance with electrical engineering standards by a specialist trained for this work.

• Regularly inspect/check the electrical system of the machine. Defects such as loose connections, loose nuts of electrified bolts, electrical components or damaged cables must be eliminated immediately.

• Only use original fuses with the specified current. If stronger fuses are used, the electrical system can be destroyed and fires may occur.

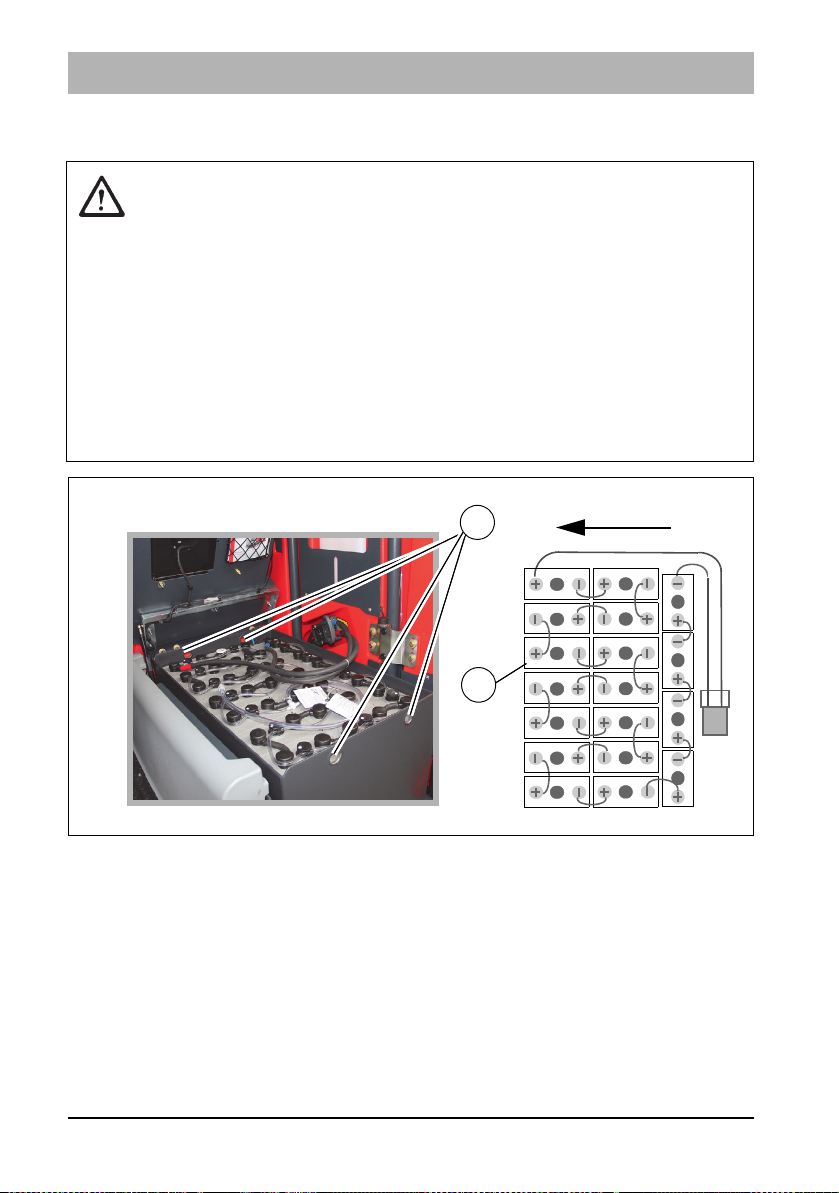

1.5.2 Batteries

• Observe the operating manuals and safety instructions provided by the battery manufacturer.

• Never connect or disconnect batteries when the machine is turned on.

• Make sure the batteries are never fully discharged; recharge them as quickly as possible.

• Only instructed maintenance personnel must handle and replace batteries.

• Only batteries approved by Hako may be used at the intended position.

• Danger! Make sure that the insulation of the battery cables is not damaged. The battery cables should not rub against anything. If the insulation is defective, no longer use the machine and have the battery cables replaced by the Hako customer service immediately.

• Caution! Always make sure that the batteries are clean and dry to avoid creeping currents and corrosion damage. Protect the batteries, in particular, against conductive contamination, e.g. metal dust.

• Risk of short circuits and spark formation! Never place tools or other electrically conductive objects on the battery!

• Do not remove insulating caps and covers, if necessary re-install them after carrying out work on the battery cables.

01-7182-01.fm 13

Safety instructions

• Caution! Explosive gases can develop when charging the batteries. Avoid smoking, fire or naked light in the vicinity of batteries. Ensure sufficient ventilation when charging the batteries.

• For further safety instructions, see Hako supplementary sheet 88-60-2556 – information for drive batteries.

14 01-7182-01.fm

Safety instructions

1.6 Environmental protection instructions and disposal

If the end of use of the machine or of its components is reached and this is handed over for scrapping, the components must be correctly disposed of. Further information about disposal is available through the competent local authorities and the authorised Hako dealers.

Do not dispose of products with this symbol in domestic waste. Disposal takes place through local collecting points or the manufacturer.

Recycle used materials with this symbol according to their labelling and do not dispose of them in domestic waste.

• Observe the applicable laws and local regulations when disposing of dirt, waste water and detergents, also see the German Water Resources Law (WHG).

• Used batteries with the recycling symbol contain reusable commodities. In accordance with the symbol showing the crossed-out garbage bin, these batteries must not be disposed of in the domestic waste. Return and recycling have to be arranged with the authorised Hako dealer as required in § 6 and § 8 of the German battery law (BattG)!

• Observe the local regulations when disposing of the AntiBac® tanks, e.g. take the AntiBac® tanks to a suitable disposal site or incineration plant.

01-7182-01.fm 15

Safety instructions

Fig. 1:

1.7 Labels on the machine

The following safety and instruction labels are affixed to the machine in a clearly visible and legible manner.

Attention

Renew missing or illegible labels immediately!

16 01-7182-01.fm

Safety instructions

Fig. 2:

01-7182-01.fm 17

Safety instructions

Label – Company logo Fig. 1/Fig. 2-A

The Hako logo is located at the front on the steering column and at the rear on the hopper.

Label – Read and observe the operating manual Fig. 1-B1 – Maximum permissible slope 6 % when cleaning Fig. 1-B2 – Never clean the machine with a high-pressure cleaner Fig. 1-B3

The label is located on the left hand side next to the driver's seat.

Label – Maintenance parts (yellow dot) Fig. 2-C

The yellow dot is located on the cover of the fresh water filter.

Type plate Fig. 2-D

The type plate is located in front of the left front wheel.

Label – Explosive gases Fig. 1-E

The label is in the battery compartment.

Label – 36 V Fig. 1-F

The label is in the battery compartment.

Label – QR code Fig. 2-G

The label is located on the control panel.

Label – Drain waste water Fig. 2-H

The label is located on the drain hose of the waste water tank.

Label – Drain fresh water Fig. 2-I

The label is located on the drain hose of the solution tank.

Label – Keep off! Fig. 2-J

The label is located on the rotating brush or roller brush unit.

Label –

Leave seat console open during the charging procedure! Fig. 2-K

There is a label in the battery compartment.

Label – X-AC-drive Fig. 2-L

For machines with X-AC-drives, the label is located on the control panel.

Label – Avoid looking directly at the light!

The label is located on the Blue Spot (option).

Printing – Do not dispose of AntiBac® tanks in the domestic waste! Fig. 2-N

The printing is located on the AntiBac® tanks.

18 01-7182-01.fm

1.8 Labels on the pre-sweep suction unit

Fig. 3:

Safety instructions

Label – Logo Fig. 3-A

The Hako logo is located on the front of the dirt hopper.

Type plate Fig. 3-B

The type plate is located at the rear right-hand side of the pre-sweep suction unit.

Label – Side brush wear compensation Fig. 3-C

The labels are located on the right and left next to the side brush adjustment.

Label – Cylindrical brush wear compensation Fig. 3-D

The label is located on the cylindrical brush adjustment.

Label – Shaking system Fig. 3-E

The label is located on the left hand side of the shaking system.

01-7182-01.fm 19

Operation

Fig. 4:

1718 16 15 14 13

2 Operation

2.1 Overviews

The description in chapter 2 contains information on the function and handling of the individual controls on the machine. The controls always have the same item number in all chapters.

20 02-7182-01.fm

2.1.1 Front view

Item Designation

Steering wheel

Driver's seat

Tray

Flashlight on a pole

Key for electronics cover

Key for side panelling

Holder for manual suction tool or manual spray suction tool

Drinks holder and storage compartment

Socket for USB connection

Side panelling

Ball cock

Fresh water filter

Wiper

Side brush unit

Front collision protection

Working light

Operating brake

Travel drive

Warning device or Blue Spot

Operation

02-7182-01.fm 21

Operation

Fig. 5:

2426 25

22 02-7182-01.fm

2.1.2 Rear view

Item Designation

Accelerator pedal

On-board dosing system

Brush unit

Wiper

Solution tank

Maintenance opening solution tank

Squeegee water connection

Fresh water drain hose

Squeegee

Suction hose

Drain hose waste water

Waste water tank maintenance opening

Water connection

Spray nozzle

Battery compartment

Battery plug

Coarse dirt sieve

Waste water tank

Intake sieve

Filling opening

Automatic filling unit

Operation

02-7182-01.fm 23

Operation

Fig. 6:

50 4852

42 43

2.1.3 Control panel

Item Designation

Multifunction display

Return button

Turn-push knob

Button – brush unit

Button – squeegee

Button – fresh water supply

Button – boost function

Button – brush unit and squeegee

Button – driving direction selection

iButton Reader (option)

24 02-7182-01.fm

Key switch

Button – signal horn

Button – speed reduction forwards gear

Button – silent operation

Button – tool operation

Button – pre-sweep suction unit

Button – side brush unit

Operation

02-7182-01.fm 25

Operation

2.2 Controls and display elements

2.2.1 Control panel

The individual functions of the buttons on the control panel are described below. The respective activated functions are visible as corresponding symbols in the multifunction display.

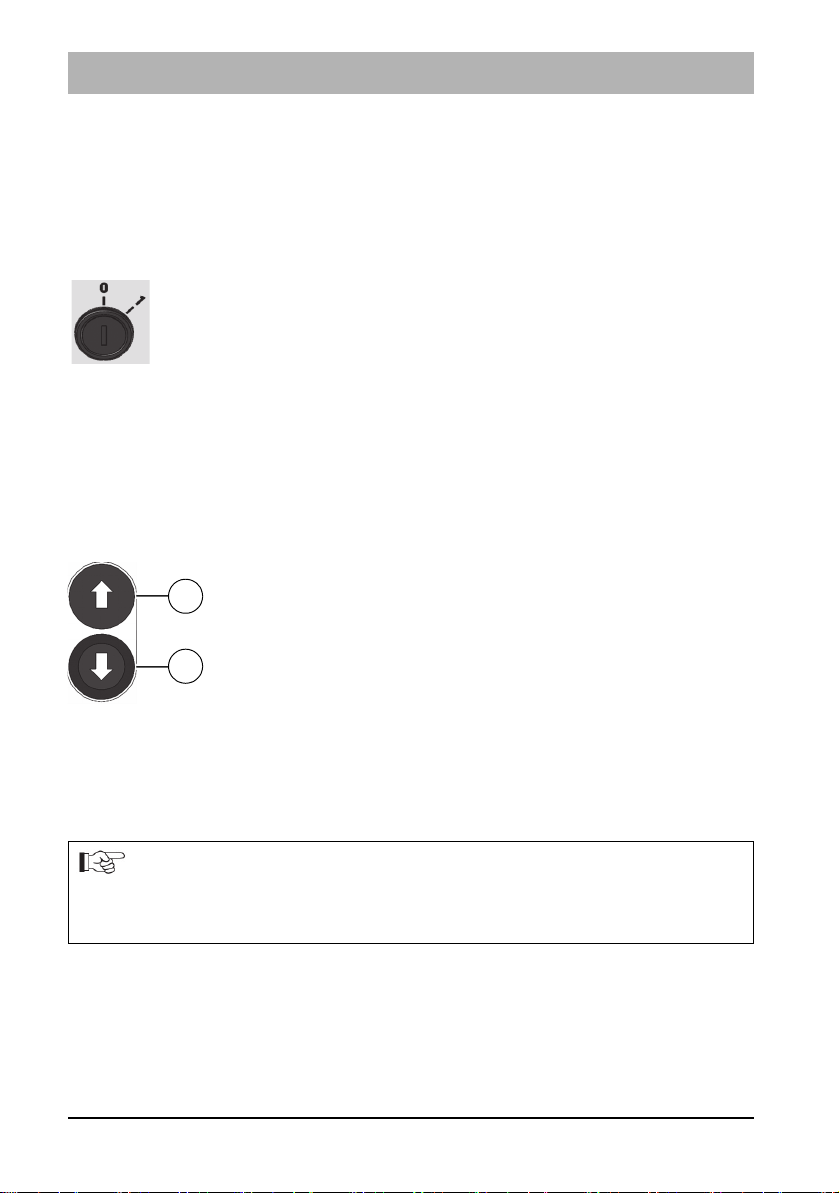

Key switch Fig. 6-51

The electrical system is switched on and off with the key switch.

• Position 0: The electrical system is switched off. The key can be pulled out.

• Position 1: The electrical system is switched on.

• The software version is displayed for approx. 1 second on the multifunction display, followed by the last service code for approx. 3 seconds if necessary. The operating hours meter is then displayed.

Driving direction selection button Fig. 6-49

The driving direction is selected with this button. The driving direction can be changed while driving.

• Push the button (A): Forwards gear

• Push the button (B): Reverse gear

Note

A warning signal is output when in reverse gear. The maximum speed when reversing is half of the maximum speed when driving forwards.

26 02-7182-01.fm

Operation

Speed reduction button Fig. 6-53

The maximum speed when driving forwards is reduced by approx. 50 % with this button.

• Push the button: Speed reduction ON

• Push the button again: Speed reduction OFF

Signal horn button Fig. 6-52

The signal horn is switched on and off with this button.

• Push the button: Signal horn ON

• Release the button: Signal horn OFF

Fresh water supply button Fig. 6-46

The fresh water supply is switched on and off with this button.

• Push the button: Fresh water supply ON

• Push the button again: Fresh water supply OFF

Boost function button Fig. 6-47

In order to remove heavy contamination, it is possible to boost the scrubbingvacuuming cleaning program (green button Fig. 6-48) and scrubbing (button Fig. 6-44) using the boost function.

• Push and hold the button: the highest level of fresh water dosing and the increased brush pressure are activated simultaneously.

• Release the button: the machine switches back to the operating mode it was in before the boost function.

02-7182-01.fm 27

Operation

Brush unit button Fig. 6-44

The brush unit is lowered and raised with this button.

• Push the button: The brush unit is lowered. When actuating the accelerator pedal, the brush drive and the water supply are switched on.

• Push the button again: The brush drive and the water supply are switched off. The brush unit is raised.

Note

If the accelerator pedal is not actuated, the brush drive and the water supply are switched off.

Squeegee button Fig. 6-45

The squeegee is lowered/raised and the suction turbine switched on and off with this button.

• Push the button: The squeegee is lowered and the suction turbine switched on.

• Push the button again: The squeegee is raised. After an after-run time of approx. 15 seconds, the suction turbine is switched off.

Note

The squeegee is automatically raised when reversing. The suction turbine drive remains switched on.

28 02-7182-01.fm

Operation

Brush unit and squeegee button Fig. 6-48

The brush and suction turbine drive are switched on and off simultaneously with this button.

• Push the button: the brush unit, the side brush unit and the squeegee are lowered, and the suction turbine is switched on. The brush drive and the water supply are switched on when the accelerator pedal is actuated.

• Push the button again: the brush unit and the side brush unit are raised. The brush drive and the water supply are switched off. The squeegee continues to run for approx. 15 seconds to absorb residual water.

Side brush unit button Fig. 6-57

The side brush unit is switched on and off with this button.

• Push the button: Side brush unit ON

• Push the button again: Side brush unit OFF

Pre-sweep suction unit button Fig. 6-56

The pre-sweep suction unit is switched on and off using the button.

• Push the button: Pre-sweep suction unit ON

• Push the button again: Pre-sweep suction unit OFF

02-7182-01.fm 29

Operation

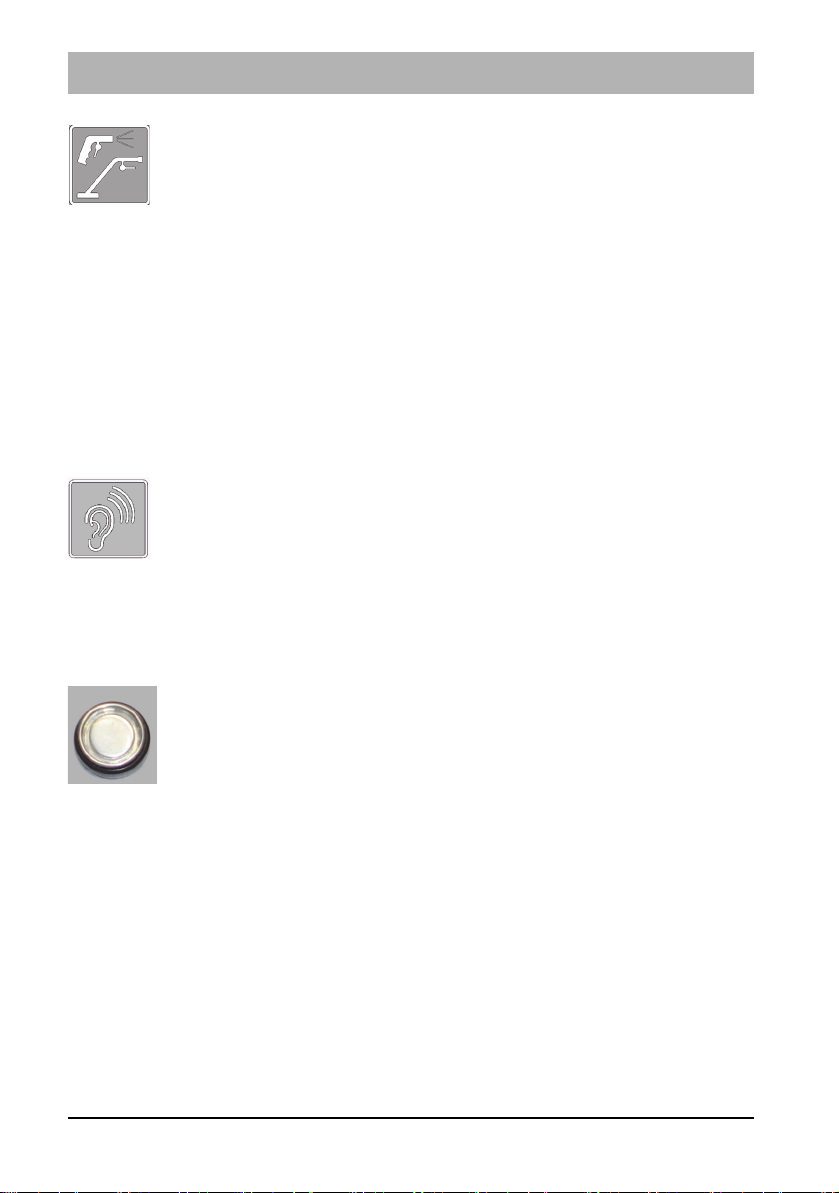

Tool operation button Fig. 6-55

The following tools can be switched on and off using this button when the driver is not on the seat:

• Spray nozzle

• Manual suction or spray suction tool If the machine does not have a particular tool, it is excluded from the switching order

• Push the button: Spray nozzle ON

• Push the button twice: Manual suction and spray suction tool ON

• Push the button again: Tool operation OFF

Button – silent operation Fig. 6-54

The suction turbine is switched to silent operation with this button.

• Push the button: Silent operation ON

• Push the button again: Silent operation OFF

iButton Reader (option) Fig. 6-50

The iButton Reader is used to activate the functions. Red illuminated LED or warning sound after switching on the machine request the activation of the operating data recording system via the iButton Key.

• Push the iButton Key for approx. 2 seconds against the iButton Reader. The red LED goes out. The machine is ready for operation.

30 02-7182-01.fm

Operation

Fig. 7:

E D

2.3 Multifunction display

The functions and indicators of the machine are set and displayed with the multifunction display. After the machine is switched on, the operating system and data are loaded and the start screen appears on the display. After several seconds the view changes, and the main menu Fig. 7-A appears. By selecting and confirming the soft key Menu selection Fig. 7-B you are taken to the sub-menu Fig. 7-C.

Note

It is only possible to switch to the sub-menu if the cleaning functions are switched off!

2.3.1 Menu guidance

The menu is operated with the turn-push knob Fig. 7-D. Menus and sub-menus are selected in the multifunction display and the individual menu item values are set or changed with the turn-push knob. The following basically applies:

• Turn to select a menu item. The selected menu item is displayed with a yellow border.

• Push to activate a menu item.

You can jump back to the previous menu using the return button Fig. 7-E.

02-7182-01.fm 31

Operation

Fig. 8:

2.3.2 Main menu

The main menu is divided up into three levels.

• Status level Fig. 8-A

• Function level Fig. 8-B

• Action level Fig. 8-C

Symbols at status level

Symbol Designation Meaning

Service alarm clock

Service alarm clock active.

Service alarm clock

X-AC drive The symbol appears for two seconds if the X-AC drive

Driving direction The selected driving direction is displayed as a

Accelerator pedal in neutral position

If the service alarm clock has elapsed, this symbol is permanently visible

is installed.

respective symbol. Example: forwards gear.

This symbol appears when the accelerator pedal is in the neutral position.

32 02-7182-01.fm

Operation

Speed reduction The symbol is displayed when the machine is driving

at reduced speed.

Parking brake The symbol is displayed when the parking brake is

activated.

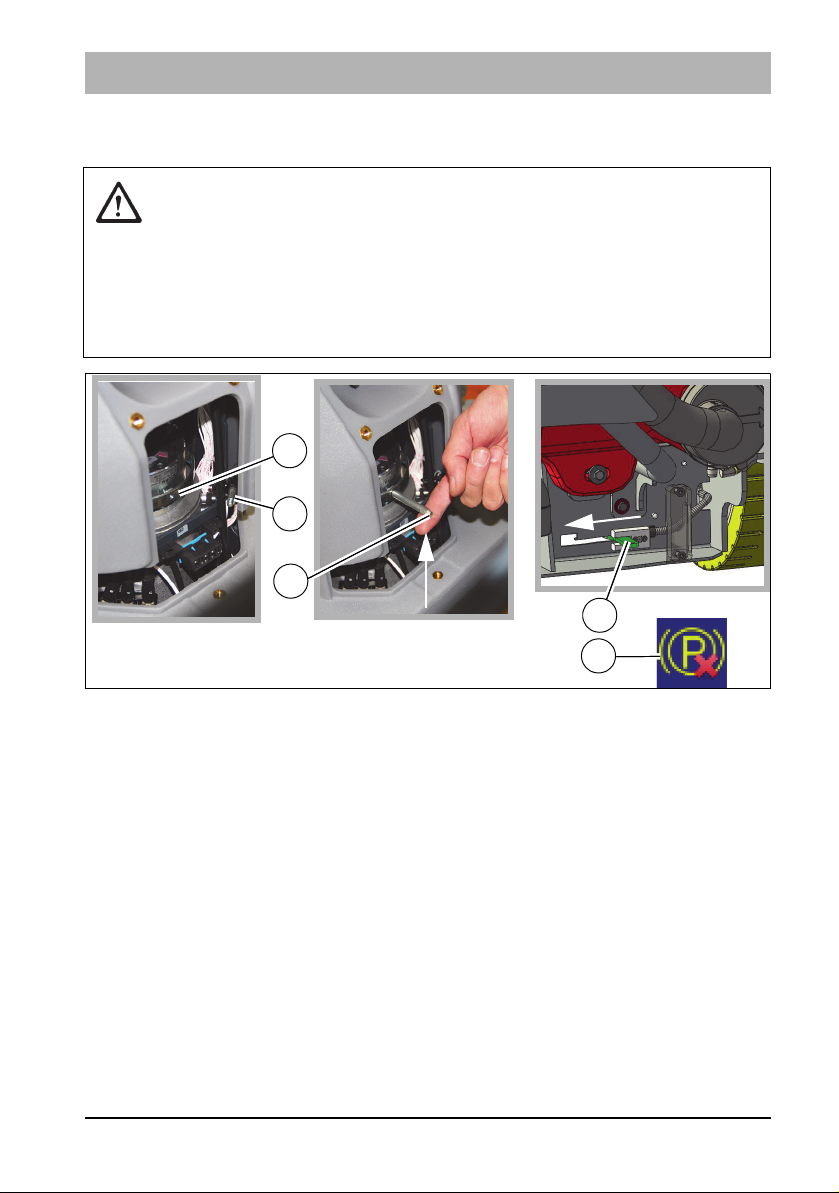

Rear wheel parking brake is not operational

The symbol appears if the rear brake has been taken out of service mechanically. Driving is deactivated.

Seat contact The warning symbol lights up if the driver gets up from

the driver's seat during operation. Main functions, e.g. scrubbing, vacuuming and driving, are no longer possible.

User The symbol indicates the currently set user profile.

Silent operation The symbol appears when the machine is working in

reduced-noise operation. The symbol also appears at the Squeegee symbol.

Operating hours meter

The operating hours in work mode are displayed. The operating hours for the individual units can be called up in the sub-menu.

Service alarm clock

If the service alarm clock Operating hours has elapsed, this symbol is permanently visible.

Service indicator The symbol appears if a service case occurred, but it

had already been eliminated automatically or by operator intervention.

Service indicator The symbol appears if a service case occurs. An

acoustic warning is also output and a four-digit service code appears on the right next to the symbol, see section 3.6.

02-7182-01.fm 33

Operation

Symbols at function level

All active units are displayed as symbols at function level.

Symbol

Designation Meaning

Side brush unit Side brush unit active.

Pre-sweep suction unit

Speed-independent water dosing

Speed-dependent water dosing

On-board dosing system

Rotating brush unit

Roller brush unit

Increased brush pressure, rotating brush Increased brush pressure, roller brush

Pre-sweep suction unit active.

The selected water dosing is displayed in the bar diagram.

The selected water dosing is displayed in the bar diagram. Water quantity adaptive to driving speed.

On-board dosing system active. The currently set mixing ratio is displayed.

Brush unit active.

Brush unit operating with increased brush pressure. At maximum brush pressure, two weights appear in the symbol.

Squeegee Squeegee and suction turbines active.

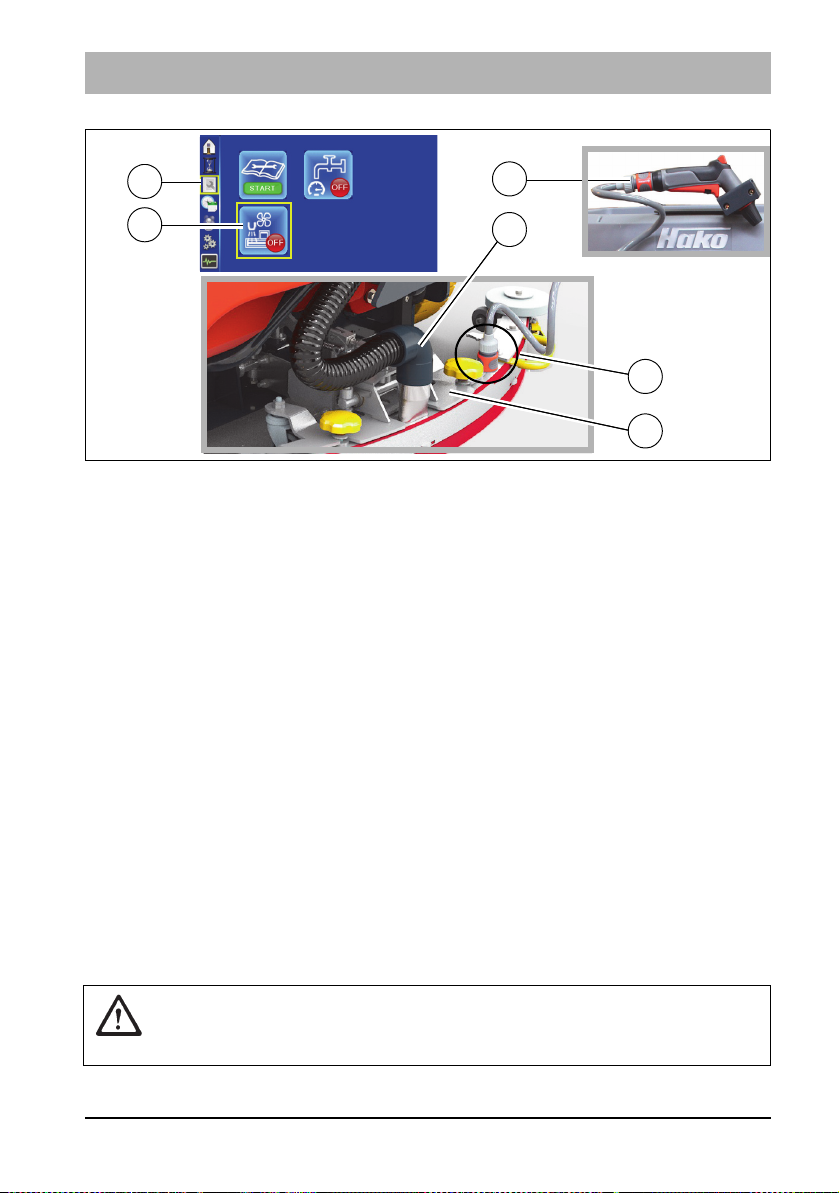

Manual suction/ spray suction tool

Spray nozzle Spray nozzle active.

34 02-7182-01.fm

Manual suction tool or spray suction tool active.

The suction for the spray suction tool can be deactivated by pressing the squeegee button.

Operation

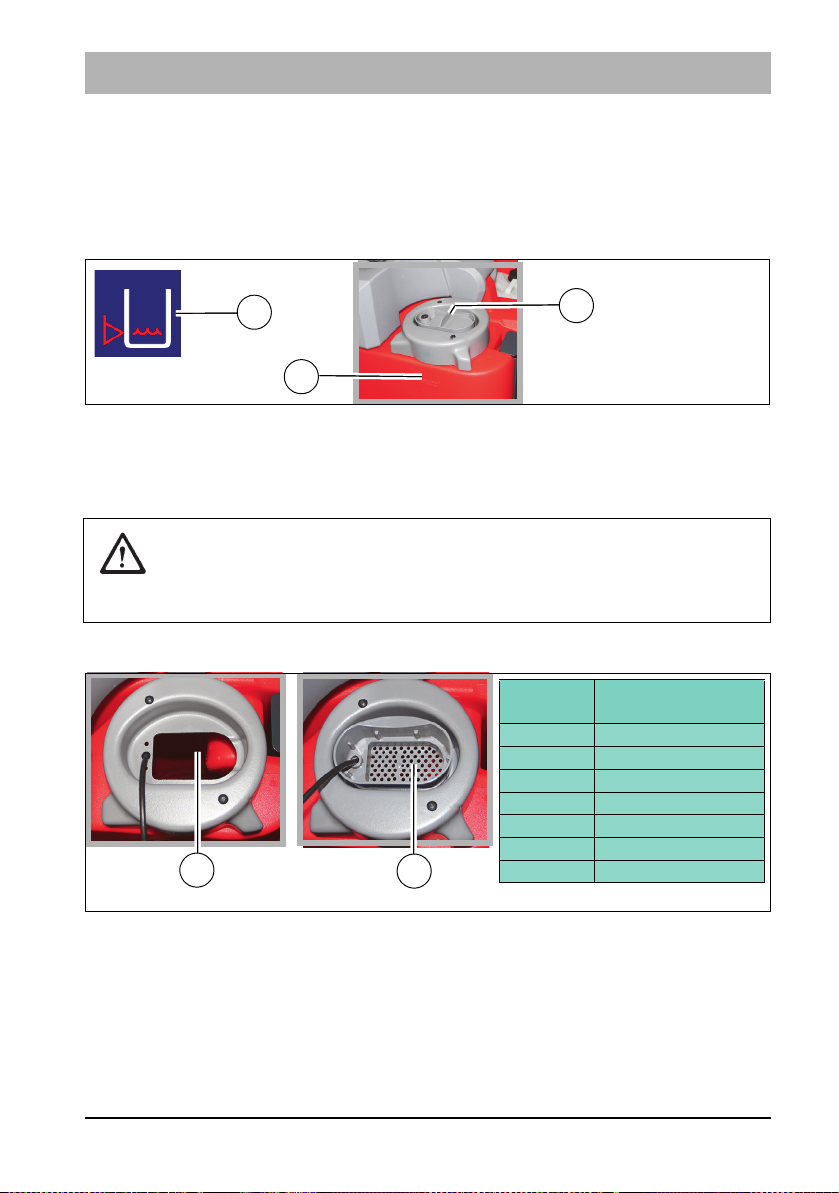

Solution tank full The current filling level of the solution tank is shown

descending in steps of 20 %.

Warning symbol – solution tank empty

The symbol appears when the filling level of the solution tank is approximately 10 litres. A warning sound is additionally output. Fill the solution tank immediately, see section 5.3.1,

Waste water tank full warning symbol

The symbol appears when the waste water tank is full. An acoustic warning is also output, and waste water collection is switched off. Empty the waste water tank immediately, see section 5.4.1.

Warning symbol – dirt hopper of the roller brush unit full

When switching off, the fill level is checked in the dirt hopper. The symbol is displayed when the dirt hopper is full. A warning sound is additionally output. Emptying the dirt hopper,

Battery charging state indicator

The current charge level of the battery is displayed in steps of 10 %, see section 5.2.1,

Additional symbols

For more information there are additional symbols, which are explained in the following

Symbol

Designation

Warning symbol – red spanner

Meaning

Faults in the functions are signalled by the red spanner. A 4-digit service code is also displayed at the same time.

Warning symbol If this symbol appears, the unit

• is not installed or

• not configured Example: pre-sweep suction unit not installed.

Symbol

OFF If the symbol appears, the function is switched off.

Example: the water supply is switched off.

Function symbol displayed in yellow

Symbol displayed in grey

Interrupted functions are shown in yellow, e.g. if the accelerator pedal is in the neutral position. Example: function interrupted by brush unit.

If a symbol appears in grey, the function cannot be started because the prerequisites for starting have not been fulfilled. Example: switch to sub-menu not possible.

02-7182-01.fm 35

Operation

Fig. 9:

A B GFEDC

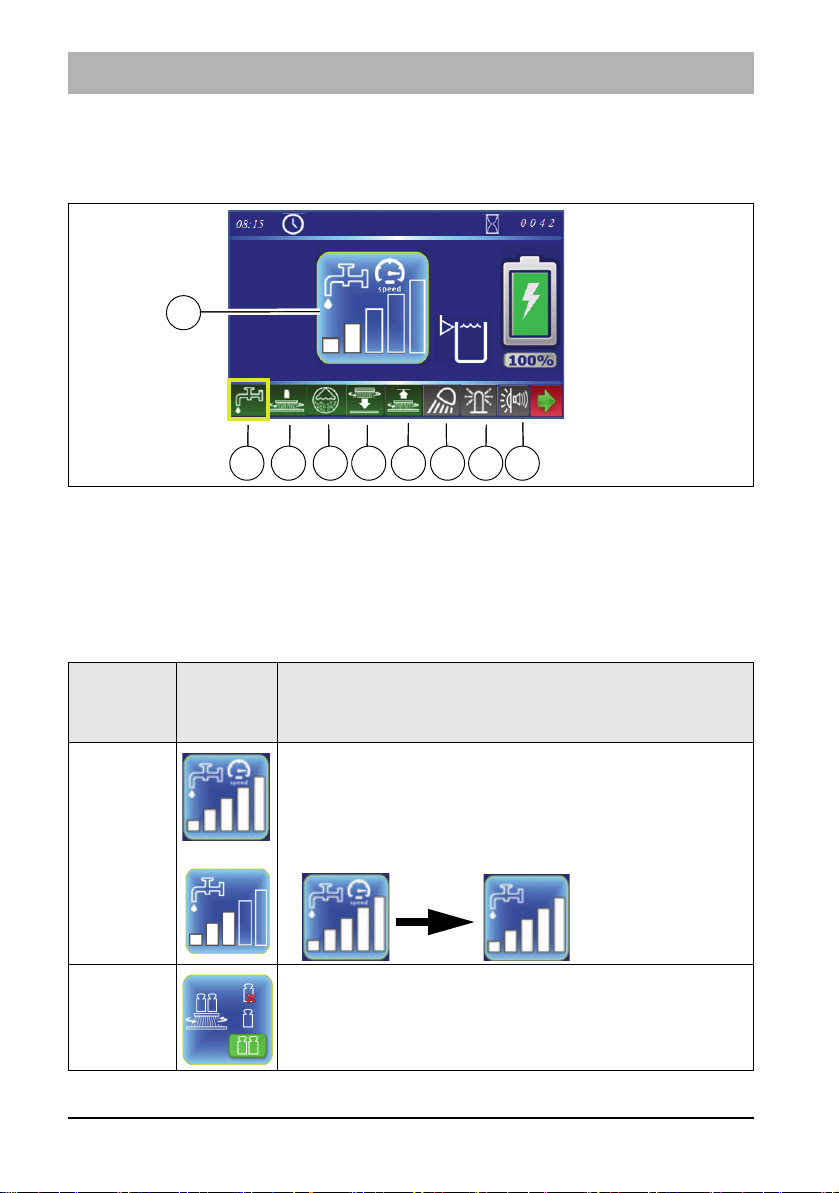

Action level

Settings can be made or actions performed in the action level using soft keys Fig. 6-A to G.

The soft keys are selected by rotating the turn-push knob (soft key with yellow border) and confirmed by pressing. An action window Fig. 9-H opens, in which the settings can be carried out using the turn-push knob. The action windows close automatically after a few seconds or by pressing the return key.

The following actions are possible:

Soft key Action

Setting window/ soft key

Water dosing

Brush pressure increase

36 02-7182-01.fm

Depending on the presetting, the action window appears

for speed-dependent or speed-independent water dosing.

• The water dosing has 5 settings.

• After reaching the highest speed-dependent water quantity, the speed dependence is deactivated by turning the turn-push knob clockwise.

Brush pressure increase OFF 1 weight = increased brush pressure 2 weights = maximum brush pressure Green background = active

Operation

On-board dosing system

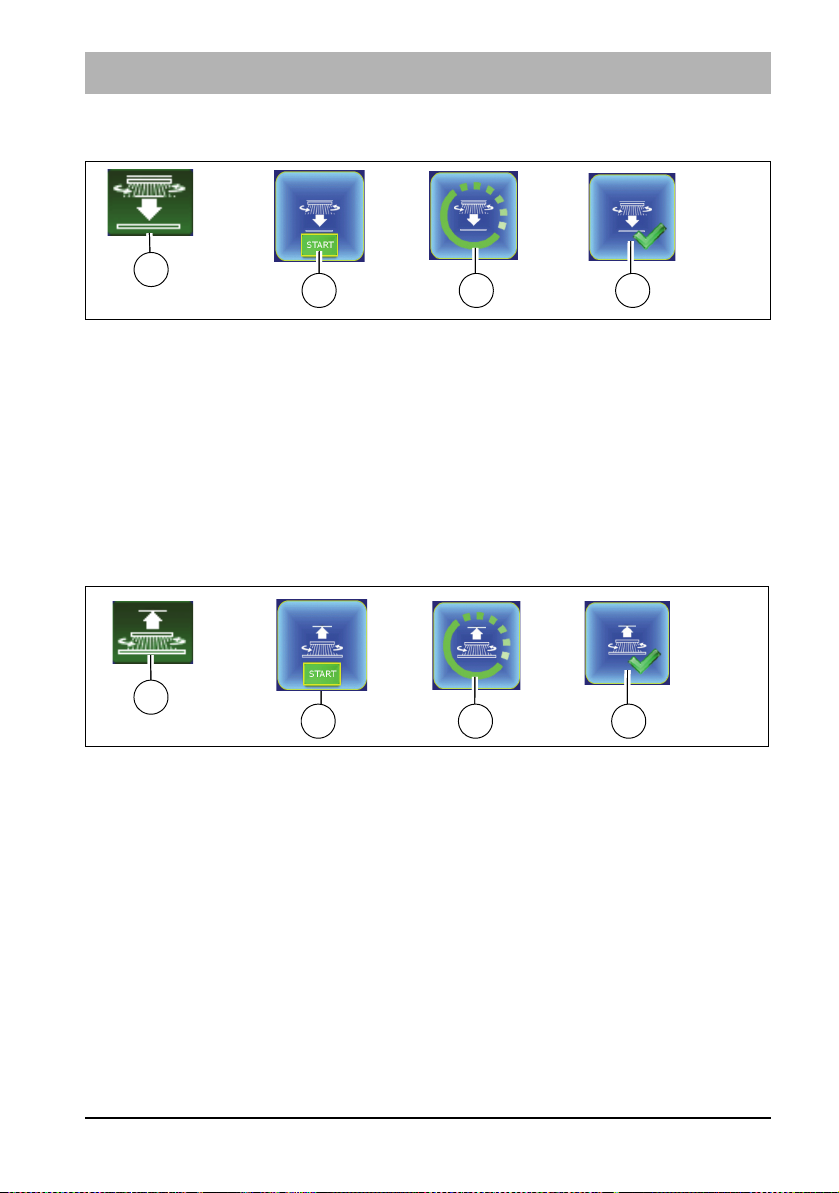

Ejecting the rotating brushes

Replacing the roller brushes

Coupling the brushes

F Working light

G Flashlight

H Warning device forwards gear or Blue Spot

Setting the mixing ratio, see section 3.4.2.

Ejecting the rotating brushes, see section 5.5.3.

Roller brush change position,

Coupling the rotating brushes, see section 5.5.4.

Working light ON/OFF by means of direct selection using the soft key. If the working light is switched on, the colour of the soft key changes from white to green.

Flashlight ON/OFF by means of direct selection using the soft key. If the flashlight is switched on, the colour of the soft key changes from white to green.

The following settings can be selected in the action window:

• Turn indicator ON/OFF

• Acoustic warning ON/OFF

• Turn indicator and acoustic warning ON/OFF

If the respective function is switched on, the colour changes from white to green.

02-7182-01.fm 37

Operation

Fig. 10:

2.3.3 Sub-menu

Configuration can be carried out, operating data read off and the clock/calendar set in the sub-menu. Some sub-menus require additional access rights. After calling up the sub-menu, the cursor automatically jumps to the operating hours menu. To return to the main menu, press

• the soft key Home Fig. 10-A or

• the return key on the control panel Fig. 10-42.

38 02-7182-01.fm

The following sub-menus can be selected:

Operating hours meter menu Fig. 10-B

• As well as the machine activation time and work mode, the operating hours of the individual units are displayed.

• The remaining time until the next service is displayed in hours/days at the bottom right. If a service is required, the spanner appears in red.

Maintenance menu Fig. 10-C

The maintenance menu contains the following menu items:

• The Maintenance instructions sub-menu.

• Activation/deactivation of speed-dependent water dosing.

• Activation/deactivation of automatic squeegee cleaning.

• The information menu contains information about software and hardware revisions.

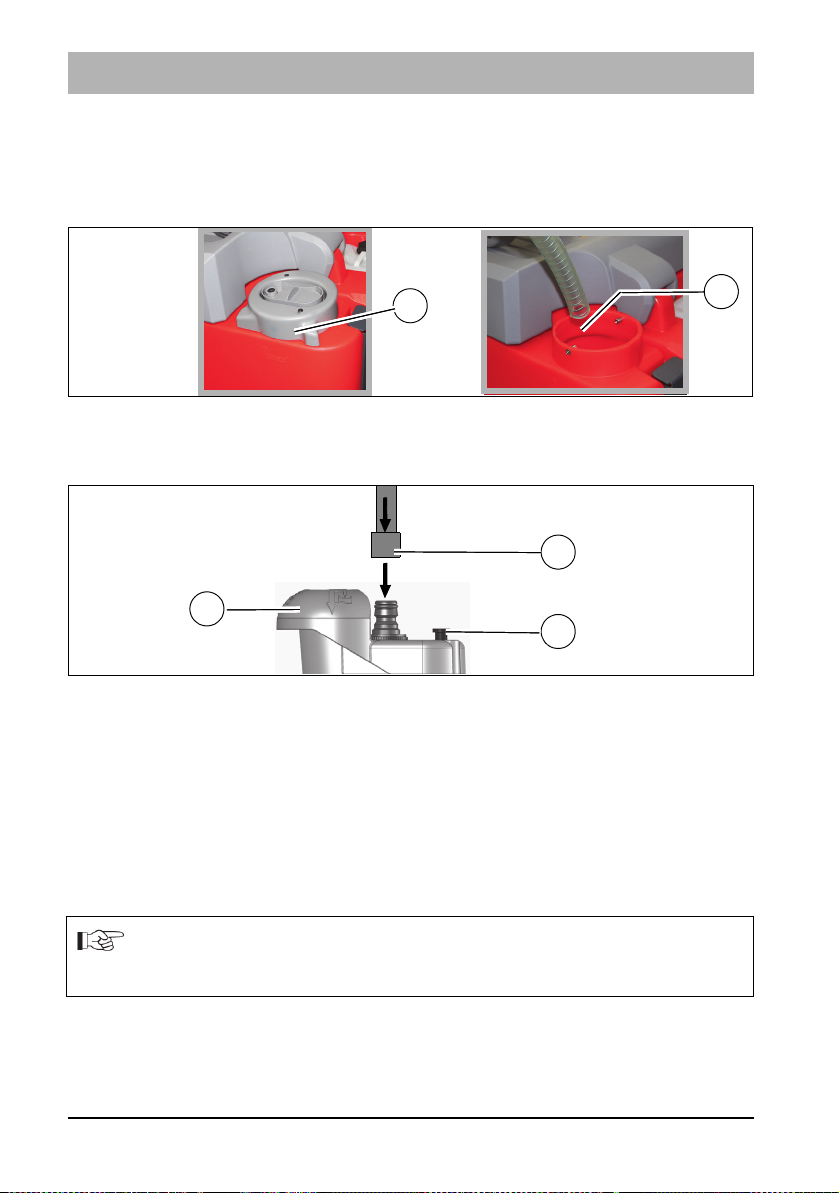

• To put the on-board dosing system into service, the detergent is conveyed to the brush unit by activating the fast-fill menu.

The Maintenance instructions sub-menu opens, in which pictures for daily cleaning and maintenance are stored. Example: cleaning the fresh water filter.

Operation

When this menu is exited, a diskette appears. By selecting and confirming the Diskette symbol, you are confirming that you have carried out the maintenance.

Speed-dependent water dosing ON/OFF.

• Automatic squeegee cleaning ON.

• The time display in 5 second steps signals the time until shut-off.

• Automatic squeegee cleaning OFF.

see section 5.7.1

02-7182-01.fm 39

Operation

Maintenance menu Fig. 10-C continued

• Fast-fill menu ON

• Program continues to the end and finishes automatically

see section 3.4.2

Time/Date menu Fig. 10-D

Time:

• Choice between 12 hour or 24 hour display.

• Set the clock in hours and minutes.

Date:

Set the date: day, month and year.

The set values are taken over when the menu is exited.

User settings menu Fig. 10-E

The user settings menu contains:

• Selection of:

• Specified settings (1-6)

• User-specific settings (A-C)

• Definition of: User-specific settings (A-C)

9 settings are available in the selection menu:

• The specified settings (1-6) contain predefined standard procedures.

• User-specific settings (A-C) contain user-defined function procedures and function restrictions.

The selected, active user profile is displayed as a number/letter with a green background.

3 programs (A, B, C) with user-specific settings can be stored in this configuration menu. The modification of user profiles requires additional access rights.

40 02-7182-01.fm

Configuration menu Fig. 10-F

The following settings are made in the configuration menu:

• Activate/deactivate options.

• Setting of machine-specific parameters.

Making changes to the configuration menu requires additional access rights.

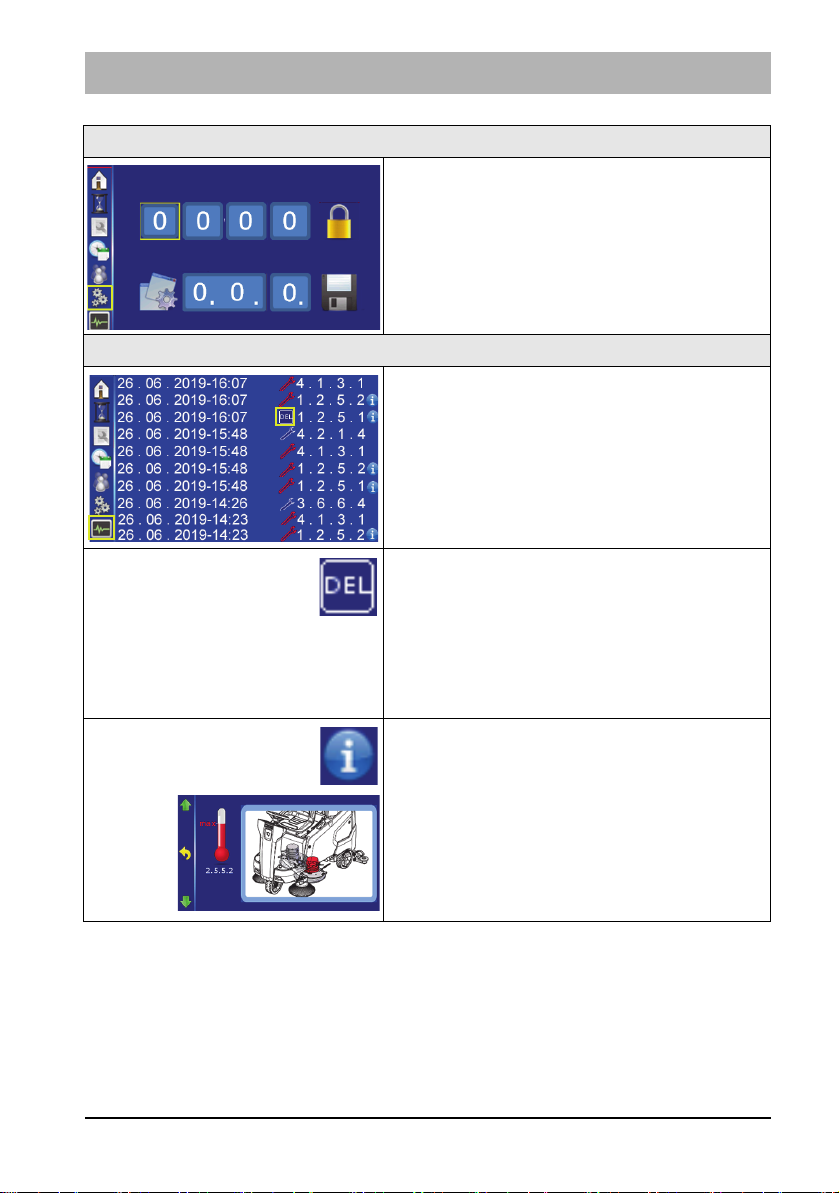

Service information menu Fig. 10-G

The last 10 items of service information are displayed in the service information menu. The operator can perform the following actions:

• Delete the last service information when the

• Obtaining detailed information.

Deletion of the last service information from the display: Select the Delete symbol with the turn-push knob and press the turn-push knob for 3 seconds. The Delete symbol is now no longer visible and the service code is no longer displayed after starting up the machine.

If the Information symbol appears next to the service code, detailed information can be requested. Select the Information symbol with the turn-push knob and confirm. Another window opens in which detailed information is displayed. Example: brush motor overheating

Operation

fault has been remedied.

02-7182-01.fm 41

Operation

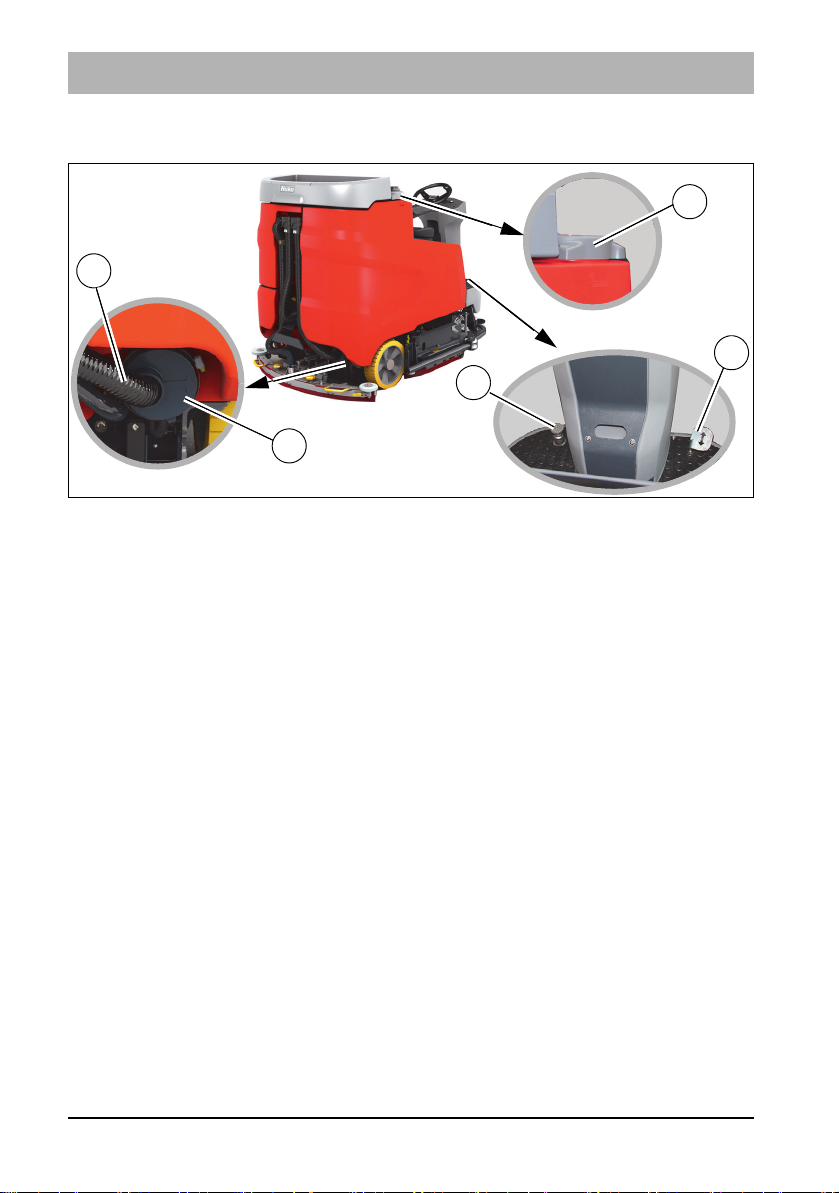

Fig. 11:

2.3.4 Controls at the machine

Operating brake Fig. 11-17

When the accelerator pedal is released, the machine comes to a stop due to the braking effect of the travel drive. If this braking effect is not sufficient, the operating brake can be applied in addition.

Accelerator pedal Fig. 11-20

The accelerator pedal is used to drive forwards or reverse and continuously adjust the speed at the same time. If the accelerator pedal is not actuated, it automatically returns to the zero position and the machine stops.

Filling opening fresh water Fig. 11-39

The solution tank is filled via the filling opening. If the solution tank is filled using fast filling, the grey cover can be removed to increase the size of the filling opening. Optionally, the solution tank can be filled via the automatic filling unit, see section 5.3.1.

Fresh water drain hose Fig. 11-27

The solution tank is drained using the drain hose.

Solution tank maintenance opening Fig. 11-25

The cleaning opening is used for cleaning the solution tank.

42 02-7182-01.fm

Operation

Fig. 12:

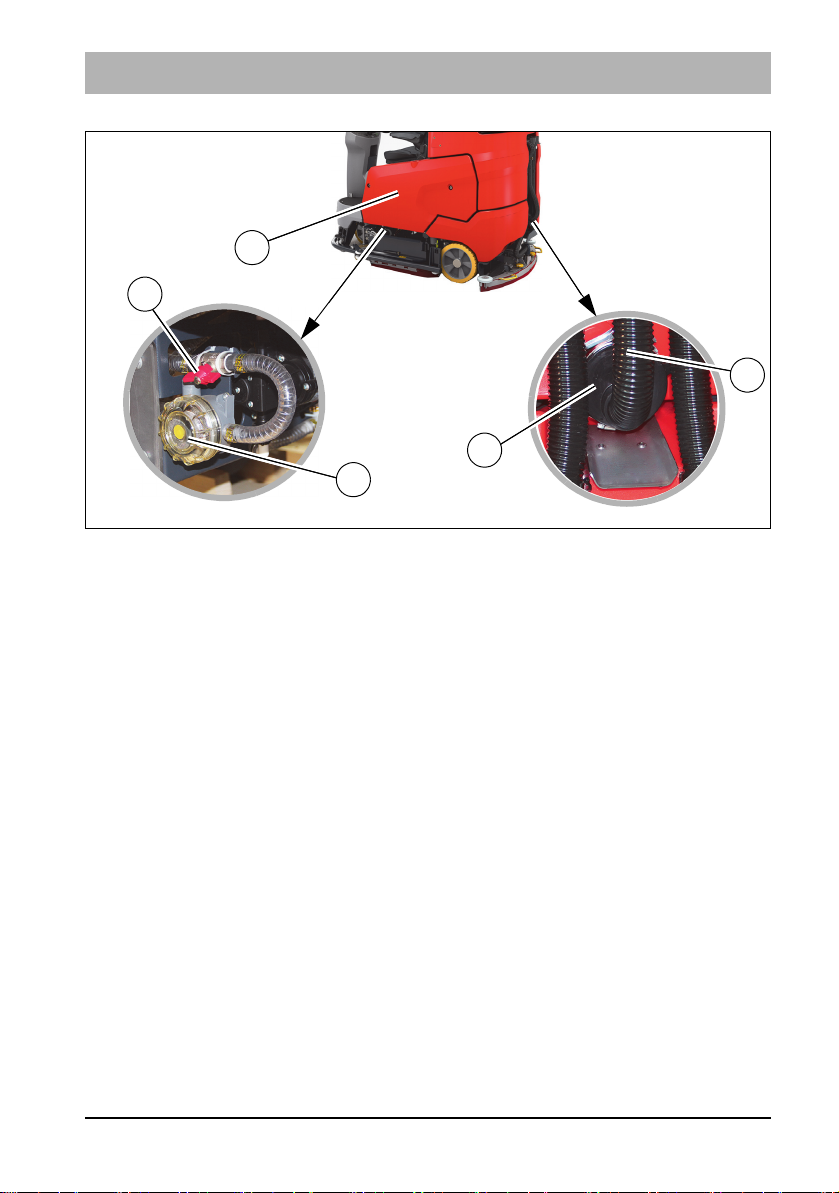

Side panelling Fig. 12-10

The trough batteries and the suction turbines are behind the side panelling. The side panelling can be easily removed using the provided wrench.

Waste water tank maintenance opening Fig. 12-31

The maintenance opening is used to drain the waste water and for cleaning the tank.

Fresh water filter Fig. 12-12

When supplying water from the solution tank to the brush unit, the fresh water is cleaned by the filter insert.

Ball cock Fig. 12-11

The ball cock is used to switch the water supply on and off manually in case the fresh water filter needs to be unscrewed.

Drain hose for waste water Fig. 12-30

The waste water that is collected is drained using the drain hose.

02-7182-01.fm 43

Operation

Fig. 13:

2.4 Functional description:

Scrubmaster B260 R is a ride-on scrubber-drier for wet cleaning hard floor surfaces. The Scrubmaster B260 R is intended for economical cleaning of large operational areas. In cleaning mode, the cleaning solution is supplied from the solution tank to the rotating brushes in the brush unit. When the machine is moving forwards, the used waste water is absorbed by the squeegee and conveyed into the waste water tank. A seat contact ensures that the machine can only be operated when the operator is sitting on the seat.

2.4.1 Solution tank

The solution tank Fig. 13-24 is filled via the filling opening Fig. 13-39. The solution tank has a capacity of 260 litres. The current filling level is shown in the multifunction display. If the filling level is less than 10 litres in the tank, the Tank empty symbol appears in the display and an acoustic warning indicates that topping up is required.

44 02-7182-01.fm

Operation

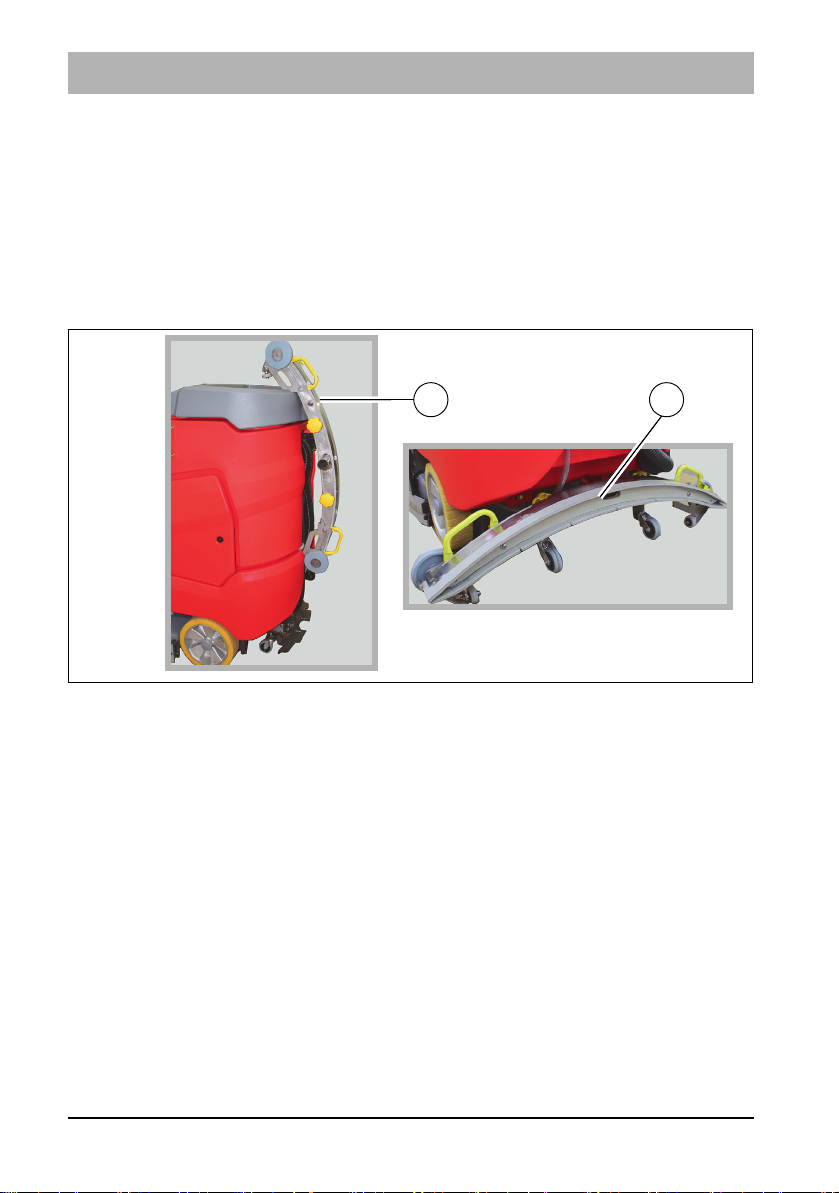

Fig. 14:

2.4.2 Rotating brush and roller brush unit

The brushes in the brush unit Fig. 13-22 are, depending on the actual version, driven by two or three electric motors. The brush unit is lowered with the Brush unit Fig. 6-44 button. When actuating the accelerator pedal, the brush motors and the water supply are switched on. The floor is cleaned by the rotating brushes and the supply of cleaning solution. The brush pressure can be changed in the multifunction display. There is an indicator on the brush desk showing the amount of brush wear. The brushes in the rotating brush unit can be ejected for maintenance purposes by pressing the soft key Brush decoupler Fig. 9-C in the multifunction display, see section 5.5.3.

2.4.3 Side brush unit

In order to brush up coarse dirt close to walls and beyond the squeegee, a side brush unit Fig. 13-14 with two side brushes can be fitted at the front.

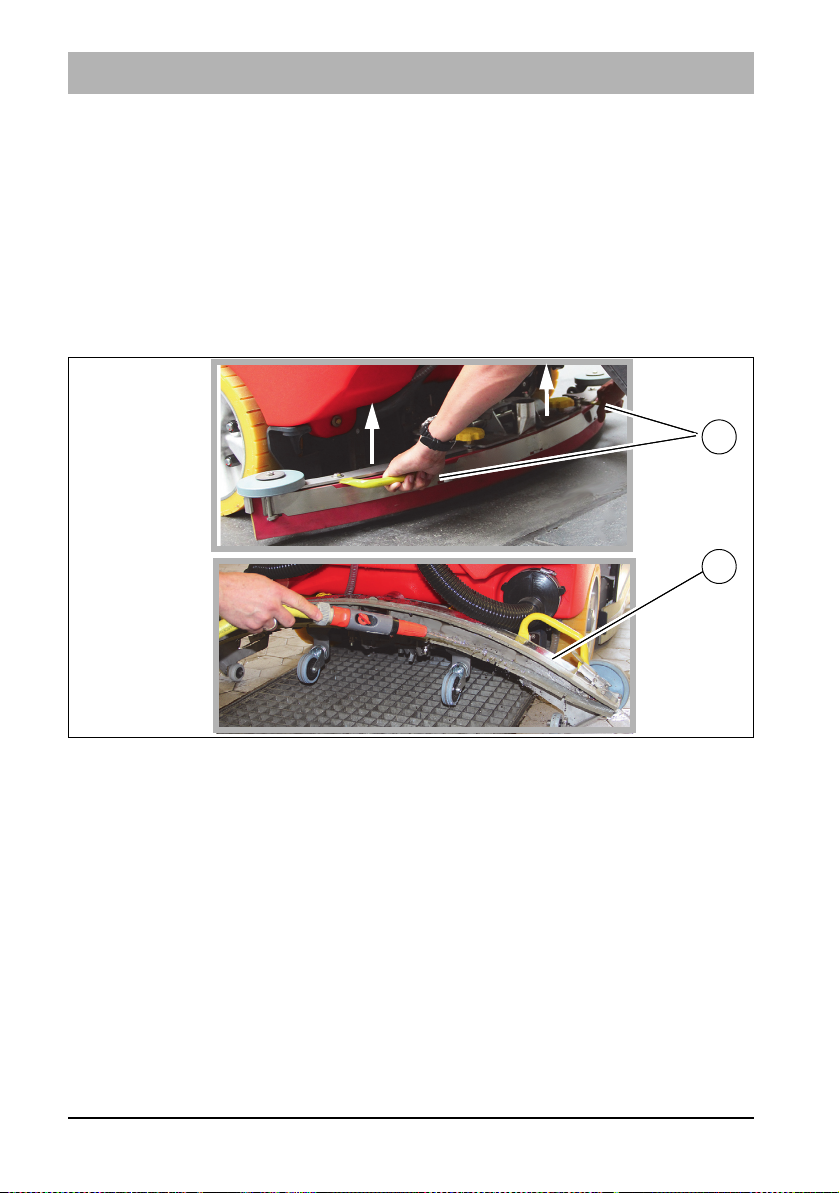

2.4.4 Wiper

To the right and left of the brush unit there are two wipers which avoid spray water at the side in the working position and lead the waste water to the centre of the vehicle, where it is easier to vacuum up.

The wipers can be raised if necessary. To do this, raise the wiper at the handle Fig. 14-A and hook the locking hook Fig. 14-B into the bracket above it.

02-7182-01.fm 45

Operation

Fig. 15:

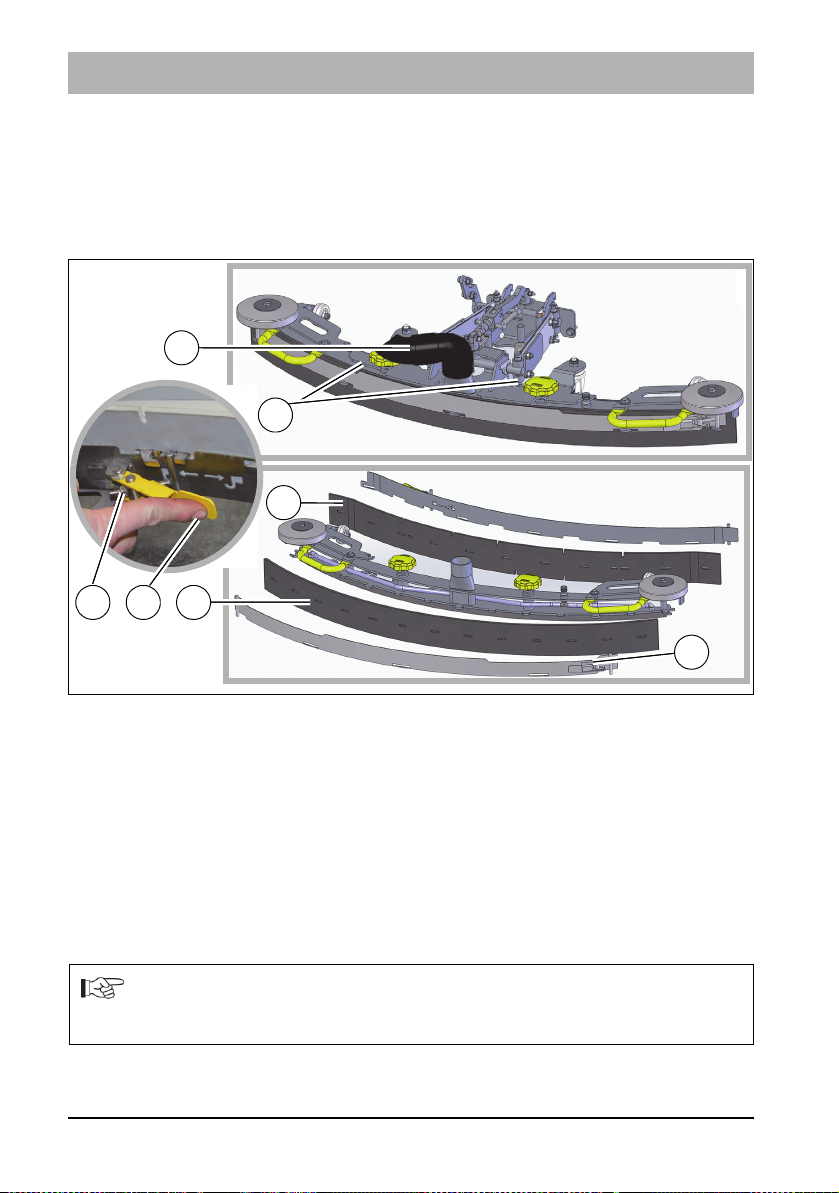

2.4.5 Squeegee

The movable, hinged squeegee Fig. 13-28 is lowered and switched on with the Squeegee button Fig. 6-45. The squeegee withdraws the waste water from the floor using a sealing strip. The suction turbines vacuum the waste water from the floor. If the machine passes through narrow sections, e.g. checkout areas, the squeegee can be removed by loosening the starshaped handle and hooked into the cover Fig. 15-A of the waste water tank. The squeegee can be swivelled up for maintenance purposes Fig. 15-B.

2.4.6 Waste water tank

The waste water vacuumed by the squeegee is conveyed via a suction hose

Fig. 15-29

from the squeegee into the waste water tank

Fig. 15-37

. A float switch inside the waste water tank automatically switches the suction turbine off when the maximum filling level is reached. In this case, a warning symbol illuminates in the multifunction display. An acoustic warning is output at the same time.

2.4.7 Suction turbines

The suction turbines are on the left-hand side of the machine and are accessible after removing the side panelling. The suction turbines are switched on and off automatically when the squeegee is lowered and raised.

46 02-7182-01.fm

Operation

2.4.8 Travel drive

Standard

The travel drive consists of an electric machine and a gearbox, and fulfils the functions of driving, braking and steering. Driving and braking are carried out using the electric machine. Steering is carried out using a connected steering rod. The gearbox does not require an oil change.

X-AC drive (option)

The X-AC drive is an electrical machine with a gearbox on the rear axle which acts as a drive and deceleration aid for the travel drive on the front axle.

2.4.9 Brakes

The operator slows down the machine by releasing the accelerator pedal. A greater braking effect is achieved by operating the brake. When the machine comes to a standstill, the parking brake is automatically applied.

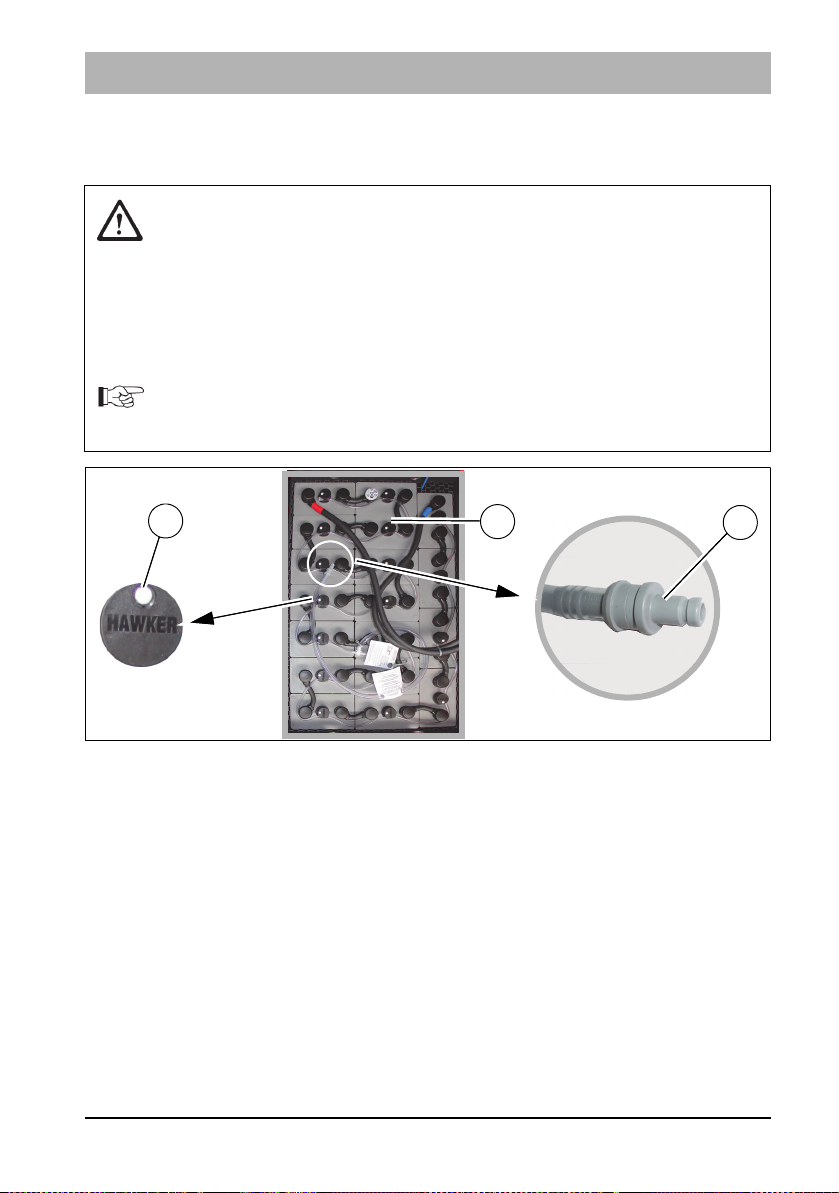

2.4.10 Batteries

The machine variants may be equipped with different battery types.

• Trough battery 36 V/480 Ah PzS, 320 A wet

• Trough battery 36 V/420 Ah PzV, 320 A maintenance free

Battery management system (BMS)

The Scrubmaster B260 R is fitted with a BMS. The BMS ensures that the battery system is monitored. The BMS is responsible for:

• determining the battery charging state during operation

• switching off the cleaning functions when the discharge limit has been reached to protect the battery against total discharge

Attention

When using other batteries which have been approved by Hako, the BMS must be reset to protect the battery against total discharge. The settings of the BMS should only be carried out by a workshop authorised by Hako!

For more information, see section 5.2.

02-7182-01.fm 47

Operation

3 Operation

3.1 Instruction

Instruction is required before the first start-up. The first-time instruction of the machine must be provided only by a specialist of your authorised Hako dealer. This person will be notified immediately after delivery of the machine from the factory and will contact you to make an instruction appointment.

3.2 Before putting into service

Attention

• Before initially starting up the machine, charge the used batteries fully and appropriately with commissioning charge. Please observe the instruction manual of the charging device and the instruction manual of the battery manufacturer. Hako assumes no liability for battery damage resulting from insufficient commissioning charge.

• Check the machine for operating safety before every start-up! Eliminate faults immediately.

• Before starting work, the operator must familiarize himself with all equipment, operating and actuating elements as well as with their function.

3.3 Check list: Before machine start-up

Description

1 Checking the parking area for signs of leaks. Cables and tanks must not

show any sign of leaks or damage.

2 Mounting the brushes and squeegee, see chapter Maintenance.

3 Adjusting the driver's seat, if necessary, see section 3.3.1.

4 Adjusting the side mirror (optional), see section 3.3.2.

Checking the battery charge and recharge it as required, see section 5.2.2.

Emptying the waste water tank and clean it as required, see section 5.4.

7 Filling the solution tank (see chapter Maintenance) and add detergent

according to the manufacturer's specifications.

48 03-7182-01.fm

Operation

Fig. 16:

Fig. 17:

3.3.1 Driver's seat

Attention

For reasons of safety, the driver's seat is equipped with a seat contact switch. The function of the seat contact switch must not be bypassed.

Danger

Do not adjust the driver’s seat while driving. Risk of accident!

• Only adjust the seat if the machine is stationary.

• The driver’s seat must audibly engage after adjustment.

Adjust the driver’s seat in such a way that all controls can be easily reached.

Adjusting the standard driver’s seat

Sit on the driver’s seat and adjust as follows:

Adjust in longitudinal direction

•Push lever Fig. 16-A outwards.

• Move seat forwards or backwards.

• Release lever Fig. 16-A and let the driver's seat engage.

Adjusting the driver’s seat comfort

Sit on the driver’s seat and adjust as follows:

03-7182-01.fm 49

Operation

Fig. 18:

Adjust in longitudinal direction

• Push lever Fig. 17-A outwards.

• Move seat forwards or backwards.

• Release lever Fig. 17-A and let the driver's seat engage.

Adjusting the tilt of the backrest Adjust the tilt of the backrest by turning the handwheel Fig. 17-B.

Adjusting the tilt of the armrests

Adjust the tilt of the armrests by turning the wheel Fig. 17-D. The armrests can be folded up when not in use.

Adjusting the seat suspension

The seat suspension can be continuously adjusted to the weight of the driver (50–120 kg) by turning the handwheel Fig. 17-C.

• Drivers who weigh less turn the handwheel Fig. 17-C to the left.

• Drivers who weigh more turn the handwheel to the right.

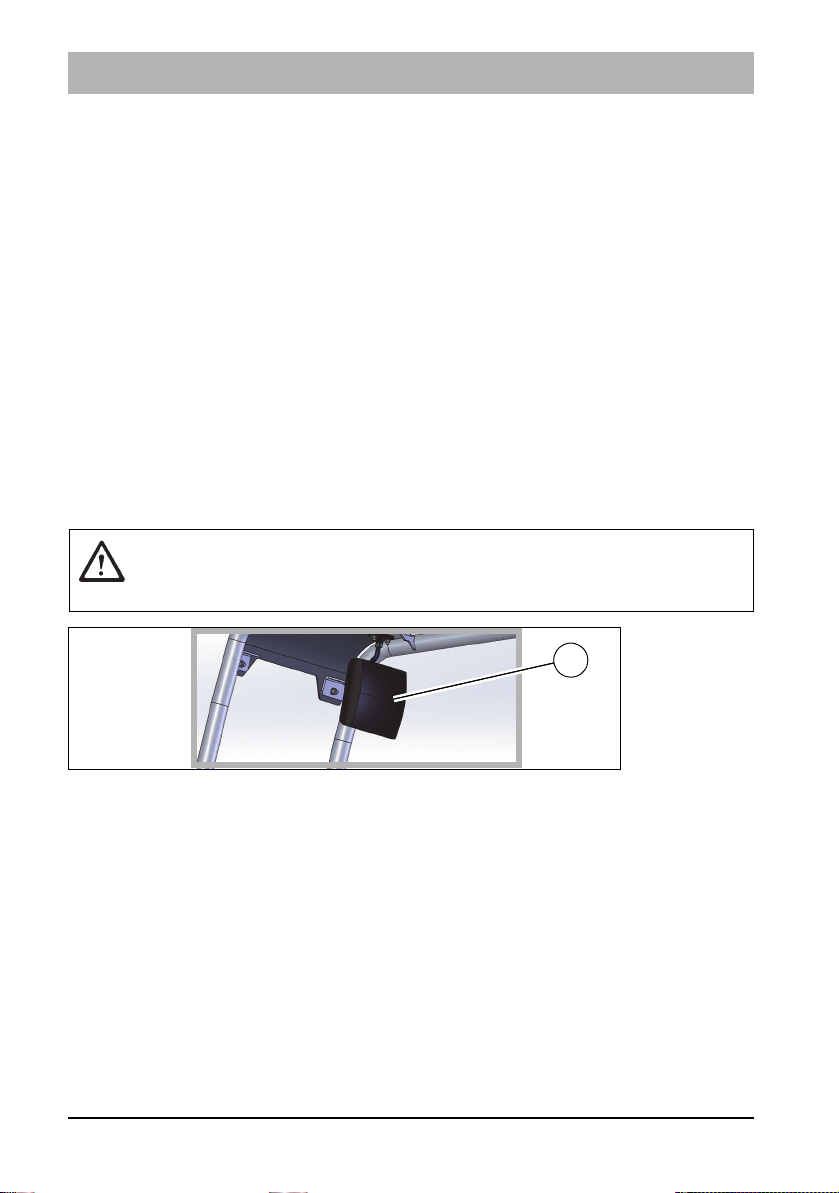

3.3.2 Side mirror (optional) adjustment

Danger

Never adjust the side mirror while driving. Risk of accident!

• Only adjust the side mirror if the machine is stationary.

Adjust the outside mirrors on the overhead guard Fig. 18-A so that a full view of the rear working area is provided.

50 03-7182-01.fm

Operation

3.4 Cleaning

Attention

• Before operating the machine, read and observe the safety instructions in chapter 1.

• The machine can only be put into service when the driver is sitting on the driver's seat.

• The travel drive can only be started if the accelerator pedal is not being actuated when the machine is turned on.

Description

1 Turn on the machine.

2 Activate access authorization using the iButton Key (optional).

3 Use the driving direction selection button to select the driving

direction.

4 Select the cleaning programme.

5 Actuate the accelerator pedal. The brush unit and the water

supply are switched on with the last selected setting.

6 If necessary, switch on the fresh water supply.

7 Set the fresh water quantity in the multifunction display using

soft key Fresh water dosing.

8 In the event of heavy soiling, increase the brush pressure

using soft key Brush pressure in the multifunction display or press the Boost button for 1 minute.

03-7182-01.fm 51

Operation

Fig. 19:

3.4.1 Entry.X (optional)

Access authorization is allocated using entry.X. Entry.X can only be used with view.X.live.

Putting into service

1. Turn the machine on with the key switch Fig. 19-A.

• Red LED of the iButton Reader ON.

2. Press the iButton Fig. 19-B for one to two seconds against the iButton Reader Fig. 19-C.

• Red LED OFF.

• Operating data recording system active.

If the machine is not registered with the iButton, the following condition arises according to the selected option:

Access authorization Display LED Machine function

without limitation

Red LED ON Fully functional

(50EC001)

with lock (50EC002)

Red LED ON

Function of the working tools locked, transport possible

Note

A red illuminated LED is a request for activation of the operating data recording system via the iButton!

Ending operation

Switch off the machine using the key switch.

52 03-7182-01.fm

Operation

Fig. 20:

3.4.2 On-board dosing system (option)

The on-board dosing system is used for optimum dosing of the detergent.

Attention

Only use detergents suitable for automatic machines (foam retarded). We recommend use of our detergents and care agents specifically developed for the machines. These products meet the requirements of the German Detergent and Detergent Act (WRMG).

Putting into service

The following points must be run through for putting into service and after every canister change.

1. Release quick coupler Fig. 20-A at canister lid by pulling the lower ring of

the coupling upwards. Unscrew lid from filled canister. Screw on lid with integrated hose Fig. 20-B and fit quick coupling with hose.

2. Turn the machine on with the key switch.

3. In the sub-menu Maintenance Fig. 20-C, select the Fast-fill menu Fig. 20-D

with the turn-push knob and confirm. When the program is started, the detergent is conveyed to the brush unit by means of the dosing pump. The program finishes automatically. The on-board dosing system is ready for operation.

03-7182-01.fm 53

Operation

Mixing ratio

Detergent in the fresh water

1:700 0.1 % 1:500 0.2 % 1:300 0.3 % 1:200 0.5 % 1:150 0.7 %

1:100 1.0 %

1:75 1.3 % 1:50 2% 1:20 5%

Fig. 21:

A B C

D E

Setting the mixing ratio

In the action window, the mixing ratio of detergent/fresh water can be selected in 9 steps. Basic setting = 1:100

1. Turn the machine on with the key switch

2. Select soft key Dosing system Fig. 21-A with the turn-push knob and confirm.

Turn on:

Set the desired mixing ratio and confirm with the turn-push knob The set mixing ratio is displayed with a green background

Fig. 21-C.

Change:

Set the desired mixing ratio. The value is accepted automatically.

Turn off:

Push the turn-push knob.

Maintenance

Check the piece of hose Fig. 21-D in the dosing pump and replace it after one year at the latest. Replace the rotor Fig. 21-E after three years at the latest.

54 03-7182-01.fm

Fig. 21-B

Operation

3.4.3 Useful cleaning tips

Sweep the floor before carrying out wet cleaning. This not only enhances the cleaning effect but also reduces wear of the machine's working tools. If the floors are really dirty or wax needs to be removed, treat the floor twice. In the first step, scrub the floor with a detergent suitable for the degree of soiling; the squeegee remains raised for this. Leave the detergent for approx. 5 to 10 minutes; subsequently scrub the floor again and work with a lowered squeegee.

Note

• Only use detergents suitable for automatic machines (foam retarded). We recommend use of our detergents and care agents specifically developed for the machine. These products meet the requirements of the German Detergent and Cleaning Agent Act (WRMG).

• Observe correct dosing of the detergent. Correct dosing saves money and protects the environment. Strong foam formation is a sign of excessive dosing and impairs machine operation.

03-7182-01.fm 55

Operation

3.4.4 Handling and braking the vehicle

Note

Set the key switch to ‘0’ to immediately disable all the functions.

Danger

• Danger of tilting over when driving on excessively steep slopes Transport journeys on slopes of up to 10 % must only take place for a limited period of time and with special caution.

• Risk of skidding when driving on wet surfaces. Drive very carefully into the bend when driving downhill.

Observe the following points when driving:

• Driving speed and braking of the machine are controlled via the accelerator pedal.

• The engine brake is automatically applied when the accelerator pedal is released. This also applies when ascending or descending.

• Stop the machine: Release the accelerator pedal. Operate the operating brake for maximum deceleration.

• When the machine is at standstill, the parking brake is activated audibly. It is no longer possible to push the machine, see section 3.4.5.

Overload protection

In case of an overload, e.g. excessively steep slopes, the drive motor is switched off after a certain period of time.

• Let the machine cool down for approx. 15 minutes.

• Restart the machine.

56 03-7182-01.fm

3.4.5 Pushing the machine

Fig. 22:

Danger

Risk of accident! When pushing the machine, it does not have any braking effect. Only push the machine on a level surface! After pushing the machine, do not re-start until the lever(s) has (have) been positioned and the cover has been fitted. If the machine stops on an uphill or downhill gradient, call the towing service or Hako service!

Operation

In order to push the machine, carry out the following steps:

1. Loosen the bolts of the cover to the drive using the supplied socket wrench and remove the cover.

2. Remove the pin Fig. 22-A from the holder and screw it into the ring Fig. 22-B.

3. In order to unlock the parking brake, pull the pin upwards slightly Fig. 22-C and simultaneously push the machine.

If the machine has an X-AC drive, the rear wheel brake must also be unlocked. To do so, push the lever at the rear on the right side of the machine Fig. 22-D from right to left until it engages. Indication appears on the multifunction display when the rear wheel brake is taken out of service Fig. 22-E. The machine can no longer be driven! Disassembly is in reverse order.

03-7182-01.fm 57

Operation

3.4.6 Turning off the machine

1. Slowly bring the accelerator pedal to the zero position. The machine slows down to standstill. A better braking effect is achieved when the machine is slowed down by applying the brake.

2. When the machine is at standstill, the parking brake is activated audibly.

3. Switch off the cleaning functions.

4. Switch off the machine using the key switch.

Note

Remove the key when leaving the machine to prevent unauthorised use.

3.4.7 Check list: after cleaning

Environmental danger

Observe the applicable laws and local regulations when disposing of detergents.

Attention

Do not use a high-pressure cleaner or steam cleaner to clean the machine.

Description

1 Drive to a suitable maintenance location.

2 Switch the machine off and pull out the key.

3 Empty and clean the waste water tank, see section 5.4.2.

4 Check the fresh water filter, see section 5.4.6.

5 Check the sealing strips and suction hose,

see chapter Maintenance and Servicing.

6 Check the functions and settings.

7 Charge the battery, see section 5.2.2.

8 Clean the machine. If the machine is not used over a longer period of

time, the solution tank must be fully emptied.

58 03-7182-01.fm

Operation

Fig. 23:

B C

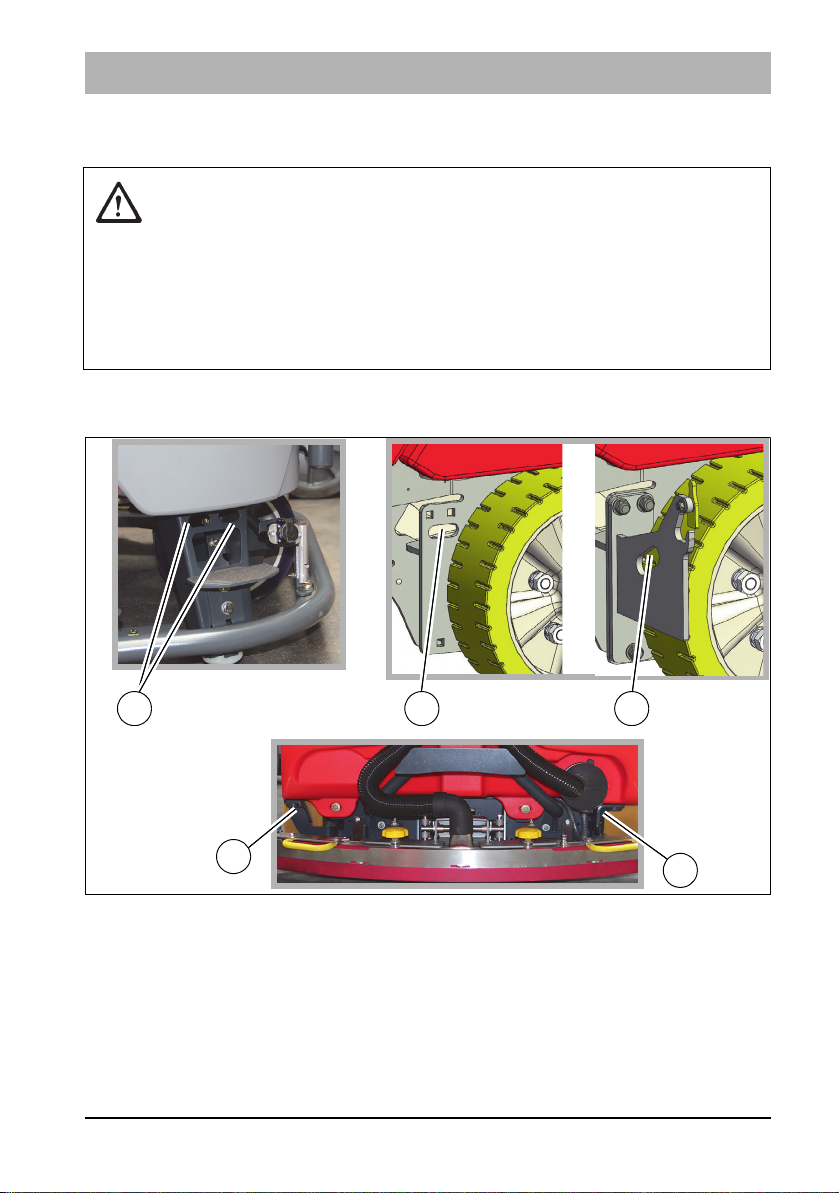

3.5 Loading and transporting

Attention

• When loading and subsequently transporting the machine to the work site, the squeegee and brush head must be raised. Fresh and waste water tank must be empty!

• Risk of skidding! Drive very carefully and, if possible, only on dry ramps.

• To load the machine, reverse it up the ramp at idle speed (maximum slope 16 %).

When loading the machine, observe its weight, see Section 4 Technical data.

Transporting

When transported on a vehicle or trailer, the machine must be secured against tilting and rolling away. To do so, securely lash the machine on both sides at the front

Fig. 23-A

Fig. 23-C

, at the side

(with side collision protection) and at the rear

Fig. 23-B

(without side collision protection),

Fig. 23-D

with tension

straps.

03-7182-01.fm 59

Operation

3.6 Service information

In case problems occur with the machine, a four-digit service code is output in the display panel in addition to the service indicator (tool key). The table below explains the most important service codes. Eliminate the cause or note down the service code and inform your authorised Hako service partner. If the cause has been eliminated, the fault must be acknowledged via the key switch OFF/ON.

Service code

1.2.5.1/

1.2.5.2/

1.2.5.5

1.2.6.1/

1.2.6.8/

1.2.6.2

1.2.6.3 Brush lift system,

1.4.6.1 Squeegee lift

1.4.6.3/

1.4.6.4

1.5.5.1 Fresh water level

2.2.5.1 Rotating cylindrical

Fault Cause Remedy

Brushes stop Foreign particles

Brushes stop Foreign particles block

brush and suction turbine have been switched off

system stops

Suction turbine stops

not displayed

brush stops

Inspect the brushes for

between brush and shaft

the brush

Brush not positioned correctly in the holder

Foreign particles between brush head and machine

Brush head stuck Release brush head

Overload due to foreign particles

Foreign particles between squeegee and machine

Squeegee jammed Make the squeegee

Foreign particles in the suction turbine

Faulty suction turbine

Error in the electronics Notify service partner

Foreign particles block the brush

foreign particles and remove them if necessary

Inspect the brushes for foreign particles and remove them if necessary

Actuate the brush decoupling system, contact the service partner if necessary

Inspect the brush head for foreign particles and remove them if necessary

Inspect for foreign particles and remove them if necessary

Inspect the lift system for foreign particles and remove them if necessary

accessible

Notify service partner

Inspect the rotating cylindrical brush for foreign particles and remove them if necessary

60 03-7182-01.fm

Operation

Service

Fault Cause Remedy

code

2.3.5.1/

2.3.6.1/

Side brushes stop Foreign particle blocks the

side brushes

Inspect the side brushes for foreign particles and remove them if necessary

2.3.6.4 Side brush arm lift system stops

3.1.6.E Cleaning function no

Overloading or foreign particles between side arm and machine

Electrical defects Notify service partner

Inspect for foreign particles and remove them if necessary

longer possible

3.2.6.6. Service code indicator when turning on the machine

3.3.1.1 Service interval expired

Discharged capacity of the internal back-up battery of the machine control

Notify service partner

See maintenance plan

3.4.1.1 Speed control Machine OFF/ON

3.4.1.2/

3.4.1.4

Driving not possible Error in the drive control Machine OFF/ON, or

notify service partner if necessary

3.4.5.1. Cleaning function switches off

Drive wheel becomes sluggish due to foreign

Remove foreign particles

particles

Drive motor overheats Let the engine cool

down

3.6.6.4. Driving and cleaning

Seat permanently loaded Relieve seat

not possible

4.2.1.4 Dosing system not

Notify service partner

working

5.2.6.1 Faulty signal for charging state measurement

Cables on the battery poles loose or detached

Incorrect type of battery

Contact the customer service

Install correct battery

installed

7.1.5.1 USB connection not working

Connected consumer overloaded

Check whether the consumer is drawing too much power or there is a short-circuit in the connected cable.

Internal controller defect Notify service partner

03-7182-01.fm 61

Technical data

4 Technical data

Dimensions

Name

Length of machine with squeegee without/with pre-sweep unit

Width of machine without/with squeegee: with rotating brush 1080

with rotating brush 1230 with roller brush 1080

Height of machine without/with overhead guard mm 1490/2090

Unit

mm 2020/2790

1150/1290 1290/1290 1210/1290

Working width

Brush unit:

Rotating brush 1080 Rotating brush 1230 Roller brush 1080

Squeegee mm 1260

1080 1230 1080

Weights

Weight (empty, without batteries): Front-wheel drive with 2-rotating brush unit 1080

Front-wheel drive with 3-rotating brush unit 1230 Front-wheel drive with roller brush unit and side brush X-AC drive with 3-rotating brush unit 1080

Total weight (ready for use): Front-wheel drive with 2-rotating brush unit 1080

Front-wheel drive with 3-rotating brush unit 1230 Front-wheel drive with roller brush unit and side brush X-AC drive with 3-rotating brush unit 1080

Permissible total weight (incl. pre-sweep suction unit) kg 1780

535 560 595 610

1350 1375 1410 1425

62 04-7182-01.fm

Driving performance

Technical data

Name

Driving speed transportation (forwards/reverse)

Climbing capacity when cleaning: Front-wheel drive X-AC drive

Climbing capacity during transport journey (ready for operation): Front-wheel drive X-AC drive

Ramp angle/Slope angle % 16

Turning circle in gear without/with pre-sweep suction unit: with rotating brush unit 1080 with rotating brush unit 1230 with roller brush unit 1080

Unit

km/h 8/4

6 (2 min.)

15 (up to 5 min. at

4km/h)

10 (1 min.)

18 (3 min at 4 km/h)

2150/2890 2210/2940 2170/2900

Wheels

Wheel diameter front/rear mm 305/350

Specific wheel contact front/rear (ready for operation with driver):

Front-wheel drive X-AC drive

N/mm

0.83/0.68

1.12/0.6

Tank contents

Solution tank Litre 260

Waste water tank Litre 260

Brush units

Brush speed rotating brush/roller brush: rpm 210/640

Brush contact pressure normal/stage1/stage2 2-rotating brush unit 1080

3-rotating brush unit 1080 3-rotating brush unit 1230 Roller brush unit 1080

04-7182-01.fm 63

40/55/70 58/73/88 68/83/98 25/40/55

Technical data

Vacuum system

Name

Air quantity suction turbines

Vacuum (maximum) mbar approx. 170

Unit

approx. 200

Electrical system

Nominal voltage V 36

Nominal output (max.) (P1): Front-wheel drive with 2-rotating brush unit 1080 Front-wheel drive with 3-rotating brush unit 1080 or 1230 Front-wheel drive with roller brush unit and side brush X-AC drive with 3-rotating brush unit 1080

Power consumption drive motor (P1): Front-wheel drive

X-AC drive front/rear

Power consumption of vacuum motor (P1) suction turbines

Power consumption brush motor (P1) 2-rotating brush unit 1080

3-rotating brush unit 1080 or 1230 Roller brush unit 1080 Side brush unit 1280

Power consumption water pump (P1) W approx. 67

Type of protection IPX 3

Protection class III

5668 6604 6763 9296

2335

2335/2692

W 1282

2x936 3x936

2x1368

2x115

Pre-sweep suction unit

Name

Machine length mm 800

Height of machine mm 660

Machine width (above swivel bracket) mm 1220

Working width mm 1300

Cylindrical brush width mm 670

Cylindrical brush, minimum diameter mm 200

Cylindrical brush speed rpm 500

64 04-7182-01.fm

Unit

Technical data

Name

Unit

Sweeping level width mm 45±10

Side brush diameter mm 400

Side brush speed rpm 92

Theoretical sweeping capacity m²/h 10400

Dirt hopper volume (maximum load 20 kg) Litres 16

Filter area m² 1.4

Filter use category ZH 1/487 KAT U

Drive motor (P1) W 756

Nominal voltage V 36

Permissible total weight kg 115

Noise emission value

B260 R rotating brush unit

The sound power level (L measured under the customary

wAd

)

Standard operation

Silent operation

conditions of use according to DIN EN 60335-2-72 is: dB (A) 86 82 89 86

The sound pressure level (LpA) (at the ear of the driver) measured under the customary conditions of use according to

dB (A) 69 65 71 67

DIN EN 60335-2-72 is:

Measuring uncertainty (KpA) dB (A) 1.0 1.0 2.0 2.0

B260 R roller brush unit

Standard operation

Silent operation

Vibration

Under the customary conditions of use, the weighted effective value of the acceleration to which the upper limbs (hand-arm) are subjected to according to DIN EN ISO 5349 is: m/s

Under the customary conditions of use, the weighted effective value of the acceleration to which the body (feet or seat surface) is subjected to DIN EN ISO 2631-1 is: m/s

04-7182-01.fm 65

≤ 2.5

≤ 0.5

Maintenance and Servicing

5 Maintenance and Servicing

General

The operator is instructed fully on delivery of the machine.

Attention

Before undertaking servicing and maintenance work, read and observe the safety instructions in chapter 1 of this operating manual!

Compliance with the maintenance work recommended by us gives you the certainty of always having an operational machine available.

Daily and weekly maintenance and repair work can be undertaken by a driver trained for this purpose. For all other maintenance work, see service booklet, please contact your nearest Hako service centre or authorised Hako dealer. Any warranty claim is null and void if this is not complied with and damage results. Please always state the serial number in all enquiries and spare parts orders, see section 1.7 - type plate.

Note

• Maintenance parts in the machine are marked with a yellow dot and yellow areas.

• The maintenance instructions can also be called up on the multifunction display in the form of pictures, see section 2.3.3 Maintenance menu.

66 05-7182-01.fm

Maintenance and Servicing

5.1 Maintenance plan

Hako system maintenance customer:

Work to be performed by the customer by reference to the servicing and maintenance instructions specified in the operating manual.

Daily

• Emptying the waste water tank

• Clean the waste water tank, drain hose, coarse dirt sieve and suction filter

• Check the cover seal of the waste water tank, clean if necessary

• Check the battery, charge if necessary

• Check the squeegee, clean if necessary

• Emptying the dirt hopper in the roller brush unit (optional)

• Check all brushes for foreign particles and clean if necessary

Pre-sweep suction unit (optional):

• Clean the cylindrical brush compartment

• Clean the plate filter using the shaking system

• Empty the dirt hopper

Weekly

• Clean the machine as required

• Clean the solution tank

• Check the sieve insert in the fresh water filter, clean or replace if necessary

• Check the scrubbing performance of the brushes/pads, clean if necessary

• Check the brushes and water retaining ring for proper fit and wear, replace if necessary

• Check the suction performance of the squeegee, clean or replace the sealing strips if necessary

• Check the fresh water supply to the brushes, clean if necessary

• Check the suction hose for tight fit and damage, clean if necessary

• Check the rubber of the lateral wiper, replace if necessary

• Batteries with Aquamatic system: Checking the acid level

• Pre-sweep suction unit (optional), check cylindrical brush, clean if necessary

• On-board dosing system (optional): Check section of hose in the dosing pump, replace if necessary

• Trial run and function test

05-7182-01.fm 67

Maintenance and Servicing

Fig. 24:

5.2 Battery

5.2.1 Checking the charging state

The charge condition of the battery

Fig. 24-A

is displayed on the multifunction display during operation. Depending on the charge condition, the following symbols appear:

Symbols Charging state Notes

Battery is fully charged

Battery capacity is

Battery can be charged

≤ 60 %

displayed in steps of 10 %

Battery capacity less than 10 %

Cleaning functions are switched off after 3 minutes. Charge the battery!

Battery is empty Cleaning functions will be

switched off. Only travel at half speed is possible. Battery must be fully charged immediately!

BMS service infor-

Service information, see section 3.6. mation. A four-digit service code appears at the same time Fig. 24-B

68 05-7182-01.fm

5.2.2 Charge the battery

Warning

Risk of explosion! Explosive gases can develop when charging the battery.

• Avoid smoking and naked flames in the vicinity of batteries.

• Swivel up the seat console all the way before charging the battery. The seat console must remain open when charging the battery!

• Ensure that there is sufficient ventilation when charging the battery.

• Only connect and disconnect the battery plug when the charger and the machine are turned off!

• Do not place the battery plug on the battery during charging!

• Never place tools or other electrically conductive objects on the battery!

Attention

• Before initially starting up the machine, the battery that is used must be fully and properly charged with commissioning charge. Please observe the instruction manual of the charging device and the instruction manual of the battery manufacturer. Hako assumes no liability for battery damage resulting from insufficient commissioning charge.

• Never leave batteries discharged, always recharge them immediately.

• If possible, charge the batteries fully to ensure that the batteries have an optimum service life. The charger is designed as a continuous charger and retains the charging state of the battery (trickle charge) after completing the charging process.

• The battery should always be charged without being interrupted.

• During the charging process it is not possible to turn on the machine.

• Observe the information in the instruction manual of the charger and of the battery manufacturer!

Maintenance and Servicing

05-7182-01.fm 69

Maintenance and Servicing

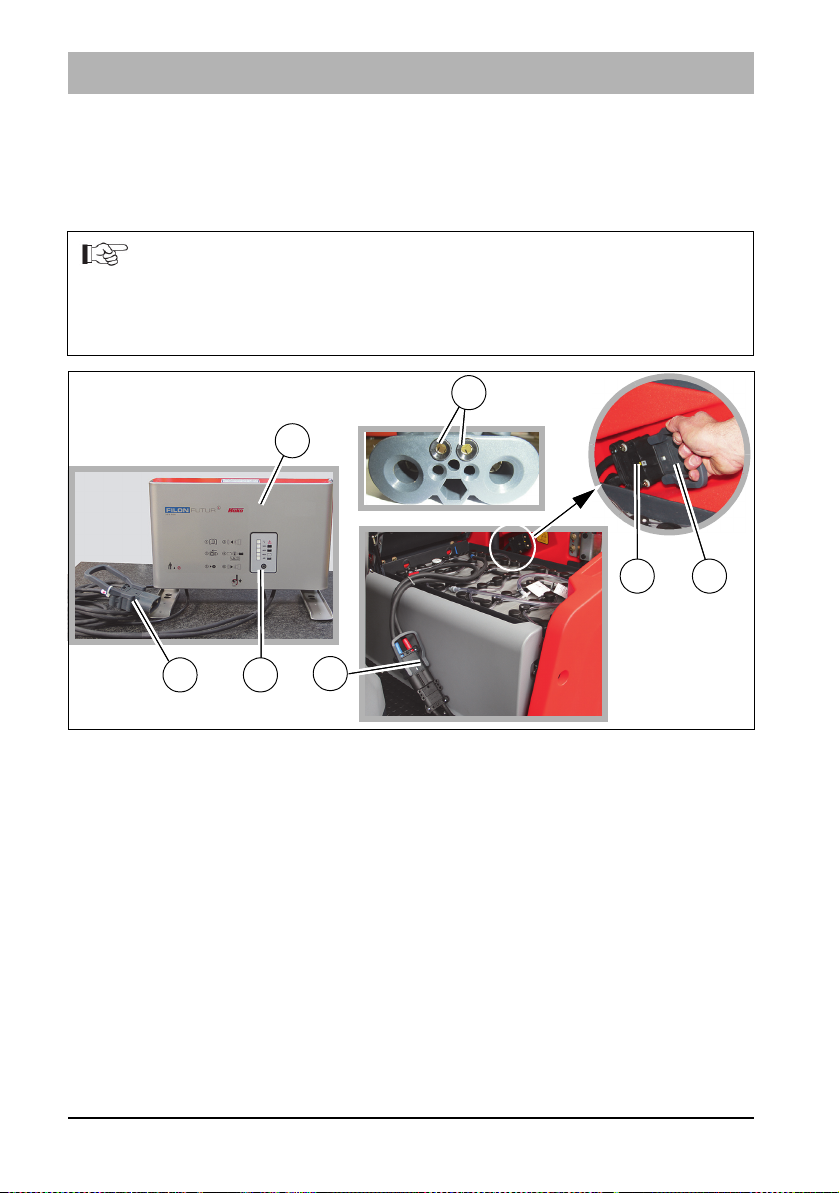

Fig. 25:

Charging the battery with a stationary charger

Charge the batteries with a stationary charger as, for example, shown in Fig. 25-A. The batteries can be charged if the battery capacity is less than 60 %.

Note

For safe charging, the Hako charger and the battery have a safety circuit (pilot contact control unit). The charger (99400110) can only charge batteries that have the PCCU circuit Fig. 25-B.

1. Place the machine on a level surface and turn it off.

2. Open the seat console and leave it open during loading!

3. Remove the battery plug Fig. 25-C from the plug of the machine Fig. 25-D.

4. Connect the battery plug to the plug of the charger Fig. 25-E and position it in front of the battery trough Fig. 25-F.

5. Switch on the charger.

6. The progress of the charging process is displayed in the display Fig. 25-G of the charger.

7. Once the battery is fully charged, terminate the charging process:

• Turn off the charger and wait approx. 15 minutes with the seat console

open.

• Disconnect the battery plug from the plug of the charger and reconnect it

to the plug of the machine Fig. 25-D.

70 05-7182-01.fm

Maintenance and Servicing

Fig. 26:

5.2.3 Checking the acid level

The customer must check the acid level of the batteries once a week.

Warning

Risk of explosion and fire! When handling batteries, it is prohibited to smoke and use an open fire.

Attention

• Observe the information in the operating manual of the battery manufacturer!

• Refilling must only take place once the battery charging process has been terminated.

Note

Batteries approved by Hako are equipped with an aquamatic system.

Checking the acid level:

If the trough battery is equipped with an aquamatic system Fig. 26-A, each individual cell features a sealing plug with float indicator. The white dot must be located at the top and must be clearly visible. If this is not the case, refill demineralised water according to DIN 43530-4.

Topping up with demineralised water:

Connect the end piece of the aquamatic system

Fig. 26-B

to a container with demineralised water. Observe sufficient gradient, ensuring the water can flow into the cells. Once the required filling level has been reached, the plugs automatically seal the cells and indicate “full”

05-7182-01.fm 71

Fig. 26-C

Maintenance and Servicing

Fig. 27:

Driving direction

5.2.4 Replacing the battery

Attention

• Only use batteries approved by Hako at the intended position!

• The battery should only be replaced by qualified service personnel!

• Wear safety shoes when changing the battery.

• Only change the battery using suitable lifting gear and crane gear with a sufficient load-bearing capacity.

• Lifting hooks may not cause damage to cells, connectors or connecting cables!

• When using other batteries which have been approved by Hako, the BMS must be reset to protect the battery against total discharge. The settings of the BMS must only be carried out by a workshop authorised by Hako!

Removing the battery

1. Place the machine on a level surface and turn it off.

2. Undo the side panelling of the machine with the provided spanner and remove.

3. Open the seat console all the way.

4. Disconnect the battery plug.

5. Hook crane gear into the eyelets of the battery trough Fig. 27-B. The crane gear must carry out a vertical pull so that the battery trough is not distorted.

72 05-7182-01.fm

Maintenance and Servicing

Fig. 28:

36 V

6. Slowly lift the battery trough upwards and swivel out to the side. Assembly is in reverse order.

Note

Please ensure that the trough battery is in the correct installation position! See connecting diagram Fig. 27-B.

5.2.5 Battery plug coding

When using other batteries which have been approved by Hako, the plugs must be re-coded. The plug connectors between the battery Fig. 28-A, the machine Fig. 28-B and the charger Fig. 28-C are coded with coloured coded pins (yellow, grey or green) Fig. 28-D depending on the type of battery and rated voltage.

The following three prerequisites must be met for the whole system:

• Voltage coding (36 V) must be identical for all plugs and bushes.

• The colour of the coded pin in the connector housing of the machine is always yellow.

• The colour of the coded pin in the charger plug (machines without built-in charger) and in the bush housing of the battery must be identical:

• Grey for wet batteries

• Green for maintenance-free gel batteries

Warning

Risk of short circuit! The coding of the plugs should only be carried out by a workshop authorised by Hako!

05-7182-01.fm 73

Maintenance and Servicing

5.2.6 Maintaining drive batteries

For maintaining and servicing drive batteries, see Hako supplementary sheet 88-60-2556 – Information for drive batteries and the operating manual of the battery manufacturer.

5.2.7 Taking the machine out of service for a long period

If the battery is not used for more than three months, the battery must be recharged.

Note

Only park unused machines if they are switched off, have a fully charged battery and are placed in a dry location.

5.2.8 Disposing of batteries

Used batteries with the recycling symbol contain reusable commodities. They must not be disposed of in domestic waste, see Section 1 Environmental pro- tection instructions and disposal.

74 05-7182-01.fm

Maintenance and Servicing

Fig. 29:

Fig. 30:

Mixing ratio

Dosing detergent (l) for complete filling

1:700 0.4 1:500 0.5 1:200 1.3 1:150 1.7 1:100 2.6

1:50 5.1 1:20 12.4

5.3 Solution tank

The filling level in the solution tank is measured continuously and shown in the multifunction display in steps of 20 %. If there are less than 10 litres in the tank, a warning symbol

Fig. 29-A

appears in the multifunction display. At the same time,

an acoustic warning is heard and indicates that a top-up is required.

5.3.1 Filling the solution tank

Fill the solution tank Fig. 29-24 though the filling opening before commencing work or as required Fig. 29-B.

Attention

In order to avoid contamination of the drinking water by backflow, the requirements of DIN EN1717 must be adhered to for filling the solution tank.

Filling the solution tank with a hose

1. Place the machine on a level surface.

2. Remove insert in grey cover Fig. 30-A.

3. Fill the solution tank three-quarters full (maximum water temperature 50 °C).

4. Add detergent according to the manufacturer’s regulations via the sieve insert Fig. 30-B (observe table above).

5. Fill the solution tank with fresh water up to the maximum filling level.

05-7182-01.fm 75

Maintenance and Servicing

Fig. 31:

Fig. 32:

max. 50 °C

min. 2.5 bar max. 6 bar

Filling the solution tank with the fast fill station

The filling opening of the solution tank can be increased when filling with the fast fill station by unscrewing the grey cover Fig. 31-A and removing it

Fig. 31-B.

Filling the solution tank with the automatic filling unit

Optionally, the solution tank can be filled via the automatic filling unit.

1. Fit the hose with the quick coupler Fig. 32-A. Do not yet open the water

supply!

2. Push the operating button Fig. 32-B. The indicator knob Fig. 32-C

protrudes.

3. Open the water supply – water starts to flow.

4. The filling unit switches off automatically when the tank is full. The indicator

knob Fig. 32-C no longer protrudes.

5. Close the water supply and remove the hose with the quick coupling. Use a water line fitted with a stop valve!

Note

The machine can also be filled manually through the opening in the operating button Fig. 32-B.

76 05-7182-01.fm

Maintenance and Servicing

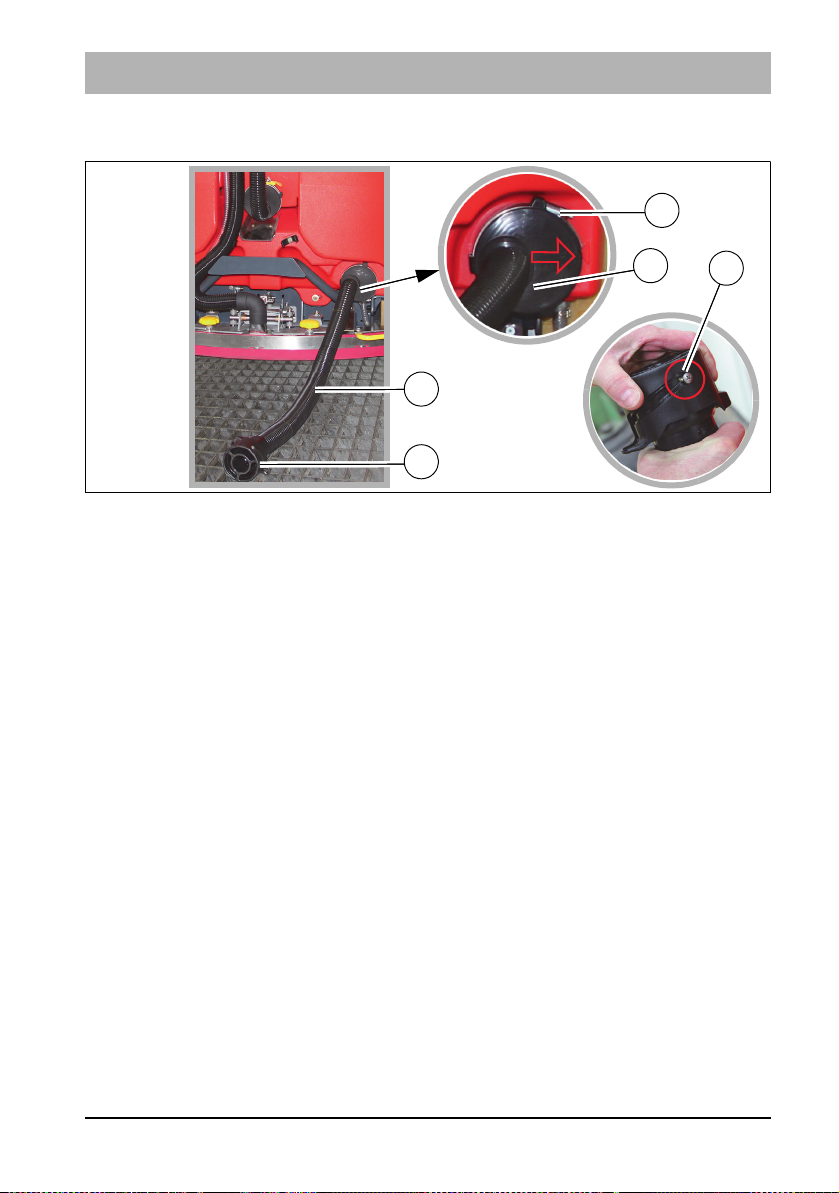

Fig. 33:

5.3.2 Emptying the solution tank

1. Drive to a suitable disposal centre.

2. Position the machine, ensuring the drain hose Fig. 33-27 reaches the drain

in the ground.

3. Turn off the machine.

4. Remove the drain hose from the holder, open the drain valve Fig. 33-A and

drain the waste water tank via the drain.

5. Ensure that the drain hose closure is fully closed after draining Fig. 33-B!

5.3.3 Cleaning the solution tank

1. Empty the solution tank, see section 5.3.2.

2. Undo the screw clamp Fig. 33-C with a screwdriver and remove the drain hose Fig. 33-27.

3. Lead the water hose through the maintenance opening Fig. 33-25 and clean the solution tank thoroughly.

4. Position the drain hose onto the support of the maintenance opening (arrow must point to the right) and close again securely using the screw clamp.

05-7182-01.fm 77

Maintenance and Servicing

Fig. 34:

5.4 Waste water tank

5.4.1 Emptying the waste water tank

Clean the waste water tank Fig. 35-37 daily or as required. When the symbol

Waste water tank full Fig. 34-A appears in the display panel and an acoustic warning signal is output, the suction functions are switched off and the waste water tank should be drained immediately.

Environmental danger

Observe applicable laws and local regulations when disposing of detergents!

1. Drive to a suitable disposal centre.

2. Position the machine, ensuring the drain hose Fig. 34-30 reaches the drain

in the ground.

3. Turn off the machine.

4. Remove the drain hose from the holder, open the drain valve Fig. 34-B and

drain the waste water tank via the drain.

5. Ensure that the drain hose closure is fully closed after draining Fig. 34-C!

78 05-7182-01.fm

Maintenance and Servicing

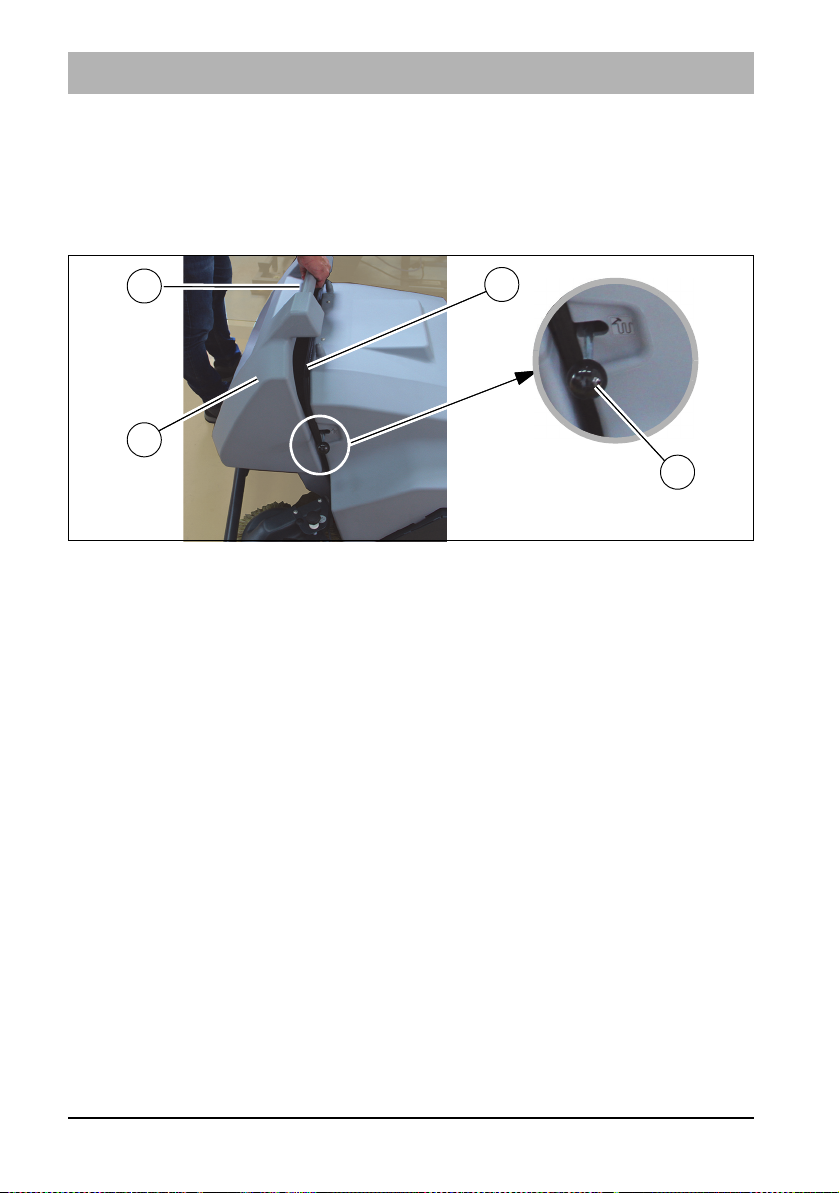

Fig. 35:

5.4.2 Cleaning the waste water tank

Clean the waste water tank daily or as required.

1. Empty the waste water tank, see section 5.4.1.

2. Open fastener at drain hose Fig. 35-A and remove hose.

3. Open the tank cap Fig. 35-B of the waste water tank.

• Reach into the recessed grip of the tank cap with one hand.

• Open the tank cap until the support Fig. 35-C engages.

4. Clean the waste water tank thoroughly with the water hose/spray nozzle Fig. 35-D.

5. Also flush the drain hose.

6. Close the tank cap:

• Reach into the recessed grip with one hand and open the tank cap a little

further.

• Release the support

7. Position the drain hose on the neck of the maintenance opening (arrow must point upwards) and securely close using the fastener.

Fig. 35-B

with your right hand and close the tank cap.

05-7182-01.fm 79

Maintenance and Servicing

Fig. 36:

Fig. 37:

Fig. 38:

5.4.3 Cleaning the coarse dirt sieve

A coarse dirt sieve Fig. 36-36 is optionally located in the waste water tank.Clean the sieve daily and as required.

5.4.4 Cleaning the intake sieve

Check the function of the intake sieve Fig. 37-38 daily and clean it as required.

1. Rotate the locks Fig. 37-A downwards and remove the intake sieve Fig. 37-38.

2. Thoroughly clean the intake sieve under running water.

5.4.5 Checking the seal at the drain valve

Check the function of the seal in the drain valve

Fig. 38-A

daily, and replace it

after no more than 125 operating hours.

1. Twist drain valve by 90° and swivel down from drain hose.

2. Change the seal.

3. Grease seal and cone with Molykote.

80 05-7182-01.fm

Maintenance and Servicing

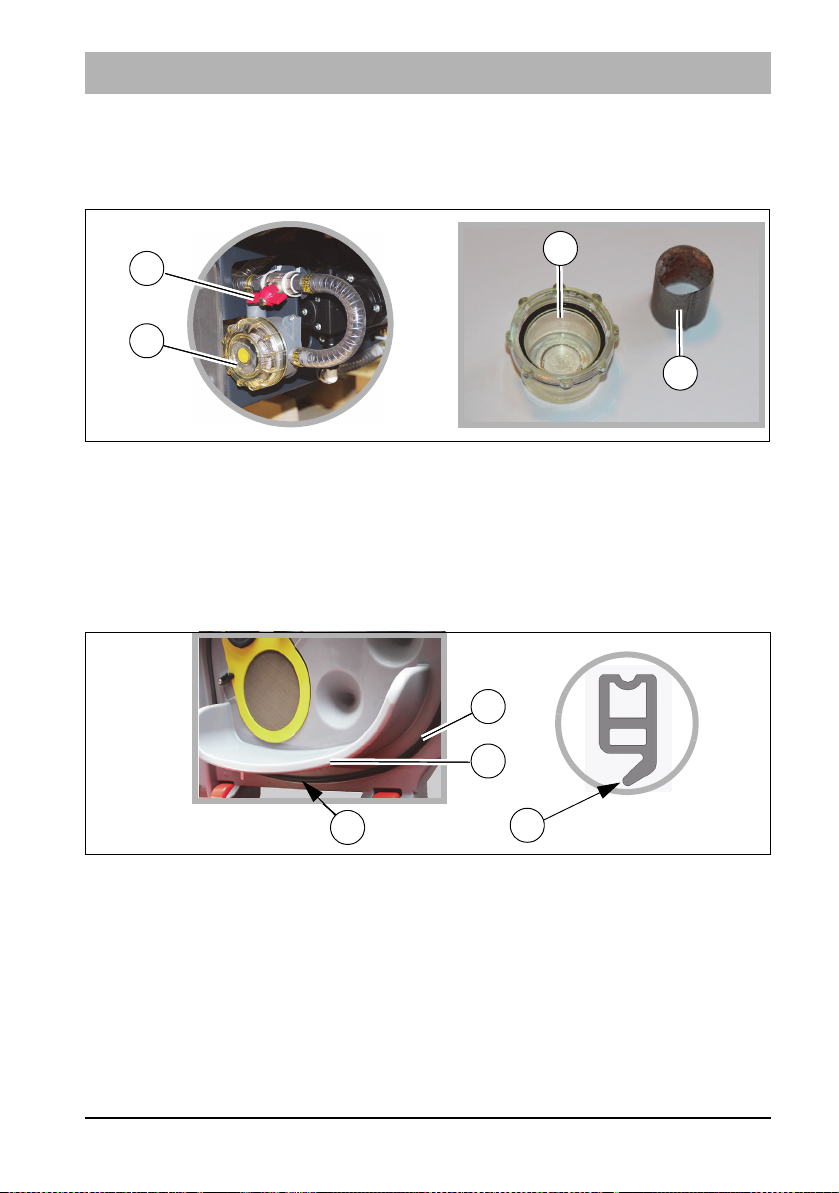

Fig. 39:

Fig. 40:

5.4.6 Cleaning the fresh water filter

Check the filter sieve Fig. 39-A of the fresh water filter Fig. 39-12 weekly and clean or replace it as required.

1. Close the ball cock Fig. 39-B.

2. Turn and remove the filter cover Fig. 39-C.

3. Remove the filter sieve Fig. 39-A from the filter housing and clean it under

running water. Replace the filter sieve as required.

4. Reinsert the filter sieve and filter cover and open the ball cock.

5.4.7 Checking the seal in the tank cap

Check the function of the seal in the tank cap Fig. 40-A daily and replace it if damaged. When replacing the seal:

• pay attention to correct installation position – sealing lip Fig. 40-B must be

facing outwards,

• ensure that the disconnection point of the seal finishes edge to edge – the

disconnection point Fig. 40-C must be below the dripping edge of the cover Fig. 40-D,

• ensure that the seal is pressed fully into the groove.

05-7182-01.fm 81

Maintenance and Servicing

Fig. 41:

5.5 Rotating brush unit

5.5.1 Replacing the brushes/pads

Use the indicator Fig. 41-A on the rotating brush unit to:

• determine the wear of the brushes/pads (the rotating brush unit must be lowered),

• determine whether the brushes/pads have been assembled.

The brushes/pads must be changed when the pointer Fig. 41-B is in the red zone at the latest.

1. Ejecting the brushes/pads, see section 5.5.3.

2. Inserting new brushes/pads, see section 5.5.4.

Attention

If no brushes/pads are fitted, the top edge of the display plate is outside the coloured area.

5.5.2 Cleaning the brushes

Clean the brushes Fig. 41-C in the rotating brush unit Fig. 41-22 daily or as required.

1. Ejecting the brushes, see section 5.5.3.

2. Thoroughly clean the brushes under running water.

3. Coupling the brushes, see section 5.5.4.

82 05-7182-01.fm

Maintenance and Servicing

Fig. 42:

B C D

Fig. 43:

B C D

5.5.3 Ejecting the brushes/pads

1. Make sure that the rotating brush unit has been raised and the machine is stationary.

2. Select soft key Eject brushes Fig. 42-A using the turn-push knob and confirm. The action window Fig. 42-B opens. Use the turn-push knob to confirm the start. The procedure starts and symbols Fig. 42-C, D appear on the multifunction display one after the other. Only now is the procedure complete.

3. Open the wiper, see section 5.8.1 and remove the brushes/pads.

5.5.4 Coupling the brushes/pads

1. Make sure that the rotating brush unit has been raised and the machine is stationary.

2. Open the wiper and place the brushes/pads in a central position underneath the brush head holder.

3. Select soft key Couple brushes Fig. 43-A using the turn-push knob and confirm. The action window Fig. 43-B opens. Use the turn-push knob to confirm the start. The procedure starts and symbols Fig. 43-C, D appear on the multifunction display one after the other. Only now is the procedure complete.

4. Check whether the brushes have been coupled.

5. Close the wiper.

05-7182-01.fm 83

Maintenance and Servicing

Fig. 44:

5.6 Side brush unit (optional)

5.6.1 Adjusting the side brush

Side brush tilt

The tilt of the side brush Fig. 44-A is preset in the factory and cannot be changed.

Readjusting the side brush position

Check side brush weekly for wear. In the event of wear or after changing the side brush, adjust as follows:

1. Place the machine on a level surface.

2. Lower the side brush unit with key Side brush unit Fig. 44-57.

3. Turn wing nuts Fig. 44-B clockwise at both sides until 1/3 of the area of the

side brush is touching the floor.

84 05-7182-01.fm

Maintenance and Servicing

Fig. 45:

5.6.2 Changing the side brush

Assembling the side brush

1. Place the machine on a level surface.

2. Raise the side brush unit with key Side brush unit Fig. 44-57.

3. Fit the side brush Fig. 45-A to the hub Fig. 45-B.

4. Position the carrier plate Fig. 45-C in such a way that the pin of the hub Fig. 45-D goes through the hole of the carrier plate and the carrier plate is sitting firmly in the holder.

5. Secure carrier plate to hub with washer and wing bolt Fig. 45-E.

The side brush is dismantled in the reverse order.

05-7182-01.fm 85

Maintenance and Servicing

Fig. 46:

5.7 Squeegee

Optimum vacuuming is achieved through:

• clean and undamaged or not worn sealing strips

• correctly set inclination angle and correct height adjustment of the sealing strips.

5.7.1 Cleaning the squeegee

Check the squeegee Fig. 47-28 daily for soiling and foreign particles and clean it as required.

Daily cleaning in the event of heavy soiling

1. Drive machine to a suitable location with drain in floor.

2. Switch off machine and ensure that the squeegee is in the raised position.

3. Pull off the suction hose Fig. 47-E.

4. Fold over the squeegee: Get hold of handles Fig. 46-A with both hands. Pull squeegee vertically upwards with a jerk until the flap mechanism activates. Then fold over by 90° as far as possible Fig. 46-B.

5. Remove coarse dirt and clean squeegee thoroughly using the hose.

6. Move squeegee to starting position: Move handles against the direction of travel until the flap mechanism is activated. Then fold over squeegee to starting position.

86 05-7182-01.fm

Maintenance and Servicing

Fig. 47:

Daily cleaning in the event of light soiling

External water connection:

1. Sit on the seat of the machine and switch on the machine.

2. In the sub-menu, call up menu item Maintenance page Fig. 47-A. Select soft key Squeegee cleaning Fig. 47-B with the turn-push knob and activate. The squeegee is lowered and the suction is switched on. The remaining squeegee cleaning time is displayed in 5 second intervals.

3. Move the machine forward a little so that the sealing lips are tilted back.

4. Connect hose to the connection of the squeegee Fig. 47-C using the 1/2” quick coupling, and to the water tap of the service connection.

5. Open the water tap all the way. Squeegee is cleaned by the internal spray nozzles.

6. After the program has ended, close the water tap and remove the hose.

On-board water connection:

Follow point 1-3 of section External water connection.

4. Disconnect hose from the spray nozzle Fig. 47-D and attach to the squeegee connection Fig. 47-C.

5. The squeegee is cleaned by the internal nozzles.

6. After the program has ended, remove the hose from the squeegee during the after-run time of the suction turbine and reconnect to the spray nozzle.

Attention

If the hose is not disconnected from the squeegee after the program has ended, the water may run out of the solution tank!

05-7182-01.fm 87

Maintenance and Servicing

Fig. 48:

5.7.2 Changing the sealing / slot strip

Check the sealing strip

Fig. 48-A

and the slot strip

Fig. 48-B

at the squeegee weekly for wear and damage. If the used sealing edge of the strip is worn or damaged, turn or replace the strip. Each strip can be used four times before it needs replacing.

1. Pull off the suction hose Fig. 48-C.

2. Loosen the star-shaped handles Fig. 48-D and remove the squeegee.

3. Replacing the sealing strip:

Release the tension strap Fig. 48-E and remove. Replacing the slot strip:

Fold over the turnbuckle Fig. 48-F all the way when releasing so that the tension strap is easier to remove.

4 Remove strip from squeegee body.

5. Before turning or replacing the strips, thoroughly clean the squeegee body! Assembly is in reverse order.

Note

The strips can be of different thickness. The turnbuckles must be readjusted if necessary Fig. 48-G.

88 05-7182-01.fm

Maintenance and Servicing

Fig. 49:

Fig. 50:

5.7.3 Adjusting the sealing strips

Inclination adjustment

The correct inclination adjustment is decisive for:

• ensuring that the sealing strips of the squeegee rest evenly with the complete contact surface on the ground.

• ensuring that the squeegee runs smoothly and evenly during the suction process.

1. Place the machine on a level surface and lower the squeegee with the squeegee key Fig. 50-45.

2. Loosen the lock nuts Fig. 49-A and turn the adjusting bushing Fig. 49-B to adjust the squeegee so that the ends of the sealing strips barely have contact with the ground.

Turning the adjusting bushing clockwise:

The distance of the sealing strip to the ground increases at the ends

Fig. 49

Turning the adjusting bushing counter-clockwise:

The distance of the sealing strip to the ground decreases at the ends

3. Turn on the machine and check the suction pattern. When driving, the sealing strips must be turn over evenly everywhere (centre and outside).

Fig. 50

4. Tighten the lock nuts.

05-7182-01.fm 89

Maintenance and Servicing

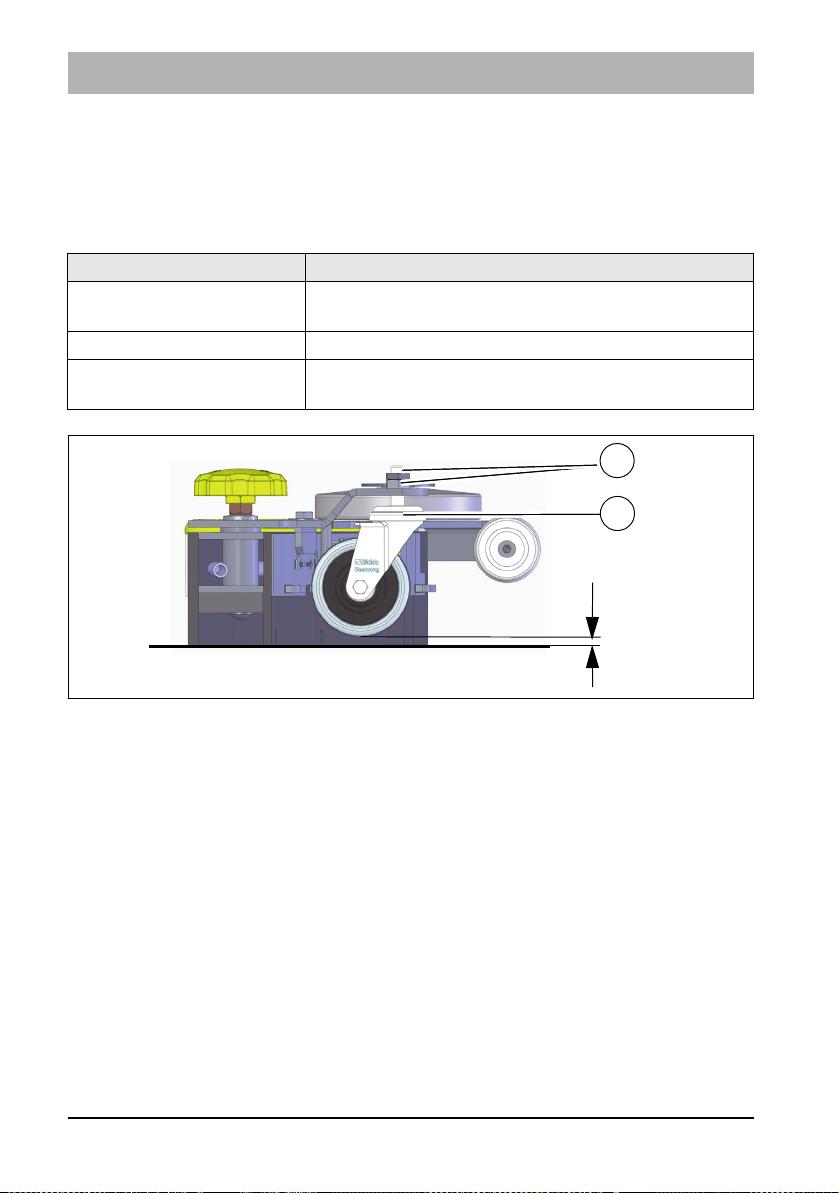

Fig. 51:

Height adjustment

The height adjustment (X) of the supporting rollers Fig. 51-A has been set to 7 mm in the factory. If striping still occurs despite optimum inclination adjustment, readjust the distance between the supporting rollers and the lower edge of the sealing strip.

Distance from floor (X) Use

<7 mm Very smooth floor surfaces, e.g. coated screed,

PVC, linoleum

7 mm Standard setting

>7 mm Very uneven floor surfaces, e.g. poorly laid tiles

(water does not drain off)

1. Place the machine on a level surface.

2. Lower the squeegee. The sealing strips must now be resting vertically onto the floor.

3. Loosen nuts Fig. 51-B and adjust distance between supporting roller and ground as per the table.

4. Tighten nuts.

90 05-7182-01.fm

Maintenance and Servicing

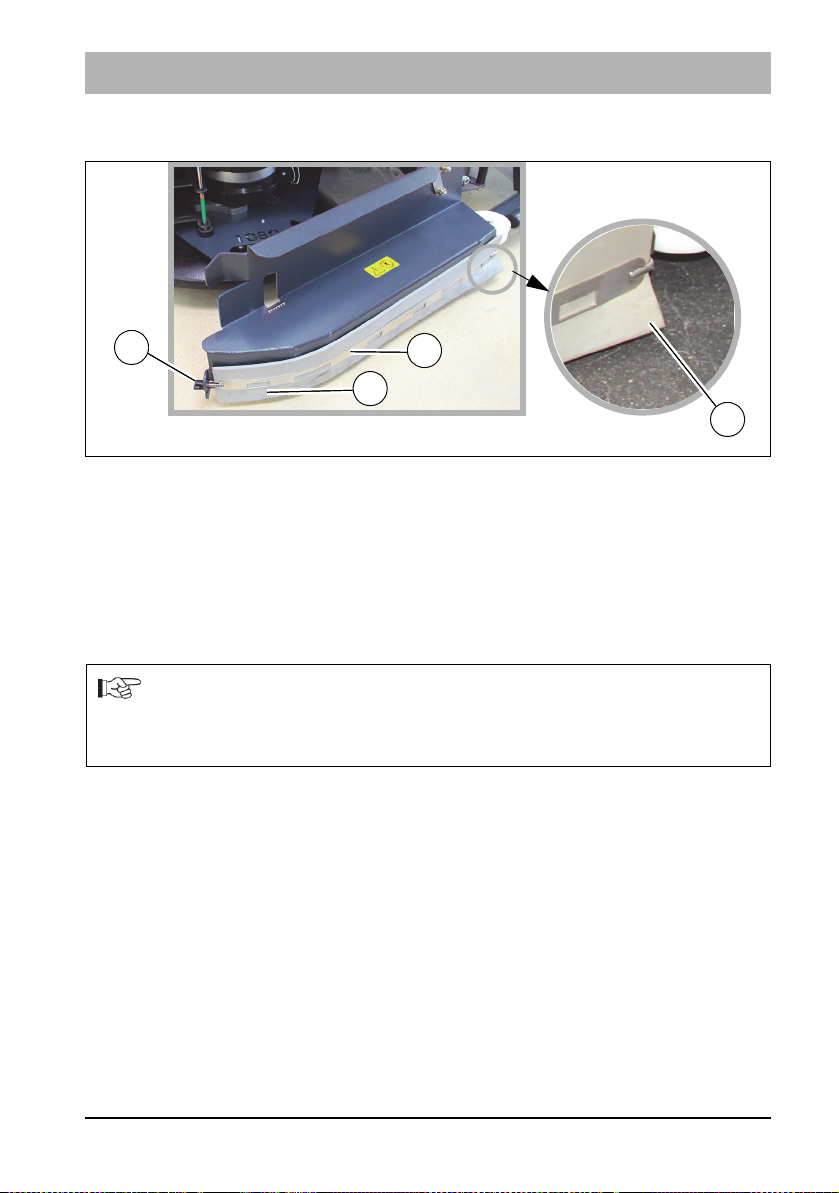

Fig. 52:

5.8 Wiper

5.8.1 Changing the wiper rubber

Check the rubber of the wiper Fig. 52-A weekly for wear, turn or replace the rubber if necessary.

1. Loosen the wing nut Fig. 52-B.

2. Remove the clamping band Fig. 52-C. Turn the rubber of the wiper (can be

used 4 times) or replace it.

Assembly is in reverse order.

Note

During installation, ensure that the corner of the wiper rubber is pointing outwards Fig. 52-D so that the wiper rubber folds over outwards during operation.

05-7182-01.fm 91

Maintenance and Servicing

Fig. 53:

5.9 Pre-sweep suction unit (optional)

5.9.1 Emptying the dirt hopper

Check the fill level of the dirt hopper at regular intervals (max. load 20 kg) and empty if necessary.

1. Turn off the machine.

2. Pull the dirt hopper Fig. 53-A upwards using the handle Fig. 53-B and dispose of the contents in an environmentally friendly way.

3. Reinsert the dirt hopper.

5.9.2 Dirt hopper seal

Inspect the dirt hopper seal Fig. 53-C weekly and replace if wear is present.

1. Turn off the machine.

2. Remove the dirt hopper.

3. Remove the damaged seal.

4. Press the new seal onto the edges.

92 05-7182-01.fm

Maintenance and Servicing

Fig. 54:

approx. 1 m

5.9.3 Shaking the filter

Clean the filter Fig. 54-B several times per day using the shaking system Fig. 53-D.

To clean the filter, pull out the lever of the shaking system several times and slide back in again.

5.9.4 Cleaning the filter

Danger

Health hazard! Do not inhale the dust! Wear a suitable dust mask.

1. Switch off the machine and remove the dirt hopper.

2. Swivel the yellow handle Fig. 54-A upwards and pull the filter Fig. 54-B out

of the frame.

3. Allow the filter to fall horizontally onto a smooth floor from a height of approx. 1 m. The dirty side must be facing the floor Fig. 54-C!

4. The filter is installed in the reverse order.

Attention

Ensure that the installation position is correct! Markings can be found on the frame of the filter.

05-7182-01.fm 93

Maintenance and Servicing

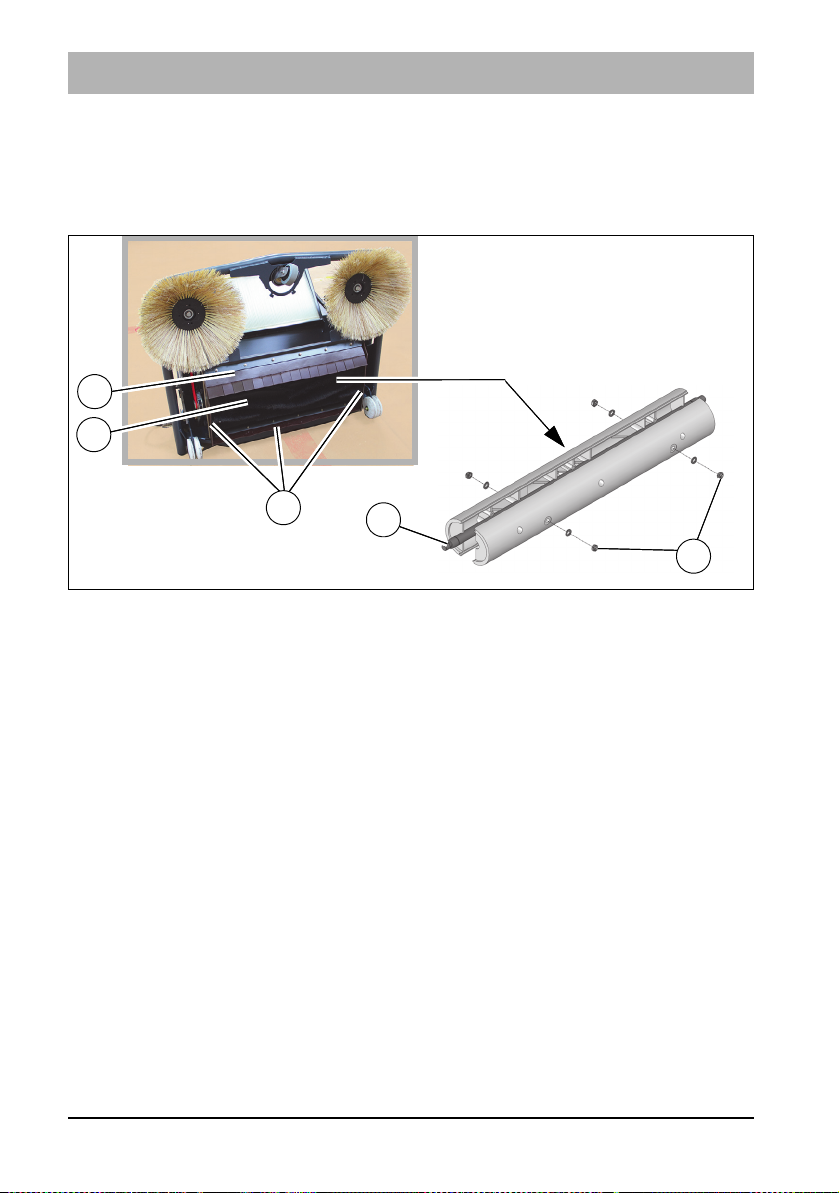

Fig. 55:

5.9.5 Cleaning the cylindrical brush and the cylindrical brush compartment

Inspect the cylindrical brush Fig. 55-A and the cylindrical brush compartment for soiling daily and clean if necessary.

1. Disconnect the pre-sweep suction unit from the machine.

2. Remove the dirt hopper Fig. 53-A.

3. Tilt the pre-sweep suction unit backwards (see Fig.).

4. Remove rolled-up bands from the cylindrical brush.

5. Inspect the front apron Fig. 55-B and the sealing strips Fig. 55-C for soiling

daily and clean if necessary.

5.9.6 Changing the cylindrical brush

Inspect the cylindrical brush once per week and replace if wear is present. Follow instructions 1 - 3 In chapter 5.9.5 Cleaning the cylindrical brush and the cylindrical brush compartment.

4. Loosen the nuts and washers Fig. 55-D and remove the first half shell.

5. Manually rotate the cylindrical brush shaft 180° by hand and remove the

second half shell.

6. Attach the new half shells in the reverse order.

7. The sweeping level must be readjusted after replacing the cylindrical brush.

94 05-7182-01.fm

Maintenance and Servicing

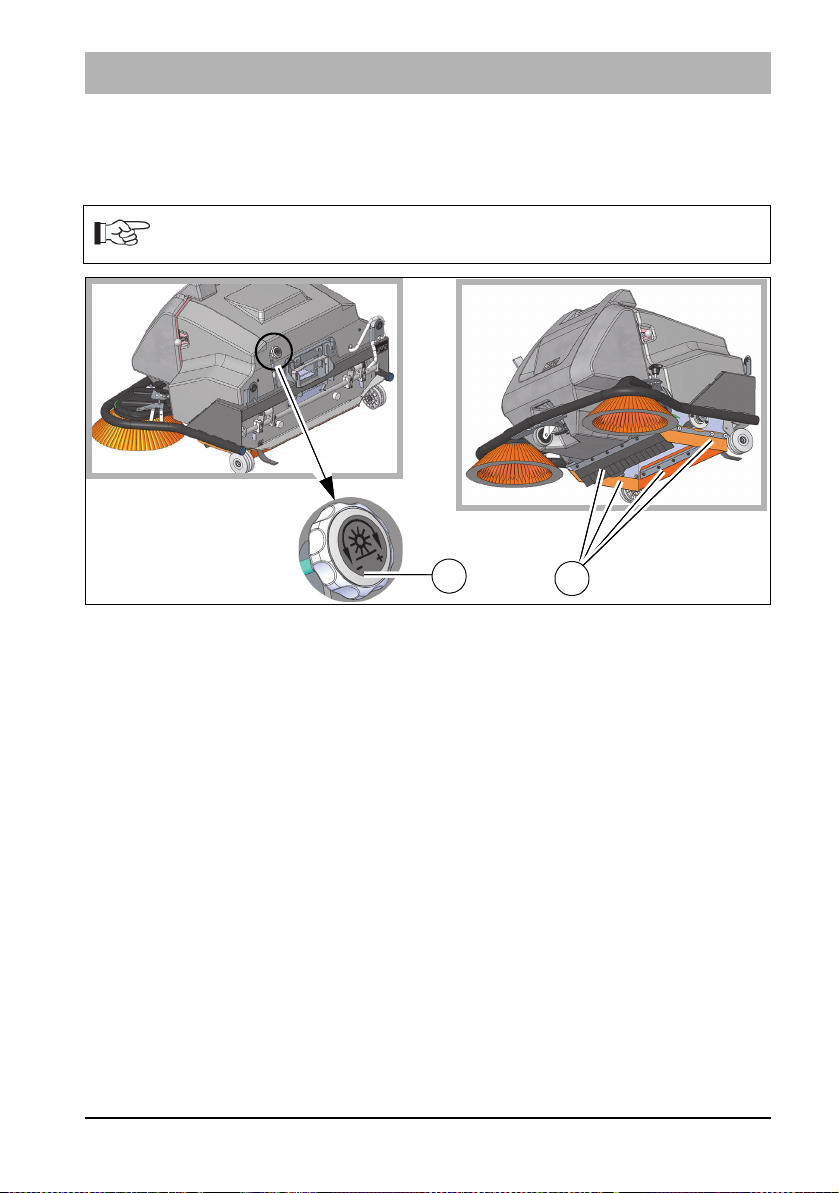

Fig. 56:

5.9.7 Adjusting the sweeping level

In the event of bristle wear and after replacing the cylindrical brush, the sweeping level Fig. 55-A must be readjusted.

Note

Mark the floor with chalk to check the sweeping level.

1. Switch off the machine using the key switch.

2. Rotate the adjustment dial Fig. 56-A until the cylindrical brush is touching

the floor.

3. Switch on the machine and let the cylindrical brush rotate briefly while stationary.

4. If the setting is correct, a parallel-running sweeping level of approx. 45 +/- 10 mm must be marked on the ground.

5. If necessary, repeat the process until the setting is correct.

5.9.8 Replacing the sealing strips of the cylindrical brush

compartment

The sealing strips must be in perfect condition for the pre-sweep suction unit to operate efficiently. Inspect the sealing strip of the cylindrical brush compartment Fig. 56-B for wear and check for damage at regular intervals. Replace defective sealing strips as follows: Follow instructions 1 - 3 In chapter 5.9.5 Cleaning the cylindrical brush and the cylindrical brush compartment.

4. Remove the mushroom-head screws, washers, nuts and terminal strip of the defective sealing strip.

5. Install the new sealing strip in the reverse order.

The lateral sealing strips are adjustable (elongated holes in the sealing strips). Adjustment dimension: approx. 1 mm from floor.

05-7182-01.fm 95

Maintenance and Servicing

A B

C D

Fig. 57:

9:00 3:00

5.9.9 Changing the side brush

Inspect the side brushes once per week and replace if wear is present.

1. Switch off the machine and remove the dirt hopper Fig. 57-A.

2. Remove both M6x16 flanged button head bolts, the brush adjuster and the

cover Fig. 57-B.

3. Remove the round belt from the side brush Fig. 57-C.

4. Loosen the three screws Fig. 57-D of the side brush and remove it.

5. Fit the new side brush in the reverse order. Pay attention to the run of the

belt Fig. 57-E.

5.9.10 Adjusting the sweeping level

The sweeping level must be readjusted if the event of brush wear and after replacing the side brush.

1. Turn off the machine.

2. Rotate the adjusting wheel until half of the side brush is touching the floor. Compared to a clock, the sweeping level must be from approx. 9 o’clock to 3 o’clock on the floor

96 05-7182-01.fm

Fig. 57-F.

Attachments/options

Fig. 58:

6 Attachments/options

6.1 Spray suction tool

The spray suction tool Fig. 58-A is used for manually cleaning difficult-to-reach points.

Attention

• The spray suction tool is used to suck up dust. Only suck with the addition of water!

• Do not use the spray suction tool while driving!

Note

Before starting up for the first time, the provided adapter must be securely attached to the end of the hose Fig. 58-B.

1. Reconnect the suction hose in the park position Fig. 58-C.

2. Insert the hose of the tool into the opening of the vacuum system Fig. 58-D.

3. Connect the hose to the water connection of the machine Fig. 58-E.

4. Use the tool operation button Fig. 58-55 on the control panel to switch the

tool on and off. The operator must not be sitting on the seat. Push the button twice: Spray suction tool ON Push the button again: Spray suction tool OFF

06-7182-01.fm 97

Attachments/options

Fig. 59:

6.2 Manual suction tool:

The manual suction tool Fig. 59-A is used for manually cleaning difficult-to-reach points.

Attention

• The manual suction tool is not used to suck up dust. Only suck up water!

• Do not use the spray suction tool while driving!

1. Reconnect the suction hose in the park position Fig. 59-B.

2. Insert the hose of the tool into the opening of the vacuum system Fig. 59-C.

3. Use the tool operation button Fig. 59-55 on the control panel to switch the

tool on and off. The operator must not be sitting on the seat. Push the button twice: Manual suction tool ON Push the button again: Manual suction tool OFF

98 06-7182-01.fm

Attachments/options

Fig. 60:

6.3 Spray nozzle

The spray nozzle Fig. 60-33 is used to flush the solution tank and waste water tank.

1. Connect the hose to the water connection of the machine Fig. 60-A.

2. Use the Tool operation button Fig. 60-55 on the control panel to turn the

water supply on and off. The operator must not be sitting on the seat. Push the button: Spray nozzle water supply ON Push the button again: Spray nozzle water supply OFF

3. Spray nozzle operation:

B = operating handle for turning the water supply with locking mechanism on and off.

C = adjusting lever for water dosing. D = setting the type of water jet.

06-7182-01.fm 99

Attachments/options

Fig. 61:

6.4 Pre-sweep suction unit

The pre-sweep suction unit picks up dirt in the dry area in front of the scrubbing unit. The two side brushes brush the dirt directly into the path of the cylindrical brush. The cylindrical brush then sweeps the dirt forwards into the dirt hopper. The fine dust that is swirled up by the cylindrical brush is transported against the filter element by the suction fan.

6.4.1 Pre-sweep suction unit installation

1. Slide the pre-sweep suction unit Fig. 61-A as far as the swivel bracket on

the machine in a central position. The lever is in the change position

Fig. 61-B.

2. Move lever to position P Fig. 61-C.

3. Insert the plug into the socket at the front right of the machine and secure

with the knurled nut Fig. 61-D. The pre-sweep suction unit is now attached to the machine.

100 06-7182-01.fm

HAKO Scrubmaster B260 R, 7182 Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Safety instructions

1.1 Warning and danger symbols

1.2 General safety instructions

1.3 Operating safety instructions

1.3.1 Before putting into service

1.3.2 During operation

1.3.3 After operation

1.4 Maintenance instructions

1.5 Information about special risks

1.5.1 Electrical system

1.5.2 Batteries

1.6 Environmental protection instructions and disposal

1.7 Labels on the machine

1.8 Labels on the pre-sweep suction unit

2 Operation

2.1 Overviews

2.1.1 Front view

2.1.2 Rear view

2.1.3 Control panel

2.2 Controls and display elements

2.2.1 Control panel

2.3 Multifunction display

2.3.1 Menu guidance

2.3.2 Main menu

2.3.3 Sub-menu

2.3.4 Controls at the machine

2.4 Functional description:

2.4.1 Solution tank

2.4.2 Rotating brush and roller brush unit

2.4.3 Side brush unit

2.4.4 Wiper

2.4.5 Squeegee

2.4.6 Waste water tank

2.4.7 Suction turbines

2.4.8 Travel drive

2.4.9 Brakes

2.4.10 Batteries

3 Operation

3.1 Instruction

3.2 Before putting into service

3.3 Check list: Before machine start-up

3.3.1 Driver's seat

3.3.2 Side mirror (optional) adjustment

3.4 Cleaning

3.4.1 Entry.X (optional)

3.4.2 On-board dosing system (option)

3.4.3 Useful cleaning tips

3.4.4 Handling and braking the vehicle

3.4.5 Pushing the machine

3.4.6 Turning off the machine

3.4.7 Check list: after cleaning

3.5 Loading and transporting

3.6 Service information

4 Technical data

5 Maintenance and Servicing

5.1 Maintenance plan

5.2 Battery

5.2.1 Checking the charging state

5.2.2 Charge the battery

5.2.3 Checking the acid level

5.2.4 Replacing the battery

5.2.5 Battery plug coding

5.2.6 Maintaining drive batteries

5.2.7 Taking the machine out of service for a long period

5.2.8 Disposing of batteries

5.3 Solution tank

5.3.1 Filling the solution tank

5.3.2 Emptying the solution tank

5.3.3 Cleaning the solution tank

5.4 Waste water tank

5.4.1 Emptying the waste water tank

5.4.2 Cleaning the waste water tank

5.4.3 Cleaning the coarse dirt sieve

5.4.4 Cleaning the intake sieve

5.4.5 Checking the seal at the drain valve

5.4.6 Cleaning the fresh water filter
