Operating Manual
Hako Hamster 800 V (6404.10)
Hako Hamster 800 E (6404.20)
2
Introduction
Preface
Dear customer,
We hope that the excellent qualities of
the machine justify the faith you have
shown in us by purchasing the product.
Your safety, and that of others, is dependent on your ability to control the
machine. Please read this translation of
the original manual before using the
machine for the first time, act according
to the information contained and keep it
in a safe place for future reference or
subsequent owners. In order to ensure
that you can work with the machine
safely, please read the chapter on safety before starting it up.
The operating manual contains all the
important information you need to operate, maintain and service the machine.
Sections of this operating manual which
are relevant to safety are marked by the
hazard label. If you have any questions
with regard to the machine or operating
manual, you can contact your Hako
service partner at any time.
We would like to emphasize that no legal claims can be asserted in respect of
any work described in this manual. Ensure only original spare parts are used
should any repairs be necessary. Only
such original spare parts warrant that
the equipment is reliably ready to use at
all times. We reserve the right to make
technical improvements.
Valid from: August 2010
Hako GmbH
D-23843 Bad Oldesloe
Hamburger Straße 209-239
Telephone +49 4531 806-0
Information on the
warranty
As a fundamental rule, the regulations
in the purchase agreement apply.
There are no rights to claims for compensation under the terms of warranty
when the damage is a result of failure to
observe the stipulations concerning
service and maintenance. Maintenance
work must be completed by an authorized Hako service center and confirmed
in the “maintenance logbook”; this
serves as proof of rights to claims under
the terms of warranty.
The following are excluded from the
terms of warranty: normal wear and tear
and damage caused by overuse, defective fuses, improper handling or unauthorized modifications. Claims under
the terms of warranty are also annulled
when damage occurs to the machine as
the result of the use of parts and accessories not explicitly approved by us or to
failure to observe maintenance procedures.
Introduction
3
Intended use
The Hako Hamster 800 V/E is a manually operated Vacuum Sweeper for industrial/commercial use and serves to
clean up dry and wet waste from indoor
and outdoor areas such as production
plants, warehouses, car parks, parking
blocks, pedestrian precincts, market
squares, railway stations and filling stations. The Hako Hamster 800 V/E can
clean all types of industrial floor, concrete, asphalt and tar, paving and interlocking stone paving. It is not permitted
for use on public roads with motor traffic. The Hako Hamster 800 E can be
upgraded with a carpet kit so it can also
be used to clean dry waste from carpets.
Any use beyond this is regarded as improper use. The manufacturer is not
considered liable for any damage resulting from improper use; the user is
solely responsible for all the risks.
Intended use also includes maintaining
and observing the operating, maintenance and repair conditions prescribed
by the manufacturer.
The Hako Hamster 800 V/E may only
be operated, serviced and repaired by
personnel who are familiar with the
work involved and are aware of the
risks. The applicable accident prevention laws must be observed and any
generally accepted health and safety directives must be maintained.
Based on the conception, design and
construction of the model introduced
onto the market by us, the machine
complies with the applicable basic safety and health requirements stipulated in
the EC directives (refer to the Declaration of Conformity). The EC Declaration
of Conformity is no longer considered
valid in the event of modifications to the
machine not authorized by us . Th e
manufacturer is not deemed liable for
any damage resulting from unauthorized modifications to the machine.
Handover of the machine
Inspect the machine immediately on delivery for signs of transport damage.
Replacement will be made when confirmation is provided immediately by the
freight carrier with regard to the damage and the damage report is sent to
our authorized sales partner together
with the consignment note.
Introduction
4
Disposing of the machine
Render the machine inoperable. It must
not represent a source of risks to children.
Dispose of the machine in accordance
with the applicable local regulations.
For further information on disposal and
recycling, contact the authorized Hako
dealer where you purchased the machine.
Disposing of batteries
Used batteries with the recycling symbol contain reusable commodities.
However, the heavy metals contained
also represent a major risk to human
health and to the environment. Never
open or damage batteries. Never touch,
inhale or swallow the content matter of
batteries. Health hazard! Do not allow
batteries to pollute the environment.
There is a risk of contaminating the
ground and water! In accordance with
the symbol with the crossed out bin,
these batteries must not be disposed of
in domestic waste. The return and recycling of old batteries must be agreed on
with the authorized Hako dealer in accordance with the Battery Act § 6 and
§ 8.
Introduction
5
Contents
Introduction . . . . . . . . . . . . . 2
Preface. . . . . . . . . . . . . . . . . . 2
Information on the warranty . . 2
Intended use. . . . . . . . . . . . . . 3
Handover of the machine. . . . 3
Disposing of the machine. . . . 4
Disposing of batteries. . . . . . . 4
1 Safety Information . . . . . . . . 7
1.1 Safety and warning symbols . 7
1.2 General information . . . . . . . . 8
1.3 Operating information. . . . . . . 8
1.4 Maintenance information . . . 10
1.5 Particular risks . . . . . . . . . . . 11
1.6 Environmental protection . . . 11
1.7 Labels on the machine. . . . . 12
2 Starting Up . . . . . . . . . . . . . 16
2.1 Before starting up
for the first time . . . . . . . . . . 16
2.1.1 Unpacking . . . . . . . . . . . . . . 16
2.1.2 Refueling the engine
(only Hako Hamster 800 V) . 17
2.1.3 Checking the oil level
(only Hako Hamster 800 V) . 17
2.1.4 Connecting the batteries
(only Hako Hamster 800 E) . 17
2.1.5 Initial battery charge
(only Hako Hamster 800 E) . 17
2.1.6 Instruction. . . . . . . . . . . . . . . 18
2.2 Before starting up each day . 18
3 Operation . . . . . . . . . . . . . . 19
3.1 Method of operation . . . . . . . 19
3.2 Operating
and indicator elements. . . . . 20
3.2.1 Operating elements . . . . . . . 20
3.2.2 Operating panel . . . . . . . . . . 24
3.3 Operation . . . . . . . . . . . . . . . 26
3.3.1 Switching on. . . . . . . . . . . . . 26
3.3.2 Accelerating . . . . . . . . . . . . . 27
3.3.3 Stopping. . . . . . . . . . . . . . . . 27
3.3.4 Vacuumsweeping. . . . . . . . . 27
3.3.5 Switching off. . . . . . . . . . . . . 28
3.3.6 After finishing work. . . . . . . . 29
3.3.7 Loading and transportation . 29
3.4 Function faults . . . . . . . . . . . 30
3.5 Options. . . . . . . . . . . . . . . . . 30
6
Contents
4 Technical Data . . . . . . . . . . 31
5 Maintenance and
Service . . . . . . . . . . . . . . . . 33
5.1 Hako system maintenance. . 33
5.2 Maintenance report . . . . . . . 34
5.3 Maintenance Plan . . . . . . . . 35
5.4 Engine . . . . . . . . . . . . . . . . . 38
5.4.1 Checking
the engine oil level . . . . . . . . 39
5.4.2 Refilling engine oil . . . . . . . . 39
5.4.3 Changing/Draining
the engine oil change. . . . . . 39
5.4.4 Disassembling the ai
r filter. . 40
5.4.5 Cleaning the air filter . . . . . . 40
5.4.6 Installing the air filter . . . . . . 40
5.5 Battery system . . . . . . . . . . . 41
5.5.1 Charging batteries . . . . . . . . 42
5.5.2 Total discharge signal
transducer (TSG) . . . . . . . . . 42
5.5.3 Servicing the drive batteries. 42
5.5.4 Removing batteries . . . . . . . 42
5.5.5 Inserting batteries. . . . . . . . . 43
5.5.6 Disposing of batteries. . . . . . 43
5.6 Drives. . . . . . . . . . . . . . . . . . 44
5.6.1 Adjusting the drive belt. . . . . 45
5.7 Side brush . . . . . . . . . . . . . . 47
5.7.1 Side brush wear,
readjustment . . . . . . . . . . . . 48
5.7.2 Changing the side brush . . . 48
5.8 Rotary brush. . . . . . . . . . . . . 49
5.8.1 Cleaning the brush space . . 50
5.8.2 Changing the rotary brush . . 50
5.8.3 Setting the sweeping pattern 51
5.8.4 Changing the sealing strips . 51
5.9 Dirt hoppers . . . . . . . . . . . . . 54
5.9.1 Removing a dirt hopper . . . . 55
5.9.2 Emptying the dirt hopper . . . 55
5.9.3 Inserting the dirt hoppers . . . 55
5.9.4 Changing the seals . . . . . . . 55
5.10 Dust vacuum . . . . . . . . . . . . 56
5.10.1 Clearing dust deposits
from panel air filter
during operation . . . . . . . . . . 57
5.10.2 Removing the panel air filter 57
5.10.3 Cleaning the panel
air filter thoroughly . . . . . . . . 57
5.10.4 Replacing the sealing strips . 57
5.10.5 Inserting panel air filters. . . . 58
5.10.6 Checking the suction turbine 58
5.10.7 Checking
the filter system for leaks . . . 58
5.11 Special equipment . . . . . . . . 59
Notes. . . . . . . . . . . . . . . . . . 60
EC Declaration
of Conformity . . . . . . . . . . . 61
7
Safety Information
1 Safety Information
1.1 Safety and warning symbols
The following warning symbols appear
in the op
erating manual in those
sections in which your safety, the safety
of the machine and environment could
be affected:
Symbol Damage to ... Definition
Safety information persons
or property
Safety symbol to indicate dangerous situations arising
through failure to follow instructions or prescribed work
procedures precisely or through ignoring them
altogether.
Note the machine Important information on handling the machine to
maintain its functioning ability.
Risk to environment the environment Risks to the environment through using substances
which represent a risk to health and the environment.
8
Safety Information
1.2 General information
• In addition to the information
pro
vided in this operating manual, all
the legally applicable health and
safety provisions must be observed.
• Before starting up the machine for
the first time,
read the operating
manual supplied with it thoroughly as
well as any separate manuals
provided with additional or
attachment devices and observe all
the information during work.
• The equipment may only be
op
erated, serviced and repaired by
personnel trained by Hako technical
experts.
• Particular attention should be paid to
the in
formation regarding safety.
Technical expertise is the key to
preventing errors when operating the
machine and ensuring trouble-free
operation.
• The operating manual must always
be kept at the operating location of
the machine and, as a result, should
kept in a safe place on the
equipment.
• If the equipment is sold or rented out,
these
documents should be
transferred to the new owner/
operator. The transfer should be
confirmed!
• The warning labels attached to the
machin
e provide important
information concerning safe
operation.
Illegible or missing labels must be
repl
aced by new ones.
• For reasons of safety, always use
original spare parts.
1.3 Operating information
• The machine is not suitable for
cleari
ng up fluids, dust or
substances which represent a health
hazard, are inflammable or
explosive. No burning items may be
cleared up, e.g. glowing cigarettes.
In addition, it is forbidden to clean up
wood dust, e.g. beech and oak dust
- health hazard!
• When the machine is in
vacuumswee
ping mode, it must not
be driven through puddles of water.
• Before starting the machine up for
th
e first time, the battery to be used
must be fully charged, properly, by
implementing the initial battery
charge routine (only Hako
Hamster 800 E). Hako assumes no
liab
ility for damage to the battery
caused by a fault when the battery is
charged for the first time.
• The machine together with the
working
equipment must be checked
in terms of proper condition and
operational safety each time prior to
use. Clear any faults immediately!
The machine must not be used when
not in a sound condition.
• Only start the machine when the
9
Safety Information
hood is closed and locked and the
lever of the shaking device has been
pushed in.
• Before starting work, the operator
must be
fully familiar with all
adjustment, operating and control
elements as well as their respective
function! It is too late to do this when
the machine is actually in operation!
• Always wear heavy duty, non-slip
footwear whe
n working with the
machine.
• The machine may only be used on
those surfaces which
have been
approved by the contractor or person
appointed by him.
• The manner of driving must be
ada
pted to the local conditions.
• It is forbidden to use the machine in
poten
tially explosive atmospheres.
• Do not let the engine run indoors!
Risk of
poisoning (only Hako
Hamster 800 V)! Ensure sufficient
ventilation when working indoors.
• When using the machine, it is
essentia
l to pay attention to third
parties, especially children.
• Pay attention to hot parts of the
eng
ine, risk of burns.
• It is prohibited to transport
passen
gers.
• Accelerate the machine immediately
afte
r switching on the rotary brush,
otherwise imprints of the brush could
be produced on the floor.
• Never leave the machine unattended
as l
ong as the engine is running.
• Remove the ignition key to prevent
unauthorized use of the machine.
• Never leave batteries in a
discha
rged state but recharge them
as soon as possible (only Hako
Hamster 800 E).
• When transporting the machine,
switch the
engine off and raise the
side brush.
• The Hako Hamster 800 V can be
used on
surfaces with a maximum
gradient of 15%.
• The Hako Hamster 800 E can be
u
sed on surfaces with a maximum
gradient of 10% (for maximally 3
minutes).
• Steps or curbs up to a maximum of
4 cm can be driven over.
• It is forbidden to manipulate switches
a
nd safety equipment.
10
Safety Information
1.4 Maintenance information
• The maintenance work and
mai
ntenance intervals prescribed in
the operating manual must be
adhered to.
• Operating personnel must complete
the ne
cessary daily and weekly
maintenance work. All other
maintenance work must be
completed at your nearest Hako
service center.
• The machine must be inspected by a
recognized technical ex
pert in
respect of operational safety, within
the terms of the applicable accident
prevention laws, at reasonable
intervals (we recommend at least
once a year) and following
modification or repairs.
• Spare parts must comply with the
minimum technical
requirements
stipulated by the manufacturer! This
is ensured by the use of original
spare parts.
• The machine must be switched off
pri
or to cleaning or servicing it or to
replacing parts.
• Suitable tools must be used for
clea
ning and maintenance work.
• When working with the hood raised,
it mu
st be opened up fully to prevent
it from accidentally dropping or
slamming shut.
• When working on the electrical
system
, always disconnect the
battery cable (only Hako
Hamster 800 E).
• Batteries may only be handled and
chan
ged by properly skilled
maintenance personnel (only Hako
Hamster 800 E).
• Pay attention that the insulation of
the charge
r cable is not damaged
and cannot be damaged during the
charging process. The cable must
not chafe against anything. In the
case of defective insulation, do not
use the on-board charger (only Hako
Hamster 800 E).
• Check the exhaust system at regular
intervals (only
Hako
Hamster 800 V).
• It is not permitted to clean the
machin
e with a pressure washer or
steam blaster.
• It is not permitted to use aggressive
an
d corrosive cleaning agents.
• Allow the machine to dry properly
after being cleaned, e.g. over the
weeke
nd.
• Do not carry out any welding, drilling,
sawin
g or grinding work on the frame
sections. Damaged parts may only
be changed at an authorized Hako
service center.
11
Safety Information
1.5 Particular risks
Refueling
(only Hako Hamster 800 V)
• Take the utmost care when handling
fuel: In
creased risk of fire! Never
refuel near open flames or
incendiary sparks! Never smoke
when refueling!
• Never refuel indoors!
• Before refueling, switch off the
eng
ine and remove the ignition key.
• Wipe up spilled fuel immediately!
Batteries (only Hako Hamster 800 E)
• To prevent creeping currents,
alw
ays keep the batteries clean and
dry, protect from soiling such as by
metal dust.
• Never lay any metallic objects or
tools on ba
tteries. Risk of short
circuit and deflagration!
• When charging the batteries, there
must be
sufficient ventilation in the
charging area. Otherwise, there is a
risk of explosion!
• Batteries must not be connected or
disconnected when conducting
electricity.
• Wash your hands thoroughly after
working
on batteries.
Health hazard
• The shaking device for cleaning the
pan
el air filter may only be actuated
when the dirt hoppers are in the
machine and have been raised.
• It is forbidden to eat, drink and
smo
ke in battery charging rooms.
Safety equipment
• Never operate the Hako
Hamste
r 800 V/E without the hood
bein
g closed and locked (safety
equipment)!
• Do not open the hood when the
eng
ine is running!
1.6 Environmental protection
• Sufficient factual knowledge is
re
quired in order to use substances
which could represent a risk to
health and the environment, e.g oil
and lubricants.
• Observe the applicable laws and
l
ocal regulations when disposing of
waste and cleaning agents, also
refer to the Water Resources Act.
• Observe the applicable laws and
l
ocal regulations when disposing of
waste oil (only Hako
Hamster 800 V).
• Used batteries with the recycling
symbo
l must not be disposed of in
household waste, refer to paragraph
”Entsorgung von Batterien”.
12
Safety Information

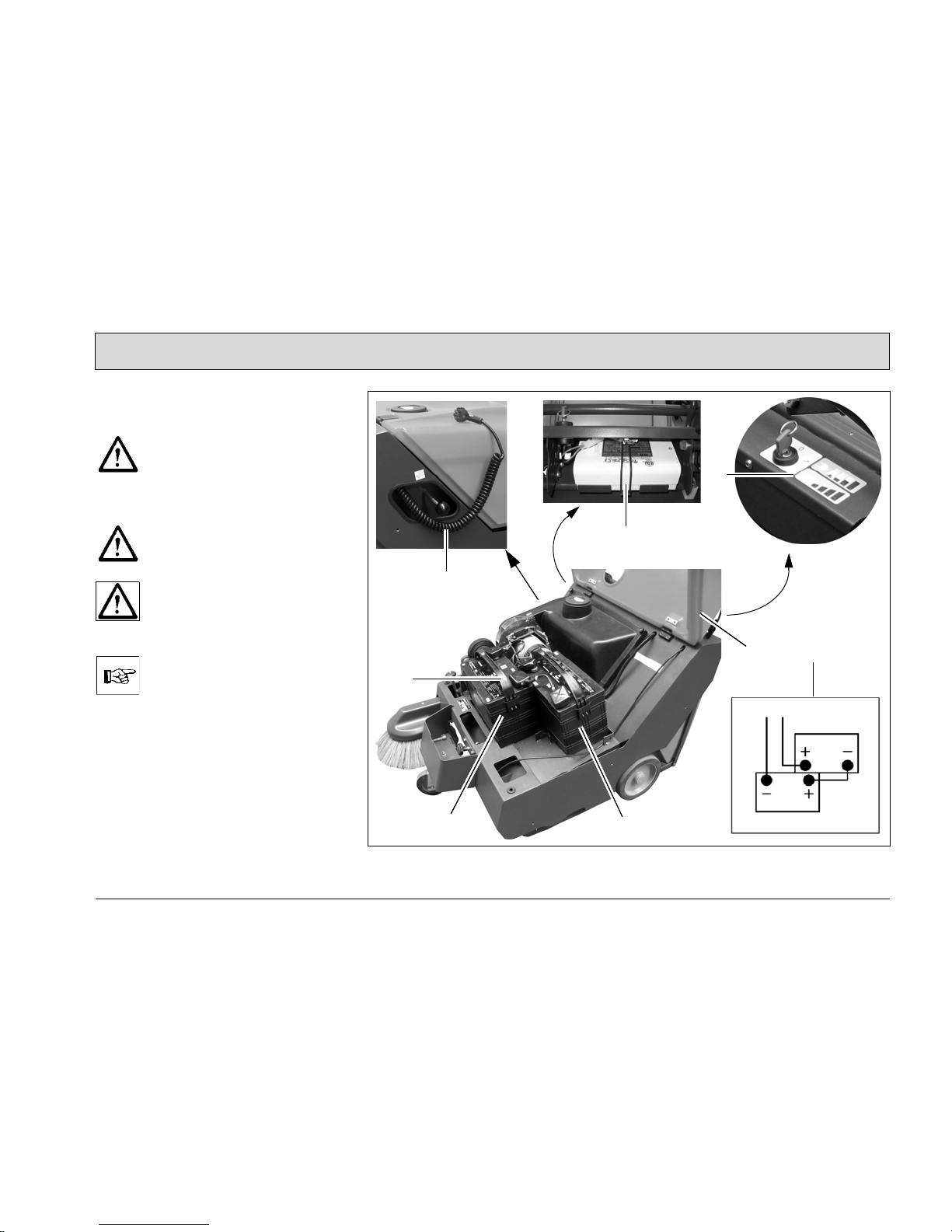

1.7 Labels on the machine
The following safety and warning labels
are attached to the machine where
easily legible.
Missing or illegible labels must
be replaced immediately.
Choke (Fig. 1/1)
(only Hako
Hamster 800 V)
Lock, dirt hopper
(Fig. 1/2)
Company logo (Fig. 1/3)
Fig. 1
2
3
1
13
Safety Information
Fig. 2
2
3
1
5
4
6
14
Safety Information
Bypass flap (Fig. 2/1)
Only use maintenance-free batteries
(Fig. 2/2)
(only Hako Hamster 800 E)
Wear compensator for rotary brush
(Fig. 2/3)
Rating plate (Fig. 2/4)
Wear compensator for side brush
(Fig. 2/5)
Oil label (Fig. 2/6)
(only Hako Hamster 800 V)
Engine oil, only use SAE 15 W 40 .

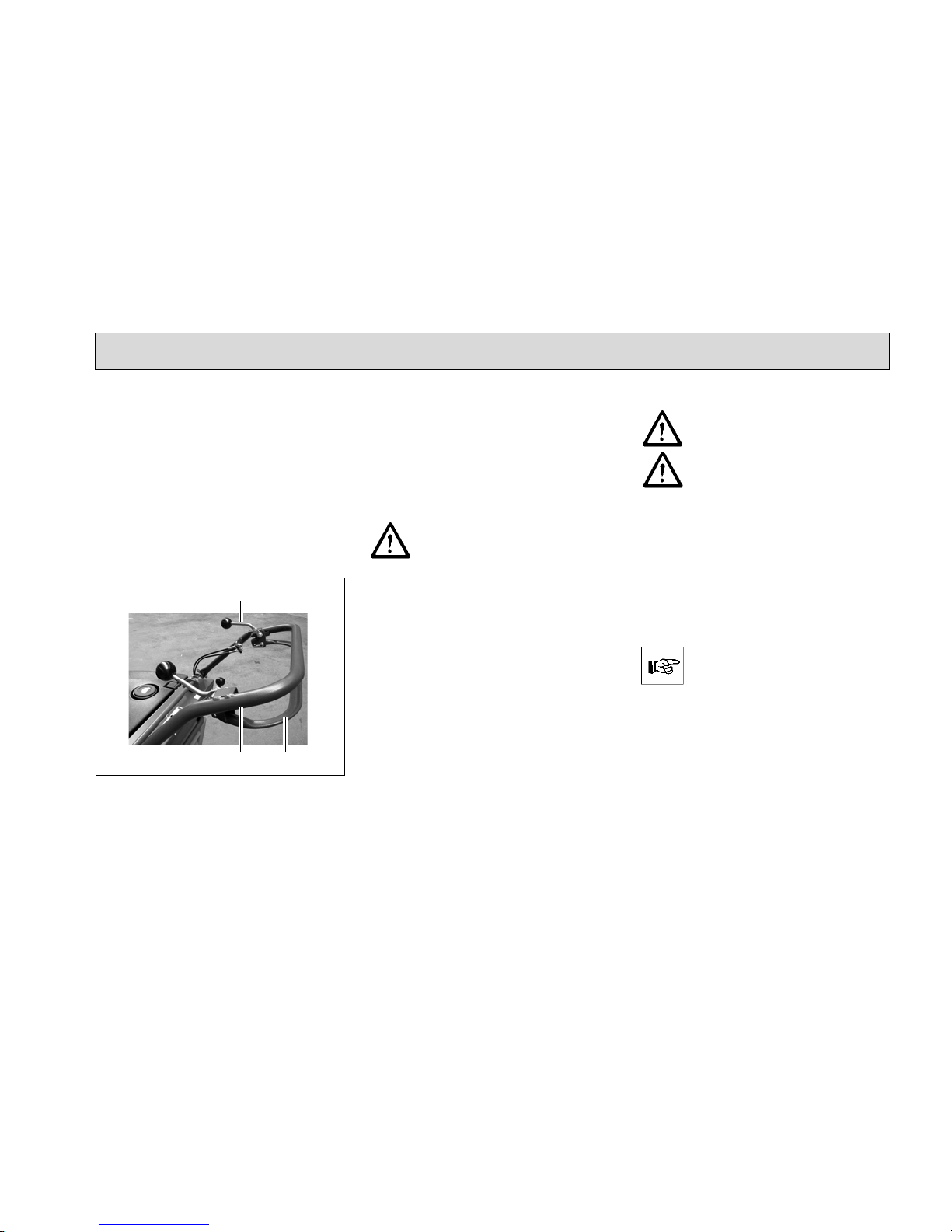

Folding apron (Fig. 3/1)
Parking brake (Fig. 3/2)
Shaking device (Fig. 3/3)
15
Safety Information
Fig. 3
Read and observe the operating
ma
nual (Fig. 3/4)
Lower/Raise side brush (Fig. 3/5)
1
2
3
4
5
16
Starting Up
2 Starting Up
2.1 Before starting up for the first
time
2.1.1 Unpacking
Remove the packaging, open the
fa
stening straps and take the Hako
Hamster 800 V/E from the pallet. For
reasons of packaging, the handlebar of
the Hako Hamster 800 V/E is pivoted
forwards. First of all, pivot the
handlebar to its operating position.
Pivoting the handlebar to its
op
erating position
1. Loosen the wing bolts (Fig. 4/1) on
the righ
t and left sides of the
handlebar (Fig.
4/2) a few
revo
lutions until the handlebar
(Fig. 4/2) can be straightened up.
2. Pivot the handlebar (Fig. 4/2)
towa
rds the rear and set it to a height
convenient for the user.
3. Tighten the wing bolts (Fig. 4/1) on
the righ
t and left sides of the
handlebar (Fig. 4/2).
Fig. 4
1
2
17
Starting Up
2.1.2 Refueling the engine
(only Hako Hamster 800 V)
Unscrew the fuel tank cap
(Fig. 7/7) and fill approx. 2.5 l gasoline.
Screw the fuel tank cap back on.
Only refuel the machine when
the engine has cooled down.
Otherwise, a
ny spilled
gasoline can evaporate if it
lands on hot machine parts.
Health hazard through inhaling
vapors!
Refueling must not be carried
out in closed rooms.
Refueling may only be carried
out when the engine is
switched o
ff! Remove the
ignition key.
It is forbidden to smoke or use
fire when refueling or working
on or near
components
containing fuel.
Wipe up any spilled fuel!
Wipe up spilled fuel with a cloth
and dispose of the cloth
according to
the applicable
environmental laws.
2.1.3 Checking the oil level
(only Hako Hamster 800 V)
Engine oil is filled at the factory. As a
precauti
on, however, check the oil level
again on site, refer to Section 5.4.1.
2.1.4 Connecting the batteries
(only Hako Hamster 800 E)
Before starting up fo
r the first time,
connect the positive cable of the device
as illustrated in Figure 5 to the positive
pole (Fig. 5/1) of the batteries in the
device.
2.1.5 Initial battery charge
(only Hako Hamster 800 E)
Before starting up the machine for the
first time, the batteries used must be
fully charged by completing the initial
battery charge, refer to Section 5.5.1.
Hako assumes no liability for damage to
the battery resulting from failing to carry
out the initial battery charge properly.
Risk of explosion! When
charging the batteries, there
must be suffi
c
ient ventilation in
the charging area.
Fig. 5
1
18
Starting Up
2.1.6 Instruction
Operators must receive instruction
be
fore putting the machine into service.
Only technicians from your local,
authorized Hako dealer are allowed to
provide initial instruction on how to use
the machine. The manufacturing plant
notifies the dealer immediately after
delivering the machine and the dealer
will contact you to arrange a date for
providing the initial instruction.
2.2 Before starting up each day
Carry out the following checks before
sta
rting the machine:
1. Check the parking space for signs of
leaks.
2. Only Hako Hamster 800 V: Check
the eng
ine oil level with the dipstick
and refill, if necessary; refer to
Section 5.4.2.
3. Only Hako Hamster 800 V: Check
the fu
el supply and refill fuel, if
necessary, refer to refer to
paragraph 2.1.2.
4. Only Hako Hamster 800 E: Check
the charge
status of the batteries
and recharge, if necessary.
5. Check the fill level of the dirt hoppers
an
d empty them, if necessary.
6. Check the le vels of wear on the
rotary brush and side brush.
7. Check the ergonomic position of the
handlebar and readjust it, if
necessary.
19
Operation
3 Operation
3.1 Method of operation
The Hako Hamster 800 V/E is a
manu
ally operated Vacuum Sweeper
machine with a drive for the dry
cleaning of hard floors and carpets.
The side brush (Fig. 6/4), located on the
right-hand side of the machine, sweeps
the dirt away from corners and edges
into the path of the rotary brush
(Fig. 6/3). The rotary brush (Fig. 6/3)
sweeps the dirt into the two dirt hoppers
(Fig. 6/2) using the overhead throw
method. The particulate matter
(depicted gray in Fig. 6) is forced
against the panel air filter (Fig . 6/1) by
the suction turbine (Fig. 6/5) and filtered
out there. Only dust-free air is fed back
into the ambient air.
Fig. 6
1 Panel air filter
2
Dirt hoppers
3 Rotary brush
4 Side brushes
5 Suction turbine
Hako Hamster 800 V
The Hako Hamster 800 V is equipped
w
ith a gasoline engine and is filled with
approx. 2.5 l gasoline.
Hako Hamster 800 E
To charge the batteries, the Hako
H
amster 800 E is equipped with a
corresponding, fully automatic onboard charger. To protect the battery
against total discharge, the Hako
Hamster 800 E is provided with a total
discharge signal transducer (TSG)
which indicates the battery status
during the charging process and
discharging.
4321
5
20
Operation
3.2 Operating and indicator
elements
3.2.1 Operating elements
1 Side brush lever
2
Lever for the parking brake
3 Lever for the folding apron
4Hood
5 Hood lock
6 Bypass flap
7 Fuel tank cap
(only Hako Hamster 800 V)
8 Choke
(only Hako Hamster 800 V)
9 Recoil starter
(only Hako Hamster 800 V)
Fig. 7
1 23
5
6
4
7
8
9
21
Operation
Side brush lever (Fig. 7/1)
Use the lever to lower or raise the side
brush.
Lever forward: Side brush is lowered.
Lever to rear: Side brush is raised.
Parking brake lever (Fig. 7/2)
The parking brake acts on the rear
whee
ls and prevents the machine
rolling away on a slope.
Folding apron lever (Fig. 7/3)
If larger debris, up to max. 3 cm
dia
m
eter, must be swept up, the folding
apron must be raised by pulling the
lever back.
Hood with lock
(Fig. 7/4)
Only operate the machine with
the hood closed!
The hood should only be opened for
ma
inten
ance and repair work. In this
case, unlock the lock (Fig. 7/5) using a
square wrench and pivot the hood up.
Bypass flap (Fig. 7/6)
On opening the bypass flap, the
vacuum operation is interrupted. If
necessary, open up the bypass flap by
hand.
Vacuuming should be
interrupted when wet waste
could
b
e vacuumed up.
Fuel tank cap (Fig. 7/7)
Only for Hako Hamster 800 V with
gasoli
ne engine. The fuel tank cap
closes the fuel tank.
Choke (Fig. 7/8)
Only for Hako Hamster 800 V with
ga
soline engine. The choke must be
pulled out before cold starting the
engine.
Recoil starter (Fig. 7/9)
Only for Hako Hamster 800 V with
gasoli
ne engine. The engine is then
started by pulling the recoil starter after
having set the key switch to Position 1
beforehand.
22
Operation
1 Drive bar
2 Handlebar
3 Operating panel
4 Wing bolt for handlebar
5 Charger cable
6 Shaking device lever
7 Dirt hopper
8 Dirt hopper lock
Fig. 8
1
2
3
7
4
5
8
6
23
Operation
Drive bar (Fig. 8/1)
The drive bar serves to activate and
deacti
vate the wheel drive. The drive
bar must be pulled up towards the
handlebar with the fingers so that the
wheel drive operates and the machine
moves forward. If the drive bar is
released, the machine stops (safety
circuit).
Handlebar (Fig. 8/2)
The machine is guide/steered via the
handlebar.
Release the drive bar when
turning sharp corners.
The two wing bolts (Fig. 8/4) serve to
adj
ust
the handlebar to an optimal
position for the user.
Operating panel (Fig. 8/3)
Refer to Section 3.2.2.
Charger cable (Fig. 8/5)
The charger cable of the Hako
Hamste
r
800 E is located in the recess
which also contains the shaking device
lever.
Shaking device lever (Fig. 8/6)
To clean the panel air filter, pull the
shaking
device lever out then push
back in again; repeat this several times.
Dirt hopper lock (Fig. 8/8)
To remove the dirt hoppers, move the
l
o
cking lever to the right (when facing
the front) and, at the same time pivot
the handlebar forwards. The frame of
the dirt hoppers is lowered as a result
so that the hoppers can be removed
towards the rear. To lock the hoppers,
pull the handlebar to the rear until the
lock audibly engages.
24
Operation
3.2.2 Operating panel
Hako Hamster 800 V
Fig. 9
1 Key switch
Key switch (Fig. 9/1)
The key switch serves to secure the
machine against unauthorized use.
Key switch positions
Position 0: Off
Position 1: On (engine ready to start)
1
25
Operation
Hako Hamster 800 E
1 Key switch
2 C
harge control indicator
3 Battery discharge status indicator
Key switch (Fig. 10/1)
The key switch serves to switch the
drive
motor on and off and secure the
machine against unauthorized use.
Key switch positions
Position 0: Off
Position 1
: On (engine on)
Charge control indicator (Fig. 10/2)
During the charging process, the
machine electronics indicates the
charge status via four green LEDs.
The Hako Hamster 800 E can
only be charged when the key
switch is i
n Position 0.
As the charge level increases, it is
indi
cated by the LEDs which light up
progressively from left to right.
Fig. 10
1
2
3
26
Operation
Flashing or individually lit LEDs
indicate an error status, also
refer to
the charger operating
manual.
Battery discharge status (Fig. 10/3)
During operation, the machine
electronics indicates the
discharge
status of the batteries by means of a red
LED (left) and three green LEDs (right).
When all three green LEDs light up, the
batteries are fully charged. As the
batteries become progressively
discharges, the LEDs go out in
succession from right to left. When the
last green LED goes out, the red LED
starts to flash (early warning of
imminent shutdown). After a certain
time, the red LED lights up continuously
indicating the "battery empty" status.
Shortly afterwards, the drive motor is
automatically switched off to protect the
batteries from a total discharge.
The machine should only be restarted
when the batteries have been charged.
3.3 Operation
The Hako Hamster 800 V/E
must not be used in domestic
or office
areas.
Practice all the operating steps
in a training area and only use
the machine
in the areas
specified for deployment when
you are familiar with all the
operations.
3.3.1 Switching on
The motor must not be started
when the hood is open! Risk of
inju
ry through belt drive and
rotating fan!
Hako Hamster 800 V
Before starting the Hako
Hamster 800 V, pay attention
to the
following:
1. Set the key switch (Fig. 10/1) to
Position
1.
2. Pull out the choke (Fi g. 7/8) in the
case of a cold
start.
3. Pull the recoil starter cord (Fig . 7/9)
until the sta
r
ter clutch perceptibly
engages (slight resistance) and then
pull the starter cord (Fig. 7/9) hard
and
fast to start the engine.
4. Release the starter cord (Fig. 7/9)
and let it recoil back into the housing.
5. Then push the choke (Fig. 7/8) back
in, slowly.
If the engine does not start
immediately, use the starter
cord again exactly as
describe
d above.
The engine and sweeping functions are
activated.
Hako
Hamster 800 E
Set the key switch to Position 1.
27
Operation
3.3.2 Accelerating
When the engine is running:
1. Release the parking brake: Move the
lever (Fig. 11/1) at the top right of the
handle
bar (Fig. 11/3) forwards.
2. Use your fingers to pull the drive bar
(Fig. 11/2) against the handlebar
(Fig.
11/3).
3. Steer the machine with the
han
dle
bar (Fig. 11/3) in the required
directio
n.
Fig. 11
3.3.3 Stopping
1. Release the drive bar (Fig. 11/2).
The
machine decelerates and
comes to a stop.
2. Actuate the parking brake: Move the
lever (Fig.
11/1) at the top right of the
han
dleb
ar (Fig. 11/3) back.
Do not park the machine on
carpets while the engine is
running. R
isk of fire through
the flooring overheating due to
the rotating rotary brush!
Exception: The machine is
equi
ppe
d with a carpet kit
(option) which automatically
switches the rotary brush off
when stopping the machine.
3.3.4 Vacuumsweeping
Ensure sufficient ventilation
when sweeping indoors!
It is forbidden to sweep up
dust which represents a health
haza
rd!
1. Check th e machine,
refer to paragraph 2.2.
2. Open the bypass flap if damp waste
i
s
to be cleared up.
3. Switch the machine on,
refer to paragraph 3.3.1.
The engine and sweeping functions
ar
e activated.
Drive away immediately after
switching on the machine
ot
herwise it is possible that
marks will be produced on the
floor by the rotating rotary
brush.
23
1
28
Operation
4. Lower the side brush: Move the lever
(Fig. 7/1) forwards.
5. Accelerating: Release the parking
brak
e and pull the drive bar up,
refer to paragraph 3.3.2.
6. Drive to the ground surface to be
cle
aned
.
To clear up coarse waste up to
a maximum of 3 cm diameter,
rais
e the folding apron. To do
this, draw the lever at the top
left of the handlebar back.
Steps and curbs up to a height
of 4 cm can be driven over,
careful
ly. When driving over
thresholds, release the drive
bar and tip the machine back a
little so that the front roller can
negotiate the step.
7. Operate the shaking device
occasionally, refer to paragraph
”Operating the shaking device”.
8. Check the contents of the
two dirt
hoppers regularly and empty them
as necessary, refer to paragraph
”Emptying the dirt hoppers”.
Do not overload the dirt
hoppers! This can affect the
stoppi
ng distance and the
parking brake is only designed
to cope with the permissible
total weight. Caution,
particularly when sweeping up
dirt such as metallic chippings!
When driving up slopes with
overloaded dirt hoppers, there
is a ri
sk of the machine tipping
over to the rear!
Tip out the dirt hoppers from a
low height when emptying
them to prev
ent dust swirling
around! If necessary, pay
attention to the wind direction
and evade any clouds of dust!
Health hazard!
3.3.5 Switching off
Turn the key switch to Position 0.
Remove the ignition key when
leaving the machine to prevent
u
n
authorized use.
29
Operation
3.3.6 After finishing work
1. Operate the shaking device.
2. Empty the dirt hoppers.
3. Check the brush area for any
residual waste and
remove it if
necessary, refer to Section
“Cleaning the brush space“.
4. Clean the machine, if necessary.
Warning - do not clean
electrical components with
liquids! Risk of el
ectric shock!
It is not permitted to clean the
machine with a pressure
washer
or steam blaster.
Operating the shaking device
Push and pull the lever (Fig. 8/6) in and
out several times in succession to clean
dust from the panel air filter.
Only operate the shaking
device when the engine is
switched o
ff.
Emptying the dirt hoppers
1. Move the locking lever (Fig. 8/8) to
th
e right (loo
king to the front) and, at
the same time, tip the handlebar
(Fig. 8/2) to the front.
2. Remove the dirt hoppers (Fig. 12/2)
from the machin
e
and empty them.
Carry the dirt hoppers
(Fig. 12/2) by the handles
(Fig. 12/1).
Fig. 12
Observe the applicable laws
and local regulations when
disposi
ng of waste.
3.3.7 Loading and transportation
When loading the machine and
transporting it to its area of
depl
oyment, the side brush
must be raised.
Loading
When loading the machine, take its
we
ight and climbing capacity into
account, refer to paragraph
”Technische Daten”.
Transporting
The machine must be properly
secured. It must not slip or tip
du
ring transportation! Risk of
injury!
When transporting on a vehicle or
trailer, the machine must be secured
against rolling away: Actuate the
parking brake and lash down the
machine securely at the front and rear.
21 2
30
Operation
• Secure the machine a t the front wi th
a strap which must be fed through
the two openings (Fig. 13/1) near the
front wheel
(Fig. 13/2).
• At the rear, thread a strap around the
bo
ttom end
s of the handlebar and fix
the strap to the transporter.
Fig. 13
3.4 Function faults
• If the machine is overloaded, the
engine
speed drops.
Set the key switch to Position 0.
Chec
k the side brush, rotary brush
and brush area for residual waste
and remove the waste, if necessary.
Ensure that there is sufficient fuel in
the tank (only Hako Hamster
800 V)
or
th
at the batteries are sufficiently
charged (only Hako Hamster 800 E).
Start the machine. If the fault occurs
again, contact a Hako service
center.
If the machine cannot be
switched off, pay attention to
the rotating fan when
you
disconnect the cable or pull out
the spark plug connector! Risk
of injury!
3.5 Options
The basic machine can be upgraded by
add
ing further compone
nts. The order
and spare parts numbers for these
components are provided in brackets.
• Carpet kit (64
60)
By fitting the carpet kit on the Hako
Hamster
800 E, the machine is
converted for clearing up dry waste
from carpets.
Please refer to the spare parts
catalogue on our internet site
at www.h
ako.com for
accessories, such as rotary
brushes, side brushes etc.
2
1
1
31
Technical Data
4 Technical Data
Machine length cm 120
Machine height (handlebar folded forward) cm 73
Machine width (including side brush) cm 85
Working width (with / without side brush) cm 87 / 67
Rotary brush width cm 67
Rotary brush diameter cm 25
Side brush diameter cm 40
Theoretical area coverage (with / witho
ut
side brush) m²/h 4350 / 3350
Sweeping speed kph 5
Dirt hopper volume Liter 50 (2x25)
Load capacity, dirt hopper kg 60 (2x30)
Filter surface m² 1,5
Power output (Hako Hamster 800 V / Hako Hamster 800 E) kW 3.3 / 0.75
Weight, ready to use (Hako Hamster 800 V / Hako Hamster 800 E) kg 122 / 163
Climbing capacity (maximum)
Hako Hamster 800 V
Hako Hamster 800 E (for max. 3 minutes)
%
%
15
10
Ambient temperature
Hako Hamster 800 V
Hako Hamster 800 E
ºC
ºC
-10 to +40
0 to
+
40
32
Technical Data
Noise emission value
The sound power level (LwA) measured in accordance with EN 60335-2-72 at
maximum working conditions:
Hako Hamster 800 V
Hako Hamster 800 E
dB (A)
dB (A)
92
81
The sound pressure level (LpA) (at the ear of the operator) measured according
to DIN IEC 60335-2-72 under normal working conditions:
Hako Hamster 800 V
Hako Hamster 800 E
dB (A)
dB (A)
78
65
Measurement inaccuracy (KpA): dB (A) 2
Vibration
The weighted effective value of acceleration, measured in accordance with DIN
EN ISO 5349, to which the upper parts of the body (hand-arm) are exposed under
normal working conditions:
Hako Hamster 800 V
Hako Hamster 800 E
m/s²
m/s²
2.6
Max. 2.5
33
Maintenance and Service
5 Maintenance and
Service
General information
It is essential to pay attention
to the information in Cha
pter
"Safety Information" before
completing any service or
maintenance work!
By adhering to the maintenance work
recommended
by us, you can be sure
that the machine is always ready to be
put into operation.
Maintenance and repair work necessary on a daily and weekly basis can be
carried out by an operator trained to
complete the work, all other Hako system maintenance may only be completed by personnel who are
correspondingly qualified and trained.
Please contact your nearest Hako service center or authorized Hako dealer.
Failure to observe this annuls any rights
to claims under the terms of guarantee
in respect of resulting damage or consequential damage.
Always specify the serial number in the
case of inquiries and spare parts orders, refer to section 1.7 - Rating plate.
5.1 Hako system maintenance
The Hako system maintenance:
• ensures that the Ha ko machine i s always ready for operation (preventive
ma
intena
nce),
• minimizes operating costs, maintenance and repair costs,
• ensures the machine has a long
service life.
Hako syste
m maintenance is arranged
into indi
vidual modules explaining the
special technical work to be carried out
and prescribes the intervals at which
the work should be performed. Parts to
be replaced for the individual maintenance tasks are defined and provided in
spare parts kits.
Hako system maintenance, customer
Work to be carried out by the customer
a
ccordin
g to the service and maintenance instructions in the operating
manual (daily and weekly). The driver/
operator receives proper instruction
when the machine is delivered.
Hako one-off system maintenance
After the first four weeks or the first 20
operatin
g hours.
Hako system maintenance I
Six-monthly.
To
be completed by skilled personnel
from an authorized Hako service center
according to the machine-specific system maintenance with spare parts kit.
Hako system maintenance II
Annually.
To
be completed by skilled personnel
from an authorized Hako service center
according to the machine-specific system maintenance with spare parts kit including safety check.
34
Maintenance and Service
5.2 Maintenance report
Handover
Upgrading
Test drive
Handover to customer
Instruction
completed on:
at _________________ operating hours
Hako system maintenance
after 4 weeks
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance I
six-monthly
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance II/S
annually
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance I
six-monthly
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance II/S
annually
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance I
six-monthly
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance II/S
annually
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance I
six-monthly
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance II/S
annually
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance I
six-monthly
Workshop Stamp
completed on:
at _________________ operating hours
Hako system maintenance II/S
annually
Workshop Stamp
completed on:
at _________________ operating hours
35
Maintenance and Service
5.3 Maintenance Plan
Hako system maintenance,
customer
The following maintenance work must
be completed by the customer. The
maintenance intervals must be
observed.
Activity
In
terval
Daily Weekly
Check the battery charge, recharge if necessary (only Hako Hamster 800 E) oo
Check the engine oil level, refill engine oil if necessary
(only Hako Hamster 800 V)
oo
Empty the dirt hoppers oo
Clean the brush space oo
Clean the panel air filter in the dust vacuum using the shaking device, check it for
damage and replace if necessary
oo
Check the rotary brush and side brush; clean or replace as necessary oo
Check sealing strips (1 folding apron, 2 side aprons, 1 rear apron) for wear and
clearance, replace if necessary
o
Clean the air filter (only Hako Hamster 800 V) o
Check the function of the suction turbine o
Check the filter system (panel air filter) for leaks o
Check the seals on the dirt hoppers o
Check the dirt hopper lock o
Check the sweeping pattern; readjust, if necessary o
Test drive and function test o
36
Maintenance and Service
Hako one-off system maintenance
After the first four weeks or the first 20
op
erating hours the
Hako Hamster 800 V must be subject to
an
engine oil change at an
authorized Hako service center.
Hako system maintenance I
The following maintenance work must
be
completed by an authorized Hako
service center.
Activity
Once
after the first 4 weeks
or after 20 operating hours
Engine oil change (only Hako Hamster 800 V) o
Activity
Interval
Six-monthly
All the maintenance work in accordance with the weekly Hako system maintenance
customer
o
Check the drive belt for signs of wear and its tension,
replace or readjust as necessary
o
Engine oil change (only Hako Hamster 800 V) o
or every 100 operating hours
Change the air filter (only Hako Hamster 800 V) o
Check the condition of the tires o
Test drive and function test o
37
Maintenance and Service
Hako system maintenance II
The following maintenance work
must
be completed annually at an
authorized Hako service center.
Activity
Interval
Annually
All maintenance work in accordance with Hako system maintenance I o
Check the function of the operating panel o
Check thew function of the on-board charger (only Hako Hamster 800 E) o
Check the Bowden cables for signs of wear; change, if necessary o
Check the suction turbine for signs of wear; change, if necessary o
Check the rotary brush bearing in terms of play and for signs of wear; change, if
necessary
o
Check the steering castor in respect of its running surface and bearing play; change,
if necessary
o
Check the rear wheels for bearing clearance and signs of wear of the running
surface; replace the wheel bearings and rear wheels, if necessary
o
Change the spark plug o
Clean the drive motor from carbon dust, check the carbon brushes run smoothly and
for signs of wear; change the carbon brushes, if necessary
o
Test drive and function test o
38
Maintenance and Service
5.4 Engine
Before starting any
maintenance and repair work,
set the key switch to
Position 0
to prevent starting the machine
inadvertently! Remove the
ignition key.
1 Spark plug cable
2 S
crew plug with dipstick and oil fill-
ing neck
3 Oil drain bolt
4 Vessel for engine oil change
(not part of scope of delivery)
5 Fastening nut
for air filter cover
6 Air filter cover
7 Air filter
8 Fastening nut for air filter
9 Threaded pin
Fig. 14
2
4
6
7
8
9
5
3
1
5
6
39
Maintenance and Service
5.4.1 Checking the engine oil level
1. Park the machine on a level piece of
ground.
2.
Leave it to stand still for a time.
Do not check the engine oil
level directly after the machine
has been in op
eration.
3. Open the hood.
4. Clean the area around the oil filling
neck (Fig. 14/2).
5. Unscrew the screw plug with dipstick
(Fig. 14/2) counterclockwise and
check the oil
level. The oil level must
be in the range between FULL and
ADD.
6. If the oil level is near the ADD mark
or below,
refill engine oil, refer to
paragraph 5.4.2.
7. If the oil level is considerably above
the FULL
mark, drain off some
engine oil, refer to paragraph 5.4.3.
8. Screw the screw plug with dipstick
(Fig.
14/2) back in, clockwise.
9. Close the hood.
5.4.2 Refilling engine oil
Only use SAE 15 W 40 engine
oil. The engine has a max.
volume of 0.6 l engine oil.
1. Park the machine on a level piece of
ground.
2. Leave it to stand still for a time.
3. Open th e hood.
4. Clean the ar ea around the oil filling
neck (Fig.
14/2).
5. Turn the screw plug with dipstick
(Fig.
14/2) counterclockwise to
remove it.
6. Pour the oil (SAE 15 W 40) slowly in
th
e oil filli
ng neck.
7. Check the new engine oil level, refer
to p
aragraph 5.4.1.
8. Top up with more engine oil, if
necessa
ry, a
nd check the engine oil
level again.
9. Screw the screw plug with dipstick
(Fig. 14/2) back in, clockwise.
10.Close the hood.
5.4.3 Changing/Draining the engine
oil change
Change the oil when the
engine is warm but switched
off.
1. Open the hood.
2. Position an appropriate collecting
vessel (Fig.
1
4/4) under the oil drain
bo
lt (Fig. 14/3).
3. Unscrew the oil drain bolt
(Fig. 14/3) and collect the escaping
oil in the vessel (Fi
g. 14/4).
4. Clean the oil drain bolt (Fig. 14/3)
with a clean cloth.
5. Remove the collecting vessel
(Fig. 14/4) and dispose of the waste
oil.
Observe the applicable laws
and local regulations when
disposi
ng of waste oil and oily
cloths.
6. Screw the oil drain bolt (Fig. 14/3)
back in.
7. Fill up with engine oil SAE 15 W 40,
refer to paragraph 5.4.2.
40
Maintenance and Service
5.4.4 Disassembling the air filter
1. Open the hood.
2. Unscrew the fastening nut
(Fig. 14/5) securing the air filter
cover (Fig.
14
/6).
3. Remove the air filter
cover
(Fig. 14/6).
4. Unscrew the fastening nut
(Fig. 14/8) securing the air filter.
5. Pull the air filter (Fig. 14/7) from the
threaded pi
n (Fig. 14/9).
5.4.5 Cleaning the air filter
1. Disassemble the air filter,
refer to paragraph 5.4.4.
2. Beat the air filter lightly on a level,
soli
d surface.
3. If necessary, vacuum the air filter
careful
ly using a vacuum cleaner.
Do not damage the filter ribs!
4. If the air filter canno t be cleaned
sufficiently, replace the old air filter
with a new one.
5.4.6 Installing the air filter
1. Install the clean ed or new air filter
(Fig.
14/7) on the threaded pin
(Fig. 14/9).
2. Fix the air filter (Fig. 14/7) by
screwin
g the
fastening nut
(Fig. 14/8) for the air filter on the
threaded pin
(Fig. 14/9).
3. Replace the air filter cover
(Fig. 14/6).
4. Screw the fastening nut (Fig. 14/5)
for the air filter
cover
(Fig. 14/6) on
the threade
d pin (Fig. 14/9).
5. Close the hood.
41
Maintenance and Service
5.5 Battery system
Only Hako Hamster 800 E.
Before starting any
maintenance and repair work,
set the
k
ey switch to Position 0
to prevent starting the machine
inadvertently!
Only batteries approved by
Hako may be used.
Batteries may only be handled
and changed by properly
skilled ma
intenance
personnel.
Only maintenance-free
batteries may be used.
1 Charger cable
2 O
n-board charger
(housing disassembled)
3 Operating panel
4 Connection diagram
5Hood
6 Block battery
7 Handle
Fig. 15
1
3
2
54
6
6
7
42
Maintenance and Service
5.5.1 Charging batteries
Before starting the machine up
for the first time, the batteries
to be used
must be fully
charged, properly, by
implementing the initial battery
charge routine. Hako assumes
no liability for damage to the
battery caused by a fault when
the battery is charged for the
first time.
During operation, the battery discharge
in
dicator in the op
erating panel
(Fig. 15/3) indicates the discharge
status of the batteries, refer to
paragraph 3.2.2, Section ”Battery
discharge status (Fig. 10/3)”. The
batteries must be charged immediately
the red LED lights up. The batteries
(Fig. 15/6) are recharged using the
integrated on-board charger (Fig. 15/2):
1. Set the key switch to Position 0.
The batteries cannot be
charged in Position 1.
2. Remove the charger cable
(Fig. 15/1) from the recess on the
right-ha
nd side of the machine.
3. Plug the charger cable
(Fig. 15/1) in a 230 V power outlet.
While the battery is charging, the
charge control indicator lights up in the
operating panel (Fig. 15/3), refer to
paragraph 3.2.2, Section "Charge
control indicator (Fig. 10/2)".
When the charging process
has been completed,
disconnect
the plug from the
power outlet and return safely
to the recess.
5.5.2 Total discharge signal
trans
ducer (TSG)
The machine is equipped with a total
discharge signal transducer to protect
the batteries against total discharge.
The total discharge signal transducer is
integrated in the electronics.
5.5.3 Servicing the drive batteries
Never leave discharged batteries lying
around; recharge them immediately!
Notes on servicing drive
batteries is also provided in
supplementary sheet
88-60-2556 "Information on
Drive Batter
ies“.
5.5.4 Removing batteries
Before the Hako
Hamster 800 E is tipped for
any reason, the batteries must
be removed!
43
Maintenance and Service
1. Unlock the hood (Fig. 15/5) using a
square wrench and open the hood
(Fig. 15/5).
Ensure the engine has
stopped before opening the
hood. Ri
sk of injury through
belt drive and rotating fan!
2. Disconnect the negative cable from
the batteries (Fig. 15/6).
3. Disconnect the positive cable from
the batteries (Fig
. 15/6).
4. Remove the connection cable from
betwe
en th
e two batteries
(Fig. 15/6).
5. Release the retaining strap.
6. Take hold of the batteries (Fig. 15/6)
by their han
dles (Fig. 15/7) and lift
them out.
5.5.5 Inserting batteries
Only the special, maintenancefree batteries approved by
Hako may be instal
led at the
prescribed position.
1. Unlock the hood (Fig. 15/5) using a
square wrench and open the hood
(Fig. 15/5).
Ensure the engine has
stopped before opening the
hood. Risk of
injury through
belt drive and rotating fan!
2. Take hold of the batteries (Fig. 15/6)
by their handles (Fig. 15/7) and
install them
at their prescribed
positions in the machine, refer to
Figure 15.
3. Secure the batteries using the
retaining straps.
4. Connect the two batteries (Fig. 15/6)
using
the
connection cable in
accordance with the connection
diagram (Fig. 15/4).
5. Connect the negative cable of the
machine to the batteries (Fig. 15/6)
installed in the machin
e.
6. Connect the positive cable of the
machine to the batteries (Fig. 15/6)
installed in the machin
e, refer to
paragraph 2.1.4.
Sparks could be produced
when connecting the batteries!
7. Close the hoo d (Fig. 15/5) so that it
audibly locks.
5.5.6 Disposing of batteries
Used batteries with the recycling
symbol co
ntain reusable commodities.
However, the heavy metals contained
also represent a major risk to human
health and to the environment. Never
open or damage batteries. Never touch,
inhale or swallow the content matter of
batteries. Health hazard! Do not allow
batteries to pollute the environment.
There is a risk of contaminating the
ground and water! In accordance with
the symbol with the crossed out bin,
these batteries must not be disposed of
in domestic waste. The return and
recycling of old batteries must be
agreed on with the authorized Hako
dealer in accordance with the Battery
Act § 6 and § 8.
44
Maintenance and Service
5.6 Drives
1 Suction turbine fan
2 Belt drive for rotary brush
and machine drive
3 Drive shaft (for rotary brush, side
brush and machine drive)
4 Belt drive for side brush
and rotary brush
5 Tension pulley for rotary brush drive
6 Friction wheel crank
7 Screw connection,
friction wheel bearing
8 Belt drive for machine drive
9 Friction wheel
Before starting any
maintenance and repair work,
set the key switch
to
Position 0
to prevent starting the machine
inadvertently!
Ensure the engine has
stopped before opening the
hood. Risk
of injury through
running belt drives
(Fig. 16/2+4+8) and rotating
fan (Fig. 16/1)!

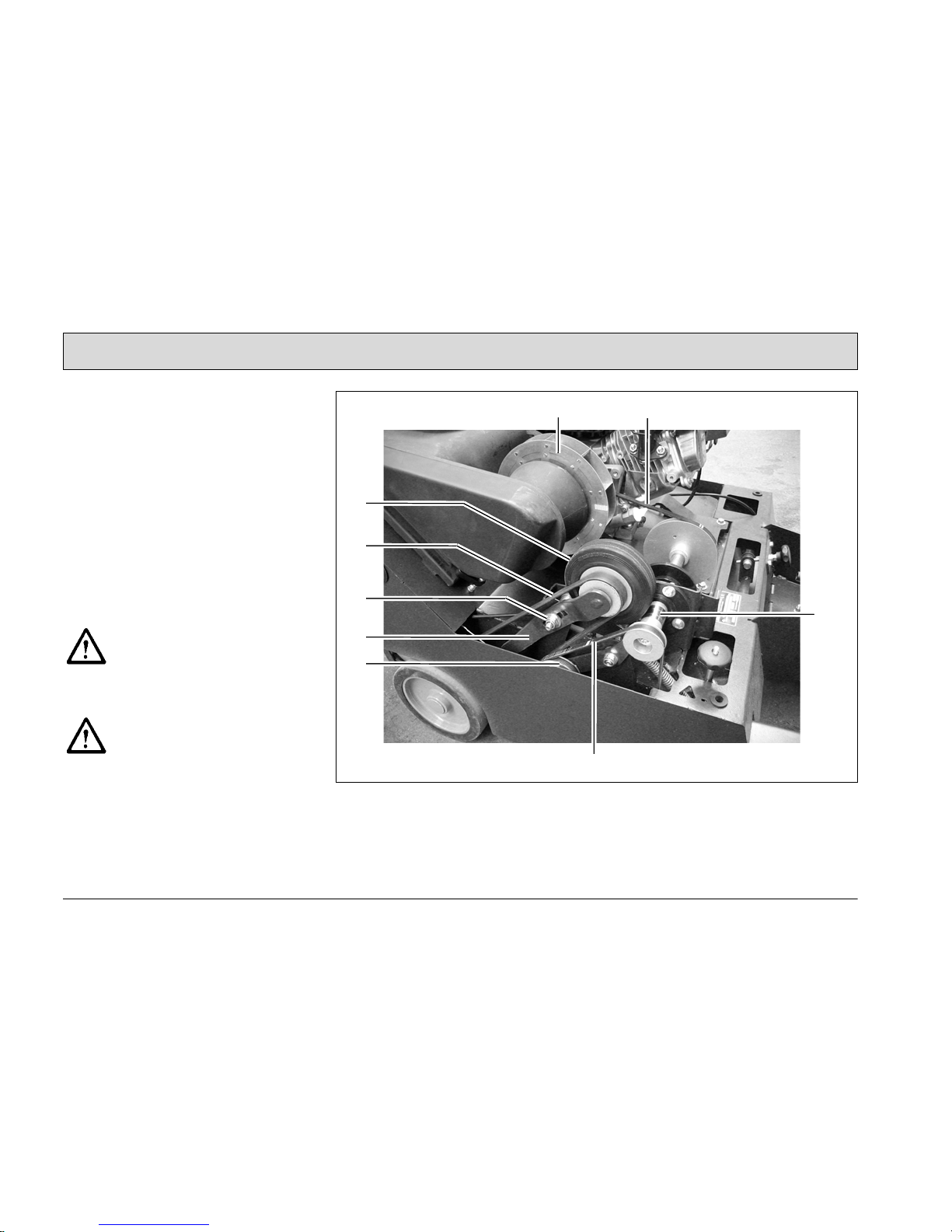

Fig. 16
1
2
9
8
5
4
3
6
7
45
Maintenance and Service
5.6.1 Adjusting the drive belt
If you notice that the rear wheel shaft is
no longe
r driven properly, it is possible
that the tension of the drive belts
(Fig. 16/2+8) is no longer sufficient or
the running surface of the friction wheel
(Fig. 16/9) is worn (distance between
wheel and running surface > 1mm ) .
1. Loosen the screw connection
(Fig. 16/7) in the friction wheel crank
(Fig. 16/6).
2. Tension the belt (Fig. 16/8) which
leads to the rear wheel shaft by
moving
the
friction wheel crank
(Fig. 16/6) in the slot using an
appropriate tool.
The friction wheel (Fig. 16/9)
thereby lies against the drive
shaft (Fig. 16/3).
3.
Tighten the screw connection
(Fig. 16/7) in the friction wheel crank
(Fig. 16/6).
4. Check the be lt tension with an
appropriate measuring instrument
(belt tension 95±5 Hz).
Fig. 17
1 Bowden cable
2 T
ension spring
3 Adjusting nuts for Bowden cable
4 Hexagon nut
5Eye bolt
1
2
3
451
2
46
Maintenance and Service
5. Turn the hexagon nut (Fig. 17/4) so
far on the eye bolt (Fig. 17/5) until
the tension spring (Fig. 17/2)
tensions and the friction wheel
retracts 1-2
mm from the drive shaft
(Fig. 16/3).
6. Turn the hexagon nuts (Fig. 17/4)
one revolution further.
7. Complete any fine adjustment using
the Bowd
en cable adjusting nuts
(Fig. 17/3) on the handlebar: turn the
adjusting nuts (Fig. 17/3) so that the
distance between friction wheel and
dri
ve shaft is between 0.4 and 1 mm.
47
Maintenance and Service
5.7 Side brush
1 Side brush control knob
(underneath the hood)
2Hood
3 Screws, plastic housing
4 Plastic housing
5 Side brush
6 Hexagon head bolt
7 Washer
8 Side brush holder
9 Hexagon nut
Before starting any
maintenance and repair work,
set the
k
ey switch to Position 0
to prevent starting the machine
inadvertently!
Fig. 18
4
3
5
6
7
8
9
1
2
48
Maintenance and Service
5.7.1 Side brush wear,
readjustment
1. Unlock the hood (Fig. 18/2) using a
squ
a
re wrench and open the hood
(Fig.
18/2).
Ensure the engine has
stopped before opening the
hood (F
ig. 18/2). Risk of injury
through bel
t drive and rotating
fan!
2. Turn the side brush control knob
(Fig. 18/1) to adjust the height of th e
side
brush.
3. Close th e hood (Fig. 18/2) so that it
audibly locks.
5.7.2 Changing the side brush
Check the side brush (Fig. 18/5) weekly
and chang
e in the case of wear.
1. Switch the machine off and tip it
ba
ck, re
fer to Figure 19.
Before tipping the Hako
Hamster 800 E, the batteries
must be remo
ved, refer to
Section 5.5.4!
Before the Hako
Hamster 800 V/E can be
tipped back,
the handlebar
must be adjusted to a vertical
position.
Fig. 19
2. Remove the screws
(Fig. 18/3) from the plastic housing
(Fig. 18/4) and remove the plastic
housi
ng (Fig. 18/4).
3. Remove the hexagon head bolts
(Fig. 18/6), the washers (Fig. 18/7)
and
he
xagon nuts (Fig. 18/9).
4. Pull the old side brush (Fig. 18/5)
from
the side brush holder (Fig. 18/
8).
5. Install the new side brush (Fig. 18/5)
on the
side brush holder (Fig. 18/8).
6. Fix the side brush (Fig. 18/5) with the
hexagon he
ad bolts (Fig. 18/6),
washers (Fig.
1
8/7) and hexagon
nuts (Fig. 18/9)
to the side brush
holder (Fig
. 18/8).
7. Assemble the plastic housing
(Fig. 18/4) and fix it in place with the
screws (Fig.
18/3).
49
Maintenance and Service
5.8 Rotary brush
Before starting any
maintenance and repair work,
set the k
ey switch to Position 0
to prevent starting the machine
inadvertently! Remove the
ignition key.
1 Rotary brush
2 R
otary brush segment
(total of 4 pieces)
3 Bore holes
4Screw
5 Rotary brush shaft
6 Guide pin
7 Seal, dirt hoppers
Fig. 20
1
2
2
3333
333
4
5
1
3
7
6
50
Maintenance and Service
5.8.1 Cleaning the brush space
The brush space with the rotary brush
(Fig. 20/1) and seals for the dirt
hoppers (Fig. 20/7) must be checked
daily for signs of dirt and cleaned as
necessary.
Only Hako Hamster 800 E:
Tapes winding around the
rotary brush lea
d
s shutdown
due to overloading!
1. Remove the dirt hoppers, refer to
Secti
on 5.9.1.
2. Check the brush space - the area
betw
een the rotary brush, panel air
filter and dirt hoppers - for residual
waste and damage.
3. Remo ve any foreign bodies.
4. Clean the brush space, firstly with a
ha
nd
brush and then with water. Dry
the brush space.
5. Change defective dirt hopper seals,
refer to
Section 5.9.4.
5.8.2 Changing the rotary brush
The rotary brush (Fig. 20/1) must be
checked
weekly and changed in the
case of wear. A new rotary brush has a
diameter of 25 cm. When a rotary brush
has a diameter of only 20 cm, it must be
replaced with a new one.
The rotary brush (Fig. 20/1) is
comprised of four individual rotary
brush segments (Fig. 20/2) which are
fixed to the rotary brush shaft
(Fig. 20/5) by the screws (Fig. 20/4).
Pay attention that the bristle p attern on
the rotary brush (Fig. 20/1) is always
arranged in a V-shape in the direction of
driving so that the dirt is guided to the
center of the rotary brush.
1. Tip the machine to the rear.
Before tipping the Hako
Hamster 800 E, the batteries
must be remo
ved, refer to
Section 5.5.4!
Before the Hako
Hamster 800 V/E can be
tipped
back, the handlebar
must be adjusted to a vertical
position.
2. First of all, disassemble the two
adjacent ro
tary brush segments
(Fig. 20/2): Loosen the screws
(Fig. 20/4) and remove the rotary
brush segmen
ts (Fig. 20/2).
3. Then turn the rotary brush shaft
(Fig. 20/5) 180º by hand and
disassemb
le the two remaining
rotary brush segments (Fig. 20/2).
4. Assemble four new rotary brush
segments (Fig
. 20/2) in the reverse
sequence.
When doing so, pay
attention that the rotary brush
segments (Fig. 20/2) are installed on
the guid
e pins (Fig. 20/6) of the
rotary br
ush shaft (Fig. 20/5) and
screw to
facing rotary brush
segments
(Fig. 20/2) firmly to each other.
5. Tip the machine back up again.
51
Maintenance and Service
6. Install the batteries again in the Hako
Hamster 800 E, refer to Section
5.5.4.
7. After changing the rotary brush
(Fig.
20/1), readjust the sweeping
pattern as necessa
ry.
5.8.3
Setting the sweeping pattern
In the case of brush wear, and after
changin
g the rotary brush (Fig. 20/1),
the sweeping pattern must be
readjusted.
1. Push the machine onto a dusty
surface when
the engine is switched
off.
2. Switch the machine on, refer to
parag
raph 3.3.1, and allow the rotary
brush to rotate for a short time while
at a standstill.
3. Switch the machine off,
refer to paragraph 3.3.5.
4. Tip the machine up at the front a little
and
pull the machine back a short
way.
5. Examine the sweeping pattern
(brush stroke)
produced on the dusty
ground: The width of the sweeping
pattern must be approx. 5 cm. The
borders of the sweeping pattern
must be parallel.
Fig. 21
1 Rotary brush height control knob
6. Open the hood.
7. Adjust the height of the rotary brush
by
me
ans of the control knob
(Fig. 21/1).
8. Close the hood.
9. Repea t steps 1 to 8 until the
a
d
justment is correct.
5.8.4 Changing the sealing strips
The rotary brush is surrounded by four
sealin
g strips: a front apron, two rear
aprons (front and rear) and two side
aprons. The four sealing strips must be
checked weekly and changed in the
case of wear.
1. Tip the machine to the rear.
Before tipping the Hako
Hamster 800 E, the batteries
must be removed, refer to
Se
ction 5.5.4!
Before the Hako
Hamster 800 V/E can be
tipped ba
ck, the handlebar
must be adjusted to a vertical
position.
1
52
Maintenance and Service
1 Folding apron (front)
2 Screw connection,
folding apron holder
3 Bowden cable
folding apron holding attachment
4 Side apron, left
5 Screw connection
side aprons
6 Rear apron
(back rear apron)
7 Screw connection
rear apron
8 Side apron, right
Fig. 22
1
8
4
2
3
5
5
6
7
A
53
Maintenance and Service
Changing the folding apron
2. Unhook the Bowden cable which
raises
the folding apron (Fig. 22/3).
3. Disassemble the folding apron
(Fig.
22/1) together with its holder:
Unscrew the screw connecti
ons
(Fig.
22/2).
4. Unscrew the screw connections
(Fig. 22/2) in the clamping rail and
remove the clampi
ng rail.
5.
Change the sealing strip.
6. Assemble the clamping rail.
7. Assemble the folding apron
(Fig. 22/1) together with its holder
and
adjust the folding apron
(Fig. 22/1) so that it lies lightly on the
ground.
8. Hook in the Bowden cable which
raises
the folding apron (Fig. 22/3).
When closed, the folding apron
must not be drawn in by the
rotary brush!
Changing the side aprons
9. Unscrew the screw connections
(Fig. 22/5) in the side aprons
(Fig.
22/4+8).
10.Change the sealing strips and adjust
the
side aprons (Fig. 22/4+8): There
must be ap
prox. 2 mm clearance to
the flo
or.
11.Screw the screw connections
(Fig. 22/5) back in the side aprons
(Fig.
22/4+8). Also screw the ground
of
the wi
ng nut at Position A
(Fig. 22/A).
Changing the rear aprons
12.Remove the dirt hoppers, refer to
Sectio
n 5.9.1.
13.Unscrew the screw connections
(Fig.
22/7) in the rear aprons
(Fig.
23/1+2).
14.Change the sealing strip and adjust
th
e re
ar apron (Fig. 22/6): The
clearan
ce of the rear apron
(Fig. 23/2) from the ground must be
2 mm.
15.Screw the screw connections
(Fig. 22/7) back in the rear aprons
(Fig. 23/1+2).
Fig. 23
1 Front rear apron
2 B
ack rear apron
1
2
54
Maintenance and Service
5.9 Dirt hoppers
1 Seal for dirt hopper
2 Handle for dirt hopper
3 Dirt hopper
4 Handlebar
5 Locking lever for dirt hopper
Before starting any
maintenance and repair work,
set the key switch to
Position 0
to prevent starting the machine
inadvertently!
Fig. 24
3
2
3
5
1
4
55
Maintenance and Service
5.9.1 Removing a dirt hopper
1. Switch the machine off and move the
lever (Fig. 24
/5) for locking the dirt
hoppers to the right (looking in drive
directio
n) and, at the same time,
pivot the handlebar
(Fig. 24/4)
forwards. The frame (Fig. 25/2) of
the dirt hopper is lowered.
The engine must be at a
standstill before one or both
dirt hoppers
(Fig. 24/3) are
removed
. Risk of injury through
swirling waste and
dust!
2. Hold the dirt hopper (Fig. 24/3) by
the handle (Fig. 24/2) and pull it to
the rear and out of the machine
Fig. 25
5.9.2 Emptying the dirt hopper
Check the fill level of the dirt hoppers
(Fig. 24/3) regularly and empty it
regularly and as necessary.
Observe the applicable
national laws and local
regul
ations whe
n disposing of
waste.
5.9.3 Inserting the dirt hoppers
1. Insert the dirt hoppers (Fig. 24/3)
back in the machine from the rear
un
til they perceptibly engage in the
frame
(Fig. 25/2).
2. Pivo t the handlebar (Fig. 24/4)
towards the rear until the lever
(Fig. 24/5) for locking the dirt
hoppers audibly engages.
5.9.4 Changing the seals
Check the dirt hopper seals (Fig. 24/1)
(F
ig. 25/1) fo
r wear on a weekly basis
and change the seals as necessary.
1. Remove the dirt hoppe rs,
refer to paragraph 5.9.1.
2. Pull the seals (Fig. 25/1) from the
edges.
3. Press new seals (Fig. 25/1) on the
edges.
4. Insert the dirt hoppers,
refer to paragraph 5.9.3.
2
11
56
Maintenance and Service
5.10 Dust vacuum
1 Knurled screws
2 Sealing strip
3Fan
4 Threaded pin
(for top filter cover lock)
5 Panel air filter
6 Bottom filter cover lock
7Hood
8 Filter cover
9 Shaking device lever
Before starting any
maintenance and repair work,
set the key switch
to
Position 0
to prevent starting the machine
inadvertently!
Fig. 26
12
4
5
4
6
6
8
9
7
3
3
57
Maintenance and Service
5.10.1 Clearing dust deposits from
panel air filter during
operation
Clean the panel air filter (Fig. 26/5) in
the dust vacuum re
gularly and as
necessary using the shaking device:
1. When the engine is switched off,
pul
l/push the leve
r (Fig. 26/9) of the
shaking device quickly, several
times.
5.10.2 Removing the panel air filter
1. Unlock the hood (Fig. 26/7) using a
square wrench and open the hood
(Fig. 26/7).
Ensure the engine has
stopped before opening the
hood (Fig. 26
/7). Risk of injury
through belt drive and rotating
fan(Fig. 26/3)!
2. Release the top filter cover locks:
Unscrew the knurled scre
ws
(Fig. 26/1) from the threaded pins
(Fig. 26/4).
3. Release the bottom filter cover locks:
Pivot the hinged locks (Fig. 26/6)
outwards.
4. Remove the filter cover (Fig. 26/8).
5. Remove the panel air filter
(Fig. 26/5).
5.10.3 Cleaning the panel air filter
tho
r
oughly
Do not inhale the dust. Health
hazard! Wear an appropriate
dust mask.
1. Drop the panel air filter (Fig. 26/5) a
few times from a small height onto a
level, solid surface.
Be careful not to
damage the filter ribs!
The ground must not have any
surface irregularities. Do not
drop the panel air filter
(Fig. 26/5) onto the ground at a
slant.
Never install panel air filters
(Fig. 26/5) which have
damaged filter ribs!
5.10.4 Replacing the sealing strips
If the panel air filter (Fig. 26/5) is
remo
ved, check the self-adhesive
sealing strips (Fig. 26/2) for signs of
damage. Damaged sealing strips
(Fig. 26/2) must be replaced:
1. Pull off the damaged sealing strips
(Fig. 26/2).
2. Clean any residual adhesive from
the
surfaces on which the sealing
strips (Fig. 26/2) must be adhered.
3. Adhere the new sealing strips
(Fig. 26/2).
58
Maintenance and Service
5.10.5 Inserting panel air filters
1. Insert the thoroughly cleaned or new
panel
air filter (Fig. 26/5) from the
correct side in the filter support
frame.
Pay attention to the labeling on
the side of the panel air filter
(Fig. 26/5)!
2. Replace the filter cover (Fig. 26/8).
3. Close the bottom filter cover locks:
Pivot th
e hinged locks (Fig. 26/6)
over the edge of the filter cover
(Fig. 26/8).
4. Close the top filter cover locks:
Screw the
knurle
d screws (Fig. 26/1)
on the threaded pins (Fig. 26/4).
5. Close th e hood (Fig. 26/7) so that it
audibly locks.
5.10.6 Checking the suction turbine
1. Switch the machine on,
refer to paragraph 3.3.1.
2. Clean a dusty surface for test
purposes,
re
fer to paragraph 3.3.4.
3. Switch the machine off, refer to
paragraph 3.3.5.
4. Remove the dirt hoppers, refer to
Section 5.9.1.
5.
Check whether dust has
accumul
a
ted on the inner side of the
panel air filter (Fig. 26/5).
6. If you have the impre ssion that the
suction tu
rbine does not work or dust
escapes from the machine, contact a
Hako service center.
Do not open the hood
(Fig. 26/7) when the engine is
running. Risk of injury through
belt drive and rotating
fan(Fig. 26/3)!
5.10.7 Checking the filter system for
leaks
Do not open the hood
(Fig. 26/7) when the engine is
running. Risk of injury through
belt drive and rotating fan
(Fig. 26/3)!
1. When the engine is switched off,
hood (Fig. 26/7) is open
and filter
cover (Fig. 26/8) removed, check
whether dust escapes at the edges
of the pa
nel air filter (Fig. 26/5).
2. If this is the case, check the sealing
strips
(Fig. 26/2), refer to paragraph
5.10.4 and replace, if necessary.
3. Check the panel air filter (Fig. 26/5)
and replace, if necessary. The frame
of th
e p
anel air filter (Fig. 26/5) must
not be twisted nor show signs of
damag
e.
Ensure that the panel air
filter (Fig. 26/5) has been inserted
true to side, refer to paragraph
5.10.5.
4. Repeat this test a certain time after
cleaning
. If dust continues to escape
at the edges of the panel air filter
(Fig. 26/5), contact a Hako service
center.
59
Maintenance and Service
5.11 Special equipment
Name Description Order no.
Carpet kit
(onl
y Hako Hamster 800 E)
For cleaning carpets 6460
60
Notes
61
Hako GmbH
Hamburger Straße 209-239
D-23843 Bad Oldesloe
bears sole responsibility for declaring
that the
products
Hako Hamster 800 V
Type: 6404.10
Hako Hamster 800 E
Type: 6404.20
to
which this declaration relates,
conform to the relevant provisions of
the safety and health requirements
stipulated in the EC Directive
2006/42/EC and is in accordance with
2004/108/EC.
Reference was made to the following
standards and/or norms and/or
technical specifications to ensure
proper implementation of the safety and
health requirements in the EC
Directives:
EN 60335-2-72
EN 55012
EN 61000-6-2
Bad Oldesloe, 27.08.2010
Dr. Rainer Bavendiek
Director R&D
Name of the authorized person who
compiles technical documents for
Hako:
Ludger Lüttel
EC Declaration of Conformity (in accordance with EC Directive 2006/42/EC)
Spitzentechnik für eine
saubere und schönere Umwelt
Advanced Technology for a Cleaner, Better Environment
Hako GmbH ·
Hamburger Str. 209-239
· D-23843 Bad Oldesloe · +49 4531 806-0 · Fax +49 4531 806-338
88-10-2925
Loading...
