Hairmax Advanced 7 User Manual

Please Note:

•

The total time required for treatment with the HairMax
LaserComb Advanced 7 is 15 minutes.

It is important to move the LaserComb very slowly. Remember

•
you are bathing the scalp with laser light. If you move it too fast,
the treatment will not achieve the optimal results to promote
hair growth.

While there are no negative effects from overuse, it is

•
recommended that you use the LaserComb according to
directions.

The LaserComb has advanced electronics to make sure that the

•
device is working properly. If for some reason you are experiencing
difficulties with your device, before sending it back to us for repair,
please refer to the Troubleshooting section of your User Manual.
For further assistance please call [phone].

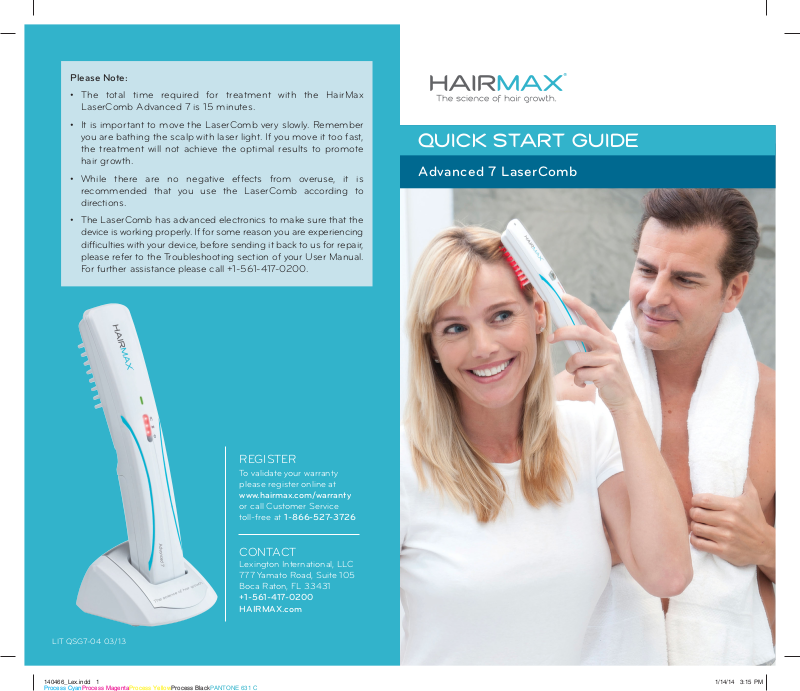

QUICK START GUIDE

Advanced 7 LaserComb

LIT QSG7-04 03/13

REGISTER

To validate your warranty
please register online at

www.hairmax.com/warranty

or call Customer Service
toll-free at 1-866-527-3726

CONTACT

Lexington International, LLC
777 Yamato Road, Suite 105
Boca Raton, FL 33431

[phone]
HAIRMAX.com

+

-

+

-

+

-

REMOVABLE CARDBOARD STRIP

The HairMax LaserComb® is a very effective device when used

Advan

Advanc

correctly. It is manufactured using precision components and should
last 10-15 years under normal usage. Please take time to read the

entire User Manual before operating the HairMax LaserComb.

Advanced 7 LaserComb

Use the LaserComb for 15 minutes, 3 times a
week. The treatments should be spaced every
other day, for example Monday, Wednesday,
Friday. Move the LaserComb slowly 1/2 inch
every 4 seconds.

It is recommended but not essential that the LaserComb be used
on a clean scalp after washing. Your hair can be wet, towel dried or dry.
The LaserComb should be used prior to applying any topical treatments,
gels, spray or concealing products.

A

Your Advanced 7 LaserComb comes
with four AA batteries already

installed. Prior to use, remove the
cardboard strip located in the battery
compartment (Figure A). For more
detailed instructions on how to
remove the cardboard strip and to
replace the batteries please refer to
your User Manual.

B

The LaserComb can also be powered

directly by the optional power cord
(not included). Plug the power cord
into the end of the LaserComb. Plug
the other end into an electrical wall
outlet (Figure B).

D

Before beginning treatment, be sure

to test the LaserComb for sensitivity
(see page 5 of your User Manual).
To start your treatment place the
LaserComb flat on your scalp so
that both rows of teeth are touching
the scalp (Figure D).

Start at your hairline. Move the

E

LaserComb from front to back of scalp
in a slow combing motion, stopping
every ½ inch (1cm) and pausing for 4
seconds (Figure E). Do not lift the
LaserComb off your scalp while
combing from front to back.

Next, lift the LaserComb off your scalp

F

and start at a new position at the hair
line. Continue in this manner from front
to back and then side to side (Figure F)
until you cover your entire scalp with
multiple passes. When the LaserComb
is on it will vibrate every four (4) seconds.
This means that it is time to move the
LaserComb to the next area of the
scalp. Repeat these passes within the
required treatment of 15 minutes.

If you have long hair, use your fingers

G

to lift your hair out of the way while
using the LaserComb to be sure that
the laser energy reaches your scalp
(Figure G).

Laser Light - Avoid Direct Eye Exposure

C

To turn on the LaserComb slide the

power/laser button to the middle or
top position. Middle position activates
the laser and vibrate feature. Top
position is laser only (Figure C).

After treatment, turn off the

H

LaserComb by sliding the power/laser
button to the lowest position. If using
the optional power cord, remove the
power cord from the electrical wall
outlet (Figure H). Store the device in
the cradle/stand for future use.

The HairMax Advanced 7 is indicated to treat Androgenetic Alopecia, and promote hair growth in males
who have Norwood Hamilton Classifications of IIa to V and in females who have Ludwig (Savin) I-4, II-1,
II-2, or frontal patterns of hair loss and who both have Fitzpatrick Skin Types I to IV.
