3x1 HDMI Switcher
User Manual
SW31NN00R
Full 3D Pass-through
Support IR Control
INTRODUCTION
•1 x HDMI 3 by 1 Swithcer unit
•1 x Remote
•1 x 5V DC power supply
•1 x User Manual
•HDMI, HDCP 1.2 and DVI compliant
•Support full 3D pass-through
•Support full HD 1080P
•Super IR control system, IR transport channel can be forward or backward
per your installation
•Support CEC bypass
•External and internal EDID settings
FEATURES
PACKAGE CONTENTS
HDMI Switcher is designed to make your A/V equipment use more comfortable,
more productive and less expensive. This 3x1 HDMI Switcher allows your three
HDMI sources to share with one HDTV display. With Remote control for the
device, you can easily switch to each signal source. And if that weren’ t enough,
you can control your device via IR signals with an optional IR Blaster and
Receiver pigtail.
The 3x1 HDMI Switcher offers solutions for HDTV, STB, DVD, home theater,
projector manufacture plant environments testing, data center, information
distribution, conference room presentation, school and corporate training
environments and AV installation etc.

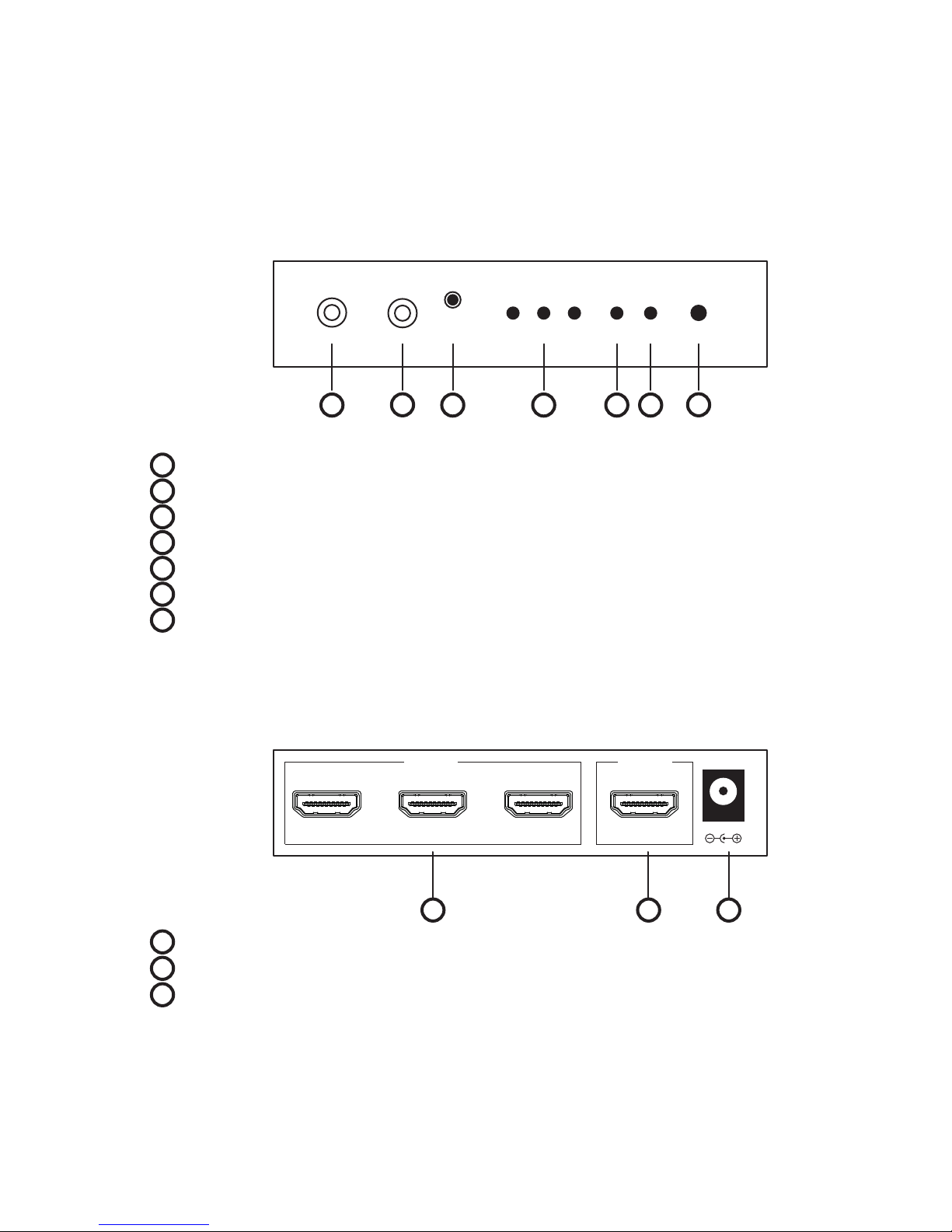

PANEL DESCRIPTION
Front Panel
Rear Panel
1 IR OUTPUT
2 IR EXTENDER OUTPUT
3 BUILT-IN IR
4 HDMI INPUT LED
5 HDMI OUTPUT LED
6 POWER LED
7 SOURCE SELECTION BUTTON
1 HDMI INPUT
2 HDMI OUTPUT
3 POWER SUPPLY INPUT
1
1
3
3
4 5 6
72
2
IR Ext
Input2
Input3
Source
Selection
Input1
Output
Power
IR Channel IR
DC 5V
HDMI Input
HDMI Input 1
HDMI Input 2 HDMI Input 3
HDMI Output
HDMI Out
INSTALLATION
CONNECTION DIAGRAM
•Connect HDMI input ports to the signal source equipments such as
DVD player, Blue-ray player, Set-top box etc.
•Connect HDMI output port to the HDMI display.
•Connect to IR output port with the IR blaster cable (not included in the
package）for IR signal transmission. Place the IR blaster in direct line-of-sight
of the equipment to be controlled.
•Connect to the IR receiver cable (not included in the package) for IR signal
reception. Make sure that the remote being used is in direct line-of-sight of
the IR receiver.
•You can control the device using a supplied Remote by pointing to the
built-in IR sensor.
•Connect to the IR extender iutput with the IR extender cable (optional)
if you need to extend the distance of using the remote.
•Plug the 5VDC power supply into the unit and connect the adaptor to
AC outlet.
DC 5V
08：08
PLAY
06：08
PLAY
IN
IR
OUT
IR
CEC
09：08
PLAY
DC 5V
HDMI Input
HDMI Input 1
HDMI Input 2 HDMI Input 3
HDMI Output
HDMI Out
IR Ext
Input2
Input3
Source
Selection
Input1
Output
Power
IR Channel IR
Input Port
Output Port
Bandwidth
Output Resolution
Operating Temperature
Deep Color
Chassis
Dimension
Weight
Power Supply
SPECIFICATION
3xHDMI(Female connector), 1xIR Channel
1xHDMI(Female connector), 1xIR Channel
10.2Gbps
480i~1080P@50/60,1080P@24/50/60,
VGA~UXGA
-15℃~55℃/5°F~131°F
36bit
Metal
112mm(L)x75mm(W)x24mm(H)
205g
DC 5V
Please read the following safety precautions carefully before you unpack
and install this equipment.
1.Do not expose the unit to rain, moisture or any other dripping liquids. And
keep it away from any wet locations such as fishing tanks, vases.
2.Do not install the unit close to fire or any other heat sources.
3.Keep the unit in dry and ventilated area. Do not install in bookcase,
cabinet or any other confined space.
4.Stop using the unit during thundering or lightening storms.
5.Avoid the power cable to be stepped on or pinched. Position the unit
carefully to avoid damage or accident.
6.Clean the unit only with dry cloth.
7.Only use accessories specified by the manufacturer.
8.Unplug the equipment when unused for a long period of time.
9.Do not try to open any non-serviceable parts. Contact your authorized
servicing center and personnel.
SAFETY PRECAUTIONS
Tel:+86 769 81877098
Fax:+86 769 81877138
Email:chinasales@hailink.cn
Http:www.hailink.cn
Danger Electric
Shock Risk
Keep Dry
Keep Away
from Heat
