Haier Information Technology Y11C User Manual
User Manual V1.0
Note
• This manual is mainly for Windows 10. There might be some slight differences if
you use other windows systems.
• This manual contains the common functions of most models. Maybe it does not
fit very well with your model for some functions, or maybe some of your model
functions are not contained in this manual.
• The illustrations in this manual may differ from the actual products. Please
prevail in kind.
■
Before using the computer, please read the safety precautions and important
tips carefully and patiently first!
1
Content
Chapter 1 Know your computer ........................................................................................ 3
Front View ............................................................................................................... 3
Left View .................................................................................................................. 7
Right View ............................................................................................................... 8
Bottom View .......................................................................................................... 10
Chapter 2 Operating Windows10 ..................................................................................... 11
Configuring the operating system in initial use. ..................................................... 11
Operating System Interface ................................................................................... 11
Keep the computer in sleep mode or shut down ................................................... 13
Connect to the wireless network ............................................................................ 15
Touch screen operation ......................................................................................... 16
Chapter 3 Troubleshooting .............................................................................................. 17
Common problems ................................................................................................ 17
2
Chapter 1 Know your computer
Front View
Attention：
• When you close the display, please be careful not to leave pens or any other objects in
between the display and the keyboard. Otherwise, the display may be damaged.
1. MIC
2. Built-in camera
3. Multi-touch display
4. Keyboard
5. Speaker
6. Touchpad
For Voice recording.
Use the camera for video communication or taking photos.
The LCD display with LED backlight provides brilliant visual output.
Multi-touch function is available on this display.
For input.
Output audio.
The touchpad functions as a conventional mouse. One piece multi-touch.
Click Pad: To move the pointer on the screen, slide your fingertip over the
pad in the direction in which you want the pointer to move.
Left-click area: Clicking in this area corresponds to the functions of clicking
the left button on a conventional mouse. Right-click area: Clicking in this
area corresponds to the functions of clicking the right button on a
conventional mouse.
3
Chapter 1 know your computer
■Using the keyboard
Keyboard function keys
Pressing certain function key to enter the corresponding system settings immediately.
Keyboard Function
F1
F3 Turn Up the volume
F5 Turn down the LCD brightness
Turn on or off the mute
F2 Turn down the volume
F4
F6
Enable or disable the wlan
Turn up the LCD brightness
F7 Enable or disable the touch pad F8 Toggles the display between the
computer and an external display device.
F11 Enable or disable the numeric
key pad
4
Chapter 1 know your computer
Positioning the display panel
The display panel can be opened to any angle up to 360 degrees
Notebook Mode
Suitable for tasks that require a keyboard and mouse (such as creating documents,
writing e-mails, and so on)
5

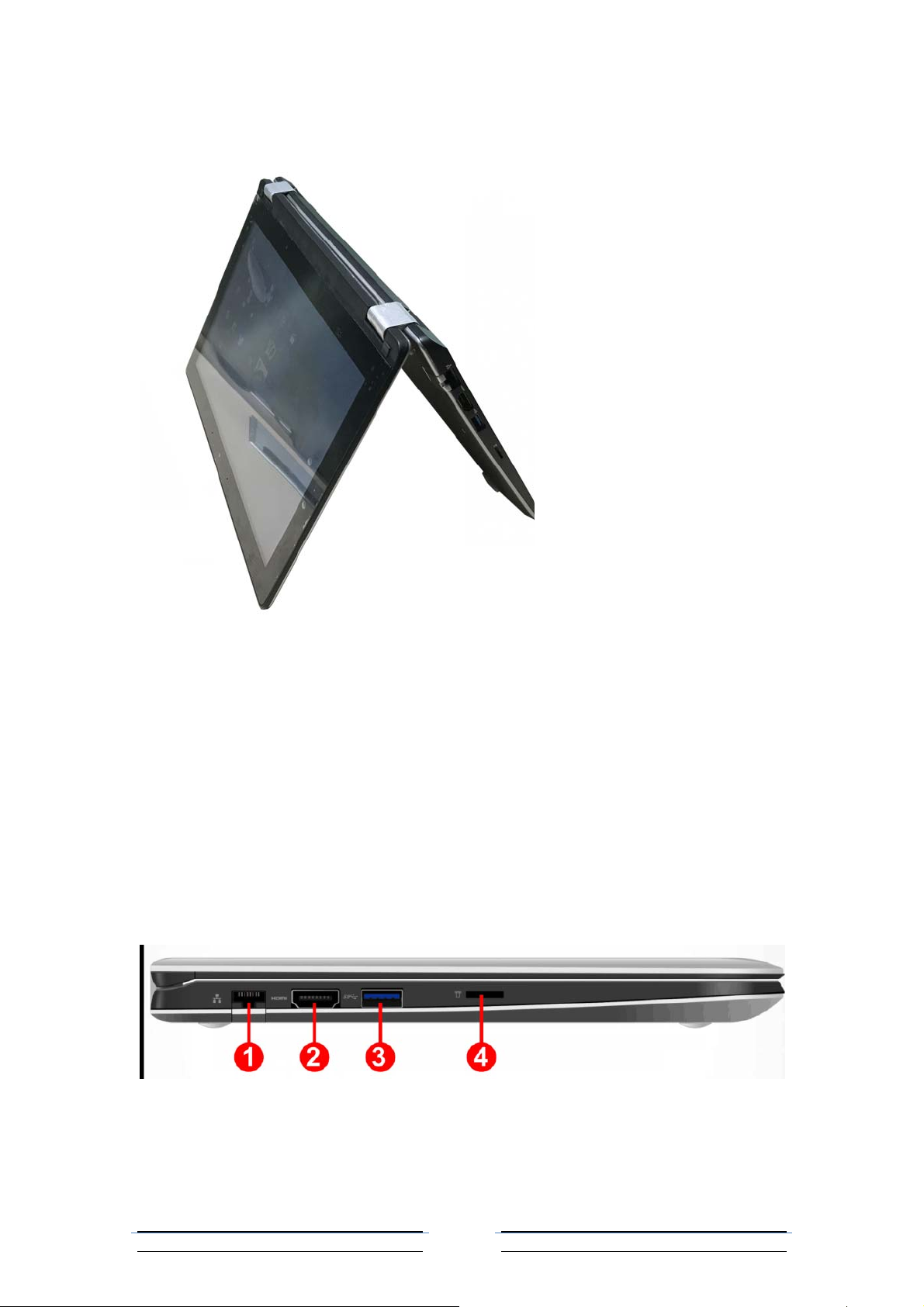

■Vertical (standing mode)
Chapter 1 know your computer
You can use this mode when you do not need too many operations, just view the picture
or play a video, etc.
■Tablet Mode
You can use in this mode when you frequently operate the touch screen, such as: the
Internet, play games, etc.
6
