XQG50-600TXB
XQG50-600SW
Automatic Drum Washing Machine
Operation Manual
Table of Contents
Before using
Names of Parts--------inside front cover
Matters Needing Attention------------1-3
Installation--------------------------------4-5
Control Panel-------------------------------6
Operational Functions----------------6-7
During using
0020502333
Program Selection------------------------8
Preparation---------------------------------9
Washing Methods--------------------10-11
Maintenance
Maintenance -----------------------------12
Trouble Shooting------------------------13
Technical Specification----------------14
Wiring Circuit-----------------------------15
Names of Parts
Detergent distributor
Door
Porthole
Power supply cable
Earth terminal
Back plate screw (3)
Drainage hose
To p
Operation button
Program knob
Temperature knob
Drainage hose clip
Packing bolt (3)
Back plate
Caution and Warning symbols
For your safety, any instructions in this manual with this “Warning” sign
shall be strictly followed.
For your safety and to prevent damages to the washing machine, any
instructions in this manual with this “Stop” sign shall be strictly followed.
This diagram may vary slightly with the layout of the washing machine you have just purchased due
to technical improvements.
Matters Needing Attention
===Safety
1. A separate earthed socket is required
for the power supply. After installation of
the washing machine,the power plug
should be accessible during the normal
wash.
2. Hold the plug and not the electric cable
when unplugging the washing machine.
3. Fuses in the power circuit should be rated
for 15A. Refer to a washing machine technician or a Haier designated service point for
power cable replacement.
5. Do not use flammable detergent or dry
cleaning agent; do not use flammable
spray in close vicinity to the washing
machine; do not remove or insert the plug
in the presence of flammable gas.
7. Do not allow children play with the packing materials after unpacking.
4. For your safety, dry hands before touching the washing machine and wear appropriate footwear .
6. The door of the washing machine will become hot during the water heating process.
Avoid contact with the door during the heating process. For safety, keep children away
from the washing machine.
1
Matters Needing Attention
Wiring Circuit
8. The washing machine must not be used in
the open or in area of high moisture as water
droplets may form on electrical components,
Air dry the appliance if the washing machine
components become wet.
10. Keep away from heat sources and direct
sunlight to prevent plastic and rubber components from aging.
===Use
1. Make sure that the washing machine is
securely connected to the water supply,
take the necessory precautions or contact
the local service center if the connection
is poor or there is a water leakage.
9. The washing machine should be place in
a well ventilated area maintaing a space
between walls or furniture.
11. During installation, ensure that the electric
cable is not trapped by the washing machine and
avoid damage to the electric cable.
Dear customer, For the machine and your own
security, DO NOT REPAIR IT BY YOURSELF!
DO NOT USE THE WASHING MACHINE
WHICH SOME PARTS ARE LOST!
2. After turning the power off, turn the program knob clockwise to set washing
program.

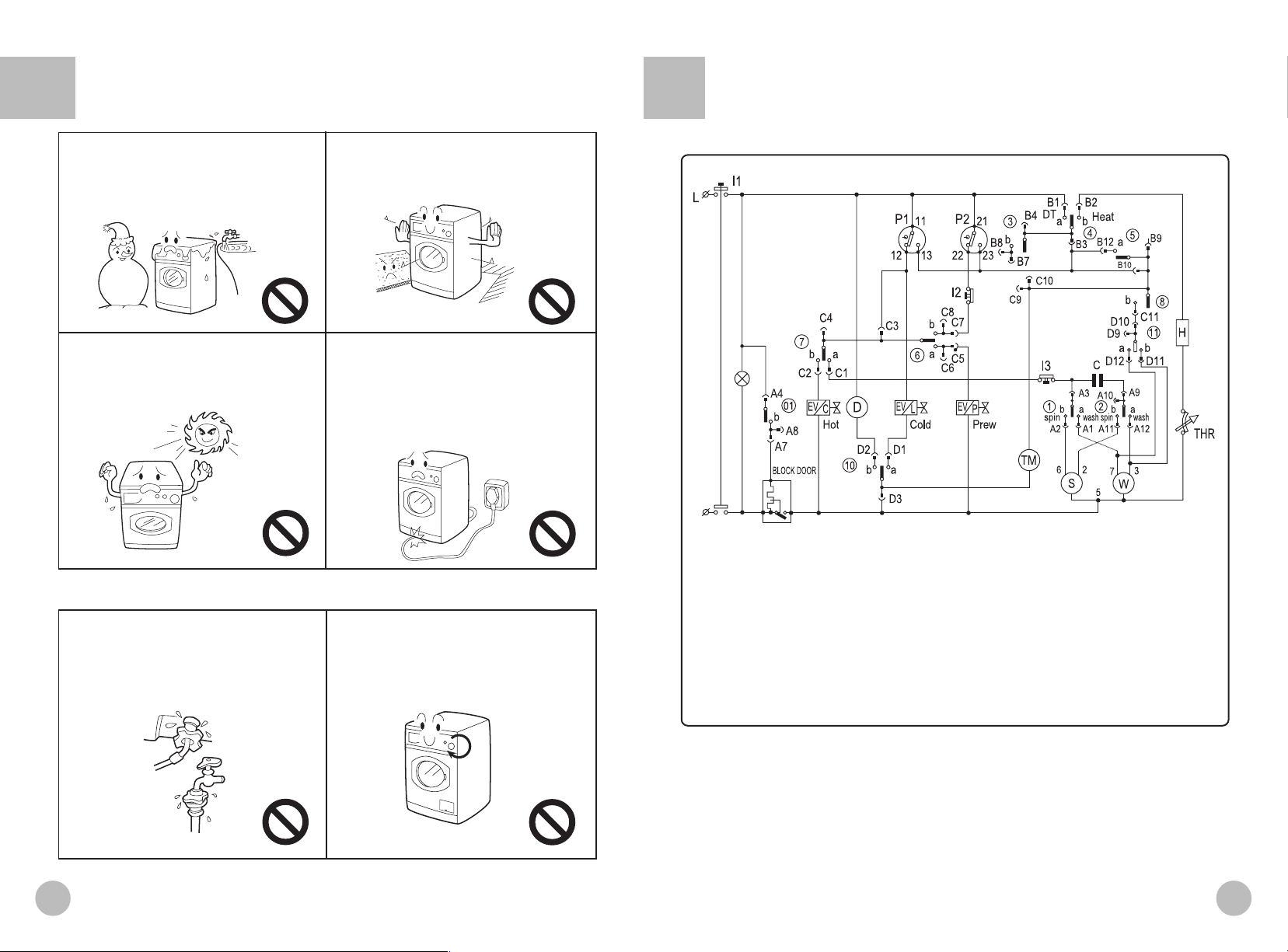

I1: Power Switch EVC: Hot Water Valve
I2: Economic Wash Switch EVP,EVL: Cold Water Valve
I3: No Spin Switch P1,P2: Pressure Switch
TM: Timer Motor THR: Adjustable Thermostat
H: Heating Element D: Drain Pump
C:Capacitance S,W:Motor
2
15
Technical Specification
Matters Needing Attention
Item
Power supply
Maximum working current (A)
Water pressure (MPa)
Washing power (W)
Spinning power (W)
Max. washing load (kg)
Spinning speed (r/min)
Washing program
Heating power (W)
Size (HXDXW) (mm)
Model
XQG50-600TXB/XQG50-600SW
220V~(50Hz)
10
0.05 P 1 IPX4
330
650
5
600
14
1950
850x550x595
3. Never place heavy objects ,a heating
applianceor a water container on the top panel
of the washing machine.
5. Before washing, do up zippers, buttons ,
laces and repair damaged areas,underwear or small articals should be placed
in the laundry bag or a pillowslip.
Do not wash clothes containing wire
frames.
7. The door is fitted with a self-lock device and
will not open until 2~3 minutes after the washing machine stops. Do not force the door
open. Do not open the door when water level
reaches the port hole.
4. Do not wash foam rubber or similar sponge
materials.
6. Do not open the detergent box during
the wash cycle.
8. After washing, turn off the tap to prevent
leakage; unplug the washing machine
and wipe clean the lower part of the port
hole.
Weight (kg)
14
76
9. Keep the door slightly open when the washing machine is not being used. Never cover the
machine with a plastic sheet.
3
Installation
As shown in figure1 remove all the packing materials
(including the foam base).
Fig 1
Trouble shooting
The following circumstances do not constitute problems. Do not contact the
maintenance service until the problem has been confirmed.
Problem
The washing machine fails to
operate
Poor connection to power supply
Power failure
Door is not properly closed
Machine has not been switched on
Possible Cause
Check attachments and materials.
Name
Qty
Model
XQG50-600TXB
XQG50-600SW
==Remove the packing screws as shown in figure 2.
The packing bolts protect the appliance from shock during transportation The steps below should be followed before using the
appliance,
1. Remove the rear panel of the washing machine;
2. Remove the three packing bolts from the rear panel of the washing machine,the rubber hose and then the shock absorption channel steel;
3. Reinstall the back plate;
4. Fill the holes left by the packing bolts with plastic plugs.
(Attention: the packing bolts and rubber hose should be kept in a
safe place for later use)
===Adjusting the position of the washing machine .There are ad-
justable feet under the bottom of the washing machine. Before use,
the washing machine should be adjusted, as shown in figure 3, so
that it is level.
Operational
manual
1
Quality
certificate
Water
hose
2
Drainage
holder
11
Plastic
plugs
3
cáÖ=O
cáÖ=P
Washing machine does not fill
with water
The water supply and
drainage do not stop
Drainage failure
Strong vibration during spin
Operation stops before completion of the wash cycle
Excessive foam in the drum
Water is not turned on
Water pressure is less than 0.05MPa
The inlet hose is kinked
Water supply failure
The program knob is not properly set
The door is not properly closed
== Check that the height of the water hose is below
80cm
= Drainage hose is blocked
= Drainage hose end is over 100cm above the
floor level
==Some packing fixing bolts removed
Washing machine on a uneven surface
Water or electricity failure
= The detergent is not a low foam type
Excessive detergent has been used
4
13
Maintenance
Installation
1. Turn of the water and electricity supply
after every wash. Open the door to prevent the formation of moisture and odors.
If the washing machine is left idle for a long
period, drain any remaining water in the
machine and replace the drainage hose.
3. Clean the detergent compartment
regularly. For the detergent compartment
similar to figure (a), raise the compartment
slightly to remove and replace after cleaning.
Fig (a)
5. To prevent blockages to the water supply or the ingress of
contaminants, clean
the water inlet and inlet water filter
regularly.
Remove the back
7. If the washing machine is left idle
for a long period turn off the water and
electricity supply and open the door
slightly to prevent the formation of
moisture and odors.
cover.
2. Unplug the machine during cleaning and
maintenance. Use a soft cloth dampened with
soapy liquid to clean the machine case and rubber components. Do not use corrosive or abrasive chemicals or solvents.
4. Cleaning the Filter (once a month)
Press the lower edge of the filter compartment
cover to open; (Fig1-2)
Remove the filter by turning counterclockwise;
(Fig3)
Flash clean with running water;
Filter replacement is the reverse of removal. Caution: Attention shall be paid to ensure that the filter
is replaced correctly to avoid possible leakage.
fig.1
6. If the machine is to be moved a distance location,
replace the vibration mounting locks which were removed during installation as shown below.
Replace the rubber
plugs.
Tighten the bolts with a
spanner.
fig.2
Replace the back
cover.
fig.3
Insert the bolts.
Connection of water inlet hose and washing machine
Water drainage hose
= The height of the terminal of the water drainage
hose should be between 80cm-100cm, the water
drainage hose must be securely placed on the clip
on the back of the washing machine.
Use the water drainage support supplied as an
accessory for proper installation of the water drainage hose .fix the water drainage hose support with
waterproof sring.Do not use an excessively long water drainage hose and contract the authorized tech-
NMMÅã
UMÅã
nician if the water drainage hose needs to be
extended.the water drainage hose should not be extended more than250cm.(longer extension will result
in concurrent water inflow and outflow).The diameter of the extension hose should be the same as
the original hose.
caution:water drainage hose must not be immersed
in water.the original and extension hoses should be
tightly connected .
Connection of power supply
Check the following items before connection to the power supply.
==The socket conforms to the maximun power load(The maximum current load of the socket and
power supply cable should not be less than 15A)K
Power supply voltage conforms to the required value.
==The power supply socket and the plug of the washing machine compatible,if they are not com-
patible ,Refer to a washing machine technician or a Haier designated service point for power cable
replacement.The washing machine should be connected to an earth before use.
= Supplementary earth cable should not be necessary if the socket is connected to the earth.
= Supplementary earth cable should be installed on the upper back of the washing machine
andconnected to an earth if the power supply socket has no earth connection.
12
5
Control Panel
Washing Methods
C
C
A Washing program
Turn the knob clockwise to set the desired wash program .
Caution: Turn off the power and turn the program knob clockwise
for setting desired wash program.
DE
DE
F
G
B
F
G
B
A
XQG50-600SW
A
4. Washing temperature Setting
Set the washing temperature as required, otherwise, set at position * when heating is not
needed.
5. Selecting the function button
Select function buttons as required (refer to the directions printed on the control panel) ,
otherwise keep all the button released.
6. Washing
Press the power button and the washing machine will automatically commence the programmed washing process.
7. End
Wait 2-3 minutes after the washing process is finished, press the power button again to cut
off the power supply. Open the door to take out the laundry. Turn off the tap and unplug the
washing machine.
B Washing temperature
Turn the knob clockwise to set the desired temperature.
Temperatures between 30
heating wash is selected when the knob is set at *.
C Detergent distributor
Program discription are printed on the handle of the detergent
distributor,there are three detergent compartments numbered 1,2,3
Box 1: Pre-washing detergent
Box 2: Standard washing - extra-fast washing
Box 3: Softening agent, adjusting agent, perfume
O
C-90OC can be setted , No
6
Additional information
Energy and water saving during wash process
1. Collect clothes for one full wash load.
2. Do not overload the washing machine.
3. Pre-wash heavily soiled clothes.
4. Reduce the amount of detergent or choose fast or minimal washing programs for lightly
soiled clothes dirty.
5. Choose a proper washing temperature. Only exceed 60
6. Do not use more detergent than required.
7. Softening agent makes clothes feel softer and easier to iron.
2
1
3
O
C for heavily soiled clothes.
11
Washing Methods
Operational Functions
1. Laundry loading
Evenly load the laundry in the
washing machine and then tightly
close the door of the washing
machine
Note: 1) When first using the
washing machine, let it run unloaded for one program to prevent the laundry from being
tainted by oil or dirty water from
the washing machine. 2) Do not
overload the washing machine.
2. Use of detergent
Pull out the detergent drawer, put required detergent, softening agent and bleaching agent into the corresponding boxes.
Push back the drawer gently.
Caution: 1) Do not add liquid detergent into box 1 and 2
2) For pre-washing program, detergent should
be added to both box 1 and 2; for other
programs, do not add detergent to box 1
3) Do not overuse softening agent as this may
damage artificial fabrics.
=Overalls
(cotton 950g)
=Blended
fabric clothes
(800g)
=shirt
(cotton
300g)
=====Jackets
(cotton 800g)
Reference loading
= Woolen blankets
(3000g)
=Jeans (800g)
Pajamas (200g)
====Shirts
(300g)
===Underwear
(blended fabrics 70g)
=Socks
(blended fabrics 50g)
=Single bed sheets
(cotton 800g)
D No spin button
When this button is pressed, the spin cycle will be spared but water
drain is still available. This function is useful for hard ironing fabrics,
such as chemical fiber and wool fabrics.
E Economic wash button
Pressing this button will reduce the consumption of water during
bleaching under intense wash. It is recommended that this
program be used when doing a small laundry load.
Do not forget to reduce the amount of detergent used.
F Power button
Press the button ,washing machine will working;release the button,the
washing machine will stop.
ON
OFF
3. Washing program setting
Set the wash program correctly in accordance with the laundry load.the methods for
setting wash programs are indicated on the handle of the distributor on the washing
machine.turn the program knob clockwise to the desired program.
Caution: Turn off the power before setting the wash program.
10
G Power light
The light will illuminates when the power supply is connected.
7
Program Selection
Preparation
1. Power supply
Plug in the power supply
220V~/50Hz.
4. Detergent selection
Only special low foam detergent
should be used in automatic
drum washing machine, form
blended or wool fabrics special
detergent should be used. dry
cleaning solvent should not be
used such as trichhloroethylene
or alike (caution :load the required amount of detergent only).
2. Water supply
Turn on the tap ensure that the water is clear.
Caution: Before staring the washing machine turn on the
water faucrt to ensure that the water faucet and the water
inlet hose are connected correctly and do not leak.
3. Laundry treament
=sort out clothes according to type and extent of dirt.
There are three types of clothes: cotton, synthetical and
woolen (silk) fabrics.
separate white clothes from colored. If whites and
coloreds are combined for one load, make sure the
coloreds are colorfast.
-Remove all objects from pockets that may cause damage to the machine, such as keys and coins.
-Clothing with frayed edges or yarns should be put in a
wash bag or special bag before washing.
-Repaire damaged clothing,lose buttons or damaged zips
and hooks before washing.
-Bed sheets and table ware should be loosely loaded and
not folded.
=This washing machine is for household use and de-
signed for mechanically washable clothes. When washing,
separate unwashable clothes with reference to clothes
labels.
NOTE: ” o ”means softener liquid detergent canbe added when necessary.
“ ”means detergent can be added when necessary.
“ ”means no detergent can be added.
8
5.Wash Load
Type
Max load
non-fade cottons
5kg 2kg 1kg
Delicat fabrics
Woolen fabrics
Blending fabrics
2.5kg
9
Loading...
