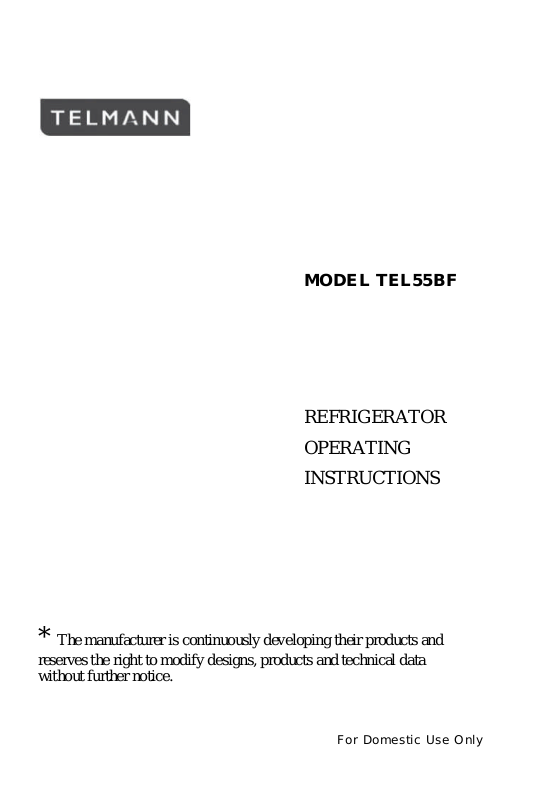

MODEL TEL55BF
REFRIGERATOR
OPERATING
INSTRUCTIONS
* The manufacturer is continuously developing their products and
reserves the right to modify designs, products and technical data
without further notice.
For Domestic Use Only
Page 2
PARTS DESCRIPTION
1. Temperature Regulator 2. Ice Tray 3. Evaporator
4. Bottle Rack 5. Shelf 6. Drip Tray
WARNING:
The plug should be accessible after the appliance is installed.
If the supply cord is damaged, it must be replaced by
an authorised service agent or similar qualified person.
Please remove protective film from the refrigerator
before using.
Page 3
NOTE
The power supply
a properly
Never store
young children or infirm
Sides : 50mm
Back : 19mm
for this appliance is
220V~240V, 50Hz
single phase.
It is not
recommended
to use extension
cords.
Connect the appliance to
earthed three-wire plug and socket.
Do not connect to a multiple outlet.
SETTING UP
The appliance can be placed with its
rear panel directly against the wall.
For good air circulation, the vent grille
at the back of the worktop must not be
blocked.
Install on flat and firm surface to
minimise noise.
Minimum Space Required
Above : 40mm
combustibles,
explosives, strong acid or
alkali. etc. in this appliance.
It is not intended for use by
persons without supervision.
Young children should be
supervised to ensure that they
do not play with the appliance.
Poorly ventilated rooms
are unsuitable.
Avoid installing the
appliance in direct
sunlight or exposed to
similar sources of heat.
Page 4
FOOD STORAGE
the appliance with
Food should be packed in bags to
avoid giving off strong odours or
getting freezer burn.
Hot food or liquid must be allowed to
cool to room temperature before
placing in refrigerator.
CLEANING
Do not overstock
food.
Allow space amongst the food for
air circulation and better cooling.
The appliance should only be cleaned when the plug is removed.
Use lukewarm water containing a little detergent.
Do not use hot water, a corrosive scouring agent or anything rough.
Page 5
If the appliance is going to be out of use for any length of time
or put into storage, unplug and clean the interior as described in
the previous page.
Dry thoroughly and store with the door open.
To reduce energy consumption, do not leave the door open for
too long and don’t open it too often.
In the event of a power failure, try to keep the door closed to
keep the cool air inside for as long as possible.
THERMOSTAT
The knob graduations are 0, 1, 2, 3, 4, 5, 6, 7.
The numbers on the thermostat dial do not represent
the actual temperature.
The higher the number, the cooler the temperature in
thermostat in Position 1 - 3, then turn it to a higher
setting if required.
Position 0 is off.
Page 6
LEFT or RIGHT HINGED DOOR
This product is assembled with a right hand hinged door.
The right hinge together with its mount is fixed on the right
side of the door.
If a left hand hinge configuration is required, follow these
instructions.
1) Remove the top door hinge and bracket from the cabinet, lift
the door off the lower hinge then remove the lower hinge and
bracket from the cabinet.
2) Remove the bungs from the holes on the left hand side of the
cabinet.
3) Refit the lower hinge to the left hand side of the cabinet
using the screws removed from the right hand mounting.
4) Remove the shaft from the lower hinge bracket and refit into the
hole on the left hand side of the bracket and fasten securely.
5) Install the door onto the refitted lower hinge bracket and refit
the top hinge bracket onto the left hand side of the cabinet.
6) Refit the bungs removed from the left hand side of the cabinet
and door to the holes now visible on the right hand side.
Page 7
In the event of a fault occurring during operation, check the following
list to ensure the fault is not due to an operation error before calling
for service.
You can repair the following faults yourself.
1. Is it switched on properly?
2. Is the plug properly inserted
The appliance does
not run.
The temperature inside
the appliance is not
cool enough.
in the socket?
3. Is the thermostat knob set to
position “0”?
4. Is the supply voltage too low?
1. The appliance is overstocked with
food.
2. The appliance is located too near
a source of heat.
3. The door is not properly closed or
is opened too frequently.
4. The vent grille is covered.
Excessive noise
from the appliance.
If none of these circumstances apply and you are not able to repair
the fault, please phone 0800 TELMANN (0800 835 6266) for an
authorised service agent.
The appliance is not standing
securely on the ground.
Page 8
ELECTRICAL DIAGRAM
MAIN TECHNICAL DATA
Model TEL55BF
Voltage
Power Input
Refrigerant
Net Weight
OverallDimension ( D x W x H )
220V~240V,50Hz
80W
R134a 40g
21kg
501 .5 x 497 x 522mm
VC53 200 7
No.0 060 5096 46
