Haier Solar Water Heater User’s Manual
S75ENF
S85ENF
S110ENF
S125ENF
S150ENF
z Please read this manual before usage
z Retain it for future reference
S75ENL
S85ENL
S110ENL
S125ENL
S150ENL
1
Be
Contents
Contents
Be
Features 1
Technical data
Parameters 1
Safety precautions 2
Before use
Special tips 3
Installation instructions
Selection of installation location 3
Outline and installation dimensions of the horizontal water heater 4
Assembly the bracket 5
Securing the bracket 5
Installing the water tank 5
Installing the vacuum tubes 6
Schematic drawing of the indoor pipeline and wiring 7
Precautions in pipeline installation 7
Connection method of water supply pipeline in the houses where a
solar water heat coexists with another type of water heater 8
Operation instructions
Operation method 8
FAQ 9
Packing list 9
2
Features · Technical Data
y Features
1. SUS304 stainless steel water tank liner
The tank liner is made of SUS304 stainless steel. It is a food grade material featuring high anti-corrosion ability
and durability.
2. Effective and energy-saving heat insulation layer
Polyurethane foam material for solar water heater is adopted to ensure high heat insulation ability and reduce heat
loss to the maximum extent.
3. Al-Zn alloy coated tank shell
Al-Zn alloy coated steel plate has very strong anti-corrosion ability and excellent weatherability. It is the most
preferred outdoor protective material.
4. Tower type bracket
The bracket is made of carbon steel panel by shaping and plastic spraying. It has the advantages of stable structure,
beautiful appearance, anti-corrosion and so on.
y Parameters
Model Volume of
useable water
(L)
S75ENF
S85ENF
S110ENF
S125ENF
S150ENF
S75ENL
S85ENL
S110ENL
S125ENL
S150ENL
75
85
110
125
150
75
85
110
125
150
Note: Allowable error for aperture area: ≤3%, for volume: ±5%, for other sizes:±10%
Size of the
Bracket form Quantity of
vacuum tubes
φ47X1500(mm) Flat roof, 45º
φ47X1500(mm) Flat roof, 45º
φ58X1800(mm) Flat roof, 45º
φ58X1800(mm) Flat roof, 45º
φ58X1800(mm) Flat roof, 45º
φ47X1500(mm) Fastigium, 45º
φ47X1500(mm) Fastigium, 45º
φ58X1800(mm) Fastigium, 45º
φ58X1800(mm) Fastigium, 45º
φ58X1800(mm) Fastigium, 45º
Aperture area Total water
the vacuum
tubes
14 1.33 96
16 1.52 108
14 1.86 150
16 2.13 170
19 2.53 204
14 1.33 96
16 1.52 108
14 1.86 150
16 2.13 170
19 2.53 204
volume (L)
1
Safety precautions
z Safety precautions
1. After the vacuum tubes are installed, they should not be sunned empty for long period of time as this will
shorten their service life. If the water heater is not put into use after installation, please shade the tubes with
proper articles.
2. Initial water filling shall be conducted in the morning or at night when there is insufficient sunlight. Filling
water under strong sunshine should be avoided as this will cause explosion of the vacuum tubes.
3. If the water pressure is not high enough, normal water filling will not be realized. Please fit a booster.
4. To avoid burning, do not direct the shower nozzle towards your body while you are adjusting the water
temperature.
5. The water heater is a non-pressurized water heater. The hot water flows out naturally due to the height
difference between the water tank and the water usage point. The output pressure is proportional to the height
difference. If the height difference is too low, it will not function normally. In this case an effluent booster
should be fitted.
6. When sunshine is not sufficient, to ensure effect, you should avoid using hot water several times in one day.
7. The energy source of this water heater is solar energy. In cloudy, rainy, or snowy days, the temperature of the
water coming from it may not be satisfactory due to insufficient sunshine.
8. Before winter comes, please clean the vacuum tubes and keep their surface clean to improve the heat
collecting effect.
9. The vacuum tubes can withstand low temperature of -70℃ when they are not filled with water. In winter, on
continuous cloudy days or when it is covered with snow, please keep the tank full of water and replace the
low temperature water in it frequently (2 day intervals). Otherwise the vacuum tubes will break when the
water in it freezes.
2
Before use · Installation instructions
y Special tips
To ensure correct and safe use of the water heater, here we inform the users seriously to contact professional
service agents appointed by Haier for installation and services. Haier is not responsible for incorrect installation of
the water heater. To contact Haier headquarter, please dial: 4006 999 999
This product is an insured product. Please set your mind at ease when you are using it.
Prior to installing and using the water heater, please read the following contents carefully. Please retain this
manual properly for future reference.
1. Upon unpacking, please check against the packing list in this manual.
2. Improper use of the water heater may cause serious burns. Be sure to take a shower or wash after mixing the
hot water with cold water.
3. To ensure normal use, never refit it or block the ventilation pipe and overflow pipe. Otherwise the water tank
will shrink due to negative pressure.
y Selection of installation location
1. In areas where lightning strikes frequently occur, the water heater shall be installed within the lightning proof
range of the building.
2. The orientation range of the water heater: 10 degrees south by east to 15 degrees south by west.
3. There should be no shading objects in the front of the installation location of the water heater. If there is a
shading object, the distance between it and the water heater should be longer than L.
L=H/tg(66.5 -a) (where H: height of the shading object; a: local latitude)
Note: Installation of the water heater must be conducted by professional personnel.
3
Installation instructions
y Outline and installation dimensions of the water heater
Model
Outline dimensions (in mm) Installation dimensions (in mm)
A H D B
S75ENF
S85ENF
S110ENF
S125ENF
S150ENF
S75ENL
S85ENL
S110ENL
S125ENL
S150ENL
1166 1457 1000 1351
1306 1457 1140 1351
1296 1710 1140 1590
1456 1710 1300 1590
1696 1710 1540 1418
1166 1457 1000 1351
1306 1457 1140 1351
1296 1710 1140 1590
1456 1710 1300 1590
1696 1710 1540 1418
Note: error of above dimensions: ±%
4
Installation instructions
y Assembling the bracket
See the attached paper in the bracket packing case for assembly drawing and packing list of the bracket.
y Securing the bracket
1. Recommend you to secure the legs of the water heater on a foundation with embedded irons. You can also
make cement bricks, attach expansion bolts in the cements and fix the heater legs on the expansion bolts.
2. Adjust the height of the bracket using the hard, waterproof spacers to ensure levelness of the water tank as
well as even the load of each leg.
Notes:
1. Ensure close contact of all legs of the water heater with the support plane. No legs are allowed to hang in the
air as this may cause deformation of the bracket and thus damage the water heater.
2. In the areas where typhoon happens frequently, fix the water tank and bracket firmly on the roof with wire
rope.
3. The water heater must be installed stably and firmly. Otherwise serious damage or injury may occur in bad
weather.
y Installing the water tank
1. Take the water tank from the packing case and remove the nuts and shims attached to the bolts on both sides
of the tank.
2. Insert the bolts on the bottom of the tank into the long holes in the tank support of the bracket and attach the
shims and nuts.
Notes:
1. To reduce scratching, remove the protective plastic film from the water tank after the installation is finished.
Never use sharp tools such as wallpaper knives to remove the film.
2. The assembly of the water tank is realized by bolt connection and nut fixing. Tighten all nuts after the
assembly of whole water heater is finished.
3. When installing the water tank, please keep the center lines of the connection holes of the vacuum tubes
parallel with the oblique-pulling posts of the bracket.
5
Installation instructions
k

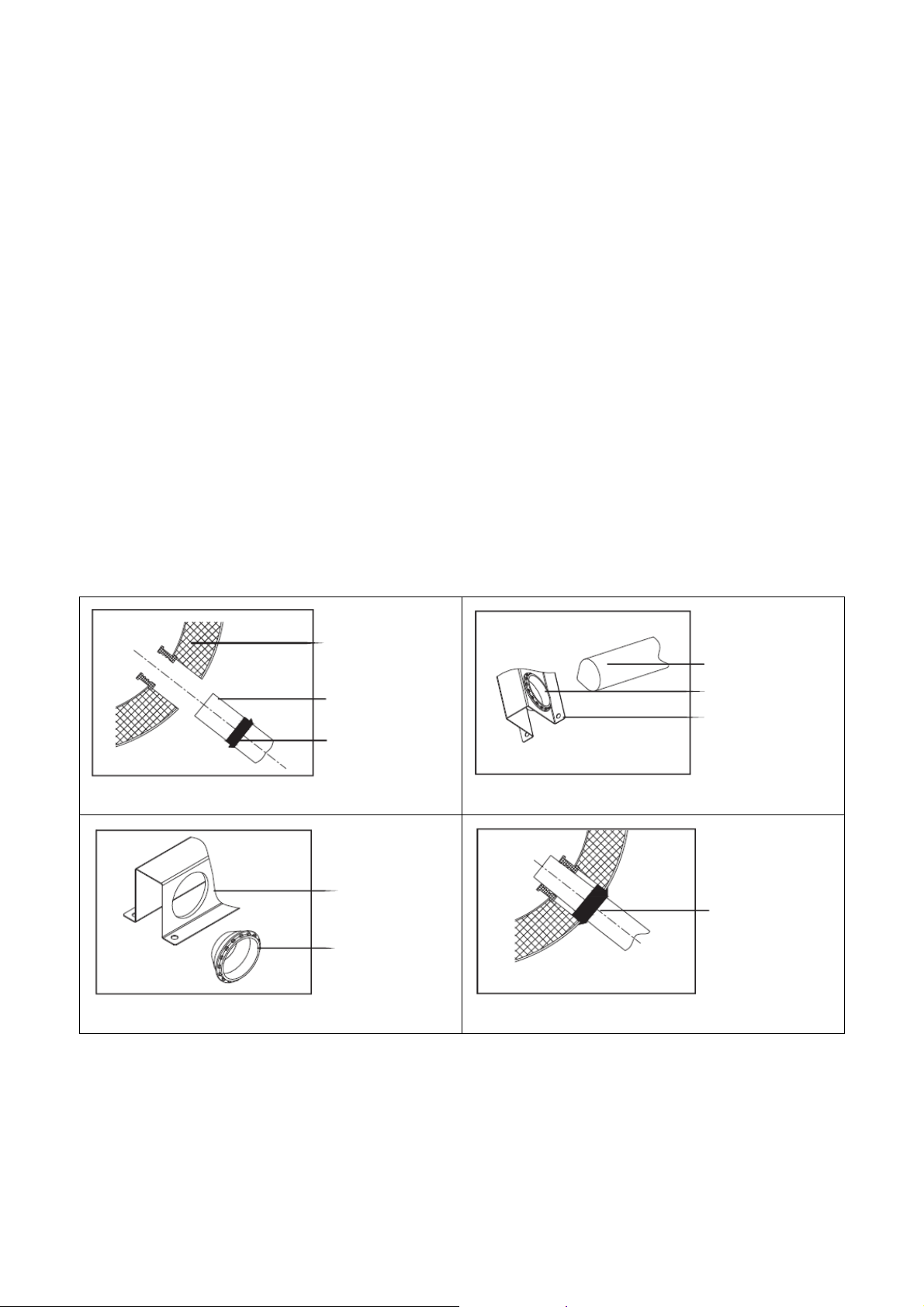

y Installing the vacuum tubes
1. Before installing, the vacuum tubes should be protected from sunshine. Otherwise you may be burned during
installation.
2. Put the wind shroud on a vacuum tube (Fig. A).
3. Insert the vacuum tube with even force while rotating to turn it into the seal rings. The direction of the
resultant force should be consistent with the axis of the vacuum tube.
4. Put the tail-holder into the tailstock (Fig. B) and then fasten the vacuum tube on the tail-holder (Fig. C).
5. The insertion depth of the vacuum tube into the seal ring should be about 1cm. Push the wind shroud onto the
water tank to plug the joint (Fig. D).
6. When installing the vacuum tubes, one tube should be installed on each side of the water tank first so that the
water tank and bracket can be positioned as a whole.
Notes
1. Check if the seal rings in the tank holes are all ready, if the sealing planes are clean, free of foreign bodies and
breakage.
2. Put the wind shroud on the open end of the vacuum tube with the inclined plane downward and to a position
about 10cm to the tube end. Before installing, wet the tube end with water to facilitate installation.
Seal ring
Vacuum
Vacuum
Wind
A
Tailstock
Tail-holder
C
B
D
Tail-holder
Tailstoc
Wind shroud
Corking up position
6
Installation instructions
y Schematic drawing of the indoor pipeline and wiring
Solar water heater
Tap water
Hot water
Overflow pipe
y Precautions in pipeline installation
1. Any form of modification of the installation structure of the water heater may cause problems in use.
2. There are 5 ways for the heater pipeline to enter the house: flue, exhaust pipe, penetrating hole, special
pipeline well for solar water heater, embedded bushing. Of which the first 3 are relatively popular. Before
installing the pipeline, the installation personnel will discuss the entering way and installation position of the
pipeline with you for your convenient use. During piping, the penetrating hole must have an adverse slope
and be sealed properly to prevent rain and odor from coming into the house.
3. The overflow pipe must be fastened firmly and its indoor opening must be kept downward. The overflow
water can be discharged directly into the sewer. The distance between the opening of the overflow pipe and
the sewer plane should not be more than 15cm. Never hang the overflow pipe arbitrarily as splash of large
amount of overflow water will damage articles in your house.
4. Never install valve in the overflow pipeline to ensure rapid, accurate transfer of Full-of-Water signal.
5. Check valves should be installed on the trunks of water supply and drain pipes that are connected with the tap
water pipe to prevent back flowing of water in the tank.
6. When several water heaters are combined, the installation plan should be validated by a professional service
person of Haier.
7
Installation instructions · Operation instructions
f
r
r
Check
y Connection method of water supply pipeline in the houses where a solar water heat
coexists with another type of water heater
To the tank of the solar water heater
Another type o
water heate
Tap water
When a solar water heat coexists
with another type of water heater,
check valves must be installed on
both cold and hot water pipes to
avoid damage caused by reverse
water flow from tank of another
heater, which has higher pressure,
to that of the solar heater.
Solar water heate
y Operation methods:
1. Before using hot water, valves K1, K2 and K3 must be in closed state;
2. To fill water, open valve K1. When water flows out from the overflow pipe, it indicates the water tank is full.
At this time, close valve K1.
3. To use hot water, open valve K2. Hot water will come out from the shower nozzle. If it is too hot, open valve
K3 to adjust the water temperature.
4. Close valves K2 and K3 after use.
Vent
Overflow
Water inlet and outlet
Tap water
8
valve
Operation instructions
y FAQ
Troubles Possible reasons Solutions
No outlet water
No water comes from the overflow
pipe
Too low temperature of the hot
water
y Packing list
Main components
Water tank
support
case
Vacuum tube (pc) 14 16 14 16 19
Bracket (set) 1 1 1 1 1
Water tank (pc) 1 1 1 1 1
User’s Manual (copy) 1 1 1 1 1
Left tank support (pc) 1 1 1 1 1 Tank
Right tank support (pc) 1 1 1 1 1
The water tank becomes empty Add water according to the time
required in the instruction manual
Disconnection or blockage of the
pipeline or joints
Broken vacuum tube(s) Replace the broken tube(s)
Water supply is stopped or water
pressure is too low
Disconnection or break of the
pipeline or joints
The water supply valve is not
closed tightly or it is damaged
There is shading object in the front
of the vacuum tubes and they
cannot collect heat effectively
Too much dust on the vacuum
tubes
75L 85L 110L 125L 150L
Repair the pipeline or remove the
blockage
Wait until the water supply
becomes normal
Repair or replace the pipeline or
joints
Close the valve tightly or replace
the damaged valve
Remove the shading object or
relocate the water heater
Clean the surface of the vacuum
tubes
Quantity
9
Rev: 1
Specific number: 0040502052
