Haier S110EHF, S150EHF, S110EHL, S150EHL, S125EHF User Manual

...
Page 1

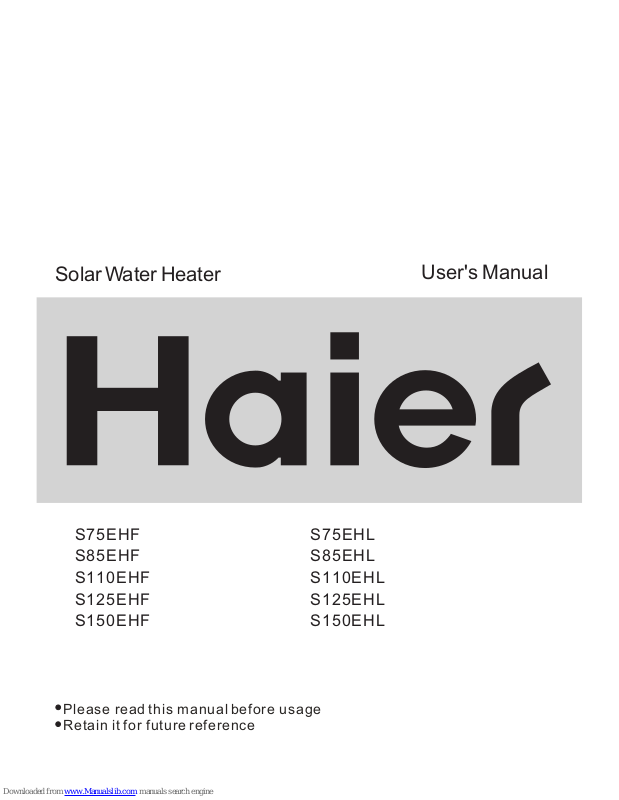

Solar Water Heater
User's Manual
Please read this manual before usage Retain it for future reference
S75EHF S85EHF S110EHF S125EHF S150EHF
S75EHL S85EHL S110EHL S125EHL S150EHL
Page 2
Page 3
Ŀ¼
²úÆ·ÌØµã
1
ÓÃǰÐëÖª
°²×°ËµÃ÷
ÊÛºó·þÎñ
Parameters
Selection of installation location
Outline and installation dimensions of the water heater
Assembling the bracket
Installing the water tank
Installing the electric heater
Securing the bracket
Installing the vacuum tubes
Schematic drawing of the indoor pipeline and wiring
The operation method
FAQ
1
3
4
4
6
6
6
8
7
8
9
Precautions in pipeline installation
9
11
10
°²И«Ч¢ТвКВПо
Special tips
ʹÓÃ˵Ã÷
¼¼ÊõÊý¾Ý
5
11
Packing list
Connection method of water supply pipeline in the houses where a solar water heat coexists with another type of water heater
10
Contents
Features
Technical data
Safety precautions
Before use
Installation instructions
Operation instructions
Electric parameter Electricity schematic diagram
2 2
Pipelines thermal insulation notice
Page 4
²úÆ·ÌØµã ¼¼ÊõÊý¾Ý
²úÆ·ÌØµã
1
1.SUS304 stainless steel water tank liner The tank liner is made of SUS304 stainless steel. It is a food grade material featuring high anti-corrosion ability and durability.
2.Effective and energy-saving heat insulation layer Polyurethane foam material for solar water heater is adopted to ensure high heat insulation ability and reduce heat loss to the maximum extent.
3.Al-Zn alloy coated tank shell Al-Zn alloy coated steel plate has very strong anti-corrosion ability and excellent weatherability. It is the most preferred outdoor protective material.
4.Tower type bracket The bracket is made of carbon steel panel by shaping and plastic spraying. It has the advantages of stable structure, beautiful appearance, anti-corrosion and so on.
¼¼Êõ²ÎÊý
Note: Allowable error for aperture area: 3%, for volume: 5%, for other sizes: 10%
Features Technical Data
Features
Parameters
Model
Size of
the
vacuum
tubes
Bracket
form
Quantity
of the
vacuum
tubes
Total
water
volume
(L)
Aperture
area (m )
2
Volume
of
useable
water(L)
S150EHF
58X1800(mm)
19
2.53
204150
Flat roof, 45
S125EHF
58X1800(mm)
16
2.13
170125
Flat roof, 45
S110EHF
58X1800(mm)
14
1.86 150110
Flat roof, 45
S85EHF
47X1500(mm)
16 1.52 10885
Flat roof, 45
S75EHF
47X1500(mm)
14
1.33
96
75
Flat roof, 45
S75EHL
47X1500(mm)
14
1.33
96
75
Fastigium, 45
S85EHL
47X1500(mm)
16 1.52 10885
Fastigium, 45
S150EHL
58X1800(mm)
19
2.53
204150
Fastigium, 45
S110EHL
58X1800(mm)
14
1.86 150110
Fastigium, 45
S125EHL
58X1800(mm)
16
2.13
170125
Fastigium, 45
Page 5
²úÆ·ÌØµã ¼¼ÊõÊý¾Ý
²úÆ·ÌØµã
¼¼Êõ²ÎÊý
Features Technical Data
Electric parameter
Electricity schematic diagram
22
warning:
1.Do not operate in charge when installment or maintenance;
2.Forbids below 10 years old child use alone ;
3.Before using the hot water, to stop the electric heating ;
4.
If the supply cord is damaged, it must be replaced by a special cord
or assembly availablefrom the manufacturer or its service agent.
L live wrie(brown line) N: neutral wrie (blue line) R
P:
Leakage protector TM: thermostat ST: self-resetting thermal cut-out EH: electric heater E: earthing( ) yellow green line
1.Power supply:220V 50Hz
2.Power:1500W
3.Leakage current:10mA/0.1S
4.Waterproof level:IPX4
H
Page 6
°²И«Ч¢ТвКВПо
1.
2. Avoiding irradiation without water after installation, it can't be used immediately, it should be sheltered.
3. When supplying water at the first time, it should be operated in the morning or evening or the condition of short of light; avoid supplying water in strong sunshine, in order to prevent vacuum tubes bombing.
4. If the water pressure isn't enough for water supply, please install an pressurize equipment.
5. When the hot water is to be used, don't place the spray head face yourself until the water temperature is suitable.
6. This product can supply the water depend on the fall of the tank and the water exit , an pressurize equipment is recommended while the water couldn't be supplied normally due to the low fall.
7. Do not supply cold water more than once in a low solar irradiance day.
8. The energy is from solar, in the days that lack of solar such as rainy or snowy day, the temperature of the water may can't reach your demand,
9. Make sure the evacuated tubes clean, hose off the dust and dirt on the tubes and the reflector before the winter comes.
10. Do not startup the electric heater in the states of no water in the tank.
11.The evacuated tubes resist as low temperature as -70 when tubes is emptied. The tank should remain filled up during continuously cloudy or snowing days in winter, in addition every two days the cold water in the tank should be changed to prevent the water in the tank from freezing which might damage the tubes.
When using the water heater with electric heating, ensure that electric heating and
electric tracing belt are closed.
If there isn't electric heating ,
it may not be used normally.
°²И«Ч¢ТвКВПо
23
Safety precautions
Safety precautions
Page 7
4
Prior to installing and using the water heater, please read the following contents carefully. Please retain this manual properly for future reference.
1.Upon unpacking, please check against the packing list in this manual.
2.Improper use of the water heater may cause serious burns. Be sure to take a shower or wash after mixing the hot water with cold water.
3.To ensure normal use, never refit it or block the ventilation pipe and overflow pipe. Otherwise the water tank will shrink due to negative pressure
Note: Installation of the water heater must be conducted by professional personnel.
Before use Installation instructions
Special tips
Selection of installation location
1.In areas where lightning strikes frequently occur, the water heater shallbe installed within the lightning proof range of the building.
2.The orientation range of the water heater: 10 degrees south by east to 15 degrees south by west.
3.There should be no shading objects in the front of the installation location of the water heater. If there is a shading object, the distance between it and the water heater should be longer than L. L=H/tg(66.5 -a) (where H: height of the shading object; a: local latitude)
Page 8
°²×°ËµÃ÷
ИИЛ®ЖчНвРО¼°°²Ч°³Я´з
5
Model
Note: error of above dimensions: 10%
B
A
H
D
Outline dimeVnsions
(mm)
A
H
Installation dimensions
(mm)
BD
1166
1306
1296
1456
1696
1166
1306
1296
1456
1696
1000
1140
1140
1300
1540
1000
1140
1140
1300
1540
1457
1457
1710
1710
1710
1457
1457
1710
1710
1710
1351
1351
1590
1590
1590
1418
1418
1645
1645
1645
Installation instructions
Outline and installation dimensions of the water heater
S75EHF
S85EHF
S110EHF
S125EHF
S150EHF
S75EHL
S85EHL
S110EHL
S125EHL
S150EHL
Page 9
See the attached paper in the bracket packing case for assembly drawing and packing list of the bracket.
Installation instructions
Assembling the bracket
Securing the bracket
1.Recommend you to secure the legs of the water heater on a foundation with embedded irons. You can also make cement bricks, attach expansion bolts in the cements and fix the heater legs on the expansion bolts.
2.Adjust the height of the bracket using the hard, waterproof spacers to ensure levelness of the water tank as well as even the load of each leg.
Notes:
1.Ensure close contact of all legs of the water heater with the support plane. No legs are allowed to hang in the air as this may cause deformation of the bracket and thus damage the water heater.
2.In the areas where typhoon happens frequently, fix the water tank and bracket firmly on the roof with wire rope.
3.The water heater must be installed stably and firmly. Otherwise serious damage or injury may occur in bad weather.
Installing the water tank
1.Take the water tank from the packing case and remove the nuts and shims attached to the bolts on both sides of the tank.
2.Insert the bolts on the bottom of the tank into the long holes in the tank support of the bracket and attach the shims and nuts.
Notes:
1.To reduce scratching, remove the protective plastic film from the water tank after the installation is finished. Never use sharp tools such as wallpaper knives to remove the film.
2.The assembly of the water tank is realized by bolt connection and nut fixing. Tighten all nuts after the assembly of whole water heater is finished.
3.When installing the water tank, please keep the center lines of the connection holes of the vacuum tubes parallel with the oblique-pulling posts of the bracket.
6
Page 10
7
Wind shroud Corking up position
D
Tail-holder
Tailstock
B
C
T ail-holder
Vacuum
Tailstock
Installation instructions
Installing the vacuum tubes
1.Before installing, the vacuum tubes should be protected from sunshine. Otherwise you may be burned during installation.
2.Put the wind shroud on a vacuum tube (A).
3.Insert the vacuum tube with even force while rotating to turn it into the seal rings. The direction of the resultant force should be consistent with the axis of the vacuum tube.
4.Put the tail-holder into the tailstock ( B) and then fasten the vacuum tube on the tail-holder (C).
5.The insertion depth of the vacuum tube into the seal ring should be about 1cm. Push the wind shroud onto the water tank to plug the joint (D).
6.When installing the vacuum tubes, one tube should be installed on each side of the water tank first so that the water tank and bracket can be positioned as a whole.
Notes
1.Check if the seal rings in the tank holes are all ready, if the sealing planes are clean, free of foreign bodies and breakage.
2.Put the wind shroud on the open end of the vacuum tube with the inclined plane downward and to a position about 10cm to the tube end. Before installing, wet the tube end with water to facilitate installation.
Wind
Vacuum
A
Seal ring
Page 11
°²×°ËµÃ÷
8
Schematic drawing of the indoor pipeline and wiring
Installation instructions
Solar water
heater
Tap water
Hot water
Ov e
r
f
l
o w
pi
p e
Electric heater wiring connection
1. Twists 4 bolts of the wiring cover, takes out the wiring cover, and take down the insulating clamp .
2. Put the 3 1.0mm power line through the line protection seal packing collar. According to electric heater connection diagram, connect power line's brown or the red to live line marking L place, the yellow green line connect grounding marking place, blue line connect to the neutral line marking N place. Then with the insulating clamp to be fixed the power line, fix up the cover with the screw .
Leakage protect plug connection
1. Twists 4 bolts of the leakage protect plug, takes out the top cover
2. Twists 3 bolts of the power line posts, takes out the spare 3 posts. presses separately with the specil line ball pliers power line's 3 lines on the spare post, then presses the post with the same color in the same place and uses the bolt to fasten, if live line for red, then the red line post should with brown post docking.
3. Wraps up the power line the active line buckle then put the line buckle to the outlet line hole place. installs the top cover and fasten it with 4 bolts .
Electric heater wiring connection diagram
Brown line
Blue line
Installing the electric heater
Leakage protect plug connection diagram
2
Yellow green line
Page 12
1.Any form of modification of the installation structure of the water heater may cause problems in use.
2.There are 5 ways for the heater pipeline to enter the house: flue, exhaust pipe, penetrating hole, special pipeline well for solar water heater, embedded bushing. Of which the first 3 are relatively popular. Before installing the pipeline, the installation personnel will discuss the entering way and installation position of the pipeline with you for your convenient use. During piping, the penetrating hole must have an adverse slope and be sealed properly to prevent rain and odor from coming into the house.
3.The overflow pipe must be fastened firmly and its indoor opening must be kept downward. The overflow water can be discharged directly into the sewer. The distance between the opening of the overflow pipe and the sewer plane should not be more than 15cm. Never hang the overflow pipe arbitrarily as splash of large amount of overflow water will damage articles in your house.
4.Never install valve in the overflow pipeline to ensure rapid, accurate transfer of Full-of-Water signal.
5.Check valves should be installed on the trunks of water supply and drain pipes that are connected with the tap water pipe to prevent back flowing of water in the tank.
6.When several water heaters are combined, the installation plan should be validated by a professional service person .
¹ЬВ·°²Ч°Ч¢ТвКВПо
Precautions in pipeline installation
Pipelines thermal insulation notice
1.Outdoor pipelines should be thermal insulated according to local climate, bad thermal insulation may lead to heat loss.
2.The outlet used by electric tracing belt must ground reliably. The rated current of outlet is less than 10A, ensure is connected to plug reliably.
3.Fixing electric tracing belt on cold and hot water pipes, in order to touch well, it should be fixed with insulating tape per 500 mm.
4.Waterproof should be tied up on thermal insulating pipes, for example aluminum foil cloth, glass fibre cloth, ethylene polyester waterproof film etc.
Note: in cold area, electric tracing belt should be fixed on outdoor pipelines. Otherwise when the environmental temperature is lower than -5 , any innocent thermal insulation will lead to the pipelines frozen, resulting in the pipelines damage.
°²×°ËµÃ÷
Installation instructions
9
4. After connected the line, you can debugging it according to the use notice explanation on the plug .
Page 13
°²×°ËµÃ÷ ʹÓÃ˵Ã÷
Connection method of water supply pipeline in the houses where a solar water heat coexists with another type of water heater
1.Before using hot water, valves K1, K2 and K3 must be in closed state;
2.To fill water, open valve K1. When water flows out from the overflow pipe, it indicates the water tank is full. At this time, close valve K1.
3.To use hot water, open valve K2. Hot water will come out from the shower nozzle. If it is too hot, open valve K3 to adjust the water temperature.
4.Close valves K2 and K3 after use.
Installation instructions Operation instructions
Solar water heater
To the tank of the
solar water heater
Another type
of
water heater
Tap water
When a solar water heat coexists with another type of water heater, check valves must be installed on both cold and hot water pipes to avoid damage caused by reverse water flow from tank of another heater, which has higher pressure, to that of the solar heater.
The operation method:
10
Electric heater
Vent
Overflow
Overflow pipe
Water inlet and outlet
Tap water
Check
valve
Plug
Page 14
ÒÉÄѽâ´ð
Troubles
No outlet water
No water comes from the overflow pipe
Too low temperature of the hot water
Possible reasons
The water tank becomes empty
Disconnection or blockage of the pipeline or joints
Broken vacuum tube(s)
Water supply is stopped or water pressure is too low Disconnection or break of the pipe line or joints
The water supply valve is not closed tightly or it is damaged
There is shading object in the front of the vacuum tubes and they cannot collect heat effectively
Too much dust on the vacuum tubes
Solutions
Add water according to the time required in the instruction manual
Repair the pipeline or remove the blockage
Replace the broken tube(s)
Wait until the water supply becomes normal Repair or replace the pipeline or joints
Close the valve tightly or replace the damaged valve
Remove the shading object or relocate the water heater
Clean the surface of the vacuum tubes
ʹÓÃ˵Ã÷
11
Main components
Water tank
Water
tank
Vacuum tube
Left tank support
Right tank support
User's Manual
Quantity
Bracket
Tank
support
case
1
1
1
1
1
16
19
Operation instructions
FAQ
Packing list
Leakage protect plug
Page 15
Page 16
Rev: 1 Specific number: 0040502052A
