Haier P42LV6-T1, P50V6-A8 User Manual

PLASMA TV

OWNER`S MANUAL

MODEL :P42LV6-T1

P50V6-A8

Please READ this manual carefully before operating your TV, and retain it for future reference.

Congratulations on your purchase, and welcome to the family !

Dear Haier product owner:

Thank you for your confidence in Haier. You`ve selected one of the best-built, best-backed products available today. We`ll do everything in our power to keep you happy with your purchase for many years to come. As a member of the Haier family, you`re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

Thanks for investing in a Haier product.

Warning

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING : To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside refer service to qualified service personnel.

Safety of operators has been taken into consideration at the design and manufacture phase, but inappropriate operation may cause electric shock or fire. To prevent the product from being damaged, the following rules should be observed for the installation, use and maintenance of th product. Read the following safety instruction before starting the operation. The User Manual uses the following symbols to ensure a safe operation and prevent any damage to operators or properties:

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying the appliance.

Important Safety Instructions

Important safeguards for you and your new product

Your product has been manufactured and tested with your safety in mind. However, improper use can result in electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.

1. Retain these Instructions ---The safety and operating instructions should be retained for

Future reference.

2. Heed Warnings ---All warning on the appliance and in the operating instructions should be followed.

3.Cleaning --- Unplug from the wall outlet before cleaning. Do not use liquid cleaners or Aerosol cleaners. Use only dry cloth for cleaning.

4. Attachments --- Do not use attachments not recommended by the manufacturer as they may cause Hazards.

5. Water and moisture -- Do not place this product near water, for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

6. Do not place this unit on an unstable cart, stand, tripod, bracket, or table. Use only with a cart, stand, tripod, bracket, or table recommend by the manufacture, or sold with the unit.

7. Ventilation ---Slots and openings in the cabinets and the back or bottom are provided for Ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer`s instructions have been adhered to.

8. Power Source ---This unit should be operated only from the type of power source indicated on the rating label. If you are not sure of the type of power supply to your home, consult your Appliance dealer or local power company.

Grounding or polarization ---

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. To prevent electric shock, ensure the Grounding pin on the AC cord power plug is securely connected.

10. Power cord protection ---Power supply cords should be routed so that they are not likely to Be walked on or pinched by items placed upon or against them. Pay particular attention to cords or plugs, convenience receptacle, and the point where they exit from the appliance.

11. Lighting precaution ---For added protection for this product during a lighting storm or when it is left unattended for long period of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lighting and power line surges.

Accessories---

12. Never push objects of any kind into this product through openings as they may touch dangerous voltage point or short out parts that could result in a fire or electric shock. Avoid spilling liquid of any kind on the product.

13. Servicing ---Do not attempt to service the product by yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to authorized service personnel.

14.Damage Requiring Service ---Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the Following conditions:

PORTABLE CART WARNING

(symbol provided by RETAC)

S3126A

Important Safety Instructions

a. When the power supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have been fallen into the unit. c. If the unit has been exposed to rain or water. d. If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to its normal operation. e. If the unit has been dropped or damaged in any way. f. When the unit exhibits a distinct change in performance; this indicates a need for service.

15.Heat --- The product should be situated away heat source such as radiators, heat registers, stoves, or other products (Including amplifiers) that product heat.

16.Overloading ---Do not overload wall outlets and extension cord as this can result in a risk of Fire or Electric shock.

17. Outdoor antenna grounding---If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H)

Note: The PDP Manufacturing Process: a few minute colored dots may be

present on the PDP screen The PDP (Plasma Display Panel), which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell defects will normally occur in the PDP manufacturing process. Several tiny, minute colored dots visible on the screen should be acceptable. This also occurs in other PDP manufacturers' products. The tiny dots appearing does not mean that this PDP is defective. Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology minimizes these cell defects during the manufacture and operation of this product.

Table of Contents

Warning

.............................................

Important Safety Instructions................

buttons and interface location..............

Front control panel

............................

Rear control panel.......

......................

Remote controller Keys of remote controller Function introduction Effective range

................................

......................

........................

...............................

External Equipment Connections ........

Operation

Set up your TV...................................

Switching ON/OFF the TV set...........

Choose the Menu Language.............

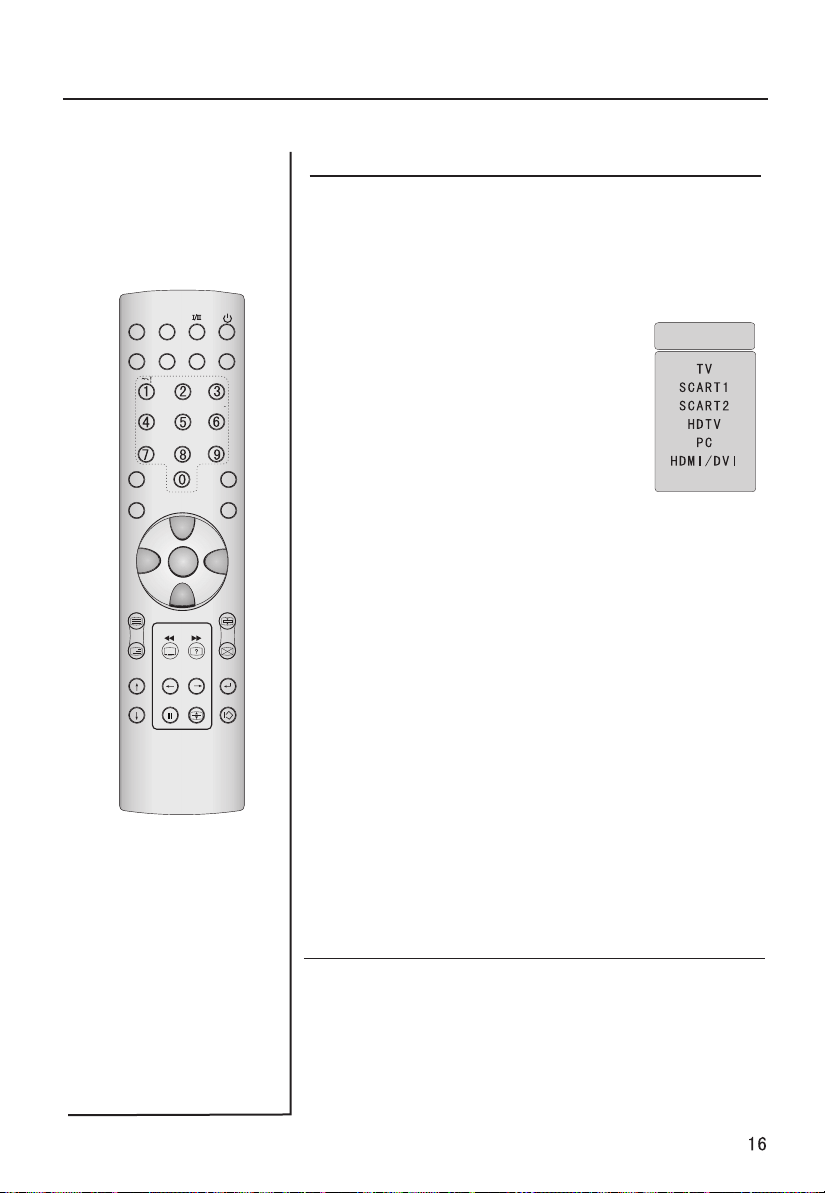

Select input modes ............................

Tuning menu

Auto search........................

.............

Program Table

Manual ..............................

......................................

.......

........................

search..

Fine Tuning.....................................

How to select the desired program.......

Edit Name Skip

.......................................

...............................................

Program swap.................................

Picture menu How to select picture modes

....................................

............

Noise Reduction .............................

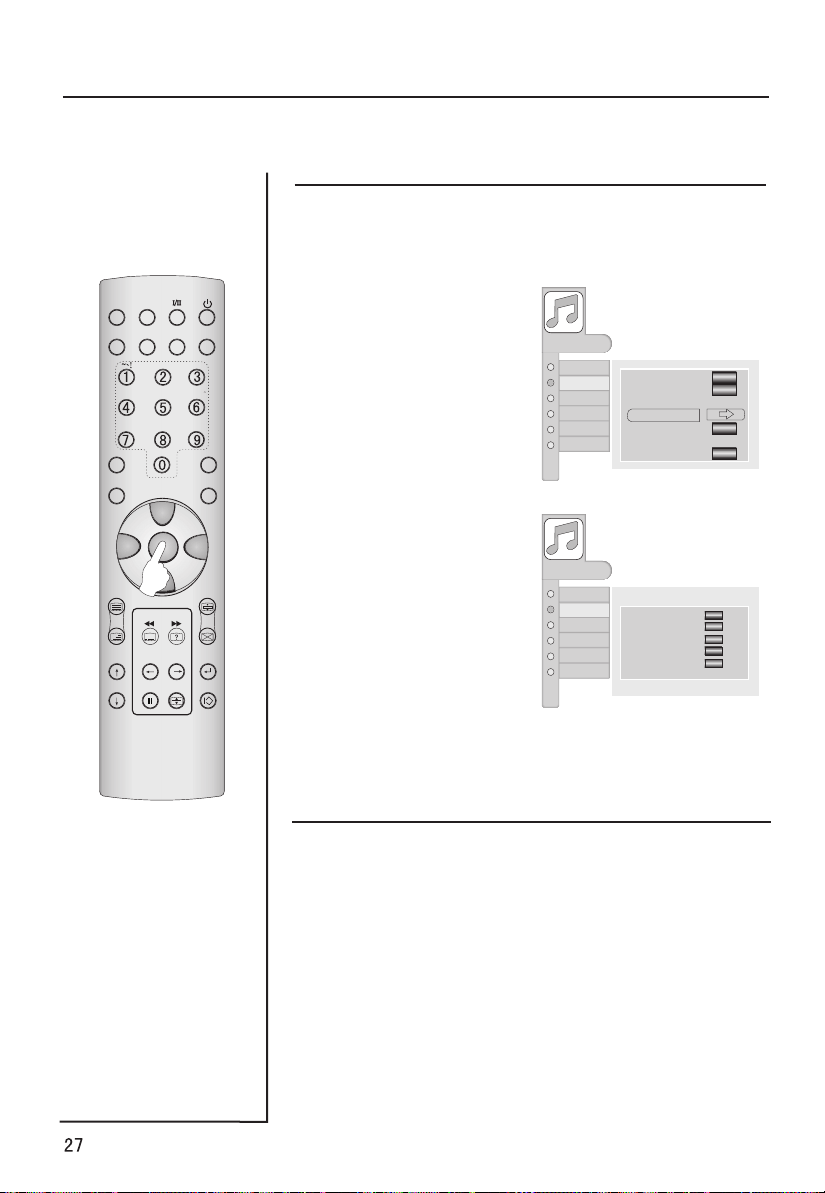

Sound menu..............................................

To choose sound modes ..........................

Balance.................................................

Setting Five Equalizer sound

Setting the surround sound ......................

Setting the Auto Volume

Setting the woofer sound.........................

How to eliminate sound

Timer menu

Timer setting

On/off time\Timer on Prog\Timer Prog ......

Function menu...........................................

Function setup .......................................

Adjust menu .............................................

To choose picture aspect ration ...............

H-Position and V-Position adjust .............

RGB/Default/Auto Sync ..........................

Color Temperature .................................

Black Stretch .........................................

Lock setup.................................................

Picture in Picture

Other functions.........................................

Teletext functions......................................

Maintenance............................................

Specifications and functions

Troubleshooting

...............................................

.........................................

.......................................

........................................

...................

...........................

.......................

26 26 26 27 27 28 28 28 29 29 30 31 31 33 33 34 35 35 35 36 39 40 42 44 45 46

Accessories

STILLSTILL

MUTEMUTE

DISPLAYDISPLAY

SLEEPSLEEP PIPPIP

SCANSCAN

ABC@ABC@

DEFDEF

GHI$GHI$ MNOMNO

JKL%JKL%

STUVSTUVPOR&POR& WXYZWXYZ

*#()*#()

TV/AVTV/AV

SWAPSWAP

P.STDP.STD S.STDS.STD

CH+CH+

VOL-VOL-

MENUMENU

VOL+VOL+

CH-CH-

H.LOCKH.LOCK

CH.LISTCH.LIST EXITEXIT

TIMERTIMER ZOOMZOOM

Remote controller

User's manual

Alkaline battery(AA) 2

Power cable

Buttons and interface location

-This is a simplified representation of front panel.

-Here shown may be somewhat different from your TV.

Front control panel

P42LV6-HD

1.EXIT:

clears all on-screen displays and returns to TV viewing from any menu.

2.INPUT: Source input select

3.CH- /CH+ Program plus and minus, menu options

4.VOL-/VOL+ Volume increase and decrease, menu reset and entry

5.MENU Menu display

6. Power

7.Remote control signal receive window.

8.Remote Indicator In red when standby mode, in blue when Display.

P50V6-A8

1.VIDEO input

2.L-AUDIO-R left and right audio input.

3.EXIT: clears all on-screen displays and

returns to TV viewing from any menu.

4.INPUT: Source input select.

5. CH- /CH+: Program plus and minus,

menu options.

6. VOL-/VOL+: Volume increase and

decrease, menu reset and entry

7.MENU: Menu display

8. Power

5 6

Buttons and interface location

Rear Control panel

P42LV6-HD

L R

AUDIO OUT

VGA

1. AUDIO OUT:

VGA IN

AUDIO

COMPONENT IN

Pr/Cr Pb/Cb Y L-AUDIO-R

Connect to optional external speaker(s).

HDMI/DVI VIDEO

DVI IN

AUDIO

SCART2 SCART1

ANT IN

SWITCH AC-INPUT

2.VGA IN(PC) Connect VGA analog cable from the PC to the VGA IN. Connect the audio cable from the PC

to the VGA AUDIO IN.

3.COMPONENT IN Connect the component cables from the component output of the video device to

COMPONENT IN. Connect the audio cable from the video device to the COMPONENT AUDIO IN.

4.DVI IN (HDMI-IN) Connect the HDMI cable from the HDMI output of the digital video device to the HDMI/DVI

VIDEO.(If the PC has DVI only,Connect the audio cable from the digital video device to the AUDIO .)

5-6.SCART2/SCART1 Used to connect to the DVD/ VCR/ broadcasting receiver or other equipment.

7.Earphone port

8.ANT IN: Connect antenna or CATV 75 coaxial cable to receive TV/CATV signal.

9. SWITCH and AC INPUT: Power switch and AC power input.

P50V6-A8

SWITCH AC-INPUT

VGA IN

VGA

AUDIO

COMPONENT IN

Pr/Cr Pb/Cb Y L-AUDIO-R

HDMI/DVI VIDEO

DVI IN

AUDIO

SCART2 SCART1

ANT IN

1.VGA IN(PC) Connect VGA analog cable from the PC to the VGA IN. Connect the audio cable from the PC

to the VGA AUDIO IN.

2.COMPONENT IN Connect the component cables from the component output of the video device to

COMPONENT IN. Connect the audio cable from the video device to the COMPONENT AUDIO IN.

3.DVI IN (HDMI-IN) Connect the HDMI cable from the HDMI output of the digital video device to the HDMI/DVI

VIDEO.(If the PC has DVI only,Connect the audio cable from the digital video device to the AUDIO .)

4-5.SCART2/SCART1 Used to connect to the DVD/ VCR/ broadcasting receiver or other equipment.

6.Earphone port

7.ANT IN: Connect antenna or CATV 75 coaxial cable to receive TV/CATV signal.

8. SWITCH and AC INPUT: Power switch and AC power input.

Remote controller

Inserting Batteries

1.Slide open the

cover of the battery compartment on the back of the remote controller.

Precautions

2.Load two AA alkaline

batteries in the compartment.

paying attention to the polarity diagram in the battery compartment.

poles to respective mark)

(plus and minus

3.Replace the cover of the

battery compartment.

As strong light may interfere the signals, change your position to operate the remote controller if the television cannot be turned on or off as you expect.

Keep the remote controller away from heat source or humid area to ensure effective performance of the remote controller.

Make sure that two AA alkaline batteries are loaded. The batteries must be of the same type. The batteries must be located properly. The batteries are not rechargeable.

Make sure that there is no obstacle between the remote controller and television set.

Keys of remote controller

- The remote controller cannot be operated unless the batteries are properly loaded.

- When using the remote control, aim it at the remote control sensor on the TV.

Function introduction

STILL

Picture static

Displaying sleep time,

Switches the sound on or off

Program scan button

Input source display

SLEEP

adjustable

MUTE

SCAN

TV/AV

P.STD

(Picture mode option)

sound increase

and decrease

STILL

MUTE

ABC@

JKL%

STUVPOR& WXYZ

*#()

CH+

VOL+

DISPLAY

DEF

SWAP

SLEEP PIP

SCAN

GHI$ MNO

TV/AV

P.STD S.STD

VOL-

I/II (NICAM)

PIP

Power Off/Standby

any other programmed equipment off.

DISPLAY

Display ON/OFF

Digits

Program direct option(when edit program, every press can set different sign by turns among the digits and sign on top of them)

SWAP

Switch the current channel to the last channel you have viewed.

S.STD

(Sound mode option)

Program up and down Or turns your TV

CH-

main menu entry, menu exit or return to next higher level menu.

Teletext buttons

buttons which have letters

on top also can use in TV.

Channel list button

H.LOCK

CH.LIST EXIT

TIMER ZOOM

Lock button

(enter the Lock Set menu)

EXIT

clears all on-screen displays and returns to TV viewing from any menu.

Time display(only when

there is teletext in TV)

TIMER

ZOOM

Adjust picture aspect ratio

Note:

This User's Manual covers the functions of the remote controller, including CH+/-, VOL-/+, MENU, TV/AV and POWER keys for control of program up, program down, volume decrease, volume increase, menu, TV/AV and power ON/OFF.

Remote controller

Effective range

DISPLAY

-/--/---

PSM

TV/AV MUTE

UP LEFT

DOWN

PAUSE ENTER

SWAP EXIT

right

POWER

FAV.

USB

Q.VIEW SLEEP

SSM

CH+

VOL-

VOL+

CH-

H.LOCK

PREV.

left

front 8m

POWER

DISPLAY

FAV.

USB

-/--/---

Q.VIEW SLEEP

PSM

SSM

TV/AV MUTE

CH+

VOL-

VOL+

CH-

UP LEFT

H.LOCK

PREV.

DOWN

PAUSE ENTER

SWAP EXIT

right

above

left

front 8m

20 20

below

Ensure the remote controller is pointed toward the remote

controller window on the display.

No obstacles should be placed between the remote controller

and the remote controller window.

The effective receiving scope for the signal is 8 meters to the

front of the remote controller window, and 45 to the left or right side and 20 above or below the control window.

Use of remote controller:

1. To ensure a normal operation, the remote controller should not

be dropped or damaged in any way . It should also be kept dry and away from all heat sources.

2. Battery replacement is necessary when the remote controller

acts inconsistently or stops operating the plasma display.

External Equipment Connections

Antenna Connection

Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an outdoor antenna .In different places, the suitable antenna type and position are different.

Mixer

additional

outdoor antenna

purchase

Antenna input

75 standard

coaxial type

SWITCH

ANT IN

300 twin-lead cable

Antenna adapter

AC-INPUT

75 coaxial cable

Plug (additional purchase)

Note * It is recommended that you'd better use 75

coaxial cable to remove the disturbance caused by airwave. * Don't bind antenna cable and electric wire together.

AC power socket

If the antenna needs to be split for two Tv`s, install a

2-WaySignal Splitter in the connections.

If the antenna is not installed properly, contact your

dealer for assistance.

To improve picture quality in a poor signal area,

purchase and install a signal amplifier.

External Equipment Connection

NOTE: All cables shown are not included with the TV.

Choose Your Connection

There are several ways to connect your television, depending on the components you want to connect and the quality of the signal you want to achieve. The following are examples of some ways to connect your TV. Choose the connection which is best for you.

VCR connection

- To avoid picture noise (interference), leave an adequate distance between the VCR And TV.

1. Connect the SCART cables from

the VCR's output jacks to the TV`s input jacks, as shown in the figure.

COMPONENT IN

2. Insert a video tape into the VCR and

press PLAY on the VCR. (Refer to the VCR owner`s manual.)

3. Select the input source

by the TV/AV button on the remote control.

Pr/Cr Pb/Cb Y L-AUDIO-R

S-VIDEO

SCART2 SCART1

ANT IN

External Equipment Connections

DVD connection

How to connect

1. Connect the DVD video outputs (Y,

Pb/Cb, Pr/Cr) to the YUV IN jacks on the TV and connect the DVD audio outputs to the AUDIO IN jacks on the TV, as shown in the figure.

2. If your DVD only has an SCART output

jack, connect this to the SCART input on the TV. as shown in the figure.

NOTE: If your DVD player does not have component video output, use S-Video.

How to use

1. Turn on the DVD player, insert a DVD.

2. Use the TV/AV and VOL+/- button on the

remote control to select SCART mode.

3. Press Play button on external equipment

for program play.

4. Refer to the DVD player's manual for

operating instructions.

COMPONENT IN

Pr/Cr Pb/Cb Y L-AUDIO-R

SCART2 SCART1

DVD

ANT IN

VGA IN COMPONENT IN

VGA

RGB-DTV OUTPUT R AUDEO L

AUDIO

Pr/Cr Pb/Cb Y L-AUDIO-R

HDMI/DVI OUTPUT R AUDEO L

Digital Set-top Box

HDMI/DVI VIDEO

YPbPr

DVI IN

AUDIO

DTV connection

-To watch digitally broadcast programs, purchase and connect a digital set-top box.

How to connect

Use the TV`s YPbPr IN and AUDIO IN jacks, VGA or HDMI/DVI VIDEO port for video connections, depending on your set-top box connections available. Then, make the corresponding audio connections.

How to use

1. Turn on the digital set-top box. (Refer to

the owner`s manual for the digital set-top box.)

2. Use TV/AV on the remote control to

DVI

select mode.

3.Press Play button on external equipment

for program play.

R AUDEO

External Equipment Connections

PC connection

How to connect

1. To get the best picture quality, adjust the PC

graphics card to (>1024

2. Use the TV`s VGA port for video

connections, depending on your PC connector.

If the graphic card on the PC does not output

analog and digital RGB simultaneously, connect only one of eitherVGA to display the PC on the TV.

If the graphic card on the PC does output

analog and digital RGB simultaneously, set the TV to eithe ; (the other mode is set to Plug and Play automatically by the TV.)

x768),60Hz.

r VGA

3. Then, make the corresponding audio

connection. If using a sound card, adjust the PC sound as required.

How to use

1. Turn on the PC and the TV.

2. Turn on the display by pressing the POWER

button on the TV's remote control.

3. Use TV/AV on the remote control to select PC.

VGA IN

L R

AUDIO OUT

VGA

AUDIO

or DVI source.

4. Check the image on your TV. There may

be noise associated with the resolution, vertical pattern, contrast or brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

NOTES: 1 Use a VGA cable. 2 Avoid keeping a fixed image on the TV's

screen for a long period of time. The fixed image may become permanently imprinted on the screen. 3 The synchronization input form for Horizontal and Vertical frequencies is separate.

Resolution

Mode

VGA

SVGA

XGA

Resolution

Line frequency (Khz)

Frame frequency (Hz)

640*480 31.5KHz 60Hz

800*600 37.9KHz 60Hz

1024*768 48.4KHz 60Hz

External Equipment Connections

Connecting Headphones

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

Plug a set of headphones into the 3.5mm mini-jack socket on the rear panel of the set.

Note

Prolonged use of headphones at a high volume

may damage your hearing.

You will not receive sound from the speakers

when you connect headphones to the system.

ANT IN

SWITCH AC-INPUT

Power source

Wider Hole and Blade

Polarized AC Cord Plug

AC Outlet

TO USE AC POWER SOURCE

Use the AC polarized line cord provided for operation on AC. Insert the AC cord plug into a standard polarized AC outlet.

NOTES:

Never connect the AC line cord plug to other

than the specified voltage. Use the attached power cord only.

If the polarized AC cord does not fit into a non-

polarized AC outlet, do not attempt to file or cut the blade. It is the user`s responsibility to have an electrician replace the obsolete outlet.

If you cause a static discharge when touching

the unit and the unit fails to function, simply unplug the unit from the AC outlet and plug it back in. The unit should return to normal operation.

+ 33 hidden pages
