Haier LE19P620 Schematic

19″ LCD TV Haier LE19P620

Service

Service

Service

Table of Contents

Description Page Description Page

Table of Contents.......……...................................…...1

6. PCB Layout ……….………………………………..33

Important Safety Notice.......................................…….2

Revision List………………………………………………..3

1. General Specification....................................……….....4

2. Operating Instructions..………………….……...……..5

2.1 Remote Control…………….……...…………...……....5

2.2 OSD Menus…………....………………….….………....7

2.3 Panel Control And Rear Terminal Control………...18

3. Input/Output Specification………….....................….22

4. Mechanical Instructions……………………................24

5. Repair Flow Chart ……………………………………...26

6.1 Main Board+Power Board………………………..33

6.2 IR Board………….……………..……….….......35

7. Adjustment..............................................................36

7.1 ADC/WB Adjustment..............................................36

7.2 Firmware and DDC Instruction..............................37

8. Block Diagram..…..…..............................................39

9. Wiring Diagram....…….............................................40

10. Schematic Diagram.………..…….………………....41

10.1 Main Board+Power Board………………………..41

10.2 IR Board………….……………..……….…............50

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all Haier Company Equipment. The service

procedures recommended by Haier and described in this service manual are effective methods of performing

service operations. Some of these service operations require the use of tools specially designed for the purpose.

The special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. Haier could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, Haier has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by Haier must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, Haier Company will be referred to as Haier.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from Haier.

Haier assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

2

Revision List

Version Release Date Revision Instructions Customer Model Model

A00 Aug.19,2014 Initial release LE19P620 E1BE91NCGXH6NNQ

3

1. General Specification

4

2. Operating Instructions

2.1 Remote Control

5

6

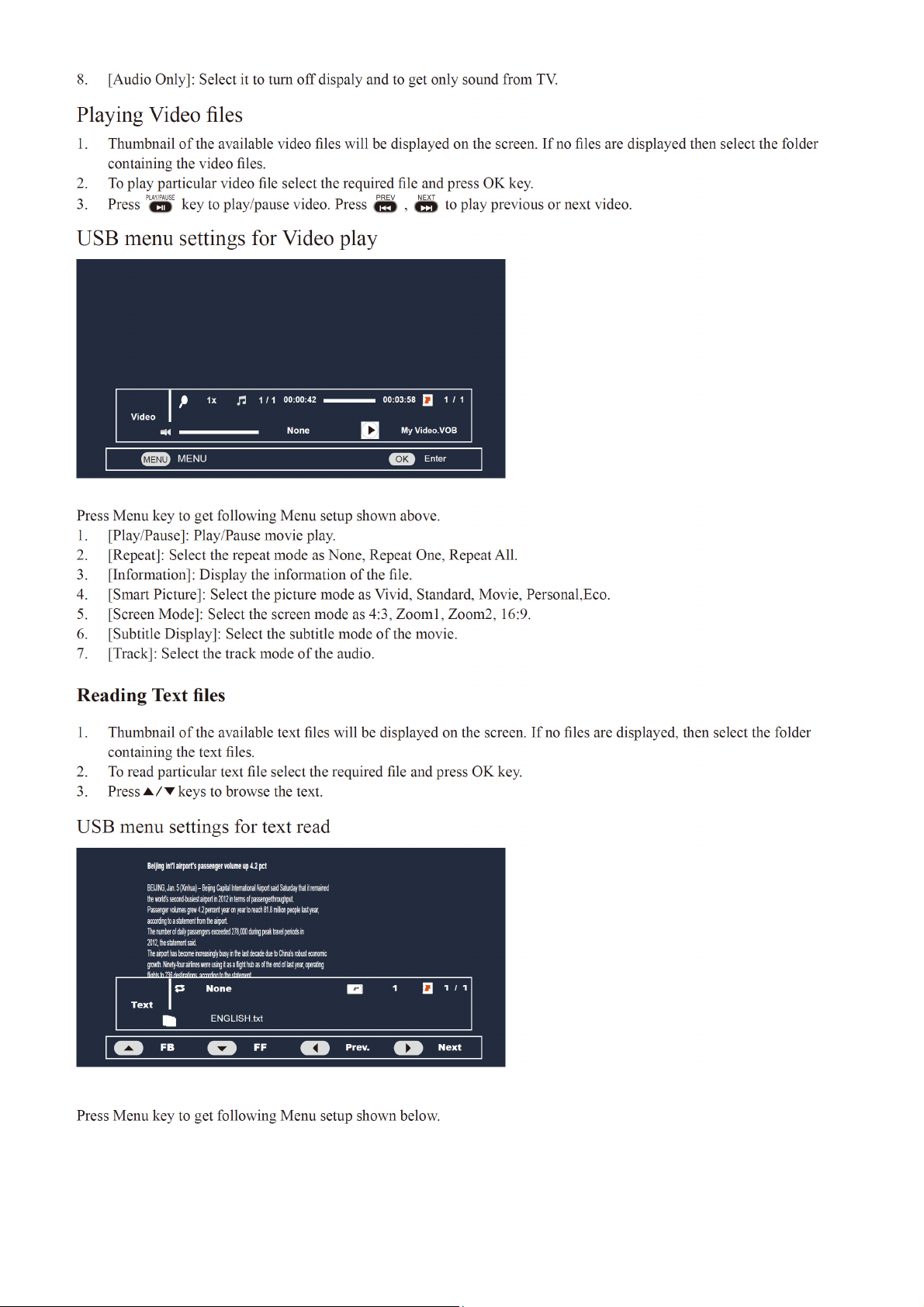

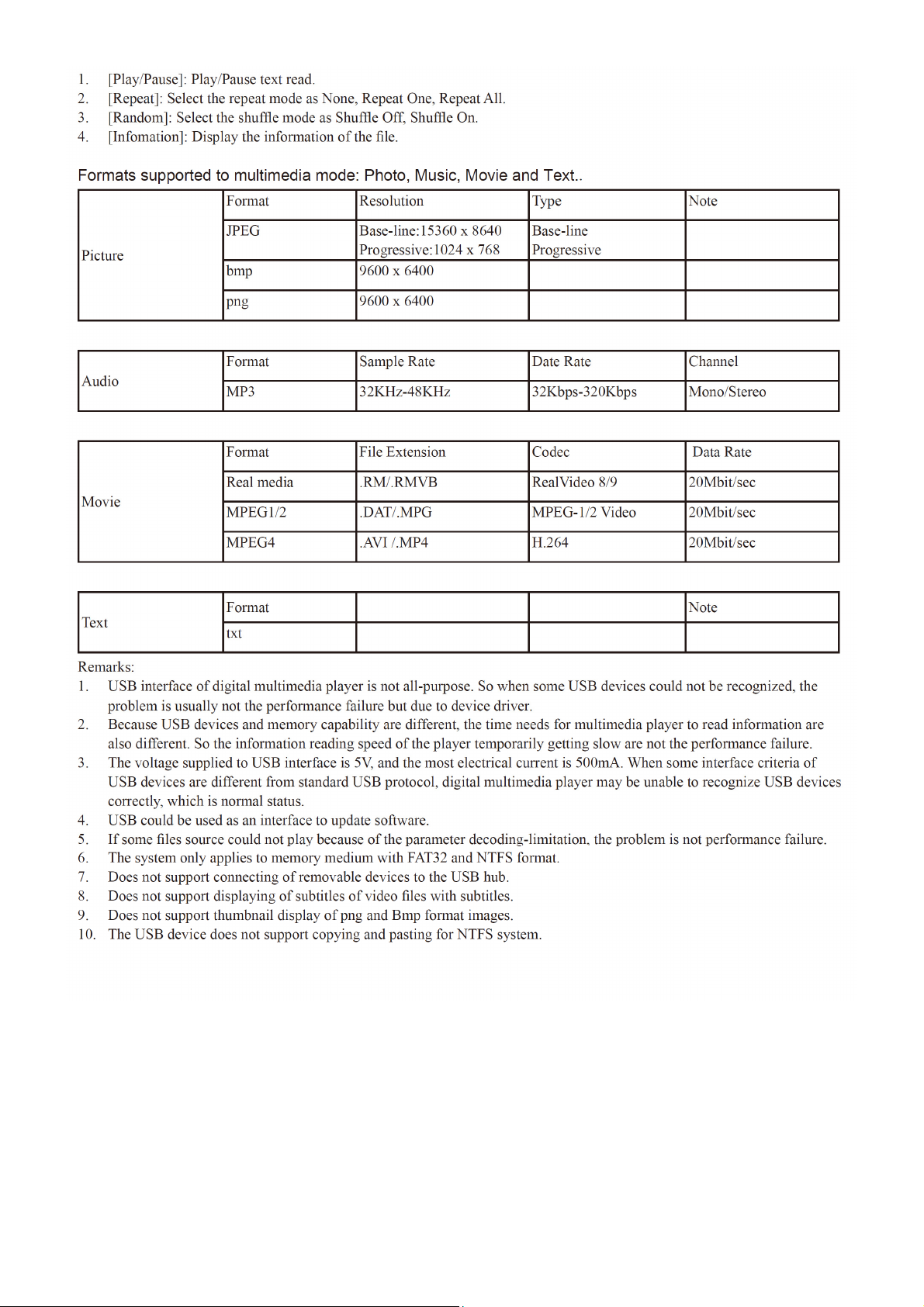

2.2 OSD Menus

7

8 9

10 11 12 13 14 15 16 17 18

2.3 Panel Control and Rear Terminal Control

19 20 21

V

T

T

T

T

T

T

T

T

T

T

T

T

3. Input/Output Specification

3.1 Input Signal Connector

D-SUB

HDMI

Pin No. Description Pin No. Description

1 Red Video 9 No Pin

2 Green Video 10 Sync Ground

3 Blue Video 11 RXD

4 TXD 12 Serial Data for DDC

5 Ground 13 H. Sync

6 Red Ground 14

7 Green Ground 15 Serial Clock for DDC

8 Blue Ground

. Sync

Pin No. Description Pin No. Description

1

2

3

4

5

6

7

8

9

10

MDS Data2+ 11

MDS Data2 shield 12

DMS Data2- 13 CEC

MDS Data1+ 14 Reserved (N.C. on device)

MDS Data1 shield 15 SCL

MDS Data1- 16 SDA

MDS Data0+ 17 DDC/CEC Ground

MDS Data0 shield 18 +5V Power

MDS Data0- 19 Hot Plug Detect

MDS Clock+

MDS Clock Shield

MDS Clock-

22

3.2 Input Signal Timing

23

4. Mechanical Instructions

Step1. Remove the BASE.

Step2. Remove the REAR COVER.

24

Step3. Remove the MAIN BOARD+POWER BOARD、IR BOARD and Speakers.

Step4. Remove the panel.

25

p

put

5. Repair Flow Chart

1. No power

No power (LED “Off”)

Check the AC input and
the

ower is “ON”?

Yes

main board+power

board out

Yes

Check the main board+power board and LED

Replace the main board+power board

No

Replace the main board+power board

=5V?

No

No

Power “On”

Replace the main

board+power board

26

2. Can’t start

Can’t start（LED Blue）

main board+power board output

＝12V/24V?

Yes

Check the power key is under control?

No

Check the IR receiver is normal?

No

Replace the main board+power board

Yes

Replace the main board+power board

Yes

Replace the IR board

No

Replace the main board+power board

No

Replace the main board+power board

27

p

3. Abnormal Display

Abnormal Display

Check the source

Yes

Enter factory mode to do

“EEPROM initial”&“Reset”

No

No

Reset the source

Check the main

board+

Check the LVDS cable

Replace the panel

ower board

Yes

Yes

Check the panel

No

No

Replace the main board+power board

No

Replace the LVDS cable

28

/

4. No display

No display (LED Red)

Check TV is under control and power
on/off by remote control and power key?

Yes

Check the LVDS cable

Yes

Yes

Check the backlight is

“On”?

No

Reinsert or replace the
LVDS cable

No

No

Check the B/L

signal is available?

Yes

Replace the main
board+power board

No

Replace the main

board+power board

Panel Vcc = 12V?

Yes

Replace the Panel

No

Replace the main

board+power board

main board+power board output

＝12V

Yes

Replace the Panel

24V?

No

Replace the main

board+power board

29

5. Sound problem

No sound or sound abnormal

Check the audio source connection

and the TV system are correct?

Yes

Check the TV is muted, adjust the

volume or enter the menu to reset?

No

No

Reinsert the audio cable or
change the TV system

Enter factory mode to do “Reset”

No

Check the cable between the
speakers and main board+power
board is OK?

Yes

Check the speaker resistance value is in spec
(Remark: The value is marked on the speaker)?

Yes

Replace the cable

Replace the main board+power board

No

No

Replace the speaker

30

6. Remote control malfunction

Remote Control malfunction

Check the remote control battery is
not properly placed or no power?

No

Use the other remote controls

No

Whether the IR board is

abnormal?

No

Replace the main board+power board

Yes

Replace the battery

Yes

Replace the remote control

Yes

Replace the IR board

31

prop

7. OSD is unstable or can’t work normally

OSD is unstable or can’t work normally

main board+power board

connected

Yes

Buttons are OK?

Yes

main board+power

board

Yes

Enter factory mode to do “Reset”

No

erly?

No

No

No

Reconnect the main board+power board

Replace the button function

Replace the main board+power board

Replace the main board+power board

32

6. PCB Layout

6.1 Main Board

715G6717C1A000004N

33

34

6.2 IR Board

715G5889R01000004K

35

7. Adjustment

7.1 ADC/ WB Adjustment

ADC and WB Adjustment are no need to adjust.

36

7.2 Firmware and DDC Instruction

Step 1: Ready for F/W Upgrade

1.1 F/W:

1.2 Prepare a USB memory (The file system of USB memory must be FAT16 or FAT 32).

1.3 Copy the FW from your computer to the USB memory, and remove it from computer’s USB port!

Step 2: F/W Upgrade

Upgrades have two ways:

The first method:

2.1.1 Power ON the TV, and change the TV to other signal source don’t in USB signal source.

2.1.2 Plug the USB memory on the USB port on the left side I/O port of TV.

2.1.3 When TV detect the USB memory and display below Upgrade information.

2.1.4 Choose “yes” to upgrade it. TV will upgrade automatically.

Notes: When Upgrade on the process, please don’t Power-Off!

37

2.1.5 After finish upgrade process, TV will reboot by itself. Replug the USB memory.

The second method:

2.2.1 AC power off

2.2.2 Plug the USB disk on the USB port on the side I/O port of TV.

2.2.3 TV AC power off -> AC power on

2.2.4 TV will upgrade by itself after detect the USB disk condition and the content of the bin file.

2.2.5 After finish upgrade process, TV will reboot by itself

2.2.6 Remove USB disk from TV.

2.2.7 Check if the software version is correct.

2.2.8 Please do factory reset in user menu.press “menu +1999+back/return” into factory menu, choose

“System Reset”.

2.2.9 Reset finish, AC OFF.

38

8. Block Diagram

39

Pin

9. Wiring Diagram

Panel

6 Pin

Panel

Power Cord

4 Pin

5 Pin

CN401

CN601

30 Pin

CN403

MST6820XP

U401

Scaler IC

2

CN9901

CN8101

MAIN BOARD

5 Pin

CN201

IR Board

Speaker L

Speaker R

40

10. Schematic Diagram

10.1 Main Board (715G6717C1A000004N)

+12VO[3]

Backlight Control

BL_ON/OF F VBL_CTRL

+3.3V_Standby

R707

4.7K 1/16W

R727 4.7K 1/16W

R710 4.7K 1/16WQ703

BL_ON/OF F10

R712

1K

BL_PWM10

BL_PWM

MMBT39 04

+12VO

VBL_CTRL 2

P12V

BRI_AD J-PWM0 2,3

DGND

R725

13.3K 1%

R730

100K1/16W

1

2

R734
62K 1/16W 1%

DGND

U706

FB

EN

GND3IN

SY8104AD C

C704

6

BS

5

LX

4

R742 0R05 OHM

22pF 50V

R726 100K 1%

C726

0.1uF 50V

10uF 16V

DGND

4.7uH

R740 0R051/8W

C713

L702

Vout = 0.6x (1+100/13. 3)=5.11V

3.3A

C727

P12V

22UF 10V

DGND

DGND

FB704

1 2

300R 4A

C728
22UF 10V

+5V_Standby

DDR Power

+5V_No rmal

R718 2.2R

PW_CTL

PW_CTL7

U703
AZ1084D-ADJTRE1

3

VOUT

VIN

C721

10UF 10V

Vout = 1.25x(R1+R2)/R2

1.845V

R723 4.7K 1/16W

GND

1

+5V_Standby

R720

100K1/16W

R722
10K+- 5%1/16W

Q706

MMBT3904

+1.8V_DDR

2

R719

2.4K 1%

R1

R701

0R05 OHM

R721 1Kohm 1/16W + /-1%

R729

47K

C722

10UF 10V

SMTSMT

R2

C724

100NF 16V

Q708

AO3401A

+5V_N ormal

R732

100K1/16W

+5V_Standby

C712

1UF16V

CORE P OWER 1 .2 8V

R1

R724 100K 1%

DGND

C716

10UF 10V

DGND

+5V_Standby

R2

R711 100K 1/ 16W

C718

10UF 10V

DGND

DGND

1

2

3

4
9

R741 10K

絬隔瓜絪腹

Key Component

+3.3V_Standby

U702

2

VI3VO

4

4

8

7

EN

6

LX

5

NC

100K1/16W

01-Power

C711

10UF 10V

R717 13K 1%

DGND

2.04A

R731

DGND

Vout=0.6(1+ R1/R2)=1.1V

+1.2V_VDDC

L703

2.2uH

C715
NC/1UF 16V

DGND

OEM MODEL

TPV MO DEL

PCB NAME

Sheet

C717
22UF 6. 3V

715GXXXX-M 0A - 000-0040

110Monday, June 16, 2014

of

+5V_Standby

C719

22UF 6.3V

Size

Rev

称爹

GND

1

C730 22P 50V

R728 100K 1%

FB

SGND

PG

IN

PGND
PGND

U707 SY8003ADF C

T P V ( Top Victory Electronics Co . , Ltd. )

A

Date

A3

称爹

<>

41

H/W R es et

R405
1K 1/16W

Sys tem-RST

C404

1NF 50V

System XTAL

XTAL O

0R05 OHM

XTAL I

C434
100N 16V

DGND

SPI-SCK

R435 51R

SPI-SDI

C436
22PF 50V

R427

SPI_CS0N
SPI-SDO
SPI_WP0N

VGA_HS4
VGA_VS4
VGA_BIN4
VGA_GIN4
SOG04
VGA_RIN4

AV1-CVBS0P4

VGA-AUR14
VGA-AUL14
AV1_AUR44
AV1_AUL44

VIFP7
VIFM7
TAGC7

+3.3V_Standby

WP active low

HOTPLUG05
HDMI0_DDC _SCL5
HDMI0_DDC _SDA5
HDMI0_CLK+5
HDMI0_CLK-5
HDMI0_D0+5
HDMI0_D0-5
HDMI0_D1+5
HDMI0_D1-5
HDMI0_D2+5
HDMI0_D2-5

HDMI_CEC5

USB0_DP4
USB0_DM4

IRIN9

UART-RX4,9

UART-TX4, 9

KEY0-SAR09

R431

4.7K 1/16W

R434 1K 1/16W

100N 16V

HDMI_HP0
HDMI0-SCL

HDMI0-SDA

HDMI0-CLKP
HDMI0-CLKN
HDMI0-RX0P
HDMI0-RX0N

HDMI0-RX1P

HDMI0-RX1N
HDMI0-RX2P

HDMI0-RX2N

HDMI-CEC

VGA_HS
VGA_VS
VGA_BIN
VGA_GIN
SOG0
VGA_RIN

AV1-CVBS0P

VGA-AUR1

AV1_AUR4
AV1_AUL4

USB0_DP
USB0_DM

VIFP
VIFM
TAGC

IRIN

UART-RX
UART-TX

KEY0-SAR0

SERIAL FLASH

FLASH_WP0N

R436

C435

DGND

10K

close to IC

U402

1

CS#

2

SO/SIO1

3

WP#
GND4SI/SIO0

MX25L3206EM2I-12G

+5V_Standby

R424

R425

4.7K 1/16W

4.7K 1/16W

HOLD#

SCLK

+3.3V_Standby

8

VCC

7
6
5

C402

2.2UF 16V

R428

1M 1/16W

+5V_Standby

3

2

Q402
MMBT3906

R406

22K 1/16W

VDD33

VDDC

68OHM 1/16W

VDD33

68OHM 1/16W

12

1M 1/16W

1

R404

4.7K 1/16W

47nF 16V

C412

100N 16V

C425
27PF 50V

C430
27PF 50V

R403

C403

2.2UF 16V

AVDD_DDR

GND-EFUSE

HDMI0-R X1P

HDMI0-R X2P

HDMI0-R X0P

IRIN

System-RST

HDMI0-RX1N

HDMI0-SDA

HDMI0-SCL

HDMI0-RX2N

HDMI_HP0

HDMI0-RX0N

HDMI0-CLKP

HDMI-CEC

HDMI0-CLKN

90

95

98

99

100

101

U401

E-Pad

AVDD_MOD
AVDD_12
HSYNC0
BIN0P
SOGIN0
GIN0P
GIN0M
RIN0P
VSYNC 0
AVDD_ADC 33
BIN1P
SOGIN1
GIN1P
GIN1M
RIN1P
VSYNC 1
CVBS2
CVBS1
CVBS0
VCOM
CVBSOUT
AVDD_AU33
LINEIN_L 0
LINEIN_R 0
AUVAG

MST3820XP

+3.3V_Standby

RXD2P

LINEIN _L426LINEIN _R427LINEIN _L528LINEIN _R5

AV1_AUR4

AV1_AUL4

R423

4.7K 1/16W

PW_CTL

RXD2N

1
2
3

VGA_HS

4

VGA_BIN

5

SOG0

6

VGA_GINVGA-AUL1

7

C407

8

VGA_RIN

47nF 16V

9

VGA_VS

10
11
12
13
14
15
16
17

CVBS2

AV1-CVBS0P

C410

VGA-AUL1
VGA-AUR1
AUVAG

18
19
20
21
22
23
24
25

PWR-ON/ OFF

VBL-CTRL VBL_C TRL
BRI_ADJ -PWM0

C411

47nF 16V

C413

10UF

FB402

60 OHM

1 2

96

93

92

89

91

94

97

RXD0P

RXD1P

RXD1N

RXD0N

RXDCKP

RXDCKN

DDCD_DA

DDCD_CK

HOTPLUGD

QFP 100

LINEOUT_L 330LINEOUT_R 331LINEOUT_L 032LINEOUT_R 033XOUT34XIN35AVDD_DMP LL

36

29

XTALI

XTALO

AMP-AUOUT L0

AMP-AUOUT R0

AVDD_DM PLL

AVDD_DEMOD

88

86

CEC87IRIN

GND

HWRESET

IM39TAGC

AVDD_REF37IP38GPIO5643GPIO5744AVDD_PLL45VDD46GPIO55

40

VIFM

VIFP

TAGC

ON_PANEL

KEY0-SAR0

SPI_WP0N

UART-RX

UART-TX

81

83

85

84

SAR1

SAR0

DDCA_DA82DDCA_CK

VDDIO_DATA

VDDIO_CMD

41

42

TUNER_SDA

TUNER_SCL

PWR-ON/ OFF

VDD33

AVDD_DDR

PW_CTL 1

VBL_CTRL 1

BRI_ADJ -PWM0 1

PWM180PWM0

VDDC

BRI_ADJ -PWM0

79

RXE3+

78

GND

LVA3P47LVA3M48LVACKM

RXE3-

USB0_DM

USB0_DP

77

76

DP_P0

DM_P0

75

SPI_CS0N

CSZ

74

SPI-SDO

SDO

73

SPI-SDI

SDI

72

SPI-SCK

SCK

71

VBL-CTRL

GPIO0

70

GPIO65

AVDD_MOD

LVBCKM
LVBCKP

AVDD_MOD

LVACKP

49

50

RXEC-

RXEC+

AUDIO_EN

69

VDDC

68

RXO0-

LVB0M

67

RXO0+

LVB0P

66

RXO1-

LVB1M

65

RXO1+

LVB1P

64
63

RXO2-

LVB2M

62

RXO2+

LVB2P

61

RXOC-

60

RXOC+

59

RXO3-

LVB3M

58

RXO3+

LVB3P

57

RXE0-

LVA0M

56

RXE0+

LVA0P

55

RXE1-

LVA1M

54

RXE1+

LVA1P

53

RXE2-

LVA2M

52

RXE2+

LVA2P

51

CHIP_CONFIG

{IPAD_PWM1, PAD_PWM0}
B51_NO_EJ

+3.3V_Standby

DDR Power

+1.8V_D DR

0R05 1/10W

SPI_WP0N BRI_ADJ -PWM0

Power 3.3V

FB403

1 2

FB408

R419

4.7K 1/16W

60 OHM

10UF

C431
10UF

AUDIO_EN 8

VDD33

C415

4'h00

R420

4.7K 1/16W

C416

100N 16V

C432

10UF 6.3V

AMP-AUOUTR0
AMP-AUOUTL0

VDDC

VDD33

VDD33

C417

100N 16V

C433

100N 16V

100N 16V

AVDD_DDR

C418

C419

100N 16V

+3.3V_Standby

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

TUNER_SCL
TUNER_SDA

ON_PANEL

C420

C422

100N 16V

100N 16V

FB406

1 2

Power 1.2V

+1.2V_V DDC

1 2

FB401120R/3000mA

RXO0- 3
RXO0+ 3
RXO1- 3
RXO1+ 3
RXO2- 3
RXO2+ 3
RXOC- 3
RXOC+ 3
RXO3- 3
RXO3+ 3

RXE0- 3
RXE0+ 3
RXE1- 3
RXE1+ 3
RXE2- 3
RXE2+ 3
RXEC- 3
RXEC+ 3
RXE3- 3
RXE3+ 3

C406
180PF 50V

C409
180PF 50V

+3.3V_Standby

AVDD_DEMOD

60 OHM

C423

100N 16V

C426
10UF

TUNER_SCL 12
TUNER_SDA 12
ON_PANEL 3

R409

100K 1/16W

R413

100K 1/16W

FB404

1 2

60 OHM

C428

C427

100N 16V

100N 16V

AMP_AUOUTR0 8

AMP_AUOUTL0 8

AVDD_DMPLL

C421

100N 16V

+3.3V_Standby

1 2

FB40760 OHM

VDDC

C429

100N 16V

AU33

C424

100N 16V

D401

BAV99

R410

R415

AU33

X401

24MHz

42

AGNDDGND

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

02.MST6831XP/SPI FLASH

Date

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

715GXXXX-M0 A -0 0 0- 0040

of

212Monday, J une 16, 2014

Custom

Size

Rev

称爹

<>

称爹

+5V_Standby

P12V

+12VO[3]

ON_PANEL2

P12V

R442 4.7K 1/16W

R443

10K+- 5%1/16W

DGND

R438

NC/0oHM

R437 0oHM

100K1/16W

R439

R473

47K

R441

10K+- 5%1/16W

Q403
MMBT3904

DGND

Panel Power

C401

220N 25V

Q401

AO3407A

PANEL_VCC

C437

100NF 16V

DGND

R440

NC/1K 1/4W

RXO0-2

RXO0+2

RXO1-2

RXO1+2

RXO2-2
RXO2+2
RXOC-2
RXOC+2

RXO3-2
RXO3+2

RXE0-2

RXE0+2

RXE1-2

RXE1+2

RXE2-2

RXE2+2

RXEC-2
RXEC+2

RXE3-2

RXE3+2

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

PANEL_VCC

RXO0+
RXO1+

RXOC+ RXOC1+

R483

0R05 OHM

R451

0R05 OHM

RXO2+

RXO3+

RXE0+
RXE1+
RXE2+

RXE3+

RXEC1+

CN403

30
28
26
24
22
20
18
16
14
12
10

8
6
4
2

DGND DGND

29
27
25
23
21
19
17

RXOC1- RXOC-

RXEC1-RXEC+

R484

0R05 OHM

R450

0R05 OHM

15
13
11
9
7
5
3
1

+3.3V_Standby

R453

NC/ 4.7K

SELLVDS

RXO0­RXO1­RXO2-

RXO3-

RXE0­RXE1­RXE2­RXEC­RXE3-

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

R452

NC/ 4.7K

DGND

03. LVDS

OEM MO DE L

TPV MODEL

PCB NAME

Sheet

715GXXXX-M 0A - 000-0040

310Monday, June 16, 20 14

of

43

Size

Rev

称爹

B

称爹

<>

AV1 IN

CONN

CN104

VGA_SDA

VGA_HSYN C

VGA_VSYNC

VGA_SCL

PC IN

1
2

3

AGND

330pF 50V

CN103

2

A

1

4

B

VGA-AUL1

12K 1/16W

AGNDAGND

C111

2.2uF 10V

C112

2.2uF 10V

R119

VGA-AUR1

VGA-AUL1 2

VGA-AUR1 2

R116

10K 1/16W 5%

Placement Near RCA.

R117

10K 1/16W 5%

C113

C114

330pF 50V

AGNDAGND

R118

12K 1/16W

C

RCA JACK

3

7
6
5

AGND

AVR1_IN_R1

AGND

AV1_IN_L1

VGA IN

1716

6
1

11

7
2

12

8
3

13

9
4

14

10
5

15

CN105
CONN

088G353GFF1ACL

Close to MST IC

R125

75 OHM +-1% 1/10W

0603

R128

75 OHM +-1% 1/10W

0603

R130

75 OHM +-1% 1/10W

0603

VGA_R

R122 33R 1/16W 5%

0402

VGA_G

R126 33R 1/16W 5%

0402

VGA_SOG

R127 33R 1/16W 5%

0402

VGA_B

R129 33R 1/16W 5%

0402

C117
47nF 16V

C120
47nF 16V
C121
1N50V

C122
47nF 16V

VGA_RIN 2

VGA_GIN 2

SOG0 2

VGA_BIN 2

R148

33 OHM 1/16W

R147
75 OHM

Placement Near RCA.

10K 1/16W 5%

10K 1/16W 5%

C119

AGND AGND

C116

330pF 50V

330pF 50V

R124

R121

R123

12K 1/16W

47nF 16V

C147

AV1-CVBS0P

R120

12K 1/16W

AGNDAGND

AV1-CVBS0P 2

AV1_AUL4

C115

2.2uF 10V

AV1_AUR4

C118

2.2uF 10V

AV1_AUL4 2

AV1_AUR4 2

USB IN

VGA_HSYN C

VGA_VSYNC

+5V_Nor mal

R136

10K+-5%1/ 16W

TH1002

t

PTCR

R132 68OHM 1/16W

R134 68OHM 1/16W

R137

10K+-5%1/16 W

Close to MST IC

USB_5V

12

DGND

C126
10uF 25V

VGA_HS

VGA_VS

USB0_DM2
USB0_DP2

VGA_HS 2

VGA_VS 2

VGA_SDA

VGA_SCL

ZD20/ZD21 new component for 0.5 Cp

R138 4.99ohm 1/16W + /-1%

USB0_DM

R139 4.99ohm 1/16W + /-1%

USB0_DP

0.5pF

R133 33R 1/16W 5%

R135 33R 1/16W 5%

0402

AGND DGND

AGND

1

1234

CN106

2

USB CONN

3
4

6 5

AGND

DGND

USB_Shield_GNDDGND

UART-TX 2,9

UART-RX 2,9

44

T P V ( Top Victory Elect ronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

04. Video/Audio Inte rfac/USB

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

715GXXXX-M0 A- 000-0040

of

410Monday, June 16, 2014

Size

Rev

称爹

A2

称爹

<>

AC off EDID
solution
without
EEPROM

HOTPLUG0

R502
47K

R506

10K 1/16W 5%

DGND

HDMI0_D DC_SCL#
HDMI0_D DC_SDA#

DGND

R503
1K 1/10W

Q502
MMBT3904

DGND

HDMI0_D2+

HDMI0_D2­HDMI0_D1+

HDMI0_D1­HDMI0_D0+

HDMI0_D0­HDMI0_CLK+

HDMI0_CLK-

HDMI0_CON5V

R515 0R 05 OHM

R516 0R 05 OHM
R517 0R 05 OHM

R518 0R 05 OHM
R519 0R 05 OHM

R520 0R 05 OHM
R521 0R 05 OHM

R522 0R 05 OHM

HDMI_CEC1

HDMI0_DDC_SCL
HDMI0_DDC_SDA

DGND

HDMI0_C ON5V

CN501

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0-

10

CK+

11

CK Shield

12

CK-

13

CE Remote

14

NC

15

DDC CLK

16

DDC DATA

17

GND

18

+5V

19

HP DET

20

SHELL1

21

SHELL2

HDMI

Make on board

HDM I0

R508
47K

SHELL3
SHELL4

SHELL5

SHELL6
SHELL7

R509
47K

100OHM

100OHM
R501

22
23

24

25
26

HDMI0_D DC_SCL#

R510

HDMI0_D DC_SDA#

DGND

From Main Chip

HDMI0_D2+2
HDMI0_D2-2
HDMI0_D1+2
HDMI0_D1-2
HDMI0_D0+2
HDMI0_D0-2
HDMI0_CLK+2

HDMI0_CLK-2
HDMI0_DDC_SCL2
HDMI0_DDC_SDA2

HOTPLUG02

HDMI_CEC2

HDMI_CEC1

12

DGND

MLVG0402
ZD505

HDMI0-RX2P
HDMI0-RX2N
HDMI0-RX1P
HDMI0-RX1N
HDMI0-RX0P
HDMI0-RX0N
HDMI0-CLKP
HDMI0-CLKN
HDMI0-SCL
HDMI0-SDA
HDMI_HP0

HDMI-CEC

R531

200OHM1/16W

HDMI-CEC

45

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

A

Key Component

Date

05. Input_HDMI

OEM MO DE L

TPV MO DEL

PCB NAME

Sheet

715GXXXX-M0A-000-0040

of

510Monday, June 16, 2014

Size

Rev

称爹

Custom

称爹

<>

CN101

RF CONN 5P

RF_IN

C124

NC/1. 8pF 50V

L113
NC/1.8nH

VDD3V

TUNER_SCL

TUNER_SDA

112233445

C101 470pF 50V

BAV99
D101

1

R141 4. 7K 1/16W
R142 4. 7K 1/16W

L111 1K

1 2

1 2

L112 1K

Silicon Tuner

5

R106 NC/0R05 OHM

L114 3.3nH

C110

3

1.8pF 50V

L110

1.8nH

2

close to D403(BAV99)

1 2

1000R

1 2

C104

100N 16V

R149 100OHM

R150 100OHM

AGND DGND

RF_IN

R107 0R05 OH M

C125

1.8pF 50V

L115
2nH

L107

L109
1000R

L105 180NH

0R05 OHM

R108

T_SC L

T_SD A

C143

C144

NC/22PF 50V

NC/22PF 50V

25

C108

100N 16V

100N 16V

U102

GND

1

RFIN

2

RFIN2

3

TF1

4

TF2

5

DECT1

6

SCL

330PF 50V

VDD3V

C102

C107

L06
1000R

L108 68nH

1 2
22

23

24

TFL

TFH

AVDD

SDA7AVDD

8

9

R103

1.8KOHM 5% 1/ 16W

C106

6.8nF 50V

Main Chip <-->

VIFP2
VIFM2

TUNER_SCL2
TUNER_SDA2

Close to Main chip

close Tuner

L need Q>15

TUN _IF +
TUN _IF -

TUN_I2C_SCL
TUN_I2C_SDA

C135

56pF 50V

C134

100N 16V

R140
470 OHM 1/16W

C137

100N 16V

C136

56pF 50V

TUN_IF+

TUN_IF-

R102
10K

300mA

+5V_N orma l

C128
1UF 10V

DGND

VDD3V

for GPIO purpose. R22=10kR for GPIO.
R22=NC if no need this option.

Tuner Power

3.3V_TUNER

U101

2

VIN3VOUT

GND14

4

DGND DGND

FB101

1 2

1000OHM

C142

10UF 6.3V 20%

1K_100MHz/400_400MHz

VDD3V

C130

10UF 6.3V 20%

DGND

BPF_IN

AIF+

AIF-

R104

％

220 OHM +-5 1/16W

R105

％

220 OHM +-5 1/16W

IF_AGC Control Circuit

Close to Main chip

TAGC

IF_AGC from IC

+3.3V_Standby

R144
10K

R146

0R05 OHM

C140

22NF 25V

R101

10K+-5% 1/16W

IF_AGC trace shielding by GND

I2C for Tuner

Close to Tuner

C141
100NF 16V

AGNDAGND

TUNER_SCL

TUNER_SDA

AGND

IF_AGC

To tuner

R145
NC/100K

TUNER_SCL 2
TUNER_SDA 2

C103

22N 25V

C105 100N 16V

20

21

R840

19

AVDD

VOP

VON

VAGC

VAGC2

XTAL_O

VDD3V

VDD3V

C123 100N 16V

18

17

AIF+

16

AIF-

15

IF_AGC

14

13

1 2

X101

16MHz

VBG

GPIO

DET2

DVSS10CP

DVDD11XTAL_I

12

C109
100N 16V

TAGC2

46

T P V ( Top Victory Electronics C o . , Ltd. )

絬隔瓜絪腹

A

Key Component

07. Tuner

Date

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

715GXXXX-M0A-000-0040

710Monday, J une 16, 2014

of

Size

Rev

称爹

A3

称爹

<>

AMP_AUOUTL02

AMP_AUOUTR02

AUDIO_EN12

+12VO[3]

HeadPhone

CN602

PHONE J ACK

Mark on board

HP OUT

+5V_Standby

1
7
6
3
2
4
5

+3.3V_Standby

R630

4.7K 1/16 W

AMP_MUTE

AC OFF POPO

R627

10K+-5%1/16W

R628

100K1/16W

FB603

P12V

1 2

300R 4A

R614 300R C617 10UF 16V

R629

Q602

MMBT3906

C450
10UF 10V

AV_L_OUT#

AV_R_OUT#

AV_L_OUT#

AMP_MUTE
Low: Mute disablde
High: Mute enable

PVDD

POP

AV_R_OUT#

R+
R+#

C621 10UF 16VR615 300R

L+#
L+

10K+-5%1/16W

AMP_MUTE

R612

10K+-5%1/16W

R613

100OHM

100OHM

R625

POP

MMBT3904

+5V_N ormal

R61910K+-5%1/16W

R601 0R05 OHM

27K 1/16W 1%

+5V_Nor mal

R611

10K+-5%1/16W

Q601

C616 220nF 16V

PVDD

10K +-1% 1/16W

R633

C635 220nF 16V

AMP_STB

C613 100N 5 0V

R620

NC/ 10 OHM 1/10W

C627

NC/1UF 10% 16V

R634

C633

220nF 16V

1

2

3

C622

4

220nF 16V

5

6

7

8

9

C631

1UF 10% 1 6V

10

C632

1UF 10% 1 6V

11

12

13

14

1.2A Max

U601

SDZ

FAULTZ

LINP

LINN

GAIN0

GAIN1

AVCC

AGND

GVDD

PLIMIT

RINN

RINP

NC

PBTL

AD52580-QG28N AR

Ther mal P ad

絬隔瓜絪腹

Key Component

29

28

PVCCL

C620

NC/ 220nF 16V

C625

NC/ 220nF 16V

C628

NC/ 220nF 16V

C636

NC/ 220nF 16V

C638

100N 50V

100N 50V

C618

R616

10OHM1/16W

R621

10OHM1/16W

R623

10OHM1/16W

R626

10OHM1/16W

27

PVCCL

26

BSPL

25

OUTPL

24

PGND

23

OUTNL

22

BSNL

21

BSNR

20

OUTNR

19

PGND

18

OUTPR

17

BSPR

16

PVCC

15

PVCC

T P V ( Top Victory Electronics Co . , Ltd. )

A

08 . AUDIO AMP

Date

C619

1NF 50V

C639

1NF 50V

PVDD

L601
22uH
C623

330pF 50V

L602
22uH
C626

330pF 50V

L604
22uH
C630

330pF 50V

L605
22uH
C637

330pF 50V

PVDD

OEM MODEL

TPV MO DEL

PCB NAME

Sheet

C614
10UF 16V

C615
10UF 16V

71 5 GXXXX- M 0A - 0 00 - 00 4 0

812Monday, June 16, 2014

of

L+

C624

0.47uF 16V

C629

0.47uF 16V

C634

0.47uF 16V

C641

0.47uF 16V

L-

4

R-

R+

L+#

R+#

CONN

3
2
1

5 6

Size

Rev

称爹

CN601

B

称爹

<>

47

From Main Chip

KEY0-SAR 0

IRIN

+3.3V_Standby

+3.3V_Standby

KEY0-SAR 02

IRIN2

CN401

CONN

1
2
3
4
5

DGND

LED-R
LED-G

IRRX1

POWER

LED-G

POWER_KEY

LED-G
LED-R

IRRX1
POWER

C443

1UF16V

DGND

+3.3V_Standby

DGND

FB409

120R/6000m A

1 2

C445

1N 50V

DGND

R465
10K+- 5%1/16W

R447
10K+ -5%1/16W

MMBT3904
Q405

C446

1N 50V

C440

1N 50V

LED-R

R457
4K7 1/16W 1%

C441

1N 50V

+3.3V_Standby

R461
10K+ -5%1/16W

MMBT3904
Q404

DGND

C444

100NF 16V

DGND

R464

100OHM

R446
10K+ -5%1/16W

IRIN

R458

KEY0-SAR 0

100OHM

PW_CTL 7

POWER_KEY

R412

2.7K 1/16W 1%

R408
1K8 1/16W 1%

R414

1Kohm 1/16W +/- 1%

R411
750 OHM 1%

R407
750 OHM 1%

SW405

SW404

SW403

SW402

SW401

3 4
1 2

SW

3 4
1 2

SW

3 4
1 2

SW

3 4
1 2

SW

3 4
1 2

SW

DGND

T P V ( Top Victory Electronics Co . , Ltd. )

A

絬隔瓜絪腹

Key Component

Date

09. Keypad/IR

OE M MOD EL

TPV MODEL

PCB NAME

Sheet

715GXXXX-M0A-000-0040

of

910Monday, June 16, 2014

Size

Rev

称爹

48

A4

<>

称爹

BL_PWM

BL_ON/OFF

VLED+

R8116
330K +-1% 1/4W

R8112
330K +-1% 1/4W

R8117
27K 1/8W 1%

R8113

1K 1/10W 5%

C8104
1nF 50V

3
2
1

4 5

CN8103

CONN

+12VO

BL_PWM[3]

R9905

560K 1/8W +/-1%

C9906
100PF 250V

!

R9902

560K 1/8W +/-1%

CN9901

CONN

3

-

4

2

R9906

560K 1/8W +/-1%

!

L9901

431

30MH

!

C9901
470NF 275V

R9903

560K 1/8W +/-1%

!

R9901

1MOHM +-5% 1/2W

1

3

!

!

+

R9907

560K 1/8W +/-1%

2

C9907
100PF 250V

!

R9904

560K 1/8W +/-1%

!

1

GBL08-C2

BD9101

12

NR9901
3R

For

t

ohmэ 5 ohm
20130130

T3.15AH/250V

F902

FUSE

!

絬丁　耑,パ

B+

+

C9101

56UF 450V

HIC91
HEAT SINK

B+

3

100 OHM 1/4W-N C

1
2

C9905

100PF 250V

R9104

220 OHM 1/4W

C9126

HV

47pF-NC

R9123

56KOHM +-5% 1/10W

R9102

6

4

D

S7S8S9S10S11S

100K 1/10W 5%

R9107
200K 1/4W

R9105
220 OHM 1/4W

C9103
470PF

1

3

2

FB

BP

PD

CP

IC9101
LNK6766VG

12

R9103

C9110

100N 50V

680PF 250V

C9908

R9112
33 1/4W

R9106
200K 1/4W

R9113
33 1/4W

R9101
12K 1/8W 5%

C9104
470NF 50V

C9106
100pF 50V

D9103

FR107

+

C9105

47UF 50V

D9105
FR103

!

T9101

5

POWER X'FMR

4

3
2

1

R9111
56K 1/8W +/-1%

R9110
7K5 1/8W +/-1%

R9109
1K 1/8W 1%

33 OHM 1/4W

R9126

R9127 33 OHM 1/4W

33 OHM 1/4W

R9122

10

R9125

33 OHM 1/4W

33 OHM 1/4W

R9121

9
8

R9120

33 OHM 1/4W

7

D9101

6

SR510-22

1 2

D9102
SR510-22

1 2

D9104
SR510-22

1 2

э

　ㄢ聋﹃羛,秸俱筿溃　

C9107
470PF 50V

C9108
470PF 50V

Power side

C9109
470PF 50V

C9111
470PF 50V

C9113
470PF 50V

C9114
470PF 50V

C9112

+

470UF 25V

C9115

0.1uF 50V

LED Driver
ohm

　羛2聋筿　.　狦　

3A

+

C9116
220uF 25V

　筿瑈　狦　

+12VO[3]

+12VO

[3]

R9124
12K 5% 1/4W

BZT52-B4V7

60mA 碞ノ2

75mA碞ノ2.4 ohm　羛3

+12VO[3]

C8114

BL_ON/OF F[3]

100K 1/10W 5%

C8101

330UF25V

VCC_1

DIMOUT

FB

ZD8101

1uF

R9119
33K 1/10W 5%

R8122

1 2

聋筿　

+

R8109
10R 1/8W 5%

DIMOUT

100R 1/10W 5%

C8105

0.1uF 50V

C8103

1uF

PF 7903BS

470NF

R8110

D8102
1N4148W

Q8106
PMBS3906

R8123
15K 1/10W 1%

C8113

0.1uF 50V

IC8101

；

C8109

R8114
100R 1/10W 5%

R8121
51K 1/10W 5%

Q8105
PMBS3904

8

5

6

CS

OUT7VCC

GND

DIMOUT1GM2FB3OVP/DIM

4

R8102
47KOHM +-1% 1/10W

C8111
100N 50V

R8111

10K 1/10W 5%

FB

L8101
47UH

20 ohmэ　47

　　パ

ohm, fot EMI
solution

R8104
47OHM +-5% 1/8W

1N4148W-NC

C8110
1000pF 50V

Q8107

1

S

2

S

3

S

4

G

AO4486

R8118

2.4 OHM 1%

2.4 OHM 1%

VCC_1

LED side

D8103

D
D
D
D

R8115

R8108

330R 1/8W 5%

LED_a

8
7
6
5

2.4 OHM 1%

R8105

NC/2R 2 +-5% 1/8W-NC

0.2oHM 1% 1/4W

0.2oHM 1% 1/4W

ZD8102

BZT52-B22

R8125

R8126

2.4 OHM 1%

VLED+

R8106

10K OHM +-5% 1/8W

R8107

R8127

1 2

LED3

LED1

D8108

SR506

Q8101

AOD2916

Q8103
2N7002K

1000pF 50V

FB8101

120R/6000mA

120R/6000mA

R8120

0.2oHM 1% 1/4W

C8112

LED2

FB8102

C8106

1NF 500V

LED_a

12

12

+12VO[3]

R8103
10K 1/10W 5%

6
5
4
3
2
1

2
1

+12VO[3]

BL_PWM[3]

BL_ON/OFF[4]

AGND

+

C8102
330UF 50V

R8101
10K OHM +-5% 1/8W

PMBT3904
Q8104

R8124

10K 1/10W 5%

CN8101& CN8102
For FFC TRF
Board

CN8101

NC/CONN

7 8

CN8102

CONN

49

DGND

T P V ( Top Victory Electronics Co . , Lt d. )

絬隔瓜絪腹

Key Component

12. AC POWER

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

Custom

Size

Rev

of

11 11Wednesday , June 18, 2014

称爹

10.2 IR Board (715G5889R01000004K)

R204

220 OHM +- 5 1/16W

％

CN201

67

CONN

033G8032 5F S B

R205

LED201

2

3

LED_R

LED_B

1
2
3
4
5

IR

R202 NC 0R05 OHM

R203 0R05 OHM

VCC

R201 15K 1/16W 5%

R206 NC

R207 NC

C201

2.2uF 10V

NC 220 OHM + -5 1/16W

12-22/BHR6C-C31/2C

Red

Blue

1

U201

1

GND

2

VCC

3

Vout

4

GND

V838M3/TR1

％

VCC

T P V ( Top Victory Electronics Co . , Ltd. )

絬隔瓜絪腹

Key Component

Date

02-IR&LED

OEM MOD E L

TPV MOD EL

PCB NAME

Sheet

of

22

Size

Rev

称爹

A

A

<>

称爹

50
