Haier LCD TV User Manual

Characteristic Functions 1

Important Safety Instructions 1

Technical Specifications 3

The Technical Specifications for Final Product 3

Technical Specifications for TV 5

VGA Display Mode 5

Power Management 6

Packing Listing 6

Installation & Connection 6

Antenna Connection 6

Power Connection 7

Computer Connection 7

AV1/AV2 Video Signal Connection 7

IC 7

YPbPr/YCbCr Input Connection 7

AV Output Connection 7

Position of Control Keys 8

Remote Control 8

Basic Operation Instruction 9

Power On 9

Standby 9

Signal Source Selection 9

Menu Operation Instruction 10

PICTURE 10

SOUND 11

OSD 11

TV 12

USB Signal Source Operation 13

Simple Troubleshooting 16

HDMI Digital Port Connection 7

S-VIDEO nput onnection

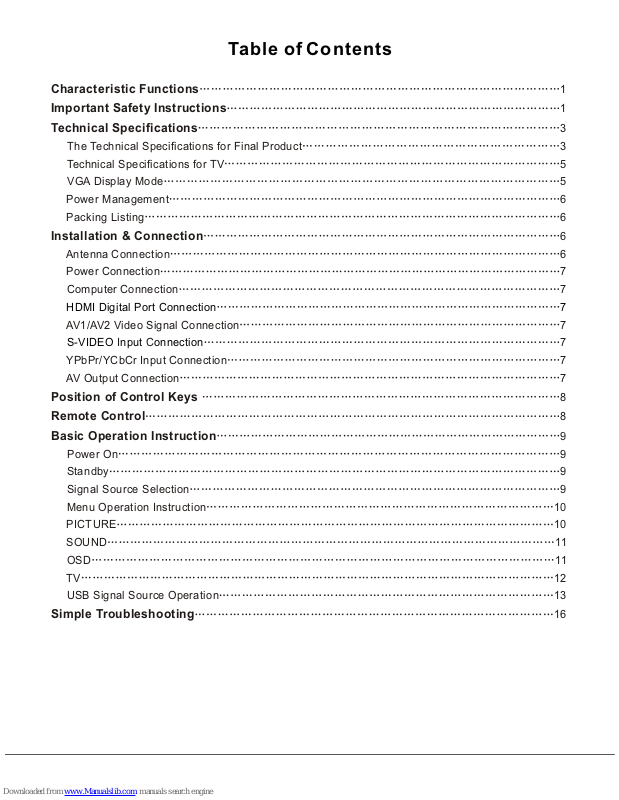

Table of Contents

1. LCD panel with no glint and low radiation can ease eyes' fatigue and protect eyes.

2. High-quality LCD panel is adopted with high brightness, high contrast, wide viewing angle, and
super fast response time. Super fast response time can greatly eliminate the shadow of moving
images.

3. TV/Monitor with two in one and multiple input ports can easily switch among the modes.

4. De-interlacing image disposal is adopted. Today's most advanced technique for movement
compensation, can completely improve the saw tooth and vague edges of the athletic picture.

5. There are four smart sound modes and four smart image modes.

6. Dynamic contrast technology can obviously improve the definition and contrast of the picture

7. Tuner for frequency synthesis can support full auto search and manual search.

8. With perfect timing function, you can set time to turn off. It will be turned off in state of no signals,
too.

9. Auto Adjustment can help you to setup the image into the best performance in a few seconds
instead of complicated adjustment in PC mode.

10. Auto color balance adjustment technology can make the machine to reach the best color setting
in PC mode.

11. Support hi-definitionYPbPr and double HDMI.

12. All functions can be realized with remote control, which is really a convenient operation.

13. Power is designed to save energy.

14. Input ports include VGA, YPbPr, HDMI, S-Video, CVBS, USB and TV.

15. Output ports include AV and Earphone.

16. Supports USB interface.

Characteristic Functions

Thank you to choose the LCD TV made by our company, a valuable product with excellent quality
and multiple functions. This machine will bring you more audiovisual enjoyment. Its design can
insure user's safety. All machine are strictly tested before leaving factory. But incorrect use can
lead to electric shock or fire. In order to insure safety and extend its life, please read below
regulations carefully before using it and comply with the following safety instructions.

When the following troubles occur, please pull out the plug and call the professional engineers to
repair.
A. The cable or plug is damaged.
B. The product was fallen down or the case is damaged.
C. Obvious abnormal situation occurs. In spite of correct
operation according to the user manual but it still can't work
normally.
D. Some abnormal substances or liquid fall into it.
E. Unusual sound or smell sends out.

There is high voltage inside the machine but no parts which can
be repaired by users themselves. In order to assure the people's
safety, please do not open the case to repair it by yourself. If it is
needed to repair, please contact qualified engineer to repair.

Please put this machine in the place of well ventilation, instead
of extremely hot, cool or moist, and direct sunlight.

Important Safety Instructions

1

The slots on the case is designed to release heat so as to assure that all inside components will
not reach an extra high temperature and can work normally for a long time. Please do not cover
the holes while place it.

Unless there is good ventilation installation, please do not put
this machine in inlaid device.

Please do not place it on an unstable position so as to avoid
falling off.

Do not place the LCD TV near water source, like a bathtub,
pool, washing machine, or moist

When the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.

The machine should not suffer from waterdrop or watersplash,
do not place the vessel with water (or other liquids) on it, for
like this it is possibly to cause fire or electric shock.

The attaching plug should be inserted into the power point completely, otherwise it may cause
spark to bring fire.

Please do not put candle, ash-tray, incense, inflammables or explosive nearby this machine.

Please do not stretch into any sharp object, metal or liquid, or touch the signal attachment or the
inner of radiation hole, in order to avoid short circuit and product damage, or possibly causing
electric shock. Especially pay attention when there are children on the spot.

cellar and similar environment.

During a thunder rain weather, do not touch the power cord and

antenna cable. Please pull out the power line and aerial plugs

for preventing thunder and lightning damage to this machine.

All cables can be connected or pull out only after power supply
is turned off.

The power cord must be taken off before you clean the machine.

Do not use the liquid cleanser or aerosol cleanser. It is
recommended to use a wet soft cloth to clean the machine. Do
not use the alcohol,
impregnant or ammoniac liquid to wipe the screen.

If you will not use the machine for a long time, please pull out

the power cord. Do not keep the sleeping mode for too long time.

Read the manual and marking label before using the machine, and keep the user manual for

later use.

Don't use the attachments which are not recommended by the machine manufacturer as they

may cause hazards.

The power cord must be placed correctly so as to avoid be trample or crush.
Please do not make the power socket overloaded or the power cord extended. Otherwise it will

cause fire or electrical shock.

The LCD panel is fragile and expensive. The surface of the panel is easy to be scratched. Please
do not use the hard thing to knock, press, score the panel. Otherwise it will be harmful for the
panel. The exchange cost is very high.

All technical specification on this instruction book and outer package are subject to change
without notice. If the instruction book has slight difference with actual operation, please take the
actual operation as standard.

Important Safety Instructions

2

Important Safety Instructions

The Technical Specifications for Final Product

Technical Specifications

Please do not use the machine immediately when moving the machine from low temperature place
to high temperature one, or install and use at the place of facing air conditioning, otherwise it may
cause the condensation in the machine, to cause fault.

Must be careful when moving this machine, avoiding being struck, especially pay attention to
protect the screen part. In addition, if using handcart, must note the injury as the product is
overturned from the handcart because of hard braking, overexerting and uneven ground.

3

Excluding base

Including base

Excluding base
Including base

37" (FHD)
1920 1080
1920 1080@60Hz

0.42675mm 0.42675mm

819.36mm 460.89mm

32" (HD)
1366 768
1360 768@60Hz

0.51075mm 0.51075mm

697.6845mm 392.256mm

16.7M
100V-240VAC 60/50Hz
8W+8W
Unpacking: 787 494 101mm or
787 494 93mm
Packing: 900 610 205mm or
900 610 195mm
Unpacking: 787 555 101mm or
787 555 93
Packing: 1015 610 200mm or
1030 600 190mm
Net Weight: 10.0Kg Gross Weight: 11.5Kg
Net Weight: 11.5Kg Gross Weight: 13.0Kg

Panel size
Max. Resolution
Best Resolution
Pixel Pitch
Active Area
Color
Power Supply
Power Consumption of Speaker

Dimension (L H W)

Weight

Excluding base

Including base

Excluding base
Including base

37" (HD)
1366 768
1360 768@60Hz

0.600mm 0.600mm

819.6mm 460.8mm

16.7M
100V-240VAC 60/50Hz
8W+8W
Unpacking:911 565 112 .5mm
Packing: 1020 685 225mm
Unpacking: 911 635 112.5mm
Packing:1180 685 225mm
Net Weight: 13.0Kg Gross Weight: 15.0Kg
Net Weight: 16.0Kg Gross Weight: 18.0Kg

Panel size
Max. Resolution
Best Resolution
Pixel Pitch
Active Area
Color
Power Supply
Power Consumption of Speaker

Dimension (L H W)

Weight

32" (FHD)
1920 1080
1920 1080@60Hz

0.36375mm 0.36375mm

698.4mm 392.85mm

Technical Specifications

4

42" (HD)

1366 768

1360 768@60Hz

0.681mm 0.681mm

930.25mm 523.01mm

16.7M

100V-240VAC 60/50Hz

8W+8W

Unpacking:1014 625 115mm

Packing: 1135 730 225mm

Unpacking: 1014 691 115mm

Packing:1280 730 225mm

Net Weight: 16.5Kg

Gross Weight: 19.0Kg

Net Weight: 19.5Kg

Gross Weight: 22.0Kg

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Power Supply

Power Consumption of Speaker

Dimension (L H W)

Weight

Excluding base

Including base

Excluding base

Including base

42" (FHD)

1920 1080

1920 1080@60Hz

0.4845mm 0.4845mm

930.24mm 523.26mm

40"

1920 1080

1920 1080@60Hz

885.6

16.7M

100V-240VAC 60/50Hz

8W+8W

Unpacking:977 603 99mm

Packing: 1090 725 215mm

Unpacking: 977 674 99mm

Packing:1250 735 220mm

Net Weight: 16.0Kg

Gross Weight: 18.5Kg

Net Weight: 18.0Kg

Gross Weight: 20.5Kg

0.46125mm 0.46125mm

mm 498.15mm

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Power Supply

Power Consumption of Speaker

Dimension (L H W)

Weight

Excluding base

Including base

Excluding base

Including base

Technical Specifications

Operating Environment:
Temperature: 5 40 Humidity: 10% 85% Atmosphere Pressure: 86kPa 104kPa
Storage Environment:
Temperature: -20 55 Humidity: 5% 95% Atmosphere Pressure: 86kPa 104kPa

1.Supported Systems: PAL+SECAM or PAL+NTSC

2.Storage channels: 199

3.TV(RF): 75 Imbalance

4.AV Video-Input: 75 ,1VP-P, RCA

5.AV Audio-Input: 20K , 500mV RMS

6.YPbPr/HDMI Video Input: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Technical Specifications for TV

5

47"

1920 1080

1920 1080@60Hz

1039.68

1.06 Billion

100V-240VAC 60/50Hz

8W+8W

Unpacking: 1126 687 113.5mm

Packing: 1270 875 255mm

Unpacking: 1126 757 113.5mm

Net Weight: 19.0Kg

Gross Weight: 24.5Kg

0.5415mm 0.5415mm

mm 584.82mm

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Power Supply

Power Consumption of Speaker

Dimension (L H W)

Weight

Excluding base

Including base

Excluding base

VGA Display Mode

32"(FHD) / 37"(FHD) / 40" / 42"(FHD) / 47"

VGA

SVGA

70Hz

60Hz

60Hz

60Hz

60Hz

720 400

640 480

800 600

1024 768

1360 768

XGA

1

2

3

4

5

NO.

WXGA

Recommended mode:1360X768@60Hz

32"(HD) /37"(HD) / 42"(HD)

VGA

SVGA

70Hz

60Hz

60Hz

60Hz

60Hz

60Hz

60Hz

60Hz

720 400

640 480

800 600

1024 768

1280 720

1360 768

1600 900

1920 1080

WXGA

XGA

1

2

3

4

5

6

7

8

NO.

WUXGA

Mode Resolution

Refresh

Recommended mode:1920X1080@60Hz

Mode Resolution

Refresh
