00905096 3 6
TFT-LCD TELEV I S I O N
OWNER`S MANUA L
MOD EL : L4 2T 1
L4 7T 1
L5 2T 1
Pl eas e REA D this m anu al ca ref ull y bef ore
op era tin g your T V, an d ret ain i t for f utu re
re fer enc e.
00 00 03 21 36 6
技 术 要 求
1. 182*257 30
图中版面按照 尺寸；合计 页。
2. 70g
材质要求： 双胶
符合集团绿色环保标准 。
3. Q/HR 091 054
按照集团说明书的标准 执行。
4. Q/HR 0903 002
5
0090509121
01
孔繁荔
徐冬
崔志龙
陈莹
A4
LE 1 9 T 3 /L2 4 K 3
(印度）
使用说明书
A版
（01版 ）
00 90 50 96 3 6
A
商品 开发部 结 构所
1：1
38
Please READ this manual carefully before
operatingyour TV, and retain it for future
reference.
OWNER’S MANUAL
LED-LCD TELEVISION
LE19T3/LE22T3/LE19T3W/
LE22T3W/LE24T3/L24K3
Contents
2 LED -LCD television Owner’s Manual
Contents
Warning 3
Important Safety Instructions 4
Panel Control and Rear Terminals
Control 6
Panel Control .......................................................6
Rear Terminals Control ........................................6
Remote Control 7
Battery loading ....................................................7
Precautions ..........................................................7
Remote Control Function 8
Function introduction .........................................8
External Equipment Connections 9
Antenna Connection ...........................................9
Choose Your Connection ...................................10
VCR Connection .................................................................. 10
DVD Setup ............................................................................ 10
HDMI or DVI Setup ............................................................. 11
PC Setup ................................................................................ 11
Monitor Out Setup ............................................................. 12
Connecting Headphones ..................................12
Power source ......................................................12
Basic Receiving and Playing
Operations 12
Switching ON/OFF the TV set
........................... 12
Switching ON/OFF the TV set ........................................ 13

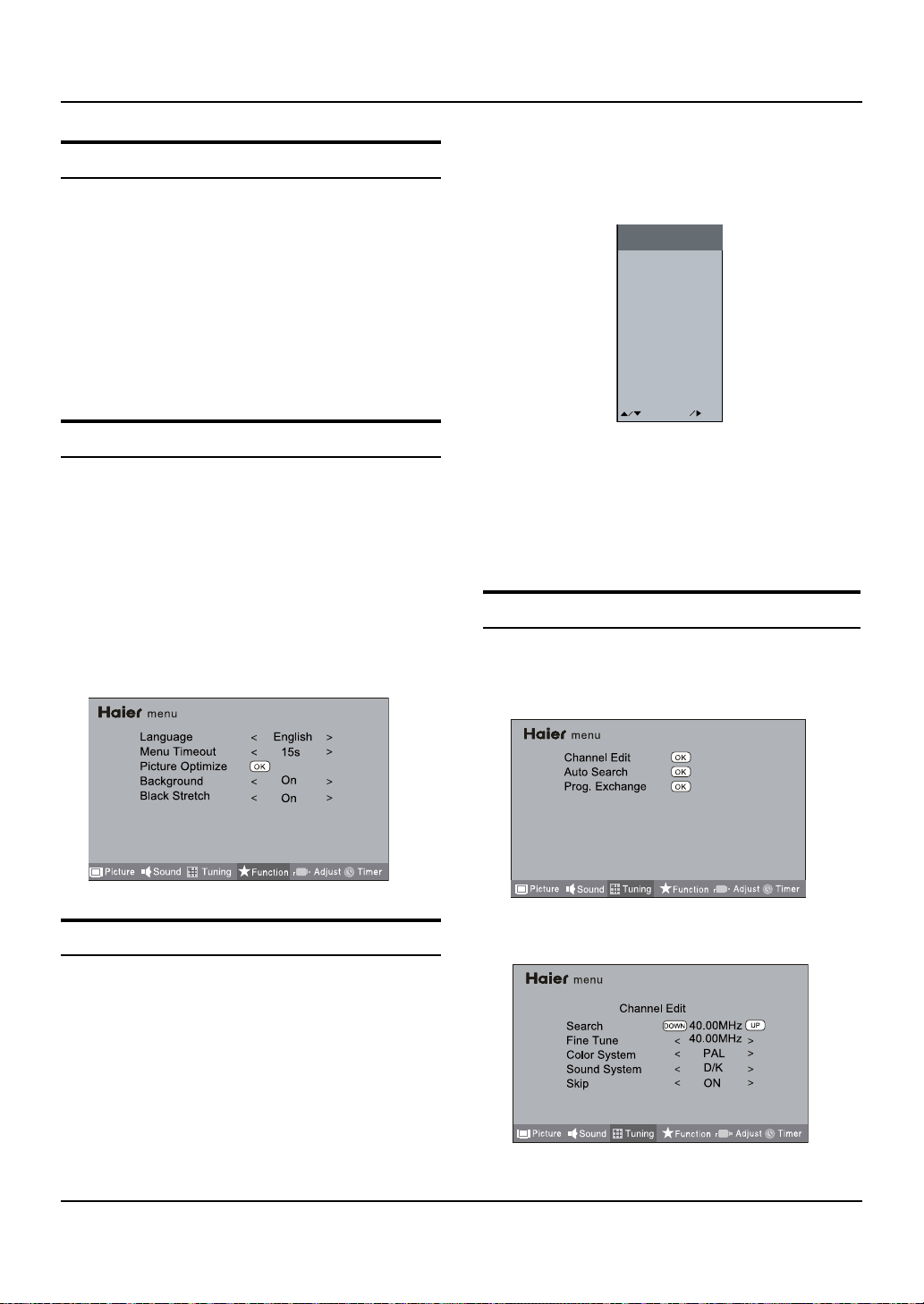

Choose the Menu Language .......................................... 13
Choose the Input source .................................................13
Searching Channel ............................................13
Channel Edit ......................................................................... 13
Automatic search ............................................................... 14
Exchange ............................................................................... 14
Watching TV Program .......................................15
How to select the desired program ............................. 15
How to select the desired sound .................................. 15
Mute Setting ........................................................................ 15
Quick program view .......................................................... 15
Picture Control Functions .................................15
How to select the picture mode ................................... 15
How to customize your own picture status .............. 16
Sound Control Functions ..................................16
How to choose audio mode ........................................... 16
How to customize your own audio status ................. 17
Timer Functions .................................................17
Setting of Current Time .................................................... 17
Setting of ON/OFF Time ................................................... 18
Setting of On Channel ...................................................... 18
Setting of Remind Time and Remind Channel ........ 18
Function Menu ...................................................19
Function Menu Set ............................................................ 19
Adjust Menu .......................................................20
Lock Setup ..........................................................20
How to use the password function .............................. 20
Streaming Media Playing System ....................21
Start/Exit Streaming Media Playing system .............. 21
Operating Method of Streaming Media Menu ........ 22
Playing a Picture ................................................................. 22
Playing a Movie ................................................................... 22
Playing Music
......................................................................... 23
Tex t
.......................................................................................... 23
Settings
................................................................................... 23
Maintenance 23
Troubleshooting 24
Specification 24
Format 25
Warning
LED -LCD television Owner’s Manual 3
WARNING
!
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
*
To avoid electric hazards, it is strongly suggested that the back cover not be opened, as there is no any
accessory inside the casing.
*
lf necessary, please contact authorized after-sales services.
*
A lighting ash mark in a triangle: A potentially hazardous situation, which, if not avoided, could result in
serious injury by high voltage.
*
An exclamation mark in a triangle: Major part or accessory of which technical specications must be followed if
it is to be replaced.
RISK ELECTRIC SHOCK
DO NOT OPEN
WARNING: To avoid fire or electric hazards, never place your television receiver in an area with heavy
moisture. Attention should be paid to avoid accidental scratches or impacts onto the screen.
CAUTION: ▲ Please read this manual carefully before using your television and keep this manual in a
good place for future reference.
▲ To achieve the best performance of your television, read this User’s Manual carefully and
properly store it for future reference.
▲ Information of screen displays and figures in the User’s Manual may vary due to technical
innovations.
CAUTION:
▲ Unauthorized disassembly of this product is prohibited.
Warning
Important Safety Instructions
4 LED -LCD television Owner’s Manual
Important Safety Instructions
Important Safety Instructions
LED -LCD television Owner’s Manual 5
Panel Control and Rear Terminals Control
6 LED -LCD television Owner’s Manual
Panel Control and Rear Terminals Control
- This is a simplified representation of front panel.
- Here shown may be somewhat dierent from your TV.
Panel Control
SOURCE
LE22T3W “TV/AV”
LED LCD
Rear Terminals Control
5
1
2
7 8 9
10
3
4
6
PC IN
DIGITAL OUT
(COAXIAL)
HDMI IN
1
COMPONENT In
Connect a component Video/Audio device to
these jacks
2
AV IN
Connect Video/Audio out from an Video/Audio
device to these jacks
3
PC IN
Connect the monitor output connector from a PC
to the jack
4
AV OUT Video/Audio output terminal
5
DC IN
Connect the monitor output connector from a DC
to the jack(not available for the L24K3 model)
6
Headphone Headphone audio output terminal.
7
USB
Connect a USB ash drive to view PPEG2
videos,JPEG images or listen to MP3 songs.
8
DIGITAL
OUT(COAXIAL)
Digital/Coaxial output terminal
9
HDMI
Connect a signal to HDMI
0
PC/DVI AUDIO
Connect a PC/DVI Audio device to these jacks
Remote Control
LED -LCD television Owner’s Manual 7
Remote Control
Battery loading
1. Slide open the cover of the battery compartment on
the back of the remote controller.
2. Load two 7# (AAA) alkaline batteries in the
compartment, (plus and minus poles to respective mark)
3. Replace the cover of the battery compartment.
Precautions
As strong light may interfere the signals, change your
position to operate the remote controller if the television
cannot be turned on or o as you expect.
Keep the remote controller away from heat source or
humid area to ensure eective performance of the
remote controller.
Make sure that two AAA alkaline batteries are loaded.
The batteries must be of the same type. The batteries
must be located properly. The batteries are not
rechargeable.
Make sure that there is no obstacle between the remote
controller and television set.
Remote Control Function
8 LED -LCD television Owner’s Manual
- The remote control cannot be operated unless the batteries are properly loaded.
- When using the remote control, aim it at the remote control sensor on the TV.
Function introduction
1
POWER
Press this key to start TV from standby mode, press it again to return to standby
mode.
2
SCAN It is only available in TV mode.
3
Picture Mode Press this key continuously to select the picture mode.
4
FREEZE
Press once to display a frozen image of the current program, but audio
continues. Press again to return to the program.
5
HDMI Press to select a device connrcted to the HDMI input.
6
Sound Mode
Press this key continuously to select the sound mode.
7
ARC
Press this key to select the screen display proportion.
8
SLEEP
Displaying the sleep time.
9
H. LOCK
Refer to the Functional Description on Page 20
0
I/II
No available
A
FAVORITE
Press to open the favorite channel list in TV.
B
0-9
These keys are used to select a channel.
C
SOURCE
Press this key to open/close signal source options menu.
D
DISPLAY Press to display the TV status information on the top of the TV screen.
E
MUTE
Press this key to mute the sound, press it again to activate the sound. The sound
may be activated by turning the TV on again or increasing the volume .
F
RECALL
Press this key to display the Special Function Menu (it functions when special
modules are inserted).
G
VOL+ /- Used to adjust the volume when the screen menu is closed.
H
CH+/-
Used to select a TV channel when the screen options menu is closed, specifically,
press CH- to decrease the channel and press CH+ to increase the channel.
I
MENU
Press this key to display or exit the main menu.
J
EXIT
Clears all on-screen displays and returns to TV viewing from any menu.
K
THUMBSTICK (Up/
Down/Left/Right/
OK)
PAllows you to navigate the on-screen menus and adjust the system setting to
your preference. Press OK buuton to confirm the selection.
L
OK
Press this key to conrm the selection
M
USB
Press this key for quick switching of streaming media.
N
BACK
Back button(only for USB).
O
REC
No available.
P
TIMESHIFT
No available.
Q
HELP Fast Reverse (only for USB)
R
PLAY/PAUSE Fast Reverse (only for USB)
S
REV Fast Reverse(only for USB).
T
FWD Fast Forward(only for USB).
U
NEXT
Next(only for USB).
V
PREV
Previous(only for USB)
W
TEXT
No available.
.
X
MIX
No available.
Y
HOLD
No available.
Z
SUBCODE
No available.
[
PIP
No available.
\
SWAP
No available.
]
ZOOM
Fast Reverse(only for USB).
`
MOVE
No available.
SCAN
H.LOCK
SLEEP
MUTE
RECALL
USB
REC
TEXT
PIPSWAP MOVE ZOOM
MIX HOLD
SUBCODE
TIMESHIFTPLAY/PAUSE
HELP
BACK
HDMI
FREEZE
P.MODE
S.MODE
ARC
FAVORITE
SOURCE
DISPLAY
VOL CH
MENU
EXIT
INDEX
REVFWD PREV NEXT
12
14
16
18
19
20
21
23
22
25
24
26
27
29
28
30
31
32
33
34
37
35
36
38
39
40
Ⅰ/Ⅱ
OK
Remote Control Function
External Equipment Connections
LED -LCD television Owner’s Manual 9
Antenna Connection
- Antenna or Cable Service without a Cable Box Connections.
- For optimum picture quality, adjust antenna direction if needed.
Note:
* It is recommended that you'd better use 75Ω coaxial cable to remove
the disturbance caused by airwave.
* Don't bind antenna cable and electric wire together.
To improve picture quality in a poor signal area,
purchase and install a signal amplifier.
If the antenna needs to be split for two Tv’s, install a
"2-WaySignal Splitter" in the connections.
If the antenna is not installed properly, contact your
dealer for assistance.
Note
All cables shown are not included with the TV. R
ANT.
External Equipment Connections
External Equipment Connections
10 LED -LCD television Owner’s Manual
Choose Your Connection
There are several ways to connect your television,
depending on the components you want to connect and
the quality of the signal you want to achieve.
The following are examples of someways to connect
your TV. Choose the connection which is best for you.
VCR Connection
To avoid picture noise (interference), leave an adequate
distance between the VCR and TV.
DVD Setup
How to connect
Connect the DVD video outputs (Y, PA
b/Cb
, Pr/Cr)
to the COMPONENT (Y, P
b/Cb
, Pr/Cr) input jacks on
the TV and connect the DVD audio outputs to the
AUDIO jacks on the TV’ as shown in the figure.
PC/DVI AUDIO IN
Pb
PC IN
YPr
HDMI IN
DIGITAL OUT
(COAXIAL)
How to use
Turn on the DVD player, insert a DVD.A
Use the B
SOURCE
button on the remote control,
and
then press
5
/6button to
to select COMPONENT
mode
, press the button to confirm.
PressC Play button on external equipment for
program play.
Refer to the DVD player’s manual for operating
D
instructions.
HDMI or DVI Setup
To watch digitally broadcast programs, purchase and
connect a digital set-top box.
How to connect
Use the TV’s COMPONENT (Y, P •
b/Cb
, Pr/Cr) INPUT
jacks, VGA or HDMI port for video connections,
depending on your set-top box connections
available. Then, make the corresponding audio
connections.
PC/DVI AUDIO IN
Pb
PC IN
Y
HDMI IN
Pr
DIGITAL OUT
(COAXIAL)
Connection Option 1
Set VCR output switch to channel 3 or 4 and then tune
the TV to the same channel number.
Connection Option 2
Connect the audio and video cables from the VCR’s A
output jacks to the TV input jacks, as shown in the
figure. When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white, and
Audio Right = red).
Insert a video tape into the VCR and press
B PLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select the input source with using the C SOURCE button
on the remote control, and then press
5
/6button to
select the source, press the
button to confirm.
External Equipment Connections
LED -LCD television Owner’s Manual 11
How to use
Turn on the digital set-top box. A
(Refer to the owner’s manual for the digital set-top box.)
Use SOURCE on the remote contralto select PC or B
HDMI (Y, Pb/Cb, Pr/Cr) mode.
Press
C Play button on external equipment for
program play.
YPb
DIGITAL OUT
HDMI IN
(COAXIAL)
PC/DVI AUDIO IN
Pr
/
PC Setup
How to connect
Use the TV’s PC IN port for video connections.A
Then, make the corresponding audio connection. If B
using a sound card, adjust the PC sound as required.
How to use
Turn on the PC and the TV.A
Turn on the display by pressing the B POWER button
on the TV’s remote control.
Use SOURCE on the remote control to select PC source.C
Check the image on your TV. There may be noise D
associated with the resolution, vertical pattern,
contrast or brightness in PC mode. If noise is
present, change the PC mode to another resolution,
change the refresh rate to another rate or adjust the
brightness and contrast on the menu until the picture
is clear. If the refresh rate of the PC graphic card
can not be changed, change the PC graphic card or
consult the manufacturer of the PC graphic card.
HDMI IN
DIGITAL OUT
(COAXIAL)
PC/DVI AUDIO IN
YPbPr
PC IN
Note
Avoid keeping a fixed image on the TV’s screen for R
along period of Time. The fixed image may become
permanently imprinted on the screen.
The synchronization input form for Horizontal and R
Vertical frequencies is separate.
To obtain the best picture, do not play the USB, R
YP
bPr
, HDMI or PC source at the same time.
External Equipment Connections
12 LED -LCD television Owner’s Manual
Monitor Out Setup
The TV has a special signal output capability which
allows you to hook up a second TV or monitor.
Connect the second TV or monitor to the TV’s AV OUT.
See the Operating Manual of the second TV or monitor
for further details regarding that device’s input settings.
Note
Component, PC, HDMI input sources cannot be R
used for Monitor out.
When connecting with external audio equipments, R
such as amplifiers or speakers, please turn the TV
speakers o.
Connecting Headphones
You can connect a set of headphones to your set if you
wish to watch a TV program without disturbing the
other people in the room.
DIGITAL OUT
HDMI IN
(COAXIAL)
Plug a set of headphones
Into the 3.5mm mini-jack
socket on the rear panel
of the set.
Note
Prolonged use of headphones at a high volume R
may damage your hearing.
You will not receive sound from the speakers when R
you connect headphones to the system.
Power source
TO USE AC POWER SOURCE
Use the AC polarized line cord provided for operation on
AC. Insert the AC cord plug into a standard polarized AC
outlet.
Note
Never connect the AC line cord plug to other than R
the specified voltage. Use the attached power cord
only.
If the polarized AC cord does not fit into a non R
polarized AC outlet, do not attempt to file or cut
the blade. It is the user’s responsibility to have an
electrician replace the obsolete outlet.
If you cause a static discharge when touching the R
unit and the unit fails to function, simply unplug
the unit from the AC outlet and plug it back in. The
unit should return to normal operation. Polarized
AC Cord Plug.
Basic Receiving and
Playing Operations
Switching ON/OFF the TV set
In the manual, the OSD (on screen display) may be
dierent from your TV’s because it is just an example to
help you with the TV operation.
External Equipment Connections / Basic Receiving and Playing Operations
Specication and Format
LED -LCD television Owner’s Manual 13
Switching ON/OFF the TV set
First, connect power cord correctly and the power A
indicator will light.
Press
B POWER on the remote control again.
If you want to exchange to standing by status,
C
please press down POWER on the remote control
Disconnect the power supply or unplug the
D
television if it is intended to completely cease the
television performance.
Choose the Menu Language
When you satisfied with your set for the first time,
you must select the language which will be used for
displaying menus and indications.
Press
A MENU and
3/
to select Function menu.
Press
B
5
/6button to select Function menu.
Select a particular language by pressingC
repeatedly.
When you satisfied with your choice, press
D MENU to
return to normal viewing.
Choose the Input source
If the TV is not in TV mode, press SOURCE on the remote
control unit, and signal source menu will be displayed
on the TV screen (as shown in the below figure). Press
5
/6 to select the TV option, and pressor OK
to confirm the switching to TV input terminal. After
switching, the signal source menu disappears, and at the
upper right corner of screen displays the information of
current signal source.
Pressing this key repeatedly can exit from the signal
source menu.
In case of no other operation, the signal source menu
will automatically disappear upon reaching the OSD
disappearance time preset in the main menu.
TV
AV
Component
USB
PC
HDMI
MOVE
SOURCE
OK
OK
Searching Channel
In this section, how to use the remote control to set
channel is explained. You can also use buttons on the TV
set to set channel.
Channel Edit
Press A MENU on the remote control unit or MENU
on the TV’s front panel to display main menu,
and then press
3/
to select Tuning menu.
Press B
5
/6 to select the Channel Edit
option, and then press OK to enter submenu.
Troubleshing and Specication
14 LED -LCD television Owner’s Manual
Search ▲
Press 5/6 to select the Search
option, and finally
press
3/
to start manual search. Upon finding a
program, the search will automatically stop, and the
program will be stored onto the current channel.
You may stop the search by pressing OK or MENU
.
Fine Tune ▲
Press 5/6 to select the Fine Tune option, and
then press
3/
to start UP or DOWN fine tuning
until obtaining a relatively good picture effect. The
fine tuning function is for the purpose of improving
picture effect through fine tuning when that of a
certain program is not good enough. Normally, the
optimal picture effect can be obtained without fine
tuning when watching TV programs, and fine tuning
is to meet the need of adjusting a certain program.
Color system ▲
Press 5/6 to select the Color Systems option,
and then press
3/
to select correct color
system.
The TV is designed with three systems for your
choice, i.e. Auto, PAL , SECAM and NTSC. Generally,
the system is set as Auto and it is not necessary to
make an adjustment. The system is normally set as
Auto during auto search.
Sound system ▲
The TV is designed with four systems for your
choice, i.e. D/K, M, B/G and I. Generally, it is not
necessary to adjust the system. The system is
normally set as DK during auto search.
Skip ▲
When the skip is set ON, the channel will be
skipped when pressing CH ∧ or CH ∨ and only can
be selected by pressing 0-9 numerical keys.
If you want to recover the skipped channel
1. Use Direct-digit Choosing button to select the
number of the channel to be recovered.
2. Do the above steps again.
3. Press
3/
to set Skip as Off.
Automatic search
Press A MENU on the remote control to display main
menu, and then press
3/
to select Tuning
menu. (Note: Only when Tuning Lock in the H. Lock
menu is O can the Channel menu be selected.)
press B
5
/6 to select the Auto Search option, press
OK to enter the auto search menu, afterwards press
3/
to select the Confirm option,
and finally press
OK to confirm the starting of auto search.
menu
Tuning
Sound
During auto search, the scale value on the progress C
bar is continually increasing, indicating the auto
search is in progress. After finishing the auto search,
the TV will play the channel starting the auto search.
To stop the search in halfway, just press MENU/OK,
and the TV will play the first searched channel.
menu
Auto Search
Found Channel(s):2
Frequency:25NHz
40%
Cancel
Tuning
Sound
Auto Searching
Exchange
Press A MENU on the remote control unit or MENU on
the TV’s front panel to display main menu, and then
press
3/
to select Tuning menu.
Press
B
5
/6 to select the Prog. Exchange option,
and then press OK to enter its submenu.
Press C
5
/6 to select the To Channel option, and
Specication and Format
LED -LCD television Owner’s Manual 15
then press 3/
to set the found to be exchanged to
.
menu
Current Channel
To Channe
Exchange
Prog. Exchange
10
20
OK
Tuning
Sound
After adjusting the current channel and the found to D
be exchanged to, press 5/6 to move the cursor
to the Exchange option, and then press OK to start
exchange and exchange the program on current
channel to the channel you set for exchange.
Watching TV Program
You can watch TV program in a presetting channel.
How to select the desired program
Using Program number buttons A
Directly enter the channel number with the numeric
keypad on the remote control. If to select channel
numbers of double-digital or three-figure, press
continuously the numeric buttons in three second.
Using
B CH ∧ /CH ∨ buttons
Press CH∧ to select a channel number in number
increasing direction. Press CH ∨ to select a channel
number in number decreasing direction.
How to select the desired sound
Press VOL-/+ buttons on the remote or the front of
the TV set to adjust the volume level. The range is
0~100. When the volume buttons are pressed the
volume level is displayed automatically on the TV
screen.
Mute Setting
Press A MUTE button on the remote control and a icon
will display on the screen. At this time, the sound of
the TV set is turned o.
If you want to recover the sound, press B MUTE
button again or directly press VOL+ button.
Quick program view
Suppose that you previously watched a TV program A
on Channel 8, but now you are watching a TV
program on Channel 18 (as shown in the below
figure).
If you want to return to Channel 8, just press B
"RECALL (Flashback)" once.
If you want to return to Channel 18 again, just press
C
"RECALL (Flashback)" once again.
Note
This function is only available in TV mode. R
Picture Control Functions
This means the adjustment of specific contents in the
picture, if already in normal condition, it is not necessary
to make any adjustment.
Due to dierent TV signal inputs, some items may need
to be adjusted. The following makes a description by
only taking TV signal as an example.
How to select the picture mode
Press A MENU to display main menu on the screen, and
then press
3/
to select the Picture menu, afterwards
press
5
/6 to enter the option to be adjusted.
Press
B
5
/6 to move the cursor to the option to be
adjusted, and then press
3/
to select Standard/
Vivid/Soft/User.
You can also press P.MODE on the remote control to
Troubleshing and Specication
16 LED -LCD television Owner’s Manual
select Standard/Vivid/Soft/ User mode.
Standard ▲
The picture brightness and hue are moderate.
Vivid ▲
The picture is vivid, bright and dynamic.
Soft ▲
The picture is soft and in light color.
User ▲
The picture eect is set by yourself to your preference.
How to customize your own picture status
Press A MENU to display main menu on the screen,
and then press
3/ to select the Picture menu,
afterwards press
5
/6 to enter the option to be
adjusted.
Press
B
5
/6 to move the cursor to the option to be
adjusted, and then press
3/
to adjust it to your
desired eect.
menu
Contrast
Brightness
Color
Sharpness
Tint
Picture Mode
Aspect Ratio
Palette
Reset
Standard
Standard
Full Screen
50
50
50
50
0
OK
OK
TuningSound
Contrast ▲
This will adjust the intensity of bright parts in the
picture but keep the dark parts unchanged.
Brightness ▲
This will adjust the light output of the complete
picture, which will mainly aect the darker areas of
the picture.
Color ▲
This will adjust the saturation level of the colors to suit
your personal preference.
Sharpness ▲
This will adjust the sharpness of fine details in the picture.
Tine ▲
Allows you to select the color mix (Tine) of the picture.
Picture Mode ▲
Select the mode of picture(Standard/Vivid/Soft/User).
Aspect Ratio ▲
Select the mode of Aspect Ratio(Full screen/4:3/
Zoom/Cinema/Panorama).
Palette: ▲
Press 5/6 to select the Palette option, and then
press
to enter its submenu, and finally press
5
/6
to select a toner pattern from six patterns (User,
Standard, 6500K, 7300K, 8500K and 9300K) to your color
preference. Normally, the Standard mode is selected.
If the User mode is selected, press 3/ to enter
the palette menu, (as shown in the below figure),
and then press 3/to select a benchmark in the
range of 2500K~15000K from warm color to cold
color, afterwards press 5/6 to adjust; if a dierent
benchmark is selected for adjustment, the original
adjustment data will be automatically cleared.
menu
Standard
Warm1
Warm2
Cool1
Cool2
User
Palette
TuningSound
+50
0
-50
Reset ▲
Return to factory default settings.
Sound Control Functions
How to choose audio mode
Press A MENU to display main menu on the screen,
and then press
3/
to select the Sound menu,
afterwards press
5
/6 to enter the option to be
adjusted.
Press
B
5
/6 to move the cursor to the option to
be adjusted, and then press
3/
to select User/
Standard/Music/Theater mode.
User ▲
A spare setting that can be adjusted to personal tastes.
Standard ▲
Normal sound with moderate bass and treble setting.
Music ▲
Specication and Format
LED -LCD television Owner’s Manual 17
Designed the sound to best suit music programs.
Theater ▲
Enables extra bass and treble to enhance the movie
experience.
You can also press S.MODE button on the remote control
to select User / Standard / Music / Theater mode.
How to customize your own audio
status
Press A MENU to display main menu on the screen,
and then press
3/
to select the Audio icon,
afterwards press
5
/6 to enter the option to be
adjusted.
Press
B
3/
to adjust.
menu
Volume
Balance
Digital tone
SRS TS XT
AVL
MAXX Bass
Reset
Off
Off
Low
Standard
50
0
OK
OK
TuningSound
Volume ▲
Press 3/ to adjust the volume of a TV program.
Balance ▲
This will adjust the output of the right and left
speakers to obtain the best stereo reproduction for
your listening position.
The intermediate value is 0. When indication value
of Balance increases toward 50, sound of the right
and left speakers becomes stronger and weaker,
respectively. When indication value of Balance
decreases toward -50, sound of the right and left
speakers becomes weaker and stronger.
Digital tone ▲
This select the modes for sound reproduction dependent
on the broadcast signals or signals from external inputs
received.
Select the mode of sound (User/Standard/Music/Theater).
If the User mode is selected, press OK to enter the
digital tone menu,(as shown in the below figure),
and then press
3/
to select a benchmark in the
range of 50~15K from bass to treble, afterwards press
5
/6 to adjust, if a dierent benchmark is selected
for adjustment, the original adjustment data will be
automatically cleared.
menu
Standard
Music
Theater
User
Digital tone
TuningSound
+6db
0
-6db
50 75 100 300
1K 3K 5K 10K 15K
SRS TS XT ▲
The surround sound feature expands the audio
listening field wider and deeper to create exceptional
sound quality from the TV’s speakers.
AVL (Automatic Volume Limit) ▲
This will reduces the dierences in volume level
among broadcasters.
MAXX Bass ▲
To adjust the super bass. Press 3/ to select super
bass o, low or high Medium.
Reset ▲
Return to factory default settings.
Timer Functions
Setting of Current Time
The current time is calculated from the moment upon
turning the TV on. At first, check whether the time
indicated on the TV's clock is consistent with the standard
time of your time zone; if not, adjust the clock as follows:
Press A MENU on the remote control unit or MENU
on the TV’s front panel to display the main menu,
and then press
3/
to select the Timer menu,
afterwards press
5/6
to select the Current Time
option.
PressB
3/
to set hour and minute.
Press
C
5
/6 to adjust the time.
After finishing time setting, press D OK or MENU to confirm.
Troubleshing and Specication
18 LED -LCD television Owner’s Manual
Setting of ON/OFF Time
This function allows the TV to automatically turn on or
enter standby mode upon reaching the preset time.
Press A MENU on the remote control unit or MENU
on the TV's front panel to display the main menu,
and then press
3/
to select the Timer menu,
afterwards press
5
/6 to select the On Time or O
Time option.
Press OK to enter the setting screen, and then press
B
5
/6to select ON or OFF, if you select ON, press
3/
to set hour and minute. ON indicates the On/
O Time function is enabled while OFF indicates the
function is disabled.
menu
Tuning
Sound
Curren Time
Off Time
On Time
On Channel
Remind Time
Remind Channel
--:--
0
00:00
0
00:00
On
Off
After finishing time setting, press C OK or MENU to confirm.
Note
After setting the On/O Time function, if the TV R
is AC o or forcible DC o, the function will be
automatically cleared.
Setting of On Channel
This function is used in combination with the On/O Time
function. When the TV turns on upon reaching the On
time, it automatically enters the preset channel.
Press A MENU on the remote control unit or MENU
on the TV's front panel to display the main menu,
and then press
3/
to select the Timer menu,
afterwards press
5
/6 to select the On Channel
option.
Press
B
3/
to set the On Channel or OFF.
menu
Tuning
Sound
Curren Time
Off Time
On Time
On Channel
Remind Time
Remind Channel
10:30
00:00
00:00
0
00:00
0
Setting of Remind Time and Remind
Channel
The remind time and remind channel functions allow the
TV to automatically enter the preset channel at preset
time. If the TV is AC o or forcible DC o, the preset time
will be cleared.
Press A MENU on the remote control unit or MENU
on the TV's front panel to display the main menu,
and then press
3/
to select the Timer menu,
afterwards press
5
/6 to select the Remind Time
option.
menu
Tuning
Sound
Curren Time
Off Time
On Time
On Channel
Remind Time
Remind Channel
10:30
00:00
00:00
00:00
On
Off
Press OK to enter the setting screen, and then press B
5
/6 to select ON or OFF, if you select ON, press
3/
to set hour and minute, and then press
5
/6 to adjust time.
After finishing time setting, press
C OK or MENU to
confirm.
Press
D
5
/6 to select the Remind Channel option,
and press
3/
to set the found
.
menu
Tuning
Sound
Curren Time
Off Time
On Time
On Channel
Remind Time
Remind Channel
10:30
--:--
--:-000
--:-000
Specication and Format
LED -LCD television Owner’s Manual 19
Function Menu
Function Menu Set
Press A MENU on the remote control unit or MENU
on the TV’s front panel to display the main menu, and
then press
3/
to select the Time menu.
Press B
5
/6 to select the option to be adjusted,
and then press
3/
to adjust it.
Language ▲
Two languages (i.e. Simplified Chinese and English)
are available for your choice.
Menu timeout ▲
The option is for adjusting the menu display
time. Press 3/ to set the desired time (5-15s).
Picture Optimize ▲
Press •
5
/6to select the Picture Optimize option.
Press •
to enter the submenu.
Press •
5
/6 to select theDCDI/DNR/3D Comb
Filter to be adjusted, and then press
3/
to
select ON or OFF.
Press •
5
/6 to select the Color Management to
be adjusted, and then press
3/
to select Low/
Medium/High/ O.
menu
DCDI
DNR
Color Management
3D Comb Filter
Picture Optimize
On
Low
On
On
Tuning
Sound
Blackground ▲
Press 3/ to set ON or OFF, if you select ON, the TV
screen will be black if no signals are available.
Black Stretch ▲
Adjust Menu
The TV can be used as a display, and you may adjust
relevant settings.
Press SOURCE to switch the signal
input to PC mode.
Press
A MENU to display the screen main menu, and
then press
3/
to select the Adjust menu as
shown in the below figure.
menu
Image Position
H-Size
V-Size
Auto Adjust
Clock
Phase
Reset
Tuning
Sound
5
5
128
0
Press B
5
/6 to select the option to be adjusted.
Press
C
3/
to adjust it.
Image Position ▲
This is used to adjusting H-Position and V-Position.
H-Size ▲
Vertical and Horizontal position of picture can be ▲
adjusted in this item.
V-Size ▲
Vertical and Horizontal position of picture can be ▲
adjusted in this item.
Auto Adjust ▲
Vertical and Horizontal position of picture can be
adjusted in this item.
Clock ▲
This is used for adjusting the phase of pixel clock in
PC mode.
Phase ▲
This is used for adjusting H Position and V Position as
well as relative parameters in PC modes.
Reset ▲
Return to factory default settings.
Troubleshing and Specication
20 LED -LCD television Owner’s Manual
Lock Setup
The television has the function of security default lock.
Password needs to be entered when the program lock
mode is to be set.
How to use the password function
Press H. LOCK, the TV screen will display Enter Password
to prompt the user to enter a correct password by
pressing corresponding numerical keys; if the password
is correct, the user enters the Lock Set menu; if incorrect,
the user is required to enter a password again.
If there is no operation for a few seconds, the display will
automatically disappear.
The Lock Set menu is as follows:
menu
Change Password
Tuning Lock
Preset Source
Preset CH.
Source Lock
Child Lock
Max Volume
On Volume
Unlock
off
off
off
off
100
0
To set new password ▲
After entering the Lock Set menu, press 5/6 to
select the Change Password option, and then press
3/
to display the Change Password menu,
afterwards enter a new 4-digit password by pressing
numerical keys and repeat entering this password
once, and finally select the option to be confirmed
and press MENU to confirm, indicating the successful
change of password.
If the user does not want to change the password in
halfway, he may press MENU to exit from this menu.
Note
The initial password is 0000, and the password setting
will not be changed after executing the Unlock
option.
Tuning Lock ▲
Press 5/6 to select the Tuning Lock option, and
then press 3/ to set ON or OFF.
(If set ON, the Tuning Menu is not available in TV
mode. To make any operation related to the Tuning
Menu, it is necessary to enter the Lock Set menu to set
Tuning Lock OFF or execute the Unlock option.)
Preset Source Setting ▲
Preset Source may be set as O, TV, AV,Component,
HDMI, PC and USB. When the Preset Source is set as
TV, after entering the Preset Channel menu, press
3/
to select the preset channel, and
the channel
will be forcibly switched to the preset one upon
turning the TV on; when the Preset Source is set as
other signal sources, the TV will be forcibly switched to
the preset source upon turning on. For example, when
the Preset Source is set as
YPbPr/YCbCr, the TV will be
switched to
YPbPr/YCbCr upon turning on; when set as
OFF, the preset function will be closed.
Preset Channel Setting ▲
Only when the Preset Source is set as TV can the
Preset Channel option be available. Press 3/ to
select preset channels from 0-254.
Source Lock ▲
This function is used to prohibit watching a program
from various external inputs, e.g. AV and PC, etc.
Press 5/6 to select a certain option, and then
press 3/ to set an external input lock ON or OFF.
If an external input lock is set ON, after entering this
mode, the screen will display blue background with
muting and a prompt Source Lock; during Source
Lock prompt, Source Lock will remain if there is no
other display on the screen. To watch a program
from a locked external input, just enter Source Lock
submenu to set corresponding status as OFF or
execute the Unlock option in the Lock Set menu.
Child Lock Setting ▲
Press 5/6 to select the Child Lock option, and then
press 3/ to set ON or OFF. If set ON, this control
key will not respond, and the screen will display Child
Lock when the key is pressed; if no other operation is
made, the display will automatically disappear later.
To resume Child Lock function, just enter the Lock Set
menu to set Child Lock OFF or execute the Unlock
option.
Max Volume Setting ▲
Press 5/6 to select the Max Volume option, and
then press 3/ to freely adjust the max volume
within the range of 0~100. After finishing the setting,
the max volume in the Volume menu will not exceed
the preset max volume; for example, if the preset
max volume is 30, the volume in the Volume menu
can not be increased any longer upon reaching 30;
if the preset max volume is less than the value in the
Volume menu, the latter will decrease along with the
decrease of preset max volume.
Specication and Format
LED -LCD television Owner’s Manual 21
On Volume ▲
Press 5/6 to select the Power on Volume option,
and then press
3/
to freely adjust the volume
within the range of 0~100.
Unlock Setting ▲
Press 5/6 to select the Unlock option, and then
press to clear all the lock settings, namely set all
the lock setting options as OFF; the Preset Channel
is set as OFF and max volume returns to 100 (except
password).
Streaming Media Playing
System
Note
The diagrams in the following section are R
schematic and only for your reference. Please see
the actual product if necessary.
Supported file formats:
A
Picture: •
*
. JPEG;
Music: •
*
. Mp3(8-320kbps; WMA(32-192kbps);
AAC(16-576kbps)
Movie: •
MPEG4: *. avi files in accordance with Div*4. x/5. x
Protocol;
MPEG2: some *. mpeg files;
MPEG1: *. dat and some *. mpeg files;
RealVideo
Text: •
*
. Txt.
Note
Due to the particularity of file coding, some files R
may be unable to be read.
Supported equipment:
B
Support the equipment that supports Mass Storage
Protocol and whose file system is FAT/NTFS/FAT16/
FAT32, such as some USB disks, mobile hard disks,
card readers, MP3 players and digital cameras.
If USB equipment could not be identified due
to unsupported file system, please format the
equipment to the above-mentioned file system;
The external card reader supports most of the digital
C
cards in the current market; the types of digital cards
that can be read are relevant to the performance
of selected card reader; you may attach standard
mobile hard disks (working voltage 5.0V, working
current not higher than 500mA); during media
playing, do not pull out storage media, otherwise it
may cause system halt, damage the files in storage
media or damage USB equipment; sometimes, the
TV may halt due to overhigh information error rate,
in which case you should restart the system; there
are a lot of nonstandard USB mobile equipment
in the market, they may not be identified when
connected to the streaming media playing system;
the above phenomena may also occur on computers
and are not the TV’s fault.
To achieve smooth playing, ensure the following:
D
The file code rate should be lower than 300KB/S; •
Due to the limitation of USB signal transmission •
distance, it is recommended not to use USB patch
cord, in case of using the cord, make sure that its
length is not over 1m;
Use high-speed USB equipment in conformity •
with USB2.0 Interface Standard; if USB equipment
in conformity with USB1.1 Interface Standard is
used, the playing may be unsmooth.
Although many movie files are with such postfixes as
E
avi and mpeg, actually there are several formats in the
files; however, the TV can only play some files in avi
and mpeg formats. Some files with the postfix "dat"
are not movie files, but data files commonly used in
computers, and they can not be played as movies.
Start/Exit Streaming Media Playing
System
Press A USB on the remote control unit to select the
streaming media function.
Insert USB equipment into corresponding USB
B
interface 2s after starting the system.
After entering the system menu, press
C
3/
on
the remote control unit to select the required USB
equipment, and then press 5/6 on the remote
control unit to select the required file.
Press
D OK to enter the selected file.
To exit the streaming media playing system and
E
watch a TV program, you must return to the
streaming media main menu at first (to protect
equipment), and then press SOURCE to select TV or
directly press USB to return to the TV mode.
Troubleshing and Specication
22 LED -LCD television Owner’s Manual
Operating Method of Streaming
Media Menu
Press A
5
/6 to scroll through main menu or
submenu and select your desired option.
Press
B OK to confirm your selection.
Press
C REV/FWD to achieve the FF (fast forward) and
FB (fast back) of the movie or music being played.
Press
D PLAY/PAUSE to pause playing, and press it
again or press OK to continue playing.
Press
E ZOOM to magnify pictures; in zoom mode,
press 3/ and 5/6 to move the picture.
Press
F HELP to display or exit the screen display
information while playing.
Press
G BACK to stop playing, or return to the previous
menu, and press BACK repeatedly to return to the
main menu.
Playing a Picture
After entering USB main interface, press A
3/
to
select a harddisk partition, and then press
5
/6 to
select the Picture option.
Press B OK to confirm the selection and enter the
picture playing interface.
Press
C
3/
to change page, and press 5/6 to
select the picture you want to play, and then press
OK to enter the playing display interface.
Press • ZOOM to magnify the picture, and then
press
3/
/5/6 T to move the picture.
Press •
3/
to select the last or next picture.
Press •
5
/6 to rotate the picture.
To exit playing, just press D BACK repeatedly.
Playing a Movie
After entering USB main interface, press A
3/
to
select a harddisk partition, and then press
5
/6 to
select the "Movie" option.
Press B OK to confirm the selection and enter the
movie playing interface.
Press
C
3/
to change page, and press 5/6 to
select the movie you want to play, and then press
OK to enter the playing display interface.
Press •
3/
to select the last or next movie.
To exit playing, just press D BACK repeatedly.
Specication and Format
LED -LCD television Owner’s Manual 23
Note
The menu display varies with the number and R
names of files in your equipment.
Playing Music
After entering USB main interface, press A
3/
to
select a harddisk partition, and then press 5/6 to
select the Music option.
Press B OK to confirm the selection and enter the
music playing interface.
Press
C
3/
to change page, and press 5/6 to
select the music you want to play, and then press
OK to play the music.
To exit music playing, just press D BACK repeatedly.
Tex t
After entering USB main interface, press A
3/
to
select a harddisk partition, and then press 5/6 to
select the Text option.
Press
B OK to confirm the selection and enter the text
playing interface.
Press
C
5
/6/3/ to select the text you want
to read, and then press OK to play the text reading
interface. Press 3/ to change page, and press
BACK to exit the reading interface.
To exit the Text mode, just press D BACK repeatedly.
Settings
After entering USB main interface, press A
5
/6to
select the Settings option.
Press
B OK to confirm the selection and enter the
settings selection interface, and then press 5/6
to select the required options.
BGM Auto Play ▲
Select "on" or "o".
Bubtitle Auto Play ▲
Select "on" or "o".
Photo Slide Time ▲
Set the scan speed of pictures to be scanned in slide
form.
There are three options (Short/Long). Press 3/ to
select the desired option.
Maintenance
Maintenance
Early malfunctions can be prevented. Careful and regular
Troubleshing and Specication
24 LED -LCD television Owner’s Manual
cleaning can extend the amount of time you will have
your new TV. Be sure to turn the power o and unplug
the power cord before you begin any cleaning.
Cleaning the Screen
Here’s a great way to keep the dust o your screen A
for a while. Wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing
detergent. Wring the cloth until it’s almost dry, and
then use it to wipe the screen.
Make sure the excess water is o the screen, and
B
then let it air-dry before you turn on your TV.
Cleaning the Cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry,
lint-free cloth. Please be sure not to use a wet cloth.
Extended Absence
If you expect to leave your TV dormant for a long time
(such as a vacation), it’s a good idea to unplug the power
cord to protect against possible damage from lightning
or power surges.
Troubleshooting
For the sake of time and cost, it is strongly
recommended that you checkout the problem by
yourself according to the instructions listed hereunder
before contacting the after-sales service for technical
assistance.
Problem Possible remedies
No
picture,
no sound
Turn onthe power supply; Properly
plug theTV setto the powersocket;
Check to see if the power cable of other
appliance is plugged in the TV set.
Make
sure that the power cable of the TV set
is properly connected.
Problem Possible remedies
Good
picture,
no sound
Depress the volume button;
Check out theaudio frequency input signals.
Failure of
remote
controller
Check to see if the remote controller
display receiving window are blocked
by other objects and if batteries are
properly loaded.
No color,
weak color
or poor
Designate the item of color from the
Picture menu and depress the volume
button; Keep the display and VCR
separate a reasonable space; Activate
some functions to store picture
brightness; Make sure that the display
and signal source are available and
turned on.
Excessive
brightness
or darkness
Adjust brightness or contrast.
too big or
small
Adjust the setup of sizes.
One
speaker
failure
Balance the sound in the menu.
Slight
sound
from
display
It is a normal phenomenon.
Note
Do not leave the television with static picture in an R
extended period as it may result in residual image
on your television screen.
Note
Production of the screen requires high and precision R
technologies. However, there might be some
dank or bright (red, blue or green) spots, or some
anomalistic stripes or spots. This is not defect. If the
TV set is used in an area 2,400 meters above the sea
level where the air pressure is below 750hpa, the
picture on the screen maybe aected and a mued
sound might be produced. These phenomena
might happen in the area 1,500 meters above the
sea level. This is resulted from dierence between
air pressures inside and outside the display. This is
not a defect covered by the limited warranty.
Specification
Basic specication and parameter
LED -LCD television Owner’s Manual 25
Power ~ 100-240V 50/60Hz
Color System PAL, NTSC, SECAM
Stand-by
Consumption
D/K, B/G, I, M
Video Input USB,AV, Component, HDMI or PC,
Environmental
condition
Operating temperature range:
+5°C - +35°C Operating
humidity range: 20%-80%
Storage Temperature:
-15°C~+45°C
Storage Humidity: 5%-90%,
non-condensing
If the storage temperature is
lower than 0 °C, please rst
lays the machine aside after
in the operating temperature
environment carries on restores
2 hours, then electries the use
again, protects your television
not to receive the damage.
Accessories
Owner’s manual x1
Remote Control x1
Alkaline battery x2
(This is only available for certain
models,please refer to actual products.)
Product main size (contain stand)
MODEL
Power
Consumption
Net Size(LxWxH) Net Weight
LE19T3
30W
460x160x350mm
3.2Kg
LE19T3W
30W
460x160x350mm
3.2Kg
LE22T3
35W
528x160x388mm
3.8Kg
LE22T3W
35W
528x160x388mm
3.8Kg
LE24T3
45W
572x170x413mm
4.2Kg
L24K3
65W
585x190x434mm
5.3Kg
Note
Design and specications are subject to
change without notice. The dimension
in this manual is a approximation.
Format
Recommendatory HDTV/
SDTV(YPbPr/YCbCr) format
Sequence
Number
Format
Refresh
Frequency (Hz)
1 480i/480p 60
2 576i/576p 50
3 720p 50/60
4 1080i/1080p 50/60
Recommendation PC connection
input format
sequence
number
Format
H-Frequency
(KHz)
V-Frequency
(Hz)
1 640*480@60Hz 31.5 60
2 800*600@60Hz 37.88 60
3
1024*768@60Hz
(Recommendatory)
48.36 60
Recommendation DVI connection
input format
Sequence
Number
Resolution
Refresh Frequency (Hz)
1 640*480 60
2 800*600 60
3 1024*768 60
Recommendation HDMI
connection input format
Sequence
Number
Format
Refresh Frequency (Hz)
1 480i/480p 60
2 576i/576p 50
3 720p 50/60
4 1080i 50/60
Loading...
