Haier L24C1180 Schematic

23.6 LCD TV Haier L24C1180

Service

Service

Service

31.5~68 KHz

Description Page Description Page

Table of Contents.......……....................................…........1

Important Safety Notice.......................................……......2

Revision List…………………………………………………3

1. General Specification.................................………........4

2. Operating Instructions…………………….……...….......6

2.1 The Use of Remote Control…….…………...…….......6

2.2 To Use the Menus…...………………….….………......7

2.3 Front Panel Control Knobs……………….………......13

2.4 How to Connect…….…………………….…..…….....14

3. Input/Output Specification…………....................…....15

4. Mechanical Instructions…………………….................17

5. Repair Flow Chart ………………………………………20

6. PCB Layout …………...………………………………...27

6.1 Main Board…………..…………………...…….….......27

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

TABLE OF CONTENTS

6.2 Power Board…..…………..………….…..…….......29

6.3 Key Board………………………..……..……….......32

6.4 IR Board…………………………..……….…….......32

7. Adjustment……………….……….…………...………33

7.1 ADC Adjustment……………………..……...………33

7.2 FW Upgrade.………………………………...………34

7.3 The Writing VGA & HDMI EDID….………...………38

8. Block Diagram.…….................................................43

9. Wiring Diagram.……...............................................44

10. Schematic Diagram………..……..………………...45

10.1 Main Board…………….…………………...….......45

10.2 Power Board………..…....…………...……….......55

10.3 Key Board……………….………….………….......57

10.4 IR Board……………………………….……….......58

SAFETY NOTICE

Horizontal Frequency

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all Haier Company Equipment. The service

procedures recommended by Haier and described in this service manual are effective methods of performing

service operations. Some of these service operations require the use of tools specially designed for the purpose.

The special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in

order to minimize the risk of personal injury to service personnel. The possibility exists that improper service

methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE

NOT EXHAUSTIVE. Haier could not possibly know, evaluate and advise the service trade of all conceivable ways in

which service might be done or of the possible hazardous consequences of each way. Consequently, Haier has not

undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not

recommended by Haier must first satisfy himself thoroughly that neither his safety nor the safe operation of the

equipment will be jeopardized by the service method selected.

Hereafter throughout this manual, Haier Company will be referred to as Haier.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create

shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from Haier.

Haier assumes no liability, express or implied, arising out of any unauthorized modification of design.

Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:

DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.

CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure.

CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S

REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF

THIS SERVICE MANUAL.

Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to

the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

2

Version Release Date

A00 Jan.12,2011 Initial release L24C1180 E2CBMZNK3WH3NN

Revision List

Revision

Instructions

Customer Model Model

3

1. General Specification

* This model complies with the specifications listed below.
* Designs and specifications are subject to change without notice.
* These models may not be compatible with features and/or specifications that may be addedin the future.

Model No.

DISPLAY

Viewable 23.6W"

Television System NTSC standard, ATSC standard (8-VSB, Clear-QAM)

VHF: 2 through 13
UHF: 14 through 69

Channel Coverage

Rear Connectors

Cable TV: Mid band (A - 8 through A - 1, A through I),

Super band (J through W),
Hyper band (AA through ZZ, AAA, BBB),
Ultra band (65 through 94, 100 through 125)

CONNECTIONS

Tuner input (75)
AV IN: AV/S-Video and L/R audio input
PC IN: D-SUB and PC Audio (Headphone mini-jack)

Supported scan rate: 640x480@60/72/75Hz,720x400@70Hz,

800x600@56/60/72/75Hz,1024x768@60/70/75Hz,
1280x720@60Hz,1280x768@60Hz

Note:
1360x768@60Hz: For L19C1120/L22C1120 only.
1280x1024@60Hz,1440x900@60Hz,1680x1050@60Hz
1920x1080@60Hz: For L24C1180 only.

For L19C1120/L22C1120: 1360x768@60Hz.

For L24C1180: 1920x1080@60Hz.

Component Video and L/R Audio input

Supported resolution: 480i@59.94/60Hz, 480p@59.94/60Hz, 720p@59.94/60Hz,
1080i@59.94/60Hz, 1080p@59.94/60Hz.

HDMI input

Supported scan rates: 480i@59.94/60Hz, 480p@59.94/60Hz,
720p@59.94/60Hz, 1080i@59.94/60Hz, 1080p@59.94/60/24/30Hz.

L24C1180

AV/S-Video input

SPDIF

HDMI

Side Connectors

WEIGHT & DIMENSIOIN

Dimensions With
Stand(W x H x D)

Dimensions without
Stand (W x H x D)

Weight With Stand 12.65 lbs

Weight Without Stand
and Base

WALL MOUNTING

VESA-compatible
Wall Bracket (W x H)

Screw type Metric 4x10 mm

Earphone Output

USB PORT

22.53x16.05x6.96 (inch)

22.53x14.68x2.57 (inch)

11.88 lbs

100x100 mm

4

Model No.

POWER

Power Consumption 70W

Standby <1W

Mains Power 120V~60Hz

Audio Power 3W+3W

Ambient Temperature 5°C - 35°C

PACKAGE CONTENTS

TV unit x1
Base x1

Supplied Accessories

Power cord x 1
Remote control x1 (with two size AAA alkaline batteries)
User manual x1
Registration card x1

L24C1180

5

ġ,Ģ

⦼,⦽

2. Operating Instructions

2.1 The Use of Remote Control

Power

Press to power ON/OFF(standby) TV.
(Note: TV is never completely power off
unless physically unplugged.

Video

Press repeatedly to choose
S-Video/Composite source mode.

Comp

Press to choose Component source
mode.

PC/HDMI

Press repeatedly to choose VGA
or HDMI source mode.

TV

Press to choose ATSC/NTSC TV
source mode.

0 ~ 9 / – number
Press to enter TV channel number to
select channel (Press ‘-’ to choose the
sub-channel).

PREV CH

Press to display the previous channel.

Sleep

Press to set the preset time to switch
the TV to standby mode automatically
(off/5/10/15/30/60/90/120/180/240
mins).

Freeze

Press to freeze the displayed picture.

MTS/SAP

Press to activate the NTSC TV sounds,
such as: Stereo, SAP or Mono tone, and
languages of DTV.

Wide

Press to choose the display aspect
ratio: Normal, Zoom1, Wide, Zoom2, or
HDMI PC mode. (Only for HDMI Video
Source)

Fav

Press "Fav" to open the Favorite
Channel List.

Source

Press "Source" to open the Source List.

EPG

Press to display the Electronic Program
Guide.

CH+ / CH -

Press + or - to browse through the TV
channels.

Mute

Switch the sound ON/OFF.

Info

Press to show the information about the
input source, TV channel, display
resolution and current time.

VOL+ / VOL

Press + or - to adjust the volume.

Menu

Press to open or exit menu.

,

, ENTER

Press to adjust the various function
items on the menu.

Exit

Press to exit menu or OSD.

V-Chip

Press to lock Parental Control
temporarily. (After setting the restricted
table of MPAA or TV Rating.)

Video Adj

Press repeatedly to switch the video
mode: Standard, Eco, Movie, Personal,
Vivid.

Audio Adj

Press repeatedly to switch the audio
mode: Personal, Music, Speech.

C. C.

Press repeatedly to change the closed
caption type: CC On, CC Off/CC On
With Mute.

6

2.2 To Use the Menus

1. Press the Menu button to display or close the main menu.

2. Use the Navigation Ring to move around, select, adjust or confirm an item in the OSD (On Screen Display)
menu.

Press the Menu button to enter the main OSD. Adjust the items including Video menu, Audio menu, Feature
menu, Channel menu, and VGA menu. However, some options in the menus may only be enabled in a particular
source mode.

CHANNEL MENU

The Channel menu in TV mode is shown below.

1. Tuning Band: Select TV source signal from the Air (antenna) or Cable (CATV).

2. Channel Strength: Show the intensity of the received DTV signal.

3. Auto CH Search: Automatically scan all NTSC / ATSC TV channels and then store them in the channel table.
During the channel scan process, the OSD will display the number of channels which have been found.

4. Add on CH Search: Rescan and add channels which are newly found.

5. Channels List: Show the Channels List. You can select which channels are viewable.

6. Channel Labels: Shows the NTSC / ATSC TV Channel Labels. You can edit the labels.

7. FAV Channel Setting: Show the Favorite Channel List. You can add/remove channels from the favorites list.

VIDEO MENU

The Video menu in most source modes is shown below. It provides several video adjustment items for fine tuning
the video display. Only in VGA source mode, the Video menu provides: Picture mode, Brightness, Contrast,
Color Temp, Noise Reduction, Backlight, Aspect Ratio and Preset.

1. Picture Mode: Adjust the best picture appearance from selecting the preset value of Vivid, Standard, Eco, Movie,

7

or Personal.

2. Brightness: Video brightness adjustment, the tuning range is 0 ~ 100.

3. Contrast: Video contrast adjustment, the tuning range is 0 ~ 100.

4. Sharpness: Video sharpness adjustment, the tuning range is 0 ~ 100.

5. Color: Video color chroma adjustment, the tuning range is 0 ~ 100.

6. Tint: Video tint adjustment, the tuning range is R50 ~ G50.

7. Color Temp: Three color temperature modes. (Normal / Warm / Cool)

8. Noise Reduction: Gives four NR effect degrees, such as: Low, Mid, High and Off.

9. Adaptive Contrast: Choose On or Off to adjust the gamma after analyzing the input signal automatically.

10. Backlight: Backlight strength adjustment, the tuning range is 0 ~ 30.

11. Aspect Ratio: Choose the display aspect: Normal, Zoom1, Wide, Zoom2, or HDMI PC mode (Only for HDMI
Video Source).

12. Preset: Restore the default video settings.

AUDIO MENU

The Audio menu in TV mode is shown below.The audio language setting is only available with the NTSC (analog)
TV source. The option is disabled in other source modes.

1. Sound Mode: Choose the audio mode: Personal, Music, or Speech.

2. Bass: Bass tone adjustment, the tuning range is 0 ~ 63.

3. Treble: Treble tone adjustment, the tuning range is 0 ~ 63.

4. Balance: Audio balance adjustment, the tuning range is L50 ~ R50.

5. Audio Source: Select the audio source from Mono, Stereo, or SAP. (This function works in ATV only.)

6. Audio Language: Change the audio language setting on ATSC TV programs. The number of the supported
audio languages depends on the ATSC TV programs. (English / Français / Español)

7. SPDIF: Digital audio output format. Select from RAW and PCM. (This function works in DTV only.)

8. Speaker: Choose to turn on / off the TV's intergrated speakers. The digital audio output signals and earphone
output signals will not be turned off even though the TV speaker is off. The default setting is On.

9. AVL: Choose On or Off to adjust volume to be consistent across programs and channels automatically.

10. Preset: Restore the default audio settings.

8

FEATURE MENU

The Feature menu in TV mode is shown below. Certain features will be hidden (disabled) in the menu depending on
the mode.

1. Menu Language: Select the menu display language. (English / Français / Español)

2. Time: Set current time. The sub-menu includes Time Mode, Time Zone, and Daylight Savings.

[Time Mode] – Choose from Auto or Manual.

[Time Zone] – Set current time zone.

[Daylight Savings] – Set to On or Off.

3. Password Setting: Change the 4-digit parental control password. Three steps are required for changing the
password: Enter Old Password -> Enter New Password -> Confirm New Password. Note: This item is only available
in TV, Composite and S-Video source modes. The default password is ό0 0 0 0ύ.

4. Parental Control: Provide the parental Control (V-chip) function setting. Before entering the Parental Control

9

sub-menu, enter the password first. Then the user can modify the MPAA or TV Rating table to restrict viewing of
certain programs. Note: This feature is only available in TV, Composite and S-Video source modes. (The default
password is: 0 0 0 0.)

[Button Lock] – Select On or Off to lock or unlock the control buttons on the side panel of the TV. When this
function is enabled, the control buttons on your TV will be locked and the TV can only be controlled by the
remote control.

[Block Unrated TV] – When Block Unrated TV is set to on, your TV will block unrated programs.

[USA Parental Locks] – Set the parental control level by the MPAA or TV Rating.

[Canadian Parental Locks] – Set the parental control level by English Rating or French Rating.

[Open V-Chip] – Open V-Chip is an advanced V-Chip rating system for digital channels that are received.

The rating table will rate programs using RRT5 rating information.

5. Closed Captions: Select a closed caption option. (Off / On / With Mute)

6. Analog Captions: Select an analog caption option. (CC 1-4 / TEXT 1-4)

7. Digital Captions: Select a digital caption option. (SERVICE 1-6)

8. Digital Captions Setup: Provides numerous options for setting the digital closed caption style in the sub-menu.

Note: This feature is only available in Digital TV (ATSC) mode.

[Style] – Set to Automatic or Customer mode. If Customer mode is selected, you can modify the detail styles as
described below. The setting result will be shown immediately on the bottom of the sub-menu OSD.

[Size] – Digital closed caption font size, which can be set to Automatic, Small, Normal, or Large.

[Font] – Digital closed caption font style, which can be set to Automatic, Default, or Font 1 ~ 7.

[Text Color] – Automatic / White / Red / Green / Blue / Yellow / Magenta / Cyan / Black.

[Text Opacity] – Automatic / Solid / Flashing / Transparent / Translucent.

[Background Color] – Automatic / Black / White/ Red / Green / Blue / Yellow / Magenta / Cyan.

[Background Opacity] – Automatic / Solid / Flashing / Transparent / Translucent.

[Edge Effect] – Automatic / None / Raised / Depressed / Uniform / Left Shadow / Right Shadow.

[Edge Color] – Automatic / Red / Green / Blue / Yellow / Magenta / Cyan / Black / White.

9. Input Labels: This option is available only for non-TV sources.You can edit the input labels.

10. Component Setting: This option only shows and is available in component mode, which provides fine tuning
the component display.

[Phase] – Adjust Picture Phase to reduce Horizontal-Line noise. The tuning range is from 0 to 31.

[Preset] – Restore the default component setting values.

11. MultiMedia Menu: This option shows the photos in JPEG formats and plays the music in MP3 formats that are
stored on a USB storage device.Note: File number is limited to 1000 files. JPEG sizes are limited as followed:

For 19"/22": 10928x6114; For 24": 15360x8640

10

There are two ways to enter JPEG Viewer and MP3 MusicBox interface:

• After a plugging USB storage device into the USB port, the Multimedia List menu will be displayed.

• Select MultiMedia Menu in the Feature Menu to choose JPEG Viewer or MP3 MusicBox. These two items are
activated only if the USB storage device is plugged into the USB port.

[JPEG Viewer] – Press Menu to display the control menu. Press Enter to enlarge the selected photo (orange
frame) in browser.

• Image Delay: Set the display time for each picture in the slide show mode. There are three options: Fast,

Slow, and Normal.

• Music On Slide Show: Enable background Music during the slide show. It will play the MP3 files in sequence

in the current folder repeatedly. The Music On Slide Show item will be grayed out if there are no MP3 files in
the current folder.

• Start Slide Show: Enter Slide Show mode.

• Rotate Photo: Rotate selected picture. (0/90/180/270)

• Back to Upper Folder: Return to the upper folder.

• Back to Root Folder: Return to the root folder.

• Back to Browser: Return to Browser mode. (Photo page with control menu.)

• Exit: Exit JPEG Viewer and return to original source. (Browser with Control menu.)

[MP3 MusicBox]

• ListInfoBar (at the bottom): This part contains play list information: “Current Directory”, “Total File(s)”, “Total

Folder(s)”, “Current Item” in current directory and Key Help Bar.

• PlayList (on the right side): This part contains MP3 music files.

• ControlPanel (on the left side):

Bass, Treble, Balance, Volume: Adjust the audio tone.

Mute Screen: This provides an option for enabling (On) or disabling (Off) the auto turn-off of the backlight

while playing MP3 media. This setting is valid in MP3 media player interface only. After setting to On, the
backlight will be turned-off automatically after 10 seconds if no key is pressed. Press any key to turn the
screen back on. If no key is pressed after 10 seconds, the screen will be turned off again.

Preset: Resets all MP3 settings to the default values.

Exit MP3MusicBox: Exit the MP3MusicBox interface.

12. Reset to Default: Restore all the default settings.

VGA MENU

This option is only shown and available in VGA mode, which provides several items for fine tuning the VGA display.

11

1. H-Position: Adjust the horizontal position of the picture. (0-40)

2. V-Position: Adjust the vertical position of the picture. (0-16)

3. Clock: Adjust picture clock to reduce Vertical-Line noise. (0-16)

4. Phase: Adjust picture phase to reduce Horizontal-Line noise. (0-31)

5. Auto Adjust: Adjust the settings automatically.

6. Preset: Restore the default VGA setting values

12

2.3 Front Panel Control Knobs

1. VOL + Press to increase the sound volume level.

2. VOL - Press to decrease the sound volume level.

3. CH  Press to select the next higher program number.

4. CH  Press to select the next lower program number.

5. MENU Press to open or exit the OSD (on-screen display) menu.

6. INPUT Press to select the input source.

7.

POWER Press to turn on / off (standby) the TV set.

13

2.4 How to Connect

1. HDMI – Connect the primary source for digital video such as a DVD player, bluray player or set top box through
this digital connector.

2. PC IN – Connect the video and audio cables from a computer here.

3. AV IN (AV/S-VIDEO) – Connect the input source for composite video devices, such as a VCR or video game. Use
the white and red connectors to connect the external audio from the same source. The signal being carried by the
S-Video cable and connector, if connected, will take priority over the Video RCA connector (yellow connector).

4. COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary source for component video devices such as a
DVD Player or set top box here. Use red for Pr, blue for Pb, green for Y, red for right audio (R) and white for left
audio (L) inputs.

5. ANTENNA/CABLE DIGITAL/ANALOG – Connect to an antenna or digital cable (out-of-the-wall, not from Cable
Box) for Digital TV.

6. SPDIF (Optical Digital Audio Out) – When a digital audio signal is associated with the input selected for viewing,
the digital audio will be available on this SPDIF connection to your home theater system.

7. USB PORT – Insert a USB storage device to the USB port to view photos or listen to music.

8. Earphone Output – Connect to headphones. When the headphone is inserted to the plug, the speakers will be
muted.
Once your equipment is connected, use the following procedure to view the input signal:

Press the Source button on the remote control to select the relevant source to view. (ex: Press Comp button to
select “Component” if you have connected a device to the Component socket.)

14

V

T

T

T

T

T

T

T

T

T

T

T

T

3. Input/Output Specification

3.1 Input Signal Connector

D-SUB

HDMI

Pin No. Description Pin No. Description

1 Red Video 9 No Pin

2 Green Video 10 Sync Ground

3 Blue Video 11 SDA(Remote Control)

4 SCL(Remote Control) 12 Serial Data for DDC

5 Ground 13 H. Sync

6 Red Ground 14

7 Green Ground 15 Serial Clock for DDC

8 Blue Ground

. Sync

Pin No. Description Pin No. Description

1

2

3

4

5

6

7

8

9

10

MDS Data2+ 11

MDS Data2 shield 12

DMS Data2- 13 CEC

MDS Data1+ 14 NC

MDS Data1 shield 15 SCL

MDS Data1- 16 SDA

MDS Data0+ 17 DDC/CEC Ground

MDS Data0 shield 18 +5V Power

MDS Data0- 19 Hot Plug Detect

MDS Clock+

MDS Clock Shield

MDS Clock-

15

3.2 Input Signal Timing

Analog RGB Input

VESA MODES

Horizontal Vertical

Nominal

Mode Resolution Total

640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175

VGA

DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322

SVGA

XGA

CVT-0.92M9 1280x720@60Hz 1664 x 748 44.722 N 59.855 P 74.500

WXGA 1280x768@60Hz 1440 x 790 47.396 P 59.995 N 68.250

SXGA 1280x1024@60Hz 1688 x 1066 63.981 P 60.020 P 108.000

WXGA+ 1440x900@60Hz 1600 x 926 55.469 P 59.901 N 88.750

WSXGA+ 1680x1050@60Hz 2240 x 1089 65.290 N 59.954 P 146.250

FHD 1920x1080@60Hz 2200 x 1125 67.500 P 60.000 P 148.500

640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500
640x480@75Hz 840 x 500 37.500 N 75 N 31.500

800x600@56Hz 1024 x 625 35.156 P 56.250 P 36.000
800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000
800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000

800x600@75Hz 1056 x 625 46.875 P 75 P 49.500
1024x768@60Hz 1344 x 806 48.363 N 60.004 N 65.000
1024x768@70Hz 1328 x 806 56.476 N 70.069 N 75.000
1024x768@75Hz 1312 x 800 60.023 P 75.029 P 78.750

Frequency

(KHz)

Sync

Polarity

Nominal

Freq.

(Hz)

Sync

Polarity

HDMI Input

VESA MODES

Horizontal Vertical

Nominal

Mode Resolution Total

DOS 720 x 400 900 x 449 31.469 N 70.087 P 28.322

VGA 640 x 480 800 x 525 31.469 N 59.940 N 25.175

SVGA 800 x 600 1056 x 628 37.879 P 60.317 P 40

XGA 1024 x 768 1344 x 806 48.363 N 60.004 N 65

WXGA 1280 x 768 1664 x 798 47.396 P 59.995 N 68.25

CVT-0.92M9 1280 x 720 1664 x 748 44.772 N 59.855 P 74.5

SXGA 1280 x 1024 1688 x 1066 63.981 P 60.02 P 108

WXGA+ 1440 x 900 1904 x 934 55.469 P 59.901 N 88.75

WSXGA+ 1680 x 1050 1840 x 1080 65.29 N 59.954 P 146.25

1080P 1920 x 1080P 2200 x 1125 67.5 60, 148.5

720P 1280 x 720P 1650 x 750 45.00 60, 74.25
1080i 1920 x 1080i 2200 x 1125 33.75 60, 74.25
480P 720 x 480P 858 x 525 31.50 60, 27.03

480i 720 x 480i 1716 x 525 15.75 60, 13.51

Frequency

(KHz)

Sync

Polarity

Nominal

Freq.

(Hz)

Sync

Polarity

Nominal

Pixel
Clock
(MHz)

Nominal

Pixel
Clock
(MHz)

16

4. Mechanical Instructions

Step1. Remove the STAND ASS’Y.

Step2. Remove the REAR COVER.

17

Step 3. Disconnect the WIRE HARNESS.

Step 4. Remove the MAIN BOARD and POWER BOARD and separate the PANEL and BEZEL.

18

Step 5. Separate the MAIN FRAME and PANEL.

Step 6. Remove the KEY BOARD, IR BOARD and SPEAKERS.

19

p

5. Repair Flow Chart

1. No power

No power (LED “Off”)

Check the AC input and
the

ower is “ON”?

Yes

Power board output=5V?

Yes

Check the IR board and LED

Replace the IR board

No

Replace the main board

No

Power “On”

No

Replace the power board

20

2. Can’t start

Can’t start˄LED red˅

Power board output᧹16V?

Yes

Check the power key is under control?

No

Check the IR receiver is normal?

No

Replace the power board

Yes

Replace the key board

Yes

Replace the IR board

No

Replace the main board

No

Replace the Power board

21

3. Abnormal Display

Abnormal Display

Check the source

Yes

Enter factory mode to do

“EEPROM initial”&“Reset”

No

No

Reset the source

Check the main board

Yes

Check the LVDS cable

Yes

Check the panel

No

Replace the panel

No

Replace the main board

No

Replace the LVDS cable

22

4. No display

No display (LED white)

Check TV is under control and power
on/off by remote control and power key?

Yes

Check the LVDS cable

Yes

Yes

Check the backlight is

“On”?

No

Reinsert or replace the
LVDS cable

No

No

Check the B/L

signal is available?

Yes

Replace the main board

No

Replace main board

Panel Vcc = 5V?

Yes

Replace the Panel

No

Replace the main board

Power board output᧹16V?

Yes

Replace the Panel

Replace the power board

No

23

5. Sound problem

No sound or sound abnormal

Check the audio source connection

and the TV system are correct?

Yes

Check the TV is muted, adjust the

volume or enter the menu to reset?

No

No

Reinsert the audio cable or
change the TV system

Enter factory mode to do “Reset”

No

Check the cable between the
speakers and main board is OK?

Yes

Check the speaker resistance value is in spec
(Remark: The value is marked on the speaker)?

Yes

Replace the cable

Replace the main board

No

No

Replace the speaker

24

6. Remote control malfunction

Remote Control malfunction

Check the remote control battery is
not properly placed or no power?

No

Use the other remote controls

No

Whether the IR board is

abnormal?

No

Replace the main board

Yes

Replace the battery

Yes

Replace the remote control

Yes

Replace the IR board

25

7. OSD is unstable or can’t work normally

OSD is unstable or can’t work normally

Key board connected properly?

Yes

Buttons are OK?

Yes

Key board is OK?

Yes

Enter factory mode to do “Reset”

No

No

No

No

Reconnect the key board

Replace the button function

Replace the key board

Replace the main board

26

6. PCB Layout

6.1 Main Board

715G3759M02000005K

27

28

6.2 Power Board

715G3754P01W30003H

29

30

31

6.3 Key Board

715G3303 2

6.4 IR Board

715G3963R01000004S

32

7. Adjustment/FW Upgrade/EDID

7.1 ADC Adjustment

It’s no need to adjust the white balance for this model, do ADC only.

Step1: Turn on the TV, press “Menu”, then press number key 1 Æ 9 Æ 9 Æ 9 and “ENTER”, it will achieve the factory

mode. Take the following picture for example:

Step2: Change TV, press the “Current Source” to Component mode and change signal to 1080i mode, press the

“Auto Color”;

Step3: Change TV, press the “Current Source” to PC mode and change signal to PC TIMING 137(1024X768);

Pattern 147 (16 Grays), press the “Auto Color”.

33

7.2 FW Upgrade

Step 1: Ready for F/W Upgrade

1.1 Prepare a USB memory (The file system of USB memory must be FAT16 or FAT 32).

1.2 Copy the FW from your computer to the USB memory, and remove it from computer’s USB port!

1.3 Note: 1). Note the version of this F/W is V2.01 before upgrade.

2). The software file name must content three parts, the first is brand, the second is customer model
name and the third is FW version. The first and second parts of FW name must be the same as the
TV, and the third part must not be the same as TV current FW version. Or the FW upgrade can’t
continue. Take Haier L19C1120 for example:

Step 2: F/W Upgrad

2.1 AC on (Power plug Figure 2.1/2.2)

Brand: Haier Customer model name



FW version: V2.01

Figure 2.1 Figure 2.2



2.2 Plug the USB memory on the USB port on the side I/O port of TV. (Figure 2.3)

Figure 2.3

34

2.3 Press the power key on the Remote Control or the right side of TV to turn on TV.

Figure 2.4 fig2.5

 

2.4 When TV detects the USB memory, there is a prompt frame appearing on the screen as figure 2.6, press
“ENTER” key(on the Navigation Keys on the Remote control, as follows Figure 2.7 to select “Yes” option to
download F/W(Figure 2.8). Take Haier L19C1120 for example:

Figure 2.6

Figure 2.7

35

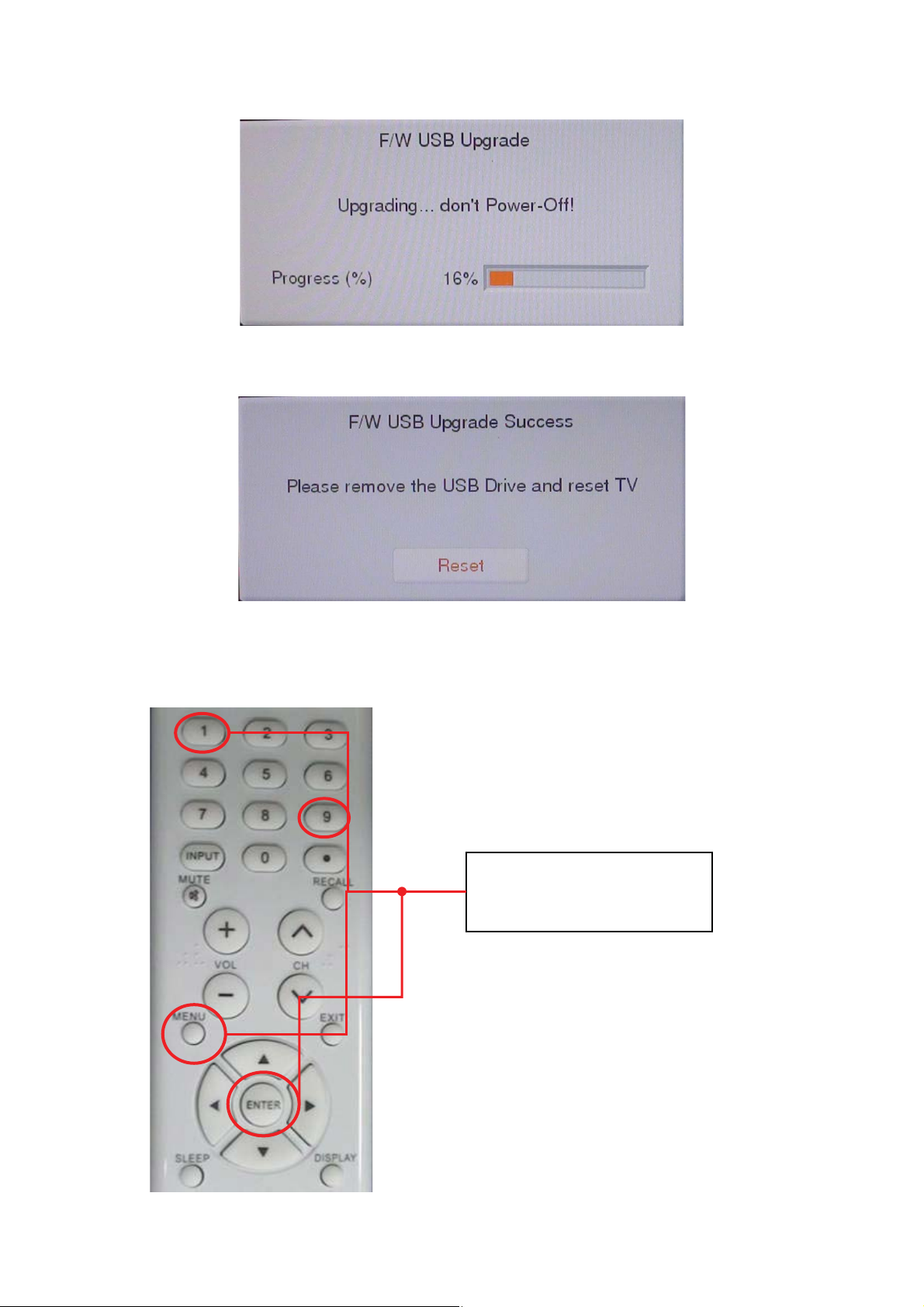

2.5 TV will upgrade automatically.

Note: When Upgrade on the process, please don’t Power-Off! (Figure 2.8)

Figure 2.8

2.6 When upgrade 100% and prompt for Upgrade Success info, remove the USB Drive and press “ENTER” key

to reset TV (Figure 2.9)

Figure 2.9

Step 3: Check the F/W version and reset to default.

3.1 Press “MENU”+”1”+”9” +”9” +”9” +”ENTER” key rapidly on the Remote control to enter the factory mode

(Figure 3.1)

Do the following steps rapidly:

1. Press “MENU”;

2. Press”1”+”9” +”9” +”9”;
“

Figure 3.1

36

”

3.2 Check the F/W version on the second row of the factory mode info. If F/W version is incorrect, please

upgrade again as above steps, else let’s go to Step 3.3. Take Haier HLC24XLE2 for example:

Figure 3.2

3.3 If the FW version is correct, please do factory reset.
Choose “Reset” and press “ENTER” key to do factory reset as figure 3.3 to figure 3.5.

Press “ENTER”,
Show “Doing”

Figure 3.3 figure 3.4

Figure 3.5

3.4 After all the steps, FW upgrade is finished finally.

Show “Done”
Reset ok!

37

7.3 The Writing VGA & HDMI EDID

Step1. Ready for writing EDID

Tool: 715G2005-C2
Cable: a LPT cable, a VGA cable, a DVI to HDMI cable and a 12V DC adapter.

715G2005-C2 male to male LPT cable

VGA cable DVI to HDMI cable

Step2. Connection for writing VGA EDID.

Connect to PC LPT port.

Connect to TV VGA port.

38

12V DC input

Step3. Install TPV edid tool. Take Haier LY19Z6 for example:

1. Click here to open this interface.

This red frame contents detail information in VGA EDID file.

1. Double click this icon to install. 2. Double click this icon to run.

3. Click anyone file to
add VGA EDID file.

4. Click here to Read the file

2. Choose the VGA EDID file.

39

Step4. Click “FPD” to open another interface as follows. Take Haier LY19Z6 for example:

1. Tick LPT1

2. Click here to read file as figure 4.2

2. Click “open” to read the “.dat” file.

figure 4.2

40

Step5. Click “write EDID” to write EDID. If display “NG” in the yellow blank, which represent writing failly. Please
check the whether the connection of tool and cables is nomal and retry. Another way is to change a new ISP board
and retry. Take Haier LY19Z6 for example:

2. ”OK” represents writing successfully.

3. Click “Read EDID” can read
out the EDID info checked in
“Edid Conten” interface.

1. Click here to write EDID.

Write fail.

41

Step6. Write HDMI EDID.

Connection for writing HDMI EDID.

Connect to PC LPT port.

Connect to TV HDMI port.

Notice: When writing HDMI EDID, the TV must be AC on, or the process can’t continue, and will prompt
“NG” info.

The other steps refer to the writing VGA EDID sop.

12V DC input

42

Main Board Power System

Max. 2A

For ZR39787HGCF uMCU

TU101 ENV56U03D8F For TUNER+5V

5VT

For Audio Amplifier

9V

P24V/16V

TDA7491P13TR

PANEL Inve rte r

P24V/16V

For TUNER+5V

U708 G9084-50TU3U

TU101 ENV56U03D8F

PANEL LVDS Powe r

5VT

Q403 AO 4449

U706 G5655P12U

U708 G9084-50TU3U

P12V

U401 ZR39787HGCF

1V8_STB

For ZR39787HGCF uMCU

PANEL LVDS Powe rQ403 AO 4449

+5VSB

U401 ZR39787HGCF

U702 AZ1084D-1.8TRE1

For VGA EDID

3V3_STB

U701 G5622ADJT11U

U105 M24C02-WDW6P

For USB OCP

USB5V

U409 G5250K1T1U

VCC5D

Q703 AO4449

For EEPROM

For SPI Flas h

For ZR39787HGCF

For Audio Headphone Am plifier

U406 CAT24C64WI-GT3

U401 ZR39787HGCF

D3V 3

5V_HP

U703 G1084-33T43Uf

U606 MAX9728AETC+

U405 MX25L3205DM2I-12G

For DDR II

For ZR39787HGCF

U401 ZR39787HGCF

U402, U403

H5PS5162FFR-S6C

U401 ZR39787HGCF For ZR39787HGCF

D1V 8

VCC1V1

U704 G5692P11U

U705 G5692P11U

19", 22", 24"

1V8_STB

Max. 1A

Max. 3A

U702

AZ1084D-1.8TRE1

3V3_STB

D3V3

U703 G1084-33T43Uf

U701 G5622ADJT11U

VCC5D

+5VSB

AO4449

Max. 2.5A

STB 15m A

Function9BL_BRI_ADJ

BL_ON_OFF

NC

NC

4

3

1

Pin

2

Power Board Input : +5VSB, P16V

Max. 2A

Max. 2A

D1V8

VCC1V1

U705 G5692P11U

U704 G5692P11U

P16V

Max. 1.5A

POWER

BOARD

GND

GND

5

16V

16V

GND

8

7

6

5.2V

NC

5.2V

11

12

10

Max. 2A

5VT

U708 G9084-50TU3U

9V

U706 G5655P12U

Audio Amplifier

D16V

AO4449

Max. 2A

Max. 2A

43

1V8_STB

LVDS

SPEAKER

Audio Amplifier

LCD PANEL

DDRII * 2

H5PS5162FFR-S6C

GPIO

FLASH ROM

MX25L3205DM2I-12G

CAT24C64WI-GT3

EJTAG

ZR39787HGCF

EarPhone Output

S/PDIF Output

Max. 1A

U702

TDA7491P13TR

Earphone Amplifier

MAX9728AETC+

3V3_STB

U701 G5622ADJT11U

+5VSB

Max. 2.5A

STB 15mA

Max. 2A

AZ1084D-1.8TRE1

Max. 3A

D3V3

U703 G1084-33T43Uf

VCC5D

AO4449

D1V8

Max. 2A

VCC1V1

U705 G5692P11U

U704 G5692P11U

System Block Diagram

Hsync, Vsync

RGB

YPbPr

CVBS

Y/C

DVD Y/C

S-VIDEO

VIDEO

VIF

Tuner

ENV56U03D8F

Y/C

SN74LVC1G17

I2C

VGA

YPbPr

TMDS

TMDS

Function

BL_BRI_ADJ

BL_ON_OFF

Pin

M24C02

HDMI-1

AV AUDIO-R\L

HDMI-2

DVD AUDIO-R\L

VGA AUDIO-R\L

YPbPr AUDIO-R\L

1

Power Board Input : +5VSB, P19V

Comb TV

POWER

BOARD

DVD_5V

19V

GND

GNDNCDVD_5V

GND

8765432

9

5VT

U708 G9084-50TU3U

DVD Comb

12V

Audio Amplifier

U706 G5655P12U

19V

19V

19V

Max. 1.5A

+5V_SSB

PS_ON

19V

12

11

10

13 +5V_SSB

8. Block Diagram

26"

Power Board

Input :

+5VSB, P12V,

Function

Pin

P24V

BL_ON_OFF

6

4

1

3

7

24V5PWR_ON_STB

9108

5.2V

5.2V

12

11

GND

24V2GND

GND

12V

BL_BRI_ADJ

12V

Panel

10 Pin

CN401

LVDS Cable

095G801832D901

32 Pin

CN408

12 Pin

CN701

U401

ZR39787HGCF

Scaler IC

CN606

4 Pin

44

Speaker R/L

095G-82513X930

Wire Harness

To Panel

9. Wiring Diagram

13 Pin

CN902

2 Pin

2 Pin

CN803

CN802

Key

Board

CN901

5Pin

Power Board

2 Pin

2 Pin

CN805

CN804

CN201

IR Board

4 Pin

CN01

U401P

VGA_R 4

VGA_G 4

Demodul ator

IF_AINN

IF_AINP

SIF_AI NN

SIF_AI NP

AF4

AE4

SIF_N

SIF_P

0402

0402

C102 10N 50V

C105 10N 50V

IF_RBIAS

IF_VINBIAS

AF2

AE2

AD3

AD2

AD1

IF_AINN

IF_AINP

0402

0402

C111 1 00N16V

C112 1 00N16V

R106 3.9K 1/10W

0402

C107 1 N 50V

0402

C110

82pF 50V

L102

0.15uH 5%

0402

R103 47 OHM 1/16W

0402

0402

L101

0.082uH

C115 100pF 50V

C109 100pF 50V

MPEG _FA IL

DEMOD_CLKO

IF_VCM

IF_VREFN

IF_VREFP

AF1

AE1

AC8

AC7

AD8

1

1

0402

0402

TP2

TP1

C113 1 00N16V

C114 1 00N16V

R108 33 OHM 1/10W

D3V3

DEMOD_RSTN7

0402

C108 1 N 50V

1 2

0402

R107 47 OHM 1/16W

L103

0.082uH

IF_AGC

RF_AGC

DMOD_RST_N

PARAM0

SA_DATA

IF_DVAL_GPIO

ZR39787HGCF

AF7

AF8

AE7

AA5

AC6

PARAM0

Place R111 & C119

close to U401

R111 2K 1/10W

R109 4.7K 1/1 0W

C119

100N16V

0402

IF_AGC

3

2

I/O2

I/O34VDD5I/O4

U10 8

AZC19 9- 04S

VCC5D

CN10 1

I2C1_SCL 6,9

I2C1_SDA 6,9

I2C1_SDA

I2C1_SCL

R102

D3V3

NC/10K 1/10W

R101

NC/10K 1/10W

R113 220 OHM 1/10W

R112 220 OHM 1/10W

UART0_RX

UART0_TX

UART0_RX6

UART0_TX6

VGA_B 4

VGA_G

VGA_B

VGA_R

1

I/O1

GND

6

1 2FB102 60 OHM

1 2FB103 60 OHM

1 2FB104 60 OHM

0402

C153

18pF 50V

C152

18pF 50V

0402

C151

18pF 50V

R119

R118

R117

VGA5V

162738495

1716

1112131415

ZD101

1 2

C120

10

VPORT0603100KV05

U10 9

VGA_HSYNC_DET 7

VGA_HSYNC_DET

SN74LVC1G17DBVR

U10 4

53

2 4

3V3_STB

0402

C124

100N16V

RGB_HSYNC

0402

75R 1/10W 1%

75R 1/10W 1%

75R 1/10W 1%

100N16V

0402

VGA_HSYNC

DB15

88G 35315F CL

53

D3V3

1

3

2

I/O1

I/O2

GND

I/O34VDD5I/O4

AZC1 99 -04 S

6

VCC5DC122

R122

2.2K 1/10W

R121

2.2K 1/10W

C123

100N16V

0402

RGB_HSYNC

3V3_STB

VGA_HSY NC 4

NC/22pF

C126

R123 33 OHM 1/10W

SN74LVC1G17DBVR

U10 3

D3V3

2 4

VGA_VSYNC_D ET 7

VGA_VSYN C_DETRGB_VSYNC

SN74LVC1G17DBVR

U10 7

53

2 4

C128

100N16V

0402

RGB_VSYNC

VGA_VSYN C 4

VGA_VSYNC

C129

NC/22pF

R129 33 OHM 1/10W

SN74LVC1G17DBVR

U10 6

53

2 4

0402

C127

100N16V

VGA_EDID _WP 7

45

R105 100 OHM 1/10W

C104

1UF16V

5VT

C103

C101

100N16V

1

2

NC

TUNER

TU101

13211

14

ENV56U03D8F

ET-29DHRV

10. Schematic Diagram

10.1 Main Board

715G3759M02000005K

03) Tuner/VGA Inputs

R104 100 OHM 1/10W

2N2 50V

0402

C106 2N2 50V

9

10

3

6

5

+B

RF-AGC Monitor

12

11

NC

SCL

SDA

BT Monitor

10

6

9

5

IF_AGC

IF_AP

IF_AN

0402

C118

100N16V

C117

22P 50V

C116

22P 50V

14

12

IF AGC

IFD-out113IFD-out2

TH1

IF Monitor

15

TH2

16

TH3

17

TH4

18

1

3

5V: +B = 150mA(MAX)

I2C Bus Address

TU_ GND

TU_G ND

#C2H (Write Mode)

#C3H (Read Mode)

R115 1K 1/10W

R114 100 OHM 1/10W

R120 100 OHM 1/10W

R116 1K 1/10W

NC/47pF

C121

NC/ 330pF

VGA_SCL

VGA_SDA

RGB_VSY NC

RGB_HSYNC

ZD102

BAT54C

2

+5VSB

VGA5V

3

1

C125

VGA_5V

VGA_EDID _WP

R127 33 OHM 1/10W

R126

1K 1/10W

R128

10K 1/10W

R125

4.7K 1/10W

R124

4.7K 1/10W

VGA_SCL

VGA_SDA

5

6

7

8

WP

SCL

SDA

VCC

0.22uF 25V

A01A12A23GND

U10 5

AT24 C02 BN-SH-T

4

VGA Input

A

Vide o In I/F

SVIDEO0YU3SVIDEO0C

SVIDEO1YU4SVIDEO1C

U401F

V3

V4

0402

0402

0402

0402

C169 NC/220N 10V

C170 NC/220N 10V

C165 220N 10V

C166 220N 10V

CVBS0

CVBS1

SVIDEO2YU5SVIDEO2CV5CVBS2

AA3

AB3

AB4

0402

C132 220N 10V

C133

CVBS3

AA4

0402

NC/22pF

Place parts very close to U401

DVD_S_C

AV_CVBS

1 2F B112 NC /30 OHM

R180

NC/75R 1/10W 1%

R179

NC/75R 1/10W 1%

AV_S_Y

AV_S_C

1 2F B111 NC /30 OHM

DVD_S_Y

SOY_IN0

VIN_R1U2VIN_G1U1VIN_B1V1SOY_IN1

V2

0402

0402

0402

0402

C137 10N 50V

C136 220N 10V

C134 220N 10V

C135 220N 10V

C140

NC/22pF

C139

NC/22pF

C138

NC/22pF

YPbPr_Pb

YPbPr_Pr

YPbPr_Y

VIN_R2W2VIN_G2W1VIN_B2Y1SOG_IN0

VGA_R0T2VGA_G0T1VGA_B0

Y2

0402

0402

C145 220N 10V

C146 220N 10V

04020402 0402

VGA_R

VGA_G

VGA_R3

VGA_G3

T3

0402

C147 220N 10V

VGA_B

VGA_B3

AFE_HS_INR5AFE_VS_IN

T4

0402

C148 10N 50V

VGA_SCL_GPIO_P28

T5

AE9

AB11

VGA_HSYNC

VGA_VSYNC

VGA_HSYNC3

VGA_VSYNC3

VCOM

VREFP

VREFN

VGA_SDA_GPIO_P29

RSETL4REFNODE_GN D_CVBSW3REFNODE_GN D_RL5REFNODE_GN D_GK5REFNODE_GN D_BM5REFNODE_GND_Ch

AB1

AA1

AA2

0402

C154 4.7uF 10V

C155 0.47UF 10V

R151 62K 1/10W

DVD_Audio_L 10

DVD_S_C

DVD_Audio_L

246810

NC/CONN

CN132

13579

DVD_S_Y

For DVD Interface

DVD_Audio_R

DVD_IR

DVD_Audio_R10

ZR39787HGCF

N5

D3V3

D3V3

TV_DVD_SW 7

TV_DVD_SW

DVD_IR

12

R183

11

6PX2 S/T 2.0mm

33G8027 12

D104 NC/LL4148

D3V3

FB113

NC/120OHM

1 2

DVD_IR_ON _OFF

DVD_STB

KEY_IR6,7

DVD_STB7

DVD_IR_ON _OFF7

NC/10K 1/10W

R182

NC/10K 1/10W

R181

NC/10K 1/10W

TV_DVD_SW

DVD_STB

DVD_IR_ON _OFF

D3V3

D3V3

YPbPr_DET 7

YPbPr_DET

R162

33 OHM 1/10W

Q103

R159

R172

MMBT3904

10K 1/10W

C161

10uF 10V

C160

10N16V

R164

200K 1/10W

D102

LL4148

Q104

R161

10K 1/10W

R160

R169

10K 1/10W

R168

10K 1/10W

R167

MMBT3904

R165

100K 1/10W

AV_S_DET 7

AV_S_DET

33 OHM 1/10W

D103

100K 1/10W

200K 1/10W

C159

10uF 10V

R163

3.9K 1/10W

YPbPr_Y

Q105

MMBT3904

C164

10uF 10V

C162

10N16V

R170

200K 1/10W

LL4148

Q106

MMBT3904

R171

200K 1/10W

46

C163

10uF 10V

YPbPr_Audio_L 10

YPbPr_Audio_R 10

AV_Audio_L 10

AV_Audio_R 10

AV_S_Y

AV_CVBS

1 2F B105 30 OHM

R130

CVBS

2

JACK

CN12 1

V &

AV_S_C

1 2F B109 30 OHM

1 2F B110 30 OHM

R174

75R 1/10W 1%

R173

75R 1/10W 1%

ZD103

1 2

VPORT0603100KV05

S_C

1

1

88G 78 8 13 YG

S-Video

Input

(Rear)

75R 1/10W 1%

ZD109

1 2

VPORT0603100KV05

ZD108

1 2

VPORT0603100KV05

S_Y

45

23

CONN

CN13 1

88G100Z 51CL

AV_Audio_R

AV_Audio_L

R140

10K 1/10W

R139

10K 1/10W

R137 10K 1/10W

R135 10K 1/10W

C131

100P 50V

C130

100P 50V

ZD105

1 2

VPORT0603100KV05

ZD104

1 2

VPORT0603100KV05

214

3

A

B

JACK

CN13 6

88G 7813C57C

YPbPr_Y

1 2FB106 30 OHM

Y

21435

A

JACK

CN111

YPbPr

Input

YPbPr_PbPb

YPbPr_Pr

1 2FB107 30 OHM

1 2FB108 30 OHM

R146

75R 1/10W 1%

R145

75R 1/10W 1%

R144

ZD112

VPORT0603100KV05

ZD111

ZD110

Pr

VPORT0603100KV05

6

B

C

88G 7813C60C

(Rear)

YPbPr_Audio_L

YPbPr_Audio_R

R150

10K 1/10W

R149

10K 1/10W

R152

R148 10K 1/ 10W

R147 10K 1/ 10W

C150

214

A

100P 50V

C149

100P 50V

ZD107

ZD106

VPORT0603100KV05

3

B

88G 7813C57C

75R 1/10W 1%

1 2

1 2

VPORT0603100KV05

1 2

JACK

CN116

D3V3

1 2

VPORT0603100KV05

1 2

D3V3

Video signal detect

Active Low

10K 1/10W

R154

R153

R166

3.9K 1/10W

AV_S_Y

AV_CVBS_DET 7

AV_CVBS_DET

R155

33 OHM 1/10W

Q101

MMBT3904

C158

10uF 10V

C157

10N16V

R157

200K 1/10W

D101

LL4148

Q102

10K 1/10W

MMBT3904

100K 1/10W

R158

200K 1/10W

C156

10uF 10V

R156

3.9K 1/10W

AV_CVBS

04) AV/YPbPr Inputs

U40 1G

HDMI0 I/F

HDMI0_D2PB8HDMI0_D2NA8HDMI0_D1PC8HDMI0_D1NC9HDMI0_D0PA9HDMI0_D0NB9HDMI0_CLKP

HDMI0_D2P

HDMI0_D1P

HDMI0_D2N

GPIO_P17

GPIO_P15

GPIO_P16

HDMI1 I/ F

HDMI0_CLKN

HDMI0_SCL

HDMI0_SDA

HDMI0_HPDD9HDMI0_5VSENSED7HDMI_ATESTD3HDMI_REXT

HDMI0_CEC

D8

B10

A10

B11

A11

HDMI0_HPD_A

HDMITX_CEC

HDMI0_CLKP

HDMI0_CLKN

HDMI0_D0P

HDMI0_D1N

HDMI0_D0N

HDMI0_SDA

HDMI0_SCL

R506 10K 1/ 10W

ZR39787HGCF

C3

R509

390 OHM 1/10W

HDMI_3V3

R507 4.7K 1/10W

R508 10K 1/ 10W

HDMI1_D2PB4HDMI1_D2NA4HDMI1_D1PC4HDMI1_D1NC5HDMI1_D0PA5HDMI1_D0NB5HDMI1_CLKPB6HDMI1_CLKNA6HDMI1_SCLB7HDMI1_SDAA7HDMI1_HPDD6HDMI1_5VSENSE

U40 1O

HDMI1_D1N

HDMI1_D2N

HDMI1_D2P

HDMI1_D1P

HDMI1_CLKP

HDMI1_D0N

HDMI1_D0P

GPIO_P14

GPIO_P12

HDMI2 I/ F

HDMI2_D2PD1HDMI2_D2ND2HDMI2_D1PC1HDMI2_D1NC2HDMI2_D0PB1HDMI2_D0NB2HDMI2_CLKPA1HDMI2_CLKNA2HDMI2_SCLB3HDMI2_SDAA3HDMI2_HPDD4HDMI2_5VSENSE

ZR39787HGCF

C7

HDMI1_HPD_A

HDMI1_SDA

HDMI1_SCL

HDMI1_CLKN

R510 NC /10K 1/10W

R511 NC/4.7K 1/10W

R512 10K 1/ 10W

U40 1D

GPIO_P18

GPIO_P20

E6

ZR39787HGCF

2922.54

2995.88

2942.49

D0P

D0N

2673.41

2615.01

D0N

D0P

HDMI1_D2N

HDMI1_D1P

HDMI1_D1N

32

41

41

L507 N C/90OHM

7

10

8

NC9NC

GND

Line-11Line-22VDD3Line-34Line-4

HDMI1_D 1P

HDMI1_D 1N

HDMI1_D 2N

2966.84

D1P

D1N

2660.18

2667.41

D1N

D1P

HDMI1_D2P

32

L508 N C/90OHM

NC6NC

NC/AZ1 04 5- 04 QU

5

HDMI1_D 2P

HDMI0_5V

HDMI1_5V

HDMI 1 Trace (mil)

HDMITX_CEC

R502

NC/ 100K 1/10W

3V3_STB

Q501

NC/2N7002

ZD501

NC/ BAT54C

2

1

3V3_STB

Run As 100 Ohm Differential P airs

VCC5D

U502

R501

3

HDMI0_CLKN

HDMI0_CLKP

HDMI0_D0N

41

32

41

L501 N C/90OHM

7

10

8

NC9NC

GND

Line-11Line-22VDD3Line-34Line-4

HDMI0_C LKN

HDMI0_D 0N

HDMI0_C LKP

NC/ 27K 1/10W

HDMI_CEC

VCC5D

HDMI1_CLKN

U505

HDMI1_C LKN

41

10

Line-11Line-22VDD3Line-34Line-4

HDMI1_C LKP

HDMI0_D2P

HDMI0_D0P

32

L502 N C/90OHM

NC6NC

5

HDMI0_D 0P

HDMI0_D2N

HDMI0_D1N

HDMI0_D1P

32

41

32

41

HDMI0_HPD_AHDMI0_HPD

L503 N C/90OHM

L504 N C/90OHM

7

10

8

NC6NC

NC9NC

GND

Line-11Line-22VDD3Line-34Line-4

U503

NC/AZ1 04 5- 04 QU

5

VCC5D

HDMI0_D 1P

HDMI0_D 2N

HDMI0_D 1N

HDMI0_D 2P

R516 NC/1K 1/10W

NC/AZ1 04 5- 04 QU

HDMI0_HPD_A

Q502

2N7002

R519

2N7002

10K 1/10W

HDMI0_HPD

R517

Q503

4.7K 1/10W

HDMI0_5V

HDMI 0 Trace (mil)

HDMI1_D0N

HDMI1_D0P

HDMI1_CLKP

32

32

41

L505 N C/90OHM

L506 N C/90OHM

7

8

NC6NC

NC9NC

GND

U506

NC/AZ1 04 5- 04 QU

5

VCC5D

HDMI1_D 0P

HDMI1_D 0N

2981.78

D2P

2664.45

D2P

2948.14

D2N

2632.4

D2N

2995.3

CLKP

2637.22

CLKP

R520 NC/1K 1/10W

HDMI1_HPD HDMI1_HPD_A

2962.88

CLKN

2563.49

CLKN

47

HDMI1_HPD_A

Q504

NC/2 N7002

R523

NC/ 2N7002

NC/10K 1/10W

HDMI1_HPD

R521

Q505

NC/4 .7K 1/10W

HDMI1_5V

1

3

R504

10K 1/10W

ZD502

BAT54C

2

+5VSB

1

HDMI0_D0N

HDMI0_D0P

9

7

TMDS D0+

R503

10K 1/10W

3

R505

1K 1/10W

HDMI0_5V

HDMI0_SCL

HDMI0_SDA

HDMI0_CLKN

HDMI0_D1P

HDMI0_D2P

HDMI0_D2N

HDMI0_CLKP

HDMI0_D1N

6

4

1

TMDS D0-

TMDS D1-

TMDS D1+

TMDS D2+

HDMI_CEC

3

12

15

16

10

SCL

SDA

TMDSC -

TMDS C+

TMDS D2-

CN50 1 HDMI

05) HDMI Inputs

2

I/O1

I/O2

GND

I/O34VDD5I/O4

U50 4

AZC19 9- 04 S

6

100N16V

0402

C502

VCC5D

0402

100N16V

C501

FB501

120OHM

1 2

HDMI0_HPD

14

19

13

18

HPD

CEC

VCC5

17

5

11

2

8

NC

DSHLD1

DSHLD0

DSHLD2

24

TH120TH221TH322TH423TH5

CSHLD0

DDC_GND

88G 34019H VT

HDMI1 (Rear)

ZD503

2

+5VSB

1

HDMI1_D0N

HDMI1_D0P

7

TMDS D0+

CN50 6 NC/HDM I

R514

NC/10K 1/10W

NC/ BAT54C

R513

NC/ 10K 1/10W

3

R515

NC/1K 1/10W

HDMI1_5V

HDMI1_D1P

HDMI1_D1N

9

6

4

TMDS D0-

TMDS D1-

TMDS D1+

HDMI1_SCL

HDMI1_CLKP

HDMI1_CLKN

HDMI1_SDA

HDMI1_D2N

HDMI1_D2P

3

1

TMDS D2-

TMDS D2+

HDMI1_HPD

HDMI_CEC

12

15

13

16

10

SCL

SDA

CEC

TMDSC -

TMDS C+

1

3

2

I/O1

I/O2

GND

I/O34VDD5I/O4

U50 7

NC/AZC199-04S

6

NC/ 100N16V

0402

C504

VCC5D

C503

NC/100N16V

0402

FB502

NC/120OHM

1 2

14

19

5

2

18

NC

HPD

VCC5

DSHLD1

DSHLD0

23

17

11

8

SHLD020SHLD121SHLD222SHLD3

CSHLD0

DSHLD2

DDC_GND

88G 34019E AT

HDMI2 (Side)

ǂ

0

0

4

3

A01A12A2

0.22uF 25V

U406

GND

VCC8SDA5SCL

WP

CAT24 C64 WI- GT3

6

7

10K 1/10W

R445 33 OHM 1/10W

R444 33 OHM 1/10W

EEPROM_WP

I2C0_SCL

EEPROM_WP7

3V3_STB

I2C0_SDA

3V3_STB

Q406

R4B8

R4B7

NC/AO3401

NC/0R05 1/10W

NC/10K 1/16W

0402

R4B9

CN41 0

For uMCU Debug

3V3_STB

123

I2C2_SCL

NC/CONN

3P S/T 2.5mm

I2C2_SDA

RESET_N

R442

100K 1/10W

2

APX8 09 -29 SAG-7

U40 4

RESET

GND

VCC

3

C401

1

100N16V

0402

D3V3

C403

R443

CN41 1

NC/CONN

123

3P S/T 2.0mm

FB424

NC/300 OH M

1 2

R4C3

NC/220R OHM 1/10W 5%

3V3_STB

Q405

NC/MMBT3904

0402

NC/3.3K 1/16W

R4C1

R4C2

NC/10K 1/16W

0402

3V3_STB

NC/10K 1/16W

0402

System MCU RESET

LIGHTING_LOGO_1

Off

1

33G3802 3B Y

Normal

0

10

Light

VCC5D

Q408

NC/AO3401

LOGO LED

LIGHTING_LOGO_2

LIGHTING_LOGO_1

Q407

NC/MMBT3904

0402

R4C4

NC/3.3K 1/16W

R4C7

NC/10K 1/16W

0402

LIGHTING_LOGO_2

USB_OC_N 7USB_EN7

USB_OC_N

R447

10K 1/10W

C411

22uF/50V

+

USB5V

3

5

OC

OUT

GND

2

IN4EN

U40 9

G5250K1T1U

1

C410

100uF 16V

VCC5D

+

R446

10K 1/10W

USB_EN

D3V3

12345678910

CN40 6

EJTAG I/F

R407

NC/4.7K 1/10W

R406

1K 1/10W

R405

1K 1/10W

R404

4.7K 1/10W

R403

1K 1/10W

R408 33 OH M 1/10W

R402

4.7K 1/10W

TRSTN

R439

330 OHM 1/10W

LIGHTING_LOGO_27

Crystal X401

35ppm 20 ǂ50ppm 0~70

C409

27pF 50V

USB Port

CN10 3

CONN

88G 352 21CL

6 5

1234

123

4

0402

C407

L401

100N16V

U40 8

I/O

1

2

4

3

1

2

90 ohm

AZC199-02S.R7G

GND

3

I/O

Run As 90 Ohm +/-15%

Differential Pairs

D3V3

USB5V

48

Lighting Logo

D3V3

1112

1314

LIGHTING_LOGO_17

SPI_WEN 7

NC/E-J TAG2X7

HEADER 2X7P S/T 2.5mm

D3V3

EJTAG_RSTN

R417

NC/47 OHM 1/10W

RESET_N

0402

UART0_TX 3

UART0_RX 3

C402 1N 50V

R409 NC/33 O HM 1/10W

R411 33 OH M 1/10W

R410 NC/33 O HM 1/10W

R414 33 OH M 1/10W

R413 33 OH M 1/10W

R412 33 OH M 1/10W

UART0_TX

UART0_RX

EJTCK

EJTDI

EJTDO

EJTMS

TDI _M

TDO_ M

KEY_I R 4,7

3V3_STB

D3V3

KEY_I R

D3V3

R421 4.7K 1/10W

R420 4.7K 1/10W

I2C0_SDA 7

I2C0_SCL 7

I2C1_SDA 3,9

I2C1_SCL 3,9

I2C1_SDA

I2C2_SCL

I2C0_SCL

I2C1_SCL

I2C0_SDA

R424 4.7K 1/10W

R425 4.7K 1/10W

R426 4.7K 1/10W

R423 2.2K 1/10W

R422 2.2K 1/10W

SPI_RD

SPI_WEN

SPI_CS_N

R427

4.7K 1/10W

D3V3

I2C2_SDA

R433

4.7K 1/10W

3

4

1

2

SO

W#

CS#

GND

VCC8HOLD#7SCK6SI

U40 5

5

C404

100N16V

0402

MX25L3205DM2I-12G

SPI_WR

SPI_CLK

SPI_HOLD

0402

SPI_CS_N

SPI_HOLD

SPI_CLK

SPI_WR

SPI_RD

0402

0402

0402

0402

RESET_N

R437 10K 1/10W

0402

3V3_STB

C406 100N16V

MOR_RSTN

0402

R401

D3V3

4.7K 1/10W

E16

E14

TRST

SIO I/F

U40 1C

06) SIO I/F

R416 4.7K 1/10W

B25

E15

E17

E19

E13

E18

D13

TMS

TCK

TDI _T

TDI _M

TDO_ T

TDO_ M

TAPSEL

TAPSEL_CAS

JTAG/EJTAG

R418 4.7K 1/10W

R419 4.7K 1/10W

L22

P22

M22

UART0_TX

UART0_RX

R22

N22

IRR

UART1_TX

UART1_RX

UART

AC16

AC17

AC18

AC19

AC20

AC21

AC22

I2C0_C

I2C0_D

I2C1_C

I2C1_D

TV_I2C2_C

TV_I2C2_D

I2C

R431 47 O HM 1/16W

R432 47 O HM 1/16W

R429 47 O HM 1/16W

R430 47 O HM 1/16W

R428 47 O HM 1/16W

AC25

AB24

AC24

AB25

SPI_DI

SPI_DO

SPI_CLK

I2C_MORPH__ENA

SPI

R434 100 O HM 1/10W

AB26

AC26

W26

SPI_SEL0

SPI_SEL1

SPI_HOLD

R438

R436 100 O HM 1/10W

R435 10K 1/10W

AD7

AB21

AB22

RESET_N

MOR_RESET_N

TRIN_R ESET_N

1M 1/10W

C405 100N16V

N1

N2

CLKIN_25M

CLKOUT_25M

MOR_RESET_N_OUT

C408

30pF 50V

X401 25MHz

R440 6.04K OHM +-1% 1/10W

USB2_DN

USB2_DP

AC12

AB12

AE26

AD26

AF26

USB2_DP

USB2_DN

USB_PADP

USB_PADN

USB

R441 4.7K 1/10W

0402

C4E6

1N 50V

U26

AF3

AD25

U25

CLKIN_24M

USB2_REXT

CLKIN_ SEL

USB2_ATEST

CLKOUT_24M

ZR39787HGCF

R4

DVDD18

3V3_STB

D3V3

FB406

C429

100N16V

0402

PGA_LDO0P4AFE_AVSS

Y3

C428

2

1

3V3_STB

FB407

120OHM

1 2

C435

1UF16V

C434

1UF16V

3V3_STB

3V3_STB

C433

10N 50V

0402

120OHM

1 2

C432

100N16V

0402

C431

1UF16V

W6

Y6

AFE_AVSS3Y4AFE_AVSS4Y5AFE_AVSS5

AC5

KEY_I N

120OHM

1 2

AFE_AVSS6L7AFE_AVSS7M7AFE_AVSS8N7AFE_AVSS9

ADC8_I NA

ADC8_I NB

ADC8_I NC

ADC8_I ND

AD6

AD5

AD4

3V3_CHECK

C4A2

VCC1V1

P7

AE5

R478 1K 1/10W

10N 50V

AB2

AC1

AC2

AFE_AVSS0W4AFE_AVSS1W5AFE_AVSS2

DM_PLL_VDD

IF_VDD3P3_0

IF_VDD3P3_1

VDD33_BOD

AB5

4.7uF 10V

VDD33-BOD

+

C430 100uF 16V

3

ZD401

BAT54C

FB422

D1V8

FB409

FB408

1 2

AF5

U7

VDDADC8

AFE_AVSS10

ADC8_I NE

ADC8_I NF

ADC8_I NG

AE6

AB6

LIGHT_SENSOR

R479 1K 1/10W

0402

120OHM

120OHM

1 2

0402

0402

C440

C437

C436

ADC8_RBI AS

AC3

R480 51K 1/10W

ADC 0.4V~2.9V

100N16V

100N16V

C439

1UF16V

1UF16V

AE11

AE10

ACOD3_AVSS

ACOD3_AVDD

ADC8_VREF

RC_OSC_REXT

ZR39787HGCF

AF6

AC4

0402

C441

22pF 50V

0402

C438 100N16V

R481 9.1KOHM +- 1% 1/10W

3V3_STB

49

1

0

1

3V3_STB

R461 4.7K 1/10W

R462 4.7K 1/10W

BOOT_STRAP3

BOOT_STRAP1

BOOT_STRAP0

Bootstrap Configuration

R460

4.7K 1/10W

3V3_STB

CN404

BOOT_STRAP2

R458

NC/10K 1/10W

3V3_STB

TVMicro Bootstrap

Configuration

R456

D3V3

TVM_BO OT

R457

4.7K 1/10W

TEST_MODE

BOOT0

1

0

0

BOOT1

R463 4.7K 1/10W

BOOT3

1

2

Boot OptionTEST MPDE

NC/CONN

R459

10K 1/10W

0

1

16-Bit NAND-Small Page

1

1

SPI

TVM_BOOT

1

1

8-Bit NAND-Large Page

1

1

1 1

0 18-Bit NAND-Small Page

SPI

I2C EEPROM

Boot Option

0

1

NC/4.7K 1/10W

State BOOT2

Debug Mode

Normal Mode

3V3_STB

FB416

1V8_STB

FB401

1 2

300 OHM

1 2

C420

120OHM

C417

C416

D3V3

4.7uF 10V

0402

0402

C419

100N16V

1N 50V

0402

10N 50V

C418

1UF16V

L3

M4

R3

AVDD3_HPLL

AVDD18_HP LL

AVDD3_SY NC1

LVDSVCTX_REXTG1LVDSVCRX_REXT

LVDSVCRX_ATSTL6LVD SVC TX_ATST

U401Q

K6

G2

3V3_CHECK

R465 1K 1/10W

R467 845 OHM +-1% 1/10W

R468 845 OHM +-1% 1/10W

R464 1K 1/10W

FB403

D3V3

C475

4.7uF 10V

1V8_STB

1V8_STB

FB405

120OHM

1 2

C427

1N 50V

0402

C426

100N16V

1 2FB425 300 OHM

N3

M3

AVSS_HPLL

LVDSVCRX_VDD 33_0H6LVDSVCRX_VDD 33_1

J6

120OHM

1 2

3V3_STB

04020402

C425

10uF 10V

C4E5 4.7uF 10V

N4

R2

P3

R1

P1

AVDD18_B

AVDD18_RP2AVDD18_G

AVDD3_AFE

AVDD3_SY NC

AVDD18_CVBS

AVDD18_SVI DEO

LVDSVCTX_VDD33_0G5LVDSVCTX_VDD33_1

G6

0402

C424

100N16V

C423

1UF16V

C422

100N16V

C421

1UF16V

FB404

120OHM

1 2

U401K

NC/470 OHM 1/10W

LED_B

TEST_G11G4TEST_G12

LED_B

Q401

NC/ MMBT3906

Q402

MMBT3906

R477

R475 NC/10K 1/10W

R470 1K 1/10W

LED_1

3V3_STB

H3

10K 1/10W

R476 3.3K 1/10W

C4E8

1N 50V

04020402

C4E7

1N 50V

LED_2

3

U41 0

AZC099-04S.R7G

3V3_STB

R497

430 OHM +-1% 1/10W

ZR39787HGCF

2

I/O2

I/O34VDD5I/O4

R482

R483

1

I/O1

GND

6

LED_R

LED_B

KEY_IR

1 2FB410 300 OHM

1 2

1 2FB402 300 OHM

FB411 120OHM

10K 1/10W

3K9 1/10W 1%

123456789

CN40 1

KEY_I R 4,6

I2C0_SD A 6

I2C0_SC L 6

LIGHT_SENSOR

KEY_IN

KEY_PWR

0402

C4E9

100N16V

C487

100N16V

0402

NC/33 OHM 1/10W

NC/33 OHM 1/10W

12

1 2FB420 NC/3 00 OHM

1 2FB419 300 OHM

1 2FB421 300 OHM

R4D2

R4D3

ZD402

VPORT0603100KV05

C488

1N 50V

C486

1N 50V

0402

C415

1N 50V

0402

C414

1N 50V

0402

C413

1N 50V

0402 0402

C412

100N16V

0402

10

CONN

10P S/T 2.0mm

33G380210B Y

R474

R473

3V3_STB

220 OHM 1/10W

AUD_SHDN 11

PWR_ON 12

BL_ON_OFF 12

PANEL_ON 9

SPI_WEN 6

EARPHONE_D ET 10

VGA_VSYNC_DET 3

EEPROM_WP 6

TEST_MODE

SPI_WEN

VGA_VSYNC _DET

BL_ON_OFF

LED_1

EARPHONE_D ET

PANEL_ON

TVM_BOOT

EEPROM_WP

DEMOD_RSTN 3

BOOT_STRAP2

BOOT_STRAP1

BOOT_STRAP0

BOOT_STRAP3

D10

D11

D12

C11

C12

C10

GPIO_P3

GPIO_P4

GPIO_P5

GPIO_P1

GPIO_P2

GPIO_P0

R451 33 OHM 1/10W

R449 33 OHM 1/10W

E12

E11

GPIO_P6

GPIO_P7

AB20

GPIO_P8

AB19

GPIO_P9

AB18

R450 33 OHM 1/10W

AB17

GPIO_P10

R452 4.7K 1/10W

C6

GPIO_P11

GPIO

BOOT_STRAP0

BOOT_STRAP1

BOOT_STRAP2

BOOT_STRAP3

8051_BOOT

PANEL_CTRL1 9

PANEL_CTRL2 9,12

VGA_HSYNC_DET 3

LIGHTING_L OGO_2 6

LIGHTING_L OGO_1 6

DVD_STB 4

USB_OC_N 6

USB_EN 6

VGA_EDID_W P 3

AUD_AMP_MUTE 11

PANEL_CTRL1

LED_2

VGA_HSYN C_DET

KEY_PWR

PANEL_CTRL2

PWR_ON

AUD_SHDN

USB_OC_N

USB_EN

AUD_AMP_MUTE

VGA_EDID_W P

NC/33 OHM 1/10W

NC/33 OHM 1/10W

R4C9

R455 100 OHM 1/10W

R454 100 OHM 1/10W

R4A1

R453 33 OHM 1/10W

U23

GPIO_P21

R23

GPIO_P22

AB13

GPIO_P23

AB14

GPIO_P24

AB16

GPIO_P25

AC14

GPIO_P26

GPIO_P27

AA6

Res_AA6

ZR39787HGCF

U401S

U24

GPIO_P19D5GPIO_P13

R466 33 OHM 1/10W

R448 33 OHM 1/10W

N6

AE3

K4

AFE I/F_GPO

AB7

AB10

AB9

AB8

V6

U6

AFE_CLK

AFE_XCLK

AFE_ATCLK0M6AFE_ATCLK1

AFE_TEST0

AFE_TEST1

AFE_TEST2

AFE_TCLK_IN

AFE_TCLK_OUT

AFE_XCLK_TEST

AV_CVBS_DET 4

YPbPr_DET 4

AV_S_DET 4

AV_S_DET

AV_CVBS_DET

YPbPr_DET

VID0E1VID1E2VID2E3VID3E4VID4E5VID5F1VID6F2VID7

TVMM I/F

ZR39787HGCF

U401M

DVD_IR_ON_OFF 4

TV_DVD_SW 4

TV_DVD_SW

DVD_IR_ON_OFF

DVD_STB

LIGHTING_L OGO_1

LIGHTING_L OGO_2

0402

0402

0402

NC/33 OHM 1/16W

NC/33 OHM 1/16W

NC/33 OHM 1/16W

R4D5

R4D6

R4D4

F3

F5

F4

G3

VCLKx2

Vsy nc_in

Hsy nc_in

LED_R

07) GPIO Block

Trace (mil)

910

910

910

910

910

910

910

910

910

910

910

909.99

910

910

910

910

910

910

910

910

1250.63

1251.88

910

910

Trace (mil)

910S1_A3

910

910

910

910

910

910

910

910

910

910

910

910

910

910

910

910

910

910

909.99

1250.77

1250.36

910

910

TopBottom

S0_DQ1

S0_DQ0

Trace (mil)

1250

1250

S0_A1

S0_A0

R484

100R 1/10W 1%

C442

D1V8

100N16V

C1
G1
G3
C3
C7
G7
C9
G9
A9

D1V8

E9
J1
A1
E1
R1
M9
J9

J2

S0_VREF

S0_DQ5

S0_DQ4

S0_DQ3

S0_DQ2

1250

1250

1250

1250

S0_A5

S0_A4

S0_A3

S0_A2

R485

100R 1/10W 1%

C443

100N16V

0402

0402

S0_VREF

S0_DQ2

S0_DQ3

S0_DQ5

S0_DQ4

S0_DQ6

S0_DQ0

S0_DQ1

F1

G2

G8

H1

H7

H9

DQ6

DQ1

DQ0

DQ4

DQ3H3DQ2

DQ5
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDDL
VDD
VDD
VDD
VDD
VDD

VREF

A1M3A2M7A0

A3N2A5N3A6N7A4N8A7P2A9P3A11P7A8

M8

S0_DQ9

S0_DQ8

S0_DQ7

S0_DQ6

1250

1250

1250

1249.38

S0_A9

S0_A8

S0_A7

S0_A6

S0_LDQSN

S0_LDQS

S0_LDM

S0_DQ7

S0_DQ8

S0_DQ10

S0_DQ9

E8

F7

D7

C2

C8

F3

F9

DQ9

DQ8

LDM

DQ7

LDQS

/LDQS

U402

/CK

A10

A12

K8

P8

M2

R2

S0_DQ11

S0_DQ12

DQ11D3DQ10

H5PS5162FFR-S6C

CK

J8

S0_DQ10

1250

S0_A10

S0_DQ13

D1

D9

DQ12

S0_DQ11

1250

S0_A11

S0_DQ14

B1

DQ14

DQ13

CKEK2/WEK3/RAS

L8

D1V8

S0_DQ15

B9

K7

S0_DQ12

1250

S0_A12

S0_UDQS

B7

DQ15

UDQS

S0_UDQSN

A8

S0_DQ13

1250

S0_A13

S0_UDM

B3

/UDQS

UDM

S0_DQ14

1250

S0_BA0

C4E1

C450

C449

C448

C447

C446

C445

S0_DQ15

1250

S0_BA1

10uF 16V

1UF16V

0402

10N 50V

0402

10N 50V

040204020402

100pF 50V

100N16V

100N16V

S0_BA2

R3

NC

NCL1NCE2NCA2NC

ODTK9BA0L2BA1L3/CASL7/CS

S0_UDM

1250

S0_BA2

S0_A13

R7

R8

NC

S0_LDM

S0_UDQSN

S0_UDQS

1251.12

1250

1250

S0_CASN

S0_RASN

S0_ODT

VSSQ

B2

VSSQ

D2

VSSQ

F2

VSSQ

H2

VSSQ

E7

VSSQ

B8

VSSQ

D8

VSSQ

F8

VSSQ

H8

VSSQ

A7

VSSDL

J7

VSS

A3

VSS

E3

VSS

J3

VSS

N1

VSS

P9

S0_LDQS

1250

S0_WEN

S0_LDQSN

1250

S0_CKE

S0_CKN

S0_CK

Top

S1_DQ0

S1_DQ3

S1_DQ6

S1_DQ4

S1_DQ2

S1_DQ1

Trace (mil)

1250

1250

1250

Bottom

S1_A0

R491

C452

D1V8

D1V8

S1_VREF

C1
G1
G3
C3
C7
G7
C9
G9
A9
E9
J1
A1
E1
R1
M9
J9

J2

S1_A1

100R 1/10W 1%

100N16V

1250

1250

S1_DQ1

G2

DQ1
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VDDL

VREF

A1M3A2M7A0

S1_A4

R492

C453

S1_DQ2

S1_DQ3

S1_DQ4

H1

H7

DQ3H3DQ2

A3N2A5N3A6N7A4N8A7P2A9P3A11P7A8

1250

S1_A6

S1_A5 S1_DQ5

100R 1/10W 1%

100N16V

0402

S1_DQ6

S1_DQ5

S1_DQ7

S1_LDQS

F7

F1

F9

H9

DQ6

DQ7

DQ4

DQ5

LDQS

P8

1250

S1_A2

0402

S1_VREF

S1_DQ0

G8

DQ0

VDD
VDD
VDD
VDD
VDD

M8

S1_DQ10

S1_DQ12

S1_DQ11

1250

S1_A10

S1_DQ12

D1

DQ12

DQ11D3DQ10

S1_DQ13

D9

DQ13

S1_DQ111250

S1_A11

D1V8

S1_DQ14

S1_DQ15

B1

B9

DQ14

1251.39

S1_A12

S1_UDQS

B7

DQ15

UDQS

S1_UDQSN

A8

S1_DQ13

1250S 1_A13

S1_UDM

B3

UDM

/UDQS

S1_DQ9

S1_DQ7

1250

1250 S1_DQ8

1250

S1_A9

S1_A7

S1_A8

S1_DQ8

S1_DQ9

S1_DQ10

S1_LDQSN

S1_LDM

E8

D7

C2

C8

F3

DQ9

DQ8

LDM

/LDQS

U403

H5PS5162FFR-S6C

CK

CKEK2/WEK3/RAS

/CK

A10

A12

J8

L8

K7

K8

M2

R2

S1_DQ14

1250

S1_BA0

C4E2

C460

C459

C458

C457

C456

C455

S1_DQ15

1250

S1_BA1

10uF 16V

1UF16V

0402

10N 50V

04020402

100N16V

100pF 50V

0402

10N 50V

0402

100N16V

S1_BA2

R3

NCL1NCE2NCA2NC

ODTK9BA0L2BA1L3/CASL7/CS

S1_UDM

1250

S1_BA2

R7

NC

NC

S1_LDM

S1_UDQSN

S1_LDQSN

S1_LDQS

S1_UDQS

1250

1250

S1_RASN

S1_CASN

S1_A13

R8

VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ
VSSQ

VSSDL

VSS
VSS
VSS
VSS
VSS

B2
D2
F2
H2
E7
B8
D8
F8
H8
A7

J7

A3
E3
J3

N1

P9

1250

S1_ODT

1250

S1_WEN

1250

S1_CKE

S1_CK

S1_CKN

50

S0_CASN

S0_CKE

S0_RASN

S0_CK

S0_CKN

S0_WEN

S0_A3

S0_A5

S0_A1S0_A11

S0_A4

S0_A6

S0_A0

S0_A2

S0_A7

S0_A11

S0_A8

S0_A12

S0_A9

S0_A10

S0_DQ[0: 15]

08) DDRII SDRAM I/F

S0_A[0:12]

S0_A2

S0_A0

S0_A1

S0_A3

S0_A5

S0_A12

S0_A13

C14

C24

S0_A13

S0 Memory I/F

S0_DQ15

U401A

B15

A21

S0_DQ15

S0_DQ14

S0_A4

S0_A10

S0_A6

S0_A8

S0_A9

S0_A7

C18

D22

D18

D14

D23

D17

C19

C15

C23

C17

S0_A9

S0_A8

S0_A7

S0_A6

S0_A5

S0_A4

S0_A12

S0_A11

S0_DQ14

S0_DQ13

A14

B22

S0_DQ13

S0_DQ12

S0_A3

S0_A10

S0_DQ12

S0_DQ11

S0_DQ10

S0_DQ9

S0_DQ8

S0_DQ7

S0_DQ6

S0_DQ5

B20

B17

B21

A15

B14

A22

B13

A23

S0_DQ10

S0_DQ11

S0_DQ8

S0_DQ9

S0_DQ4

S0_DQ5

S0_DQ7

S0_DQ6

S0_UDQS

S0_BA2

S0_BA0

S0_BA1

S0_UDQSN

C22

C20

D21

A16

B16

D19

D15

S0_A2

S0_A1

S0_A0

S0_BA2

S0_BA1

S0_BA0

S0_UDQS_N

S0_DQ4

S0_DQ3

S0_DQ2

S0_DQ1

S0_DQ0

S0_UDM

S0_LDM

B19

A18

B23

A13

A20

A19

S0_UDM

S0_LDM

S0_DQ2

S0_DQ3

S0_DQ1

S0_DQ0

D1V8

S0_ODT

S0_BA1

S0_BA0

R490

S0_LDQS

S0_LDQSN

S0_RASN

D16

A17

B18

S0_LDQS_P

S0_LDQS_N

S0_UDQS_P

C444

100N16V

0402

R486

S0_ODT

S0_CASN

S0_WEN

S0_CKN

S0_CK

S0_CKE

A12

C16

B12

D20

C21

C13

S0_CKE

S0_ODT

S0_CK_P

S0_CK_N

S0_WE_N

S0_RAS_N

S0_CAS_N

S0_VREF

RDRIVER

RDRIVER50

RTERM

A24

B26

A26

A25

C451

100N16V

0402

0R05 1/10W

S0_VREF

S0_CK S0_CKN

ZR39787HGCF

R489

200 OHM 1/10W 1%

R488

80.6 OHM +- 1% 1/10W

R487

60.4 OHM +- 1% 1/10W

S1_DQ[0: 15]

100R 1/10W 1%

S1_A0

S0_A[0:12]

S1_A12

S1_A13

E24

R24

S1_A13

S1 Memory I/F

S1_DQ15

U401B

F25

M26

S1_DQ14

S1_DQ15

S1_A8

S1_A11

S1_A1

S1_A2

S1_A10

S1_A11

J24

N23

S1_A12

S1_A11

S1_DQ14

S1_DQ13

E26

N25

S1_DQ12

S1_DQ13

S1_A10

S1_A3

S1_A4

S1_A5

S1_A9

S1_A7

S1_A12

S1_A6

S1_A8

S1_A9

S1_A7

S1_A6

J23

E23

P23

H23

S1_A9

S1_A8

S1_A7

S1_A10

S1_DQ12

S1_DQ11

S1_DQ10

S1_DQ9

L25

F26

H25

M25

S1_DQ9

S1_DQ10

S1_DQ8

S1_DQ11

S1_CKN

S1_CK

S1_A2

S1_A1

S1_A4

S1_A0

S1_BA1

S1_A5

S1_BA2

S1_BA0

S1_A3

N24

L24

K24

S1_A6

S1_DQ8

E25

S1_DQ7

M23

F24

P24

H24

K23

F23

S1_A5

S1_A4

S1_A3

S1_A2

S1_A1

S1_A0

S1_BA2

S1_BA1

S1_BA0

S1_DQ7

S1_DQ6

S1_DQ5

S1_DQ4

S1_DQ3

S1_DQ2

S1_DQ1

S1_DQ0

J26

L26

P26

K25

P25

N26

D25

D26

S1_DQ6

S1_UDM

S1_DQ2

S1_DQ3

S1_DQ1

S1_DQ4

S1_DQ5

S1_DQ0

S1_UDM

S1_BA0

S1_BA1

S1_CKE

S1_UDQSN

S1_UDQS

G26

G25

S1_UDQS_N

S1_LDM

K26

S1_LDM

D1V8

S1_ODT

S1_RASNS1_LDQSN

S1_WEN

S1_CASN

R494

100R 1/10W 1%

S1_CASN

S1_RASN

S1_CK

S1_LDQS

H26

J25

S1_LDQS_N

S1_UDQS_P

S1_CKE

S1_WEN

S1_ODT

S1_CKN

C26

G23

G24

C25

L23

D24

M24

S1_ODT

S1_CKE

S1_CK_P

S1_CK_N

S1_WE_N

S1_RAS_N

S1_CAS_N

S1_LDQS_P

S1_VREF

R26

C461

C454

100N16V

100N16V

0402

0402

R493

0R05 1/10W

S1_VREF

S1_CK S1_CKN

ZR39787HGCF

F6

P11

P10

P9

P12

P13

P14

P15

P16

P17

P18

R10

R11

R12

R13

R14

R15

R16

R17

R18

T10

T11

T12

T13

T14

T15

T16

T17

T18

U10

U11

U12

U13

U14

U15

U16

U17

U18

V10

V11

V12

V13

GND51

GND50

GND49

GND52

GND53

GND54

GND55

GND56

GND57

GND58

GND59R9GND60

GND61

GND62

GND63

GND64

GND65

GND66

GND67

GND68

GND69T9GND70

GND71

GND72

GND73

GND74

GND75

GND76

GND77

GND78

GND79U9GND80

GND81

GND82

GND83

GND84

GND85

GND86

GND87

GND88

GND89V9GND90

GND91

GND92

GND12

GND11

GND10

GND9K9GND8

GND7

GND6

GND5

J18

J17

J16

J15

K12

F21

J14

K11

K10

C484

10uF 16V

C483

1UF16V

F22

G17

G18

G19

G20

G21

G22

H20

M_VDD8

M_VDD9

M_VD D10

M_VD D11

M_VD D12

M_VD D13

M_VD D14

M_VD D15

U401N

Ground

GND48

GND47

GND46

GND45

GND44

GND43

GND42

GND41

GND40

GND39N9GND38

GND37

GND36

GND35

GND34

GND33

GND32

GND31

GND30

GND29M9GND28

GND27

GND26

GND25

GND24

GND23

GND22

GND21

GND20

GND19L9GND18

GND17

GND16

GND15

GND14

GND13

L18

L17

L16

L15

L14

L13

L12

L11

L10

K18

K17

K16

K15

K14

N18

N17

N16

N15

N14

N13

N12

N11

N10

M18

M17

M16

M15

M14

M13

M12

M11

M10

C468

1N 50V

0402

C467

100N16V

0402

C466

100N16V

0402

C465

100N16V

C464

100N16V

C463

C462

100N16V

G10

IO_VDD0G7IO_VDD1G8IO_VDD2G9IO_VDD3

0402

0402

100N16V

0402

0402

G11

IO_VDD4

D3V3

D3V3

D3V3

Y16

IO_VDD5H7IO_VDD6H8IO_VDD7J7IO_VDD8

C474

10uF 16V

C473

1UF16V

C472

1N 50V

0402

C471

100N16V

0402

C470

100N16V

0402

C469

100N16V

0402

Y18

Y19

Y20

Y21

AA16

AA17

AA18

AA19

Y17

IO_VDD9

AA20

IO_VDD10

IO_VDD11

IO_VDD12

IO_VDD13

IO_VDD14

IO_VDD15

IO_VDD16

IO_VDD17

C482

C481

C480

C479

D1V8

C478

C477

C476

D1V8

AA21

AA22

AA23

AA24

AA25

AA26

IO_VDD18

IO_VDD19

IO_VDD20

IO_VDD21

IO_VDD22

IO_VDD23

IO_VDD24

K13

1N 50V

0402

1N 50V

0402

100N16V

0402

100N16V

0402

100N16V

04020402

100N16V

D1V8

100N16V

0402

E20

E21

E22

F16

F17

F18

F19

F20

M_VDD0

M_VDD1

M_VDD2

M_VDD3

M_VDD4

M_VDD5

M_VDD6

M_VDD7

Power

CORE_VDD0

CORE_VDD1

CORE_VDD2

CORE_VDD3

CORE_VDD4

CORE_VDD5

CORE_VDD6

CORE_VDD7

CORE_VDD8

CORE_VDD9

CORE_VDD10

CORE_VDD11

CORE_VDD12

CORE_VDD13

CORE_VDD14

CORE_VDD15

CORE_VDD16

CORE_VDD17

CORE_VDD18

CORE_VDD19

CORE_VDD20

CORE_VDD21

CORE_VDD22

CORE_VDD23

CORE_VDD24

CORE_VDD25

CORE_VDD26

CORE_VDD27

CORE_VDD28

CORE_VDD29

CORE_VDD30

CORE_VDD31V7CORE_VDD32

U401R

L20

F11

F12

F13

F14

VCC1V1

R495

1K 1/4W

C4E4

22uF/50V

+

C4E3

1N50V

C4D9

100N25V

FB423

PANEL_POWER

CONN

300 OHM

PANEL_PW

CN408

1 2

R496

D3V3

L21

F15

G12

G13

G14

G15

G16

M20

LVDS_D0 E_N

LVDS_CKE _N

LVDS_D3 E_N

LVDS_D1 E_N

LVDS_D2 E_N

1357911131517192123252729

246

8

1012141618202224262830

SELLVDS

LVDS_D0E_P

LVDS_D2E_P

LVDS_D3E_P

LVDS_CKE_P

LVDS_D1E_P

R498

NC/2K 1/10W

NC/2K 1/10W

T20

T21

T22

T23

P20

M21

N20

N21

LVDS_D1 O_N

LVDS_D0 O_N

LVDS_CKO _N

LVDS_CKO_P

LVDS_D1O_P

LVDS_D0O_P

T24

P21

R20

R21

U20

PANEL_CTRL2 7,12

I2C1_SCL 3,6I2C1_SDA3,6

Q410

NC/2N7002

R4A2 NC/33 OHM 1/10W

LVDS_D2 O_N

LVDS_D3 O_N

31

32

16PX2 S/T 2.0mm

33G8027 32

Q409

NC/2N 7002

LVDS_D2O_P

LVDS_D3O_P

PANEL_CTRL17

CORE_VDD33Y7CORE_VDD34Y8CORE_VDD35Y9CORE_VDD36

W7

V20

V21

U21

W20

W21

C4F1

NC/1UF16V

R4A3

NC/1K 1/10W

PANEL_CTRL27,12

CORE_VDD42

CORE_VDD37

CORE_VDD38

CORE_VDD39

CORE_VDD40

CORE_VDD41

AA8

AA9

Y10

Y11

Y12

Y13

Y14

Y15

R25

V14

V15

V16

V17

V18

B24

GND93

GND94

GND95

GND96

GND97

GND98

GND99

GND100

S1_GND

GND4

GND3

GND2

GND1

GND0

USB2_GND

PLL_VSS

J13

J12

J11

J10

D3V3

FB412

120OHM

1 2

H21

H22

J20

J21

J22

M_VD D16

M_VD D17

M_VD D18

M_VD D19

M_VD D20

CORE_VDD43

CORE_VDD44

CORE_VDD45

CORE_VDD46

CORE_VDD47

AA10

AA11

AA12

AA13

AA14

ZR39787HGCF

V25

AE25

D3V3

FB413

120OHM

1 2

C491

100N16V

0402

C490

1UF16V

V26

K20

K21

AC15

M_VD D21

M_VD D22

M_VD D23

PLL_VDD33

CORE_VDD52

CORE_VDD48

CORE_VDD49

CORE_VDD50

CORE_VDD51

T25

T26

AA7

AA15

VCC1V1

D3V3

FB417

120OHM

1 2

C4A1

1UF16V

VCC1V1

FB415

0402

C493

100N16V

C492

1UF16V

AB15

LDI_VDD33_0

LDI_VDD33_1

HDMI_VDD1V_0E9HDMI_VDD1V_1

HDMI_VDD1V_2F9HDMI_VDD1V_3

E10

F10

C495

C494

FB414

120OHM

1 2

C499

0.47UF 10V

0402

120OHM

C497

AC13

USB_VDD3 3

HDMI_3V3

D3V3

AF25

USB2_VDD33

HDMI_VDD3P3_0E7HDMI_VDD3P3_1E8HDMI_VDD3P3_2F7HDMI_VDD3P3_3

FB418

1UF16V

C496

0.47UF 10V

0402

C498

100N16V

0402

3V3_STB

J4

K7

P5

IOVDD_ STBY0H4IOVDD_ STBY1

IOVDD_ STBY2H5IOVDD_ STBY3J5IOVDD_ STBY4

CORE_VDD18_STBY0

POWER
STBY

F8

C4A4

100N16V

0402

C4A3

1UF16V

120OHM

1 2

1 2

AC11

USB_VDD1

0402

1N 50V

10N 50V

0402

+12V+5V

C4B7

1N 50V

C4B6

1N 50V

0402

C4B5

100N16V

0402

C4B4

100N16V

C4B3

100N16V

C4B2

100N16V

0402 04020402

C4B1

100N16V

VCC1V1

1V8_STB

R6

T6

T7

CORE_VDD18_STBY1P6CORE_VDD18_STBY2

CORE_VDD18_STBY3

04020402

C4A9

100N16V

0402 0402

C4A8

100N16V

0402

C4A7

100N16V

C4A6

100N16V

0402

C4A5

100N16V

0402

CORE_VDD18_STBY5R7CORE_VDD18_STBY4

ZR39787HGCF

PANEL_POWER

D8D7D6D

S1S2S3G

Q403

R4B1

NC/0R05 1/4W

P12V+5VSB

R4A9

0R05 1/4W

C4D8

10uF 16V

C4D7

1UF16V

C4D6

1UF16V

C4D5

1UF16V

C4D4

1N 50V

04020402

C4D3

100N16V

VCC1V1

1V8_STB

3V3_STB

0402

C4D2

100N16V

0402

C4D1

100N16V

0402

C4C9

100N16V

0402

C4C8

100N16V

0402

C4C7

100N16V

C4C6

1UF16V

C4C5

1N 50V

04020402

C4C4

100N16V

0402

C4C3

1UF16V

C4C2

1N 50V

C4C1

100N16V

0402

51

C4B9

100N25V

5

AO4449 -7A/-30V

4

R4B3

0R05 1/10W

C4B8

0.1UF50V

R4B4

R4B2

47K 1/10W

Q404

MMBT3904

100K 1/10W

BL_BR_CTRL 12

BL_BR_CTRL

LVDS_CKE_N

LVDS_CKE_P

LVDS_CKO_N

LVDS_CKO_P

LVDS_D0E_P

LVDS_D0E_N

LVDS_D1E_N

LVDS_D1E_P

LVDS_D2E_N

LVDS_D2E_P

LVDS_D3E_P

LVDS_D3E_N

LVDS_D0O_P

LVDS_D0O_N

LVDS_D1O_N

LVDS_D1O_P

LVDS_D2O_N

LVDS_D2O_P

LVDS_D3O_P

LVDS_D3O_N

32

41

32

41

32

41

32

41

32

41

32

41

32

41

32

41

32

41

32

41

73G253S505 Y

L402 NC/90OHM

L403 NC/90OHM

L404 NC/90OHM

L405 NC/90OHM

L406 NC/90OHM

L407 NC/90OHM

AD24

AF23

AE22

AF19

AE24

AE19

AF24

AD23

LVDS_CE_P

LVDS_CE_N

LVDS_CO_P

LVDS_CO_N

LVDS I/F

U40 1J

09) LVDS I/F

LVDS_D0E_P

LVDS_D0 E_N

AD22

AE23

AF22

AD21

LVDS_D1E_P

LVDS_D2E_P

LVDS_D3E_P

LVDS_D1 E_N

LVDS_D2 E_N

L409 NC/90OHM

L410 NC/90OHM

L411 NC/90OHM

L412 NC/90OHM

AF21

AE20

AF18

AD17

AE17

AF16

AD15

AE18

AD18

AE21

AF20

LVDS_D4E_P

LVDS_D5E_P

LVDS_D3 E_N

LVDS_D4 E_N

LVDS_D5 E_N

AF17

LVDS_D0 O_P

LVDS_D1 O_P

LVDS_D2 O_P

LVDS_D0O_N

LVDS_D1O_N

AE15

AE16

AD16

AF15

LVDS_D3 O_P

LVDS_D4 O_P

LVDS_D2O_N

LVDS_D5 O_P

LVDS_D3O_N

LVDS_D4O_N

LVDS_D5O_N

C489

NC/100N25V

TP3

Place parts

very close

to U401

R4A7 0R05 1/10W

R4A6 820R 1/10W 1%

1

AD20

AB23

AC23

AD19

PWM1

PWM2

LVDS_REXT

LVDS_TXATST

ZR39787HGCF

5V for 19", 22", 24"

12V for 26"

R4B5

10K 1/10W

R4B6

47K 1/10W

PANEL_ON

PANEL_ON7

Audio IN

LINE_IN 1_LM1LINE_IN 2_LL1LINE_IN 3_LK1LINE_IN 4_LJ1LINE_IN 5_LH1LINE_IN 6_L

LINE_IN 1_RM2LINE_IN 2_RL2LINE_IN 3_RK2LINE_IN 4_RJ2LINE_IN 5_RH2LINE_IN 6_R

U401E

C601 2.2u F 10V

C602 2.2u F 10V

C603 NC/2.2uF 10V

AV_Audio_L

AV_Audio_R

DVD_Audio_R

DVD_Audio_L

AV_Audio_R4

AV_Audio_L4

DVD_Audio_L4

ADATAIN_0

ADATAIN_1

ADATAIN_2

J3

K3

C607 2.2u F 10V

C608 2.2u F 10V

C612 2.2u F 10V

C604 NC/2.2uF 10V

DVD_Audio_R4

C611 2.2u F 10V

YPbPr_ Audio_L

YPbPr_ Audio_R

PC_Audio_L

PC_Audio_R

YPbPr_A udio_R4

YPbPr_A udio_L4

ZR39787HGCF

AC9

AF14

AD13

R606 10K 1/10W

R605 10K 1/10W

R607 NC/10K 1/10W

Guest Bus

U401H

OE2/GADR 0_ALE

STV1/GDAT0

OE1/GDAT1

CPV/GDAT2

STH2/GDAT3

STH1/GDAT4

TP/G DAT5

CPV2/GDAT6

RVS/GDAT7

STV2/GCS_N0

GPO/GADR 1_CLE

V24

U22

W22

W25

W24

W23

GOE_N

GWE_N

ZR39787HGCF

V23

V22

Y22

Y23

Y24

Y25

Y26

No Connect P ins

NC68

U40 1L

ZR39787HGCF

K22

EarPhone

Output

CN60 2

1762345

EARPHONE_DET 7

EARPHONE_DET

R610

10K 1/10W

D3V3

PHONEJACK

88G 30211K

EAR_DET

EAR_R

EAR_L

ZD605

1 2

VPORT0603100KV05

ZD604

1 2

VPORT0603100KV05

ZD603

1 2

VPORT0603100KV05

C631

R613 100 OHM 1/10W

100P 50V

C630

100P 50V

R617

47K 1/10W

R616

47K 1/10W

12354

CN10 2

PC_Audio_R

R601 10K 1/10W

1 2

FB601 300 OHM

VGA

PC_Audio_L

R604

10K 1/10W

R603

R602 10K 1/10W

C606

100P 50V

C605

ZD602

ZD601

1 2

FB602 300 OHM

88G 30254C

PHONEJACK

Audio

Input

FB607 300 OHM

FB608 300 OHM

R618

VCC5D

FB603

300 OHM

1 2

C625

10K 1/10W

100P 50V

1 2

VPORT0603100KV05

1 2

VPORT0603100KV05

AD10

Audio OUT

U401I

VCC5D

AMP_LIN 1 1

AMP_RIN

AMP_LIN

R661 NC/0R05 1/10W

R660 NC/0R05 1/10W

AD12

AD9

ACLK0

BCLK0

AF12

AF11

AC10

AD14

AE14

LRCLK0

ADATAOUT_0

ADATAOUT_1

ADATAOUT_2

LINE_OUT1_L

AMP_RIN 11

LINE_OUT1_R

C615

HP_LIN

HP_RIN

R662 0R05 1/10W

R663 0R05 1/10W

AF10

AF9

LINE_OUT2_L

LINE_OUT2_R

SPDIF

Output

GND1VCC2VIN

CN603

3

88G 359 7 JT

CONNNECTOR

Coaxial

0402

100N16V

C616

560pF 50V

C622

100N16V

0402

C621

10uF 10V

R608 100 OHM 1/10W

IEC958O

AD11

IEC958_OUT

C620

100N16V

C619

10uF 10V

C618

100N16V

C617

10uF 10V

AE8

AF13

AE12

AE13

VCM

AGNDREF

VREF_AADC

VREF_ ADAC

VCC5D

0402 0402

ZR39787HGCF

5V_HP

C623

1UF16V

C624

1UF16V

Q601

R609

MMBT3904

100K 1/10W

R611

100K 1/10W

PD_MUTE

PD_MUTE11

EarP_L

1UF16V

11

12

13

TH1

VDD

MAX9728AETC+

C1P

1

PGND

2

C1N

3

PVss

4

5

R612

1M 1/10W

7.5K 1/10W

C629

100P 50V

EarP_R

R615

7.5K 1/10W

C628

100P 50V

C670

10

OUTL

OUTR

SVss

9

IN R

U60 6

8

SGND

7

SHDN

IN_L

6

C627

NC/1000pF

R614

20K 1/10W

C626

1UF16V

HP_LIN

NC/10uF 6.3V

C669

1UF16V

C633

NC/1000pF

R619

20K 1/10W

C632

1UF16V

HP_RIN

52

10) Audio Inputs/Earphone Output

POP NOISE

R639

L

PD_MUTE

D605

LL4148

R645

30K 1/10W 5%

R644

U603

10K 1/10W

AS431AN-E1

51K 1/10W

R

R-

L+

R+

L-

CN60 6

CONN

123

4

4Pin R/A 2.0mm

33G3802 4B YH

LOUT+

C645

C649

47uF/35V

+

D604

1 2

RB160M-60TE 25

AMPP

R628

+5VSB

D3V3

10K 1/10W

R629

NC/ 10K OHM 1/10W

R643

VCC5D

R642

AMPP+5VSB

R641

PD_MUTE 10

PD_MUTE

D602

LL4148

C638

R633

R630 NC/10K OHM 1/10W

C654

100N 50V

680R 1/10W 1%

R646

1K 1/10W

NC

NC

L601 33uH

AMPP

NC

Q603

MMBT3904

C634

1UF16V

10K 1/10W

R634

10K 1/10W

D24V

C641

100N 50V

100N 50V

1 2

R637

22 OHM 1/4W

FB610 NC/300 OHM

C637

NC/ 330UF 35V

+

FB609

33 OHM

C636

100N 50V

R659

D3V3

NC

LOUT-

C644

0.47UF 50V

L602 33uH

C643

330P 50V

C647

100N 50V

17

15

18

13

PGND

OUTPA16OUTPA

PGNDA14PGNDA

TH1

37

VDDPW

STBY20MUTE

INNA

U60 2

19

21

22

23

A_MUTEAMP_LIN

R647 NC

R668 22 OH M 1/10W

C648

100N 50V

1 2

L603 33uH

FB611 NC/300 OHM

10

OUTNA

DIAG28SVR29INPB32SVCC

SGND27VDDS26SYNCLK25ROSC24INPA

R650 100K 1/ 10W

ROUT-

C657

100N 50V

C660

1 2

R648

22 OHM 1/4W

FB612 NC/300 OHM

C656

100N 50V

3

1

5

OUTPB2OUTPB

PVCCB6PVCCB7OUTNB8OUTNB9OUTNA11PVCCA12PVCCA

PGNDB4PGNDB

SUB_GND

INNB33GAIN0

GAIN131VREF

VSS

30

35

34

36

C665

GAIN1

GAIN0

C659

+

C658

+

ROUT+

C661

100N 50V

0.47UF 50V

1 2

L604 33uH

C655

330P 50V

FB613 NC/300 OHM

L601, L602, L603, L604

73G M58901 T

TDA7491P13TR

GAIN1

GAIN0

ǂ

100N 50V

10UF/ 50V

10UF/ 50V

R654

D3V3

R653

R656

NC/ 47K 1/ 10W

ǂ

NC/ 47K 1/10W

0R05 1/10W

R655

0R05 1/10W

53

SVR

AUD_SHD N7

A_MUTE

Q604

R625

D3V3

D3V3

NC/ 10K OHM 1/10W

R624

NC

NC

R626

R627

NC

10K 1/10W

AUD_AMP_MUTE

AUD_AMP_MUTE7

R631

D3V3

Q605

MMBT3904

10K 1/10W

R635

100K 1/10W

SVR

R665

1M 1/10W

R632 10K 1/ 10W

PD_MUTE

R664

R636 NC

C650 100N 50V

INPA

INNA

C652

100N 50V

R649

39K 1/10W

SVR

C653

1N50V

C651

1M 1/10W

R638

C639

1N50V

C642 0. 22uF 25V

C640 0. 22uF 25V

R640

10K 1/10W

4.7K 1/10W

1uF 25V

INPB

INNB

R667

R666

R651 NC

C668

1M 1/10W

C667

1M 1/10W

C662 0. 22uF 25V

C664 0. 22uF 25V

R658

10K 1/10W

R652

4.7K 1/10W

C663

1uF 25V

AMP_RIN

GAIN (dB)

GAIN1

GAIN0

Gain select

1N50V

1N50V

20

0

0

26

0

1

32

1

0

36

1

1

AMP_LIN10

11) Audio Amplifier

AMP_RIN10

C763

C747

P12V9

+5VSB3,5, 9,11

VCC5D3, 5,6,10,11

3V3_STB3,5,6,7, 9

5VT3

D3V33,4,6,7,9, 10,11

D1V87,8,9

AZ1084D-1.8TRE1

L701

G5622ADJT11U

R703 0R 05 1/10W

FB702

C707

+

C713

C706

C705

C704

+

C712

C711

R707

2.2uH

3

LX

VIN4EN

C710

C709

300 OHM

1 2

C703

+

C708

VCC1V17,9

220uF 16V

100N25V

1UF16V

ADJ(GND)

1

VOUT(TAB)

2

VIN

3

100N25V

220uF 16V

100N25V

10uF 10V

C716

0R05 1/10W

R2

R711 15K 1/10W 1%

10N16V

R709

68K 1/10W

C734

R721 1K 1/ 10W

R722

FB705

300 OHM

1 2

VCC5D

R1

D3V3

5

VFB

1

4.7uF 10V

100N25V

220UF16V

100N25V

Vout = 0.6x(R1+R2)/R2

GND

2

C715

10N16V

2

VOUT

VIN

U70 3

G1084-33T43Uf

3

VCC5D

D24V11

1V8_STB

U70 2

3V3_STB

3V3_STB

73G253S 38 K

U701

Standby Power

+5VSB

220uF 16V

D1V8

+

C746

100N25V

C738

10uF 10V

C739

R718

18K 1/10W

L705

2.2uH

73G253S 38 K

10U 10V

C736

0.33uF 16V

8

5

7

6

LX

EN

VIN

PGND

VCC1REF2GND3FB

U70 4

G5692P11U

4

C782

100N25V

C735

100N25V

10ohm +/-1% 1/10W

C737

1UF16V

C733

10N16V

C725

220uF16V

+

C728

100N25V

C727

10uF 10V

GND

1

C724

100N25V

C723

100uF25V

+

R2

10N16V

R724 15K 1/10W 1%

R719

1.5K 1/10W

R1

Vout = 0.8x(R1+R2)/R2

R717 1K 1/10W

FB706

1 2

VCC5D

NC

CN70 2

DVD12V

DVD12V

Q706

R764 NC/0R05 1/4W

9V

300 OHM

123

VCC1V1

L702

C741

U70 5

R727

C740

D8D7D6D

S1S2S3G

C785

C744

220uF16V

+

C749

100N25V

15K 1/10W 1%

C748

10uF 10V

C751

R720

6.2K 1/10W

R2

R728

10N16V

R725

100 OHM 1/10W

R1

73G253S 72 T

4.7uH 35.8mOHM 5.6A

10U 10V

C750

0.33uF 16V

8

5

7

6

LX

EN

VIN

PGND

VCC1REF2GND3FB

G5692P11U

4

C745

C743

10ohm +/-1% 1/10W

C742

100N25V

Vout = 0.8x(R1+R2)/R2

100N25V

100N25V

1UF16V

R758

NC/3.3 OHM 1/4W

P12V

For 26" 12V

C775

U70 6

4

4P S/T 2.0mm

33G3802 4B Y L

NC/100uF 16V

C787

+

C786

NC/100N25V

5

NC/AO4449 -7A/-30V

4

NC/0.47uF 16V

R710

NC/0R05 1/10W

R712

NC/33K 1/10W

Q707

R704

NC/47K 1/10W

NC /MMBT3 904

D24V

R750

C773

FB709

300 OHM

1 2

D24V

For Tuner

220uF16V

+

5VT

10U 10V

C762

2

VOUT

ADJ/GN D

1

VIN

U70 8

G9084-50TU3U

3

C783

100N25V

C781

220UF16V

+

R747

0R05 1/4W

9V

C777

22uF 16V

9V

C776

10N16V

R752

6.2K 1/10W

R2

R753 10K 1/10W

R755

82K 1/10W

R1

L706

10uH

73G253S 17 H

10uF 25V

D704

SM340A

1 2

3

4

1

IN2LX

NC

GND

FB5COMP6EN7SS

G5655P12U

8

10K 1/10W

100N 50V

C772

Vout = 0.92x(R1+R2)/R2

C780

100N 50V

C779

10N16V

R749

3.9K 1/10W

2N2 50V

54

C774 100P 50V

47K 1/10W

R751

R760

NC/22K 1/10W

R763 NC/0R05 1/4W

For DVD Interface power

C784

BL_BR_CTRL 9

BL_ON_OFF 7

PS_ON

1 2

FB701 120OHM

R701 NC/100 OH M 1/10W

R702 100 OHM 1/10W

C702

C701

From

Power

12) Power

Board

R706

R705

NC/10K 1/10W

10N16V

100P 50V

10K 1/10W

CN70 1

12V for 26"

P12V

1234567891011

16V for 15", 19", 22", 24"

24V for 26"

NC/100uF 16V

C719

+

P24V

C718

NC/1N50V

C717

NC/100N25V

12

CONN

5V

ZD701

BZT52-C5V6

+5VSB

C722

330UF 35V

+

C721

1N50V

C720

100N 50V

1 2

C730

220uF16V

+

C732

1N50V

L704

33 OHM

C731

100N25V

For 19",22",24" 16V

33G327812D

12P S/T 2.5mm

100uF25V

+

D24V

C768

5

D8D7D6D

S1S2S3G

Q705

AO4449 -7A/-30V

4

C714

0.47UF 25V

R708

47K 1/10W

P24V

PANEL_CTRL27,9

100N25V

R759

0R05 1/10W

R761

33K 1/10W

Q708

MMBT390 4

R762

22K 1/10W

PWR_ON

P24V

For 26" 24V &

Comb DVD 19V

R723

NC/1K 1/10W

+5VSB

R726

+5VSB

3V3_STB

For 26" Power Board

C753

220uF16V

+

VCC5D

PS_ON

Q701

NC/MMBT3904

R730

NC/10K 1/10W

NC/10K 1/10W

Q702

NC/MMBT3904

R731

NC/33K 1/10W

R729

4.7K 1/10W

PWR_ON

PWR_ON7

C754

100N25V

5

D8D7D6D

S1S2S3G

Q703

AO4449 -7A/-30V

4

C752

0.47uF 16V

R733

0R05 1/10W

R734

R732

47K 1/10W

+5VSB

E

C

B

33K 1/10W

Q704

MMBT390 4

R735

22K 1/10W

PWR_ON

+16V

R925

1K 1/4W

C927

ZD904

MTZJ T-72 18B

1 2

R928 MOF 270 OHM 3W 5%

R923

C926

MOF 270 OHM 3W 5%

L902

1000PF500V

C921

R920

R922

R921

100 OHM 1/4W

100 OHM 1/4W

100N 50V

C925

470UF/25V

+

C924

3.5uH

1000uF 25V

+

C923

+

1000uF 25V

R929

T901

100 OHM 1/4W

100 OHM 1/4W

1

1N 50V

R924

RST CHIPR 150R +-5% 1/8W YAGEO

Q902MMBT2222A

2

D905

1

3

DIODE MBRF 10150CT 10A/150V ITO-220

2

3

D906

7129

81011

5

+5V

CN902

123456789

C936

100N 50V

DIM

+16V

C935

470uF16V

+

L903

3.5uH

C933

330uF 16V

+

C931

1000PF500V

DIODE MBRF 1560CT ITO-220AB

2

1

R930

100 OHM 1/4W

3

100 OHM 1/4W

R931

ON/OFF

R933

3.6KOHM +-1% 1/8W

!

6

C928

R935

1K 1/8W

IC903

12

43

!

R926

PC123X2YFZOF

101112

100N 50V

43K 1/8W 1%

13

ACD

+5V

HARNESS 13P(SC N) - 12P 200mm XLC-MN-007

R927

2K43 1/8W 1%

100N 50V

R934

1K 1/8W 1%

R936

150 OHM 1/8W

C937

IC902

AS431AZTR-E1

C911

0.001uF/250V

HS3

HEAT SINK (D906)

1

2

HS2

HEAT SINK (D905)

1

2

HS1

HEAT SINK(Q901)

1

2

55

R907

100K 1/4W

R905

100K 1/4W

C905

FB905

BEAD

1 2

C913

Vbus

C904

10.2 Power Board

715G3754P01W30003H

R909

D901

PR1007

R908

100K 1/4W

R906

100K 1/4W

2200PF2KV

R903

8.2K 1/4W

R904

10NF1KV

+

82UF 450V

1

BD901

+

!

2

-

4

3.3 OHM 1/ 4W

C912

22uF/50V

D902

FR103

+

C906

+

Vcc

8.2K 1/4W

GBU408

3

22uF/50V

C907

100N 50V

C914

100N 50V

CAP CHI P 0805 47NF K 25V X7R

C902

1000pF

!!

1000pF

C901

IC901

C910

FG

D9031N4148

7

8

HV

NC

CT1COMP2CS3GND

!

Q901

2SK4100LS-T 7A/650V

10 OHM 1/8W

R911

10 OHM 1/8W

R910

6

5

OUT

VCC

LD7576JGS

4

SG902

300V

3

2

300V

SG901

R914

0R36 5% 2W

R912

10K OHM +-5% 1/8W

R913

200OHM +-5% 1/8W

C908

CAP CHIP 0805 220P 50V NPO +/-5%

!

L901

30.0mH
4

C903

1

!

C909

1N5 50V

FB904

BEAD

12

!

0.47UF

R900

!

1.5M 1/2W

NR901

NTCR

t

!

F901

FUSE

1 2

12

CN901

SOCKET

1 2

FB903

BEAD

Ħ

PT3

2

1

BAW56

1

2

CN804

C825

D804

3

CONN

R822

1K 1/8W

3pF 6KV

T801

PT4

2

CN805

1

2

7891011

BAW56

3

CONN

L802

200mH

4

1

R823

1K 1/8W

C826

3pF 6KV

6

12

2

3

4

PT1

2

1

D802

CN802

CONN

3

2

5

1

1

BAW56

1

2

D801

3

C823

3pF 6KV

PT2

2

1

CN803

CONN

BAW56

1

2

R820

1K 1/8W

C824

3pF 6KV

D803

3

L801

200mH

4

3

1

2

R821

1K 1/8W

4. DIMP=0V~2.5V(0V:Min Brightness,

1K OHM 1/4W

1K OHM 1/4W

R817

R816

R824

750OHM +-1% 1/8W

1.VIN = 12V~24V( 10%)

3. DIMA=0V~5V(0V~1.3V: Min

2. EN=0V~5V(0V~0.5V:Disable,

1.5V~2V:Enable)

2.5V:Max Brightness) BST TO GND

Brightness, 2.5V:Max Brightness)

MOS_ 1

C804

C803

1000PF 50V NPO 120 +-5%

INVE RTER X'F MR 118uH 10% YS04170 422

R818

33ohm 1/4W +/-5%

C802

100N 50V

C801

220uF 35V

+

+16V

1000PF 50V NPO 120 +-5%

R819

33ohm 1/4W +/-5%

Q801

R801

47 OHM 1/4W

MOS_ 2

R815

750OHM +-1% 1/8W

PT4

PT3

PT2

PT1

C814

C817

1000pF630V

5

D18D17D26D2

FET APM8001KC-TRG 5.2A/ 80V SOP-8

S11G12S23G2

4

R808

R802

47 OHM 1/4W

C810

100N 50V

IC801

IC R T6000GS SOP-16

C805

47N 50V

C813

R809

51K 1/8W

NC

C812

0R051/8W

C811

15

12

16

10

14

11

13

VDD

GND

ISEN

OUT2

VSEN

COMP

OUT11VCC2EN3DIM4BST5SDT6SS7RT

100N 50V

NC

20K 1/8W

R813

+16V

CAP CH IP 0805 47NF K 25V X7R

SRT9OLP

R807

130K +-5% 1/8W

R806

8

C809

56K 1/8W +/ -1%

R811

R812

270K 1/8W

C815

33K 1/8W

0.1uF 50V

20K 1/8W

R814

ZD801

MTZJ T-72 5.1B

1 2

56

C808

C807

R825

10K OHM +-5% 1/8W

ON/OFF

This is signal GND

This is power GND

R803

+16V

DIM

51K 1/8W 1%

NC

R804

10KOHM +-1% 1/8W

0R05OHM1/8W

CAP CH IP 0805 470N 50V X7R +/-10%

R826

C806

N/C

R805

100KOHM +-1% 1/8W

CAP CH IP 0805 470N 50V X7R +/-10%

t

VOL+

SW01

TACT SW FWRD H1.5MM

C01

NC

R01

7K5 1/10W 1%

VOL-

SW02

TACT SW FWRD H1.5MM

C02

NC

R02

2K7 1/10W 1%

CH+

SW03

TACT SW FWRD H1.5MM

C03

NC

R03

1.8K O HM 1% 1/10W

CH-

SW04

TACT SW FWRD H1.5MM

C04

NC

R04

1K 1/10W 1%

MENU

SW05

TACT SW FWRD H1.5MM

C05

NC

R05

750R 1/10W 1%

Source Selec

SW06

TACT SW FWRD H1.5MM

C06

NC

Power ON/OFF

SW07

77T 607 2 FD

TACT SW FWRD H1.5MM

C07

NC

57

R07

750R 1/10W 1%

FUNC_KEY

R08

100R 1/10W 1%

PWR-SW

C08

1uF/ 16V

PWR-SW

FUNC_KEY

3V3_STB

123

4

CN01

CONN

33T8032 4F HR

10.3 Key Board

715G3303 2

1

23

BLUE

LED

LED201

BLUE

4

RED

RED

VOUT1GND2VCC

U201

81G 14 24 EL

KSM-603TM2M

3

56G 627911

58

R201 15K OHM 1/10W

C201

0.1uF 10V

0402

3V3_STB

IRRV

LED_B

LED_R

1

1

2

3

4

5

6 7

CN201

CONN

33G8032 5F HR

GNDGNDPIN

10.4 IR Board

715G3963R01000004S
