Haier L22C1120, L24C1180, L26C1120, L19C1120 User Manual

TFT-LCD TV

OWNER

Please READ this manual carefully before operating your TV, and retain it for future reference.

'S MANUAL

MODELS:

L19C1120 L22C1120 L24C1180 L26C1120

DIGITAL TELEVISION TRANSITION NOTICE

This device contains a digital television tuner, so it should receive digital over the air TV programming, with a suitable antenna, after the end of full-power analog TV broadcasting in the United States on June 12 2009. Some older television receivers, if they rely on a TV antenna, will need a TV Converter to receive over the air digital programming, but should continue to work as before for other purposes (e.g., for watching low-power TV stations still broadcasting in analog, watching pre-recorded movies, or playing video games).

For more information, call the FCC at 1-888-CALL-FCC (1-888-225-5322) or see www.DTV.gov. For information on the TV Converter program, and on government coupons that may be used toward the purchase of one, see www.dtv2009.gov,

or call the NTIA at 1-888-DTV-2009

AVISO RELATIVO A LA TRANSICIÓN A TELEVISIÓN DIGITAL

Este equipo incorpora un sintonizador de televisión digital, lo que le permitirá recibir una programación digital televisada por aire, con una antena adecuada, cuando se terminará la transmisión de alta potencia de la televisión analógica en los Estados Unidos el 12 de Junio de 2009. Ciertos receptores de televisión antiguos, si dependen de una antena de TV, necesitarán un conversor de TV para recibir por el aire una programación digital, pero seguirán funcionando como antes para otros usos (por ejemplo para ver emisoras de TV de baja potencia que todavía transmiten en analógico, para ver películas pregrabadas, o para utilizar sus videojuegos).

Para obtener más información, llame FCC 1-888-CALL-FCC (1-888-225-5322) o refiérase a www.DTV.gov. Para toda información sobre el programa de conversores de TV, y acerca de los cupones del gobierno que se pueden usar para comprarlos, refiérase a www.dtv2009.gov, o llame al NTIA al 1-888-DTV-2009.

SYMBOL SYMBOL DEFINITION

DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

INSTRUCTIONS: The exclamation point within on equilateral triangle to alert the user to the presence of important operating and maintenance (servicing) instruction in the literature accompanying the appliance.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution - Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Batteries installed warning

Caution - Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

FOR YOUR SAFETY

Before operating the TV please read this manual thoroughly. This manual should be retained for future reference.

FCC Class B Radio Frequency Interference Statement WARNING:

(FOR FCC CERTIFIED MODELS)

NOTE:

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is

4. Consult the dealer or an experienced radio/TV technician for help.

This equipment has been tested and found to comply with the limits for a Class B digital

connected.

NOTICE

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Dangerously high voltages are present inside the TV. Do not open the cabinet. Refer servicing to qualified personnel only.

SAFETY: Lamp Disposal

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR

DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG.

PRECAUTIONS AND REMINDERS

Place the TV on even surfaces.

Unplug immediately if there is smoke and a bad odor from the TV.

Don't throw any object inside the TV cabinet like metals or flammable materials.

Unplug immediately if foreign materials are put inside the TV cabinet or if the TV fell down.

Prohibit/Avoid opening TV cabinet.

Remember to unplug the AC cord from the AC outlet before cleaning. Do not use liquid cleaners or aerosol cleaners to clean the display.

Do not cover or block any vents and openings. Inadequate ventilation may shorten the life of the display unit and cause overheating.

Avoid direct sunlight, dusty, high humidity and smoky areas

Call service personnel to clean the internal part of the TV once a year.

Don't place the TV in confined spaces or in a box when using it.

Notice for Remote Controller

Avoid Dropping

Make sure to unplug the unit when not in use for a long period of time (days).

Avoid Liquids

Do not place the display near water, such as bathtub, washbasin, kitchen sink laundry tub, swimming pool or in a damp basement.

Avoid Aerosol Cleaners

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. The TV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

16. The Class I apparatus shall be connected to a mains socket outlet with a protective earthing connection.

17. The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

18. CAUTION – These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

19. For use only with UL Listed Wall Mount Bracket with minimum weight/load: Please see page 22.

20. CONSUMER ALERT – This television receiver has only an analog broadcast tuner and will require a converter box after June 12 2009,to receive over-the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products, For more

information, call the Federal Communications Commission at 1-888-225-5322 (TTY: 1-888-835-5322) or visit the Commission's digital television website at: www.DTV.gov. Information about the DTV transition –after June 12 2009, a television receiver with only an analog broadcast tuner will require a converter box to receive full power over the- air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before to receiver low power, Class A or translator television stations an with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products. For more information about the DTV transition is available from http://www.DTV.gov or 1-888-CALL-FCC, and from http://www.dtv2009.gov or 1-888-DTV-2009 for information about subsidized coupons for digital-toanalog converter boxed.

21. Tilt/Stability – All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

Do not compromise these design standards by applying excessive pull force to the front, or top,

of the cabinet, which could ultimately overturn the product.

Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top

of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

22. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

23. Power Lines – An outdoor antenna should be located away from power lines.

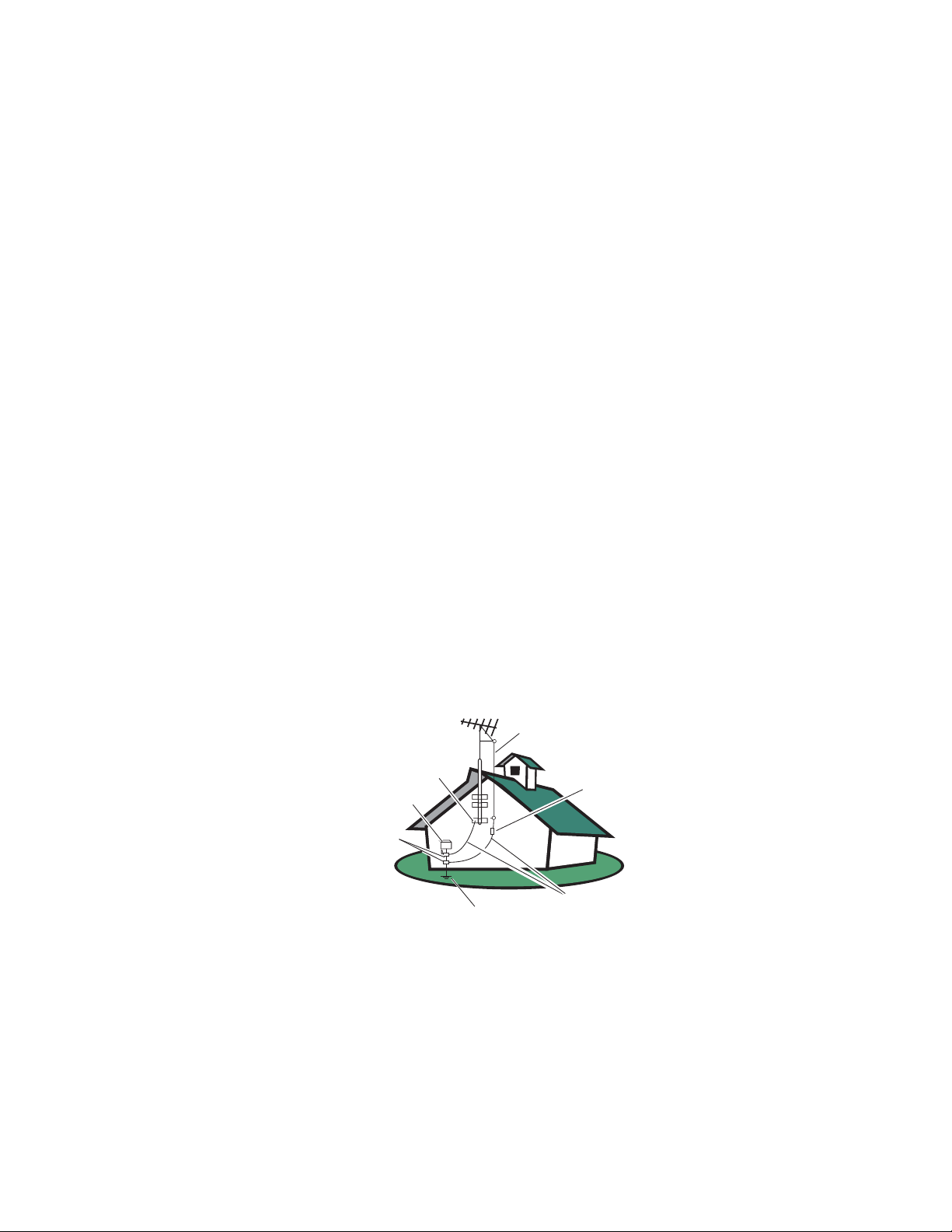

24. Outdoor Antenna Grounding – If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

ANTENNA

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the 6 English grounding system of the building, as close to the point of cable entry as practical. Please, make sure to connect the power plug to the wall outlet socket after connecting the TV to the adapter!

SAVE THESE INSTRUCTIONS

Thank you for purchasing this Haier product. This easy-to-use manual will guide you in getting the best use of your product. Remember to record the model and serial number. They are on the label on the back of the unit.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

TABLE OF CONTENT

DIGITAL TELEVISION TRANSITION NOTICE ....................................... 2

FOR YOUR SAFETY ........................................................................................ 3

PRECAUTIONS AND REMINDERS ...........................................................4

IMPORTANT SAFETY INSTRUCTIONS ...................................................5

PREPARATION .................................................................................................9

ATTACHING THE BASE .........................................................................................................9

PREPARING YOUR LCD HDTV FOR WALL MOUNTING ..........................................9

PERIPHERAL CONNECTION GUIDE ....................................................11

OPERATING INSTRUCTIONS ..................................................................13

USING THE SIDE PANEL CONTROL ............................................................................. 13

USING THE MENUS ............................................................................................................. 15

CHANNEL MENU ................................................................................................................ 15

VIDEO MENU ........................................................................................................................ 15

AUDIO MENU ....................................................................................................................... 16

FEATURE MENU .................................................................................................................... 16

VGA MENU ............................................................................................................................. 19

TIPS ........................................................................................................................................... 19

PRODUCT SPECIFICATION ......................................................................21

TROUBLESHOOTING ................................................................................. 23

GLOSSARY ...................................................................................................... 24

WARRANTY ..................................................................................................25

PREPARATION

IMPORTANT: Do not apply pressure to the

screen display area which may compromise the integrity of the display. The manufacturer’s warranty does not cover user abuse or improper installations.

ATTACHING THE BASE

IMPORTANT: The base of the HDTV must

be assembled prior to usage.

For L19C1120 / L22C1120 / L24C1180

1. Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the HDTV.

2. Carefully align and insert the base to the stand.

3. Gently push the base towards the HDTV until the locking mechanism locks into place.

PREPARING YOUR LCD HDTV FOR WALL MOUNTING

We suggest that you keep your TV at least 2.36 inches (60 mm) from the wall to prevent cable interference.

Before mounting your TV on the wall, you need to remove the base.

For your safety, please use only with UL listed wall mount bracket with minimum weight of the TV without stand. (Please see page 22.)

To attach a wall mount bracket to your TV:

For L19C1120 / L22C1120 / L24C1180

1. Remove the screws holding your TV to the stand.

2. Remove the base stand from your TV.

3. Secure the wall mount bracket to the back of your TV using four M4 screws, as indicated in the illustration.

100 mm

For L26C1120

1. Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the HDTV.

2. Carefully align and insert the base to the stand.

3. Insert the screws to the bottom of the base and tighten the base to the stand.

100 mm

For L26C1120

1. Remove the screws holding your TV to the stand.

2. Remove the base stand from your TV.

3. Secure the wall mount bracket to the back of your TV using four M6 screws, as indicated in the illustration.

200 mm

100 mm

NOTE

The wall mount bracket and the

screws are not included.

Please make sure to connect the power plug to the wall outlet socket after connecting the TV to the power cord!

1. Install the base stand; place the TV on

a solid surface.

Min 1 m

Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover.

To prevent any unsafe situations, no naked flame sources, such as lighted candles,

should be placed on or in the vicinity. Avoid heat, direct sunlight and exposure to

rain or water. The equipment shall not be exposed to dripping or splashing.

2. Connect the antenna cable or CATV cable

to the aerial socket ANT IN 75: at the back of the TV set.

4. Power :

Insert the power cord in the wall socket with AC power supply. There is an LED indicataor on the front panel. If the LED color is Blue, it means the TV set is on. If the LED color is Red, it means the TV set is in standby mode.

5. Turn the TV on:

Press the Power key on the remote control or the side panel control buttons. The TV will turn on within a few seconds.

Power Key

Power

Video Comp PC/HDMI TV

3. Remote control:

Remove the cover of the battery compartment. Insert the included 2 batteries (Type AAA 1.5V).

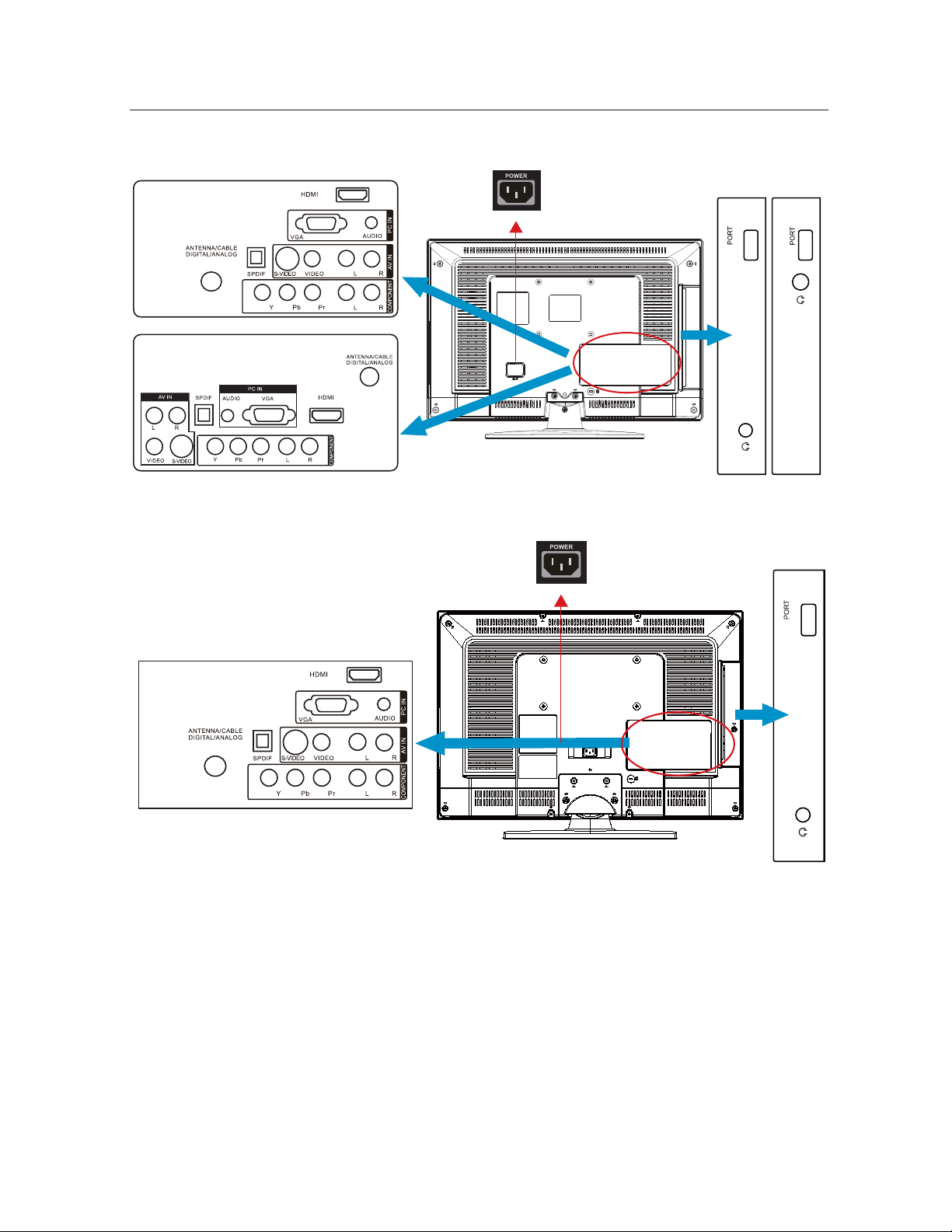

PERIPHERAL CONNECTION GUIDE

For L19C1120 / L22C1120 / L24C1180

L19C1120 / L22C1120

AC POWER

L19C1120 L22C1120

L24C1180

For L26C1120

L26C1120

AC POWER

USB

SB U

L26C1120

USB

1. HDMI – Connect the primary source for digital video such as a DVD player, bluray player or

set top box through this digital connector.

2. PC IN – Connect the video and audio cables from a computer here.

3. AV IN (AV/S-VIDEO) – Connect the input source for composite video devices, such as a

VCR or video game. Use the white and red connectors to connect the external audio from the same source. The signal being carried by the S-Video cable and connector, if connected, will take priority over the Video RCA connector (yellow connector).

4. COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary source for component

video devices such as a DVD Player or set top box here. Use red for Pr, blue for Pb, green for Y, red for right audio (R) and white for left audio (L) inputs.

5. ANTENNA/CABLE DIGITAL/ANALOG – Connect to an antenna or digital cable (out-

of-the-wall, not from Cable Box) for Digital TV.

6. SPDIF (Optical Digital Audio Out) – When a digital audio signal is associated with the

input selected for viewing, the digital audio will be available on this SPDIF connection to your home theater system.

7. USB PORT – Insert a USB storage device to the USB port to view photos or listen to

music.

8. Earphone Output – Connect to headphones. When the headphone is inserted to the plug,

the speakers will be muted.

Once your equipment is connected, use the following procedure to view the input signal: Press the Source button on the remote control to select the relevant source to view. (ex: Press Comp button to select “Component” if you have connected a device to the Component socket.)

OPERATING INSTRUCTIONS

USING THE SIDE PANEL CONTROL

1 VOL + Press to increase the sound volume level.

2. VOL - Press to decrease the sound volume level.

3. CH

4. CH

5. MENU Press to open or exit the OSD (on-screen display) menu.

6. INPUT Press to select the input source.





POWER

Press to select the next higher program number.

Press to select the next lower program number.

Press to turn on / off (standby) the TV set.

USING THE REMOTE CONTROL

Power

Press to power ON/OFF (standby) TV.

Note: TV is never completely powered off unless physically unplugged.

Video

Press repeatedly to choose S-Video/ Composite source mode.

Comp

Press to choose Component source mode.

PC/HDMI

Press repeatedly to choose VGA or HDMI source mode.

Press to choose ATSC/NTSC TV source mode.

0 ~ 9 /

number

–

Press to enter TV channel number to select channel (Press ‘-’ to choose the sub-channel).

PREV CH

Press to display the previous channel.

Sleep

Press to set the preset time to switch the TV to standby mode automatically (off / 5 / 10 / 15 / 30 / 60 / 90 / 120 / 180 /240 mins).

Freeze

Press to freeze the displayed picture.

MTS/SAP

Press to activate the NTSC TV sounds, such as: Stereo, SAP or Mono tone, and languages of DTV.

Wide

Press to choose the display aspect ratio: Normal, Zoom1, Wide, Zoom2, or HDMI PC mode (Only for HDMI Video Source).

Power

Comp PC/HDMI TV

Video

123

456

789

PREV CH

Sleep

Freeze MTS/SAP

Fav Source

Menu Exit

V-Chip

Video Adj Audio Adj

EPG

Mute

VOLCH

Info

ENTER

C.C.

Source

Press "Source" to open the Source List.

EPG

Press to display the Electronic Program Guide.

CH+ / CH -

Press + or - to browse through the TV channels.

Mute

Switch the sound ON/OFF.

Info

Press to show the information about the input source, TV channel, display resolution and current time.

VOL+ / VOL-

Press + or - to adjust the volume.

Press to open or exit menu.

<, >

, <, >, ENTER

Press to adjust the various function items on the menu.

Exit

Press to exit menu or OSD.

V-Chip

Press to lock Parental Control temporarily. (After setting the restricted table of MPAA or TV Rating.)

Video Adj

Press repeatedly to switch the video mode: Standard, Eco, Movie, Personal, Vivid.

Audio Adj

Press repeatedly to switch the audio mode: Personal, Music, Speech.

C. C.

Press repeatedly to change the closed caption type : CC On, CC Off, CC On With Mute.

Fav Press "Fav" to open the Favorite Channel List.

USING THE MENUS

VIDEO MENU

1. Press the Menu button to display or close

the main menu.

2. Use the Navigation Ring to move

around, select, adjust or confirm an item in the OSD (On Screen Display) menu.

Press the Menu button to enter the main OSD. Adjust the items including Video menu,

Audio menu, Feature menu, Channel menu, and VGA menu. However, some

options in the menus may only be enabled in a particular source mode.

CHANNEL MENU

The Channel menu in TV mode is shown below.

CHANNEL

Tuning Band Channel Strength Auto CH Search Add on CH Search Channels List Channel Labels FAV Channel Setting

Move Select Return Exit

ENTER

1. Tuning Band: Select TV source signal

from the Air (antenna) or Cable (CATV).

2. Channel Strength: Show the intensity of

the received DTV signal.

3. Auto CH Search: Automatically scan

all NTSC / ATSC TV channels and then store them in the channel table. During the channel scan process, the OSD will display the number of channels which have been found.

4. Add on CH Search: Rescan and add

channels which are newly found.

5. Channels List: Show the Channels List.

You can select which channels are viewable.

6. Channel Labels: Shows the NTSC /

ATSC TV Channel Labels. You can edit the labels.

7. FAV Channel Setting: Show the Favorite

Channel List. You can add/remove channels from the favorites list.

Air

ExitMenu

The Video menu in most source modes is shown below. It provides several video adjustment items for fine tuning the video display. Only in VGA source mode, the Video menu provides: Picture mode, Brightness,

Contrast, Color Temp, Noise Reduction, Backlight, Aspect Ratio and Preset.

VIDEO

Picture Mode Brightness Contrast Sharpness Color Tint Color Temp

Move Select Return Exit

ENTER

Vivid

40 30 50

Cool

ExitMenu

1. Picture Mode: Adjust the best picture appearance from selecting the preset value of Vivid, Standard, Eco, Movie, or Personal.

2. Brightness: Video brightness adjustment, the tuning range is 0 ~ 100.

3. Contrast: Video contrast adjustment, the tuning range is 0 ~ 100.

4. Sharpness: Video sharpness adjustment, the tuning range is 0 ~ 100.

5. Color: Video color chroma adjustment, the tuning range is 0 ~ 100.

6. Tint: Video tint adjustment, the tuning range is R50 ~ G50.

7. Color Temp: Three color temperature modes. (Normal / Warm / Cool)

8. Noise Reduction: Gives four NR effect degrees, such as: Low, Mid, High and Off.

9. Adaptive Contrast: Choose On or Off to adjust the gamma after analyzing the input signal automatically.

10. Backlight: Backlight strength adjustment, the tuning range is 0 ~ 30.

11. Aspect Ratio: Choose the display aspect: Normal, Zoom1, Wide, Zoom2, or HDMI PC mode (Only for HDMI Video Source).

12. Preset: Restore the default video settings.

AUDIO MENU

FEATURE MENU

The Audio menu in TV mode is shown below. The audio language setting is only available with the NTSC (analog) TV source. The option is disabled in other source modes.

AUDIO

Sound Mode Bass Treble Balance Audio Language SPDIF Speaker

Move Select Return Exit

ENTER

Personal

32 32 0

English

PCM

ExitMenu

1. Sound Mode: Choose the audio mode:

Personal, Music, or Speech.

2. Bass: Bass tone adjustment, the tuning

range is 0 ~ 63.

3. Treble: Treble tone adjustment, the tuning

range is 0 ~ 63.

4. Balance: Audio balance adjustment, the

tuning range is L50 ~ R50.

5. Audio Source: Select the audio source

from Mono, Stereo, or SAP. (This function works in ATV only.)

6. Audio Language: Change the audio

language setting on ATSC TV programs. The number of the supported audio languages depends on the ATSC TV programs. (English / Français / Español)

7. SPDIF: Digital audio output format. Select

from RAW and PCM. (This function works in DTV only.)

8. Speaker: Choose to turn on / off the

TV's intergrated speakers. The digital audio output signals and earphone output signals will not be turned off even though the TV speaker is off. The default setting is On.

9. AVL: Choose On or Off to adjust volume

to be consistent across programs and channels automatically.

10. Preset: Restore the default audio settings.

The Feature menu in TV mode is shown below. Certain features will be hidden (disabled) in the menu depending on the mode.

FEATURE

Menu Language

Time

Password Setting

Parental Control

Closed Captions

Analog Captions

Digital Captions

Move Select Return Exit

ENTER

English

Off

CC1

SERVICE1

ExitMenu

1. Menu Language: Select the menu display language. (English / Français / Español)

2. Time: Set current time. The sub-menu includes Time Mode, Time Zone, and Daylight Savings.

[Time Mode] – Choose from Auto or Manual.

[Time Zone] – Set current time zone. [Daylight Savings] – Set to On or Off.

FEATURE Time

Time Mode

Time Zone Daylight Savings

Year Month Day Time

Move Select Return Exit

ENTER

Auto

HST

2010

Jan

12:02 AM

ExitMenu

3. Password Setting: Change the 4-digit parental control password. Three steps are required for changing the password: Enter Old Password -> Enter New Password -> Confirm New Password. Note: This item is only available in TV, Composite and S-Video source modes. The default password is

0 0 0 0ύ.

Enter Old Password

Enter New Password

Confirm New Password

4. Parental Control: Provide the parental

Control (V-chip) function setting. Before entering the Parental Control sub-menu, enter the password first. Then the user can modify the MPAA or TV Rating table to restrict viewing of certain programs. Note: This feature is only available in TV, Composite and S-Video source modes. (The default password is: 0 0 0 0.)

Enter Password

FEATURE Parental Control

Button Lock

Block Unrated TV

USA Parental Locks

Canadian Parental Locks

Open V-Chip

Move Select Return Exit

ENTER

Off

ExitMenu

[Button Lock] – Select On or Off to lock or unlock the control buttons on the side panel of the TV. When this function is enabled, the control buttons on your TV will be locked and the TV can only be controlled by the remote control.

[Block Unrated TV] – When Block Unrated TV is set to on, your TV will block unrated programs.

[USA Parental Locks] – Set the parental control level by the MPAA or TV Rating.

[Canadian Parental Locks] – Set the parental control level by English Rating or French Rating.

[Open V-Chip] – Open V-Chip is an advanced V-Chip rating system for digital channels that are received.

The rating table will rate programs using RRT5 rating information.

5. Closed Captions: Select a closed caption option. (Off / On / With Mute)

6. Analog Captions: Select an analog caption option. (CC 1-4 / TEXT 1-4)

7. Digital Captions: Select a digital caption option. (SERVICE 1-6)

8. Digital Captions Setup: Provides numerous options for setting the digital closed caption style in the sub-menu.

Note: This feature is only available in Digital TV (ATSC) mode.

[Style] – Set to Automatic or Customer mode. If Customer mode is selected, you can modify the detail styles as described below. The setting result will be shown immediately on the bottom of the submenu OSD.

[Size] – Digital closed caption font size, which can be set to Automatic, Small, Normal, or Large.

[Font] – Digital closed caption font style, which can be set to Automatic, Default, or Font 1 ~ 7.

[Text Color] – Automatic / White / Red / Green / Blue / Yellow / Magenta / Cyan / Black.

[Text Opacity] – Automatic / Solid / Flashing / Transparent / Translucent.

[Background Color] – Automatic / Black / White/ Red / Green / Blue / Yellow / Magenta / Cyan.

[Background Opacity] – Automatic / Solid / Flashing / Transparent / Translucent.

[Edge Effect] – Automatic / None / Raised / Depressed / Uniform / Left

Shadow / Right Shadow. [Edge Color] – Automatic / Red / Green

/ Blue / Yellow / Magenta / Cyan / Black / White.

9. Input Labels: This option is available only

for non-TV sources.You can edit the input labels.

10. Component Setting: This option only

shows and is available in component mode, which provides fine tuning the component display.

[Phase] – Adjust Picture Phase to reduce Horizontal-Line noise. The tuning range is from 0 to 31.

[Preset] – Restore the default component setting values.

11. MultiMedia Menu: This option shows the

photos in JPEG formats and plays the music in MP3 formats that are stored on a USB storage device. Note: File number is limited to 1000 files. JPEG sizes are limited as followed: For 19"/22"/26": 10928x6114 For 24": 15360x8640 There are two ways to enter JPEG Viewer and MP3 MusicBox interface:

After a plugging USB storage device into

the USB port, the Multimedia List menu will be displayed.

Multimedia List

1. JPEG Viewer

2. MP3 MusicBox

Exit

Select MultiMedia Menu in the Feature

Menu to choose JPEG Viewer or MP3 MusicBox. These two items are activated only if the USB storage device is plugged into the USB port.

FEATURE

Analog Captions

Digital Captions

Digital Captions Setup

Input Labels

Component Setting

MultiMedia Menu

Reset To Default

Move Select Return Exit

ENTER

English

ExitMenu

[JPEG Viewer] – Press Menu to display the control menu. Press Enter to enlarge the selected photo (orange frame) in browser.

Image Delay: Set the display time for

each picture in the slide show mode. There are three options: Fast, Slow, and Normal.

Music On Slide Show: Enable

background Music during the slide show. It will play the MP3 files in sequence in the current folder repeatedly. The Music On Slide Show item will be grayed out if there are no MP3 files in the current folder.

Start Slide Show: Enter Slide Show

mode.

Rotate Photo: Rotate selected picture.

(0/90/180/270)

Back to Upper Folder: Return to the

upper folder.

Back to Root Folder: Return to the

root folder.

Back To Browser: Return to Browser

mode. (Photo page with control menu.)

Exit: Exit JPEG Viewer and return to

original source. (Browser with Control menu.)

[MP3 MusicBox]

ListInfoBar (at the bottom): This

part contains play list information: “Current Directory”, “Total File(s)”, “Total Folder(s)”, “Current Item” in current directory and Key Help Bar.

PlayList (on the right side): This part

contains MP3 music files.

Control Panel (on the left side):

Bass, Treble, Balance , Volume: Adjust the audio tone.

Mute Screen: This provides an option for enabling (On) or disabling (Off) the auto turn-off of the backlight while playing MP3 media. This setting is valid in MP3 media player interface only. After setting to On, the backlight will be turned-off automatically after 10 seconds if no key is pressed. Press any key to turn the screen back on. If no key is pressed after 10 seconds, the screen will be turned off again.

Preset: Resets all MP3 settings to the default values.

Exit MP3MusicBox: Exit the MP3MusicBox interface.

12. Reset to Default: Restore all the default

settings.

VGA MENU

This option is only shown and available in VGA mode, which provides several items for fine tuning the VGA display.

1. H-Position: Adjust the horizontal position

of the picture. (0-40)

2. V-Position: Adjust the vertical position of

the picture. (0-16)

3. Clock: Adjust picture clock to reduce

Vertical-Line noise. (0-16)

4. Phase: Adjust picture phase to reduce

Horizontal-Line noise. (0-31)

5. Auto Adjust: Adjust the settings

automatically.

6. Preset: Restore the default VGA setting

values.

TIPS

Care of the screen

Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently.

Unplug the power cord before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. Do not use liquid cleaners or aerosol cleaners.

Mobile telephone warning

To avoid disturbances in picture and sound, malfunctioning of your TV or even damage to the TV, keep away your mobile telephone from the TV.

End of life directives

We are paying a lot of attention to produce environmental friendly products. Your new television contains materials, which can be recycled and reused.

At the end of its life, specialized companies can dismantle the discarded receiver to concentrate the reusable materials and to minimize the amount of materials to be disposed of.

Please ensure you dispose of your old receiver according to local regulations.Haier is committed to safely recycling electronic products and product materials. Please check for a local recycling location in the United States at : 1800RECYCLING.COM or call

1.800.RECYCLING.

Dolby License Notice and Trademark Acknowledgement

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Regulatory Notices – Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the

equipment and the TV.

 Connect the equipment into wall power

outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio

or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by our company may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice

This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

Avis Canadian

Cat apparel numerous de la classed B respected toutes les exigencies du règlement sur le materiel brouilleur du Canada.

PRODUCT SPECIFICATION

NOTE

 This model complies with the specifications listed below.  Designs and specifications are subject to change without notice.  This model may not be compatible with features and/or specifications that may be added in the

future.

Model No. L19C1120 L22C1120 L24C1180 L26C1120

DISPLAY

Viewable 18.5" 21.6" 23.6" 26" Television System NTSC standard, ATSC standard (8-VSB, Clear-QAM)

VHF: 2 through 13 UHF: 14 through 69

Channel Coverage

Rear Connectors

Cable TV: Mid band (A - 8 through A - 1, A through I),

Super band (J through W), Hyper band (AA through ZZ, AAA, BBB), Ultra band (65 through 94, 100 through 125)

CONNECTIONS

Tuner input (75:) AV IN: PC IN:

Supported scan rate: 640x480@60/72/75Hz, 720x400@70Hz,

Note: 1360x768@60Hz : For L19C1120 / L22C1120 / L26C1120 only. 1280x1024@60Hz, 1440x900@60Hz, 1680x1050@60Hz,1920x1080@60Hz : For L24C1180 only. For L19C1120 / L22C1120 / L26C1120 : 1360x768@60Hz. For L24C1180 : 1920x1080@60Hz.

AV/S-Video and L/R audio input D-SUB and PC Audio (Headphone mini-jack)

800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x720@60Hz, 1280x768@60Hz.

Component Video and L/R Audio input

Supported resolution: 480i@59.94/60Hz,480p@59.94/60Hz,720p@59.94/60Hz,

1080i@59.94/60Hz,1080p@59.94/60Hz.

Side Connectors

HDMI input

Supported scan rates: 480i@59.94/60Hz,480p@59.94/60Hz,720p@59.94/60Hz, 1080i@59.94/60Hz,1080p@59.94/60/24/30Hz.

AV/S-Video input SPDIF HDMI Earphone Output USB PORT

Model No. L19C1120 L22C1120 L24C1180 L26C1120

WEIGHT & DIMENSIOIN

Dimensions with Stand (W x H x D) Dimensions without Stand (W x H x D)

Weight with Stand 9.31 lbs 10.71 lbs 12.65 lbs 17.49 lbs Weight without

Stand and Base

VESA-compatible wall bracket (W x H)

Screw type Metric 4x10 mm Metric 4x10 mm Metric 4x10 mm Metric 4x10 mm

Power Consumption

Standby <1W Mains Power 120V Audio Power 3W+3W 3W+3W 3W+3W 3W+3W Ambient

Temperature

Supplied Accessories

18.00x12.79x6.74 (inch)

18.00x12.13x2.64 (inch)

8.6 lbs 9.99 lbs 11.88 lbs 14.93 lbs

100x100 mm 100x100 mm 100x100 mm 200x100 mm

45W 60W 70W 100W

60Hz

5°C - 35°C

TV unit x1 Base x1 Screws x 4 (for 26” only) Power cord x 1 Remote control x1 (with two size AAA alkaline batteries) User manual x1 Registration Card x1

20.78x15.03x6.96 (inch)

20.78x13.67x2.57 (inch)

WALL MOUNTING

POWER

PACKAGE CONTENTS

22.53x16.05x6.96 (inch)

22.53x14.68x2.57 (inch)

25.90x19.26x8.63 (inch)

25.90x17.66x3.58 (inch)

TROUBLESHOOTING

Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty.

Symptoms Items to Check and Actions to follow “Ghost” or double image  This may be caused by obstructions to the antenna due to

high rise buildings or hills. Using a highly directional antenna may improve the picture.

No power  Check if the TV’s AC power cord is plugged into the mains

socket.

 Unplug the TV, wait for 60 seconds. Then reinsert plug into

the mains socket and turn on the TV again.

No picture  Check antenna connections at the rear of the TV to see if it

is properly connected to the TV.

 Possible broadcast station trouble.

Try another channel.  Adjust the contrast and brightness settings.  Check the Closed Captions control. Some TEXT modes

could block the screen.

Good picture but no sound  Increase the VOLUME.

 Check if the TV is muted; press the MUTE button on the

remote control.

Good sound but poor color  Adjust the contrast, color and brightness settings. Poor picture  Poor picture quality may occur when an activated S-VHS

camera or camcorder is connected to your TV and the other

peripheral at the same time. Switch off one of the peripherals.

Snowy picture and noise  Check the antenna connection. Horizontal dotted line  This may be caused by electrical interference (e.g. hair dryer,

nearby neon lights, etc.)  Turn off the equipment.

Television not responding to remote control

 Check whether the batteries are working. Replace if

necessary.  Clean the remote control sensor lens on the TV.  You can still use the buttons at the front of your TV.  Select the TV mode to ensure your remote control is set in

the TV mode.

GLOSSARY

HDTV

HDTV displays are technically defined as being capable of displaying a minimum of 720p or 1080i active scan lines.

HDMI Inputs

High-Definition Multimedia Interface.

Audio / Video Inputs

Located on the rear of the receiver, these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.

An on-screen listing of features shown on the TV screen is made available for user adjustments.

MPAA

Motion Picture Association of America.

Multichannel Television Sound (MTS)

The broadcasting standard, which allows stereo sounds to be transmitted with the TV picture.

Radio Frequency or modulated signal design used as the carrier for television broadcasts.

Second Audio Program (SAP)

Another or additional audio channel provided for in the Multichannel Television Sound (MTS) broadcast standard. A monaural sound track included within the recorded or video signal (usually containing a second language translation for the displayed program).

Sleep Timer

You can set a time period for which the TV will be turn off automatically.

S-Video Input

You can connect your TV set to a high-resolution video source (such as Super VHS videocassette recorder, Laser Disc player, and DVD Home Theater Set) in order to provide maximum consumer viewing satisfaction.

+ 54 hidden pages
