Pharmaceutical Refrigerator

Operation Manual

Model:

HYC-260

HYC-360

HYC-290

HYC-390

Certiﬁcate of Quality

Checker:

Haier Medical and Laboratory Products Co., Ltd. Address: Haier Industrial Park, Economic Technology Development Zone. Qingdao 266510.P.R.China Web:www.haiermedical.com Version:1st,2017 Dedicated code:0270501031 V13026

HYC-390F

HYC-610

HYC-890

HYC-940

HYC-940F

Read the Operation Manual carefully before using your appliance. Keep the Operation Manual in a safe place. Appearance , color and layout of the door may vary. Translation of the original instruction. This product is only applicable for storage of pharmaceutical products or drugs. Not applicable for storage of blood or blood products including biological products, for example biological vaccine, agents for in vitro diagnosis and etc.

Packing List

EC Declaration of Conformity

according to the Machinery Directive 2006/42/EC

For the following equipment :

Product : Pharmaceutical Refrigerator

Type Designation/Trademark:

HYC-260

HYC-360

Model

Operation Manual

Plastic bag

Key

Shelves

Label strip

Drain hole cap

Fixed card

Brackets

(for rear wall distance)

Pad lock /

Handle Kits

Power cord Kits

HYC-260

HYC-360

HYC-290

1/0

HYC-390

1/0

HYC-390F

1/1

HYC-290

HYC-390

HYC-390F

Haier

HYC-610

HYC-890

HYC-940

HYC-940F

Manufactures Name : Haier Medical and Laboratory Products Co.,Ltd.

Manufactures Address : Haier Industrial Park, Economic Technology

Development Zone. Qingdao 266510.P.R.China

Refer to in this declaration confirms with the following directive(s)/standards:

2006/42/EC, EN60335-1, EN60335-2-89 EN62233

Model

Operation Manual

Plastic bag

Key

Shelves

Label strip

Drain hole cap

Fixed card

Brackets

(for rear wall distance)

Pad lock /

Handle Kits

Power cord Kits

HYC-610

0/1 /

HYC-890

HYC-940

HYC-940F

Global Warming Potential

Rated voltage

Rated frequency

Model

（

HYC-260 220~240 50/60 0.186 HYC-360 220~240 50/60 0.215 HYC-360 115 60 1.177 HYC-290 220~240 50/60 0.429 HYC-290 115 60 0.358 HYC-390 220~240 50/60 0.436 HYC-390 115 60 0.429

HYC-390F 220~240 50/60 0.436

HYC-610 220~240 50/60 0.601 HYC-610 115 60 0.501 HYC-890 220~240 50 0.358 HYC-940 220~240 50 0.472 HYC-940 220~240 60 0.615 HYC-940 115 60 0.458

HYC-940F 220~240 50 0.472

VAC

）

（Hz）

equivalent

（Tonnes）

The product is applicable to pharmacies, pharmaceutical factories, quarantine stations, health

centers and hospitals, used to store pharmaceuticals, medicine and other related products which need a storage environment of 2~8℃.

Temperature

Control

Safety System

The unit is equipped with a computer control, digital display of temperature of 0.1℃ accuracy and a temperature range of 2℃ to 8℃.

Multi-fault alarm (high and low temperature alarm, low battery alarm,

power failure alarm, sensor error alarm and door ajar alarm)

Two alarm methods(Audible buzzer alarm and flashing indicator alarm)

All independent components are safely grounded

into the atmosphere.

GWP=global warming potential

Refrigerant type GWP

R134a 1430

Refrigeration

System

User-friendly

Design

Refrigeration system is optimized with high quality hermetically sealed

compressors and other components for a high efficiency performance.

User-friendly design, computer control, smart and carefree, adjustment

not required. High performance thermal insulation.

Electric heated glass door with multiple anti-condensation

technologies(except HYC-260/360).

Automatic removal of condensate water.

Note: Technical information might be somewhat different on your refrigerator than published due to continuous improvement.

Specification

Content:

Product Feature........................................................

Content.....................................................................

Safety Precautions...................................................

Application guidelines..............................................

Product Installation ...................................................

Component Names Control Panel...........................

Application method ...................................................

Name

Model

Exterior Dimensions

(W×D×H)

(mm)

Interior Dimensions

(W×D×H)

(mm)

Effective Volume

Door

Insulation

Compressor

Shelves

Load

Refrigerating Method

Exterior / Interior

Condenser/Evaporater

Pharmaceutical Refrigerator

HYC-940 HYC-940F

1130×755×1980

1030×590×1425

890L

Glass door with electric heat

CFC-Free foamed-in-place urethane

High Quality Hermetically sealed compressor

12 Polyester coated wire shelves

≤20kg per shelf

Force-air cooling circulation

Cold-rolled steel with power coated/Cold-rolled steel with power coated

Fin tube type / Fin tube type

Solid door

Alarm........................................................................

Cleaning and Maintenance.......................................

FAQ..........................................................................

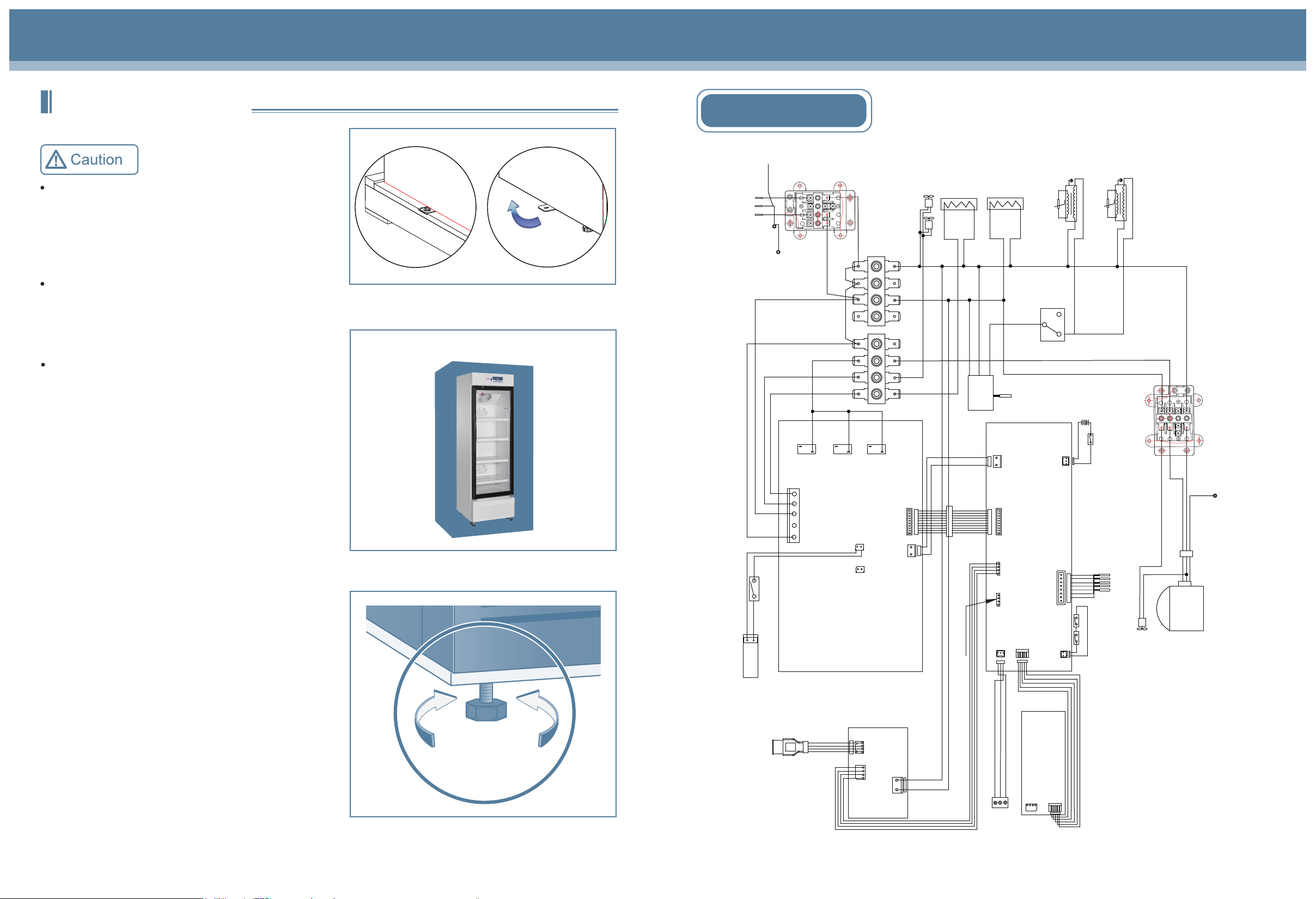

Circuit Diagram.........................................................

Specification&Packing List.......................................

Temperature Control

Interior light

Net Weight

Temperature Range of

sensor in glycerin bottle

Voltage

Rated Power/Current

Refrigerant

Noise Level(Lp)

Foaming Agent

Climate Type

Anti-shock Safety Classification

Power connection type

Alarm system

Battery duration for alarm system

Rechargeable Battery

Microprocessor controlled

LED 9W

227kg 207kg

2℃~8℃

220-240V~/50Hz 220-240V~/60Hz

850W/4.5A

R134a 330g

High & low temperature alarm, sensor error alarm, power failure alarm,

770W/4.5A

R134a 430g R134a 320g

45dB(A)

CP/IP

low battery power alarm, door ajar alarm

48 h (when the battery is fully charged)

DC 12V rechargeable battery

115V~/60Hz

850W/11A

220-240V~/50Hz

600W/3A

R134a 330g

Note: Climate Type 4 means the temperature is +30℃,the relative humidity is 55%.Technical information may vary from the appliance that you have just purchased due to technical improvements.

Safety Precautions

Specification

Name

Model

Exterior Dimensions

(W×D×H)

(mm)

Interior Dimensions

(W×D×H)

(mm)

Effective Volume

Door

Insulation

Compressor

Shelves

Load

Refrigerating Method

Exterior / Interior

Condenser/Evaporater

Temperature Control

Pharmaceutical Refrigerator

HYC-890

1130×755×1980

1030×590×1425

890L

Glass door with electric heat

CFC-Free foamed-in-place urethane

High Quality Hermetically sealed compressor

12 Polyester coated wire shelves

≤20kg per shelf

Force-air cooling circulation

Cold-rolled steel with power coated/Cold-rolled steel with power coated

Fin tube type / Fin tube type

Microprocessor controlled

Dear users: Thanks for your choice of Haier pharmaceutical refrigerator, please make sure you have carefully

read and observed the contents with following signs in the manual, for better understanding of this

manual and better use of this product, so as to prevent personal injuries and refrigerator damage.

Ignoring this warning may result in death or serious injury

Ignoring this warning may result in death or serious injury,and/or damage

Actions or operations which are prohibited

Actions or operations which must be followed

to the refrigerator and property

When there is a leak of flammable gas, shutoff the feed valve of the gas. Open windows for ventilation and exhaust. Do not plug in your refrigerator or unplug your refrigerator as spark in these processes can cause an explosion or fire.

We recommend the unit be installed by a professional to avoid any electrical hazard.

Place the refrigerator on solid and flat ground to avoid tipping the unit over to cause personal injury.

Only connect the refrigerator unit with a dedicated power outlet specified by the nameplate of the unit. This is to avoid fire or electric shock.

Interior light

Net Weight

Temperature Range of

sensor in glycerin bottle

Voltage

Rated Power/Current

Refrigerant

Noise Level(Lp)

Foaming Agent

Climate Type

Anti-shock Safety Classification

Power connection type

Alarm system

Battery duration for alarm system

Rechargeable Battery

Note: Climate Type 4 means the temperature is +30℃,the relative humidity is 55%.Technical information may vary from the appliance that you have just purchased due to technical improvements.

High & low temperature alarm, sensor error alarm, power failure alarm,

low battery power alarm, door ajar alarm

48 h (when the battery is fully charged)

DC 12V rechargeable battery

LED 6W

227kg

2℃~8℃

220-240V~/50Hz

800W/4A

R134a 250g

45dB(A)

CP/IP

If the supply voltage is lower than 198 V or higher than 242 V, an automatic voltage regulator of at least 4,000 W should be installed with the refrigerator.

If the power cord needs to be lengthen, the cross section area of the extension line’s conductor should be at least 2 mm² and the length of the extension cord should be limited to 3 m. This is to prevent electric fire or shock.

The power cord of the unit is equipped with a 16 A three-prone power plug. Do not remove the ground pin of the power plug under any circumstances. Make sure the plug is securely plugged into the power outlet to prevent fire.

The power socket must be equipped with a ground wire to prevent electric shock. If the socket fails to be grounded, the ground wire must be installed before the refrigerator is plugged in.

The refrigerator shall not conduct outdoor service. Electrical leakage or shock may be caused if wet by rainwater.

Do not place the refrigerator in humid places or places where the unit may get splashed on by water. This is to avoid electric shock due to deterioration of insulation.

In case the fire, do not pour water onto the refrigerator unit as a means to prevent electric shock or short circuit.

Do not place containers of water or heavy objects on the refrigerator. Falling objects may cause personal injury and overflown water may damage the insulation to cause electric shock and fire.

Do not ground the refrigerator through gas pipes, water supply pipes, telephone lines or lighting conductors. These types of connections can cause electric shock.

Do not touch electric parts such as power plugs or switches with wet hands to prevent electric shock.

When pulling the plug out of the power socket, hold the power plug instead of power cable. Pulling the cable can cause a damage and personal injury.

Unplug the refrigerator unit if it malfunctions to avoid fire or personal injury.

Specification

Name

Model

Exterior Dimensions

(W×D×H)

(mm)

Interior Dimensions

(W×D×H)

(mm)

Pharmaceutical Refrigerator

HYC-610

780×840×1945

680×640×1400

Dismantling, repairing and retrofitting a unit should only be performed by a professional to avoid personal injury.

Disconnect the refrigerator when repairs or maintenance are performed on the refrigerator to prevent electric shock or personal injuries.

Do not inhale airborne particles inside and near the refrigerator during routine maintenance. This is to avoid health hazard.

To avoid any potential danger to human health or environment, the refrigerator should be used in safe regions to store toxic, harmful or radioactive particles.

If the refrigerator is to be decommissioned, unplug the power cord to avoid electric shock, current leakage, or fire caused by aged power lines.

If the refrigerator is left unused in area where supervision is unavailable for a long time, make sure children are not near the unit and the door cannot be completely closed and locked.

End of life disposal of a unit should only be performed by a professional. Remove the door to avoid accidents such as suffocation.

Do not store flammable, explosive or volatile articles inside the refrigerator and do not use flammable sprays nearby. This is to avoid an explosion or a fire.

Do not store corrosive articles such acid or alkali in the refrigerator. These chemicals can damage internal components or electrical parts.

Do not place packaging plastic bags within the reach of children to prevent suffocation accidents.

Do not climb to the top of the refrigerator or place plastic bags on top of the refrigerator. This is to prevent tip over of the refrigerator, which can cause personal injury.

Do not use any metal objects such as iron nails or wires into holes, gaps or vents for internal air circulation. This is to prevent personal injury due to contact of articles behind the holes.

Effective Volume

Door

Insulation

Compressor

Shelves

Load

Refrigerating Method

Exterior / Interior

Condenser/Evaporater

Temperature Control

Noise Level(Lp)

Interior light

Net Weight

Temperature Range of

sensor in glycerin bottle

Voltage

Rated Power/Current

Refrigerant

Foaming Agent

Climate Type

Anti-shock Safety Classification

Power connection type

Alarm system

Battery duration for alarm system

610L

Glass door with electric heat

CFC-Free foamed-in-place urethane

High Quality Hermetically sealed compressor

6 Polyester coated wire shelves

≤30kg per shelf

Force-air cooling circulation

Powder coated cold rolled steel/Stainless steel

Fin tube type / Fin tube type

Microprocessor controlled

43dB(A)

LED 3W

204kg

2℃~8℃

220-240V~/50Hz/60Hz

550W/3.5A

R134a 420g R134a 350g

CP/IP

High & low temperature alarm, sensor erroe alarm, power failure alarm,

low battery power alarm, door ajar alarm

48 h (when the battery is fully charged)

560W/7.5A

Rechargeable Battery

Note: Climate Type 4 means the temperature is +30℃,the relative humidity is 55%.Technical information may vary from the appliance that you have just purchased due to technical improvements.

DC 12V rechargeable battery

Specification

Name

Model

Exterior Dimensions

(W×D×H) (mm)

Interior Dimensions

(W×D×H) (mm)

Effective Volume

Door

Insulation

Compressor

Shelves

Load

Refrigerating Method

Exterior / Interior

Condenser/Evaporater

Temperature Control

HYC-290

665×710×1665

530×555×1080

290L

Glass door with electric heat

High Quality Hermetically sealed compressor

≤26kg per shelf

Cold-rolled steel sheet with powder coated /HIPS plate

Pharmaceutical Refrigerator

HYC-390

665×710×1965

530×555×1380

390L

CFC-Free foamed-in-place urethane

≤26kg per shelf

Force-air cooling circulation

Fin tube type / Plate type

Microprocessor controlled

HYC-390F

665×710×1965

530×555×1380

390L

Solid Door

≤26kg per shelf

Always check the settings in the controller after restarting a unit from a power outage or shut off. Change of settings may cause damage to the products stored.

If the power is shut off, let the unit sit for 5 minutes before it is powered up again to avoid damaging the compressor or the system.

Wear gloves when performing maintenance to prevent personal injury as a result of sharp edges or corners.

Hold the knob when closing the door to prevent finger pinching.

The angle of inclination shall not be greater than 45°when handling the refrigerator.

Be aware of the danger of tripping when working with the refrigerator to avoid managing the unit or personal injury.

Do not use the door knob to prevent refrigerator damage or personal injury.

Do not damage the refrigeration line.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Position the refrigerator to make sure the power plug is accessible.

Interior light

Net Weight

Temperature Range of

sensor in glycerin bottle

Voltage

Rated Power/Current

Refrigerant

Noise Level(Lp)

Foaming Agent

Climate Type

Anti-shock Safety

Classification

Power connection type

Alarm system

Battery duration for alarm system

Rechargeable Battery

LED 3W

105kg

2℃~8℃

220-240V~/50/60Hz

340W/2.2A

R134a 300g

43dB(A)

CP/IP

High & low temperature alarm, sensor error alarm, power failure alarm,

LED 3W

116kg

2℃~8℃

115V~/60Hz 115V~/60Hz

460W/5.0A

R404a 250g

47dB(A)

low battery power alarm, door ajar alarm

220-240V~/50/60Hz

380W/2.4A

R134a 305g

43dB(A)

CP/IP

48 h (when the battery is fully charged)

DC 12V rechargeable battery

500W/5.5A

R404a 300g

47dB(A)

LED 3W

106kg

2℃~8℃

220-240V~/50/60Hz

300W/2.4A

R134a 305g

43dB(A)

CP/IP

The appliance must be placed on a solid and flat surface, or excessive vibration and noise may be produced when the appliance in operation.

The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capacibilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power supply cord is damaged, it should be replaced by a qualified technician to avoid a hazard condition.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

If your cabinet is to be discard, you must remove the door and leave the shelves in place. This will reduce the posibility of danger to children. And the flammable foaming needs to be disposed by professional persons.

CP/IP foaming materials are flammable, need professional processing.

Note: Climate Type 4 means the temperature is +30℃,the relative humidity is 55%.Technical information may vary from the appliance that you have just purchased due to technical improvements.

Application guidelines

The battery in the refrigerator may be low after the refrigerator has been in storage for a long time.

Turn on the battery charge switch when the unit is powered up to allow the battery to be recharged.

Specification&Packing List

Specification

The battery will be in full capacity after about a week’s charging.

Before loading the refrigerators, make sure the unit is at set temperature. Do not load in more than

1/3 of the storage volume to avoid thermally overloading the unit.

The display on the panel shows the sensor temperature located in the refrigerator. It is not

necessary the same as the temperature in the center of the refrigerator. The cabinet temperature

will gradually reach an equilibrium state.

Only clean the unit with light soapy water. Never use brushes, acids, gasoline, soap powders,

polishing powders or hot water to clean refrigerators as these materials may damage the interior

painting and surface, parts and components. Never wide plastic parts with volatile solvents such

as gasoline.

If the unit is to be stored for a long period of time, turn off the power switch and the battery

charging switch.

To reduce the possibility of temperature fluctuation in the refrigerator, please attempt to cut down

the time to open to the door to remove and load products.

If the door is opened, the temperature of the refrigerator will warm up somewhat. That is normal.

Name

Model

Exterior Dimensions

(W×D×H) (mm)

Interior Dimensions

(W×D×H) (mm)

Effective Volume

Door

Insulation

Compressor

Shelves

Load

Refrigerating Method

Exterior / Interior

Condenser/Evaporater

Pharmaceutical Refrigerator

HYC-260

620×655×1720

550×460×1065

260L

Glass door

CFC-Free foamed-in-place urethane

High Quality Hermetically sealed compressor

4 Polyester coated wire shelves

≤20kg per shelf

Force-air cooling circulation

Scratch resistant painted steel / HIPS

Wire tube type / Fin tube type

HYC-360

620×655×1995

550×460×1340

360L

Glass door

5 Polyester coated wire shelves

≤20kg per shelf

Force-air cooling circulation

Scratch resistant painted steel / HIPS

Wire tube type / Fin tube type

The temperature will recover to a stable condition in a short time.

The refrigerator is designed to operate at a condition of 16 ℃ to 32 ℃ and humidity less than 85%RH (for HYC-260/360,the humidity should be less than 70%RH). Small amount of condensation

can occur on the surface of the unit if the actual condition is outside of this range. The storage

temperature of the unit, however, is not impacted. To reduce the condensation, please improve the

ventilation and drop the ambient temperature if possible.

Only professional people should perform maintenance work.

Meaning of crossed –out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection

facilities.Contact you local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into

the groundwater and get into the food chain, damaging your health and well-being.When replacing

old appliances with new ones, the retailer is legally obligated to take back your old appliance for

disposals at least free of charge.

Temperature Control

Interior light

Net Weight

Temperature Range of

sensor in glycerin bottle

Voltage

Rated Power/Current

Refrigerant

Noise Level(Lp) 43dB(A) 43dB(A)

Foaming Agent

Climate Type

Anti-shock Safety Classification

Power connection type

Alarm system

Battery duration for alarm system

Rechargeable Battery

Microprocessor controlled

Fluorescent lamp 15W

88kg

℃~8℃

220-240V~/50Hz/60Hz

300W/2.1A

R134a 130g

CP/IP

High & low temperature alarm, sensor error alarm, power failure alarm,

low battery power alarm, door ajar alarm

48 h (when the battery is fully charged)

DC 12V rechargeable battery

220-240V~/50Hz/60Hz

Microprocessor controlled

Fluorescent lamp 15W

99kg

℃~8℃

315W/2.2A

R134a 150g

CP/IP

115V~/60Hz

340W/4.5A

R404a 300g

47dB(A)

Note: Climate Type 4 means the temperature is +30℃,the relative humidity is 55%.Technical information may vary from the appliance that you have just purchased due to technical improvements.
