Haier HWM60-10 User Manual

Full Automatic Washing Machine

This manual is for

HWM60-10

User's manual

Please read this manual
carefully before using.
Retain it for future reference.

0030807260

Contents

Names of the parts................................................1

Safety precautions ...............................................2

Installation and adjustment ..................................4

Install the water inlet hose....................................6

Preparation before washing ................................7

Put in the laundries ..............................................8

Put in the detergent ..............................................9

Use the operation buttons ...................................10

Close the top lid ...................................................14

Finish washing .....................................................15

Disposal after washing .........................................15

Trouble shooting Answer to question................16

Packing list ...........................................................17

Specifications...........................................back cover

Names of the parts

Before Using

Before Using

Top lid B

Detergent box

(Installed by user)

Lint filter

Control panel

Filter cover

Inner tub

Control panel
film

Pulsator

Cabinet

Accessories

to the washing machine

base frame

The end connecting

The end connection
to the water inlet
hose

Adjustable foot

Bottom plate
(one)

water inlet hose
(one)

Top lid A

Cabinet handle

Drain hose

Sop mat

water valve

fixed foot (3)

Meaning and description of the symbols

Contents marked with that symbol

Warning sign

are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.

Power line

back cover

tapping screws

ST4X16

(eight)

Lint filter

(two)

Forbidden sign

Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.

Safety precautions

Before Using

Before Using

Please plug the plug on special 220V AC
receptacle.Please guarantee that the
earthing wire is ear-thed reliably.

earth

Do not bend ,extend,twist,bind by force.Do not press or nip it with weight.
Keep the pin of the power plug clean,if the power plug is polluted with dust,
please wipe with dry cloth carefully.

Do not put the machine at damp place like
the bathroom. Never wash it with water.
Do Not put wet laundries on the control panel.

The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle,when
moving the machine,or when cleaning
the machine.Do not use wet hand to ins­ert or pull out the power plug.

Do not use water hotter above 50 C .

In case the washing machine is installed on ground with
carpet, do not block the ventilation hole with carpet.

The ventilation holes
at the bottom

soft items

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the
plugging into the receptacle is loose, do not use the plug any more.

Do not wash water-proof laundries like the raincoat,
bike covers etc. to avoid abnormal vibrations in spinning.

Before Using

Before Using

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.Do not let the children
climb the washing machine.

Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.

The handicapped or children without
care shall not use the machine.

Do not decompose, repair or alter the
machine by yourself.

Do not wash laundries with volatile
materials (such as thinner, petrol etc.)

trol

r

Pe

Thinne

Keep the machine away from direct
sunlight and heat source like the heater.

To prevent your laundries and washing

.

machine from damage,be sure to take
out all of the foreign materials from your
pocket,such as coins,buttons,sand or
hairpins etc.

Before washing,please check if the water
tap is open ,and if the water inlet pipe is
connected properly.

It is suggested to use low-foaming was­hing powder

To prevent the lint in the tub from blocking
the cascade outlet and influencing the
cascade effect, please keep the lint filter
in good condition, and install it to proper
position during washing.

Before Using

Before Using

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.

Install the lint filter

1.Press downward to assmble.

2.Pull upward to detach.

Put down

Put up

Put down

Put up

Install the bottom plate

After you open the package,
please lean the washing
machine gently down on soft
items ( like the towel cloth,
blanket, etc. ). Install the
bottom plate to the bottom of
the machine with the eight
screws by a cross screwdriver,
then lift the machine up gently.
See to the figure:

Adjust the installation position

The largest allowed slope of the
shank base of the machine is 2 .
The slanting or rough ground will
result in unstable running or
stoppage of the machine. Please
adjust it with following methods:

Adjust the adjustable foot:

1.To twist the adjustable foot, please
first lift up the side of the foot slightly,
loosen the adjustable nut, and twist
the foot.

2.Fasten the nut after adjustment.

Loosen

High

Low

Screw

adjustable nut

Fasten

adjustable foot

Back

Front

Soft items

Bottom plate

Before Using

Before Using

How to change the direction of the drain hose

1.Lean the machine down gently with the
front surface facing the ground. Loosen
the eight screws by a cross screwdriver.

Back

Front

2.Pull out the drain hose from the groove at the
right side.

Bottom plate

Soft item

Use groove at
this side after
direction changing

Usage of the drain hose

The drain hose shall drain smoothly

1.The height of the drain hose shall be

less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.

2.Do not trample or press the drain hose.

3.Extend the drain hose from the left side.

Push the drain hose into the groove with
hands.

Push the drain hose
into the groove with
hands at this point

4.Install the bottom plate (as per indicated
before), then lift the machine up gently.

Page 4

4.If extra drain hose is needed, please

make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.

If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.

5.If the extra hose is too long,
cut it either at A or at B point.

Before Using

Install the water inlet hose

Before Using

Install the water inlet hose

1. Insert a new flat washer into each end of the inlet hoses. Firmly put the
washers in the coupling.

Note:

Use the new hose sets supplied with the washer.
Any other old hose sets should not be used.
You may have to use pliers to tighten the coupling.
Do not over tighten because you may cause
damage to the valve.

2. Connect the water inlet hoses to the water faucet.

3. Connect the other ends to their respective cold and hot water inlet valve
located at the rear of the washer

Nut of the water inlet hose

Water absorption cushion

Jointer of the water inlet valve

4.Fasten the nut. Swing it gently to confirm if it's suitable.

Check the connection between the water inlet
hose and the water tap

1.Swaying the hose gently to confirm if it is
fastened stable.

2.After installation, open the tap to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if the connection
between the water inlet hose and the water tap,
and the connection between the water inlet hose
and washer are firm, so as to prevent dropping
from improve Installation position.

Take down the water inlet hose

1.Close the water tap.

2. Pull off the water inlet hose from the water tap
and washer

1 Preparation before washing

Preparation before washing

1.Connect the water inlet hose and open
the water tap .

2.Confirm that the washing machine is
earthed reliably . Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.

3.Put down the drain hose.

Pay attention to followings before washing the laundries

Using process

Using process

Confirm if
there's special
requirment for
the laundries.

A. Check if the laundries are applicable for washing with machine.
b. Divide the laundries that are not colorfast from other laundries.
c. Put those laundries difficult to absorb water into water with hand.
d. For those laundries with heavy soil, please first remove the dirt like mud or dust.
For the parts with heavy soil, please apply detergent on them in advance, which
can make it easier to remove the soil.
e. For those laundries that may get lint ball and those with long fur, turn it over before
putting in.
f. Do not put those laundries polluted by chemicals into the washing machine directly.

Clear the pocket.
Take out the
coins , sand,
hairpins etc.

Fasten the
buttons and
zippers.

The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.

When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion,please
put the laundries
with buttons into
other laundries.

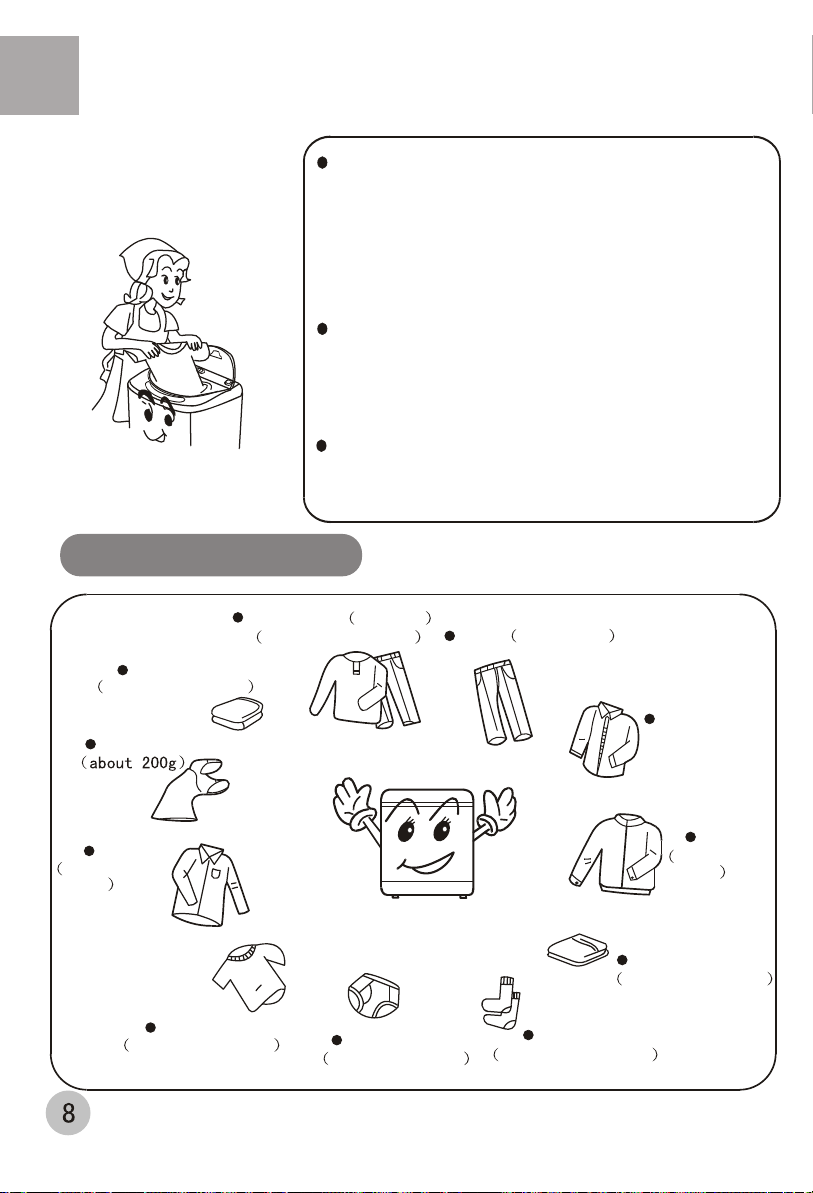

2 Put in the laundries

The capacity of washing and spinning of
the machine refer to the largest weight of
the standard laundries under dry condition
that can be washed or spinned in one time.
One time washing quantity shall be lower
than the rated capacity. The largest capacity
of this machine is 5.0kg.
The thickness, size, type of the cloth will
influence the actual washing capacity. It is
suitable for one time washing to put in
reasonable amount of laundries and the
laundries can be turned round in washing.
Do not select "High" water level for
laundries small than 0.5kg, so as to avoid
splashing of water.

Reference weight of the laundries:

Using process

Using process

cotton,about 900g

pajamas

shirt

cotton,about

300g

working suit up,down

blanket

undershirt

cotton,about 180g

cotton,about 1120g

underpants

cotton,about 70g

jeans about 800g

Socks

blending,about 50g

blending coat
(about 800g)

jacket

cotton,about

800g

single bed sheet

cotton,about 600g

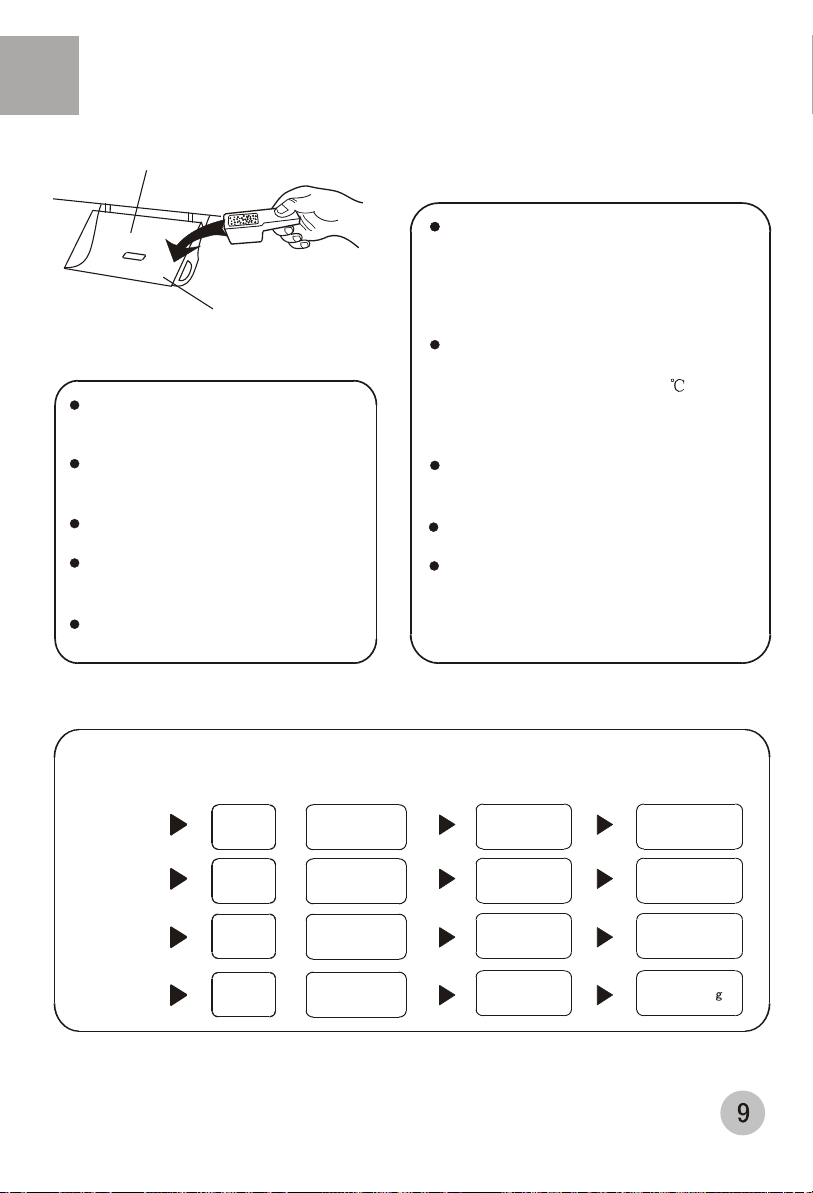

3 Put in the detergent

Inlet for concentrated washing
powder and detergent

Detergent box

How to use the whitener

Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on
laundries with color or pattern as
they are prone to lose color.
The whitener shall not touch the
laundries directly.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before use.

How to use the washing
powder

Using process

Using process

Direct dissolved in the machine

1.Fill water to "Low" water level.

2.Add the power. Run for 30 seconds
to dissolve it completely.

3.Put in the laundries. Select
suitable water level.
The instant dissolving of the washing
powder:

1.Prepare warm water of 30 and a
container.

2.Add the powder while stirring to
fully dissolve it.
Put in the prorer quantities detergent
according to the water level and the
laundries quantities .
It is suggested not to use high
sudsing detergent.
Washing powder with poor quality or
long time storage maybe caked.
Please pay attention to cleaning the
detergent box in time.

Standard usage quantity of the detergent and water
quantity

Laundries
quantity(kg)

Above 3.5

2.0~3.5

1.0~2.0

Below 1.0

Water level Water quantity

HIGH

MEDIUM

LOW

VERY LOW

About 48L

About 37L

About 30L

About 20L

Common powder

(Add 40g in each

30L water)

About 64g About 40g

About 49g About 36g

About 40g About 25g

About 27g

Concentrated

powder

(Add 25g in each

30L water)

About 17

Using process

4 Use the operation buttons

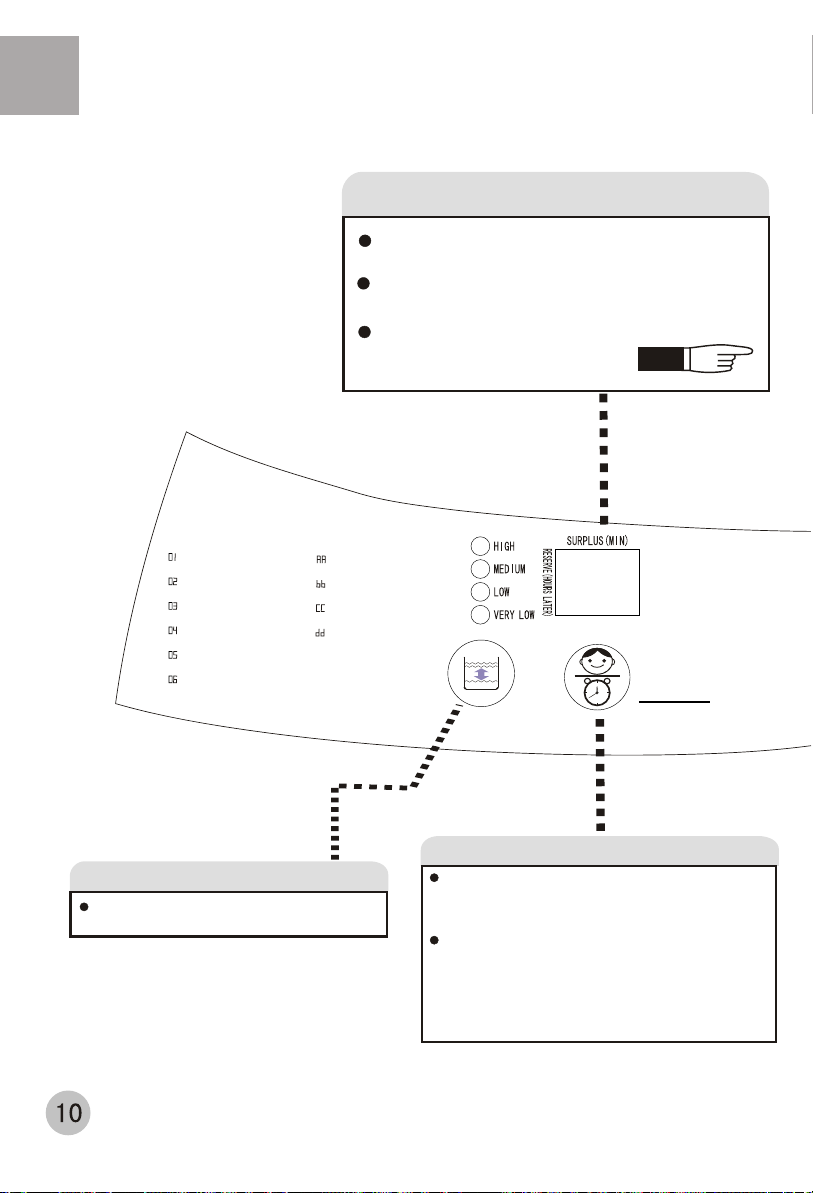

Description of the function of the buttons

a.

Using process

SURPLUS(MIN)

To indicate remaining min. During
program running.
To indicate remaining reserved
time (hrs) during reservation period.
To indicate fault symbols for abnormal

STANDARD

JEANS

GENTLE

QUICK WASH

WASH

SPIN

conditions (see page 16)

PROCEDURE STATUSPROGRAM STATUS

SOAK

WASH

RINSE

SPIN

WATER LEVEL

Page 16

PROGRAM

RESERVATION

" WATER LEVEL"button

The user selects a suitable water level
depending on the load.

ERVATION

"PROGRAM/ " but

Press

you can select one or several of
StandardJe ansG entle,Quick,R

Press

over 2 seconds, the program

of peservtion.

reserved hrs to the wash cycle end. The
indicator flashes to indicate in-reservation.

RES

"PROGRAM/RESERVATION " button

, , inse and Spin

"PROGRAM/RESERVATION "

you can select

the N tube displays the

ixie

ton

programs

.

button

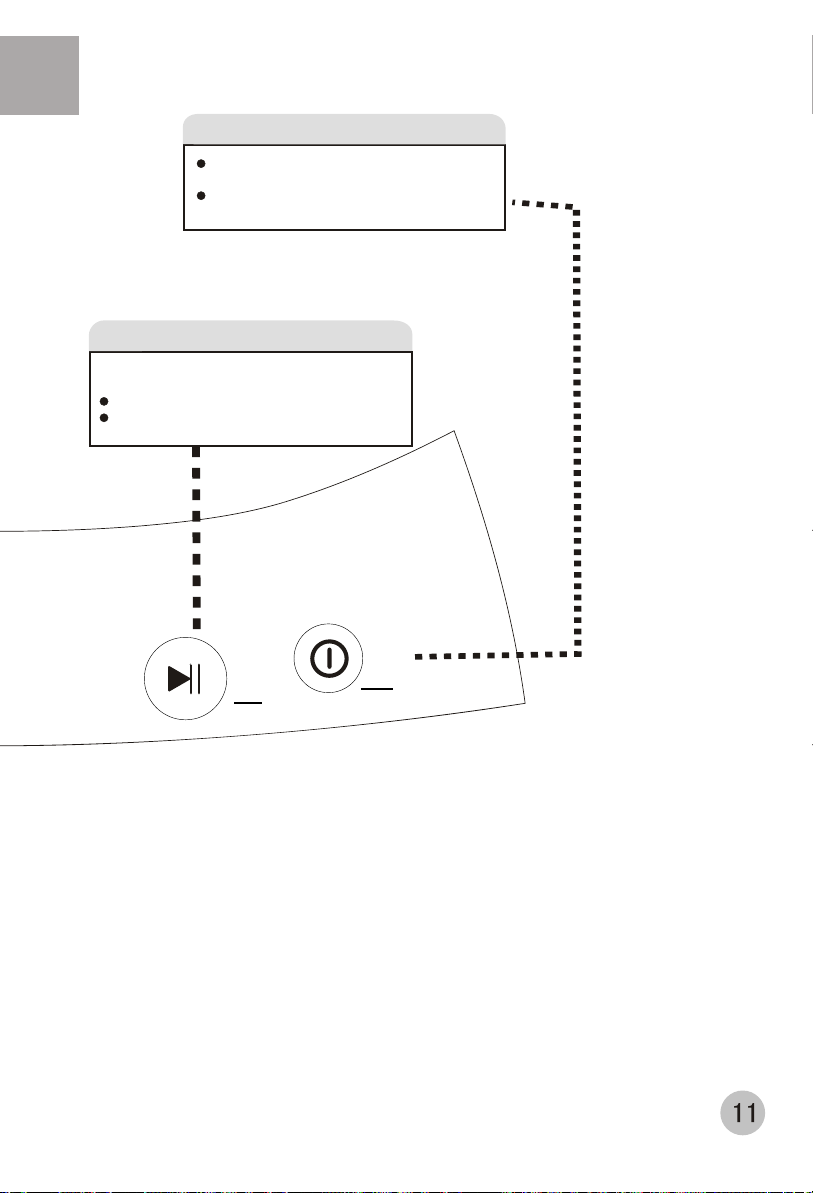

"POWER ON/OFF"button

Press "Power On/Off" button to connect
power supply.
After power is connected, pressing this
button will cut off the supply.

"START/PAUSE"button

After the power is switched on, press it to
start the machine
During working, push it to pause working.
During pause, push this button to restart
and continue operation.

Using process

Using process

START
PAUSE

Remarks: After pressing "Power On/Off" to connect power supply, if the washing machine
lasts idle more than 10 min, it would automatically shut off the supply.

POWER
ON/OFF

Using process

Using process

b.

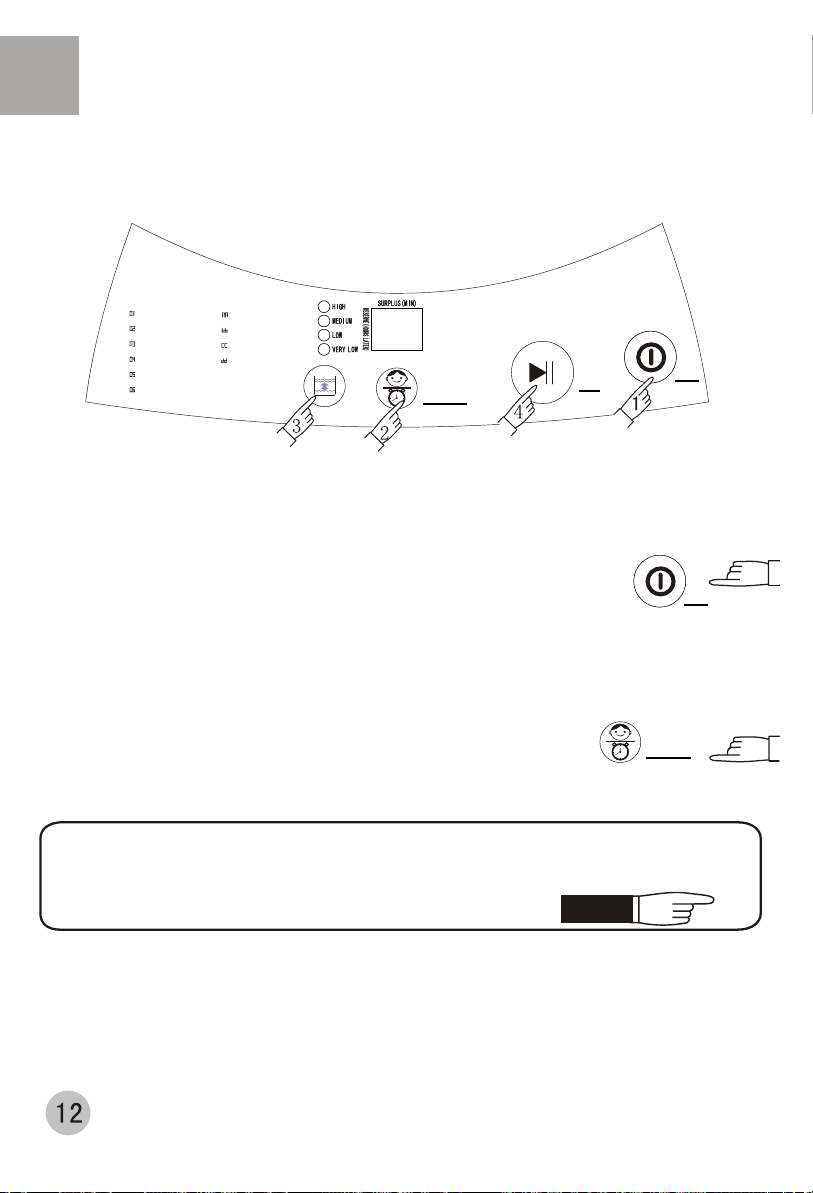

Operating procedure and
explanations for the buttons

PROCEDURE STATUSPROGRAM STATUS

PROCEDURE STATUSPROGRAM STATUS

STANDARD

STANDARD

JEANS

JEANS

GENTLE

GENTLE

QUICK WASH

QUICK WASH

WASH

WASH

SPIN

SPIN

1 Press the "Power On/Off" button to switch on
the power supply

2 Press the button of "Program/Reservation" to select
a suitable full-automatic program

SOAK

SOAK

WASH

WASH

RINSE

RINSE

SPIN

SPIN

WATERLEVEL

WATERLEVEL

PROGRAM

PROGRAM

RESERVATION

RESERVATION

START

START
PAU SE

PAU SE

POWER

POWER
ON/OFF

ON/OFF

POWER

POWER
ON/OFF

ON/OFF

PROGRAM

PROGRAM

RESERVATION

RESERVATION

After switching on, the "Standard" program will be the default. If other full-automatic
program is desired, you can press the button "Program" to get the corresponding
indicator on. Refer to the "Button of 'program'"paragraph on page 10.
Example: Use the "Quick" program for slightly soiled articles.

Page 10

Attention

Even there's no water in the tub, the
spinning will start after a certain period.

Do not use soak process for woolen laundries.

Wash the laundries that are prone to lose
colors separately from other laundries.
The pulsator will not rotate unless the
water is filled to selected water level.

Selection method of the procedure programs

Using process

Using process

Times of pushing
the"Program
select"button

0

1

2

3

4

5

Corresponding
program

Standard

JEANS

GENTLE

QUICK WASH

WASH

SPIN

Applicable procedure

When the common
laundries need washing
rinse and spin

If the laundries are very
dirty, or the sleeve and
collar are dirty, first soak
then wash

When the laundries
needs to be washed
carefully such as woolen
textiles or underwear.

When the laundries is
lightly soiled that needs
to be washed quickly.

When the common
laundries need only
washing

When the laundries need
only spinning after
manual washing
(first drain then spin)

Selected procedure
program

Wash(bb) Rinse(cc)
Spin(dd)

Soak(AA) Wash(bb)
Rinse(cc) Spin(dd)

Wash(bb) Rinse(cc)
Spin(dd)

Wash(bb) Rinse(cc)
Spin(dd)

Wash(bb)

Spin(dd)

Total Time

About 39~44

About 64~91

About 34

About 10

About 13~18

About 9

If you push the "Process selector" button for 6 times, it will resume the original
mode, and it will circulate like that.

Time list of each program (minute)

Program

Standard

Jeans

Gentle

Quick

Wash

Spin

Soak
(min)

/

About
25~45

/

/

/

/

Wash
(min)

About11~16About11~16

About10~16

About6

About3
About11~16

/

/

Rinse
(min)

Rinse twice,each about 3

Rinse twice, each abut 3

Rinse once, about 2

Rinse twice, about 2

/

/

Spin

(min)

About 6

About 6

About 6

About 2

/

About 6

Total time(min)

About 39~44

About 64~91

About 34

About 10
About 13~18

About 9

Using process

Using process

Total time: including the normal water inlet time, drain time, excluding the power off time. The
total washing time may be influenced by the water inlet pressure and water level.
Spin time: the time from intermittent running to finishing.
The Jeans program could combine the process of soak during which the washing
machine firstly soak for about 25~45 min after water filling and then begins to wash.

3 Press the "water level" button to select suitable
water level

WATERLEVEL

After switching on the power, press the button" Water level" to select a water level according
to the load.

Page 10

4 Push the "Reservation" button to select
suitable reserve program

PROGRAM

PROGRAM

RESERVATION

RESERVATION

After switching on, the washing machine reserved wash program will be automatically set
inactive. If you desire a wash cycle to end at a reserved time, you can press the "Reservation"
button to set a reserved wash program. Refer to "The button of Reservation" on page 10.

Confirm the reserve program

When "Reservation" becomes active, the nixie tube
displays the time to the end of the reserved wash cycle, and
the indicator turns on.
To change the running program or cancel the reservation,
you should cut off the supply and reselect.

Page 10

5 Press the "start/pause" button

5 Close the top lid

When the machine spin working, if the
top cover is opened, the washing
machine will stop running and alarm.

The washing will finish
about 18 hours later

START

START
PAU SE

PAU SE

Using process

Using process

6 Finish washing

The washing machine cuts off the power supply
automatically when wash cycle ends.

Disposal after washing

7

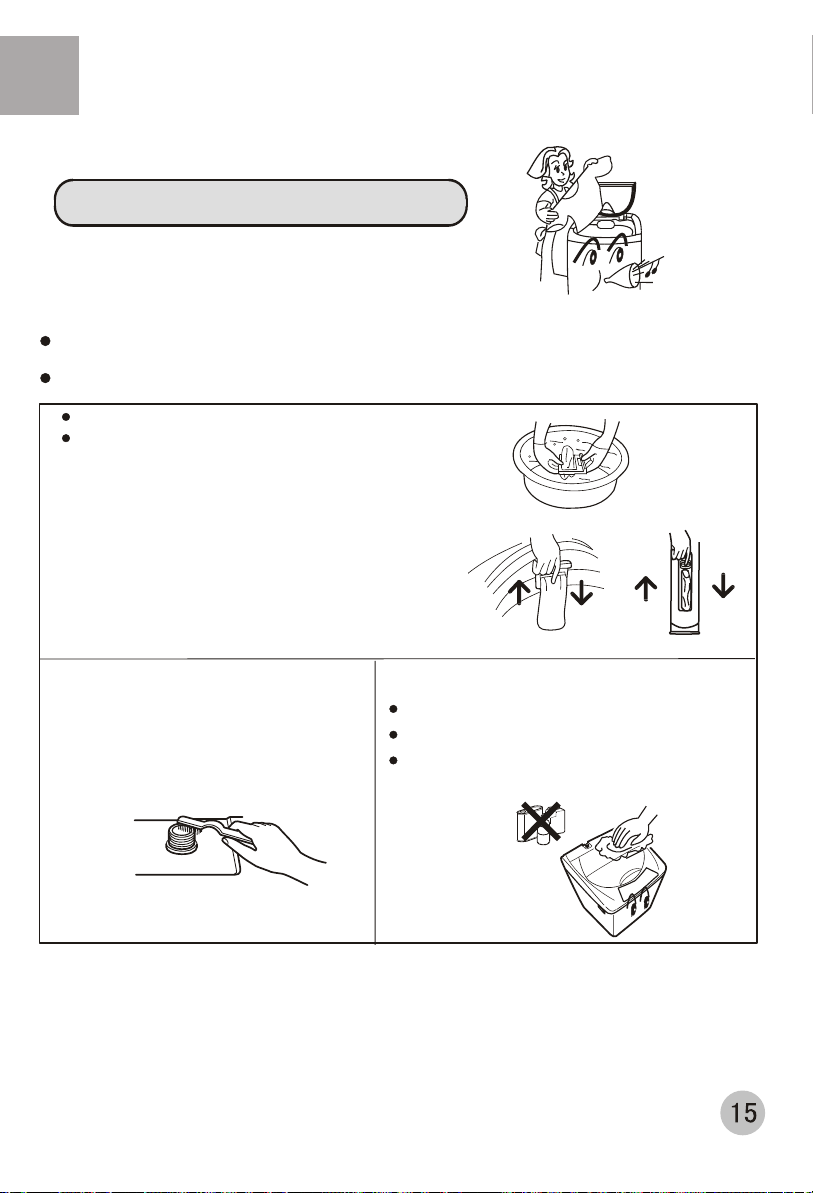

After using, please clean the lint and foreign materials of the lint filter etc. in time. Otherwise it may influence
your using the machine.
Please first pull off the power plug from the receptacle before cleaning.

When washing, lint filter must be used
After using, please clean it in time.

After Finishing wash
alarm automatically

Lint filter:

1.

Pull upward to detach

2.Clean the lint
Put it in water and clean while it is still wet.
(See to Figure 1).

Press downward to assemble.

3.

The filter screen of the water inlet
valve is likely to be blocked by
foreign materials and influence the
water inlet. Please clean it with
brush every two months.

Clean

Put down

Put up

If the cabinet is dirty, wipe it with wet cloth

Do not flush it directly with water.

Wipe it with neutral detergent.

Do not wipe it with thinner, petrol, alcohol

Put down

Figure 2

Figure 1

Put up

etc.

hol

Alco

inner

Th

Petrol

1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).

2.Do not store water in the washing machine for a long period. Drain the water completely after each using.

3.Be sure to pull off the power plug before maintenance.

4.Hang up the power cord and drain hose.

5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time (about 1 hour),
then close the top lid.

Trouble shooting Answer to question

If there's breakdown, please pull off the power plug before checking

Phenomena The reason How to settle

Buzzing upon reservation starts,
Nixie tube indicates "E0"

No or slow drain, nixie tube
indicates

"E1" , buzzing.

Running pauses during spin,
nixie tube indicates

"E2"

buzzing

Safety switch actuates, not
spin, (after self-correction
twice), nixie tube displays

"E3", buzzing

No or slow water filling (not
reaching the level in 15 min),
nixie tube indicates

"E4",

buzzing

The machine does
not act

Not wash

Not spin

There's abnormal sound
inside the machine.

No water filling

The top lid is not closed

Is the drain hose put down?

Is the drain hose blocked by
foreign material?

The top cover leaves open

Are the laundries put slantingly?

Is the machine slanting?

The water tap is not open

The water inlet valve is blocked

The water pressure is too low
and the current is too small

Is there power failure?

Is the power plug loose?
Does the water level arrive at the

set water level?

Is the power plug loose?

Is the top lid closed?

Are the laundries put orderly? Put the laundries orderly.

Is the machine slanting?
Is there metal material inside

the washing machine?
Are the laundries slanting in
spinning?

Is the power plug loose?
If the water faucet is turned on?
If Power On/Off and
Start/Pause are pressed?

Close the top lid

Put down the drain hose. Open
and close the top lid once.
Clean the foreign material.
Open and close the top lid once.

Close the top lid

Re-order the laundries. Close
the top lid.
Level the machine in right
position. Open and close the
top lid once.

Open the water tap. Push the
"Start/Pause" button.
Clean the water inlet valve.
Push the "Start/Pause" button.
Wait for the normal water
pressure before use.

Use it when the power is on.

Insert the power plug tightly.

Affusion to the set water level.

Insert the power plug tightly.

Close the top lid

Level the machine properly.

Fasten the buttons and zipper

Reorder the laundries. Close the
top lid.

Insert the plug firmly
Turn on the water faucet
Press Power On/Off and
Start/Pause

The machine does not act.
(the indicators are off.)

Is there power failure?

Is the power plug loose?

Use it when the power is on.

Insert the power plug tightly.

Common phenomena

Phenomena Explanation

The spinning is intermittent when it starts.

Push the" / " button to

PROGRAM RESERVATION

select "Spin", but it doesn't work.

There may be some water flowing out of
the drain hose in the first use of the machine.

While water filling in wash and rinse, the
pulsator pauses rotation

Packing list

Name

User's manual

Components of the water
inlet hose

Bottom plate

Tapping screws ST4x16

Lint filter

Automatic washing machine

Quantity

Balance the laundries to avoid slanting.

The program is setting the drain time. Some time is
needed before it starts spinning.

It is the water remained in the factory inspection of
performance.

To prevent splash during water filling.

One

One

(Between the upper cushion of the washing machine

One

package and the upper seal of the package carton)

Eight

Two

One

Specification

Specification

Model

Rated washing / spinning capacity(kg)

Water level/Water quantity (about)

Water inlet pressure(MPa)

HWM60-10

5.0

Lowest/20L Low/30L Mid/37L High/48L

0.03-0.78
