Fully Automatic Washing Machine
User's manual
This manual is for
HWM45-10B
User's manual
Please read this manual
carefully before using.
Retain it for future reference.
0030805169I
Contents
Names of the parts...............................................................................................1
Safety precautions .............................................................................................2
Installation and adjustment ...................................................................................4
Install the water inlet hose....................................................................................6
Preparation before washing .................................................................................8
Put in the laundries ..............................................................................................9
Usage of the detergent ........................................................................................9
Use the operation buttons ..................................................................................10
Close the top lid .................................................................................................13
Finish washing ....................................................................................................13
Disposal after washing .......................................................................................14
Trouble shooting Answer to question.............................................................15
Packing list Specification...................................................................................16
Top lid B
Detergent box
(Installed by user)
Lint filter
Control panel
Filter cover
Inner tub
Control panel
film
Pulsator
Names of the parts
Top lid A
Sop mat
Cabinet handle
Drain hose
Water valve
Power line
Cabinet
ase frame
Adjustable foot
Meaning and description of the symbols
Warning sign
Forbidden sign
Contents marked with that symbol are related to the safety
of the product and the personal safety of the users. Please
operate in strict conformity to the contents, otherwise it may
cause damage of the machine or injure the personal safety
of the user.
Contents marked with that symbol are actions forbidden to
perform. Performing of those actions may result in damage
of the machine or injure the personal safety of the user.
ack cover
fixed foot (3)
1
Safety precautions
Please plug the plug on special receptacle
with rated voltage. Be sure to use singlephase three pins receptacle. Ensure the
earthing prong of the power receptacle is
earthed reliably. Use leakage protector if
possible.
Do not damage the power cord, bend ,extend, twist, bind or alter it by force. Do not press or
nip it with weight. If the power cord or the power plug is bad, or the power plug becomes
flexible, to avoid risk it is required to have it replaced by
the technicians of our special shop or the after-sale
service department. Keep the pin of the power plug
clean, if the power plug is polluted with dust, please
wipe with dry cloth carefully.
Do not put the machine at damp place like
the bathroom. Never wash it with water.
Not put wet laundries on the control panel.
The power cord plug should be convenient
to be pluged in or pluged out with hand
while the washing machine runs normally.
Be sure to pull the plug out and close the
water tap when the machine is idle, when
moving the machine, or when cleaning
the machine. Do not use wet hand to insert
or pull out the power plug.
Do not use water hotter above 50 C .
In case the washing machine is installed
on ground with carpet, do not block the
ventilation hole with carpet.
The ventilation holes
at the bottom
soft items
Do not let the machine share one receptacle with other
electric appliances. If the power plug is damaged, or
the plugging into the receptacle is loose,
do not use the plug any more.
Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.
2
Safety precautions
Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children. Do not let the children
climb the washing machine.
Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.
The handicapped or children without
care shall not use the machine.
Do not decompose, repair or alter the
machine by yourself.
Do not wash laundries with volatile
materials (such as thinner, petrol etc.)
l
tro
r
Pe
Thinne
Keep the machine away from direct
sunlight and heat source like the heater.
Please keep the lint filter in good condition,
and install it to proper position. If the lint
filter is lost or damaged, please contact
the local after-sales service department
of our company.
3
To protect your laundries and washing machine, please take out all of the
coins, buttons, sand, hairpin and
other foreign materials before washing.
Please check if the water faucet is open,
and if the connection of the water inlet
pipe is proper.
It is suggested to use foamless washing
powder.
Installation and adjustment
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Install the lint filter
1.Press downward to
assmble.
2.Pull upward to detach.
Pull down
Put up
Install the bottom plate
After you open the package, please lean the
washing machine gently down on soft items
( like the towel cloth, blanket, etc. ). Install the
bottom plate to the bottom of the machine with
the eight screws by a cross screwdriver, then l
ift the machine up gently. See to the figure:
Adjust the installation position
The largest allowed slope of the
shank base of the machine is 2 .
The slanting or rough ground will
result in unstable running or
stoppage of the machine. Please
adjust it with following methods:
Screw
Back
Front
Soft items
Bottom plate
Adjust the adjustable foot:
1.To twist the adjustable foot, please
first lift up the side of the foot slightly,
loosen the adjustable nut, and twist
the foot.
2.Fasten the nut after adjustment.
Loosen
4
High
adjustable nut
Fasten
adjustable foot
Low

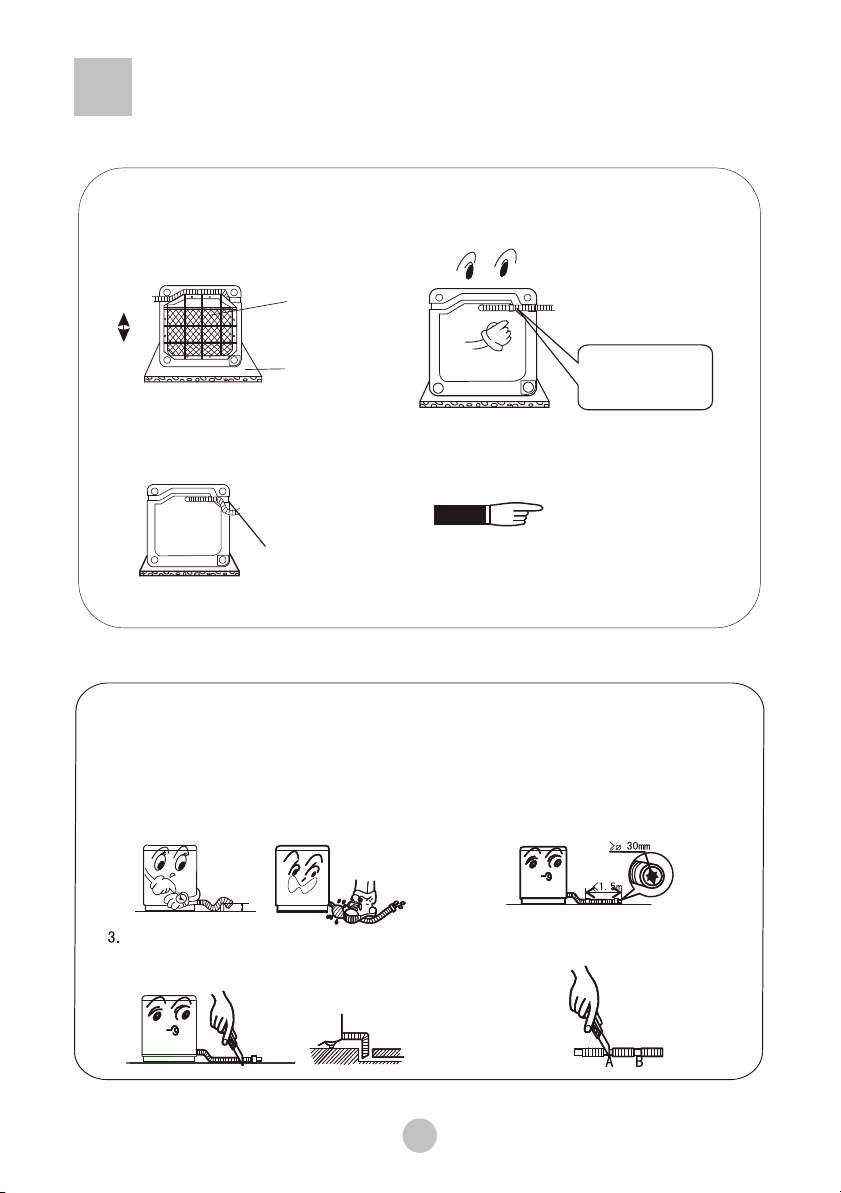

How to change the direction of the drain hose
1.Lean the machine down gently
with the front surface facing the
ground. Loosen the eight screws
by a cross screwdriver.
Back
Front
Bottom plate
Soft item
2.Pull out the drain hose from the
groove at the right side.
Use groove at
this side after
direction changing
Usage of the drain hose
The drain hose shall drain smoothly
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.
2.Do not trample or press the drain hose.
3.Extend the drain hose from the left side.
Push the drain hose into the groove with
hands.
Push the drain hose
into the groove with
hands at this point
4.Install the bottom plate (as per indicated
before), then lift the machine up gently.
Page 4
4.If extra drain hose is needed, please
make separate purchase. The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
<10cm
If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.
5
5.If the extra hose is too long, cut it
either at A or at B point.
Install the water inlet hose
Confirm the water tap
Water tap,suitable
Outlet end surface
>10mm
It is required that the front end shall be longer than 10mm.
The outlet end surface of the tap shall be flat and smooth. If not please file it to
avoid leakage.
Connection between the water inlet hose jointer and
the water tap
1.Press the lower end of the lock lever and push down the slider. Take off the water
inlet hose jointer from the water inlet hose component. See to Figure 1.
2.Loosen the screw till the water tap can be accessed. Put the jointer of the water
inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer
can not be set on the water tap, please loosen the four screws and take out the
bushing in the jointer. See to the figure3.)
Water inlet pipe jointer
Slider
Water tap,not suitable
Screw
Locking lever
Water inlet pipe
Screwdriver
Figure 1
Mark label
Figure 2
bushing
Figure 3
3.Fasten the four screws evenly. See to Figure 4.
4.Take off the nameplate. Twist the fastening nut as per the indication of the figure.
See to Figure 5.
Remarks: Before twisting the fastening nut, the thread is 4mm above the
upper surface of the nut. After twisting the fastening nut, the thread is 2mm
above the upper surface of the nut. See to Figure 6.
About 4mm before twisting
About below 2mm after twisting
Nut
Figure 4
Figure 5
Figure 6
6
Connection between the water inlet hose and the
washing machine
1.Do not take off the water absorption
Nut of the water inlet hose
cushion. Please check if the cushion
is dropped or damaged before each
usage. If it happens please contact
our after-sale department immediately.
2.Put the nut of the water inlet hose on
the valve jointer.
3.Fasten the nut. Swaying it gently to
confirm if it's suitable.
Jointer of the water inlet valve
Water absorption cushion
Connection between the jointer of the water inlet
hose and the water inlet hose
1.Push down the slider. Insert the
water inlet hose into the jointer.
Locking lever
2.Hang the lock lever to the jointer.
Release the slider till a click
sound is heard.
Jointer of the water
inlet hose
Slider
Check the connection between the jointer of the
water inlet hose and the water tap
1.Swaying the hose gently to confirm if it is fastened stable.
2.After installation, open the tap to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if
the connection between the jointer
of the water inlet hose and the water
tap, and the installation of the
water inlet hose are firm, so as to
prevent dropping from improper
Installation position.
Take down the water inlet hose
1.Close the water tap.
2.Press the locking lever. Push down the slider. Then
pull off the water inlet hose. If the machine is used
more than once every week, the jointer of the water
inlet hose can be kept on the tap to prevent
damaging the fixing screw.
7
Locking lever
Slider
Preparation before washing
Ï´Ç°×¼±¸
Preparation before washing
1.Connect the water inlet hose and open the
water tap .
2.Confirm that the washing machine is earthed
reliably . Then insert the power plug into the
receptacle. Do not connect the earth ter minal to the gas pipe and tap water pipe.
3.Put down the drain hose.
4.Slanting or uneven ground may result in
unstable working or abnormal noise. Please
make the machine stand horizontally.
Pay attention to followings before washing the laundries
Confirm if
there's special
requirement for
the laundries.
a. Please check if the laundries are applicable for washing.
b. Separate those not colorfast from other laundries.
c. For laundries not water absorbing, please put them into water with hands.
d. For laundries with much soil, please remove the soil first. You can add detergent on the
part with serious soil directly. It is much easier to remove the soil by that mean.
e. For laundries likely to get lint ball or with long fiber, please first turn the inside out before
putting them into the water.
f. Do not put the laundries polluted with chemicals directly into the washing machine.
For those small laundries ,laundries likely to be twisted or worn, and woolen laundries,
please put them into mesh bag before washing.
Clear the pocket.
Take out the
coins , sand,
hairpins etc.
Fasten the
buttons and
zippers.
The quantity of
the laundries
shall not exceed
the rated value.
The big laundries
like the jeans
shall be put in
loosely.
When the pulsator
is running , the
buttons of the
laundries may
cause noise. For
the sake of
discretion, please
put the laundries
with buttons into
other laundries.
8
Put in the laundries
The capacity of washing and spinning of the
machine refer to the largest weight of the
standard laundries under dry condition that
can be washed or spinned in one time. One
time washing quantity shall be lower than the
rated capacity.
The thickness, size, type of the cloth will influence the actual washing capacity. It is suitable for one time washing to put in reasonable amount of laundries and the laundries can
be turned round in washing.
To wash thin laundries like the stocking, silk
etc , please first put them into washing mesh
bag (which can be purchased separately)
before wash.
Usage of the detergent
How to use the washing
powder
Direct dissolved in the machine
1.Fill water to "Low" water level.
2.Add the power. Run for 30 seconds
to dissolve it completely.
Inlet box of the detergent
How to use the whitener
Fill water to decided level. Dilute
the whitener with container. Pour
it slowly into the washing tub.
Avoid using whitener on
laundries with color or pattern as
they are prone to lose color.
The whitener shall not touch the
laundries directly.
Refer to the user's manual for
the usage and quantity of the
whitener.
For powder whitener, please
dissolve it before use.
3.Put in the laundries. Select
suitable water level.
The instant dissolving of the washing
powder:
1.Prepare warm water of 30 and a
container.
2.Add the powder while stirring to
fully dissolve it.
Put in the proper quantities detergent
according to the water level and the
laundries quantities .
It is suggested not to use high
sudsing detergent.
Washing powder with poor quality or
long time storage maybe caked.
Please pay attention to cleaning the
detergent box in time
9
Ï´µÓ˳Ðò
Use the operation buttons
a.
Description of the function of the buttons
SURPLUS(MIN)
To indicate -- during sensing.
To indicate remaining min. During
program running.
To indicate remaining reserved
time (hrs) during reservation period.
To indicate fault symbols for abnormal
conditions (see page 15)
PROCEDURE STATUSPROGRAM STATUS
STANDARD
JEANS
GENTLE
QUICK WASH
WASH
SPIN
Page 15
SOAK
WASH
RINSE
SPIN
WATER LEVEL
"POWER ON/OFF"button
Press "Power On/Off" button to connect
power supply.
After power is connected, pressing this
button will cut off the supply.
"START/PAUSE"button
After the power is switched on, press it to
start the machine
During working, push it to pause working.
During pause, push this button to restart
and continue operation.
START
PROGRAM
RESERVATION
PAUSE
POWER
ON/OFF
ton
ut
b
"
N
O
TI
A
RV
E
S
E
R
/
M
RA
G
O
R
"P
"PROGRAM/RESERVATION " button
Press
programs
" WATER LEVEL"button
The user selects a suitable water level
depending on the load.
you can select one or several of
Standard Jeans Gentle, Quick Wash, Wash
and Spin
Press
over 2 seconds, the program
of reservation. T
reserved hours to the wash cycle end. The
indicator flashes to indicate in-reservation.
, ,
.
"PROGRAM/RESERVATION " button
you can select
ixie
he n tube displays the
Remarks: 1. After pressing "POWER ON/OFF" to connect power supply, if the washing
machine lasts idle more than 5 min, it would automatically shut off the supply.
10
b.
Operating procedure and explanations for the
buttons
PROCEDURE STATUSPROGRAM STATUS
STANDARD
JEANS
GENTLE
QUICK WASH
WASH
SPIN
SOAK
WASH
RINSE
SPIN
WATER LEVEL
PROGRAM
RESERVATION
START
PAUSE
POWER
ON/OFF
1 Press the "POWER ON/OFF" button to switch on
the power supply
POWER
ON/OFF
2 Press the button of" " to
PROGRAM/RESERVATION
select a suitable full-automatic program
PROGRAM
RESERVATION
After switching on, the "Standard" program will be the default. If other full-automatic program is
desired, you can press the button " " to get the corresponding
indicator on. Refer to the "Button of " "
paragraph on page 10.
PROGRAM/RESERVATION
PROGRAM/RESERVATION
Page 10
Example: Use the "Quick" program for slightly soiled articles.
When "standard" program is selected, the washing machine will perform full-automatically
controlled fuzzy program to set water level, water flow and wash duration according to the
cloth nature and weight
If there is water inside the tub, the machine cannot detect the laundries and will display
middle level. If wet laundries are put in, it may display high level. You must set suitable
water level by yourself.
11
Attention
Even there's no water in the tub, the
spinning will start after a certain period.
Do not use soak process for woolen
laundries.
Wash the laundries that are prone to lose
colors separately from other laundries.
The pulsator will not rotate unless the
water is filled to selected water level.
Selection method of the procedure programs
Times of pushing
the"select"button
0
1
2
3
4
5
If you push the " PROGRAM/ " button for 6 times, it will
Selected program
STANDARD
JEANS
GENTLE
QUICK WASH
WASH
SPIN
Applicable procedure
Normal wash
Large, thick or heavily soiled
laundry
The laundry needn't spin to
avoid wrinkles
For load below 1 kg
Repeat using the washing
liquid
When the laundries need only
spinning after manual
washing (first drain then spin)
RESERVATION
Contents(t indicates
the programs about to run)
Wash (bb) Rinse(cc) Spin(dd)
Wash (bb) Rinse(cc) Spin(dd)
Wash (bb) Rinse(cc) Spin(dd)
Wash (bb)
Spin(dd)
the nixie tube
Soak (AA) Wash (bb)
Rinse (CC) Spin (dd)
resume the original mode, and it will circulate like that.
If you select the"QUICK WASH" program, you have to set the full procedure
of wash, rinse and spin. The procedure can not be selected.
12
3 Press the "WATER LEVEL" button to select suitable
water level
WATER LEVEL
After switching on the power, press the button "WATER LEVEL" to select a water level according
to the load. Please refer to the button " Water level" on page 10.
Page 10
4 Push the " " button
PROGRAM/RESERVATION
to select suitable reserve program
After switching on, the washing machine reserved wash program will be automatically set
inactive. If you desire a wash cycle to end at a reserved time, you can press the
""button over 2 seconds to set a reserved wash program.
PROGRAM/RESERVATION
Refer to The button of "" on page 10.
Confirm the reserve program
When "Reservation" becomes active, the nixie tube
displays the time to the end of the reserved wash cycle, and
the indicator turns on.During reserve procedure,push the
"Reservation" button to display the reserve mode.
To change the running program or cancel the reservation,
you should cut off the supply and reselect.
5 Press the "start/pause" button
PROGRAM/RESERVATION
Page 10
the washing will finish
about 18 hours later
START
PAUSE
Close the top lid
Except water filling ,washing, rinsing and draining, if the top cover is opened, the
washing machine will stop running and alarm.
Finish washing
PROGRAM
RESERVATION
START
PAUSE
The washing machine cuts off the power supply automatically when wash cycle ends.
13
Disposal after washing
After using, please clean the lint and foreign materials of the lint filter etc. in time.
Otherwise it may influence your using the machine.
Please first pull off the power plug from the receptacle before cleaning.
When washing, lint filter must be used
After using, please clean it in time.
Lint filter:
1.Pull upward to detach
2.Clean the lint
Put it in water and clean while it is still wet.
(See to Figure 1).
Clean
Figure 1
3.Press downward to assemble.
The filter screen of the water inlet
valve is likely to be blocked by
foreign materials and influence
the water inlet. Please clean it
Pull down
If the cabinet is dirty, wipe it with wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Put up
Figure 2
Do not wipe it with thinner, petrol,
alcohol etc.
hol
Alco
inner
Th
Petrol
1.After washing, close the water faucet. ( If needed, you can dismantle the water inlet hose).
2.Do not store water in the washing machine for a long period. Drain the water completely after each using.
3.Be sure to pull off the power plug before maintenance.
4.Hang up the power cord and drain hose.
5.Wipe off the water drops on the surface of the machine and inside the tub. Open the top lid for some time
(about 1 hour), then close the top lid.
14
Trouble shooting Answer to question
(If there's breakdown, please pull off the power plug before checking) The following
phenomena are not breakdowns sometimes. Please confirm again before sending it to
repair. If there are real breakdowns, please come to the special maintenance department or
after-sale service department of our company. Do not repair it by yourself.
Phenomena
Buzzing upon reservation starts,
Nixie tube indicates "E0"
No or slow drain, nixie tube
indicates "E1" , buzzing.
Running pauses during spin,
nixie tube indicates "E2",
buzzing
Safety switch actuates, not spin,
(after self-correction twice),
nixie tube displays "E3", buzzing
No or slow water filling not
reaching the level in 15min ,
nixie tube indicates "E4",
buzzing
Poor or no waterfall flow
Not wash
The machine
does not act
Not spin
There's abnormal sound
inside the machine
The water faucet leaks
The top lid is not closed
Is the drain hose put down?
Is the drain hose blocked
by foreign material?
The top cover leaves open
Are the laundries put
slantingly?
Is the machine slanting?
The water tap is not open
The water inlet valve is blocked
The water pressure is too low
and the current is too small
If the nozzle is choked with
foreign bodies
Is there power failure?
Is the power plug loose?
Does the water level arrive at the
set water level?
Is the power plug loose?
Is the top lid closed?
Are the laundries put orderly?
Is the machine slanting?
Are the laundries slanting in
spinning?
Is the jointer screw of the water
inlet hose is loose or twisted
awry?
Common phenomena
Phenomena Explanation
The spinning is intermittent when it starts.
Push the "Procedure selection" button to
select "Spin", but it doesn't work.
There may be some water flowing out of
the drain hose in the first use of the machine.
While water filling in wash and rinse, the
pulsator pauses rotation
Wash pauses
The reason How to settle
Close the top lid
Put down the drain hose.
Open and close the top lid once.
Clean the foreign material.
Open and close the top lid once.
Close the top lid
Re-order the laundries. Close the
top lid.
Level the machine in right position.
Open and close the top lid once.
Open the water tap. Push the
"Start/Pause" button.
Clean the water inlet valve.
push the "Start/Pause" button.
Wait for the normal water pressure before use.
Remove the foreign bodies
Use it when the power is on.
Insert the power plug tightly.
Affusion to the set water level.
Insert the power plug tightly.
Close the top lid
Put the laundries orderly.
Level the machine properly.
Re-order the laundries.
Fasten the jointer screw
properly.
Balance the laundries to avoid slanting.
The program is setting the drain time. Some time is
needed before it starts spinning.
It is the water remained in the factory inspection of
performance.
To prevent splash during water filling.
Supplementary water filling 48 s after
sensor tests cloth material.
15
Packing list
×°Ïä˵Ã÷
Name
User's manual
Components of the water
inlet hose
Lint filter
Bottom plate
Tapping screws
Fully automatic washing machine
Quantity
One piece
One piece
One piece
One piece
Five pieces
One set
Specification
Water level/Water
quantity (about)
Water inlet pressure
Rated washing/spinning capacity(kg)
High/About 48 L Medium/About 37L
Low/About 30L Very low/About 20L
0.03MPa-1MPa
4.5/4.5
16
Loading...
