WINDOW TYPE ROOM AIR CONDITIONER

HW-09LM03 HW-12LM03 HW-09LMA03 HW-12LMA03

No.0010515698

Contents

Parts Name

Operation Guide

Maintenance

Trouble shooting

Installation Instructions

Installation Guide

Wiring Diagram

...............................................................................

............................................................................ 2

................................................................ 3-4

...................................................................... 5-7

................................................................... 8

.......................................................... 9

............................................................. 10-11

................................................................... 12

The machine is adaptive in following situation:

1. Applicable ambient temperature range:

Cooling

Indoor

Outdoor

Maximum: Minimum:

D.B/W.B D.B/W.B

D.B/W.B D.B

32 18

C/23oC C/14oC

C/26oC

2. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similar qualified person.

3. After installation, the power plug should be easily reached.

4. The wiring method should be in line with the local wiring standard.

Parts Name

Machine body

Front panel

Air inlet (indoor side)

Machine body

Air outlet (indoor side)

Air inlet (outdoor side)

Operation panel

Display

panel

Power plug Air filter (inside)

LOW FAN

HIGH FAN

WAIT THREE MINUTES BEFORE RESTARTING

LOW COOL

HIGH COOL

Operation Guide

Auto swing switch

When the switch is set to " ", and vertical louvers will swing from side to side, delivering gentle air thus making you feel very comfortable. When it is set to " ", the indicator goes out, and the vertical louvers stop at any position.

Mode selection switch

Mode selection switch controls the fan motor speed and cooling speed.

Hint

<1>

When set to " HIGH FAN", fan motor runs at high speed to blow out strong air.

When set to "LOW FAN", fan motor runs at low

<2>

speed to blow out gentle air.

<3>

When set to "LOW COOL", air conditioner will

start cooling at low speed, blowing out gentle air.

<4>

When set to "HIGH COOL", air conditioner will

start speedy cooling, blowing out strong air.

<5>

When set to "OFF", air conditioner stops running.

When the mode selection switch is turned to "HIGH FAN" or

LOW FAN" , the air conditioner will only blow out air without cooling.

f the mode selection switch is turned from cooling mode to fan

mode, do not turn it back until at least 3 minutes have elapsed.

Operation Guide

Thermostat switch

This switch controls the preset indoor temperature to makethe air conditioner start or stop automatically, so as to reduce power consumption and operate the system both comfortably and economically.

Remark:

Airflow Direction Vane

The Vertical Airflow Direction Vane is manually controlled by positioning the vane todischarge the air upward, downward or straight out.

The horizontal air direction is adjusted by setting the AUTO SWING switch to the ON position.

The compressor stops running when the set temperature is reached but the fan continues to operate to keep an even indoor temperature.

Vertical airflow direction

Note:

It is advisable not to keep horizontal flap at downward position for a long time in COOL or FAN mode, otherwise , condensate water might occur. Don't move the vertical blade with hand in order to avoid the vertical blade abnormal, using the remote controller to adjust the move of vertical blade.

CAUTION

In cooling mode, after you turn thermostat switch counter-clockwise, do not turn it back until at least 3 minutes have elapsed. Otherwise, the fuse may blow due to overload. Do not exceed the selection range.

Maintenance

Air filter cleaning (before cleaning, turn off the power)

When dirt accumulates on air filter, air circulation will be blocked, which causes poor cooling. It is advisable to clean air filter every two weeks for longer operation.

Take out the air filter

1.Pull the raised parts on both sides at

the lower part of air inlet grille to open the

air inlet grille.

2.Hold the hump of filter mesh with

fingers (as illustrated) and take it out.

Hump

Air filter cleaning

Cleaning of the

air filter

Maintenance

Disposal of the condensed water

Generally there are two methods available on disposal of the condensed water:

1. Block the bottom plate hole of the conditioner with rubber lid, install outlet pipe fitting on the back hole and let the condensing water flow from the back hole of the conditioner. (See Fig.1 )

In this method, the accumulated condensed water in the bottom plate is hit by the fan onto the heat exchanger, and evaporated and blown out from the machine. It can cool the heat exchanger radiator more quickly, and improve the energy efficiency of the conditioner. But the hitting noise by the fan at the outdoor side is relatively large.

2. Block the back hole of the conditioner with rubber lid and install outlet pipe fitting to the bottom hole, which can make the condensed water flow out from the bottom plate. (See Fig.2)

If necessary the above two methods can both have extra pipe added on the outlet pipe fitting.

(available on the market).

(Refer to P12 for choosing these two modes.)

Outlet pipe fitting

Back hole

Cautions

Power cord: Be sure to use the exclusive power cord. Change installation place: If air-con need to be changed to another place please contact the dealer, who sold you the unit.

Fig.1

Rubber lid

Bottom plate hole

Fig.2

Rubber lid

Back hole

Outlet pipe fitting

Bottom plate hole

Maintenance

Avoid opening doors and windows unless necessary.

Use curtain or blind Direct sunlight may reduce cooling effect, always use window curtain.

Don't be exposed to cold air for a long time.

Keep heat source away from air conditioner.

Set temp . a little bit higher before going to bed.

Proper temperature

After unit stops, don't restart it until 3 min. have elapsed.

OK! Enjoy a 3-min nap

Troubleshooting

Doesn't work

Is plug firmly inserted? Is there power failure?

Readjust power supply.

Replace fuse.

Readjust the thermostat.

No cool air or poor cooling

Does fuse get burned?

Is thermostat switch

wrongly adjusted?

Is there any direct sunlight in the room?

Are doors or windows left open?

Are there any obstacles blocking air inlet and outlet?

Is air filter clogged?

Use curtain or blind.

Shut doors and windows.

Remove the obstacles.

Clean it.

Remove the heat source

Is there too much heat source in the room?

If problems can not be solved please pull out power plug and contact your dealer.

Installation Instructions

Don't hang clothes in the vicinity of air inlet. This will decrease cooling effect and cause abnormal operation.

Go away!

Temperature should be set properly when there are infant, child, the aged or disabled in the room.

Baby has gone sleep, better to adjust suitable temp.

Before operating mode selection switch, check that if the air inlet or outlet have been blocked.

For longer and trouble-free operation of the unit, pay special attention to the following:

Install air-con at a place strong enough to support the unit. Leave enough space around air inlet and outlet for better circulation. Avoid places where flammable gas leaks. Problems may occur if unit is installed in the following places: Place where oil exists in the air including engine oil or seaside with salt breeze blows and hot spring area with sulphurous gas in the air.

Installation Guide

Selection of the installation position

1. The air-conditioner is better installed in shadow or in a place with short period of sunshine. In case the air-conditioner is installed at the point exposed directly to the sunshine, it should be protected from the direct sunlight as possible in order to avoid the long time of direct sunlight otherwise its performance will be lowered. (As illustrated in Fig. 1).

2. For the convenience of operation, it is recommended that air-conditioner be installed at least at the height of 760-1300 mm above the floor and no obstacles before it for a free airflow.

3. The shutters at both sides and the top of air-conditioner should be protruded outdoors free from being blocked by wall, window, etc.

4. The back of air-conditioner should be kept over 500mm from the obstacles (for example, wall, etc.) (As illustrated in Fig. 2).

5. To have an efficient drainage, the back part of the air-conditioner should be inclined downward by 5-10mm (As illustrated in Fig. 3).

cover

support

fig.1

>500mm

fig.2 fig.3

The enclosed accessories of the conditioner are:

Name

Figure

Quantity

Manual

Outlet pipe fitting

Sealed gasket

5-10mm

Rubber lid

Screw

Installation Guide

MODEL

HW-09LM03 HW-09LMA03

HW-12LM03 HW-12LMA03

366mm 481mm

392mm 610mm

outlet pipe fitting

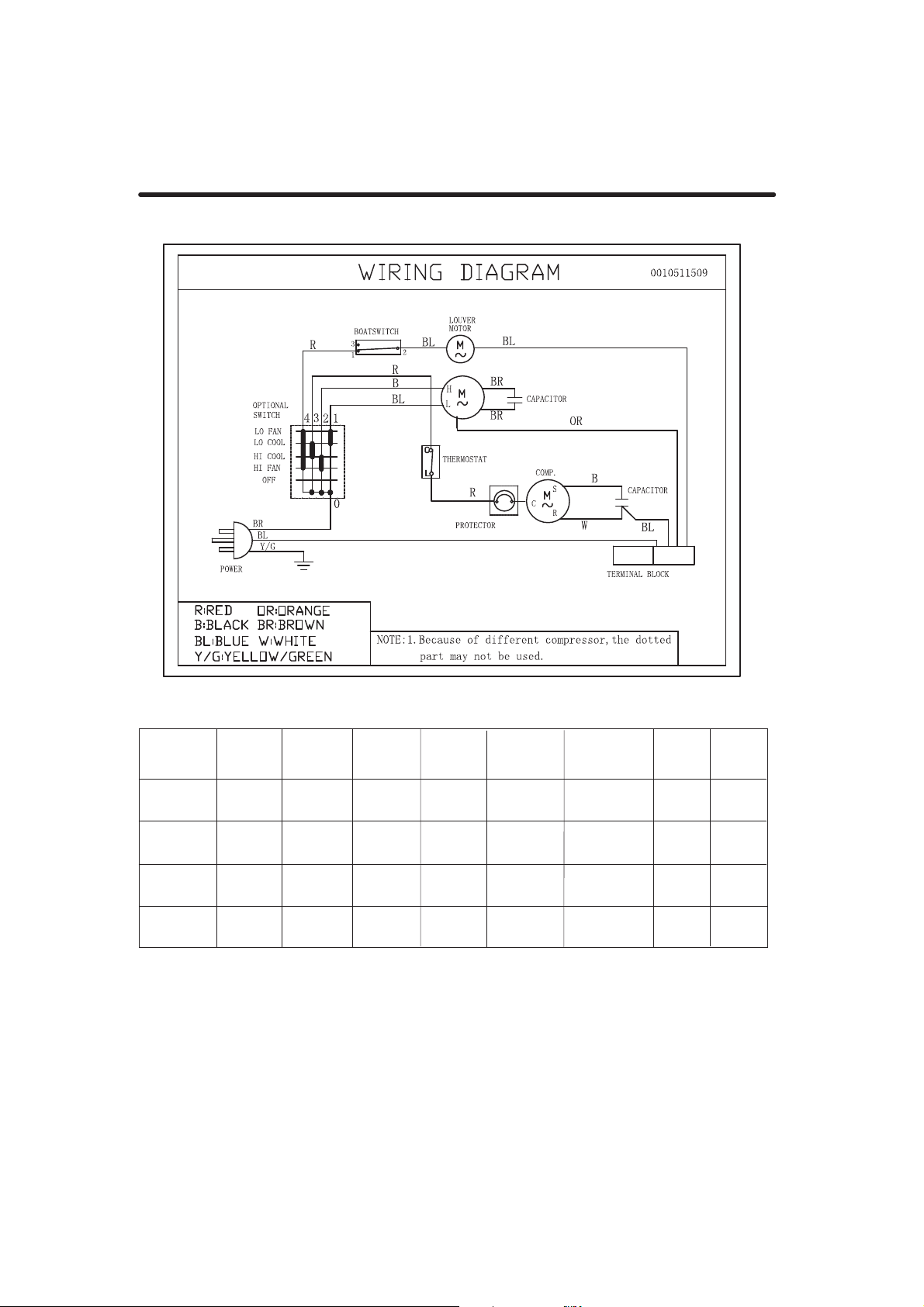

Wiring Diagram

Circulation

Airflow(m /h)

450

HW-09LM03

HW-09LMA03

HW-12LM03

HW-12LMA03

Capacity(BTU)

9000

12000

Power input/ Rated power input (W)

980/1500

Current/Rated

current(A)

4.4/6.9 360

4.8/6.9 360

1250/1600 6.5/8.5

1300/1600 6.5/8.5

Note: All capacities are gross. Haier THERMOCOOL reserves the right to change specifications as part of its policy of continuous improvement.

Dehumidification Capacity(10.M/h)

1.0

1.2

Dimensions(indoor

unit) D*W*H(mm)

531X471X356

560X600X382

Net weight

(Kg)

12 Month

Guarantee

29.5

29.5 Yes

Yes

With 3 years warranty on all air- conditioner compressors, you have

peace of mind from the date of purchase

NATIONWIDE SALES AND SERVICES

MINNA,ILORIN,OSHOGBO,LOKOJA,

sales office

2719790
