Haier HSU-13LEA03-T User Manual

SPLIT TYPE ROOM AIR CONDITIONER

OPERATION MANUAL

HSU-05LEA03 HSU-07LEA03 HSU-09LEA03 HSU-12LEA03 HSU-18LEA03 HSU-22LEA03 HSU-24LEA03 HSU-102LD08 HSU-122LD08 HSU-182LD08 HSU-222LD08 HSU-09LEA13-W HSU-12LEA13-W HSU-18LEA13-W HSU-22LEA13-W HSU-09LEA03-T HSU-13LEA03-T

Please read this operation manual before using the air conditioner.

0010515137

Cautions

Disposal of the old air conditioner

Before disposing an old air conditioner that goes out of use, please make sure it's inoperative and safe. Unplug the air conditioner in order to avoid the risk of child entrapment.

It must be noticed that air conditioner system contains refrigerants, which require specialized waste disposal. The valuable materials contained in an air conditioner can be recycled .Contact your local waste disposal center for proper disposal of an old air conditioner and contact your local authority or your dealer if you have any question. Please ensure that the pipework of your air conditioner does not get damagedprior to being picked up by the relevant waste disposal center, and contribute to environmental awareness by insisting on an appropriate, anti-pollution method of disposal.

Disposal of the packaging of your new air conditioner

All the packaging materials employed in the package of your new air conditioner may be disposed without any danger to the environment.

The cardboard box may be broken or cut into smaller pieces and given to a waste paper disposal service. The wrapping bag made of polyethylene and the polyethylene foam pads

contain no fluorochloric hydrocarbon.

All these valuable materials may be taken to a waste collecting center and used again after adequate recycling.

Consult your local authorities for the name and address of the waste materials collecting centers and waste paper disposal services nearest to your house.

Safety Instructions and Warnings

Before starting the air conditioner, read the information given in the User's Guide carefully. The User's Guide contains very important observations relating to the assembly, operation and maintenance of the air conditioner.

The manufacturer does not accept responsibility for any damages that may arise due to non-observation of the following instruction.

Damaged air conditioners are not to be put into operation. In case of doubt, consult your supplier.

Use of the air conditioner is to be carried out in strict compliance with the relative instructions set forth in the User's Guide.

Installation shall be done by professional people, don't install unit by yourself.

For the purpose of the safety,the air conditioner must be properly grounded in accordance with specifications.

Always remember to unplug the air conditioner before openning inlet grill. Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

All electrical repairs must be carried out by qualified electricians. Inadequate repairs may result in a major source of danger for the user of the air conditioner.

Do not damage any parts of the air conditioner that carry refrigerant by piercing or performating the air conditioner's tubes with sharp or pointed items, crushing or twisting any tubes, or scraping the coatings off the surfaces. If the refrigerant spurts out and gets into eyes, it may result in serious eye injuries.

Cautions

Do not obstruct or cover the ventilation grille of the air conditoner.Do not put fingers or any other things into the inlet/outlet and swing louver.

Do not allow children to play with the air conditioner.In no case should children be allowed to sit on the outdoor unit.

Specifications

The refrigerating circuit is leak-proof.

The machine is adaptive in following situation

1.Applicable ambient temperature range:

32oC/23oC

18oC/14oC

43oC/26oC 18oC

Cooling

Indoor

Outdoor

Maximum:D.B/W.B Minimum:D.B/W.B

Maximum:D.B/W.B Minimum:D.B

7. The appliance is not intended for use by young children or infirm persons

without supervision.

8. Young children should be supervised to ensure that they do not play with the applience.

9.Please employ the proper power plug, which fit into the power supply cord.

10 .The power plug and connecting cable

must have acquired the local attestation.

11.In order to protect the units,please turn

off the A/C first, and at least 30 seconds later, cutting off the power.

2. If the power supply cord is damaged, it must be replaced by the manufacturer

or its service agent or a similar qualified person.

3. If the fuse of indoor unit on PC board is broken,please change it with the type of

T. 3.15A/ 250V.

4. The wiring method should be in line with the local wiring standard.

5. After installation, the power plug should be easily reached.

6. The waste battery should be disposed properly.

Cautions

Safety Instruction

Please read the following Safety Instructions carefully prior to use.

The instructions are classified into two levels, WARNING and CAUTION according to the seriousness of possible risks and damages as follows. Compliance to the instructions are strictly required for safety use.

Installation

WARNING

Please call Sales/Service Shop for the Installation.

Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage.

lnstallation in a inadequate place may cause accidents. Do not install in the following place.

CAUTION

Connect the earth cable.

earthing

Do not install in the place where there is any possibility of inflammable gas leakage around the unit.

PROHIBITION PROHIBITION

Do not get the unit exposed to vapor or oil steam.

Check proper installation of the drainage securely

STRICT ENFORCEMENT

Cautions

When abnormality such as burnt-small found, immediately stop the operation button and contact sales shop.

WARNING

Use an exclusive power source with a circuit breaker

OFF

Connect power supply cord to the outlet completely

STRICT

ENFORCEMENT

Do not use power supply cord in a bundle.

PROHIBITION

Do not start or stop the operation by disconnecting the power supply cord and so on.

PROHIBITION

Do not use for the purpose of storage of food, art work, precise equipment, breeding, or cultivation.

STRICT

ENFORCEMENT

Use the proper voltage

STRICT

ENFORCEMENT

Take care not to damage

the power supply cord.

PROHIBITION

Do not channel the air flow directly at people, especially at infants or the aged.

PROHIBITION

CAUTION

Take fresh air occasionally especially when gas appliance is running at the same time.

Do not use power supply cord

extended or connected in halfway

PROHIBITION

Do not insert objects into the air inlet or outlet.

PROHIBITION

Do not try to repair or reconstruct by yourself.

Do not operate the switch with wet hand.

PROHIBITION

Do not install the unit near a fireplace or other heating apparatus.

PROHIBITION

Do not place animals or plants in the direct path of the air flow

PROHIBITION

STRICT

ENFORCEMENT

Check good condition of the installation stand

PROHIBITION

Do not place any objects on or climb on the unit.

PROHIBITION

Do not pour water onto the unit for cleaning

PROHIBITION

Do not place flower vase or water containers on the top of the unit.

PROHIBITION

Parts and Functions

Indoor Unit

Display board

Inlet

Air Purifying Filter

(inside)

Inlet grille

Horizontal flap (adjust up and down air flow. Don't adjust it manually)

Outlet

Air filter(inside)

Power plug

Anion generator

(inside)

Vertical blade

(adjust left and right air flow)

Actual inlet grille may vary from the one shown in the manual according to the product purchased

For 22k unit, the power plug is on the outdoor unit

Outdoor Unit

HSU-05LEA03 HSU-07LEA03

HSU-09LEA03 HSU-102LD08 HSU-09LEA13-W HSU-12LEA13-W

OUTLET

INLET

HSU-09LEA03-T HSU-13LEA03-T HSU-12LEA03 HSU-18LEA03 HSU-122LD08 HSU-182LD08 HSU-18LEA13-W

CONNECTING PIPING AND ELECTRICA

DRAIN HOSE

HSU-22LEA03 HSU-24LEA03 HSU-222LD08 HSU-22LEA13-W

L WIRING

Parts and Functions

Remote controller

2 3

A U T O

ON/OFF

MODE SET

FAN

SWING

SLEEP

HEALTH

LOCK RESET

1. Operation mode display

Operation mode

Remote controller

Display board

2. SWING display

3. FAN SPEED display

4. HEALTH display

5. SLEEP display

6. LOCK display

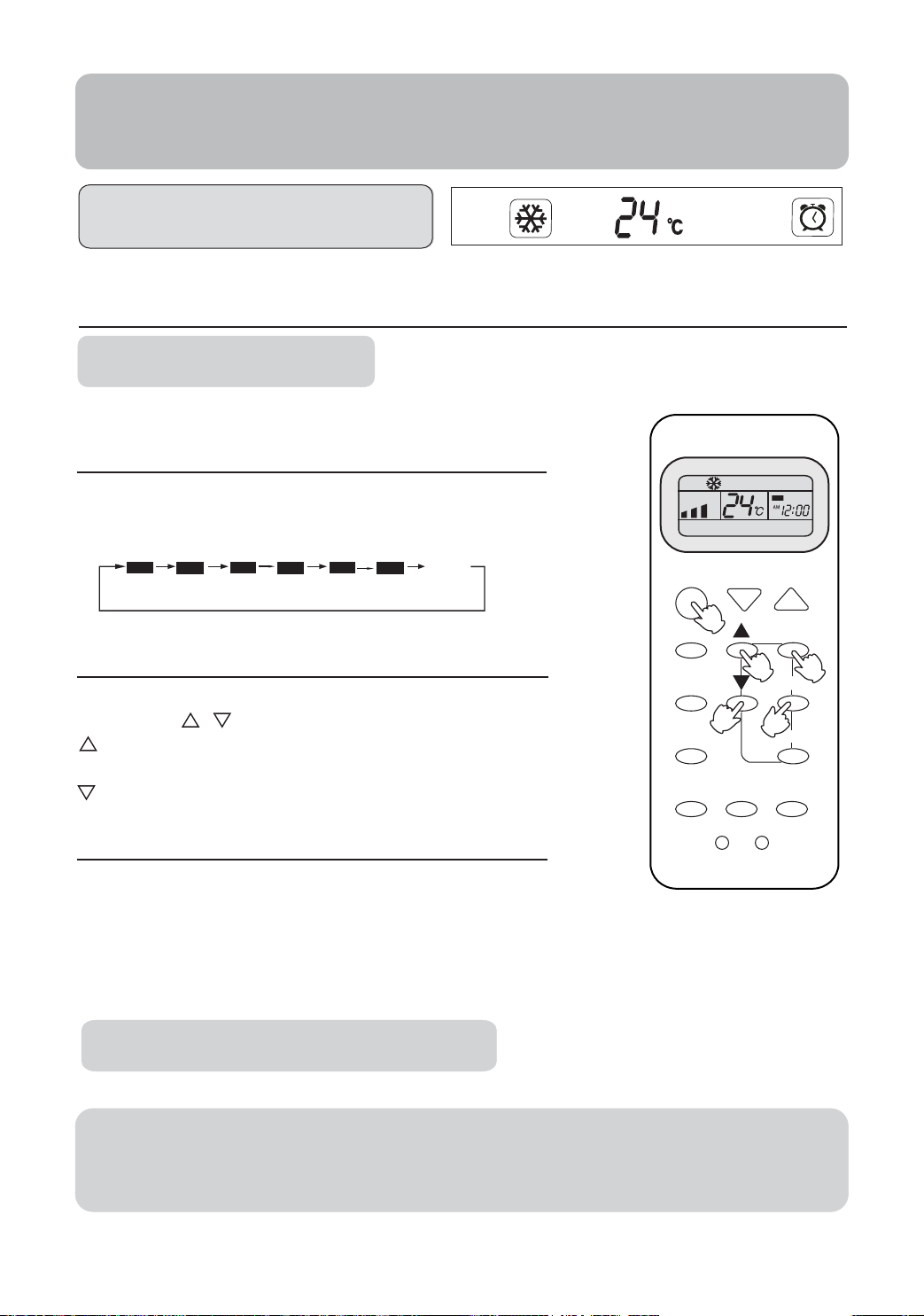

Clock set

TEMP

TIMER

CLOCK

AUTO

ON OFF

COOL DRY

Display board

7 8

FAN

LO MED HIAUTO

7. SIGNAL SENDING display

8. TIMER OFF display

9. TIMER ON display

10. CLOCK display

11. TEMP display

12. POWER ON/OFF

Used for unit start and stop.

13. MODE

Used to select

14. FAN

Used to select fan speed LO, MED, HI, AUTO

15. HOUR

Used to set clock and timer setting.

16. SWING

Used to set auto fan direction.

17. SLEEP

Used to select sleep mode.

18. LOCK

Used to lock buttons and LCD

19. TEMP.

Used to select your desired temp.

20. SET

Used to confirm timer and clock settings.

21. TIMER

Used to select TIMER ON, TIMER OFF, TIMER ON-OFF

22. CLOCK

Used to set correct time

23. RESET

Used to reset the controller back to normal condition.

24. HEALTH

Used to operate the healthy function

25.

Singal receiver hole

26. Ambient temp.display

When receiving the remote control signal, display the set temperature and in the rest time the room temperature is displayed and this room temperature is only for reference.

AUTO run, COOL,

DRY and FAN operation

display.

When unit is started for the first time and after replacing batteries in remote controller, clock should be adjusted as follows: Press CLOCK button, "AM" or "PM" flashes. Press or to set correct time. Each press will increase or decrease 1min. If the button is kept depressed, time will change quickly. After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock starts working.

NOTE: Cooling only unit do not have displays and functions related with heating

Hints

After replacing with new batteries, remote controller will conduct self-check, displaying all information on LCD. Then, it will become normal.

Parts and Functions

If the unit which you purchased has not healthy function, Remote controller should

like the following figure:

Remote controller

2 3

1. Operation mode display

Operation mode

Remote controller

Display board

2. SWING display

3. FAN SPEED display

5. SLEEP display

6. LOCK display

A U T O

ON/OFF

MODE SET

FAN

SWING

SLEEP

LOCK RESET

AUTO

ON OFF

TEMP

TIMER

CLOCK

COOL DRY

Display board

7 8

FAN

LO MED HIAUTO

7. SIGNAL SENDING display

8. TIMER OFF display

9. TIMER ON display

10. CLOCK display

11. TEMP display

12. POWER ON/OFF

Used for unit start and stop.

13. MODE

Used to select

14. FAN

Used to select fan speed LO, MED, HI, AUTO

15. HOUR

Used to set clock and timer setting.

16. SWING

Used to set auto fan direction.

17. SLEEP

Used to select sleep mode.

18. LOCK

Used to lock buttons and LCD

19. TEMP.

Used to select your desired temp.

20. SET

Used to confirm timer and clock settings.

21. TIMER

Used to select TIMER ON, TIMER OFF, TIMER ON-OFF

22. CLOCK

Used to set correct time

23. RESET

Used to reset the controller back to normal condition.

24.

Singal receiver hole

25. Ambient temp.display

When receiving the remote control signal, display the set temperature and in the rest time the room temperature is displayed and this room temperature is only for reference.

AUTO run, COOL,

display.

DRY and FAN operation

Clock set

NOTE: Cooling only unit do not have displays and functions related with heating

Hints:

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

Operation

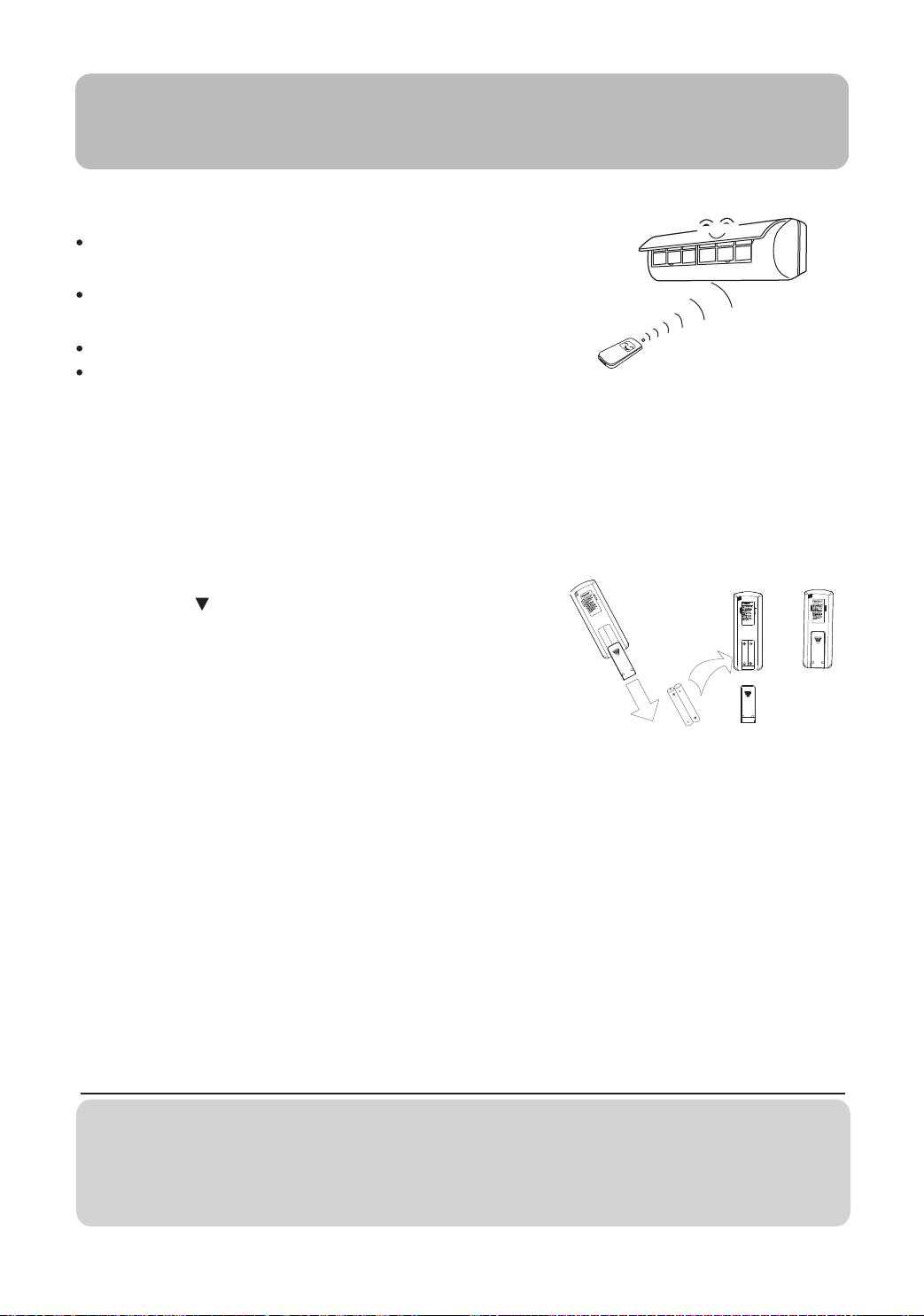

Remote controller's operation

When in use, put the signal transmission head directly to the receiver hole on the indoor unit.

The distance between the signal transmission head and the receiver hole should be within 7m without any obstacle as well.

Don't throw the controller, prevent it from being damaged.

When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless telephone is installed in the

room, the receiver is apt to be disturbed in receivering the signals so the distance to the indoor unit should be shorter.

Loading of the battery

Load the batteries as illustrated. 2 R-03 batteries, resetting key (cylinder)

Remove the battery cover:

Slightly press " " and push down the cover.

Load the battery:

Be sure that the loading is in line with the" + "/"-" pole request as illustrated.

Put on the cover again Confirmation indicator:

In disorderation, reload the batteries or load the new batteries after 6mins.

Note:

Use two new same-typed batteries when loading. If the remote controller can't run normally or doesn't work at all, use a sharp pointed item to press the reset key.

Hint:

Remove the batteries in case unit won't be in usage for a long period. If there are any display after taking-out just need to press reset key.

Power failure resume(please set and apply as necessary)

If sudden power failure occurs, the unit will resume original operation when power is

supplied again.

Note:

When sudden power failure happens during unit operation in power failure resume mode, if

the air conditioner is not desired for use in a long period, please shut off the power

supply in case that the unit automatically resume operation when power is re-supplied,

or press ON/OFF to turn off the unit when power resumes.

Operation

Auto Operation

(1) Unit start

Press ON/OFF on the remote controller, unit starts .

(2) Select operation mode

Press MODE button. For each press, operation mode changes as follows:

Remote controller:

AUTO COOL DRY FAN

Then

(3) Fan speed selection

Press FAN button. For each press, fan speed changes as follows:

Remote controller:

Air conditioner is running under displayed fan speed.

Select Auto operation

LO MED HIAUTO

ON/OFF TEMP

MODE

FAN

SET

TIMER

CLOCKSWING

When FAN is set to AUTO, the air conditioner

SLEEP

automatically adjusts the fan speed according to room

HEALTH

temperature.

LOCK

RESET

(4)Unit stop

Press ON/OFF button, the unit stops.

Hints

Remote controller can memorize settings in each operation mode. To run it next time just select the operation mode and it will start with the previous setting. No reelecting is needed.(TIMER ON/OFF、SLEEP、SWING needs reelecting)

Cautions: Note:

On cooling only unit, heating mode is not available, The above information is the After replacing batteries, press ON/OFF, and display explanation of the displayed becomes as follows: information therefore varies Operation mode: AUTO, Temp. :No with those displayed in actual

operation.

Operation

Cool Operation

(1) Unit start

Press ON/OFF button, unit starts. Previous operation status appears on display.(Not Timer setting)

(2) Select operation mode

Press MODE button. For each press, operation mode changes as follows:

AUTO COOL DRY FAN

Unit will run in operation mode displayed on LCD. Stop display at your desired mode.

(3) Select temp. setting

Press TEMP button.

Every time the button is pressed, temp. setting increases 1oC Every time the button is pressed, temp. setting decreases 1oC

Unit will start running to reach the temp. setting on LCD.

(4) Fan speed selection

Press FAN button. For each press, fan speed changes as follows:

Remote controller:

AUTO LO MED HI

Air conditioner is running under displayed fan speed. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.

ON/OFF TEMP

MODE

SLEEP

LOCK

FAN

CLOCKSWING

HEALTH

SET

TIMER

RESET

(5) Unit stop

Press ON/OFF button, the unit stops.

Hints

On cooling only unit, heating mode is not available. Remote controller can memorize each operation status. When starting it next time, just press ON/OFF button and unit will run in previous status.

No reelecting is needed.(TIMER ON/OFF、SLEEP、SWING needs reelecting)

Operation

Dry Operation

(1) Unit start

Press ON/OFF button, unit starts. Previous operation status appears on display.(Not Timer setting)

(2) Select operation mode

Press MODE button. For each press, operation mode changes as follows:

ON/OFF TEMP

AUTO COOL DRY FAN

Unit will run in operation mode displayed on LCD. Stop display at your desired mode.

(3) Select temp. setting

Press TEMP button.

Every time the button is pressed, temp. setting increases 1oC Every time the button is pressed, temp. setting decreases 1oC

Unit will start running to reach the temp. setting on LCD.

(4) Fan speed selection

Press FAN button. For each press, fan speed changes as follows:

AUTO LO MED HI

Unit runs at the speed displayed on LCD. In DRY mode, when room temperature becomes lower than temp.setting+2oC,unit will run intermittently at LOW speed regardless of FAN setting.

MODE

SLEEP

LOCK

COOL operation starts when room temp. is higher than temp. setting.

Temp. setting+2oC

Temp. setting

On reaching temp. setting, unit will run in mild DRY mode.

FAN

HEALTH

SET

TIMER

CLOCKSWING

RESET

Ultra-low air flow

(5)Unit stop

Press ON/OFF button, the unit stops.

Hints

On cooling only unit, heating mode is not available. Remote controller can memorize each operation status. When starting it next time, just press ON/OFF button and unit will run in previous status.

No reelecting is needed.(TIMER ON/OFF、SLEEP、SWING needs reelecting)

Operation

Fan Operation

(1) Unit start

Press ON/OFF button, unit starts.

Previous operation status appears on display.(Not Timer setting)

(2) Select operation mode

Press MODE button. For each press, operation

mode changes as follows:

AUTO COOL DRY FAN

ON/OFF TEMP

MODE

SET

Unit will run in operation mode displayed on LCD.

Stop display at your desired mode.

(3) Fan speed selection

Press FAN button. For each press, fan speed changes as follows:

LO MED HI

Unit runs at the speed displayed on LCD.

(4) Unit stop

Press ON/OFF button, the unit stops.

Hints

In FAN operation mode, the unit will not operate in

AUTO is not available in FAN mode.And temp.setting is disabled.

In FAN mode,SLEEP operation is not available.

COOL mode but only in FAN mode ,

FAN

SLEEP

LOCK

TIMER

CLOCKSWING

HEALTH

RESET

Operation

ON/OFF TEMP

SET

TIMER

CLOCKSWING

SLEEP

LOCK

RESET

FAN

MODE

HEALTH

Air Flow Direction Adjustment

1.Status display of air sending

Horizontal flap

( Cool/Dry standard position)

Pos.1

( Upward swing )

Pos.2

Pos.3

( Downward swing )

Pos.4

( Auto swing )

Remote controller

Blank

2.Up and down air flow direction(Use remote controller)

For each press of SWING button, air flow direction on remote

controller display as follows according to different operation modes:

Pos.1 Pos.2 Pos.3 Pos.4

The horizontal flap

3.Left and right air flow adjustment

Move the vertical blade by a knob on air

conditioner to adjust left and right direction referring to Fig.

will

swing according to the above positions

(manual)

Cautions:

Do not try to adjust the flap by hand.

When adjusting the flap by hand,turn off the unit ,and use the remote controller to restart the unit.

When humidity is high,condensate water might occur at air outlet if all vertical louvers are adjusted to left or right.

It is advisable not to keep horizontal flap at downward position for a long time in COOLor DRY mode ,otherwise, condensate water might occur..

Hints

As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more

helpful for a better air circulation.

Operation

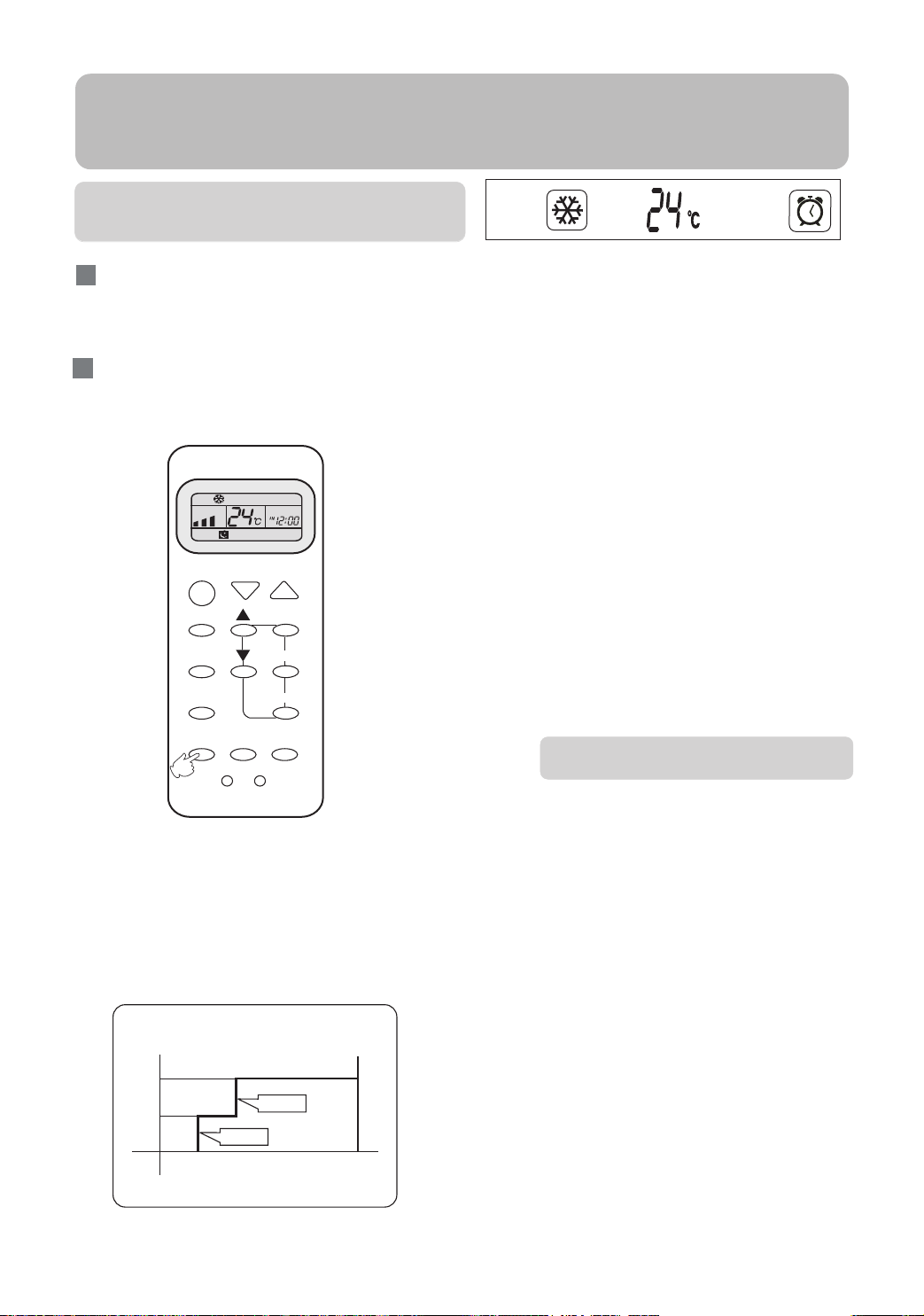

Comfortable SLEEP

Operation

Before going to bed, you can simply press the SLEEP button and unit will operate in SLEEP mode and bring you a sound sleep.

Use of SLEEP function

After the unit starts, set the operation status, then press SLEEP button before which the clock must be adjusted and time being set.

ON/OFF TEMP

MODE

FAN

SET

TIMER

CLOCKSWING

In AUTO mode

The unit operates in corresponding sleep mode adapted to the automatically selected

operation mode.

3. In FAN mode

It has no SLEEP function.

When TIMER function is set, the sleeping function

can't be set up .After the sleeping function is set up, if user resets TIMER function, the sleeping function will be cancelled; the machine will be in the state of

timing-on.

5.Note to the power failure resume:

press the sleep button ten times in five seconds and enter this function after hearing four sounds. And press the sleep button ten times within five seconds and leave this function after hearing two sounds.

HEALTH

SLEEP

LOCK

RESET

Operation Mode

1. In COOL,DRY mode

1 hours after SLEEP mode starts, temp. will become 1OC higher than temp. setting. After another 1 hours, temp. rises by 1OC further.

The unit will run for further 6 hours then stops. Temp. is higher than temp. setting so that room

temperature won't be too Iow for your sleep.

SLEEP operation starts SLEEP operation stops

Approx.6hrs

Rises 1OC

1 hr

Rises 1OC

1 hr

Temp.setting

In COOL, DRY mode

Unit stop

Power Failure Resume Function

If the unit is started for the first time, the compressor will not start running unless 3

minutes have elapsed. When the power resumes after power failure, the unit will run automatically, compressor starts running.

and 3 minutes later the

Operation

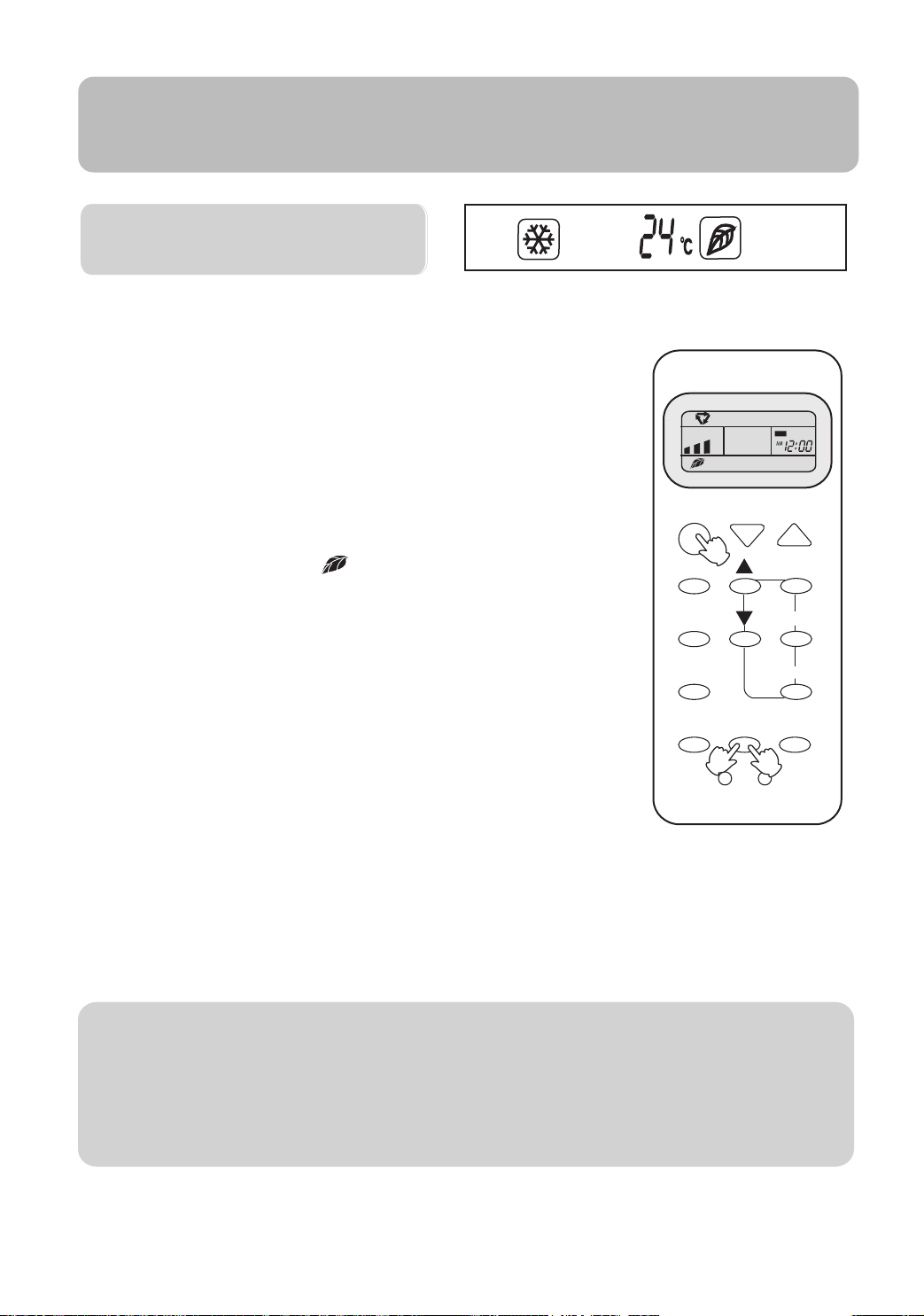

HEALTH Operation

1.Unit start

Press the ON/OFF switch

2.Health anion function

Press the " HEALTH"once, " " is displayed, now the

air conditioner is operating the healthy function.

3.To Cancel HEALTH Model

Press the " HEALTH"again, then the healthy function

stops.

ON/OFF TEMP

MODE

FAN

CLOCKSWING

HEALTH

SLEEP

LOCK

SET

TIMER

RESET

Brief introduction to health anion function

The anio n generat o r in the air c ondition e r c a n generat e a l ot o f anion effe c t ive l y balan c e the qua n tity of po sition an d anion in the ai r and al s o to kill ba c t eria an d speed up the du s t sedim e n t i n the ro o m and fin a l ly c lean the air in t h e r o om.

Operation

Timer On/Off Operation

Set Clock correctly before starting Timer operation

You can let unit start or stop automatically at following times: Before you wake up in the morning, or get back from outside or after you fall asleep at night.

TIMER ON/OFF

(1)After unit start, select your desired operation mode.

Operation mode will be displayed on LCD.

(2)TIMER mode selection

Press TIMER button to change TIMER mode. Every time the button is pressed, display changes as follows:

OFF

12:00AM12:00

TIMER ON TIMER OFF

OFF

12:00

TIMER ON-OFF

12:00

TIMER ON-OFF

OFF

blank

Select your desired TIMER mode (TIMER ON or TIMER

OFF) ON or OFF will flash.

(3)Timer setting

Press HOUR / button.

Every time the button is pressed, time increases 10 min.

If button is kept depressed, time will change quickly.

Every time the button is pressed, time decreases 10 min.

If button is kept depressed, time will change quickly. Time will be shown on LCD. It can be adjusted within 24 hours.

(4)Confirming your setting

After setting correct time, press SET button to confirm, "ON" or "OFF" stops flashing Time displayed: Unit starts or stops at x hour x min. (TIMER ON or TIMER OFF). Timer mode indicator on indoor unit lights up.

ON/OFF TEMP

MODE

HEALTH

CLOCKSWING

FAN

SLEEP

LOCK

SET

TIMER

RESET

To cancel TIMER mode

Just press TIMER button several times until TIMER mode disappears.

Hints

After replacing batteries or a power failure happens, Time setting should be reset. Remote controller possesses memory function, when use TIMER mode next time, just press SET button after mode selecting if timer setting is the same as previous one.

Operation

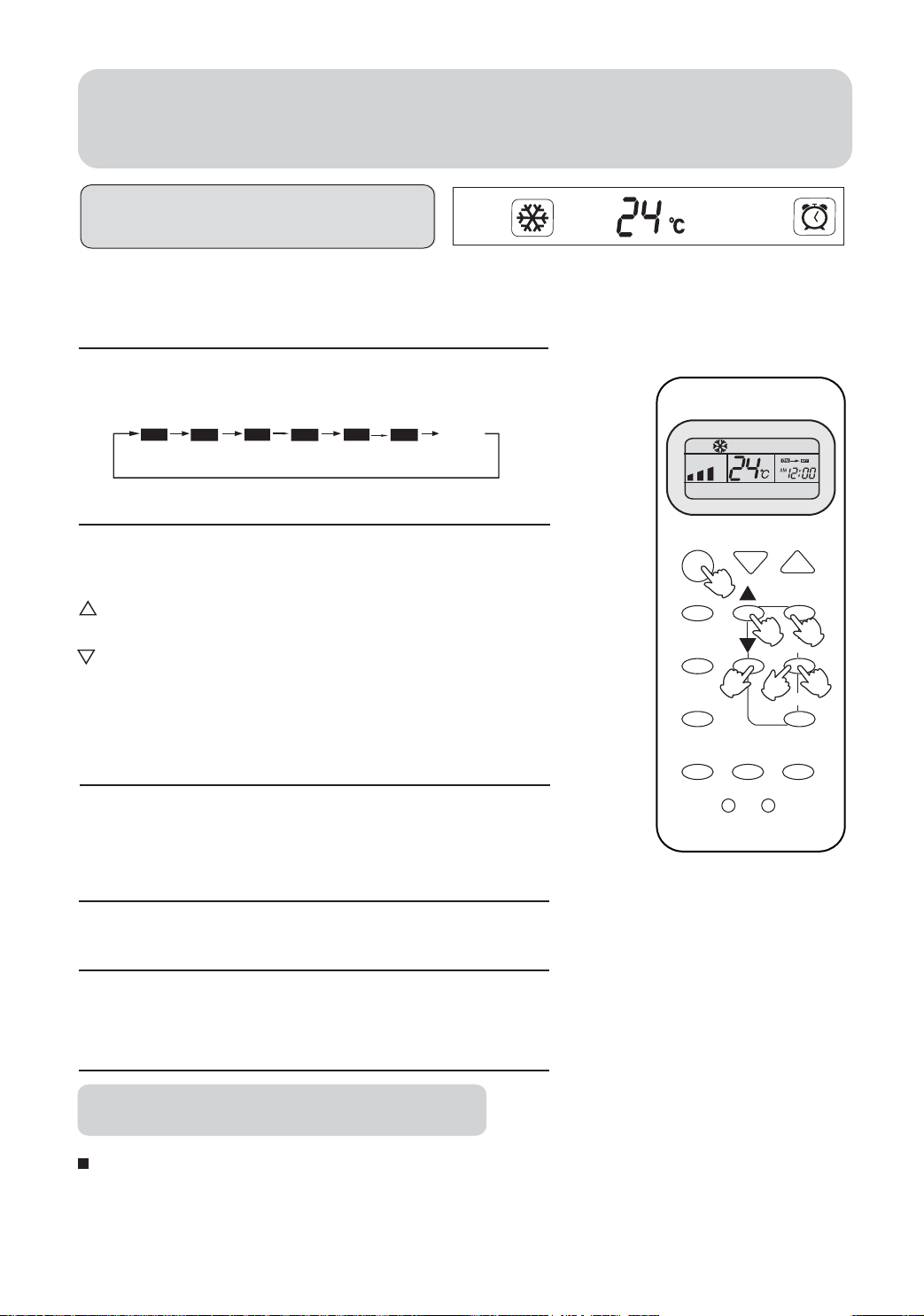

Timer On-Off Operation

(1)After unit start, select your desired operation mode Operation mode will be displayed on LCD.

(2) Press TIMER button to change TIMER mode.

Every time the button is pressed, display changes as follows:

OFF

12:00AM12:00

TIMER ON TIMER OFF

OFF

12:00

TIMER ON-OFF

OFF

12:00

TIMER ON-OFF

blank

Select TIMER ON-OFF. "ON" will flash.

(3)Time setting for TIMER ON

Press HOUR button.

Every time the button is pressed, time increases 10 min.

If button is kept depressed, time will change quickly.

Every time the button is pressed, time decreases 10 min.

If button is kept depressed, time will change quickly.

Time will be shown on LCD. It can be adjusted within 24 hours. AM refers to morning and PM to afternoon

(4) Time confirming for TIMER ON

After time setting, press TIMER button to confirm. "ON" stops blinking, While "OFF" starts blinking. Time displayed: Unit starts at x hour x min.

(5)Time setting for TIMER OFF

Follow the same procedures in "Time setting for TIMER ON".

ON/OFF TEMP

MODE

HEALTH

CLOCKSWING

FAN

SLEEP

LOCK

SET

TIMER

RESET

(6) Time confirming for TIMER OFF

After time setting, press SET button to confirm, "OFF" stops flashing

Time displayed: Unit stops at X hour X min.

To cancel TIMER mode

Just press TIMER button several times until TIMER mode disappears.

Operation

After 30 minutes, test operation ends automatically(Only for 22K or 24k unit).

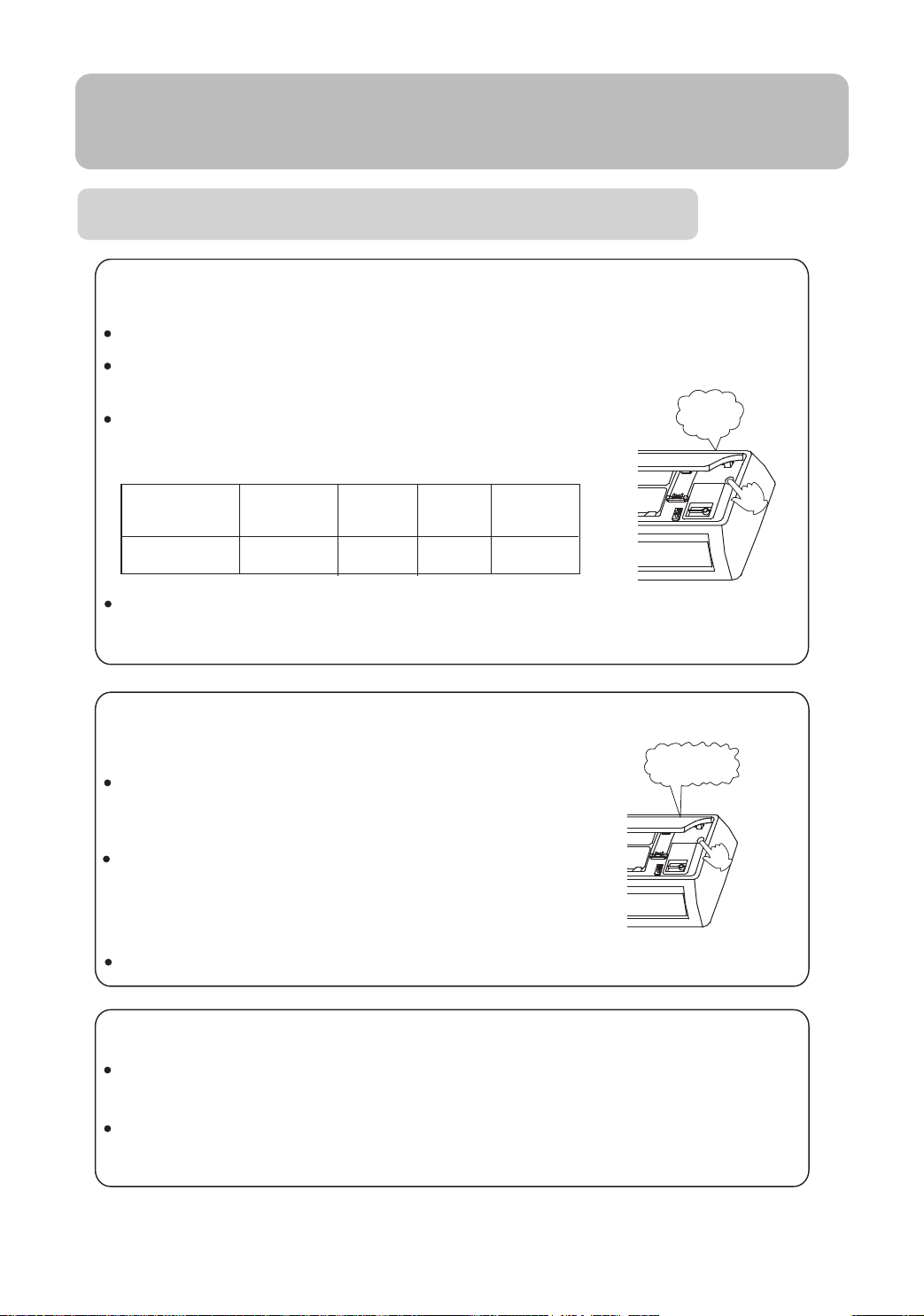

Emergency operation and test operation

Emergency Operation:

Use this operation only when the remote controller is defective or lost.

When the emergency operation switch is pressed, the " Pi "sound is heard once, which means the start of this operation.

In this operation, the system automatically selects the operation modes, cooling or heating, according

to the room temperature:

Room temperature

ABOVE 23oC 26oC AUTO COOLING

It is impossible to change the settings of temp.and fan

speed,It is also not possible to operate in timer or dry mode.

Designated

temperature

Timer mode

Fan

speed

Operation mode

Test operation:

Test operation switch is the same as emergency switch.

Use this switch in the test operation when the room temperature is below 16oC, do not use it in the normal operation. Continue to press the test operation switch for more than 5 seconds. After you hear the "Pi" sound twice, release your finger from the switch: the cooling operation starts with the air flow speed "Hi".

Pi Pi

Removal of the restriction of emergency or test operation:

Press the emergency operation switch once more, or manipulate through the remote controller; the "Pi" sound, the emergency or test operation is terminated.

When the remote controller is manipulated, it gets the system back to the normal operation mode.

Maintenance

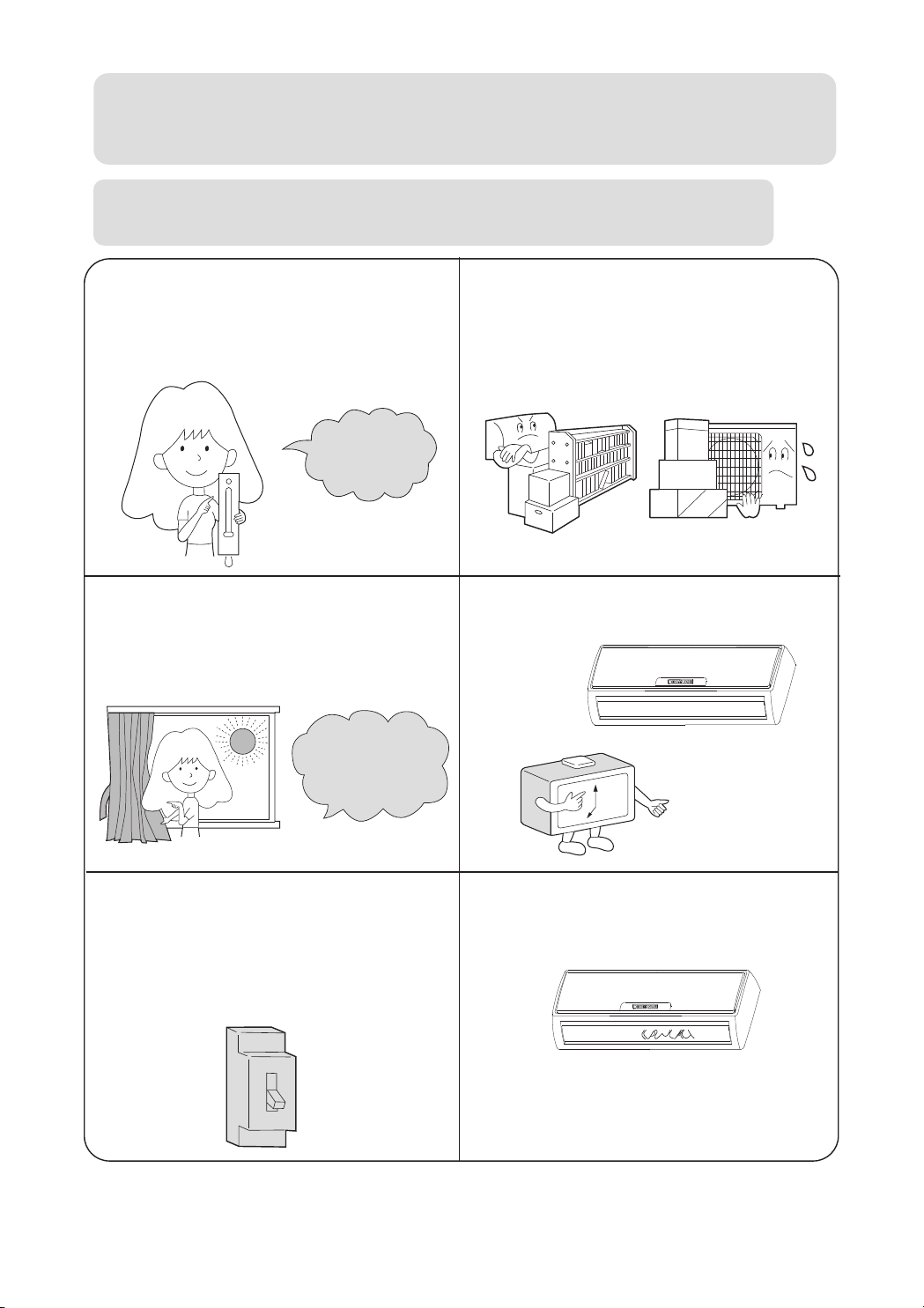

For Smart Use of The Air Conditioner

Setting of proper room temperature

Proper temperature

Close doors and windows during operation

During cooling operation prevent the penetration of direct sunlight with curtain or blind

Do not block the air inlet or outlet

Use the timer effectively

If the unit is not to be used for a long time, turn off the power supply main switch.

OFF

Use the louvers effectively

Maintenance

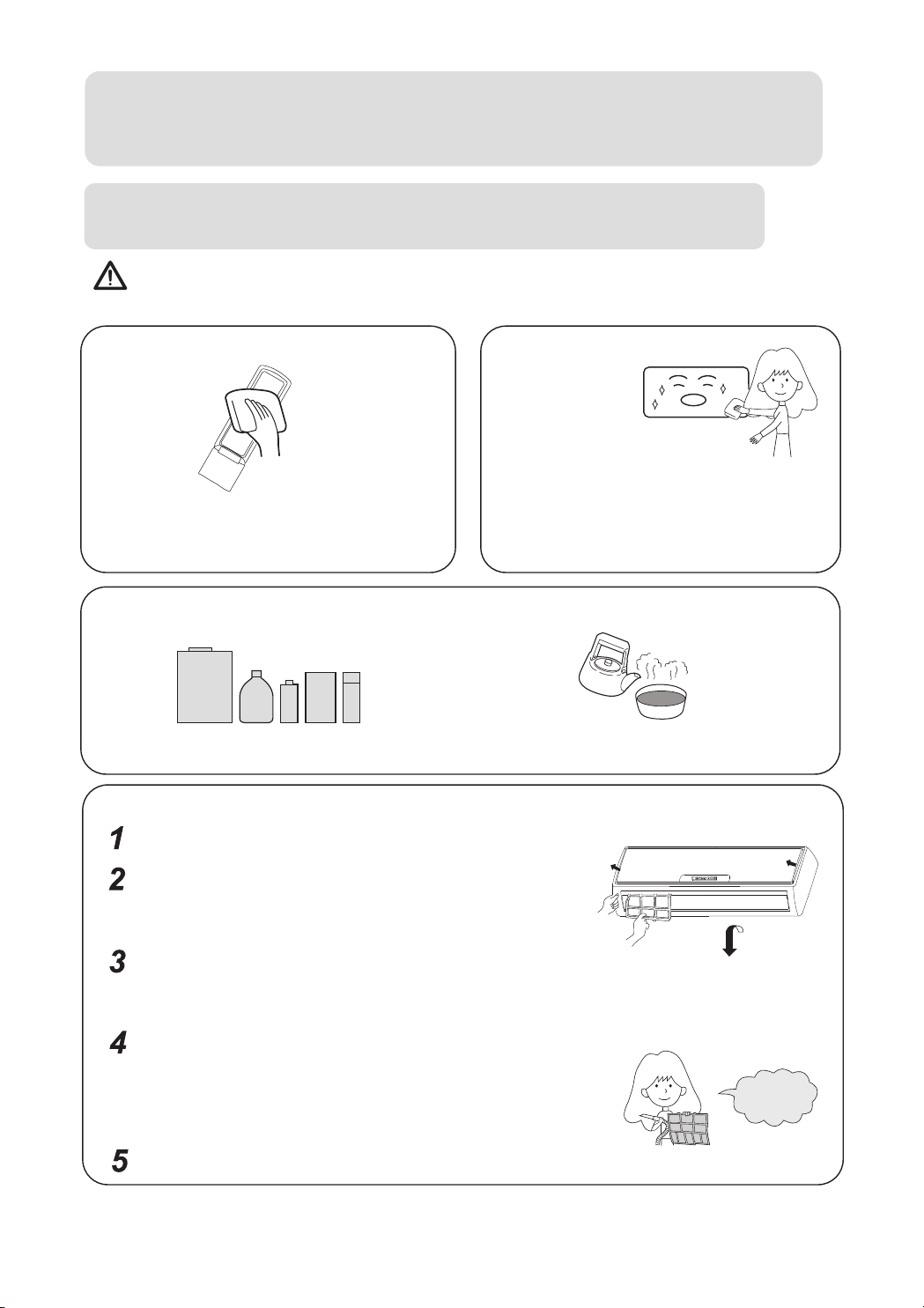

For Smart Use of The Air Conditioner

WARNING

Before maintenance,be sure to turn off the system and the circuit breaker.

Remote Controller

Do not use water ,wipe the controller with a dry cloth.Do not use glass cleaner or chemical cloth.

Do not use the following for cleaning

Gasoline,benzine, thinner or cleanser may damage the coating of the unit.

Air Filter cleaning

Open the inlet grille by pulling it upward.

Indoor Body

Wipe the air conditioner by using a soft and dry cloth.For serious stains,use a neutral detergent diluted with water.Wring the water out of the cloth before wiping.then wipe off the detergent completely.

Hot water over 40OC(104OF) may cause discoloring or deformation.

Remove the filter.

Push up the filter's center tab slightly until it is released from the stopper, and remove the filter downward.

Clean the filter.

Use a vacuum cleaner to remove dust, or wash the filter with water.After washing, dry the filter completely in the shade.

Attach the filter.

Attach the filter correctly so that the "FRONT" indication is facing to the front.Make sure that the filter is completely fixed behind the stopper.If the right and left filters are not attached correctly, that may cause defects.

Close the inlet grille.

Once every two weeks

Maintenance

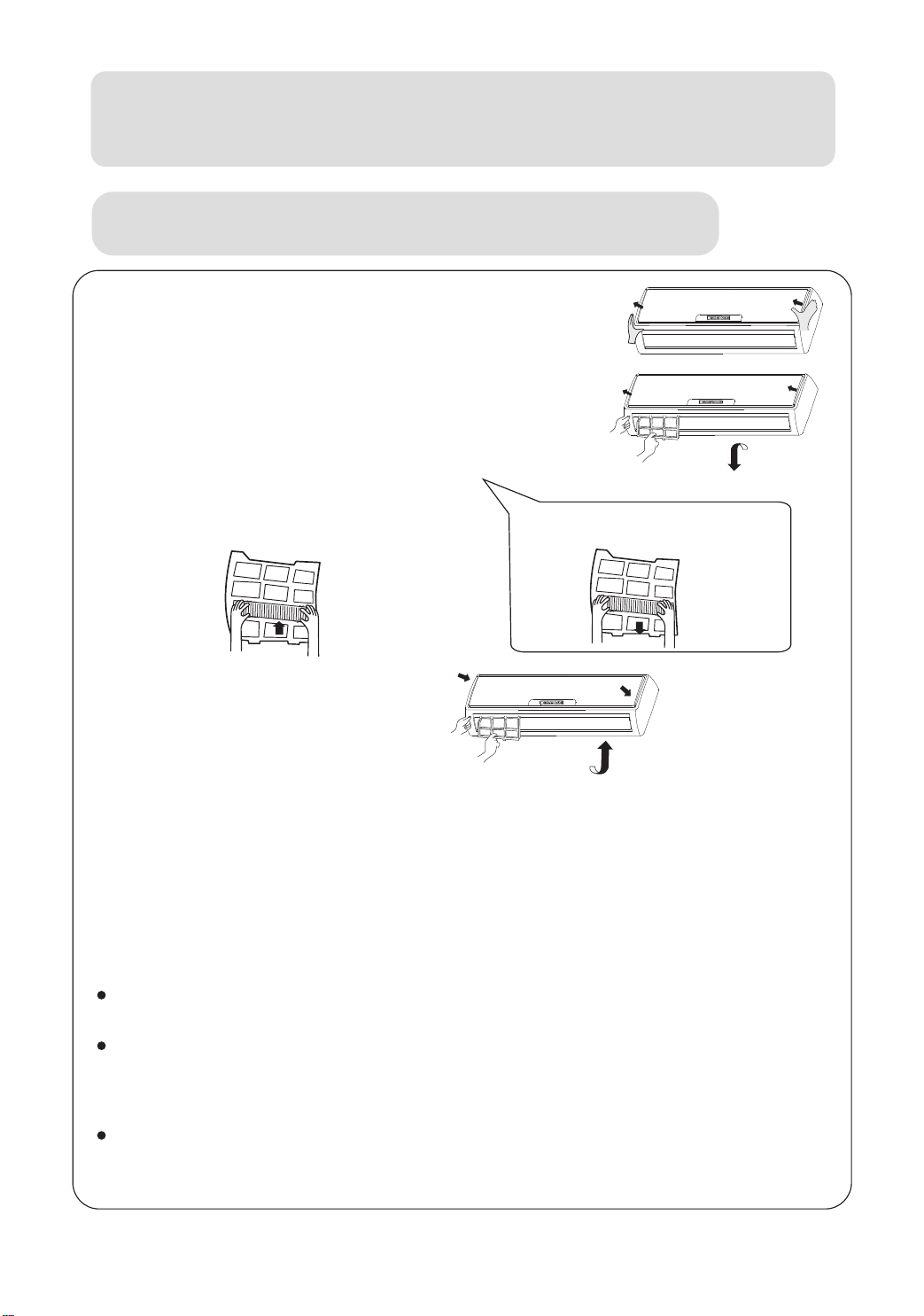

Replacement of Air Purifying Filter

1.Open the lnlet Grille

Prop up the inlet grille by using a small device named grille-support which located in the right side of the indoor unit.

2.Detach the standard air filter

Slide the knob slightly upward to release the filter, then withdraw it.

3.Attach Air Purifying Filter

Put air purifying filter appliances into the right and left filter frames.

Detach old Air Purifying Filter

4.Attach the standard air filter

(Necessary installation)

ATTENTION:

The white side of the photocatalyst air purifying filter face outside, and the black side face the unit. The green side of the bacteria-killing medium air purifying filter face outside,

and the white side face the unit.

5.Close the Inlet Grille

Close the Grille surely

NOTE:

The photocatalyst air purifying filter will be solarized in fixed time. In normal family, it will be solarized every 6 months.

The bacteria-killing medium air purifying filter will be used for a long time,no need for replacement. But in the period of using them ,you should remove the dust frequently by using vacuum cleaner or flaping them lightly,otherwise ,its performance will be

affected.

Please keep the bacteria-killing medium air purifying filter in the cool and dry conditions avoid long time directly sunshine when you stop using it,or its ability of sterilization will be reduced.

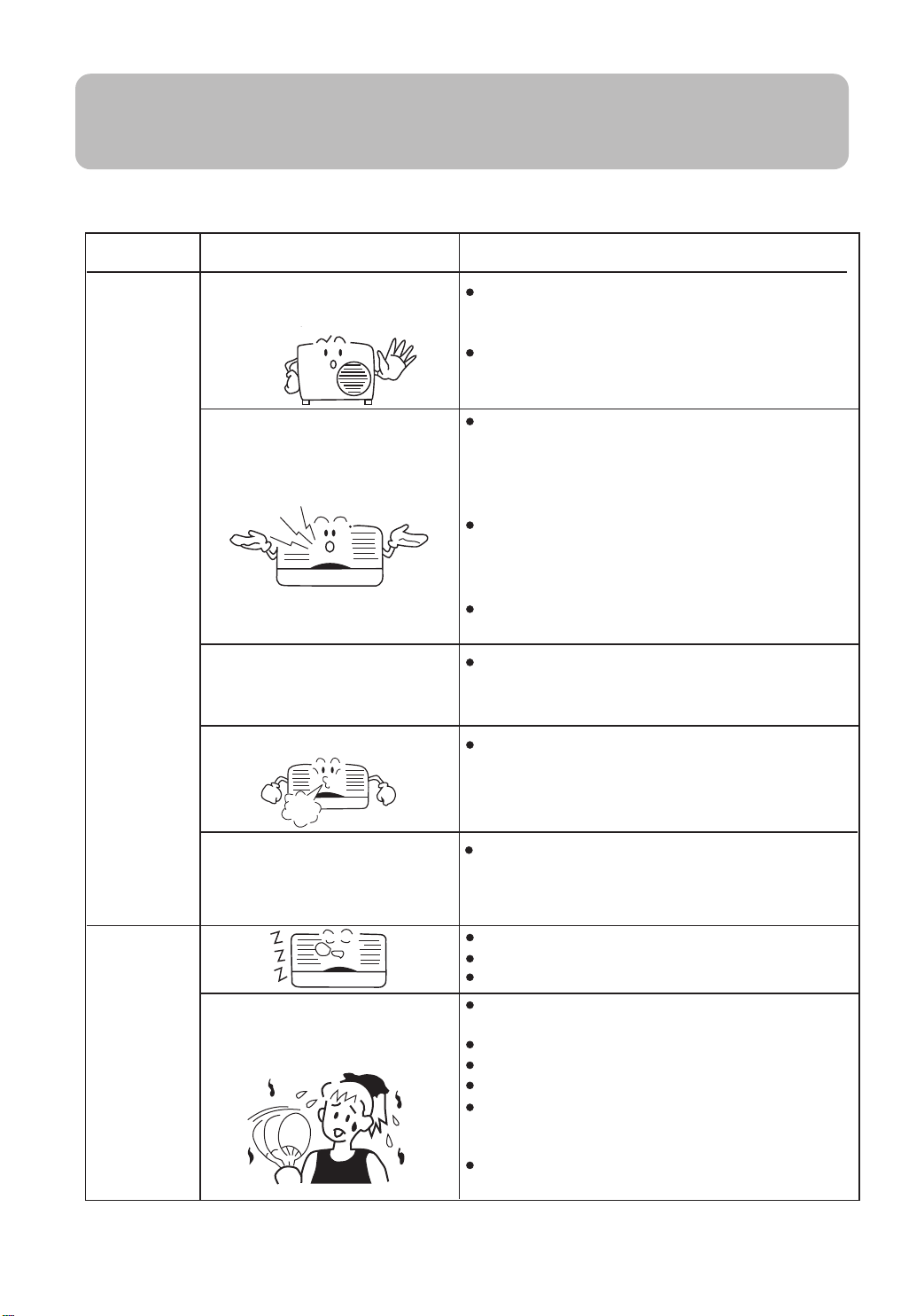

Trouble shooting

Before asking for service, check the following first.

Normal Performance inspection

Phenomenon

The system does not restart immediately.

Noise is heard

Smells are generated.

Mist or steam are blown out.

Cause or check points

When unit is stopped, it won't restart immediately until 3 minutes have elapsed to protect the system. When the electric plug is pulled out and reinserted, the protection circuit will work for 3 minutes to protect the air conditioner.

During unit operation or at stop, a swishing or gurgling noise may be heard. At first 2-3 minutes after unit start, this noise is more noticeable. (This noise is generated by refrigerant flowing in the system.) During unit operation, a cracking noise may be heard. This noise is generated by the casing expanding or shrinking because of temperature changes Should there be a big noise from air flow in unit operation, air filter may be too dirty.

This is because the system circulates smells from the interior air such as the smell of furniture, paint, cigarettes.

During COOL or DRY operation, indoor unit may blow out mist. This is due to the sudden cooling of indoor air.

In dry mode,

speed can’t be changed.

Multiple

check

Application temp. range of air conditioner -7oC~43oC.

Poor cooling

fan

In DRY mode, when room temperature becom-

es lower than temp.setting+2oC,unit will run

intermittently at LOW speed regardless of FAN

setting.

Is power plug inserted? Is there a power failure? Is fuse blownout?

Is the air filter dirty? Normally it should be cleaned every 15 days. Are there any obstacles before inlet and outlet? Is temperature set correctly? Are there some doors or windows left open? Is there any direct sunlight through the window during the cooling operation?(Use curtain) Are there too much heat sources or too many people in the room during cooling operation?

Haier HSU-13LEA03-T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
