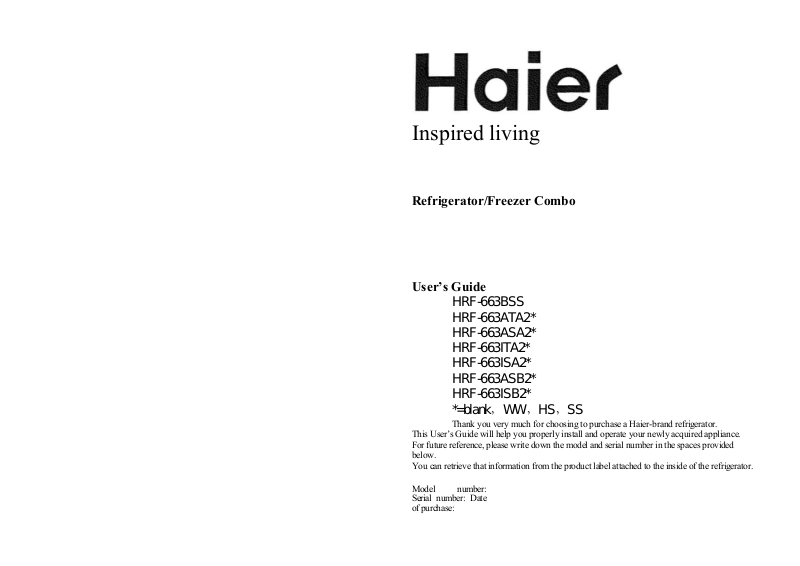

Page 1
Inspired living
Refrigerator/Freezer Combo
User’s Guide
HRF-663BSS
HRF-663ATA2*
HRF-663ASA2*
HRF-663ITA2*
HRF-663ISA2*
HRF-663ASB2*
HRF-663ISB2*
*=blank，WW，HS，SS
Thank you very much for choosing to purchase a Haier-brand refrigerator.
This User’s Guide will help you properly install and operate your newly acquired appliance.
For future reference, please write down the model and serial number in the spaces provided
below.
You can retrieve that information from the product label attached to the inside of the refrigerator.
Model number:
Serial number: Date
of purchase:
Page 2
Contents
Before operation
Your refrigerator’s features................................................1
Components.......................................................................2
Precautions .................................................................... 3-5
Preparations....................................................................6-9
Door removal............................................................. ..10-11
Setting up the Refrigerator/Freezer Combo.................... .12
Start-up........................................................................... .13
Digital display operation........................................... 14-16
Notes on the refrigerator compartment
Refrigerator compartment.......................................... 17-19
Notes on refrigeration..................................................... 20
Tips on refrigeration........................................................... 21
Home bar.................................................................. 22-23
Notes on the freezer compartment
Freezer compartment..................................................... 2A
Notes on freezing ..........................................................25
Ice maker and dispenser operation 26-27
Removing and installing the ice cube container ............ 28
Dispenser operation....................................................... 29
Dispenser precautions .................................................... 30
Defrosting – Cleaning – Inoperation
Defrosting................................................................. .....31
Cleaning ......................................................................... 31
Inoperation................................................................ 32-33
Troubleshooting & Customer Service
Troubleshooting ....................................................... 34-35
Customer service ...................................................... 36-38
• Before start-up, be sure to read the User’s Guide.
• Keep the User’s Guide in a safe place.
Page 3
Your refrigerator’s features
Your Haier-brand Refrigerator/Freezer Combo is equipped with numerous
innovative, space-saving and energy-efficient features.
(1) Ice cube maker
Automatic ice cube maker, powerful ice crusher, refrigerated water dispenser
(2) Minibar（HRF-663BSS,HRF-663ATA2*,HRF-663ASA2*,HRF-663ASB2*）
You can store drinks here for quick retrieval without having to open the refrigerator door.
(3) Sliding glass shelves
Sliding shelves and baskets in the refrigerator and freezer compartments make storing foods
easy. With the doors fully opened, all shelves can furthermore be removed for convenient
cleaning.
(4) Slim profile with spacious interior
This Refrigerator/Freezer Combo was developed according to our customers’ wishes. Thanks
to the latest space-saving insulating materials, the freezer and refrigerator compartments now
offer even more space. The shelves and baskets are made of high-grade safety glass.
(5) The freezer compartment is equipped with a user-friendly frost-free system and manages to
freeze foods quickly and evenly.
(6) Temperature adjustment before defrosting
(7) Automatic trouble indicator
(8) This Refrigerator/Freezer Combo is equipped with a condenser, and the cold air is circulated by
a fan in order to achieve optimum cooling.
(9) Buzzer warning when door is open
A buzzer sounds intermittently when the door is left open permanently or is not closed properly.
(10) Intelligent mode
Optimum cooling is automatically adjusted in relation to the interior and surrounding
temperatures.
Page 4
Components
Freezer
Bottle rack
Ice maker
Light
Refrigerator compartment
Bottle cover
Light
Shelves
Shelves
Drawer cover
Bottle rack
Freezer drawers
Note
● The power plug must remain accessible after setting up the appliance.
If damaged, the power cord of this appliance must be replaced by the maker, their customer
service or an equally qualified person so as to prevent any hazards.
● Check the appliance for damages sustained during transportation. Do not connect the
appliance if it is damaged. In case of damage, contact your supplier.
● Make sure that no part of the refrigerant circuit is damaged when transporting and setting up
the appliance.
Should the refrigerant circuit have been damaged, keep away all sources of fire or sparks
and thoroughly air the room.
● Children frequently do not recognise the hazards related to handling household appliances.
Therefore, children and people with impairments should only be allowed to use the
refrigerator under the supervision of a qualified person. Do not let children play with the
appliance.
● To prevent damage to the appliance, its ventilation openings must not be covered or
blocked.
● Do not use any mechanical or artificial devices or any tools other than those recommended
by the maker in order to accelerate the defrosting process.
● Do not operate any electrical devices inside the food storage area, unless instructed to do so
by the maker.
Bottle rack
Minibar cover
Veggie drawer cover
Veggie drawer
The XX symbol on the product or on its packaging
indicates that this product is not to be treated as regular household waste.
Instead, it must be taken to a recycling collection point for electrical and
electronic equipment. By properly disposing of this product, you are
contributing to the preservation of the environment and the wellbeing of
your fellow citizens. Improper disposal is hazardous to health and
environment. You can obtain further information on how to recycle this
Our company continually thrives towards improving all models and versions. For that reason, we
hope that you can accept our right to change their appearance, equipment or operation.
product from your municipality, your waste management service or the
shop where you purchased it.
Page 5
Customer service
q
Dispenser not supplying
● No ice cubes in the ice cube
container. Wait until ice cubes
are supplied.
● The water supply valve is
closed. Open the water
supply valve.
Dispenser jammed
● Defrosting water has frozen on
the spindle due to long period
of idleness, large temperature
swings or voltage peaks. Empty,
clean, wipe and re-place the ice
cube container.
● Other ice cubes were placed in the dispenser. Only the ice cubes produced
by the ice maker can be used by the dispenser
● Freezer temperature is set too high.
Lower the freezer temperature to
improve the performance of the ice
cube maker.
● The freezer or refrigerator
door is not fully closed.
Close all appliance doors.
● Ice cubes are jammed between
the ice cube maker and
container. Remove the ice
cubes.
● Ice cubes are stuck
together..
Use the dispenser more
frequently
Precautions
This appliance requires a 220-240V/50Hz
power supply.
If the voltage is outside of the 187-242V
range, malfunctions and damages of the
controls, thermostat or compressor may
result, unless a regulator of at least 750W
was installed.
Do not damage the power cord.
*Never pull the plug out by the cord; always
grab and pull the plug
*Do not place the power cord under the
appliance or walk on it.
*Be sure not to damage the power cord when
moving the appliance away from the wall.
In the case of a gas or other flammable leak:
*Close the valve.
*Open the doors and windows.
*Do not pull out or insert the power cord of
the appliance.
A dedicated grounded outlet is required.
The appliance is equipped with a standard
shockproof plug, whose grounding should
not be disabled. The power plug of the
appliance should always be accessible.
If the power cord is damaged or the plug
cracked or worn, the power cord must be
replaced with a matching one, available
from the maker or their customer service.
The power cord may only be replaced by the
maker, their customer service or an equally
ualified person.
Pull out the power plug:
*Before cleaning or repair
*When replacing a burned-out bulb
Page 6
Precautions After-sales Service
Confirm the following before ordering a repair.
Never place flammable, explosive or
corrosive materials in the refrigerator.
This appliance is intended strictly for storing and
freezing foods. It is not suitable for storing such
things as vaccines, bacteria or chemical samples,
which have demanding temperature
requirements
.
Compressor runs often or for a long time
● This is normal during initial operation.
● Normal after loading with large amounts of foods.
● Appliance door not fully closed.
● Appliance door is opened frequently.
● Ambient temperature is high.
● Wrong temperature setting. See “Starting up”.
● Poor ventilation
Do not store fuel and other flammable
products near this appliance.
Do not put microwave ovens, voltage regulators
or power strips on this appliance. Do not operate
electrical devices and such inside the refrigerator
(except if instructed to do so by the maker).
Foods are covered with frost or ice
● Normal if unpackaged food was placed in
the freezer.
● Appliance door not fully closed.
● Appliance door is opened too frequently
or for too long.
● Food placed too close to air outlet.
Unusual odour
● Strongly smelling food is not packed
appropriately.
● Food has spoiled.
● The appliance interior needs to be
Ice maker does not work properly.
To avoid injuries, do not let children climb
on or hang from the appliance door.
Once the appliance has been started up, do not
touch the inside of the freezer compartment
with wet hands, otherwise they may get stuck
on the surface.
● Ice cubes stick together. Take out the
lump of ice cubes, crush it and return
only the separated ice cubes to the ice
cube container.
● Ice cubes may end up sticking
together if stored for too long.
● Adjust the ice maker water
supply if the ice cubes are too
small or too large.
● In the case of a power outage, empty,
clean, dry and re-place the ice cube
container to avoid that the ice cubes
melt and drip into the freezer
compartment.
Page 7
Customer service
Should a malfunction occur that you cannot resolve as described below,
contact the nearest customer service. In such a case, please indicate the full
model name, serial number and spare part register. (See the product label at
the back of the appliance.)
Confirm the following before ordering a repair.
Unit does not cool
The appliance is not connected to the
power (plug, outlet, fuse) or is
switched off.
Light does not come on
Unusual noises
Voltage too low.
Precautions
To avoid injury, keep fingers away from the
door crack when opening or closing the doors.
Keep children away from the appliance doors
being opened and closed.
Refrigerators may only be repaired or altered
by professionals. Improper repair may cause
considerable damage. Please contact your
dealer or our customer service should your
appliance require repair or modification.
Do not pour water onto the appliance or set it
up in wet areas.
Keep bottles and tins out of the freezer. They
could burst when the content freezes.
The ground is too uneven.
Bulb is burned
out.
The appliance is not
connected to the
power.
Caution: Do not carry
the appliance or let it
stand horizontally.
Temperature is not cold enough
Appliance door not fully
closed, opened too
frequently or for too long.
Exposed to direct sunshine, a
stove or other heat source.
Poor ventilation. The back or
sides of the appliance are blocked.
The appliance is
touching the wall or
other object.
Pull out the power plug in the case of a
power outage, repair or cleaning.
When disposing of the appliance, remove the
door or door seal and shelves to prevent
playing children from locking themselves in
and putting their lives at risk.
Page 8
Preparations
Troubleshooting
Unpacking
Remove the entire packing material,
including the foam underlay and pieces of
tape used to hold accessories in place.
When operating, the fan produces an
audible sound.
The specified power consumption at an
ambient temperature of 25 ℃ with 5 ℃ in the
refrigerator and -18 ℃ in the freezer after 24
hours of normal operation complies with
government standards. Higher power
consumption is normal with large amounts of
food in the freezer and when the appliance
door is opened frequently or for long times.
Separate and count the included
accessories.
Check the items in the box against the
packing list.
In case of a mismatch, please contact your
supplier.
Set up the appliance in a suitable area.
(Details under “Setting up”.) Wipe off any condensation that may form
The evaporator lines may produces
audible sounds when the temperature is
changing
.
Moan
Noise
on the exterior housing and centre beam at
high humidity with a soft cloth.
Page 9
Troubleshooting
Preparations
Long operation time and a temperature
increase of housing and compressor are
normal during initial operation.
Some of the sounds produced during
initial operation or at start-up will fade
during normal operation.
Attaching the toe moulding
Open the refrigerator and freezer doors, remove the
moulding from the refrigerator compartment, and then
affix it as shown in the illustration.
During initial operation, the appliance
housing may become warm to prevent
condensation.
The sound of the refrigerant flowing
through the evaporator and compressor is
normal. A continuous or intermittent
flowing sound after operation is normal.
Swoosh
At start-up and during operation, the
compressor may produce an audible
sound when starting or stopping
Click
During the defrosting process, thaw
water may drip onto the heating elements,
causing audible sounds in the evaporator.
Hiss
Page 10
Preparations
y
Installing the door handle
First, screw part 2 into the threaded hole in the door (part 1); there
are two screws per door. Next, press part 3 with its larger opening
onto part 2. Finally, pull part 3 down in order to attach it firmly to
the door.
Part 1
Part 2
Inoperation
When on vacation
● Before a long vacation, turn off the
appliance, take out the food, remove the
frost, clean the interior and leave the door
open to prevent odour build-up.
Transportation
● Unplug the power cord.
● Remove all foods from the
refrigerator.
● Secure the shelves, drawers and baskets
with tape.
● Close the appliance door and secure it with
tape.
● During transportation, do not tilt the
appliance more than 45° (in relation to the
vertical position), otherwise malfunctions of
the refrigeration system may be caused.
Caution:
Do not carr
the appliance or let it stand horizontally.
Part 3
Page 11
Inoperation
Preparations
In the event of a power outage
Even in the summer, foods can be kept
cool for several hours during a power
outage.
● In the event of a power outage, refrain
from adding foods to the appliance and
opening the doors.
● If you know there will be a power
outage, produce more ice cubes and
place them in the top section of the
refrigerator.
Caution:
Caution:
A temperature drop in the freezer compartment, caused by a power outage
A temperature drop in the freezer compartment, caused by a power outage or
or other malfunction, reduces the storage life span and quality of the foods.
other malfunction, reduces the storage life span and quality of the foods.
Putting the appliance out of operation
If the appliance is to remain idle for a
long period of time, you must press the
power button and unplug the power cord.
Clean the appliance as described. During
the period of inoperation the doors must
be left open to prevent odour build-up.
Caution: Avoid putting the appliance out of operation, as this will shorten its
life expectancy.
It is recommended to clean the interior
before starting up the appliance. (Details
under “Cleaning”.)
Standstill
After cleaning, let the appliance stand still
for at least six hours before turning it on to
start it up.
Caution: Wait at least five minutes before turning on the appliance after
turning it off.
Page 12
Door removal
(
)
Removing the door
If your house door is too narrow, remove the refrigerator door and
carry the refrigerator in narrow side first.
Remove the toe moulding, and
then release the water coupler.
Slide the toe moulding up to remove it, and then
release the water coupler while pressing on area (1) as
shown in the illustration.
Water coupler
Remove the freezer compartment door.
1) Unscrew the hinge covers. Disconnect all wires
except for the grounding wire.
2) Remove the screws from the upper hinge following the
direction as indicated by Arrow (1). Then remove the
upper hinge following the direction as indicated by
Arrow (2).
Upper
Hinge cover
hinge
Toe moulding
Wires
Grounding wire
Upper hinge
screw
Defrosting · Cleaning
Defrosting
The appliance defrosts automatically.
Cleaning
Clean the refrigerator regularly to prevent
odour build-up.
● For safety reasons, first unplug the power cord.
● Clean the appliance using a soft rag or sponge and
lukewarm water, to which you may add a little bit of
a neutral dishwashing liquid.
● Dry off surface water with a rag.
Caution: Do not use pointed objects, metal brushes or the following chemical
solvents:
abrasive cleansers, varnish, amyl acetate, hot water, acid, alkaline cleaners, etc.
Caution: Do not pour water onto the appliance.
Use a rag or sponge to clean and dry the controls and lights.
3) Lift the freezer compartment door to remove it. Next,
lift the door enough to be able fully pull out the water
line.
Lower
Lift until water line can
Lift
be fully removed.
● Be sure to clean the door seal regularly.
Page 13
Dispenser precautions
Precautions
The following instructions refer only to products equipped with an ice cube maker, ice
crusher and refrigerated water dispenser.
● Do not use very tall or short glasses.
● Hold the glass as close as possible to the ice cube outlet so as to prevent dropping
ice cubes or jamming the ice cube supply.
● The outlet closes five seconds after ice cubes have been supplied.
● When helping yourself to ice cubes, hold the glass under the outlet for 2 to 3
seconds after releasing the switch, as more ice cubes may be delivered.
When helping yourself to water, hold the glass under the outlet for 10 to 20 seconds
after releasing the switch, as more water may be delivered.
● Regularly empty the water collection tray and wipe off water drops from the
dispenser using a rag.
● When selecting ice cubes after crushed ice was last dispensed, a few remaining
pieces of crushed ice may be delivered.
● Remove any remaining ice shavings from the outlet to prevent jamming.
● Do not place drinks or other foods in the ice cube container, as this may
damage the ice maker.
● To avoid injuries, do not touch the ice outlet with your hand and do not remove the
ice maker cover.
● Do not consume the first seven or so glasses of water and 20 or so ice cubes after
starting up the appliance for the first time or following a long period of inoperation.
● Do not place ice cubes other than the ones produced by the appliance in the ice cube
container, as they may not be properly delivered or crushed.
● An insufficient water supply line may cause ice cubes to be too small. An excessive
water supply line may cause ice cubes to be too large. Moreover, water may
overflow into the ice cube container, causing the ice cubes to stick together. Adjust
the faucet accordingly or contact an authorised professional.
Door removal
Remove the refrigerator compartment
door.
1) Loosen the hinge cover bolts, and then
remove the cover. Disconnect any wires
except for the grounding wire.
2) Remove the screws from the upper hinge
following the direction as indicated by Arrow
(1). Then remove the upper hinge following
the direction as indicated by Arrow (2).
2) Lift the refrigerator compartment
door to remove it.
Slide the refrigerator through the door opening.
Slide the refrigerator through the door
opening as shown in the illustration.
Wires
Upper hinge
screw
Lower hinge
Caution: The valve and relay may produce audible sounds while ice cubes
are being supplied
Reinstall the door.
Bring the doors in the house, and then reinstall them by
reversing the removal steps.
Page 14
Setting up the Refrigerator/Freezer Combo
Dispenser operation
Be sure to choose a flat and level setup location. Use
sturdy and fireproof supports to correct an
unevenness in the floor. Turning an appliance foot
clockwise raises the appliance, turning it
anticlockwise lowers the appliance.
Protect the setup location against direct sunlight or
heat sources.
Avoid a damp setup location. Remove water and
dirt with a soft rag.
Door adjustment
If the freezer compartment door is lower than that of the
refrigerator compartment, insert the wrench in the groove
of the left screw and turn it in the direction of the arrow
until both doors are the same height.
Height difference
Wrench
If the freezer compartment door is lower than that of the
refrigerator compartment, insert the wrench in the groove
of the left screw and turn it in the direction of the arrow
until both doors are the same height.
Height difference
Be sure to leave at least 10 cm of space around the
appliance. When installing the appliance in an
enclosed area, leave at least 25 cm of space on the
sides and 5 cm on the top and back.
Left screw
Height difference
Right bolt
Height difference
Wrench
Spacing
Dispenser operation
Choose crushed ice, refrigerated water or ice cubes. Slightly push a glass against the ice/water
lever as shown in the illustration.
(1) Dispensing crushed ice
● Press the appropriate button so that the indicator
for crushed ice lights up.
● Lightly press against the lever so that crushed ice
is supplied.
(2) Dispensing ice cubes
● Press the appropriate button so that the indicator
for ice cubes lights up.
● Lightly press against the lever so that ice cubes are
supplied.
(3) Dispensing refrigerated water
● Press the appropriate button so that the indicator
for refrigerated water lights up.
● Lightly press against the lever so that refrigerated
water is supplied.
Dispensing crushed ice
● Even with the ice cube option selected, some crushed ice may be supplied simultaneously. It is
also possible that the crushed ice supply is mingled with a few ice cubes.
● When crushed ice is frequently called for, it is normal for frost to build up around the outlet, but
it will eventually evaporate.
● Keep the glass close to the dispenser to prevent ice from spilling.
Dispensing refrigerated water
● Due to air in the water supply line, refrigerated water may not be available immediately after
installation. In this case, hold the dispenser lever pressed in for as long as two minutes to
evacuate any remaining air.
● After that, the supplied water will become increasingly cooler.
● Refrigerated water does not contain any ice cubes. To lower the temperature of the refrigerated
water, add crushed ice or ice cubes to it.
Caution: Keep fingers and objects away from the dispenser.
Caution: Keep fingers and objects away from the dispenser.
Page 15
Removing and installing the ice cube container
Removing the ice cube container
Press the middle section of the ice cube container in and pull it off its shelf.
Re-placing the ice cube container
Slide the ice cube container in the channel on both sides of the inner sleeve until it is
clasped into position.
If the ice cube container cannot be fit into position, take it out again, rotate the support
by 90°, and then re-insert the container so that the clamp locks with the channel.
Turn
Start-up
Power connection
After connecting it to the power, the appliance is automatically set to
the Intelligent and Crushed Ice modes.
This appliance has a memory function which, in the event of a power
failure, automatically stores the operating mode that was last used and
restores it when the power is turned on again.
Operating modes
Recommendation:
The Intelligent mode allows the appliance to
achieve the best and most energy-efficient cooling
effect, regardless of ambient temperature variations
and without requiring you to make any settings at
Choose one of the following two operating modes.
(1) Intelligent mode: If there are no special requirements, it is recommended to
choose the Intelligent operating mode. Press the Intelligent key once; the
indicator lights up and the appliance is started automatically. (Details in the
“Features” section.)
(2) Manual mode: Make manual temperature settings using the temperature
all.
Loading foods
Operate the refrigerator empty for a while. Start loading
the refrigerator with foods only after it has sufficiently
Support
cooled down.
Please note that changes in the temperature settings come into effect slowly.
This depends on variations of the ambient temperature, how frequently the door is
opened and the amount of foods loaded.
Page 16
Digital display operation
Ice maker and dispenser operation
Control panel
A. Intelligent mode key indicator G. Superfrost indicator
B. Superfrost key H. Freezer temperature display
C. Freezer temperature adjustment key I. Refrigerator temperature display
D. Refrigerator temperature adjustment key J. Crushed ice indicator
E. Ice/water selector K. Refrigerated water
F. Intelligent mode indicator L. Ice cube indicator
Intelligent mode
Precautions
● Do not connect the ice maker water line when the temperature is below 0
ºC, otherwise the water line may freeze
● Open the valve and flush the water line to check the line connections for
possible leaks. Close the valve again when the water is clean and clear.
● The ice maker does not become operational until the temperature has
reached or gone under -15 °C. (Do not consume the first batch of ice cubes.)
● After setting up the appliance, be sure to check that the water supply line is
properly positioned so that it will not be pinched or damaged.
● The ice maker must be installed by an authorized representative.
● The ice maker must be connected to a standard cold water pipe.
● If the water dispenser indicator does not work, contact customer service or a
qualified professional for repair.
Ice maker operation
Each cycle produces eight ice cubes. The ice cube production capacity
depends on variations of the ambient temperature and how frequently the
door is opened.
Caution: Let the appliance operate at least 24 hours before starting ice cube
production.
Do not consume the first ice cubes after starting up the appliance for the first time
or following a long period of inoperation.
Arrange the ice cubes manually to make sure that the container has been filled.
In the Intelligent operating mode, the temperature inside the appliance is
adjusted automatically according to variations of the ambient temperature.
Press key A once, upon which indicator F lights up and Intelligent mode is
entered. Press key A once again, upon which indicator F goes off and
Intelligent mode is cancelled.
A few of the eight ice cubes produced in one ice maker cycle may stick together.
Malfunction indicator
In the event of major or minor control malfunctions, the freezer and
refrigerator temperatures are not displayed. Contact customer support if
necessary.
Page 17
Starting up the ice maker and dispenser
Preparations before starting up the ice maker and dispenser
The ice maker can be connected either directly to a water supply line if fitted
with a filter (option A) or to a drinking water container if fitted with a water
pump (option B).
● Cut the water line to the right length to prevent it from kinking. The
recommended maximum length for the water line is 12 m. The pressure drop
resulting from an excessively long water line could adversely affect the ice
cube maker capacity.
● Keep the water line away from heat sources.
● The water supply line should be installed and checked by professionals.
● When calling for refrigerated water for the first time, keep pressure on the
dispenser lever for one minute several times until water flows out, in order to
allow the water tank inside the appliance to fill up. Be sure not to hold the
dispenser lever pressed for too long, otherwise the water valve may overheat.
Option A:
● Water supply line installation
The pressure of the cold water supplied to the ice maker should be within
1.5-8.5 bar.
● It is recommended to use drinking water for producing ice cubes since the
filter does not sterilise bacteria.
Using the digital display
Superfrost
It has been scientifically proven that a Superfrost type device is necessary to
freeze foods quickly and thoroughly. Press key B, upon which indicator G lights
up and the Superfrost action is turned on. Press the key again to turn off the
Superfrost action, upon which indicator G goes off. (In Intelligent mode, it is not
necessary to turn on Superfrost.)
Temperature adjustments
● At start-up, the Intelligent operating mode is selected. Press the Intelligent
mode key to cancel the Intelligent operating mode.
● Temperature adjustment (requires the Intelligent mode to be cancelled)
Option B:
● The water pump must be connected to its own outlet and properly
grounded.
● Removal or modification of the water pump and modification or repair
of the water supply line by unauthorised persons are not permissible.
● To prevent fire, do not store or use flammable products such as fuel near the
water pump.
● The water pump is to be used solely with room temperature water; it is
not suitable for use with chemicals, fruit juice or other grainy drinks,
coffee or other hot liquids.
● If the water pump will not be used for en extended period of time, pull
out its power plug.
● Periodically check the water tank to make sure that the water level is
sufficient.
● Do not push, shake or knock the water pump.
● Place the water pump and drinking water container on a sturdy and level
surface.
● After opening the small lid of the drinking water container, protect the
opening with a dust cover. Guide one end of a hose to the bottom of the
container and connect the other end to the water pump inlet (indicated by an
INLET symbol). Connect one end of another hose to the water pump outlet
(indicated by an OUTLET symbol) and the other end to the water valve inlet
under the back of the refrigerator.
Refrigerator temperature adjustment: Press key D, upon which indicator I starts
blinking. Each time key D is pressed, the temperature setting is increased by one
of level from 1 to 5 (3 °C). If you keep pressing key D, the cycle starts over again
from level 1 (7°C).
Freezer temperature adjustment: Press key C, upon which indicator H starts
blinking. Each time key C is pressed, the temperature setting is increased by one
level from 1 to 5 (-22 °C). If you keep pressing key C, the cycle starts over again
from level 1 (-15°C).
Ice/water selection: Press key E.
Help yourself to ice cubes/crushed ice/refrigerated water. Your selection becomes
available when the appropriate indicator lights up.
Page 18
Using the digital display
Open-door buzzer warning
A buzzer sounds intermittently when the door is left open permanently or is not
closed properly.
Notes on freezing
Let warm foods and drinks cool down to room
temperature before putting them in the freezer
compartment.
Pack the food into portions of up to 2.5 kg
suitable for your household. As a result, the
portions will freeze faster and the quality after
thawing remain optimal for preparation.
Display control
30 minutes after the last key operation the display is turned off. The display is
re-activated as soon as a key is pressed or an appliance door is opened.
Package the food before freezing it. The
Activating/Deactivating the refrigerator
The refrigerator is deactivated by holding key D (refrigerator temperature
adjustment) firmly pressed for three seconds. Indicator I (temperature and level)
goes off, but the light in the refrigerator compartment remains operational. The
refrigerator is re-activated by holding key D firmly pressed again for three seconds.
The refrigerator is re-activated and indicator I is turned on.
packages should be dry to prevent their
sticking together. Use only freezer-compatible
packing material; this should be strong,
taste-neutral, air- and watertight so as to
minimize taste contamination and loss of
quality.
Always write the content and freezing date on
the packing, and do not exceed the
recommended length of storage so as to
prevent loss of quality.
Remove only the required amount to be
thawed. Thawed foods must never be frozen
again.
Never place more fresh food in the freezer at
one time than the maximum freezing
capacity
.
Page 19
Freezer compartment
Use the freezer compartment for
long-term food storage
A low temperature in the freezer compartment is
necessary for long-term food storage. Do not
exceed the maximum length of storage indicated
on the package.
Removing and cleaning glass shelves
First, lift the rear of the shelf in direction (1), and
then pull the shelf out in direction (2). Finally, tilt
the shelf in direction (3) and remove it once the
door is open 90º.
Interior light and replacement of
bulb
Bulb specifications: 220-240 V / 25 W
Socket: E27 (Do not use a replacement bulb of
more than 25 W.)
Replacing the bulb
● Pull out the power plug or neutralise the fuse.
● Lift the cover in direction (1), and then
pull it out in direction (2).
● Twist the bulb anticlockwise, and then remove
it. Install a new bulb of equal specifications.
● Re-install the cover.
Adjusting and cleaning bottle rack
Hold both sides of the bottle rack and pull it out in
directions (1) and (2). Clean the bottle rack, and
then re-place it or adjust its position.
Refrigerator
compartment
Use the refrigerator compartment for
short-term food storage
The average refrigerator temperature of
0 °C-10 °C is not low enough for long-term
storage of foods; it is suitable only for
short-term food storage.
Adjusting the height of glass shelves
The shelves are height-adjustable to
accommodate various item sizes.
The shelves can be taken out for height
adjustment and cleaning. To clean a shelf,
pull it in direction 1, and then tilt it in
direction 2 until it is in a vertical position.
Finally, remove the shelf in direction 3. To
remove a shelf, the appliance door must be
open 90º.
Adjusting and cleaning bottle rack
Hold both sides of the bottle rack and pull it
out in directions (1) and (2).
After cleaning, re-place the bottle rack or
adjust its position.
Caution:
Frozen foods (such as ice cream) should not be placed in the bottle rack but rather inside the freezer
compartment to avoid that they spoil as a result of being exposed to the temperature changes from
Page 20
Refrigerator
compartment
Stocking example
Foods should be grouped according to
the various temperature ranges in the
refrigerator compartment.
(1) Eggs, butter, cheese
(2) Tinned drinks and foods, seasonings
(3) Drinks, bottles
(4) Preserves
(5) Meats
(6) Flours, preserves, milk
(7) Processed meats, sausage
(8) Fruits, vegetables, lettuce
Removing the veggie drawer cover
First, lift the rear of the shelf in direction (1),
and then pull the shelf out in direction (2).
Finally, tilt the shelf in direction (3) and
remove the veggie drawer once the door is
open 90º.
Home bar
（HRF-663BSS,HRF-663ATA2*,HRF-663ASA2*,HRF-663ASB2*）
Do not remove the inner cover of
the home bar.
The home bar will not operate if the
cover has been removed.
Keep children away from the home
bar.
Otherwise children could be
injured and the home bar
damaged.
Note: The home bar can be used
without opening the appliance door;
which saves energy. Close the home
bar as soon as possible to keep the cold
inside the appliance. The warning
system is activated if the door is not
properly closed.
Page 21
Home bar
（HRF-663BSS,HRF-663ATA2*,HRF-663ASA2*,HRF-663ASB2*）
Operation
To open the bar, press the compartment button.
The bar compartment opens.
The home bar can be used without opening the appliance door; which saves
energy.
When the home bar is opened, the refrigerator light comes on.
You can place drinks and other foods in the home bar.
Refrigerator
compartment
Using the veggie drawer
The appliance is equipped with a veggie drawer suitable
for keeping fruits and vegetables. The humidity level in
the veggie drawer is adjustable.
● Reducing or closing the opening increases the
humidity inside the veggie drawer, which is desirable
for keeping cucumbers, grapes, kiwi, plums, etc.
● Increasing the opening reduces the humidity inside
the veggie drawer, which is suitable for keeping
strawberries, mandarins, beans, garlic, water melon,
plums, tomatoes, etc.
● Make sure that the front of the veggie drawer cover is
located on the inside of the veggie drawer. Remove
the veggie drawer before removing its cover.
Installation is reversed.
Replacing the bulb at the top of
refrigerator compartment
Bulb specifications: 220-240 V / 25 W
Socket: E27 (Do not use a replacement bulb of more
than 25 W.)
Replacing the bulb
● Unplug the power cord.
● Remove the screws under the cover.
● Lift the cover in direction (1), and then pull it out in
direction (2).
● Install the bulb.
Page 22
Notes on refrigeration
Let warm foods and drinks cool down to room
temperature before putting them in the
refrigerator compartment.
Pack and seal foods before storing them. This
prevents drying and odour dissipation.
Wash and dry off fresh foods before storing
them.
Pack the food into portions suitable for your
household. Place the foods that will be
consumed the soonest towards the front so
as not to leave the appliance door open
longer than necessary.
Tips on refrigeration
Remove the leaves of root vegetables to
prevent them from absorbing the nutrients.
Items not requiring refrigeration: Onions,
peppers, garlic, ginger.
Thawing frozen foods inside the
refrigerator helps conserve energy.
Items not suitable for refrigeration: Gourds,
melons, bananas, pineapple. Refrigeration
promotes their decomposition. Do refrigerate
unripe fruits.
Do not overstock the refrigerator.
Be sure to leave space between foods and between the foods and the interior compartment
walls.
Caution: Do not use the egg tray as an ice cube tray and never place it in the
freezer or Superfrost area to prevent it from cracking.
Loading...
