Page 1

User Manual

Refrigerator-Freezer

HRF-522I*6 HRF-522I*7

*= Colour code:

S,T,CR,BB,W,N,GW, G,B,GR,X,F or M

Page 2

Page 3

Thank You

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal

oce.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

WARNING!

Risk of injury or suocation!

Refrigerants, foaming agent and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of.

Disconnect the appliance from the mains supply. Cut o the mains cable and dispose of

it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Page 4

Content

1- Safety information ............................................................................................................................ 5

2- Intended use ......................................................................................................................................9

3- Product description .......................................................................................................................10

4- Control panel ....................................................................................................................................11

5- Use ......................................................................................................................................................12

6- Energy saving tips ...........................................................................................................................22

7- Equipment ........................................................................................................................................23

8- Care and cleaning ...........................................................................................................................25

9- Troubleshooting ..............................................................................................................................28

10- Installation ......................................................................................................................................32

11- Technical data ...............................................................................................................................37

12- Customer service .........................................................................................................................38

Page 5

1- Safety information

Before switching on the appliance for the rst time read the following safety hints!:

WARNING!

Before rst use

▶ Make sure there is no transport damage. ▶ Remove all packaging and keep out of children´s reach. ▶ Wait at least two hours before installing the appliance in order to

ensure the refrigerant circuit is fully ecient.

▶ Handle the appliance always with at least two persons because it

is heavy.

Installation

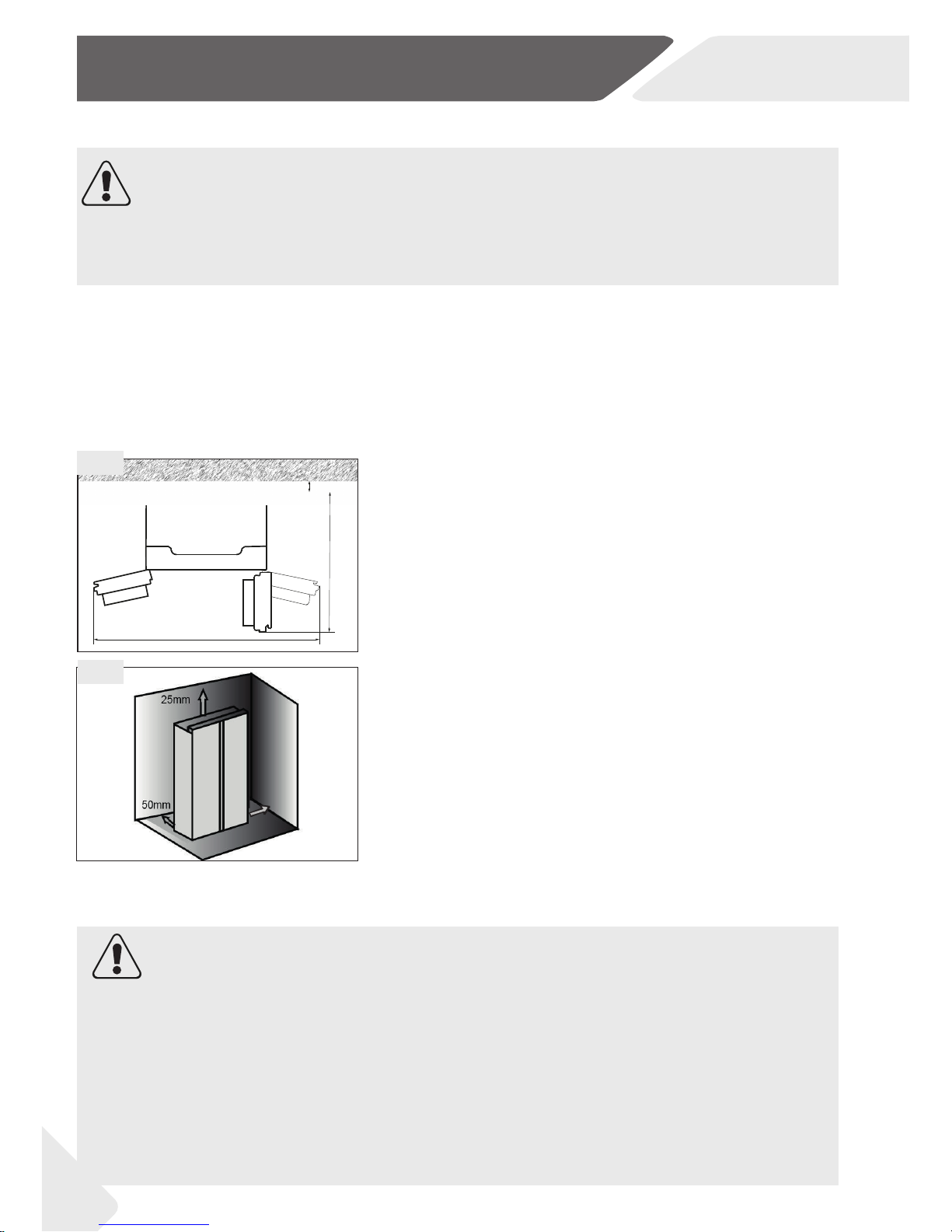

▶ The appliance should be placed in a well-ventilated place. Ensure

a space of at least 2.5 cm above and 5 cm around the appliance.

▶ Never place the appliance in a damp area or location where it

might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.

▶ Do not install the appliance in direct sunlight or in the near of heat

sources(e.g. stoves, heaters). ▶ Install and level the appliance in an area suitable for its size and use. ▶ Keep ventilation openings in the appliance or in the in-built struc-

ture clear of obstruction. ▶ Make sure that the electrical information on the rating plate agrees

with the power supply. If it does not, contact an electrician. ▶ The appliance is operated by a 220-240 VAC/50 Hz power sup-

ply. Abnormal voltage uctuation may cause the appliance to fail

to start, or damage to the temperature control or compressor, or

there may be an abnormal noise when operating. In such case, an

automatic regulator shall be mounted. ▶ Use a separate earthed socket for the power supply which is easy

accessible. The appliance must be earthed.

▶ Only for UK: The appliance’s power cable is tted with 3-cord

(grounding) plug that ts a standard 3-cord (grounded) socket.

Never cut o or dismount the third pin (grounding). After the ap-

pliance is installed, the plug should be accessible. ▶ Do not use multi-plug adapters and extension cables. ▶ Ensure that the power cable is not trapped by the appliance. Do

not step on the power cable.

Page 6

1- Safety information

WARNING!

Installation

▶ Do not damage the refrigerant circuit. ▶ A shut-o valve must be installed between the hose and the do-

mestic water connection in order to be able to interrupt the water

supply if necessary. ▶ The shut-o valve must be easy accessible after installation. ▶ Install a pressure reducer when the water pressure in the hose

exceeds 0.6 MPa. ▶ Make sure only the delivered hose set are used. Old hose-sets

should not be reused. ▶ Only connect to drinking water supply. ▶ Make sure the hose joints and connections are rm and there is

no leakage.

Daily use

▶ This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved. ▶ Keep away children under 3 years of age from the appliance un-

less they are constantly supervised. ▶ Children shall not play with the appliance. ▶ If cool gas or other inammable gas is leaking in the vicinity of the

appliance, turn o the valve of the leaking gas, open the doors

and windows and do not unplug a plug in the power cable of the

appliance or any other appliance. ▶ Notice that the appliance is set for operation at a specic am-

bient range between 10 and 43°C. The appliance may not work

properly if it is left for a long period at a temperature above or be-

low the indicated range. ▶ Do not place unstable articles (heavy objects, containers lled

with water) on top of the appliance, to ovoid personal injury

caused by falling or electric shock caused by contact with water.

Page 7

1- Safety information

WARNING!

Daily use

▶ Do not pull on the door shelves. The door may be pulled slant, the

bottle rack, may be pulled away, or the appliance may topple.

▶ Open and close the doors only with the handles. The gap be-

tween the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinch-

ing your ngers. Open or close the doors only when there are no

children standing within the range of door movement.

▶ Do not store or use inammable, explosive or corrosive materials

in the appliance or in the vicinity.

▶ Do not store medicines, bacteria or chemical agents in the ap-

pliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.

▶ Never store liquids in bottles or cans (besides high percentage

spirits) especially carbonated beverages in the freezer, as these

will burst during freezing. ▶ Check the condition of food if a warming in the freezer has taken place. ▶ Do not set unnecessarily low temperature in the refrigerator

compartment. Minus temperatures may occur at high settings.

Attention: Bottles can burst. ▶ Do not touch frozen goods with wet hands (wear gloves). Espe-

cially do not eat ice lollies immediately after removal from the

freezer compartment. There is the risk to freeze or the formation

of frost blisters. FIRST aid: keep immediately under running cold

water. Do not pull away! ▶ Do not touch the inside surface of the freezer storage compart-

ment when in operation, especially with wet hands, as your hands

may freeze onto the surface. ▶ Unplug the appliance in the event of a power interruption or be-

fore cleaning. Allow at least 5 minutes before restarting the appli-

ance, as frequent starting may damage the compressor. ▶ Do not use electrical devices inside the food storage compart-

ments of the appliance, unless they are of the type recommend-

ed by the manufacturer.

Page 8

1- Safety information

WARNING!

Maintenance / cleaning

▶ Make sure children are supervised if they carry out cleaning and

maintenance.

▶ Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage

the compressor. ▶ Hold the plug, not the cable, when unplugging the appliance. ▶ Do not scrape o frost and ice with sharp objects. Do not use

sprays, electric heaters like heater, hair dryer, steam cleaners or

other sources of heat in order to avoid damage to the plastic parts.

▶ Do not use mechanical devices or other means to accelerate the de-

frosting process, other than those recommended by the manufacturer. ▶ If the supply cord is damaged, it must be replaced by the manu-

facturer, its service agent or similarly qualied persons in order to

avoid a hazard. ▶ Do not try to repair, disassemble or modify the appliance by your-

self. In case of repair please contact our customer service. ▶ Eliminate the dust on the back of the unit at least once in the year

to avoid hazard by re, as well as increased energy consumption.

▶ Do not spray or ush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves with hot water. Sudden tem-

perature change may cause the glass to break.

WARNING!

The appliance contains the ammable refrigerant ISOBUTANE

(R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye

injuries or ignite. If a damage has occurred, keep away open re

sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Refrigerant gas information

Page 9

2- Intended use

2.1 Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively

for use in household and similar applications such as sta kitchen areas in shops, oces

and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breackfast and catering business. It is not intended for commercial or industrial use.

Changes or modications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig. 2.2):

Energy lable

User manual

Warranty card

Egg tray

2.2

Ice shovel

Water pipe

3/4” adapter1/2” adapter with valveWater lter 2 clips

Page 10

3- Product description

A B

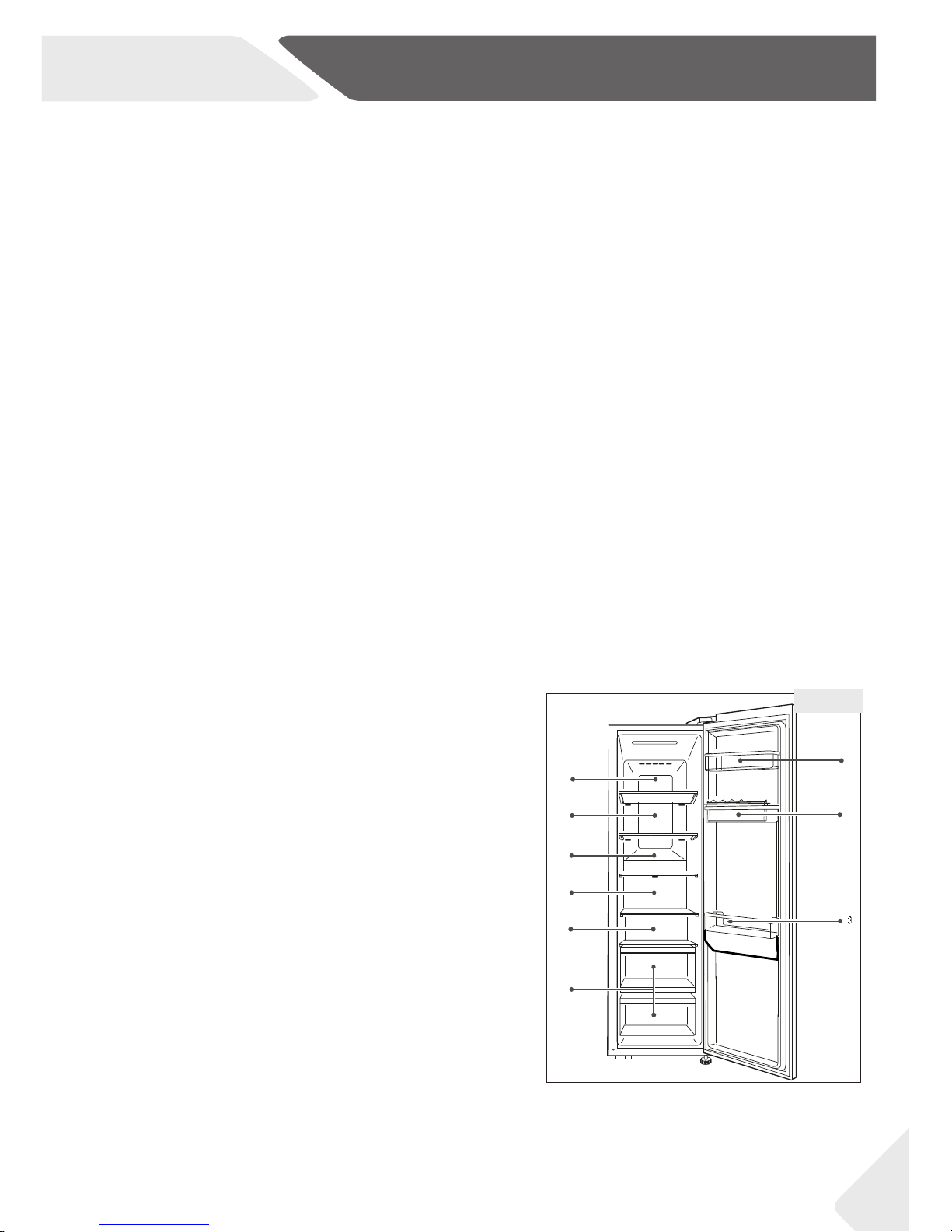

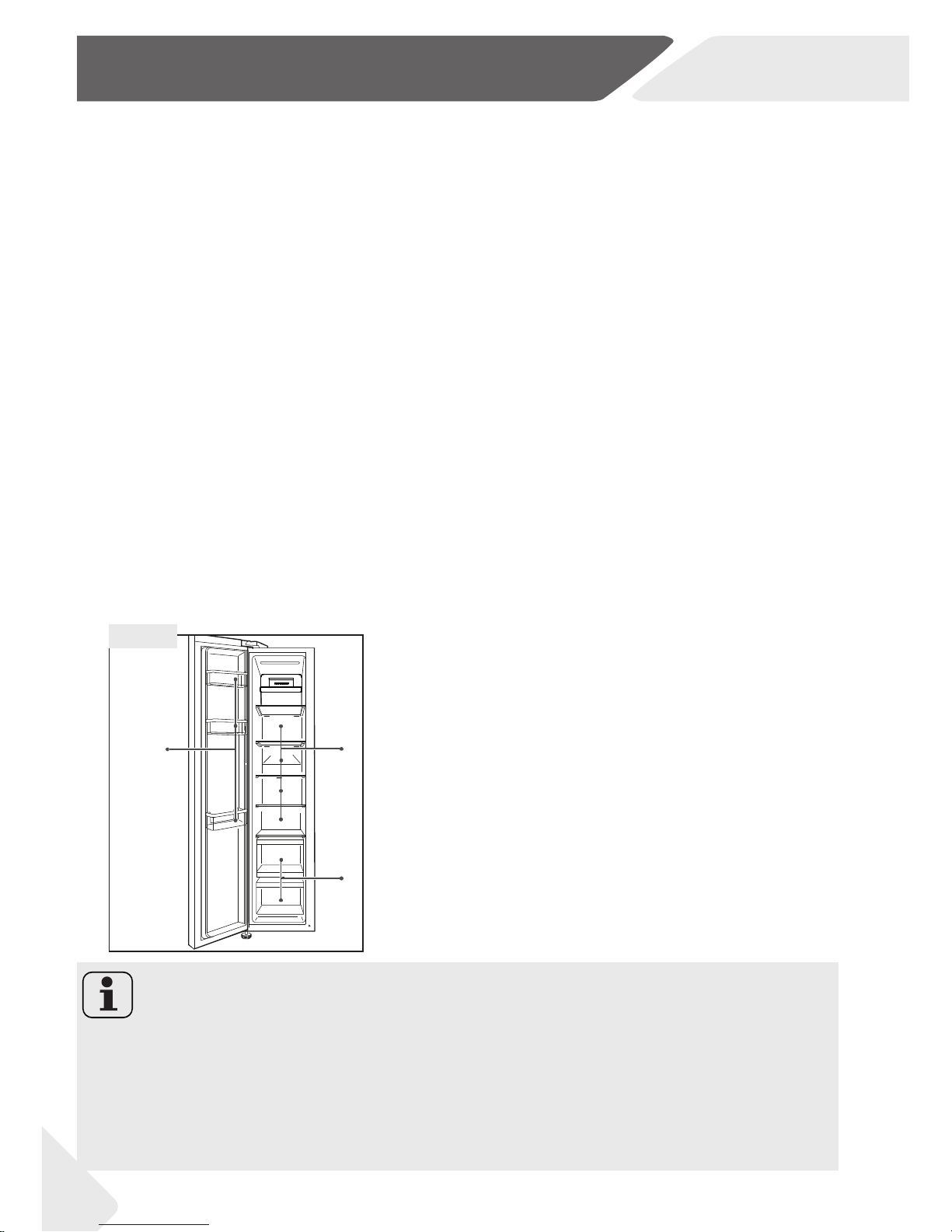

Pictures of appliances (Fig. 3)

1 Ceiling lamp 2 Ice maker 3 Ice container 4 Air duct 5 Door rack/bottle holder 6 Shelf 7 Sensor 8 Drawer 9 Adjustable feet

A: Freezer compartment

10 Rating plate 11 Ceiling lamp 12 Air duct 13 Sensor 14 Egg tray 15 Door rack/bottle holder 16 Shelf 17 OK Sticker 18 Water tank 19 Drawer

B: Fridge compartment

Notice

Due to technical changes and dierent models, some of the illustrations in this manual may dier from your model.

Page 11

4- Control panel

3 Sec. Super-Cool

3 Sec. Super-Frz.

3 Sec. Holiday

3 Sec. Filter

e1 f

Control panel

(Fig. 4)

Keys:

A Fridge selector and “Super-Cool”

function on/o

B Freezer selector and “Super-Freeze”

function on/o

C “Fuzzy” mode and “Holiday” function on/o

D Ice Maker function on/o

E Cool Water function on/o and reset of

“Change Filter” indicator

F Panel lock selector

Indicators:

a1 “Super-Cool” function

a2 Temperature Fridge

b1 Super-Freeze” function

b2 Temperature Freezer

c1 “Holiday” function

c2 “Fuzzy” mode

d Ice Maker function

e1 Cool Water function

e2 “Change Filter”

f Panel lock

Page 12

5- Use

5.3 Switch on /o the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the appliance is powered on for the rst time, freezer temperature is shining on the

display “b2”until the temperature reaches -5°C or after 1 hour working. The temperatures displayed will shown the actual temperatures in the compartment.

Maybe the panel lock is active.

Empty the appliance before switching o. To switch o the appliance,pull the power cord out o the power socket.

5.4 Standby-mode

The display screen turns o automatically 30 seconds after touching a key. The display will

be automatically locked. It lights up automatically by touching any key or opening one of the doors.

5.2 Sensor keys

The keys on the control panel are sensor keys, which already respond when lightly touched

with the nger.

5.1 Before rst use

▶ Remove all packaging materials, keep them out of children`s reach and dispose

them in an environmentally friendly manner.

▶ Clean the inside and outside of the appliance, as well as the interior and accessories

with water and a mild detergent and dry it well with soft cloth.

▶ Clean the After the appliance has been levelled and cleaned, wait for at least 2 hours

before connecting it to the power supply. See Section INSTALLATION.

▶ Precool the compartments at high settings before loading with food. The function

Super Cool and Super Freeze helps to cool down the compartments quickly.

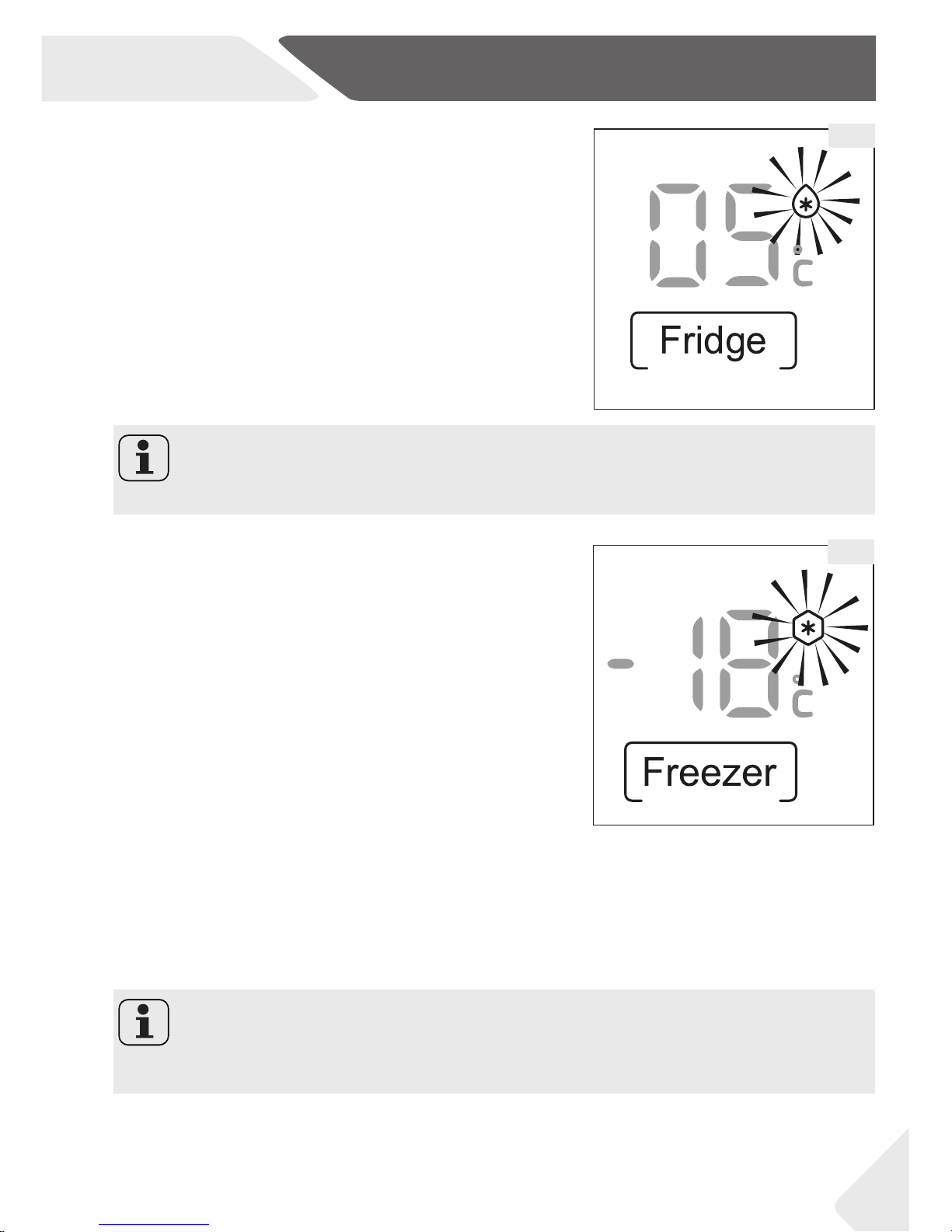

▶ The refrigerator temperature and freezer temperature are automatically set to 5° C

and -18° C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see MANUAL ADJUSTING MODE.

Notice: Presettings

▶ The appliance is preset to the recommended temperature of 5°C (refrigerator) and

- 18°C (freezer). Under normal ambient condition you need not to set a temperature.

▶ When the appliance is switched on after disconnection from the main power supply, it

may take up to 12 hours for the correct temperatures to be reached.

Page 13

5- Use

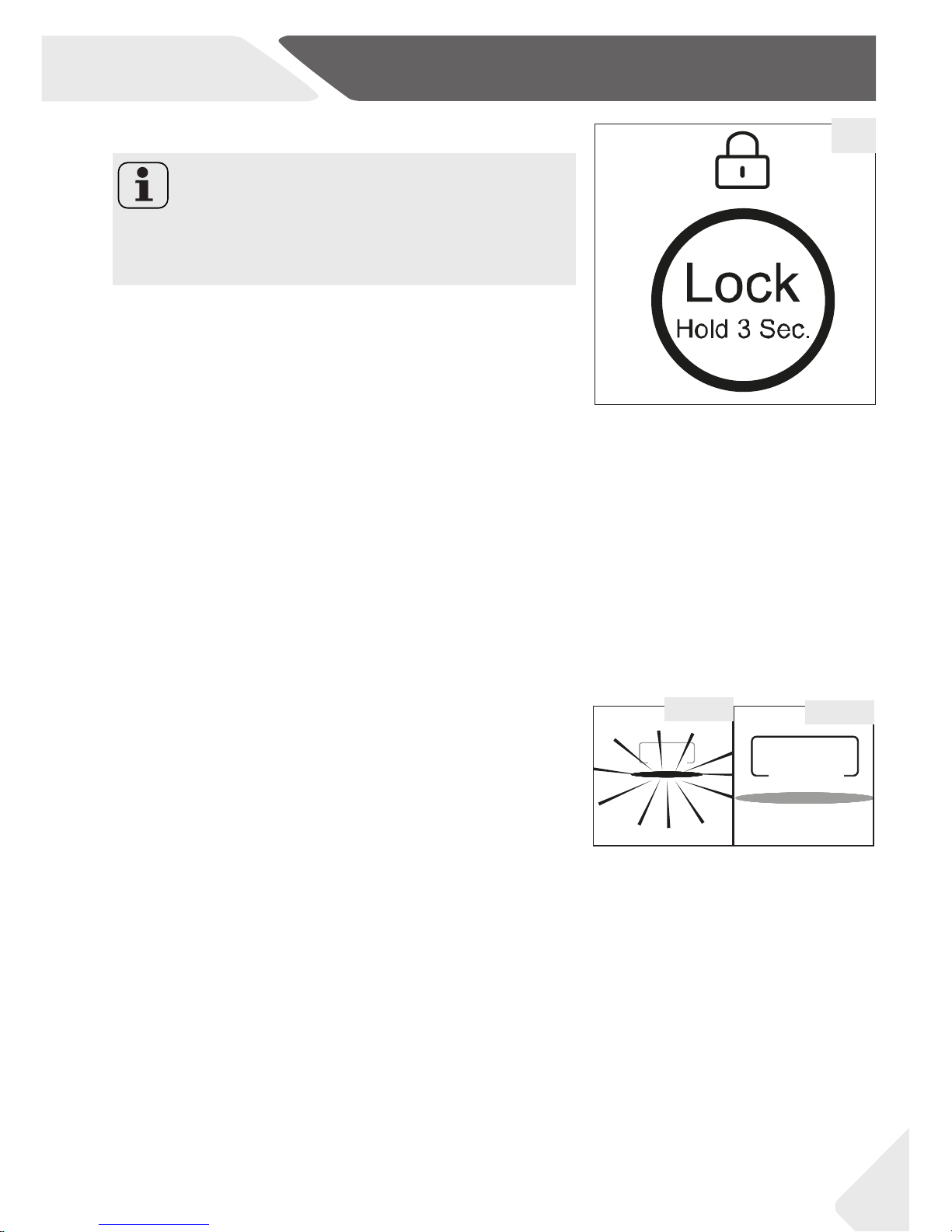

5.5 Lock/unlock panel

▶ Touch key “F” for 3 seconds to block all panel ele-

ments against activation (Fig. 5.5). An acoustic signal sounds .

▶ The related indicator “f” is now displayed and the

lightening of the panel is switched o. The icon ashes if a key will be touched, when the panel lock

is activated. The change is not running.

▶ For unlocking touch again the key.

5.5

5.6 Door opening alarm

When one door is opened for more than 3 minutes, the door opening alarm will sound. The alarm can be silenced by closing the door. If the door is left open for more than 7 minutes,

the light inside the compartment will automatically switch o.

5.7.1 Fuzzy mode

If you do not have any special requirements, we recommend that you use fuzzy mode : In the Fuzzy mode, the appliance can automatically adjust the temperature setting according to the ambient temperature and temperature change in the appliance. This function is totally hand free.

1. Unlock the panel by touching key “F” if it is locked (Fig. 5.5).

2. Touch key “C” (Fuzzy) (Fig. 5.7.1-1).

3. Indicator “c2” illuminates and the function is activated (Fig. 5.7.1-2).

By repeating the above steps or selecting an other

function this function can be switched o again.

Fuzzy

3 Sec. Holiday

Fuzzy

3 Sec. Holiday

5.7.1-2

5.7.1-1

Notice: Panel lock

The control panel is automatically blocked against activation if 30 seconds no key is touched. For any settings the control panel must be unlocked.

5.7 Select the working mode

You may need to select one of the following two ways to set the appliance:

Page 14

5- Use

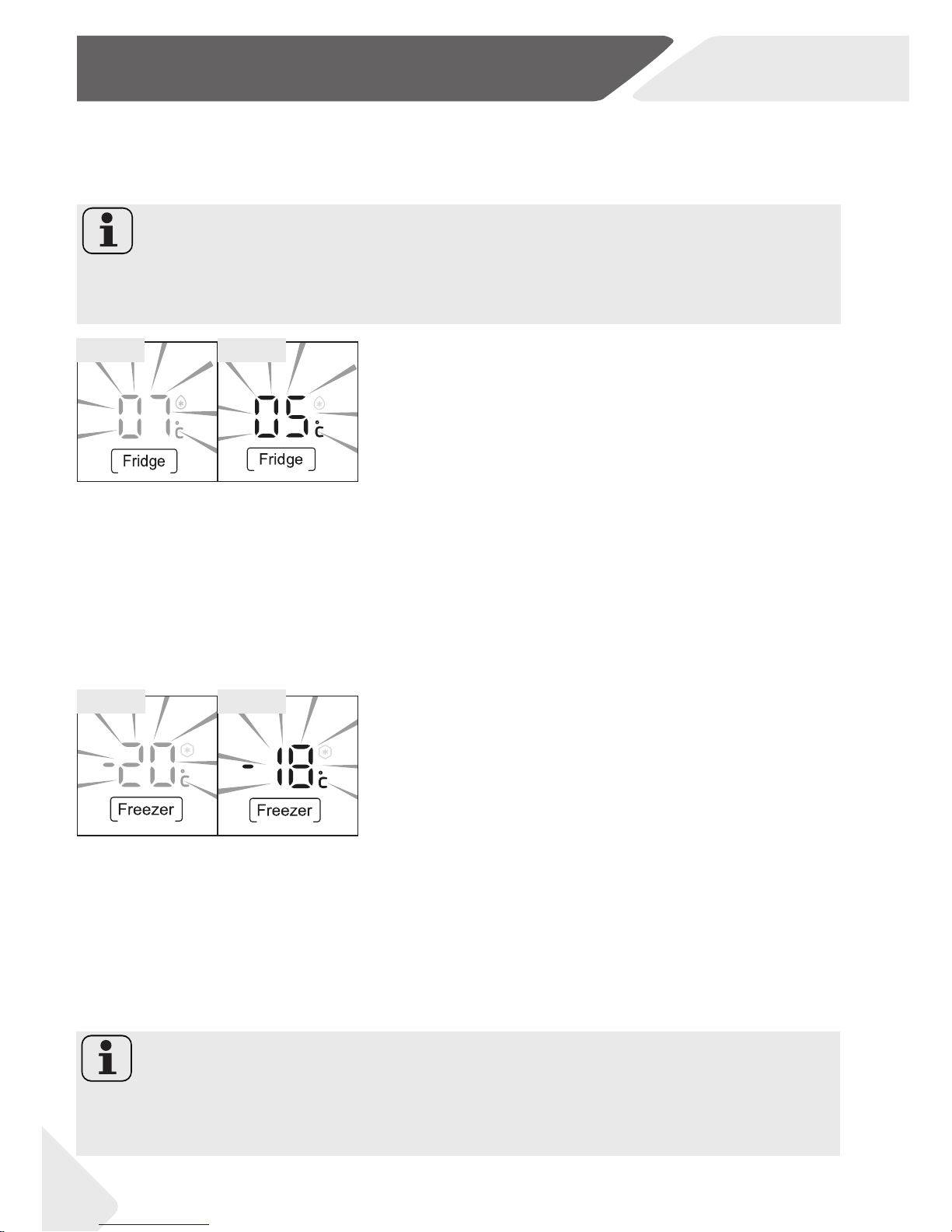

5.7.2.1 Adjust the temperature for fridge

1. Unlock the panel by touching key “F” if it is locked (Fig. 5.5).

2. Touch key “A” (Fridge) to select the fridge compartment. The actual temperature in the fridge compartment is displayed (Fig. 5.7.2-1).

3. Touch sequentially key “A” (Fridge) until the desired value of temperature is ashing (Fig. 5.7.2-2). A signal will sound at each key touch. The temperature increases in sequences of 1°C from a minimum of 1°C to a maximum of 9°C. The optimum temperature in the fridge is 5 °C. Colder temperatures mean unnecessary energy consumption.

4. Touch any key except „A“ (Fridge) to conrm, or the

setting conrms automatically after 5 seconds. Displayed temperature stops ashing.

3 Sec. Super-Cool

5.7.2-25.7.2-1

5.7.2.2 Adjust the temperature for freezer

1. Unlock the panel by touching key “F” if it is locked (Fig. 5.5).

2. Touch key “B” (Freezer) to select the freezer compartment. The actual temperature in the freezer compartment is displayed (Fig. 5.7.2-3).

3. Touch sequentially key“B” (Freezer) until the desired

value of temperature is ashing (Fig. 5.7.2-4).

A signal will sound at each key press. The temperature increases in sequences of 1°C from -14°C to

-24°C. The optimum temperature in the freezer is

-18°C. Colder temperatures mean unnecessary energy consumption.

4. Touch any key except „B“ (Freezer) to conrm, or

the setting conrms automatically after 5 seconds. Displayed temperature stops ashing.

3 Sec. Super-Frz.

5.7.2-3 5.7.2-4

Notice: Conict with other functions

The temperature cannot be adjusted, if any other function (Super Cool, Super Freeze, Hoilday or Fuzzy) is activated or the display is locked. The corresponding indicator will

ash accompanying with a buzzer.

5.7.2 Manual adjusting mode

If you want to manually adjust the temperature of the appliance in order to store a particular food, you can set the temperature via a temperature adjusting key:

Notice: Inuences on temperatures

The indoor temperatures are inuenced by the following factors:

▶ Ambient temperature ▶ Frequency of door opening

▶ Amount of stored foods ▶ Installation of the appliance

Page 15

5- Use

3 Sec. Super-Cool

5.8

3 Sec. Super-Frz.

5.9

5.8 Super-Cool function

Switch on the Super-Cool function if larger quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. The factory setting temperature is 0 to +1°C.

1. Unlock the panel by touching key “F” if it is locked (Fig. 5.5).

2. Touch key “A” (Fridge) for 3 seconds. Indicator „a1“ illuminates and the function is activated. (Fig. 5.8).

3. The same operation can exit super cool function.

Notice: Automatically switch o

This function will be automatically disabled after 3 hours.

5.9 Super-Freeze function

Fresh food should be frozen as quickly as possible to the core. This preserved the best nutritional value, appearance and taste. The Super-Freeze function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If you need to freeze a large amount of food once, it is recommended to set the Super-Freeze function on ahead for 24h before the usage of frozen room. The factory setting temperature is -24 °C.

1. Unlock the panel by touching key “F” if it is locked (Fig. 5.5).

2. Touch key “B” (Freezer) for 3 seconds Indicator „b1“ illuminates and the function is activated. (Fig.

5.9).

3. The same operation can exit Super -Freeze function.

Notice: Automatically switch o

The Super-Freeze function will automatically switch o after 50 hours. The appliance is

then operated at the previously set temperature.

Page 16

5- Use

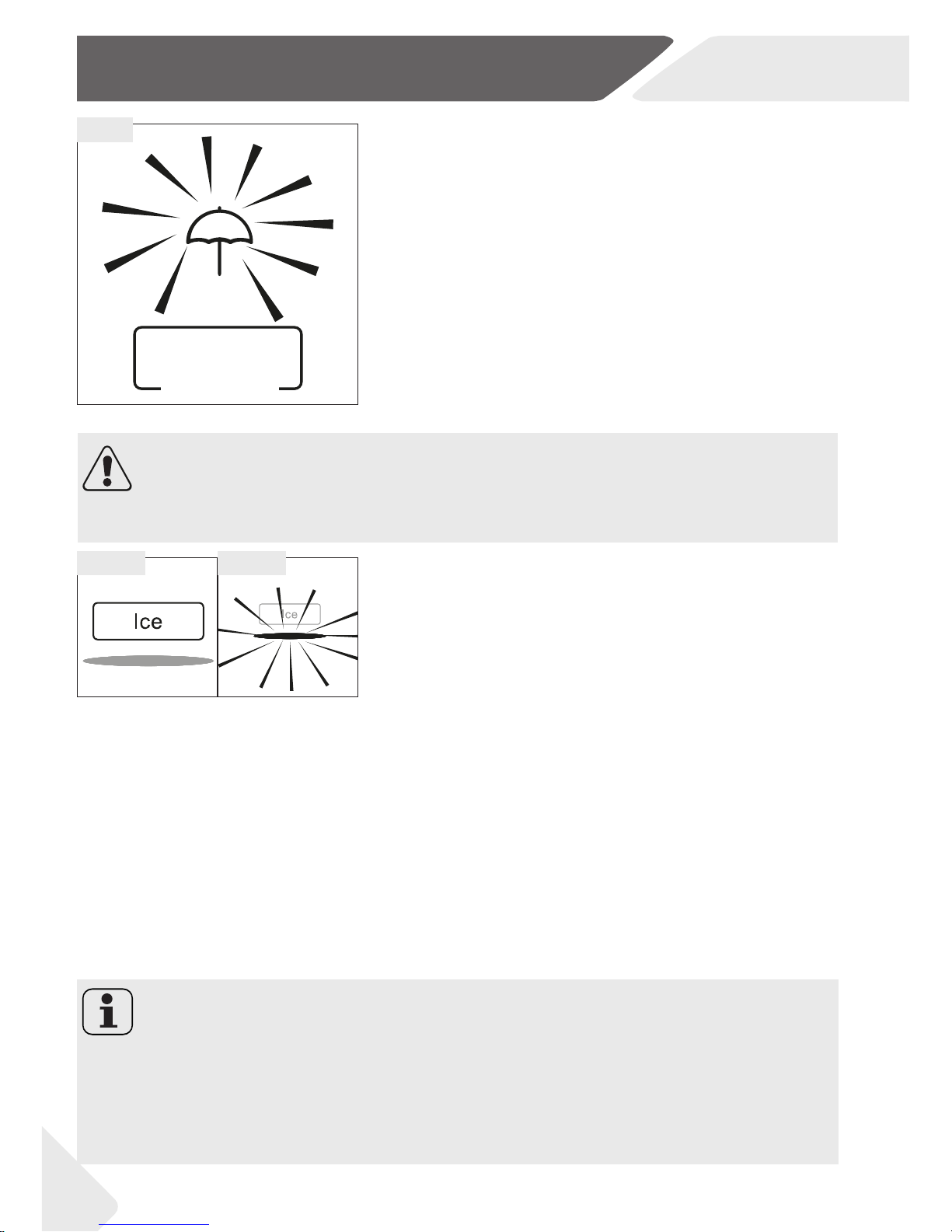

5.10 Holiday function

This function sets the fridge temperature permanently to 17°C.

This allows to keep the door of the empty fridge closed without causing an odour or mold - during a long absence (e.g. during holiday). The freezer compartment is free for your setting.

1. Unlock the panel by touching key “F” if it is locked (Fig. 5.5).

2. Touch key “C” (Fuzzy) for 3 seconds Fig. 5.10). Indicator “c1” illuminates .and the function is activated.

By repeating the above steps or selecting an other

function this function can be switched o again.

Fuzzy

3 Sec. Holiday

5.10

5.11 Ice Maker function

This function allows to produce ice cubes which will be collected in the ice container.

The ice maker periodically receives an automatic ow

of water which will be frozen into ice cubes and automatically fall into the ice container. Capacity of the ice maker depends on the ambient temperature, frequency of freezer door openings, and freezer compartment cooling temperature setting. Typical quantity of ice production per day is 1.5kg.

1. Take care the water supply valve is opened.

2. Unlock the panel by touching key “F” if it is locked (Fig. 5.5).

3. Touch key “D” (Ice) (Fig. 5.11-1).

4. Indicator “d” illuminates and the function is activated (Fig. 5.11-2).

By repeating the above steps this function can be

switched o again.

5.11-1 5.11-2

why there is a risk of smelting? the ice cubes are in a frezzer??

WARNING!

During the holiday function no goods must be stored in the fridge compartment. The temperature of + 17 ° C is too high for storing food.

Notice: Ice Maker function

▶ The Ice Maker function will automatically switch o if the maximum ice level is reached. ▶ Make sure that you empty the ice maker container before turning o the ice maker

function, as the ice will melt into water.

▶ When you don‘t need ice cubes for a long time, please empty the container and insert

the cleaned container and close the water supply valve.

Page 17

5- Use

5.12 Cool Water function

With this function the tank in the fridge door will be

lled automatically with drinking water which is cooled

to drinking temperature and can be tapped.

1. Take care the water supply valve is opened.

2. Unlock the panel by touching key “F” if it is locked (Fig. 5.5).

3. Touch key “E” (Water) (Fig. 5.12-1).

4. Indicator “e1” illuminates and the function is activated (Fig. 5.12-2) and water can be tapped.

By repeating the above steps this function can be

switched o again.

3 Sec. Filter

5.12-1

5.12-2

please conrm/correct

5.12.1 Getting water from the dispenser

1. Take care the Cool Water function is activated.

2. Place a glass underneath the water outlet.

3. Make sure the glass is in line with the dispenser to prevent the water from splashing out.

4. Push it gently against the water dispenser lever with your glass. (Fig. 5.12.1)

WATER DISPENSER

5.12.1

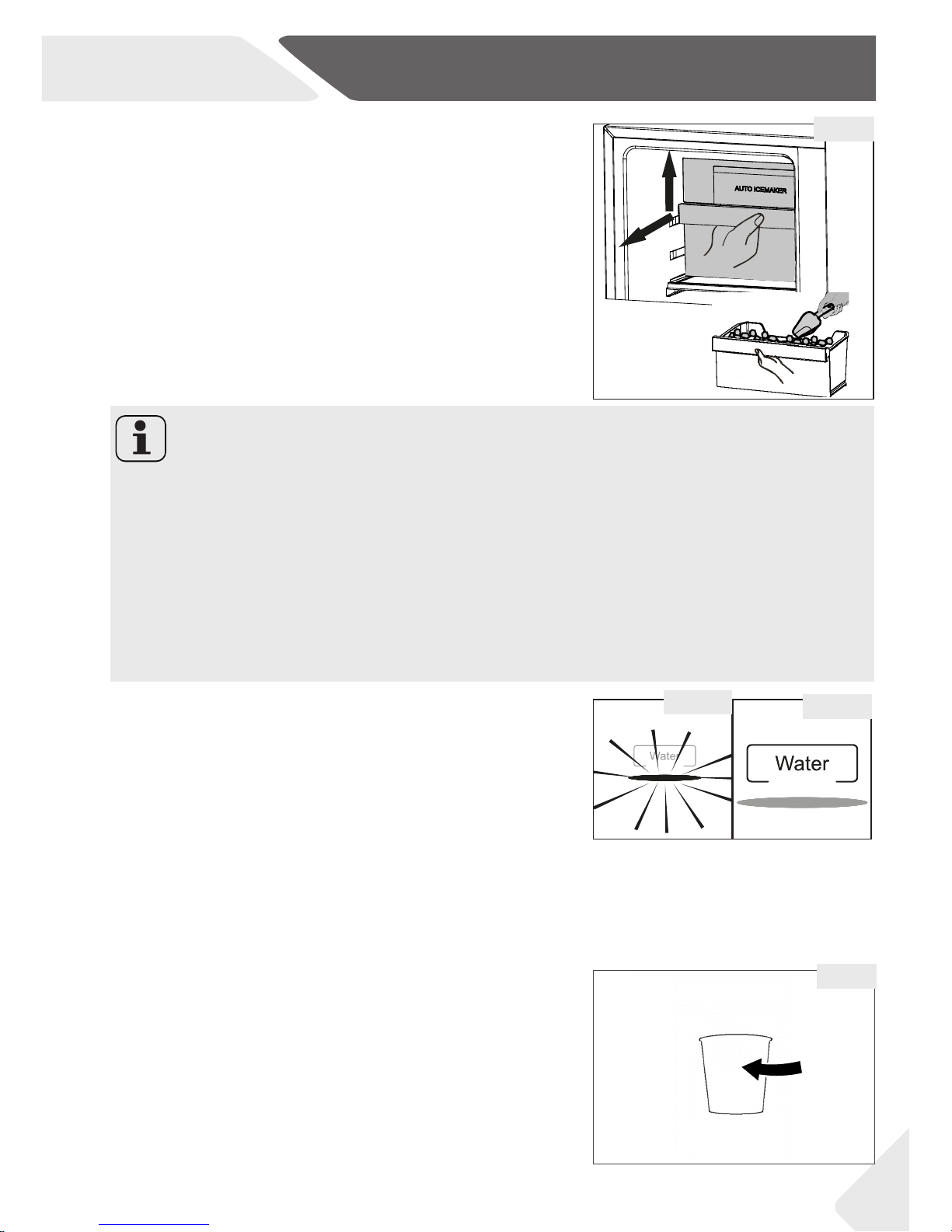

5.11.1 Getting ice cubes

1. Take care the Ice Maker function is activated.

2. Lift the ice container (1) and pull it out (2) (Fig.

5.11.1).

3. Remove the ice cubes from the ice container with ice spoon (3); separate ice cubes which are glued together in order to allow maximum use of ice container.

4. Put the ice container back to the

freezer.

5.11.1

Notice: Getting ice cubes

▶ When the appliance is switched on for the rst time and when you start the ice func-

tion while container is empty, it may take up to 24 hours to make your rst batch of

ice cubes.

▶ First production of ice cubes(20 pieces approx) should not be consumed after rst

use, after long non-use of Ice Maker function and after the lter change.

▶ Do not take the ice container out o the freezer longer than necessary as ice cubes

may melt. ▶ Occasionally, in periods of infrequent ice use, cubes may stick together. This is normal. ▶ If ice cubes get stale, throw them away and clean the ice container.

Page 18

5- Use

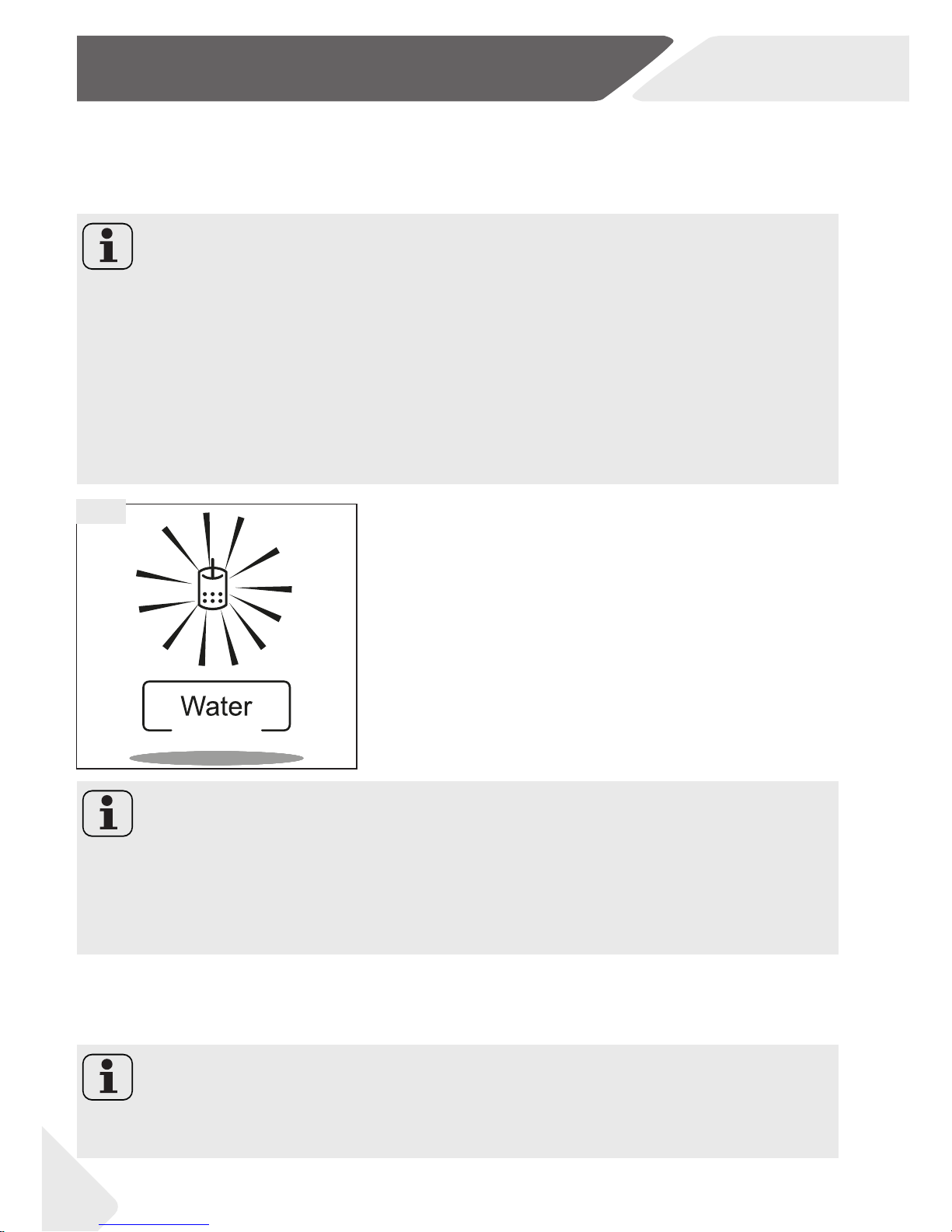

5.13 Change lter indicator

Approximately each 6 months the “Change Filter” indicator light turns on (Fig. 5.13). This indicates that the

water lter has to be changed. Refer to CARE AND

CLEANING.

The lter in the water pipe lters absorbs impurities

and makes water/ice clean and hygienic. After a long time of usage the ice cubes becomes smaller because

the lter is blocked from the impurities.

3 Sec. Filter

5.13

5.13.1 Reset the Change lter indicator

▶ Touch key “E” (Water) for 3 seconds (Fig. 8.5), the “Change Filter” indicator (e2) will

turn o.

Notice: Water dispenser

▶ For the very rst use it is necessary to press the water dispenser several times for

1 minute in order to clear the air in the line. Do not press for more than 1 minute to prevent overheating of the pad activator solenoid.

▶ The rst 5 glass of water should not be consumed after initial start up or following a

lengthy break in use.

▶ The rst few glass of water you take out will be warmer than the next glasses. This is

normal. ▶ If you like very cold water rst put ice cubes from the freezer into the glass. ▶ Do not use a paper glass or one that is too tall to t into the dispenser cavity.

Notice: Filter change

▶ For an impeccable quality of the ice cubes, it is very important to change the water l-

ter regularly! If the water quality show signs of deterioration, either visually or in taste,

the lter should be changed sooner- before the indicator light turns on.

▶ After installation of new lter the next production of ice cubes (20 pieces approx)

should not consumed.

Notice: Reset Change lter indicator

To prevent possible diseases, do not deactivate the Change Filter indicator without

changing the lter!

5. After lling the glass release the lever and held the glass still for a further 1 second as some more water may be spent.

6. Water in the tray should be removed in time,as it could overow when the door opens and closes.

Page 19

5- Use

5.14 Tips on storing fresh food

5.14.1 Storing into the fridge compartment

▶ Keep your fridge temperature below 5°C. ▶ Hot food must be cooled to room temperature before storing in the appliance. ▶ Foods stored in the fridge should be washed and dried before storing ▶ Food to be stored should be properly sealed to avoid odour or taste alterations. ▶ Do not store excessive quantities of food. Leave spaces between foods to allow cold

air owing around them, for a better and more homogeneous cooling.

▶ Foods eaten daily should be stored at the front of the shelf. ▶ Leave a gap between foods and the inner walls, allowing air owing. In special way

don’t store foods against the rear wall: foods could freeze against rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.

▶ Defreeze frozen food in the fridge storage compartment. This way, you can use the

frozen food to decrease the temperature in the compartment and save energy.

▶ The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba-

nana, pineapple, etc. can be accelerated in the fridge. Therefore, it is not advisable to store them in the fridge. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.

▶ Unpleasant odours inside the fridge are a sign that something has spilled and clean-

ing is required. See CARE AND CLEANING.

▶ Dierent foods should be placed in dierent areas according to their properties (Fig.

5.14.1):

5.14.1

1 Butter, cheese etc. 2 Eggs, canned food, spices etc. 3 Drinks and bottled foods. 4 Pickled foods, canned food, etc. 5/6 Meat products, snack foods, etc. 7 Pasta, canned food, milk, tofu, dairy etc. 8 Cooked meat, sausages, etc. 9 Fruits, vegetables, salad, etc

Page 20

5- Use

1 Less weighty items, such as ice cream, vegeta-

bles, bread etc.

2 Large/heavier portions of food, such as meats

joints for roasting

3 Beverage without high alcohol and temporary

storage of spirits with a high alcohol content, small parts like Pizza or herbs.

5.14.2

5.14.2 Storage into the freezer compartment

▶ Keep the freezer temperature at- 18°C. ▶ 24 hours before freezing switch on the Super-Freeze function; -for small quantities

of food 4-6 hours are sucient.

▶ Hot food must be cooled to room temperature before storing in the freezer com-

partment.

▶ Food cut into small portions will freeze faster and be easier to defrost and cook. The

recommended weight for each portion is less than 2.5 kg

▶ It is better to pack food before putting it into the freezer. The outside of the pack-

aging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic.

▶ In order to avoid expiration of storage periods, please note the freezing date, time

limit and name of the food on the packaging according to the storage periods of different foods.

▶ WARNING!: Acid, alkali and salt etc. could erode the internal surface of the freezer.

Do not place the food having these substances (e.g. sea sh) directly on the internal

surface. Salt water in the freezer should be cleaned up immediately.

▶ Do not exceed the food storage times recommended by the manufacturers. Only

take the required amount of food out of the freezer.

▶ Dierent foods should be placed in dierent areas according to their properties (Fig.

5.14.2):

Notice: Storage

▶ Please keep the distance more than 10 mm between the food placed and the sensor

to ensure the cooling eect.

▶ Please keep the lowest drawer when the appliance working in order to ensure the

cooling eect.

▶ The food with ice (like ice cream etc.) should be stored inside the freezer compart-

ment instead of on the bottle holder, for the temperature changes at bottle holder caused by door opening and closing may thaw the food.

Page 21

5- Use

5.14.3 When storing commercially frozen foods, please follow these guidelines:

▶ Always follow manufacturers’ guidelines for the length of time you should store food

for. Do not exceed these guidelines!

▶ Try to keep the length of time between purchase and storage as short as possible to

preserve food quality. ▶ Buy frozen foods, which have been stored at a temperature of –18 °C or below. ▶ Avoid buying food which has ice or frost on the packaging – This indicates that the

products might have been partially defrosted and refrozen at some point – temper-

ature rises aect the quality of food.

▶ Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is

rst cooked, otherwise it may bless edible.

▶ Do not load excessive quantities of fresh food in the freezer compartment. Refer

to the freezing capacity of the freezer – See TECHNICAL DATA or data at the type plate.

▶ Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12

months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months)

▶ When freezing fresh food, avoid bringing it in contact with already frozen food. Risk

of thawing!

▶ Defreeze frozen food in the fridge. This way, you can use the frozen food to de-

crease the temperature in the compartment and save energy.

Page 22

6- Energy saving tips

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g.

stoves, heaters).

▶ Avoid unnecessarily low temperature in the appliance. The energy consumption in-

creases the lower the temperature in the appliance is set. ▶ Functions like Super-Cool or Super-Freeze consume more energy. ▶ Allow warm food to cool down before placing it in the appliance. ▶ Open the appliance door as little and as briey as possible. ▶ Do not overll the appliance to avoid obstructing the air ow. ▶ Avoid air within the food packaging. ▶ Keep door seals clean so that the door always closes correctly. ▶ Defreeze frozen food in the fridge storage compartment.

Page 23

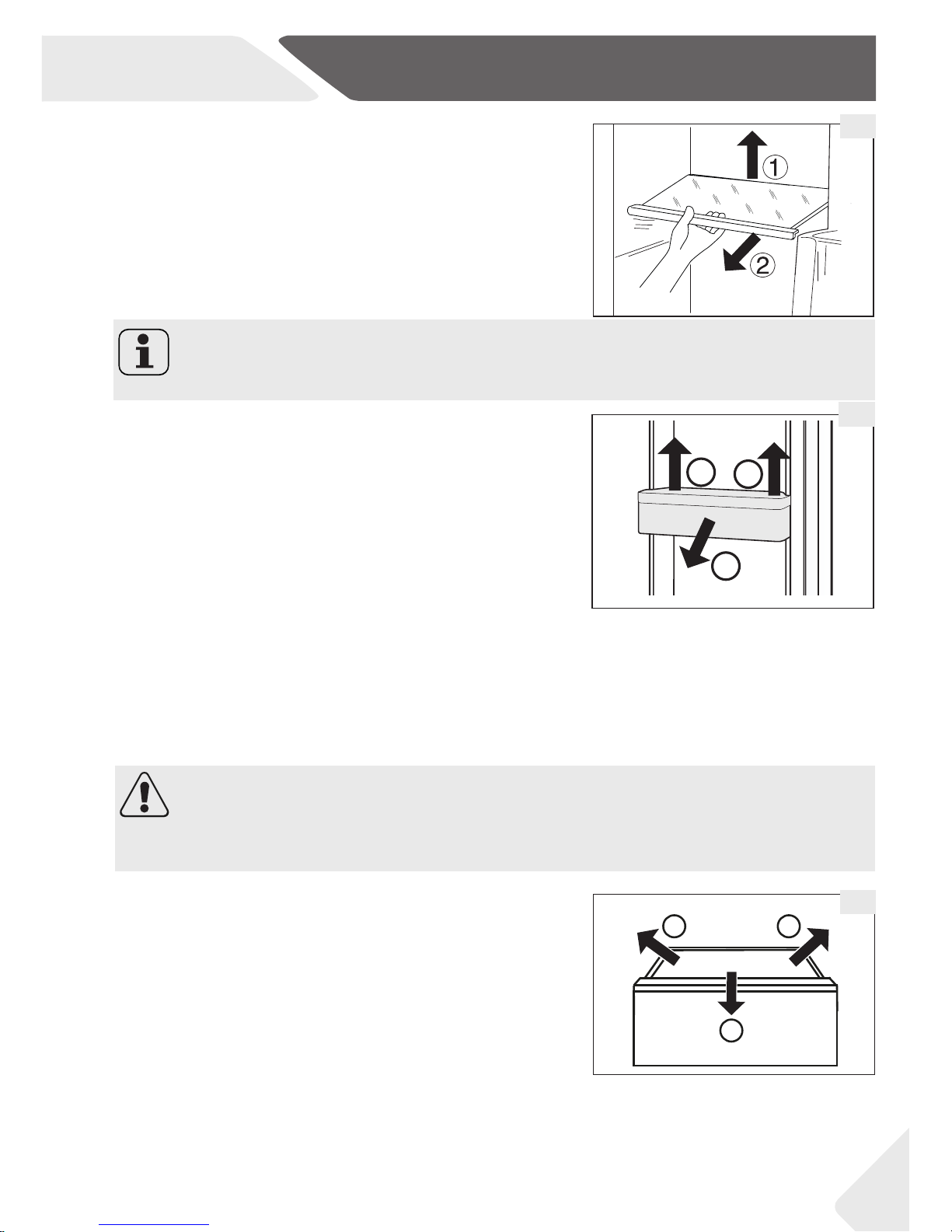

7- Equipment

7.1 Adjustable shelves

The height of the shelves can be adjusted to t your

storage needs.

1. To relocate a shelf, remove it rst by uplifting its hind edge (1) and pulling it out (2) (Fig. 7.1).

2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear

of the shelf is xed inside the slots in the sides

7.2 Removable door racks/bottle holder

The door racks/bottle holder can be removed for cleaning:

1. Place hands on each side of the rack/holder and lift it upwards (1) (Fig. 7.2).

2. Pull the door rack/bottle holder out (2).

3. In order to insert the door rack/bottle holder, the above steps are carried out in reverse order.

7.1

7.2

7.4 Removable drawer

To remove the drawer out of the fridge or freezer compartment pull out to the maximum extent (1), lift and remove (2) (Fig. 7.4).

In order to insert the drawer, the above steps are carried out in reverse order.

2 2

7.4

7.3 Bottle holder- freezer compartment

The bottle holders of the freezer compartment are intended for temporary storage of spirits with a high alcohol content. Beverage without high alcohol should be cooled in the fridge.

Additionally you can store small parts in the bottle holders.

Notice: Shelves

Ensure that all ends of a shelf are level.

WARNING!

Bottles and cans may burst! Set a timer that will remind you to remove bottles/cans without high alcohol content..

Page 24

7- Equipment

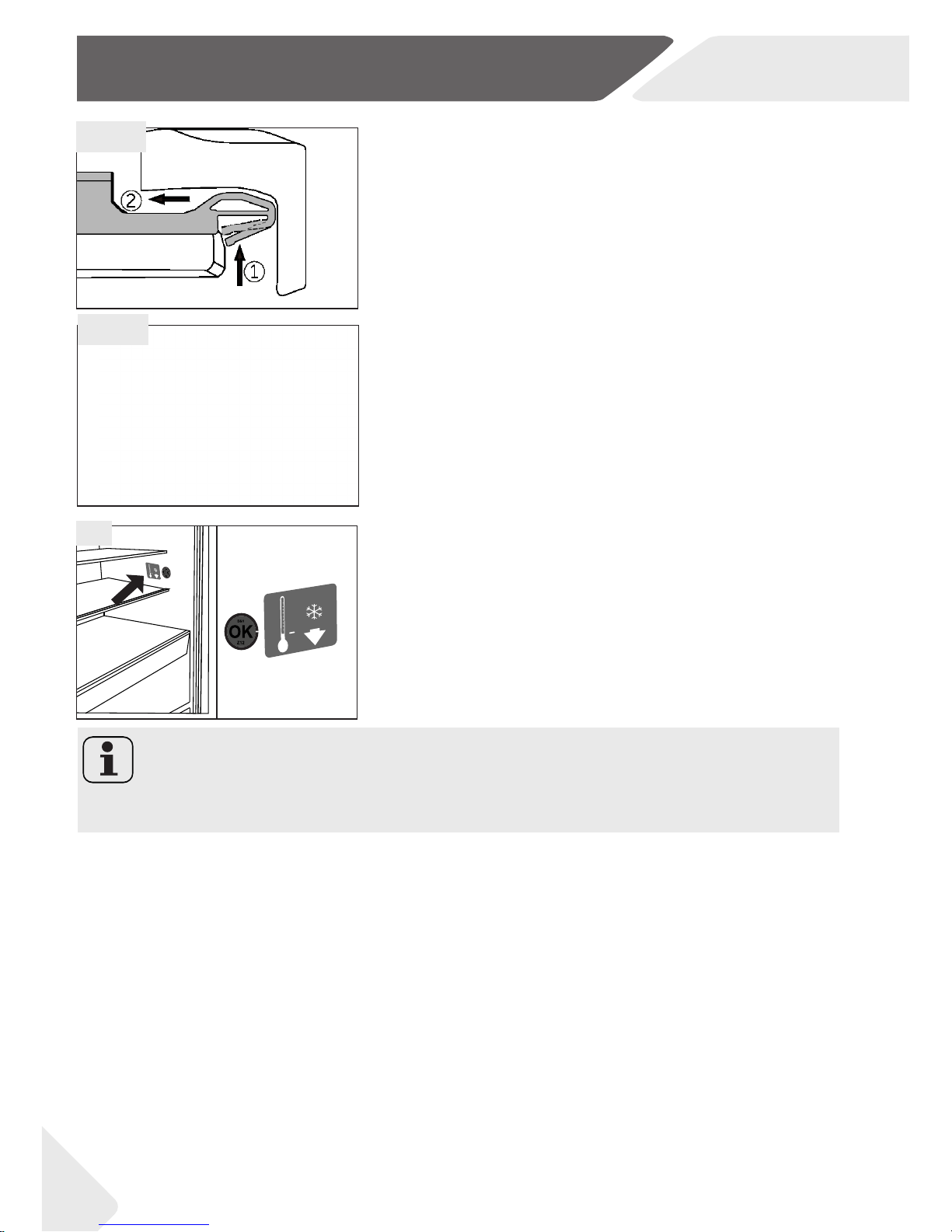

7.7 The Light

The LED interior light comes on when the door is opened. The performance of the lights

is not aected by any of the appliances other settings.

7.6 OPTIONAL: OK-temperature indicator

The OK-temperature indicator (Fig. 7.6) at the inner wall of the fridge, , can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate “OK”.

7.6

7.5.1 Removable shelf below the ice container

1. Press (1) the hook on the rear of the shelf upwards and then pull (2) the shelf forward, so the hook is released (Fig. 7.5.1-1).

2. Repeat step 1 on the other side of the shelf,and then pull it out (3) (Fig. 7.5.1-2).

3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear

of the shelf is xed inside the slots in the sides.

7.5 Ice container and water tank

Refer to section USE.

7.5.1-1

7.5.1-2

Notice: OK-sticker

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

Page 25

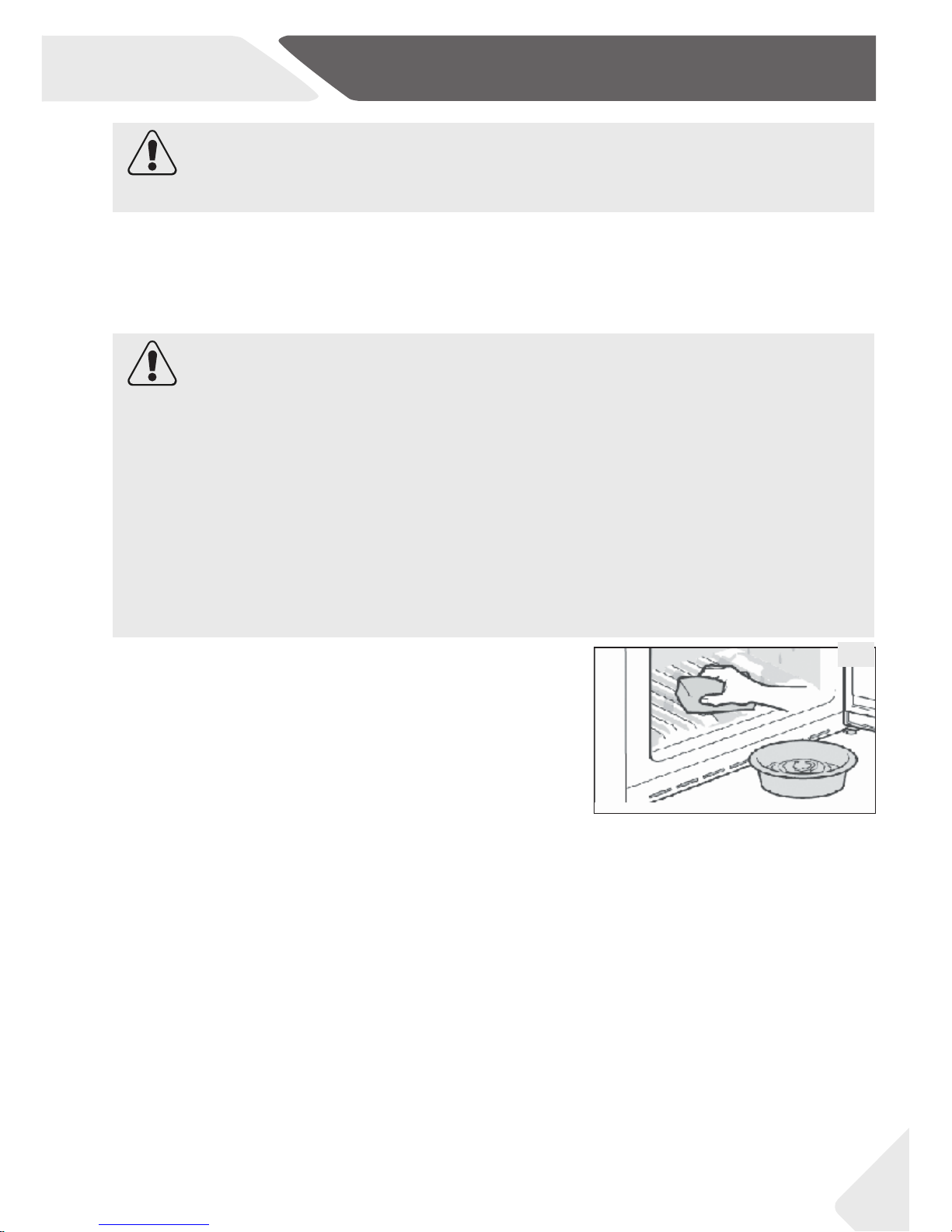

8- Care and cleaning

▶ Always keep the door gasket clean. ▶ Clean the inside and housing of the appliance

with a sponge dampened in warm water and

neutral detergent (Fig. 8.1). ▶ Rinse and dry with soft cloth. ▶ Clean the accessories only with warm water and

neutral detergent. ▶ Do not clean any of the parts of the appliance in a

dishwasher. ▶ Allow at least 5 minutes before restarting the

appliance as frequent starting may damage the compressor.

8.1

8.2 Cleaning the ice container

Clean the ice container periodically with warm water, especially if ice cubes get older and stale. Dry the container well before putting into the appliance in order to avoid ice cubes sticking to the walls.

8.1 General

Clean the appliance when only little or no food is stored. The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol,

amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please

clean with special fridge detergent to avoid damage. ▶ Do not spray or ush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may

cause the glass to break . ▶ Do not touch the inside surface of the freezer storage compartment, especially with

wet hands, as your hands may freeze onto the surface. ▶ In case of heating check the condition of frozen goods.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Page 26

8- Care and cleaning

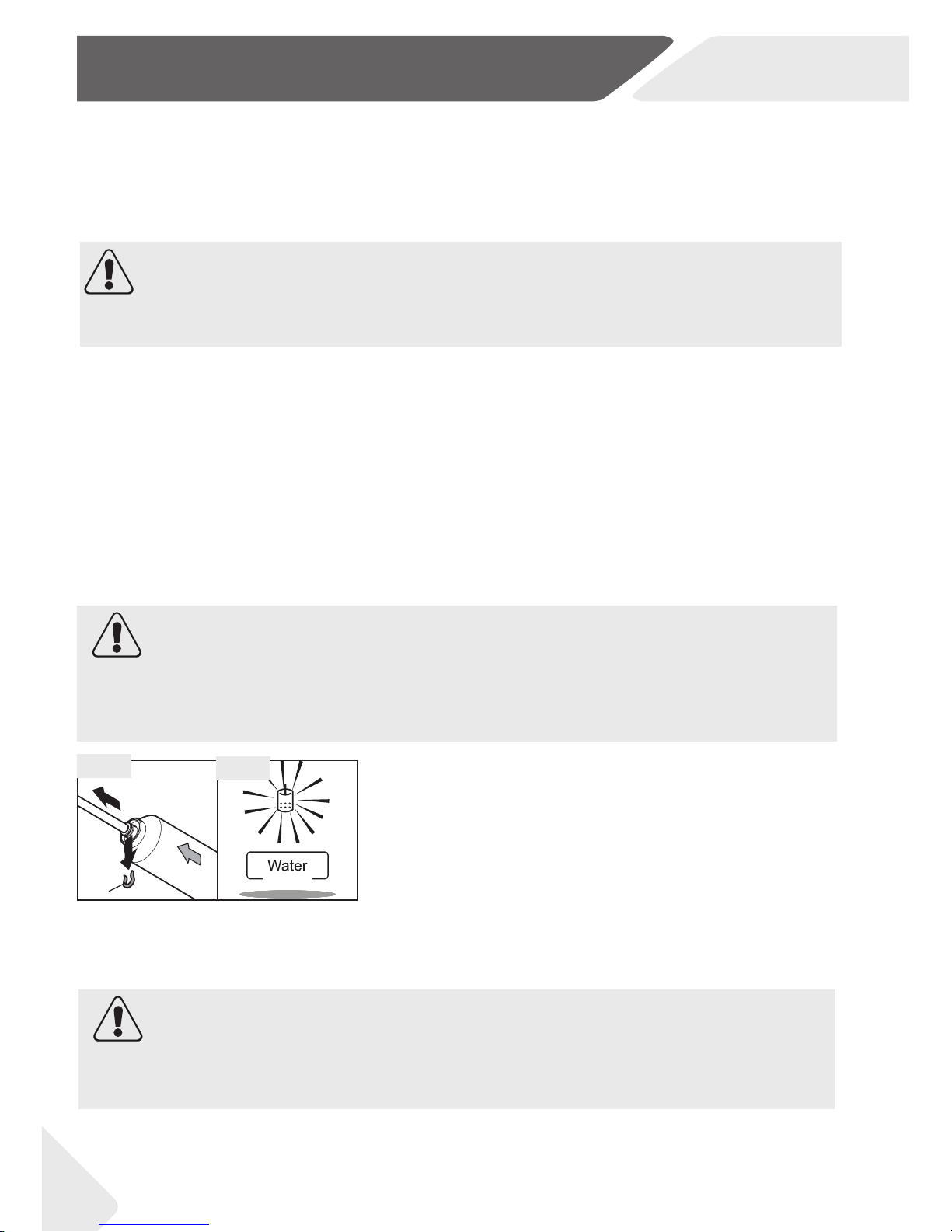

8.3 Defrosting

The defrosting of the fridge and the freezer compartment are done automatically; no manual operation is needed.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service . See CUSTOMER SERVICE.

Parameters of the lamps: : 12 V max 3 W.

8.4 Replacing the LED-lamps

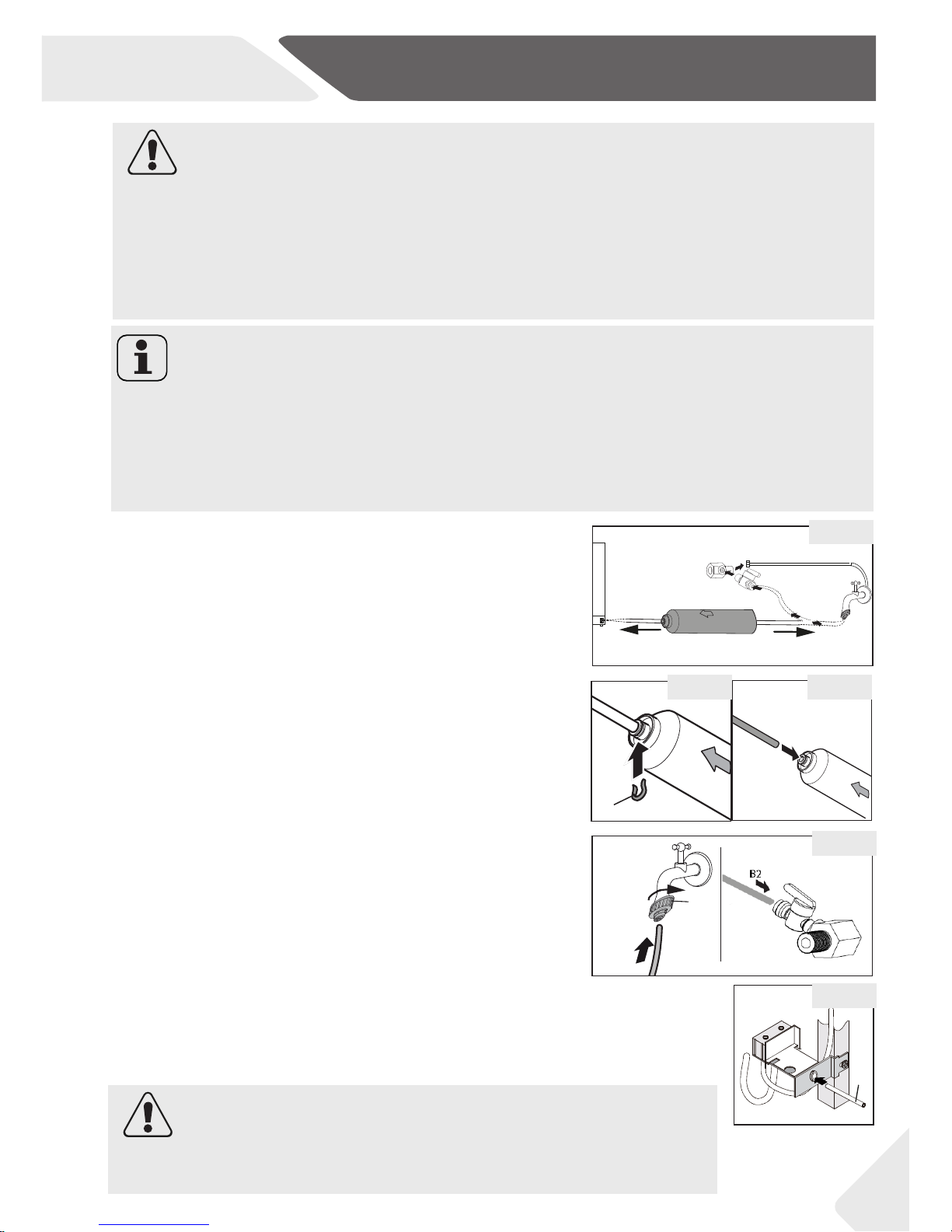

8.5 Replacing the lter

The water lter has to be changed approximately each 6 months, when the “Change Filter”

indicator light will turn on (Fig. 5.13).

The lter set can be get via the CUSTOMER SERVICE.

1. Remove (1) the locking clip (C) on both sides of the

lter (A) and disconnect both pipes (2) (Fig. 8.5-1).

2. Install the new lter in correct position; the dart shows the direction of water ow. Repeat step 1 in

reverse order.

3. Put the plug into the socket and open the water

tab to ush the hoses.

4. Reset the “Change Filter” indicator: Touch key

“E” (Water) for 3 seconds, indicator “e2” turns o

(Fig. 8.5-2). .

ArtNo.601-0005 - S xS 661-9 - S ecu ing the p

8.5-1

3 Sec. Filter

8.5-2

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

WARNING!

▶ Before replacing the lter deactivate the appliance and disconnect the mains plug

from the mains socket.

▶ Turn o water supply.

WARNING!

▶ Ensure always that the connection is rm, dry and leack free! ▶ Take care the hose never to be crushed, kinked, or twisted

Page 27

8- Care and cleaning

8.7 Moving the appliance

1. Remove all food and unplug the appliance.

2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

3. Do not tilt the appliance more than 45° to avoid damaging the refrigerating system.

8.6 Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holidayfunction for the fridge:

▶ Turn o the water supply (some hours earlier before you switch o the appliance). ▶ Take out the food. ▶ Empty and clean the ice container. ▶ Empty the water tank by using the water dispenser several times. ▶ Unplug the power cord. ▶ Clean the appliance as described above. ▶ Keep the doors open to prevent the creation of bad odours inside. ▶ Provide a new lter to install before for next use.

WARNING!

▶ Do not lift the appliance by its handles. ▶ Never place the appliance horizontally on the ground.

Notice: Switch o

Turn the appliance o only if strictly necessary.

Page 28

9- Troubleshooting

Problem Possible Cause Possible Solution

The compressor does not work.

• Mains plug is not connected in the mains socket.

• Connect the mains plug.

• The appliance is in the defrosting

cycle.

• This is normal for an automatic defrosting.

The appliance runs frequently or runs for a too long period of time.

• The indoor or outdoor temperature is too high.

• In this case, it is normal for the appliance to run longer.

• The appliance has been o power

for a period of time.

• Normally, it takes 8 to 12 hours for the appliance to cool down completely.

• A door of the appliance is not tightly closed.

• Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.

• The door has been opened too frequently or for too long.

• Do not open the door too frequently.

• The temperature setting for the freezer compartment is too low.

• Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.

• The door gasket is dirty, worn, cracked or mismatched.

• Clean the door gasket or replace them by the customer service.

• The required air circulation is not guaranteed.

• Ensure adequate ventilation.

The inside of the fridge is dirty and/ or smells.

• The inside of the fridge needs cleaning.

• Clean the inside of the fridge.

• Food of strong odour is stored in

the fridge.

• Wrap the food thoroughly.

It is too cold inside the appliance

• The temperature is set too low. • Reset the temperature.

• The Super-Cool / Super-Freeze

function is activated or is running too long.

• Switch o the Super-Cool / Super-Freeze function.

9.1 Troubleshooting table

Many occuring problems could be solved by yourself without specic expertise. In case

of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

▶ Before maintenance, deactivate the appliance and disconnect the mains plug from

the mains socket.

▶ Electrical equipment should be serviced only by qualied electrical experts, because

improper repairs can cause considerable consequential damages.

▶ A damaged supply should only be replaced by the manufacturer, its service agent or

similarly qualied persons in order to avoid a hazard.

Page 29

9- Troubleshooting

Problem Possible Cause Possible Solution

It is not cold enough inside the appliance.

• The temperature is set too high. • Reset the temperature.

• Too warm goods has been stored. • Always cool down goods before

storing them.

• Too much food has been stored at one time.

• Always store small quantities of food.

• The goods are too close to each other.

• Leave a gap between several foods allowing air owing.

• A door of the appliance is not tight-

ly closed.

• Close the door.

• The door has been opened too

frequently or for too long.

• Do not open the door too frequently.

Moisture formation on the inside of the fridge compartment.

• The climate is too warm and too damp.

• Increase the temperature.

• A door of the appliance is not tight-

ly closed.

• Close the door.

• The door has been opened too

frequently or for too long.

• Do not open the door too frequently.

• Food containers or liquids are left open.

• Let hot foods cool to room temperature and cover foods and liquids.

Moisture accumulates on the fridges outside surface or between the doors.

• The climate is too warm and too damp.

• This is normal in damp climate and will change when the humidity decreases.

• The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.

• Ensure that the door is tightly shut.

Strong ice and frost in the freezer compartment.

• The goods were not adequately packaged.

• Always pack the goods well.

• A door/drawer of the appliance is

not tightly closed.

• Close the door/drawer.

• The door has been opened too

frequently or for too long.

• Do not open the door too frequently.

• The door gasket is dirty, worn, cracked or mismatched.

• Clean the door gasket or replace them by new ones.

• Something on the inside prevents the door to close properly.

• Reposition the shelves, door racks, or internal containers to allow the door to close.

The appliance makes abnormal sounds.

• The appliance is not located on level ground.

• Adjust the feet to level the appliance.

• The appliance touches some object around it.

• Remove objects around the appliance.

A slight sound is to be heard similar to that of owing water.

• This is normal. • -

Page 30

9- Troubleshooting

Problem Possible Cause Possible Solution

You will hear an alarm beep.

• The door is open. • Close the door.

You will hear a faint hum

• The anti-condensation system is working.

• This prevents condensation and is normal.

The interior lighting or cooling system does not work.

• Mains plug is not connected in the mains socket.

• Connect the mains plug.

• The power supply is not intact. • Check the electrical supply to

the room. Call the local electricity company!

• The LED-lamp is out of order. • Please call the service for chang-

ing the lamp.

The sides of the cabinet

get warm.

• This is normal. • -

You will get no water from the water dispenser or no ice cubes

• Water tap is closed. • Check water tap.

• Inlet hose is kinked. • Check inlet hose.

• Water pressure is less than 0.15 MPa

• Check water pressure

• Filter is blocked • Change the lter

• Cool Water/Ice Maker function is

not activated

• Activate Cool Water/Ice Maker function

• Environmental conditions are not sucient

• Ambient temperature must be

minimum 0°C..

Keep in mind that it may take up to 12 hours to produce the rst ice cubes.

Only small ice cubes will be produced.

• Filter must be changed. • Change the lter

• Water pressure is less than 0.15 MPa

• Check water pressure

The ice cubes smell and taste unpleasant.

• Ice Maker function in not often in

use.

• Ice can take the smell and odour of other substances. Deposit the ice cubes.

• Unpacked food is stored in the freezer compartment.

You will hear sounds

like owing of water or ice cubes dropping

• This is normal when ice or water function is activated

• -

Water ows out

of the appliance

• Water pressure is too high. • Interrupt the power supply, close

the water tab and call the Customer Service

• Water hose is damaged.

Page 31

9- Troubleshooting

9.2 Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible. ▶ Do not put additional food into the appliance during a power interruption. ▶ If prior notice of a power interruption is given and the interruption duration is longer

than 5 hours, make some ice and put it in a container in the top of the fridge com-

partment. ▶ An inspection of the goods is required immediately after the interruption. ▶ As temperature in the fridge will rise during a power interruption or other failure,

the storage period and edible quality of food will be reduced. Any food that defrosts

should be either consumed, or cooked and refrozen (where suitable) soon after-

wards in order to prevent health risks.

Notice: Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Page 32

10- Installation

10.1 Unpacking

10.2 Environmental conditions

The room temperature should always be between 10° C and 43° C, since it can inuence

the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, fridges) without isolation.

10.3 Space requirement

Required space when door is opened (Fig. 10.3): Appliance width:161 cm Appliance depth: 112 cm

112 cm

161 cm

10 cm

10.3

WARNING!

▶ The appliance is heavy. Always handle with at least two persons. ▶ Keep all packaging materials out of children´s reach and dispose them in an environ-

mentally friendly manner.

10.4 Ventilaton cross-section

To achieve sucient ventilation of the appliance for

safety reasons, the information of the required ventilation cross sections must be observed (Fig. 10.4)..

50mm

10.4

▶ Take the appliance out of the packaging. ▶ Remove all packaging materials including the transparent protective lm.

WARNING!

▶ It is recommended to have the appliance installed by a qualied technician. ▶ Take care that the mains plug is disconnected from the mains socket. ▶ Take care the water supply is blocked. ▶ A shut-o valve which must be easy accessible after installation must be installed

between the hose and the domestic water connection in order to be able to interrupt

the water supply if necessary. ▶ Only connect to cold water supply. ▶ Use only the supplied hose set for the connection.

10.5 Fresh Water Connection

Follow the installation instructions below (Fig. 10.5).

Page 33

10- Installation

1. Cut the pipe into two pieces with the required

length to connect the lter (A) with the appliance

(B1) and the water tap (B2) (Fig. 10.5-1). Make sure to get a square cut by using a sharp knife.

2. Insert pipe (B1) approx. 12 mm deep into the

mounting xture of the water lter (A) (Fig. 10.5-2). Take care to install the lter in the correct direction. The dart shows the direction of water ow.

3. Secure the pipe with a locking clip (C) according to Fig. 10.5-3.

4. Repeat step 2 and 3 with the pipe (B2) on the other

side of the lter

5. Connect the end of pipe (B2) to one of the adapters “D” or “E and F” which suits to the water main (Fig.

10.5-4).

6. Connect the end of B1 to the valve assembly at the back of appliance (Fig. 10.5-5).

7. Open the water tab to check if the system is leack

free and ush the pipe.

1/2“

3/2“

10.5-1

ArtNo.601-0010 - SxS 661-9 - Pipe to filter

10.5-2

ArtNo.601-0005 - S xS 661-9 - S ecur

ing the p

10.5-3

3/4“ 1/2“

10.5-4

10.5-5

Notice: Water connection

▶ Pressure of the cold water has to be 0.15-0.6 MPa. ▶ The maximum permitted length of water hose is 8 metres. Longer hoses will aect

the ice cubes and cold water content. ▶ Ambient temperature has to be 0°C minimum. ▶ Keep the water hose away from heat sources.

WARNING!

▶ Ensure always that the connections are rm, dry and leack free! ▶ Take care the hose never to be crushed, kinked, or twisted

WARNING!

▶ Only connect to drinking water supply. The water lter only lters impurities in the

water and makes ice clean and hygienic. It cannot sterilize or destroy germs or other harmful substances.

▶ Too high water pressure in the hose can damage the appliance. Install a pressure

reducer when the water pressure in the hose exceeds 0.6 MPa.

▶ Before connection, check whether the water is clean and clear.

Page 34

10- Installation

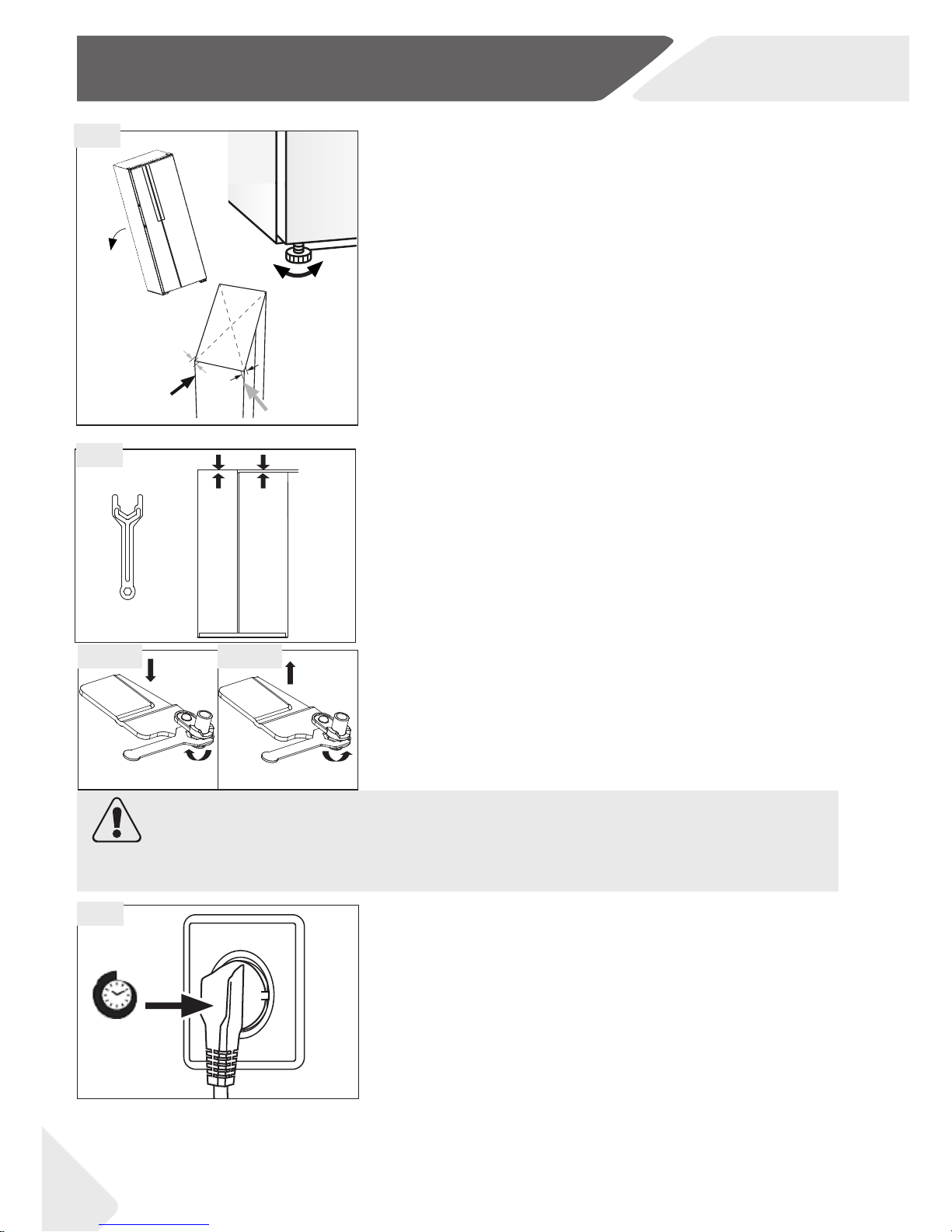

10.7 Fine tuning of the doors

If the doors are still not in one level after levelling the doors by the feet, this mismatch can be remedied by turning the hinge lifting shaft at the right bottom corner of refrigerating door with a spanner (Fig. 10.7)

▶ Clockwise turn lifting shaft with spanner to lower

door height (Fig. 10.7-1).

▶ Antic lock wise turn lifting shaft with spanner to lift

door height Fig. 10.7-2).

10.7

10.7-210.7-1

10.8 Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours (Fig.10.8) so that the oil runs back into the capsule.

2 h

10.8

WARNING!

Do not adjust the hinge lifting shaft excessively to a height which might cause the shaft to leave its original locked position. (Adjustable height range: 3 mm)

10.5 Aligning the appliance

The appliance should be placed on a at and solid surface.

1. Tilt the appliance slightly backwards (Fig. 10.6).

2. Set the feet to the desired level. Make sure the distance to the wall on the hinge

sides is at least 5 cm.

3. The stability can be checked by alternately bump-

ing on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the doors.

max 45°

10.6

Page 35

10- Installation

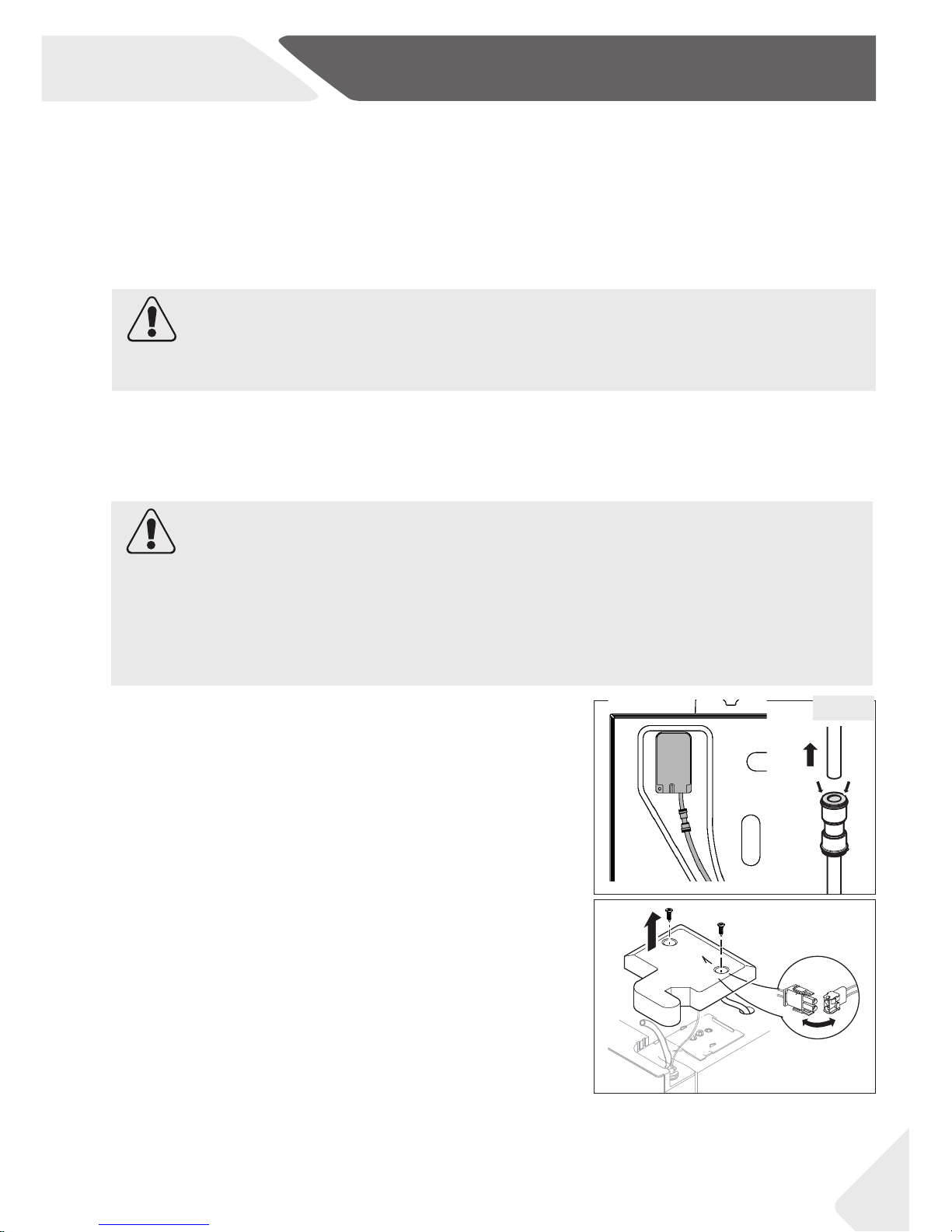

10.10 Removing and installing the doors

In the event that you need to remove the appliance doors, please follow the door removal and installation instructions below (Fig. 10.10).

1. Release the water coupler on the upper left corner at the back of appliance: press and hold in the collar as shown and remove the water.

2. Undo the hinge cover screw and remove the cover. Release the cable connector.

10.9 Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

WARNING!

▶ Before any operation, deactivate the appliance and disconnect the mains plug from

the mains socket. ▶ Block the water supply. ▶ The appliance is heavy. Always handle with at least two persons. ▶ Do not tilt the appliance more than 45° or place it horizontally on the ground

10.10

Page 36

10- Installation

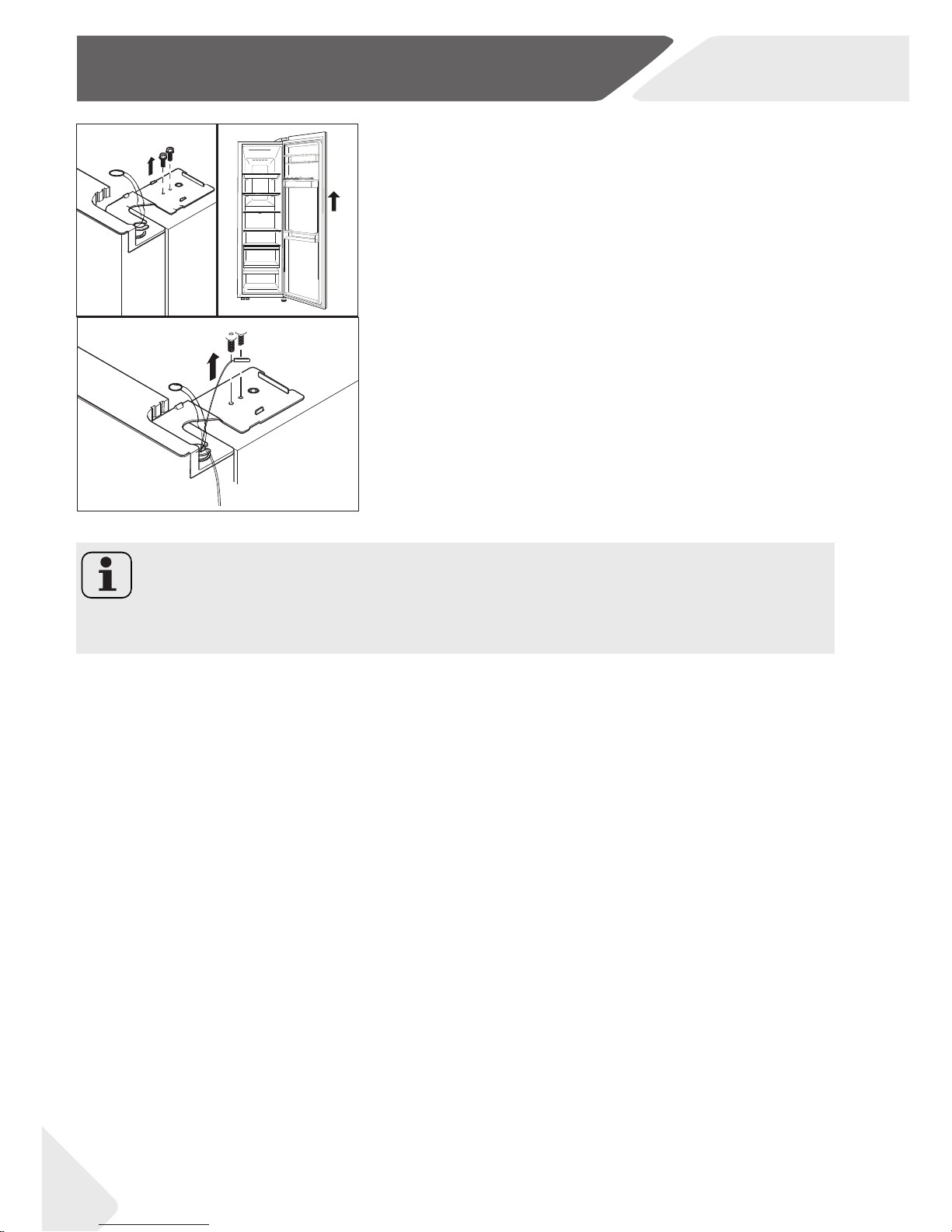

3. Undo the screws holding the upper hinge in position and then remove the hinge.

4. Lift the freezer compartment door to remove it.

5. Ret the door by reversing the removal steps. Ensure that the grounding cable will be xed by the

screw.

6. Ret the water coupler on the back of appliance;

see step 1.

Notice: Fridge door

The pictures show the removing of the freezer compartment door. For the fridge door please use the corresponding parts on the other site.

Page 37

11- Technical data

Net storage volume (L) 557 Total storage volume (L) 500 Voltage / Frequency 220-240V ~/ 50Hz Input power (W)

200

Main fuse (A)

Coolant R600a

Water pressure in MPa 0.15-0.6 Dimensions (H/W/D in mm)

1790 /908 /655

11.1 Product che according to

regulation EU No. 1060/2010

Trade mark Haier

Model identier HRF-522I*6 HRF-522I*7

Category of the model

Refrigerator-freezer

Energy eciency class

A+ A++

Annual energy consumption (kWh/year)

332

Storage volume cooling (L) 331

Storage volume freezing (L) **** 165

Star rating

Temperature of other compartments > 14°C Non applicable

Frostfree system

Yes

Temperature rise time (h)

Freezing capacity (kg/24h)

Climate class This appliance is intended to be used at an am-

bient temperature between 10 °C and 43°C.

SN-N-ST-T

Airborne acoustical noise emissions (db(A) re 1pW)

Construction type

Freestanding

* Color code

based on standard test results for 24 hours. Actual energy consumption will depend on

how the appliance is used and where it is located.

11.2 Additional technical data

11.3 Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

350

Page 38

12- Customer service

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please rst check section TROUBLESHOOTING.

If you cannot nd a solution there, please contact

▶ your local dealer or ▶ the Service & Support area at www.haier.com where you can nd telephone numbers

and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model ____________________ Serial No. _____________________

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please nd below our addresses in Europe:

European Haier addresses

Country* Postal address Country* Postal address

Italy

Haier Europe Trading SRL Via De Cristoforis, 12 21100 Verese ITALY

France

Haier France SAS 3-5 rue des Graviers 92200 Neuilly sur Seine FRANCE

Spain Portugal

Haier Iberia SL Pg. Garcia Faria, 49-51 08019 Barcelona SPAIN

Belgium-FR Belgium-NL Netherlands Luxembourg

Haier Benelux SA Anderlecht Route de Lennik 451 BELGIUM

Germany Austria

Haier Deutschland GmbH Hewlett-Packard-Str. 4 D-61352 Bad Homburg GERMANY

Poland Czechia Hungary Greece Romania Russia

Haier Poland Sp. zo.o. Al. Jerozolimskie 181B 02-222 Warszawa POLAND

United Kingdom

Haier Appliances UK Co.Ltd. One Crown Square Church Street East Woking, Surrey, GU21 6HR UK

*For more information please refer to www.haier.com

Page 39

Page 40

HRF-522I*6-522I*7_GB V04_012017
