HRF-381FR HRF-421FR
Primary features
Efficient ice making
A semi-automatic icemaker is installed in the freezer
compartment and ice cubes can be made efficiently.
Unique chiller compartment design
On the top of the refrigerator compartment is a chiller drawer
designed for convenient access.
Automatic defrosting
This appliance features air-cooling system for automatic
defrosting.
Unique external layout
Unique designs of streamline and curve refrigerator doors with
reverse C shaped handle.
Refrigerator air curtain cooling design
Air curtain surround cooling adjusting refrigerator temperature
(difference within 2 C).
Multiple venting system for efficient cooling achievements
Multiple vents are designed in the air circulation channels for
efficient distribution of coldness in each compartment.
Separate control for refrigerating and freezing storage
The refrigerating and freezing compartments are controlled
separately to optimize cooling efficiency and economic
operation.
Circuit diagram
HRF-381FR HRF-421FR
230V~
A. Power plug B. Light switch C. Sensor 1 D. Sensor 2
E. Sensor 3 F. Sensor 4 G. Sensor 5 H. Air outlet
I. Heater 1 J. Heater 2 K. Fuse L. Light
M. Freezer fan motor N. Refrigerator fan motor
O. Overload protector P. Compressor Q. PTC
R. Operating capacitor S. Display screen T. Power panel
Diagram of parts
(1) Ice maker
(2) Freezer air channel cover
(3) Freezer shelf
(4) Freezer air outlet
(5) Freezer air backflow outlet
(6) Chiller bin
(7) Refrigerator air channel
(8) Refrigerator fan
(9) Control panel
(10) Refrigerator shelf
(11) Light and lampshade
(12) Crisper
(13) Adjustable foot
(14) Freezer bottle holder
(15) Refrigerator bottle holder
(16) Air curtain
Safety precautions
Technical information Packing list
This refrigerator requires a
220~240V/50~60Hz supply
Failure in operation and damage to the
control panel, thermostat or the
compressor will occur if voltage is outside
the range 187-242V unless a regulator
with a capacity of over 750W or higher is
installed.
Care for external cable
*Hold the plug, not the electric cable,
when unplugging the refrigerator.
*Ensure that the electric cable is not
trapped by the refrigerator. Do not step on
the cable.
*Avoid damage to the electric cable when
moving the refrigerator.
If inflammable gas leaks in the vicinity of
the refrigerator
*Turn off any leaking valve;
*Open the doors and windows;
*Do not, under any circumstances, unplug
electrical appliances in the vicinity of the
leak.
A separate earthed socket is required.
The refrigerator is supplied with a
standard three-pin plug, of which the one
for grounding should never be removed.
Plug of installed refrigerator shall be
always accessible.
Damaged electric cable
When the electrical cable is damaged or
worn, turn off the refrigerator and consult
to an authorized service agent for
replacement.
Unplug the refrigerator for the following:
*Cleaning or maintenance;
*Replacement of lamp
Technical information
Rated power
consumption
(kW h/24h)
1.60
1.65
Cable
connection
Y
Y
voltage (V~)
Dimensions
700X605X1623
700X605X1723
I
I
Gross
capacity
360L
400L
Weight
(kg)
84
90
Model
HRF-381FR
HRF-421FR
Model
HRF-381FR
HRF-421FR
Note: According to the regulations of international organizations concerned, electrical
refrigerators with climate classification SN, N, ST, T should be used in an area with an
ambient temperature of 10C~43C.
Climate class
T
T
Freezing
capacity (kg/24h)
Rating
5
5
Circuit
breaker
Refrigerant
R134a 130g
R134a 130g
Packing list
Items
Operation manual
Warranty certificate
Refrigerator food shelves
Freezer food shelves
Semi-automatic icemaker
Crisper
Egg holder
Chiller bin
Freezer bottle holder
Refrigerator bottle holder I
Refrigerator bottle holder II
Quantity
Model
HRF-381FR
1
1
2
1
1
1
2
1
2
1
2
HRF-421FR
1
1
2
1
1
1
2
1
2
1
3
Rated
220~240
220~240
(Mm)
(Note: Layout of the refrigerator that you have just purchased may vary due to
technical improvement of this company.)
After-sales service
Safety precautions
Please determine the cause of the problem before making any repair.
Strange odor
Failure to seal food properly
Rotting food inside refrigerator
Failure of regular cleaning of
the refrigerator
Prolonged operation period of the compressor
Initial operation
Large quantity of food loaded
Hot weather
Frequent opening of the refrigerator door
Door not properly closed
Improper temperature setting (see the section Operation )
Poor ventilation

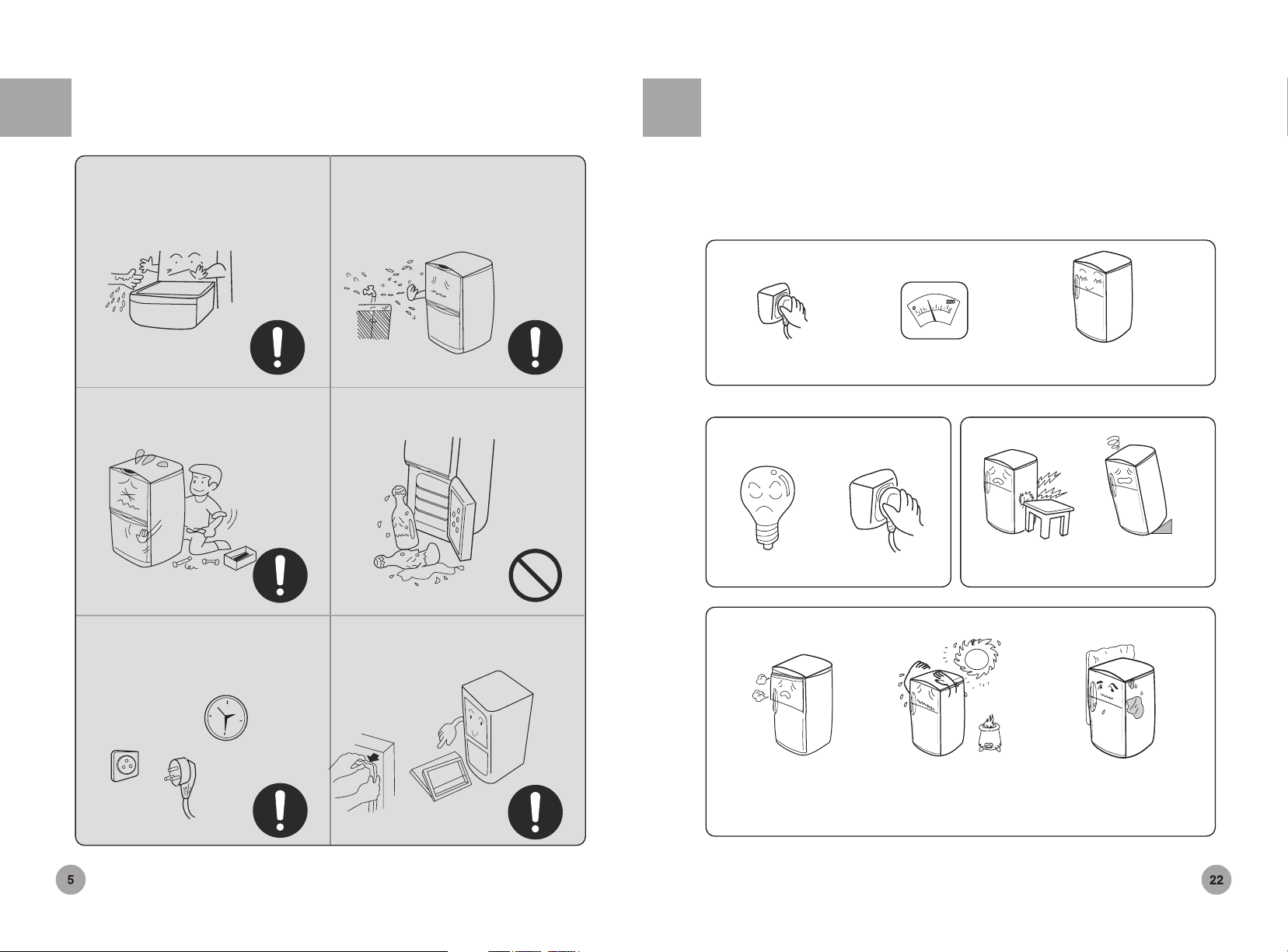

Never store inflammable, explosive or
corrosive materials in the refrigerator.
Gas
Acid
Spray
Mousse
Do not install the refrigerator near
gasoline or other inflammable articles.
Alkali
This refrigerator should be used for food
storage. It is not recommended to place
microbiological or chemical materials,
which have special requirement in
temperature setting.
Vaccine
Bacterin
Chemical Agent
Don't place electrical plugs, regulators or
microwaves on top of the refrigerator.
Don't use electric appliances (Except
those allowed by manufacturer) inside the
refrigerator.
Limited Warranty
Warranty Certificate: If consultation or technical assistance is
needed, please provide the local authorized service agent
with the Warranty Certificate and the purchase invoice.
Do not swing on or apply excessive
pressure to the refrigerator door.
Don't place heavy or unstable articles or
water containers on top of the refrigerator.
Safety precautions
Do not touch inside surface of freezer
compartment in operation, especially with
wet hands as hands may freeze onto the
surface.
Do not spray or splash the refrigerator
when cleaning the refrigerator, nor place
the refrigerator in a damp area.
After-sales service
In the event that the refrigerator does not work properly, please check out and solve
problems according to the following methods. If problems persist, contact the aftersales service center. Information of model, accessory list and serial number of the
refrigerator is required.
Please determine the cause of the problem before making any repair.
The refrigerator does not operate.
Disassembly, renovation or cooling
system maintenance of refrigerator must
be authorized.
Unplug the refrigerator in the event of a
power interruption or during cleaning.
Allow at least 5 minutes lapse before
restarting the refrigerator.
Never store bottled beer or beverages in
the freezer compartment.
Remove the refrigerator door and door
seal if the refrigerator is discarded to
prevent accidental entrapment in the
refrigerator.
Disconnection to the
power supply (plug,
socket or fuse).
Voltage is low.
Lamp does not illuminate.
The bulb is bad. Power supply is
not connected.
Set temperature not reached.
Door is not properly closed,
or the door is opened for
long period.
Refrigerator is in direct
sunlight, or close to a heat
source.
Automatic defrosting is
activated. (Compressor ceases
operation for 30 minutes)
Excessive noise
Contact between the
refrigerator and a wall
or other article.
Theareaispoorly
ventilated, or the two sides
of the refrigerator are
covered by too much dust.
Uneven placement.
Troubleshooting
Location
The appliance should be placed on a flat and solid surface. If the refrigerator is
placed on a plinth, flat, strong and fire-resistant materials must be used. The front
black foot of the refrigerator can be adjusted clockwise or anti-clockwise to lift or
lower the refrigerator if it is placed on an uneven surface.
Adjustable Foot
Clockwise
Anti-clockwise
Excessive vibration will result in the
following circumstances:
a)The refrigerator is not well positioned
and adjusted.
b)The refrigerator is placed on a wood
floor or near to wooden furniture.
Liquid refrigerant flowing in the
evaporator may produce a slight sound
similar to that of flowing water. When
the refrigerator is stopped, the
backflow refrigerant may also generate
that sound.
Swoosh
Swoosh
The refrigerator shall be placed away
from heat sources or direct sunlight.
Never place the refrigerator near to a
water source. Clean and dry any water
splashes and stains with soft cloth.
The refrigerator should be placed in a
well-ventilated area, and a space of 10cm
or more should be allowed around the
refrigerator.
>10cm
>10cm
>10cm
Never place the refrigerator in an area
with an ambient temperature below zero.
Never operate the refrigerator outdoors or
in rain.
Preparation
Troubleshooting
Unpacking
Remove all packing materials.
Check attached accessories and
materials.
Check if all accessories specified in the
Packing List are available. Contact the
local distributor if shortage is found.
Ensure that the refrigerator is properly
located.
(See section Location )
Clean the refrigerator before using.
(See section Cleaning )
Quality
Certificate
Operation
Manual
Warranty
Certificate
A slight sound may be heard when the
appliance is first started. The sound
will be lower and lower gradually a
short period later.
Hum
Ë
Ë
Hum
The fan of an operating refrigerator
may produce a slight sound.
Whir
Whir
Temperature of the refrigerator and the
compressor will rise and the
compressor will run for comparatively
longer periods when the refrigerator is
first started.
The compressor will operate for
comparatively longer periods if
excessive quantity of food is stored or
the ambient temperature is high.
Time lapse before power supply
Connect the refrigerator to power source at
least 30 minutes after the refrigerator is
sited and cleaned.
Caution: After unpacking, write down the model and manufacture
number of the refrigerator on the Warranty Certificate which will be
required if technical services are applied for.
Water droplets may occur on outer
surfaces and middle connection of the
refrigerator due to heavy moisture in
room air. Wipe clean with soft cloth.
The two sides of the external surface,
bottom and the middle connection of
the refrigerator will be warm due to
heat radiation of the appliance.
Troubleshooting
Operation
The evaporator and piping system of
the refrigerator may produce a slight
sound when the refrigerator operates
due to ambient temperature changes.
Poop
Poop
A slight sound may be produced by
defrosting water flowing into the
evaporating recipient and the
compressor at the moment of operation
commencement or vacation.
Click
Click
The thermostat, starting capacitor and
heat protector may produce a slight
sound when the refrigerator starts or
stops.
Clatter
Clatter
A slight continuous sound can be heard
when the liquid refrigerant circulates to
the evaporator.
Swish
Swish
Power supply

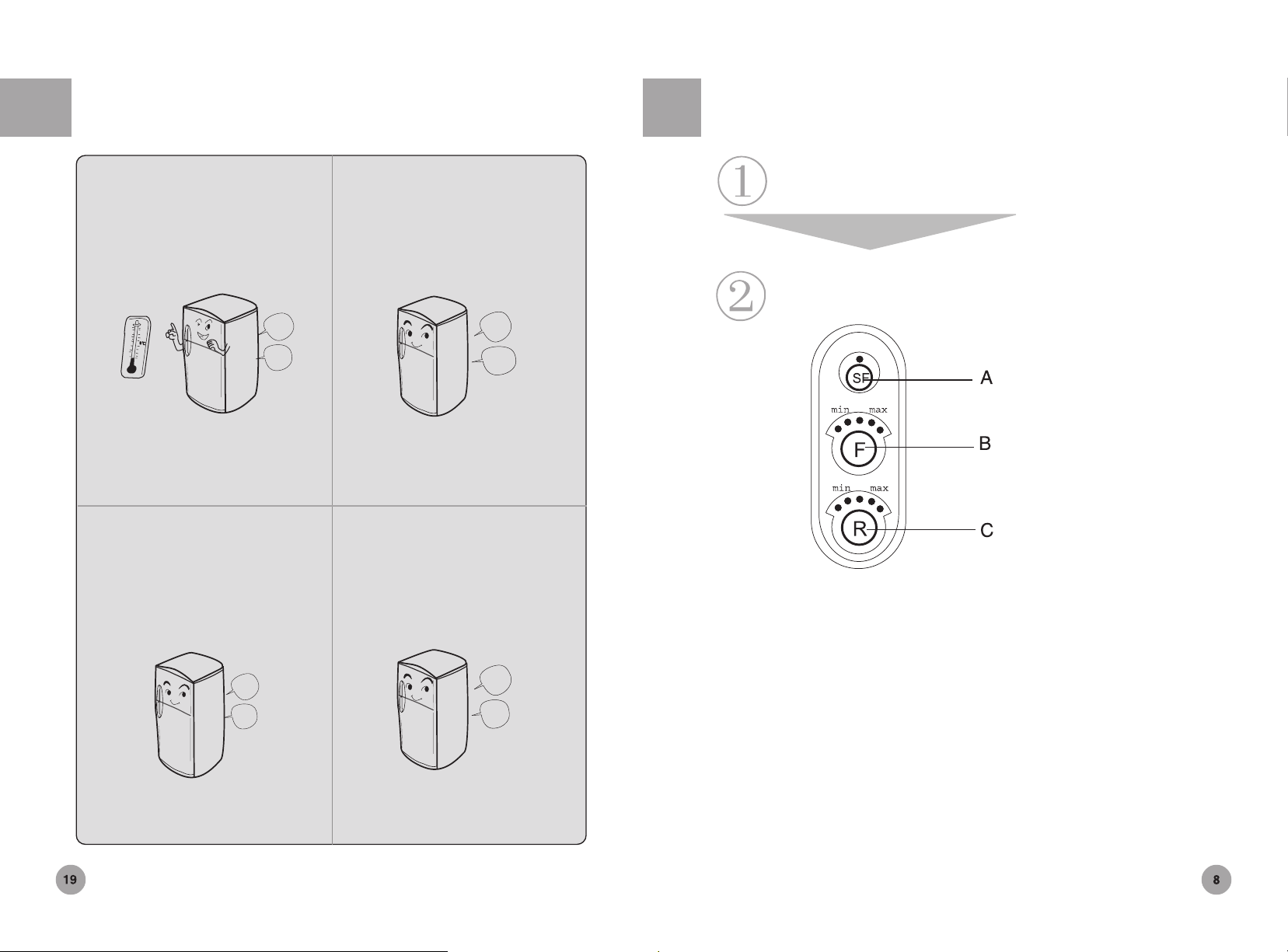

Adjusting temperature
1. UI definition
1.1 Buttons and functions
Refrigerator and freezer scale; super freeze function
Press the following 3 buttons to set up desired performances:
a. C- refrigerator: setup of refrigerator performance
b. B-freezer: setup of freezer performance
c. A-super freeze: setup of super freeze performance
d. Refrigerator button + Freezer button + Super freeze button
(once/twice/thrice): setup test 1/test 2/exit
Operation
Vacation
1.2 Indicator
a. Super freeze: the largest indicator lights on the top, super freeze mode
activated;
b. Refrigerator sensor 1 error: first one from left of refrigerator scale indicators
blinks at 1Hz
d. Refrigerator sensor 2 error: second from left of refrigerator scale indicators
blinks at 1Hz
e. Freezer sensor error: first from left of freezer scale indicators blinks at 1Hz
f. Defrost sensor error: second from left of freezer scale indicators blinks at
1Hz
g. Ambient temperature sensor error: third from left of freezer scale indicators
blinks at 1Hz
2. Initial status requirements
When the appliance is initialized, both refrigerator and freezer are set at scale 3
automatically with super freeze mode inactivated. If freezer sensor temperature is
between the points for turning on and off, the refrigerator will start operation when
temperature rises to the point for turning on.
3. Ordinary temperature setup control
3.1 Refrigerator temperature setup
Every press of refrigerator button (effect when released) will result in 1 scale
increase, and one after another of refrigerator indicators will light from left to right
until scale 5 is reached (5 indicators on). If the button is pressed again, the cycle
will start from scale 1 (left end indicator on).
Scale
Temperature
Before leaving for a vacation
Remove the vulnerable food from
refrigerator if the vacation is short and
properly set the control panel, and
make sure that the door of the
refrigerator is properly closed.
If the vacation is long, take out the food
from the refrigerator and disconnect the
power. Wait until the frost inside melts,
clean and dry the compartment. Leave
the door open to prevent formation of
bad odor.
Moving the refrigerator
Unplug the refrigerator.
Remove all the food.
Secure the shelves in the cold storage
compartment, vegetable and fruit tray
and drawers in the freezer with tape.
Tightly close and tape the door of the
refrigerator.
Do not tilt the refrigerator more than 45
degrees.
3.2 Freezer temperature setup
Every press of freezer button (effect when released) will result in 1 scale increase,
and one after another of freezer indicators will light from left to right until scale 5 is
reached (5 indicators on). If the button is pressed again, the cycle will start from
scale 1 (left end indicator on).
Caution: Never place the refrigerator horizontally.
Vacation
Operation
Power interruption
Eveninsummer,foodcanbestoredinthe
refrigerator for a few hours after a power
interruption.
Don't put additional food into the
refrigerator during a power interruption
and try to open the door as less
frequently as possible.
If prior notice of a power interruption is
given, make some ice and put it in a
container in the top of the refrigeration
compartment.
Caution: Temperature in the refrigerator will rise as for a power
interruption or technical problem, and the storage period will be
reduced.
Ceased operation
If the refrigerator is to be ceased for an
extended period, unplug the refrigerator
and clean the refrigerator as previously
described.
Keep the door of refrigerator open when
the power is turned off to prevent any
food remaining in the compartment from
producing bad odors.
Caution: It is recommended that the refrigerator be not turned off
unless it is necessary.
Scale
Temperature
4. Super freeze control
4.1 Press super freeze button (effect when released) to enter super freeze mode,
and compressor and freezer fan motor will keep operating continuously for 4
hours.
4.2 Super freeze mode can be inactivated either automatically or manually.
4.3 Automatic exit
When preset super freeze period expiries, the super freeze mode will be
inactivated automatically and previous mode will be entered (the mode prior to
the super freeze mode).
4.4 Manual exit
Under super freeze mode, if super freeze setup button is pressed (effect when
released), the super freeze mode will be inactivated and previous mode will be
entered (the mode prior to the super freeze mode).
4.5 In the process of super freeze, when accumulative working period reaches 8
hours, defrost is activated and defrost time is to be added to super freeze
period. The super freeze and automatic defrost modes are inactivated under
their respective conditions of exit and do not affect each other.
4.6 If super freeze mode is activated while automatic defrost is in operation, the
automatic defrost mode will continue until automatic defrost is inactivated and
super freeze mode activated. After super freeze mode is entered, remaining
time of defrost mode will be added into super freeze period.
4.7 Super freeze mode activated manually: verify the length of accumulative
working period before super freeze mode is entered plus the period between
super freeze mode is entered and manually inactivated, if the length is less then
8 hours, defrost mode is not activated.
4.8 After super freeze mode is entered, the freezer sensor will not control operating
status of compressor and freezer fan motor, and the air outlet and refrigerator
fan motor will be under the control of refrigerator sensor 1.
4.9 If error alarm sounds while super freeze mode is activated, priority will be given
to alarm and then super freeze exit, and error protection mode will be entered.
Caution: Do not restart the refrigerator until a period of at least five
minutes has elapsed.
5. Light
Indicator will be on and off when the refrigerator door is opened or closed,
respectively.
Refrigerating storage compartment
Defrosting
The refrigerator is for shortterm food storage of daily
consumption.
Although the temperature in most areas in
the refrigeration compartment can be
regulated between 0 C and 10 C,
extended periods of food storage is not
recommended. Refrigerator should only
be used for short-term storage.
Storage areas
As cold air circulates inside the refrigerator,
temperature differences exist inside the
storage compartments. Area is the
coldest. Different foods should be placed
in different areas according to their
properties.
Eggs and butter
Beverages and bottled food
Canned food and seasonings
Pickled food or canned pickled food
Wheaten food, canned food, and bean
curd
Cooked meat and sausages
Fruit, vegetables and salad
Caution: Ensure that the door of the chiller compartment is
closed before closing refrigerator door.
Automatic defrosting
This refrigerator is designed for automatic defrosting.
Cleaning
The refrigerator should be cleaned regularly
to prevent the formation of bad odors.
Disconnect the power before cleaning the
refrigerator.
Clean the refrigerator with a soft cloth or
sponge with mild detergent.
Caution: Do not use a hard brush, steel brush, detergent, gasoline
or other solvents, hot water, acid or alkali for cleaning.
Dry water droplets on surfaces of the
refrigerator with a piece of cloth.
Acide
Detergent
Gas
Lamp and its replacement
Lamp: 220-240V, 15W
Lamp holder: E14 (lamps exceeding 15W
must not be used)
When replacing the lamp ,
1. Unplug to disconnect the power
2. Remove the food shelf in front of the lamp.
3. Insert a flat tool into the slot, push
upward to remove the lampshade.
4. Remove the lamp by turning anticlockwise and install a new lamp by
turning it clockwise.
5. Properly install the lampshade after
ensuring that all lugs on the cover are
placed into the holes on the lamp holder.
Lamp cover
Lug
Slot
Hole
Lamp holder
Lamp
Caution: Do not use excessive amounts of water for cleaning the
refrigerator. Use a dry cloth to clean the switch and the lamp.
Regularly clean the
surfaces of the external
shell to improve the heat
elimination efficiency.
Always keep the
door gasket clean.
Freezing storage precautions
Refrigerating storage precautions
Hot food should not be stored in the
refrigerator until it has cooled down to
room temperature.
The outside of any food packing should
be dried before storage in the freezer,
and any packing materials should be
odor-free, airtight, non-poisonous and
nontoxic.
Food cut into small portions will freeze
faster and be easier to defrost and
cook. The recommended weight for
each portion is less than 2.5kg.
Food should be stored in accordance
with any information printed on the
packing.
DMY
DMY
Hot food must be cooled to room
temperature before storing in the
refrigerator.
Food to be stored should be properly
sealed.
This will prevent moisture in the food from
evaporating and prevent vegetables and
fruit from tainting in flavor.
Dry any water droplets on the food
before placing it in the refrigerator.
Storage of sorted food
Food to be stored should be sorted
according to consumer requirements.
Food consumed daily should be placed in
the most convenient area, this will
minimize opening periods for the door.
Only remove the required amount of
food from the freezer compartment.
Defrosted food cannot be re-stored in
the freezer unless it is first cooked.
Do not load excessive quantity of fresh
food in the freezer compartment.
Quantity of the food in storage shall
comply with the cooling capacity of the
refrigerator.
Do not store excess quantities or
weights of food
Food should be stored with spaces in
between for better storage results. Never
overload shelves, as they may collapse
under excessive loads.
Do not place food too close to the
internal walls
Food with high moisture content should
not be placed close to the walls of the
inner liner. Maintain a space to prevent
food from freezing onto the walls.
Suggestions
Freezing storage compartment
Storage period will be extended if
vegetables are placed with their roots
towards the cold source.
Eggs should be stored vertically in the
egg holder.
Onions, garlic, ginger, water chestnuts
and other root vegetables should not
be stored in the refrigerator, as these
foods are suitable for long-term
storage at normal temperatures.
Leaves of carrots or turnips should be
removed before storage.
Frozen food can be placed in the cold
compartment before serving, as this
will conserve energy.
Ripe squash, melon, pawpaw, bananas
and pineapples should not be stored in
the refrigerator. Freezing will
accelerate the ripening process.
Long-term storage of food
As the freezer storage temperature is very low, fresh
food can be stored in the freezer compartment for a
long time. Food requiring long-term storage can be
stored in the frozen food compartment. Follow the
instructions on the package for storage period.
Attention should be paid to the storage information
printed on the food packing.
Suggested storage period is as follows:
Food
Meat
Dumplings, ribs and ice-creams
Cakes, breads, sliced meat and cheese
Seafood, sausages and icecream
Storage period is subject to the detailed information on the food packing, property of
the food for storage and special requirements.
Stay Best (Month)
4
4
2
1
Ice cube making
Remove the ice cube tray.
Pour cold boiled water into the ice
cube tray (Below the level mark, or
ice cubes are not easily removed)
Replace the tray in the freezer
compartment.
Turn clockwise the knob on front
side of ice maker and then the ice
cubes will drop into the ice cube box
underneath.
Tilt a bit the front side of ice cube
tray when removing it from the
refrigerator.
Maximum (Month)
9
6
6
3
Water level mark
Ice cube tray
Knob
Ice cube box
Caution: Ice cube tray cannot be used for making ice cubes or
containing cheese, tea or soup to avoid cracks due to freezing.
Loading...
