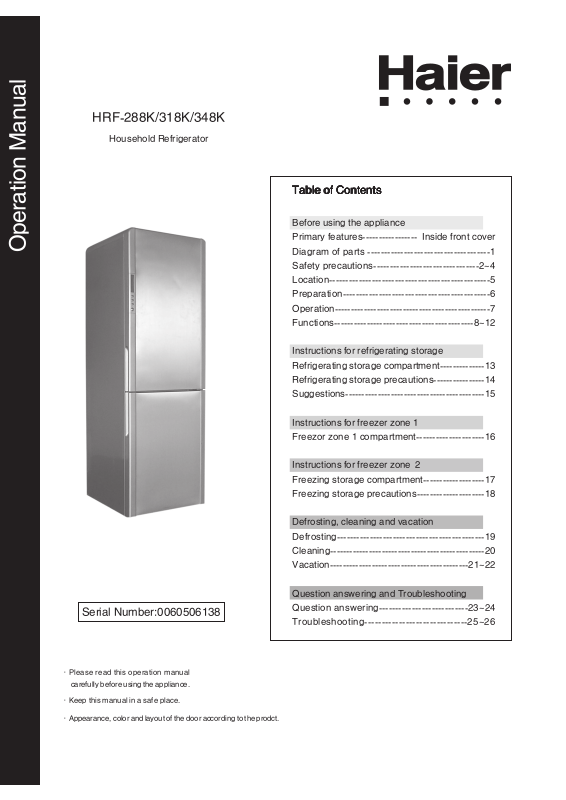

Haier HRF-288K User Manual

HRF-288K/318K/348K

Household Refrigerator

Operation Manual

Table of ContentsTable of Contents

Table of Contents

Table of ContentsTable of Contents

Before using the appliance Primary features----------------- Inside front cover Diagram of parts -------------------------------------1 Safety precautions--------------------------------2~4 Location-------------------------------------------------5 Preparation---------------------------------------------6 Operation------------------------------------------------7 Functions-------------------------------------------8~12

Instructions for refrigerating storage Refrigerating storage compartment--------------13 Refrigerating storage precautions----------------14 Suggestions-------------------------------------------15

Serial Number:0060506138

·Please read this operation manual carefully before using the appliance.

·Keep this manual in a safe place.

Instructions for freezer zone 1 Freezor zone 1 compartment---------------------16

Instructions for freezer zone 2 Freezing storage compartment-------------------17 Freezing storage precautions---------------------18

Defrosting, cleaning and vacation Defrosting---------------------------------------------19 Cleaning------------------------------------------------20 Vacation-------------------------------------------21~22

Question answering and Troubleshooting Question answering---------------------------23~24 Troubleshooting------------------------------25~26

·Appearance, color and layout of the door according to the prodct.

Primary features

①Four temperature zones

Four temperature zones for satisfaction of varied storage needs.

②Chiller zone

Unique refrigeration technology for -2oC~+3oC storage condition suitable to preserve fresh food nutrition.

③Freezer zone 1

Defrosting is not required before service for the food stored in the -7oC freezer zone.

④Fuzzy operation mode

If this mode is set, the appliance will adjust inside temperature automatically according to ambient temperature to optimize the storage condition.

⑤Over-temp alarm

Enabling the user to identify abnormal performance of the appliance.

Diagram of parts

①

②

③ ④

⑤

⑥

⑦

⑧

⑨

① Light ② Shelves ③ Crisper ④ Chiller zone (-2oC~+3oC zone)

⑤Freezer zone 1 (-7 ⑧Low bottle holder cover ⑨ Low bottle holder

10 11

Small bottle holder cover Small bottle holder High bottle holder

Dear customer: Thank you for your purchasing Haier product. Please read this manual carefully before using the electrical appliance that you have just purchased.

Due to product moditication, your purchased Haier refrigerator may have some difference with which shown in the manual. We apologize here.

C) ⑥ Freezer zone 2 (-16oC~-26oC) ⑦ Plug

Safety precautions

This refrigerator requires a 220V/50Hz power supply.

220V〜

50Hz

Care for external cable

● Hold the plug, not the electric cable, when unplugging the refrigerator.

● Ensure that the electric cable is not trapped by the refrigerator. Do not step on the cable.

● Avoid damage to the electric cable when moving the refrigerator.

It is required to use seporate dedicated outlet with securely grounding.

Damaged electric cable When the electrical cable is damaged or worn, turn off the refrigerator and consult to an authorized service agent for replacement.

Inflammable gas leakage in the vicinity of the refrigerator

●Turn off any leaking valve.

●Open the doors and windows.

●Do not, under any circumstances, unplug electrical appliances in the vicinity of the leak.

Unplug the refrigerator for the following:

● Cleaning or maintenance.

● Replacement of lamp.

Safety precautions

Never store inflammable, explosive or corrosive materials

in the refrigerator.

Alkali

Mousse

Do not install the refrigerator near gasoline or other inflammable articles..

Spray

Gas

Acid

This refrigerator should be used for food storage. It is not recommended to place microbiological or chemical materials, which have special requirement in temperature setting.

Vaccine

Don't place electrical plugs, regulators or microwaves on

top of the refrigerator. Don't use electric appliances inside

the refrigerator.

Chemical

Bacterin

Agent

Do not swing on or apply excessive pressure to the

refrigerator door.

Don't place heavy or unstable articles or water containers on top of the refrigerator.

Safety precautions

Avoid prolonged contact with the surface in the freezer compartment when the refrigerator is operational, especially with wet hands. Hands may freeze onto the surface of the frozen parts.

Disassembly, renovation or cooling system maintenance of refrigerator must be authorized.

Do not spray or splash the refrigerator when cleaning the

refrigerator, nor place the refrigerator in a damp area.

Never store bottled beer or beverages in the freezer compartment.

Unplug the refrigerator in the event of a power interruption or during cleaning. Allow at least 5 minutes lapse before restarting the refrigerator.

Remove the refrigerator door and door gasket if the refrigerator is discarded to prevent accidental entering a child in the refrigerator.

Location

The refrigerator should be placed on a flat and solid surface. If the refrigerator is to be leveled, a flat, strong and fire-

resistant material must be used. The front foot of the refrigerator can be adjusted clockwise or anti-clockwise to lift or

lower the refrigerator if it is placed on an uneven surface.

Adjustable Foot

Clockwise

The refrigerator shall be placed away from heat sources

or direct sunlight.

Never place the refrigerator near to a water source.

Clean and dry any water splashes and stains with soft

cloth.

Anti-clockwise

The refrigerator should be placed in a well-ventilated

area, and a space of 10cm or more should be allowed

around the refrigerator.

Min. 10cm

Never place the refrigerator in an area with an ambient

temperature below 5°C. Never operate the refrigerator

outdoors or in rain.

Space

Min. 10cm

Preparation

① ②

③

Unpacking

Remove all packing materials.

Check attached accessories and materials.

Check if all accessories specified in the Packing List are available. Contact the local distributor if shortage is found.

Ensure that the refrigerator is properly located.

(See section "Location")

④

⑤

Clean the refrigerator before using.

(See section "Cleaning")

Time lapse before power supply

Connect the refrigerator to power source at least 30 minutes after the refrigerator is sited and cleaned.

Operation

Connection to power supply

①

②

When the appliance is first connected to power supply, the fuzzy operation mode is set automatically, the super freezing icon is not displayed, super freezing mode cannot be set, the lock-on icon is not displayed and the lock-on mode is not activated. However the over-temp alarm icon is displayed.

Setting of operation mode

Suggestion

Regardless of irrespective fluctuations in ambient temperature,

selection of the Fuzzy Operation Mode will guarantee the most

efficient and energy-saving operation of the refrigerator.

Either of the following operation modes can be selected. (1) Fuzzy operation mode: If there is no requirement for a specific operation setting,

！

③

Caution

the fuzzy operation mode is recommended. Hold the Fuzzy Operation Mode button pressed for 3 seconds after the lock-off mode is set, the mode will be activated with the icon displayed. (See section "Functions") (2) Manual adjustment mode: Press the temperature setting button to set the temperature when the lock-off mode is set. (See section "Functions")

Loading the refrigerator with food

Load the refrigerator with food when the set temperature of the refrigerator compartments is reached and the over-temp alarm icon extinguishes..
