Refrigerator
HRF-155 / 195
Page 2
Safety precautions
Preparation for operation
Setting Environment
Starting
Instruction for the refrigerating
compartment
Instruction for freezing
compartment
Cleaning, Stopping
Troubleshooting
1
2
3
4
5,6,7,8
9,10
11
12
Contents
Page No.
Warranty Card is attached inside in the end of the book.
Safety Precautions
Any inflammable, explosive materials
and corrosive alkali should never be
stored in the refrigerator.
Use a separated socket
*Reliable earth connection
*AC 220-240,50Hz
If the power supply does not agree with
220-240V,50Hz (187-242V), an
automatic voltage stabilizer over
750W must be installed..
In case inflammable gas leaks,
*Shut off the valve of the container.
*Open the exhaust.
*Do not pull out or insert the power plug.
Do not spray inflammable agent
near the refrigerator
Do not splash water over it
*Wipe the water and dirt
away with a piece of cloth.
To avoid the door tilling,
do not allow children to
hang themselves on it.
220-240V,50Hz (187-242V)
1
Page 3
2
*Remove all the packing materials.
including the foam pad.
*Check the accessories and data sheets
supplied with the refrigerator.
Check the items against the packing list. If
something is missing, contact your
vendor.
*Install the refrigerator on proper place.
(see *Setting environment*at page3).
*It is advisable to clean the
refrigerator before using it.
(for details, see *Cleaning*at page 11).
*Stand still
To ensure trouble free operation, do not
put the plug into the power supply
socket until 30 minutes after setting-up
and cleaning.
Preparation for operation
3
*The refrigerator should be placed on a flat and firm floor. Do not use the
foaming packing pad under it as a cushion.
*The refrigerator should be set in a
place where air circulates well.
Leave enough space around it.
*Keep it away from heat sources
and direct sunlight.
*Do not place it in a place where it is
cold enough to freeze.
*Do not expose it to high moisture
and splashes.
Setting environment
Page 4
TEMPERATURE
ADJUSTMENT
0
2
3
4
6
5
7
1

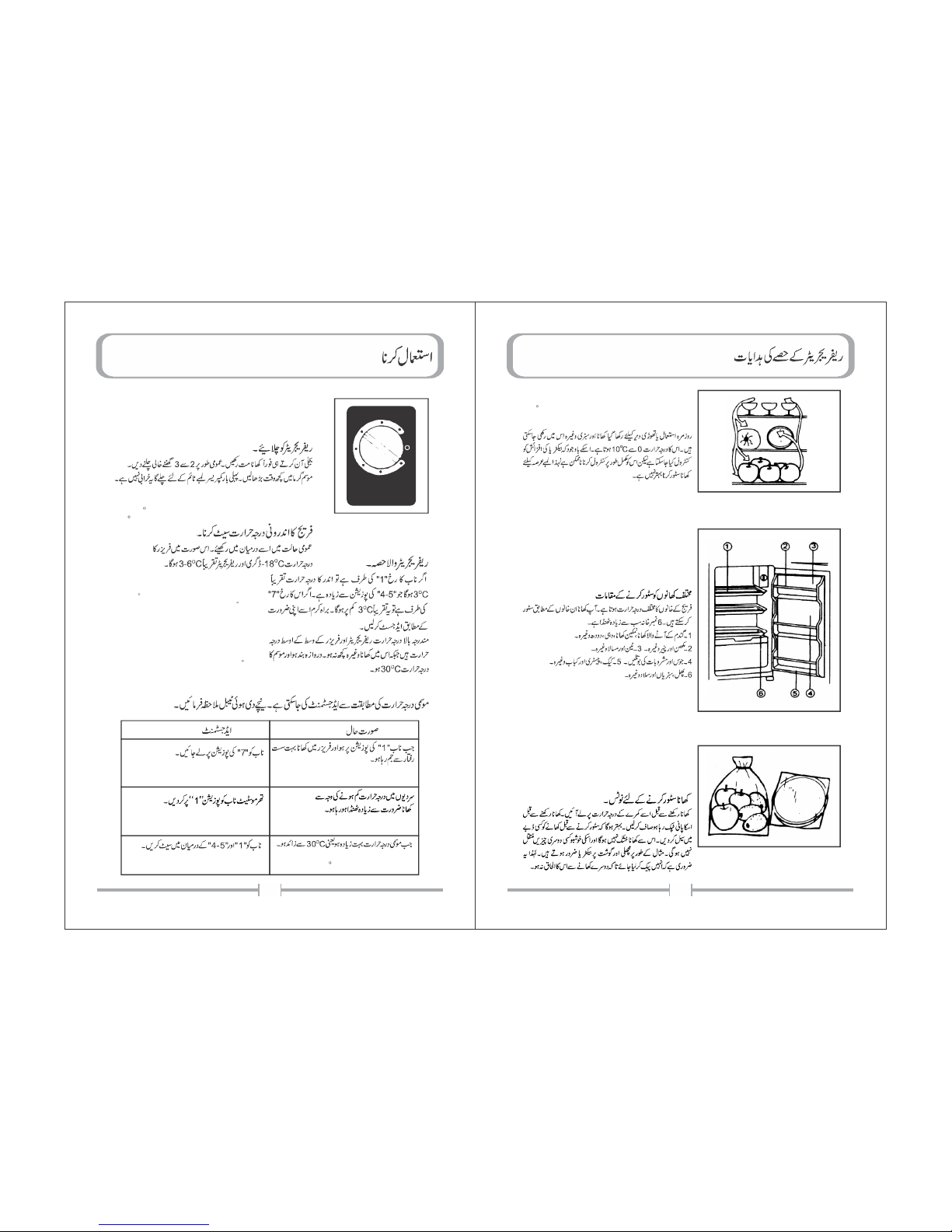

Start The Refrigerator
Do not put food into the refrigerator at once. After the
power is on, Normally, let it run without load for 2-3
hours. (Longer in summer). After it is cooled down
inside, food can be placed in.
For the first operation, the compressor may run
in a long time. It is no fault.
Adjust the temperature inside the refrigerator.
Normally, Turn the knob for temperature is
about-18 C in the freezing compartment, and
3- 6 C in the refrigerating compartment.
The refrigerating compartment
If the knob points to "1" the temperature inside is
about 3 C higher than at the "4-5" position. If it
points to "7" the temperature is about 3 C lower.
Please adjust it to meet your requirement.
The above temperatures are average
temperatures at the centers of the refrigerating
compartment and the freezing compartment
without food in it, with the door closed and when
the environment temperature is about 30 C.
Adjustment can be conducted according to the environment temperature
operation condition and the table below when it is necessary.
Phenomena
Adjustment
Change the position of thermostat knob to
"1".
Turn the knob to the position between "1"
and "4-5"
When the ambient temperature is too high in
summer (over 32 C)
When the knob is at the "1" position for a
long period and the food in the freezing
compartment is frozen too slowly.
Turn the knob to "7" position
In winter, due to low ambient temperature, food
is becoming colder, more than requirement.
4
Starting
Food arrangement
Temperature differ in different parts of
the inner compartment and foods can be stored
according. The part 6 is the coldest zone of the
fridge section.
1. Wheaten food, can, diary product
and been curd etc.
2. Butter and cheese etc.
3. Cans and seasonings etc.
4. Beverages and bottled foods.
5. Delicatessen and sausages.
6. Fruit, Vegetables and salad etc.
Notice for the food storage
*Before putting hot food into the
refrigerator, cool it to the room temperature.
*Food should be cleaned and wiped
water off before storage.
*It is better to seal food in a container
before storage. It not only can prevent
food from drying, but also can prevent
odor penetration. For example, fish and meat must
have bacteria on them. So, it
is necessary to pack them in order to
avoid contacting other food.
Food for short-term storage and everyday used
vegetables can be put into this compartment.
The temperature in this compartment is about
0-10 C. Through multiplication of bacteria can be
limited, it is impossible to control it completely.
So, it is not suitable to store food for a long time in it.
5
Instruction for the Refrigerating Compartment
Page 5
7
the lugs
the groove

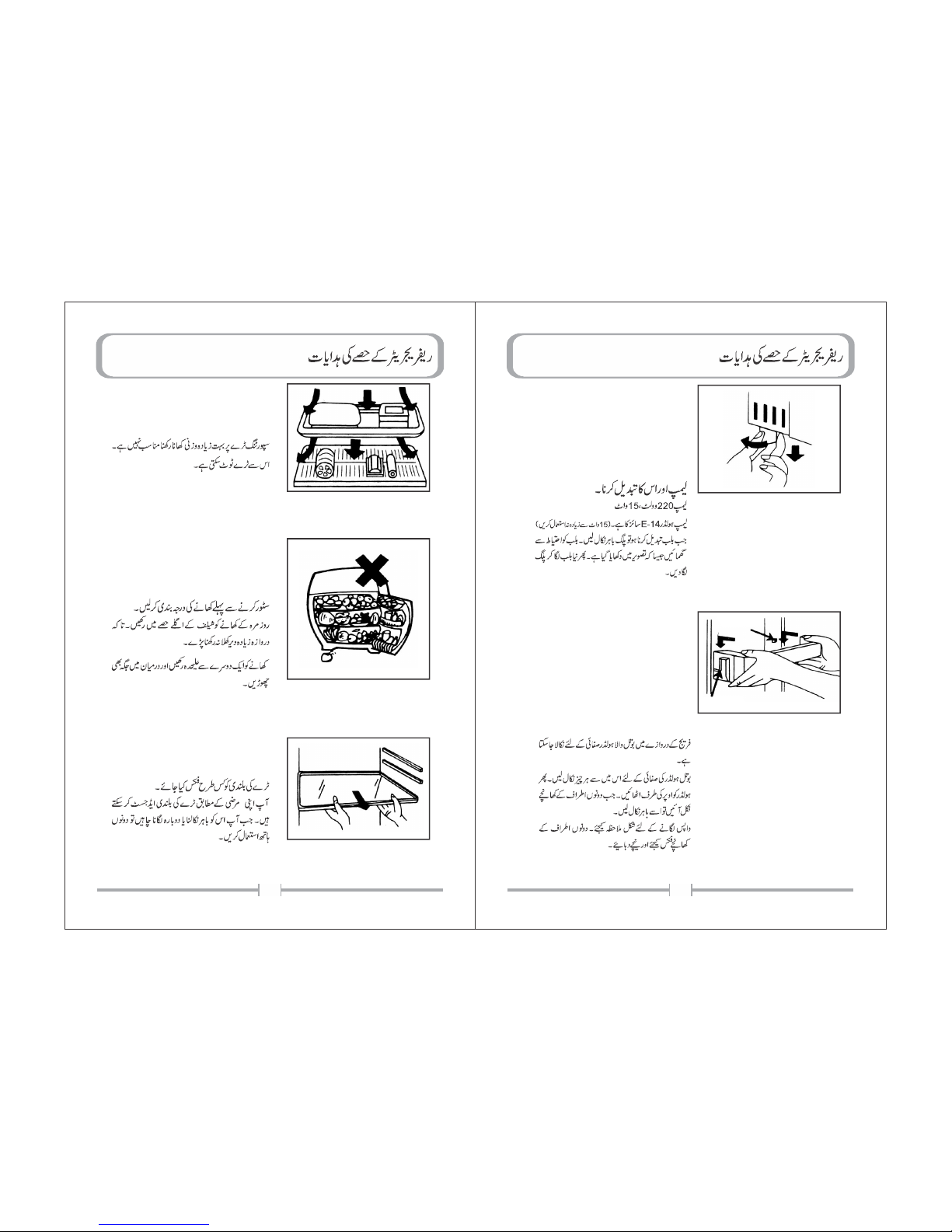

Lamp and replacement
Data for the lamp: 220V, 15W
Lamp holder: E14 (never use bulb
over 15W).
When you change the bulb, take off the
plug to cut off power, turn the bulb
anticlockwise as shown in the fig; then
fix the new bulb and inset the plug.
The bottle holder on the door of the
refrigerator compartment can be
removed for cleaning.
When the bottle holder need cleaning,
take out everything from it, then hold the
holder and lift it upward. When the grooves on
both sides came out of the lugs on the door. It
can be taken out.
When you install it back, the force
direction is shown in the fig. Let the lugs
go in the grooves on both sides and fix it
firmly.
Instruction for the
Refrigerating Compartment
6
*It is not suitable to put too much or too heavy food
on the supporting tray. It may damage the tray.
*How to adjust the height of the tray
You may adjust the height of the tray at your
will. When you want to take it out or put in,
please use two hands with care.
*Please classify the food before storage
Put the food used every day in front of the
shelves to prevent opening the door in
longer time.
*Never fill food fully in the refrigerator
Food should be separated from one
another leaving passage for air circulation.
Instruction for the
Refrigerating Compartment
Page 6
8
When storing vegetables, do not place
them in their growing direction. It can
be kept longer in this way.
Place mushrooms upsides down. Leaves
of turnips should be cut off before storage.
When putting bottles in the bottle holder
inside the door, put some napkin paper at
the bottom of the holder it makes it easy to
clean the door.
When thawing frozen food, put it in the
refrigerating compartment. It can cool the
compartment. Energy can be saved.
The following food is not necessary to be
stored in the refrigerator: onion, garlic,
ginger, potatoes etc.
Food not suitable to be stored in it:
Pumpkins, mushmelon, Chinese following
quinces and pineapples. They may undergo
a process of metabolism in the refrigerator.
If they are not ripe, they can be stored in it
for a period.
Instruction for the
Refrigerating Compartment
9

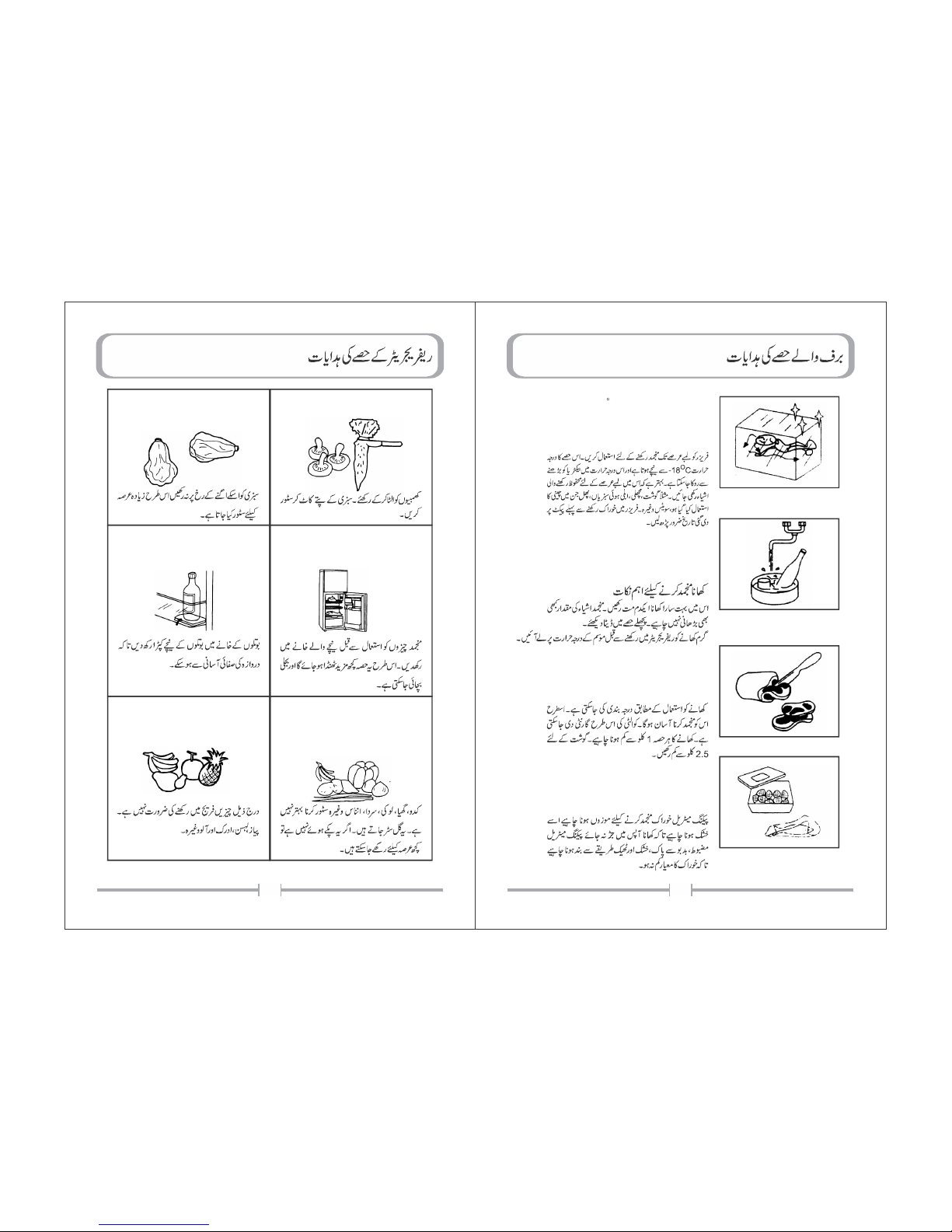

Instruction for the
freezing compartment
Please use the freezing compartment for food to be
stored in a long period. The temperature in this
compartment is below-18 C and bacteria multiplication
can be prevented at this temperature. It is better to put
food to be stored longer here, such as meat, fish,
vegetable treated with hot water, fruit treated with sugar,
sweets, etc. The storage period written on the given on
the food package should be observed, before placing it in
freezer.
Importance for freezing food
*Do not put too much fresh food in it once. The freezing
capacity value must not be exceeded. (see "Technical
data" in the back cover).
*Hot food must be cooled to the room temperature
before putting it into the refrigerator.
*Food can be divided into several parts in accordance
with its application. In this way, It is easy to be frozen.
Quality can be guaranteed when thawing and cooking.
Each part of food or fruit should be under 1kg, for
meat, it should be less than 2.5kg.
*Packing material must suit for freezing food.
It must be dry so as to prevent freezing together. The
packing material must be strong. no odor, gas seal,
water seal to prevent odor penetration or decrease of
the food quality.
Page 7
10
*Food to be frozen should be classified
before storage.
The same sort of food should be placed
together. It can shorten the door opening
time to save energy.
Instruction for the
freezing compartment
*When you store frozen, please
observe the storage period given
by the manufacturer.
You can write down the date when you
put it in the freezer on the package to
avoid overdue.
*In principle, it is better to take out
food as much as you need once to thaw.
The thawed food must not be put back
into the compartment again unless it
becomes cooked food.
*Do not put bottles of beer or beverage
into the freezing compartment.
*Do not touch frozen food with wet
hands. It may hurt your fingers.
Do not eat the food just
taken out from freezer.
11

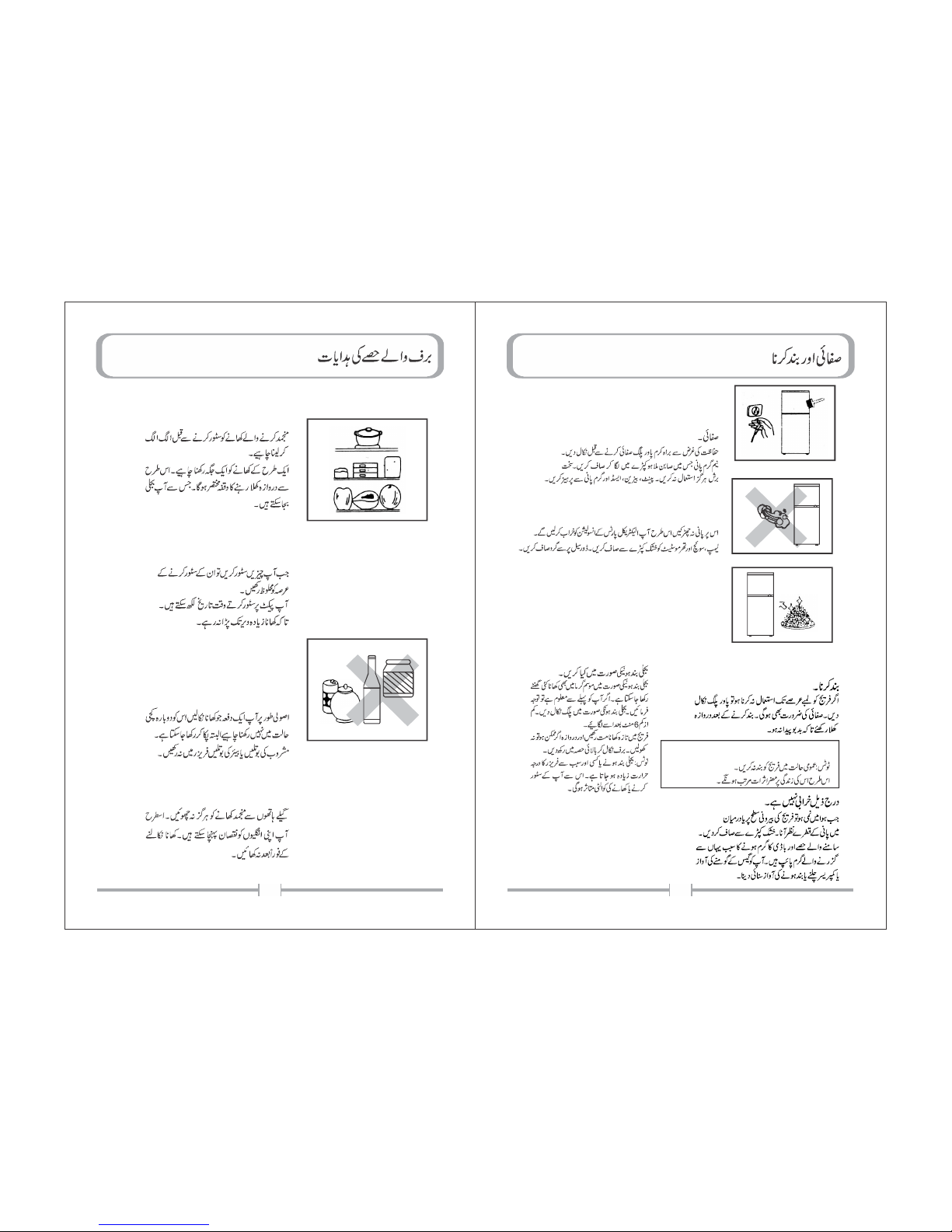

Cleaning
* For safety, please take off power plug before cleaning.
* Clean it with warm water added with neutral detergent using
soft cloth or foam. Never use hard brushes. Nor household
cleaner, paint, solvent, benzene, acid and hot water.
* Clean the water on the surface of the refrigerator.
Do not spray water on it, it may effect the insulation of
electric parts. Please use dry cloth to clean switches,
lamp thermostat, etc.
* The door seal is easy to dirt, keep it clean.
Treatment During Power Failure
In case of power failure, even in summer, it
is no problem to keep the food in several hours. If
you know it beforehand, pay attention: In case of
power failure, take off the plug. Put it in after 6
minute at least. Do not put new food in and not
open the door if possible after power failure. Make
much more ice and put it in the up part of the
refrigerating compartment.
Notice: Due to power failure or other reasons,
temperature in the freezing compartment goes
up. That will decrease the storage period or food
quality.
Notice : Normally, don't stop the refrigerator,
Otherwise it will effect its life.
The follows are not faults:
* When the air is humid, water drops may be
seen on the outside surface of the refrigerator or
the middle beam. Clean them off with a piece of dry
cloth.
The body and the middle beam in front may feel hot
due to defrosting tubes passing through them.
You may hear sound of refrigerant flowing in the
circulation tubes or "ba ba" and the sound made by
the compressor when it starts and stops.
Cleaning, Stopping
Stopping
If the refrigerator will not be used for a long time,
the power plug must be taken off. It needs cleaning
as the above description. When it stops, keep
the door open to avoid bad odor.
Page 8
12
Troubleshooting
Please check and make sure the follows before maintenance.
Phenomena Check and make sure
The refrigerator do
not work
* If the power is on (plug, socket, fuse)?
* If the power voltage is too low.
* If the power switch is on?
* If the bulb is damaged?
* The thermostat is not set correctly, set it at
higher position if necessary.
* If the floor is flat; if the refrigerator stands firmly.
* If a part of it touch the wall or other matters.
The lamp can not
light up
Too much noise
The temperature in
the refrigerator is not
low enough
* The door is not closed tightly or opened
frequently or in a long time.
* It may be directly under the sunlight or near heat
souses.
* Bad air circulation or something blocking the
grids or the compressor is too dirty.
Loading...
