USER GUIDE FOR REFRIGERATOR
AND
E-WASTE GUIDELINE MANUAL
I SMILE BECAUSE I AM HAIER
World’s
Major Appliances
*
ECO LIFE
Haier Customer Care Toll Free (24x7)-1800-200-9999 Website:
“Source Euromonitor InternationalLimited; retailvolume sales in unitsbased on 2011 data.
Live Smart. Live Green.
www.haier.com/in www.facebook.com/haierindia
SMARTER LIFE BETTER PLANET
Page 2
DearFriend,
At the outset, we at Haier thank you for your interest in our range of
products. A unique and international range of appliances designed
solely with the purpose of making modern life simpler. And how! The
entire Haier range ofappliances ranging fromRefrigerators,Televisions,
Washing machines, Air-conditioners, Microwave ovens, Dishwashers,
Wine Coolers, Freezers, Visicoolers, and Chocolate Coolers combines
thebestof technology, features,performanceand styling.All,a resultof
ourperfect understandingofyourlifestyleandneeds.
But what is a great product without great service? Leaving no stone
unturned in giving you the best of service, we havealsoestablishedan
extensivenetworkofauthoriseddealers and authorisedservicecenters,
so that you get a lifetime of great and timely service for your Haier
Appliance.
It has been an honorand a pleasurebringing thesehi-techproducts to
youandwe hopethatyougetasmuchhappinessusingthemaswehave
got, puttingthemtogetherforyou.
HappyInspired Living!
Thankingyou
SETTING UP 1

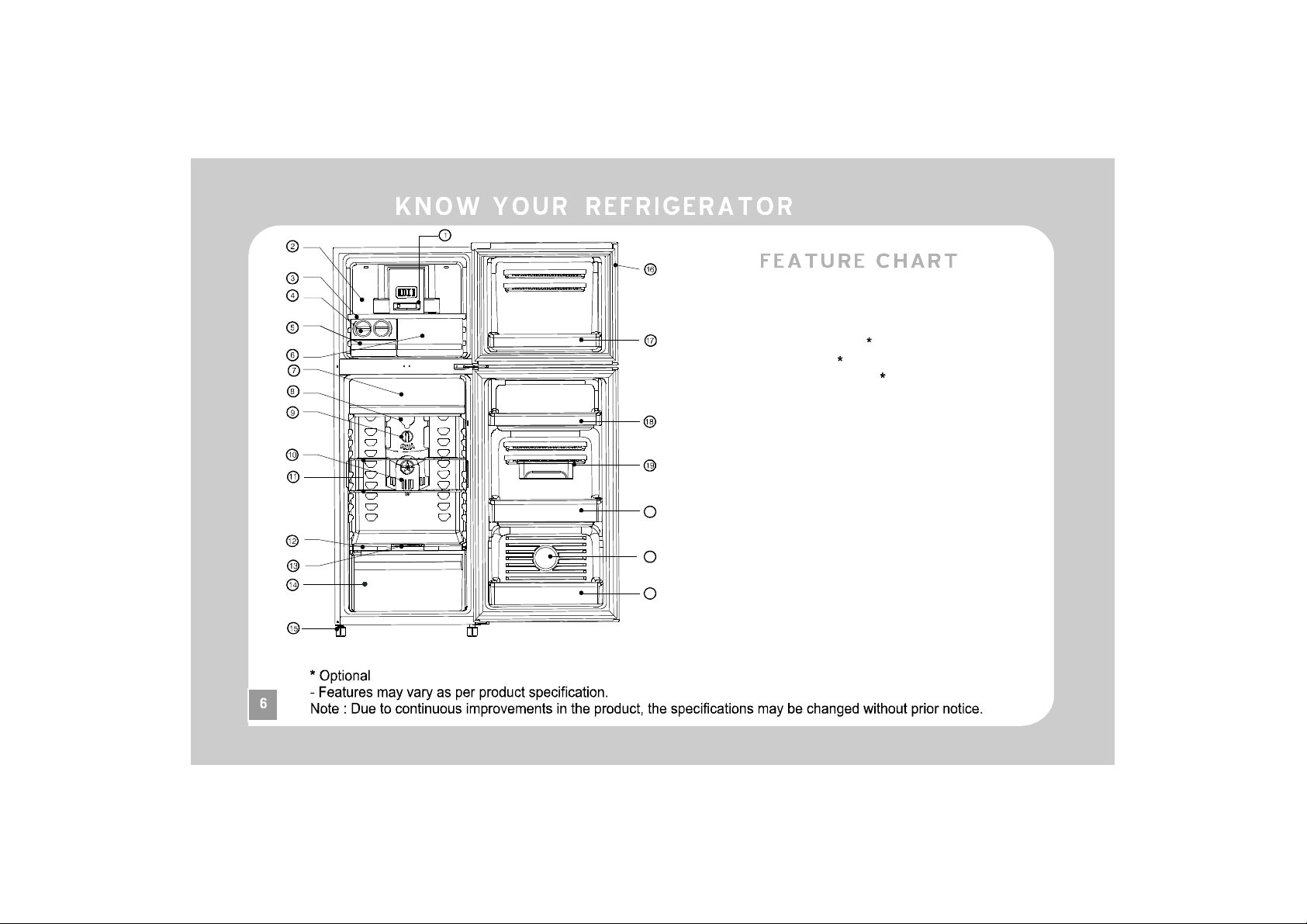

KNOW YOUR REFRIGERATOR 4

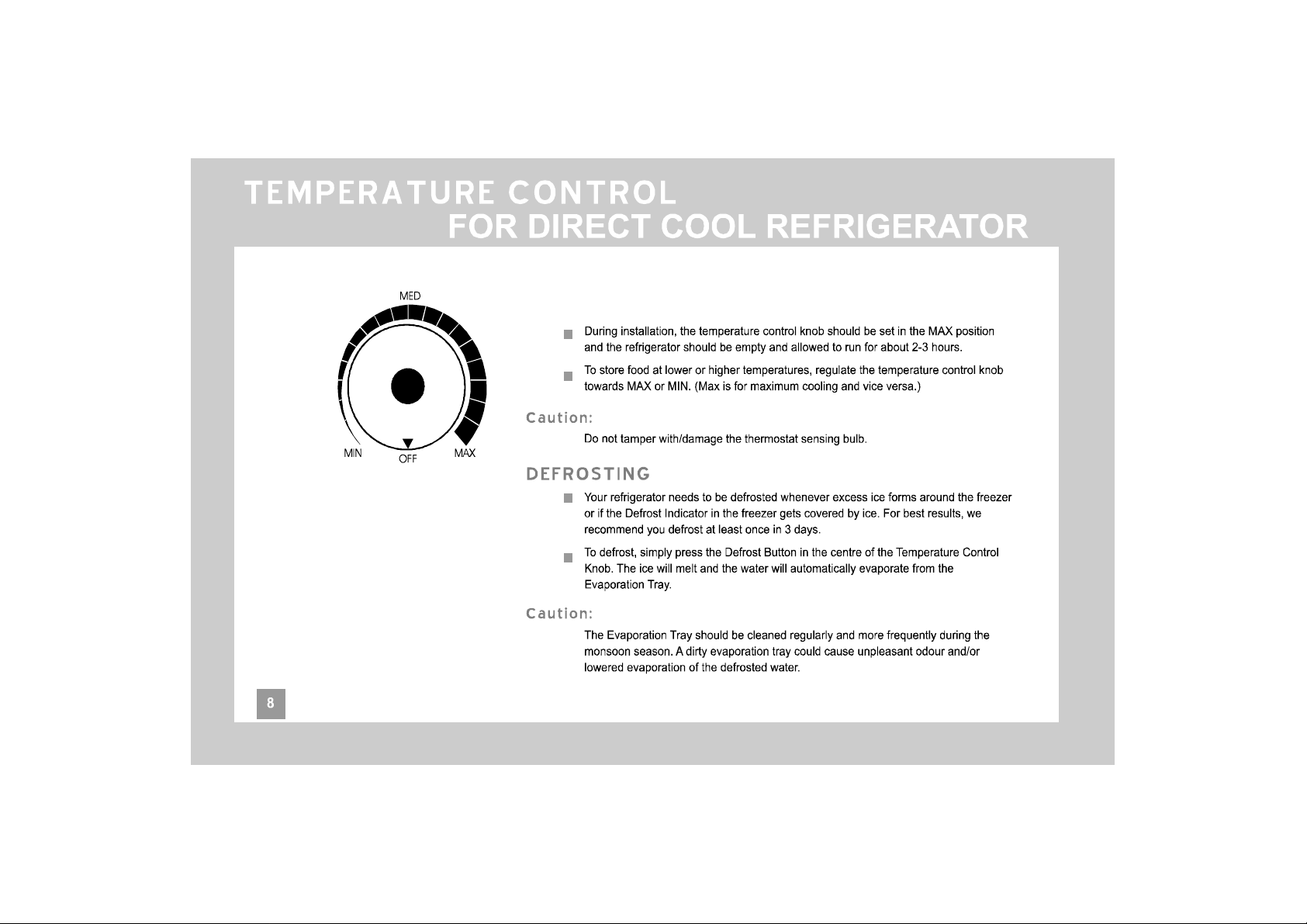

REFRIGERATORTEMPERATURECONTROL 8

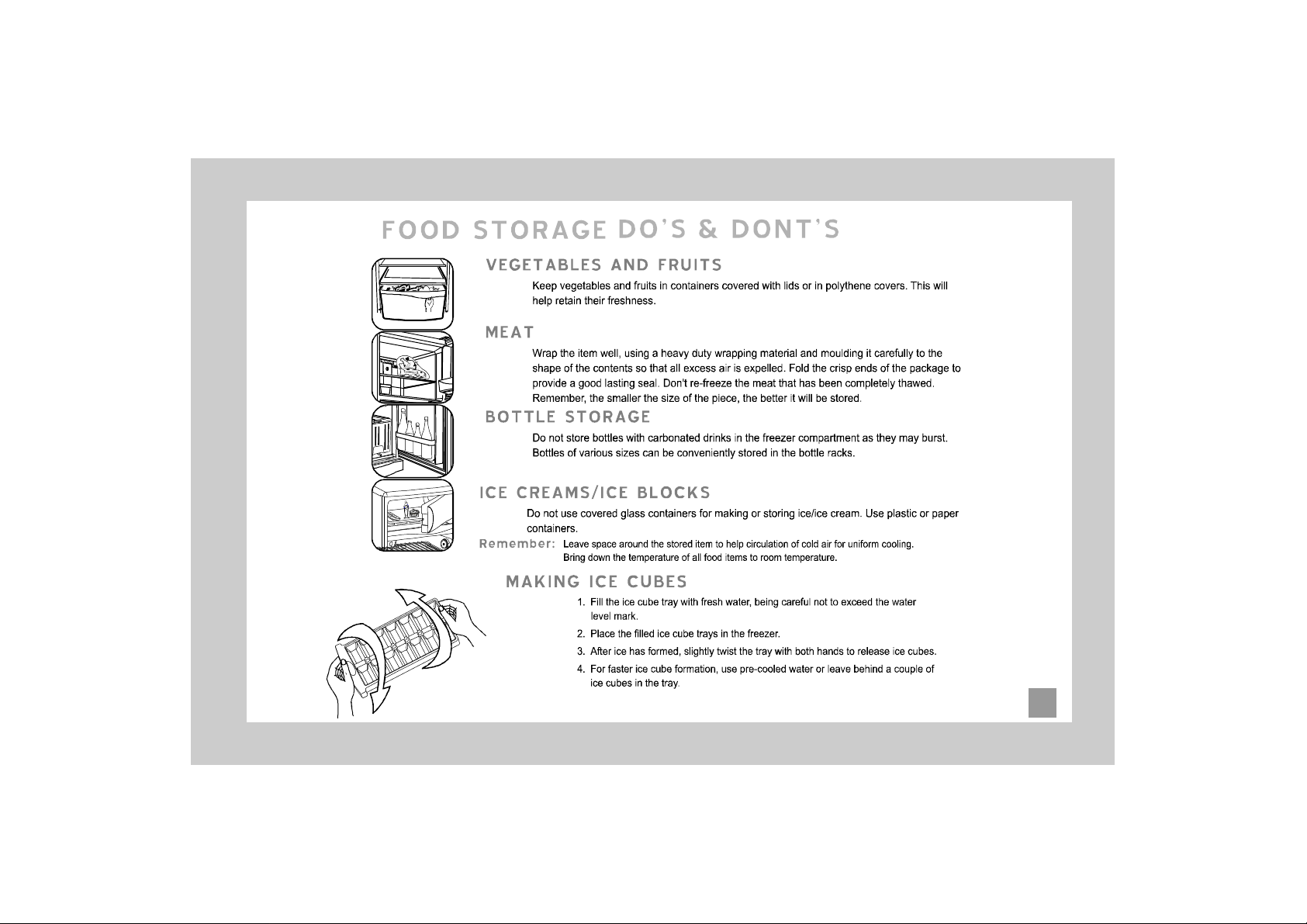

FOOD STORAGE DO’S & DON'T’S 11
REFRIGERATOR MAINTENANCE 12
-KEEPING THE REFRIGERATORFRESH
GENERAL INFORMATION 13
E-WASTE GUIDELINE MANUAL 14

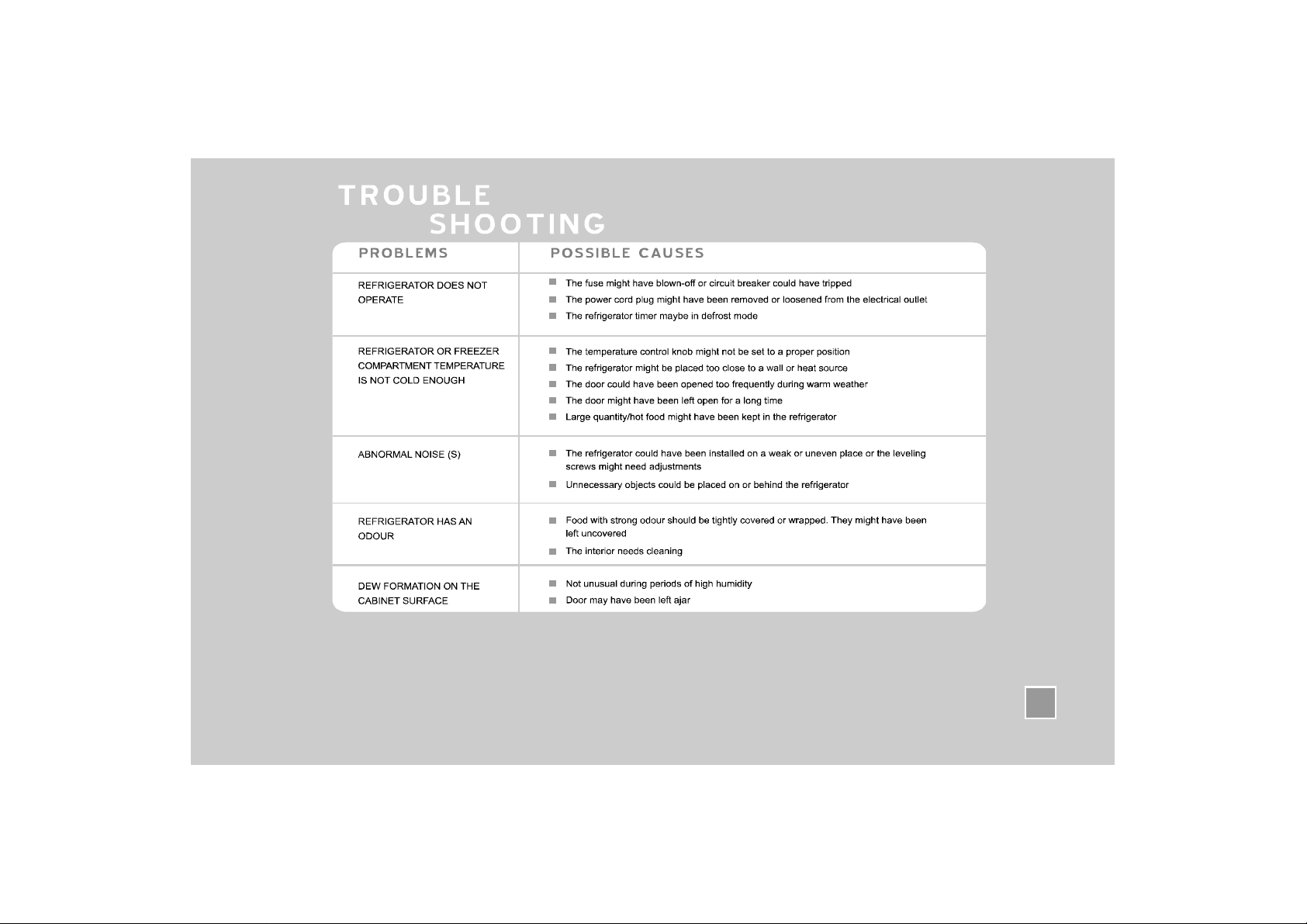

TROUBLESHOOTING 15
Page 3
Page 4
Page 5
METHOD TO FIX THE EXTRA LONG LEGS. (LONG LEGS ARE ONLY FOR SELECTED MODELS)
Refrigerator has 2 inbuilt adjustable legs to balance the refrigerator. Haier has provided 2 extra adjustable long legs to increase the refrigerator height. This also helps
to clean the floor below the refrigerator easily.
1.
Remove the front 2
legs by rotating
anti-clock wise.
2.
Fix the extra long
adjustable legs in the front
where smalllegs were fitted.
3.
Now fix the 2 small legs
at the back on the
compressor mounting
plate as shown in the picture.
4.
Keep the refrigerator
in steady position.
5.
If needed be adjust
the legs to balance the
level.
METHOD OF BASE STAND INSTALLATION (BASE STAND ONLY FOR SELECTED MODELS)
1.
L1 L2
Remove the front 2
(L1 & L2) legs by
rotating anti-clock wise.
2.
L1 L2
Fix the previous remove leg
(L1 & L2) in Base Stand
bottom front side, as per
see the picture.
Mark is applicable for Selected Models
3.
Now If needed be adjust
the legs to balance the
level.
4.
Keep the refrigerator in
standing position& align
with base stand (A) portion.
5.
Keep the refrigerator
in steady position.
*
Page 6
Page 7

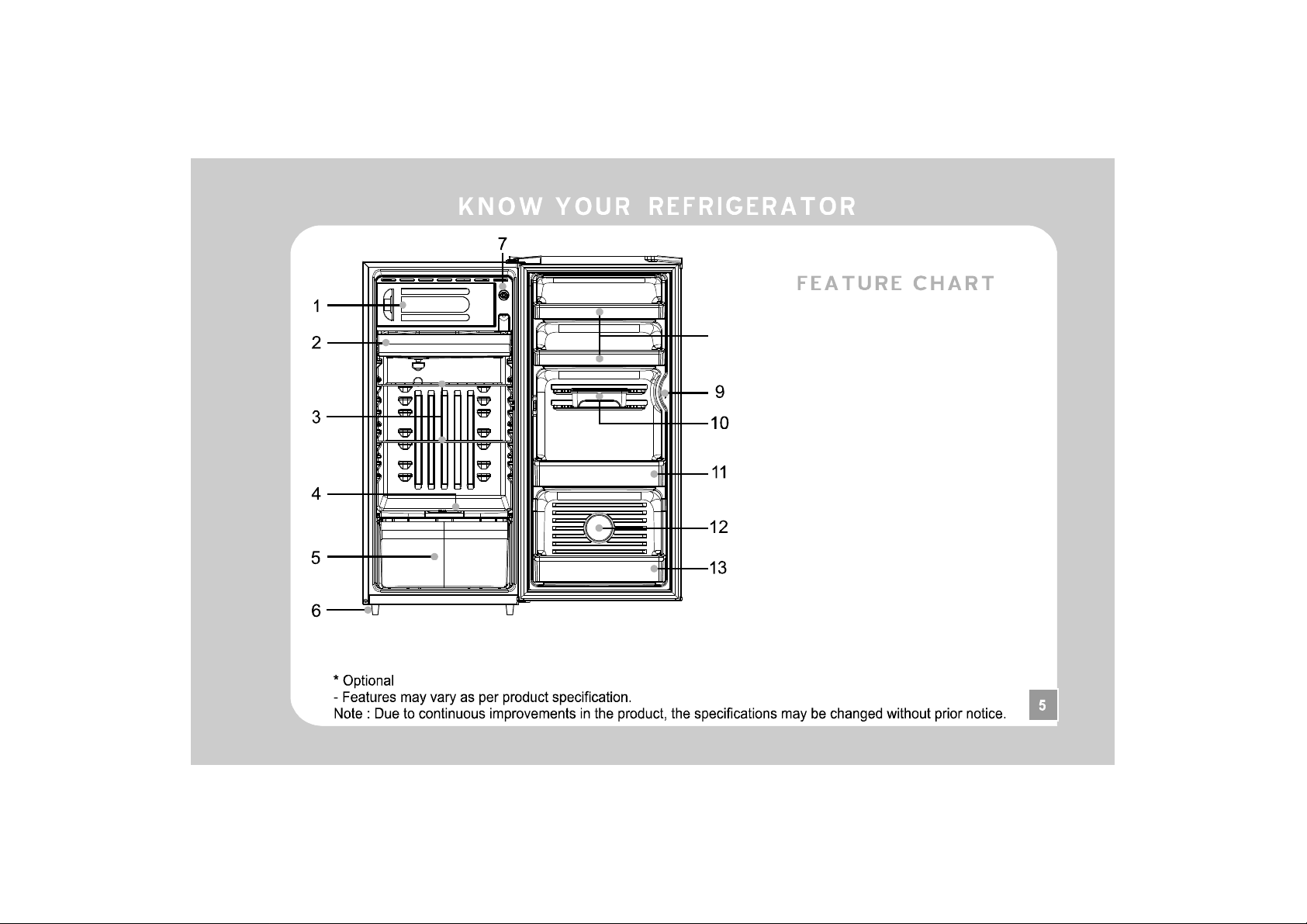

1. Freezer Box
8
2. Chiller Tray
3. Cabinet Shelves
4. CrisperCover
5. VegetableBox
6. Adjustable Legs
7. Temperature Control Knob
8. Door Rack Full Small
9. Lock
10. SlidingTray
11. Door Rack Full Big
12. V/C Fresh
13. Door Rack Full Big
HRD-1903/1904/1905 HRD-2014/2015
HRD-2454/2455 HRD-2714/2715
/245 /271
/190 /201 HRD-2104/2105/210
Page 8
HRF-2203/2204/2205 HRF-2683/2684/2685
1.
FreezerTemp Control
2.
Freezer air- duct cover
3.
Freezer Shelf
Twist Ice Tray
4.
Ice Zone
5.
6. Icecream Zone
7. Chilled Room
Refrigeratorlight
8.
9.
RefrigeratorTemp Control
3 D Cooling System
10.
11. GlassShelves/
Toughened
Wire Shelves
12. Vegie Zone
20
21
20
Cover
13.
Humidity Control
Vegie Zone
14.
15.
Adjustable Legs
RemovableAntifungalDoor Gasket
16.
17. Freezer Utility Space
18.
Utility Pocket
19. Sliding Pocket
Biggerbottle Space
20.
21. VC Fresh

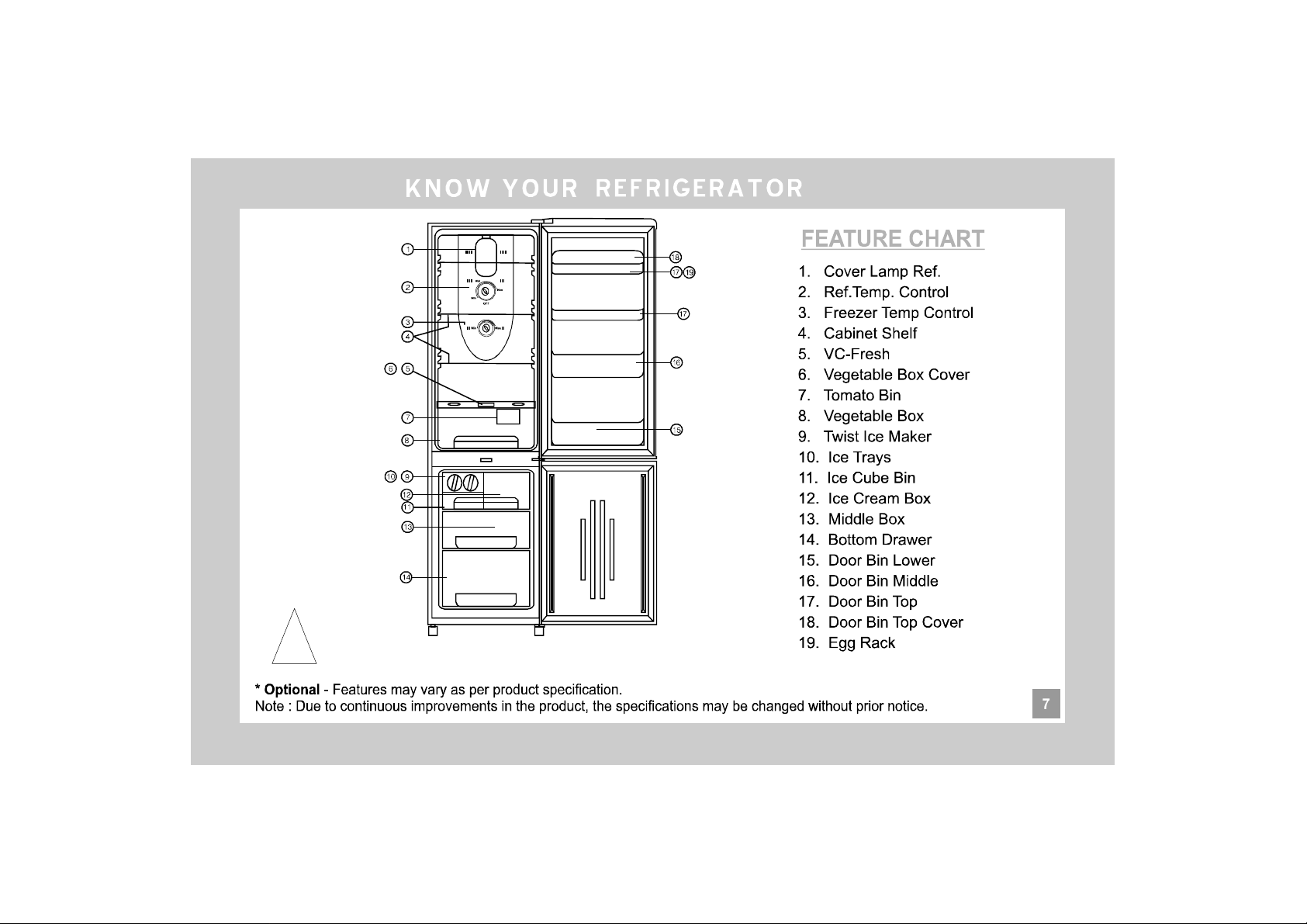

Page 9
4
HRB-2603/2604/2605 HRB-2953/2954/2955
HRB-3203/3204/3205
Page 10

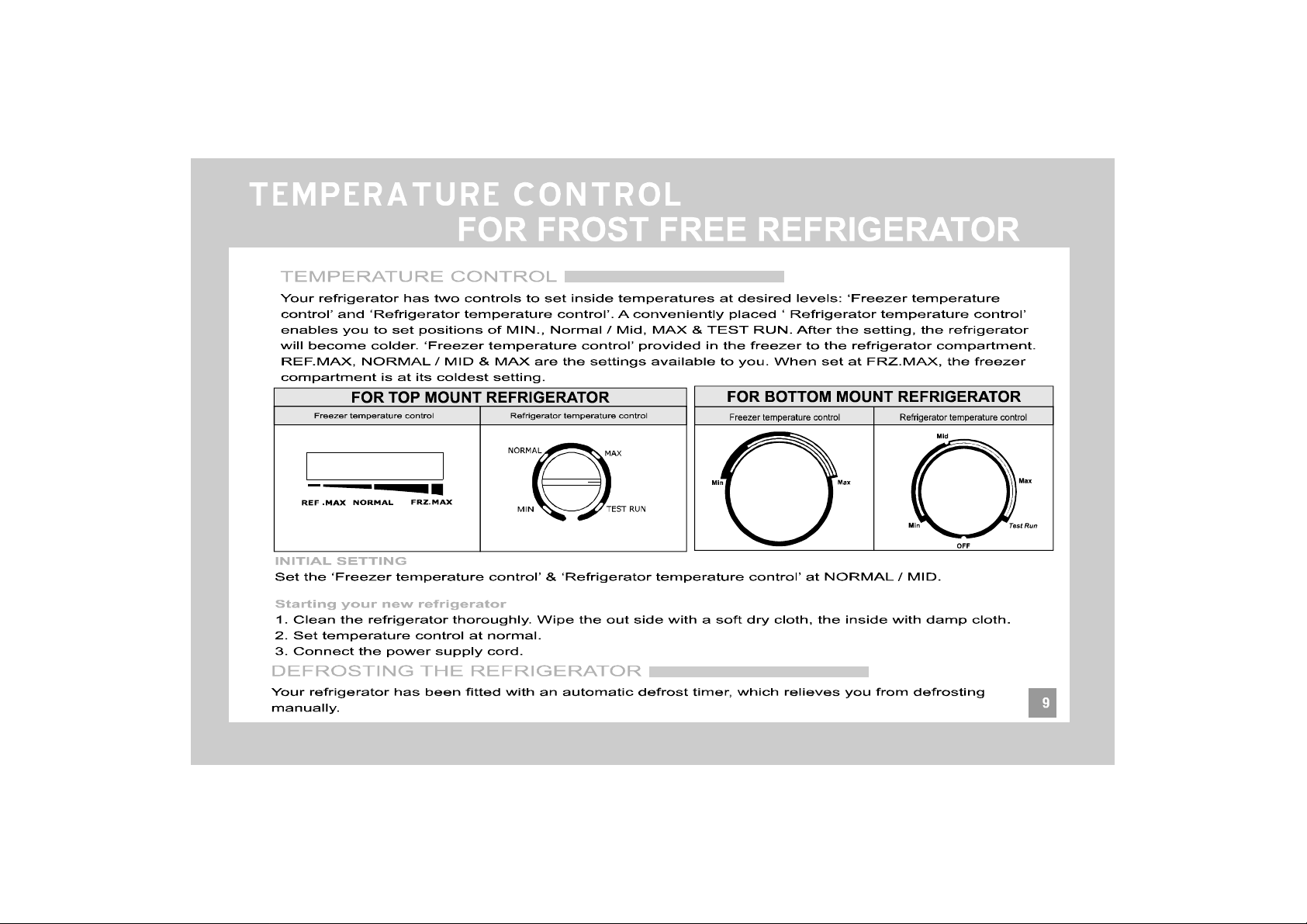

Page 11

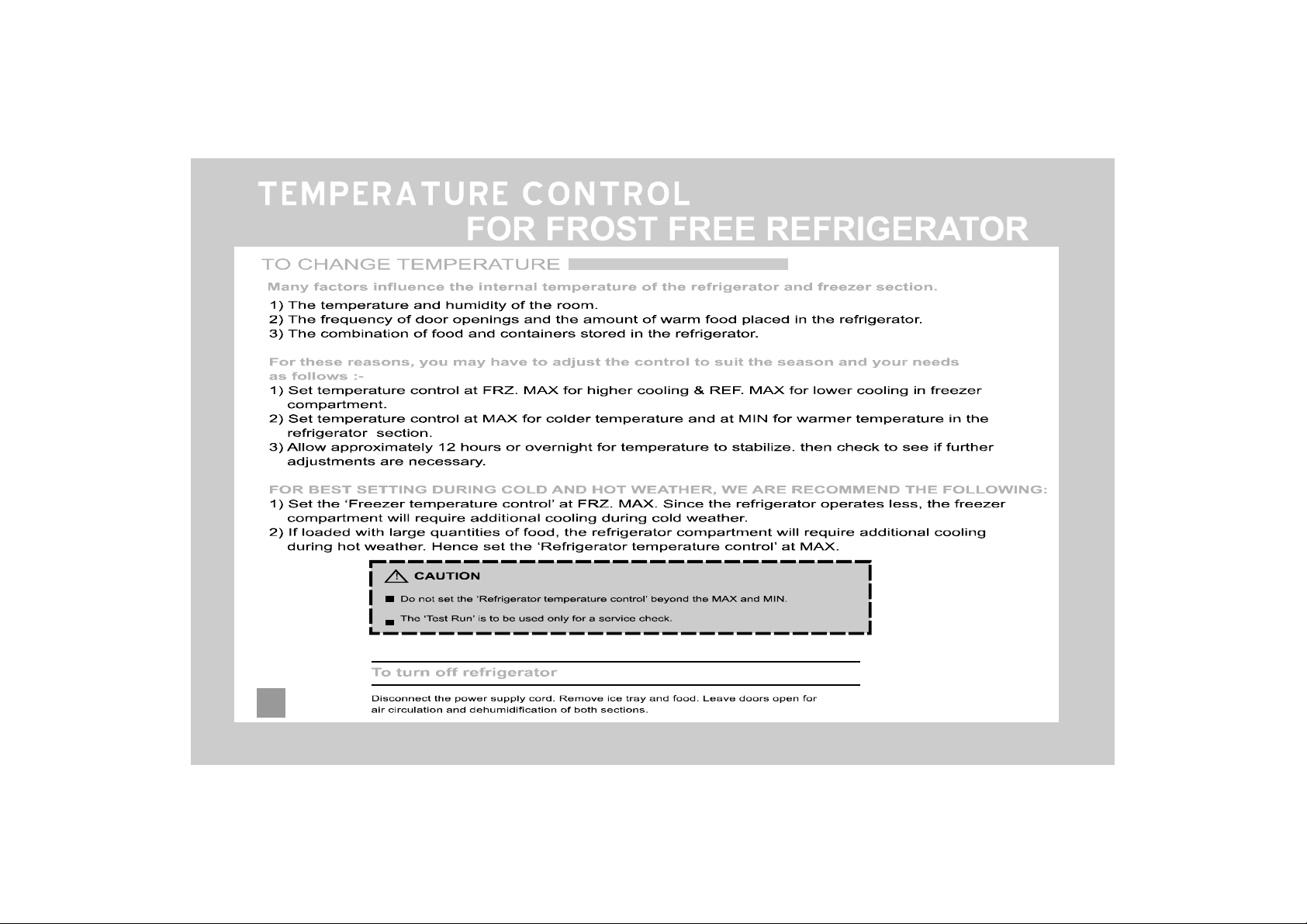

Page 12
10

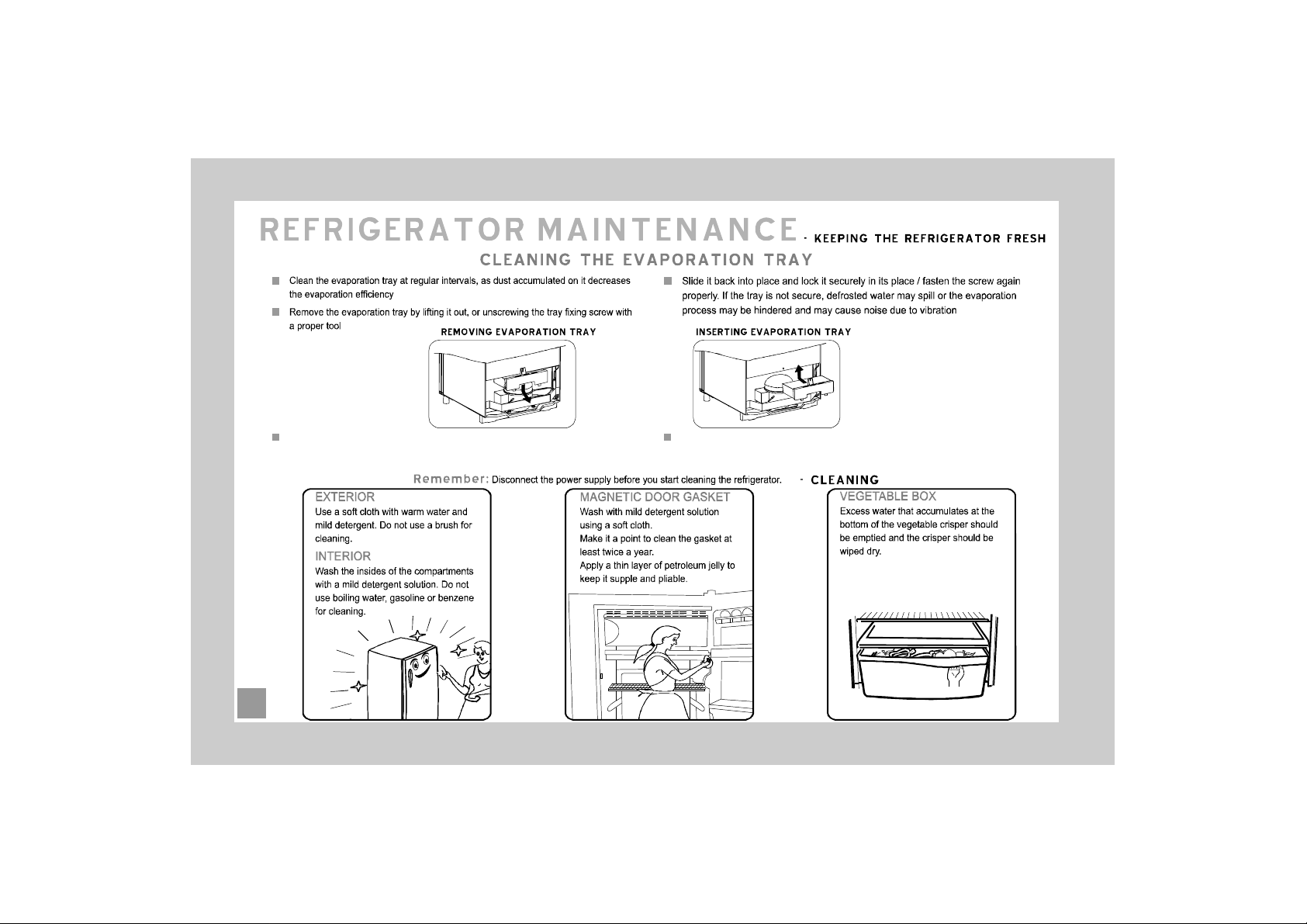

Page 13
11
Page 14
Method of Replacing Supply cord:- If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
12
Method of Replacing Lamp :- Switch Off the Refrigerator, then take
out chiller tray. Remove the faulty lamp & fit the new lamp. Place the
chiller tray in its proper position & switch on the supply.
Page 15

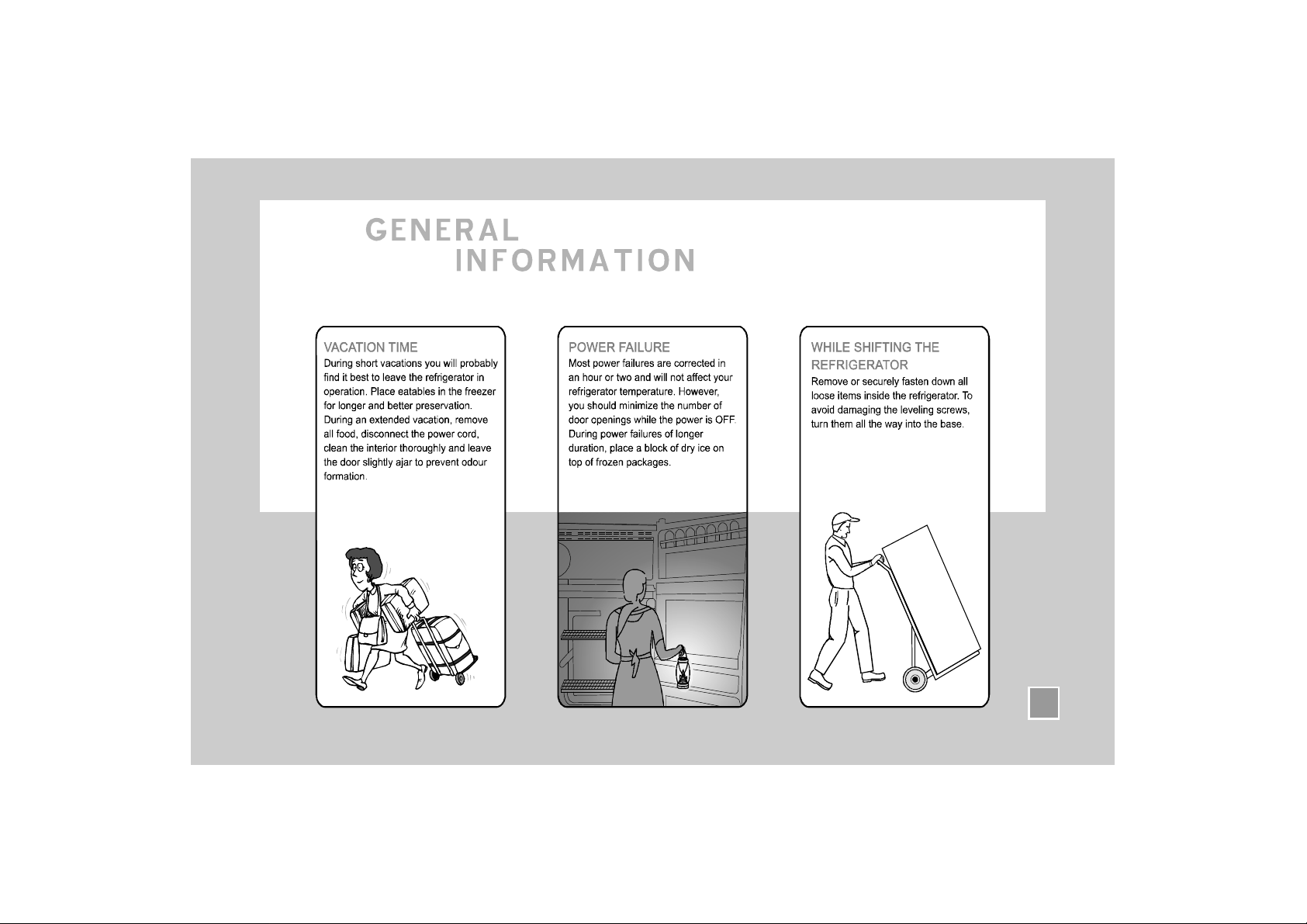

13
Page 16
E-WASTE GUIDELINE MANUAL
HAZARDSOF IMPROPER HANDLINGAND/OR IMPROPER
RECYCLING OF ELECTRONIC WASTE
Electronic equipments contain many hazardous metallic contaminants such as lead,
cadmium, and beryllium and brominated flame-retardants. The improper handling and/or
improper recycling of the Electronic Waste results in these hazardous metals/substances
getting released into our eco and biological system, thereby leading to various health
hazards. T he Hazardous contents in the electronic equipment include:
• Lead Brominated Flame Retardants Chromium Mercury
• ••
• Beryllium Cadmium Barium Carbon Black Phosphor
E-Waste Toxic Components and their Damage to
Human Health
••••
Heart, Liver,
Toxic
Materials
Defects
Barium
CadmiumXX X X X X
Lead
Lithium
Mercury
Nickel
Palladium
Rhodium
Silver
X X X
X
X
X
X
X X X X
Damage
X
X
X
X
X
Lung & Spleen
Damage
Brain
Birth
Kidney
Damage
X
X
X
X
X
X
XX
Nervous/
Reproductive
System Damage
XX
X
Skeletal
System
Damage
Without safe recycling, most of these toxic components will end up in
land fill - poisioning the soil and water
The Do's of Electronic Waste Recycling:
• Give the discarded Electronic Equipments only at the authorized collection centers so
that the same can be properly recycled
• Drop the discarded Electronic Equipments only in the bins meant for the Electronic Waste
• Askthe retailer about the TakeBack schemes
• Consultthe authorized service center as to whether the Electronic Equipment can be
repaired or not, before discarding the same
• Tell your neighborsand other persons about the hazards of improper disposal or handling
or improper recycling of the Electronic Waste
• If the unwanted Electronic Equipments still work or can be repaired then consider donating
them
The Don'ts of ElectronicWasteRecycling:
• Don't dump the discarded Electronic Equipments in open or in any Land Fill Site as the
same will result in contaminating the Soil and the ground water
• Don't dispose of the discarded Electronic Equipments in household bins or Municipal Bins
• Don't s ell or give your discarded Electronic Equipments to any Trash Dealer or Kabadiwala
• Recycling Electronic Equipments helps to save natural finite resources and also reduces
the environmentaland health risks associated with improper handling/disposing the
Electronic Waste
• To minimize our impact on the earth and to protect the environment for future generations
return your discarded Electronic Equipments here for s afe recycling:
Contact for further information:
HaierAppliances (India) Pvt. Ltd.
B-1/A-14, MCIE, Mathura Road,
New Delhi-110044
or Call us at
Toll Free No. (24X7): 1800-200-9999
14
Page 17
15
Page 18
Page 19
SPECIFICATIONS
MINIBAR REFRIGERATOR
MODOL
HRD-/1903/
1904/1905/
190
GROSS CAPACITY (LTR)
WIDTH 480 480 480 531 531 531 531 531 565 596 550 550 550
OUT SIDE
DIMENSIONS
(mm)
NETWEIGHT(kg)
RATED VOLTAGE (V)
RATED FREQUENCY (Hz)
DEPTH 475 475 475 620/665 620/665 620 620 620 585 645 655 655 655
HEIGHT 512 687 875 1038 1020 1160 1362 1483 1512 1635 1525 1685 1795
HRD-073 HRD-093 HRD-133
52 77 112 170 181 190 225 251 200 240 240 275 300
16.5 19 21 29 29 32 34 36
* Specifications subject to change without notice.
DIRECT COOL REFRIGERATOR
HRD- /2014
2015/201
HRD-2104/
2105/210
HRD-2454/
2455/245
220-240VAC
50Hz
HRD-
2715
2714/
/271
TOP MOUNT
REFRIGERATOR
HRF-2203/
2204/2205
52
FROST-FREE REFRIGERATOR
BOTTOM MOUNT
REFRIGERATOR
HRF-2683/
2684/2685
HRB-2603/
2604/2605
57 49 57 60
HRB-2953/
2954/2955
HRB-3203/
3204/3205
Page 20
Haier is the biggestHome Appliances Brand*in the world. We represent a higher quality
of life across 166 countries, and have transformed the way people live. Haier has touched
millions of lives. Briningto them a whole range of products that go far beyond mere
appliances. Haier boasts of a product range of 15,100 models across 96 categories.
Haier products are inspiredby actual usage patterns of peopleand are designed in R&D
centers globally.Adding that little extra makes the difference. Haier is today welcomed by
millions to make their today better than yesterday.At Haier, we call this Inspired Living.
B-1/A-14, Mohan Co-operative Industrial Estate, New Delhi- 110044.
Manufactured by : Haier Appliances (India) Pvt. Ltd.,
B-3, M.I.D.C.Rangangaon,Tal. Sirur,Dist. Pune-412208.
1800-200-9999 (Toll Free - 24x7)
SMS: ‘Haier’ to 56677
Email: [email protected]
