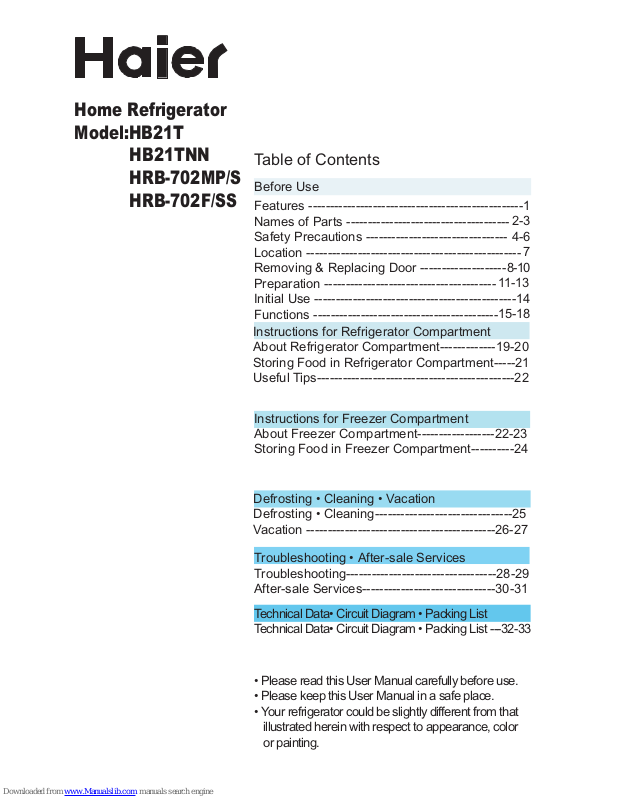

Haier HB21T, HB21TNN, HRB-702F/SS, HRB-702MP/S User Manual

• Please read this User Manual carefully before use.

• Please keep this User Manual in a safe place.

• Your refrigerator could be slightly different from that
illustrated herein with respect to appearance, color
or painting.

Table of Contents

Before Use

Features -------------------------------------------------­Names of Parts -------------------------------------­Safety Precautions --------------------------------­Location -------------------------------------------------­Removing & Replacing Door -------------------­Preparation ---------------------------------------­Initial Use ----------------------------------------------­Functions -------------------------------------------

1
2-3
4-6

7

8-10

11-13

14

15-18

Defrosting • Cleaning • Vacation
Defrosting • Cleaning--------------------------------25
Vacation --------------------------------------------26-27

Instructions for Freezer Compartment
About Freezer Compartment------------------22-23

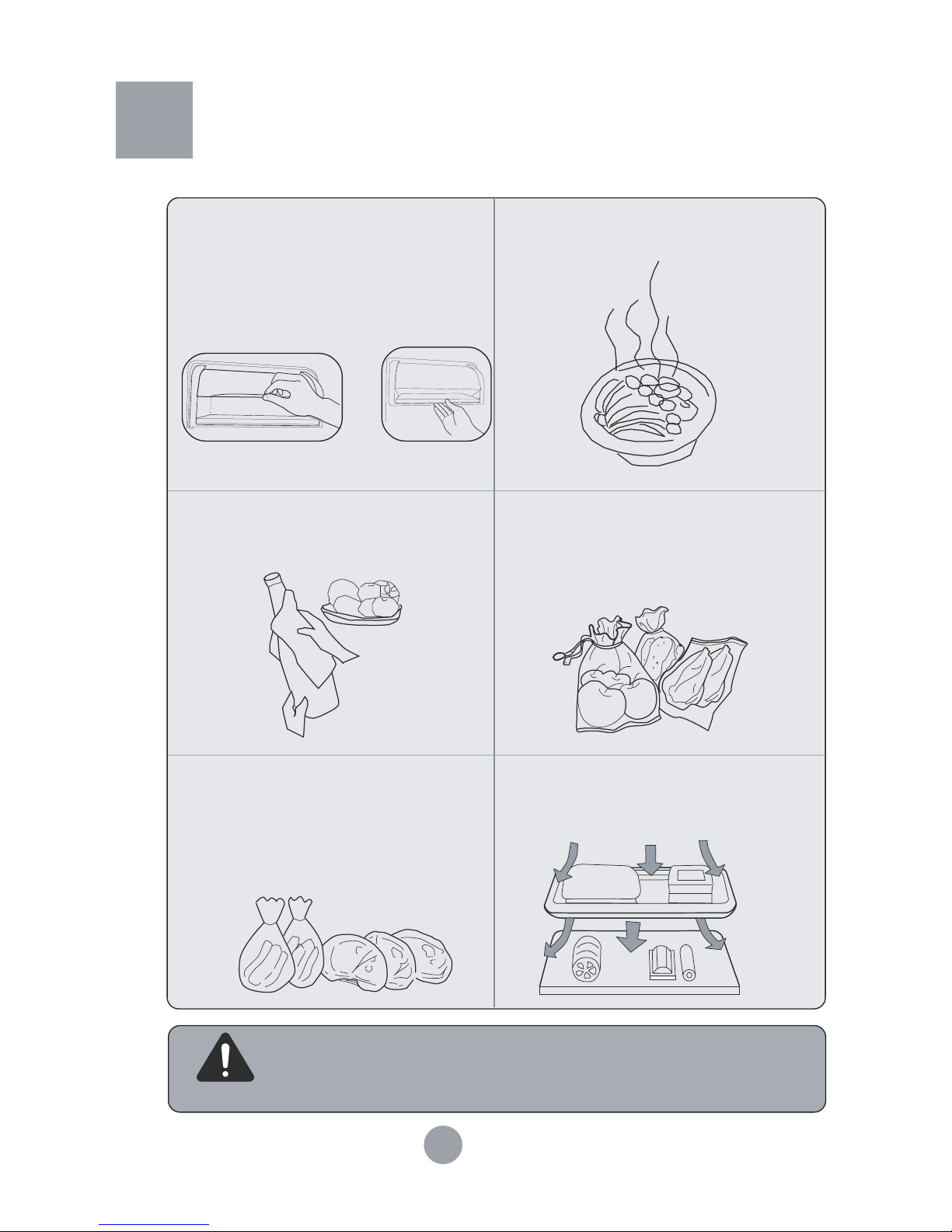

Storing Food in Freezer Compartment----------24

Instructions for Refrigerator Compartment
About Refrigerator Compartment-------------19-20
Storing Food in Refrigerator Compartment-----21

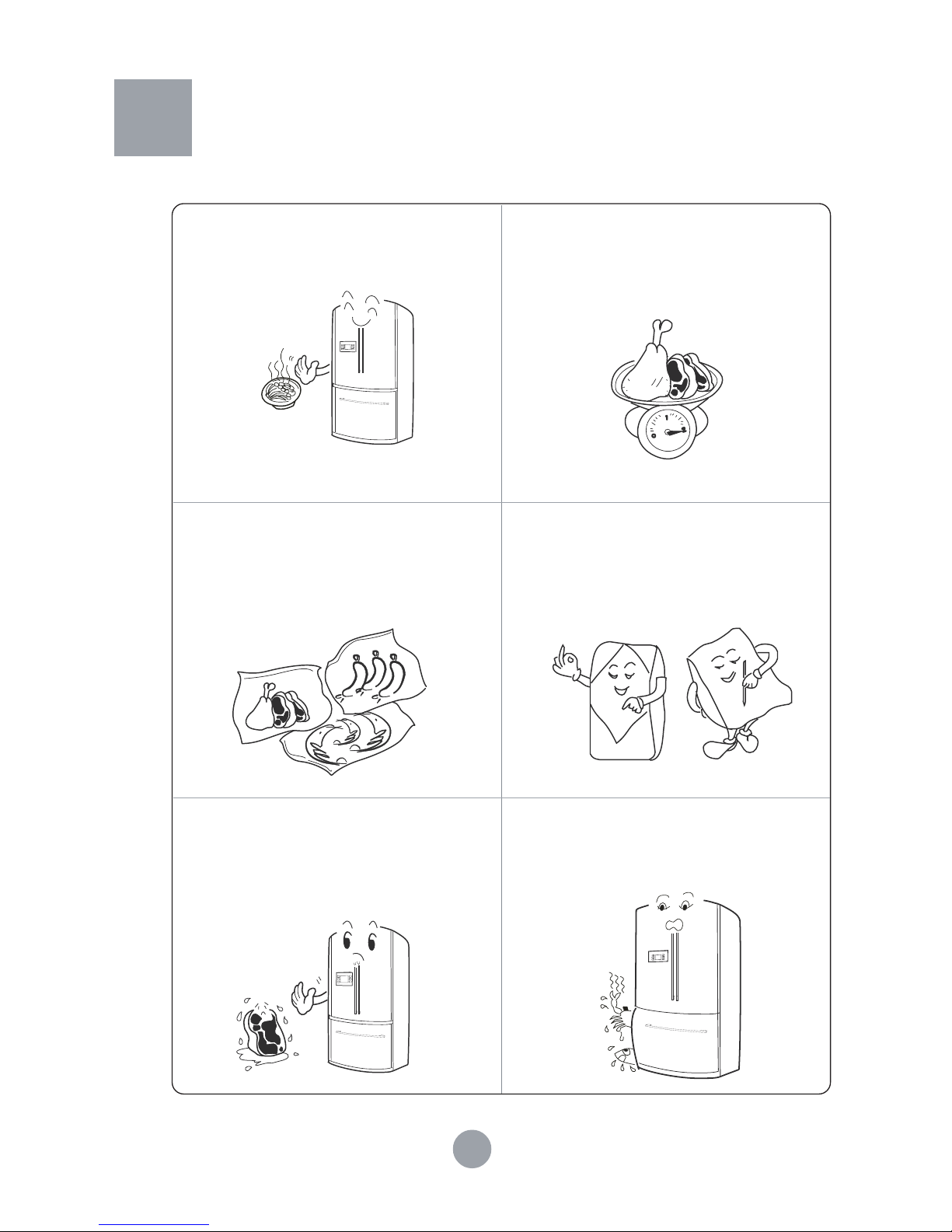

Useful Tips----------------------------------------------22

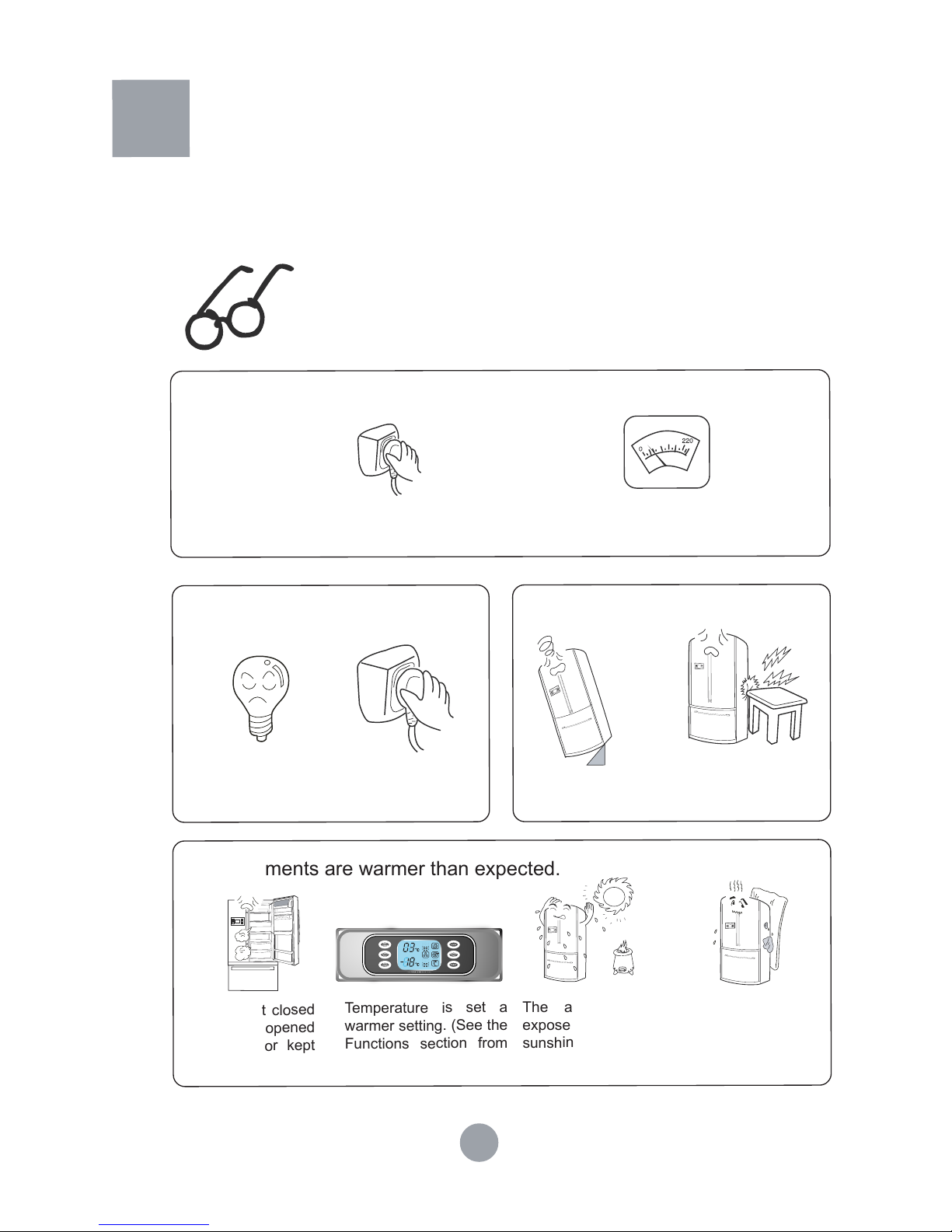

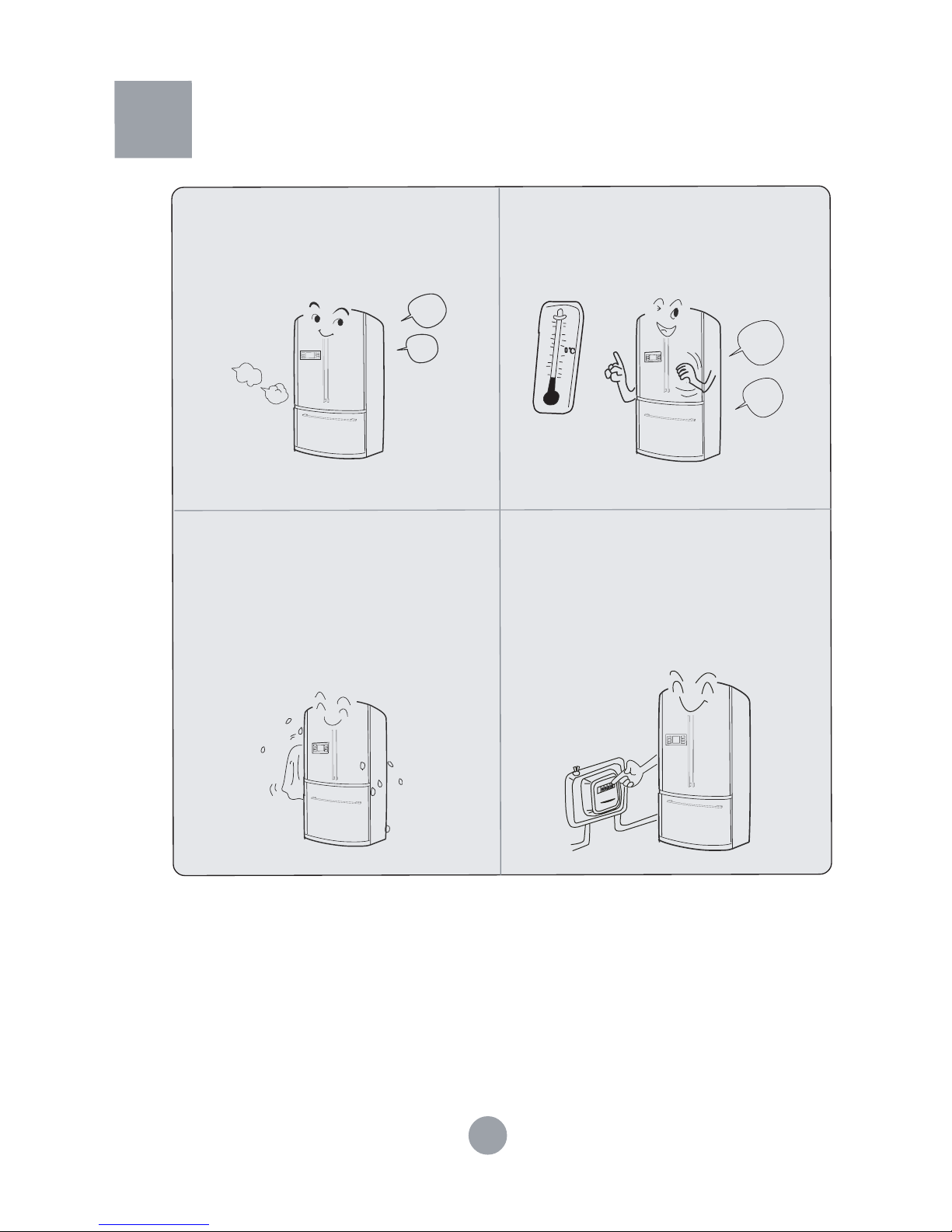

Troubleshooting • After-sale Services
Troubleshooting-----------------------------------28-29
After-sale Services-------------------------------30-31

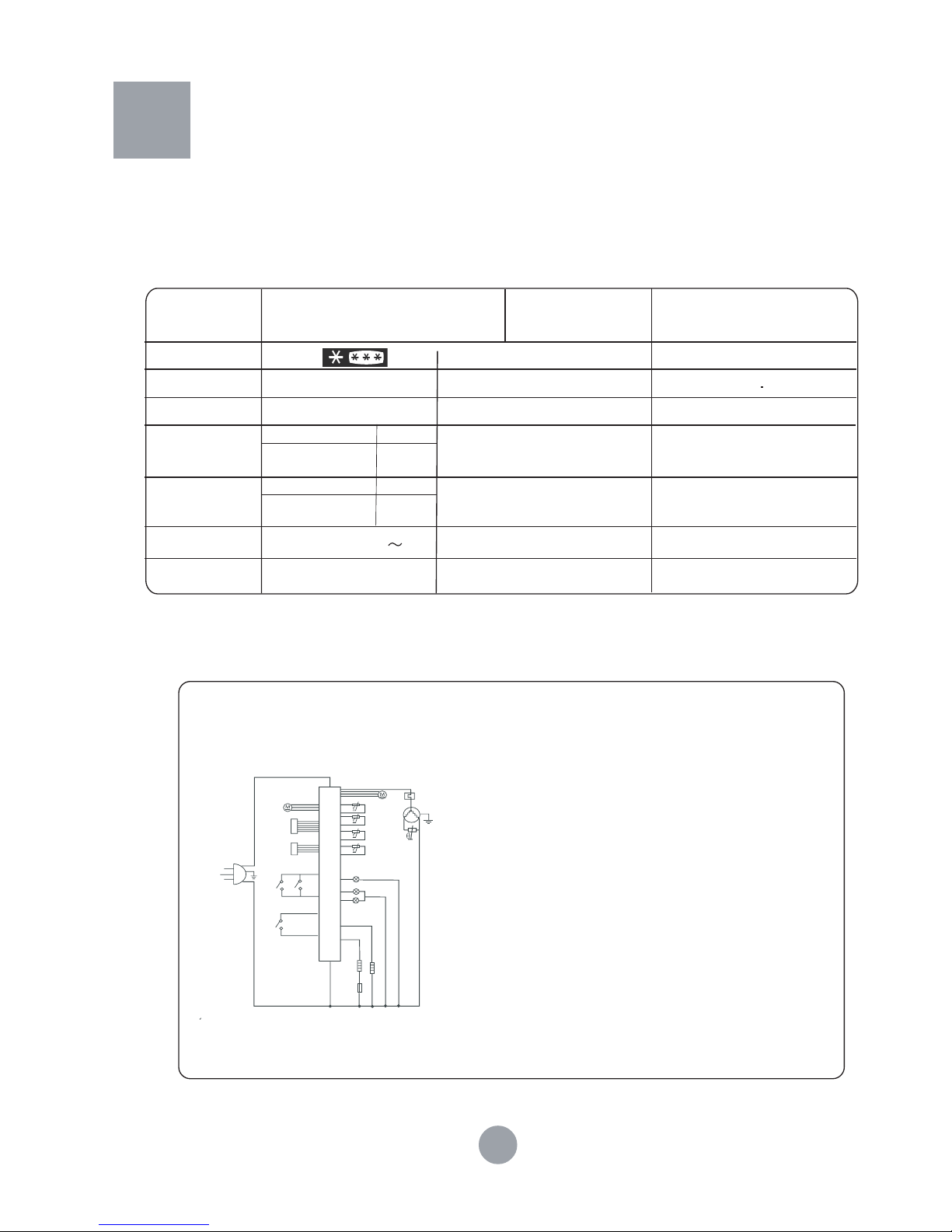

Technical Data• Circuit Diagram • Packing List
Technical Data• Circuit Diagram • Packing List ---32-33

Home Refrigerator
Model:HB21T
HB21TNN
HRB-702MP/S
HRB-702F/SS

1

Features Features

① Ice making

A built-in semi-automatic icemaker will produce ready-to-use ice cubes based on your
preference.

②Chill compartment

The chill compartment at the bottom of the refrigerator compartment is intended for
storage of delicatessen within the temperature range from -2°C to +3°C.

③ Slide-out shelf for easy food access

The refrigerator compartment is equipped with slide-out shelves for easy loading and
unloading. The shelves can be removed when the door is in the right-angle position.

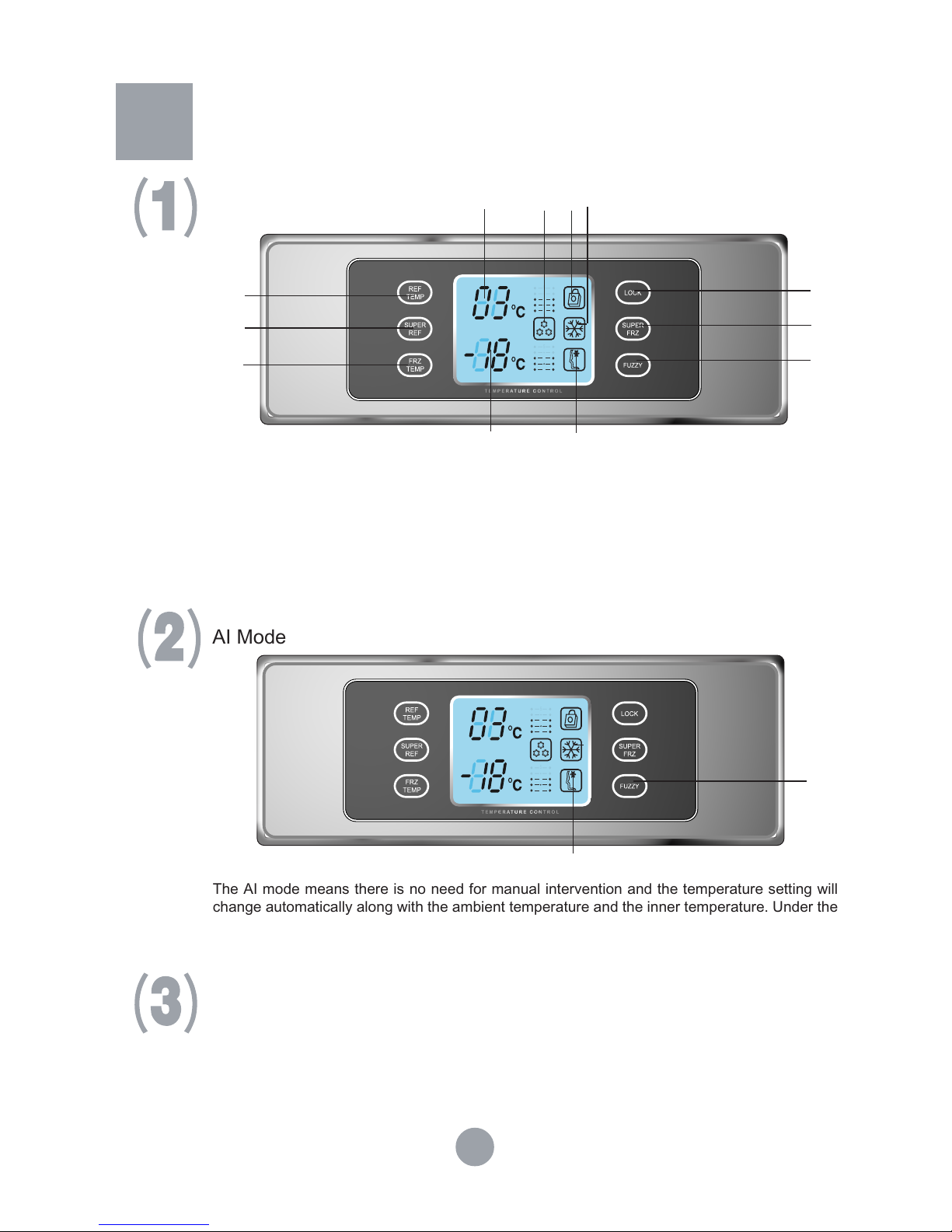

④ Artificial Intelligent (AI) design

The optimum refrigeration performance is secured based on the inner temperature and

the

ambient temperature without manual intervention.

⑤Super slim, super large and super luxurious

Compact dimensions, large capacity, spacious refrigerator compartment and freezer
compartment, supreme internal and external design

⑥ CFC-free and frost-free deep freezing enabled by efficient air cooling system
⑦Air Curtain technology

The air curtain located at the front end of the refrigerator compartment is intended to

provide

the desired food storage by preventing invasion of warm air and facilitating equal

distribution

of cooled air.

⑧Cooling before defrosting to prevent thawing

A pre-cooling process will be activated based on the inner temperature measured to

avoid

the adverse impact of temperature rise on food stored in the refrigerator.
⑨ Optimized refrigeration performance and long service life of compressor enabled by

efficient

condenser unit and fan motor

⑩Door-open alarm, touch button and large-screen LCD display

　　Vitamin C technology for fresh food storage

The Vitamin C technology effectively keeps the food fresh for a longer period of time

while

eliminating the unpleasant odor.

Smooth and effortless drawer slideway

１１

１２

2

Names of parts

Refrigerador light

Dairy bin

Vertical beam

Cover of crisper

Gallon bin

Refrigerator compartment

Vitamin C Drawer

Shelf

Wine shelf

Movable board

Crisper

Chill compartment

Front cover of

chill compartment

Dairy bin

Gallon bin

Freezer compartment

Icecream bin

Semi-automatic
icemaker

Ice storage bin

Freezer drawer

Partition wall of
freezer drawer

3

Dear Customer

Thank you for purchasing Haier product.
Haier product is of supreme quality and superior performance. Please read these instructions and following the
procedures described herein.
You are enjoying the International Star Service from Haier. For any question you may have, please make your
request for service by contacting our service centers at the telephone numbers or address specified in the Letter
of Warranty.
Haier - Sincere forever!

NOTE: The product specifications are subject to change from time to time due to product improvement
without further notice.

Names of parts

Safety Precautions Safety Precautions

4

Power supply: AC 220V-240V/50HZ

If the voltage fluctuates violently (beyond
187~242V), it is necessary to use a voltage
stabilizer of 750W or above to prevent startup
failure, damaged control board or compressor,
or unusual noise.

The appliance must be plugged into a
dedicated outlet that is securely grounded.

The power cord of this appliance is fitted with the
three-prong plug (grounded) that complies with the
standard three-prong outlet (grounded). Never cut
off or remove the third prong. The refrigerator
should be located so that the plug is accessible.
WARNING! The plug should be securely connected to
the socket or otherwise fire hazard may arise.

Be careful not to damage the power cord.

Always pull at the plug other than the cord itself to

disconnect the appliance from the outlet.

Route the power cord in a way to eliminate the
risk of damage caused by the weight of refrigerator or
reading.

Be careful not to damage the power cord when
moving the appliance away from the wall.

When the power cord is damaged

The use of cracked cord or worn plug is strictly
prohibited. If the power cord is damaged, it should
be replaced in an authorized service center.

When there is a gas leakage

Shut off the gas valve.

Open the doors and windows for ventilation.

Do not plug or unplug the refrigerator or other
electric appliances.

Always remember to unplug the appliance
in the following cases:

Unplug the appliance before cleaning and

reparation.

Unplug the appliance before replacing the old

light bulb to prevent electric shock.

220V-240V~

50HZ

Safety PrecautionsSafety Precautions

5

Never store inflammable or explosive items and
strong corrosive acids or alkalis in the appliance.
Mousse / Spraying agent / Gas/ Acid / Alkali

Vaccine / Strain / Chemicals
To prevent risk of fire, keep the appliance away
from gasoline or any other inflammables.

This appliance is a household refrigerator, which is
produced in accordance with the specification of
national standard. It is intended for food storage
only, not for storage of blood, medicine and
biological products.

Children are not allowed to play with the door or
the bottle racks. Serious injury may occur.Do not

The internal surface of freezer compartment is
very cold when the appliance is running. Do not
touch the surface especially when hands are wet.

To prevent risk of electromagnetic interference or
other accidents, do not place any patch panel,
voltage stabilizer and microwave oven on top of
the refrigerator or use any electric appliance
(unless recommended by the manufacturer)
inside the refrigerator.

walk on the door or the cabinet when loading
and unloading the refrigerator.

Safety Precautions Safety Precautions

6

Hold the door handle when opening and closing
the doorThe gap between the doors and the gap
between the doors and the cabinet are very
small. Make sure figures do not get stuck.
Always keep children away when a door is
opened or closed.

Do not splash water onto the refrigerator. Keep
off places of high humidity that may have
adverse effect on the electric insulation
performance.

No dismantlement or modification can be
made without authorization. Damage to
refrigeration system is strictly prohibited.
Reparation must be carried out by authorized
personnel.

Bottled beer or beverage should not be stored
in the freezer compartment – risk of explosion.

Unplug the appliance in the event of power
interruption or cleaning. The appliance can be
plugged again only after an interval of at least
5 minutes to prevent damage to the compres­sor caused by frequent startups.

Please remove the door, door seal and
shelves before disposal of the old appliance
and put them away in a safe place to prevent
children from being entrapped.

Location Location

7

Levelling
The appliance should stand firmly on solid
floor. To support it, use firm and solid pads that
are inflammable. Never use the packaging
materials for supporting. Level the appliance
with the adjustable legs whenever necessary.
Turn clockwise to raise the refrigerator, and
anticlockwise to lower it.

10cm
minimum
clearance
above

Distance

10cm minimum

clearance at

rear

10cm

minimum

clearance at

both sides

Removing & Replacing DoorRemoving & Replacing Door

8

NOTE

To avoid injury, property loss or damage to the refrigerator, make sure to remove all food
from door racks and then remove bottle bin(s), unplug the refrigerator and shut off water
supply before removing and replacing a door.
To avoid injury or property loss, remove or replace the door with the help of 2 persons or
more. The following instructions should be observed.

Removing and replacing the right door of refrigerator compartment

①Unscrew the upper right hinge cover by
means of screwdriver and then remove
the hinge cover.

② Unscrew the upper right hinge by means of
hexagonal screwdriver and then remove the hinge.

③Remove the door and place it in a proper
position.

④ Remove the middle hinge if necessary.

⑤Replace the door in a reverse sequence of

removal.

NOTE

Be careful to prevent the door from falling onto you when lifting the
door from the hinge.

Removing & Replacing DoorRemoving & Replacing Door

9

Removing and replacing the left door of refrigerator compartment

①Unscrew the upper left hinge cover by
means of screwdriver and then remove the
hinge cover.

②Unscrew the upper left hinge by means of
hexagonal screwdriver and then remove the
hinge.

③Remove the door and place it in a proper
position.

④Remove the middle hinge if necessary.

⑤Replace the door in a reverse sequence

of removal.

NOTE

Be careful to prevent the door from falling onto you when lifting the
door from the hinge.

Removing & Replacing Freezer Drawer

①Pull out the freezer drawer entirely and
remove it from the refrigerator.

②

Replace the freezer drawer in a reversal
sequence to removal.

PreparationPreparation

01

WARNING

To prevent the risk of suffocation, keep children and pets away
from the drawers, in case they may get entrapped in the drawers.

Remove all packaging materials.

Foam support and adhesive tapes should be
removed.

Check the accessories and literature.

Check the accessories in accordance with the
packing list. Any doubt, contact the dealer.

Locate the appliance in a proper
position. See “Location”.

Please write down the model number and serial
number in Letter of Warranty for later reference.

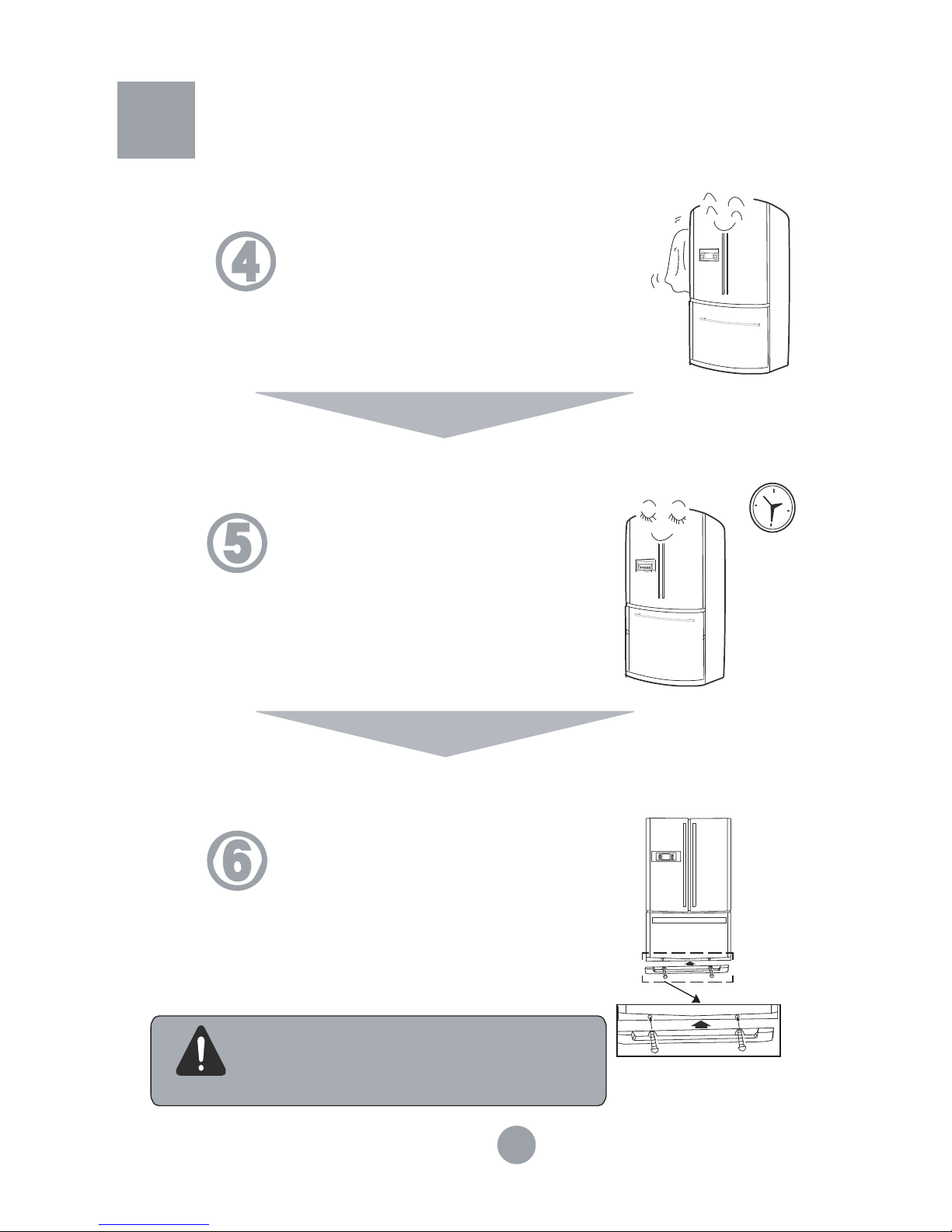

Standstill

It is recommended to clean the
appliance before operation.

PreparationPreparation

1

1

See “Cleaning”.

To ensure normal operation, allow the
appliance to stand still for 6 hours or longer
after installation and cleaning.

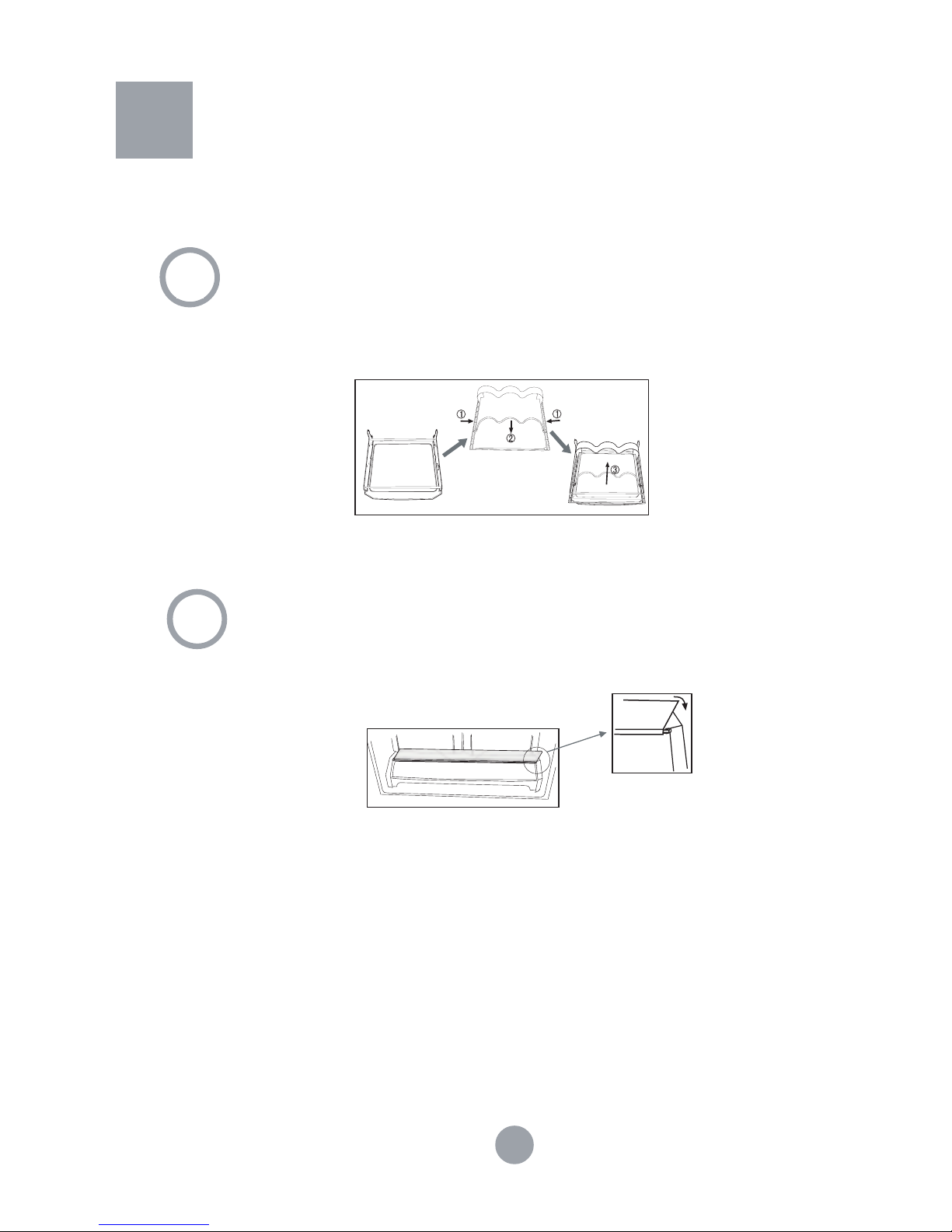

Installing Bottom Trim

Open the door of refrigerator compartment and
take out the bottom trim. Fasten it to the bottom
of refrigerator with screws as illustrated.

Wear a pair of gloves to protect your hands when
dismantling the bottom trim and adjustable legs
of the refrigerator.

WARNING

Preparation Preparation

2

1

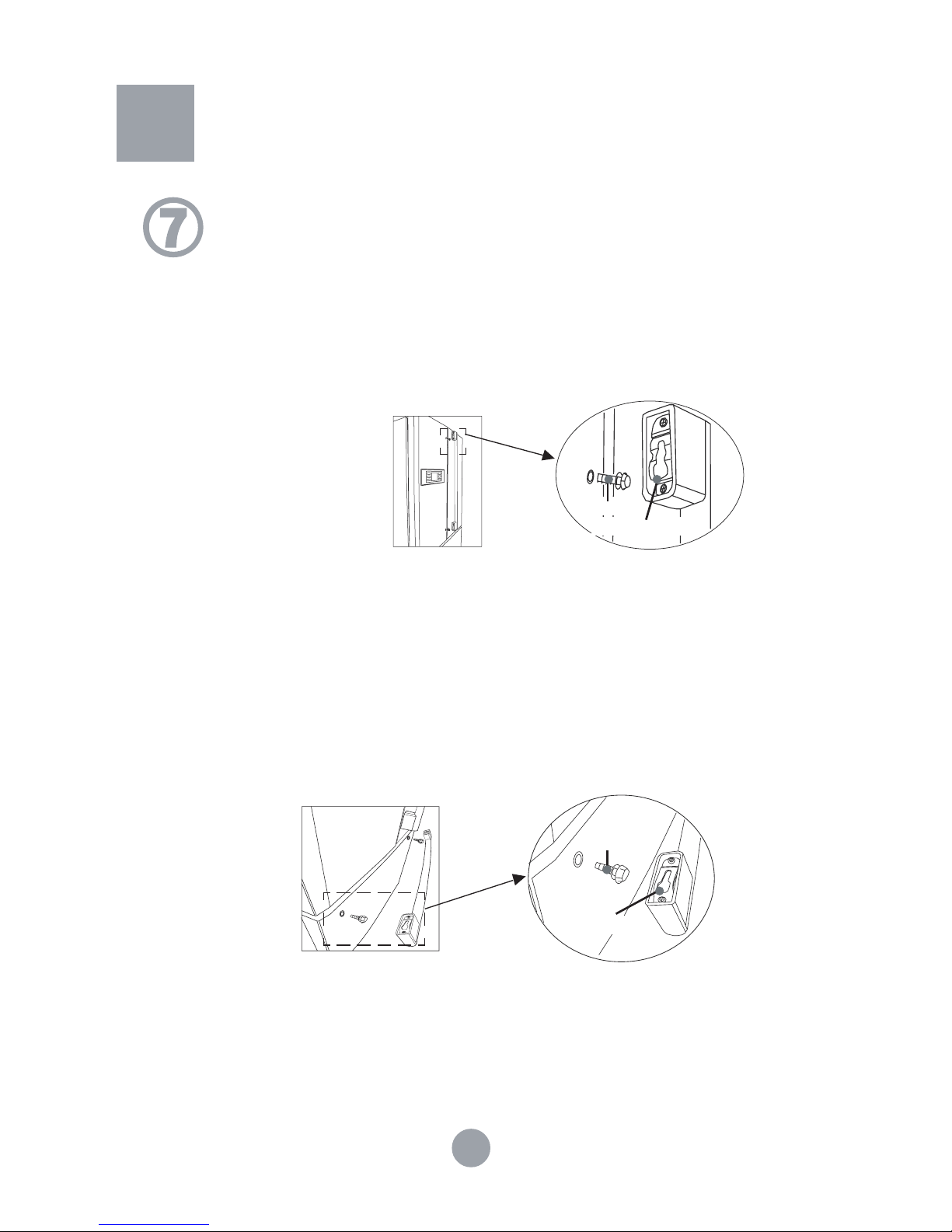

Removing & Replacing Door Handle

Take out the door handles from the refrigerator compartment (2 longer handles to be installed on
the refrigerator and 1 shorter handle to be installed on the freezer). The following instructions
should be observed.

Removing & Replacing Refrigerator Door Handle

Get 2 fasteners out of the accessory bag and place them in 2 reserved holes in the left door.
Install a handle by attaching the reinforcing plate to the fasteners and then pushing the handle
downwards into its place. Install the right handle in the same way. To remove the handle, push it
upwards.

Fig 1

Fastener

Reinforcing plate

Removing & Replacing Freezer Door Handle

Get 2 fasteners out of the accessory bag and place them in 2 reserved holes in the freezer
door. Install a handle by attaching the reinforcing plate to the fasteners and then pushing the
handle leftwards into its place. To remove the handle, push it rightwards.

Fastener

Reinforcing plate

31

Preparation Preparation

Installing wine shelf

Open the door of refrigerator compartment. Take out the food shelf at the upper left corner. Place
the glass shelf downward on a table. Then take out the wine shelf from the delicatessen drawer
at the bottom. Hold the wine shelf at both ends, attach it to the food shelf (as shown below in Fig 1)
and then push it in place (as shown below in Fig 3).





9

Installing front cover of chill compartment

Open the door of refrigerator compartment. Take out the front cover of chill compartment from the
crisper cover. Then place the rotary shaft at both ends of the chill compartment into the supporting
slot of the slide guide, and turn the front cover of chill compartment down.

8

Initial UseInitial Use

41

1. Connect the appliance to the power supply.

The actual temperatures in the refrigerator and the freezer are shown.
The appliance has a backup memory and the settings before a power interruption
will be stored. (See Backup Memory section on Page 17 for details)

Operation Modes

Recommendation!

Once the AI mode is selected, there is no need to

make any adjustment within a prescribed range of

temperature, notwithstanding the changes in

ambient temperature.

You can select one of the following operation modes.

(1) AI: Unless otherwise required, it is recommended that the AI mode is used. Tap the AI
button and the indicator will illuminate. The appliance will start an automatic operation.
(See the AI Mode section on Page 14)
(2)Manual: Alternatively, you can adjust the inner temperature by means of the
temperature control button. (See the Temperature Setting & Regulation section on
Page 16)

Loading the refrigerator

The inner compartment will be cold enough
and ready for food storage after a couple of
hours of non-load operation.

NOTE

When the temperature setting is adjusted, it takes some time to
reach the desired inner temperature. The period will be longer
or shorter, depending on the ambient temperature, amount of
food and how often the door is opened.

FunctionsFunctions

51

5

3

1

5

3

1

B

C

D

F

G

J

L

A

E

KI

H

Control panel

A……Refrigerator temperature control button
B……Fast chill button
C……Freezer temperature control button
D……AI button
E……Fast freeze button
F……Lock / unlock button

G……Refrigerator temperature display
H……Freezer temperature display
I…… Fast chill icon
J……Lock icon
K……Fast freeze icon
L……AI icon

AI Mode

The AI mode means there is no need for manual intervention and the temperature setting will
change automatically along with the ambient temperature and the inner temperature. Under the
Unlock mode, the AI button (D) may be tapped to display the AI icon (L) and activate the AI
mode. To quit the AI mode, tap the AI button (D) again. The AI icon (L) will disappear.

Fault Display

When a fault with a control or function is detected, the refrigerator temperature display and the
freezer temperature display will disappear while the fault codes will be displayed, i.e. E0, E1, E2,
F1, F2, F3,

F5,

and etc.

5

3

1

5

3

1

D

L

FunctionsFunctions

61

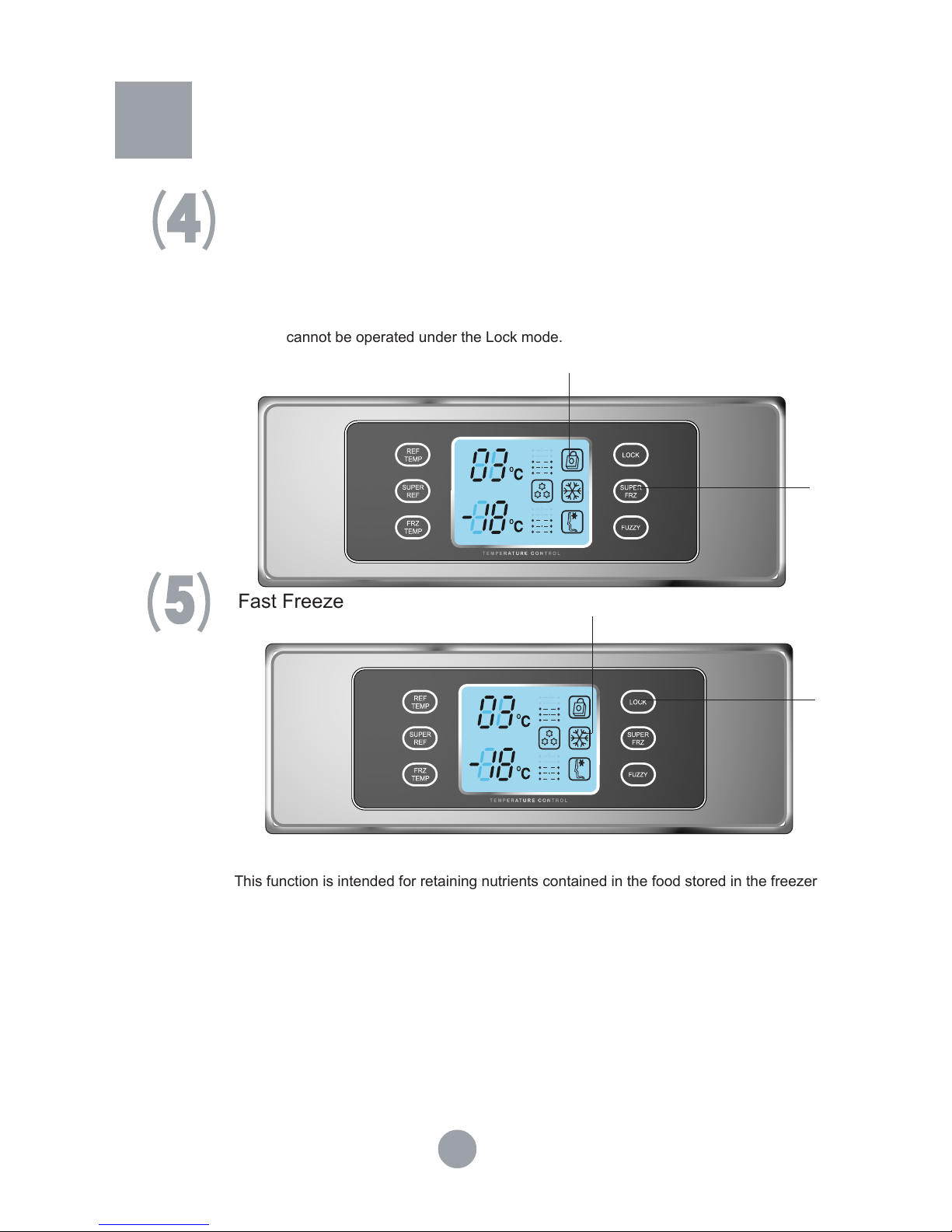

Lock & Unlock

Under the Unlock mode, the Lock / Unlock button (F) may be tapped to display the Lock
icon (J) and enter into the Lock mode. To quit the Lock mode, tap the Lock / Unlock button
(F) again. The Lock icon (J) will disappear.
NOTE: Controls for selecting temperatures in refrigerator and freezer compartments
and functions such as fast freeze, fast chill and AI (artificial intelligence)
cannot be operated under the Lock mode.

Fast Freeze

This function is intended for retaining nutrients contained in the food stored in the freezer
by freezing the food fully within a short period of time.
Under the Unlock mode, the Fast Freeze button (E) may be tapped to display the Fast
Free icon (K) and activate the Fast Freeze mode. The Fast Freeze mode is activated and

NOTE: The Fast Freeze mode is not available under the AI mode.

will be stopped automatically after 3 hours. To quit the Fast Freeze mode, tap the Fast
Freeze button (E) again. The Fast Freeze icon (K) will disappear.

NOTE:When making ice, you may select Fast Freeze to speed up ice-making process
and quit Fast Freeze after the ice-making process is completed.

5

3

1

5

3

1

F

J

5

3

1

5

3

1

E

K

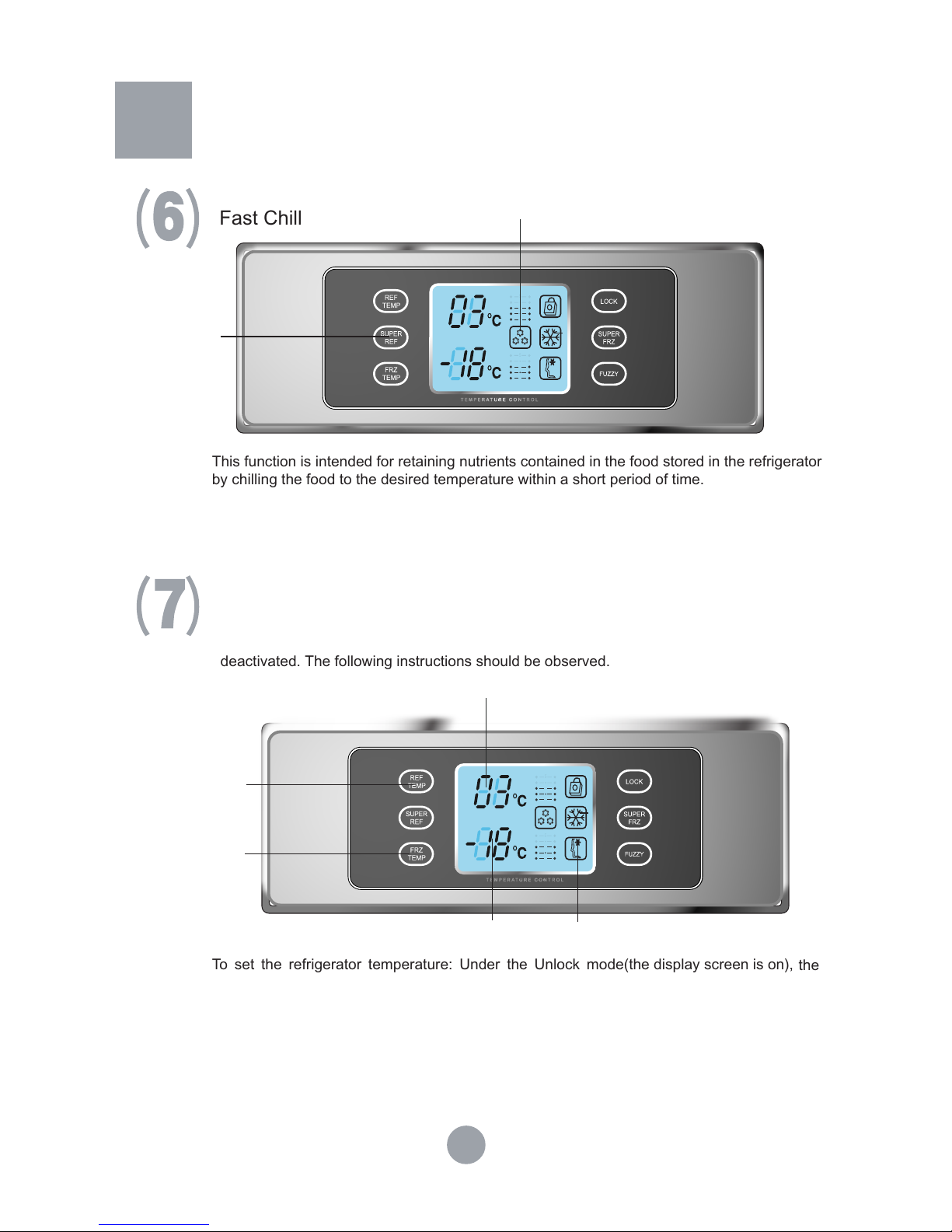

Fast Chill

Functions Functions

71

This function is intended for retaining nutrients contained in the food stored in the refrigerator
by chilling the food to the desired temperature within a short period of time.
Under the Unlock mode, the Fast Chill button (B) may be tapped to display the Fast Chill icon (I)
and activate the Fast Chill mode. The Fast Chill mode will be stopped automatically once the

refrigerator temperature arrives at the pre-set temperature.To quit the Fast Chill mode, tap the
Fast Chill button (B) again. The Fast Chill icon (I) will disappear.

Temperature Setting & Regulation

emperature setting & regulation: This function is available only when the AI mode is

deactivated. The following instructions should be observed.

To set the refrigerator temperature: Under the Unlock mode(the display screen is on),

the

refrigerator temperature

control button (A) may be tapped. The refrigerator temperature

display (G) will glisten. Each

time the refrigerator temperature control button (A) is tapped,

the display sequence is as

follows:

7°C – 5°C – 3°C – 2°C – 1°C –

7°C

5

3

1

5

3

1

B

I

5

3

1

5

3

1

C

G

L

A

H

Functions Functions

81

To set the freezer temperature: Under the Unlock mode(the display screen is on), the freezer

button (C) may be tapped. The freezer temperature display (H) will glisten.

Each time the

freezer temperature control button (C) is tapped,

t

he display sequence is as follows:

-16°C – -17°C – -18°C – -20°C –

-22°C – -16°C

Door-open Alarm

When the door is kept open or not properly closed, an audible alarm will be given once for a
while until the door is closed.

Economic Display Control

The display screen will go dark 30 seconds after the operation of control panel is finished. The
display is restored when any control button is tapped or any door is opened. But such button
operation will not change the present setting of the refrigerator.

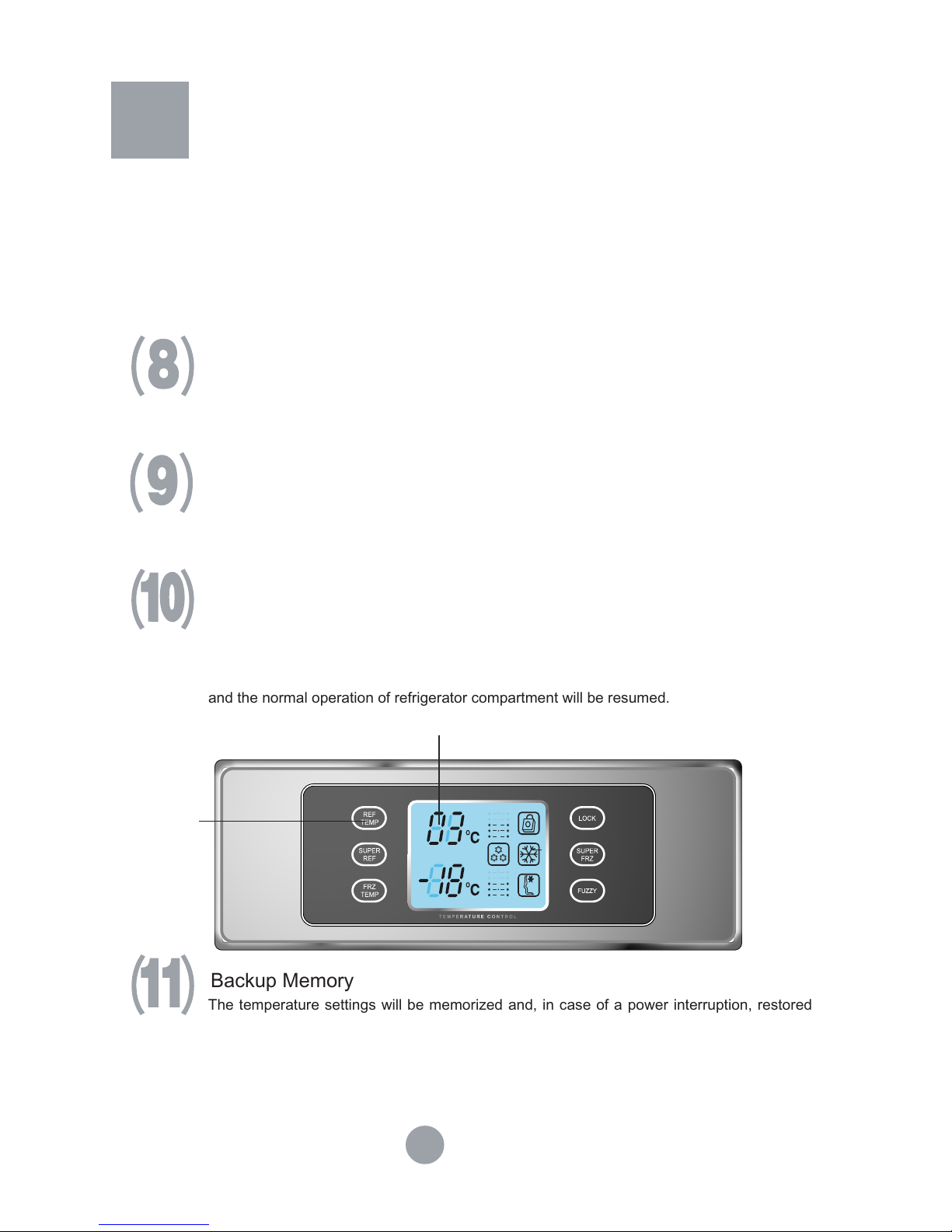

Refrigerator On / Off Control

Under the Lock mode, hold the refrigerator temperature control button (A) 3 seconds to turn
off the refrigerator. The refrigerator temperature display (G) will disappear while the
refrigerator light will remain functional. Hold the refrigerator temperature control button (A) 3
seconds to turn on the refrigerator. The refrigerator temperature display (G) will illuminate
and the normal operation of refrigerator compartment will be resumed.

Backup Memory

The temperature settings will be memorized and, in case of a power interruption, restored
after the power interruption is over.

5

3

1

5

3

1

G

A

temperature control

About Refrigerator CompartmentAbout Refrigerator Compartment

91

The refrigerator can be used for short-time
food storage.

TThe average temperature of the compartment is generally
maintained within 0~10℃ (-2~3℃ for chill compartment).
Therefore it is only used for short-time food storage and not
suitable for keeping food fresh for a long time.

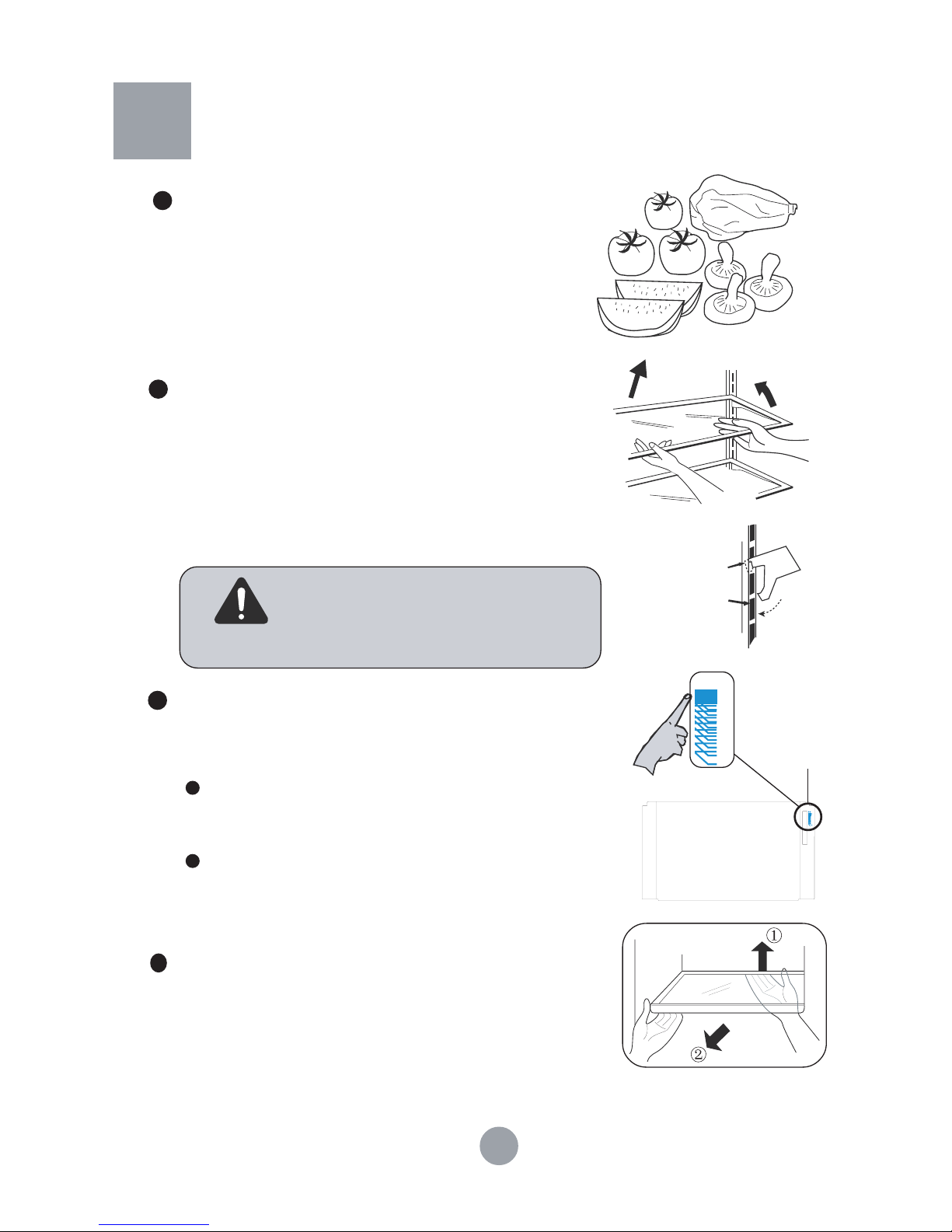

Height-adjustable Shelf

The height of shelf can be adjusted to meet your storage
needs.
To adjust the shelf height, remove the shelf first. The steps are
as follows: tilt the shelf up at front, and lift it up and out of
tracks. To replace the shelf, with shelf front raised slightly,
engage the lugs in tracks. Then lower shelf front until it locks
into position.

NOTE

Make sure the shelf is installed
securely and in the same level to
prevent shelf falling or food spills.

Lift and remove

Tilt up

To remove

Engaged the lugs

Up

Down

To replace

Humidity regulator

How to User the Crisper

The appliance is equipped with a crisper for vegetable and fruit
storage. You can set the humidity to meet your storage needs.

Turn the humidity regulator (located at the upper right
corner of the crisper) up to get a higher humidity suitable for
storage of cucumber, grape, kiwifruit and persimmon etc.

Turn the humidity regulator (located at the upper right
corner of the crisper) down to get a lower humidity suitable
for storage of strawberry, orange, bean, garlic, watermelon,
plum and tomato etc.

Removing Crisper Cover

Take out the crisper and put it away. Lift up the cover end (1)
and remove it (2).

As a result of air circulation in the refrigeration
compartment, some areas are warmer and the
others are colder. Foods should be organized
accordingly.

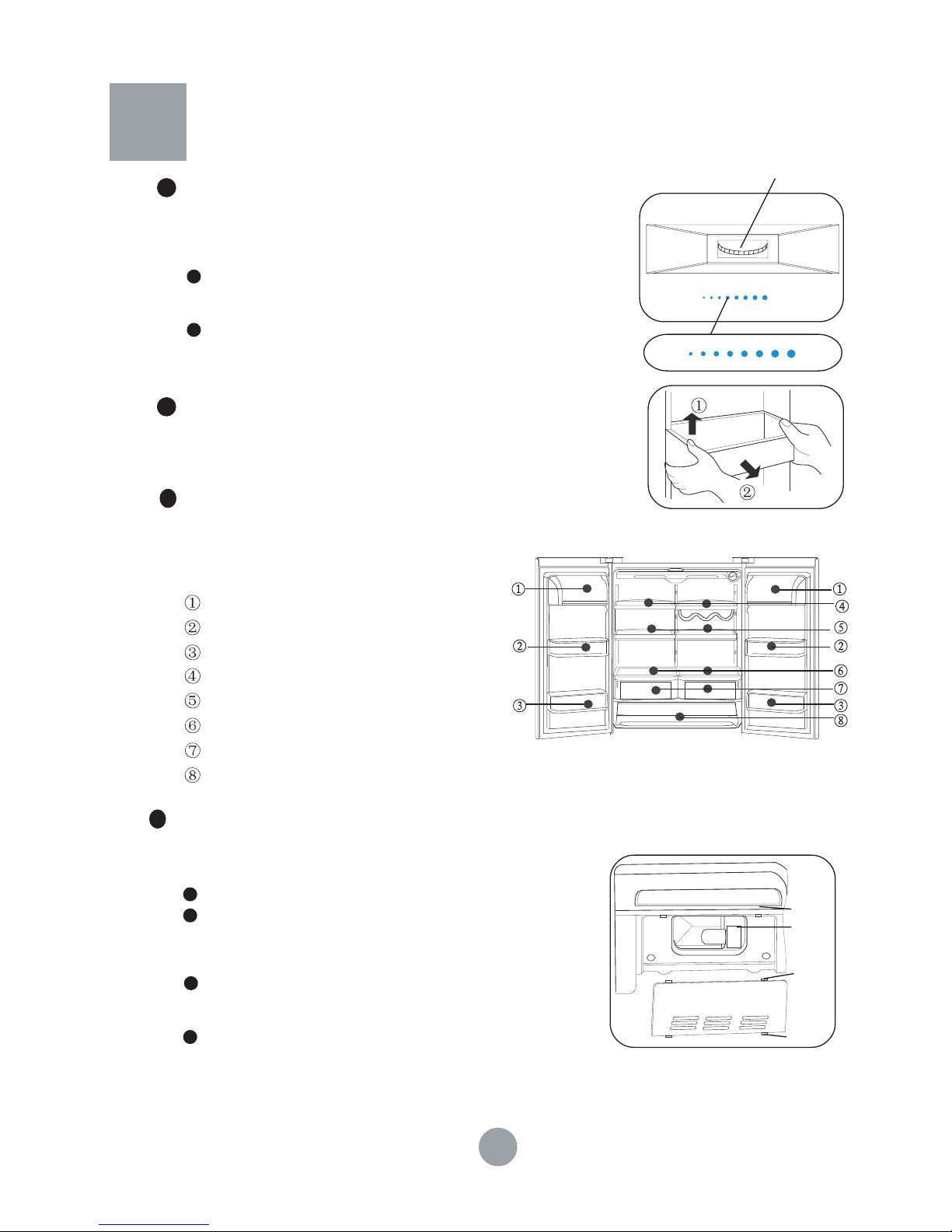

How to Use the Chill compartment

About Refrigerator Compartment About Refrigerator Compartment

=

=

=

=

=

=

=

=

02

The appliance is equipped with a delicatessen drawer with a
temperature range from -2°C~+3°C. The temperature can be
adjusted by the air control knob to meet your storage needs.

Turn the air control knob leftwards (weak) to reduce the cooled
air moving in the chill compartment and maintain a
temperature;
Turn the air control knob rightwards (strong) to increase the
cooled air moving in the chill compartment and maintain a
lower temperature.

Air control knob

Cleaning door bin

Lift the bin up (1) and pull it towards you (2). Replace the bin in the
reverse sequence of removal after cleaning.

Food Arrangement

Egg, butter and cheese etc.
Pop cans, canned food, condiments etc.
Beverages and bottled food etc.
Pickles and canned food etc.
Sausage and snacks etc.
Pastries, canned food, milk and bean curd etc.
Fruit, vegetable and salad etc.
Delis and sausage etc.

Replacing the Light Bulb

Bulb specifications: 220V~, 25W
Socket: E14 (DO NOT use a bulb over 25W)

Unplug the appliance.
①To remove the light shield, press the stopper
at rear out of the square hole.
② Pull the shield backward until the retainer is
separated from the square hole.
Turn the bulb anticlockwise and out. Replace a
bulb of the same specifications in the reverse
sequence of removal.
To replace the light shield: Engaged the retainer
into the square hole and then press the shield
rear forward until the stopper is locked in the
square hole.

Square

hole
Refrigerator
light socket

Retainer

Stopper

Light bulb

higher

COLD

COLDER

COLD

COLDER

12

Storing Food in Refrigerator Storing Food in Refrigerator
CompartmentCompartment

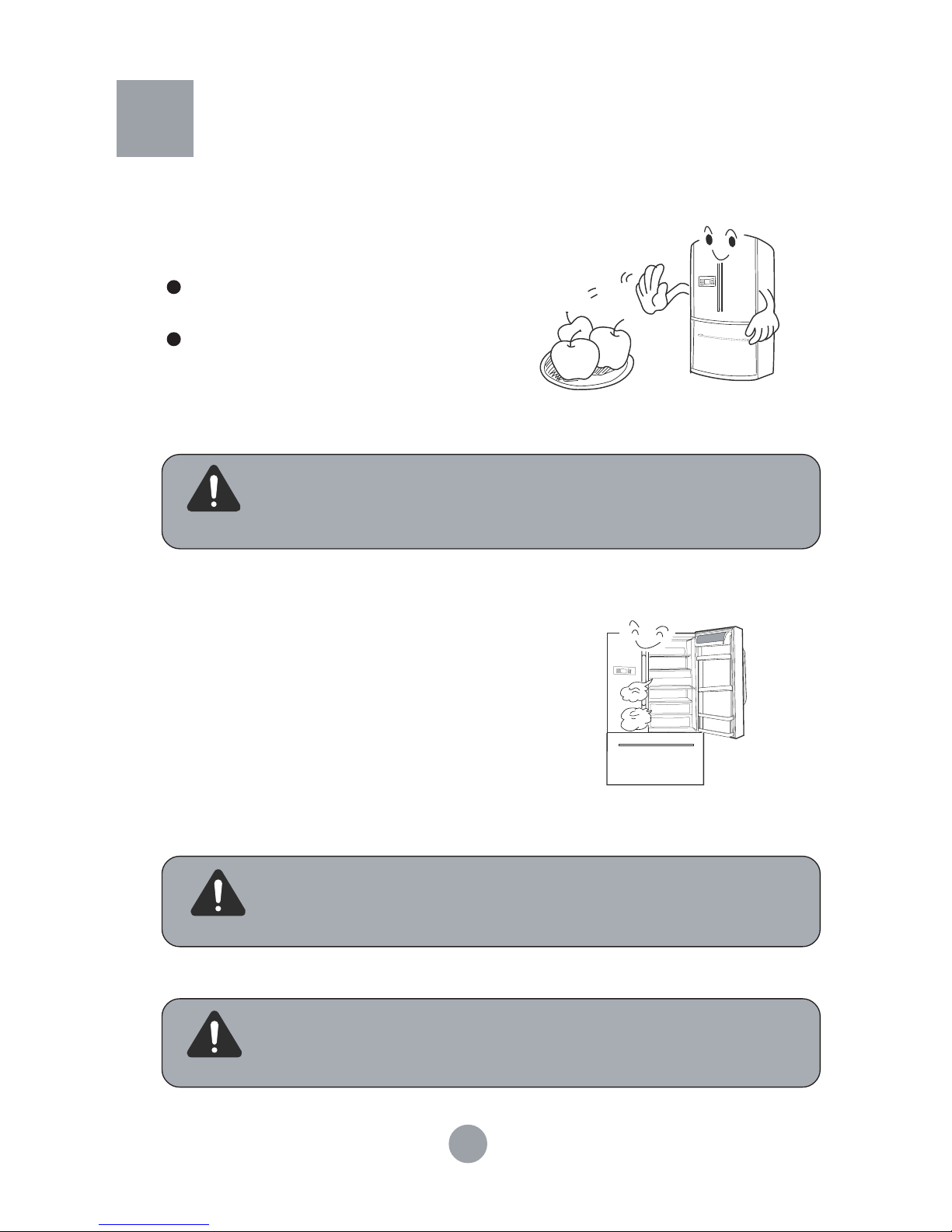

When loading or unloading the dairy bin, it is
safe to open and close the dairy bin in such a
way as illustrated below.

Allow warm foods to cool down before putting
them into the refrigerator.

Make sure the food is clean and the extra
water is wiped away before storing.

Wrap or cover food before storing.

This will help prevent the loss of water
content, keep fruit and vegetable fresh and
avoid any unpleasant odor.

Sorting before storage

Sort the foods by category. For those to be
used up soon, place them in the front of the
shelf, so as to avoid frequent and prolonged
door opens and food deterioration.

Do not overfill your refrigerator.

Leave enough space between foods stored in
the refrigerator to keep good air-circulation for
better refrigeration.

NOTE

Greasy foods may cause corrosion of lining materials gradually.
Keep them away from the walls of inner compartment. Keep the
inner compartment clean and free of oil stains.

Useful TipsUseful Tips

22

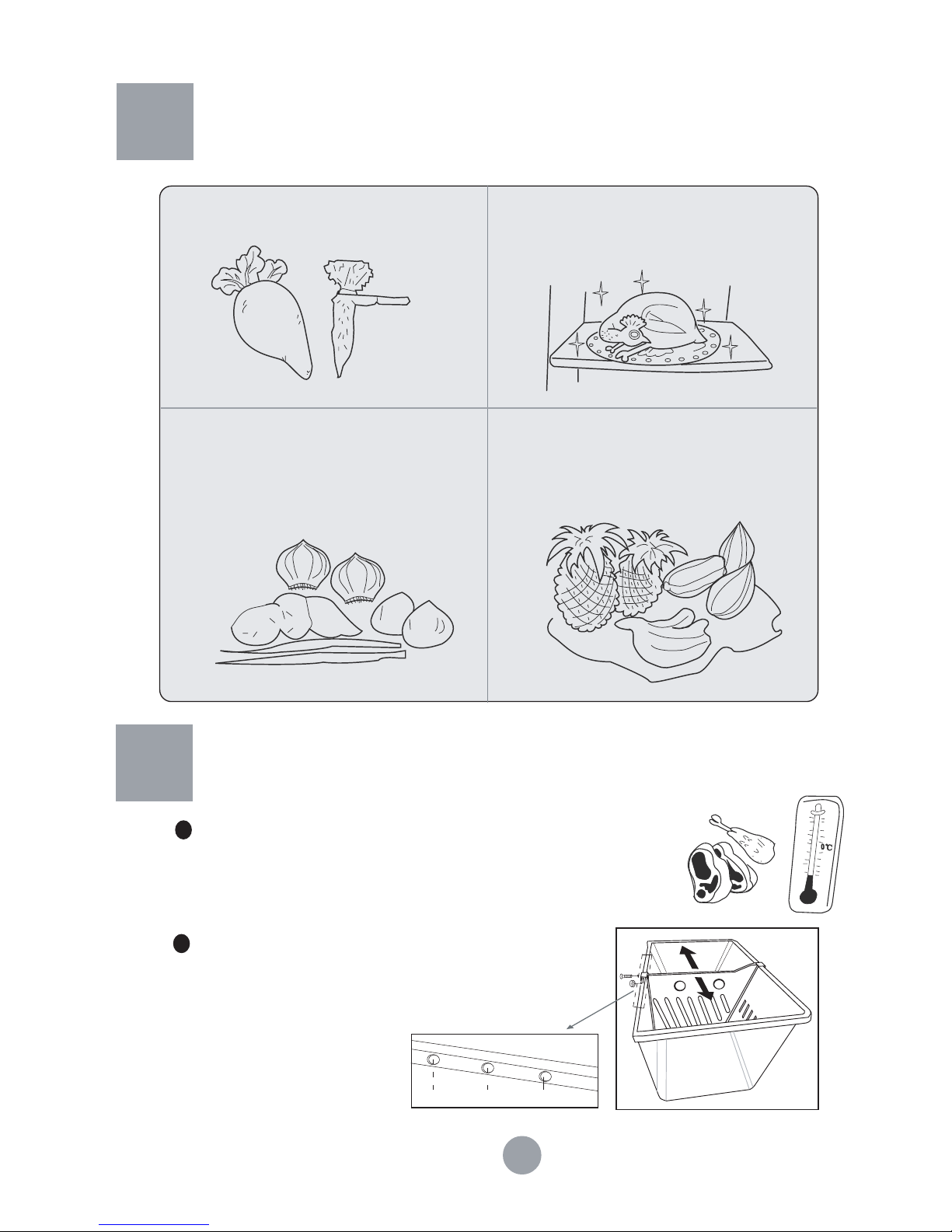

Remove leaves of carrots and radishes before
adding them to the refrigerator, thus to prevent
nutrition loss.

Thaw frozen food in the refrigerator compart­ment, this will help cooling food in the refrigera­tor compartment and save energy.

For food which can maintain freshness under
ambient temperature storage, such as onions,
garlic, and other roots, it is not necessary to put
them in the refrigerator.

Fruits such as rice melon, Chinese quince,
sweet melon, banana and pine apple can get
ripe faster under lower temperatures, these
fruits are not suitable for refrigerated storage
unless you need them to ripen sooner.

About Freezer Compartment About Freezer Compartment

The Freezer is intended for long-term food storage.

The temperature in the freezer is very low, making it ideal
for storage of frozen food. Add food expected to be stored
for a longer period of time in the freeze, but the expiry date
indicated on its packing should be observed.

Adjustable partition wall of freezer drawer

A movable partition wall is provided in the freezer drawer
to divide the drawer into two parts. You may move the
partition wall right or left to meet your storage needs.





②

③

①

32

About Freezer CompartmentAbout Freezer Compartment

Knob on icemaker

Ice storage bin

Bulb specifications: 220V~, 25W
Socket: E14 (DO NOT use a bulb over 25W)
To replace the light bulb:

Unplug the appliance.

①Remove the front screw with a screwdriver.
②To remove the light shield, press the stopper at front
　out of the square hole.
③Pull the shield forward until the retainer is separated

from the square hole.
Turn the bulb anticlockwise and out. Replace a bulb of
the same specifications in the reverse sequence of
removal.
To replace the light shield: Engaged the retainer into the
square hole and then press the shield front backward
until the stopper is locked in the square hole. Replace
and tighten the screw.

Screw hole

Square
hole

Freezer light socket

Stopper

Retainer

Freezer light bulb

42

Storing Food in Freezer Storing Food in Freezer
CompartmentCompartment

Allow warm foods to cool down before putting
them into the freezer.

Store food in smaller packages. This will make
it easier to freeze the food fully and provide
better quality when the food is thawed. It’s
recommended that each package should not
exceed 2.5kg.

Wrap food before storing. Make sure the
wrappings are dry to prevent them from sticking
to each other. The wrapping materials used
should be odorless, airtight, leak-proof,
nontoxic and environmental friendly to prevent
unpleasant odor or food deterioration.

The package of food should indicate
information such as name of food, date of
storage and expiry date.

Once thawed, food cannot be returned to the
freezer unless it has been cooked. Always get
frozen food from the freezer for thawing
according to actual needs.

Do not put too much fresh food in your freezer.
The freezing capacity (as indicated in the
Technical Data sheet) should be observed.

5 2

Defrosting • CleaningDefrosting • Cleaning

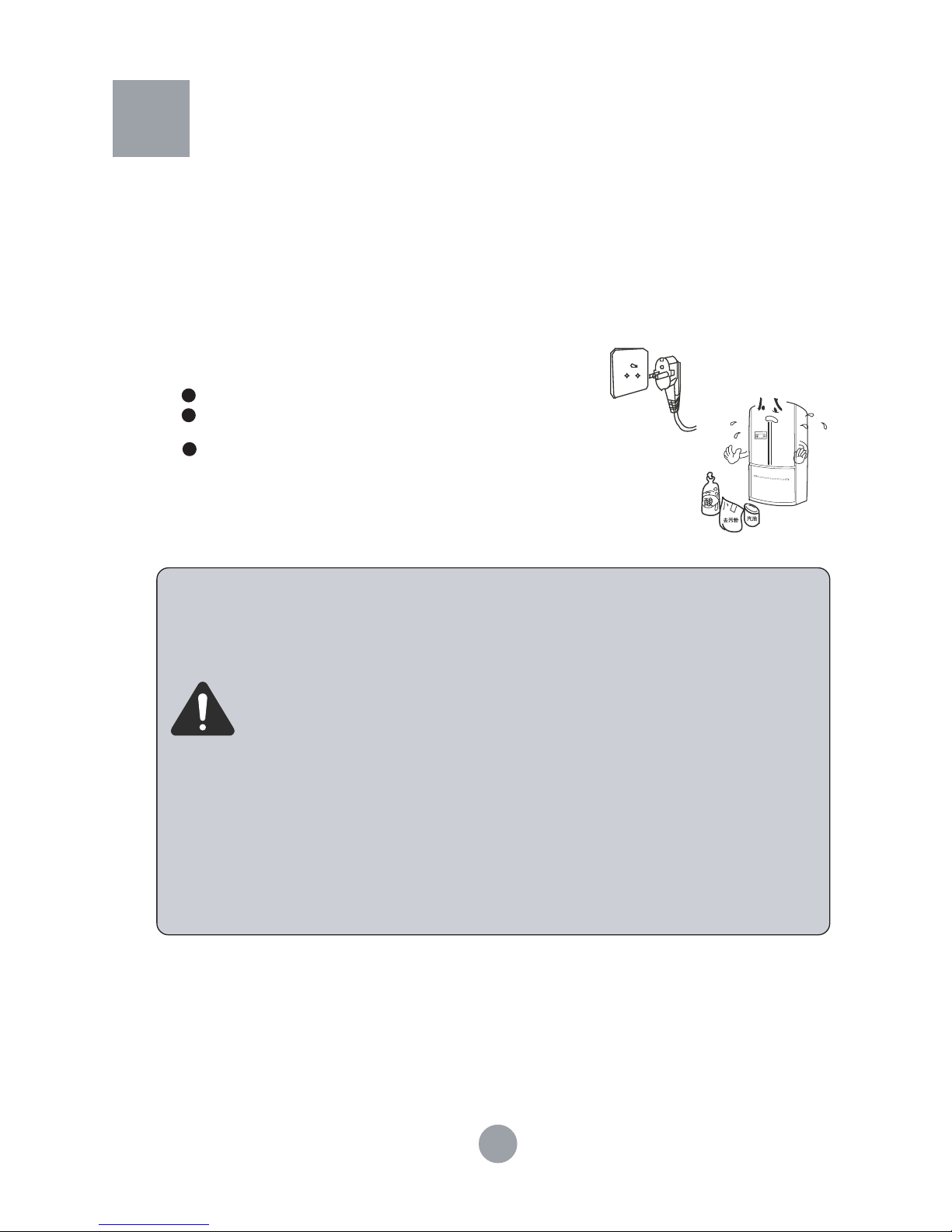

Defrosting Freezer Compartment

The defrost cycle of freezer compartment is automatic
and no manual operation is needed.

Cleaning

Clean the inner compartments to get rid of food residues
and eliminate unpleasant odors.

Unplug the appliance before cleaning.
Use a cloth or sponge to wash the inner compartments
with lukewarm water and mild detergent.
Dry the external surface with a dry cloth.

NOTE

①The appliance is heavy. Protect the finish of flooring if the appliance has
to be moved during cleaning and servicing.

②For the sake of electric insulation, do not splash water on the appliance.
③To clean electric components such as switches and illuminators, make

sure the appliance is not connected before cleaning with a dry cloth.
④When cleaning, do not use sharp or pointed brush, hard cleansers,
gasoline, amyl acetate, acetone or other organic solvents, boiled water,
acid or alkali.

⑤Do not touch the cold metal surface when the hands are wet.
⑥When cleaning, do not use hot water to clean the glass shelves. Glass

may get broken due to thermal shock and cause the risk of injury and
property loss.

⑦Clean the door seal from time to time.
⑧Never use amyl acetate to get rid of any unpleasant odor. That will

cause the risk of fire.
⑨Only detergents intended for refrigerator should be used in cleaning.

Vacation Vacation

62

Power failure

Food can be stored well for several hours in the
event of power failure even if it is in summer.

Do not add foods in the appliance and keep the
doors closed as far as possible when there is a
power failure.
If a power failure is announced beforehand,
make some extra ice cubes and hold them in a
leak-proof container. Place the container on the
top shelf in the refrigerator compartment.

NOTE

Temperature rise in the freezer due to power interruption or other
faults may shorten the shelf life and have an adverse effect on
food quality.

Stopping Use

Please unplug the appliance and clean it as
described above if the appliance will not be used
for a long period of time.
Keep the door open to prevent unpleasant odors
caused by food residues.

NOTE

To ensure a long service life, do not stop the appliance frequently.

NOTE

After unplugging the appliance, wait 5 minutes at least before
connecting it to the power supply again.

VacationVacation

72

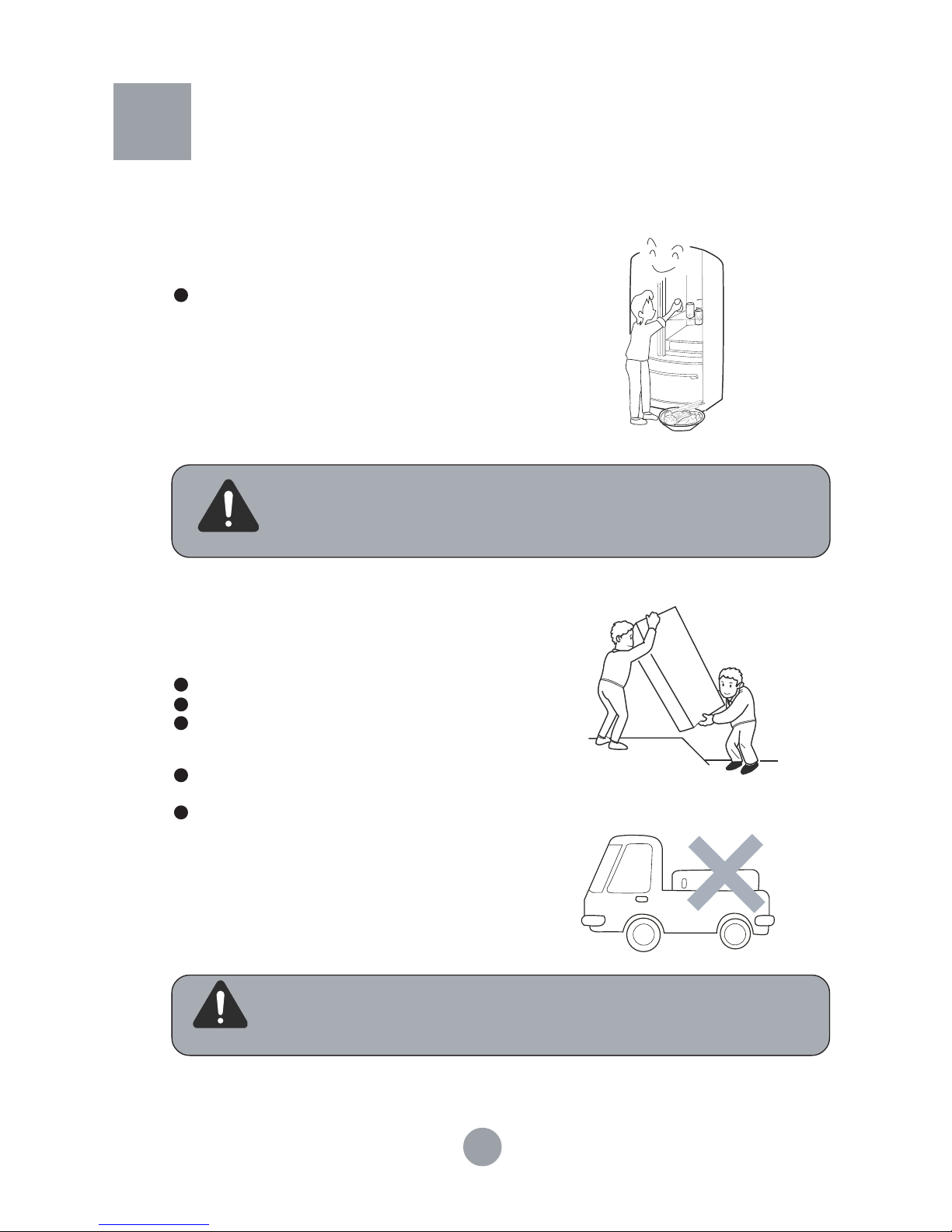

When leaving for a vacation

If you are leaving for a long vacation, it's
necessary to shut off the power, take out all of
the foods, defrost and clean the appliance. Dry
the appliance and leave the door open to
prevent odors

WARNING

A discarded appliance must be disposed by professional personnel,
or otherwise may have an undesired impact on environment or give
rise to other hazards.

When moving your refrigerator

Unplug the appliance before transportation.
Take out foods from the appliance.
Fix the shelves in refrigerator, crisper and
shelves in freezer in position with adhesive
tapes.
Keep the door closed during transportation with
adhesive tapes.
When moving the refrigerator, it cannot be tilted
over 45 degrees (the angle to the vertical
direction). Otherwise it may cause the risk of
malfunction of the refrigeration system.

NOTE

Keep the refrigerator upright other than horizontal.

Troubleshooting TipsTroubleshooting Tips

8

2

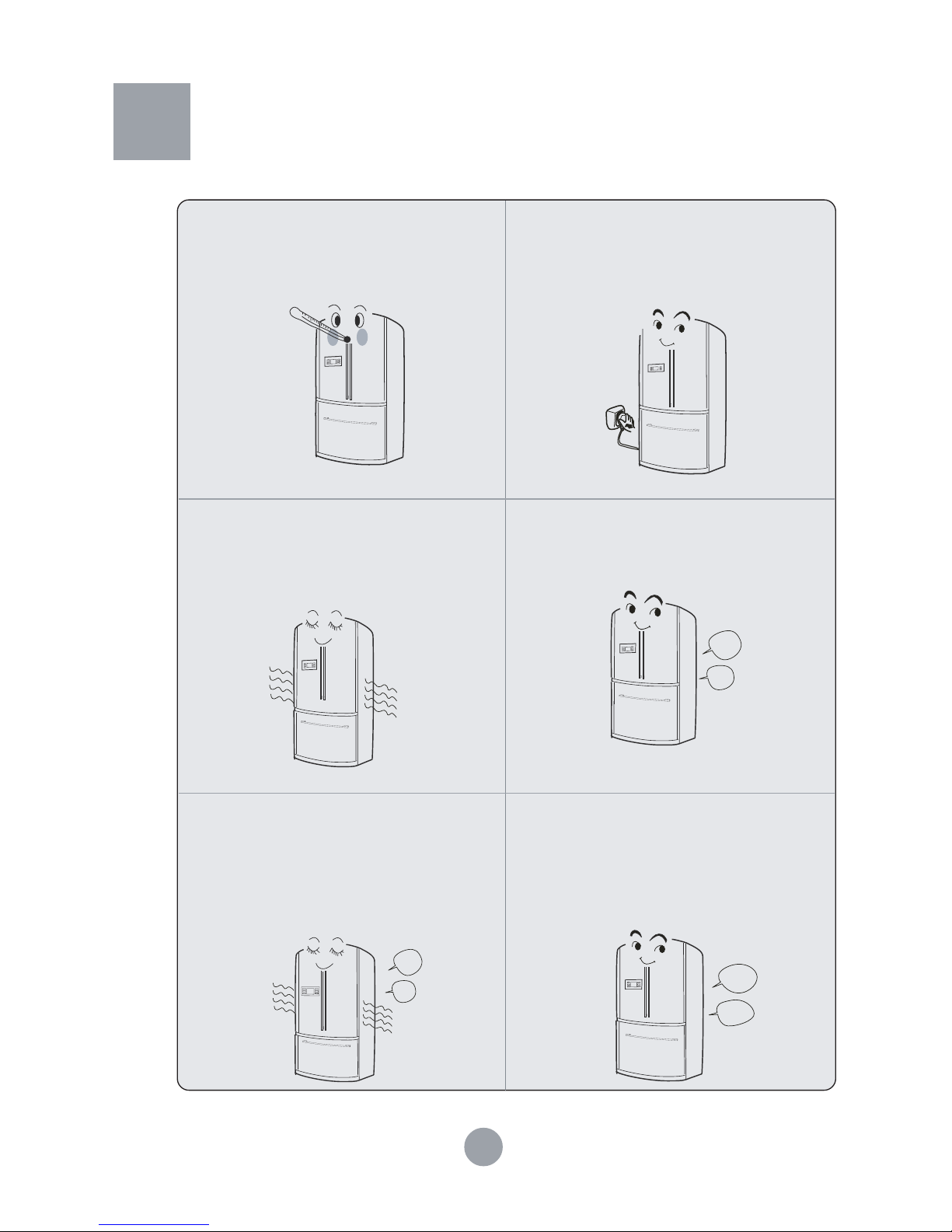

It’s normal that when the refrigerator is first
plugged in, the compressor operates for long
periods or cycles on and off frequently. It
would take a longer time for the inner
temperature to reach the desired value.

It’s normal that the refrigerator is humming
when first plugged in or started up. The sound
will fade away when the refrigerator is in stable
operation.

It’s normal that the external surface of
refrigerator gets warm, especially when first
plugged in, as a result of anti-sweat design.

The compressor may cause a humming sound
during operation and a clicking sound upon
starts and stops.

Click

Click

The flow of refrigerant through the refrigera­tion coils may make a babbling noise. The
noise is usually found at the evaporator and
the compressor. When the compressor comes
to a stop, the backflow of refrigerant will make
a noise like running water from time to time or
continuously.

Babble

Babble

Water dropping on the defrost heater can
cause a sizzling or buzzing sound during a
defrost cycle. At the end of a defrost cycle, a
slight popping sound may be heard, and the
evaporator may make a gurgling noise like
boiling noise.

Sizzle

Gurgle

T

roubleshooting T

ips

T

roubleshooting T

ips

9

2

It’

s

normal

that

there

is

a

noise

of

fan

spinning

during operation.

Expansion

and

contraction

of

the

evaporator

and

refrigerating

coils

due

to

temperature

change

can cause a cracking or popping sound.

Crack

Crack

Moisture

may

form

on

the

outside

of

refrigera

-

tor

and

between

the

doors

during

periods

of

high humidity

.

The

rated

power

consumption

specified

in

the

T

echnical

Data

sheet

is

measured

during

a

period

of

24

hours

under

stable

operation

at

an

ambient

temperature

of

25°C

with

the

refrigera

-

tor

and

freezer

maintained

at

5°C

and

-18°C

respectively

.

The

actual

power

consumption

depends

on

the

amount

of

fresh

food

stored

in

the refrigerator

,

hu

hu

When

calling

for

service,

provide

the

model

name,

list

of

accessories

and

the

series

number

(described in the nameplate of the product).

After-sale Service After-sale Service

0

3

Before calling for services, check the following points to see
if you can solve the problems yourself.

Refrigerator does not work.

Refrigerator

is

not

connected

to

the

power

supply

(plug,

outlet

and

fuse)

or

the power control is set to OFF

.

V

oltage is too low

.

Interior light does not work.

Light bulb has
burned out.

Refrigerator

is

not

connected

to

the

power supply

.

Unusual noise

Refrigerator

is

not level.

Refrigerator

rubs

against

the

wall

or

furniture.

Compartments are warmer than expected.

Door

is

not

closed

properly

,

opened

frequently

or

kept

open too long.

T

emperature

is

set

a

warmer

setting.

(See

the

Functions

section

from

Page 14 to Page 17.)

The

appliance

is

exposed

to

direct

sunshine

or

placed

near

a

stove

or

radiator

.

Poor

ventilation.

Check

if

the

heat

radiation

unit

on

the

rear is blocked.

5

3

1

5

3

1

After-sale ServiceAfter-sale Service

13

Before calling for services, check the following points to see if you can solve
the problems yourself.

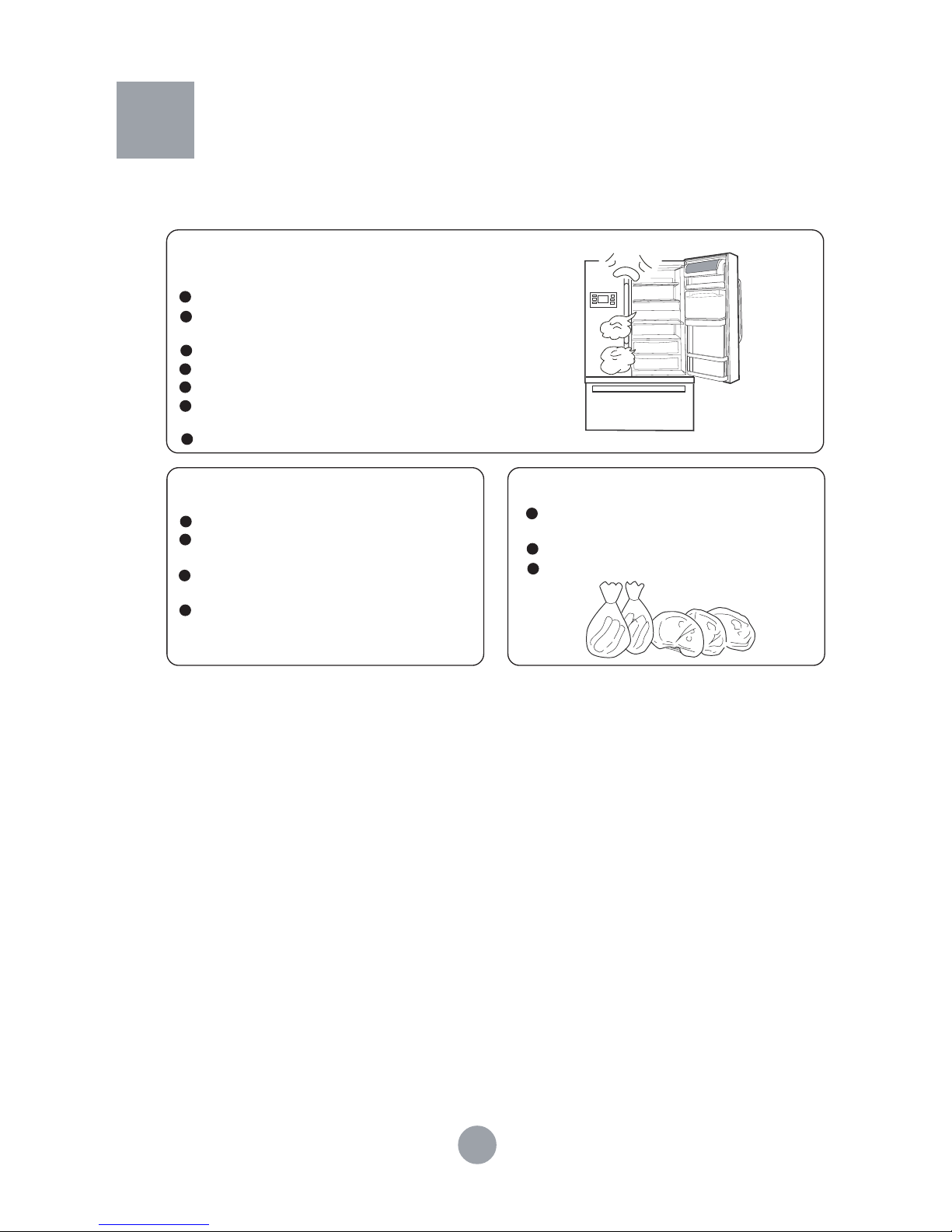

Compressor operates for long periods or
cycles on and off frequently.

It’s normal when refrigerator is first plugged in.
A large amount of food is placed in the refrigerator for
storage or freezing.
Door is left open or held open by food package.
Door is opened frequently.
It is hot weather.
Temperature is set a warmer setting. See the Initial Use
section.
Poor ventilation

Frost or ice crystals form on food.

Frost within package is normal.
Door is left open or held open by food
package.
Door is opened frequently or kept open too
long.
Food is placed near the vent.

Unpleasant odor

Food with strong odors should be tightly
wrapped.
Food is deteriorated.
Compartments need cleaning.

~

V-240V

022

zH0

5

A

B

M

N

O

C

D

1E

2

E

3

E

F

G

1H

2H

3

H

4H

1I

2I

3

I

K

L

J

23

Technical Data •Circuit Technical Data •Circuit
Diagram • Packing ListDiagram • Packing List

Technical Data

Model

Input power

180W

Freezing class

Climate class

Protection class

SN/N/ST

l

555L

158L

220V-240V

50Hz

Total volume

Freezer

volume

Rated voltage

Rated frequency

Defrost watt

Energy consumption

Refrigerant

Refrigerating capacity

Weight

Dimensions (DxWxH)(mm)

Type of cord connection

280W

1.38kW h/24h

R134a 170g

10kg/24h

130kg

770 ×910×1770

Y

A. Power plug
D. Door display panel

E3. Freezer

door control 3

H1. Defrost sensor

H4. Environment

sensor

I3. Refrigerate lamp 2

L. Fuse
O. PTC

B. Freezer fan motor

E1. Refrigerator door

switch 1

F. Control board

H2. Freezer sensor
I1. Freezer lamp

J. Refrigerate heater

M. Overload protector

C. Refrigerator damper

E2. Refrigerator door

switch 2

G. Cooling fan motor

H3. Refrigerate sensor

I2. Refrigerate lamp 1

K. Defrost heater

N. Compressor

HB21T / HB21TNN
HRB-702MP/S / HRB-702F/SS

HB21T /

HB21TNN

HRB-702MP/S
HRB-702F/SS

HB21T /

HB21TNN

HRB-702MP/S
HRB-702F/SS

688L

210L

33

Technical Data • CircuitTechnical Data • Circuit
Diagram • Packing ListDiagram • Packing List

Packing List

Model

Quantity

Name

User Manual

Leg

Bottom trim

Handle

Ice cream bin

Freezer divider

Freezer drawer

Ice storage bin

Semi-automatic

icemaker

Wine shelf

Movable shelf

Refrigerator shelf

Chill compartment

Crisper cover

Crisper

Dairy bin

Gallon bin

1 2

1 3

1

1 1

1

1 2 2

1

1 2 2

4

The product specifications are subject to change from time to time due to product
improvement without further notice.

Handle fastener

6 1

Front cover of

chill compartment

2

washer

3
