Haier HLC19K2, HLC19KW2, HLC22KW2, HLC19K2a, HLC19KW2a Owner's Manual

...

Page 1

PleaseREAD thismanualcarefully beforeoperatingyour TV,andretain itfor future reference.

Veuillez lire ce guide attentivement et entièrement avant d'utiliser votre téléviseur, conservez ce guide pour vous y reporter ultérieurement.

Se recomienda leer con atención este manual antes de poner en funcionamiento su televisor y conservarlo para consultas futuras.

HLC19K2/HLC19KW2/HLC22K2/ HLC22KW2

LCD HDTV/DVD

Televiseur HD à ecran a DCL

HDTV/DVD LCD

OWNER’S MANUAL GUIDED’UTILISATION DEL TELEVISOR LCD HDTV/DVD

01 0090509676

Page 2

Warning

EN-1 Haier LCD HDTV/DVD

Warning

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK ELECTRIC SHOCK

DO NOT OPEN

The lightning ash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTENSION

CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

Caution:

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do q not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIF ED HEREIN MAY q RESULT IN HAZA DOUS RADIATION EXPOSURE. (This item is only for TV with DVD models.)

Important Safety Instructions

Read t1. hese instructions. Keep these instructions.2. Heed all warnings.3. Follow all instructions.4. Do not use this apparatus near water.5. Clean only with dry cloth.6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including 8. amplifiers) that produce heat. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the 9. point where they exit from the apparatus. Only use attachments/accessories specified by the manufacturer.10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with 11. the apparatus. When a cart is used, use caution when moving the cart/ Apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time.12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged 13. in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, 14. shall be placed on the apparatus. The mains plug or appliance inlet is used as the disconnect device, remain it readily operable during the apparatus 15. normal use.

Class I apparatus shall be connected to a mains socket outlet with a protective earthing connection.

Page 3

Safety Instructions

Haier LCD HDTV/DVD EN-2

SAVE THESE INSTRUCTIONS

Thank you for purchasing the Haier product. This easy-to-use manual will guide you in getting the best use of your

product. Remember to record the model and serial number. They are on label in back of the unit.

Model number

serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

Safety Instructions(for TV with DVD)

FCC WARNING:

This equipment may generate or use radio frequency energy.Changes or modications to this equipment may cause harmful interference unless the modications are expressly approved in the instruction manual.The user could lose the authority to operate this e uipment if an unauthorized change or modication is made.

LASER SAFETY:

This unit employs a laser.Only a qualied service person should remove the cover or attempt to service this device,due to possible eye injury.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED.DO NOT STARE INTO BEAM. LOCATION: INSIDE,NEAR THE DECK MECHANISM.

Page 4

Contents

EN-3 Haier LCD HDTV/DVD

Contents

Audio Menu Options .........................................11

Function................................................................................. 12

Channel Menu Options .....................................12

Function................................................................................. 13

Function Menu Options ....................................14

Function................................................................................. 14

Lock Menu..........................................................16

Function................................................................................. 16

PC Menu .............................................................18

USB Input ...........................................................18

To play pictures................................................................... 19

To play music ....................................................................... 19

To play video........................................................................ 20

DVD Operation ..................................................21

Basic Playback ..................................................................... 21

Advanced Playback ...........................................................22

Special Function Playback .............................................. 22

DVD System Setup............................................................. 23

Playable Discs ...................................................................... 24

Discs Protection and DVD Characteristics................. 24

Maintenance 21

Specification 21

Troubleshooting 21

Warranty 22

Warning 1

Safety Instructions 2

Introduction 4

Controls................................................................ 4

Connection Options ............................................5

Remote control ....................................................5

Installation 7

External Equipment Connections ...................... 7

Accessories ..............................................................................7

Antenna Connection............................................................7

Choose Your Connection.................................................... 8

Connecting a VCR..................................................................8

External A/V Source Setup.................................................8

Conmponent Setup..............................................................8

Connecting a computer......................................................9

Cable TV Setup.......................................................................9

HDMI input ........................................................................... 10

Operation 10

Switching On/O the TV set........................................... 10

Choose the Menu Language.......................................... 10

Choose the Input source .................................................10

Video Menu Options..........................................11

Function................................................................................. 11

Page 5

Introduction

Haier LCD HDTV/DVD EN-4

Introduction

Controls

This is a simplied representation of the TV front panel, side panel control buttons and side inputs.

TV Side panel controls and connections

INPUT MENU VOL- VOL+ CH- CH+ POWER

POWER Press to turn on and o the TV.

INPUT

Press to access the input source mode. Press repeatedly to change the source to the one you want to watch. In the MENU screen, the INPUT button serves as the ENTER button.

Menu display. Press to access the on-screen menu display.

VOL +/-

Press to adjust the volume. In the MENU screen, these buttons serve as left/right buttons.

CH+/-

Press to scan through channels. To scan quickly through channels, press and hold down either+/-. In the MENU screen these buttons serve as up/down buttons.

Power indicator

Remote Sensor

Receivers IR signals from the remote control. Do not put anything near the sensor, which may block the remote control signal.

DVD panel controls

DVD slot load

Insert DVD with label towards back (Silver “shiny” side facing towards you.)

STOP:

Press to stop the DVD disc.

PLAY/PAUSE: Press to play the DVD program disc, and press again to pause the DVD program.

OPEN/CLOSE:

Press to open the disc tray, and press again to close the tray.

Press to play the previous program.

Press to play the next program.

Page 6

Introduction

EN-5 Haier LCD HDTV/DVD

Connection Options

Back panel connections

COMPONENT IN

PP Yrb

ATN IN R-AUDIO-L

PC AUDIO IN

PC IN

S-VIDEO IN

VIDEO

AV IN

HDMI IN

USB

R-AUDIO -L

Antenna Input

Connect cable or antenna signals to the TV, either directly or through your cable box.

Headphone jack

Headphone audio output terminal.

AUDIO In

Connect the audio L/R cables from the video signal source to these jacks.

S-VIDEO In

Connect the S-Video cable from an external signal source to this jacks.

AUDIO In

Connect the audio L/R cables from the video signal source to these jacks.

VIDEO In

Connect the video signal from a video device to this jack.

USB input

Connect a USB ash drive to view MPEG2 videos, JPEG images or listen to MP3 songs.

PC Video In

Connect a video cable from a computer to this jack.

PC Audio In

Connect the audio L/R cables from a computer to this jack.

HDMI In

Connect a HDMI device to receive digital audio and uncompressed digital video.

Component Input

Connect a component video device to these jacks.

Remote Control

Battery loading

1. Slide open the cover of the battery compartment on the back of the remote controller.

2. Load two (AAA) alkaline batteries in the compartment, (plus and minus poles to respective mark)

3. Replace the cover of the battery compartment.

Page 7

Introduction

Haier LCD HDTV/DVD EN-6

(For TVwith DVD)

OPEN/CLOSE

PLAY/PAUSE

REV

D.MENU

D.CALL

ANGLE

D.AUDIO

SUBTITLE

ENTER

STOP REPEAT

PREV NEXT

SETUP

PROGRAM

USB

GUIDE

INPUT

MUTE

VOL CH

YALPSIDPEELS

EXIT

RECALL

PICTURE AUDIO ARC FAVORITE

CCD MTS/SAP CH.LIST

DVD

19 20

22 23 24

33 34

35 36 37 38

39 40





  



12 13

16 17

Remote control

Precautions

1.As strong light may interfere the signals, change your position to operate the remote controller if the television cannot be turned on or o as you expect.

2.Keep the remote controller away from heat source or humid area to ensure eective performance of the remote controller.

3.Make sure that two AAA alkaline batteries are loaded. The batteries must be of the same type. The batteries must be located properly. The batteries are not rechargeable.

4.Make sure that there is no obstacle between the remote controller and television set.

Power Press to turn on and o the TV

USB Press to switch input source to USB in

GUIDE

Display the guide when you are watching analog or digital channels

CCD (closed caption) Select a closed caption option

PICTURE Press repeatedly to cycle through the available picture modes

AUDIO Press to cycle through dierent sound settings

INPUT

Show the input source

MUTE

Switches the sound on or o

VOLUME UP/DOWN

Press to adjust the volume

Press to open the on-screen menu

Thumbstick (Up/Down/ Left/Right)

Allows you to navigate the on-screen menus and adjust the system settings to your preference

SLEEP button

Press to display the sleep timer option

DVD/USB PLAY/PAUSE

DVD Open/close

DVD/USB FAST FORWARD

DVD/USB FAST REVERSE

DVD CALL

DVD MENU

DVD SEARCH

DVD ANGLE

DVD Mode

CH.LIST

Open the channel list in TV

MTS/SAP

Select MONO, STEREO, SAP in NTSC system

FAVORITE

Open the favourite channel list in TV

ARC

Select the aspect ratio

Number buttons Press to change a channel

tCVUUPO

Press to select digital channels. For example, to enter “54-3”,

QSFTTiwitwBOEiw

RECALL Press to jump back and forth between two channels

CHANNEL UP/DOWN

Press to scan between the last two channels, press and hold down either +/--

EXIT

Clears all on-screen displays and returns to TV viewing from any menu

ENTER

Accesses the highlighted item in the on-screen menu

DISPLAY

Press to display the TV status information on the top of the TV screen

DVD/USB STOP

DVD/USB REPEAT

VD/USB Previous Chapter

DVD/USB Next Chapter

[

DVD AUDIO Mode

DVD SETUP

]

DVD PROGRAM

DVD SUBTITLE

Page 8

Introduction

EN-7 Haier LCD HDTV/DVD

PLAY/PAUSE

REV

REPEAT

GUIDE

MTS/SAP

CCD ARC

FREEZE

ENTER

STOPUSB REC

PREV NEXT

CH.LIST

FAVORITE

STB

INPUT

MUTE

VOL CH

SLEEP DISPLAY

EXIT

RECALL

PICTURE AUDIO PC HDMI

CABLE VCR AUD

DVD

ANT IN

Installation

External Equipment Connections

Accessories

Remote control Owner’s manual Alkaline battery (AAA) x2

Antenna Connection

Over-the-air TV reception quality will depend on your antenna type, antenna location and antenna positioning.

ANT IN

VHF Antenna UHF Antenna

Turn clockwise to tighten

Bronze Wire

Be careful not to bend thebronze wire when connecting the antenna.

Bronze Wire

Multi-family Dwellings/Apartments (Connect to wall antenna socket) Wall Antenna Socket

RF Coaxial Wire (75 ohm)

Single-family Dwellings /Houses (Connect to wall jackfor outdoor antenna) Outdoor Antenna

To improve the picture quality in a poor signal  area, please purchase a signal amplifier and install properly.

If the antenna needs to be split for two TV’s, install a  “2-Way Signal Splitter” in the connections.

To install the antenna properly please contact a  professional in your area.

Note

All cables shown are not included with the TV.R

Page 9

Installation

Haier LCD HDTV/DVD EN-8

Choose Your Connection

There are several ways to connect your television, depending on the components you want to connect and the quality of the signal you want to achieve. The following are examples of some dierent ways to connect your TV with dierent input sources.

Connecting a VCR

To avoid picture noise (interference), leave an adequate distance between the VCR and TV.

COMPONENTIN

PP Y rb

ATNIN R-AUDIO-L

S-VIDEOIN

VIDEO

AV IN

VCR

R-AUDIO-L

Connection Option 1

Set VCR output switch to channel 3 or 4 and then tune the TV to the same channel number.

Connection Option 2

Connect the audio and video cables from the VCR’s A output jacks to the TV input jacks, as shown in the figure. When connecting the TV to VCR, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red). If you connect a S-VIDEO output from VCR to the S-VIDEO input, the picture quality is improved;compared to connecting a regular VCR to the Video input.

Insert a video tape into the VCR and press

B PLAY on

the VCR. (Refer to the VCR owner’s manual.) Select the input source with using theC INPUT button

on the remote control, and then press



/button

to select the source, press ENTER button to confirm.

External A/V Source Setup

How to connect

Connect the audio and video cables from the A

external equipment’s output jacks to the TV input jacks, as shown in the figure.

When connecting the TV to external equipment,

match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).

R-AUDIO-L

AV IN

VIDEO

How to use

Select the input source with using the A INPUT button on the remote control.

Operate the corresponding external equipment.

Refer to external equipment operating guide.

Component Setup

How to connect

Connect the DVD video outputs (COMPONENT) to A

the Y Pb Pr jacks on the TV and connect the DVD audio outputs to the YPbPr Audio IN jacks on the TV, as shown in the figure.

If your DVD only has an S-VIDEO output jack,

connect B this to the S-VIDEO input on the TV, as shown in the gure.

&20321(17 ,1

33 <UE

5$8',2/

69,'(2 ,1

How to use

Turn on the DVD player, insert a DVD disc.A

Page 10

Installation

EN-9 Haier LCD HDTV/DVD

Use B INPUT button on the remote control to select proper input.

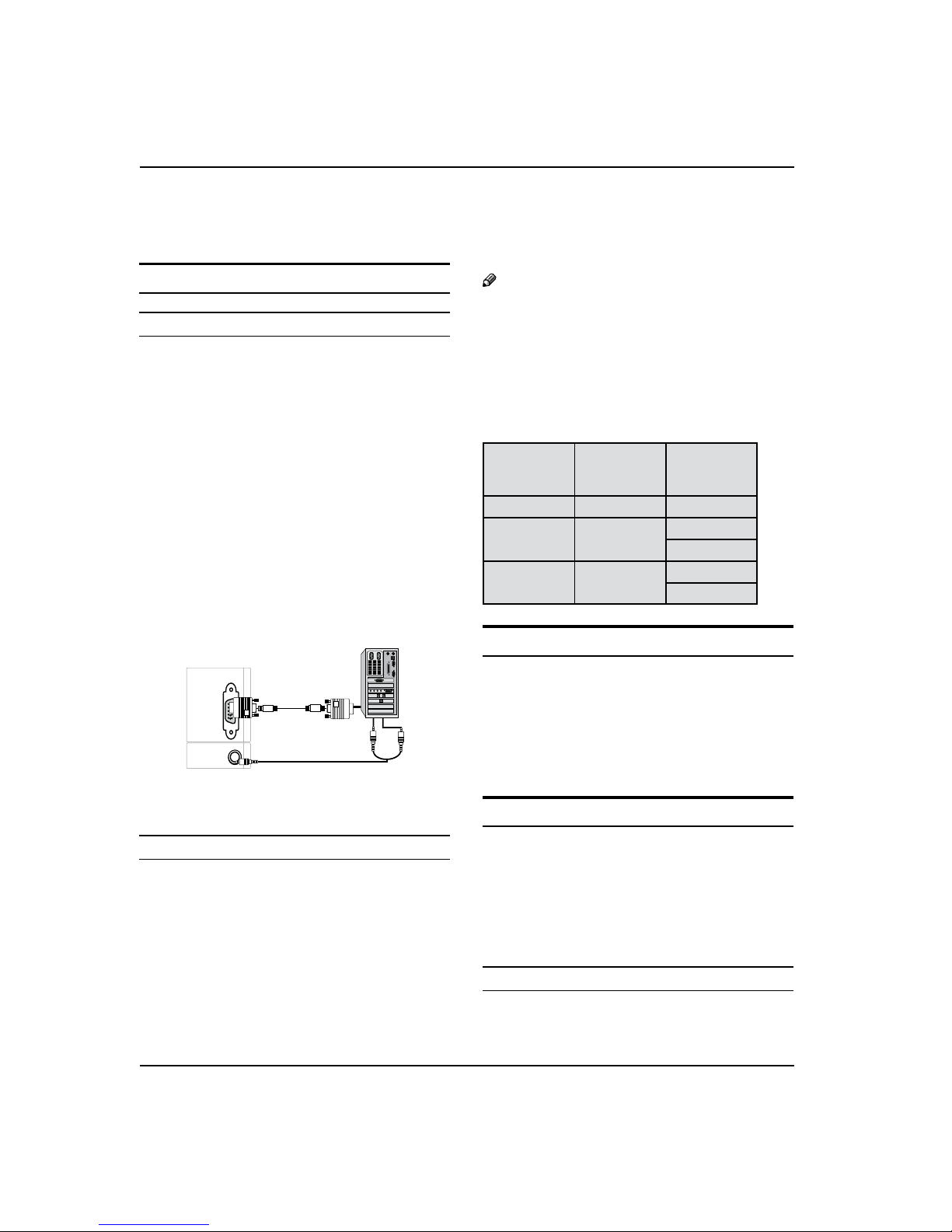

Connecting a computer

How to connect

To get the best picture quality, adjust the VGA A graphics card to 1024s 768.

Use the TV’s VGA or DVI (Digital Visual Interface) B Audio IN port for audio connections, depending on your computer connector.

If the graphic card on the computer does not q output analog and digital RGB simultaneously, connect only one of either VGA IN or HDMI IN to display the VGA on the TV. If the graphic card on the computer does output q analog and digital RGB simultaneously, set the TV to either VGA or HDMI; (the other mode is set to Plug and Play automatically by the TV.)

Then, make the corresponding audio connection.

If using a sound card, adjust the VGA sound as required.

3& $8',2 ,1

9*$ ,1

How to use

Turn on the computer and the TV.A Use INPUT on the remote control to select VGA or B

HDMI source.

Check the image on your TV. There may be noise

associated with the resolution, vertical pattern, contrast or brightness in VGA mode. If noise is present, change the VGA mode to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the menu

until the picture is clear. If the refresh rate of the VGA graphic card can not be changed, change the VGA graphic card or consult the manufacturer of the VGA graphic card.

Note

Use a DVI cable.R

Avoid keeping a fixed image on the TV’s screen R for a long period of time. The fixed image may become permanently imprinted on the screen.

The synchronization input form for Horizontal and R Vertical frequencies is separate.

ResolutionY

Mode Resolution

Frame

frequency

(Hz)

VGA

640s480

60Hz

SVGA

800s600

60Hz

75Hz

XGA

1024s768

60Hz

75Hz

Cable TV Setup

After subscribing to a cable TV service from a local provider you can watch cable TV programming. The TV cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the TV. For further information regarding cable TV service, contact your local cable TV service provider(s).

Connection Option 1

Select 3 or 4 with channel switch on cable box. A Tune the TV channel to the same selected output B

channel on cable box.

Select channels at the cable box or with the cable

box remote control.

Connection Option 2

Connect the audio and video cables from the Cable A

Box's output jacks to the TV input jacks, as shown in the

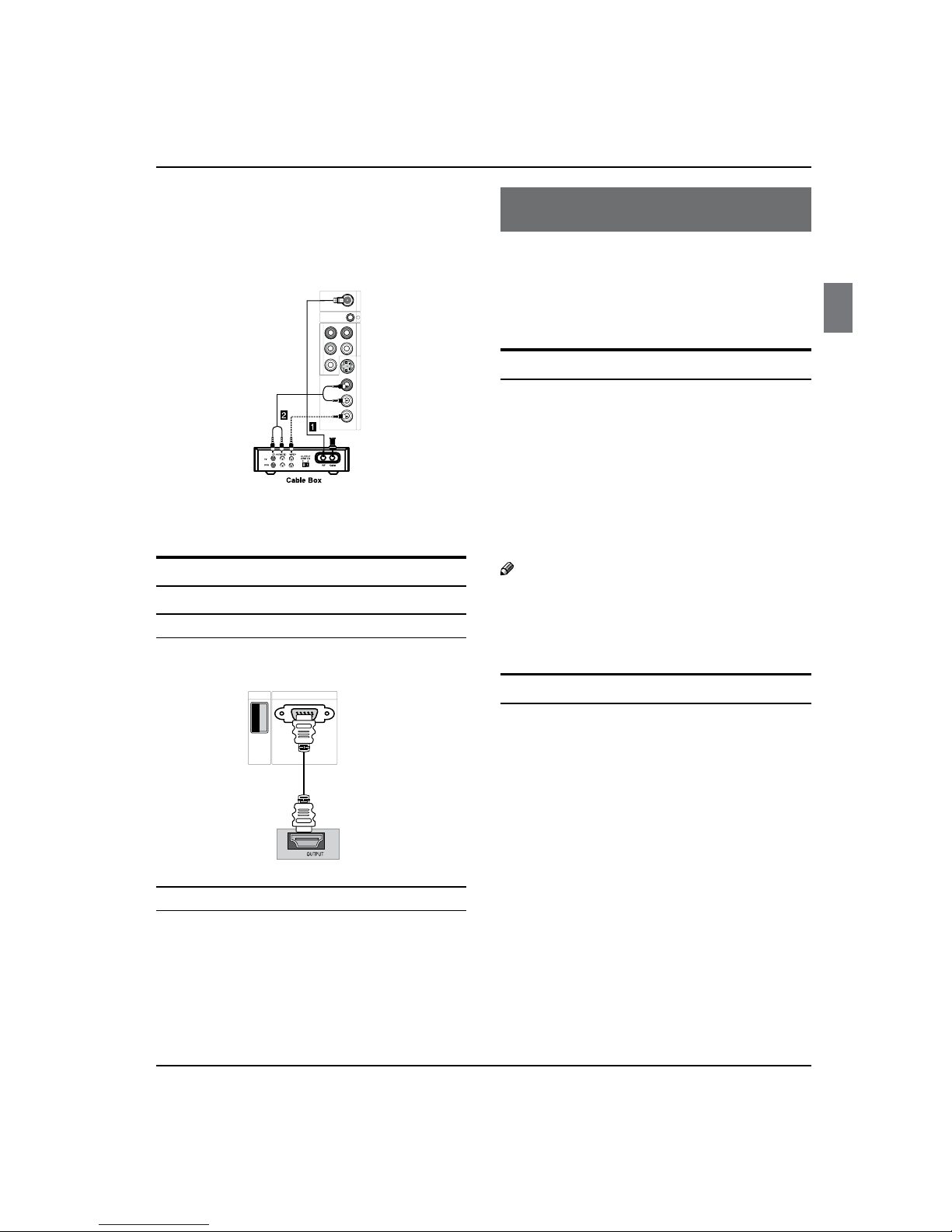

Page 11

Operation

Haier LCD HDTV/DVD EN-10

gure.When connecting the TV to a Cable Box, match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red).

Select the input source by using the

B INPUT button

on the remote control or on the TV.

Select your desired channel with the remote control

for cable box.

HDMI input

How To Connect

Connect the cables from the external equipment's output jacks to the TV input jacks, as shown in the gure.

PC IN

BSU

HDMI

How To Use

Select the input source by using A INPUT button on the remote control or on the TV.

Operate the corresponding external equipment.

Refer to external equipment operating guide.

Operation

In the manual, the OSD (on screen display) may be dierent from your TV’s, because it is just an example to help you with the TV operation. There are several options you might need to set up in order for your TV to work properly. Read the instructions that follow.

Switching On/O the TV set

First, connect power cord correctly.A Select the viewing source by using B INPUT button on

the remote control.

When finished using the TV, press

C POWER button on

the remote control. The TV reverts to standby mode.

If you intend to be away on vacation, disconnect the

power plug from the wall power outlet.

Note

If the TV in power on , the screen show information R according the type of input signal, the information will disappear. If there is no signal, “No Signal” will display on the screen.

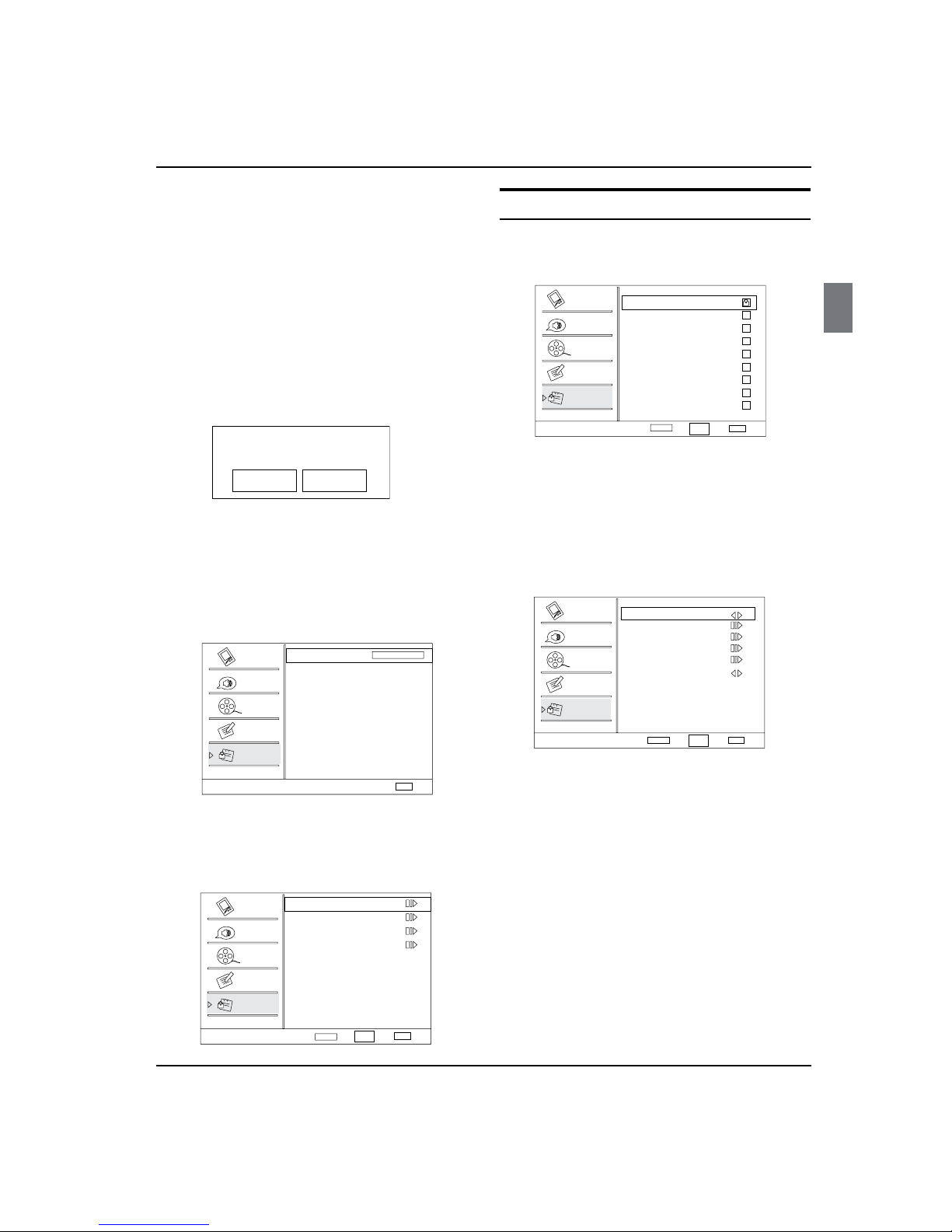

Choose the Menu Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

Choose

A TV Input and then press MENU button.

Press



/button to select Function menu.

PressC



/ENTER button and then use/button

to select Language. PressD

/

button to select language.

( English, Spanish or French)

R-AUDIO -L

COMPONENTIN

PP Yrb

ATNIN R-AUDIO-L

S-VIDEO IN

VIDEO

AV IN

Page 12

Operation

EN-11 Haier LCD HDTV/DVD

Function

Language English

OSD Timeout Short OSD Transparency Middle

DCR On

Blue Screen On

Time Setup

Closed Caption

Default

Select

CH+/VOL+/-

Back

EXIT

Video

Audio

Channel

Lock

Function

DPMS On

Screen Mode Normal

Choose the Input source

Change the picture source so you can watch your TV, VCR, DVD, Cable , or any other devices that are connected to your TV.

Press A INPUT button to enter the Select Source menu and then use



/button to select the desired

items (TV, composite, Component, DVD, PC, HDMI). Press B ENTER button to confirm .

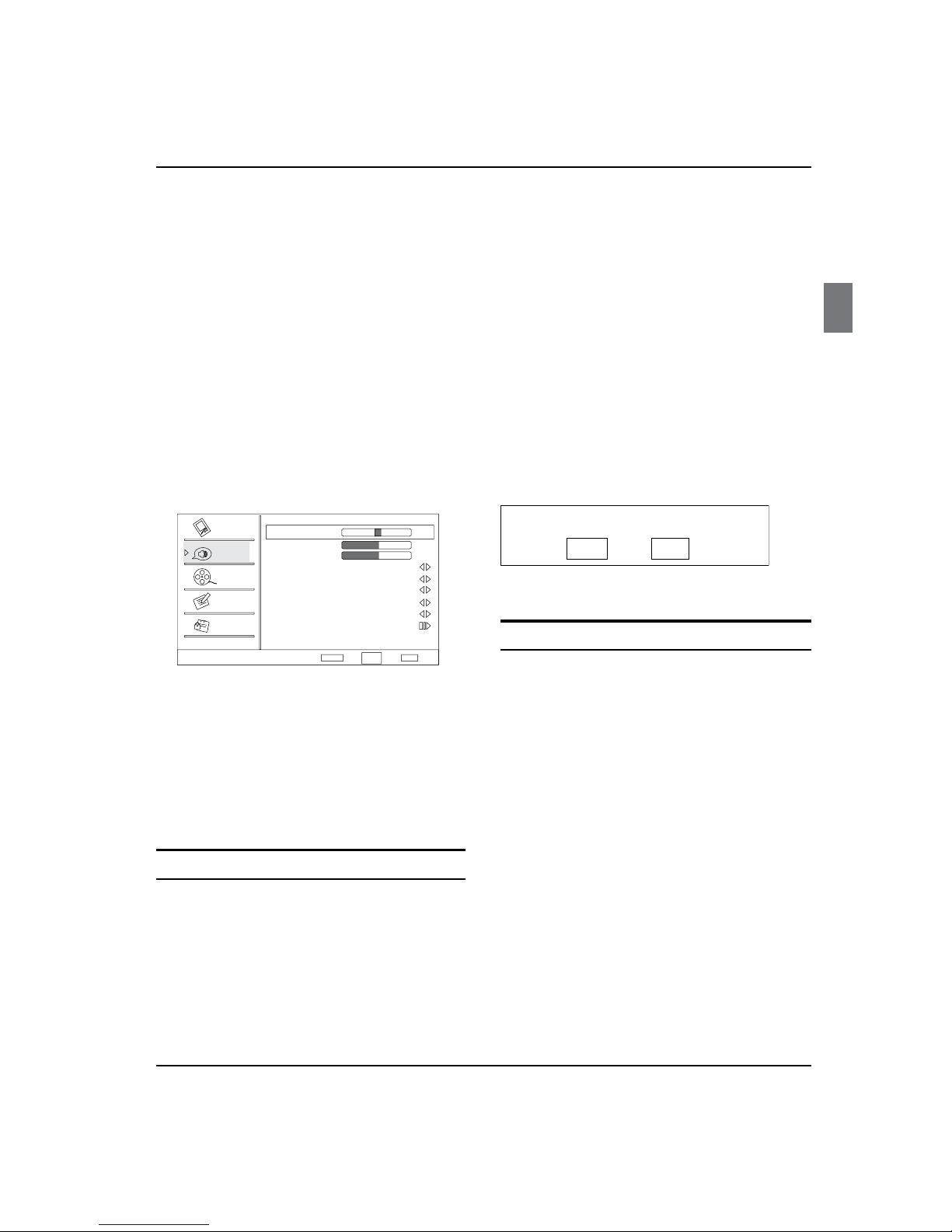

Video Menu Options

Picture quality can be adjusted for any input  separately .

The picture quality on the screen can be adjusted as follows:

Press

A MENU button and then use



/button

until the Video menu appears on the screen.

Press



/ ENTER button to enter the menu

function and



/button to scroll up and down to

select the desired function.

Press



/ ENTER button to conrm and

/

button increase and decrease the level to

adjust the selected option to your preference.

Repeat step 2 and step 3 until desired picture quality

has been achieved.

Video

Audio

Channel

Lock

Function

Video

Mode Custom Brightness Contrast Color Tint Sharpness Color Temperature Advanced Video

50 50 50

Select

BackAdjust

EXIT

ENTER

CH+/VOL+/-

Note

The options may be dierent because of the inputs.R

Symbols on top of the menu in this manual may R dier from the actual set display.

The picture options can be changed only in Custom R mode, the other modes are xed.

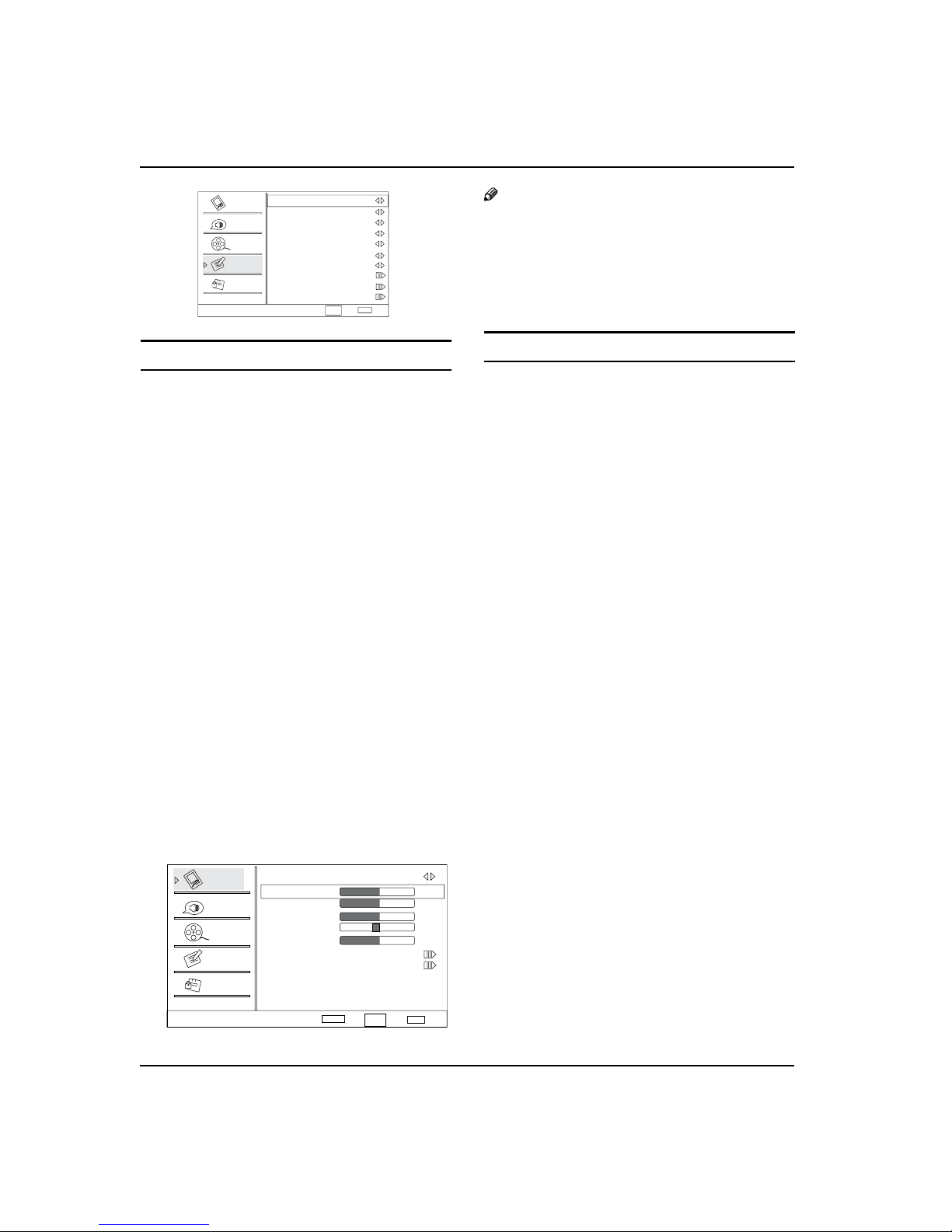

Function

ModeY :

Select the type of picture which best corresponds to your viewing requirements by selecting picture mode in Video menu. You may select the picture mode directly by pressing the PICTURE button on the remote control.

Brightness: Y Press





button and

/

ENTER button to conrm, then press

/

button to adjust the brightness of the picture.

Contrast: Y Press





button and / ENTER

button to conrm, then press

/

button to

adjust the contrast of the picture.

Color: Y Press





button and / ENTER

button to conrm, then press

/

button to

adjust the color saturation.

Tint: Y Adjust the tone of the picture.

Sharpness: Adjust the amount of the detail

enhancement, the image sharpness rises as the number increases (By increasesing the level, it will show cleaner and clearer images and by descreasing the level, it will make the picture smoother).

Color temperature:Y This will increase or decrease Warm(red) and Cool(blue) colors to suipersonal preferences. Select Cool to give the white colors a biue tint, Standard to give the white colors a neutral tint, Warm to give the white colors a red tint. User to allow you change the color manually.

Advanced Video:Y To adjust the picture in advanced level:

DNR:q Digital Noise Reduction, to adjust to reduce

the appearance of digitizing errror caused by the compressin: Medium/Strong/Auto/o/

Low.

MPEG NR:q To adjust the MEPG Noise Reduction:

Page 13

Operation

Haier LCD HDTV/DVD EN-12

Medium, Strong, O or Low.

Adaptive Luma Control: q To adjust changes in the

luminance of the picture: Medium, Strong, O or Low.

Flesh Tone: q To adjust the esh colors: High, O,

Low or Medium.

Blue Stretch: q To set Blue Stretch: On and O.

Game Mode: q To set Game Mode: On and O.

Overscan: q This function is active and visible in

menu only when the signal is EIA timing (480i /480p /720p /1080i /1080p) in RGB color space in HDMI/DVI

input.

Audio Menu Options

Sound can be adjusted for any input as follows:

Press

A MENU button and then



/button until

the following menu appears on the screen.

Audio

Balance Bass Treble SRS TS XT On Equalizer Off Speaker Off

AVL Off Audio Only

0 50 50

Video

Audio

Channel

Lock

Function

Select

BackAdjust

EXIT

ENTER

SPDIF Type Off

CH+/VOL+/-

Press B



/ ENTER button to enter the menu and

CH+/- button to go up and down to select the

desired option.

Press



/ ENTER button to conrm and



/button increase and decrease the level to

adjust the selected option to your preference.

Repeat step 2 and step 3 until desired audio quality

has been achieved.

Function

Balance:Y Press





button and /ENTER to

conrm, then press

/

to adjust the audio

output between left and right speakers.

BassY :Press





button and /ENTER button

to conrm, then press

/

to increase or

decrease the level of the lower-pitched sounds.

TrebleY :Press





button and /ENTER

to conrm, then press

/

to increase or

decrease the level of the higher-pitched sounds.

SRS TS XTY : To turn the simulated surround sound on or o.

EqualizerY : To adjust the equalizer O /Rock /Pop /Live /Dance/ Techno /Classic and Soft.

SpeakerY : To adjust the speaker on or o.

SPDIF TypeY : To adjust the SPDIF output: O /Dolby

Digital and PCM.

AVLY : This will reduces the dierences in volume level among broadcasters.

Audio OnlyY : Press



/ENTER button to conrm, the

following display will appear on the screen:

Press VOL- to select OK, then press OK to conrm. The

TV screen will be black and no picture , but the sound is still normal.

Press POWER button to exit Audio Only mode

OK Cancel

You can press POWER button to reveal the picture on the screen.

SAP Broadcasts Setup

This TV can receive MTS stereo programs and SAP (Secondary Audio Program) that accompanies the stereo program; if the station transmits an additional sound signal as well as the original one. When having selected SAP button on the remote control, this TV can only receive the signal when the TV station transmits the proper signals. Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected. Select Mono if you want to listen to mono sound during stereo/SAP broadcasting. Stereo or SAP can be received in a Analog channel.

Use the SAP button to select your desired MTS

mode in a analog signal. Each time you press the SAP button, Mono, Stereoor SAP appear. If other languages are available on the digital signal, select them with the SAP button.

Press EXIT button to save and return to TV viewing.

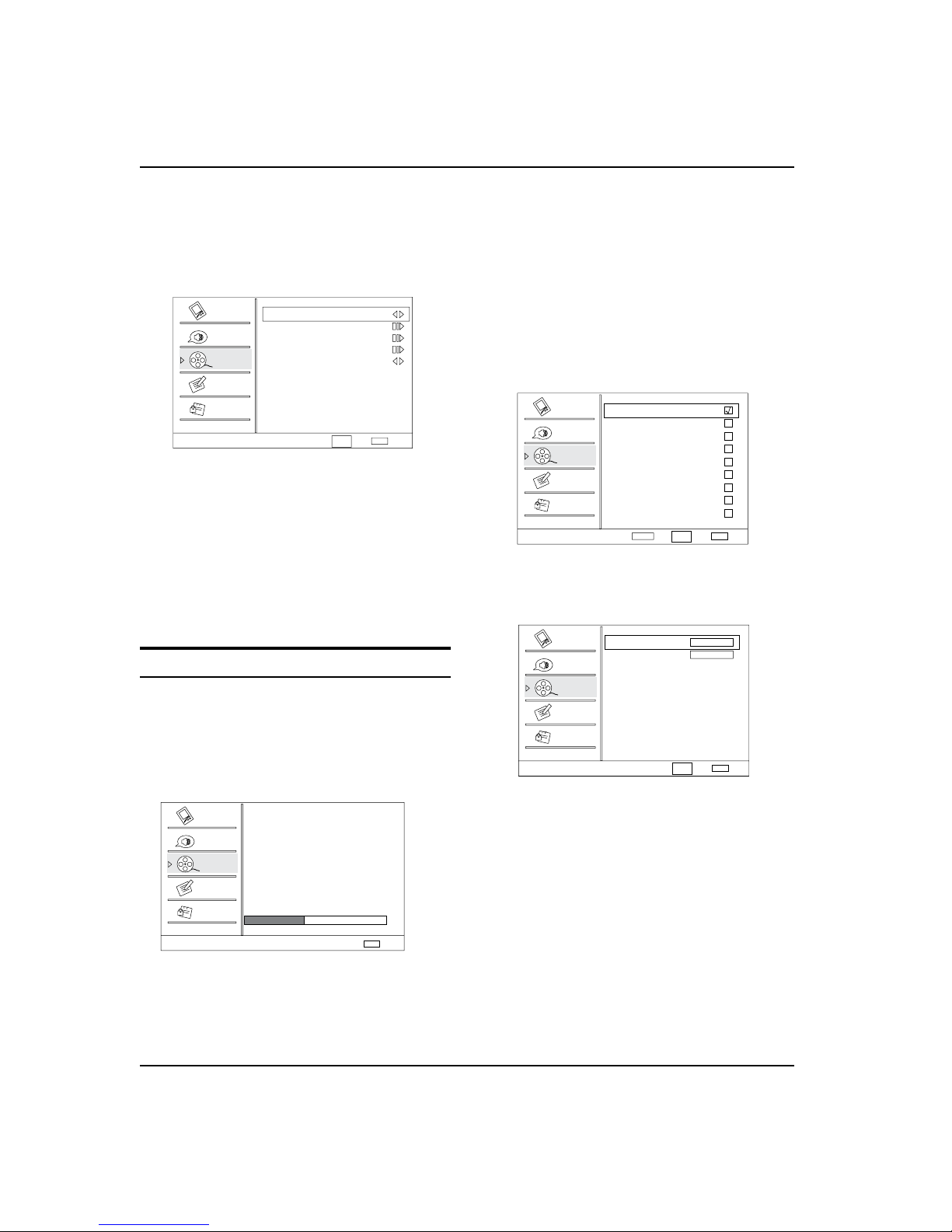

Page 14

Operation

EN-13 Haier LCD HDTV/DVD

your area to the TV's memory. It deletes any channels on which there is no broadcast or a poor signal. The channels found are automatically saved.

Channel SkipY :Press /ENTER button to enter the submenu, then press



/button to select

the channel number (eg.2) and press ENTER to conrm, a mark will be display in the pane as follows and this channel will be skipped next time you press



/button but you can press digits

button to select the channel

. If you want to resume

the channel, press ENTER button again.

Channel Skip

2 Analog 3 Analog 4 Analog 5 Analog 5-1 Digital 6 Analog 7 Analog 8 Analog 9 Analog 10 Analog

Select

Back

EXIT

Set

Video

Audio

Channel

Lock

Function

ENTER

CH+/VOL+/-

Channel LabelsY : Allows you to name the channel that is selected. Press /ENTER button to enter the submenu.

Channel Label Set

Channel Index Channel Label

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

CH+/VOL+/-

Then press



/button to select Channel Index

and

/

button to select the position of the item that you want to change, afterward press INPUT to input the numbers and symbols and ENTER button to conrm.

Time Shifting ModeY : To turn the Time Shifting

Mode on or o.

Set the

A Time Shifting On, then insert the USB drive in

the USB input.

Press

B PLAY/PAUSE to play or pause the program. If

you want to stop time shift function, press the STOP button.

Channel Menu Options

Channel menu will appear in main menu only in TV mode.

Press

A MENU button and



/button until the

following menu appears on the screen.

Channel

Video

Audio

Channel

Lock

Function

Select

Back

EXIT

Tuner Mode Antenna Channel Scan Channel Skip Channel Labels Time Shifting Mode On

CH+/VOL+/-

Press B



/ ENTER button to enter the menu

and



/button to go up and down to select the

desired option.

Press



/ ENTER button to conrm and

/

button increase and decrease the level to

adjust the selected option to your preference.

Repeat step 2 and step 3 until desired audio quality

has been achieved.

Function

Tuner ModeY :Press /ENTER button to select

Antenna or Cable.

Channel ScanY : Press



/ENTER button to start

to scan, press EXIT to cancel.

Channel Scan

Status: Scanning... Antenna Analog Channels: 4 Digital Channels: 3

Cancel

EXIT

40%

Video

Audio

Channel

Lock

Function

All channels now available will be automatically preset in order .After the search has nished, the rst program number will display on the screen. This search automatically adds only the active channels in

Page 15

Operation

Haier LCD HDTV/DVD EN-14

-00:00:01

7:00 7:30

-00:00:01 7:00 7:30

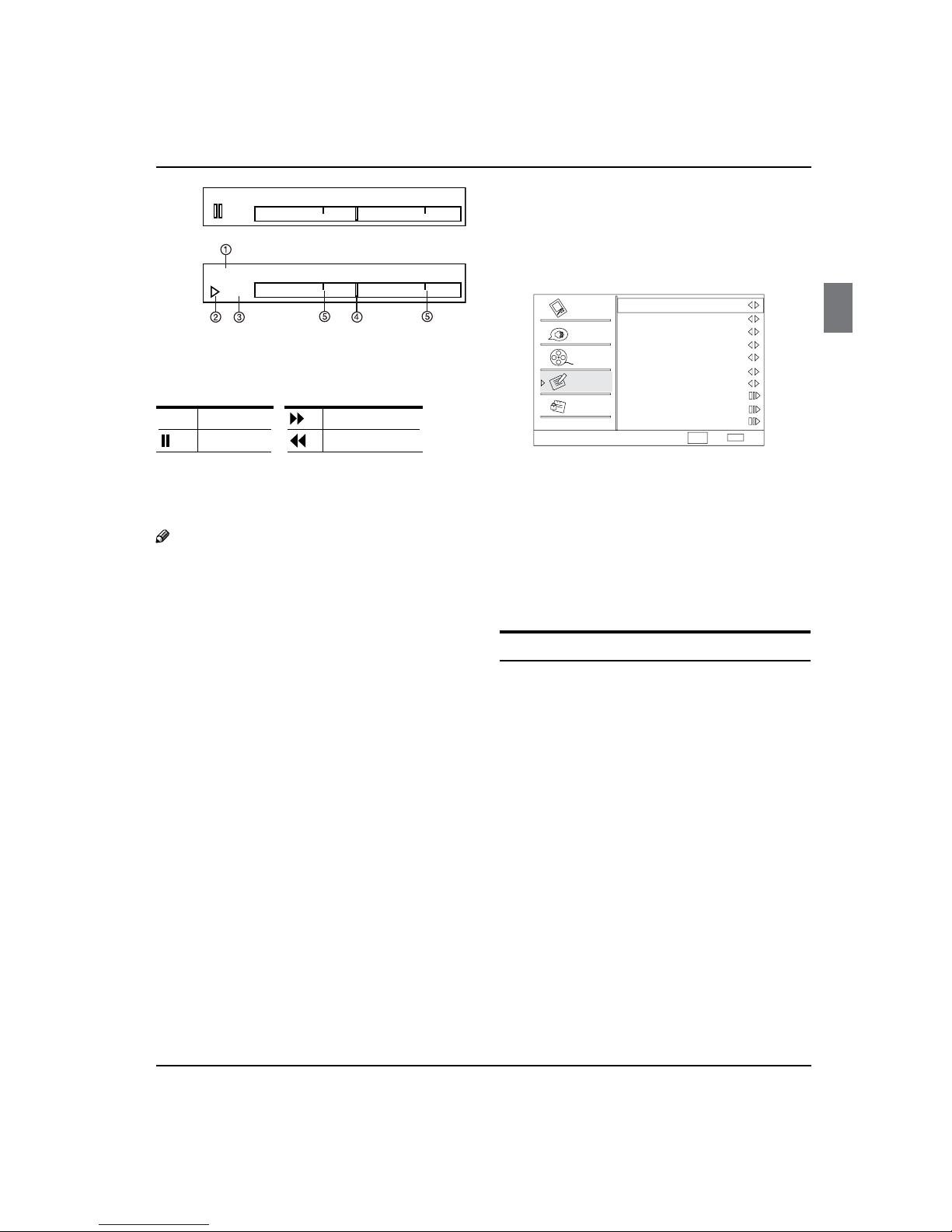

1.Time shift time. The time delay to the current program time.

2.Playback status: It shows the playback status (Play, Pause, Fast Forward, Rewind).



Play Fast forward

Pause Fast reverse

3.Playback speed: playback speed can be changed 1x,2x,4x,8x,16x,32x.

4.Playback position: The playback position is always at the center of the time bar.

5.Time scale:shows the time in half hour increments.

Note

Time Shift function is only available in DTVR mode.

The maximum recording duration is determined R by the memory size of the USB drive and the signal resolution. Please use a high-speed USB 2.0 drive with a minimum of 1GB capacity.

Time shift only supports FAT32 le-system.R

Time shift supports more than 4GB recording by R using multi-le storage.

When the maximum recording duration is reached, R the oldest program would be deleted and the latest program is recorded.

When changing channel or changing input source, R the timeshift would stop automatically.

Time shift record will store the fact of no signal.R

Time shift will store the video, audio and data R service. we only support:

Video streams: Max 1 stream

Audio streams: Max 8 streams

CC stream: No limited.

In recording, the data is not guaranteed to be R stored in the disk. If the timeshift playback plays a corrupted data block, it would show “Data lost” message to indicate that the current data is not stored correctly.

Please connect the TV antenna or Cable TV coaxial R cable to the Antenna input on the TV. Then please complete the channel scan. The Time Shift feature is available when using your ATSC tuner and QAM

cable tuner.

Function Menu Options

Press A MENU button and CH+/- button until the following menu appears on the screen.

Function

Language English

OSD Timeout Short OSD Transparency Middle

DCR On

Blue Screen On

Time Setup

Closed Caption

Default

Select

CH+/VOL+/-

Back

EXIT

Video

Audio

Channel

Lock

Function

DPMS On

Screen Mode Normal

Press B



/ ENTER button to enter the menu and



/button to go up and down to select the

desired option.

Press



/ ENTER button to conrm and

/

button increase and decrease the level to

adjust the selected option to your preference.

Repeat step 2 and step 3 until desired quality has

been achieved.

Function

LanguageY :Press/button to select language of

the OSD.

OSD TimeoutY : Press

/

button to select Middle

/Short and Long to change thetime of the OSD

display.

OSD TransparencyY : Press

/

button to select among Low/High and Middle to change the transparency of the OSD. To select Low, the OSD is opacity.

Screen ModeY : Press

/

button to select among Normal/Wide/Zoom and Cinema to change the display mode(display mode may dier from dierent inputs).

DPMSY : PC Power Management. When set On, the set will be put in standby mode automatically if there is no signal received for 2 minutes.

Blue Screen: Y Press

/

button to select On, the screen will be in blue after 3 seconds if there is no signal.

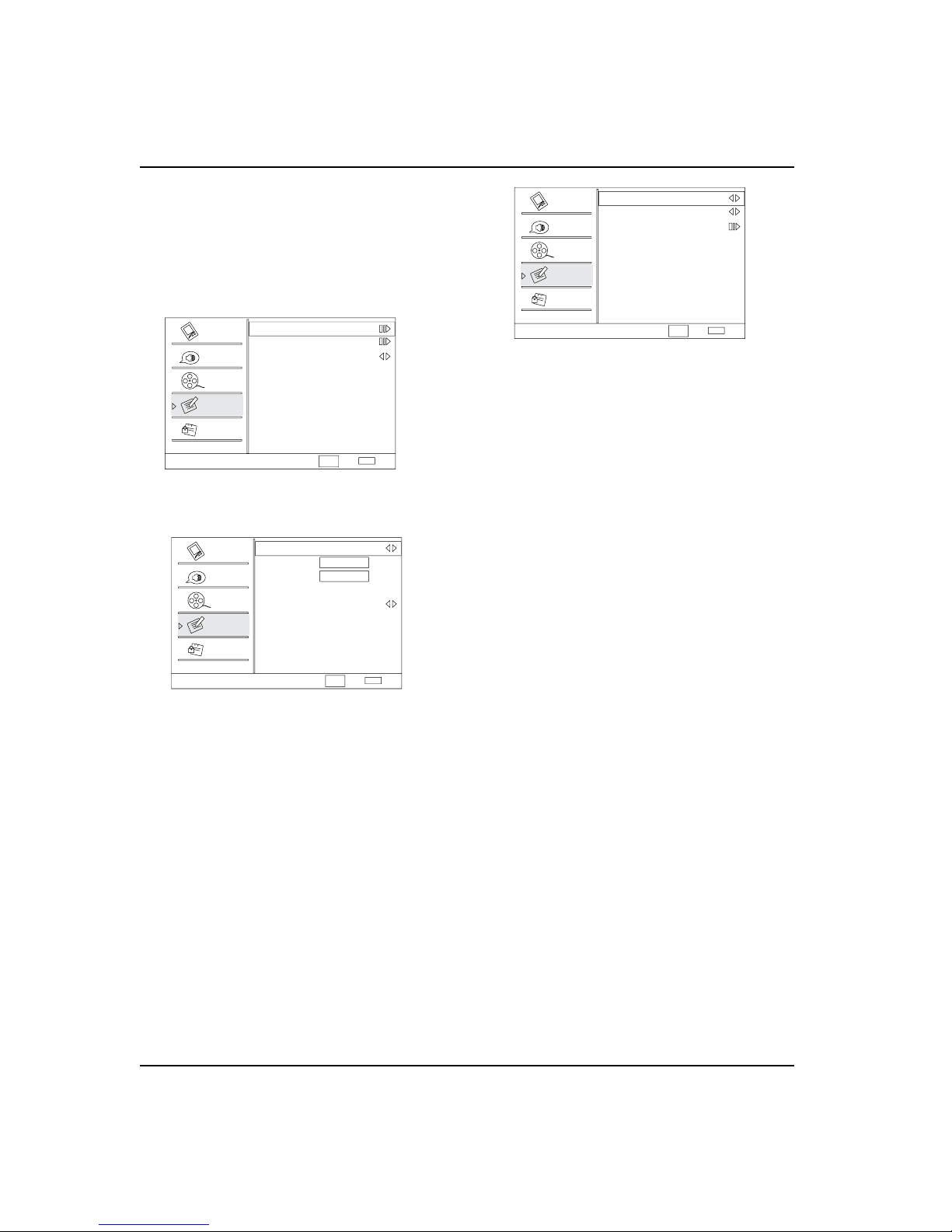

Page 16

Operation

EN-15 Haier LCD HDTV/DVD

DCR:Y Dynamic Contrast Ratio. Press/button to

select On or O.

Time Setup: Y Press



/ ENTER button to enter the

submenu.

Time Zone: q Press

/

button to select the

appropriate time zone.

Time Setup

Time Zone

Date/Time

Sleep Timer Off

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

CH+/VOL+/-

Date/Time: q Press



/ ENTER button to enter the

submenu.

Date/Time

Auto On

Date 2009/01/01

Time 11:54 AM

Timer Off

On Time 11:54 AM

Off Time 12:00 AM

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

CH+/VOL+/-

Auto: Press/button to select On or O . When Auto mode on , the time can not be adjusted. Select O , you can operate to set the time manually.

Date: Press

/

button to select the position and

digits button to set the date.

Time:Press

/

button to select the position and

digits button to set the time.

Timer: Press

/

button to select On or O . To

select O, the time can not be adjusted.

On Time/O Time:Press

/

button to select

the position and digits button to set the time. Press

ENTER button to switch on AM and PM.

Sleep Timer:q Press

/

button to select the number of minutes: To select O, 5Min, 10Min,15Min, 30Min,45Min,60Min,90Min,120Min,180Min or 240Min.

Closed CaptionY :Press



/ ENTER button to enter the

submenu.

Closed Caption

Analog Caption Off

Digital Closed Caption Off

Digital Caption Style

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

CH+/VOL+/-

Analog Captionq : Press

/

button to select the Closed Caption options. It helps the hearing impaired with the broadcast program, as well as helping children learn how to read. A built in decoder displays the audio portion of a program as text on the screen when this option is selected.

CC1: When CC1is displayed on TV means CC mode is turned on.

CC2 to CC4: For other modes of video related broadcast information.

Text1: For program guide and other information displayed by broadcasters. (This blocks a large portion of the picture on your screen).

Text2 to Text4 :For other modes of information displayed by broadcasters. (This blocks a large portion of the picture on your screen).

IMPORTANT:Closed captioning availability entirely depends on broadcasters supplying the signal. Therefore, closed captioning might not always be available and language availability will dier by broadcast.

Select CC1 for full translation of the primary language such as English in your area. Select CC2 for secondary language translation such as French or any other language that may be broadcast in your area.

Digital Closed Caption:q Press

/

button to select Service1/Service2/Service3/Service4/ Service5/Service6/O.

Digital Caption Style: q

Press / ENTER button

to enter the submenu.

Caption Style: To display the digital closed caption by head-end dened or user dened: As Broadcaster and Custom. Font Size :To adjust the font size: Large, Small or Medium. Font Style :To adjust the font style: Style1, Style2, Style3,Style4, Style5, Style6 and Style7.

Page 17

Operation

Haier LCD HDTV/DVD EN-16

Font Color: To adjust the font color: White, Green, Blue, Red, Cyan, Yellow, Magenta and Black. Font Opacity: To adjust the font opacity: Solid,

Translucent and Transparent. Background Color: To adjust the background color: Black, White, Green, Blue, Red, Cyan, Yellow and Magenta. Background Opacity: To adjust the background opacity: Solid, Translucent and Transparent. Window Color: To adjust the window color: Black, White, Green, Blue, Red, Cyan, Yellow and Magenta. Window Opacity: To adjust the window opacity: Translucent, Transparent or Solid.

Default:Y Press



/ ENTER button to enter the

submenu.

Are you sure?

OK Cancel

Press/



button to select OK or Cancel, then press

OK to conrm. If OK the parameter will return to the factory set.

Lock menu

Press A MENU button and/button until the following menu appears on the screen.

Lock

Enter Password

Back

EXIT

Video

Audio

Channel

Lock

Function

Press B



/ ENTER button ato enter and then press digits button to input the digits( The initial password is 0000. If you forget your password, you can always input 9443 to regain control) . The menu will display as follows:

Lock

Channel Block

Program Block

Change Password

Clean All

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

Enter

ENTER

CH+/VOL+/-

Function

Channel BlockY :Press



/ ENTER button to enter

the submenu as follows.

Channel Block

10-1 Digital 11 Analog 11-1 Digital 12 Analog 13 Analog 14 Analog 14-1 Digital 14-2 Digital 14-3 Digital 15 Analog

Select

Back

EXIT

Set

Video

Audio

Channel

Lock

Function

WCAU-DT

MBC DTV

ATSC-1 ATSC-2 ATSC-3

ENTER

CH+/VOL+/-

Press/button to select the channel you want to lock, then press ENTER button to conrm. The channel is locked and a lock mark appears in the pane. If you want to unlock the channel, repeat the operation above again. Then press EXIT to exit step by step.

Program Block: Y



/ ENTER button to enter the

submenu as follows.

Program Block

Parental Lock Parental Guide MPAA Rating CA Eng Rating CA Fren Rating Block Unrated

SelectENTER

Enter

Back

EXIT

Video

Audio

Channel

Lock

Function

CH+/VOL+/-

Parental Lockq : Press/button to select On or O. Used to lock all the system following. To set O, the system following can not be available. Parental Guideq : Press



/ ENTER

button to enter the submenu as follows. Press



/// buttonto select the item you want to lock. Then press ENTER button to conrm to lock and press again to resume it. Parental Guide Technology: The "P.L. Technology" allows you to use U.S. and Canadian Movies and TV PROGRAMS Guide ratings to block certain types of TV programs and movies.

To clearly understand TV program rating codes,

read the following information:

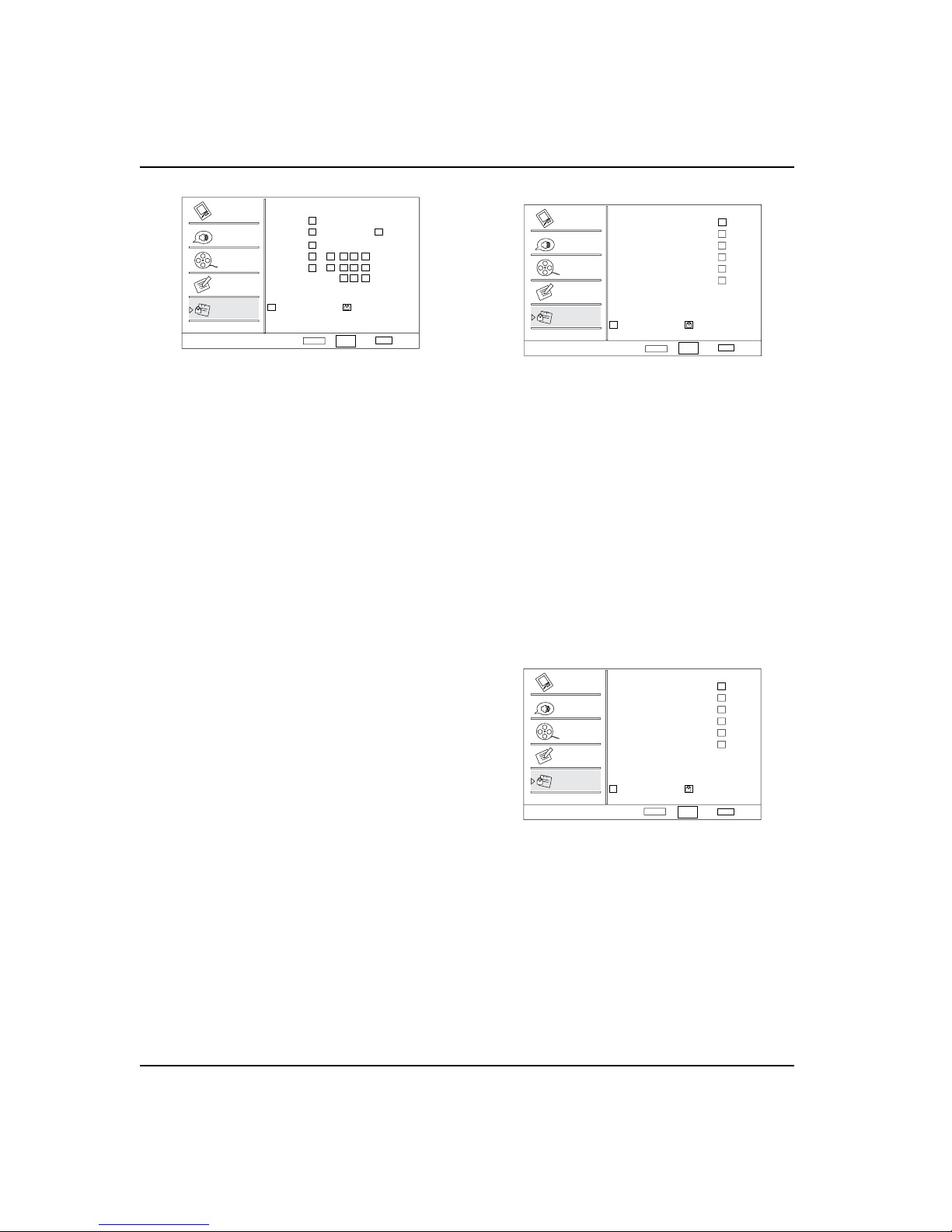

Page 18

Operation

EN-17 Haier LCD HDTV/DVD

TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA

A D LSVFV

Allowed Rating Blocked Rating

Parental Guide

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

Set

ENTER

CH+/VOL+/-

U.S. TV Program Ratingsq

TV-Y: For all children - these types of rated programs are designed for a very young audience, including children from ages 2-6.

TV-Y7: Directed towards older children - this type of rated programs may include comedic violence of mild physical, or may frighten children under the age of 7.

TV-G: General audience-these types of rated programs contains little or no violence, no strong language, and little or no sexual dialogue and situations.

TV-PG: Parental Guidance Suggested-this type of rated programs may contain limited violence, some suggestive sexual dialogue and situations, and rare language.

TV-14: Parents strongly cautioned-these types of rated programs may contain sexual content, strong language and more intense violence.

TV-MA: Mature audience only these types of rated programs may contain sexual violence, explicit sexual content and profane language.

(A)ALL: Blocks all available sub_ratings.

(D)Dialogue: This type of rated programs contain dialogue with sexual content.

(L)Languag: This type of rated programs contain oensive language.

(S)Sex: This type of rated programs contain sex.

(V)Violence: This type of rated programs contain violence.

(FV)Fantasy Violence : This type of rated programs contain Fantasy and cartoon violence.

MPAA Ratingq

Press / ENTER button to enter submenu as follows. Then press



/button to select the item you want

to lock. Then press ENTER button to conrm to lock

and press again to resume it.

Allowed Rating Blocked Rating

MPAA Rating

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

Set

G PG PG-13 R NC-17 X

ENTER

CH+/VOL+/-

To understand clearly about movie rating codes, read the following list: U.S. Movie Rating Chart G: General Audience-this type of movie rating means all ages admitted to see the movie. PG: Parental guidance suggested. Some material may not be suitable for children. PG-13: Parents Strongly Cautioned - this type of movie rating means some material may not be appropriate for children under13. R: :Restricted- This type of movie rating means children under 17 of age require to be with parent or guardian. NC-17: This type of movie rating means no one 17 and under admitted. X: This type of movie rating means adults only.

CA Eng Ratingq

Press



/ ENTER button to enter submenu as follows.

Press



/button to select the item you want to lock. Then press ENTER button to conrm to lock and press again to resume it.

Allowed Rating Blocked Rating

CA Eng Rating

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

Set

C C8+ G PG 14+ 18+

ENTER

CH+/VOL+/-

To clearly understand Canadian program rating codes, read the following list: Canadian English Rating Chart C: This type of programming is intended for children under age 8. There is no oensive language, nudity or sexual content. C8+: These type of rated programs are generally considered acceptable for children 8 years and over. There is no profanity, nudity or sexual content. G: These type of rated programs are generally suitable for all audiences. PG: Parental Guidance Suggested -in these types of rated programs, some material may not be suitable for

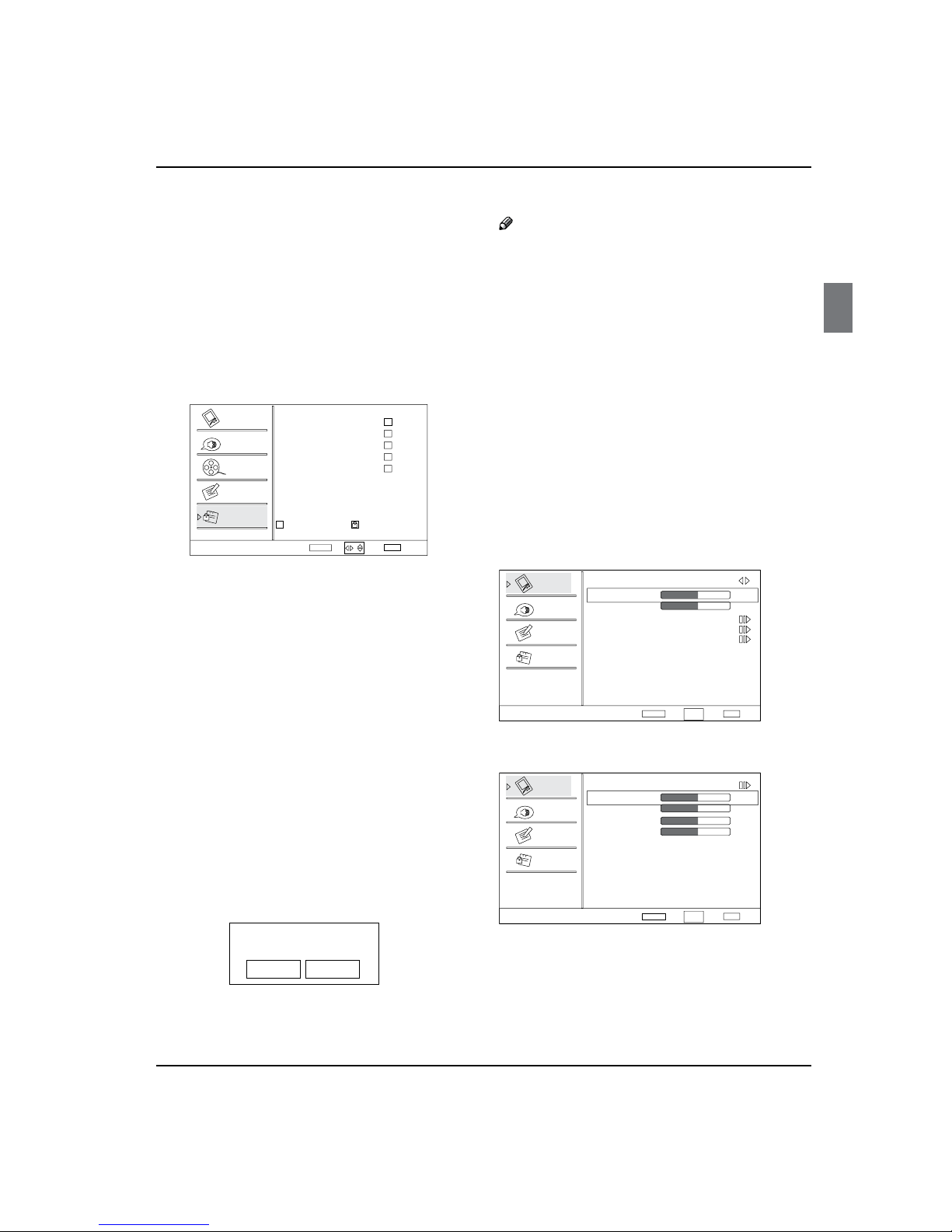

Page 19

Operation

Haier LCD HDTV/DVD EN-18

children. 14+: In these type of rated programs, some content may not be suitable for viewers under the age of 14.Parents are strongly cautioned not to have their children view 14+ rated programs by pre-teens and early teens. 18+: Adults Only-these types of rated programs are only for adult viewers only.

CA Fren Ratingq

Press



/ ENTER button to enter submenu as

follows. Press



/button to select the item you want to lock. Then press ENTER button to conrm to lock and press again to resume it.

Allowed Rating Blocked Rating

CA Fren Rating

Select

Back

EXIT

Video

Audio

Channel

Lock

Function

Set

G 8 ans+ 13 16 18

ans+ ans+ ans+

ENTER

Canadian French Rating Chart G: These types of rated programs are generally suitable for all audiences. 8 ans+: Children 8 years and above (French) 13 ans+: 13 years old and above(French) 16 ans+: 16 years old and above(French) 18 ans+: Adults Only-these types of rated programs are only for adult viewers only.

Blocked Unratedq

Press



/button to select On or O. Used to lock all

the channel not rated. Password:

Change passwordY : Press



/ ENTER button to enter the submenu, press digits button to input the number of 0-9 twice in the New Password and Conrm Password. Then you can change the password when you input the same number twice.

Clean AllY : Press



/ ENTER button to enter the

submenu:

Are you sure?

OK Cancel

Press/button to select OK or Cancel then OK to conrm. If OK, the parameter will return to the factory

set.

Note

If there is any lock mark on the top of the set such R as channel lock, parental lock and so on, you can press OK to resume it .( Press OK to display password menu and input your password.)

PC menu

Press A MENU button and/button to select Video menu in PC mode.

Press



/ ENTER button to enter the Video menu

and



/button to go up and down to select the

desired option .

Press



/ ENTER button to conrm and /



button to increase and decrease the level to adjust the selected option to your preference .

Repeat step 2 and step 3 until desired quality has

been achieved.

Video

Audio

Lock

Function

Video

Mode Custom Brightness Contrast Color Temperature Advanced Video

50 50

Select

BackAdjust

EXITENTER

CH+/VOL+/-

PCY : Press/button to select and /



ENTER button to conrm, the PC menu as below:

ENTER

Video

Audio

Lock

Function

Auto Adjust H Position V Position Phase Clock

50 50

Select

BackAdjust

EXIT

50 50

CH+/VOL+/-

Autq o Adjust: Press



/button and then

press VOL+ button to adjust that automatically adjusts the available options for the best viewing conguration.

H Position: q Press



/button and then press

/

button to adjust the horizontal position of

the picture.

Page 20

Operation

EN-19 Haier LCD HDTV/DVD

V Postion: q Press



/button and then press

/

button to adjust the vertical position of

the picture.

Phase:q Press



/button and then press

/

button to adjust the phase of the picture.

Clock: q Press



/button and then press

/

button to adjust the clock of the picture.

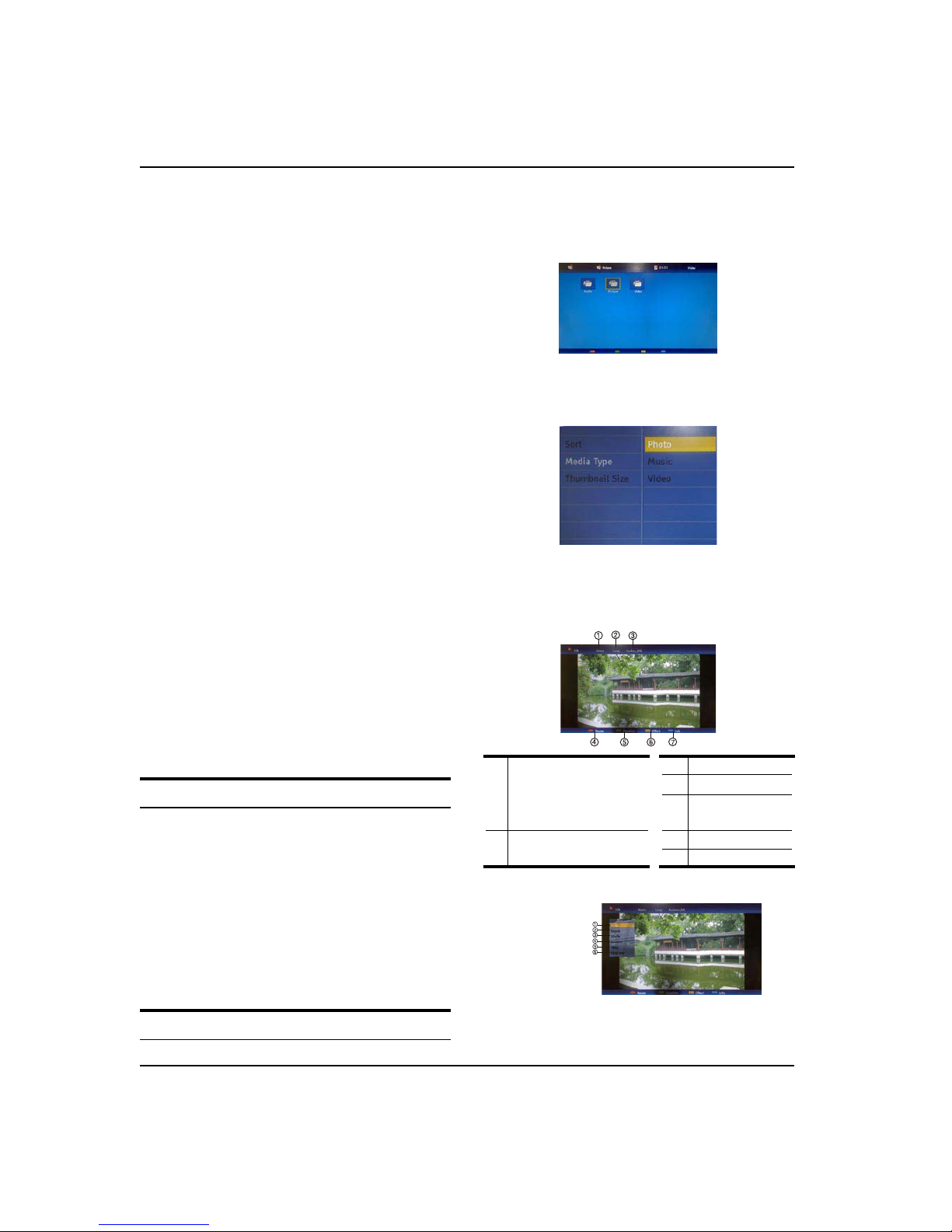

USB Input

Supporting media and file format: Digital pictures A (.JPG/.JPEG/.BMP(Baseline & Progressive)/.PNG), digital music (.MP3(8~320kbps)) and Video(.avi/. mpg/.mpeg/.vro/.vob/.ts coded with MPEG-1 or MPEG-2 standard) files.

Due to dierences in the file code and file mode, q It is possible that some files cannot be read.

Before starting operation, verify USB storage

device is of FAT32 file system format. At present, this television does not support NTFS and the file systems of other format.

Supports USB/Memory Card Plug & Play (don't need

to reset TV system),USB Hard-drive support - only support the class of USB HD that follows USB power consumption spec.

The television operation may be halted due to

excessive rate of information code errors. In such case, restart the system. Please note - there are many nonstandard USB mobile devices in the market. If a nonstandard device is used then an identification problem may occur.

USB Media Menu operation

Plug-in an external storage device into USB port.A Press B USB button on the remote to display

multimedia.

Press

C ENTER button on the remote to display the

sub page.

Press

D EXIT button on the remote to return to the

previous menu.

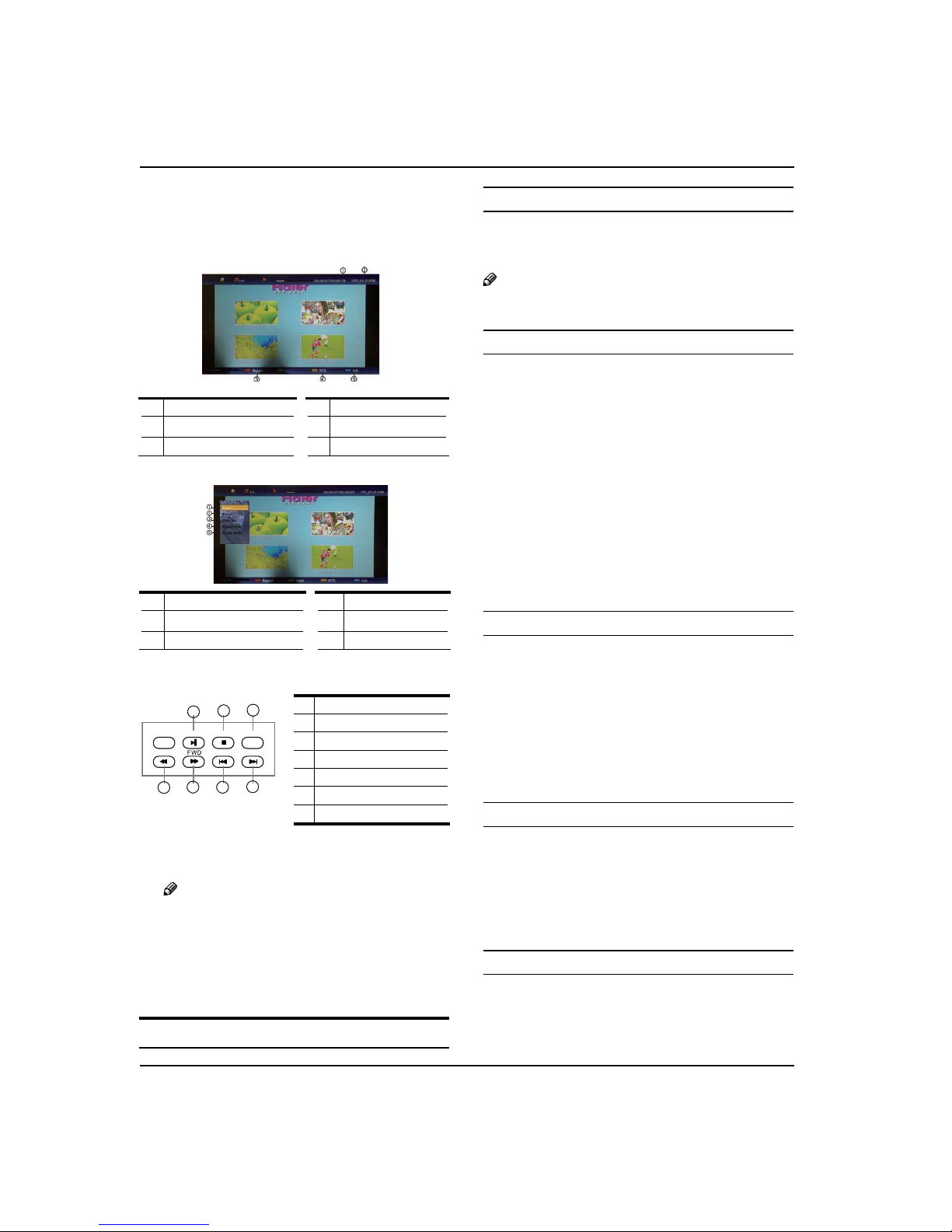

To play pictures

Press A USB button on the remote to enter USB media system.The system start up takes about 3 seconds.

Then insert the USB drive in the USB input.q

Press B MENU button, and the press/to select Media Type , Press ENTER and press



/to select

Photo.

PressC



///button to select

folder or le

, and then press ENTER button to enter the play interface.

1. Play mode:

None/Dissolve/Wipe right/ Wipe left/Wipe up/Wipe down/Box in/Box out/ Random

3. File name

4. Pause

5. Duration

2. Play time:

Short/Medium/Long

6. Eect

7. Information

Press

D MENU button to display the option list.

Page 21

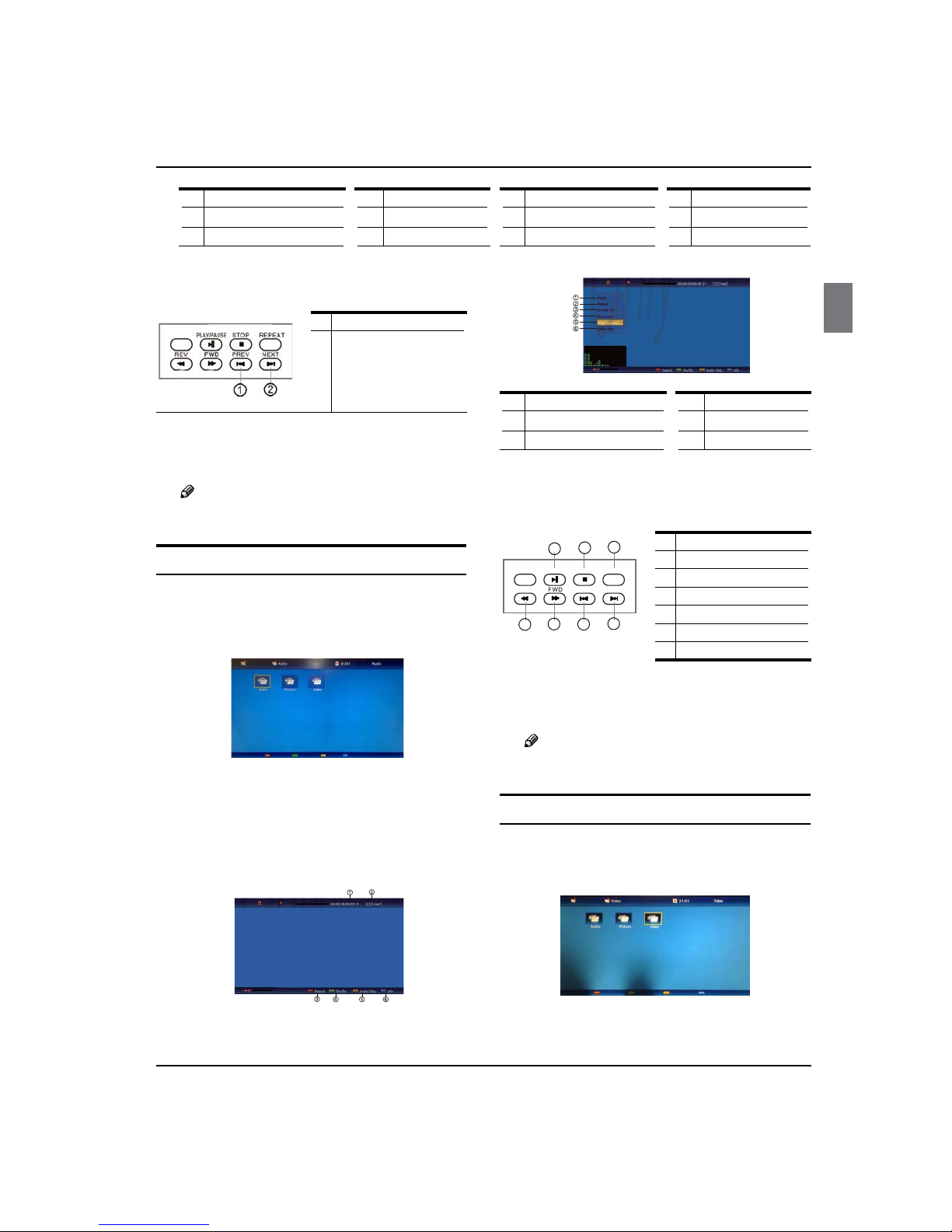

Operation

Haier LCD HDTV/DVD EN-20

1. Play/Pause 4. Duration

2. Repeat 5. Eect

3. Shue 6. Information

Press the button on the remote control to select the

adjusted item, press ENTER button to confirm.

1. Play previous picture

2. Play next picture

Press

F EXIT button to return to the previous menu.

Press USB button to exit the USB mode.

Note

You may play the pictures among selected.R

To play music

Press A USB button on the remote to enter stream media system.

Press B MENU button, and the press /to select

Media Type , Press ENTER and press



/to select

Music.

Press C





/

button to select

folder or le

, and

then press ENTER button to enter the play interface.

1. Play Time 4. Shue On or O

2. File Name 5. Audio Only

3. Repeat 6. Information

Press

D MENU button to display the option list

1. Play/Pause 4. Show Info

2. Repeat 5. Show Spectrum

3. Shue On or O 6. Audio Only

Press the button on the remote control to select the

adjusted item, press ENTER button to confirm.

PLAY/PAUSE

REV

STOP

REPEAT

1. Play or pause 2 Stop

3. Repeat

4. Fast reverse

5. Fast forward

6. Play previous music

7. Play next music

Press

F EXIT button to return to the previous menu.

Press USB button to exit the USB mode.

Note

You may play the music among selected.R

To play video

Press A USB button on the remote to enter stream media system.

Press B MENU button, and the press/to select Media Type , Press ENTER and press



/to select

Page 22

Operation/Maintenance/Specication/Troubleshooting

EN-21 Haier LCD HDTV/DVD

Video.

Press



///button to select desired video folder, and then press ENTER button to enter the play interface.

1. Play Time 4. MTS

2. File Name 5. Information

3. Repeat

Press

D MENU button to display the option list

1. Play/Pause 4. Picture Mode

2. Repeat 5. Screen Mode

3. Show Info

Press the button on the remote control to select the

adjusted item, press ENTER button to confirm.

PLAY/PAUSE

REV

STOP

REPEAT

1. Play or pause 2 Stop

3. Repeat

4. Fast reverse

5. Fast forward

6. Play previous video

7. Play next video

Press

F EXIT button to return to the previous menu.

Press USB button to exit the USB mode.

Note

Do not remove USB device from the TV until R you have exited the USB mode otherwise you may damage the USB device.

DVD Operation

Basic Playback

Preparations

Press q DVD button on the remote control to enter the DVD status.

Note

Do not insert a disc until the DVD input states open.R

Basic playback

Place the DVD in the disc slot. The disc will be loaded A automatically after one to two seconds then the DVD player reads the DVD and displays the opening menu (If there is no disc placed in DVD mode, OPEN will display on the screen all the times)

Do not place a disc that is unplayable in this DVD q player. Some discs do not start automatically. Press PLAY/PAUSE to start playback.

Some discs may start playback with a menu. Use the B cursor buttons on the remote control to select menu options and press PLAY/PAUSE to start. You may also press the digit buttons to select a menu option

directly. Many DVDs will not allow this during start-up.

Stop playback

Press A STOP button to go to stop mode, the TV screen will show the start logo. With some discs, such as DVD or CDs, the player can resume playback from the point where it was stopped.

Press

B PLAY/PAUSE to resume playback from the

location where the playback was stopped.

Press

C STOP twice to stop completely.

Previous and Next

During Playing, pressing the q PREV button will restart the last chapter and skip chapters backwards with each subsequent press until the start of the disc is reached.

Each press of q NEXT button during playing will skip the current chapter and play the next one.

Fast forward and Fast reverse

Press A FWD to fast forward through the disc. Each time the FWD button is pressed, the fast forward

Page 23

Troubleshooting / Warranty

Haier LCD HDTV/DVD EN-22

motion speed changes.

Press

B PLAY/PAUSE to resume normal playback.

Press

C REV to fast reverse through the disc.

Each time the REV button is pressed, the fast reverse motion speed changes.

Press

D PLAY/PAUSE to resume normal playback.

Advanced Playback

IMPORTANT:

All described functions are for dvd discs.R

If you play other disc Formats the operation and on R screen display will be dierent.

SUBTITLEY

Press “SUBTITLE “, the screen will display “SUBTI-TLE 01/XX XXXXX”, “01” indicates the ordinal number of this language; “XX” indicates total number of language; “XXXXXX” indicates the language of country. (The number of language depends on disc.) This function can select up to 32 languages displayed on screen.

REPEATY

Press “REPEAT “ and Chapter repeat will be displayed on screen, the second press will display Title repeat, the third press will display All repeat, the fourth press will cancel this function.

ANGLEY

When enjoying sports, concert or theatre, press this key to watch same actions in dierent angles. (Valid for discs possessing this function. Using a disc recorded in multi-angle you can view the scene from dierent angles, for example, front, side, whole view and exterior scene).

D.MENUY

Press this key to display the root menu, select items according to your preference. (This function will work on a DVD with a multi-layer menu.)

D.CALLY

Pressing this key will cycle through “Title Elapsed”, “Title Remain”, “Chapter Elapsed”, “Chapter Remain” and “Display o “.

PROGRAMY

When playing discs, press “PROGRAM” to enter program mode. Press the digit buttons to select the program number that you want. When finished move

the cursor to select “START” . Press ENTER to confirm. This will start the program playback.

SEARCHY

Press “SEARCH” once to display the search menu. Press the button again to select. Press the program number buttons to input the item you require. Press ENTER to confirm.

D.AUDIOY

Press this key can change the mode of audio. such as: Audio 1/2: AC 3 2 CH English

Audio 2/2: AC 3 5.1 CH English

Press this button to cycle between Mono Left, Mono Right, Mix-Mono and Stereo.

Note

When press this button continuously, you must R allow a 3 second interval between selections.

Special Function Playback

JPEG DISC PLAYBACK

When a disc containing standard JPEG picture files q is inserted into the player, a navigation menu will be displayed automatically. Use the

/

cursor buttons to select a file then press ENTER. The slide show will commence.

Press q PREV or NEXT to move between pictures. Press PAUSE to stop on the current picture. Press ENTER to resume normal playing.

A JPEG disc contains JPEG (.jpg) format picture q information that can be decoded by a microcomputer software and displayed through the video output interface or on the television screen.

This function has many applications. For example q one can save files from a scanner or digital camera in the JPEG format, record these on a CD-R disc and present them to an audience through this player.

The JPEG format is a convienient method to store q images in a small amount of memory space, and is ideal for archiving information.

SCREEN SAVER FUNCTION

This unit employs a screen saver mode to help q protect the tube during static video pictures. This

Page 24

Warr anty

EN-23 Haier LCD HDTV/DVD

can be turned o on the GENERAL SETUP PAGE.

DVD System Setup

General Setup Process

Press A SETUP button, the general set up page will be displayed, press twice the preference page will be displayed.

Press

/

to select, the item, then pressto

enter the submenu.

Press

/

to select then press ENTER to confirm.

Press

D SETUP repeatedly to exit the set-up menus.

Note

Preference page will be displayed when there is no R disc in the unit. To access this page, press SETUP button twice.

..General Setup Page..

Tv Display LB Angle Mark On Osd Lang ENG Caption On Screen Saver Off

4 3/Ps 4 3/Lb 16 9

Parental

Password

Default

..Preference Page..

1 Kid Saf 2G 3 Pg 4 Pg 13 5 Pgr 6R 7 Nc17 8 Adult

General Setup Page

ASPECT RATIO DESCRIPTIONY

When using the DVD with the internal TV, select 4:3/LB. The following information applies only when the DVD output is connected to an external TV.

4:3/PS (PS = Pan and Scan)q

You may select if you have a normal aspect ratio (4:3) TV, although the NORMAL/LB (letter box) is a more common choice. In PS mode, wide screen material will fill the screen, but at the expense of chopping o extreme left and right edges of the original film picture. For this feature to work, the disc must be specially coded. Such discs are uncommon.

4:3/LB (LB = Letter Box)q

You may select this if you have a normal aspect ratio (4:3) TV. Wide screen material will be shown in pure unaltered form, allowing the entire picture area of the original film to be viewed without any side cropping. Black bars will appear above and below the picture.

16:9q

You may select this if you have a wide screen (16:9) TV. Back bars may still appear above and below the picture even if using a wide screen TV. This is because some film directors prefer to use ultra wide screen aspect ratios e.g. 2.35:1. This will normally be indicated on the DVD packaging.

ANGLE MARK: Y

Users can select a particular camera angle when playing a DVD which oers multiple angles. This item allows you to set Angle Mark ON or OFF.

On Screen Display (OSD) Language:Y

Users can select on-screen display language.

CAPTION:Y

This function allows you to display or hide the caption.

SCREEN SAVER:Y

If the screen saver is on, then there will be an animated picture of DVD on the screen whenever the DVD player is idle for more than 3 minutes.

Preference Page

The Preference Page is only available when there is q no disc in the player.

PARENTAL:Y

The parental control function works in conjunction with the dierent censorship classes assigned to DVDs. These classes help to control the types of DVDs that the family watches. There are up to 8 censorship classes for DVDs.

Note

To change this setting you must enter your password. R (Initial password is 1234)

When set to OFF, all discs may be viewed.R

..Preference Page..

Parental

Password

Default

1 Kid Saf 2G 3 Pg 4 Pg 13 5 Pgr 6R 7 Nc17 8 Adult

PASSWORD CHANGE:Y

You can change your password by entering 4 digits. You must confirm the 4 digits before the new password can be accepted.

Page 25

Operation/Maintenance/Specication/Troubleshooting

Haier LCD HDTV/DVD EN-24

Note

If you forget your password or a password is R accidentally set enter 1369 as the password.

This will enable you to regain control.R

..Preference Page..

Parental

Password Change

Default

Old Password

New Password

Confirm Pwd

DEFAULT:Y

Resets all settings (except password and parental lock status) for this DVD player back to the manufacturers original settings. Press ENTER to perform the reset.

Note

Some functions may not be available depending R on the type of disc.

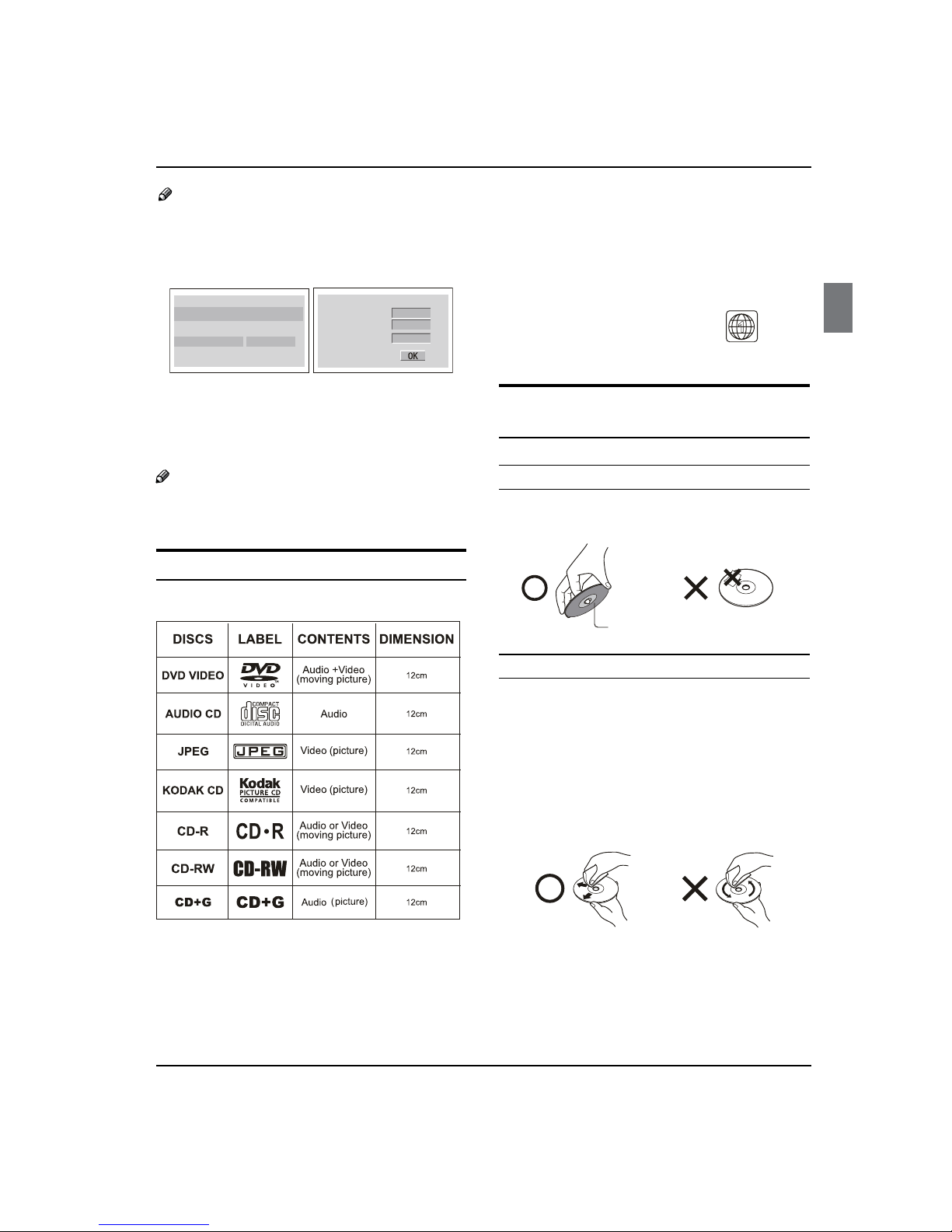

Playable Discs

The following discs can be played:

Support discs: DVD, CD-R, CD-RW, HDCD, JPEG, CD+G, Kodak CD, W MA.

You cannot play discs other than those listed above.q You cannot play non-standardized discs, even if they q may be labeled as above. The performance of CD-R or CD-RW disc is depend q on the way of disc was burned. In a few cases, their

performance may not be consistant or may not even

operate at all. This DVD Player is designed and manufactured according to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD player will not play that disc.

This Region number of this DVD Player is

Discs Protection and DVD Characteristics

ON HANDLING DISCS

Do not touch the playback side of the disc.

Do not attach paper or tape to disc.

Playback side

ON CLEANING DISCS

Fingerprints and dust on the disc cause picture and 

sound deterioration. Wipe the disc from the centre

outwards with a soft cloth. Always keep the disc clean.

Do you can not wipe o the dust with a soft cloth, 

wipe the disc lightly with a slightly moistened soft

cloth and finish with a dry cloth.

Do not use any type of solvent such as thinner, 

benzine, commercially available cleaners or antistatic

spray for vinyl Lps. It may damage the disc.

Page 26

Warr anty

EN-25 Haier LCD HDTV/DVD

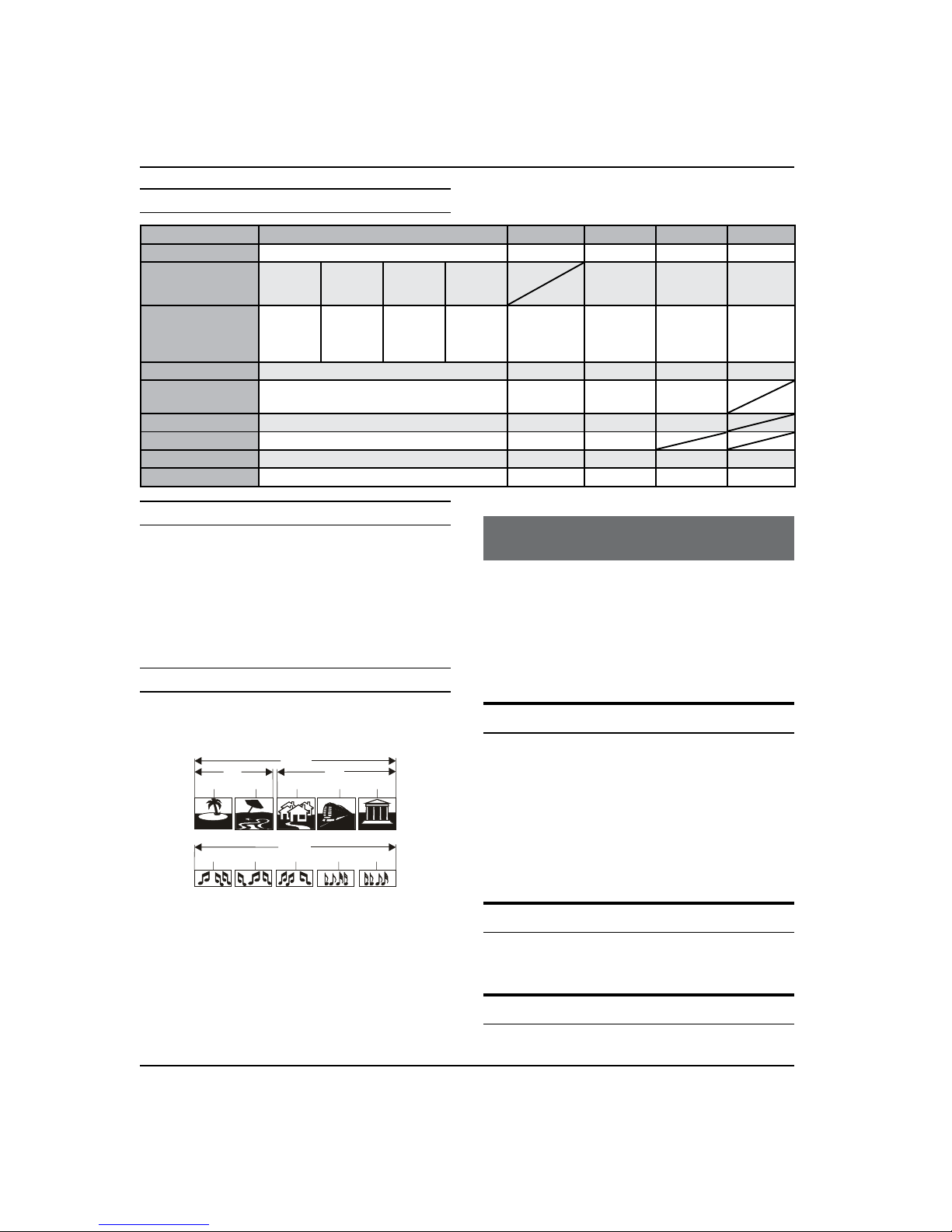

Compare DVD disc with other discs

DVD LD SVCD VCD CD

Encode method

Digital/MPEG II Analog Digital Digital/MPEG II Digital

Capacity

Single-side single-layer

4.7G

Double-side

single-layer

8.5G

Single-side

double-layer

9.4G

Double-side

double-layer

17G

650MB 650MB 650MB

Playing Time

133 minutes 242 minutes 266 minutes 484 minutes

Single-side 60 minutes

double-side

120 minutes

45 minutes 74 minutes 74 minutes

Disc diameter

12cm 30cm/20cm 12cm 12cm 12cm

Horizontal resolution

More than 500 line

No more than

430 line

No more than

350 line

No more than

250 line

Picture proportion

Multiple kinds One kind One kind One kind

Subtitle

32 kinds 16 kinds at most 4 kinds

Language

8 kinds 4 kinds at most 4 kinds at most 2 kinds 2 kinds

Sound quality

48KHz, 96KHz/6, 20, 24bit 44.1KHz/16bit 44.1KHz/16bit 44.1KHz/16bit 44.1KHz/16bit

ON STORING DISCS

Do not stor discs in a place subject to direct sunlight  or near heat source.

Do not store discs in place subject to moisture and  dust such as a bathroom or near a humidifier.

Store discs vertically in a case. Stacking or placing  object on discs outside of their case may cause warping.

STRUCTURE OF DISC CONTENTS

Normally, DVD discs are divided into titles, and the titles are sub-divided into chapters. Audio CD are divided into tracks.

DVD DISC

AUDIO CD

TITLE1

TITLE2

CHAPTER1 CHAPTER2 CHAPTER3 CHAPTER4 CHAPTER5

TRACK1 TRACK2 TRACK3 TRACK4 TRACK5

Each title, chapter, or track is assigned a number, which is called title number, chapter number or track number respectively. There may be discs that do not have these number.

Maintenance

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your new TV. Be sure to turn the power o and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here’s a great way to keep the dust o your screen A for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

Make sure the excess water is o the screen, and

then let it air-dry before you turn on your TV.

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.

Extended Absence

Page 27

Troubleshooting / Warranty

Haier LCD HDTV/DVD EN-26

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

Specification

Product Specification

Resolution(Dot)

19''/22''

1366 s 768

Power requirement 120V~ , 60Hz

Color system NTSC, ATSC, Clear QAM

External Antenna Impedance

75 ohm

Color

16,770,000 (256 steps of each R, G and B)

Operating Temperature Range

32~104 F (0~40 C)

Operating Humidity Range

Less than 80%

Maximum Elevation 6561 feet (2000m)

Accessories

Remote control Batteries User manual Quick start guide

* The specifications shown above may be changed without prior notice for quality improvement.

Troubleshooting

For the sake of time and cost, it is strongly  recommended that you check out the problem by yourself according to the instructions listed hereunder before contacting the after-sales service for technical assistance.

No picture, no sound

Verify if the television is properly plugged. Verify if the television is properly supplied power. Verify if electricity is available.

Blank screen

Verify if correct signals are input. Press INPUT button to change signal input to TV input. Restart the television of power supply is interrupted.

No sound

Press Mute button and verify if Mute mode is set. Switch to other channel and verify if the same problem happens. Press VOL+ button to see if the problem can be solved.

Poor sound

Verify if sound system is correct. Refer to Page 18 for adjustments.

No picture in some channel

Verify if correct channel is selected. Adjust the antenna. Make adjustments by Fine Tune and Manual Scan.

No color for some channel program (black and white)

Verify if the same problem exists in other channels. Check out of picture and sound systems. Refer to relative instructions in the Manual for color adjust.

Spots with some or all pictures

Verify if the antenna is correctly connected. Verify if the antenna is in good condition. Make fine adjustment of channel.

Horizontal/ vertical bars or picture shaking

Check for local interference such as an electrical appliance or power tool.

Television out of control

Disconnect the television from power supply and, 10 seconds later, connect the television to the power supply. If the problem still exists, contact authorized after-sales service for technical assistance.

Note

Do not leave the television with static picture in R

Page 28

Operation

EN-27 Haier LCD HDTV/DVD

an extended period as the image may become permanently burned.

Note

The TV set must only be repaired by a qualied R registered service person. Never attempt to remove the back cover as the TV set has dangerous voltages levels inside that may be fatal or cause re.

Warranty

This Haier brand product, when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective product with a new or remanufactured equivalent at to the purchaser, for parts or labor for the periods set forth below: This warranty does not apply to the appearance of the product or the exterior of the product, which has been damaged or defaced, altered or modied in design or construction. It does not apply to the additional excluded items set forth below: The warranty commences on the date the item was purchased and the original purchase receipt must be presented to the authorized service center before warranty repairs are rendered. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(s) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Haier.

The warranties described herein shall be the sole and exclusive warranties granted by Haier and shall be the sole and exclusive remedy available to the purchaser. Correction of defects in the manner and for the period of time described herein, shall constitute complete fulfillment of all abilities and Responsibility of Haier to the purchaser with respect to the product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict duality or otherwise. In no event shall Haier be liable, or in any way responsible for any damages or defects in the product which were caused by repairs or attempted repairs performed by anyone other than an authorized service center or dealer; nor shall Haier be liable, or in any way responsible for incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so that above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.

YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. Warranty period for this product: one year parts and 90 days labor. Additional items excluded from warranty coverage: nonrechargeable batteries. Where to obtain service: For the location of the nearest Haier authorized service center or to obtain product literature, accessories, supplies or customer assistance, please call 1-877-337-3639. What to do to obtain service: ship or carry in your product to an authorized service dealer or center. Be sure to have proof of purchase. If you ship the product, be sure it is packaged carefully. Haier America

New York, NY 10018
