Haier HLC19E, HLC15E, HLC19W User Manual

HLC15B/HLC15E/HLC19E/HLC19W

LCD TV/DVD Player Combo

USER MANUAL

Please read this manual carefully
before using this TV set and keep it
for future reference.

WARNING AND CAUTION

CAUTION

!!

CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.FOR
ANY PROBLEM, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE:
THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE.
IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANY
INSIDE PART OF THIS PRODUCT.
THERE IS A EXCALMATION MARK IN THE TRIANGLE: THIS
SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING. OPERATION AND MAINTENANCE HAS BEEN
INCLUDED WITH THIS PRODUCT.

RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK

DO NOT OPENDO NOT OPEN

!!

CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE,
DO NOT PUT THE TV SET NEAR SOURCES OF HUMIDITY.
DO NOT USE ANY ABRASIVE CLEANSERS WHICH MAY
SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT
WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORIZED
AND COULD LEAD TO INJURY OR PRODUCT DAMAGE.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.

8) Do not install near any hear sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purposes of the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. When the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.

10) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.

11) Only use the attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long
periods of time.

14) Refer all serving to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15 Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.

Safety Instructions

PRECAUTIONS

FCC WARNING-This equipment may

generate or use radio frequency
energy.Changes or modifications to this
equipment may cause harmful
interference unless the modifications are
expressly approved in the instruction
manual.The user could lose the authority
to operate this equipment if an
unauthorized change or modification is
made.

LASER SAFETY

This unit employs a laser.Only a qualified
service person should remove the cover
or attempt to service this device,due to
possible eye injury.

SAVE THESE INSTRUCTIONS

CAUTION:USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.

CAUTION:VISIBLE AND INVISIBLE
LASER RADIATION WHEN OPEN AND
INTERLOCK DEFEATED.DO NOT
STARE INTO BEAM.

LOCATION:INSIDE,NEAR THE DECK
MECHANISM.

Thank you for using our Haier product. This easy-to-use manual will guide you in
getting the best use of your product. Remember to record the model and serial
number. They are on label in back of the unit.

Model number

serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

CONTENT

Safety Notice Items...................................................................................

Front Panel Controls..................................................................................

Connection Options...................................................................................

Remote Control Key Functions...................................................................

Remote Control ..................................................................................

Installing Batteries..................................................................................

Connection Instructions.............................................................................

Grounding..............................................................................................

External equipment Connections..............................................................

Antenna Connection.............................................................................

PC Setup.............................................................................................

VCR Setup...........................................................................................

Cable TV Setup....................................................................................

External AV Source Setup......................................................................

Basic Operating Instructions.......................................................................

Turn on the LCD-TV.................................................................................

Audio Control..........................................................................................

Mute......................................................................................................

Select the TV Channel You Want...............................................................

Picture Mode...........................................................................................

Sound Mode.........................................................................................

Sleep......................................................................................................

INFO......................................................................................................

GUIDE...................................................................................................

-button...................................................................................................

CH.LIST button........................................................................................

FAV.LIST button......................................................................................

ARC button.............................................................................................

Menu Operations.......................................................................................

Video Menu Options...............................................................................

Video Menu Options Continued...............................................................

Audio Menu Options................................................................................

Audio Menu Options Continued................................................................

Function Menu Options.............................................................................

Function Menu Options Continued.............................................................

Adjust Menu Options................................................................................

Adjust Menu Options Continued..............................................................

Channel Menu Options..............................................................................

Channel Menu Options Continued..............................................................

Lock Menu Options..................................................................................

Lock Menu Options Continued...................................................................

DVD Features..........................................................................................

Special Function Playback.......................................................................

DVD System Setup...................................................................................

Playable Discs.........................................................................................

Disc Protection and DVD Characteristics...................................................

Troubleshooting Guide...............................................................................

Specifications...........................................................................................

Warranty ..................................................................................................

1
2
3
4
5
5
6
6
6
6
7
8
9
9
10
10
10
10
11
11
11
11
11
11
12
12
12
12
13
13
14
14
15
16
17-19
19
20
20
21
21
22-24
25
27
28
32
33
34
35
36

Safety Notice Items

Incorrect usage may cause fire or electric shock.
required when you are installing, using and cleaning this machine. To insure your
safety and extend the life-span of LCD-TV, please read the following items
carefully before using:

l Please read and understand all the instructions before operation;
l

Please keep this manual for later use;

l

Please comply strictly with the warning instructions on the machine and

in this book;

l Please comply with the instructions provided;
l Please do not use additional devices that are not recommended by

manufacturer:

l

Before operation, please make sure that the operating voltage of your unit is

correct;

l Do not place the unit on unstable, dusty and humid places;
l Never put the unit in direct sunlight or near heat sources;
l Allow enough space for proper ventilation;
l Please keep water away from the LCD-TV . If water comes in contact with the

LCD-TV, disconnect the power cord from the power source, then wipe the set
with a dry soft cloth;

l

Do not remove the back cover. If service is needed, please contact an

Authorized service technician.

To prevent this, please do as

Front Panel Controls

HLC15B

HLC19E

2 3 4 5

TV/AV MENU VOL- VOL+ CH- CH+ POWER

7

6

1

HLC19W

6
7

HLC15E

DC POWER SWITCH

DC POWER SWITCH

Control Panel Function

1. Power supply switch

2.TV/AV TV/AV/S-VIDEO/PC/COMPONENT

3. MENU Press to select the main menu

4. VOL- Volume down / Left orientation to adjust the item in the OSD
VOL+ Volume up / Right orientation to adjust the item in the OSD
/Press to enter

5. CH- TV channel down / to select the item in the menu
CH+ TV channel up / to select the item in the menu

6. Power indicator

7.Remote Sensor

Selects the input signals:

Receives the signals from the remote control

Connection Options

DVD

STOP

PLAY/PAUSE OPEN/CLOSE

PREV NEXT

DVD insert

connections may differ depending upon
the models

Please see the real set of the
DVD position

The above figure is for reference only,

ANT IN

PC AUDIO IN

R

AUDIO IN

L

VIDEO IN

V

S-VIDEO

Pr Y

COMPONENT IN

Pb

VGA IN

Antenna Input

Connect cable or
antenna signals to
the TV, either direc­tly or through your
cable box.

PC Audio Input

Connect the audio
output from the pc
to the PC audio input port

Video Input

Connect video output
from an external
device to this jack

VGA Input

Connect to the VGA
15PIN analog output
connector of a PC
graphics card to use set
as a PC display

ANT IN

PC AUDIO IN

Earphone port

AV/S-VIDEO/

R

AUDIO IN

L

VIDEO IN

V

S-VIDEO

COMPONENT Audio
Input

Connect audio output
from an external device
to these jacks

S-Video Input

Connect S-Video out
from an S-Video device

Pr Y

COMPONENT IN

Pb

VGA IN

to the jacks.

Component Input

Connect a component
video device to
these jacks

Remote Control Key Functions

When using the remote control, aim it
towards the remote sensor on the TV

INFO

OPEN/CLOSE

MUTE

POWER TV/DVD

TV/AV

SLEEP Q.VIEW

1 2 3 4

5 6 7 8

CC

9 0

VOL
+

PAUSE/STEP

REPEAT

TITLE/PBC

ZOOM

ARC

P.MODE

SUBTITLE

A-B

SLOW

SEARCH

D.CALL

GUIDE

SAP

CH+

VOL

MENU

-

OK S.MODE

STOP

REV FWD . PREV NEXT

D.MENU

ANGLE

AUDIO

10+

CH.LIST

CH-

SETUP

PLAY/ENTER

PROGRAM

EXIT

FAV.LIST

Buttons on the remote control

Standby

DVD Open/close

Input selection

TV Sleep button

TV/DVD

Mute

Return to Previous Channel in TV mode

Call Screen Infromation

Program Number

Select MONO,STEREO, SAP in NTSC system

CCD ( closed caption) On / Off

Select additional channels

Adjust Picture Mode

Volume/Channel Selection

MENU

Confirm button

Adjust sound mode

DVD STOP

DVD SUBTITLE

DVD SETUP

DVD PAUSE/STEP

DVD FAST REVERSE

DVD FAST FORWARD

DVD MENU

DVD Next Chapter

DVD Previous Chapter

DVD REPEAT

DVD PLAY/ENTER

DVD A-B REPEAT

DVD Cursor Move button

DVD SLOW

DVD ANGLE

DVD SEARCH

DVD AUDIO Mode

DVD TITLE/PBC

DVD PROGRAM

Zoom Function in DVD

DVD CALL DVD 10+

Shows program schedule in DTV

Exit On Screen Display

Select the aspect ratio

Open the channel list in DTV

Open the favorite channel list in DTV

LEFT

UP

RIGHT

DOWN

Remote Control

Installing Batteries

!

Remove the battery cover.

!

Insert two size AA batteries matching
the +/-polarities of the battery to the +/­marks inside the battery compartment.

Precautions

Make sure that there is no
obstacle between the remote
controller and television set.

Keep the remote control
away from heat sources or
humid areas to ensure
effective performance of
the remote.

As strong light may interfere with the
signals, change your position to
operate the remote control if
the television cannot be turned
on or off as expected.

Make sure that two AA 1.5V alkaline
batteries are loaded. The batteries
must be of the same type, must be
inserted properly, and must not be
rechargeable.

Connection Instructions

Grounding

Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.

External Equipment Connections

Antenna Connection

- Antenna or Cable Service with a Cable Box Connections

- For optimum picture quality, adjust antenna direction if needed.

Multi-family Dwellings/Apartments
(Connect to wall antenna socket)

wall antenna
socket

RF coaxial wire (75 ohm)

Bronze Wire

VHF antenna
UHF antenna

outdoor
antenna

Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)

Turn clockwise to tighten.

To improve picture quality in a poor

signal area, purchase and install a
signal amplifier.

If the antenna needs to be split for two
TV s, install a 2-Way Signal Splitter
in the connections.

If the antenna is not installed properly,
contact your dealer for assistance.

NOTE: Cables shown are not included with the TV

Bronze Wire

Be careful not to bend the bronze
wire when connecting the antenna.

Connection Instructions

PC Setup

You can use your LCD-TV as a monitor for your personal computer using a VGA
cable (not supplied).

Connection and use steps:

1.Read the user guide supplied with
your computer and ensure that it has
a VGA connector;

2.Make sure that the power of the LCD

-TV and the PC are off;

3.Connect a D type 15-pin VGA interface
cable ( not supplied ) to the VGA video
interface connector on the PC. Then
connect the other end to the VGA video
interface connector on the back of the
LCD-TV.Tighten the screws on the VGA
connectors once they are firmly
connected;

4.Turn on the power of the LCD-TV first ,
and then turn on the power of the PC;

5.Press the TV/AV button to set the video
input mode of the LCD-TV to PC;

6.Check the image on your TV. There may be noise associated with the resolution,
vertical pattern, contrast or brightness in PC mode. If noise is present, change
the PC mode to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card can not be changed,change the PC graphic
card or consult the manufacturer of the PC graphic card.

Connection Instructions

VCR Setup

- To avoid picture noise (interference), leave an adequate distance between the
VCR and TV

Connection and use steps:

1.Read the user guide supplied with your AV devices and ensure that it has
Composite or S-Video connectors;

2.Make sure that the power of the LCD-TV and the AV device are off;

Connection Option 1

Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.

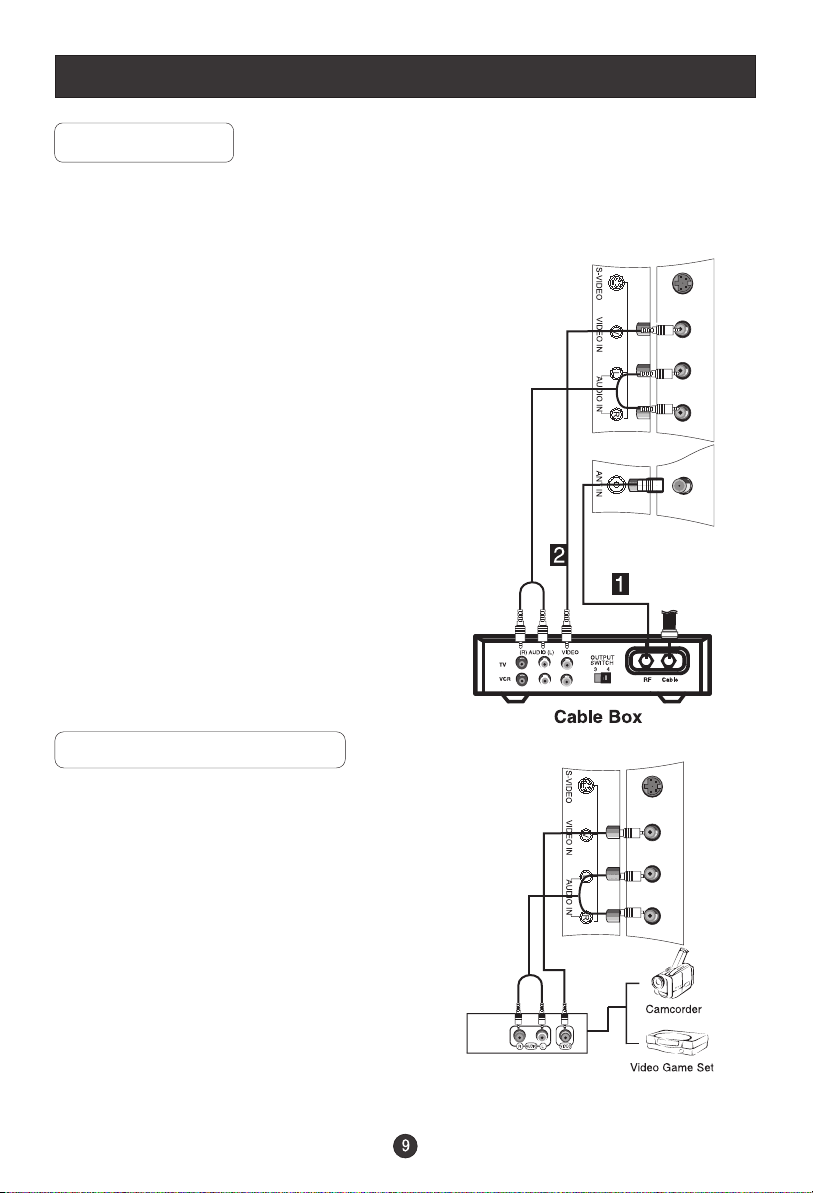

Connection Option 2

1. Connect the audio and video cables from
the VCR's output jacks to the TV input jacks,
as shown in the figure.
When connecting the TV to VCR, match
the jack colors (Video = yellow, Audio
Left = white,and Audio Right = red).
If you connect an S-VIDEO output from

.

VCR to the S-VIDEO input, the picture
quality is improved; compared to conne­ cting a regular VCR to the Video input.

2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner s
manual.)
3

.Turn on the LCD-TV first ; and then turn on the

power of the AV device;

4.Press the TV/AV button to set the video
input mode of the LCD-TV to
S-VIDEO mode or AV mode.

1

2

VCR

Connection Instructions

Cable TV Setup

- After subscribing to a cable TV service from a local provider you can watch cable
TV programming. The TV cannot display TV programming unless a TV tuner
device or cable TV converter box is connected to the TV.

- For further information regarding cable TV service, contact your local cable TV
service provider(s).

Connection Option 1

1. Select 3 or 4 with channel switch on cable
box.

2. Tune the TV channel to the same selected
output channel on cable box.

3. Select channels at the cable box or with
the cable box remote control.

Connection Option 2

1. Connect the audio and video cables from
the Cable Box's output jacks to the TV
input jacks, as shown in the figure.When
connecting the TV to a Cable Box, match
the jack colors
(Video = yellow, Audio Left = white, and
Audio Right = red).

2. Select the input source by using the TV/AV
button on the remote control.

3. Select your desired channel with the
remote control for cable box.

External AV Source Setup

How to connect

Connect the audio and video cables from
the external equipment's output jacks to the
TV input jacks, as shown in the figure.
When connecting the TV to external equip­ment, match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red).

How to use

1. Select the input source by using the TV/AV
button on the remote control.

2. Operate the corresponding external equi­ pment. Refer to external equipment ope­ rating guide.

Basic Operating Instructions

Turn on the LCD-TV

OPEN/CLOSE

POWER TV/DVD

TV/AV

MUTE

SLEEP Q.VIEW

INFO

1 2 3 4

5 6 7 8

CC

9 0

P.MODE

SAP

CH+

VOL

VOL

MENU

+

-

OK S.MODE

CH-

STOP

PAUSE/STEP

SETUP

SUBTITLE

REV FWD . PREV NEXT

D.MENU

A-B

REPEAT

SLOW

PLAY/ENTER

SEARCH

TITLE/PBC

ANGLE

PROGRAM

D.CALL

ZOOM

AUDIO

EXIT

GUIDE

ARC

10+

FAV.LIST

CH.LIST

Each time you press the TV/AV button, TV, AV, S-VIDEO,PC,
COMPONENT will appear on the screen in order.

Each time you press the TV/DVD button, the current inputs and DVD will
appear on the screen in order.

When the POWER button is pressed and the LCD-TV
is turned on, the indicator light on the front of the LCD-TV
changes from red to green(or from dark to light). When the
LCD-TV is turned off using the power button, the LCD-TV will
go into standby mode and the indicator light turns red(or
turns dark).

Note:
The display of the input mode will disappear in 3 seconds.

Audio Control

1.Press the VOL+ button to increase the volume. A number will appear
on screen indicating the volume level.

2.Press the VOL- button to decrease the volume. A number will appear
on screen indicating the volume level.

Mute

1.Press the MUTE button to mute the sound temporarily. A mute icon
appears on the screen.

2.Press the MUTE button or VOL+ again to restore the sound.
The mute icon disappears.

Basic Operating Instructions

Select the TV Channel You Want

You can use the number buttons on the remote control to directly select TV
channels.
And you can press the buttons on the remote control or on the panel to make a
selection.

Picture Mode

Press P.MODE button on the remote control for menu display . For desired mode as
follows:
CUSTOM STANDARD MILD VIVID

Sound Mode

Press S.MODE button on the remote control for menu display . For desired mode as
follows:
CUSTOM STANDARD MUSIC THEATRE

Sleep

Press SLEEP button to set the time :
SLEEP 15 MIN-SLEEP 30 MIN-SLEEP 45 MIN-SLEEP 60 MIN-SLEEP 90 MIN­SLEEP 120 MIN
This feature allows you to turn off the television after a pre-selected
minutes

number of

SLEEP OFF-SLEEP 5 MIN-SLEEP 10 MIN-

INFO

Press INFO button to display the current information.
In the digits channel of TV, press INFO button to display basic information,
press the second time to display DTV information.

GUIDE(only available in digital signal)

Press GUIDE button in digital channels to display Guide menu.(This menu is
just for you to see the information and can not be changed)
Press VOL+/VOL- to switch the page and CH+/CH- to select up and down for
you to look over.

Basic Operating Instructions

- button

Press to select additional channels (digital and analog) being broadcast by the
same station. For example, to select digital channel “11.1”, press “11”, then
press “-” and “1”; to select analog channel 13.0, press 13 first, then press ­and 0.(You must press - and 0 when you select analog channel. If you just press
the number(eg.13), you will get digital channel)

CH.LIST button(only available in digital signal)

Press to display the digital program list. Press CH+/CH- to select the item and
OK button to select the channel you desired.

FAV.LIST button(only available in digital signal)

Press to display favorite list. Press CH+/CH- to select the item and VOL+ to
select the channels and VOL- to select NONE.

ARC button

Press to select the aspect ratio among NORMAL, WIDE and ZOOM.

NOTE: WIDE is only available in some models.
The aspect ratio can only be adjusted when 16:9 signal input in DTV.

Menu Operations

* In this manual, the OSD (On Screen Display) may be differ from your TV
These are examples to illustrate the TV's operation.
Press TV/AV to select the input source. The menu for each source may be
different .

1. Press MENU button to display the main menu, and VOL+/VOL-to select the
main menu .

2. Press CH+/CH- to scroll through the parameters

3. Press VOL+/VOL- buttons to make changes to the parameters

4. Press the button to exit the menuEXIT

Video Menu Options

Picture quality can be adjusted for any input separately .

The picture quality on the screen can be adjusted as follows:

1. Press MENU button and VOL+/VOL- until the following menu appears
on the screen.

2. Press CH+/CH- button to enter the VIDEO menu and to go up and down to
select the desired option .

PC MENU

BRIGHTNESS
CONTRAST
SHARPNESS
COLOR TEMP

VIDEO

30
30
0

COOL

30

COMPONENT MENU

VIDEO

BRIGHTNESS
CONTRAST
SHARPNESS
COLOR
H POSITION
V POSITION

30
30
0

0
0

0

30

TV/AV/SVIDEO MENU

VIDEO

BRIGHTNESS
CONTRAST
SHARPNESS
COLOR

Only available in NTSC
system

NOISE REDUCE
TINT

Note: Symbols on top of the menu in this manual may differ from the actual set display

50
50

0
50

MID
50

Only available in analog signal

Menu Operations

Video Menu Options continued

3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .

4. Repeat step 2 and step 3 until desired picture quality has been achieved .

Function:

BRIGHTNESS :Adjust the brightness of the picture . By increasing the level, it
will lighten the dark parts of the picture and by decreasing the level it will
darken the lighter parts of the picture.

CONTRAST : Adjust the contrast of the picture . The contrast becomes higher as
the number increases.

SHARPNESS : Adjust the amount of the detail enhancement , the image
sharpness rises as the number increases (By increasing the level, it will show
cleaner and clearer images and by decreasing the level, it will make the picture
smoother).

COLOR : Press VOL+/VOL- to adjust the color

NOISE REDUCE: Adjust the quality of the picture by selecting OFF,LOW,MID,HIGH.

TINT : Adjust the tone of the picture . This will appear and can be adjusted only in
NTSC mode

COLOR TEMP : Press to select the color temperature from WARM/NEUTRAL/COOL

H POSITION : Picture horizontal adjust

V POSITION : Picture vertical position adjust .

Audio Menu Options

Sound can be adjusted for any input as follows:

1. Press MENU and VOL+/VOL- button until the following menu appears on
the screen

AUDIO

AUDIO MODE
VOLUME
BASS
TREBLE
BALANCE
AVL

STANDARD

50
30

70
50

OFF

Menu Operations

Audio Menu Options continued

You can adjust sound options to the levels you prefer.

2. Press CH+/CH- button to enter the audio menu and to go up and down to
select the desired option .

3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .

4. Repeat step 2 and step 3 until desired audio quality has been achieved .

Function :

AUDIO MODE : Press VOL+/VOL- to select among CUSTOM, STANDARD,
MUSIC and THEATRE .

VOLUME : Adjust the volume of your TV

BASS :

TREBLE :
mode .

BALANCE :
indication value of balance increases toward 100 , sound from the left speaker
becomes weaker . When indication value of balance decreases toward 0 ,
sound from the right speaker become weaker .

AVL:
limiting the same volume peaks across all channels .

Adjust the bass of the sound . Can only be stored under CUSTOM mode .

: Adjust the treble of the sound . Can only be stored under CUSTOM

Adjust the balance of the audio output from left to right . When

Automatic Volume Limit Control reduces the effect of high volumes by

Menu Operations

Function Menu Options

1. Press MENU button and VOL+/VOL- until the following menu appears
on the screen.

FUNCTION

INPUT SOURCE TV
LANGUAGE ENGLISH
CC MODE ON
NTSC CAPTION CC1
DTV CAPTION
LOCK
BLUE SCREEN ON
ASPECT RATIO NORMAL
TIME
OSD TIMEOUT SHORT
RESET

2. Press CH+/CH- button to enter the function menu and to go up and down to
select the desired option .

3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .

Repeat step 2 and step 3 until desired settings have been achieved .

4.

Functions:

1. INPUT SOURCE : Display current mode . There are TV, AV, S-VIDEO, PC,
COMPONENT to display .

2. LANGUAGE : Press VOL+/VOL- to select the OSD language.

3. CC MODE: Press VOL+/VOL- to select ON or OFF.

4. NTSC CAPTION(not available in PC) :Press VOL+/VOL-buttons to select
the Closed Caption options. Closed Captioning helps the hearing impaired
with the broadcast program, as well as helping children learn how to read.
A built in decoder displays the audio portion of a program as text on the
screen when this option is selected.
CC1: When CC1 on TV means CC MODE is turned on.

is displayed
CC2 to CC4: For other modes of video related broadcast information.
TT1: For program guide and other information displayed by broadcasters.
(This blocks a large portion of the picture on your screen).
TT2 to TT4 :For other modes of information displayed by broadcasters.
(This blocks a large portion of the picture on your screen).
IMPORTANT: Closed captioning availability entirely depends on broadcasters
supplying the signal. Therefore, closed captioning might not always be
available and language availability will differ by broadcast.

Menu Operations

Function Menu Options Continued

Note: Select CC1 for full translation of the primary language such as English in
your area. Select CC2 for secondary language translation such as French or
any other language that may be broadcast in your area.

5.DTV CAPTION (can only be available in DTV):Press CH+/- to select DTV

CAPTION and VOL+ to enter .

DTV CAPTION

DTV CAPTION SERVICE1
DTV CAPTION STYLE CUSTOMER
CUSTOMER

DTV CAPTION: This allows you to configure the way you choose to view the
digital captioning.
Select one of the digital service channels made available by the caption
provider.
There are 6 standard services. Service 1 is designated as the Primary
Caption Service. This service contains the verbatim, or near-verbatim
captions for the primary language being spoken in the accompanying
program audio.
Service 2 is designated as the Secondary Language Service. This service
contains captions in a secondary language which are translations of the
captions in the primary Caption Service. The other service subchannels are
not pre-assigned. It is up to the discretion of the individual caption provider
to utilize the remaining service channels.

DTV CAPTION STYLE: To select between DEFAULT and CUSTOMER.

CUSTOMER: (only can be entered when DTV CAPTION STYLE is Customer)
Press VOL+ to enter the following display: This allows you to modify how digital
captions are displayed on your TV. Select from the following options to change
the visual characteristics of your TV`s digital captioning.

DTV Caption Style

Size Normal
Font Font0
Text Opacity Solid
Text Color White
Edge Color Black
Edge Type None
BG Color Black
BG Opacity Solid

Size: Select this option to select the size of caption display according to your
own preference.
Press the VOL+/VOL- button to select them

Font: To select the font of caption display according to your own preference.
Press the VOL+/VOL- button to select Font0, Font1 Font2, Font3, Font4,

Font5, Font6, Font7.

Menu Operations

Function Menu Options Continued

Text Opacity: Specify the opacity for the text color.

Text Color: Select the text color or the opacity of the text box of caption display
according to your own preference.
Select a color and one of the opacity options.

Edge Color: Press VOL+/VOL- to select the edge color according your own
preference

Edge Type: Press VOL+/VOL- to select the edge color according your own
preference

BG Color: Select a background color.

BG Opacity: Select the opacity for the background color.

6.BLUE SCREEN: Press VOL+/VOL- to select ON or OFF. To set ON, the screen
will turn blue if there is no signal.

7.ASPECT RATIO(not available in PC): To select NORMAL, WIDE and ZOOM
.(WIDE is only available in some models)

8.TIME Press CH+/CH- to select this item and VOL+ to enter and display
as the following:

DATE/TIME
TIMER ON
TIMER OFF
SLEEP TIMER OFF
TIME ZONE ALASKA
DAYLIGHT ON

TIME

DATE/TIME: Setting the clock is necessary in order to use the various timer
features of the TV. Also, you can check the time while watching the TV.
Press VOL+ to enter the following menu to set:

DATE/TIME

MODE MANUAL
DATE 01/01/2005
TIME 00:00

DATE

01/01/2005

TIME
00:00

Setting MODE to AUTO or MANUAL. DATE and TIME can only be available in
MANUAL mode. Press VOL+/VOL- to select the position you want to change and
CH+/CH- to set.

TIMER ON: Press VOL+ to enter the submenu to set. When this function is used,
the TV can automatically turn the power on at the present time in the standby
status and display the preset program.

Menu Operations

Function Menu Options Continued

TIMER ON

MODE OFF
ON TIME --:--

ON TIME

--:--

Press CH+/CH- to select MODE and VOL+/VOL- to set it OFF/DAILY/ONCE.
Press CH+/CH- to select ON TIME and VOL+ to enter. Press VOL+/VOL- to select
the position you want to change and CH+/CH- to set.

TIMER OFF: Press VOL+ to enter the submenu to set.. Using this function can
turn the TV set automatically into standby status at the preconcerted time. Same
as adjustment of TIMER ON .

SLEEP TIMER: The sleep timer automatically shuts off the TV after a preset time
(from 0 to minutes)120

TIME ZONE: This functionallows you to select your local time zone. Broadcasted
time information will correct the clock display for your local time.

DAYLIGHT: DAYLIGHT is automatically set by specially broadcasted signals.
This menu item allows you to disable the automatic setting of daylight. This is
useful if you live in an area or state where daylight is no applied, but you receive
channels from other areas where daylight signals are broadcasted.

9. OSD TIMEOUT: Press to set the time of the OSD displaying on screen.

10. RESET : Press VOL+ to reset some settings to the factory default .

Adjust Menu Options

1. Press MENU and VOL+/VOL- button until the following menu appears on the
screen

ADJUST

AUTO CONFIG
PHASE
CLOCK
H POSITION
V POSITION

0

0
0
0

Note: This menu appears only in PC mode .

2. Press CH+/CH- button to enter the adjust menu and to go up and down to
select the desired option .

3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .

4. Repeat step 2 and step 3 until desired quality has been achieved ..

Menu Operations

Adjust Menu Options Continued

Functions:

AUTO CONFIG :

Automatically adjusts picture location frequency and phase

parameters .

PHASE :

Removes any horizontal distortion and clears or sharpens the displayed

characters .

CLOCK :

Adjust the TFT-LCD to match the PC input source clock frequency

H POSITION : Picture horizontal position adjust

V POSITION : Picture vertical position adjust .

Channel Menu Options

1. Press MENU and VOL+/VOL- button until the following menu appears on the
screen

CHANNEL

.

CH NO 11.1
NAME
TUNER CABLE
SKIP OFF
AFC ON
FINE TUNE
AUTO SCAN

63.25MHZ

Note: This menu appears only in TV mode .

Only available in analog signal

2. Press CH+/CH- button to enter the channel menu and to go up and down to
select the desired option .

3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .

4.

Repeat step 2 and step 3 until desired settings have been achieved .

Functions:

1. CH NO. : Press VOL+/VOL-to go up and down to set the channel number.
The display will show the current playing channel.

2. NAME: Allows you change the name of the channels in analog signal.
And display the channel name automatically in digital signal.

Menu Operations

Channel Menu Options Continued

3.

SKIP : If you want skip a channel , press VOL+/VOL- to select ON , and this
channel will be skipped next time when you press CH+/CH- . You can press
the digit buttons to select the channel . If you want to restore the channel , select
OFF.

4. AFC :

5. FINE TUNE :

Auto frequency control. Select ON to improve image quality .

If the image or sound received is not very good , you can
press CH+/CH- to select FINE TUNE in the menu . Then , press VOL+/VOL-
button to adjust and improve the image quality. Do not use this feature unless
reception is poor.

6. TUNER : Press VOL+/VOL- button to select AIR (VHF and UHF) and CABLE
reception preference.

7. AUTO SCAN :

Auto search and program channels .Press the VOL+ button

to start to search and the following menu will appears on the screen:

AUTO SCAN

Press or to select YES and MENU to confirm then the

CH+/CH- VOL+/VOL-

NO YES

automatic search function operation. All channels now available will be
automatically preset in order .After the search has finished, the first digital
program number will display on the screen. This search automatically adds
only the active channels in your area to the TV's memory. It deletes any
channels on which there is no broadcast or a poor signal.

Note: The AUTO SCAN function will scan the channels on the selected

antenna input. If the TV is connected to cable, please select CABLE under

' TUNER ' sub menu. The TV searches channels in analog first and then

searches channels in digital signal the second time.

Lock Menu Options

1. Press the MENU and VOL+/VOL- button until the FUNCTION menu appears
on the screen .

2. Press CH+/CH- button to select LOCK and VOL+ to enter, the following
will display on the screen:

PASSWORD

----

3. Then input the password 0000. It will bring LOCK menu display on the
screen. You will see the following menu on your screen:

Menu Operations

Lock Menu Options Continued

LOCK

CHANGE PASSWORD
PARENTAL LOCK ON
MPAA RATING PG
PG RATING TV-14
PG CONTENTS ( )
CA ENG RATING C8+
CA FREN RATING 8+
DOWNLOAD RATING

This function enables you to block certain TV channels in accordance to the
requirements established by the FCC.

PARENTAL LOCK: Press VOL+/VOL- button to select ON or OFF. parental

Lock
off means the lock function is turned off . If the Parental Lock is in "off" mode then
function will not be active to accept the Parental Guidance signal. Parental Lock
on means the lock function is turned on. If the lock is in the "on" mode then it
actively accepts the Parental Guidance signal.

MPAA RATING:

When MPAA rating is selected, you can select OFF/G/PG/PG 13

R/NC17/X .

PG RATING:

Select the TV Rating option. You can select from OFF/TV-Y/TV-Y7/

TV-G/TV-PG/TV-14/TV-MA.

PG CONTENTS: Press to set the grade of the program . When there is this
grade of program , this program will not be display .

CA ENG RATING: Select this option. You could select from OFF/C/C8+/G/PG/
14+/18+ .

CA FREN RATING: Select this option. You could select from OFF/G/8+/13+/16+/
18+ .

CHANGE PASSWORD: The "Default Password" preset by the manufacturer is
"0000" . If you want to change the preset password to your own password, just
choose any four digits that can be easily remembered and set. Once you set
password for a particular channel, that channel will be blocked.

Menu Operations

Lock Menu Options Continued

PARENTAL LOCK TECHNOLOGY:

The "P.L. Technology" allows you to use U.S. and Canadian Movies and TV
PROGRAMS Guide ratings to block certain types of TV programs and movies.

To clearly understand TV program rating codes, read the following information:

U.S. TV Program Ratings
NR: Not Rated-this means that programs are not rated or rating does not apply.
TV-Y: For all children - these types of rated programs are designed for a very young
audience, including children from ages 2-6.

TV-Y7: Directed towards older children - this type of rated programs may include
comedic violence of mild physical, or may frighten children under the age of 7.
TV-G: General audience - these types of rated programs contains little or no
violence, no strong language, and little or no sexual dialogue and situations.
TV-PG:Parental Guidance Suggested-this type of rated programs may contain
limited violence, some suggestive sexual dialogue and situations, and rare
language.
TV-14: Parents strongly cautioned-these types of rated programs may contain sexual
content, strong language and more intense violence.
TV-MA:Mature audience only these types of rated programs may contain sexual
violence, explicit sexual content and profane language.
FANTASY VIOLENCE : This type of rated programs contain Fantasy and cartoon
violence.
DIALOGUE: This type of rated programs contain dialogue with sexual content.
LANGUAGE: This type of rated programs contain offensive language.
SEX: This type of rated programs contain sex.
VIOLENCE: This type of rated programs contain violence.

To understand clearly about movie rating codes, read the following list:
U.S. Movie Rating Chart
NR: This means movie is not rated yet. It is pending government rating approval.
G: General Audience-this type of movie rating means all ages admitted to see
the movie.
PG: Parental guidance suggested. Some material may not be suitable for children.
PG 13:Parents Strongly Cautioned - this type of movie rating means some material
may not be appropriate for children under13.
R: Restricted- This type of movie rating means children under 17 of age require
to be with parent or guardian.
NC 17:This type of movie rating means no one 17 and under admitted.
X: This type of movie rating means adults only.

Menu Operations

Lock Menu Options Continued

To clearly understand Canadian program rating codes, read the
following list:

Canadian English Rating Chart

C: This type of programming is intended for children under age 8. There is no
offensive language, nudity or sexual content.
C8+:These types of rated programs are generally considered acceptable for children
8 years and over. There is no profanity, nudity or sexual content.
G: These types of rated programs are generally suitable for all audiences.
PG: Parental Guidance Suggested -in these types of rated programs, some material
may not be suitable for children.
14+: In these types of rated programs, some content may not be suitable for viewers
under the age of 14.Parents are strongly cautioned not to have their children
view 14+ rated programs by pre-teens and early teens.
18+: Adults Only-these types of rated programs are only for adult viewers only.

Canadian French Rating Chart

OFF: NO controls
G:These types of rated programs are generally suitable for all audiences.
8+: Children 8 years and above (French)
13+: 13 years old and above(French)
16+: 16 years old and above(French)
18+: Adults Only-these types of rated programs are only for adult viewers only.

DVD Features

Basic Playback

Preparations

Preparations

Stop playback

Stop playback

Press the TV/DVD button on the remote control
to enter the DVD status.

Basic playback

Basic playback

1.Place a disc in the disc tray. If there is no disc
placed on the disc tray in DVD mode, OPEN will
display on the screen all the times)
There is only one disc size . Place the
disc in the guide on the disc tray. If the
disc is out of the guide, it may damage the disc
and cause the DVD player to malfunction.
Do not place a disc which is unplayable in this
DVD player.

2. After the disc tray entered, the playback will
automatically start.

Some discs do not start automatically. Press

Some discs do not start automatically. Press
PLAY/ENTER to start playback.

PLAY/ENTER to start playback.

3. Some discs may start playback with a menu. Use
the cursor buttons on the remote control to select
menu options and press PLAY/ENTER to start. You
may also press the digit buttons to select a menu
option directly. Many DVDs will not allow this during
start-up.

Pause playback

Pause playback

1. Press PAUSE/STEP to pause playback (still mode).
The sound will be muted during still mode.

2. Press PLAY/ENTER to resume normal playback.

1. Press STOP button to go to stop mode, the TV
screen will show the start logo.
such as DVD or CDs, the player can resume
playback from the point where it was stopped.

Press PLAY/ENTER to resume playback from the

2.
location where the playback was stopped.

3. Press STOP twice to stop completely.

Previous and Next

Previous and Next

During Playing, pressing the PREV key will
restart the last chapter and skip chapters
backwards with each subsequent press until the
start of the disc is reached.
Each press of NEXT key during playing will
skip the current chapter and play the next one.

Fast forward and Fast reverse

Fast forward and Fast reverse

1. Press FWD to fast forward through the disc.

Each time the FWD button is pressed, the
fast forward motion speed changes.

2. Press PLAY/ENTER to resume normal playback.

3. Press REV to fast reverse through the disc.

Each time the REV button is pressed, the
fast reverse motion speed changes.

4. Press PLAY/ENTER to resume normal playback.

Single step playback

Single step playback

1. When paused, press PAUSE/STEP continuous

to single step forward to the next frame in the
video.

2. Press PLAY/ENTER to resume normal playback.

With some discs,

DVD Features(Continued)

Advanced Playback

IMPORTANT NOTE:

ALL DESCRIBED FUNCTIONS A FOR DVD DISCS. IF YOU PLAY OTHER DISC
FORMATS THE OPERATION AND ON SCREEN DISPLAY WILL BE DIFFERENT.

PROGRAM

CAPTION

SUBTITLE

Press " SUBTITLE ", the screen will display "SUBTI­TLE 01/XX XXXXX", "01" indicates the ordinal
number of this language; "XX" indicates total number
of language; "XXXXXX" indicates the language of
country. (the number of language depends on disc).
This function can select up to 32 languages display­ed on screen.

REPEAT

REPEAT

Press " REPEAT " and Chapter repeat will be
displayed on screen, the second press will display
Title repeat, the third press will display All repeat,
the fourth press will cancel this function.

A-B

A-B

Press " A-B " to begin start-point, press again

Press " A-B " to begin start-point, press again
to set an end point and complete setting. The

to set an end point and complete setting. The
selected section A-B will be repeated. The third

selected section A-B will be repeated. The third
press will cancel this function.

press will cancel this function.

PROGRAM

When playing discs, press "PROGRAM" to enter
program mode. Press the digit buttons to select the
program number that you want. When finished move
the cursor to select "START" . Press PLAY/ENTER
to confirm. This will start the program playback.

SEARCH

SEARCH

Press "SEARCH" once to display the search
menu. Press the button again to select. Press
the program number buttons to input the item
you require. Press PLAY/ENTER to confirm.

SLOW

SLOW

Press SLOW to play a disc in slow motion. Each
time the SLOW button is pressed, the slow
motion speed changes.
Press PLAY/ENTER to resume normal playback;

Note: This function dose not work for CD .

ANGLE

ANGLE

When enjoying sports, concert or theatre, press this
key to watch same actions in different angles. (Valid
for discs possessing this function. Using a disc
recorded in multi-angle you can view the scene from
different angles,for example,front, side, whole view
and exterior scene).

D.MENU

D.MENU

Press this key to display the root menu, select
items according to your preference. (This
function will work on a DVD with a multi-layer
menu.)

D.CALL

D.CALL

Pressing this key will cycle through "Title Elapsed",
"Title Remain", "Chapter Elapsed", "Chapter Remain"
and "Display off ".

TITLE/PBC

TITLE/PBC

With some DVD discs pressing this key will display
the title menu. You can then use the digit buttons
to select the item you prefer.

AUDIO

AUDIO

Press this key can change the mode of audio.
such as: Audio 1/2: AC 3 2 CH English
Audio 2/2: AC 3 5.1 CH English
Press this button to cycle between Mono Left, Mono
Right, Mix-Mono and Stereo.

Note: When press this button continuously, you must

allow a 3 second interval between selections.

Special Function Playback

JPEG DISC PLAYBACK

When a disc containing standard JPEG picture files is inserted into the player, a
navigation menu will be displayed automatically. Use the UP and DOWN cursor
buttons to select a file then press PLAY/ENTER. The slide show will commence.
Press PREVIOUS or NEXT to move between pictures. Press pause to stop on the
current picture. Press PLAY/ENTER to resume normal playing.
A JPEG disc contains JPEG (.jpg) format picture information that can be decoded
by a micro-computer software and displayed through the video output interface or on
the television screen.
This function has many applications. For example one can save files from a scanner
or digital camera in the JPEG format, record these on a CD-R disc and present them
to an audience through this player.
The JPEG format is a convienient method to store images in a small amount of
memory space, and is ideal for archiving information.

SCREEN SAVER FUNCTION

This unit employs a screen saver mode to help protect the tube during static video pictures. This can
be turned off on the GENERAL SETUP PAGE.

DVD System Setup

DVD System Setup

General Setup Process

SETUP

PLAY/ENTER

1.Press the SETUP button, the
General Setup Page,Preference
Page will be displayed in turn.

2.Press CH+/- b to select, the
item, then press to enter the
submenu.

3.Press CH+/- bu to select then
press PLAY/ENTER to confirm.

or

or

..General Setup Page..

.

Tv Display LB
Angle Mark On
Osd Lang ENG
Caption On
Screen Saver Off

4 3:Ps

.

4 3:Lb
16 9

SETUP

PLAY/ENTER

4.Press SETUP repeatedly to
exit the set-up menus.

General Setup Page

..Preference Page..

Parental

Password

Default

1 Kid Saf
2 G
3 Pg
4 Pg 13
5 Pgr
6 R
7 Nc17
8 Adult

ASPECT RATIO DESCRIPTION

When using the DVD with the internal TV,
select 4 3/LB.

The following information applies only
when the DVD output is connected to an
external TV.

4:3/PS (PS = Pan and Scan)
You may select if you have a normal aspect
ratio (4:3) TV, although the NORMAL/LB
(letter box) is a more common choice. In PS
mode, widescreen material will fill the screen, but at the expense of chopping
off extreme left and right edges of the original film picture. For this feature to
work, the disc must be specially coded. Such discs are uncommon.
4:3/LB (LB = Letter Box)
You may select this if you have a normal aspect ratio (4:3) TV. Widescreen
material will be shown in pure unaltered form, allowing the entire picture area
of the original film to be viewed without any side cropping. Black bars will
appear above and below the picture.
16:9
You may select this if you have a widescreen (16:9) TV. Back bars may still
appear above and below the picture even if using a widescreen TV. This is
because some film directors prefer to use ultra widescreen aspect ratios e.g.

2.35:1. This will normally be indicated on the DVD packaging.

..General Setup Page..

.

Tv Display LB
Angle Mark On
Osd Lang ENG
Caption On
Screen Saver Off

4 3:Ps

.

4 3:Lb
16 9

DVD System Setup(Continued)

DVD System Setup

General Setup Page

ANGLE MARK: Users can select a particular

camera angle when playing a DVD which offers

.

multiple angles.

This item allows you to set Angle Mark ON or OFF.

On Screen Display (OSD) Language: Users
can select on-screen display language.

CAPTION: This function allows you to display or
hide the caption.

..General Setup Page..

Tv Display LB
Angle Mark On
Osd Lang ENG
Caption On
Screen Saver Off

..General Setup Page..

Tv Display LB
Angle Mark On
Osd Lang ENG
Caption On
Screen Saver Off

..General Setup Page..

Tv Display LB
Angle Mark On

Osd Lang ENG

Caption On

Screen Saver Off

On
Off

English

Spanish

On

Off

SCREEN SAVER: If the screen saver is on, then
there will be an animated picture of DVD on the
screen whenever the DVD player is idle for more
than 3 minutes .

..General Setup Page..

Tv Display LB
Angle Mark On

Osd Lang ENG

Caption On

Screen Saver Off

On

Off

DVD System Setup(Continued)

DVD System Setup

Preference Page

The Preference Page is only available when there is no disc
in the player.

SETUP

PLAY/ENTER

SETUP

PLAY/ENTER

PARENTAL: The parental
control function works in
conjunction with the
different censorship classes
assigned to DVDs. These
classes help to control the
types of DVDs that the family

..Preference Page..

Parental

Password

Default

1 Kid Saf
2 G
3 Pg
4 Pg 13
5 Pgr
6 R
7 Nc17
8 Adult

watches, There are up to 8
censorship classes for DVDs.

Note:
1 To change this setting you must enter your password.

(Initial password is )
2 When set to OFF, all discs may be viewed.

PASSWORD CHANGE:

You can change your password by
entering 4 digits. You must confirm
the 4 digits before the new password
can be accepted.

1234

..Preference Page..

Parental

Password Change

Default

NOTE:If you forget your password
or a password is accidentally set

1369

enter as the password. This
will enable you to regain control.

Old Password

New Password

Confirm Pwd

DVD System Setup(Continued)

DVD System Setup

SETUP

PLAY/ENTER

DEFAULT: Resets all settings

(except password and parental
lock status) for this DVD player
back to the manufacturers
original settings. Press ENTER

..Preference Page..

Parental

Password

Default

Reset

to perform the reset.

Note:

Some functions may not be available depending on the type of disc.

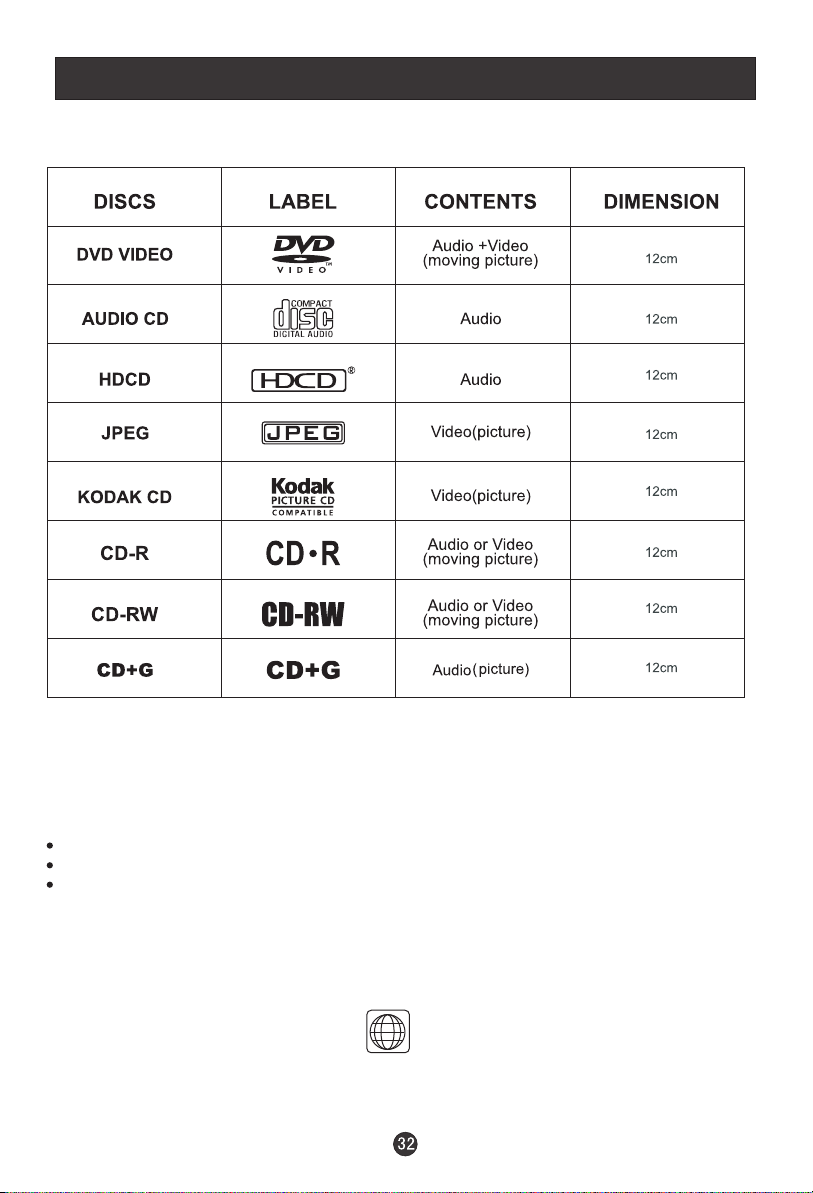

Playable Discs

The following discs can be played:

You cannot play discs other than those listed above.
You cannot play non-standardized discs, even if they may be labelled as above.
The performance of CD-R or CD-RW disc depends on the way the disc was burned. In a few cases,
their performance may not be consistant or may not even operate at all.

This DVD Player is designed and manufactured according to the Region Management
Information that is recorded on a DVD disc. If the Region number described on the DVD disc
does not correspond to the Region number of this DVD Player, this DVD player will not play
that disc.

This Region number of this DVD Player is .

11

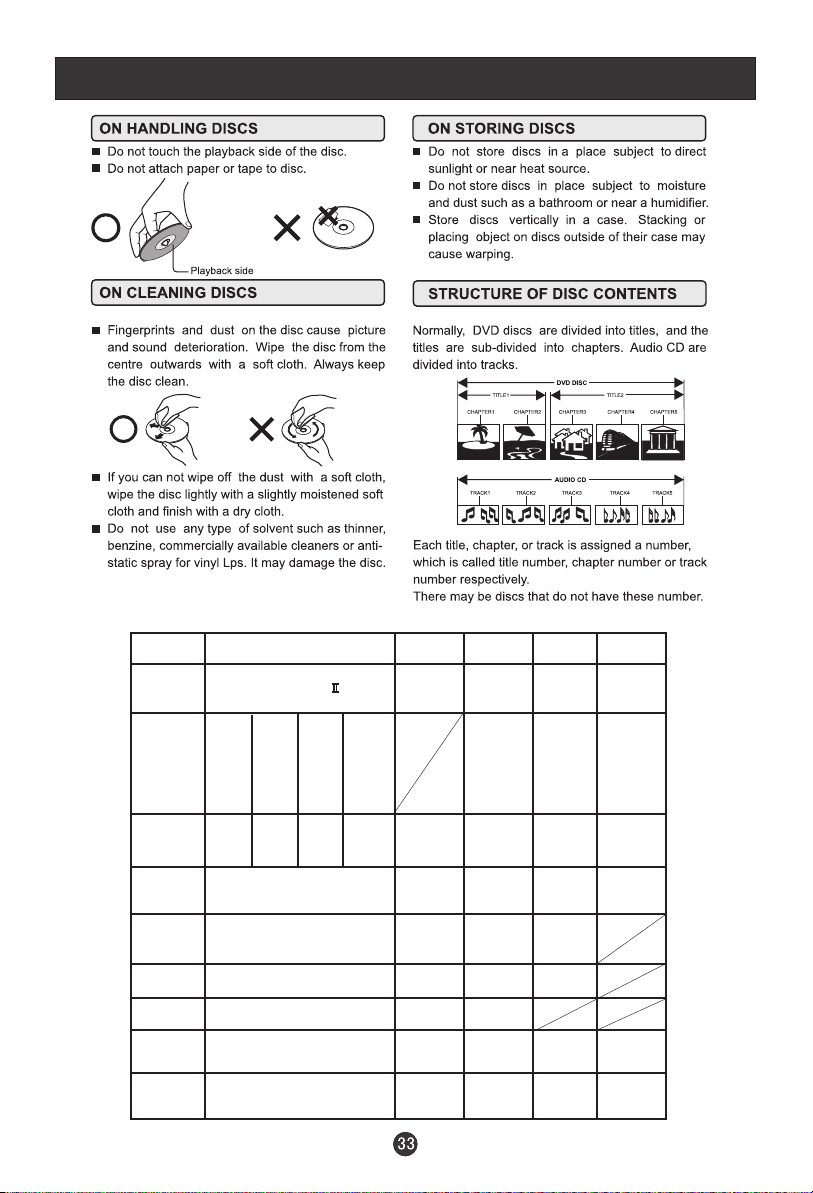

Disc Protection and DVD Characteristics

Compare DVD disc with other discs:

Encode
method

Capacity

Playing Time

Disc diameter

Horizontal
resolution

proportion

Subtitle

Language

Sound quality

Single­side
single­layer

4.7G

133
minutes

DVD LD

Digital/MPEG

Double

Single-

-side

side

single

double-

-layer

layer

8.5G

9.4G

242

266

minutes

minutes

12cm 12cm

More than 500 line

Multiple kinds

32 kinds

8 kinds

48KHz, 96KHz/

6, 20, 24bit

Double­side
double­layer
17G

484
minutes

Analog

Single-side
60 minutes
double-side

120 minutes

30cm/20cm

No more than

430 line

One kind

16 kinds
at most

4 kinds
at most

44.1KHz/
16bit

SVCD

Digital

650MB 650MB 650MB

45 minutes

12cm 12cm

No more than

350 line

One kind

4 kinds

4 kinds
at most

44.1KHz/
16bit

VCD CD

Digital/

MPEG

74 minutes 74 minutes

No more than

250 line

One kind

2 kinds 2 kinds

44.1KHz/
16bit

Digital

I

44.1KHz/
16bit

Troubleshooting Guide

To assist in location possible faults use help guide below.

Troubleshooting

No picture, no sound

Blank screen

No sound

Poor sound

No picture in some
channel

No color for some channel
program (black and white)

Spots with some or
all pictures

Abnormal functioning

Verify if the television is properly plugged in.
Verify if the television is properly supplied with power.
Verify that electricity is available.

Verify if correct signals are input.
Press TV/AV button to change signal input to TV input.
Restart the television of power supply is interrupted.

Press MUTE button and verify if Mute mode is on.
Switch to another channel and verify if the same problem
happens.
Press VOL+ button to see if the problem can be solved.

Verify if sound system is functional. Refer to chapter on
adjusting.

Verify if correct channel is selected.
Adjust the antenna.
Make adjustments by FINE TUNE

Verify if the same problem exists in other channels.
Check picture and sound systems.
Refer to relative instructions in the Manual for color
adjust.

Verify if the antenna is correctly connected.
Verify if the antenna is in good condition.
Make fine adjustment of channel.

Disconnect the television from power supply and, 10
seconds later, reconnect to the power supply.
If the problem still exists, contact an authorized
service depot for technical assistance.

Note:

1.If the fault can not be repaired using the above guide consult with your local authorized
service center.

2.The TV set must only be repaired by a qualified registered service person. Never attempt to
remove the back cover as the TV set has dangerous voltages levels inside that may be

fatal or cause fire.

Specifications

Specifications of the television that you have just purchased may
vary from the information in this table due to technical innovations.

Model

Picture, sound
system

Audio output

External input port

Power requirements

Power consumption

Temperature

Humidity

Accessories

HLC15B/HLC15E

NTSC, ATSC, Cliar QAM

HLC19E/HLC19W

1.5W+1.5W

AV input PC input S-VIDEO input PC audio input
Headphone output YPbPr input Antenna input

~120V 60Hz

60W

Working:+5 ~+35

Storage:-15 ~+45

Working:20% ~ 80%

Storage: 5% ~ 90%

Remote control
Batteries
User manual

80W

NOTE

Design and specifications are subject to change without notice.
Dimensions quoted in this manual are approximate.

Warranty

Warranty

Warranty

and one year parts .

90 days labor

V0.2
0090508051C
